SPECIFICATIONS

Application: Computer

Brand Name: OLNYLO

Condition: New

Hign-concerned Chemical: None

Model Number: LM2596 with LED Display

Operating Temperature: -40-+85

Origin: Mainland China

Package: SMD

Supply Voltage: DC4.0-40V to 1.25-37V

Type: Voltage Regulator

is_customized: Yes

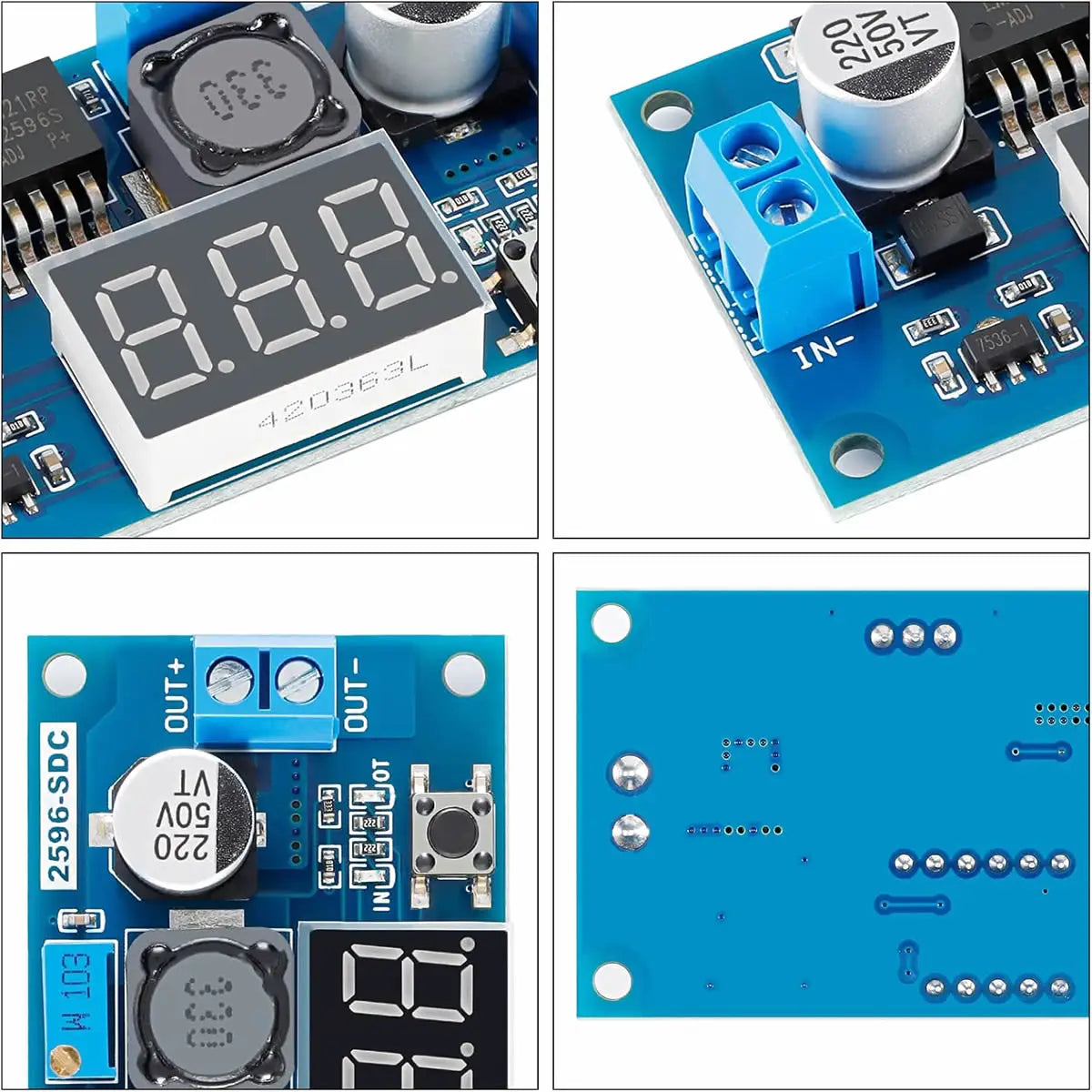

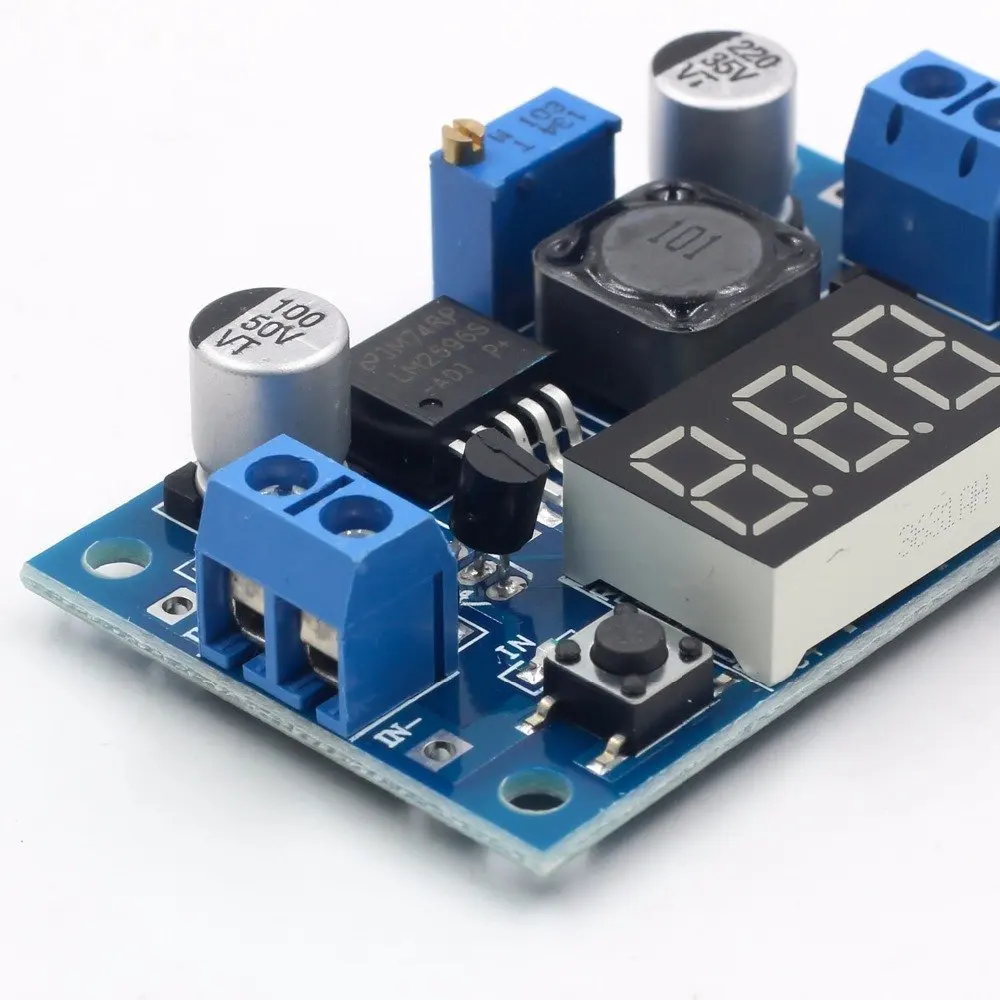

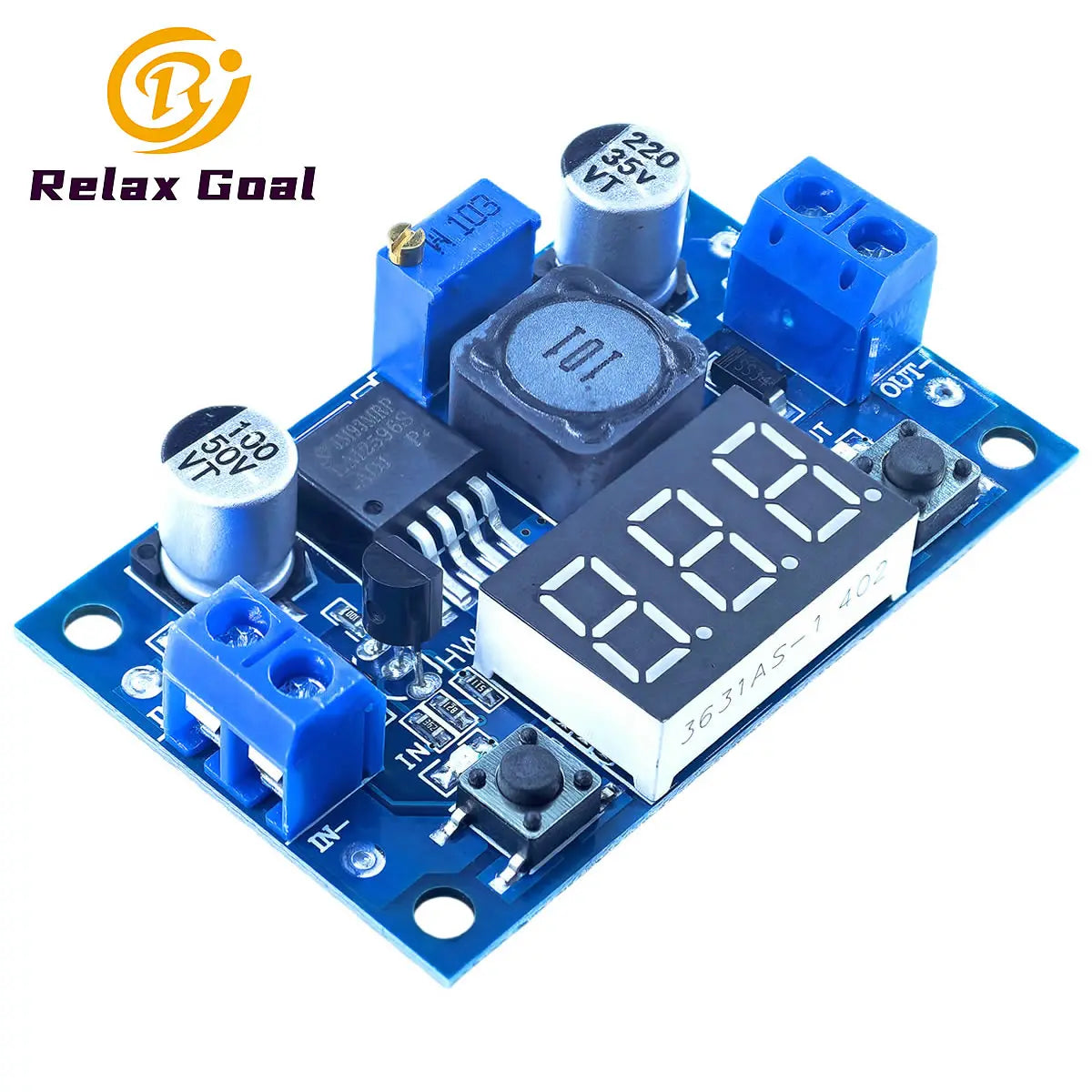

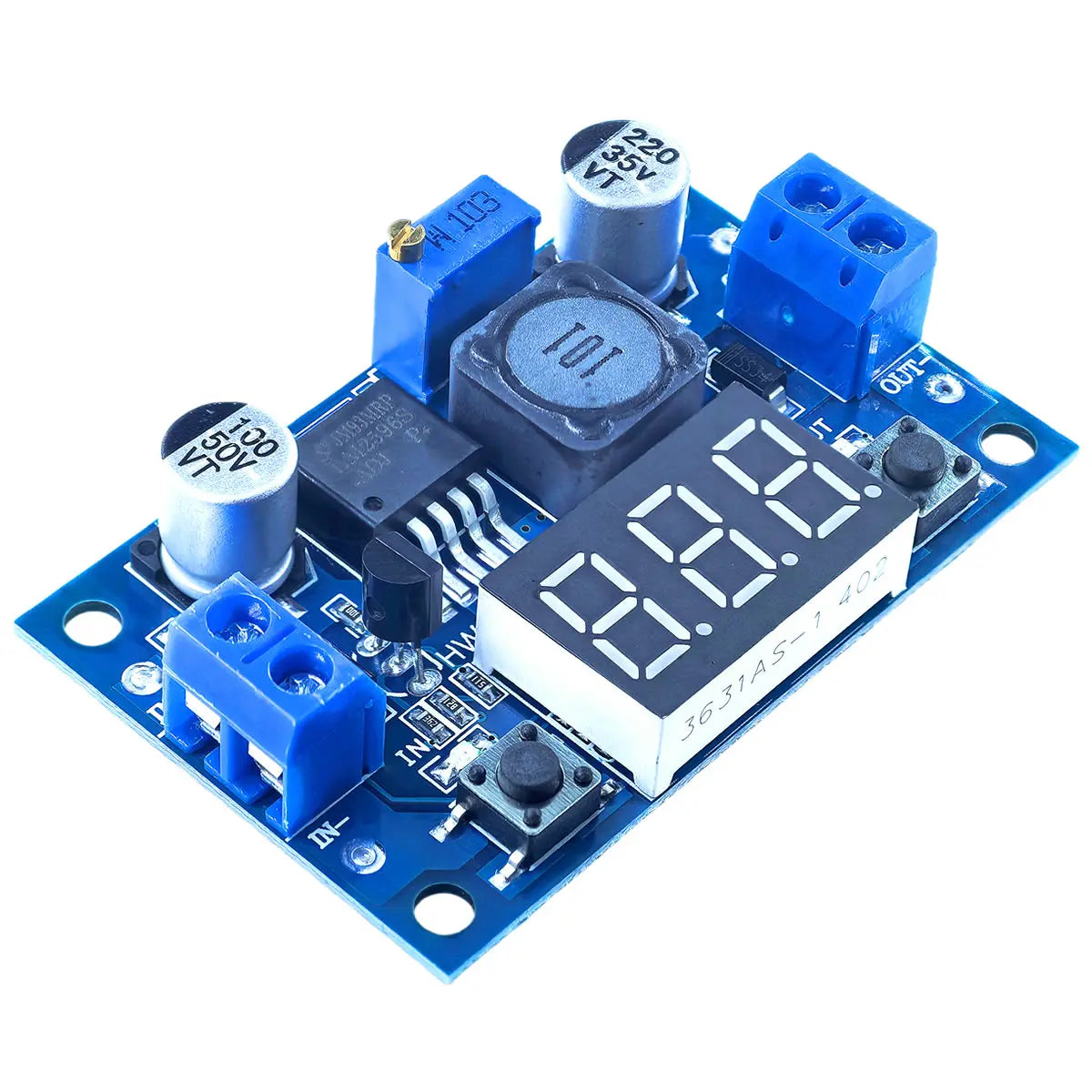

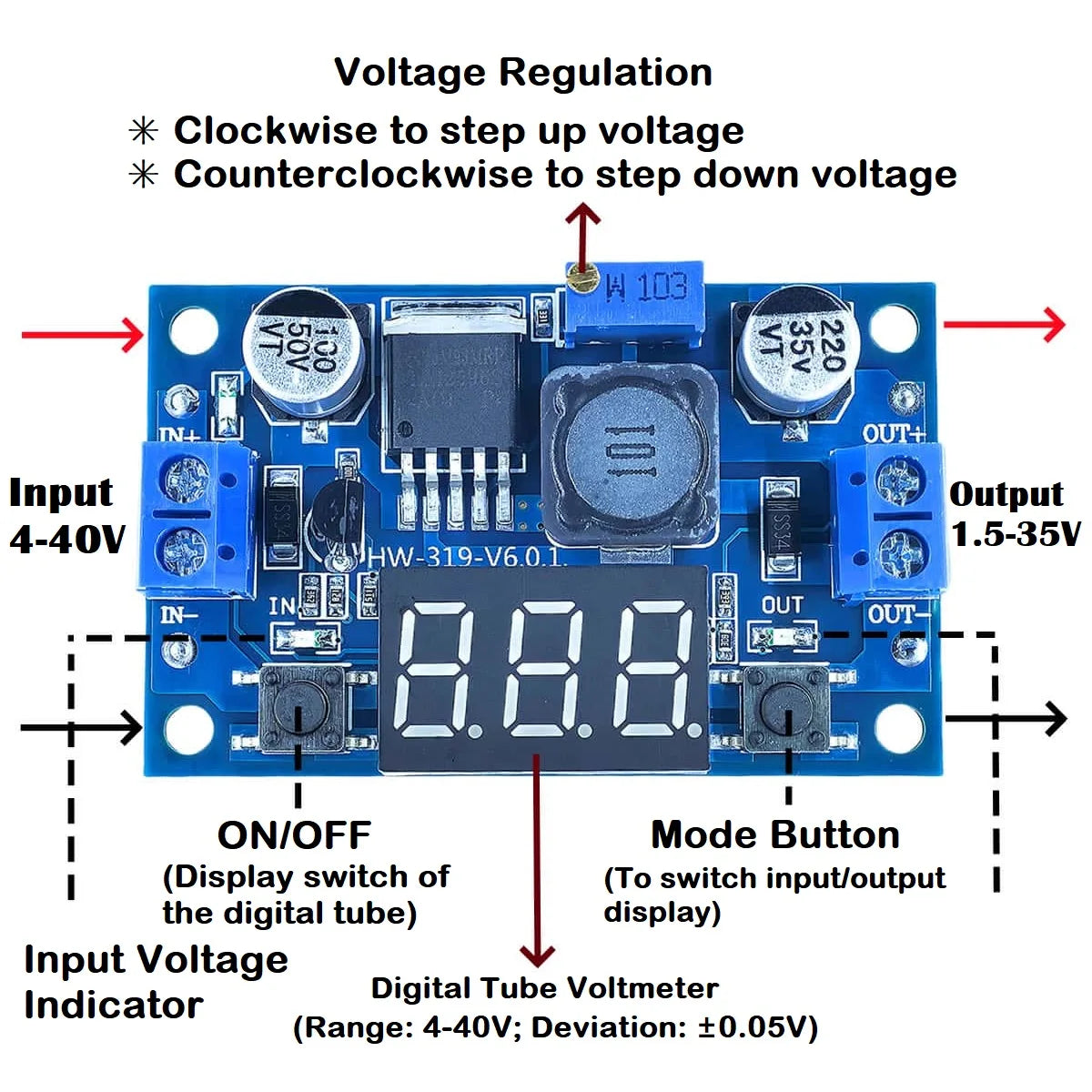

LM2596 Adjustable Voltage Regulator 4.0-40V to 1.25-37V DC36V 24V 12V to 5V 2A Step-Down Power Module with LED Voltmeter Display

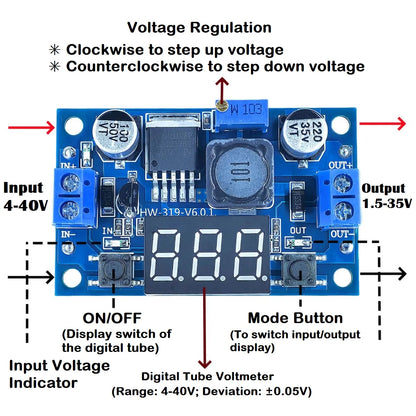

1. There are two buttons on the left side of the voltmeter, one is for input voltage display and the another is for output voltage display. You can press one of the two buttons to choose the voltmeter to display input voltage or output voltage.

2.There are output voltage adjustment "-" button for decreasing output voltage and output voltage adjustment " +" for increasing output voltage.

3. There are two LED indicators on this converter board, including the red LED and the green LED. The red LED will light on when you measure input voltage and green LED will light on when you measure output voltage.

4.It is low power consumption, and has terminal and retain the wire bonding wiring point. And If you remove the P3 jumper cap, the voltmeter will shutdown.


Parameters:

Module Model:LM2596 Buck Converter + Voltmeter

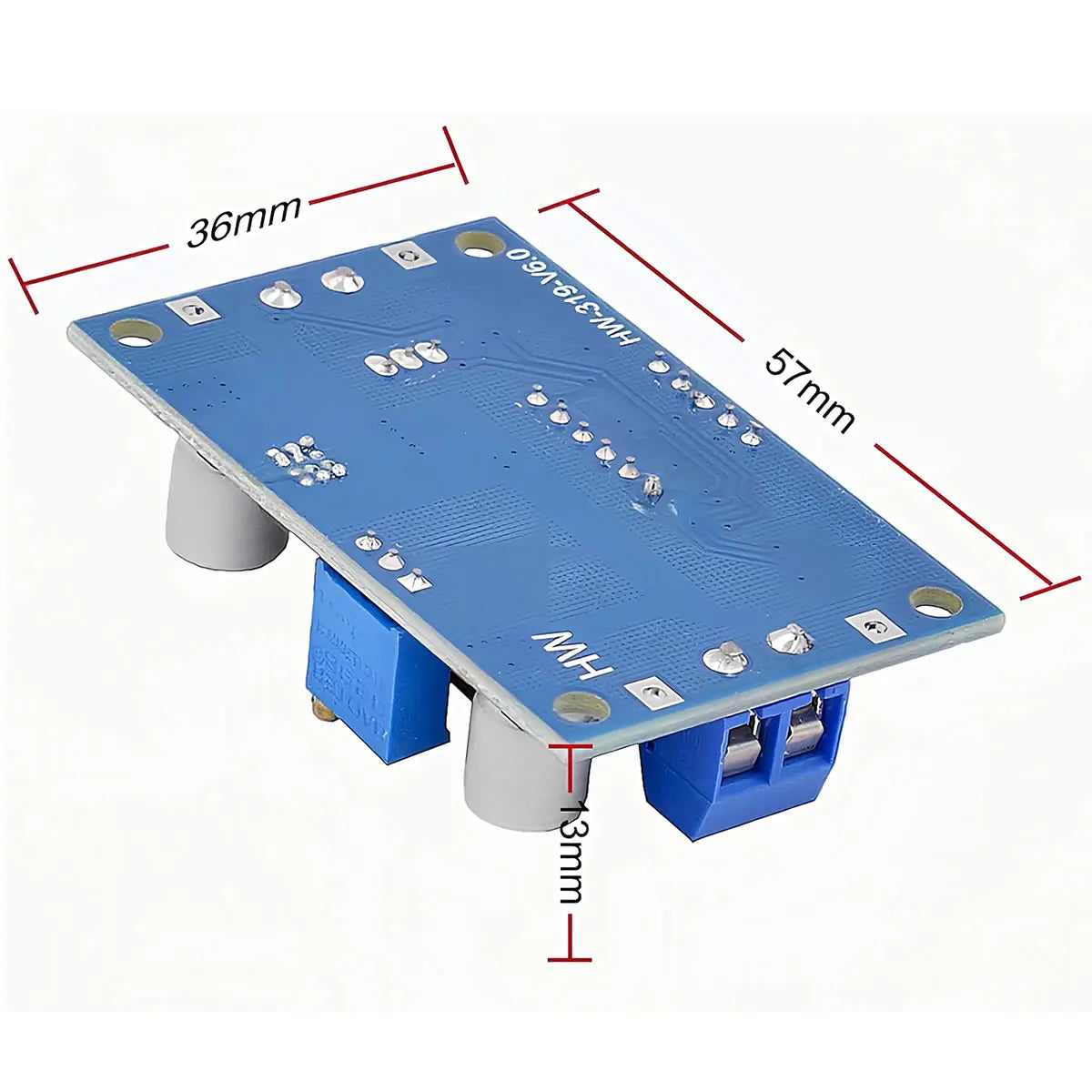

Cutting Size: 66.04mm x 35.05mm

Input Voltage: DC 4~40V

Output Voltage: 1.25V~37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)

Output Current: 2A(normal and stable), 3A Max.

Ripple Frequency: About 150Khz

Ripple Peak: About 100mV

Display Color: Red

Voltage Meter Error: ± 0.1V

Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V)

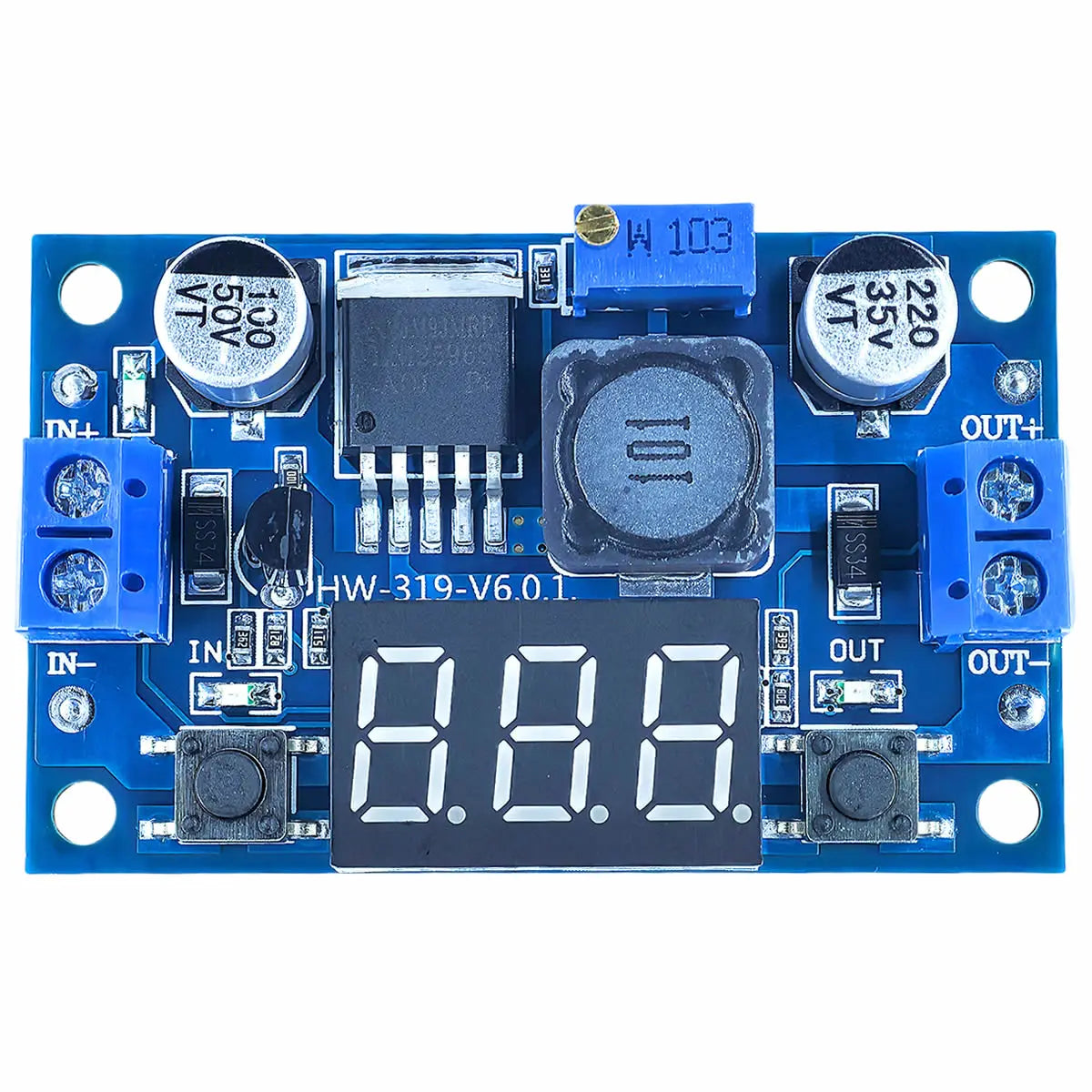

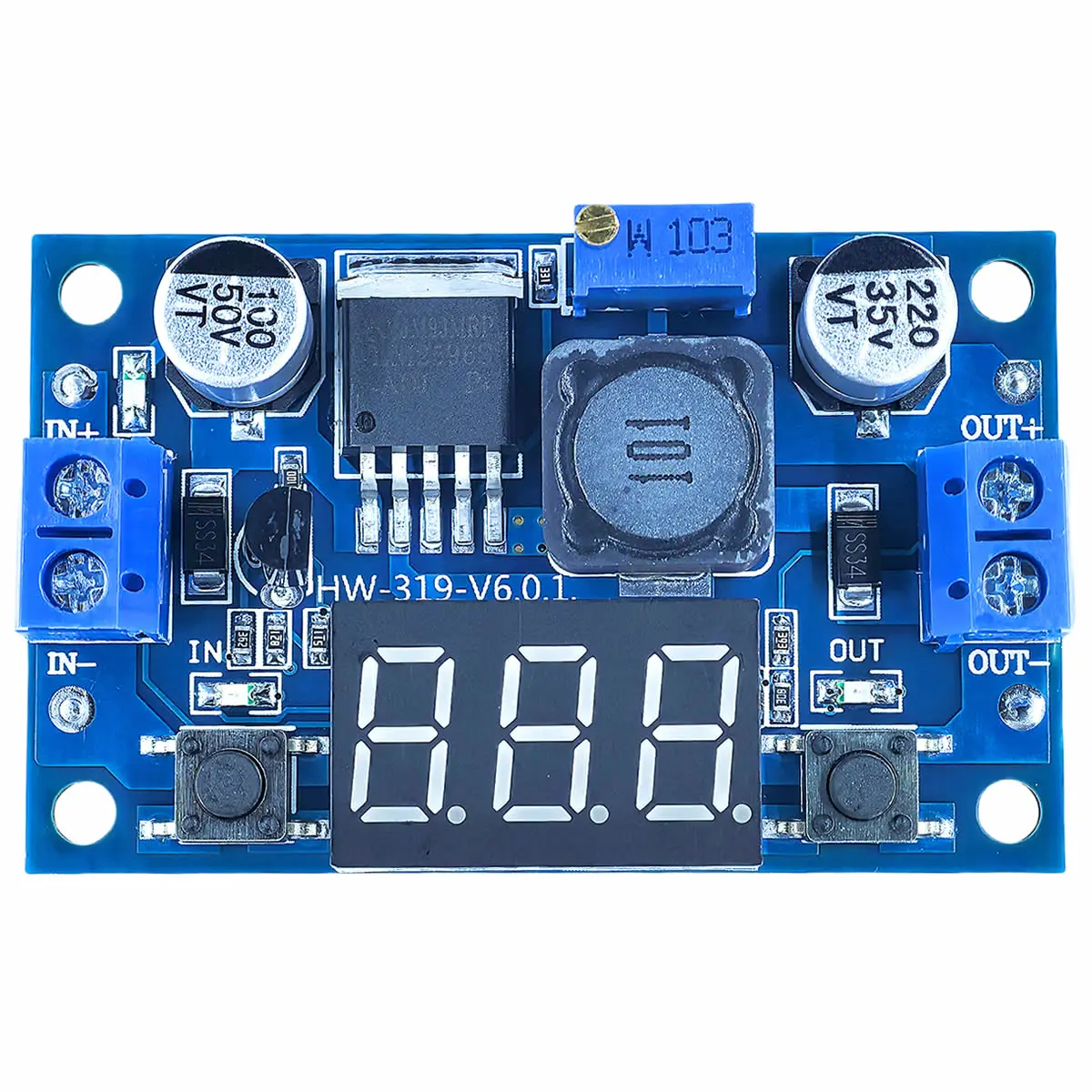

Wiring connection:

IN+: connect IN+ to your Input Positive

IN-: connect IN- to your Input Negative

Out+: connect OUT+ to your Output Positive

Out-: connect OUT- to your Output Negative
