Pluma Tester Lógica Digital 5V/3.3V Debugger Circuito Placa Aprendizaje con Línea Herramienta Producción Electrónica
Pluma Tester Lógica Digital 5V/3.3V Debugger Circuito Placa Aprendizaje con Línea Herramienta Producción Electrónica
Precio habitual
$10.940 CLP
Precio habitual
$10.061 CLP
Precio de oferta
$10.940 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: VODOOL
Choice: yes
Condition: New
Hign-concerned Chemical: None
Logic Pulser Analyzer Detecting Probe: Logic Tester Pen Level Tester
Logic Tester Pen: High Low Level Tester
Origin: Mainland China
Type: Logic ICs

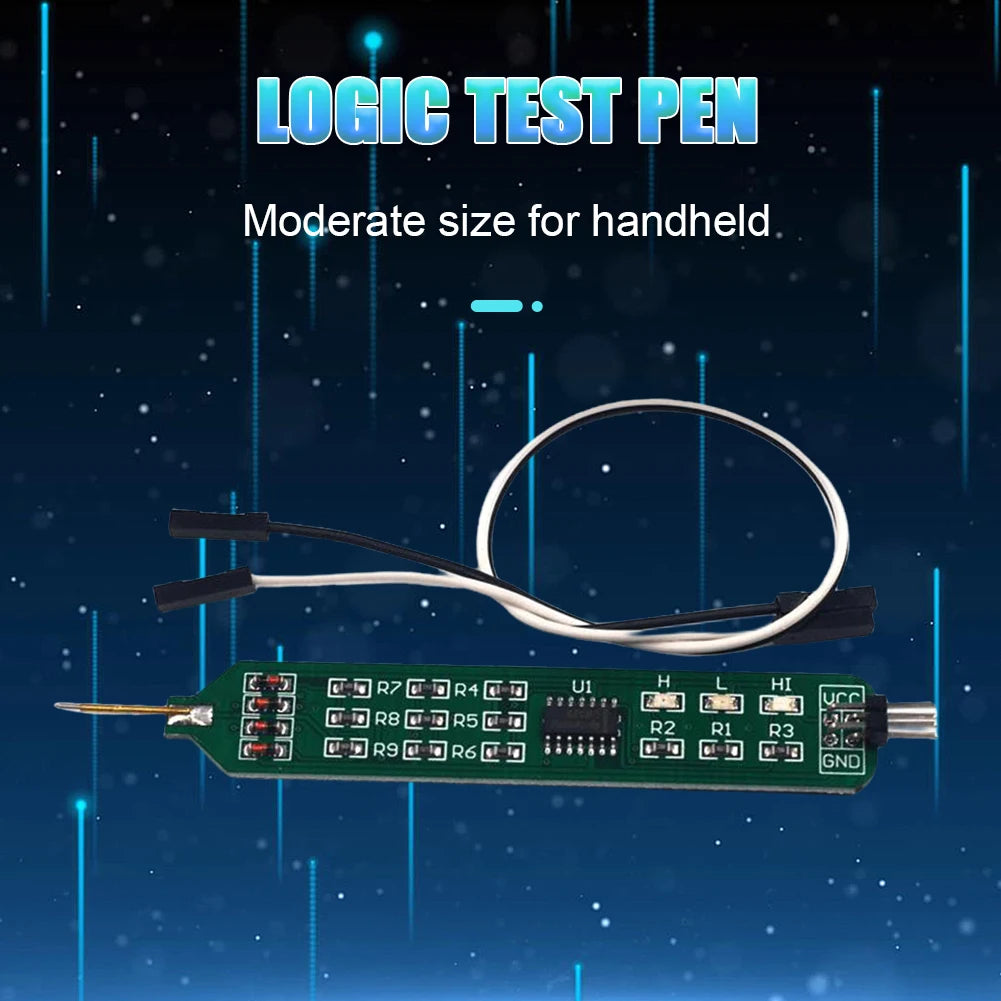

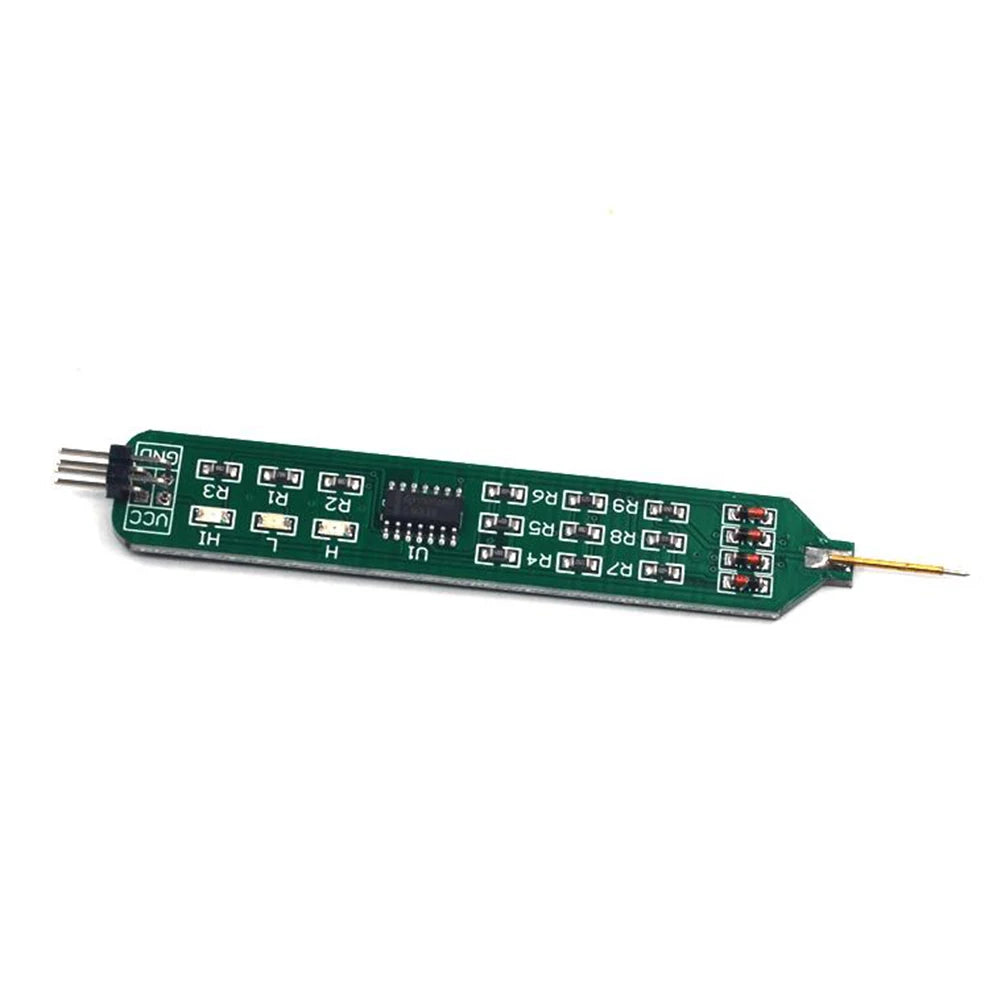

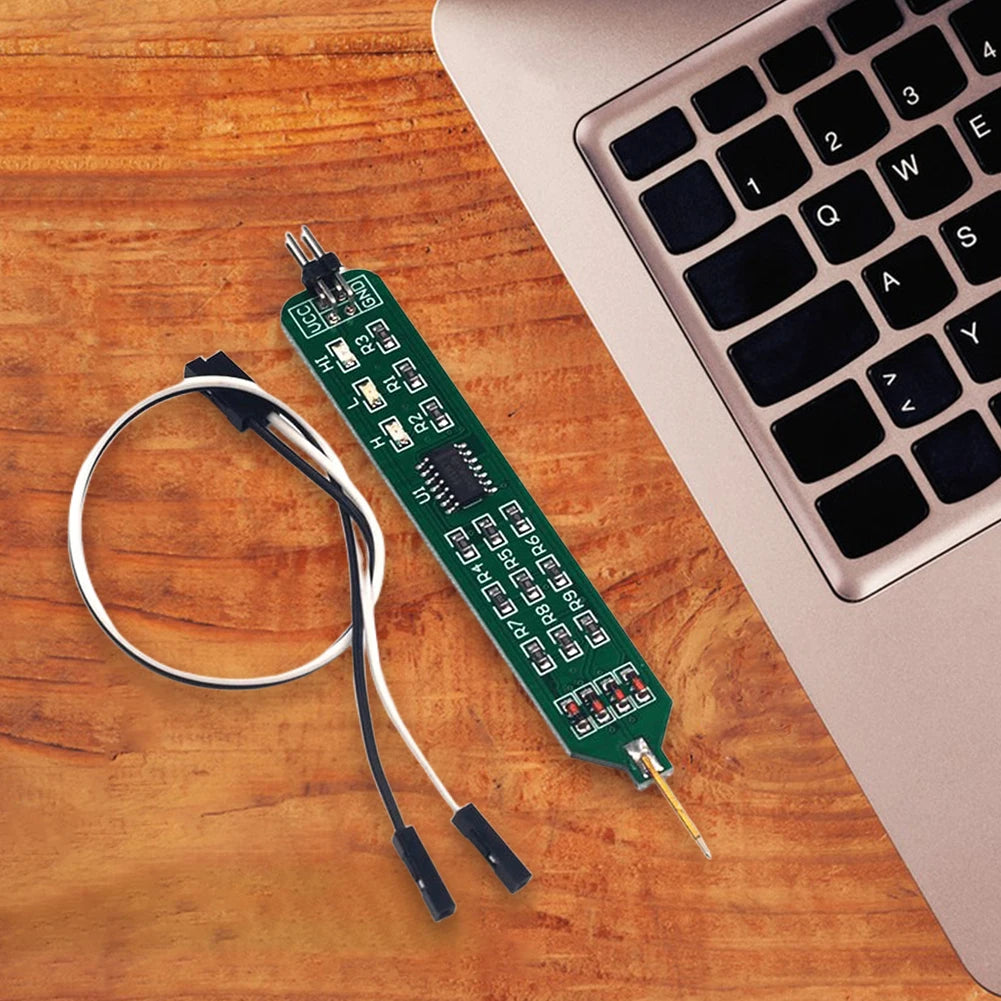

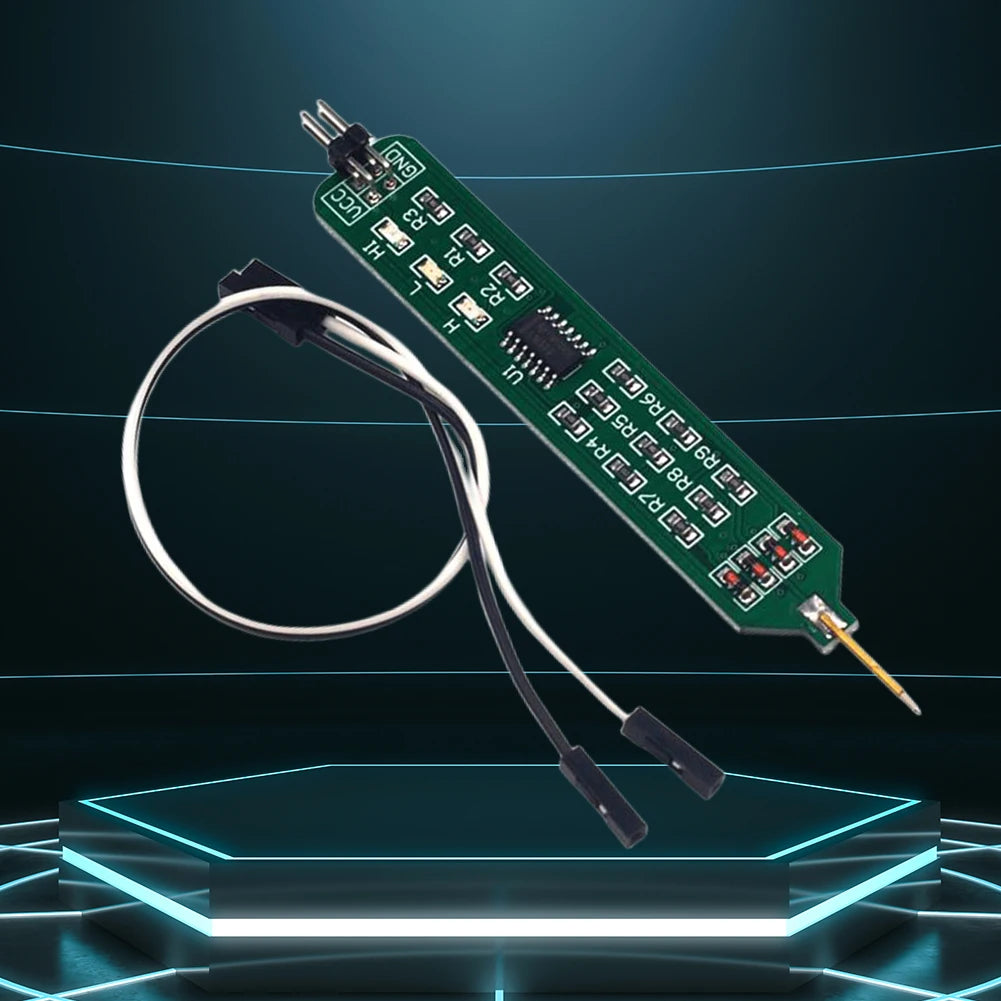

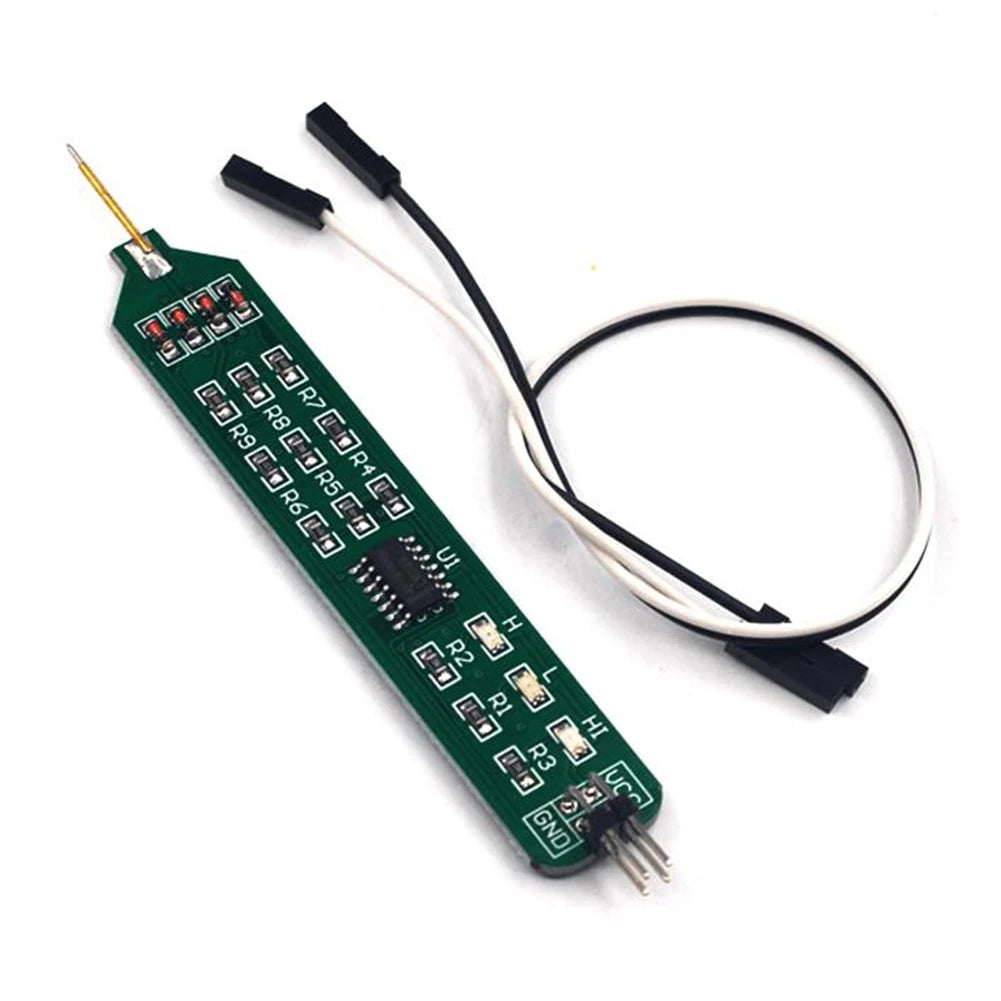

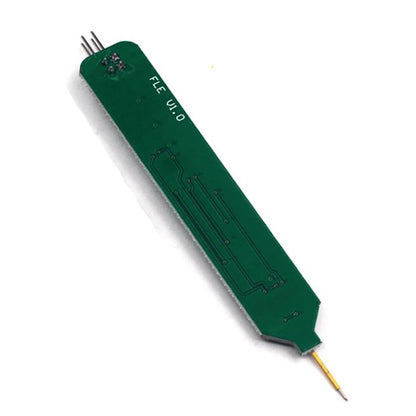

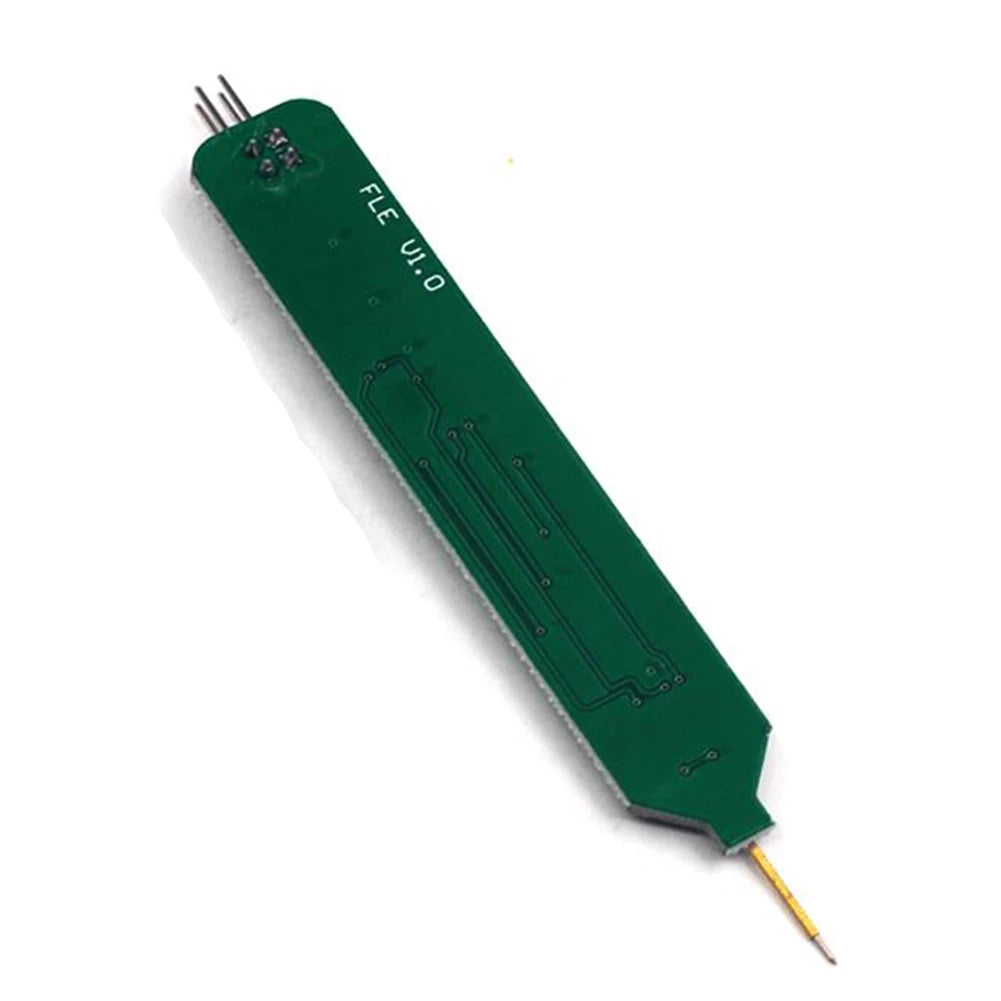

5V 3.3V Logic Tester Pen High Low Level Tester Digital Circuit Debugger Logic Pulser Analyzer Detecting Probe with Line
Feature:
1. Convenient Size: The logical test pen has a compact size that makes it easy to grasp and use. It fits perfectly in your hand, making it comfortable to hold while testing circuits.
2. Flexible Probe: The probe is flexible and easy to adjust, enabling you to measure circuits effortlessly. The flexibility of the probe allows you to reach difficult areas without having to disassemble the circuit, saving time and effort.

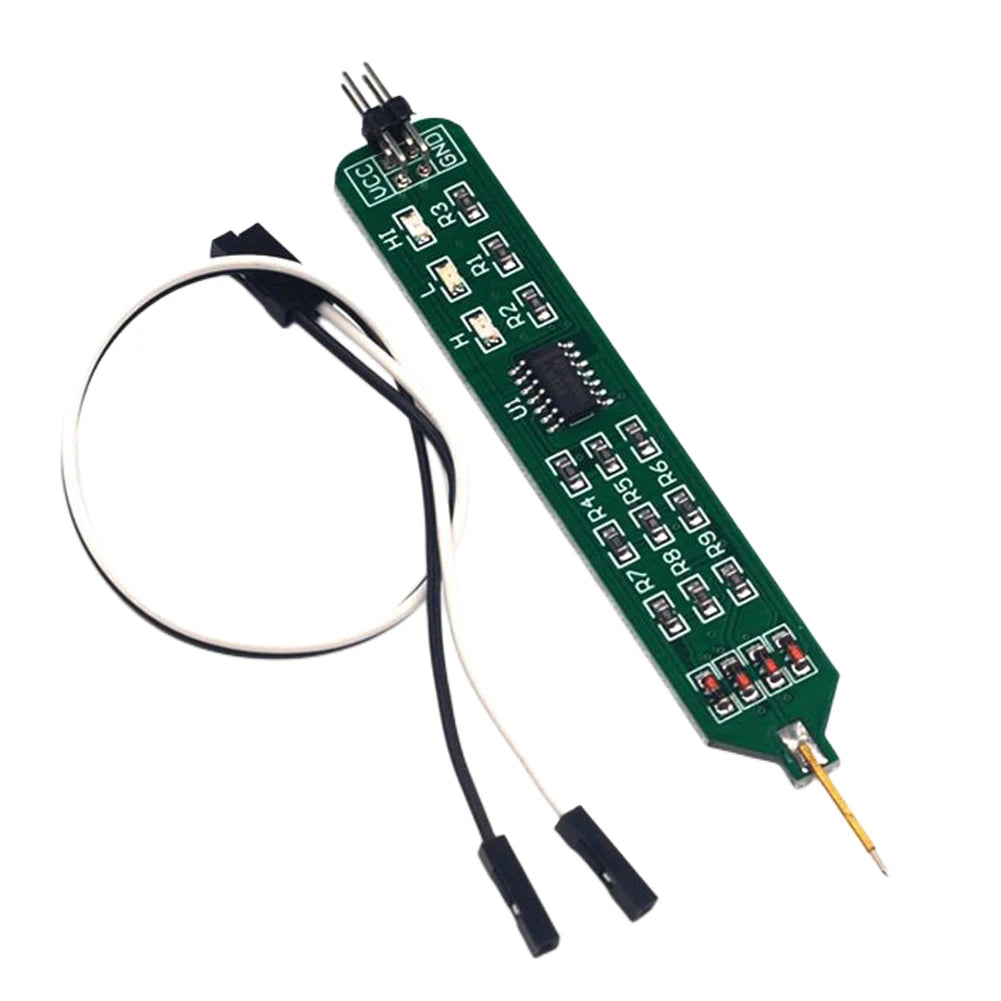

3. For DuPont Wiring: The logic test pen comes equipped with for DuPont wiring, which is essential for connecting power supplies, development boards, and learning boards. The wiring is durable and provides a secure connection, ensuring stability during testing.
4. Three-state Display: The three-state display indicates high, low, and high-impedance (disconnected). This feature allows you to quickly identify the status of a particular circuit, saving time and effort.
5. Clear Voltage Indicators: The voltage indicators are easy to read and provide clear indications of the voltage levels. The red light indicates high voltage, which is above 2.4V. The green light indicates low voltage, which is 0.6V. Finally, the blue light indicates values between 0.6-2.4V or disconnected.
Specification:
Origin: Mainland China
Characteristic: Level test
Power supply voltage: 5V or 3.3V
Level determination: 5V power supply (0V<low level<0.6V, 0.6<high resistance<2.4V, 2.4V<high level)
Level determination: 5V power supply (0V<low level<0.39V, 0.39<high resistance<1.49V, 1.49V<high level)
Product weight: 5g

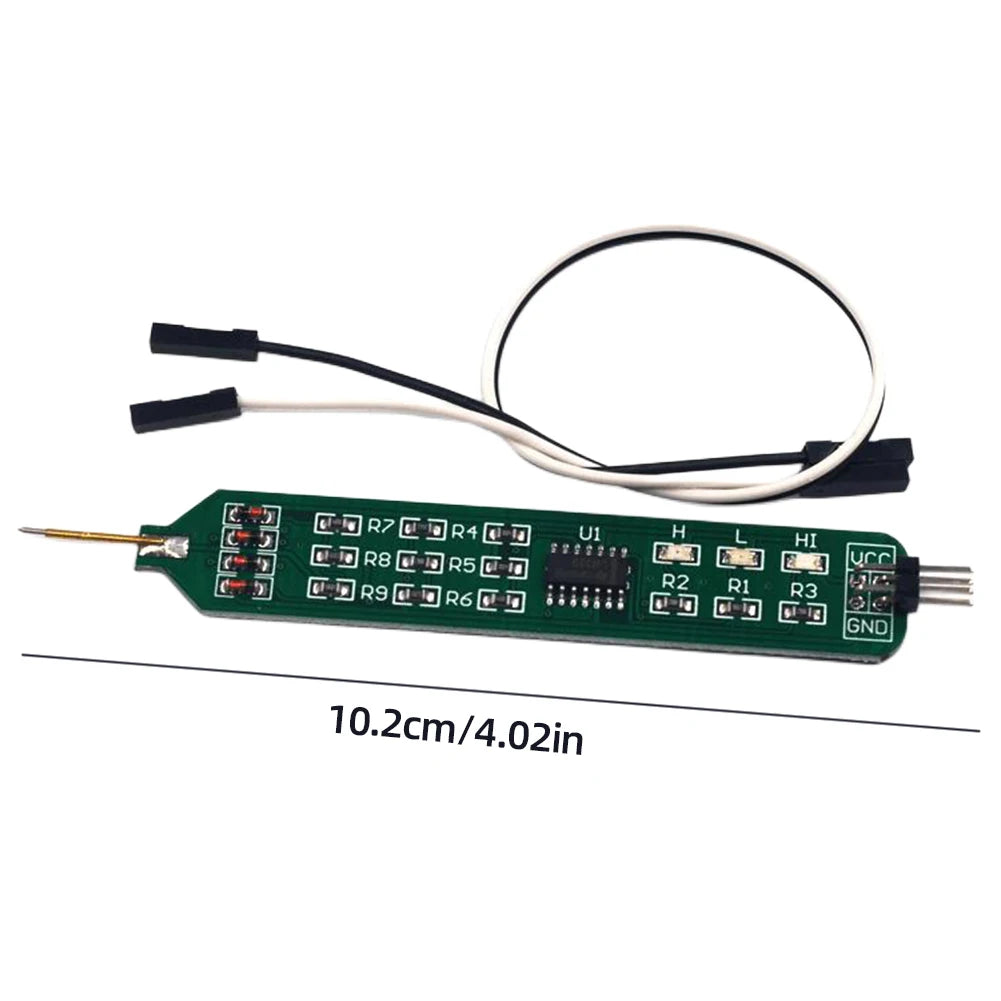

Product size: About 102x15mm/4.01x0.59inch
Feature:
1. Convenient Size: The logical test pen has a compact size that makes it easy to grasp and use. It fits perfectly in your hand, making it comfortable to hold while testing circuits.
2. Flexible Probe: The probe is flexible and easy to adjust, enabling you to measure circuits effortlessly. The flexibility of the probe allows you to reach difficult areas without having to disassemble the circuit, saving time and effort.
3. For DuPont Wiring: The logic test pen comes equipped with for DuPont wiring, which is essential for connecting power supplies, development boards, and learning boards. The wiring is durable and provides a secure connection, ensuring stability during testing.
4. Three-state Display: The three-state display indicates high, low, and high-impedance (disconnected). This feature allows you to quickly identify the status of a particular circuit, saving time and effort.
5. Clear Voltage Indicators: The voltage indicators are easy to read and provide clear indications of the voltage levels. The red light indicates high voltage, which is above 2.4V. The green light indicates low voltage, which is 0.6V. Finally, the blue light indicates values between 0.6-2.4V or disconnected.
Specification:
Origin: Mainland China
Characteristic: Level test
Power supply voltage: 5V or 3.3V
Level determination: 5V power supply (0V<low level<0.6V, 0.6<high resistance<2.4V, 2.4V<high level)
Level determination: 5V power supply (0V<low level<0.39V, 0.39<high resistance<1.49V, 1.49V<high level)
Product weight: 5g
Product size: About 102x15mm/4.01x0.59inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Logic Tester Pen
