SPECIFICATIONS

Brand Name: LUXIANZI

Certification: None

Choice: yes

Hign-concerned Chemical: None

Note: The heating effect is better if the voltage is 220v.

Operating Voltage: 110v-220v

Origin: Mainland China

Power: 200w 300w 400w

Type: Heating table and insulation pad

application: Lamp/chip/BGA desoldering

is_customized: No

semi_Choice: yes

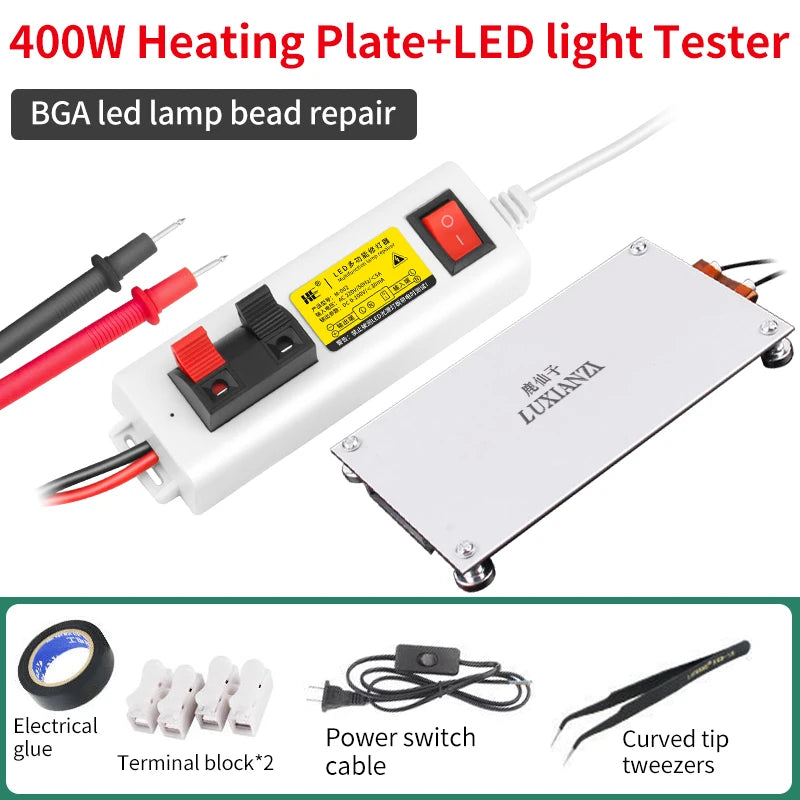

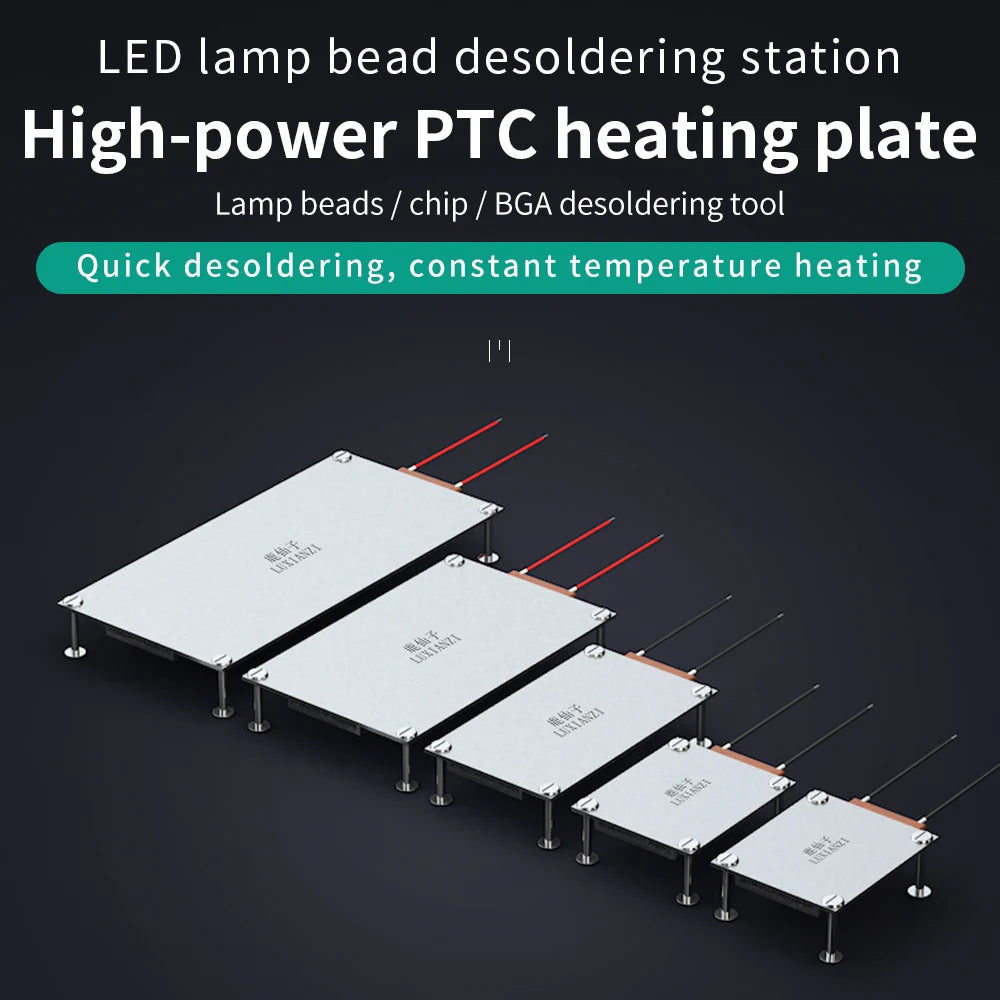

LUXIANZI Aluminum Led Remover BGA Desoldering Station

PTC Fever Plate Preheating LCD Strip Chip Repair Thermostat Heating Plate

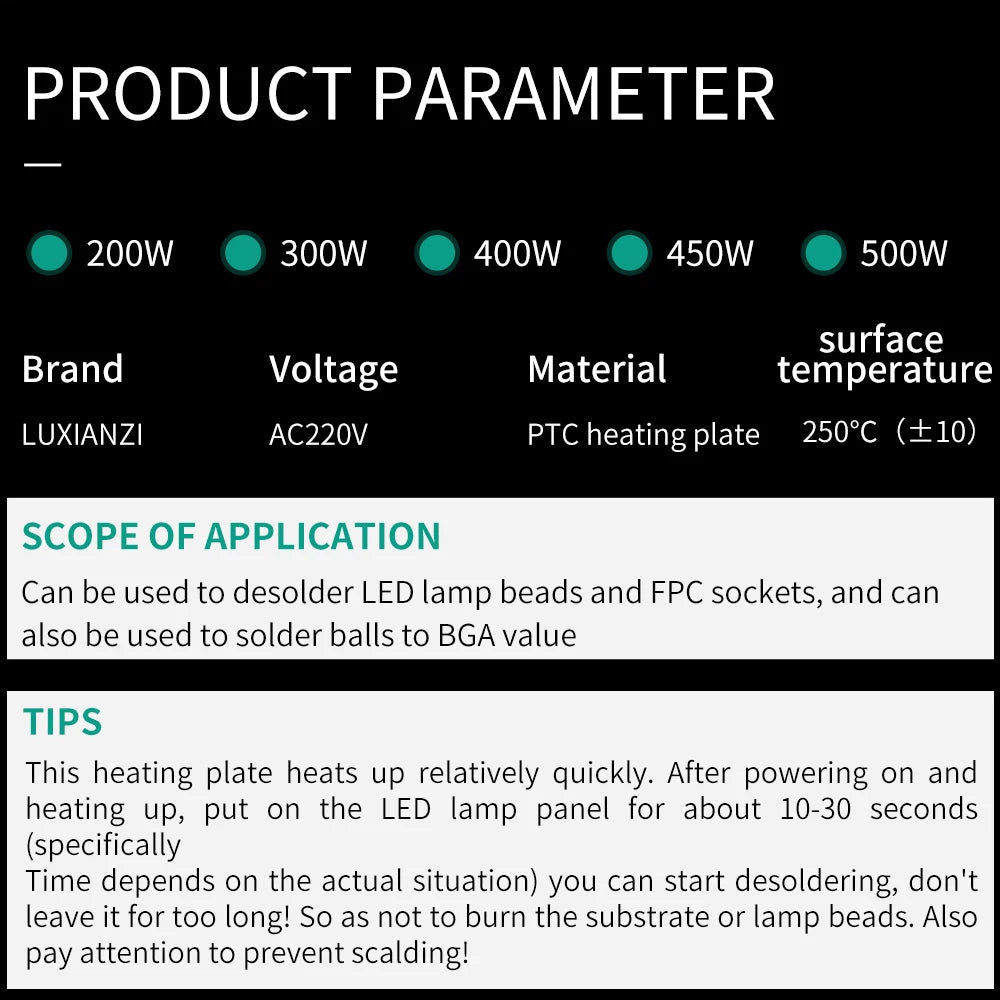

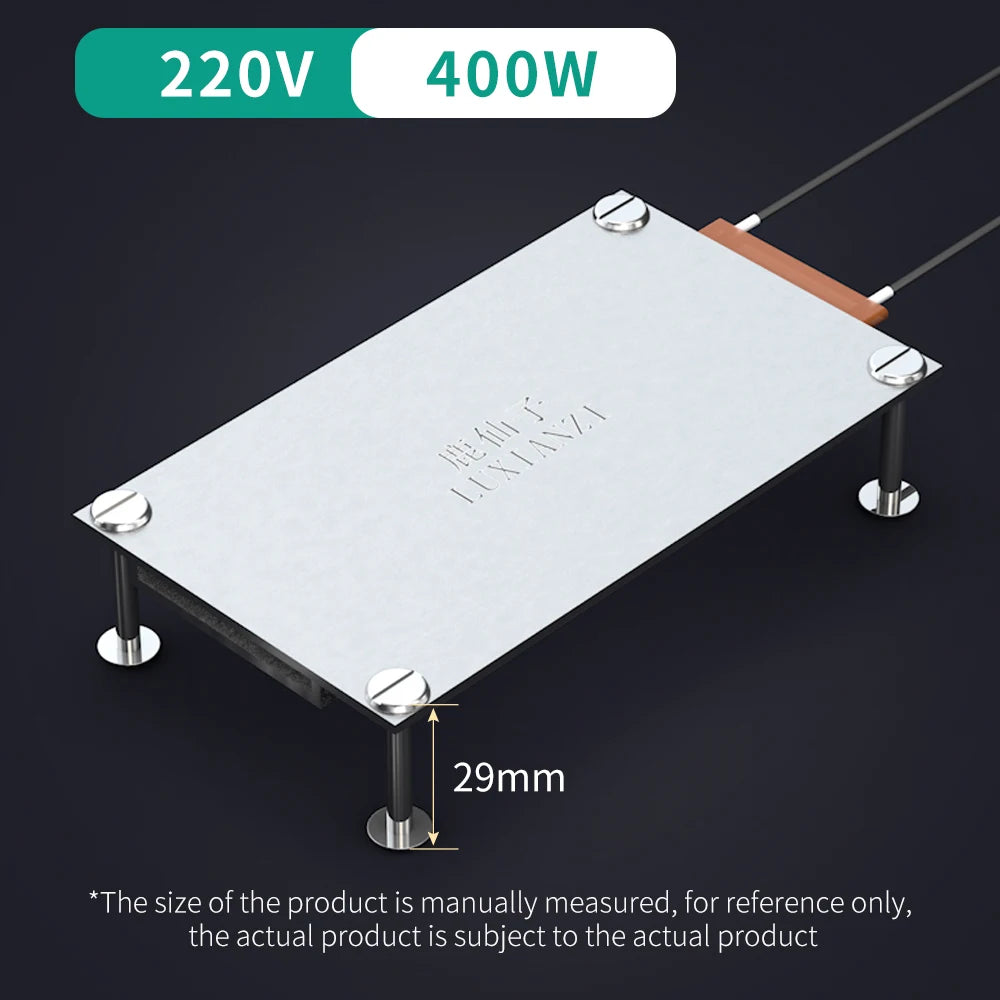

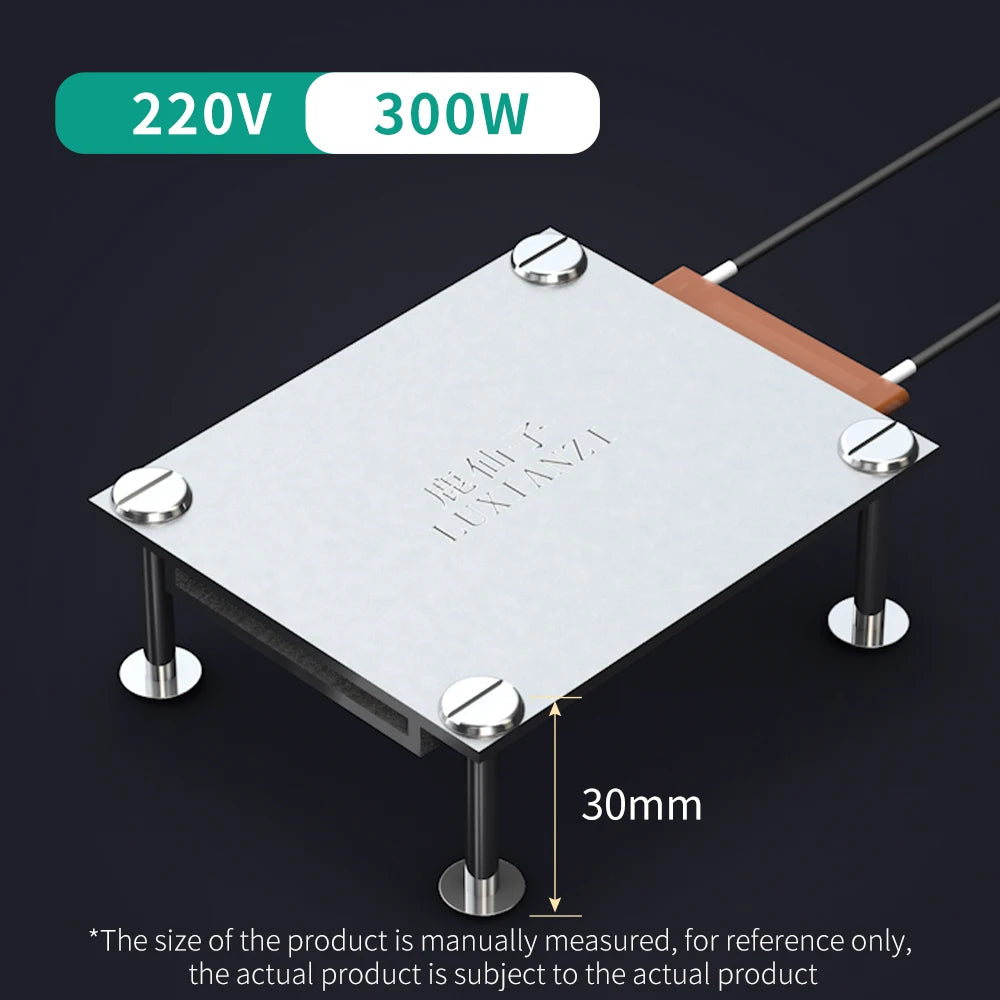

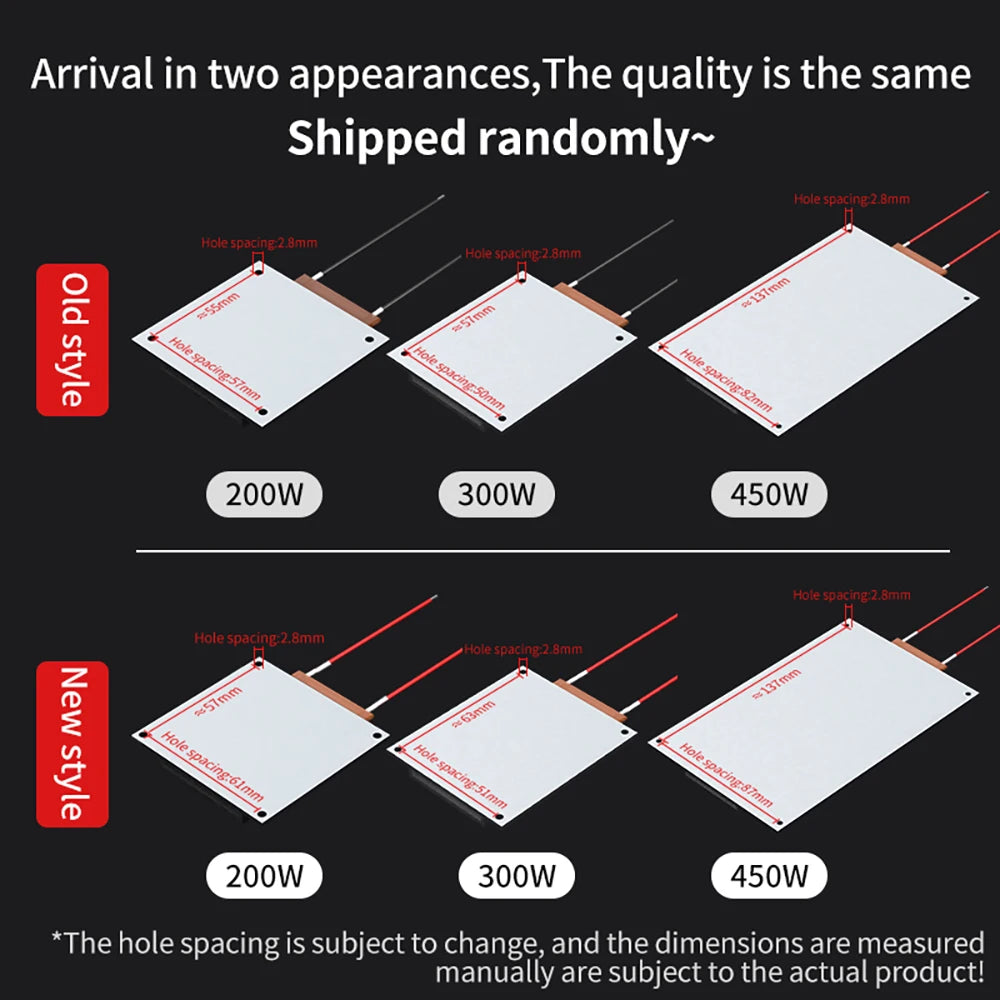

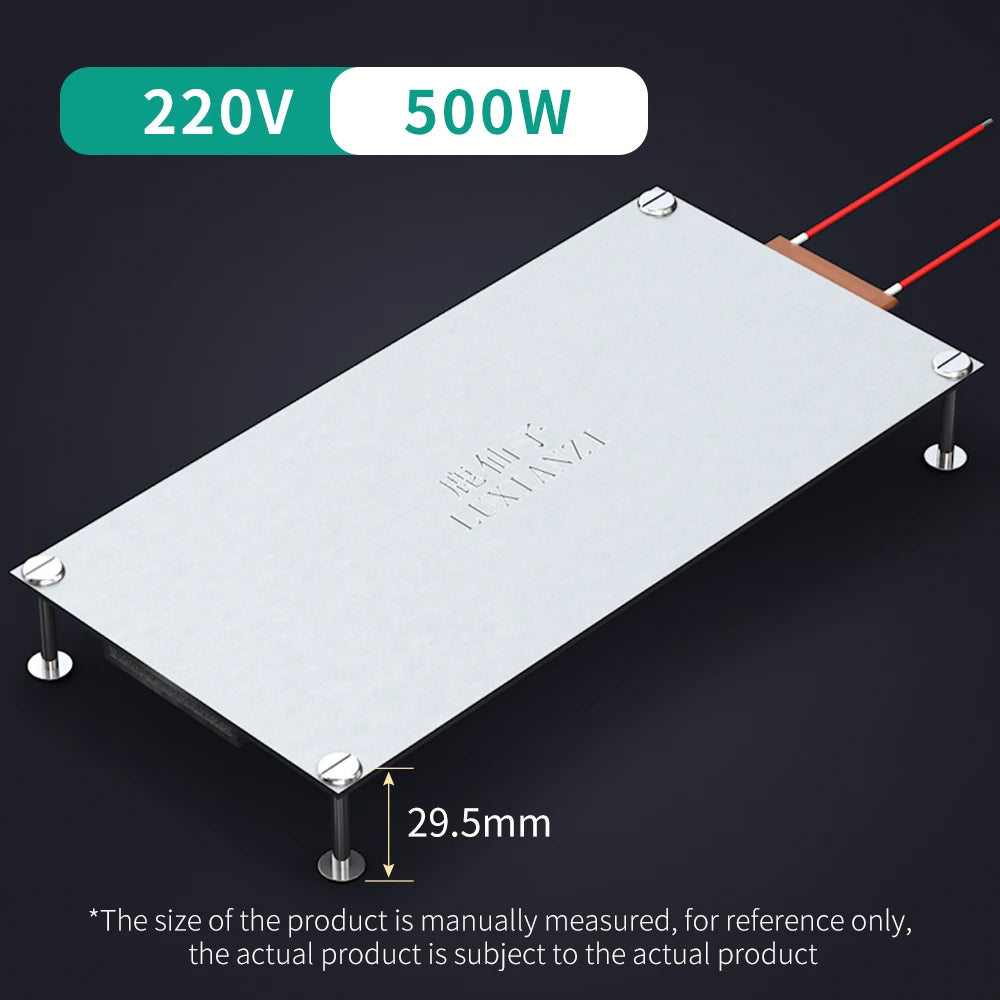

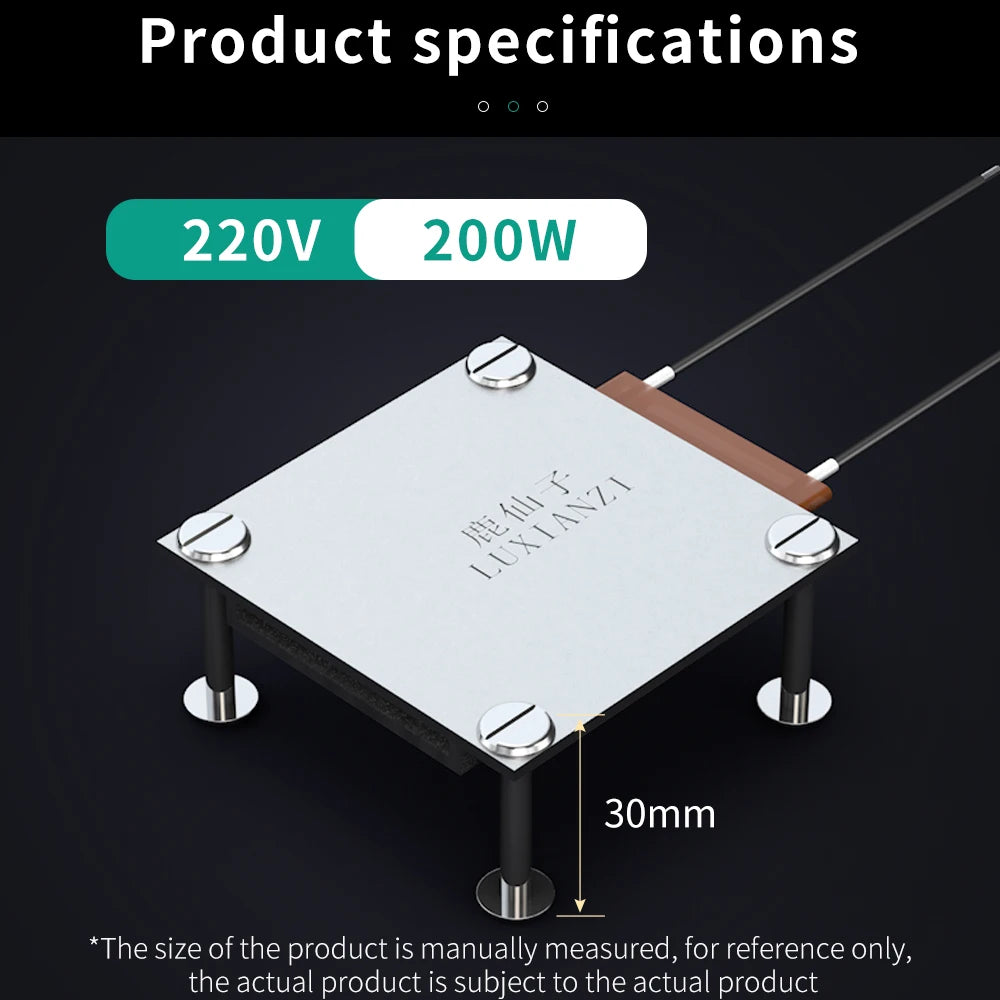

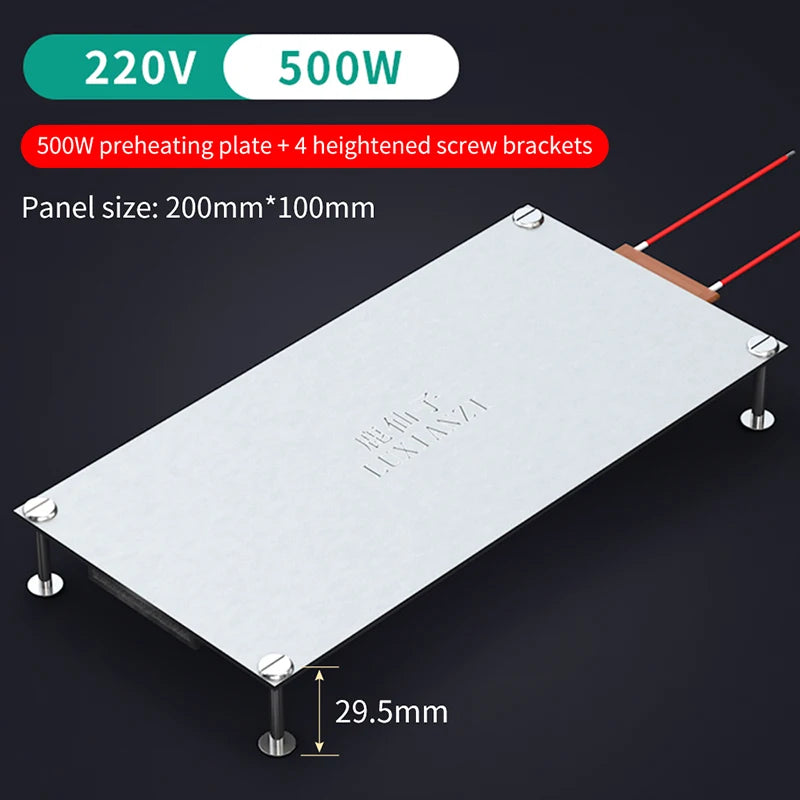

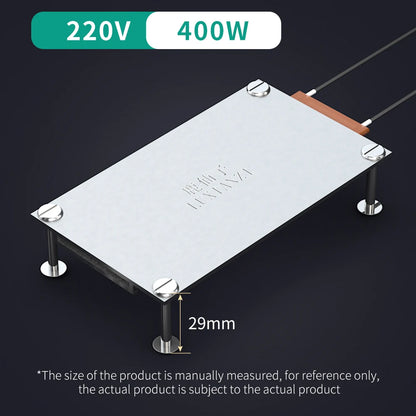

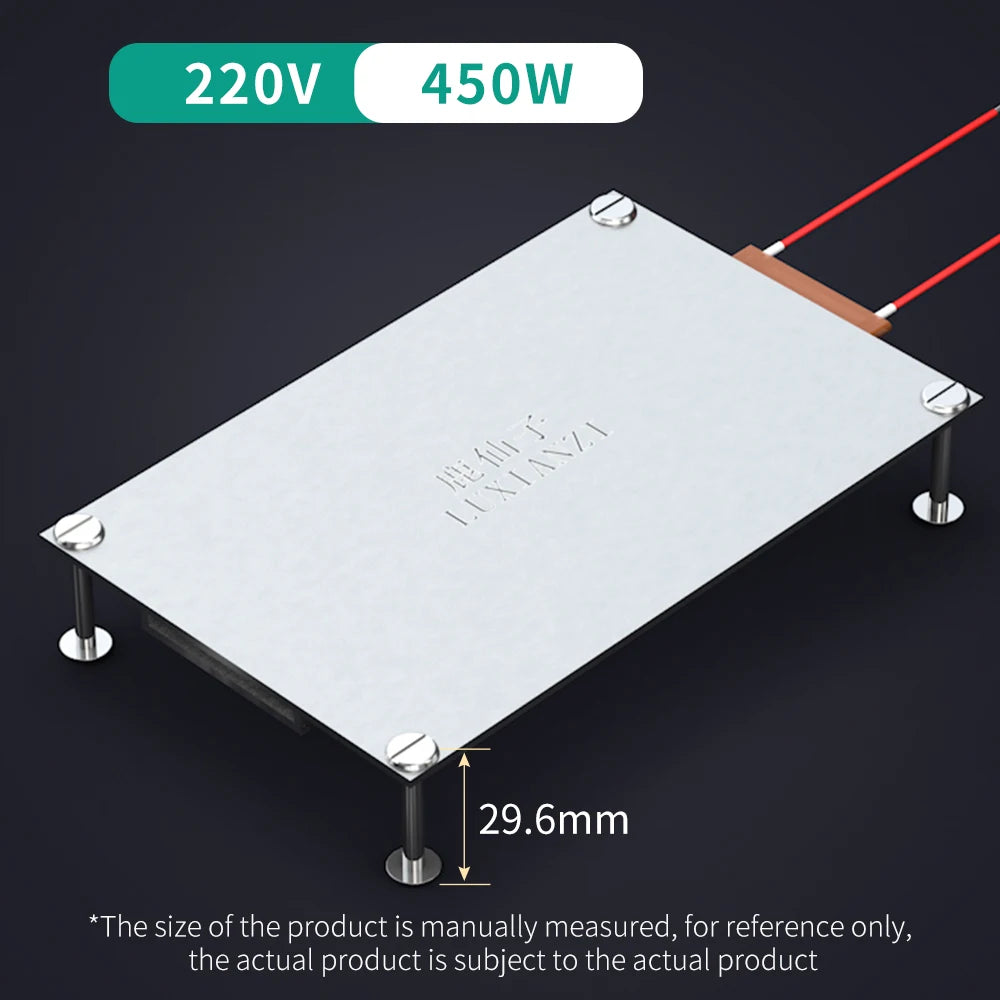

Specification: 200w/300w/400w/450w/500w

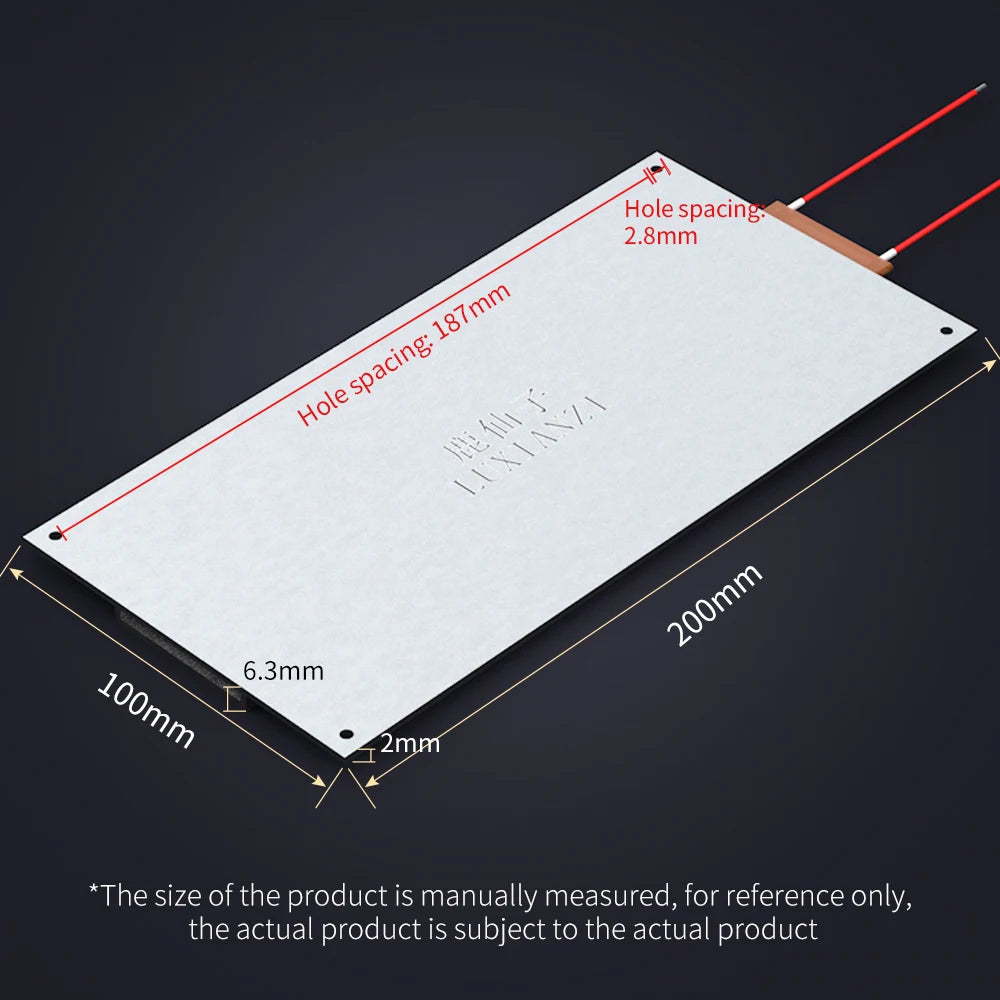

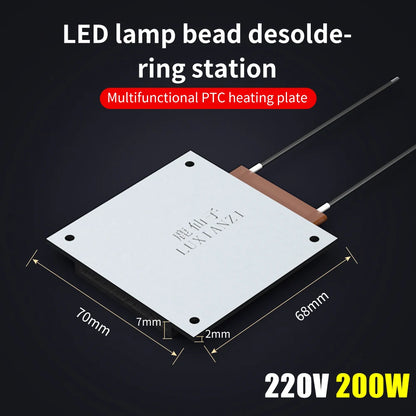

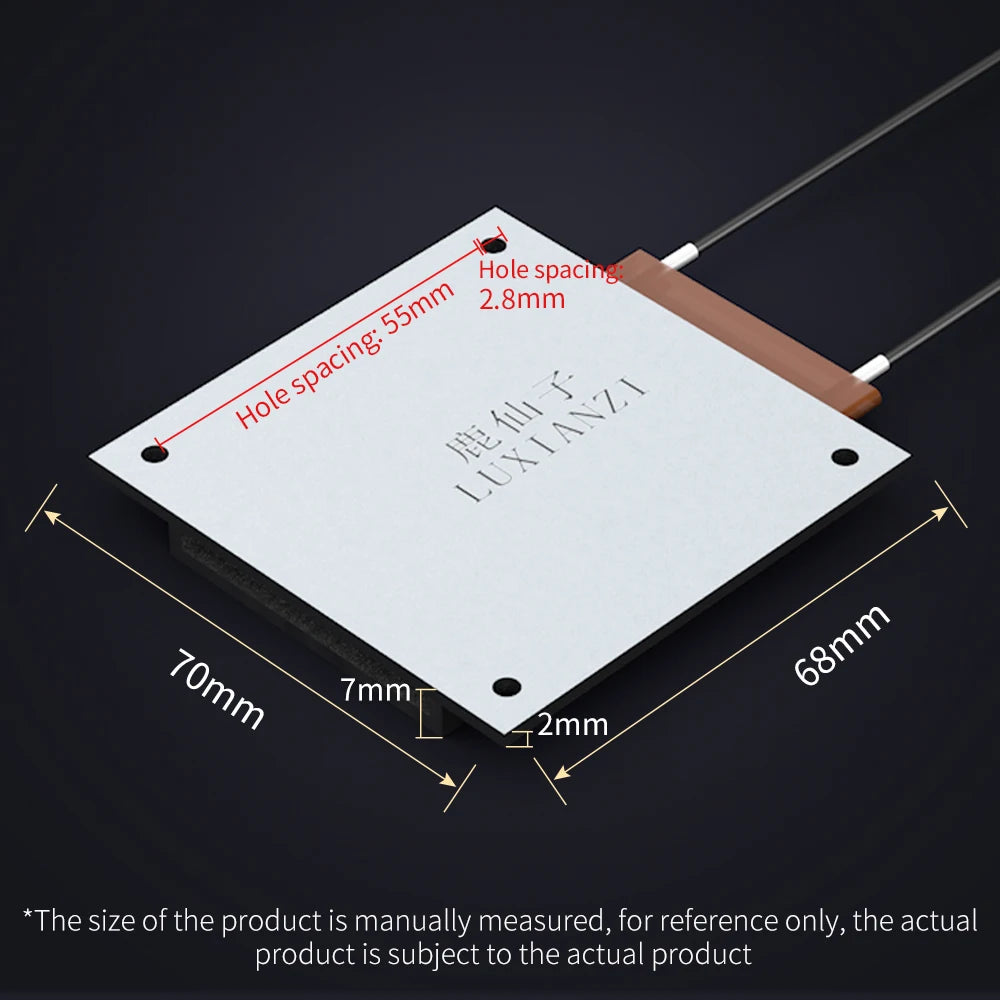

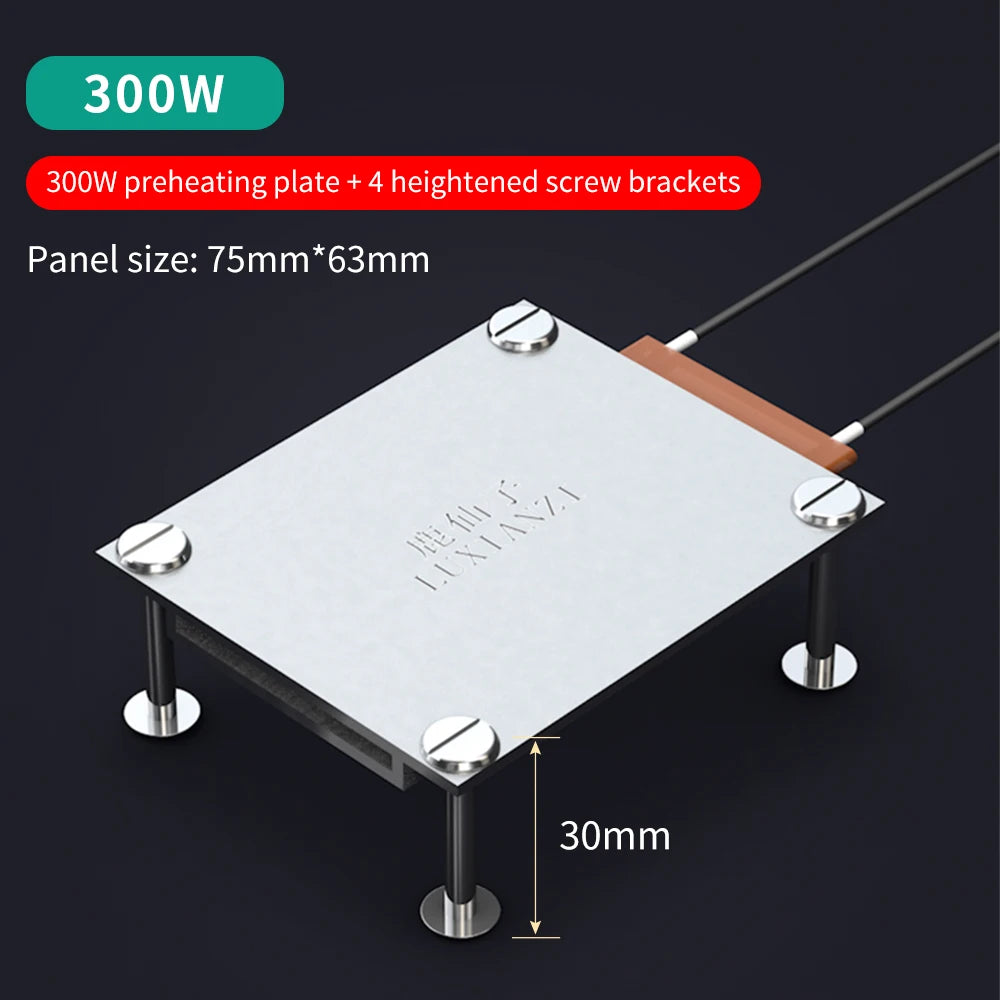

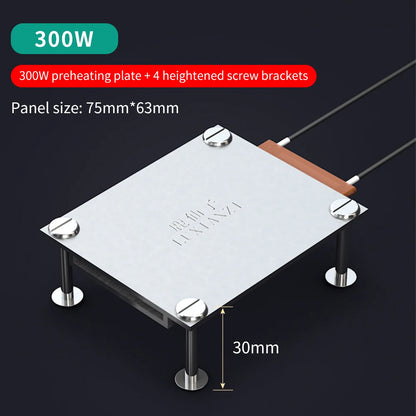

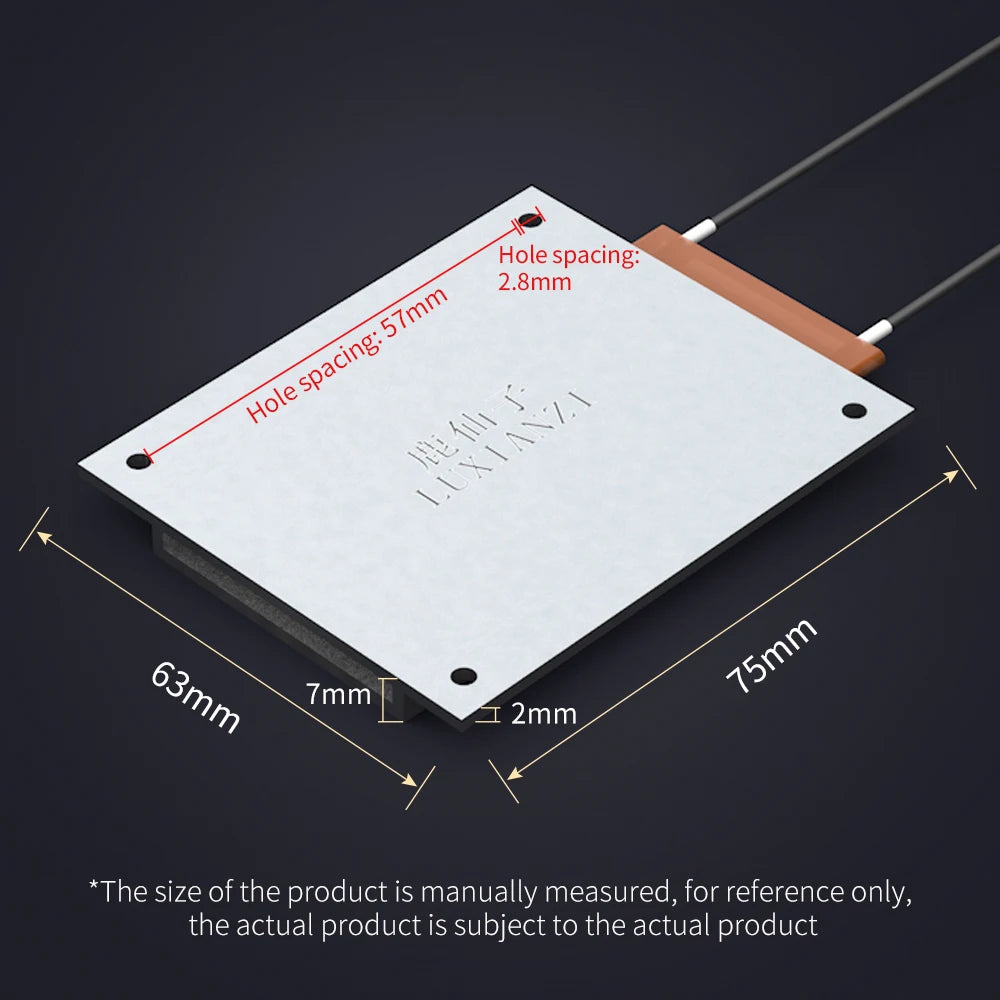

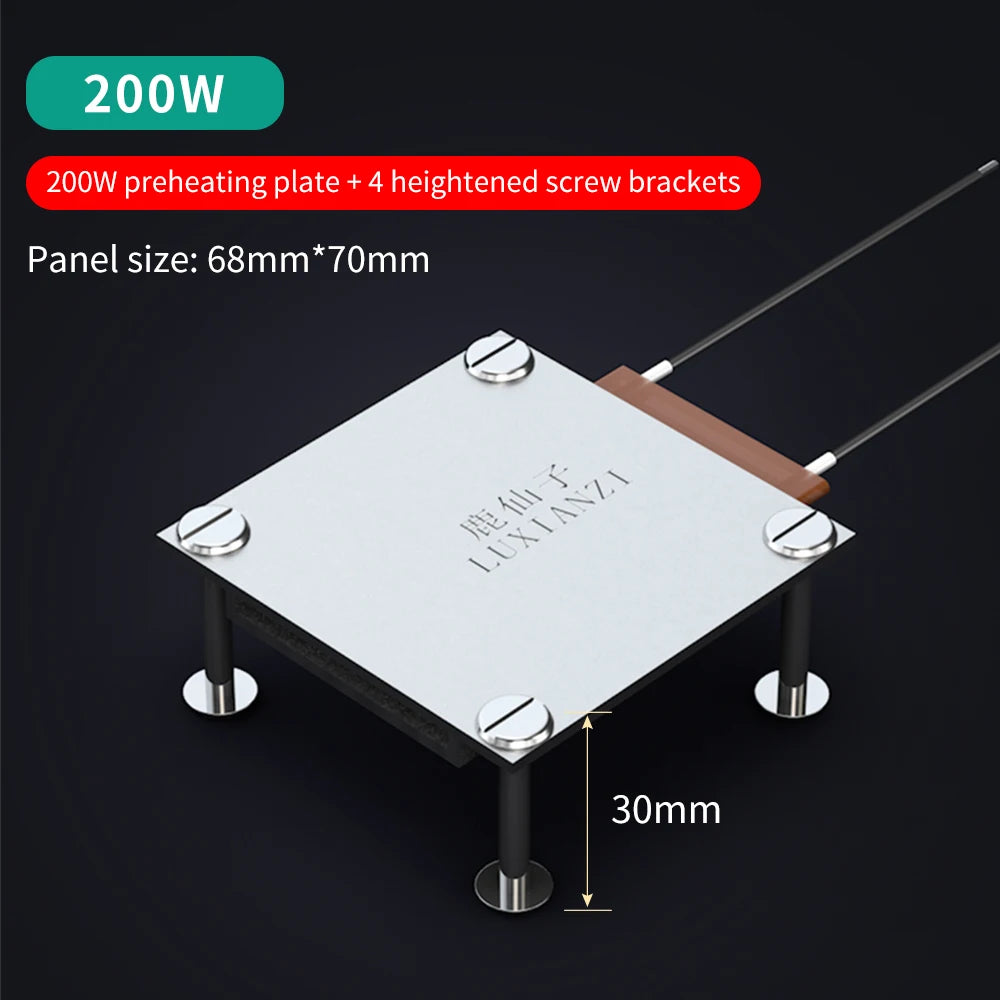

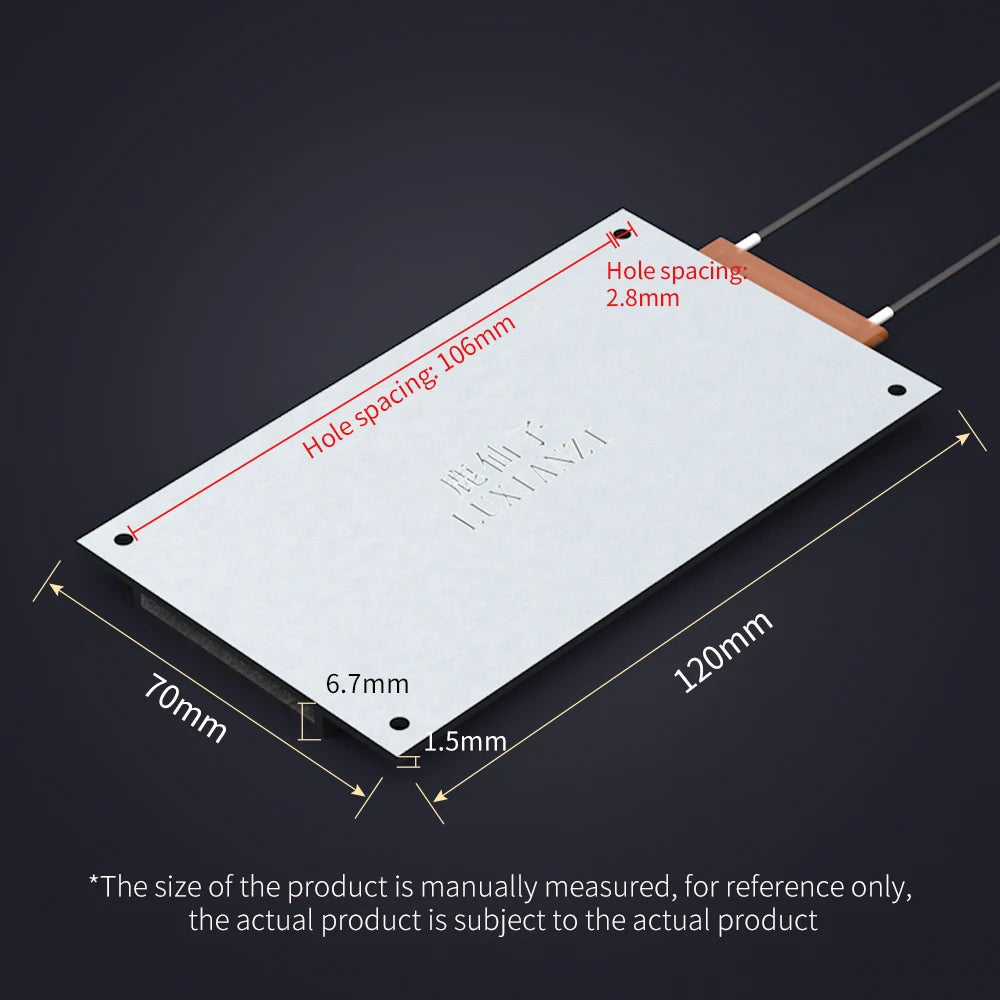

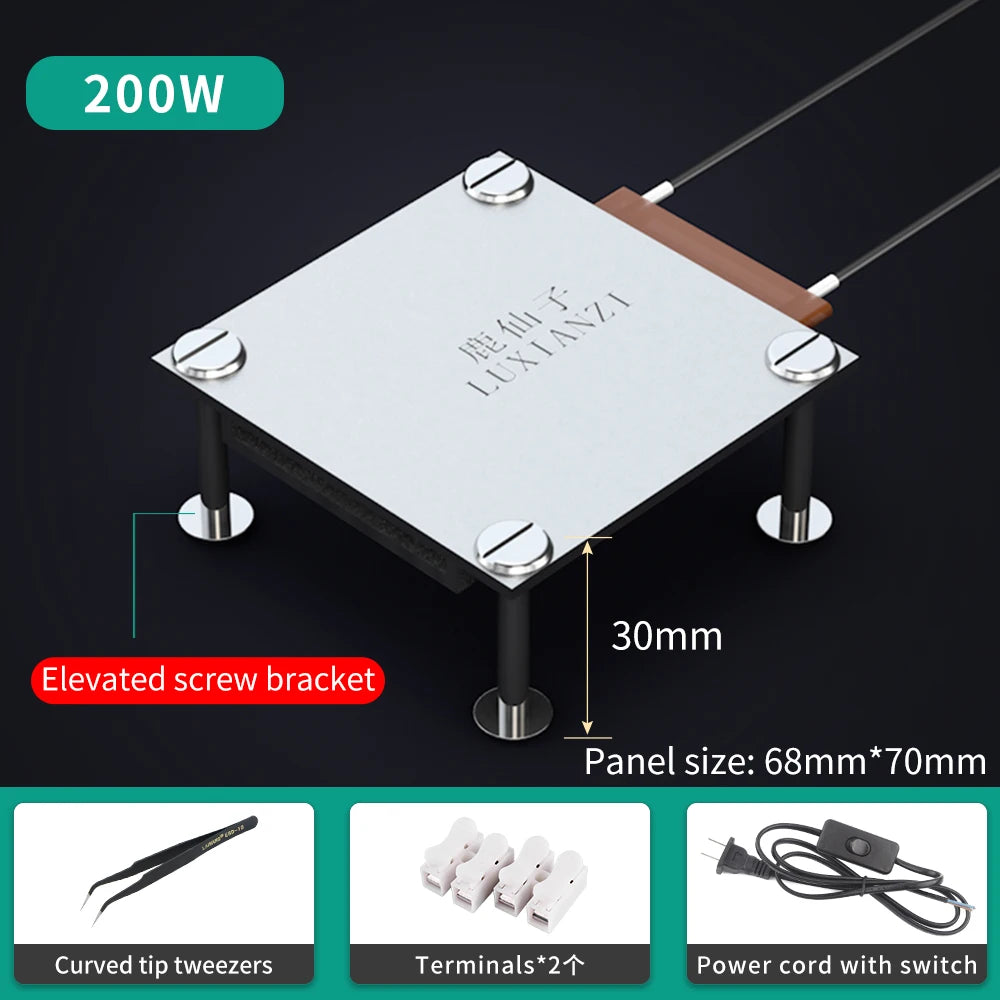

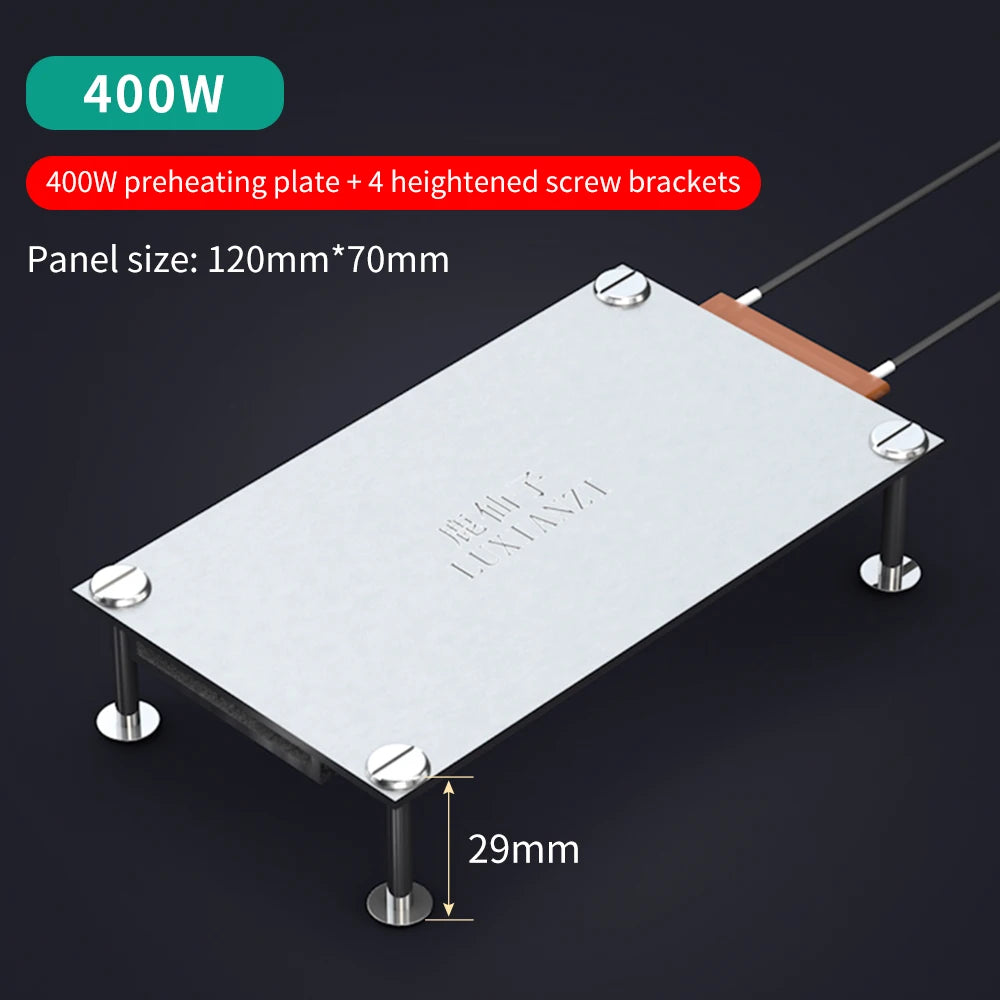

Size: 68*70mm/62*70mm/120*70mm

Working voltage: 110v-220v

Note: The effect is better when working under 220v voltage. The temperature range is about 240-260℃.

It works under 110v voltage and heats up slowly. The temperature range is relatively low.

Features:
1*Used for DIY LED lamp bead desoldering board, PTC heating board.
2*AC220V power supply, surface temperature 250 plus or minus 10 degrees, no need for thermostat.
The predetermined temperature can be reached in thirty seconds.
3*Can be used to desolder LED lamp beads and FPC sockets,
4*Can be used to tin ball for BGA value

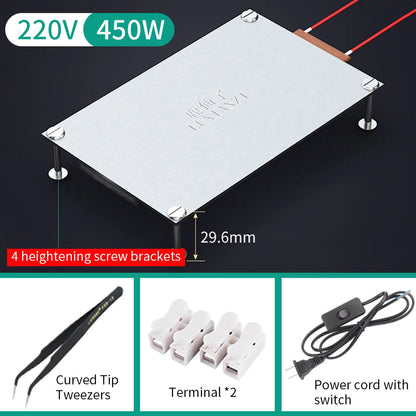

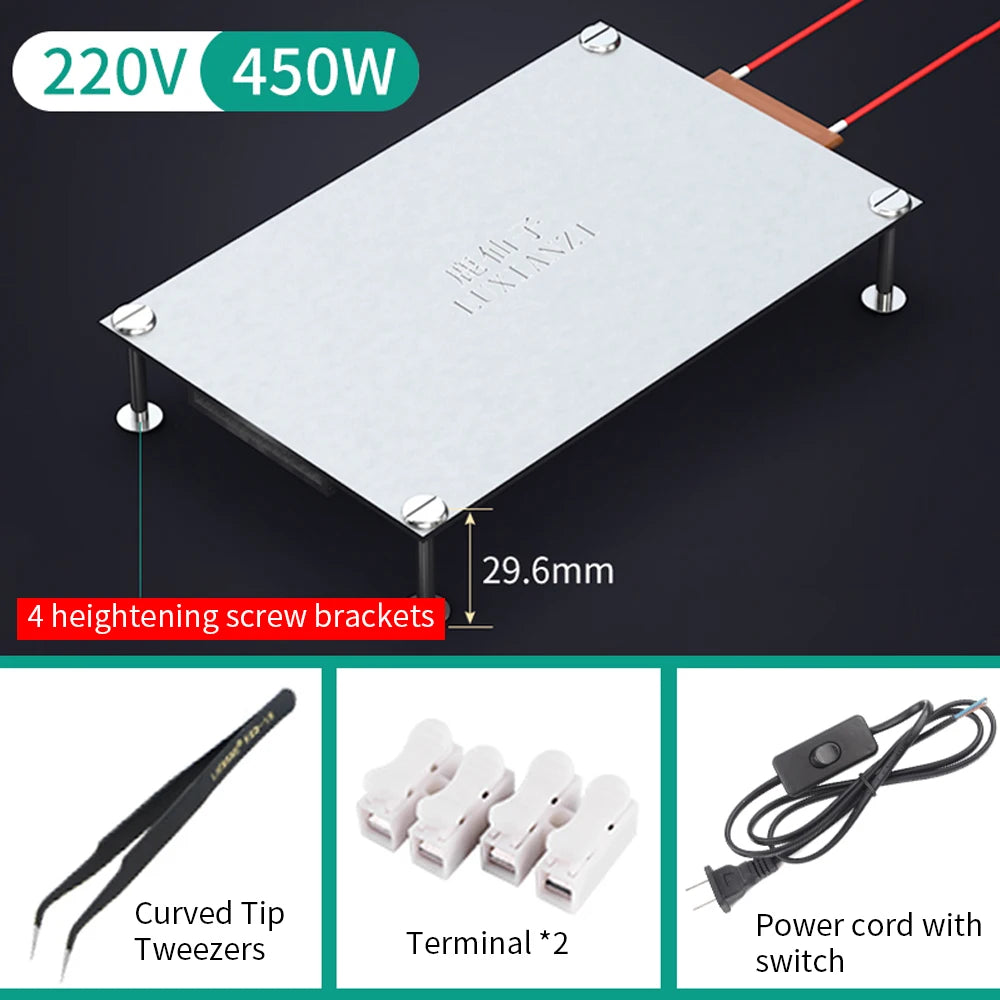

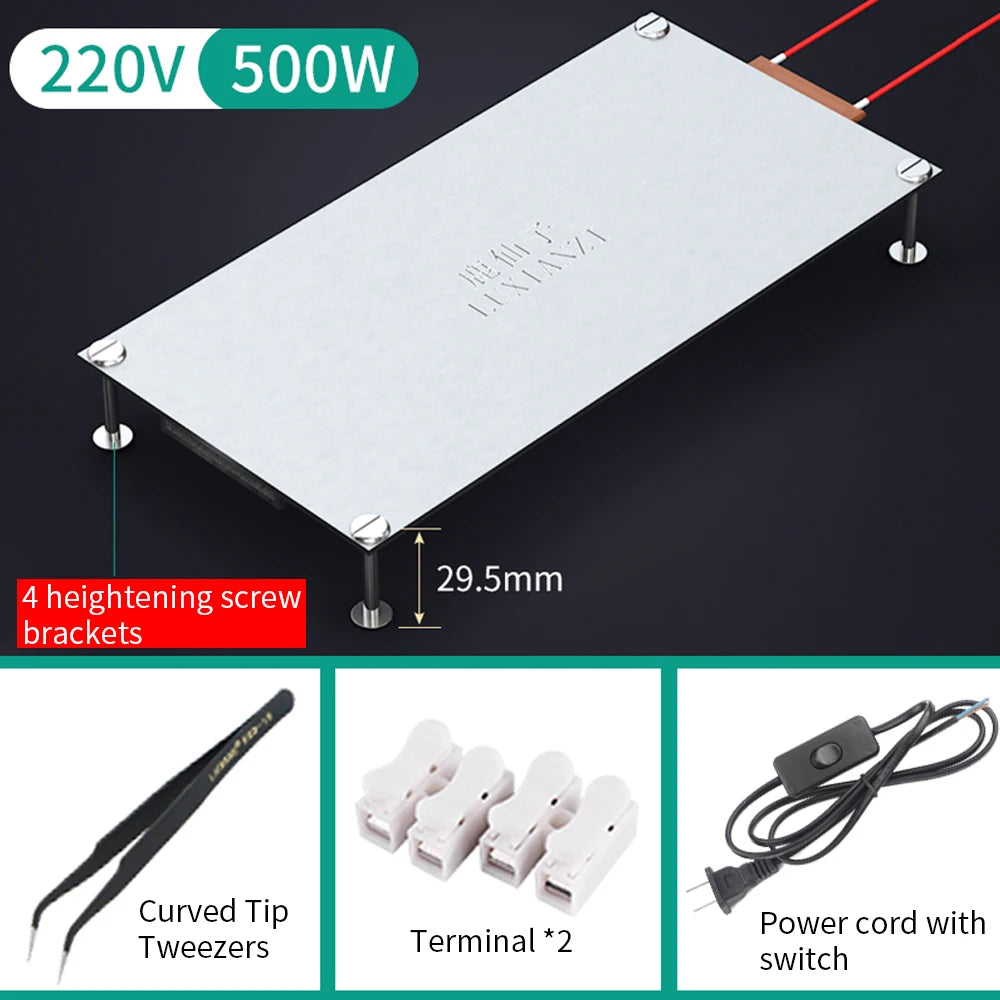

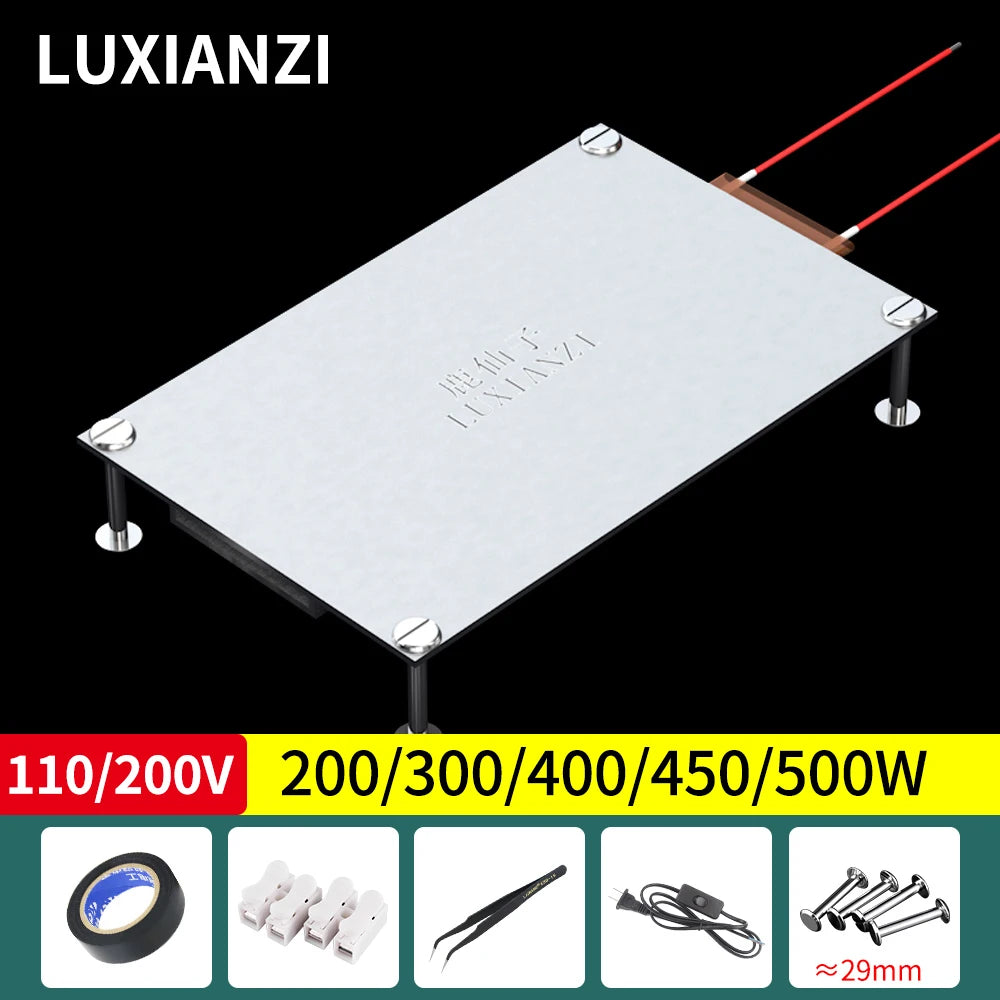

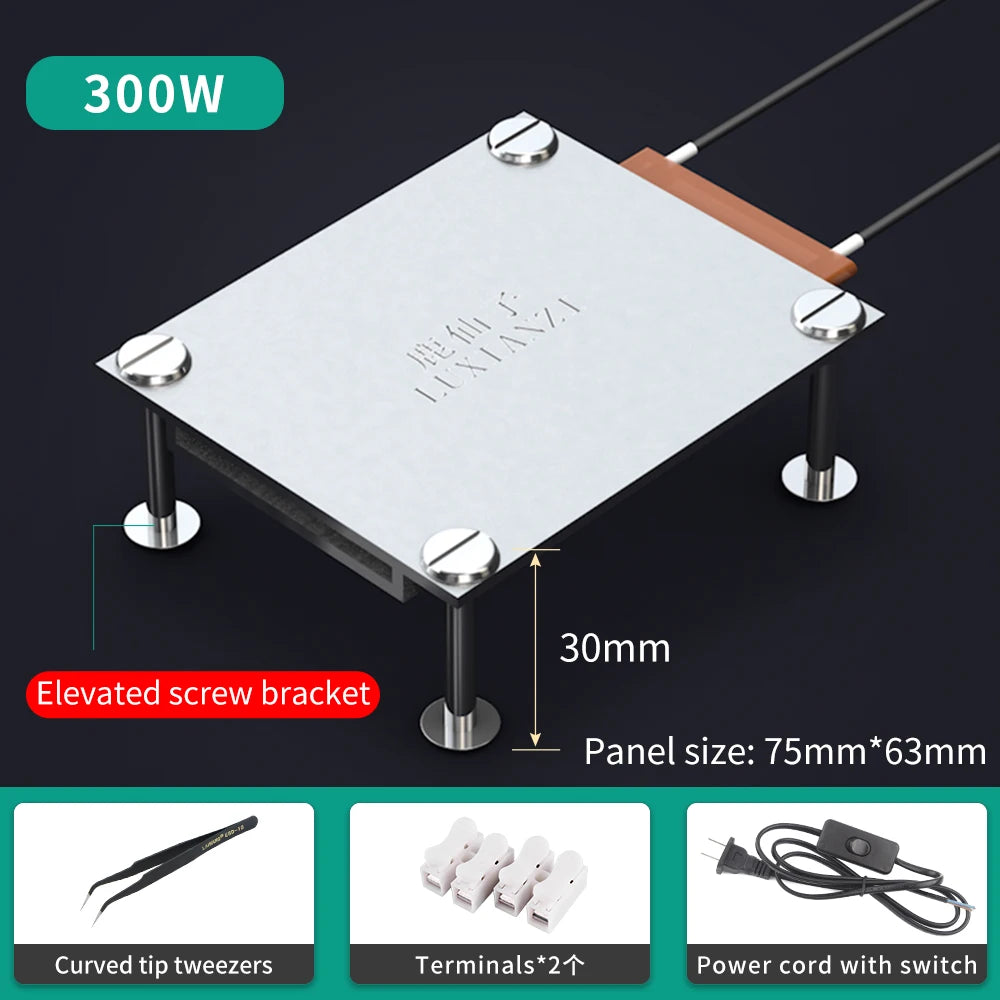

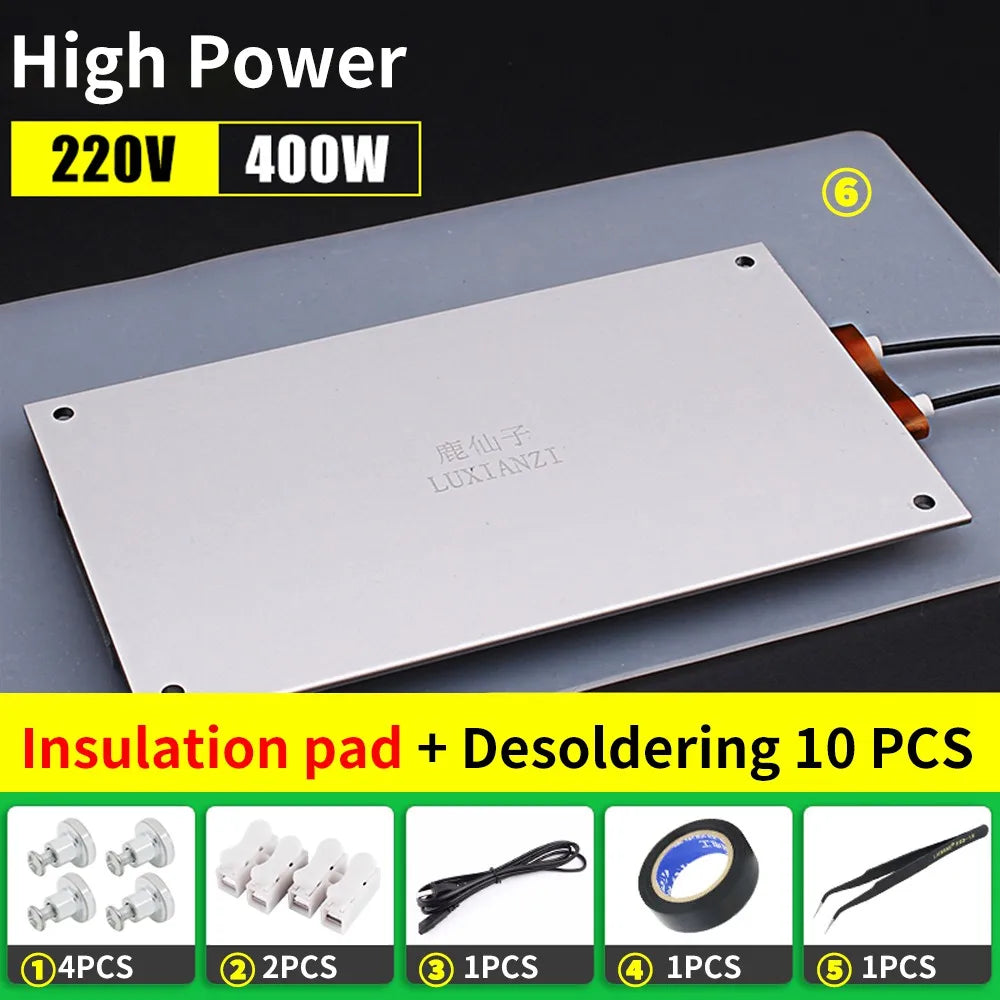

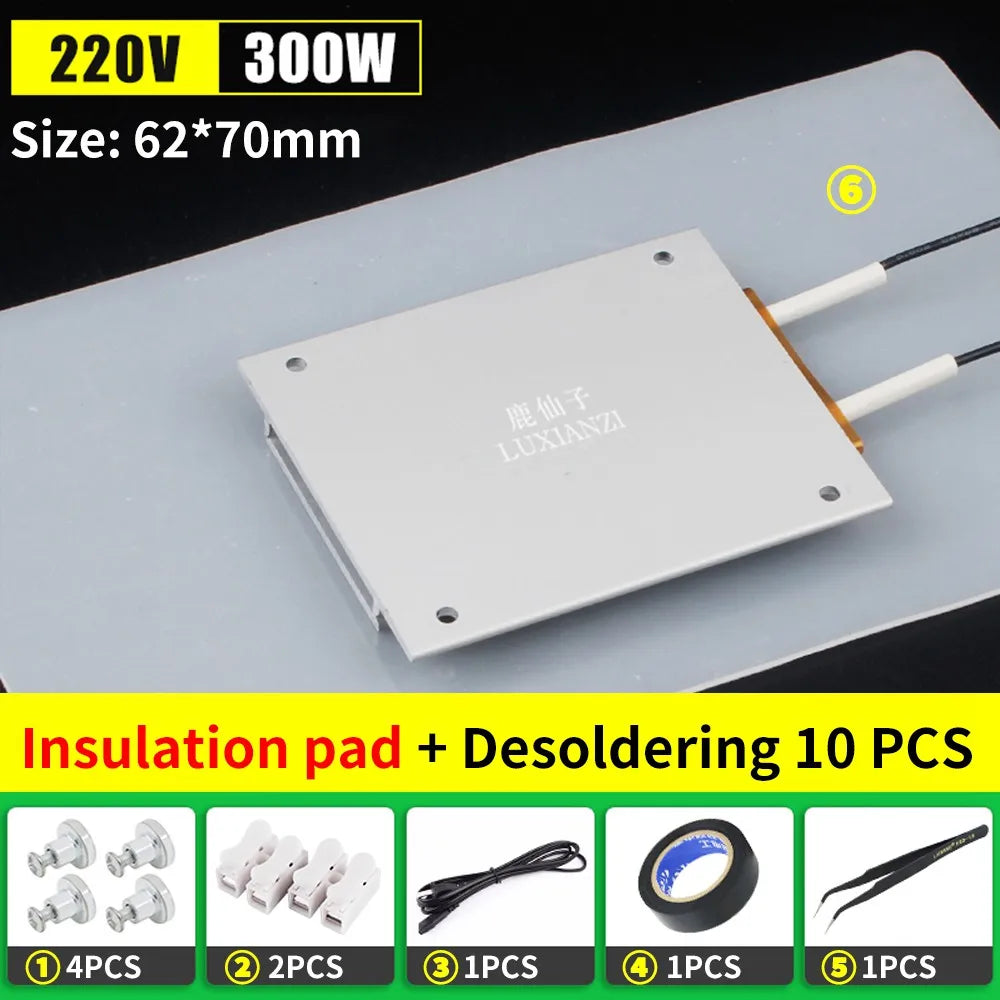

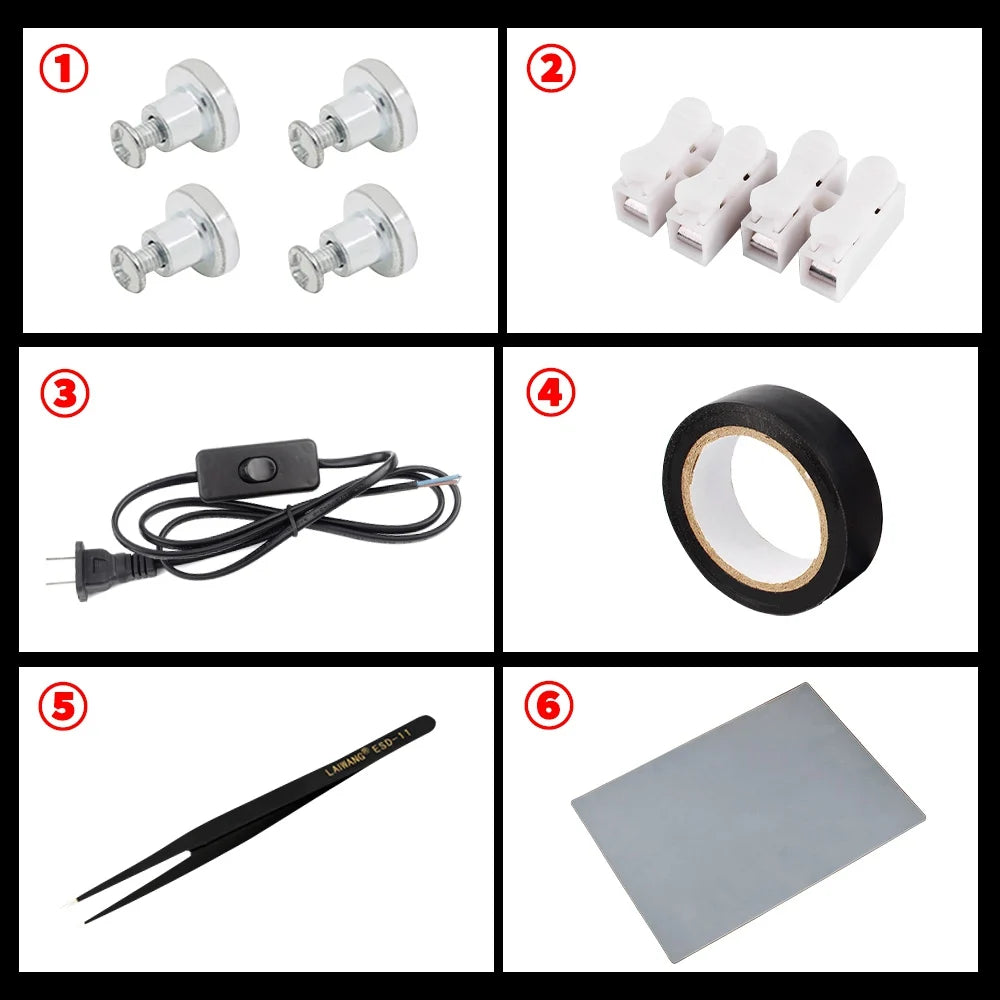

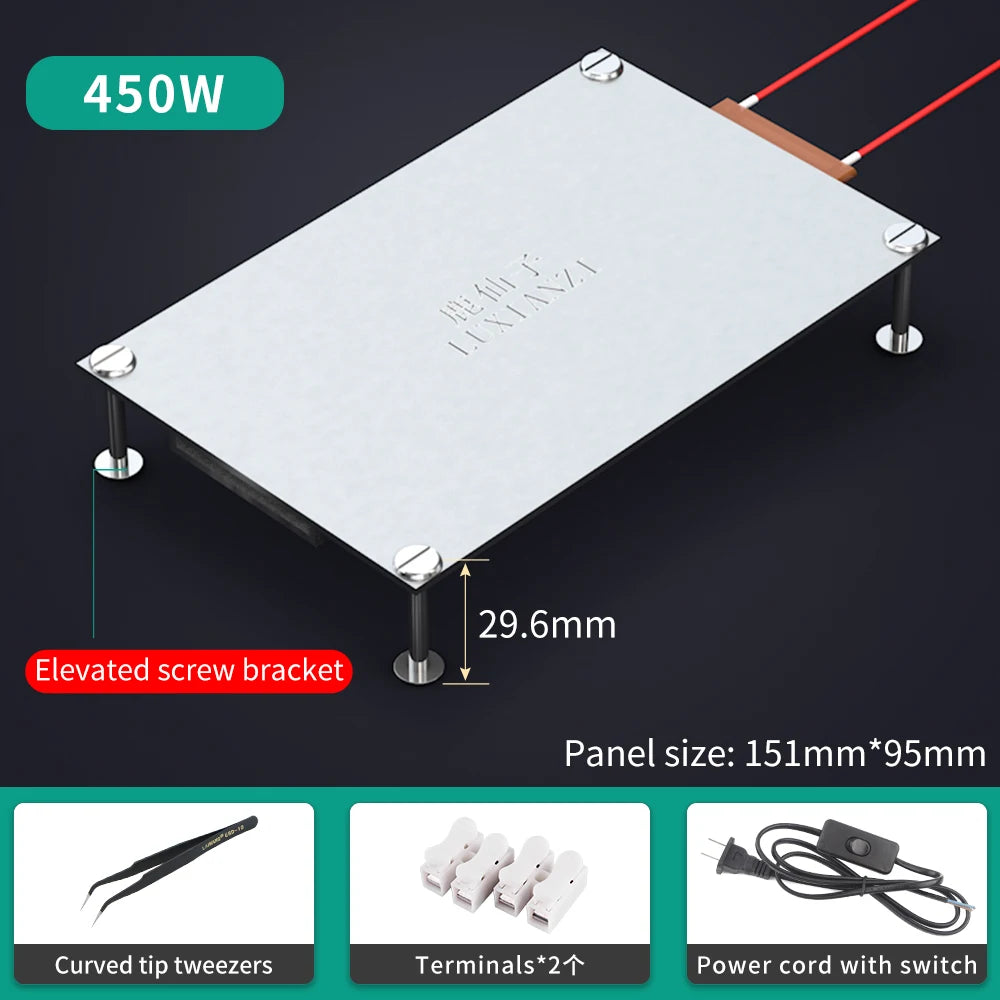

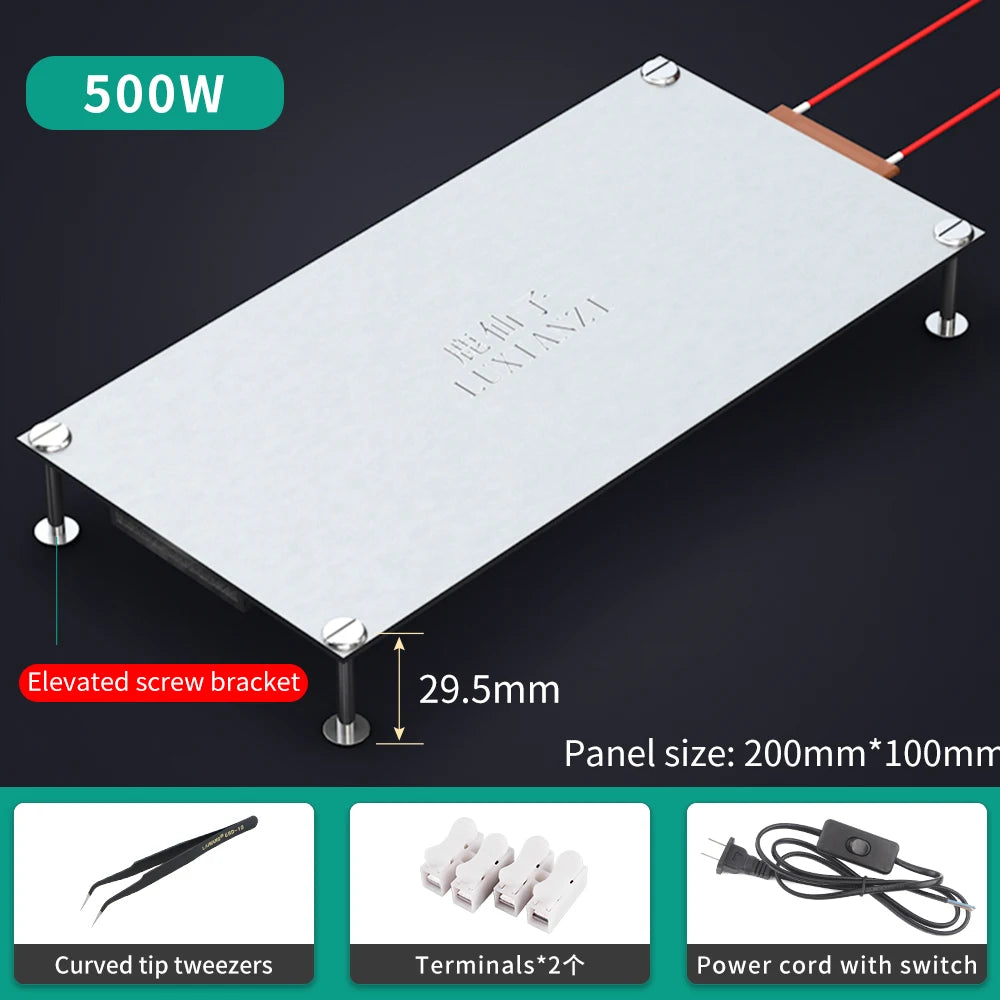

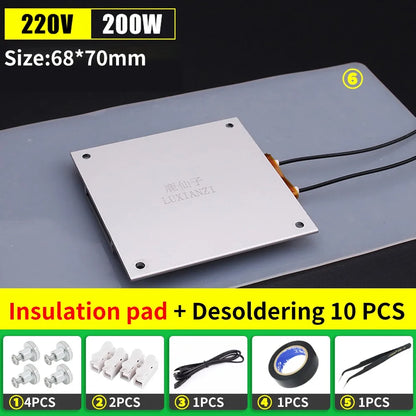

Product package Set details:

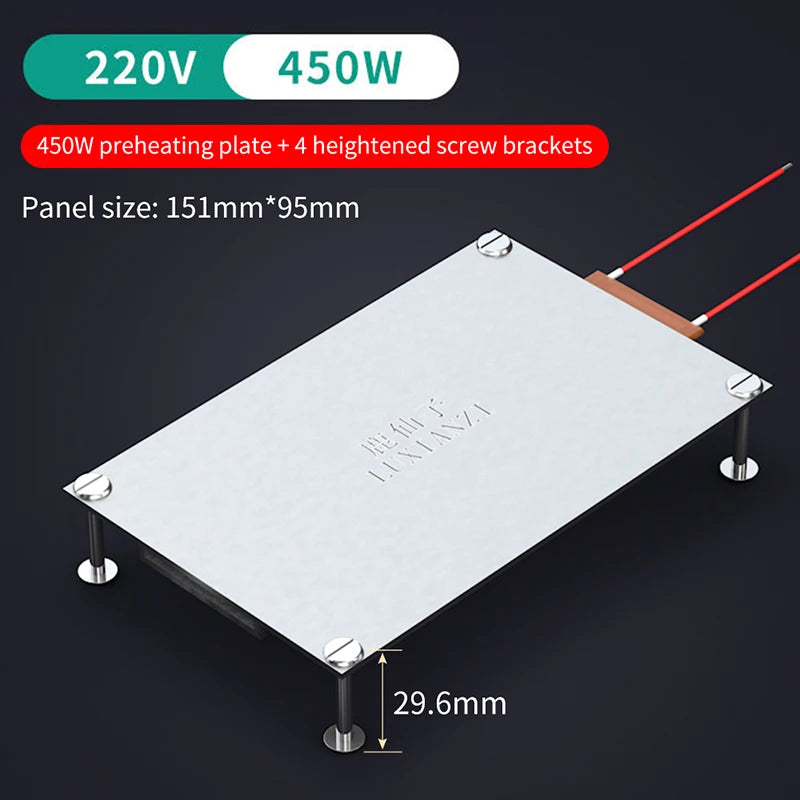

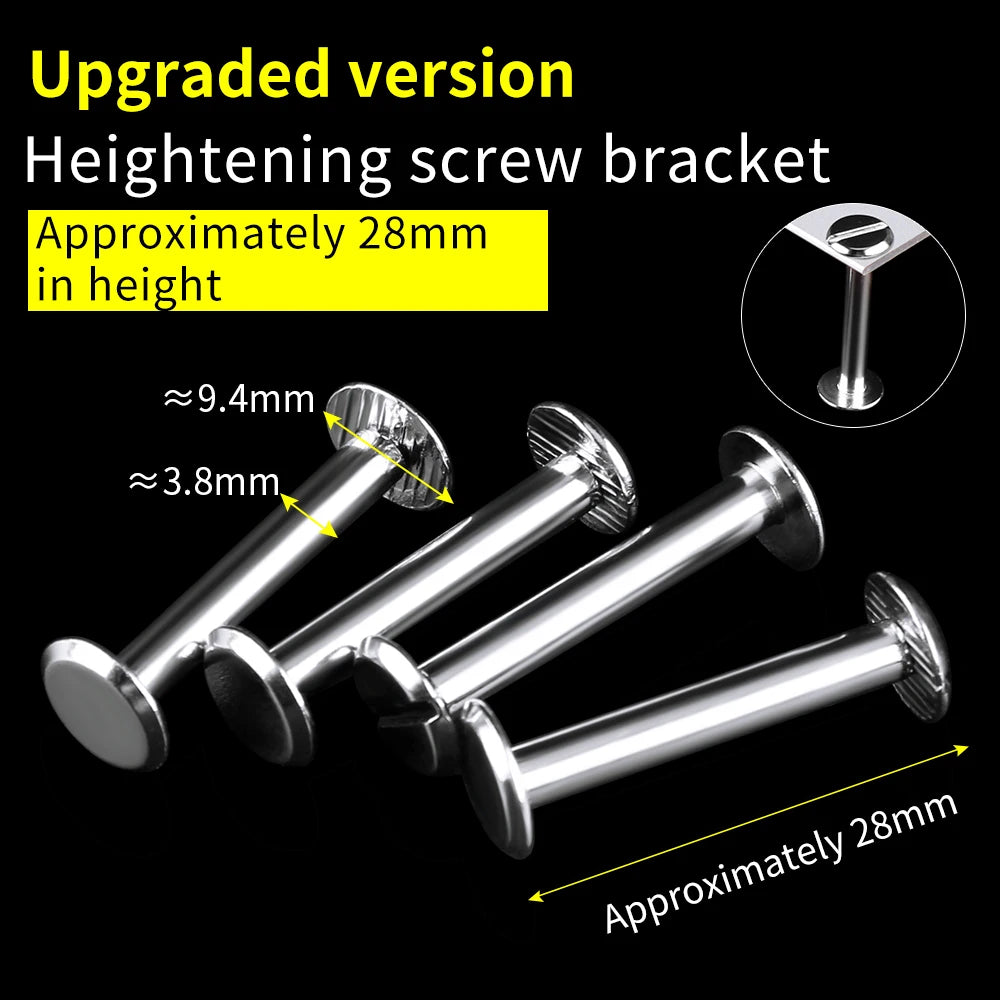

1-- Bracket Screw*4pcs

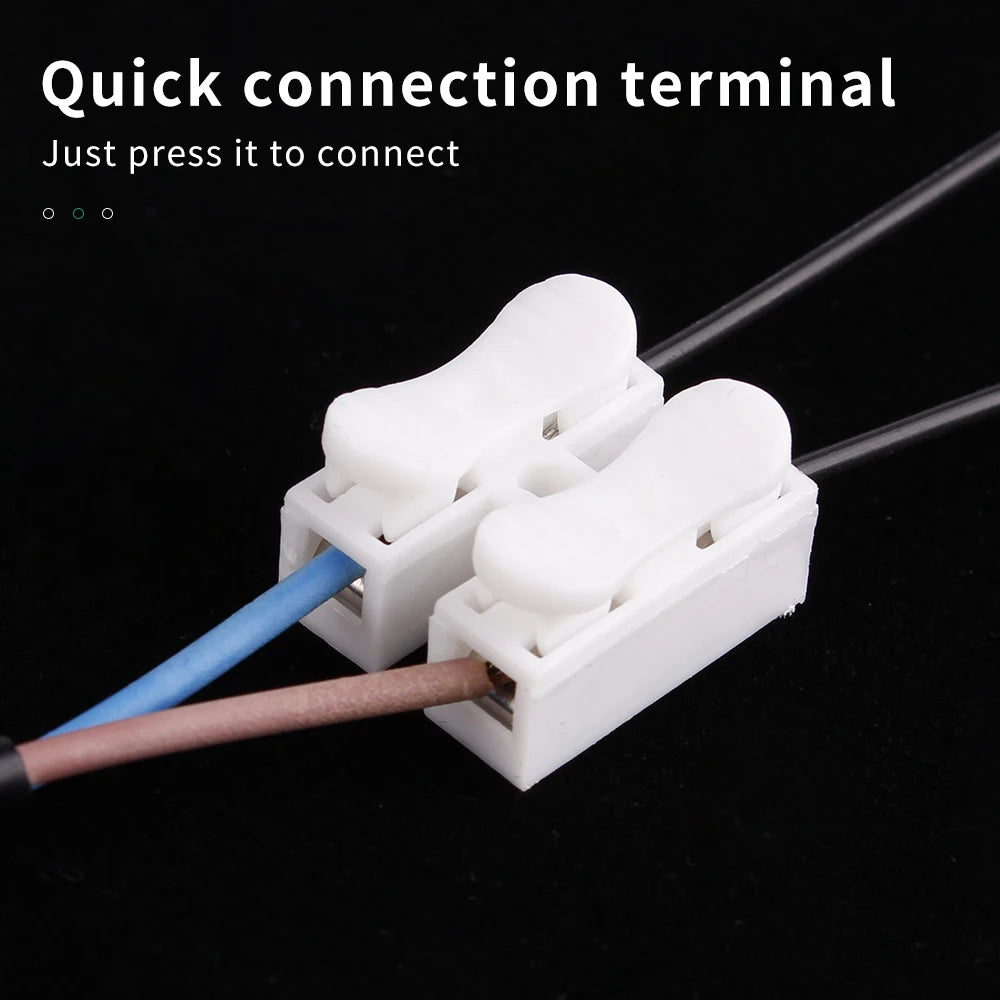

2-- Terminal *2pcs

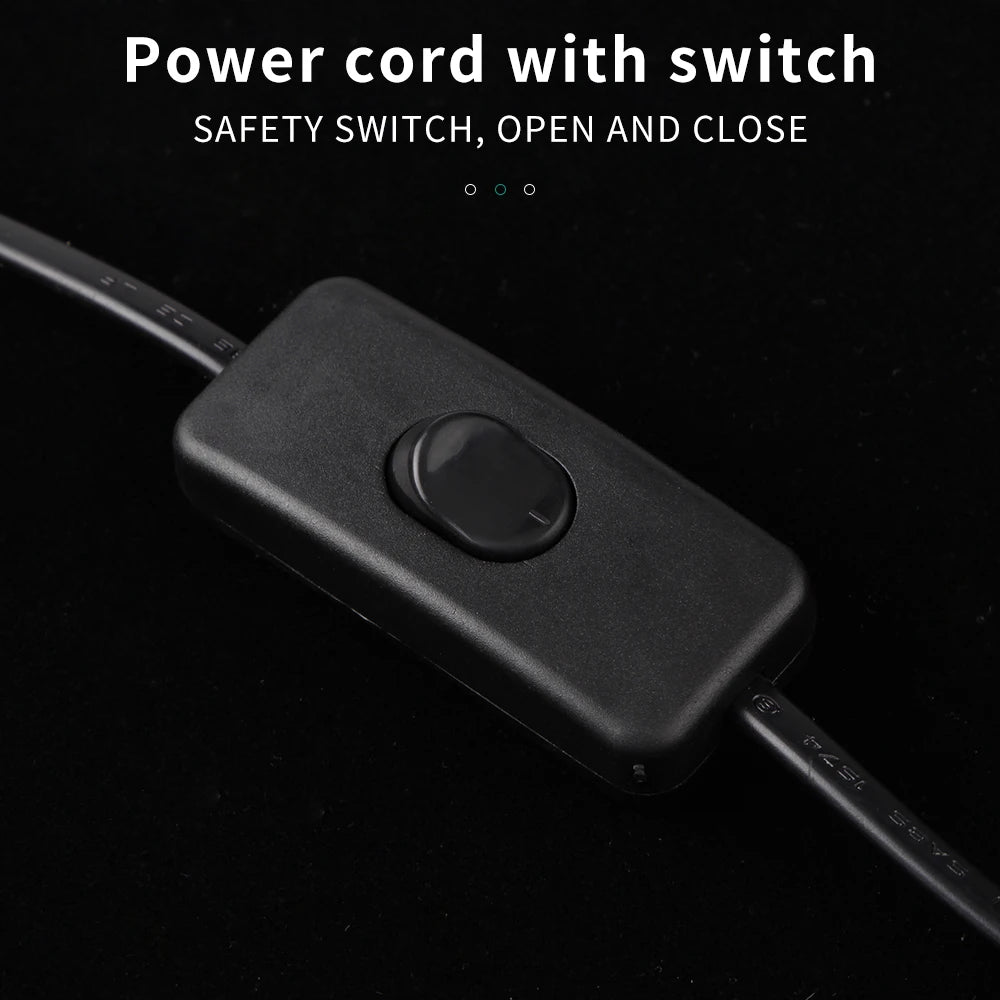

3-- Power cord with switch/two-hole power cord*1pc

（The plug is shown in the picture, if you don’t adapt it, you can buy an adapter socket by yourself）
4-- Electrical tape*1pc
5-- #11 anti-static tweezers*1pc
6-- 188*110mm inch non-hole separator silicone pad *1pc

（Different Set contain different products, subject to order.）

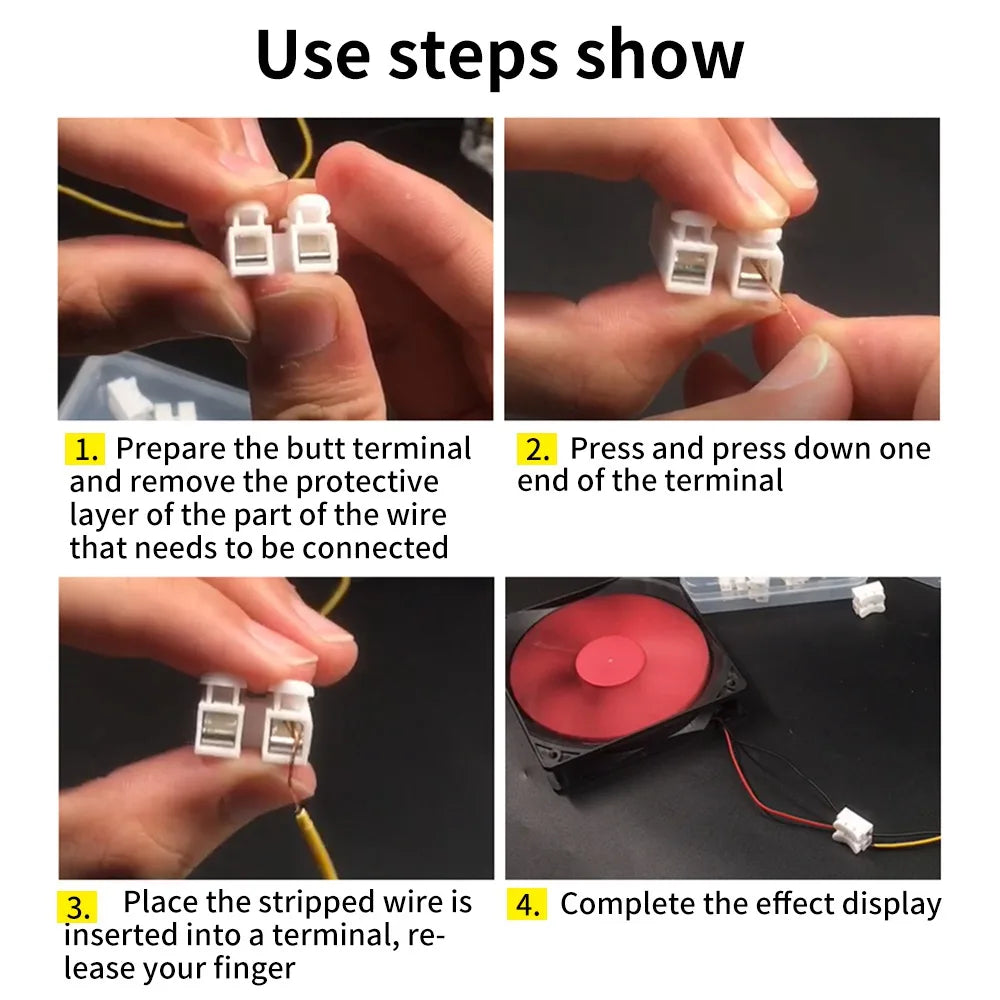

Steps for usage：

1- Prepare the butt terminal, remove the protective layer of the wire connection part
2- Hold and press one end of the terminal
3- Insert the stripped end into the terminal, and then release your finger. The connection is complete.
4- complete the effect display

Warm reminder:

This heating plate heats up faster, after power on.

Put on the LED lamp panel for about 10-30 seconds (the specific time depends on the actual situation) ,and you can start desoldering.

Don't leave it for too long! So as not to burn the substrate or lamp beads.

Dear friends, also pay attention to prevent scalding!
