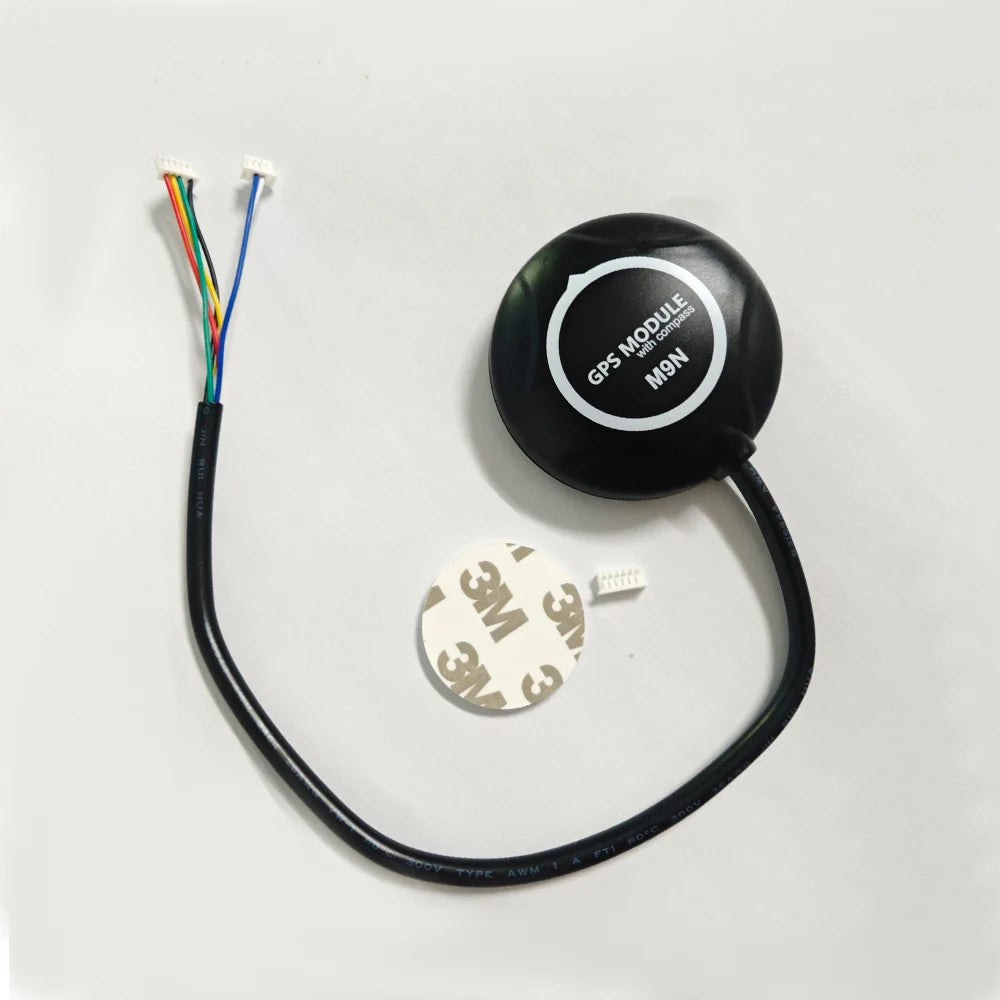

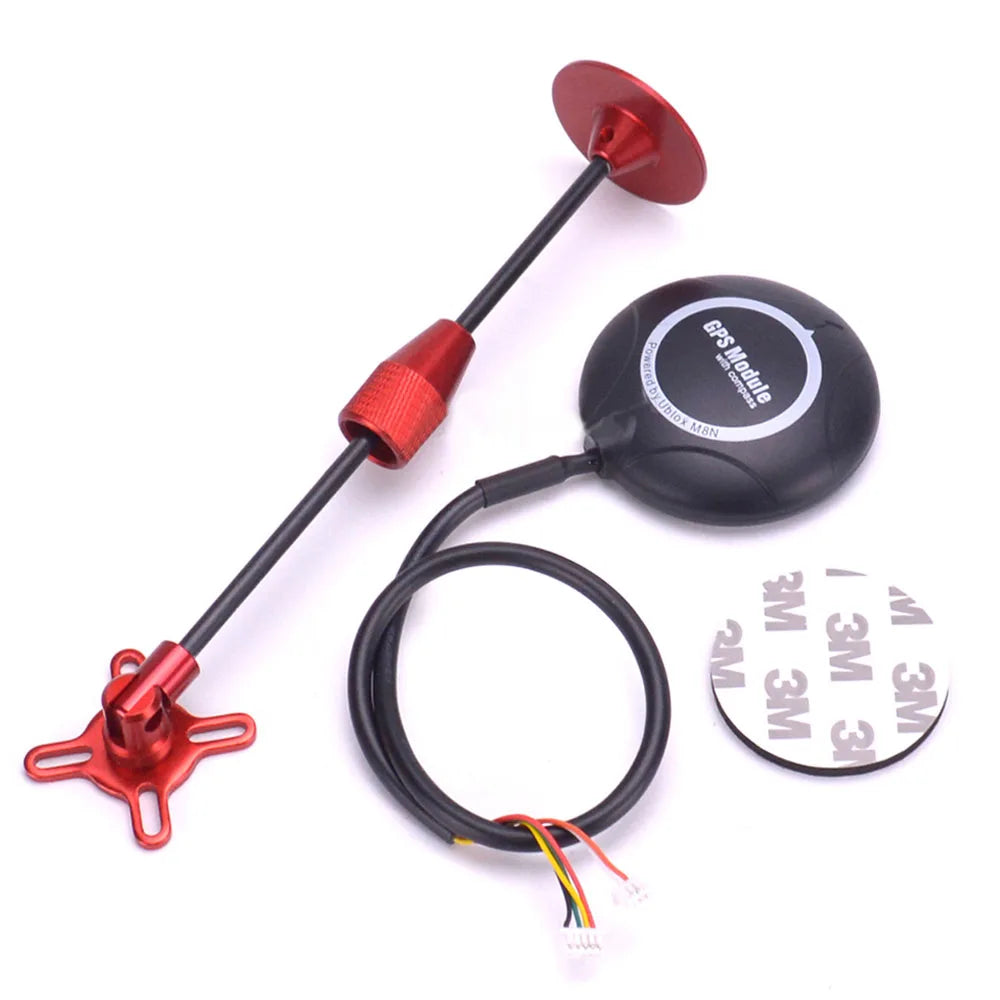

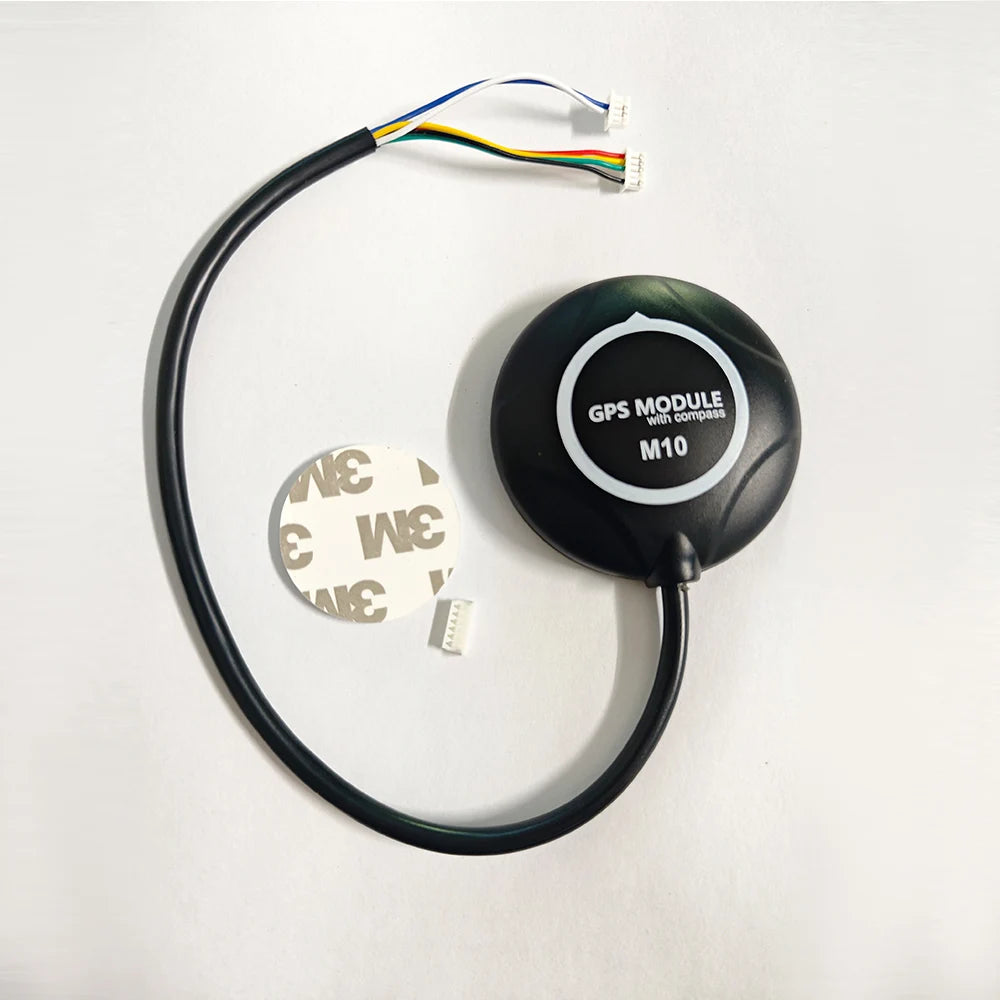

Módulo GPS M8N / M9N / M10 con Compás Integrado para Controladora Vuelo APM 2.6/2.8 / Drones S550/F550
Módulo GPS M8N / M9N / M10 con Compás Integrado para Controladora Vuelo APM 2.6/2.8 / Drones S550/F550
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: QX-MFLU,Readytosky
Certification: CE
For Vehicle Type: Cars,Airplanes
Four-wheel Drive Attributes: Motors,Motors
Hign-concerned Chemical: None
Material: Metal,Composite Material
Model Number: M8N GPS Module
Origin: Mainland China,Mainland China
Quantity: 1 pcs
RC Parts & Accs: Connectors/Wiring,Motor Components
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller,Receivers
Technical parameters: Value 5
Tool Supplies: Assembly Category,Cutting
Upgrade Parts/Accessories: Adapter,Frame
Use: Vehicles & Remote Control Toys,Vehicles & Remote Control Toys
Wheelbase: Screws
modname=ckeditor
modname=ckeditor

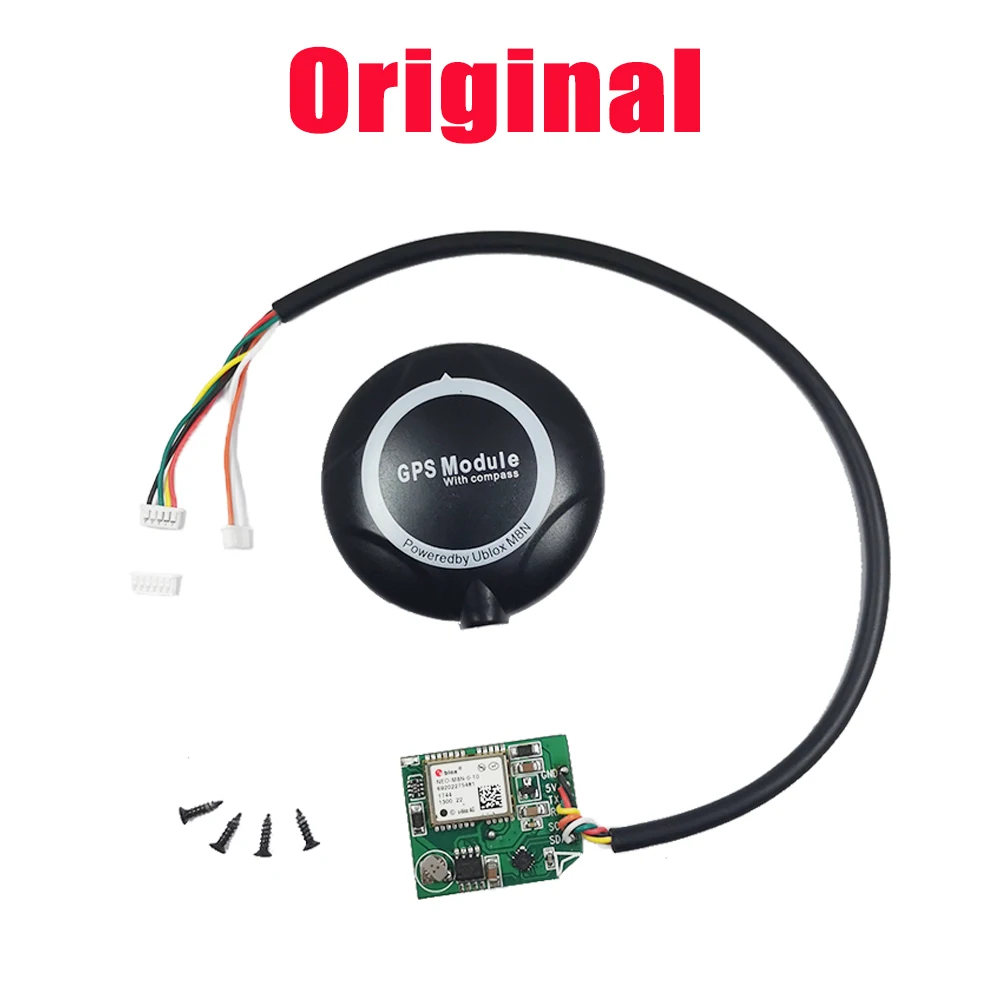

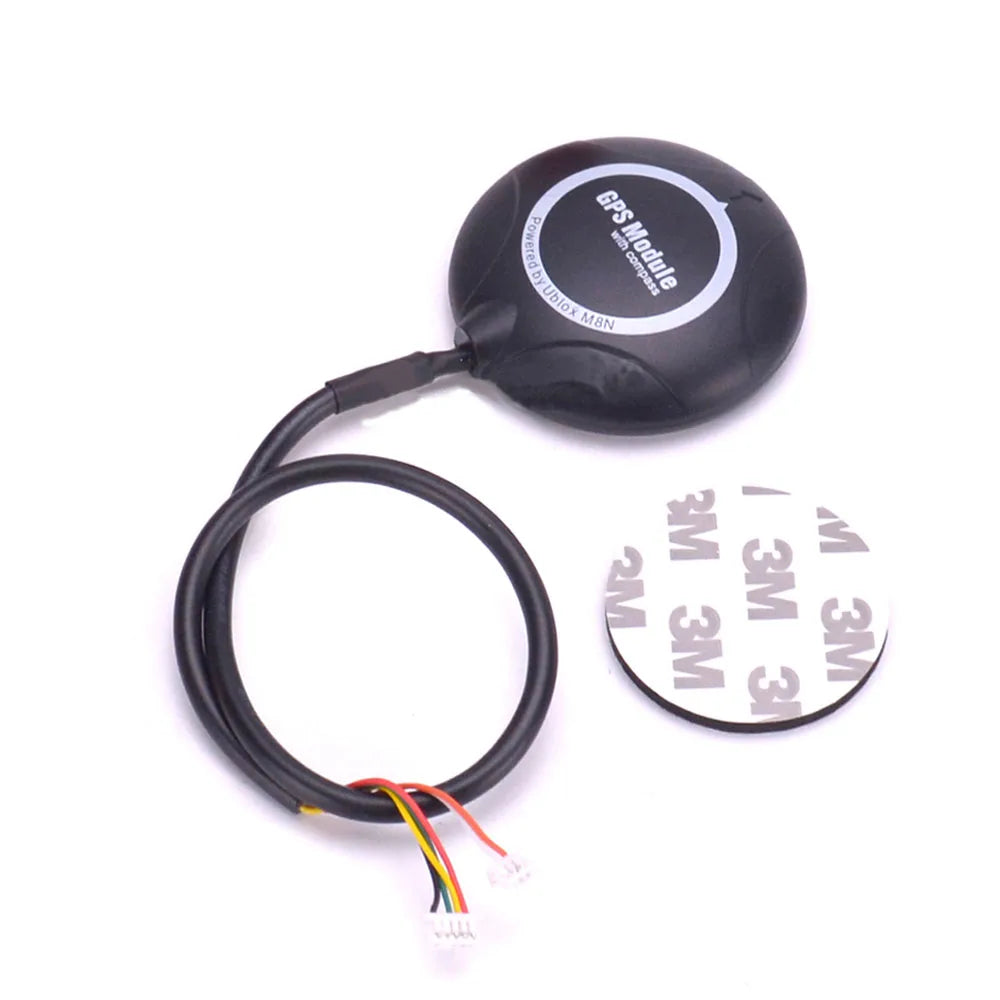

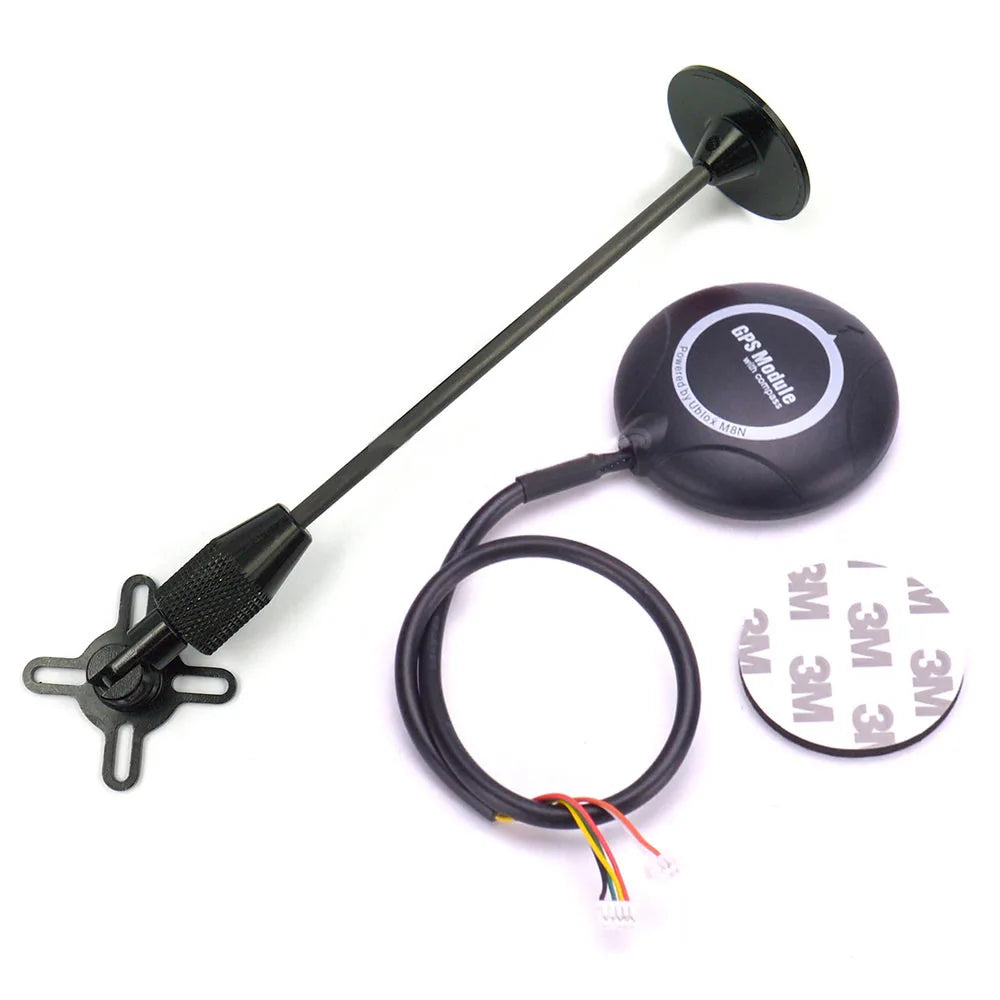

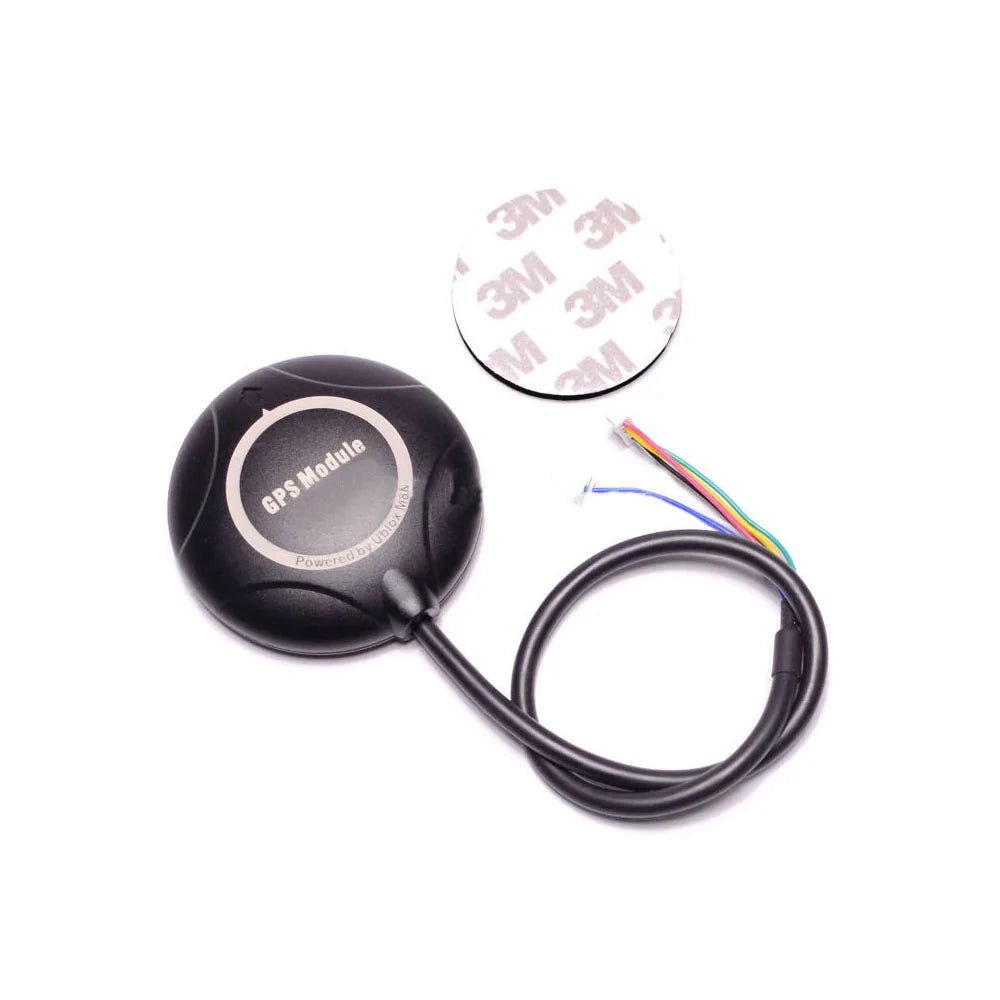

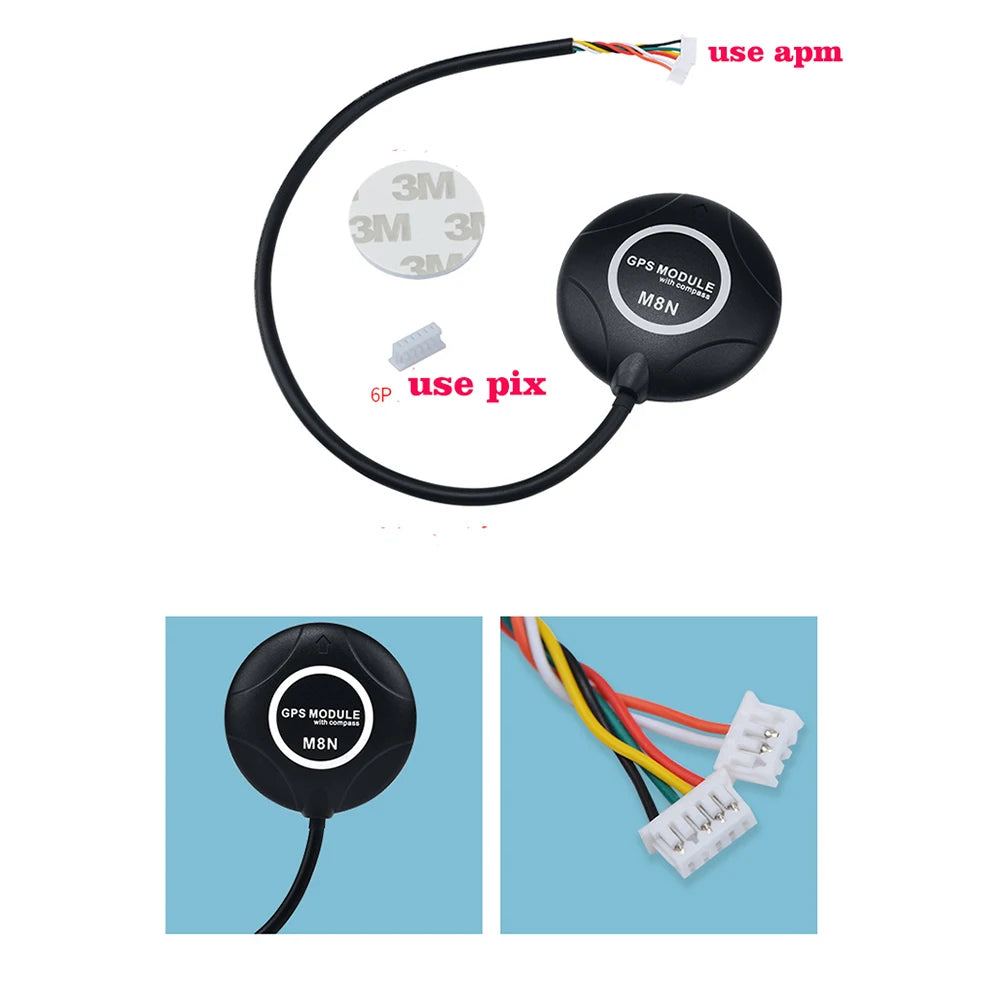

M8N GPS Module:
GPS Chip parameters:
Receiver type 72-channel M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (M8N/Q),
Crystal (M8M)
RTC crystal Built-In
Noise figure On-chip LNA (M8M). Extra LNA for
lowest noise figure (M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (M8N/Q)
Supported antennas Active and passive
Odometer Travelled distance
