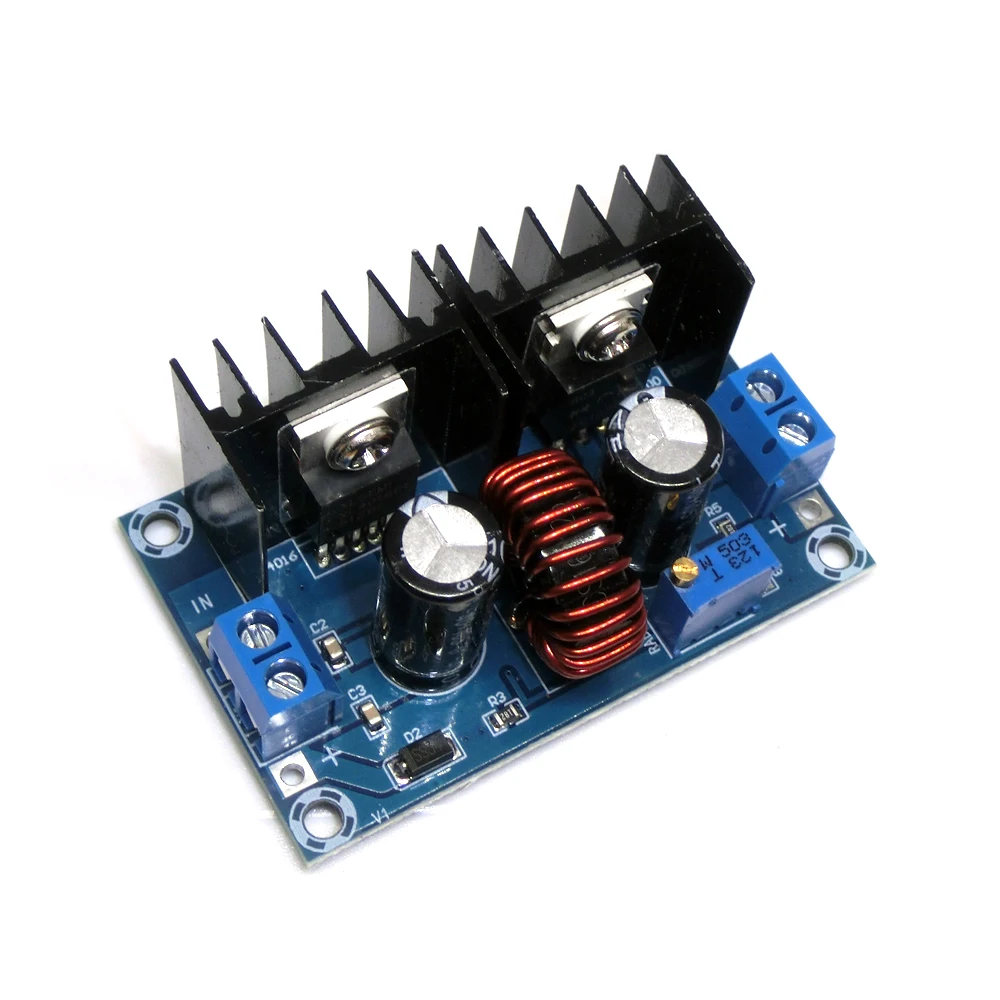

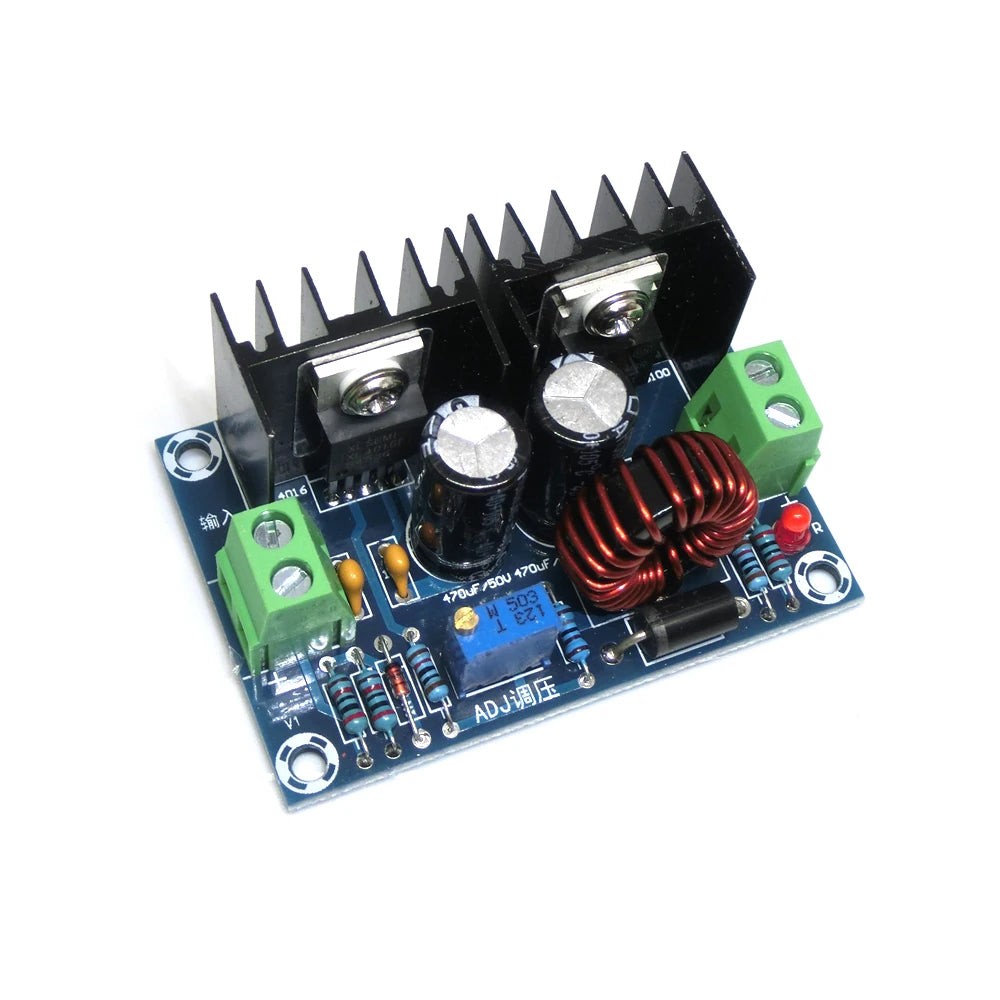

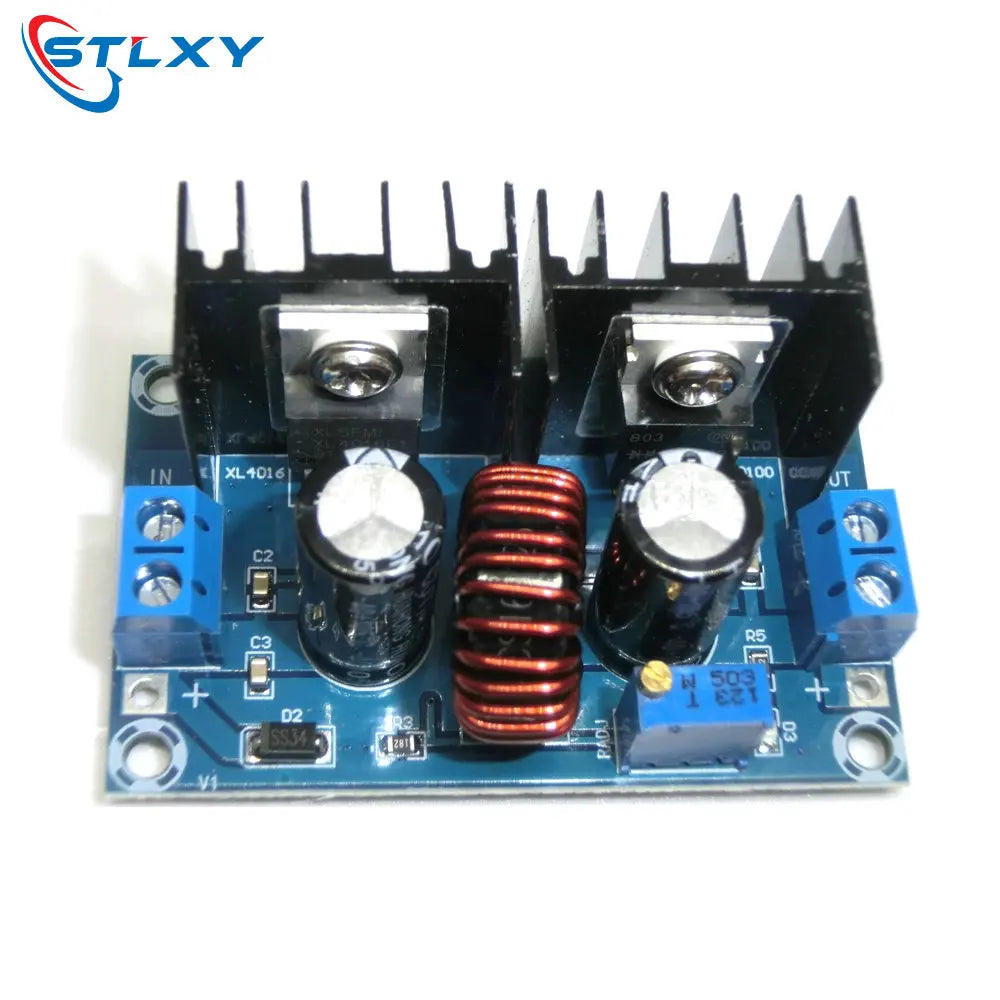

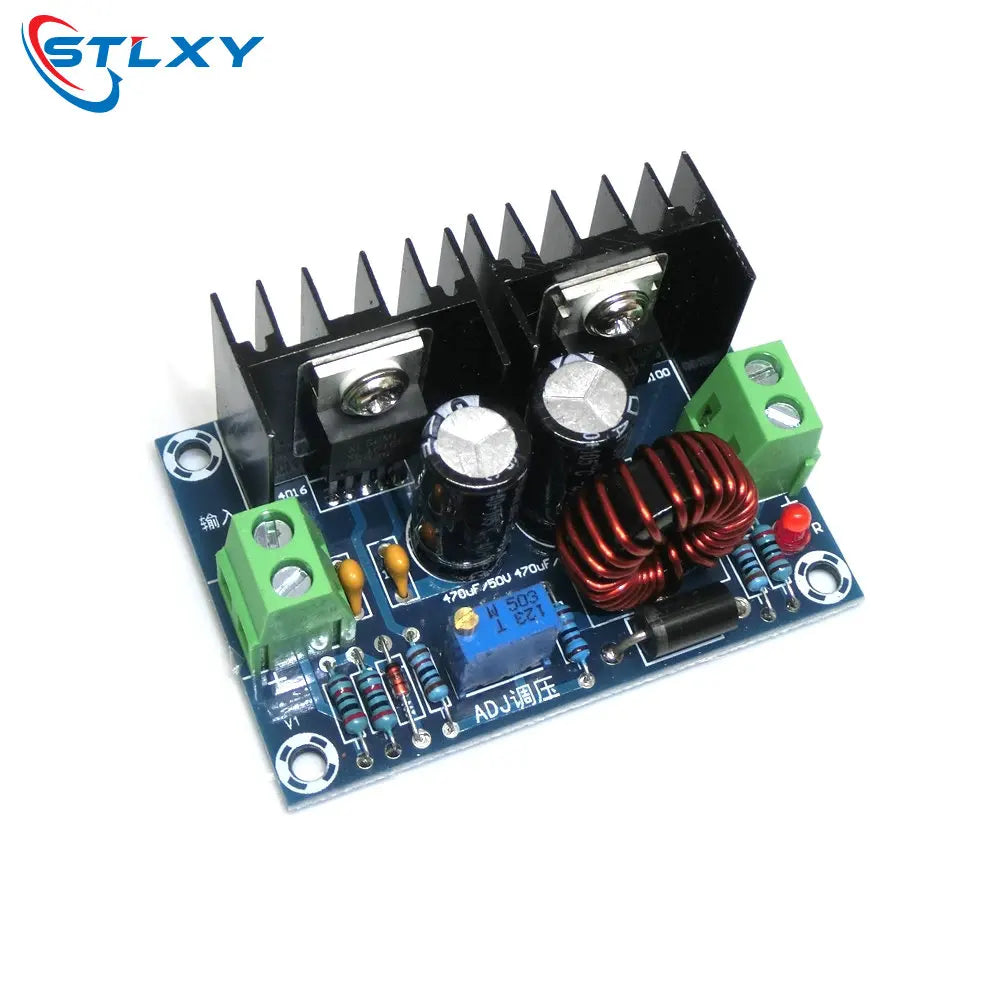

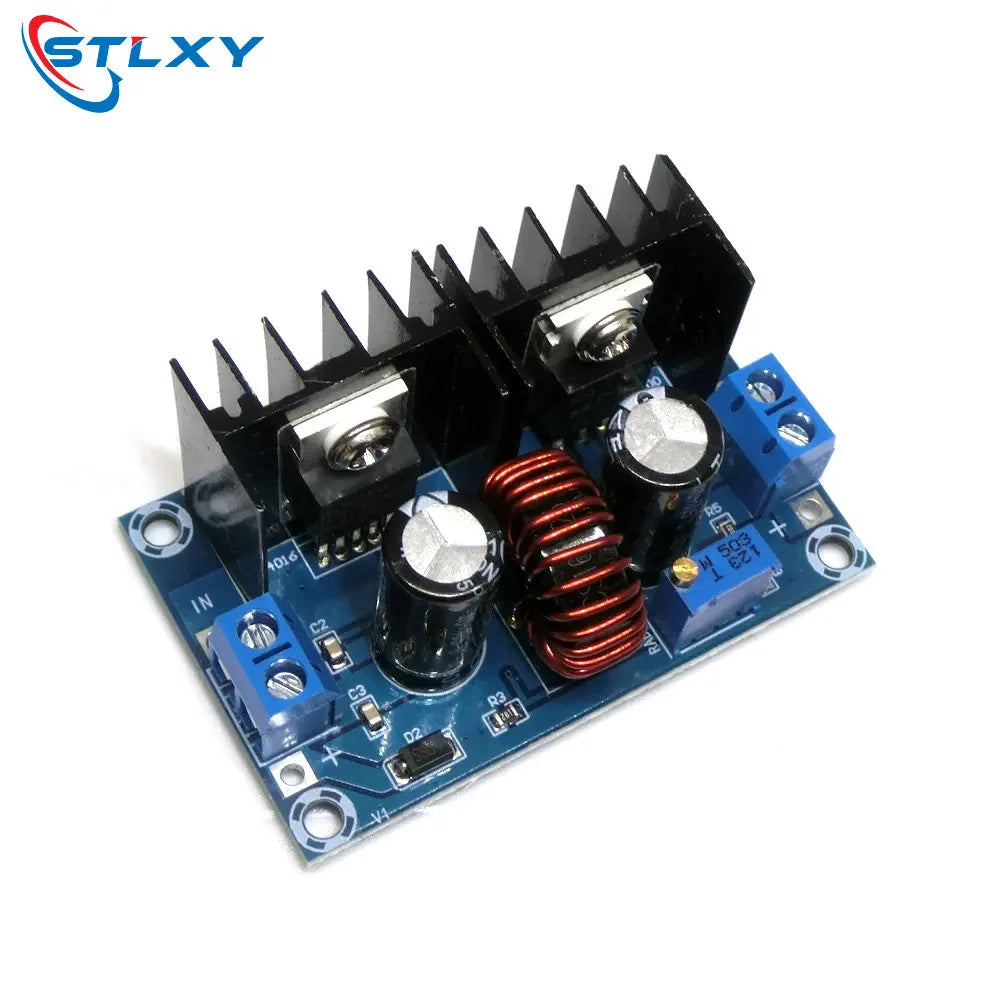

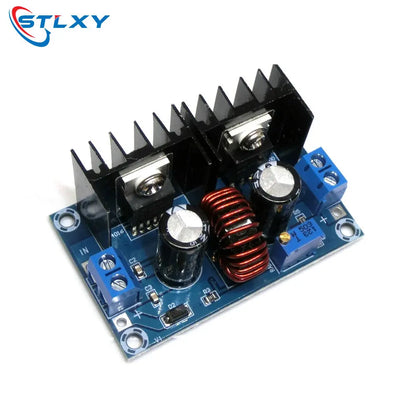

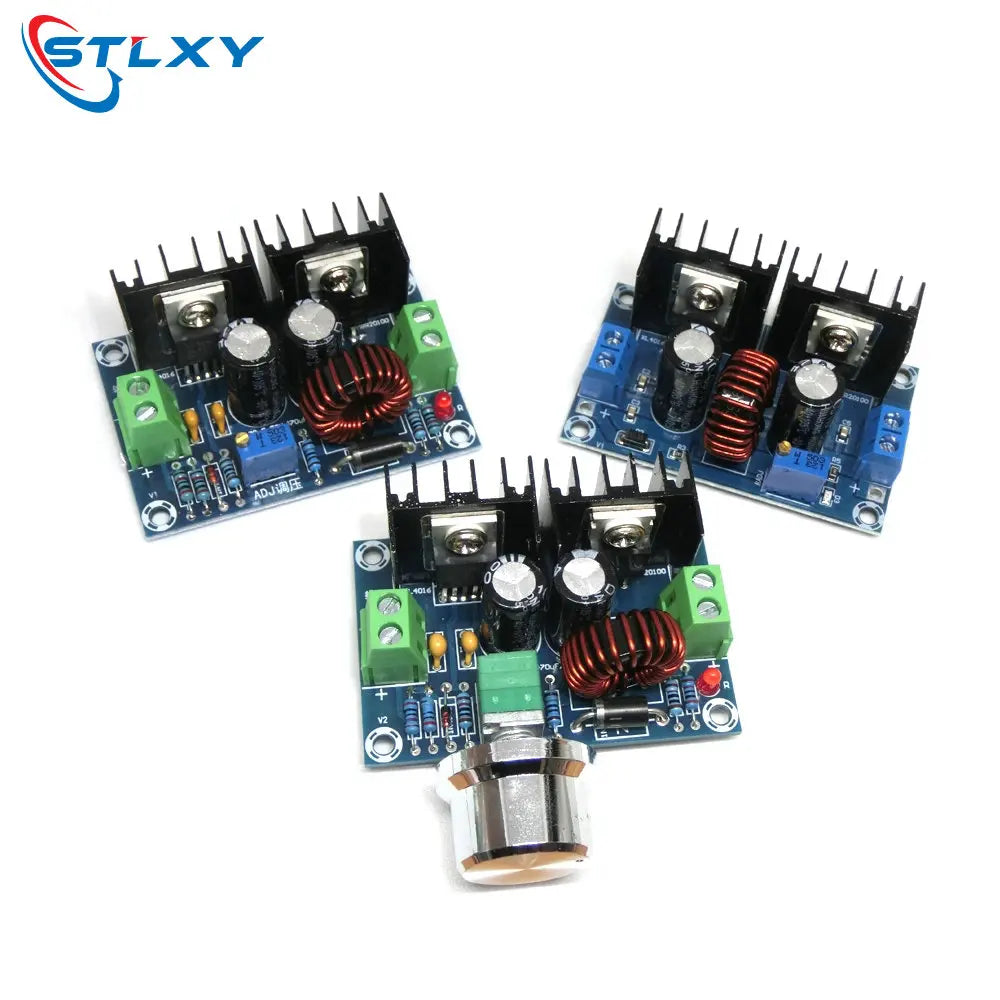

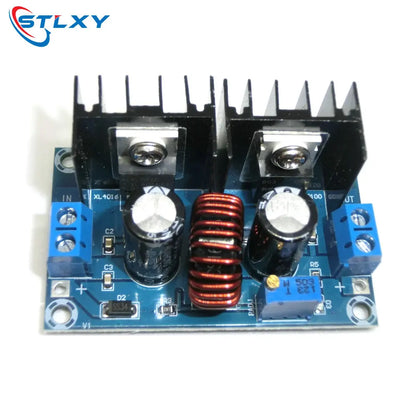

Max 8A 200W DC-DC Step Down Buck Converter Power Supply XL4016 PWM Adjustable 4-40V To 1.25-36V Step-Down Board Module Specification:
Product name: DC step-down module Converter
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (more than 5A for long time use,need Fan if over 5A)
Max power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61*41*27mm
Chip: switching regulator Regulating chip XL4016 with Over current protection,Over temperature protection,Short circuit protection
When reach maximum output current 8A,need to add fan. Long term work recommended about 5A

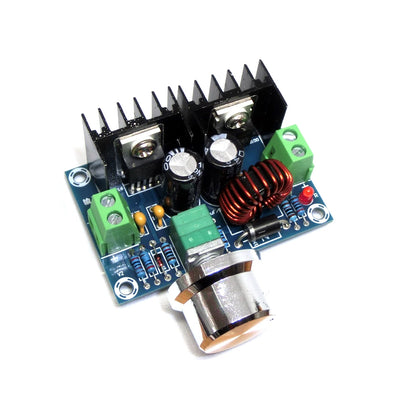

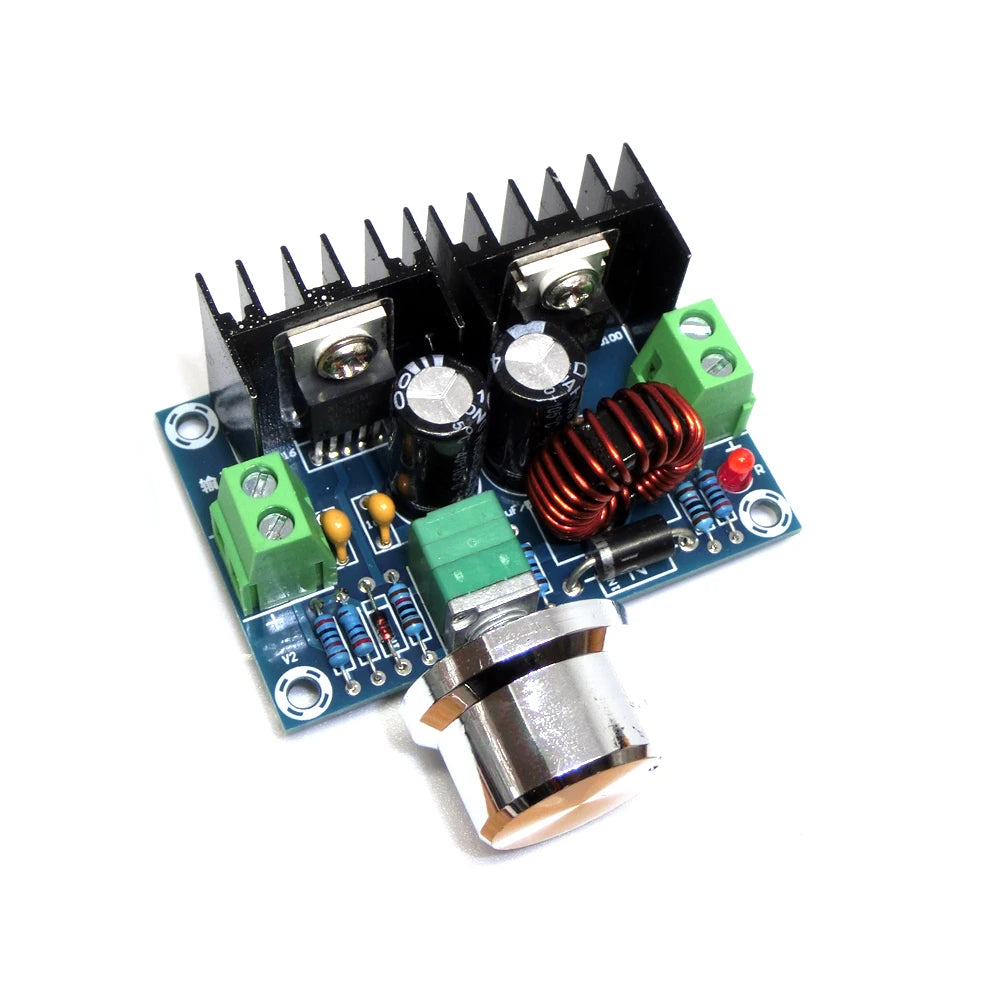

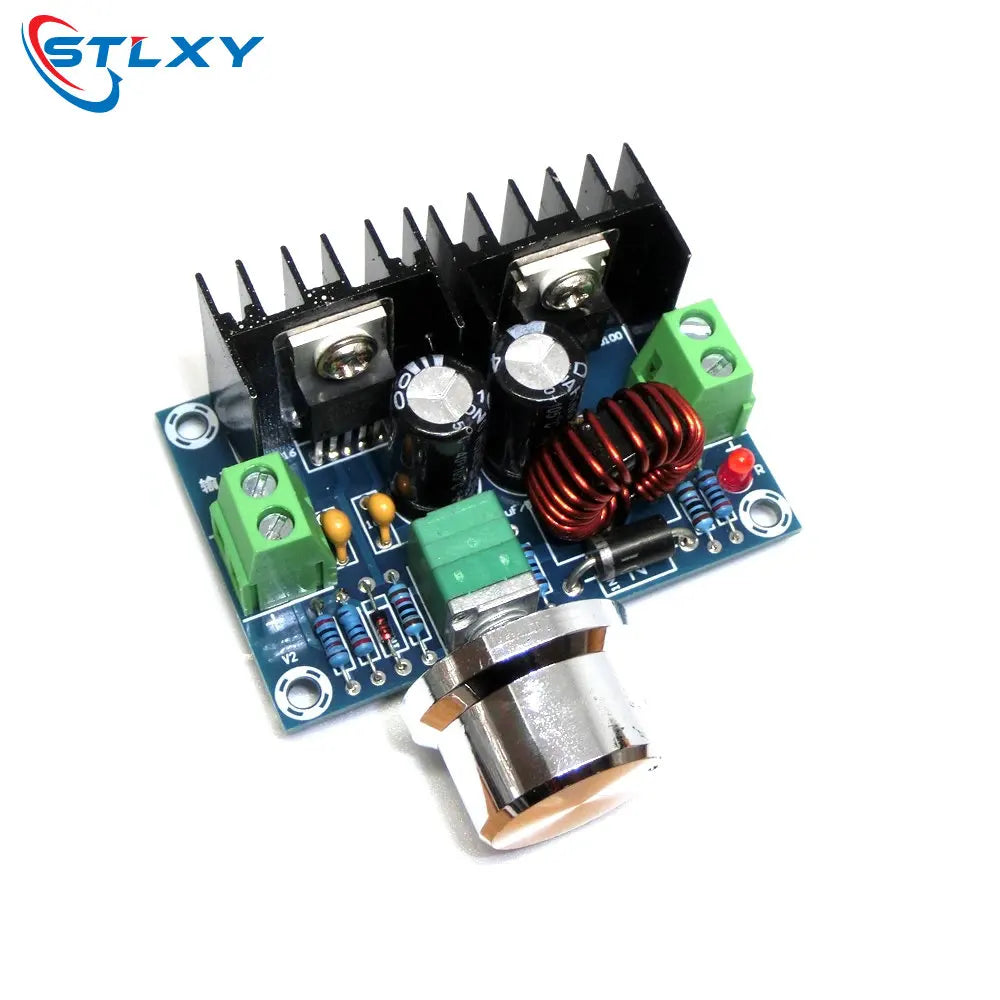

Panel Mounting:
1. Drill holes in the Panel 7mm
2. Extended potentiometer handle
3. Lock screw sleeve upper knob
Package Included:
1 x DC step down voltage power module
NO LED
Description:
100% brand new and high quality.
Features:
The voltage regulator has excellent linearity regulation and load regulation
With multiple protection: over-current protection,over-temperature protection and short circuit protection,etc
Wide Application:
Car audio,radio,navigator,monitor,LED car display,air conditioner,interphone,motors etc
Product name: DC voltage regulator
Voltage regulating mode: PWM modulation
Input voltage: DC 4-38V
Output voltage: DC 1.25-36V
Maximum current: 8A(please add fan and make current less than 5A for a long term use)
Maximum power: 200W
Conversion efficiency: 95%
Switching frequency: 180KHz
Working Temperature: -45~+85℃
Size: 6x3.7cm/2.36x1.46inch
Note:
1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors,the picture may not reflect the actual color of the item. Thank you!
Please make sure there is a 2V voltage difference between input voltage and output voltage
The maximum output current can reach 8A; For long time working please make sure the current is less than 5A.
This is not a step up module,but a step down module
Package Included:

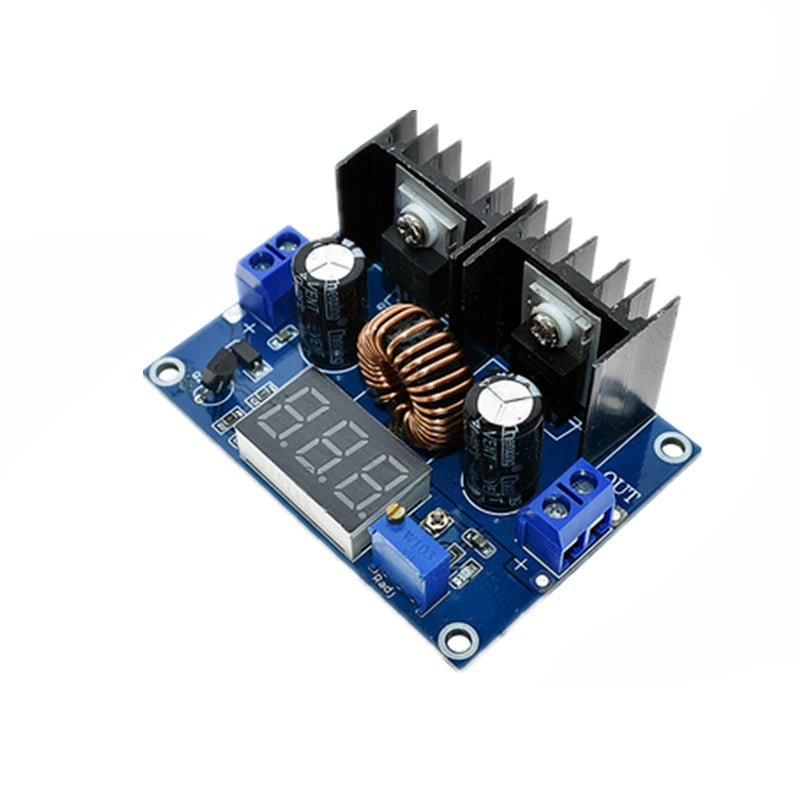

WITH LED
100% Brand New and High Quality.
Shape: Same as the picture show
1. Type: XH-M404 Regulator
2. Size: 64mm x 47mm (LxW)
3. Regulator mode: PWM modulation
4. Input voltage: DC4-38V
5. Output voltage: DC1.25-36V
6. Maximum current: 8A (long time recommended 5A)
7. Maximum power: 200W
8. Conversion efficiency: 95%
9. Switching frequency: 180KHz
10. Other functions: short circuit protection,input reverse protection,over-temperature protection (over-temperature cut off automatically)
11.Display method: 0.36 inch 3 red digital tube
Package included:
1PC X XL4016 Voltmeter PWM Power Module
Feature:
Voltage regulator potentiometer counter-clockwise rotation voltage decreases,if the rotation of the copper column voltage has not changed,you can rotate 5-10 laps.
Specification:
Maximum power: 200W
Output current: up to 8A (long-term use recommended 5A)
Step-down chip: XL4016E1
Conversion efficiency: 94%
Input voltage: DC4-40V
Output voltage: DC1.25-36V
size: 17*2.4*2.4mm
Package included:
