SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

DIY Supplies: ELECTRICAL

Hign-concerned Chemical: None

Model Number: NI-210SC

Origin: Mainland China

Output Voltage: AS DETAIL

S: 93053

Size: 140 x 80 x 40mm

Style: AS DETAIL

Type: LCR Meter

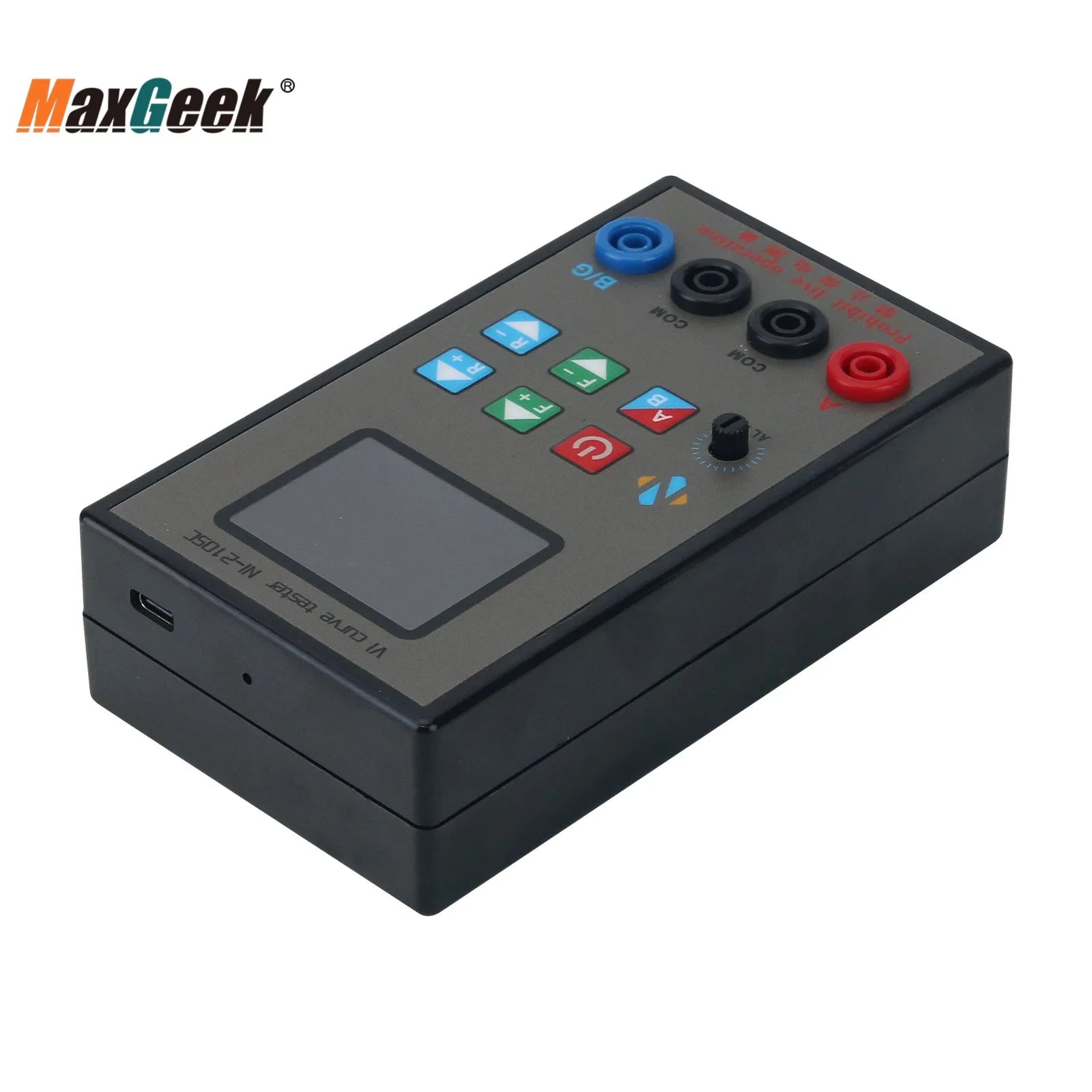

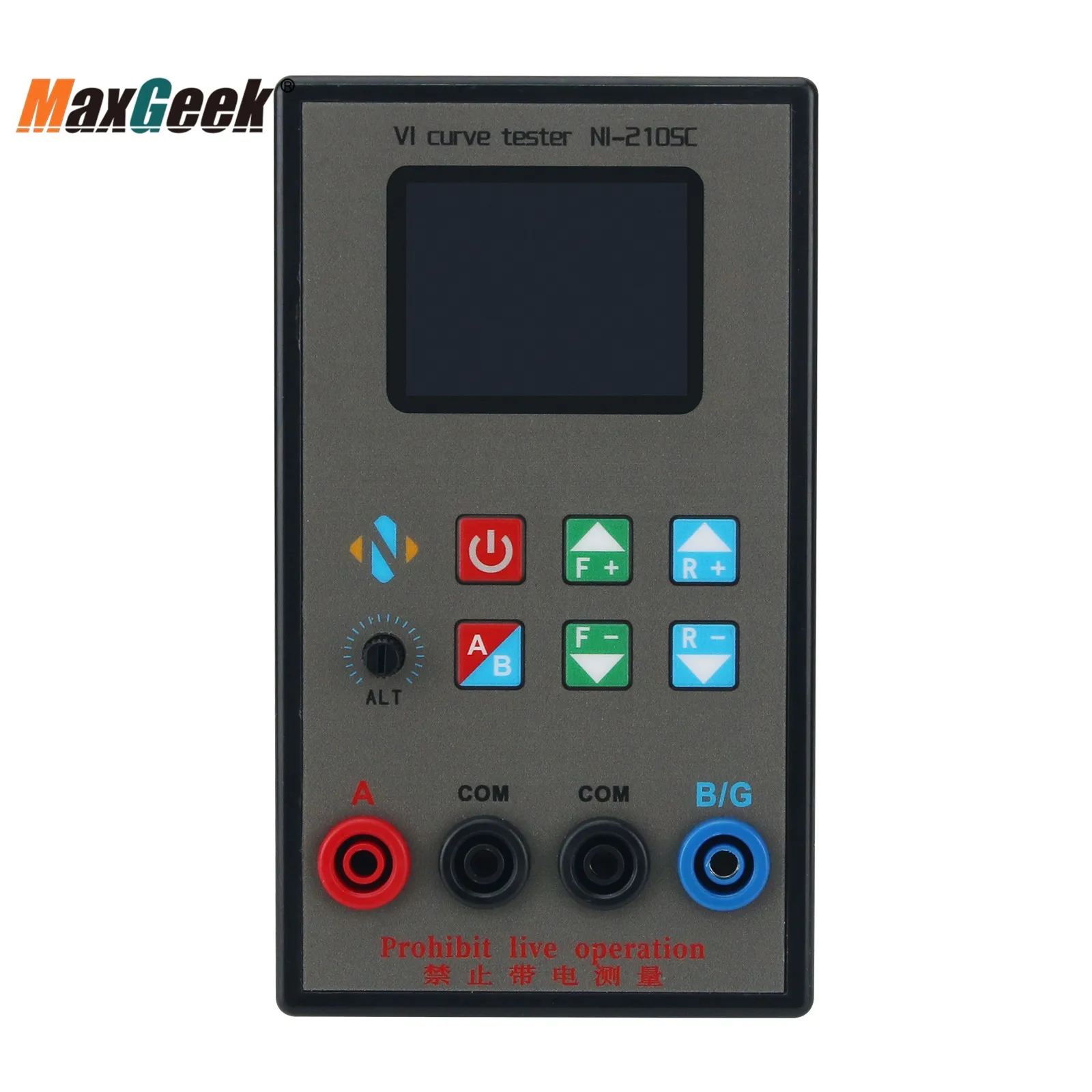

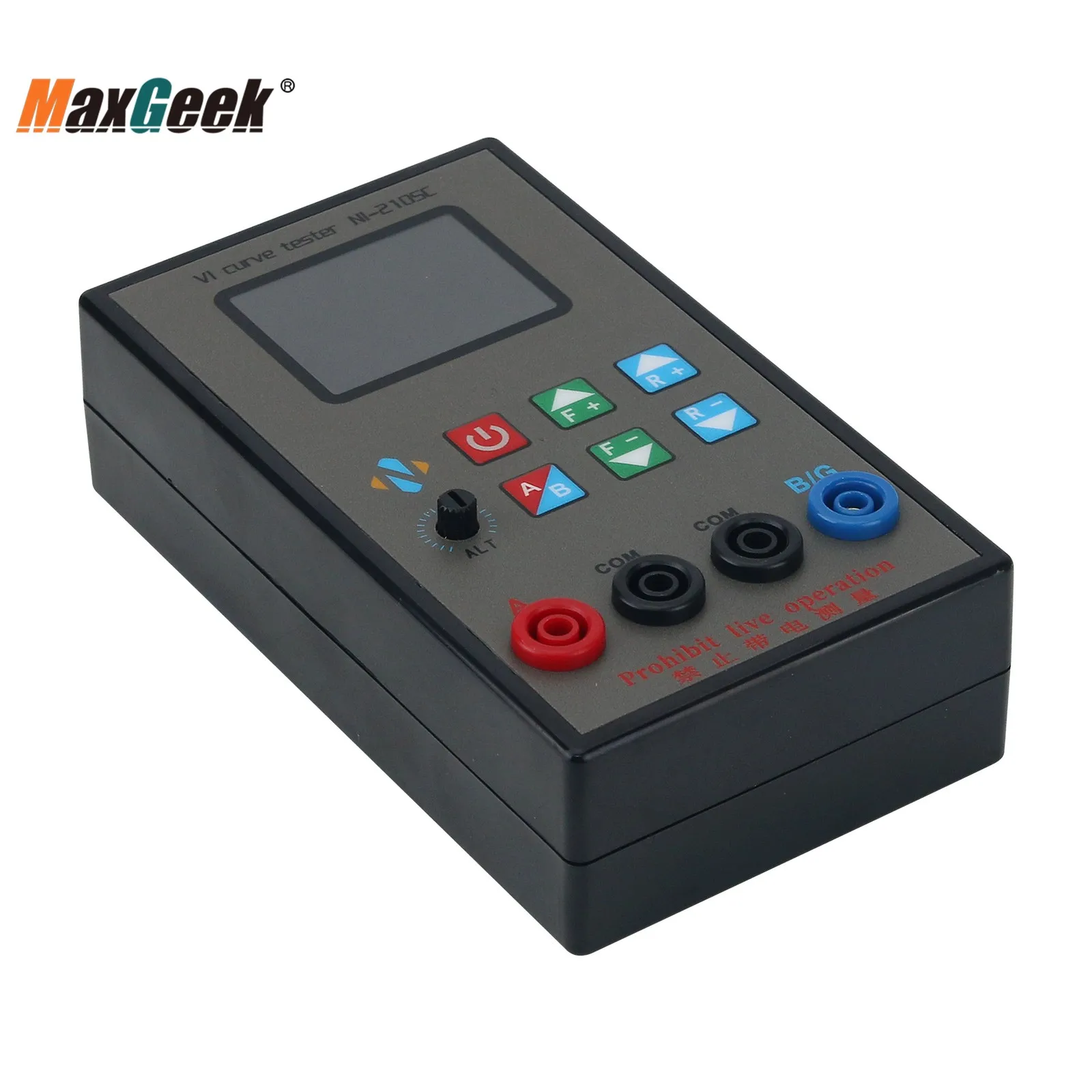

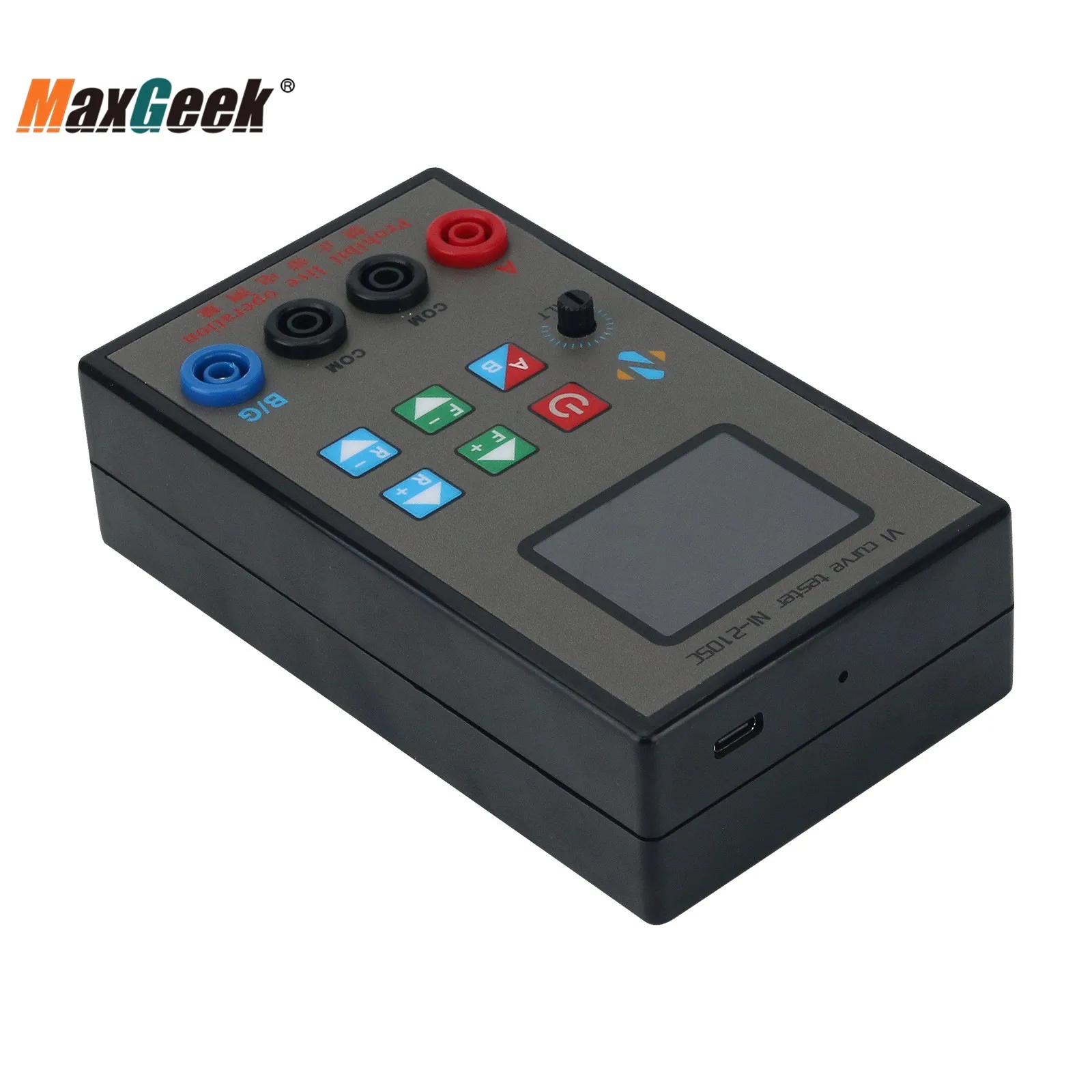

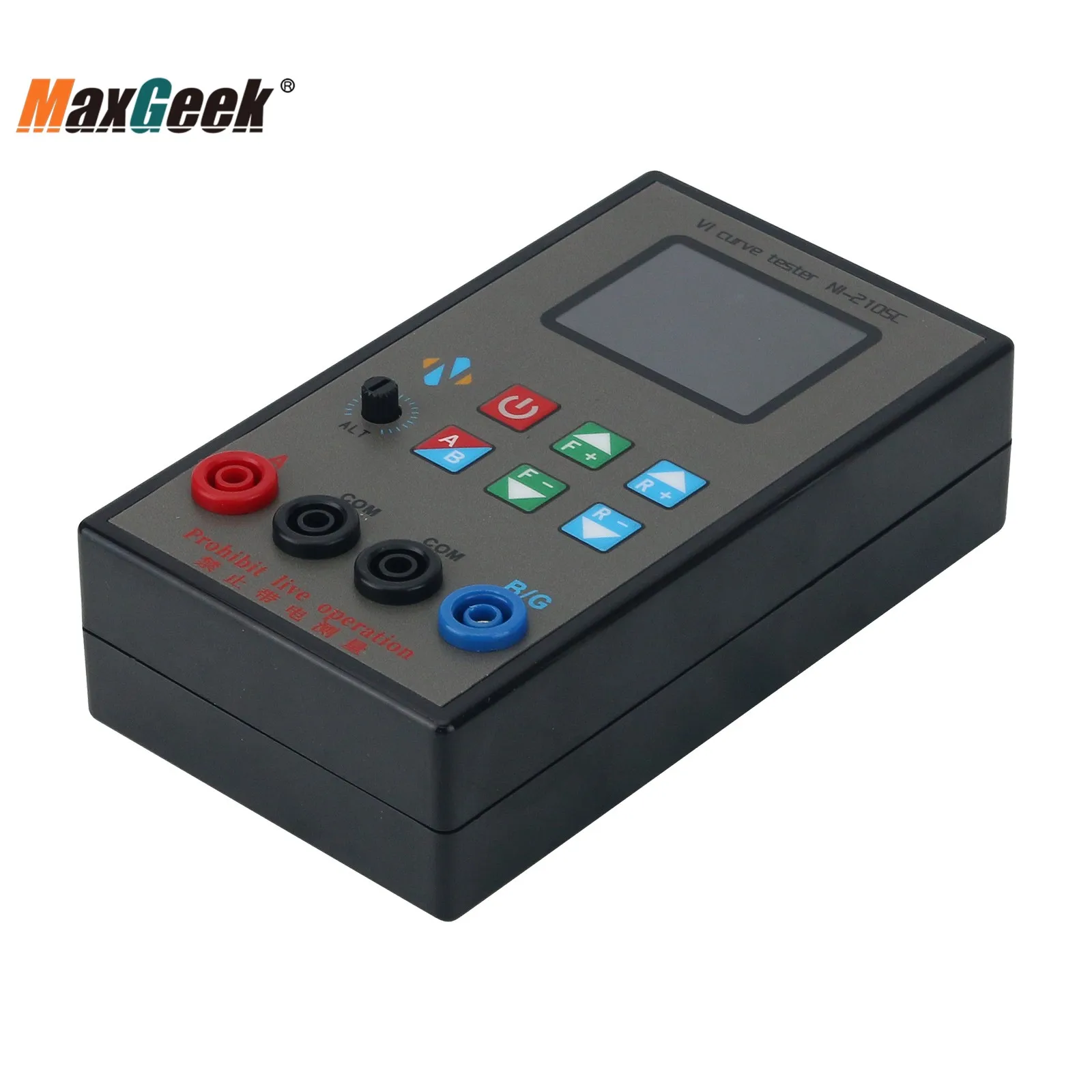

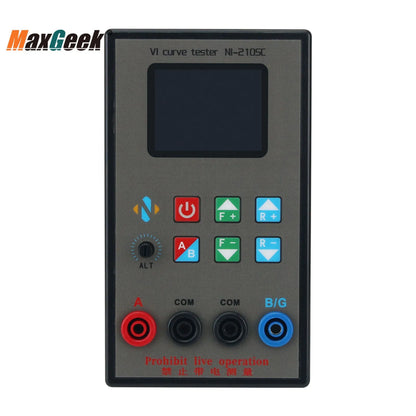

Maxgeek NI-210SC Portable Dual Channel VI Curve Tester 18 Levels Frequencies Adjustable with 2.0-inch TFT Screen

Features:

- Dual signal input, adjustable B position, 18 frequency levels, 9 internal resistance levels.

- Supports A or A+B display, trigger signal output (5V).

- Type-C charging, built-in 3000mAh lithium battery, can work continuously for 5-6 hours.

- 2.0-inch TFT screen display, if there is no button operation for 15 minutes, it will automatically shutdown.

Specification:

- Voltage: 4V

- Internal resistance: 50R, 500R, 1K, 2K, 3K, 4K, 5K, 6K, 7K.

- Frequency: 20Hz, 100Hz, 500Hz, 1kHz, 2kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7kHz, 8kHz, 9kHz, 10kHz, 11kHz, 12kHz, 13kHz, 14kHz, 15kHz.

- Size: 140 x 80 x 40mm

- Net weight: 270g for host; 120g for accessory

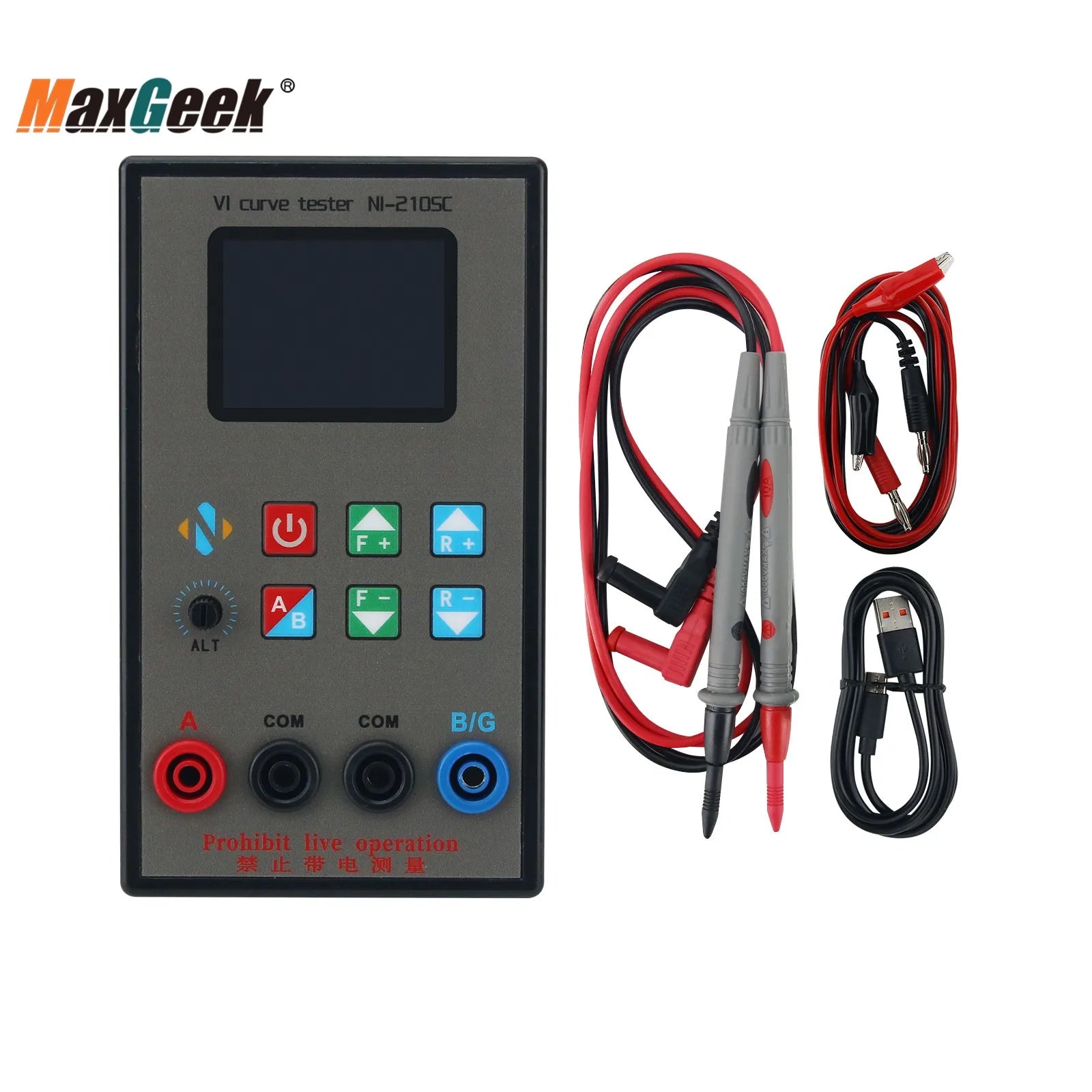

Package Included:

- 1 x VI Curve Tester

- 1 x Testing Pen

- 1 x Testing Clip

- 1 x Type-C Charging Cable

Note:

- The blue terminal is the multiplexing port. By default, when using channel A, the blue terminal outputs a 5V pulse voltage with an interval of 1 second.

- After activating the A+B channel, the blue terminal is the signal input port for the B channel.

- Prohibit live operation. Please use a 5V2A or higher charging adapter.
