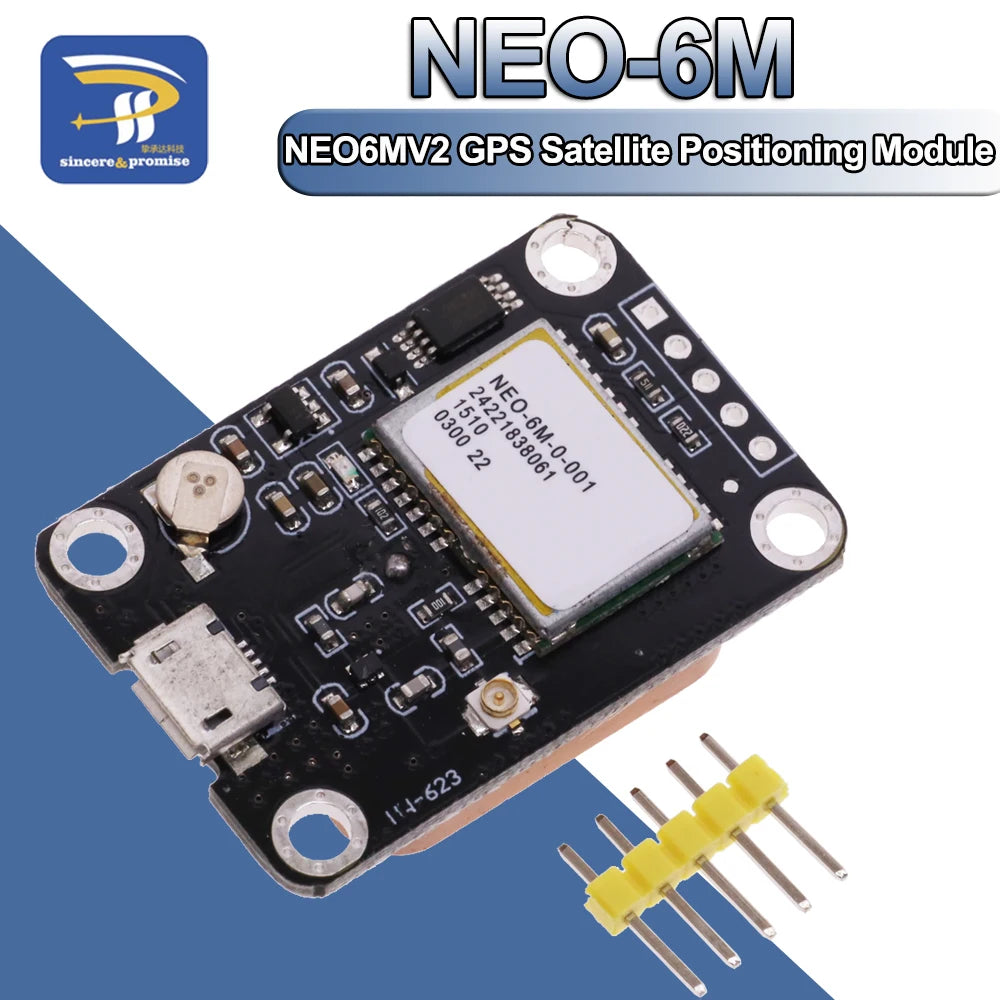

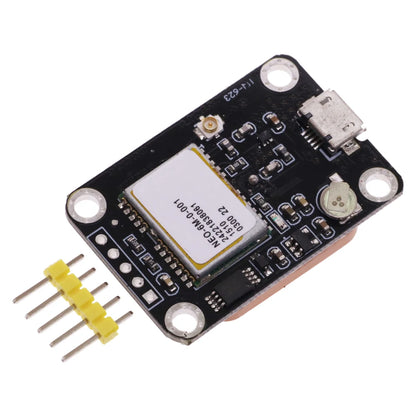

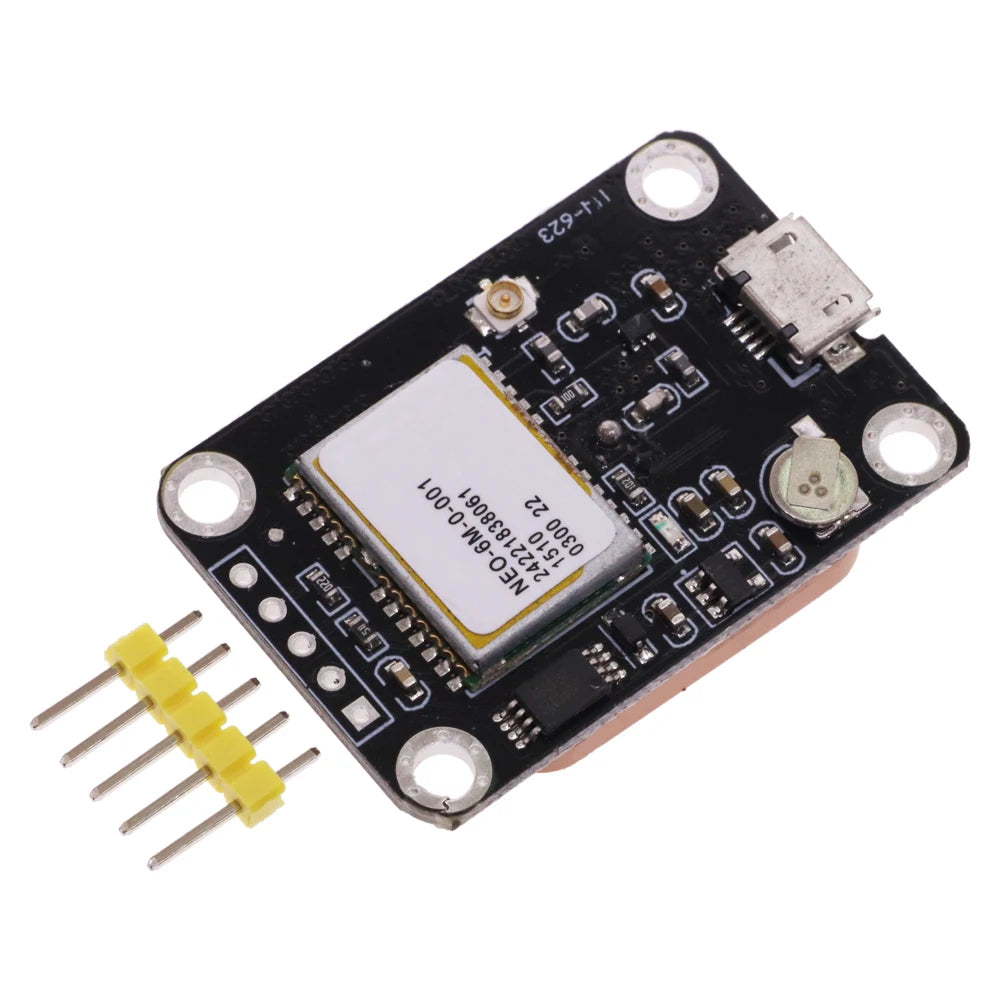

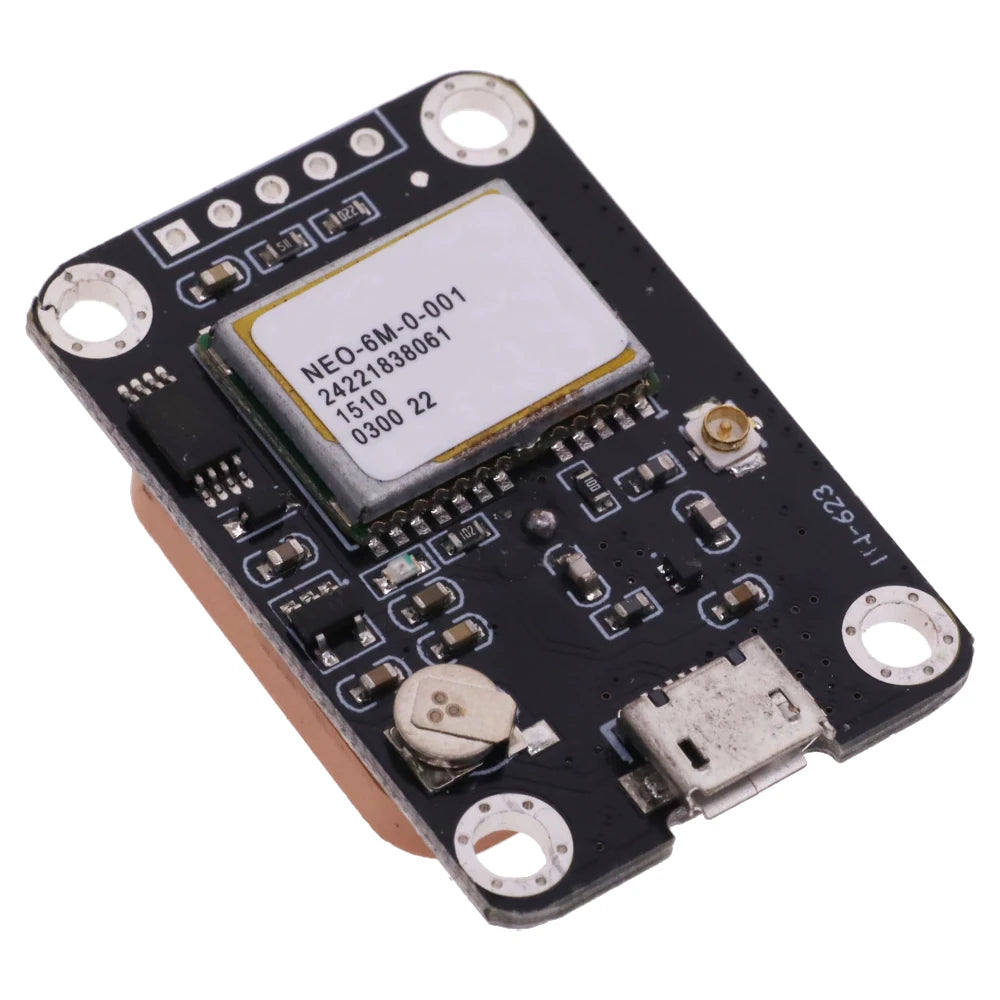

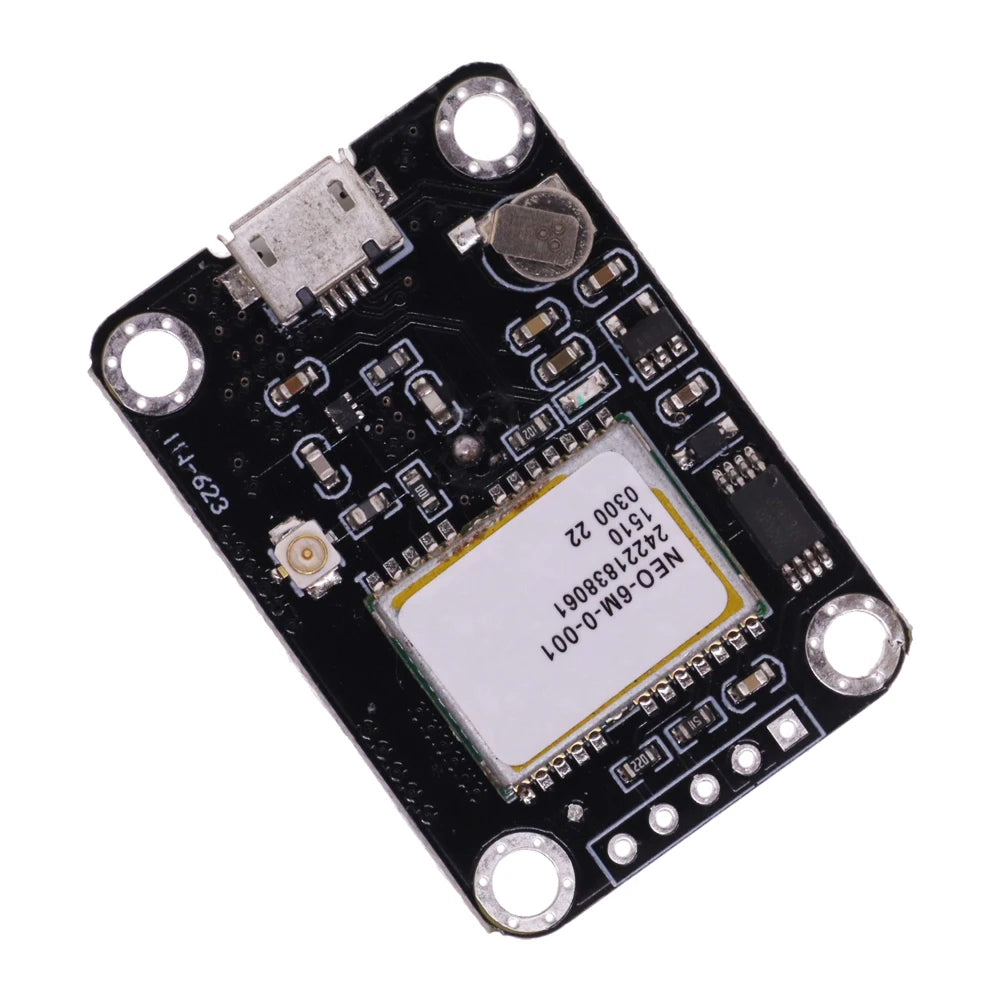

Placa Desarrollo Módulo Posicionamiento Satelital GPS NEO-6M (NEO6MV2) (Micro USB) para Arduino/STM32/C51/MCU

Placa Desarrollo Módulo Posicionamiento Satelital GPS NEO-6M (NEO6MV2) (Micro USB) para Arduino/STM32/C51/MCU

Precio habitual $10.103 CLP
Precio habitual $13.102 CLP Precio de oferta $10.103 CLP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Default Title

SPECIFICATIONS

Brand Name: sincere&promise

Choice: yes

Condition: New

Model Number: NEO-6M

Origin: Mainland China

Supply Voltage: 3.3V-5.5V

Type: Voltage Regulator

semi_Choice: yes

6M GPS module has high sensitivity, low power consumption and miniaturization. Its extremely high tracking sensitivity greatly enlarges the coverage of its positioning. In the place where ordinary GPS receiving module can not locate, such as narrow urban sky, dense jungle environment, 6M can be high-precision positioning. The high sensitivity, small static drift, low power consumption and compact size of the module are ideal for applications such as PDAs, vehicle monitoring, mobile phones, camcorders and other mobile positioning systems in automotive and handheld applications.

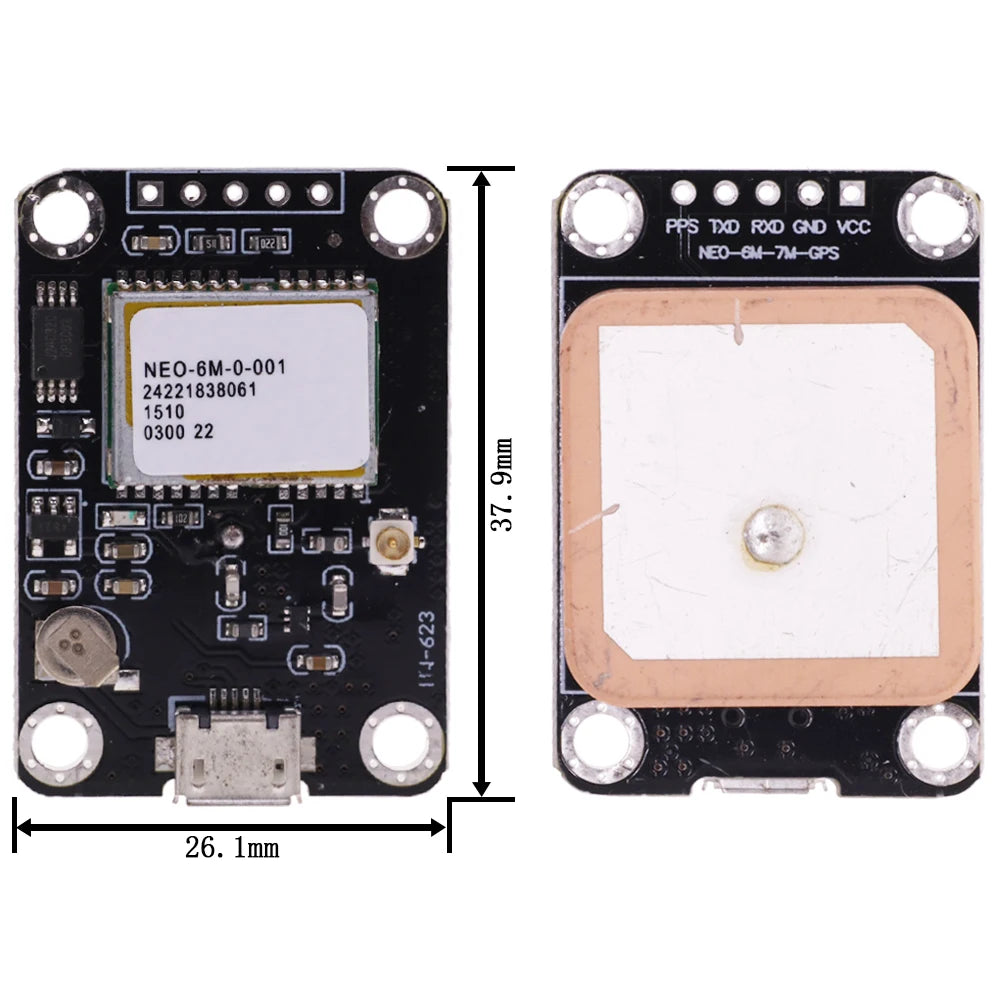

Module size: 37.4x26.2


Module parameters

1. Voltage

Input voltage: 3.3-5.5V

Power consumption

Normal mode: 50 mA

Power Saving Mode: 30 mA

2. Temperature

Operating Temperature -40 ° C to + 85 ° C



Storage temperature -55 ° C to + 100 ° C

3. Pin descriptions and electrical connections

Module pin



1

VCC

Power input pin 3.3-5.5V

2

GND

Power ground

3

RXD

Module serial port to receive the foot - then single-chip serial port TXD sent

4

TXD

Module serial send pin - then the microcontroller serial RXD reception

5

PPS

Clock pulse output pin





Module PPS feet connected to the red LED lights



On: Normal operation, but not positioned. Blinking: The positioning was successful



4. Baud rate

The default baud rate for the module is 9600



5. Characteristic parameters

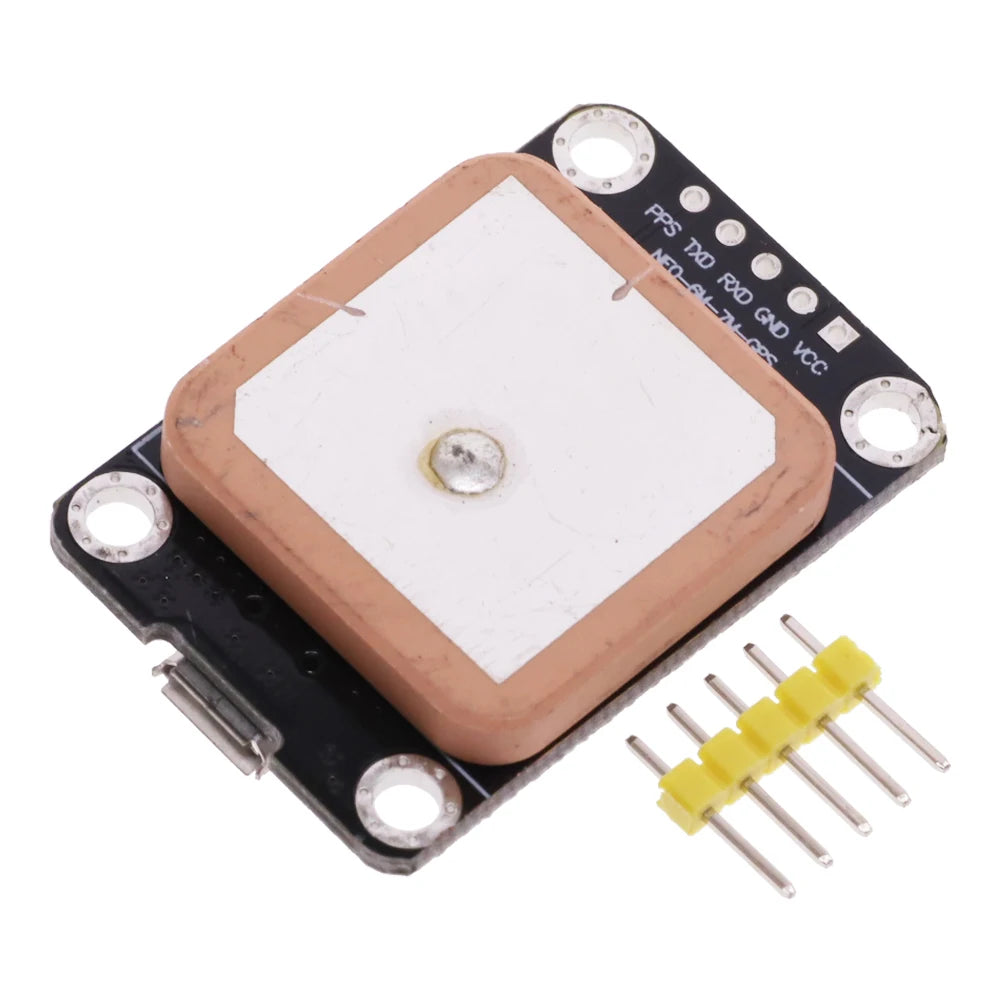

Module comes with ceramic antenna, another IPEX interface can be connected to other active antenna



Module increases the RF amplifier circuit, is conducive to speed up the search star



The module comes with rechargeable battery backup, you can power-down to maintain ephemeris data



Module compatible with 3.3V / 5V level, easy to connect a variety of microcontroller systems
