SPECIFICATIONS

Brand Name: MINIWARE

Certification: CE

Choice: yes

Hign-concerned Chemical: None

Model Number: MHP50

Origin: Mainland China

is_customized: Yes

Product Features:

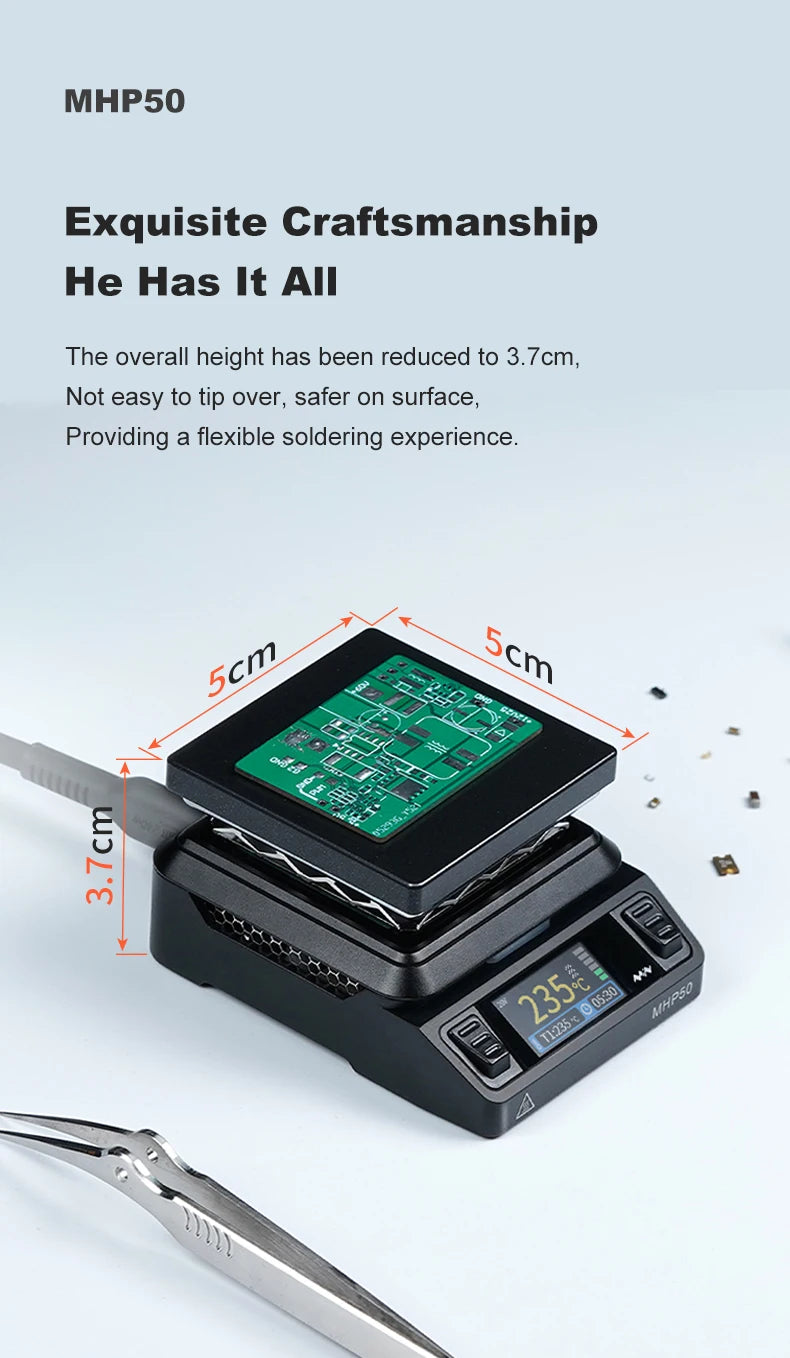

l 5cm*5cm heating area, 3.7cm height, mini pocket size, suitable for mobile soldering application scenarios;

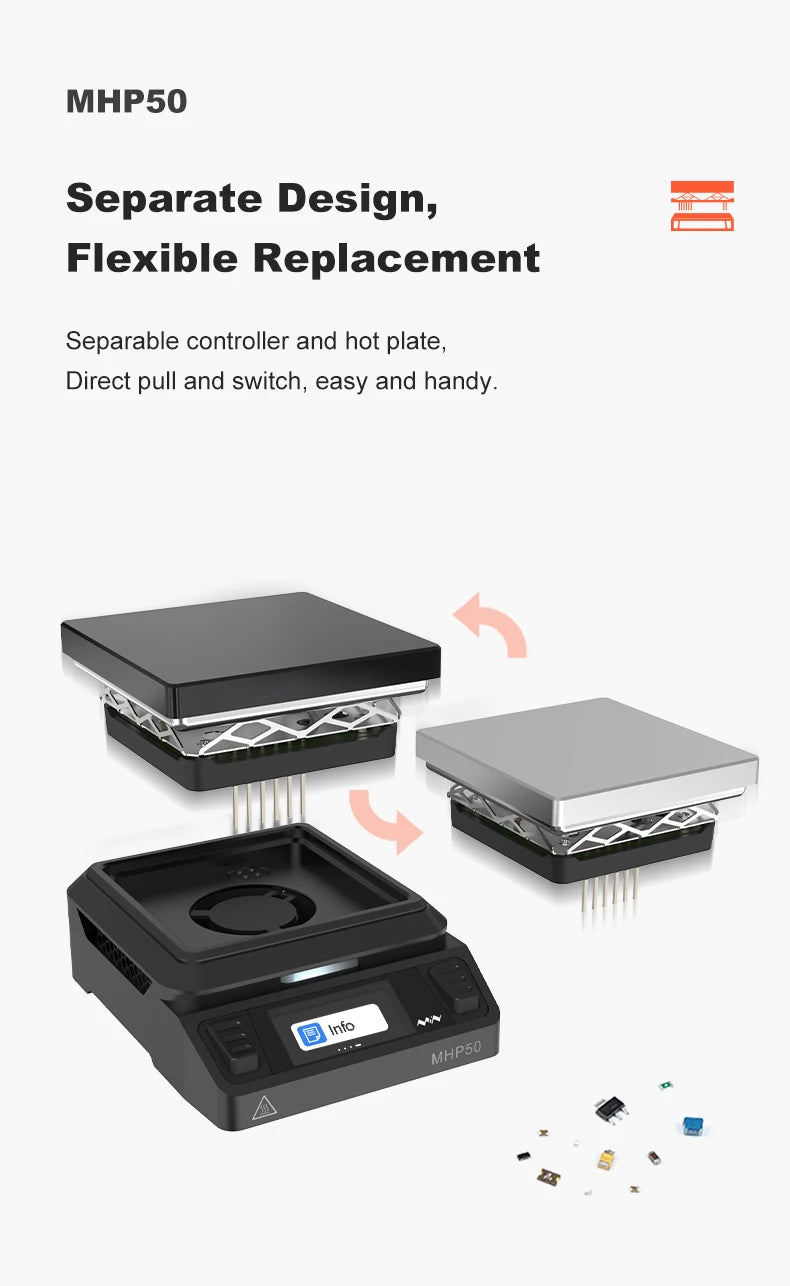

l Separable controllerand hot plate, flexible to replace;

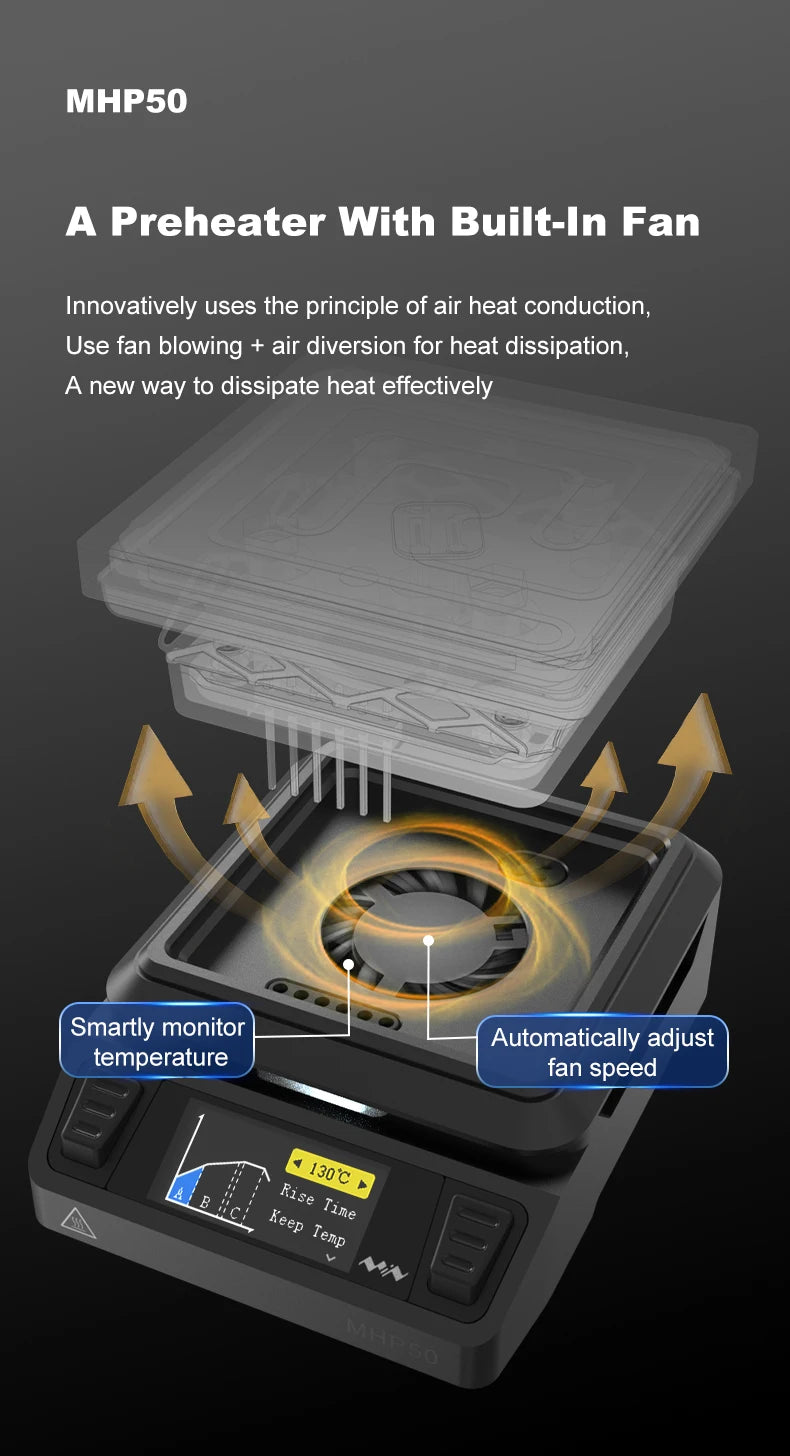

l Built-in high-speed cooling fan, which can automatically detect the temperature of the controller, intelligently adjust the fan speed, and accelerate heat dissipation;

l Innovative air deflector to effectively cut off heat transferring, protecting controller from thermal damage;

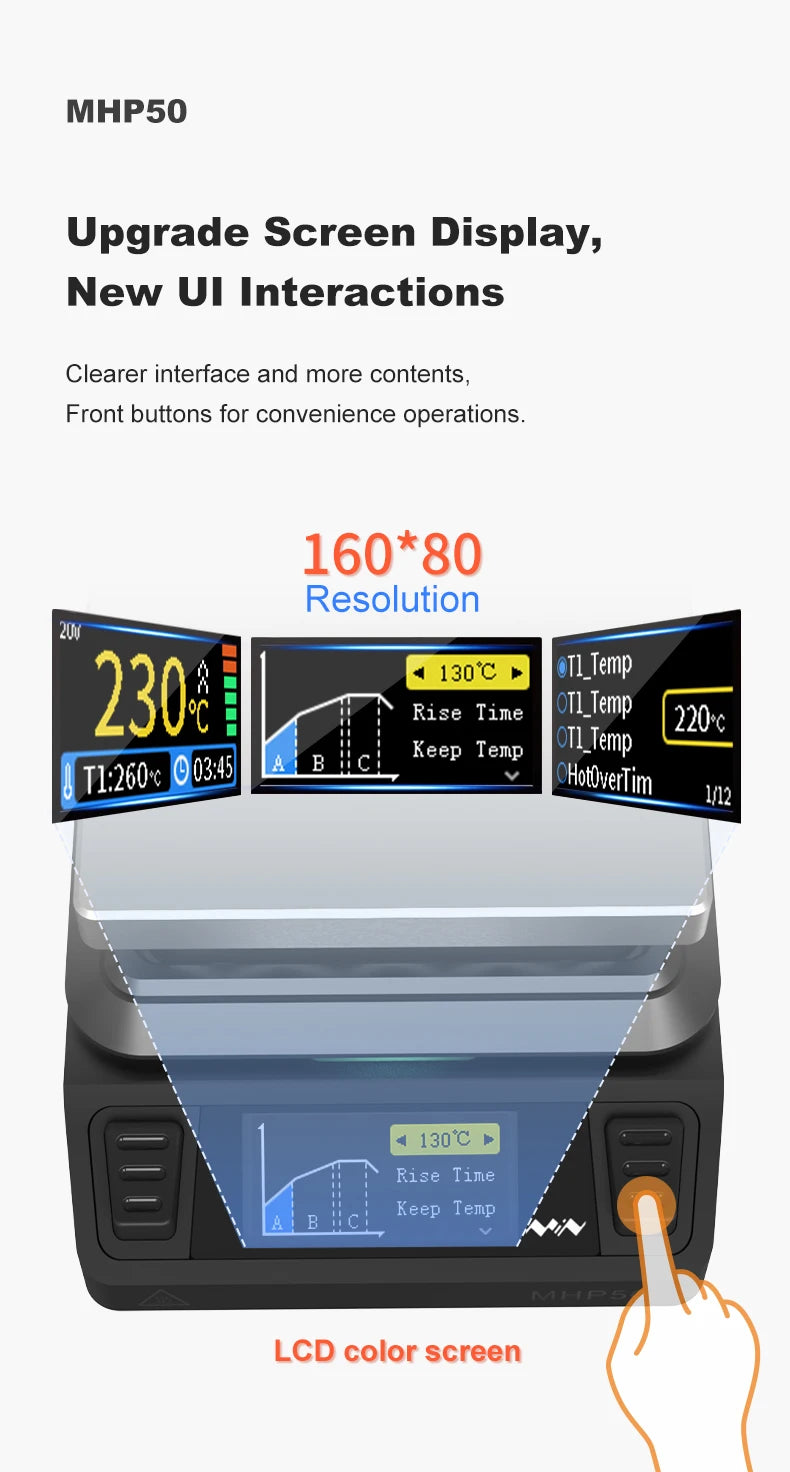

l 160*80 resolution color LCD display, clear and rich parameter display;

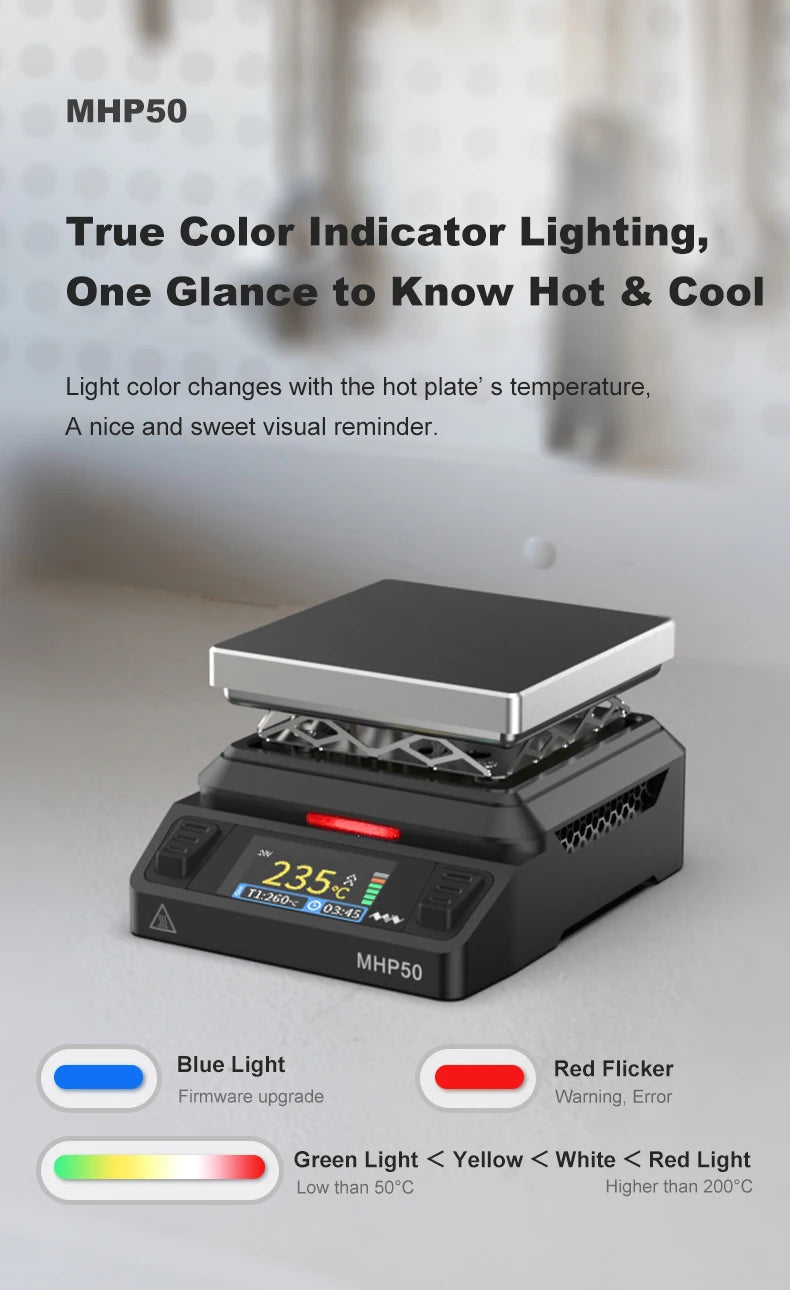

l Built-in OLED displayand true color LED, light color changes withheating temperature;

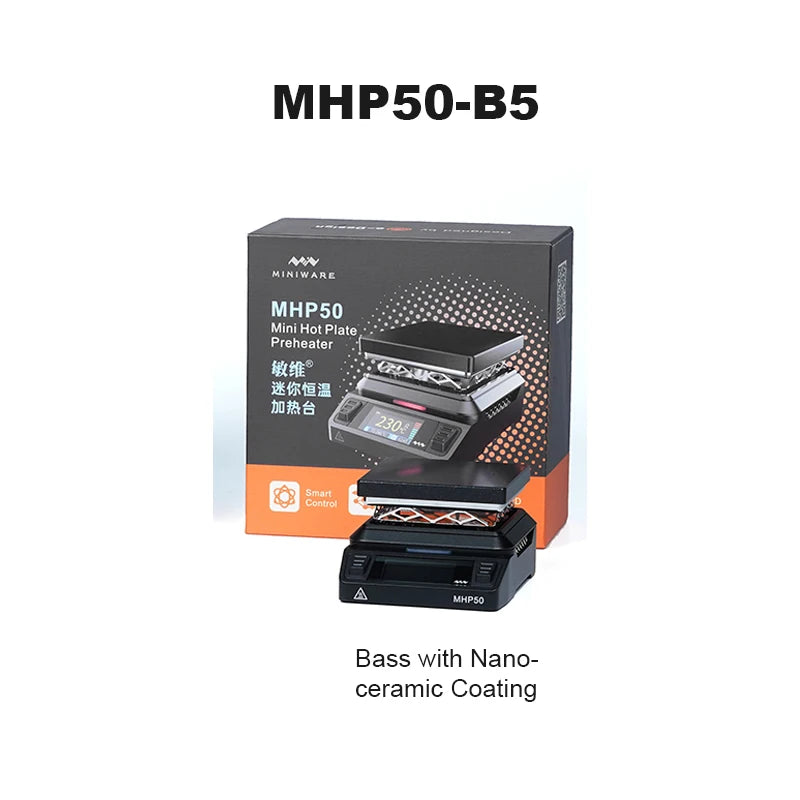

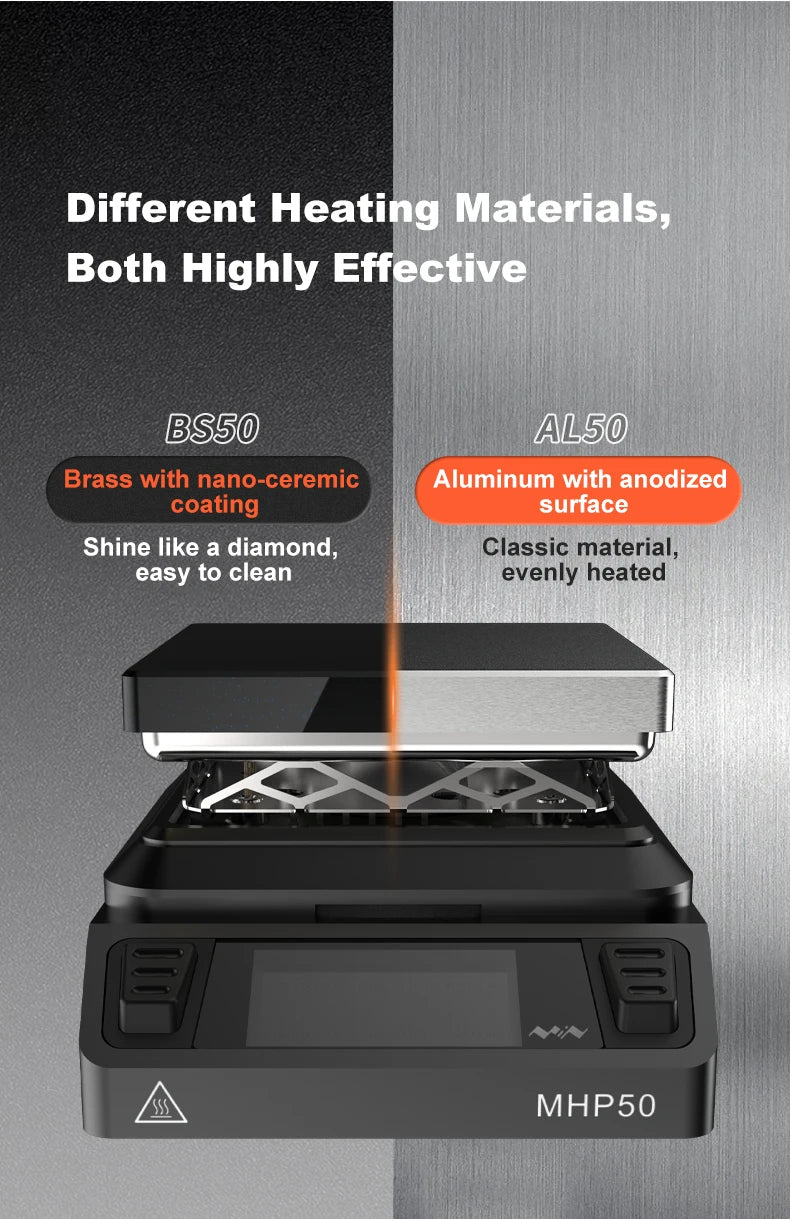

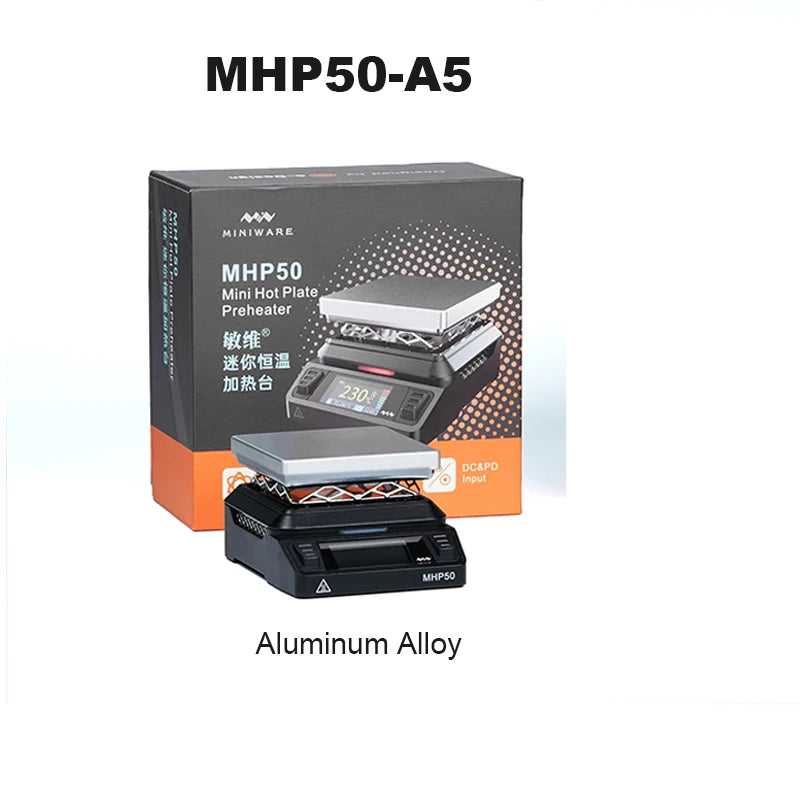

l Twohot plateswith differentheating materials for your choice: aluminum alloy and brass with nano-ceramic coating, each with its own heating strengths for yourneeds;

l Hot plate adopts a futuristic design stainless steel bracket, artistic and practical;

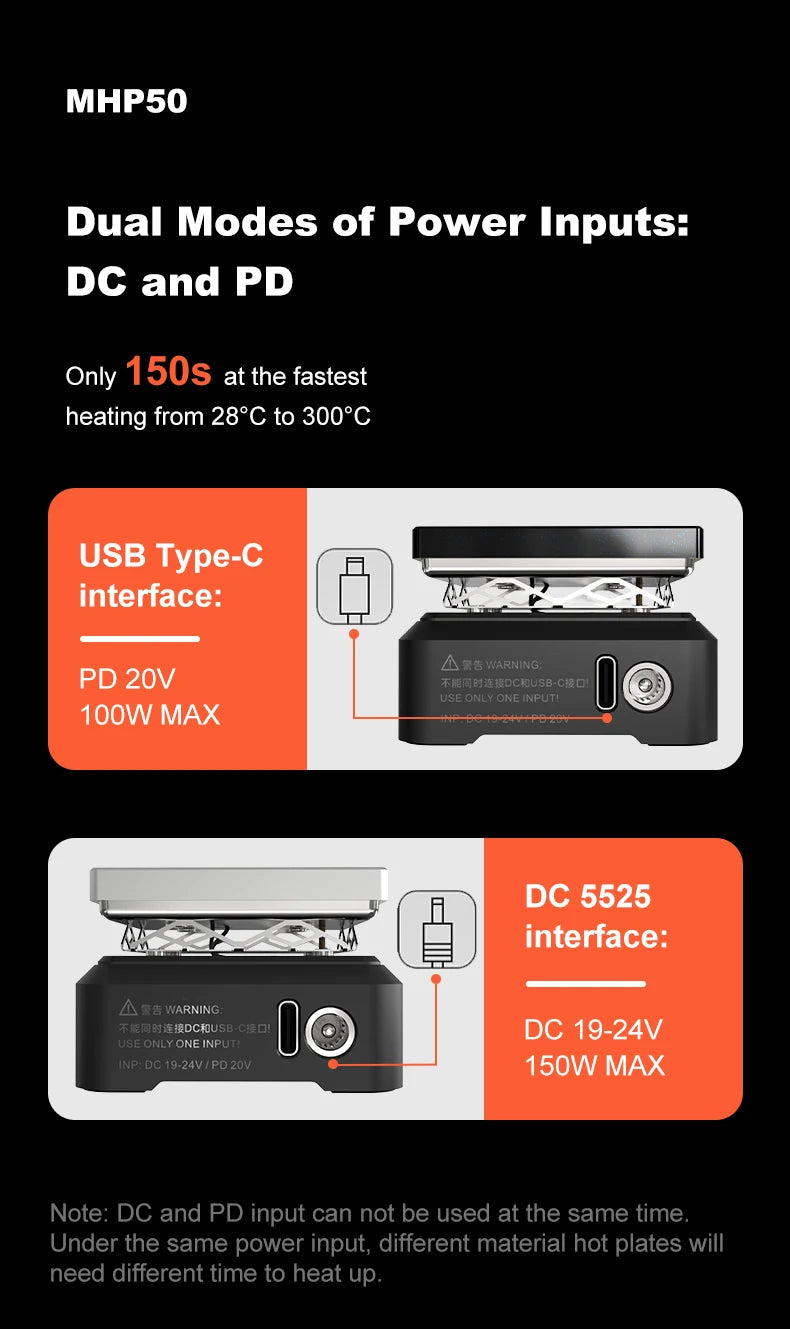

l Dual-mode power inputs: DC 5525 power jack for 19-24V input upto 150W; standard PD 20V power input to reach 100W;

l Takes only 150 seconds at the fastest heating from room temperature (28℃) to 300℃ (under DC 24V power input);

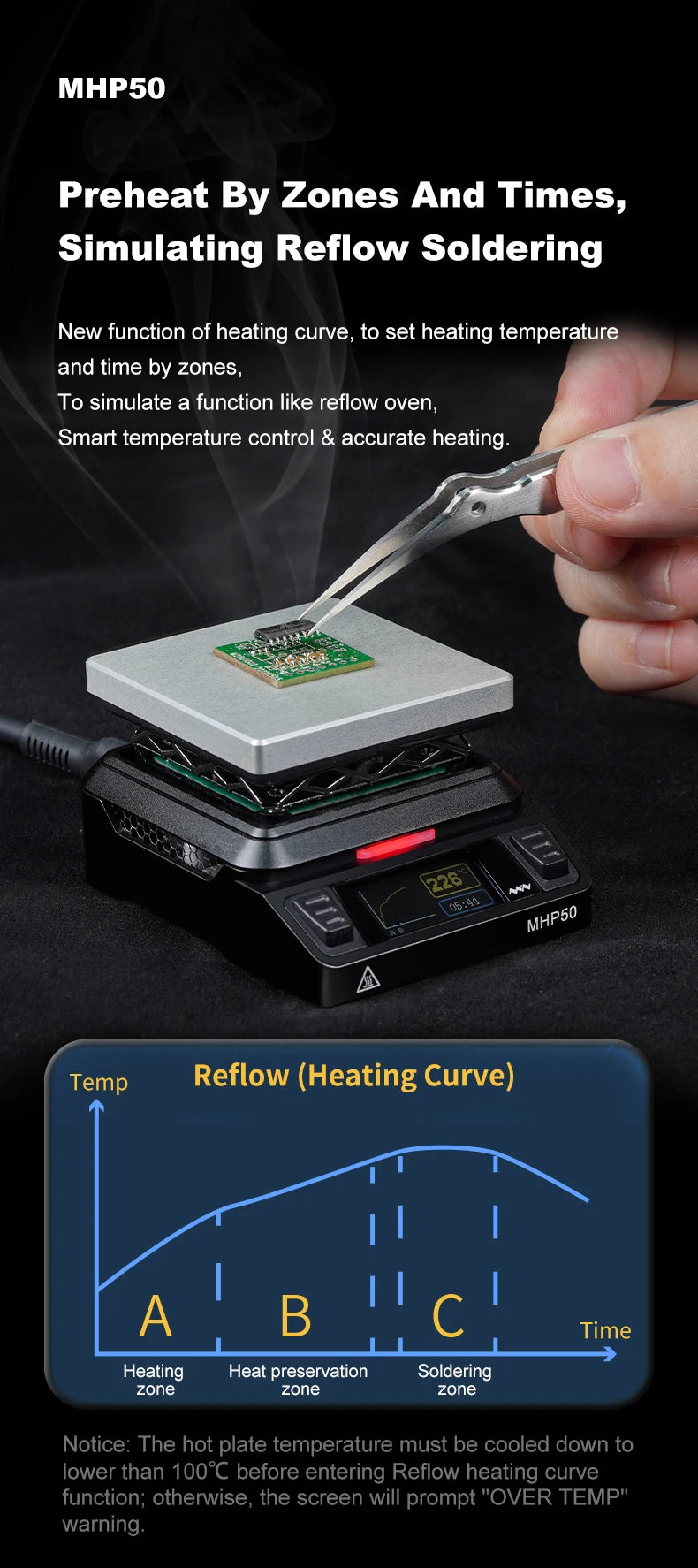

l Innovative heatingcurve function, you can customize the heating temperature and durationby sectionsto achieve similar reflow soldering effect;

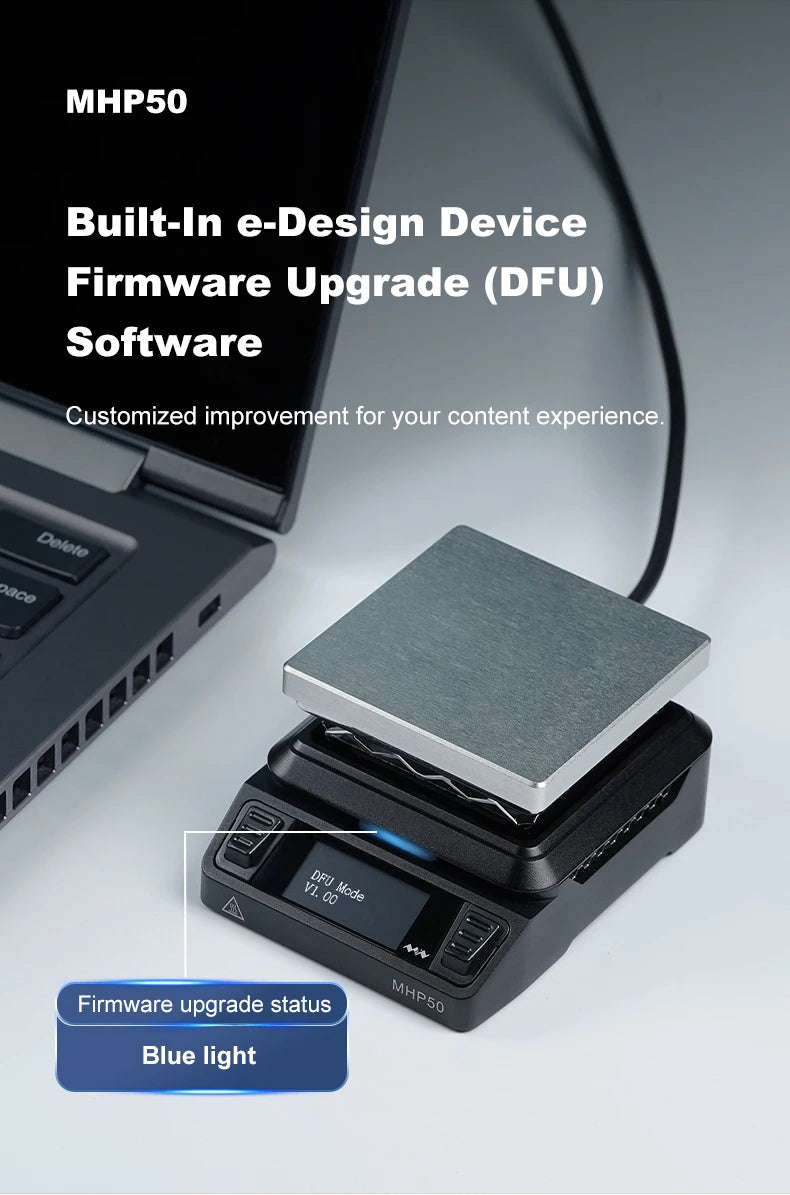

l Multiple intelligent functions: preset temperature, overturn protection, brightness adjustment, firmware upgrade;

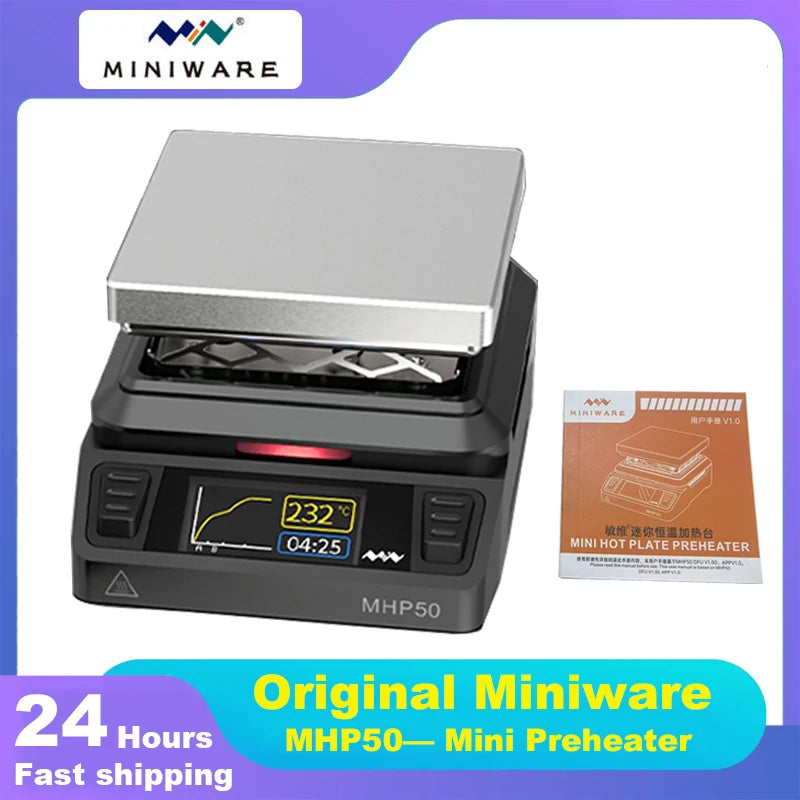

l Use scenarios: MHP50 Mini Hot Plate Preheater can be put into your pocket, for preheating, desoldering circuit boards, components, LED lamp beads, etc.

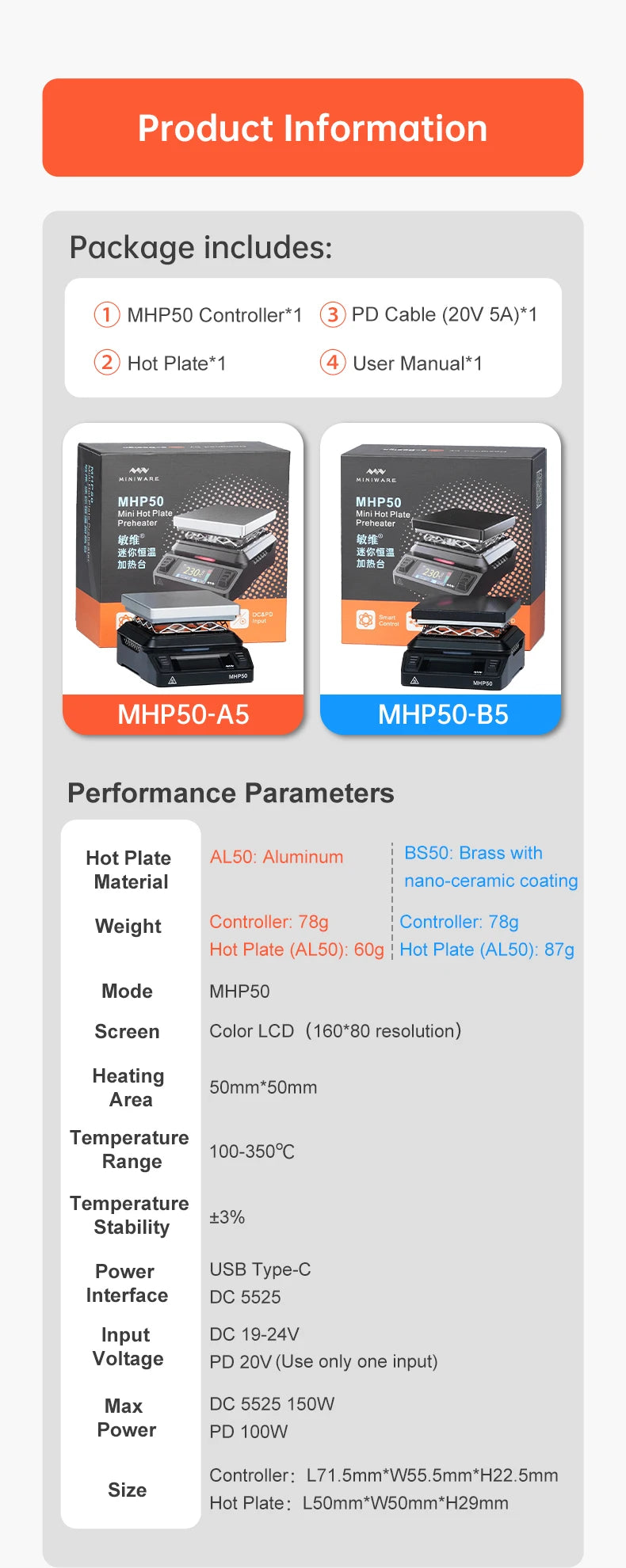

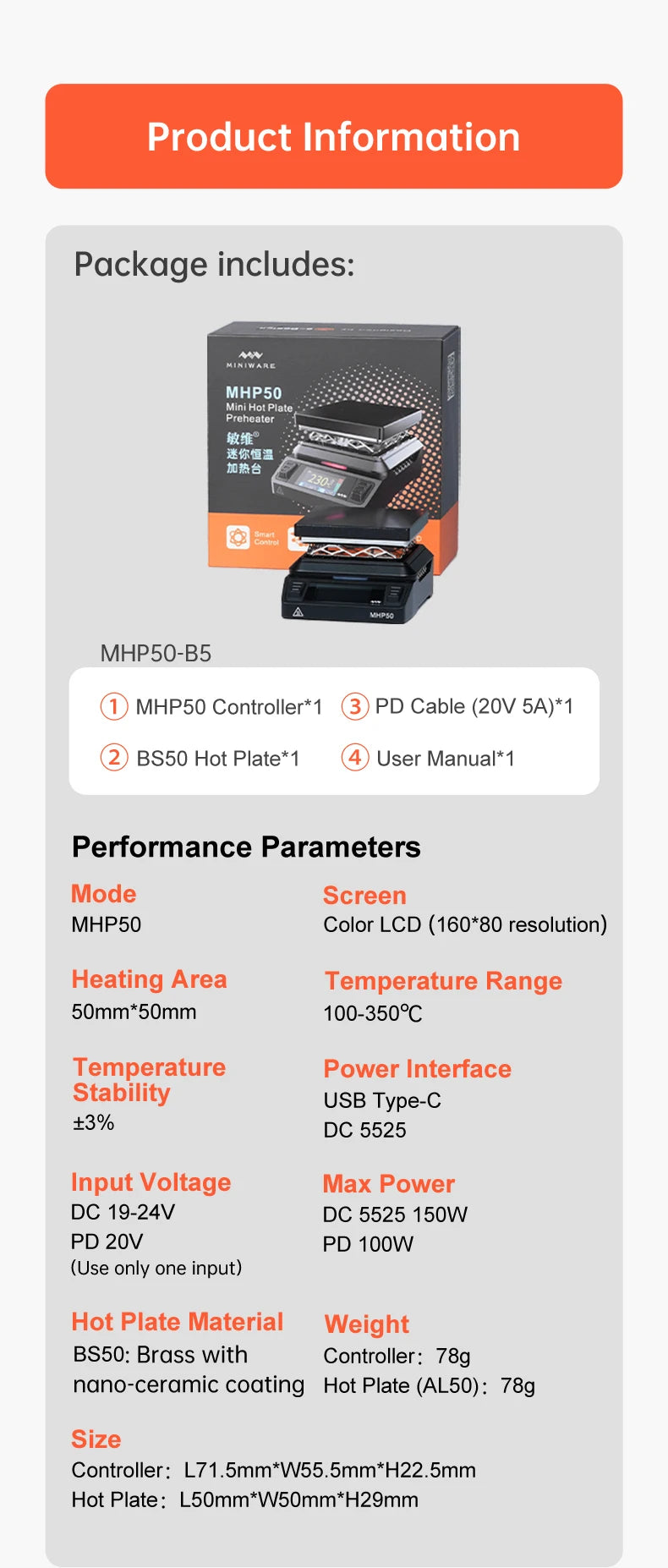

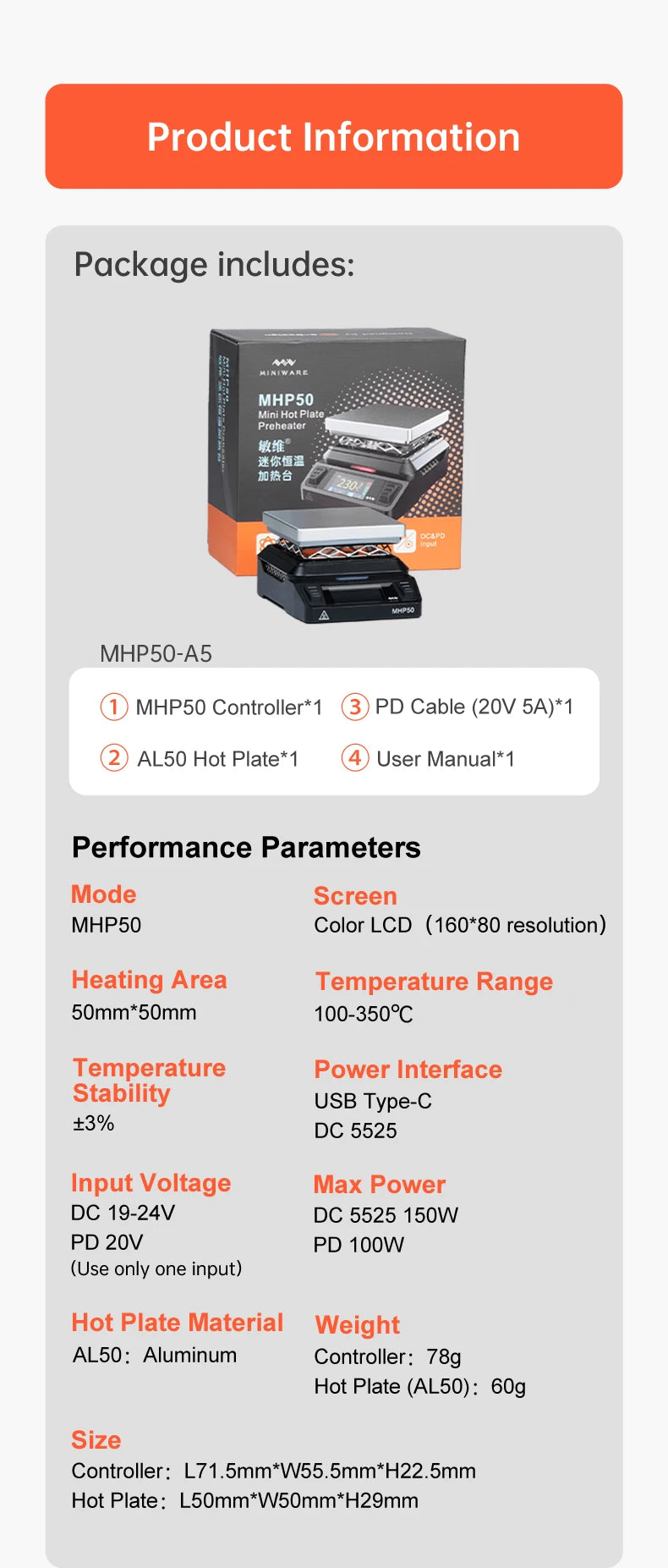

MHP50Specifications:
