Placa Expansión Shield Logger GPS NEO-6M (SPI/UART) con Ranura Tarjeta SD para Arduino UNO R3

$19.182 CLP

~~$22.182 CLP~~ $19.182 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Default Title Default Title

Cantidad

SPECIFICATIONS

Application: Computer

Brand Name: EQV

Choice: yes

Condition: New

Dissipation Power: NEO-6M

Model Number: NEO-6M

Operating Temperature: NEO-6M

Origin: Mainland China

Package: DIP

Supply Voltage: NEO-6M

Type: Module

is_customized: Yes

semi_Choice: yes

Description:

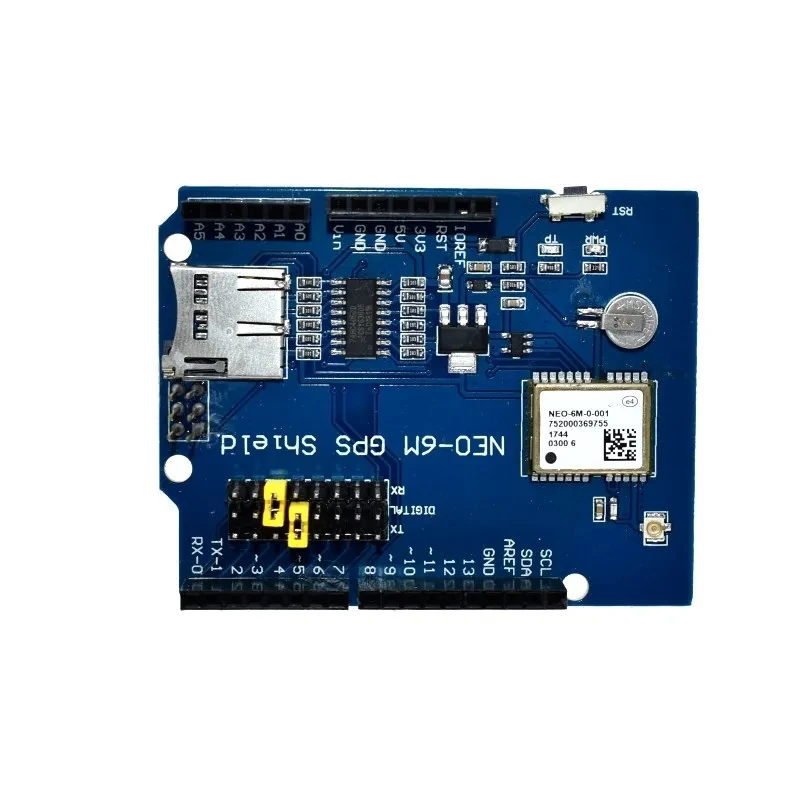

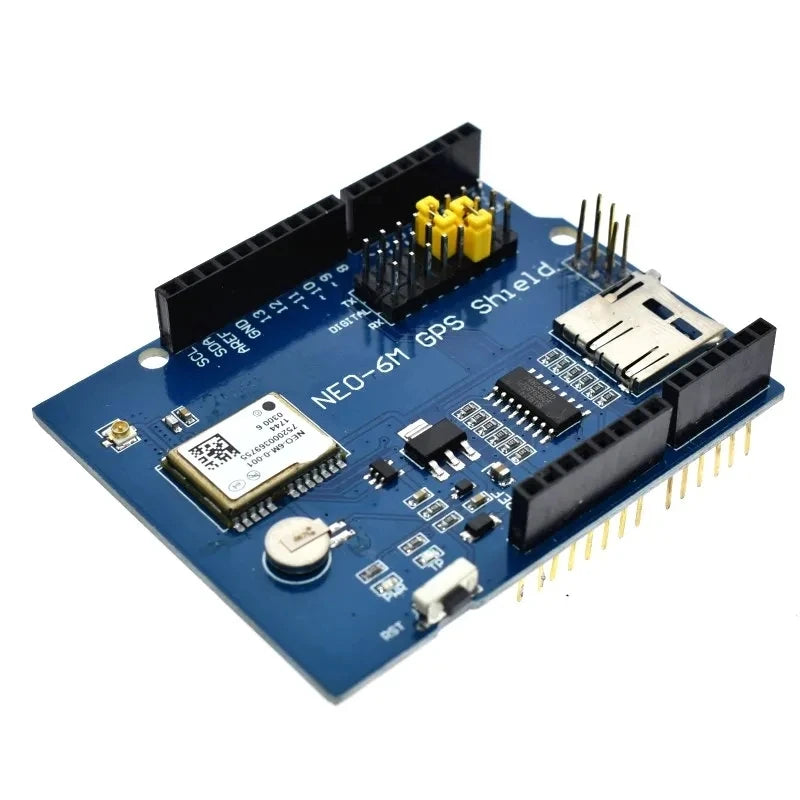

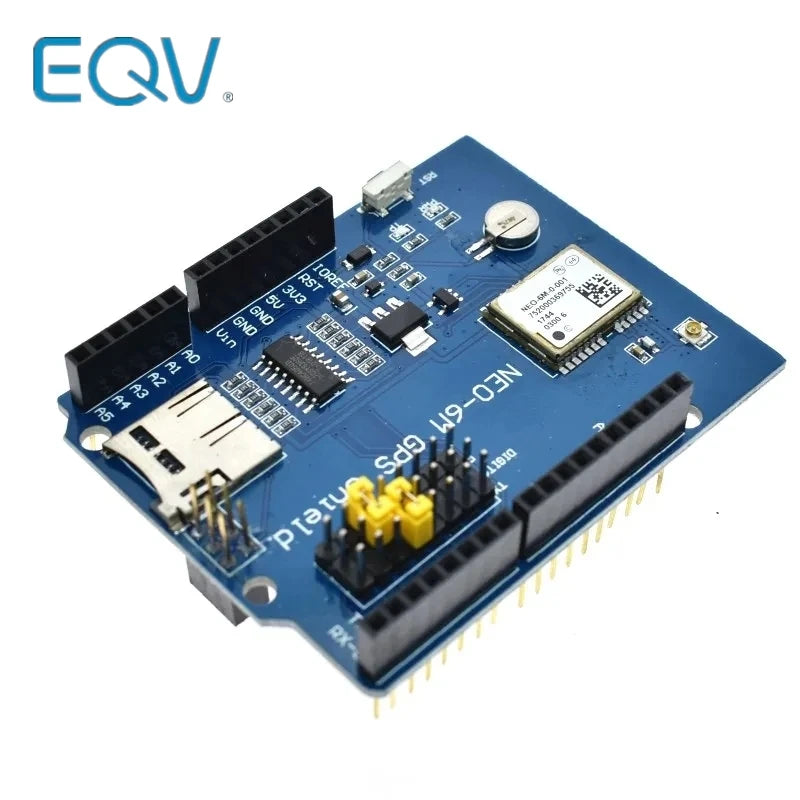

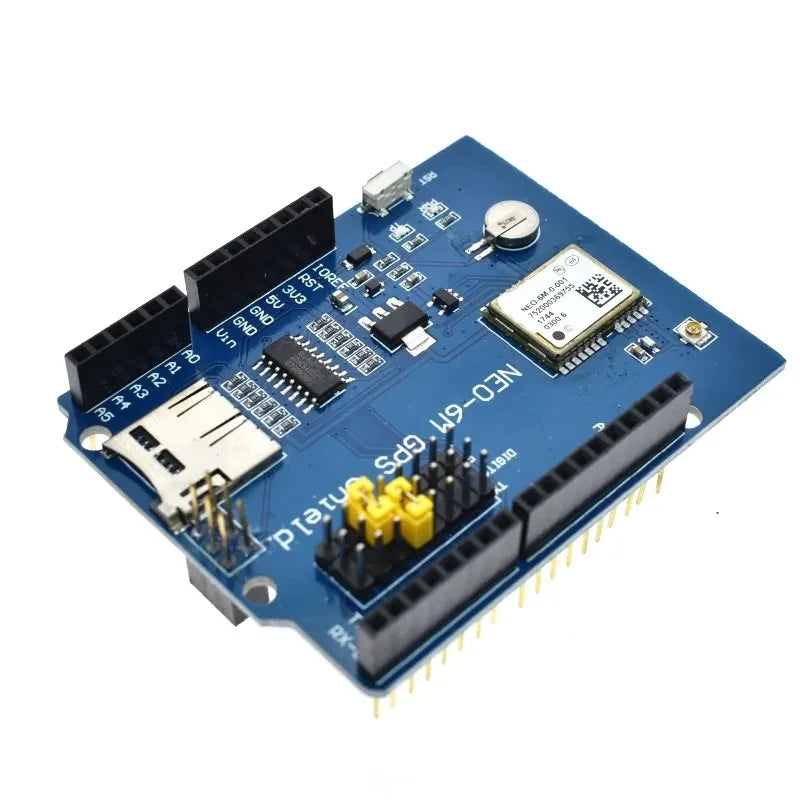

GPS Logger Shield equips your for Arduino with access to a GPS module, µSD memory card socket, and all of the other peripherals you?ll need to turn your for Arduino into a position-tracking, speed-monitoring, altitude-observing wonder logger. The shield is based around a NEO-6M GPS Module ? a 66-channel GPS receiver featuring a MediaTek MT3339 architecture and up to a 10Hz update rate. The GPS module will stream constant position updates over a simple TTL-level serial port, which you can then log to a µSD card and/or use for other purposes.

Everything on the shield is highly configurable: A switch allows you to select the GPS module?s UART interface between either hardware or software ports,The regular GPS pins(RX,TX) can be connected to D0-D7 of for Arduino. The µSD card operates over a hardware SPI port, which should be compatible with most for Arduino layouts. The GPS Logger Shield?s main voltage supply is taken from the for Arduino 5V header pin. This voltage is regulated down to 3.3V, which is supplied to both the GPS module and the µSD card. These two components should consume, about 30mA on average, but they may very occasionally spike to around 100mA.

Features:

On-Board NEO-6M GPS Module

External active GPS antenna design with high receive sensitivity, compatible normal antenna

Onboard rechargeable battery enable backup parameters ablity

SD memory card socket

Standard for Arduino sized shield

For Arduino reset button

Selectable UART jumper controls serial communications

Package Included:

1PCS*NEO-6M GPS Logger Shield
