Features:
1.The output voltage is 110-2600V DC. You can turn the voltage adjustment button clockwise to increase the voltage and counterclockwise to decrease the voltage.
2.The output current is 0.25~3.4mAh. You can turn the voltage adjustment button clockwise to increase the current and counterclockwise to decrease the current.
3.When testing MOS transistors, transistors, and Zener diodes, it is recommended to adjust the current to the minimum scale of 0.25mA. When testing the LED backlight board, it is recommended to adjust the current to the maximum scale of 3.4mAh.
4.Portable size: The small size of this tool is very convenient for daily use. You can carry it in a tool bag without occupying too much storage space.
5.Equipped with a built-in 660mAh high capacity lithium battery for power supply, it can be charged in a timely manner through the Type-C interface.
6.Widely used: This tool can be widely used for MOS, transistor, IGBT, diode, Zener diode, diode bridge maximum voltage capacity testing, voltage verification of capacitors and varistors, LED backlight and lamp board testing, etc

Parameters:
Battery capacity: 3.7V 600mAH
Charging port: TYPE-C
Input: 5V 1A
Charging current: Max.550mA
Output voltage: 120-2700V
Output current: 0.2-3.8mA
Applicable components: MOS tube/IGBT/triode/diode/Electrolytic capacitor/LED/MOV/unidirectional thyristor/rectifier bridge
Test objective: Breakdown voltage value of electronic components
Power supply: built-in lithium battery 500mah

Attention:
1.Do not use it to test 450V/220UF and other high-voltage large Electrolytic capacitor. It is possible to test low-voltage capacitors such as 2200UF/35V.
2.If there is no output voltage when pressing the red high-voltage start button, it is likely that the lithium battery voltage is lower than 3.1V and the tester cannot be powered on. It needs to be charged in a timely manner.
3.Only when testing LEDs and voltage regulator diodes can the output current be adjusted to the maximum value. For testing other components, the output current can be adjusted to the minimum value to avoid damaging the components

Package include:

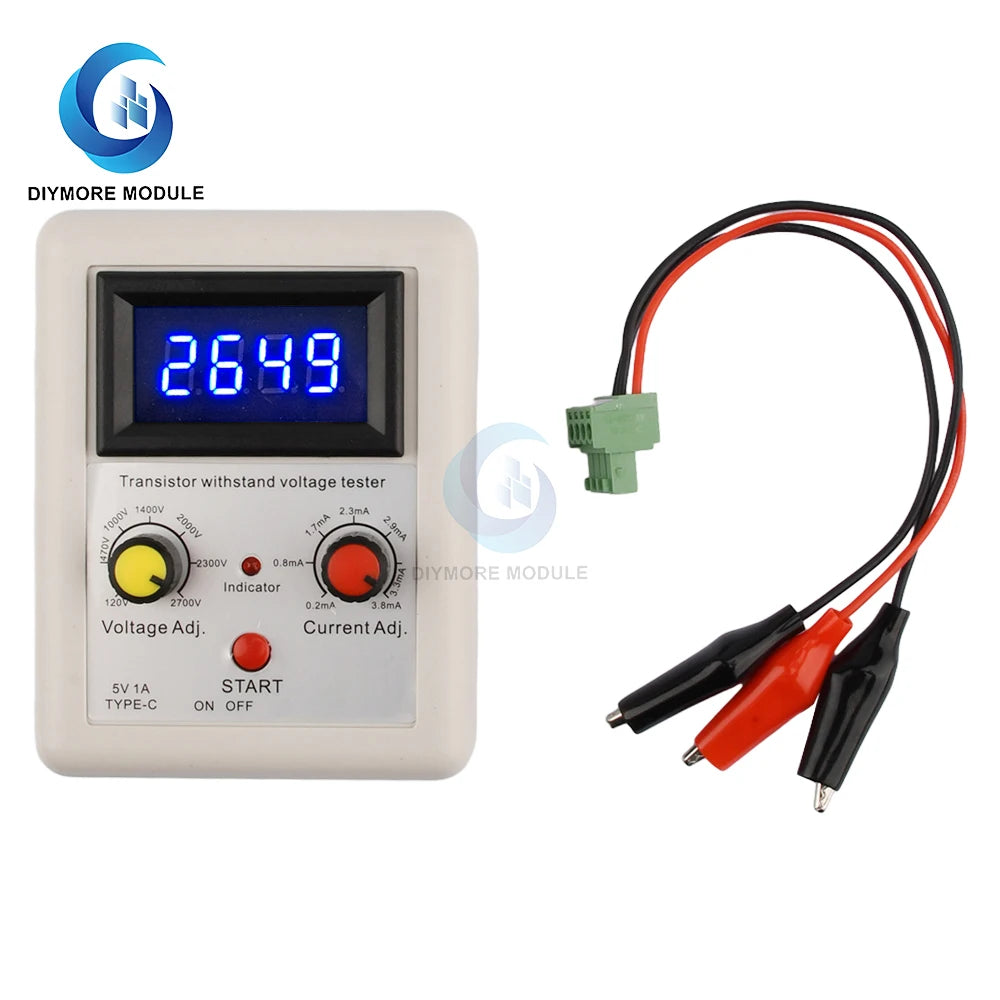

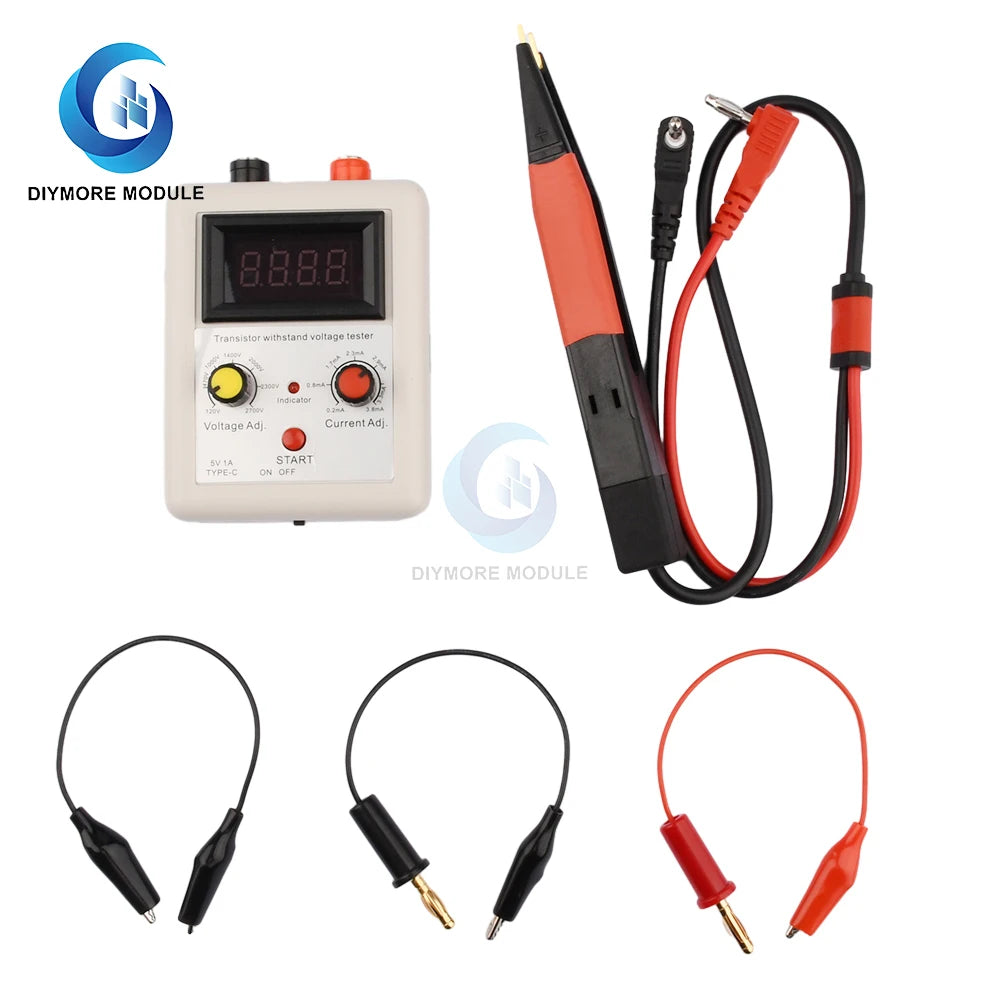

Standard configuration: host * 1+manual * 1+pen * 1

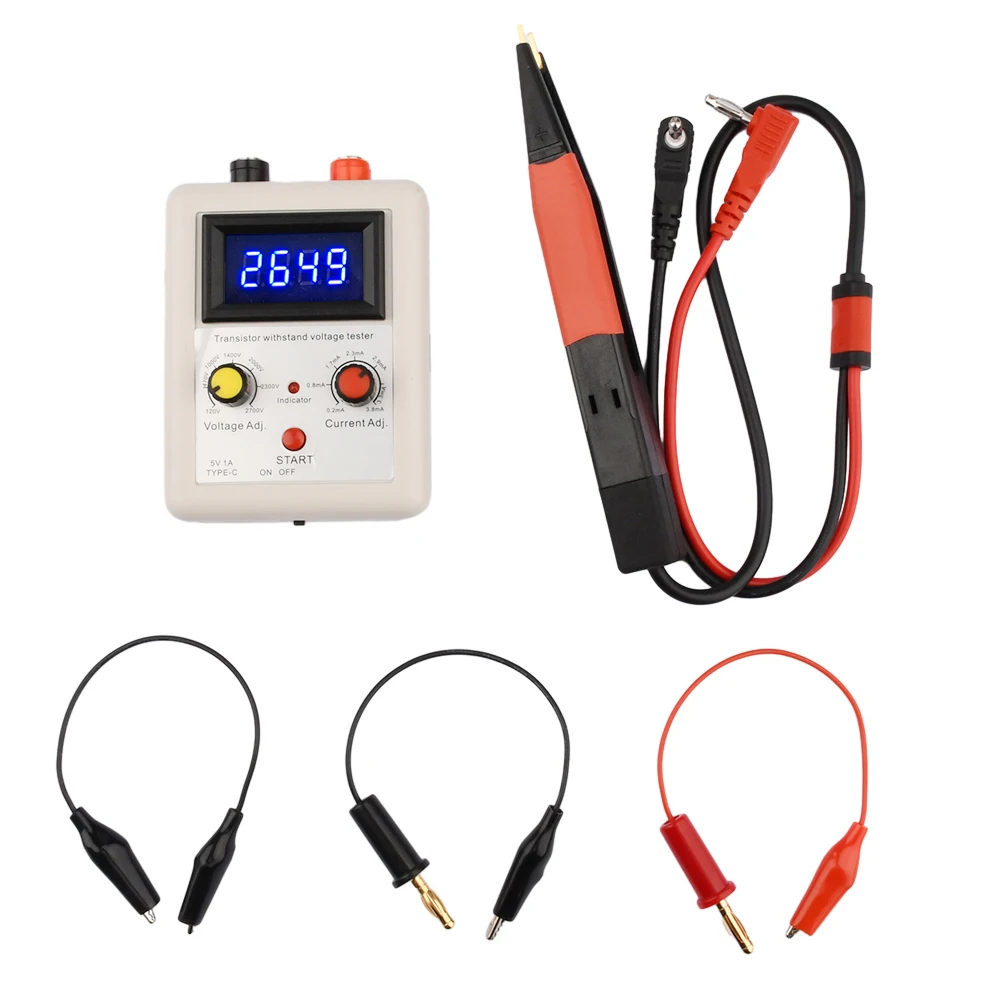

High configuration: host * 1+manual * 1+pen * 1+LCR test clip * 1
