SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Hign-concerned Chemical: None

Origin: Mainland China

semi_Choice: yes

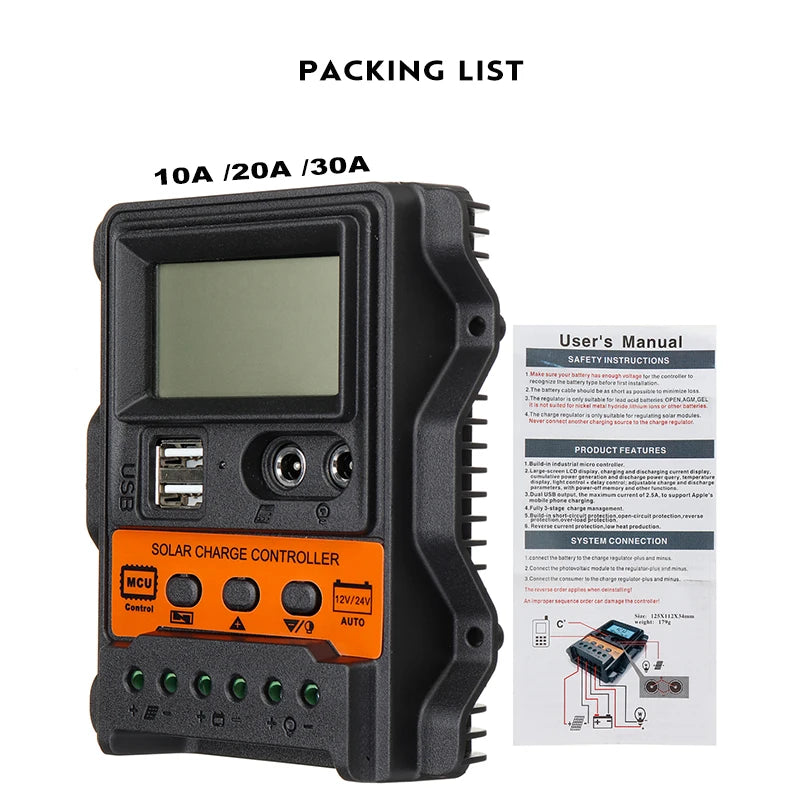

Package listing:

1 * Solar Panel Charger

This product is suitable for lead-acid batteries, colloidal batteries, and dry batteries. Lithium batteries are not applicable

Specifications:

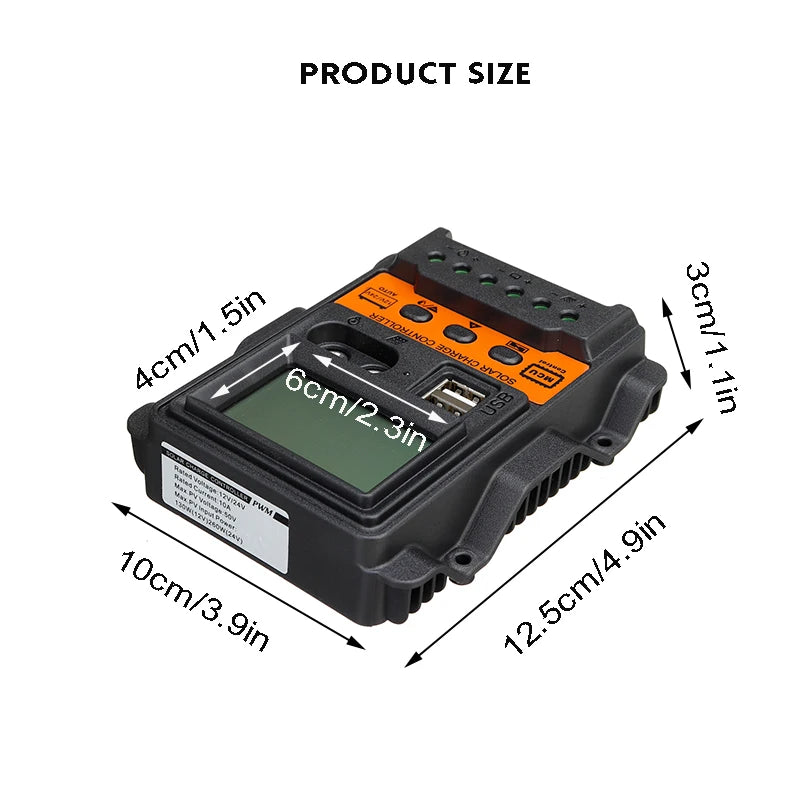

Size:4.9x3.9x1.1in（12.5x10x3cm）

USB output: 5V/2.5A

Standby current: <10mA

Rated Voltage:12V/24V

Rated Current:10A/20A/30A

Max.PV Voltage:50V

Max.PV Input Power:390W(12V)520W(24V)

Working temperature: -35 to +60 degrees

Ncrease charging voltage: 14.4V (sealed type)

Floating charge voltage: 13.7V (default, adjustable)

Discharge cut-off voltage: 10.7V (default, adjustable)

Discharge recovery voltage: 12.6V (default, adjustable)

Description:

-Industrial-grade master chip, sampling accuracy, temperature, charging current, Discharge current accurate real-time display, power generation at a glance.

- Automatic focusing ，tracking charging, high charging efficiency, non-stop detection

During charging, bidirectional focusing tracking.

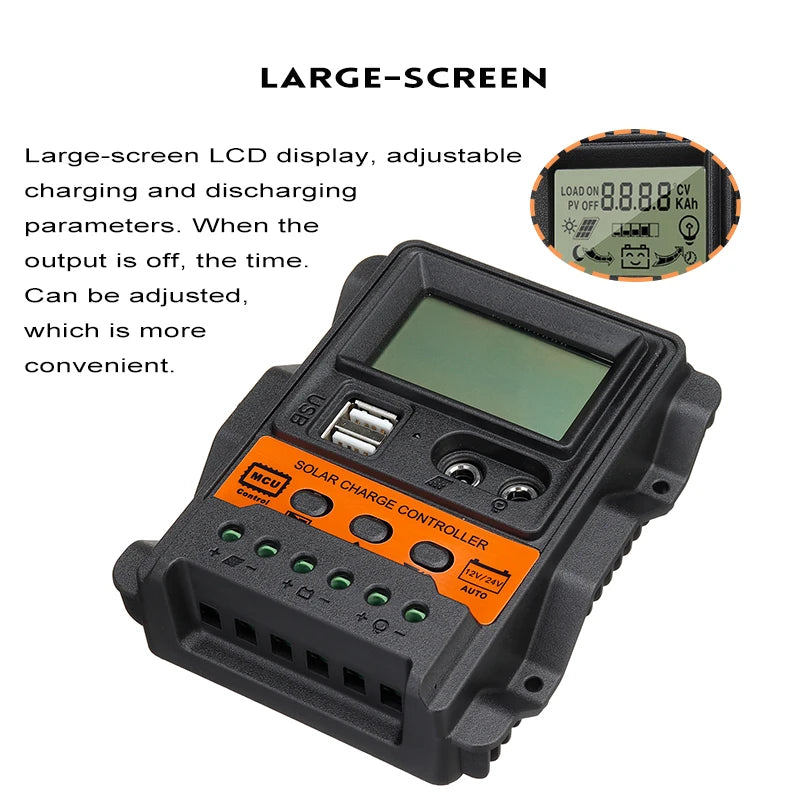

-Large-screen LCD display, adjustable charging and discharging parameters. When the output is off, the time. Can be adjusted, which is more convenient.

-Acomplete three-phase charge management, effectively protect the battery, the battery is more Durable.

-Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection. Protection, when the fault is eliminated, the controller automatically recovers, does not damage.

Note:

1. Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.

2. The colors may have different as the difference display, please understand

Please feel free to contact us if you have any questions. Hope a nice day!
