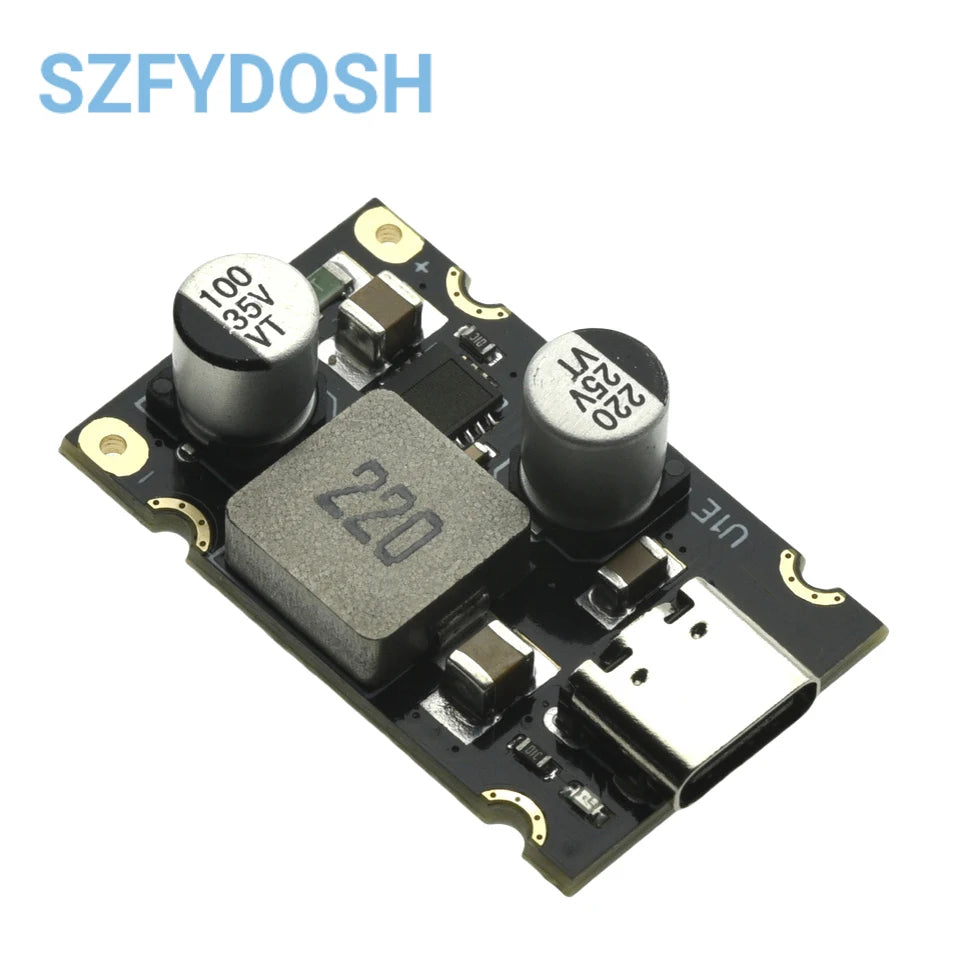

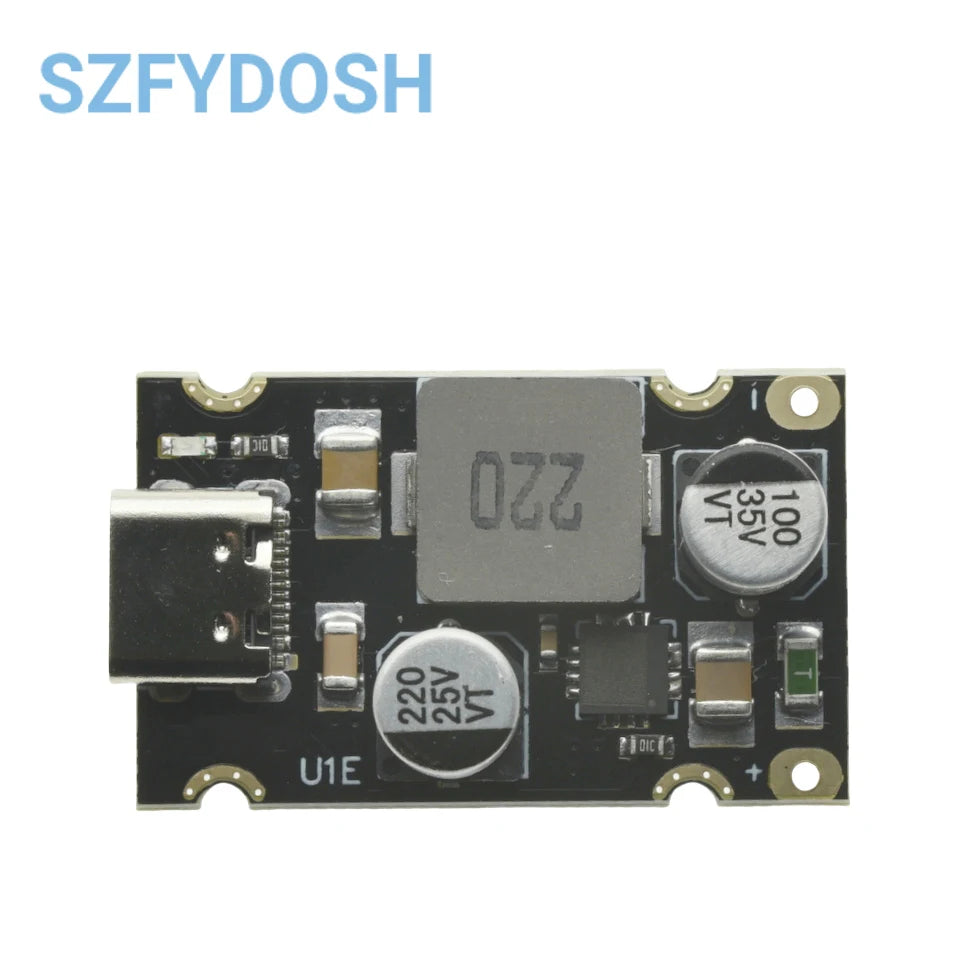

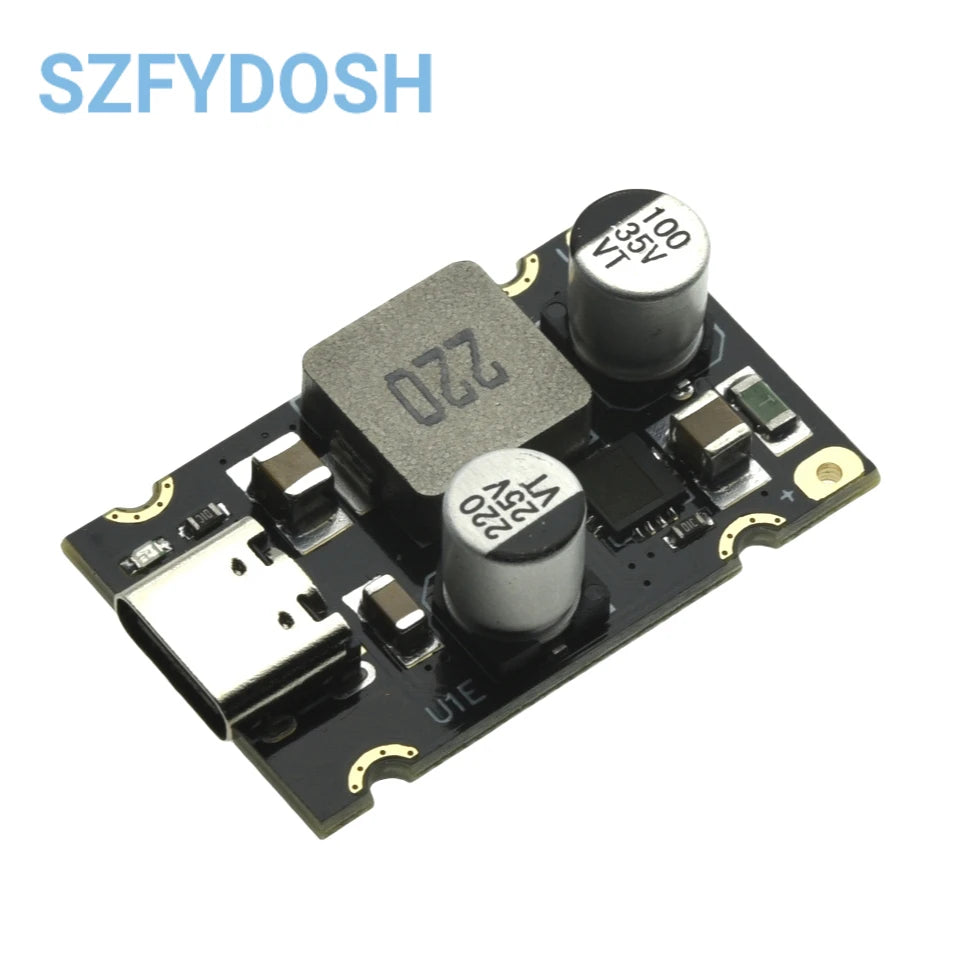

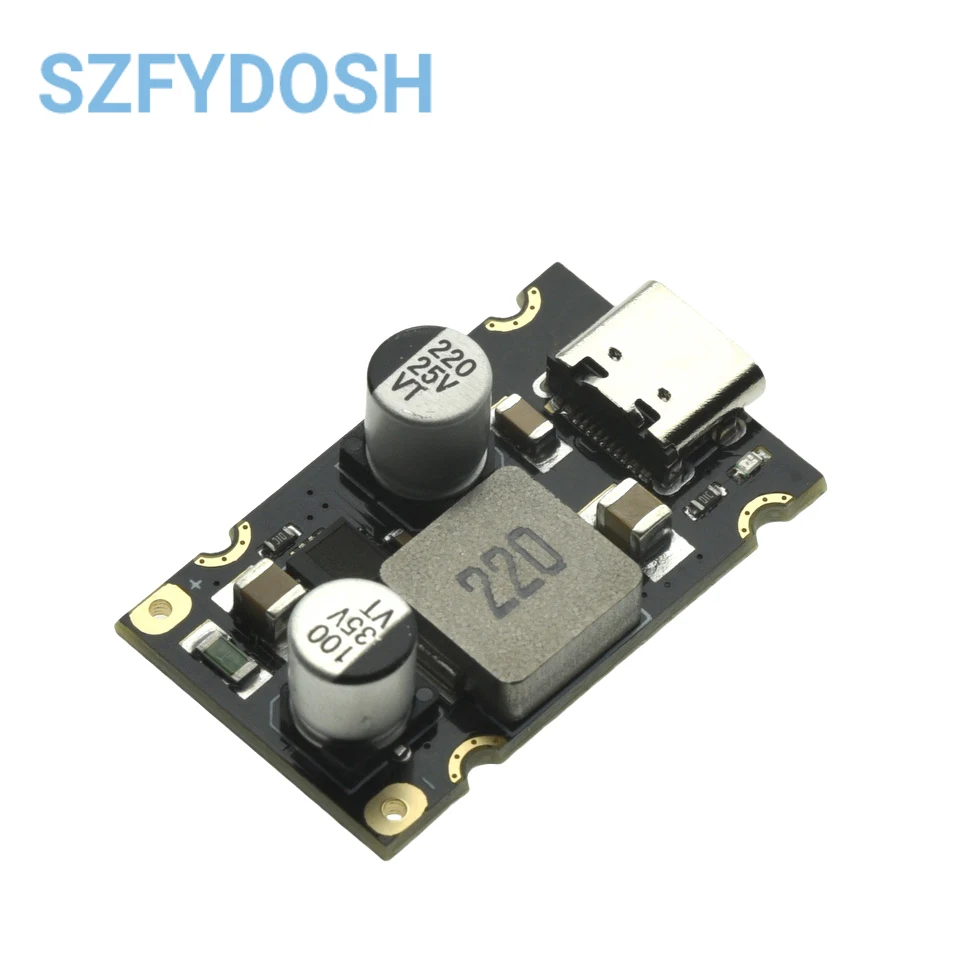

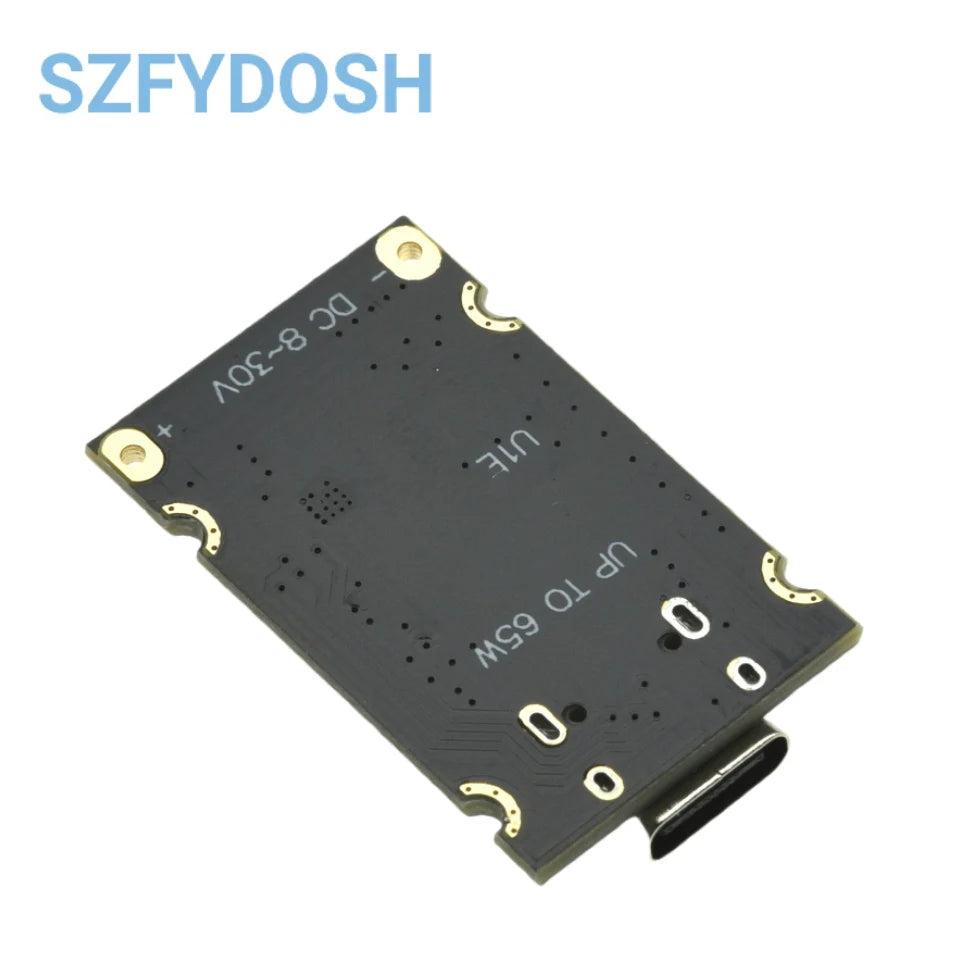

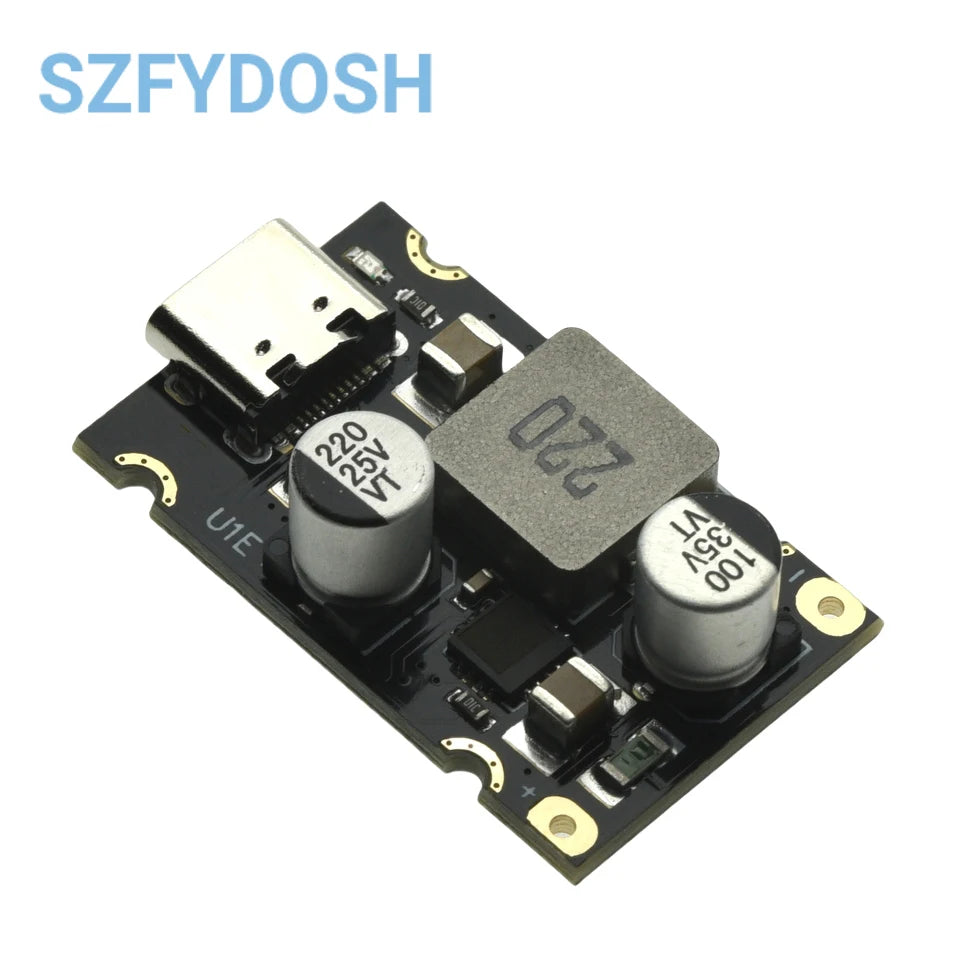

Módulo Carga Rápida PD 65W USB-C Soporta PD3.1/QC3.0/SCP/PPS 5V-20V
Módulo Carga Rápida PD 65W USB-C Soporta PD3.1/QC3.0/SCP/PPS 5V-20V
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Application: Computer
Brand Name: SZFYDOSH
Choice: yes
Condition: New
Dissipation Power: N/A
Hign-concerned Chemical: None
Model Number: PD65W Fast Charging Module
Operating Temperature: N/A
Origin: Mainland China
Supply Voltage: N/A
Type: Module
semi_Choice: yes
Description
Product Features
Input voltage: DC8~32V
Output voltage: automatically adjusts between 3.3V~21V when connected to TYPE-C compatible powered devices (input voltage should be higher than output voltage, if you want to trigger 20V fast charging then input voltage should be higher than 20V)
Output power: 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)
Conversion efficiency: 92%~97%
Output voltage ripple: <200mV No-load current: <3mA Input overvoltage, undervoltage protection Input overcurrent protection
Output over-current, short-circuit protection Whole machine over-temperature protection
Supported charging protocols
BC1.2, Apple protocol
Qualcomm QC2.0 and QC3.0
Huawei Fast Charging Protocol FCP and SCP Samsung Fast Charging Protocol AFC
MTK PE+1.1 and MTK PE+2.0
PD2.0/PD3.1 (PPS) output protocols
