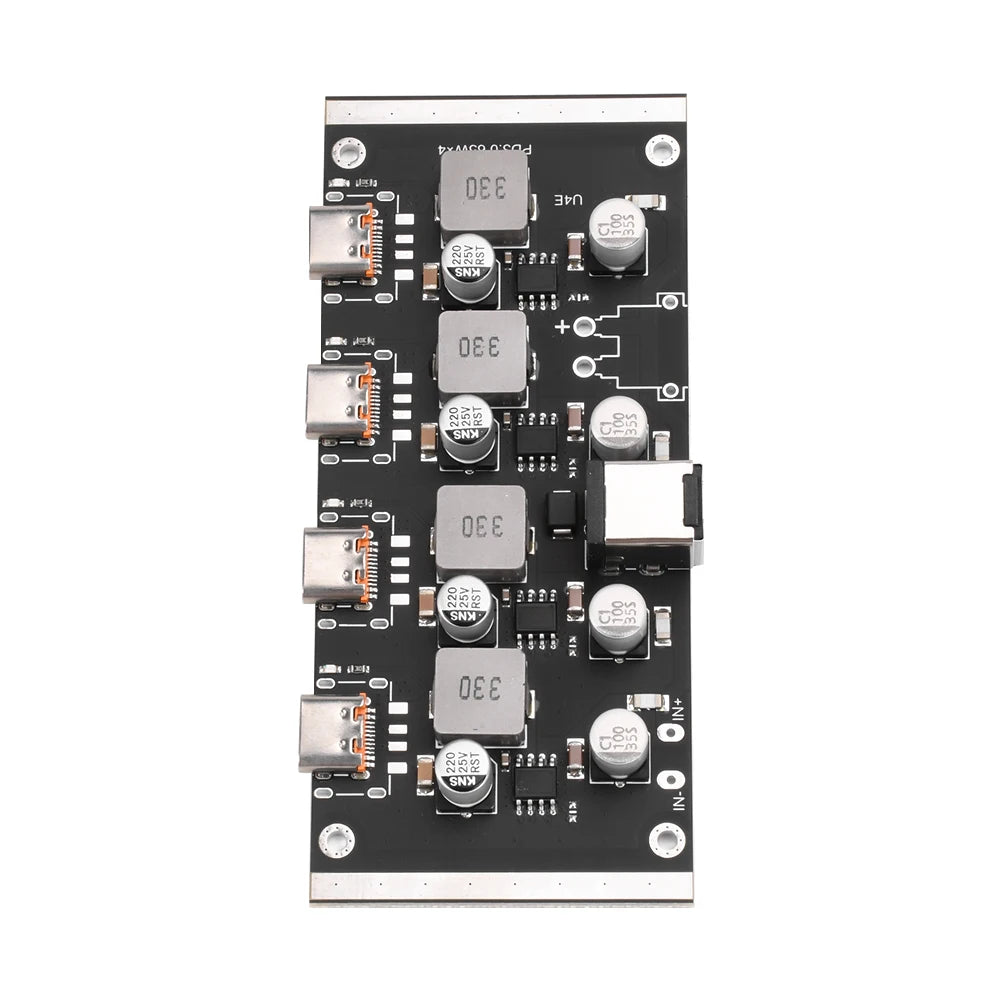

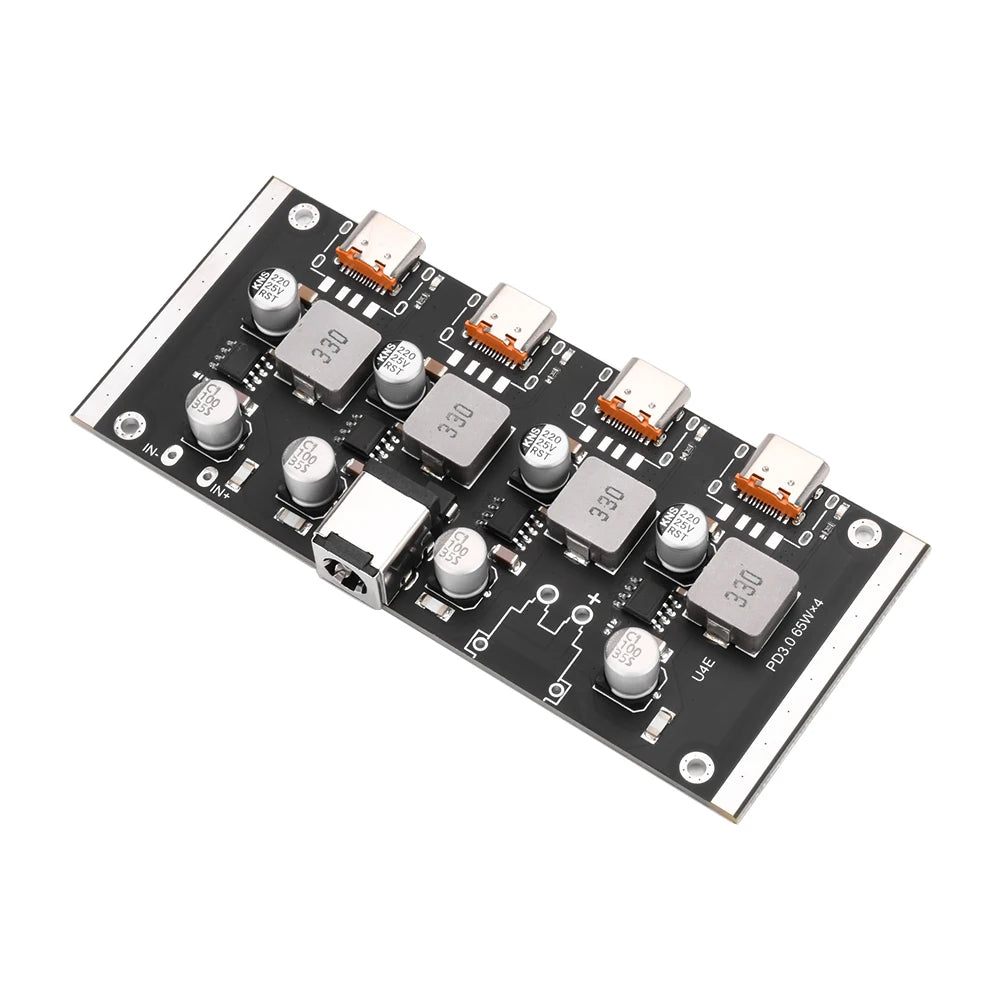

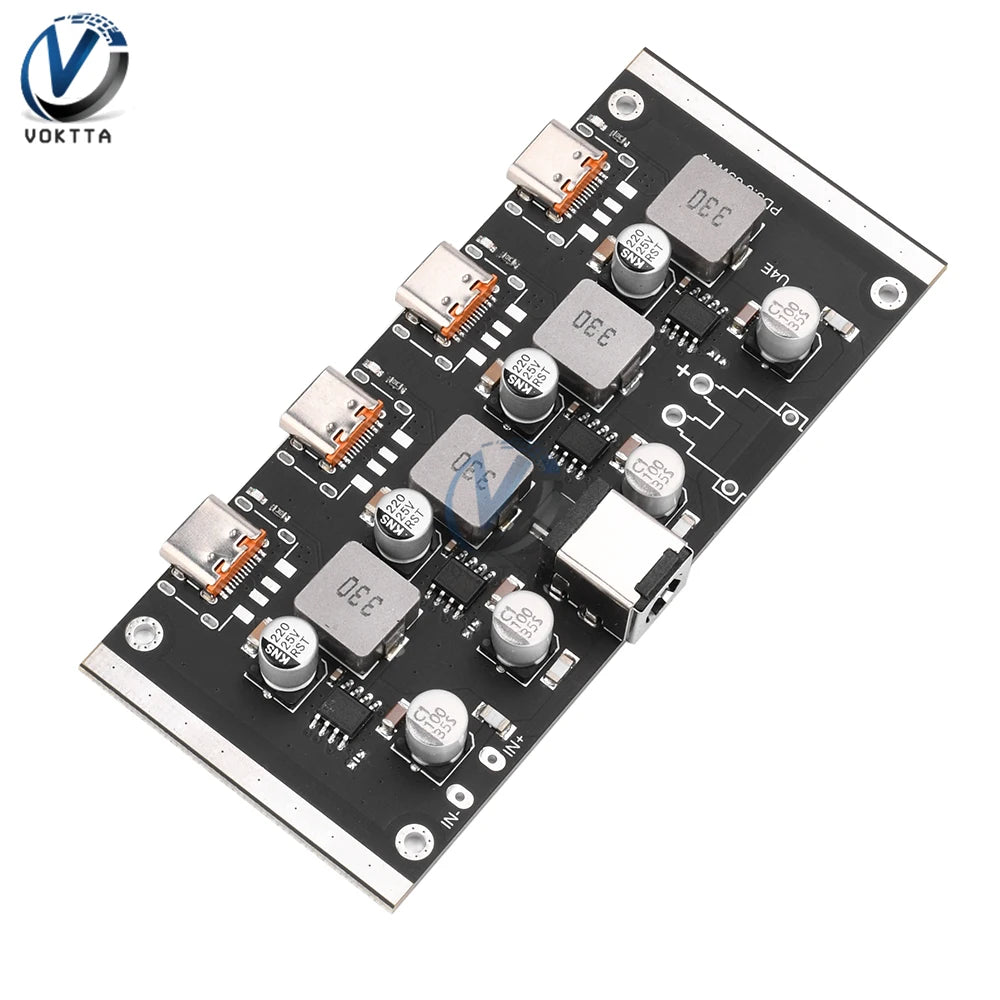

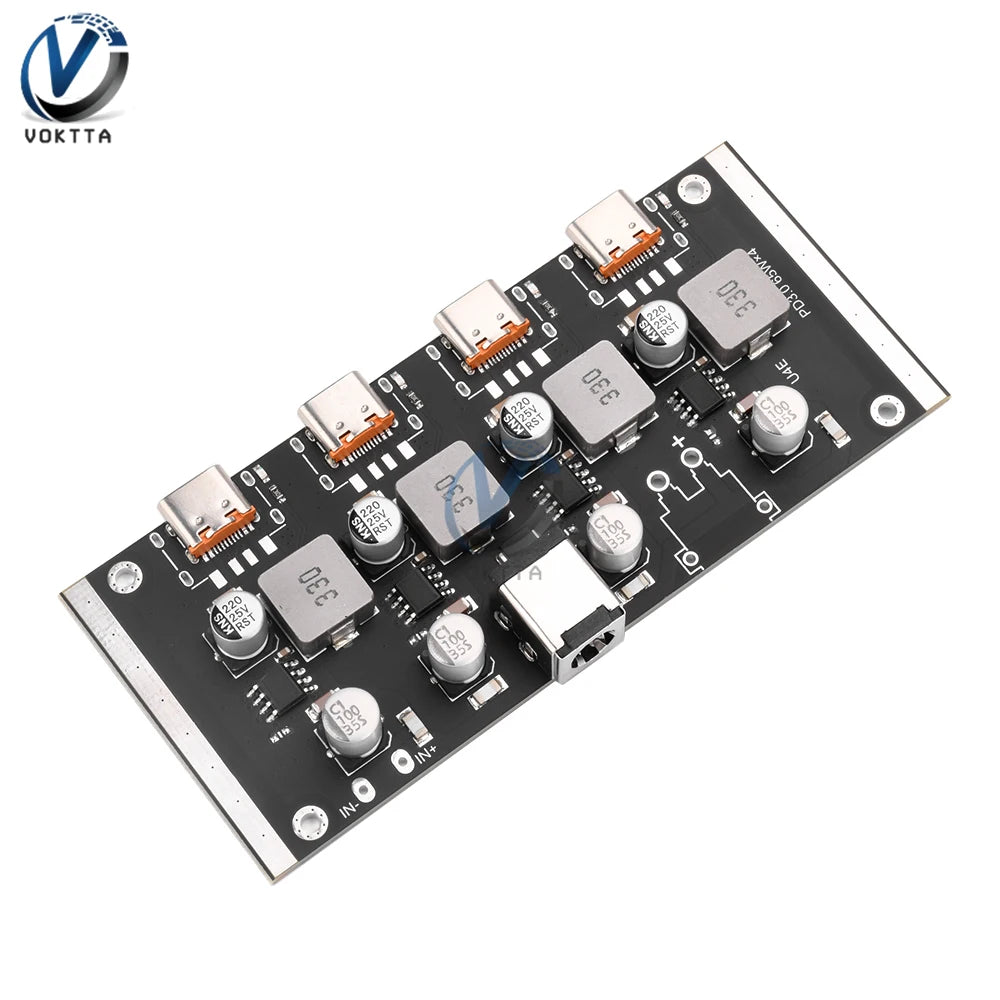

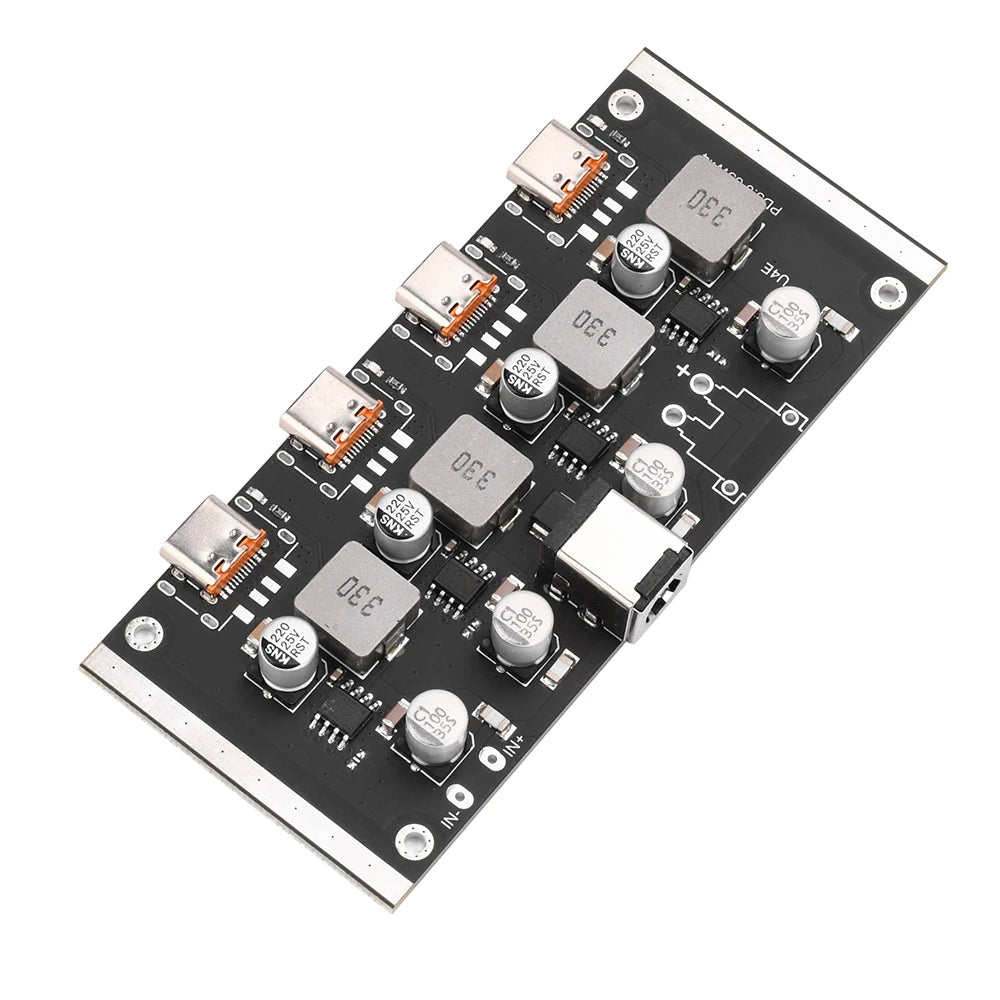

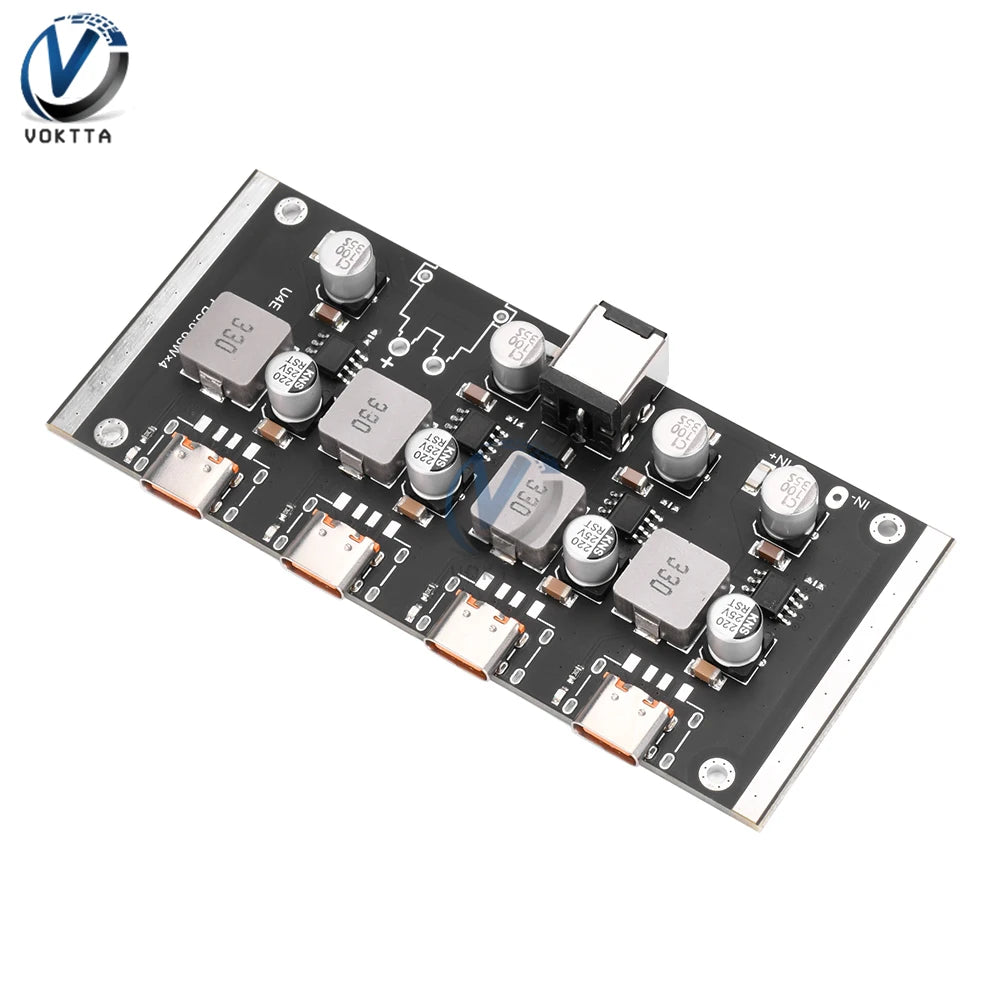

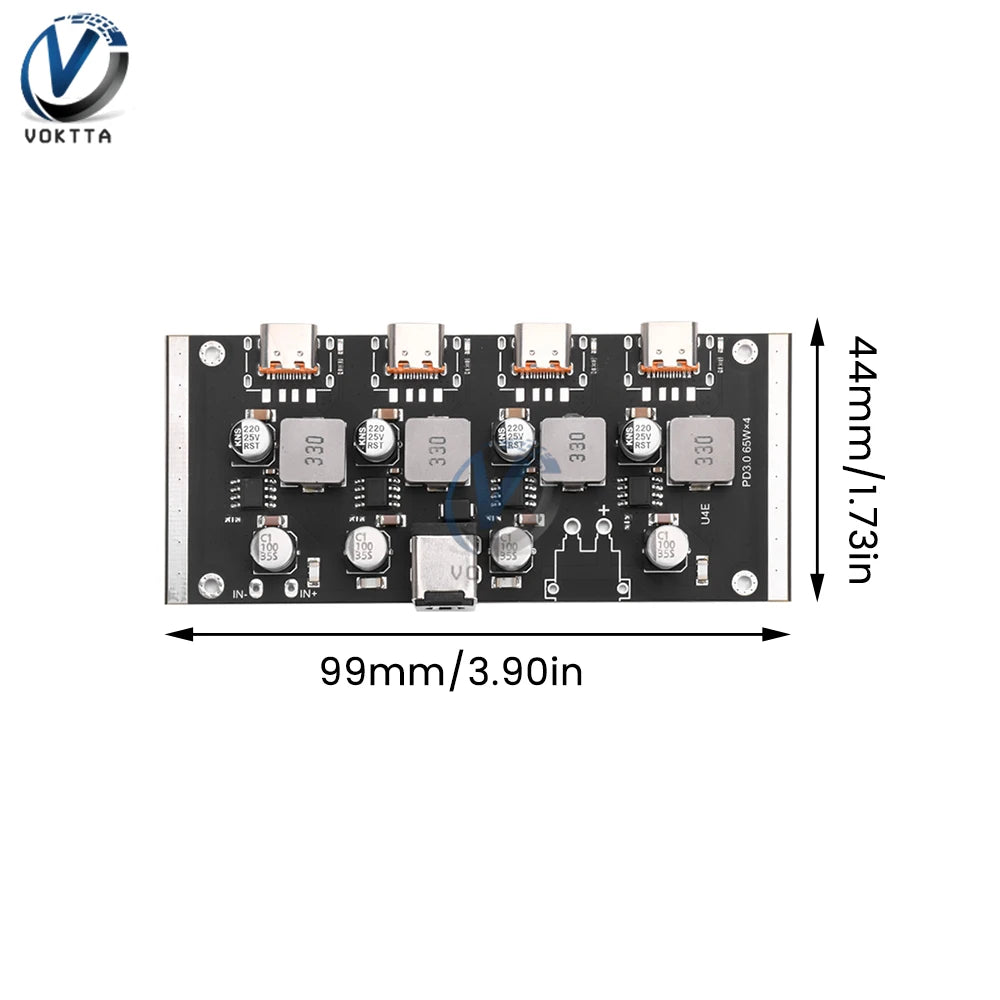

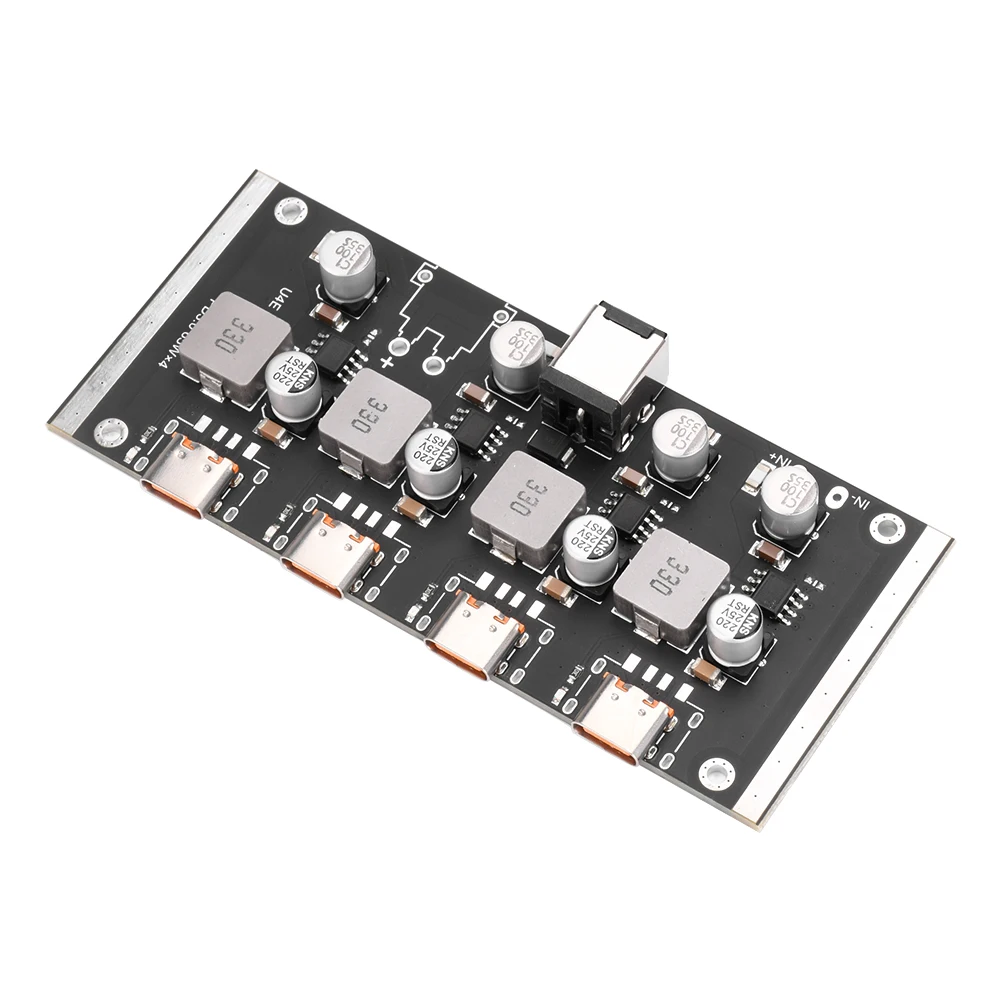

PD65W Fast Charging Module USB Type-C Interface Power Adapter Module Support PD3.0/2.0 QC3.0/2.0 FCP AFC Charger Circuit Board

Features:
1.Made of high quality material, durable and practical
2. Efficient and stable performance, the product comes with input over-voltage, under-voltage protection, output over-current, short-circuit protection, over-temperature protection and so on.
3. Exquisite appearance, beautiful arrangement of components

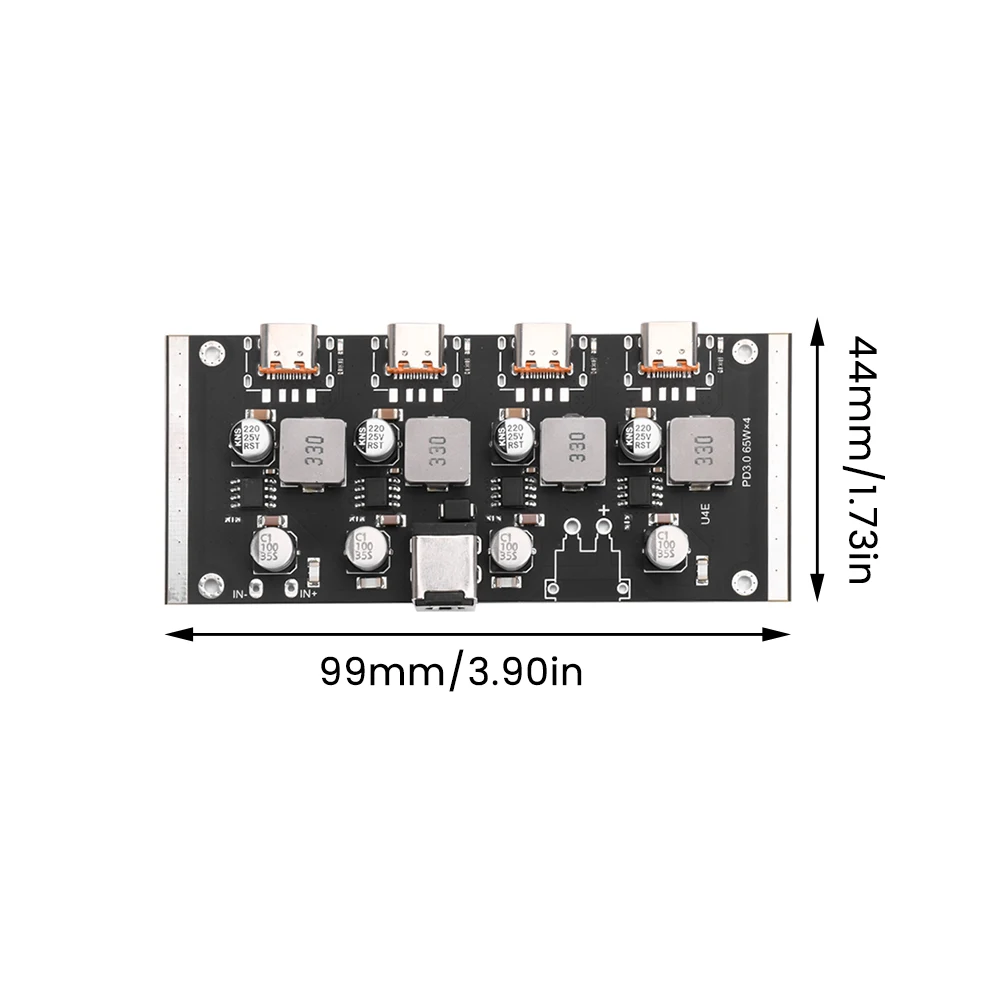

4. Compact size and easy to use.
5. Wide range of application scenarios, suitable for all kinds of power transformation PD fast charging

Parameter:
Input voltage: DC12~30V
Output voltage: when access to TYPE-C compatible powered devices in the 3.3V ~ 21V automatically adjusted (input voltage should be higher than the output voltage, if you want to trigger 20V fast charging then the input voltage should be higher than 20V)

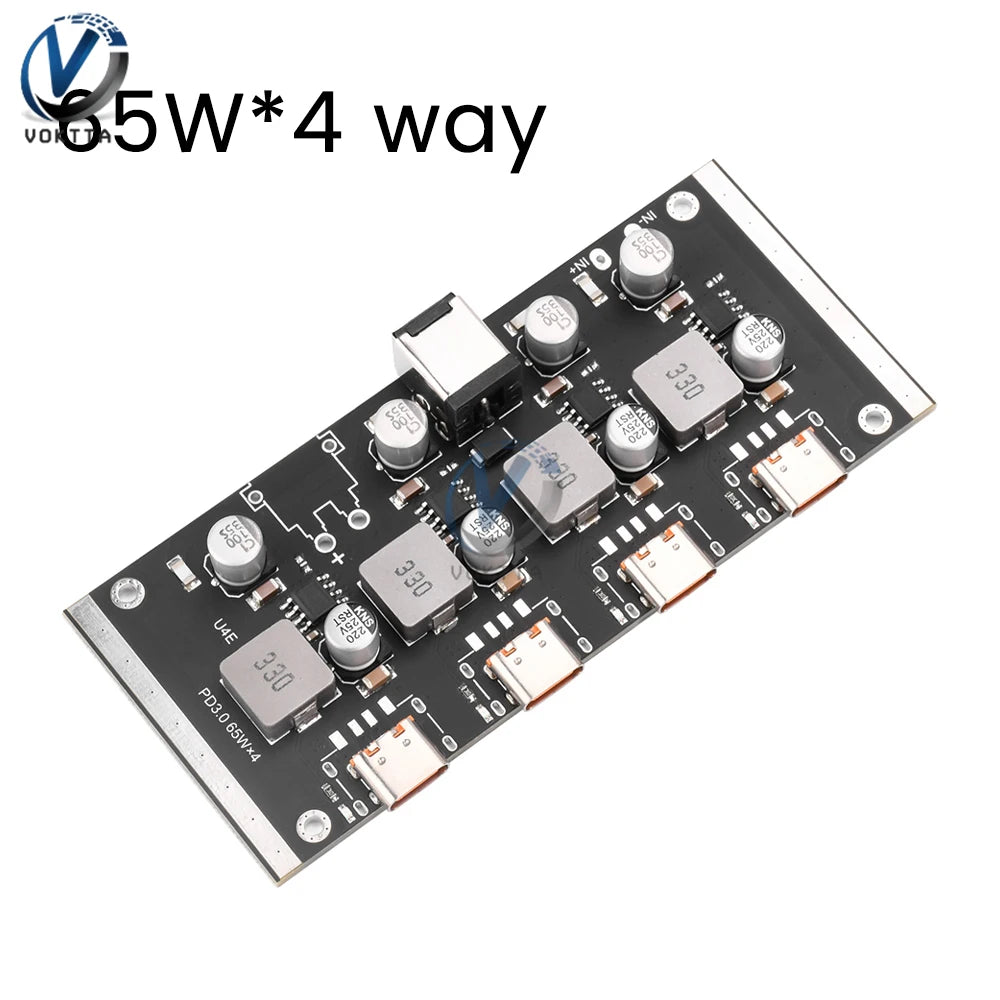

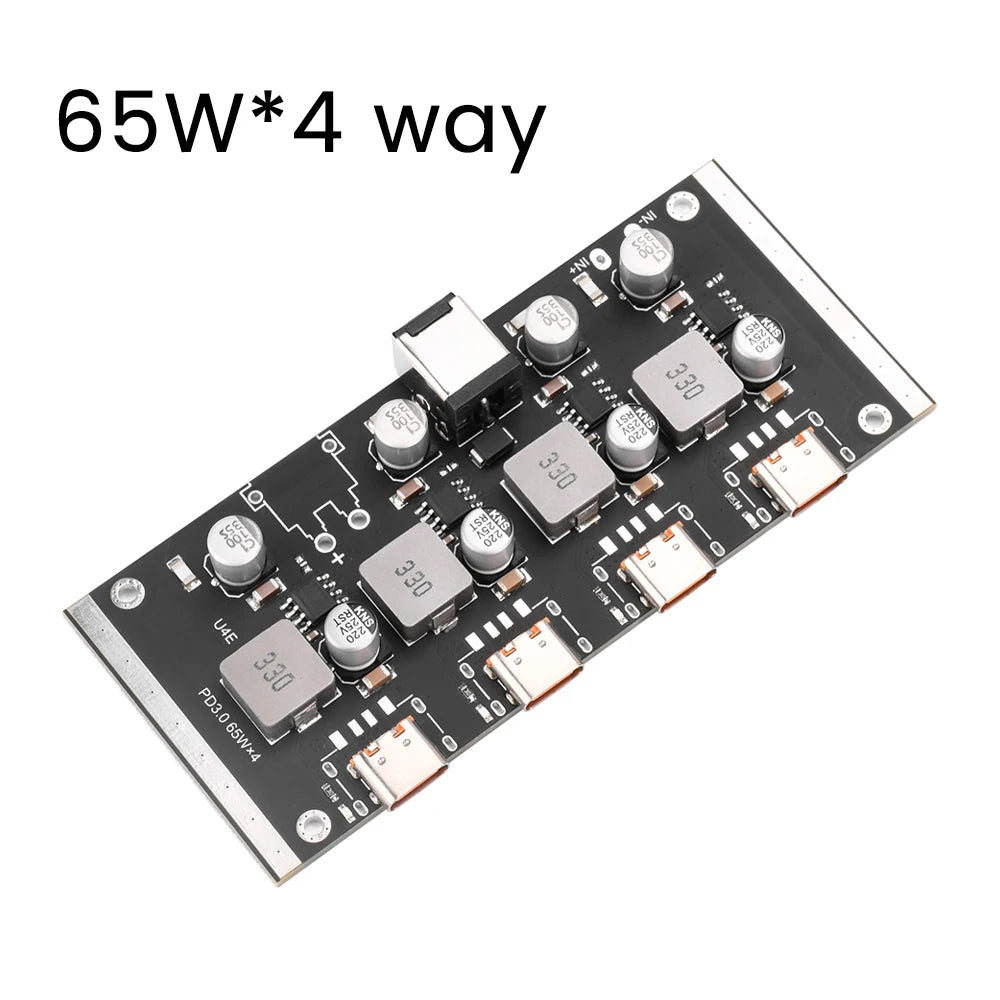

Output power: Maximum 65W×4 ways

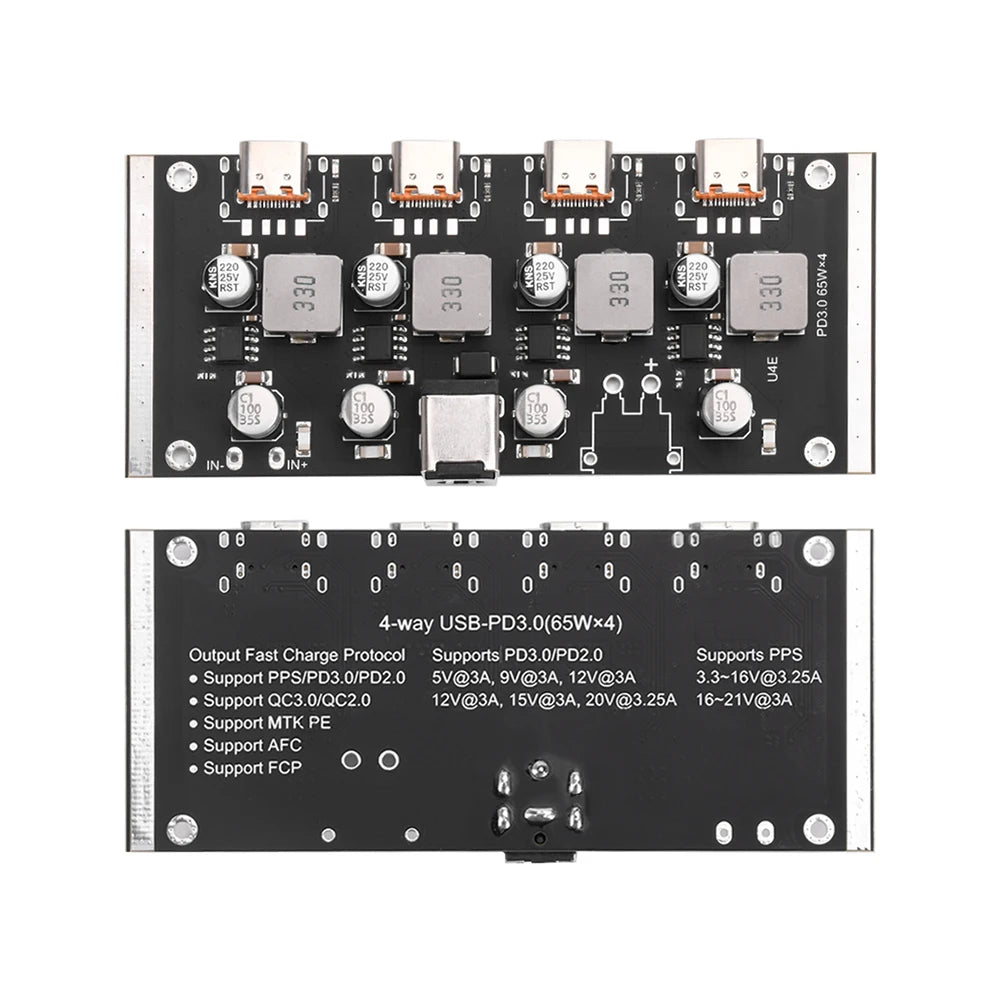

PD: 5V3A, 9V3A, 12V3A, 15V3A, 20V3.25A, 3.3~16V 3.25A, 3.3~21V 3A
Conversion efficiency: 92%~97
Output voltage ripple: <200mV
No-load current: <10mA

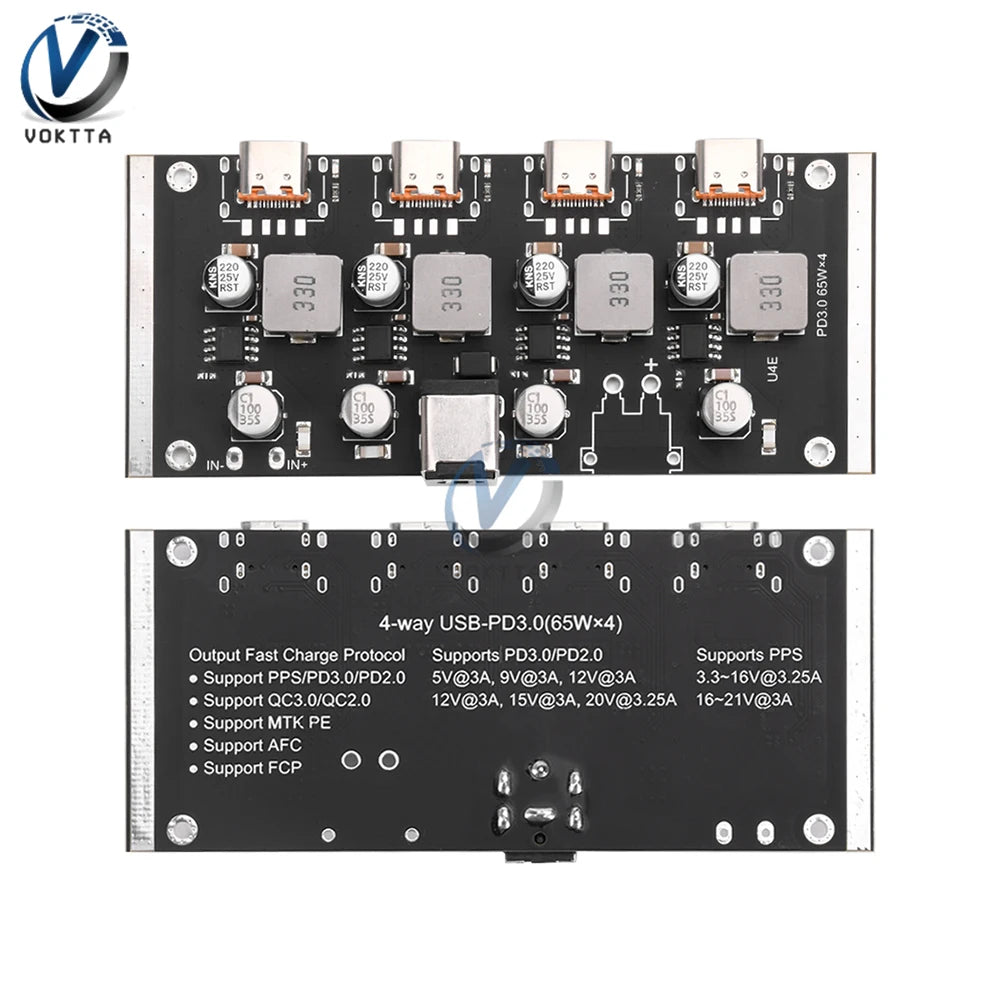

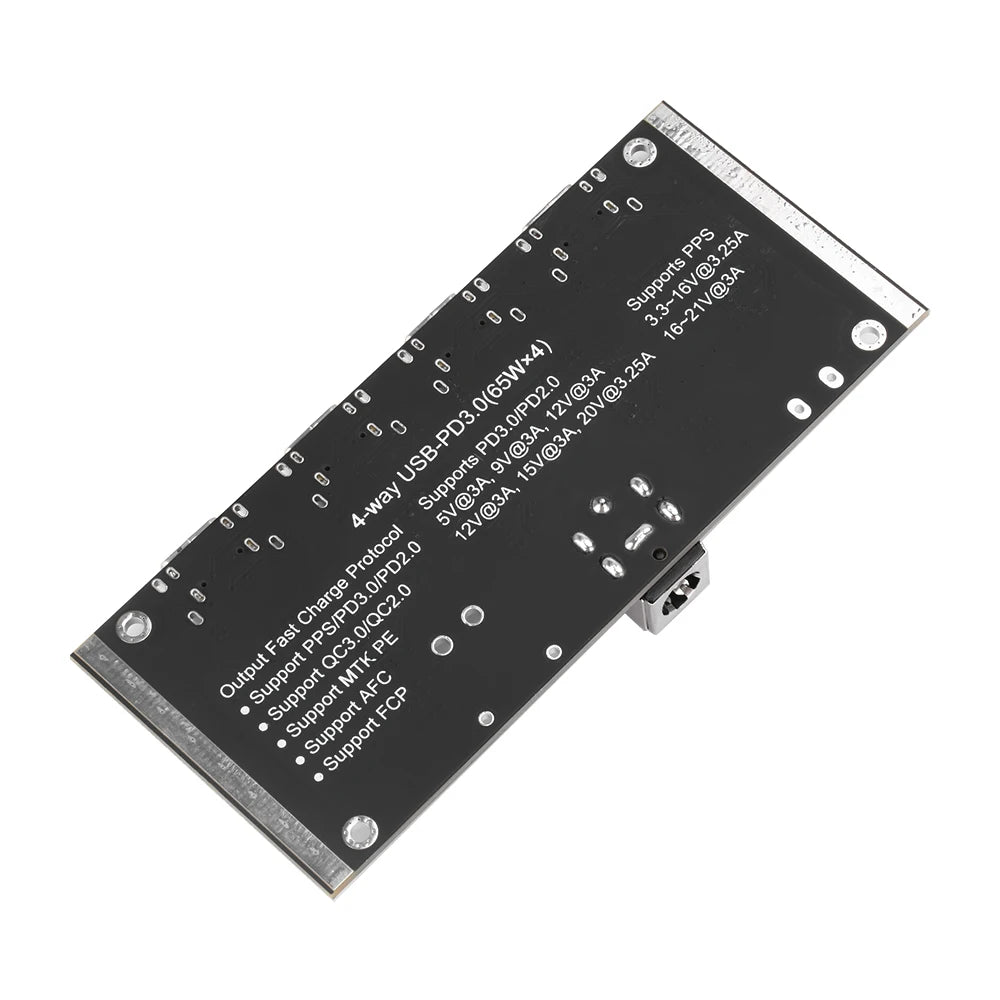

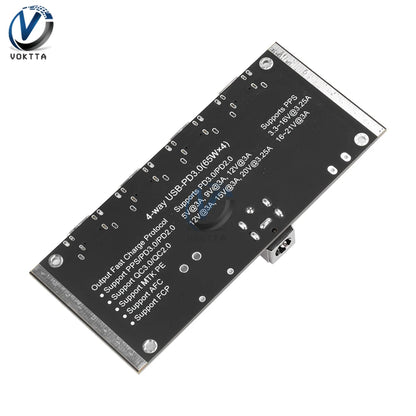

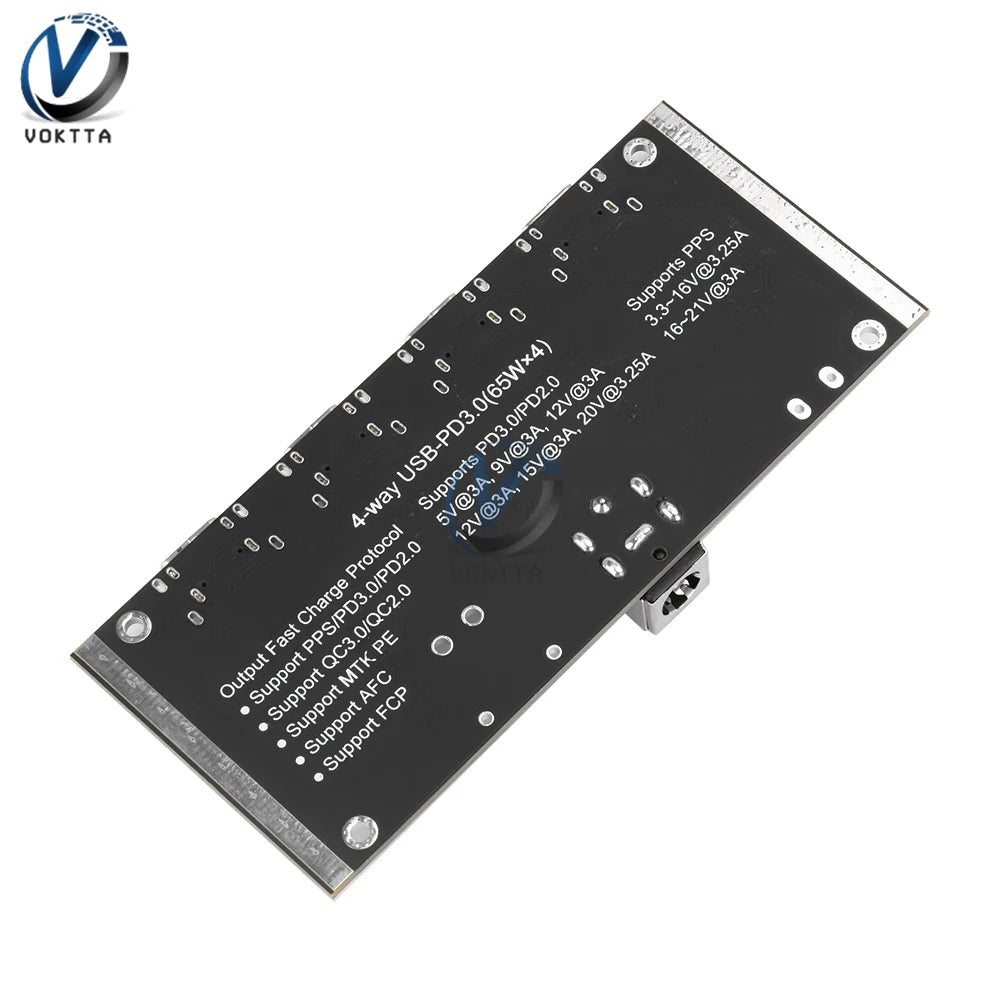

Supported fast charging protocols:

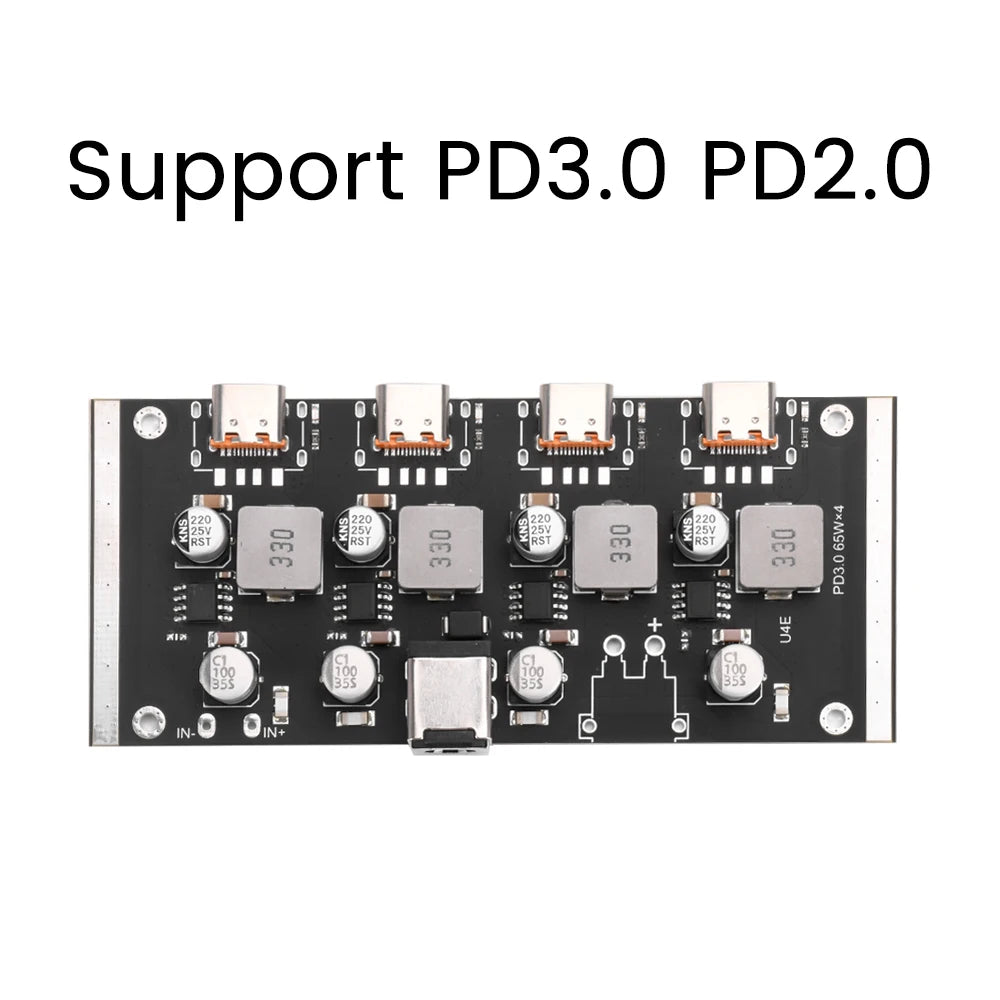

PD2.0/PD3.0 (PPS)

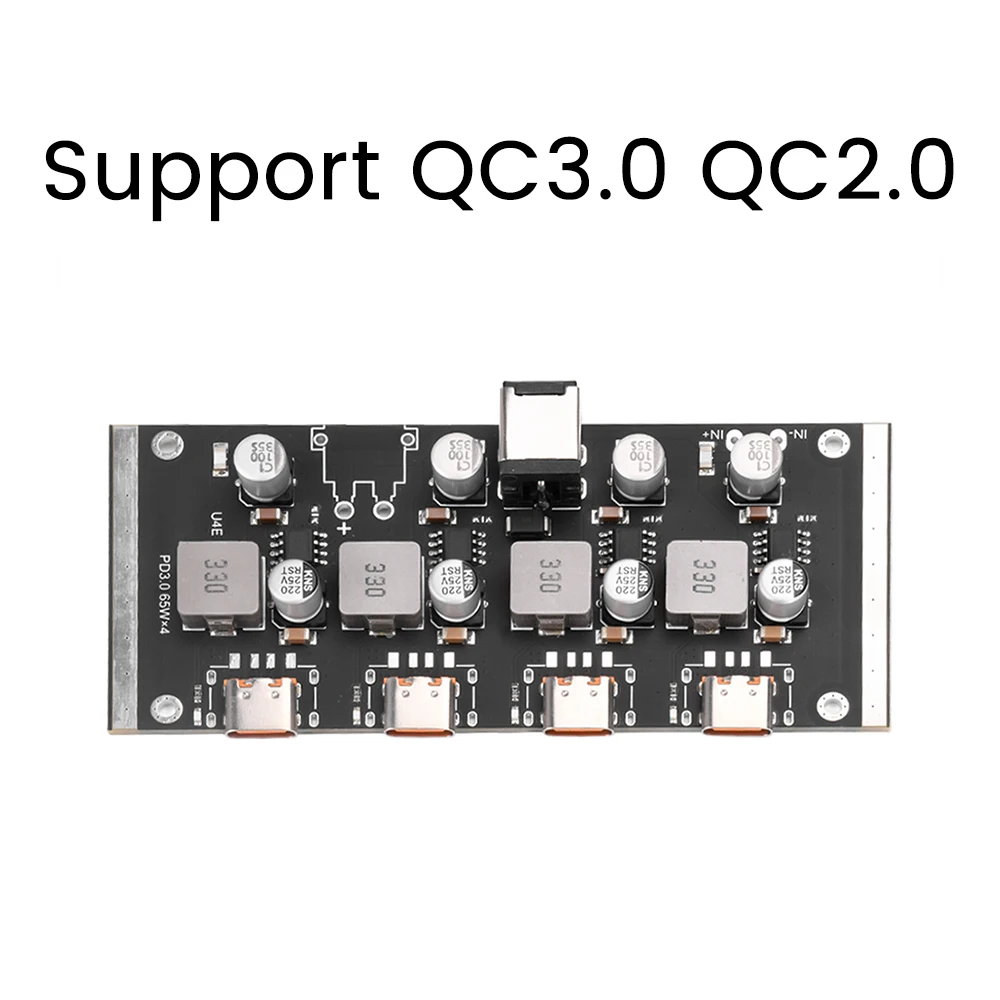

Qualcomm QC2.0, QC3.0
Huawei Fast Charging Protocol FCP
Samsung Fast Charging Protocol AFC
MTK PE
BC1.2, Apple protocol
