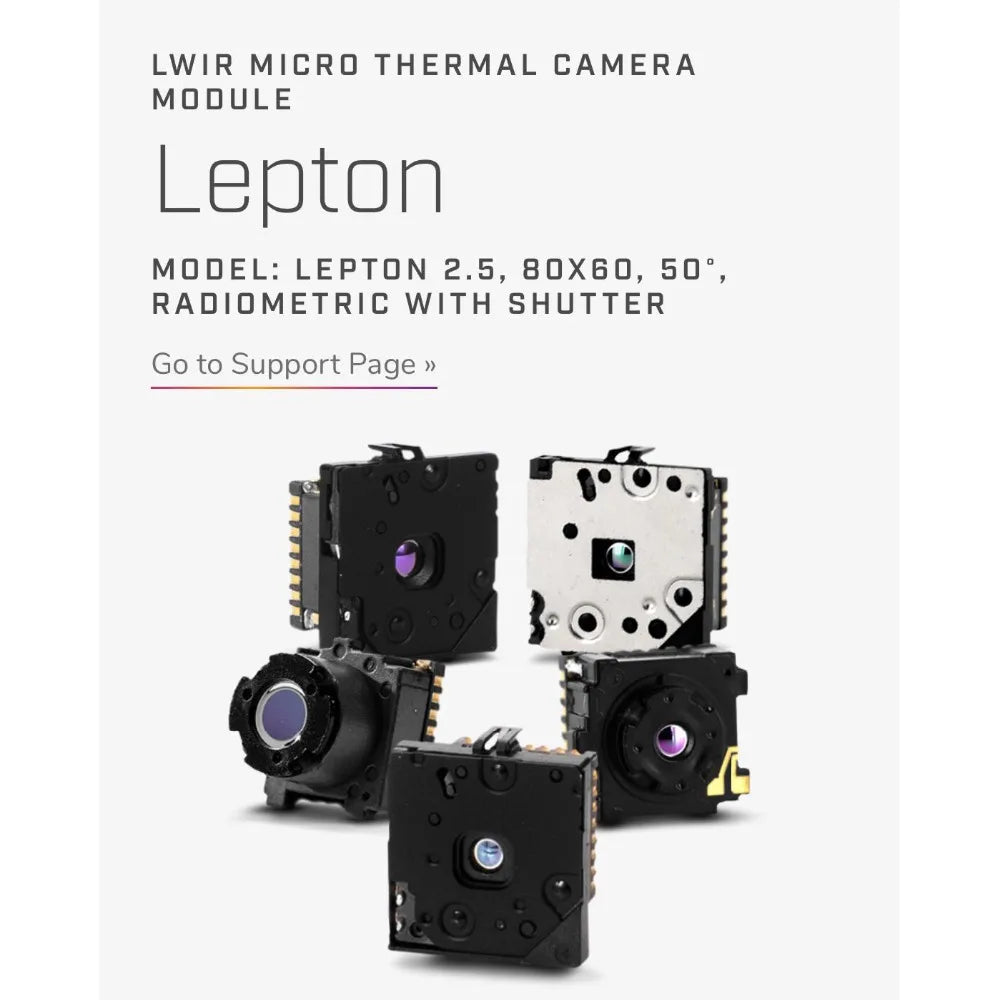

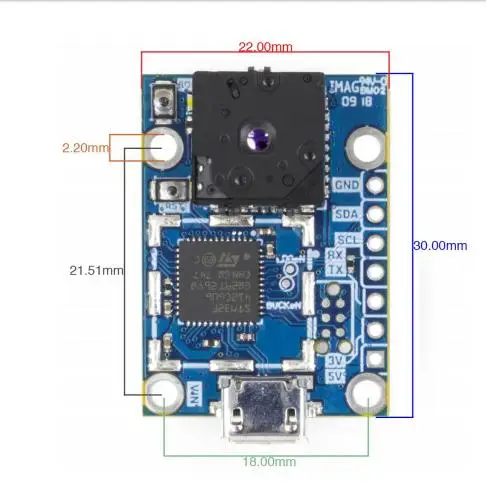

One-piece shutter configuration:

11.5 mm x 12.7 mm x 6.9 mm (excluding socket)

11.8 mm x 12.7 mm x 7.2 mm (including socket)

56 ° HFOV, 71 ° diagonal (f / 1.1 lens silicon coupling)

LWIR sensors, 8 mu mu m to 14 m wavelength

Thermal sensitivity

Integrated digital thermal image processing functions, including automatic compensation, noise filter, non-uniform thermal environment correction and gain control

35 ° C blackbody radiation measurement accuracy (), both the larger value:

High gain, plus or minus 5 ° C @ 25 ° C

Low gain: plus or minus 10 ° C @ 25 ° C

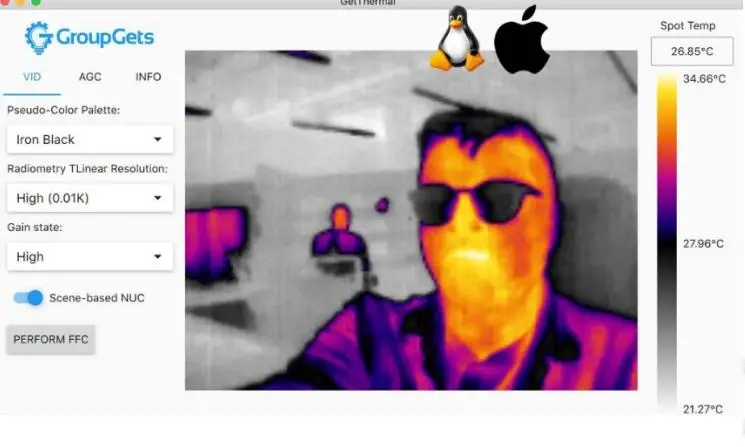

Is fit for measuring the radiation temperature measurement software functions, including per pixel and radiation measuring output per frame (Tlinear) and spot metering

160 (h) x 120 (v) pixels

Up to export standard frame rate (

SPI interface of video

Two-line I2C serial interface control

With compatible with mobile phone standard power: sensor 2.8 V, 1.2 V digital core. Flexible IO 2.8 V to 3.1 V

Fast imaging time (

Low power, nominal 140 mW

In the whole temperature range are less than 150 mW

The shutter during the event is about 800 mW (typical)

Low power off mode (nominal 5 mW)

In line with the RoHS standard

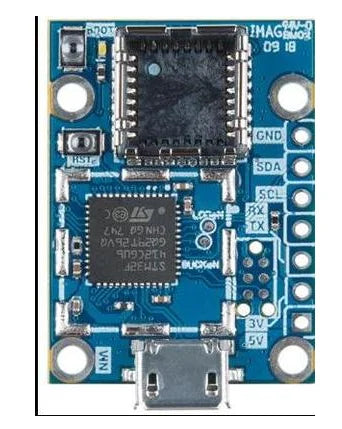

Standard connectors can be connected Molex or similar lateral contact 32 pin connector socket interface
