SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Solar System Controller

Brand Name: HXCONTROLLER

Certification: CE

Choice: yes

Hign-concerned Chemical: None

Is Smart Device: No

Max input voltage: 50V( 24V), 12V( 25V)

Maximum Current: 30A

Model Number: 10A 20A 30A Solar Charge Controller

Origin: Mainland China

is_customized: Yes

semi_Choice: yes

suggestion solar panel power: 720W,480W,360W,240W,120W

Advantage of controller

1.Adopt industrial-grade main controlchip, 16-level AD sampling accuracy, temperature, chargingcurrent, accurate real-timed isplay, and power generation at a glance.

2.Auto-focus MPP tracking charging, high charging efficiency, non-stop detection during charging, bidirectional focus tracking.

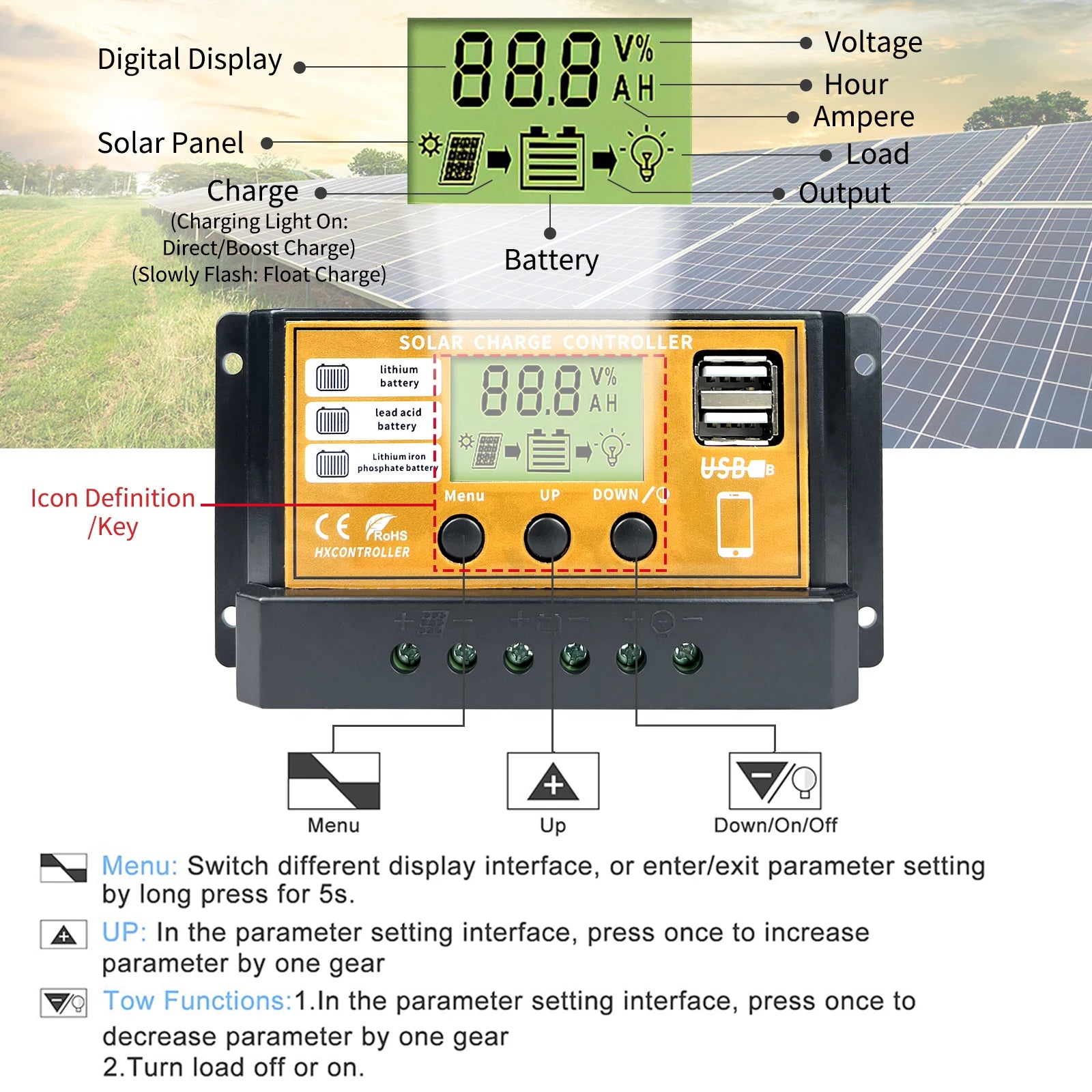

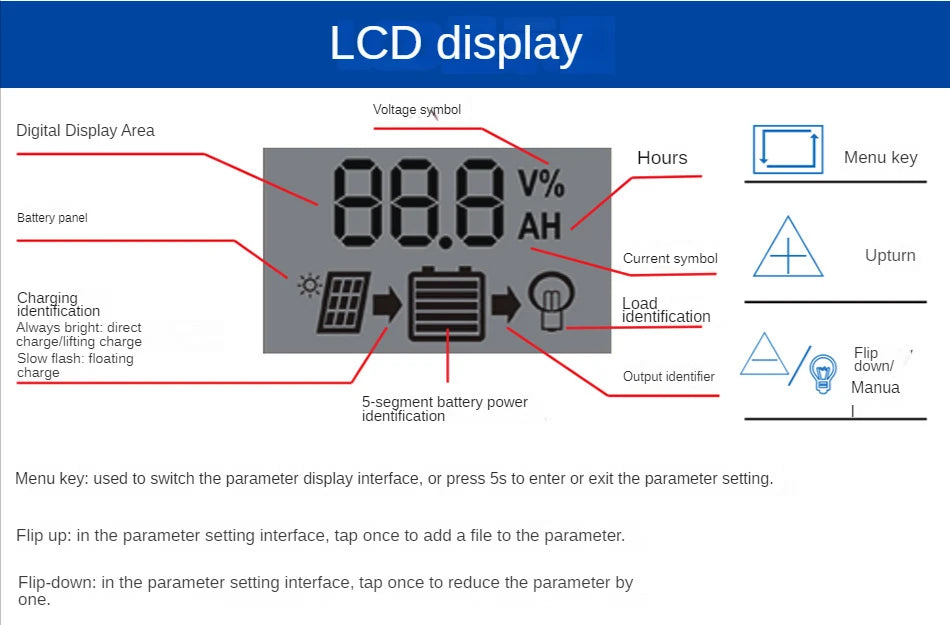

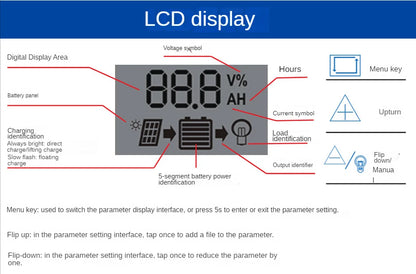

3. LCD display largescreen, adjustable charging and discharging parameters. The ultra-wide charge and discharge are adjustable, as long as you understand the battery characteristics and set the corresponding charging parameters,you can charge all kinds battery（Lithium and Lifepo4 battery）, please set correct charging parameter.

4.Completely 3-stage charging management. Effectively protecting the battery, make battery more durable.

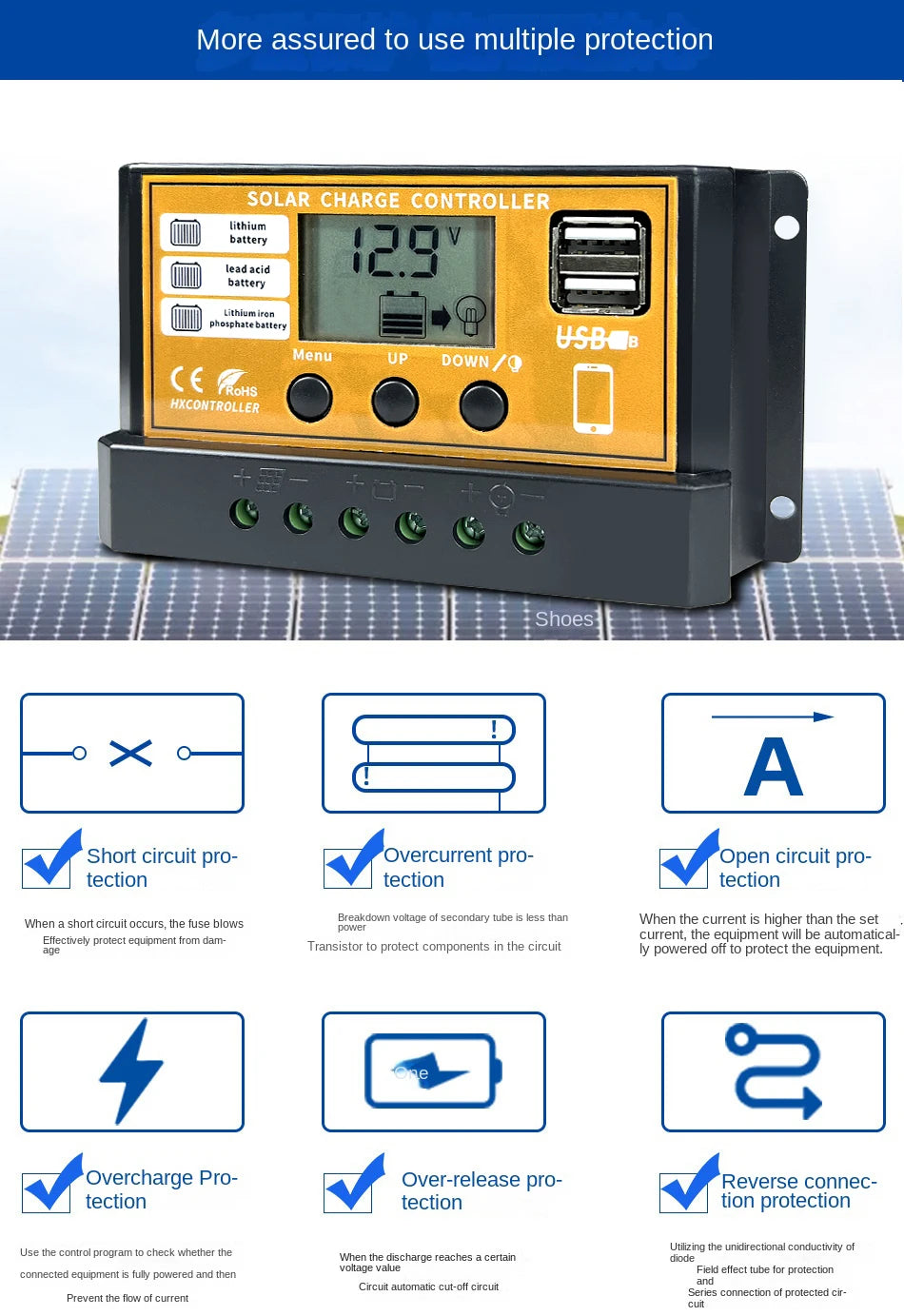

5.Built-inoverheat protection. overcurrent protection. short circuit protection.

open c『, cuit protection, reverse connection protection, whenthe fault is eliminated. it will selfty recovery . without damage to the controller

6.Bidirectional MOS tube anti-backftowcircuit, high-power charging mode,

ultra-low heat generation.

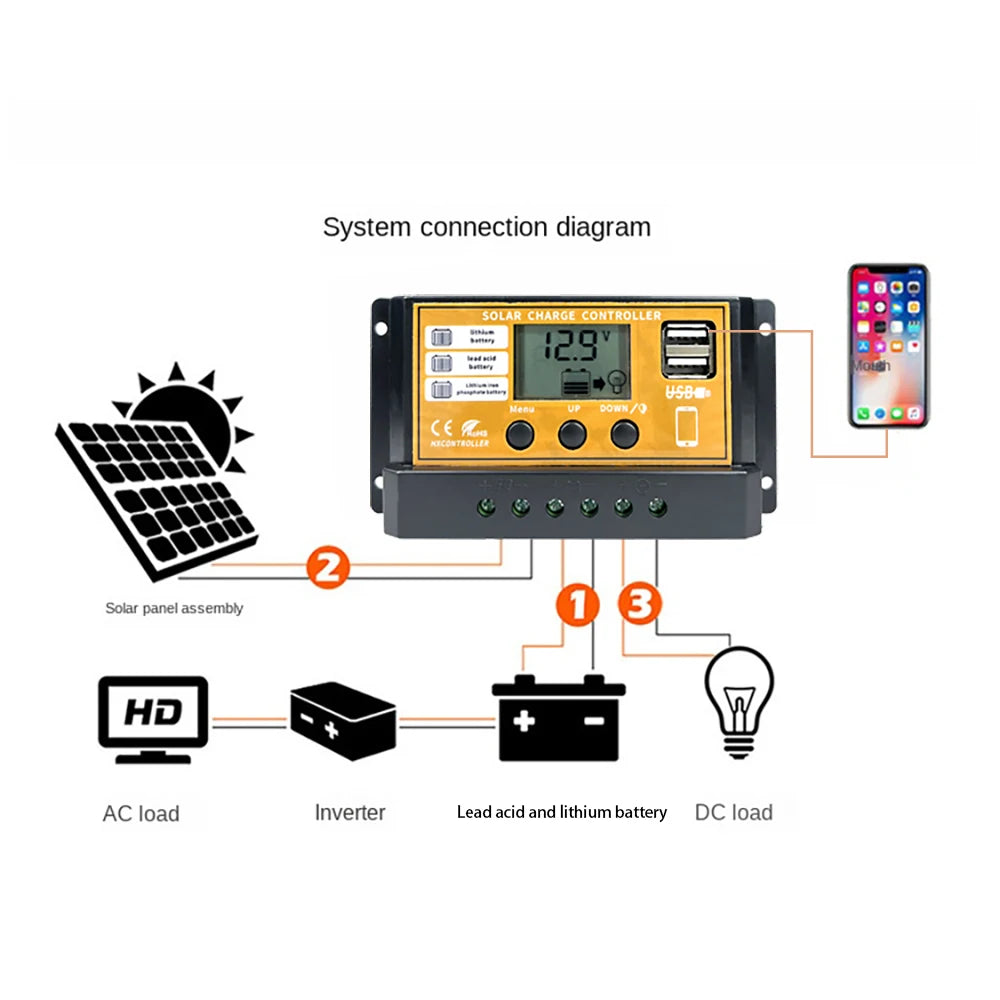

7.Dual DCS.O DC load output. easy to connect

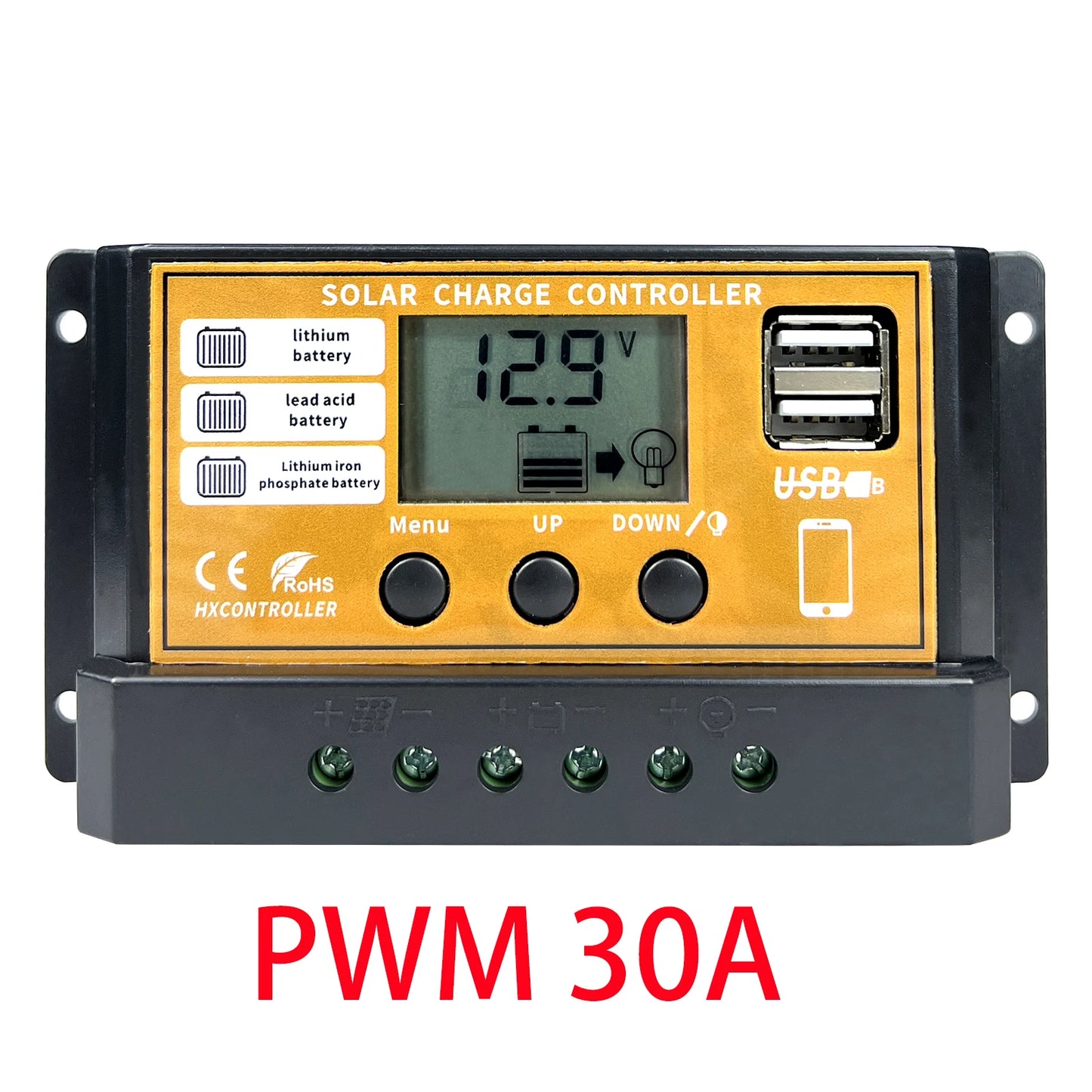

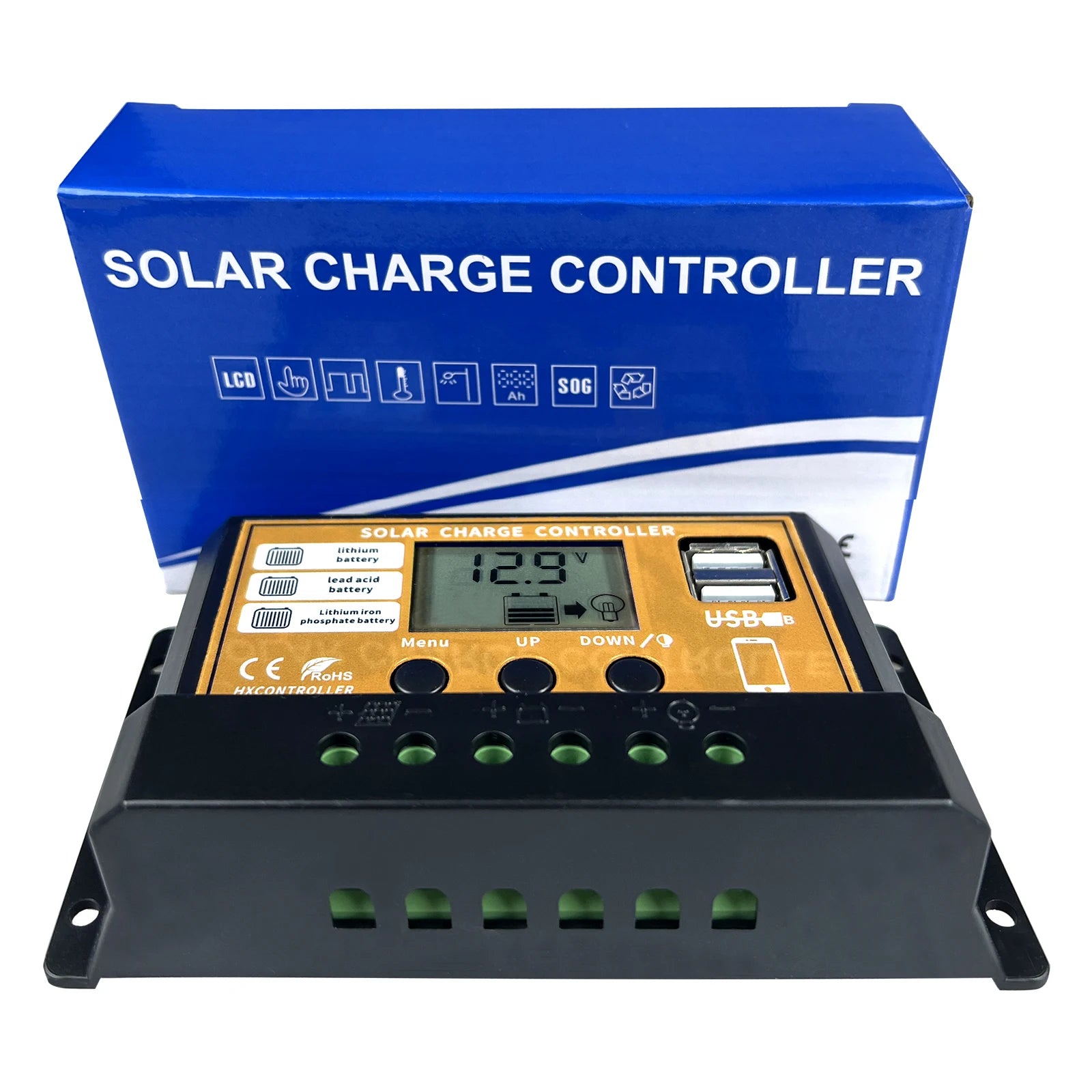

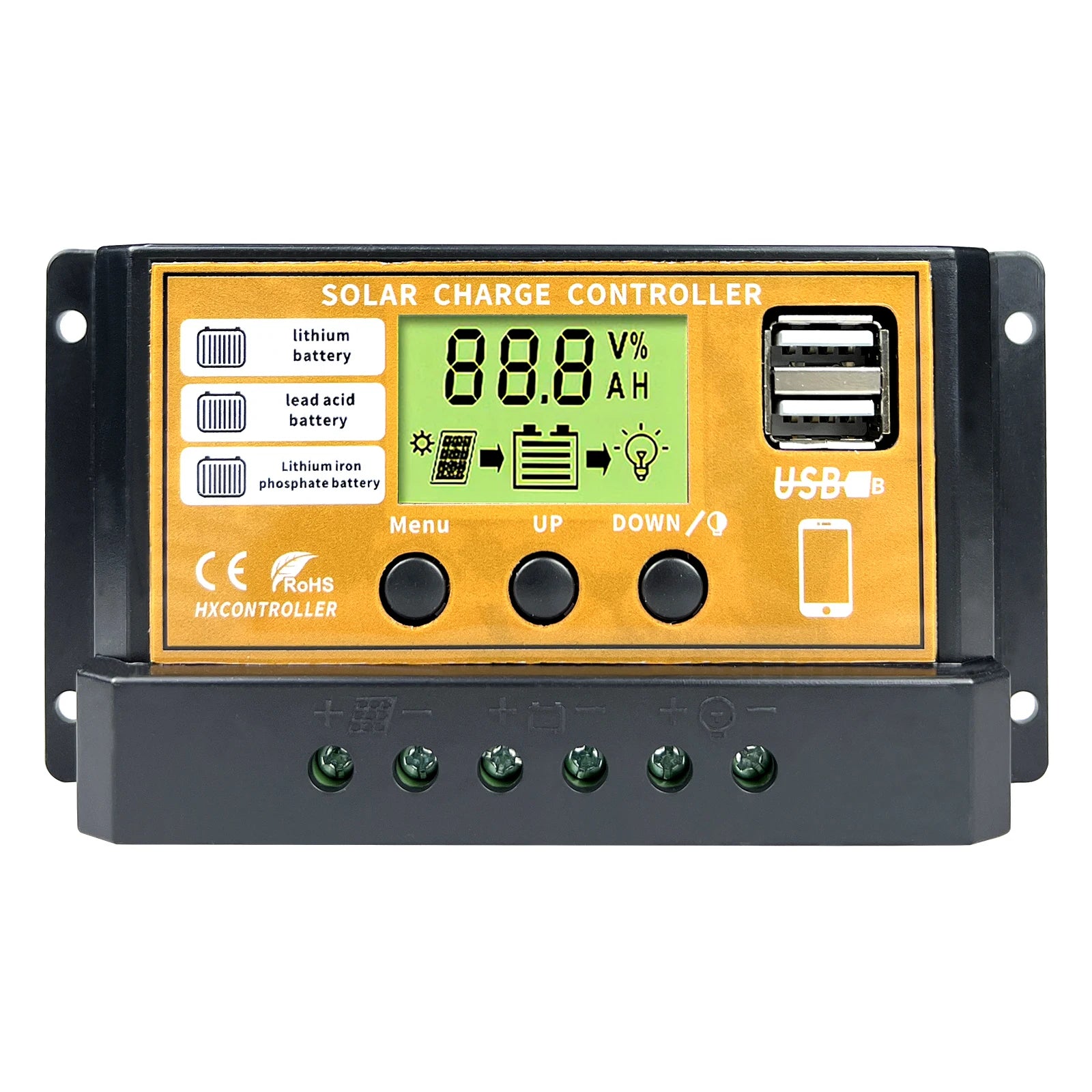

Orange PWM Controller

PWM controller can be used in lithium battery, lifepo4 and Lead acid battery

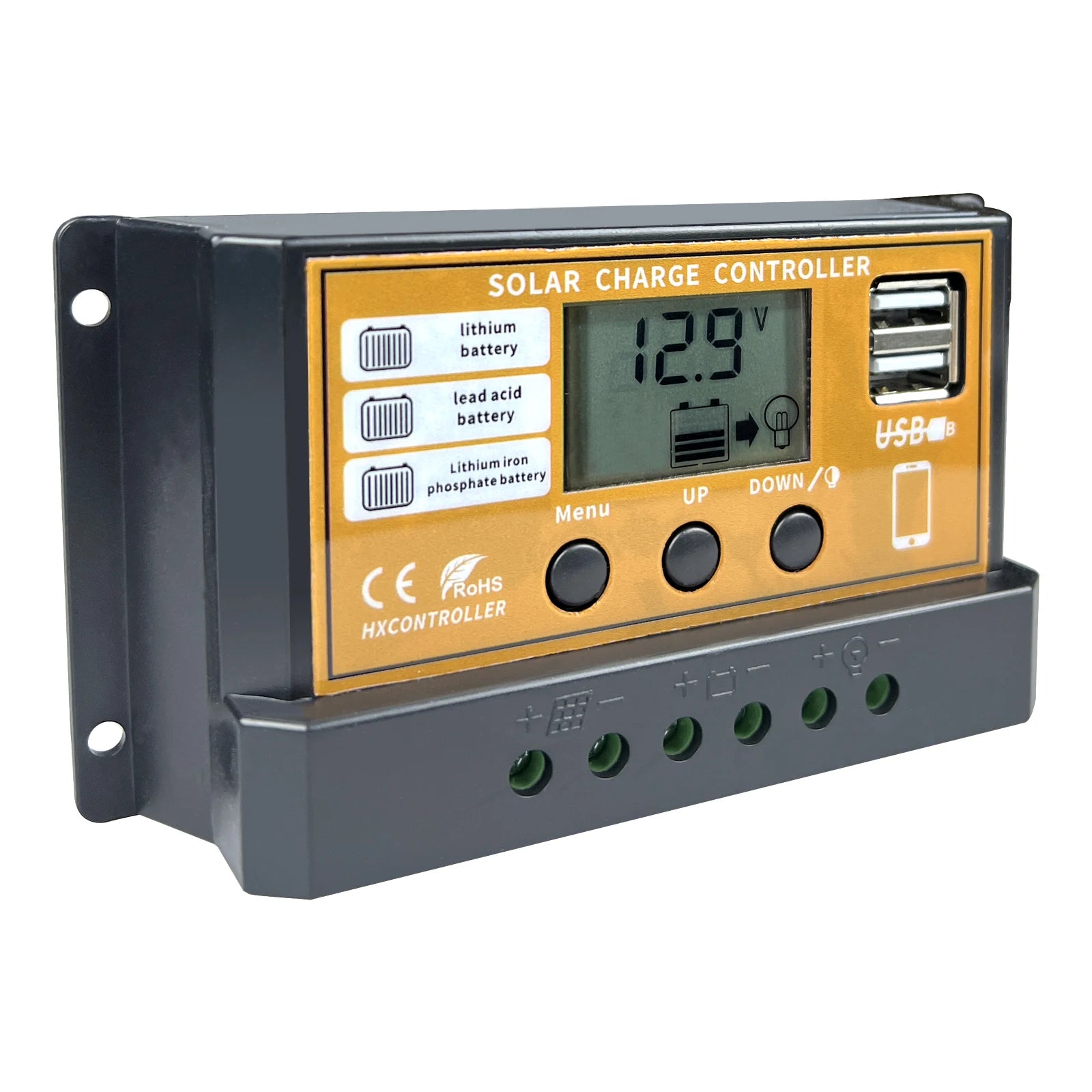

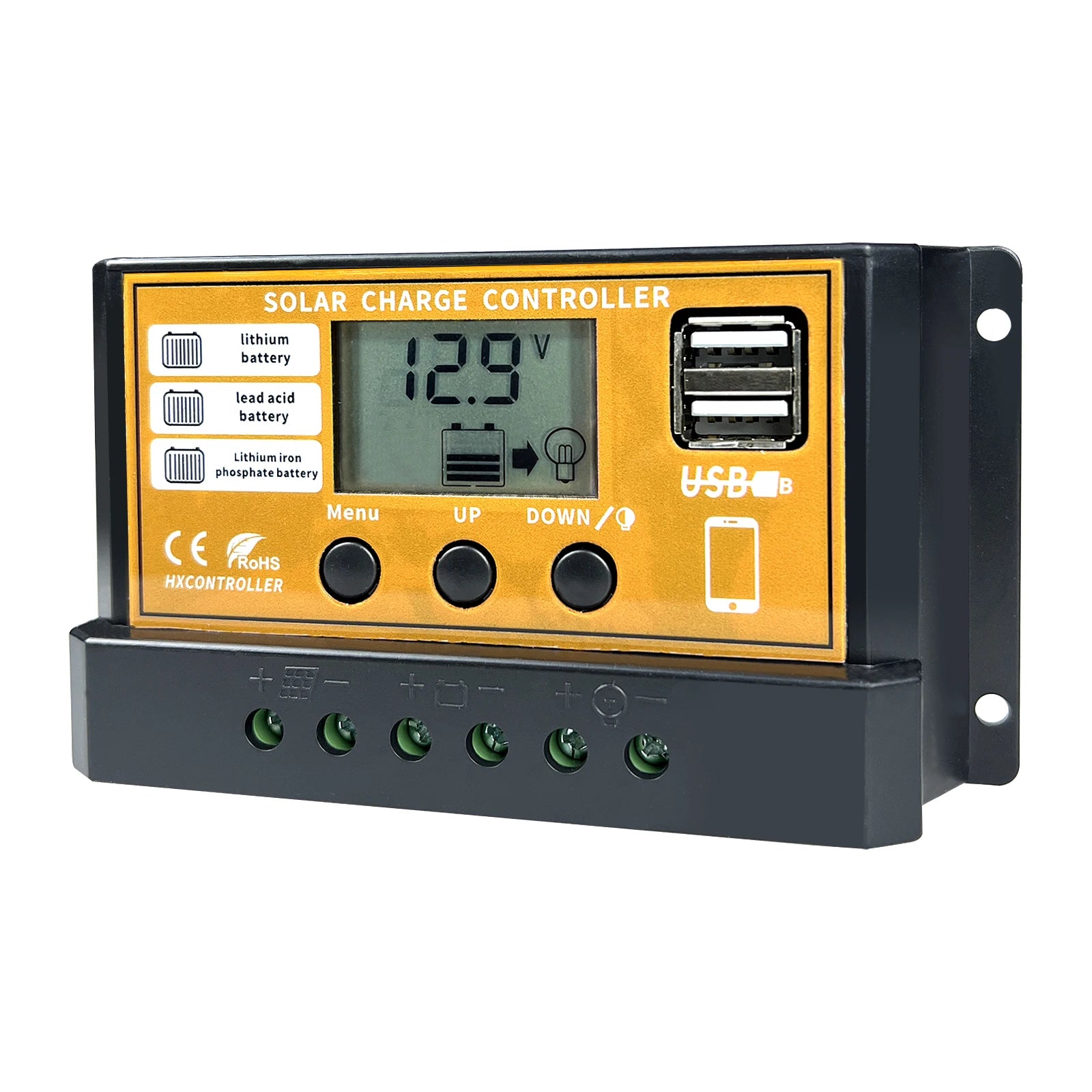

Orange PWM Controller
