SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Compatible Audio & Video Equipment Style: Display Equipment

Hign-concerned Chemical: None

Model Number: FZ5815

Origin: Mainland China

Type: Bluetooth,WIFI

semi_Choice: yes

RCmall 2.8'' ESP32 Module ESP32-2432S028R 240*320 Smart Display Screen 2.8inch LCD TFT Module ILI9341 Driver

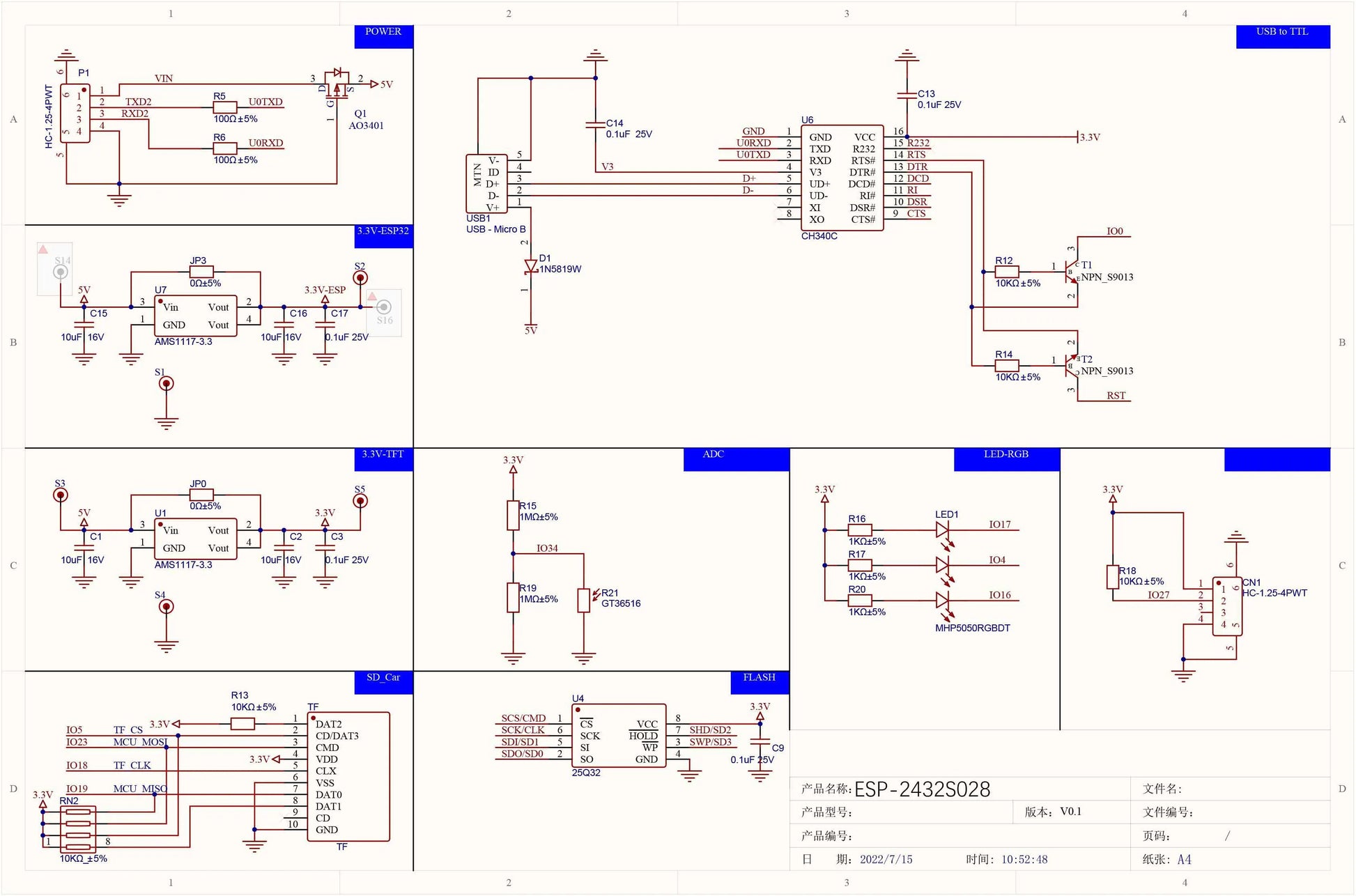

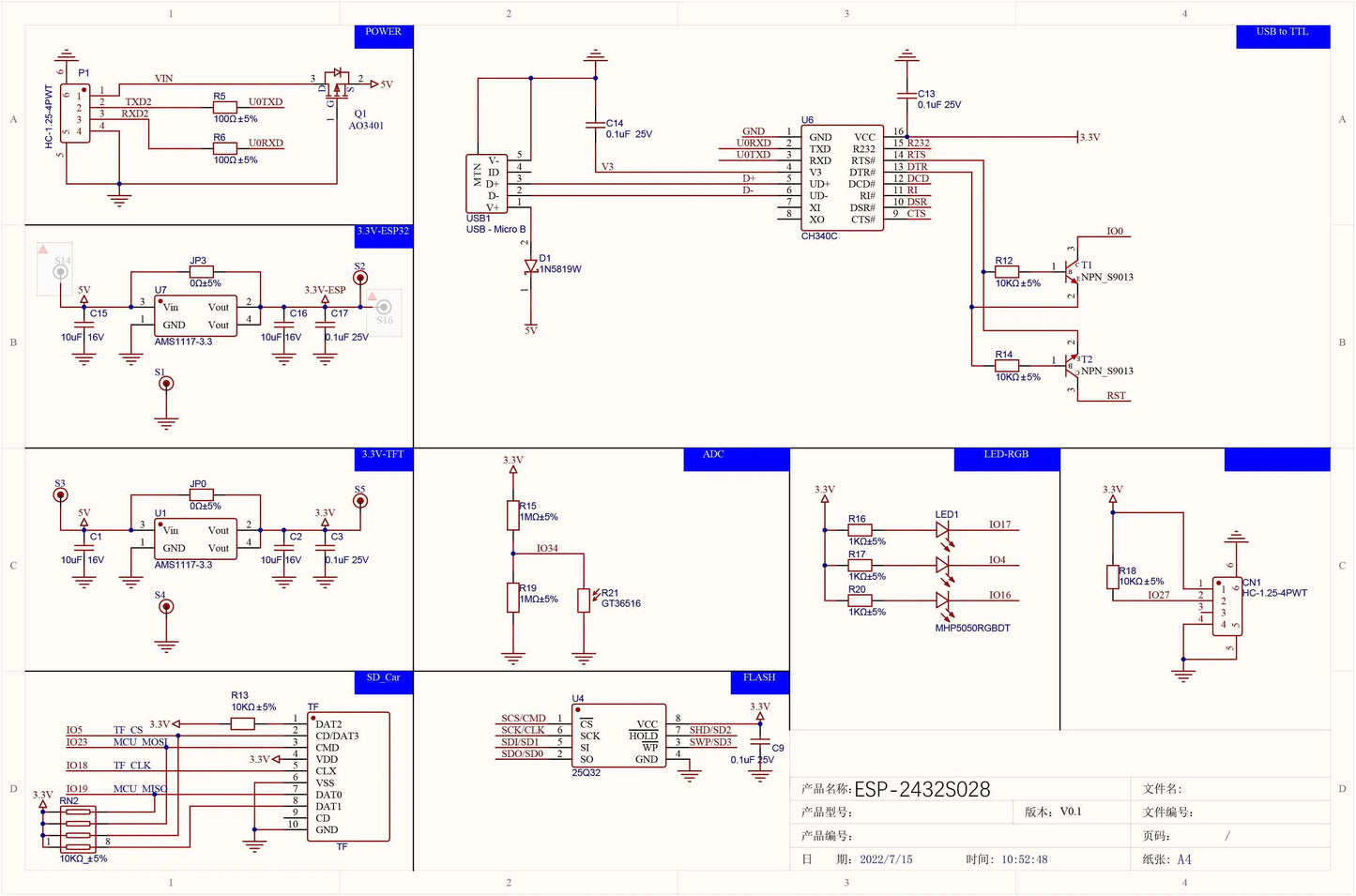

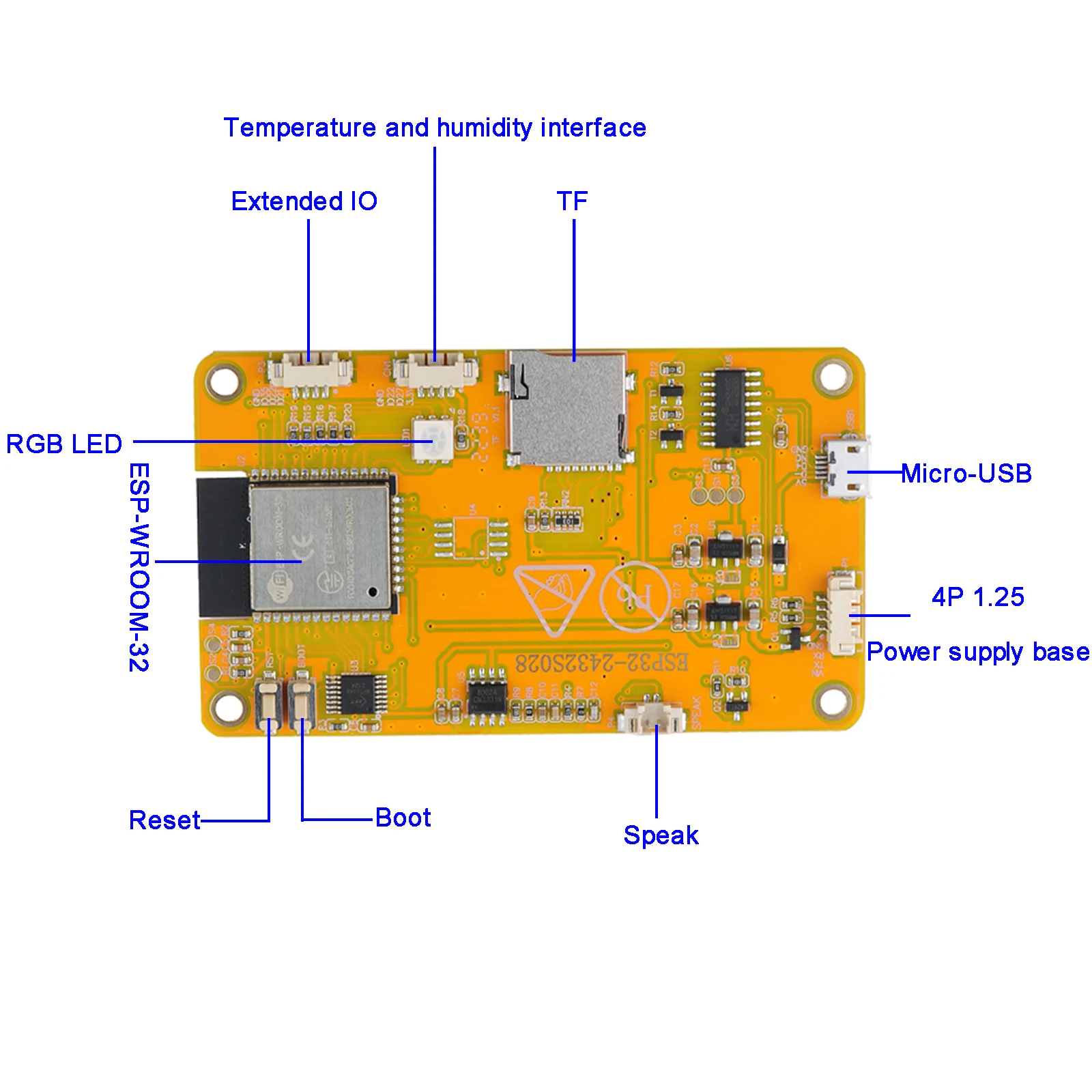

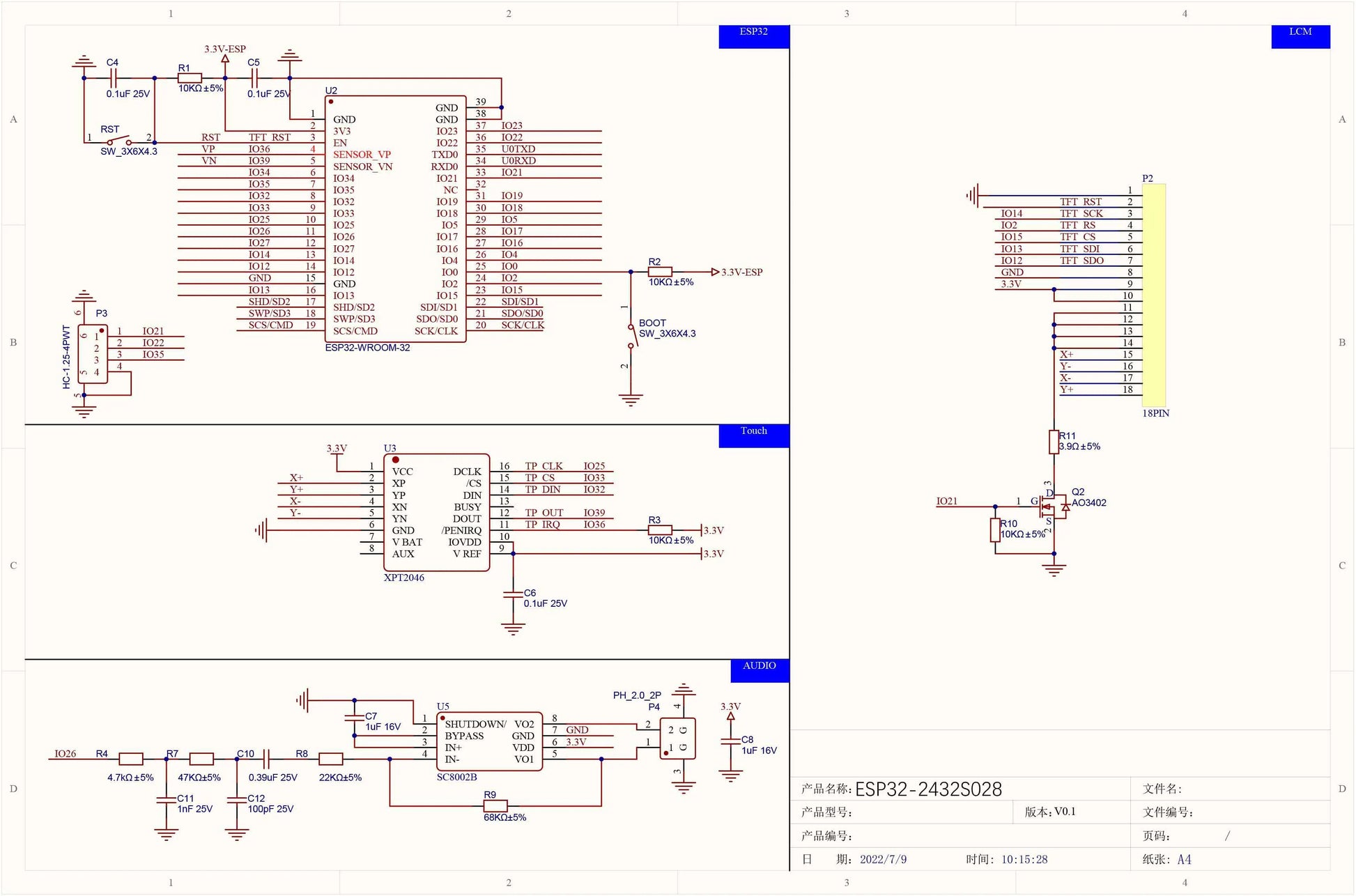

This LCD module uses ESP32-WROOM-32 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Blue-tooth functions, the main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB+4MB, The display resolution is240x320 ,resistive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photo sensitive circuit and RGB-LED control circuit. TF-card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface, this module supports development in Arduino-IDE, ESP IDE,Micropy-thon and Mi-xly.





Features:

2.8-inch color screen, support 16BITRGB65K color display, display rich colors

240X320 resolution

The sample program has been programmed in the factory and can be plugged in

With TF-card slot for easy expansion storage

Provide arduino library functions and sample programs to facilitate rapid secondary development

Support one-click download program

Military-grade process standards, long-term stable work

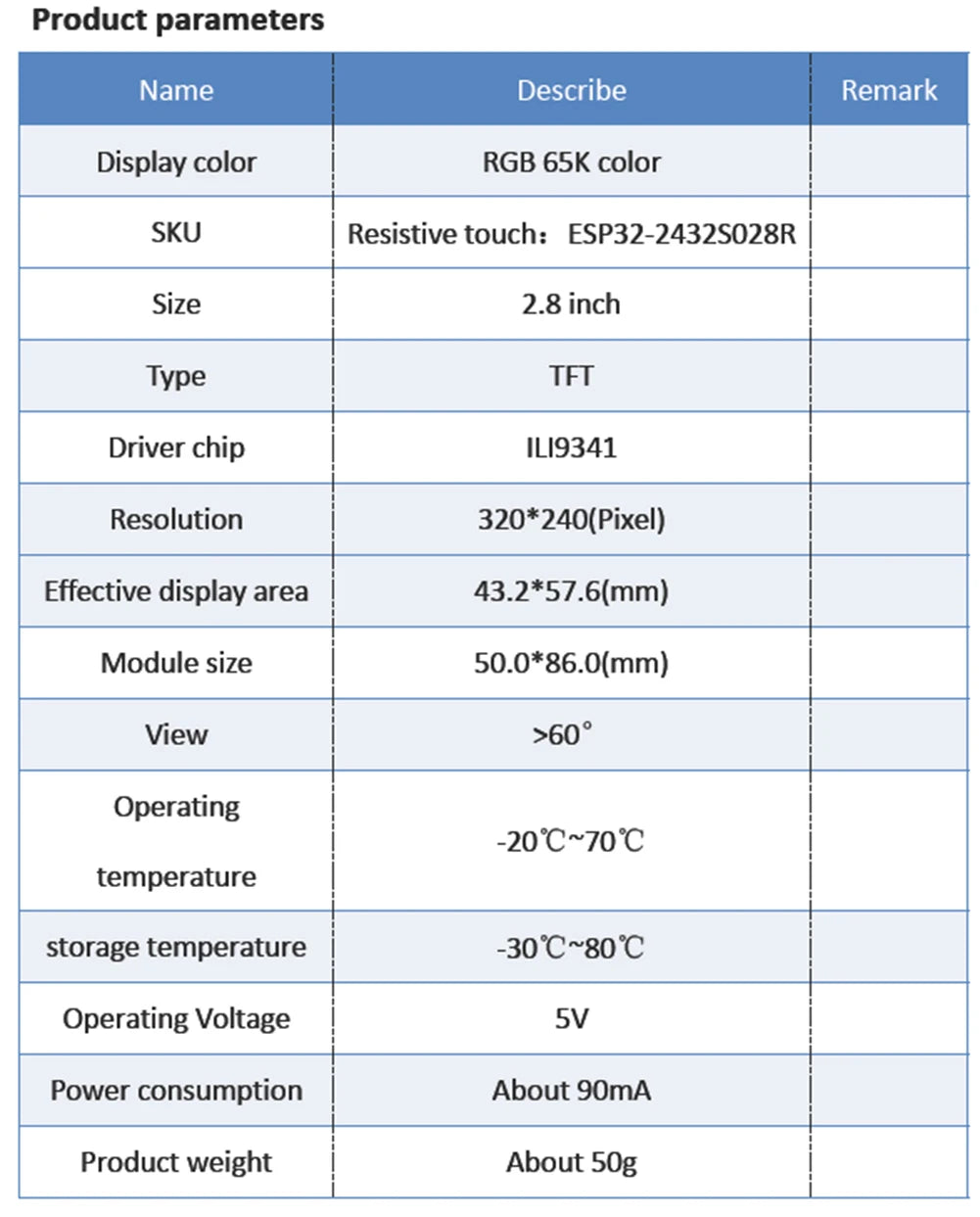

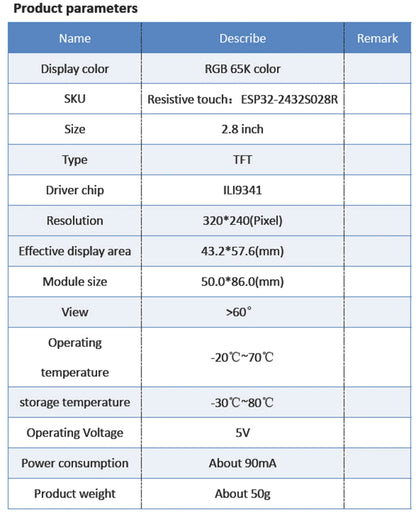

Parameters:

Display color: RGB 65K color

Resistive touch: ESP32-2432S028R

Size: 2.8 inch

Type: TFT

Driver chip: ILI9341

Resolution: 320 x 240 (Pixel)

Effective display area: 43.2 x 57.6(mm)

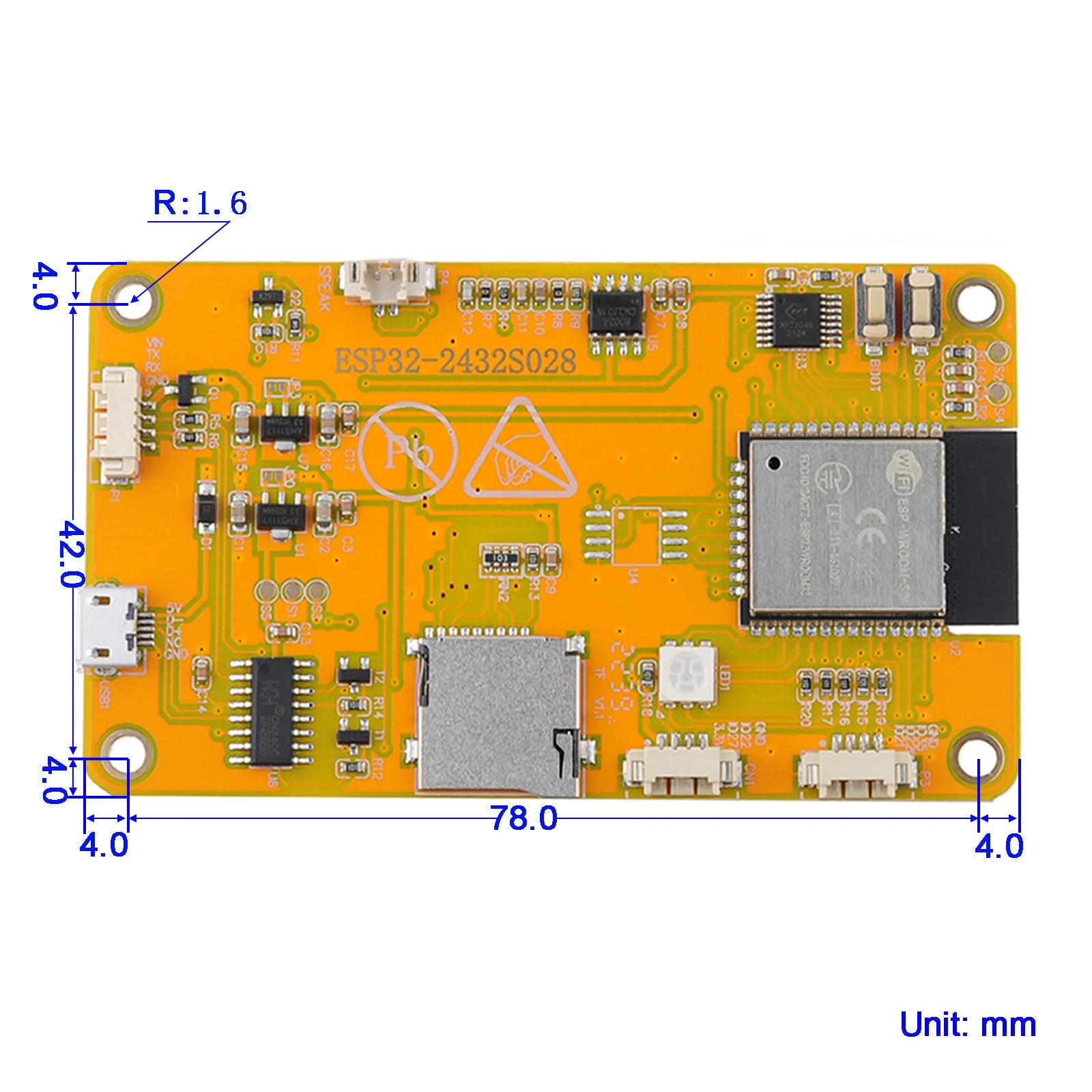

Module size: 50.0 x 86.0(mm)

View: >60°

Operating temperature: -20C~70℃

Storage temperature: -30℃~80℃

Operating Voltage: 5V

Power consumption: About 90mA

Product weight: About 50g

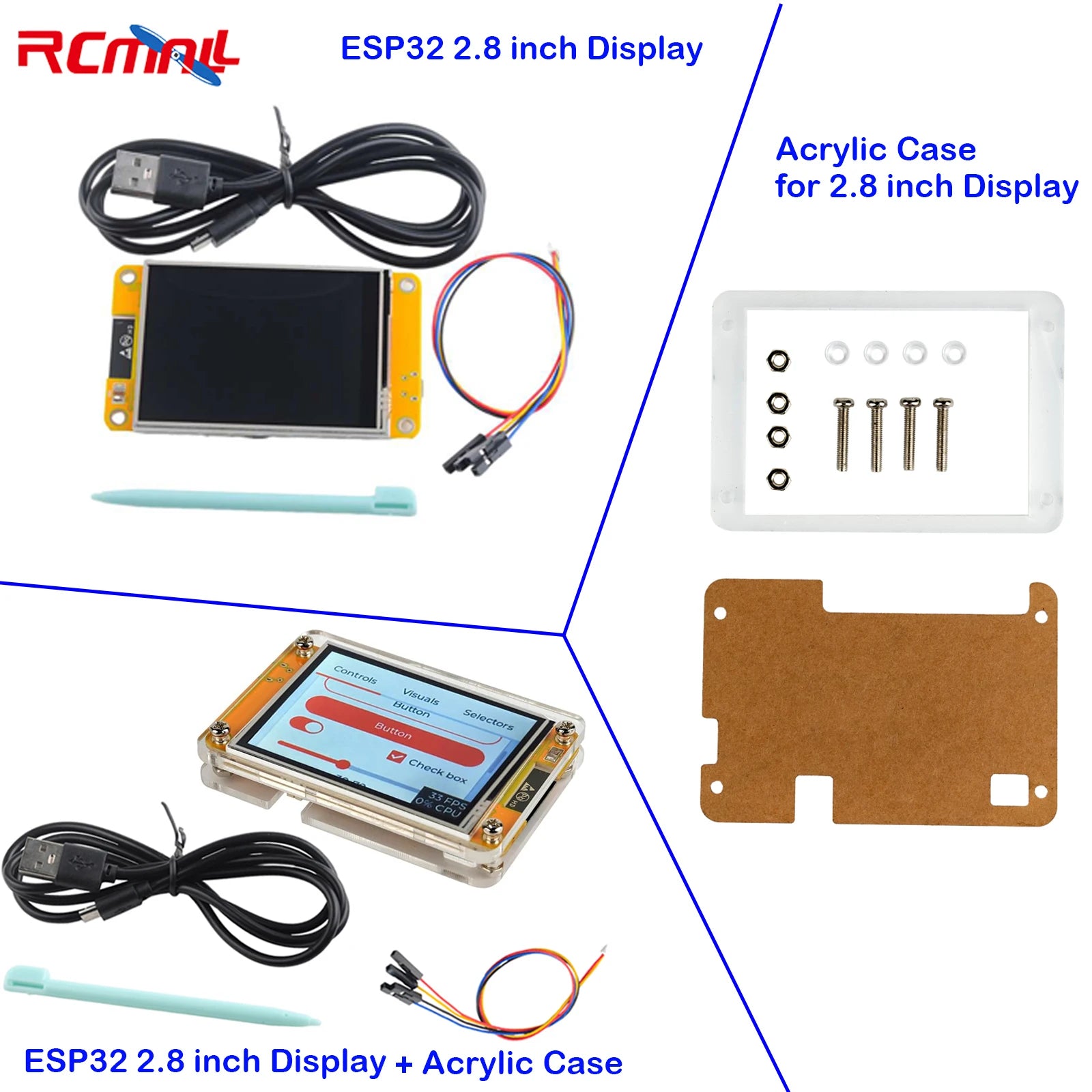

Package:

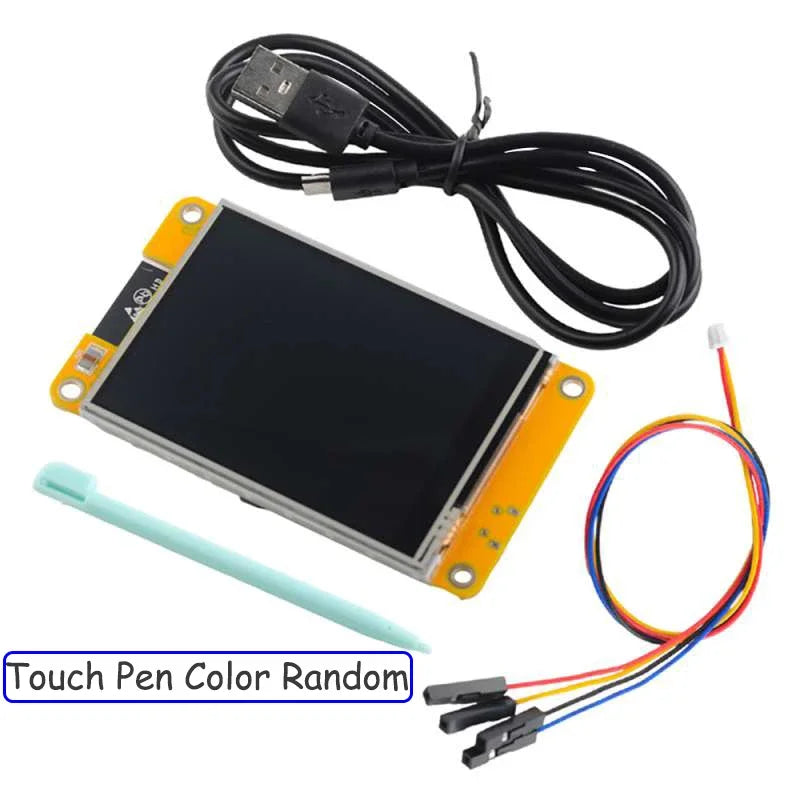

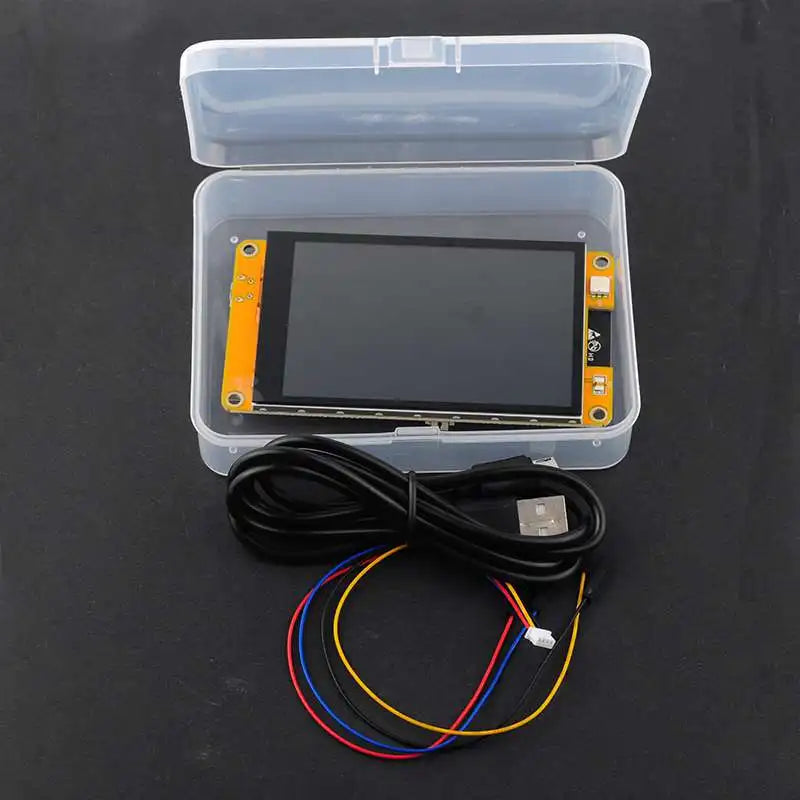

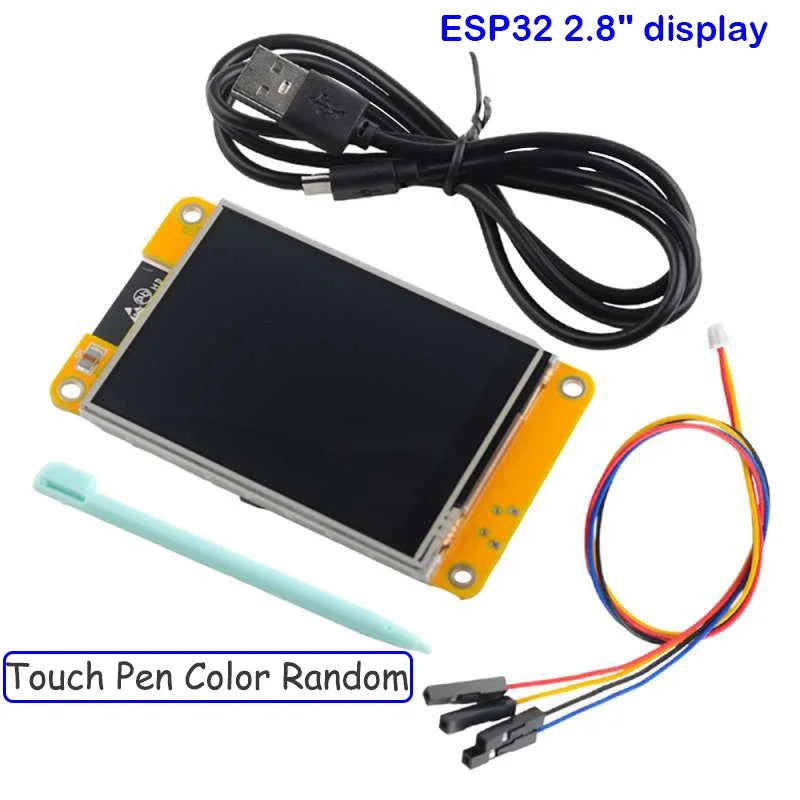

Kit 1:

1 X 2.8'' ESP32 Dispaly Module

1 X USB-Cable

1 X Touch Pen ( Color: pink or white or black or green)

1 X 4P Connector Cable

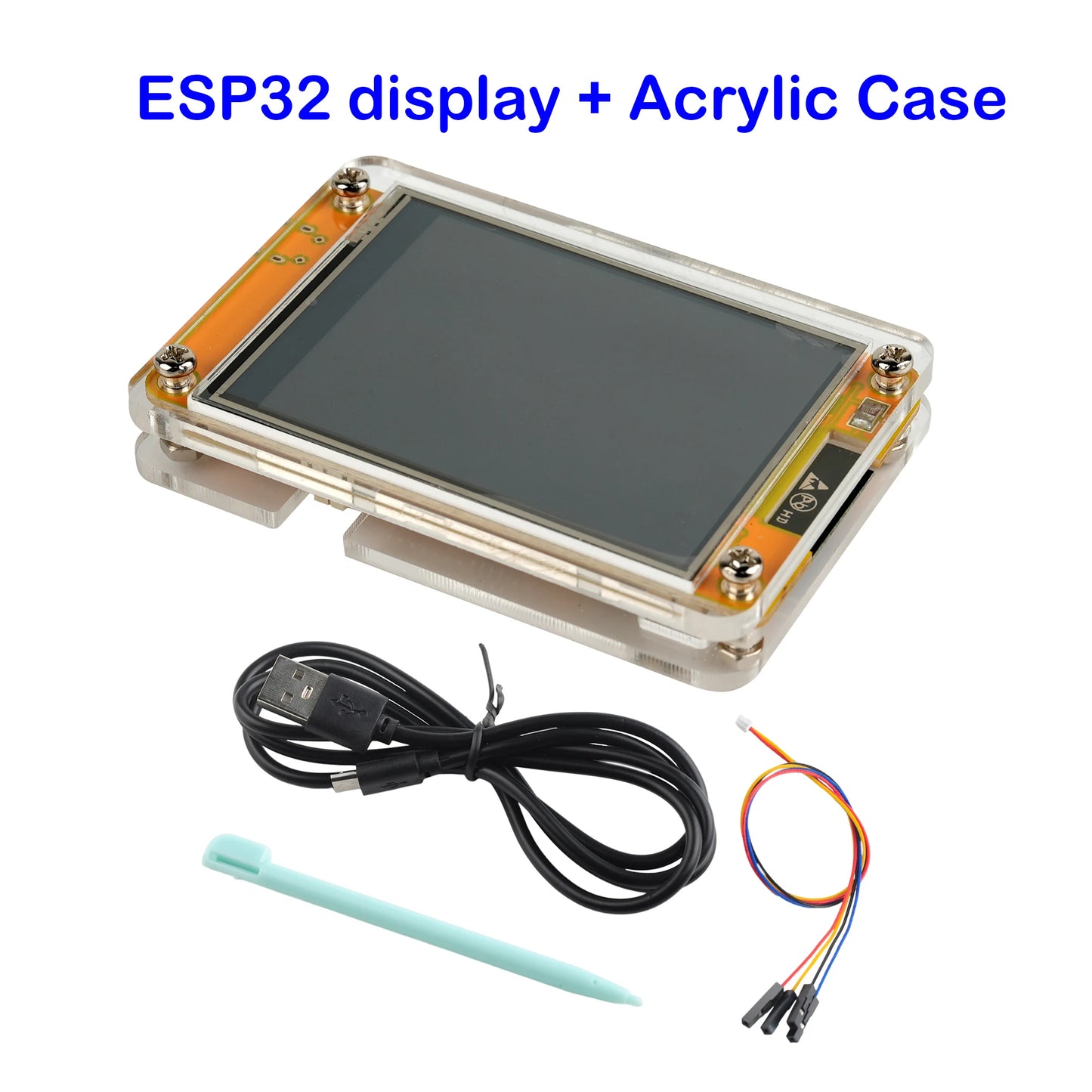

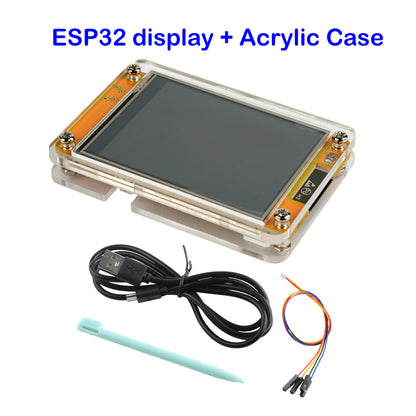

Kit 2:

1 X 2.8'' ESP32 Dispaly Module

1 X USB-Cable

1 X Touch Pen ( Color: pink or white or black or green)

1 X 4P Connector Cable

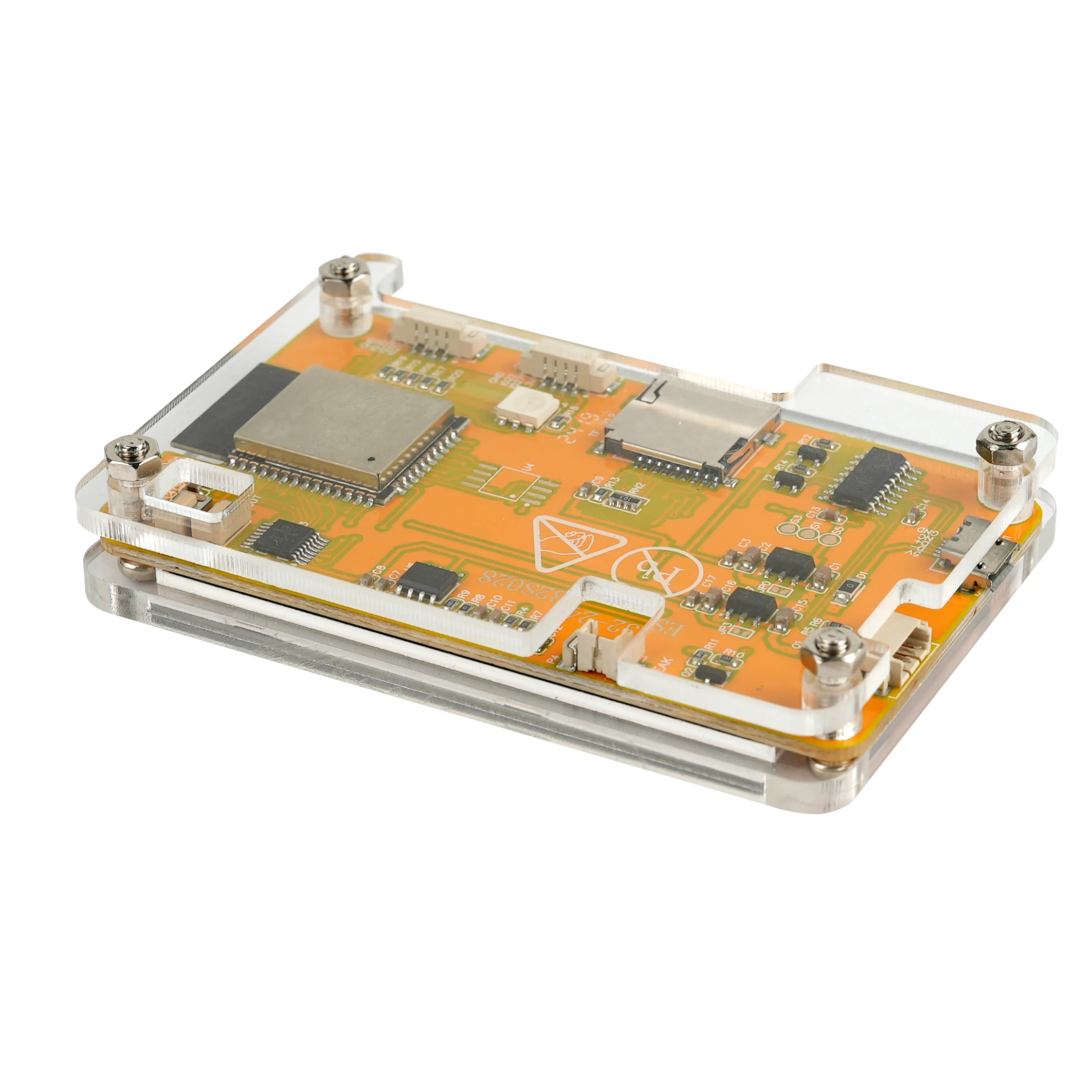

1 X Acrylic case for ESP32 2.8-inch resistive touch screen





Kit 3:

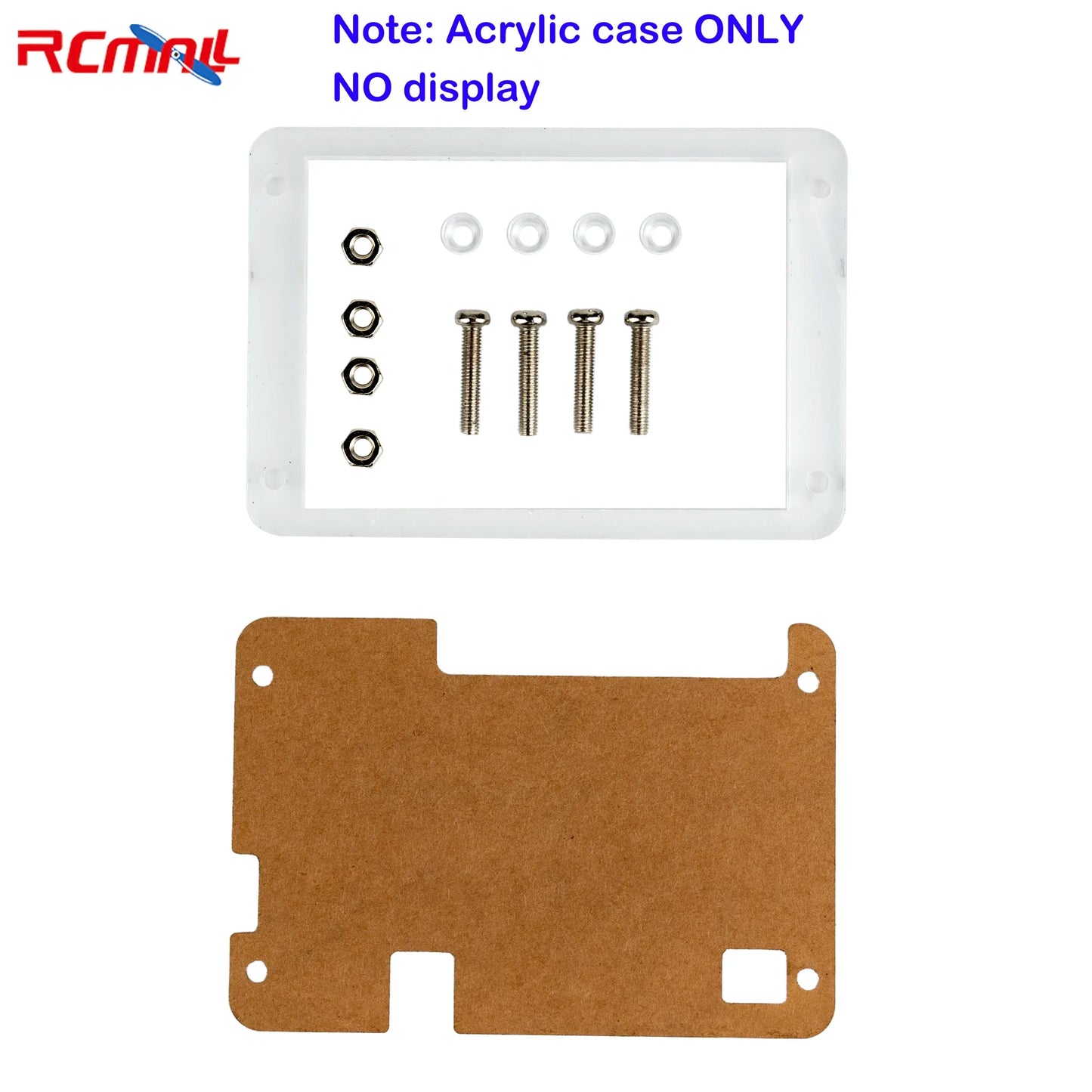

1 X Acrylic Case for 2.8 inch ESP32 module









Instructions for use:

https://drive.google.com/file/d/1E85GDLWHMqLSKMN7CNddRtbESKiiOrmG/view?usp=sharing
