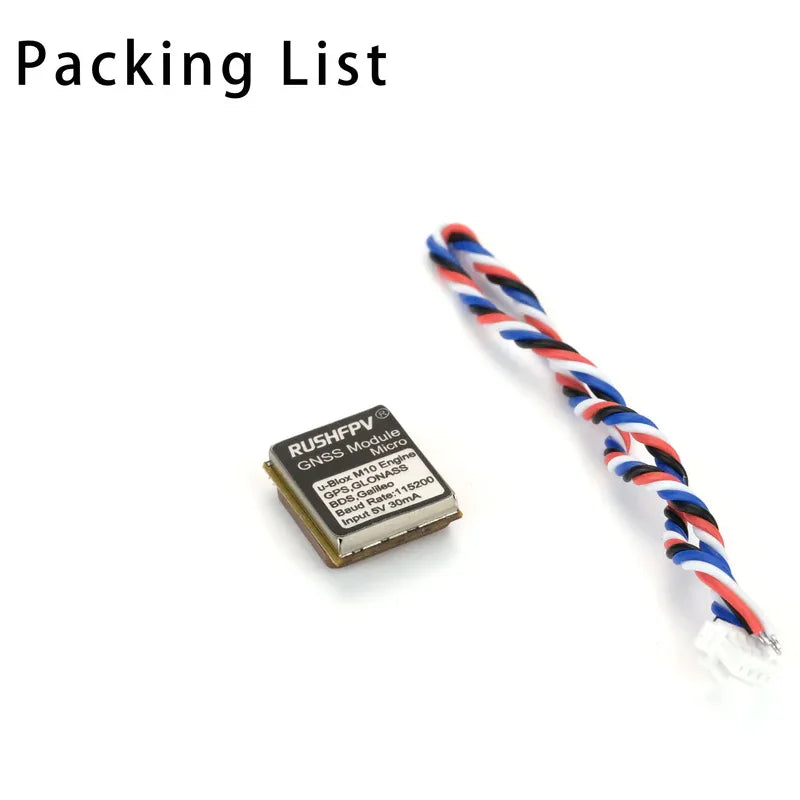

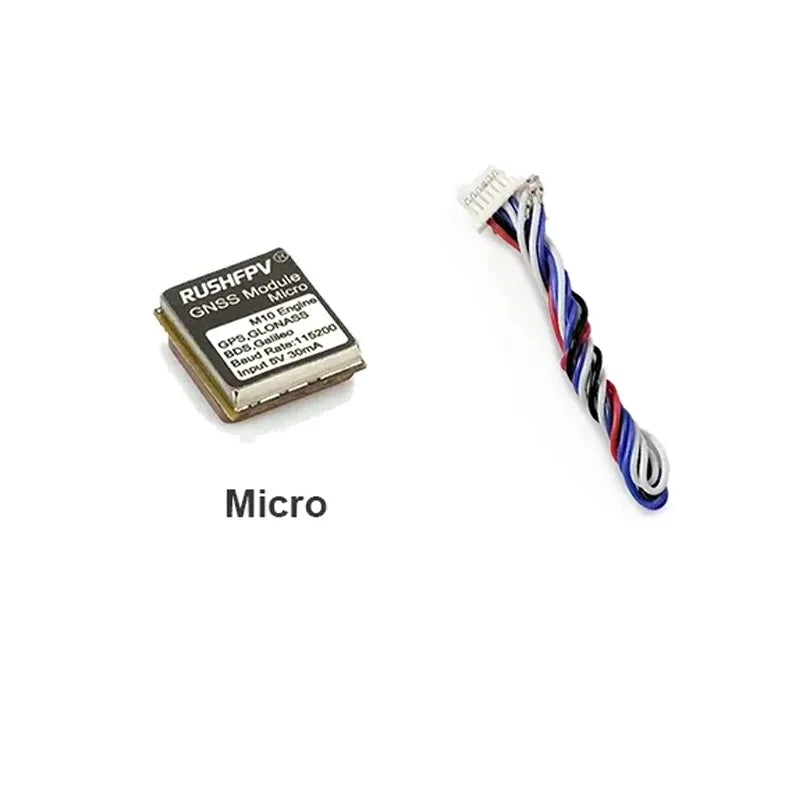

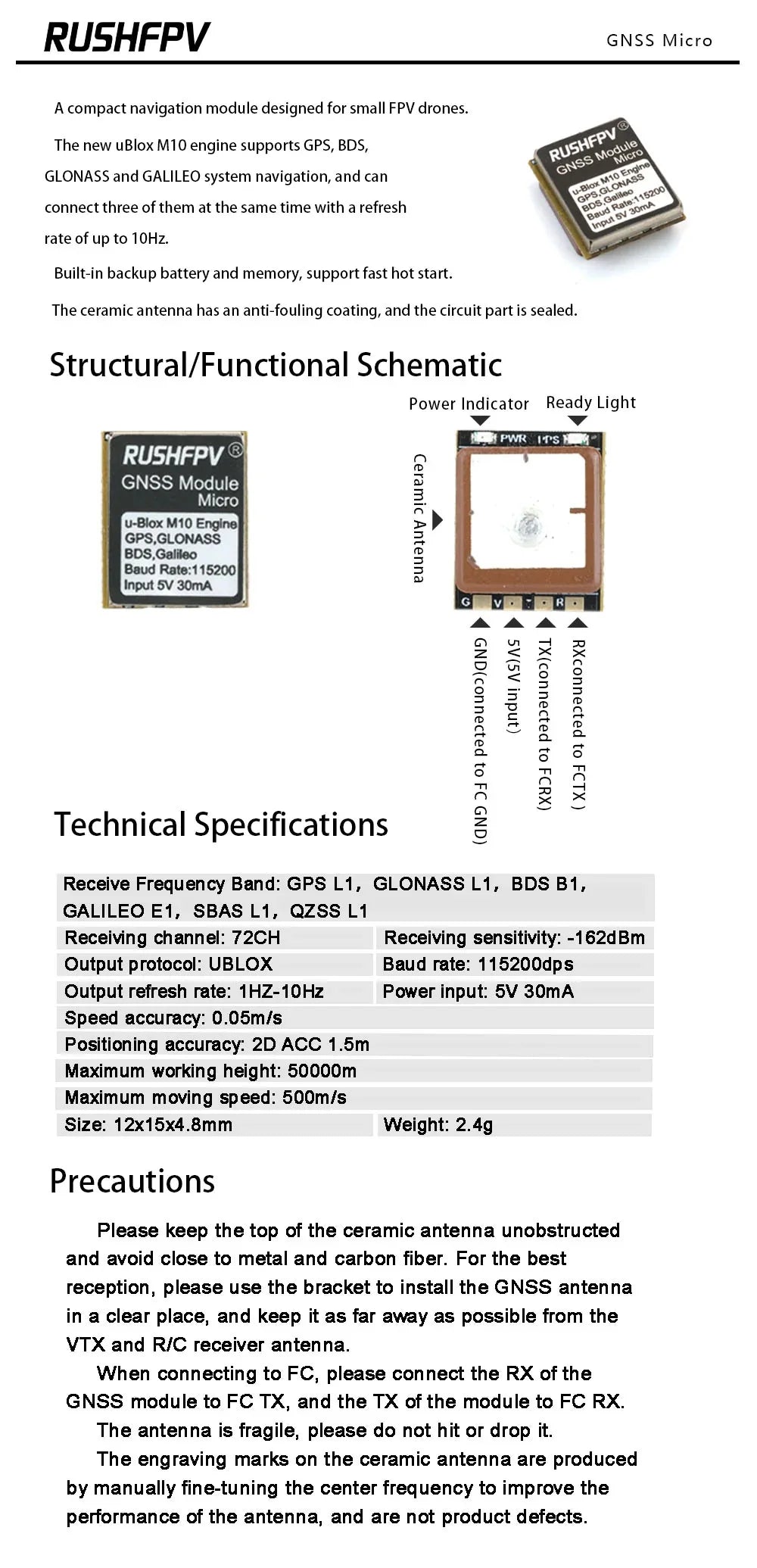

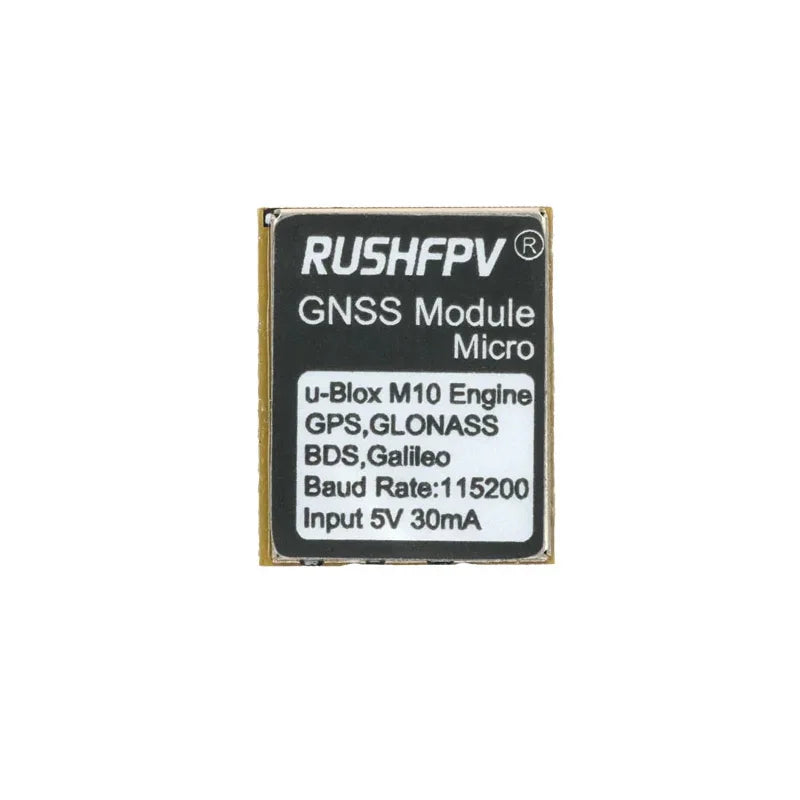

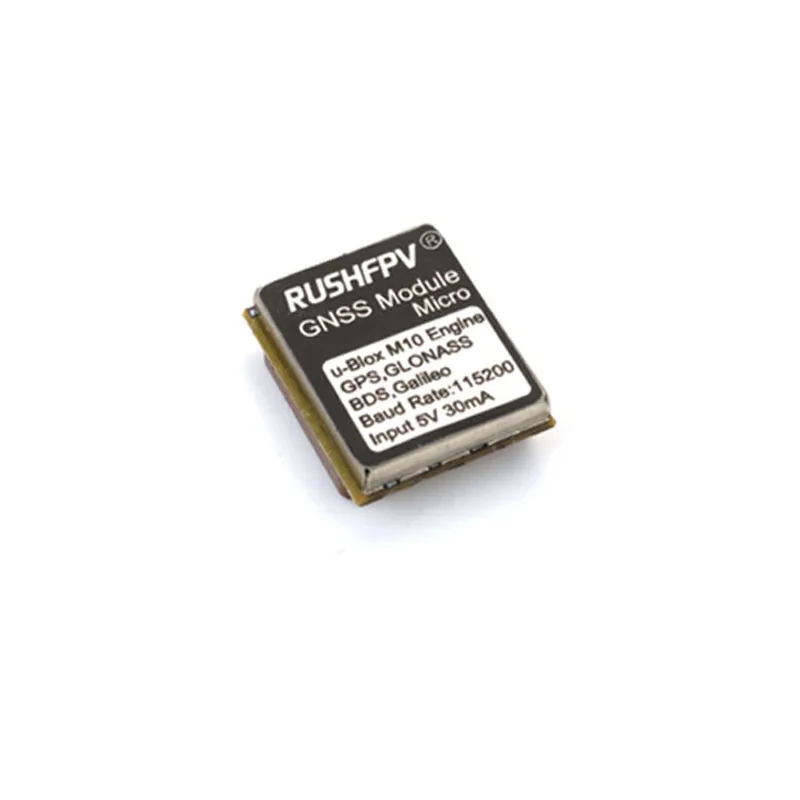

RUSHFPV GNSS Micro:
Compact navigation module designed for small FPV UAVs.
The
new M10 engine supports GPS, BDS, GLONASS and GALILEO navigation
systems and can be connected to three of them at the same time.
Refresh rates up to 10 Hz.
Built-in backup battery and storage, supports fast hot start.
Ceramic antenna with anti-fouling coating and sealed circuitry for reliability and durability.

Parameters
Receiving bands: GPSL1, GLONASSL1, BDS B1, GALILEOE1, SBAS L1, QZSS L1
Receive channel:72 CH
Receiving Sensitivity:-1 62dBm
Output protocol:UBX
Baud rate:115200dps
Output refresh rate:1HZ-10Hz
Power input:5V30mA
Speed accuracy:0.05m/s
Positioning accuracy:2DACC1.5m
Maximum working height:50,000m
Maximum moving speed:500m/s

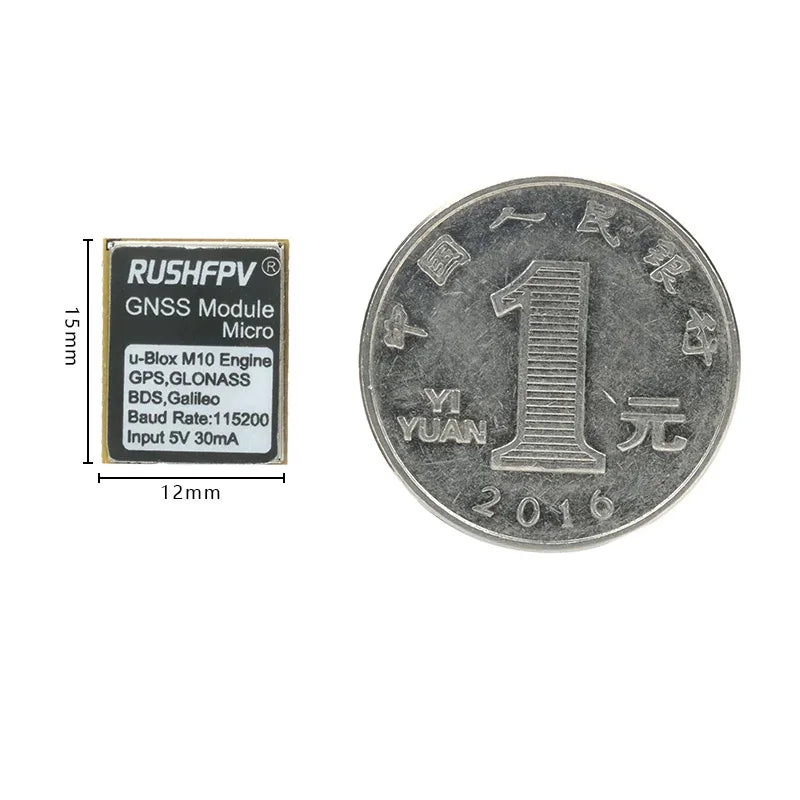

Size:12X15X4.8mm
Weight:2.4g

Precautions
Please
keep the ceramic antenna without obstruction above, avoid near metal
and carbon fiber.  To get the best reception, please make Mount the GNSS
antenna with a bracket in the clear space and as far away as possible
from VTX and R/C receiver antennas.

When
connecting to the flight control, please connect the RX of GNSS module
to the TX of the flight control and the TX of the module to the RX of
the flight control.

The antenna is fragile, please do not hit it.

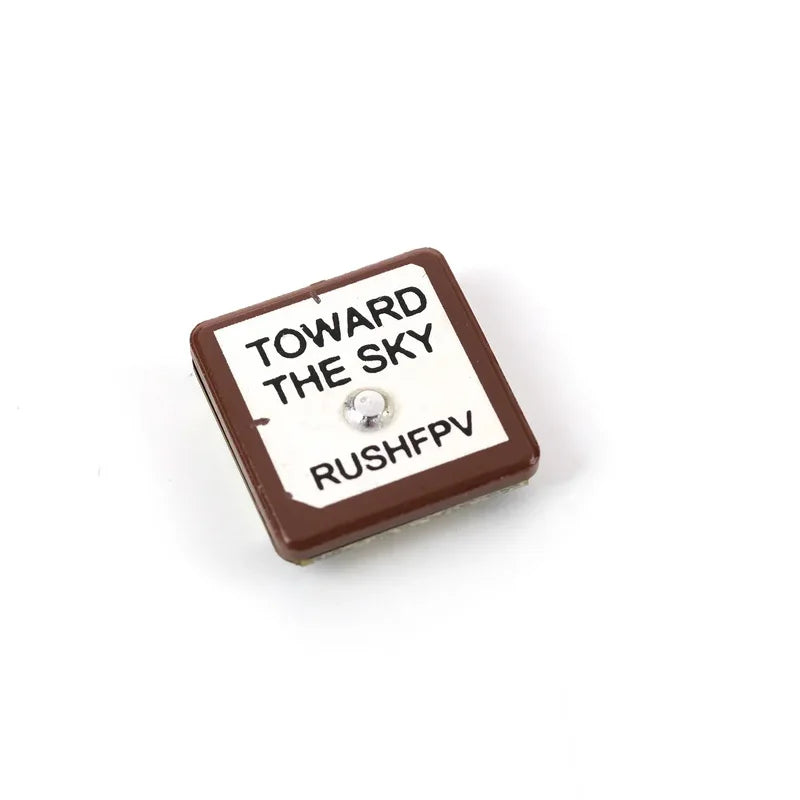

The
engraving marks on the ceramic antenna are for improving the
performance of the antenna by manual fine-tuning of the center
frequency, not a product defect.

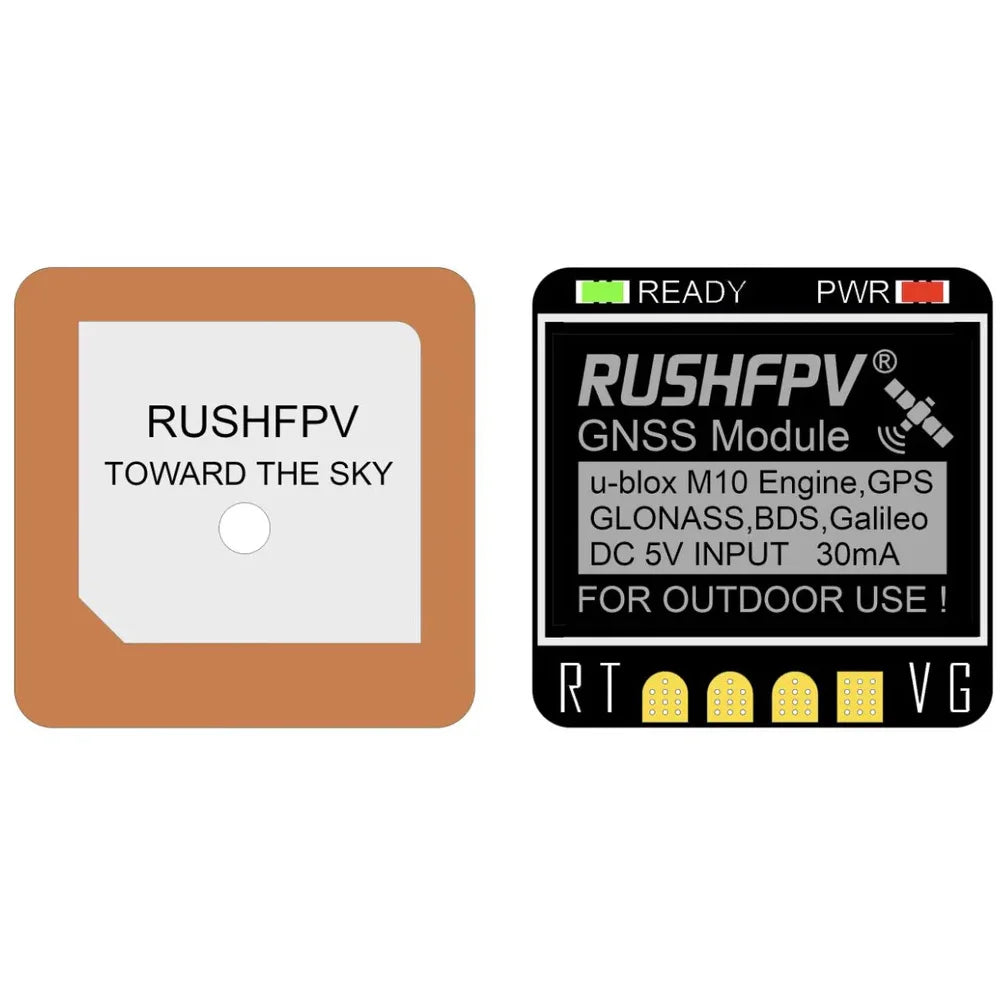

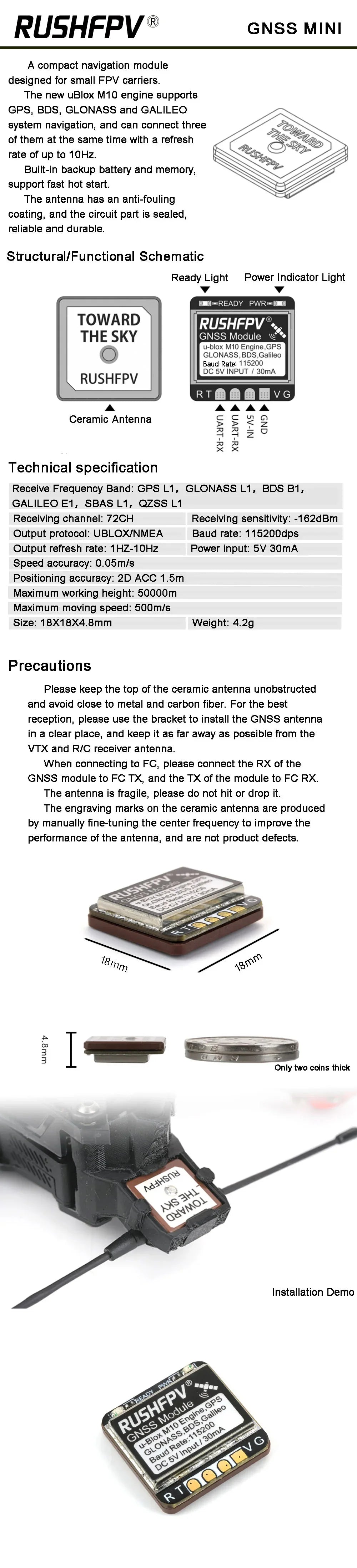

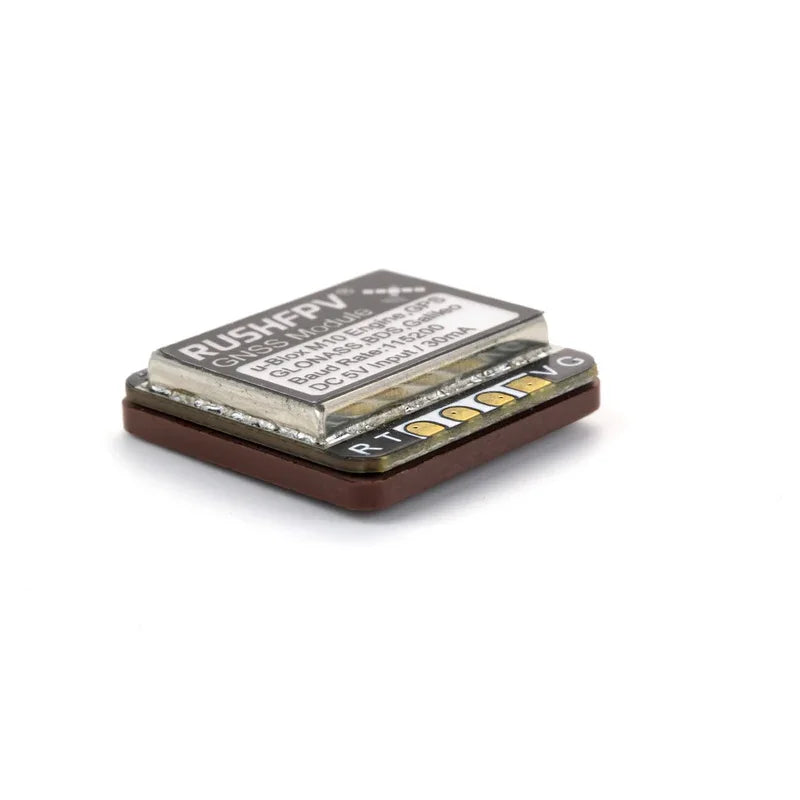

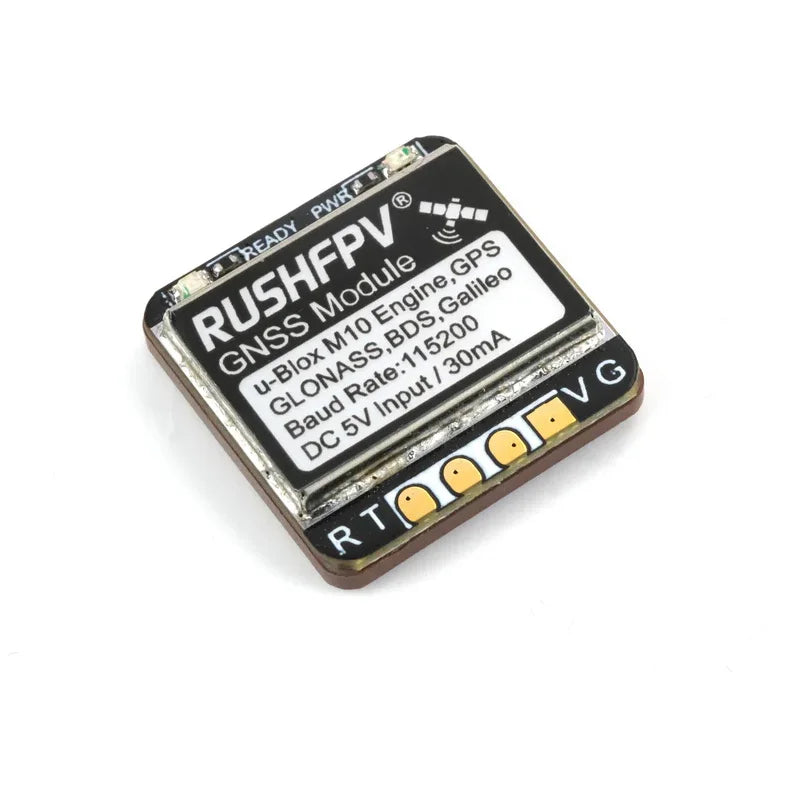

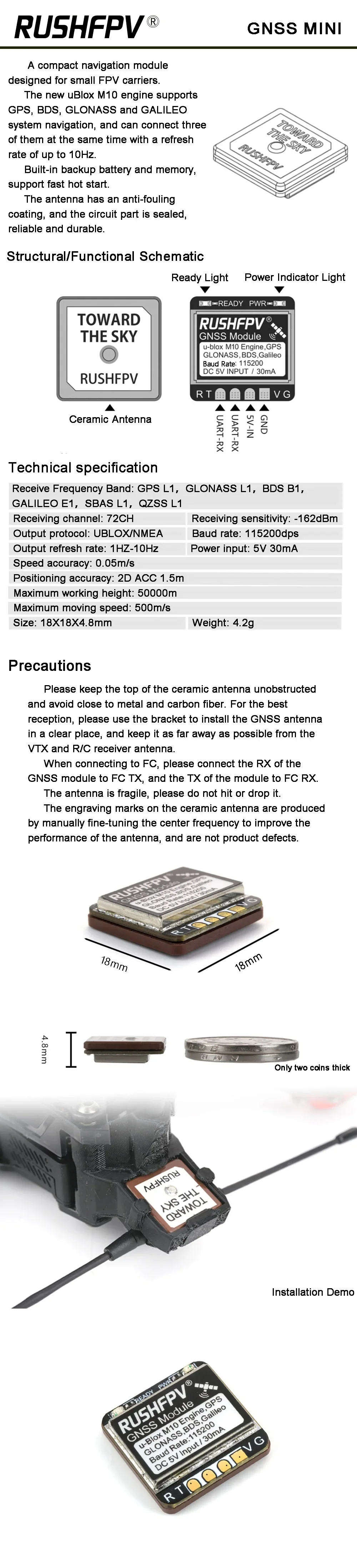

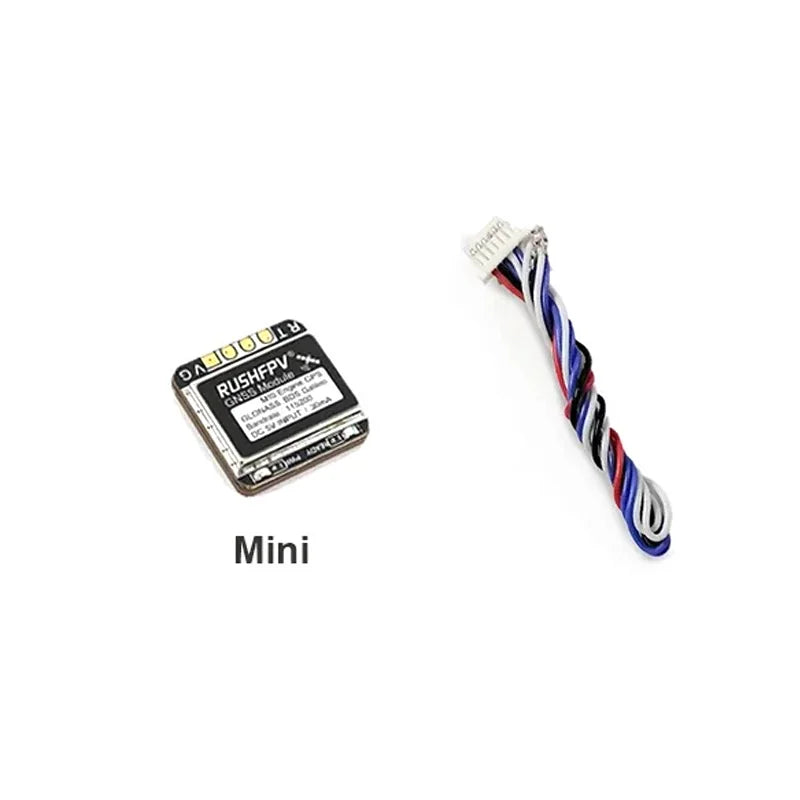

RUSHFPV GNSS MINI:

Receiving bands: GPSL 1, GLONASSL 1, BDSB 1, GALILEOE1, SBASL 1, QZSSL1
Receive channel: 72 CH
Receiving sensitivity: -162 dBm
Output protocol: UBX/NMEA
Baud rate: 115200 dps
Output refresh rate: 1 Hz - 10 Hz
Power input: 5V 30 mA
Speed accuracy: 0.05m/s
Positioning accuracy: 2D ACC 1.5m
Maximum working height: 500,000 m
Maximum movement speed: 500m/s
Dimensions: 18x18x4.8mm
Weight: 4.2g


Caution
Keep
the ceramic antenna clear of metal and carbon fibre. For best
reception, mount the GNSS antenna in a clear space using a bracket as
far away from the VTX and R/C receiver antennas as possible.
When
connecting to the flight control, connect the GNSS module RX to the
flight control TX and the module TX to the flight control RX.
The antenna is fragile and should not be hit or dropped.
The
engraving marks on the ceramic antenna are the result of manual
fine-tuning of the centre frequency to improve the performance of the
antenna and are not a product defect.
