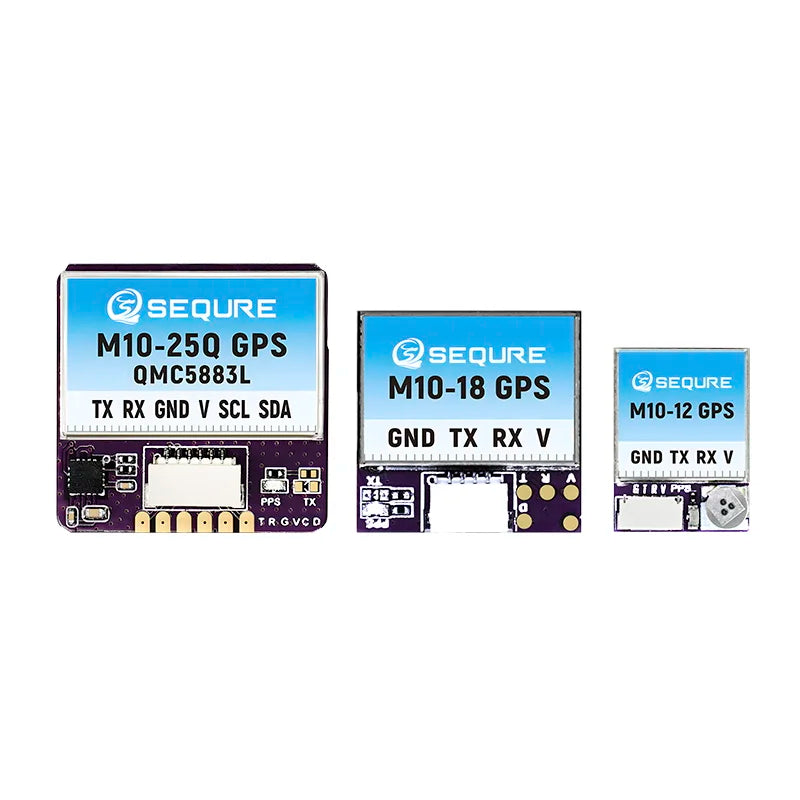

Módulo GPS SEQURE M10-12 / M10-18 / M10-25Q (Pequeño, Rápido) con Compás QMC5883L para Drones FPV Ala Fija/Carreras (INAV/BF)
Módulo GPS SEQURE M10-12 / M10-18 / M10-25Q (Pequeño, Rápido) con Compás QMC5883L para Drones FPV Ala Fija/Carreras (INAV/BF)
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: SEQURE
For Vehicle Type: Airplanes
Hign-concerned Chemical: None
Model Number: M10
Origin: Mainland China
Quantity: 1 pcs
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
Package included:

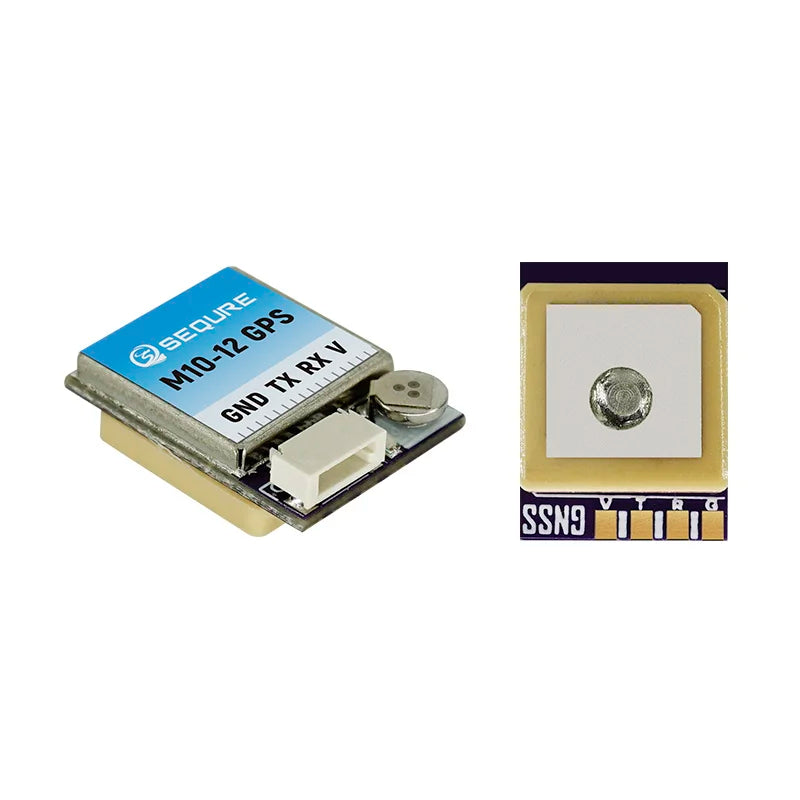

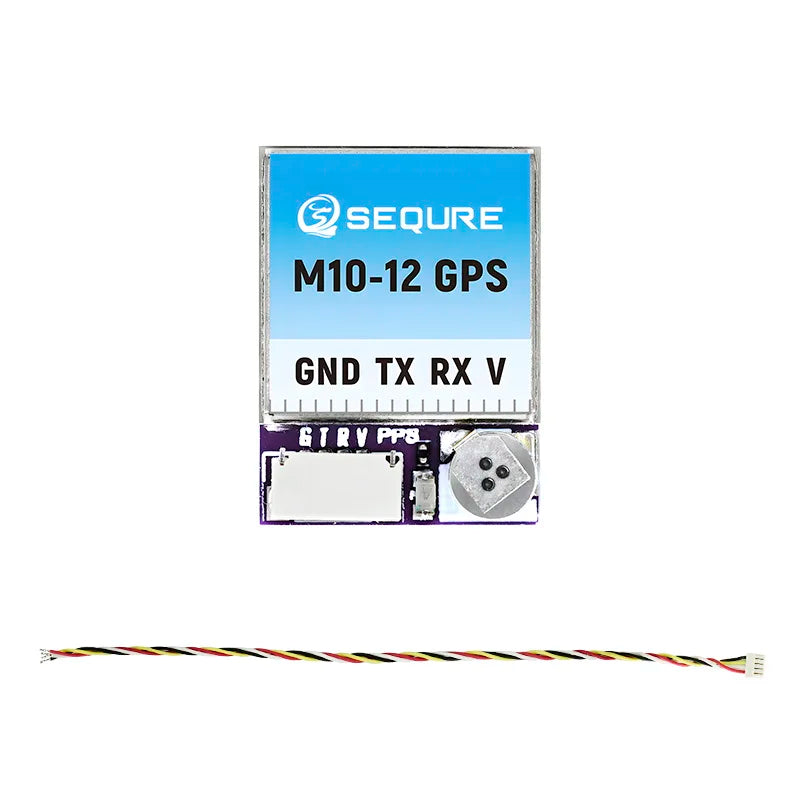

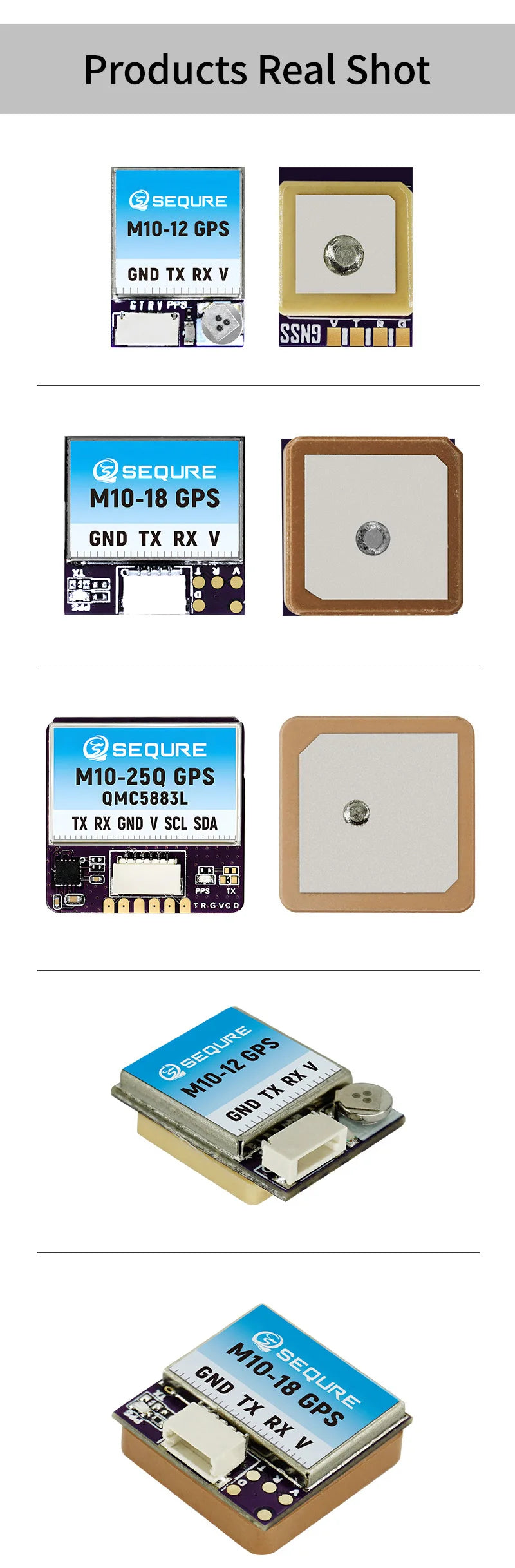

M10-12 Options
GPS×1
Cable×1

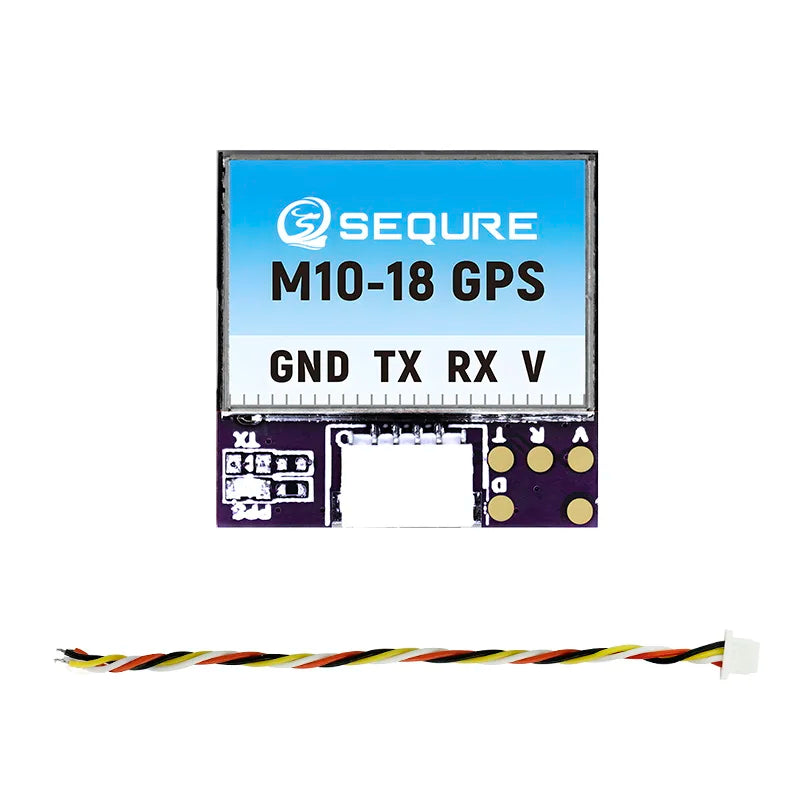

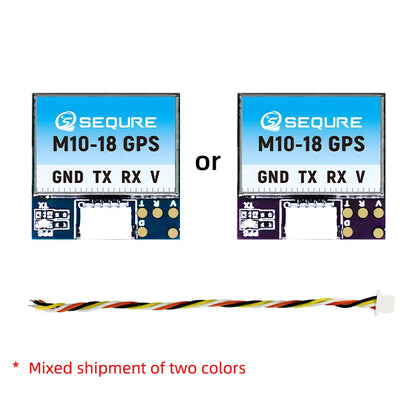

M10-18 Options

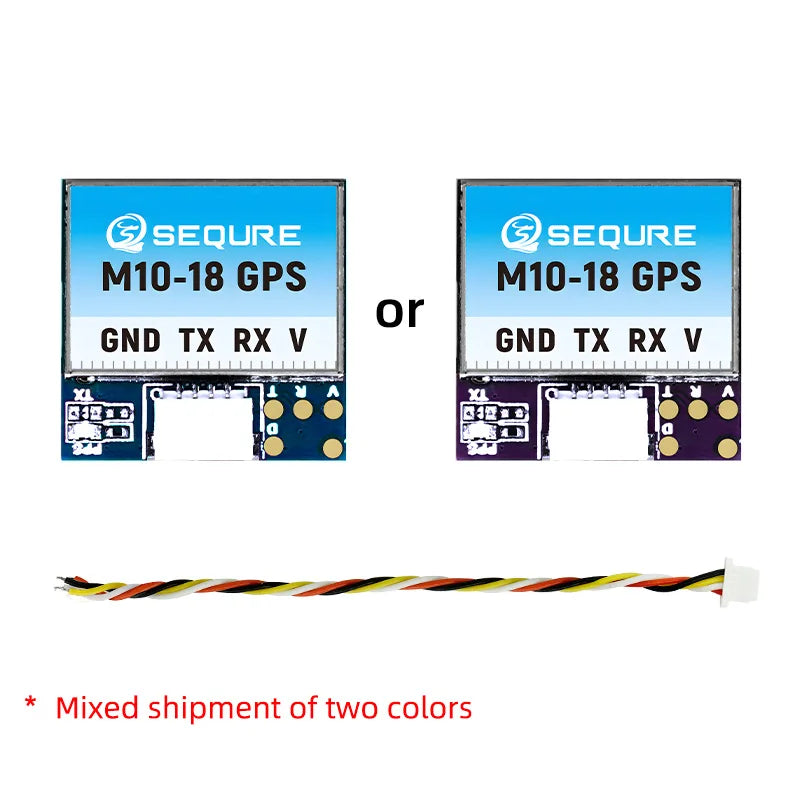

GPS×1（Blue or purple shipped randomly）
Cable×1

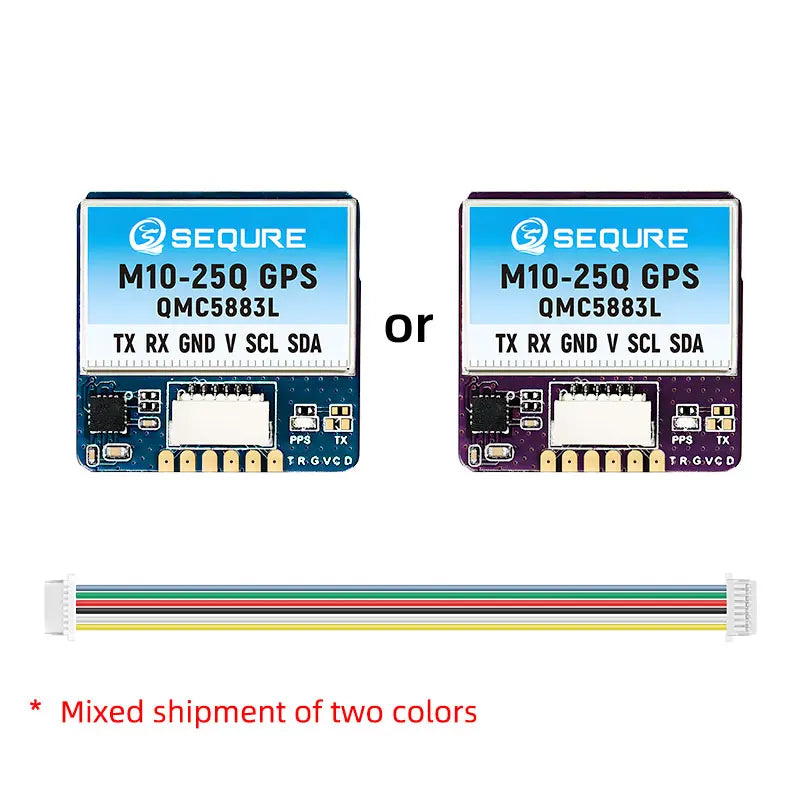

M10-25 Options
GPS×1（Blue or purple shipped randomly）
Cable×1
Product Description:

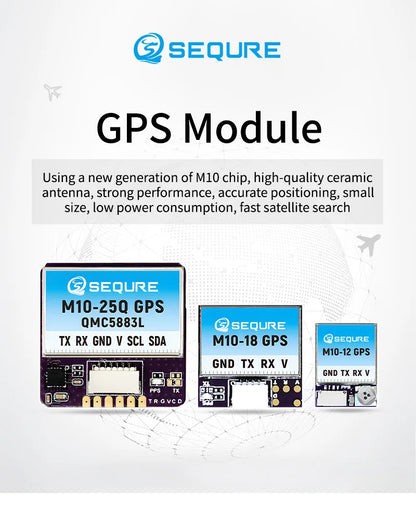

(1) Adopts 10th generation chip to design the u-blox output protocol and 10Hz output frequency, lower power consumption, and fast positioning.

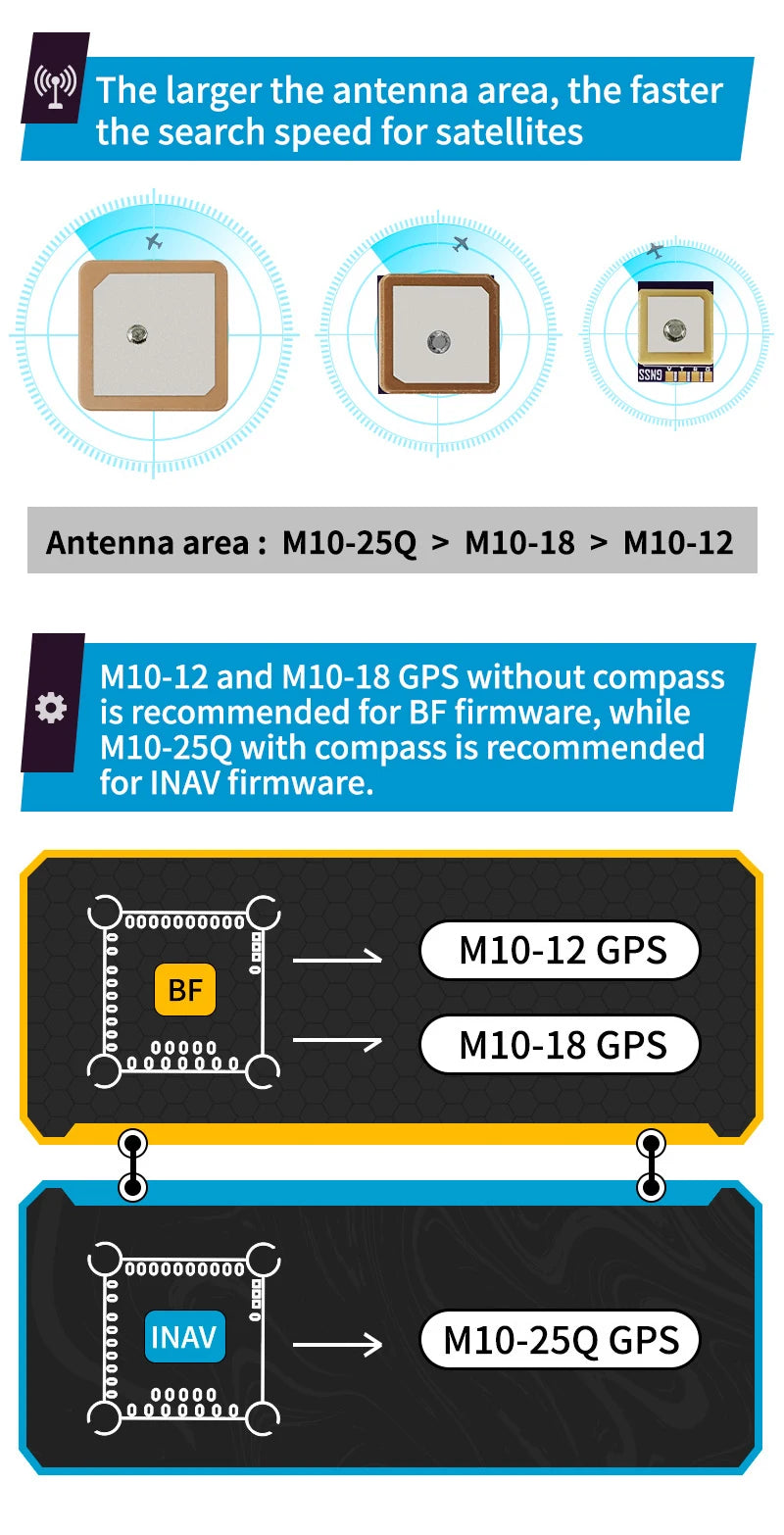

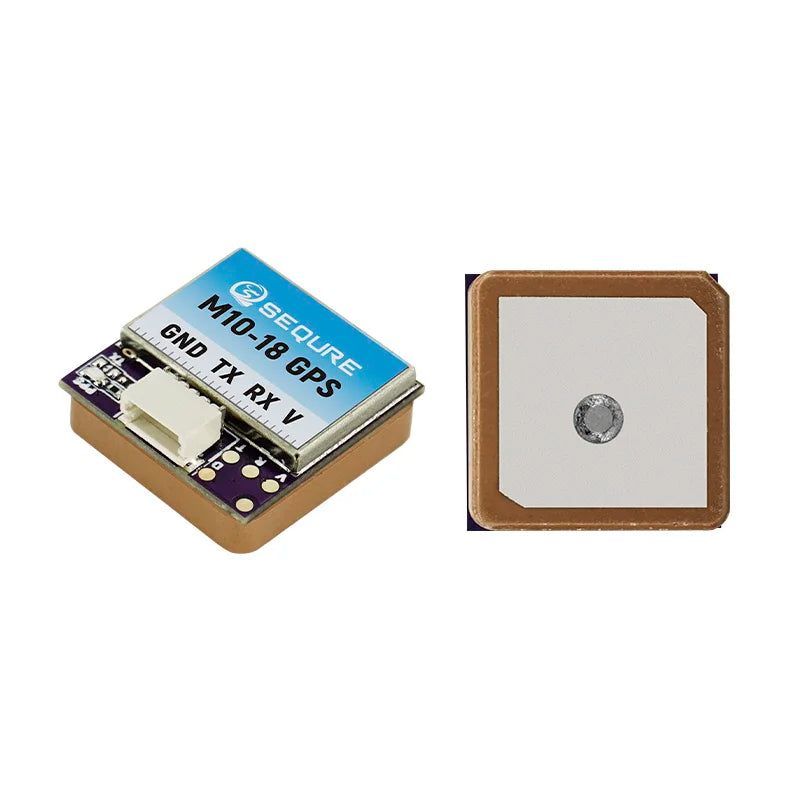

(2) High-quality ceramic antenna with strong performance and effective reception of satellite signals.

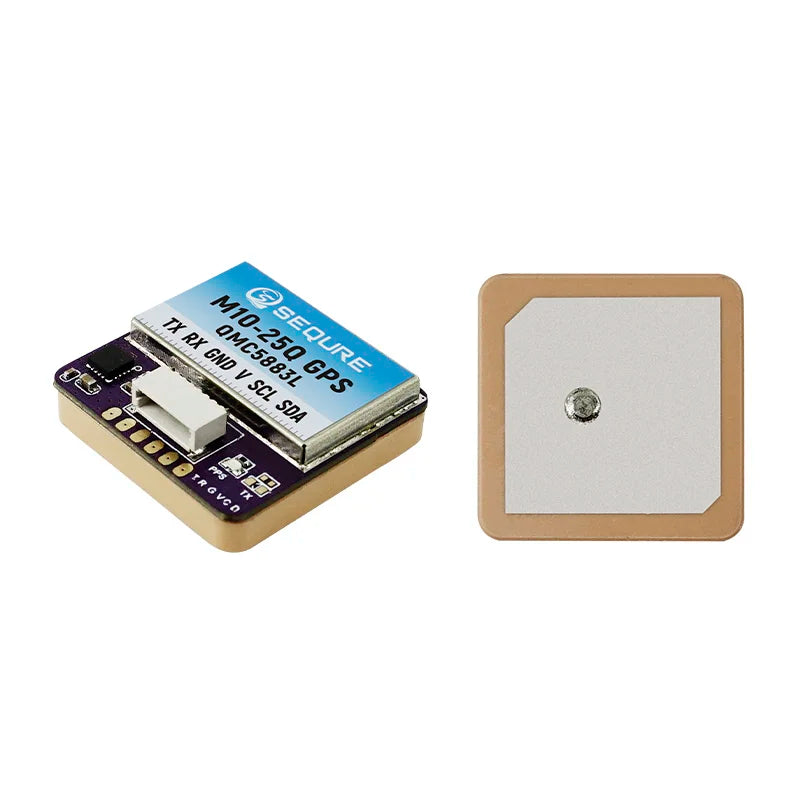

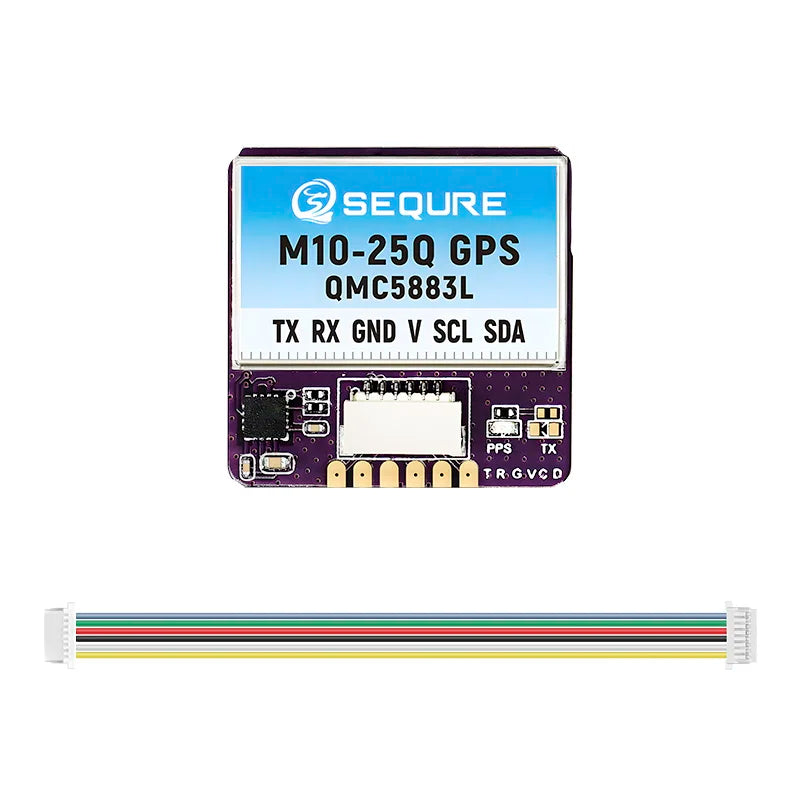

(3) M10-25Q integrates QMC5883L compass for a wider range of applications

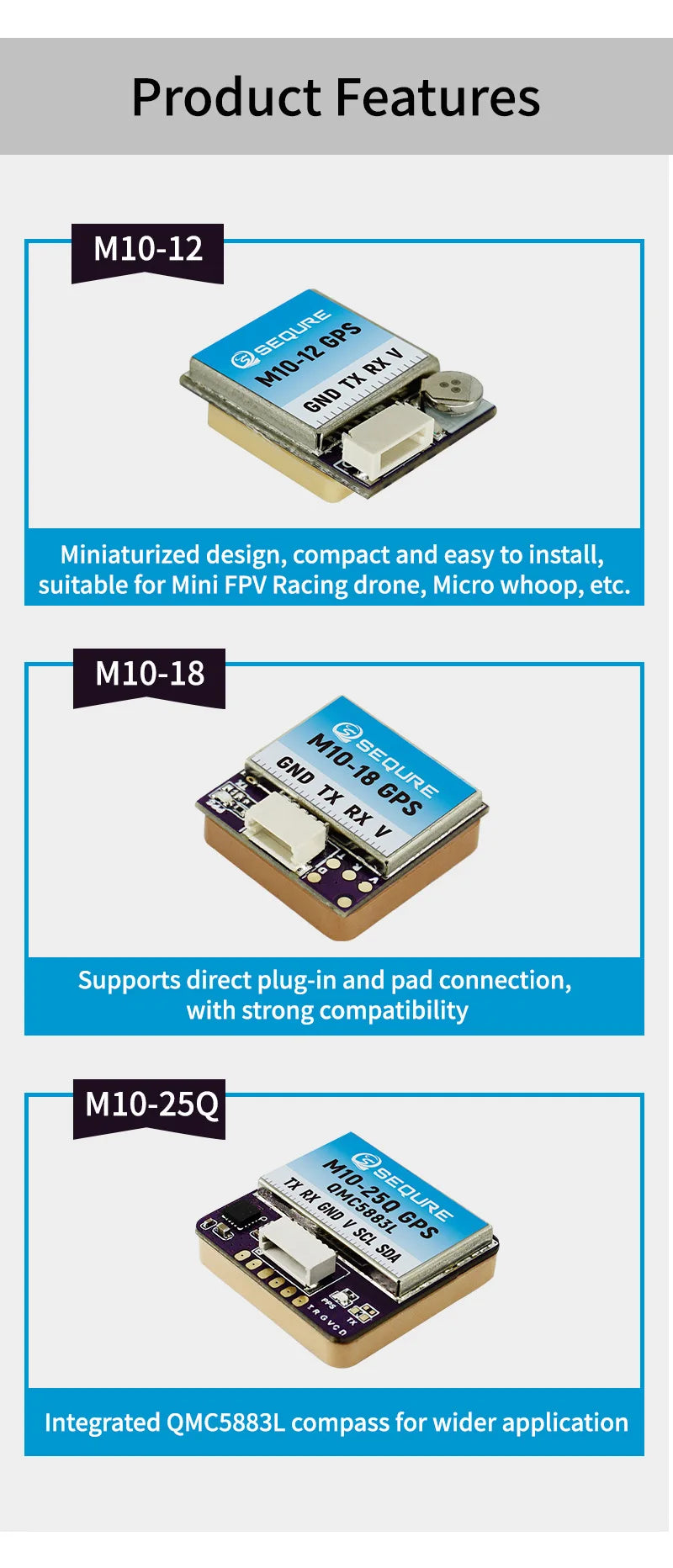

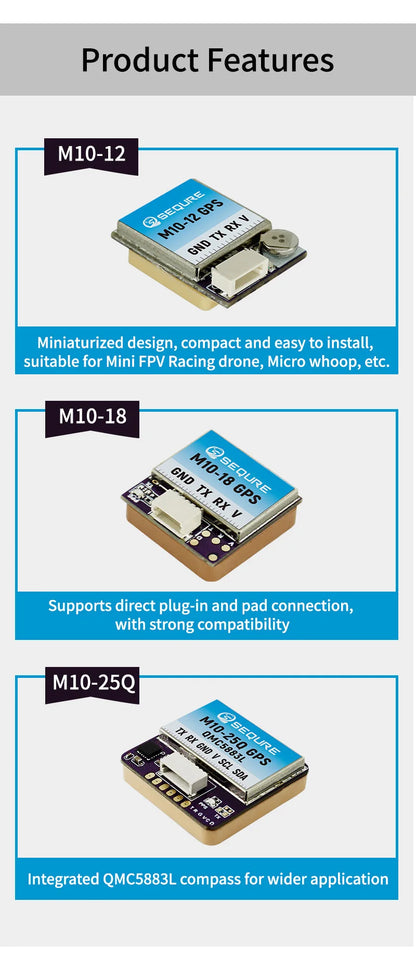

(4) Miniaturized and multi-specification design, easy to install, suitable for the installation of drones of various sizes on the market.

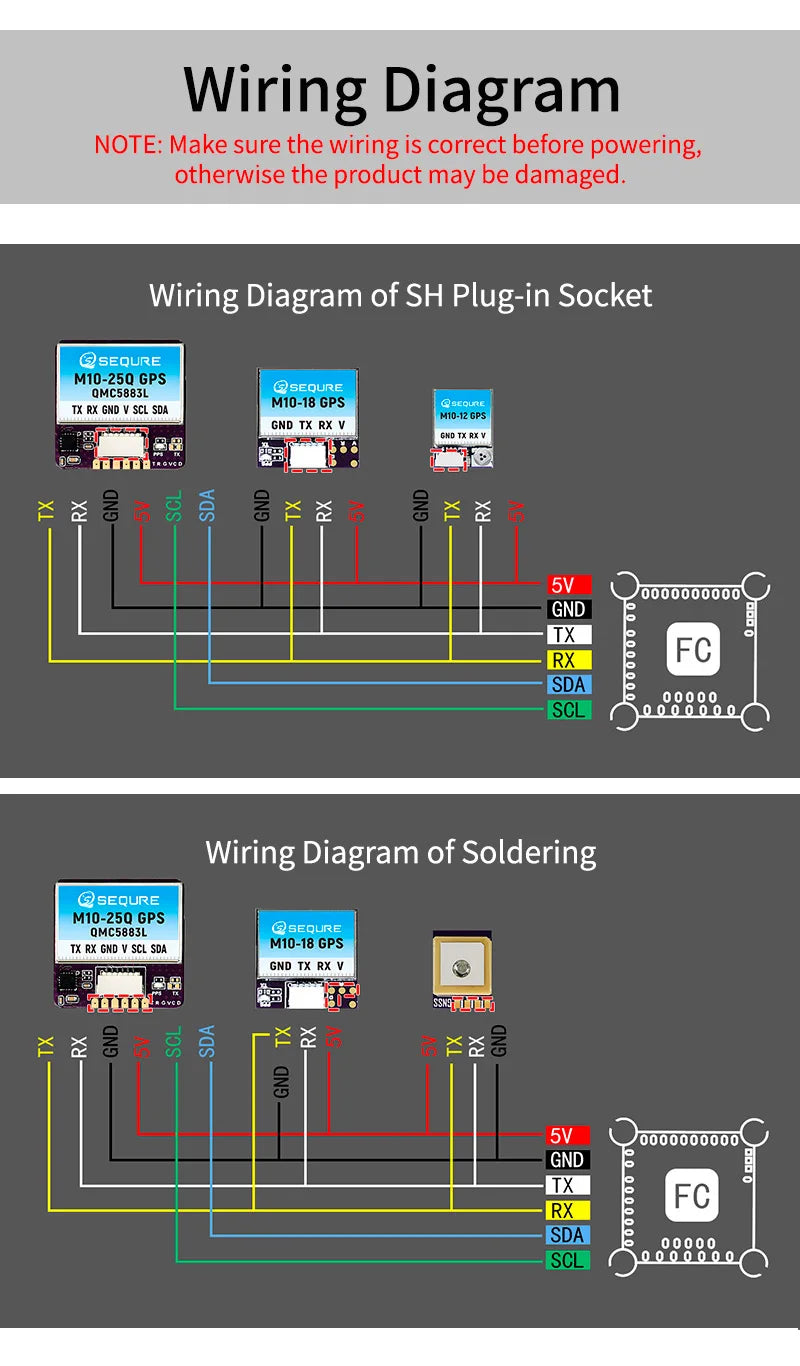

(5) Supports two connection methods: direct plug-in and soldering pad, with strong compatibility.

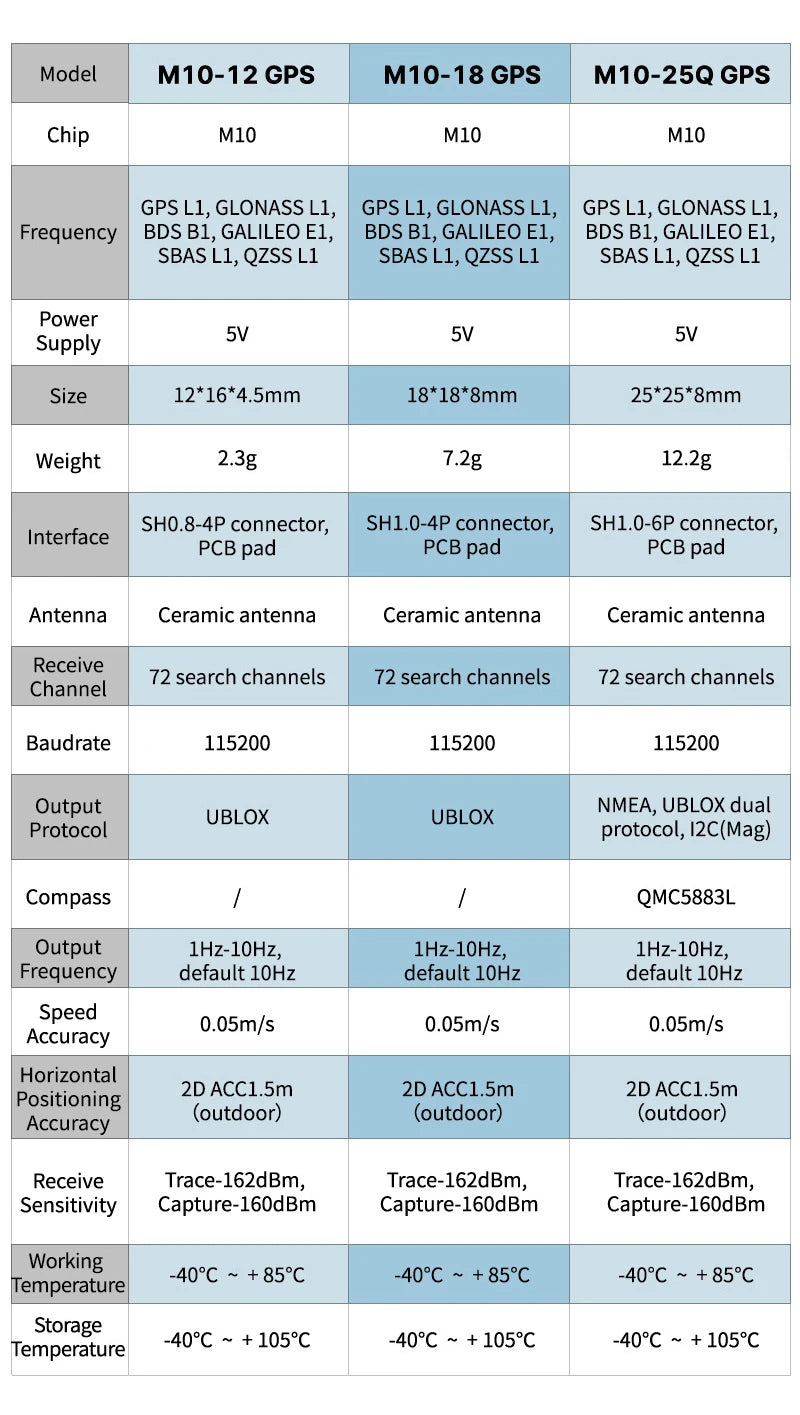

Parameters of Product:
Model |
M10-12 GPS |
M10-18 GPS |
M10-25Q GPS |
Chip |
M10 |
M10 |
M10 |
Frequency |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
Power supply |
5V |
5V |
5V |

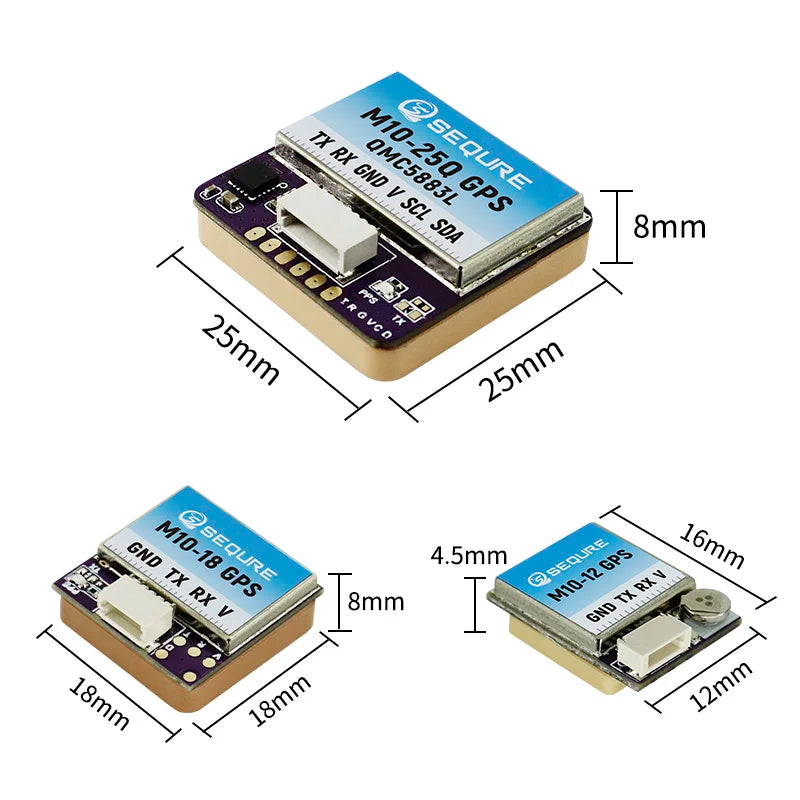

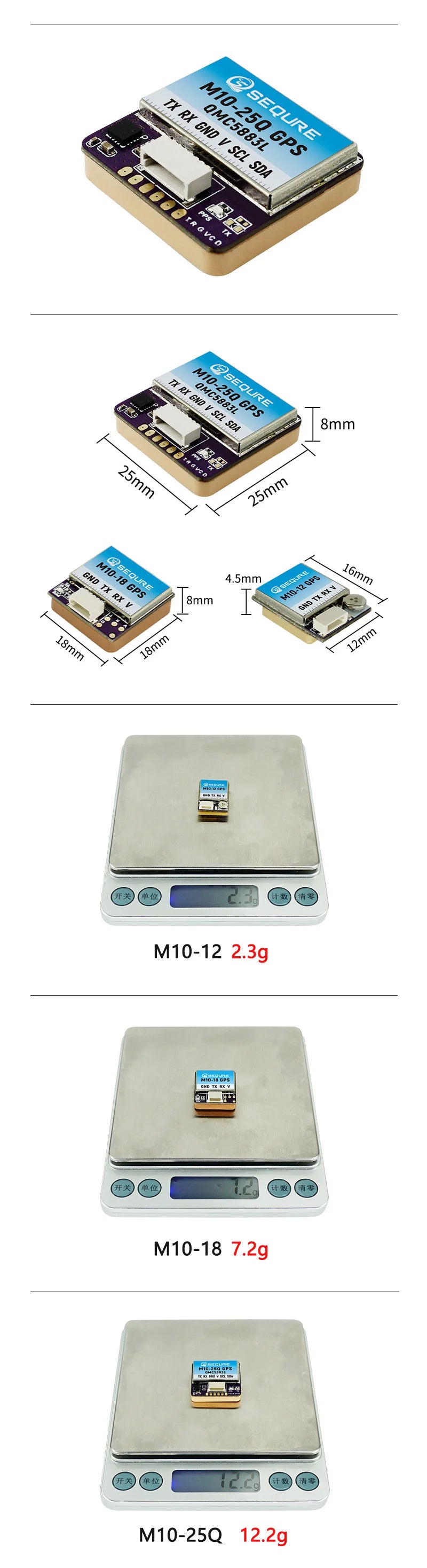

Size |
12*16*4.5mm |
18*18*8mm |
25*25*8mm |

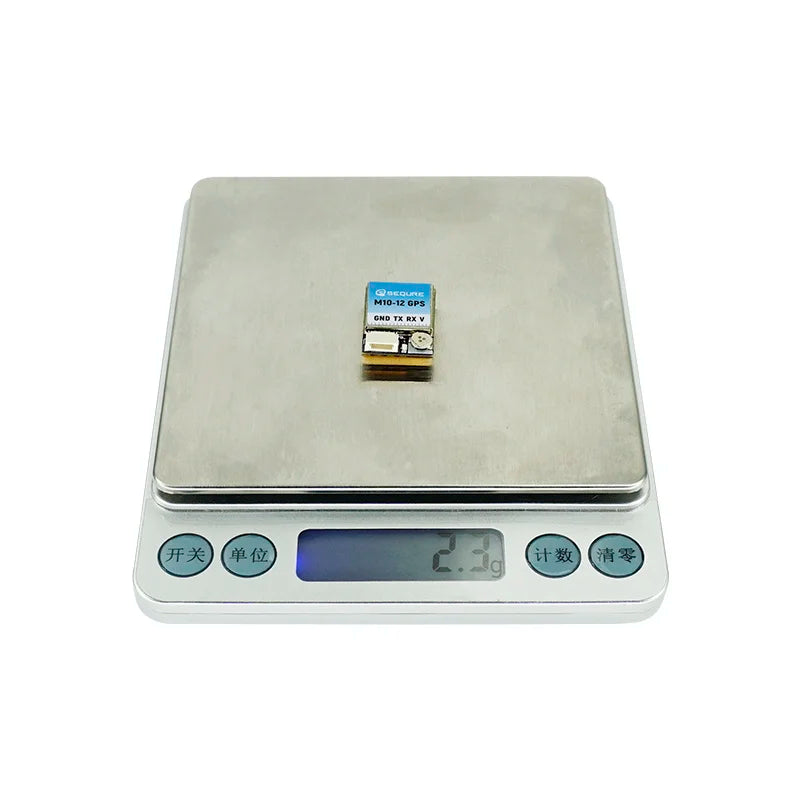

Weight |
2.3g |
7.2g |
12.2g |
Interface |
SH0.8-4Pconnector,PCBpad |
SH1.0-4Pconnector,PCBpad |
SH1.0-6Pconnector, PCBpad |
Antenna |
Ceramic Antenna |
Ceramic Antenna |
Ceramic Antenna |
Receiving channels |
72 search channels |
72 search channels |
72 search channels |
Baudrate |
115200 |
115200 |
115200 |
Output protocol |
UBLOX |
UBLOX |
NMEA、UBLOX dual protocol, |
Compass |
/ |
/ |
QMC5883L |
Output frequency |
1Hz-10Hz，default10Hz |
1Hz-10Hz，default10Hz |
1Hz-10Hz，default10Hz |
Speed accuracy |
0.05m/s |
0.05m/s |
0.05m/s |
Horizontal positioning accuracy |
2D ACC1.5m（open-air） |
2D ACC1.5m（open-air） |
2D ACC1.5m（open-air） |
Receive sensitivity |
Trace-162dBm，capture-160dBm |
Trace-162dBm，capture-160dBm |
Trace-162dBm，capture-160dBm |
Working temperature |
-40℃～+ 85℃ |
-40℃～+ 85℃ |
-40℃～+ 85℃ |
Storage temperature |
-40℃～+ 105℃ |
-40℃～+ 105℃ |
-40℃～+ 105℃ |
