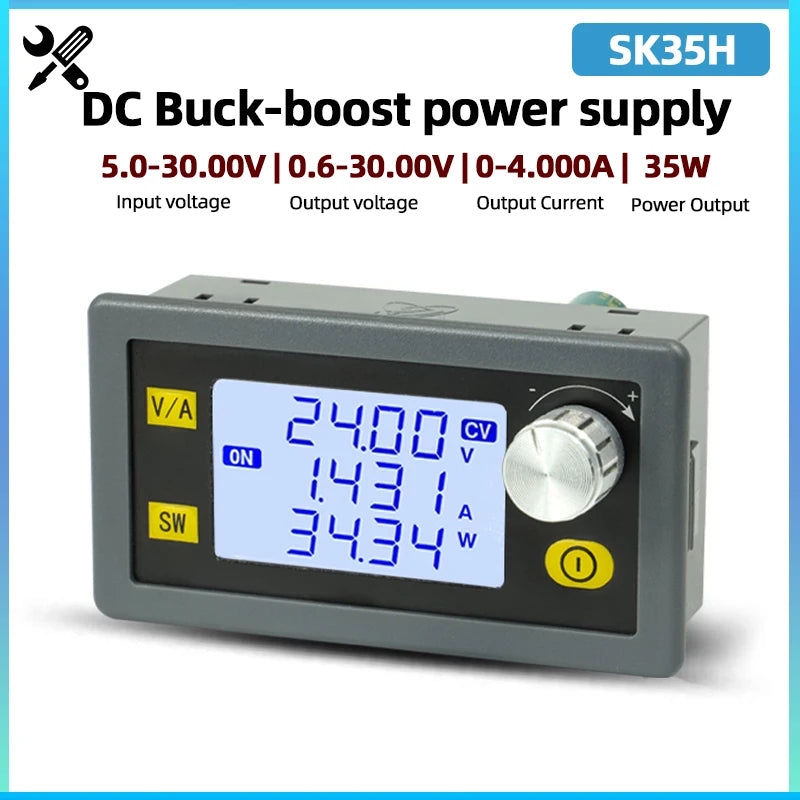

SK35H Dc Dc Step-down Module Buck Boost Converter CC CV 0.6-30V 4A 5V 6V 12V 24V Adjustable Lab Power Supply Voltage Regulator

SK35H Buck Boost Converter :

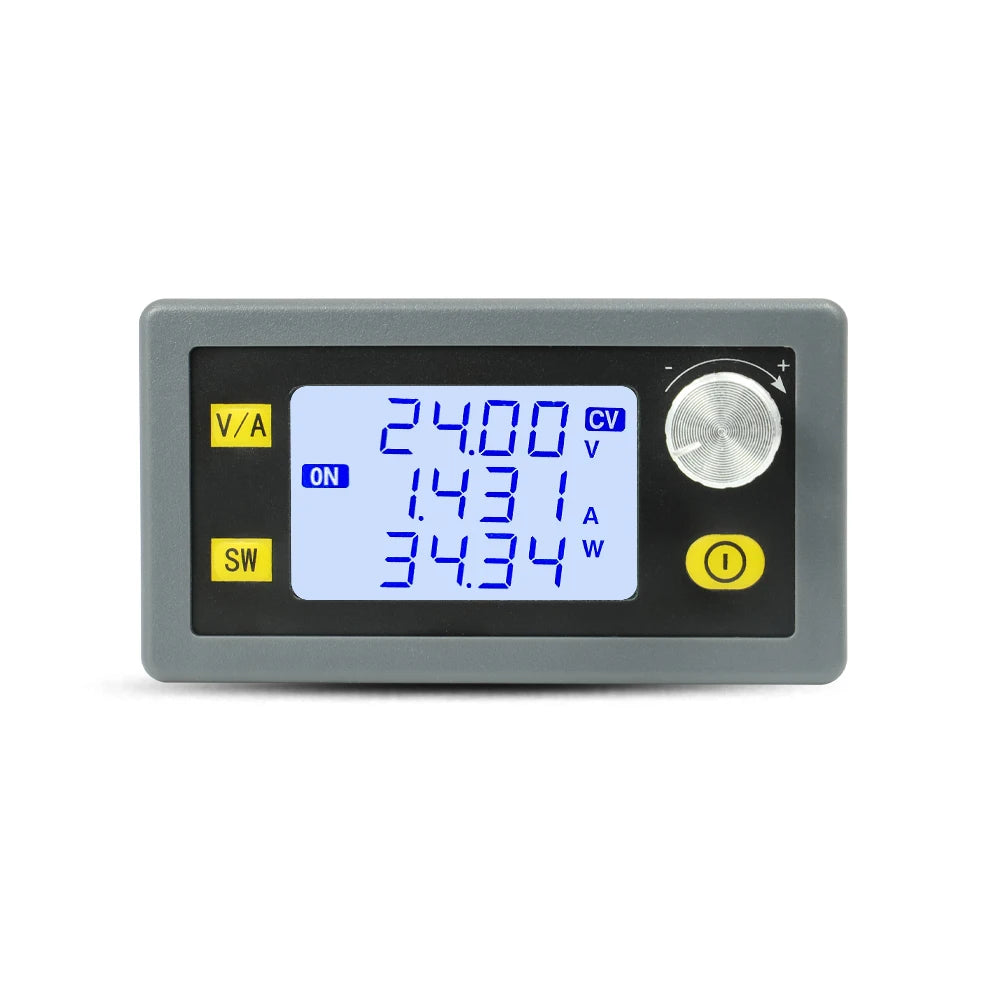

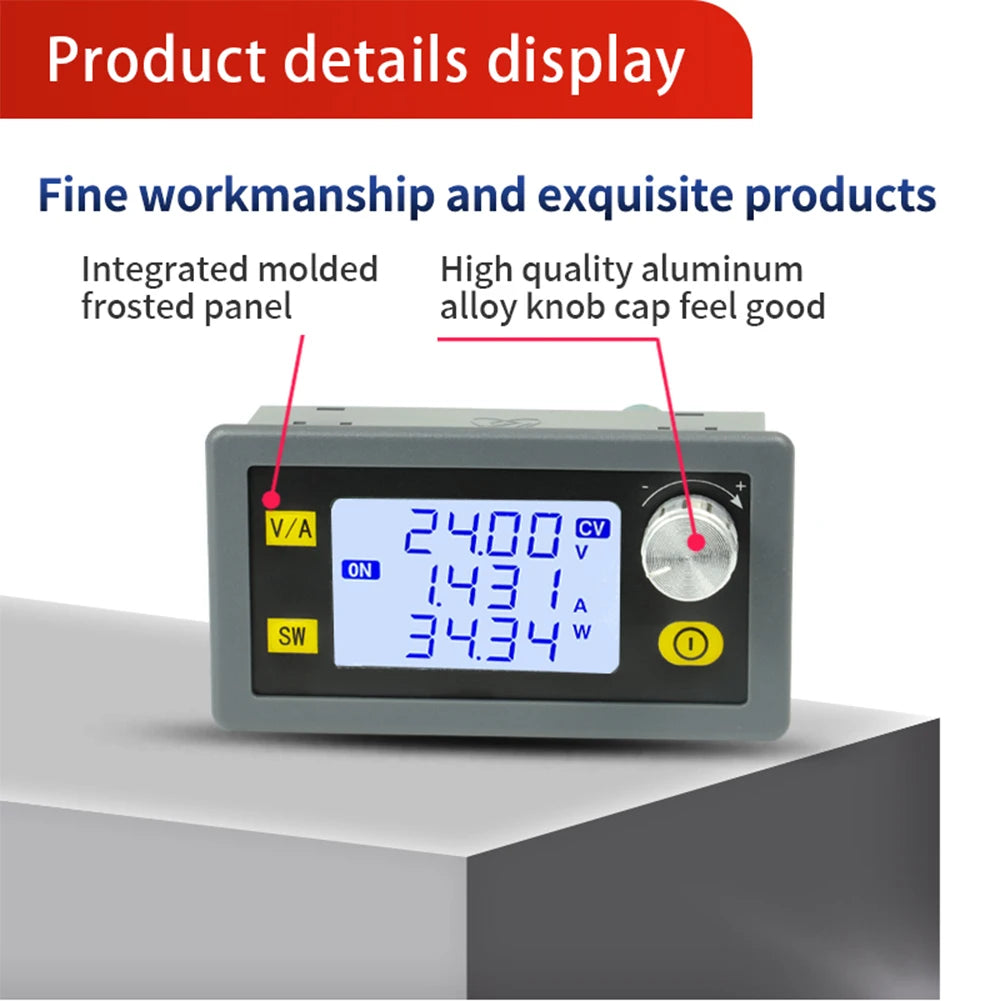

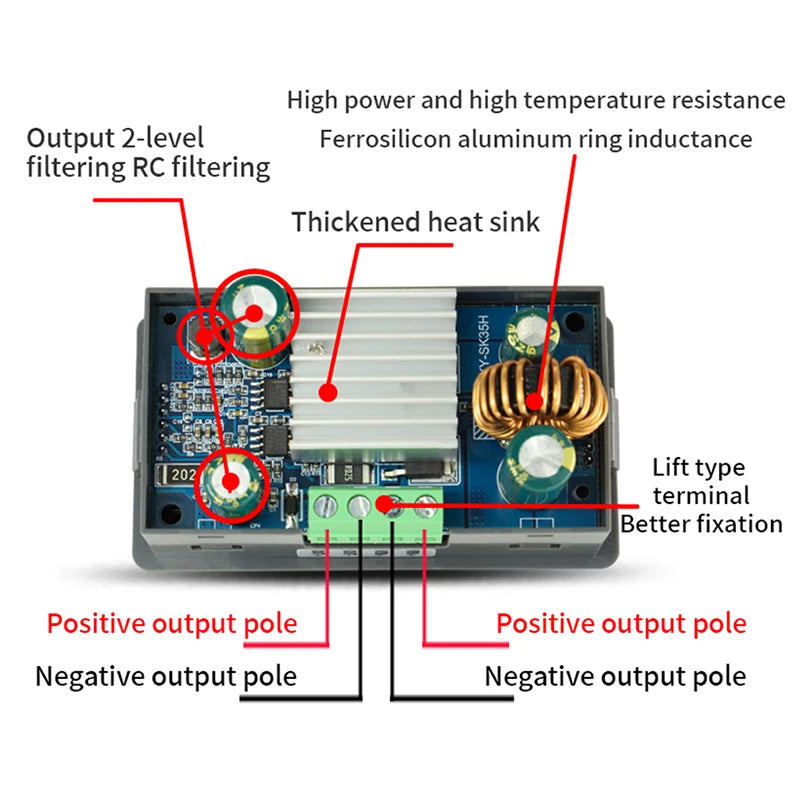

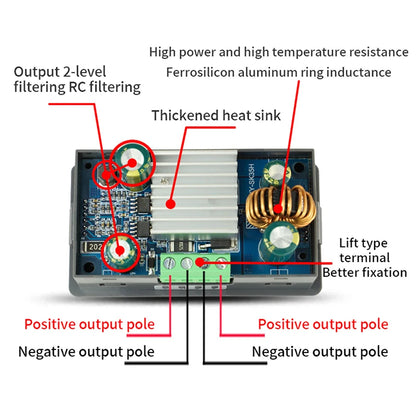

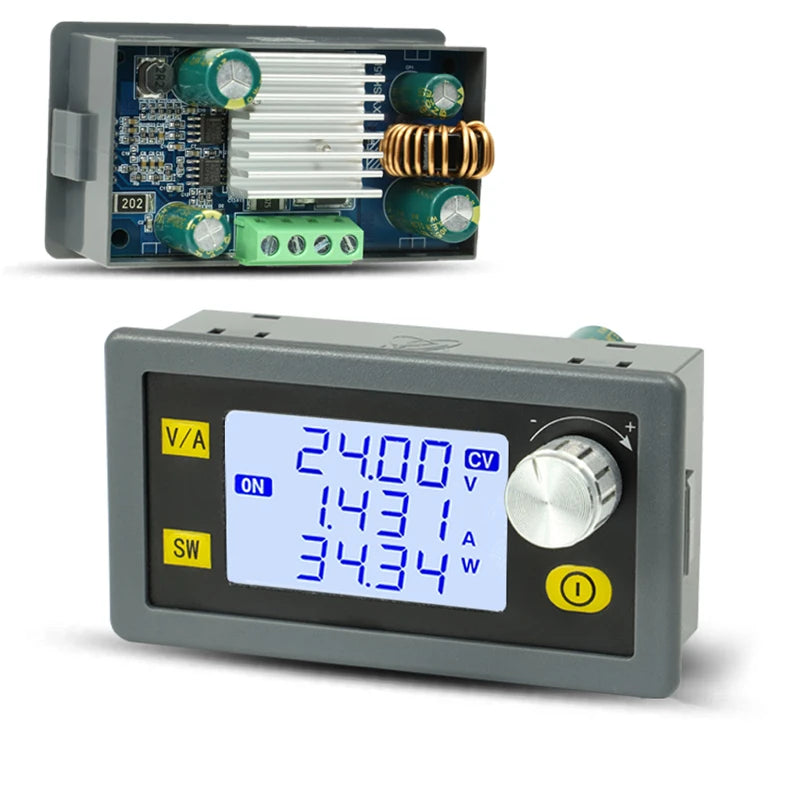

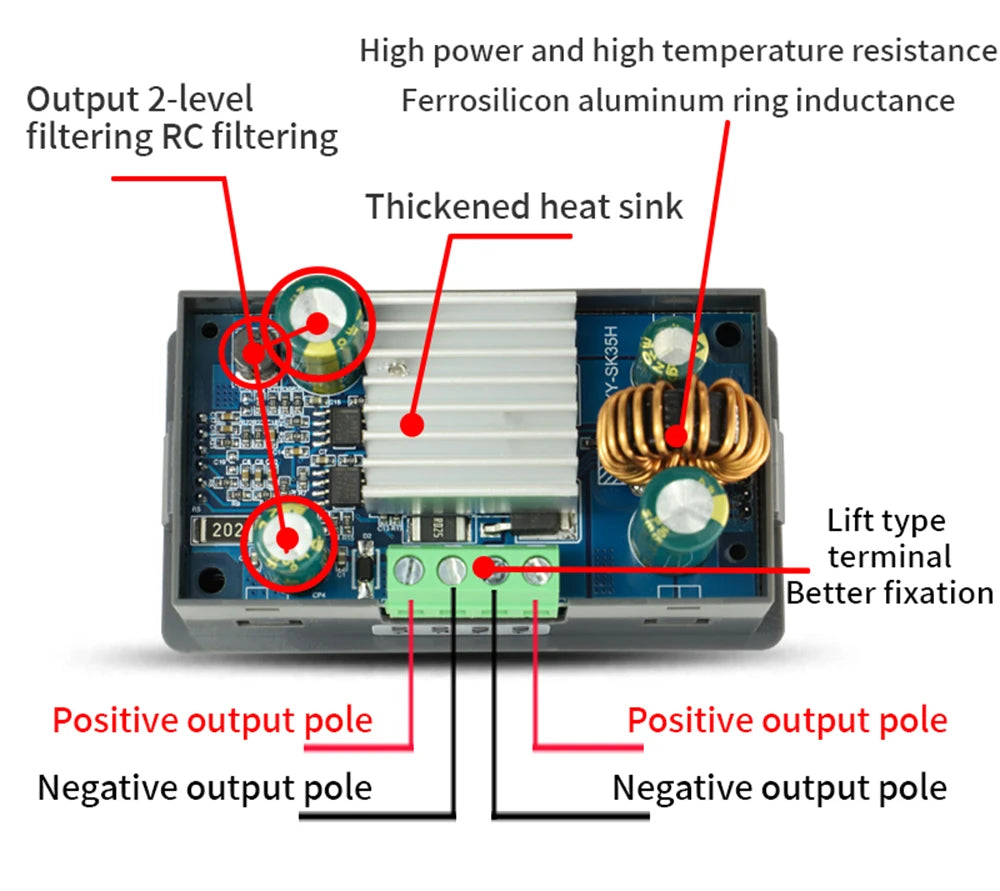

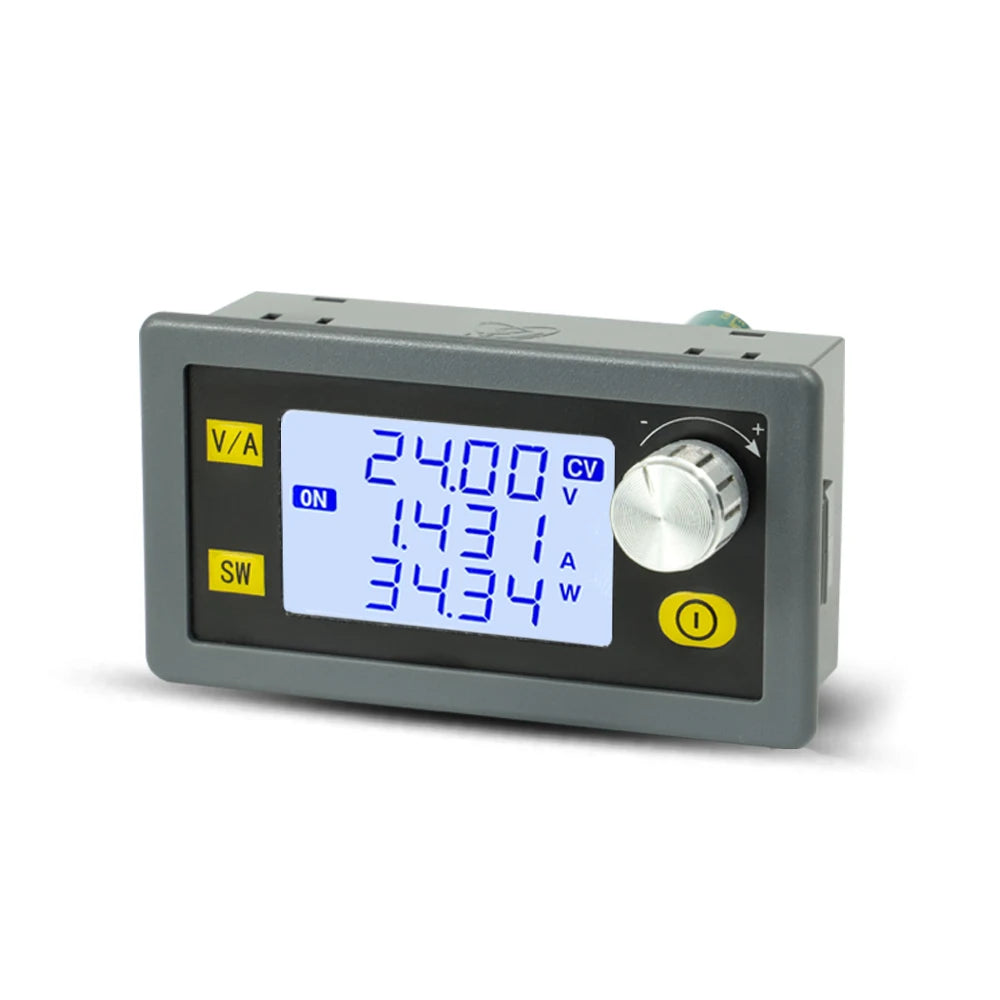

CNC DC automatic voltage reduction power supply can be used for solar charging, computer power conversion, DIY desktop CNC power supply. It adopts a large display, full-view dedicated power supply LCD can easily read the data. The rotating cap is made of high quality aluminium alloy and the frosted panel makes the body more textured. Thicker heat sink enables the device to run smoothly

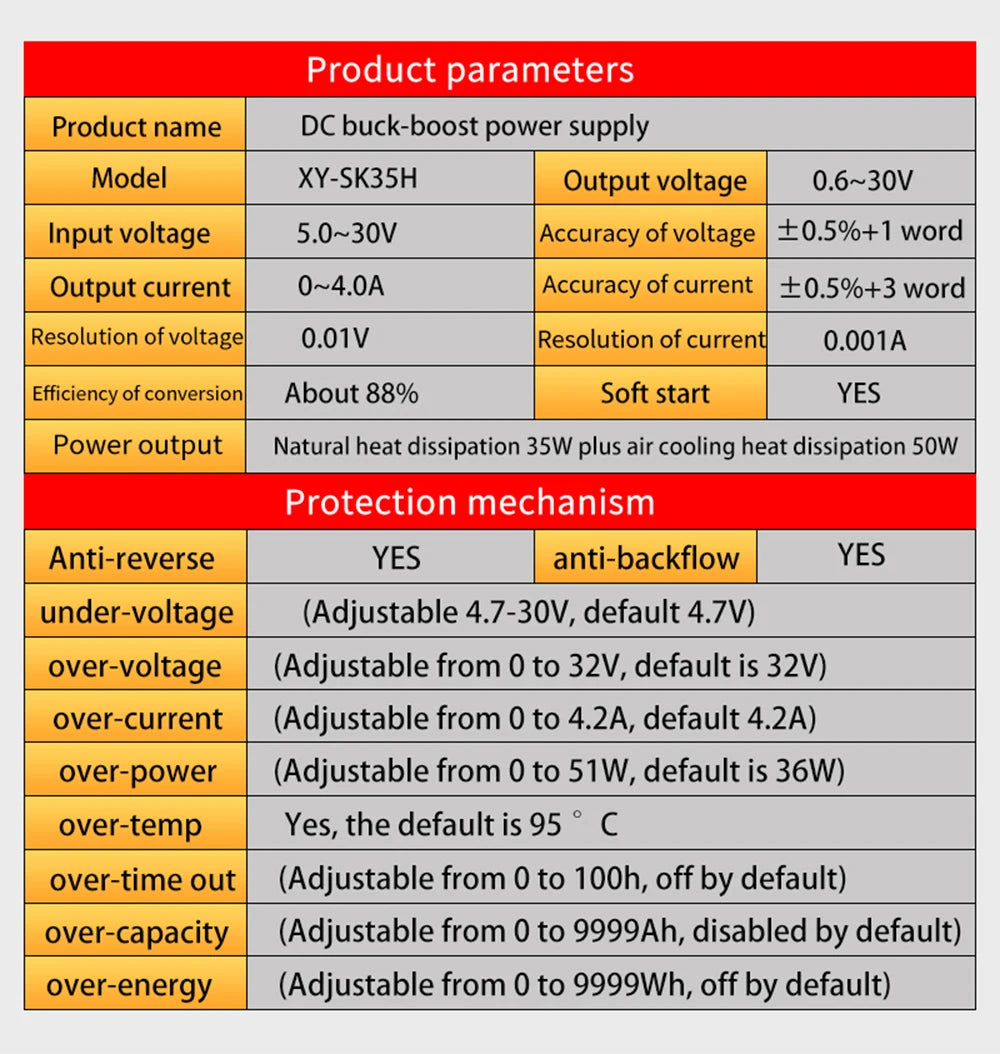

Product parameters:

● Product name: DC buck-boost power supply
● Mode:l XY-SK35H
● Output voltage: 0.6~30V
● Input voltage 5.0~30V
● Accuracy of voltage: ±0.5%+1 word
● Output current: 0~4.0A
● Accuracy of current: ±0.5%+3 word
● Resolution of voltage: 0.01V
● Resolution of current: 0.001A
● Efficiency of conversion: About 88%
● Soft start: YES
● Power output: Natural heat dissipation 35W plus air cooling heat dissipation 50W

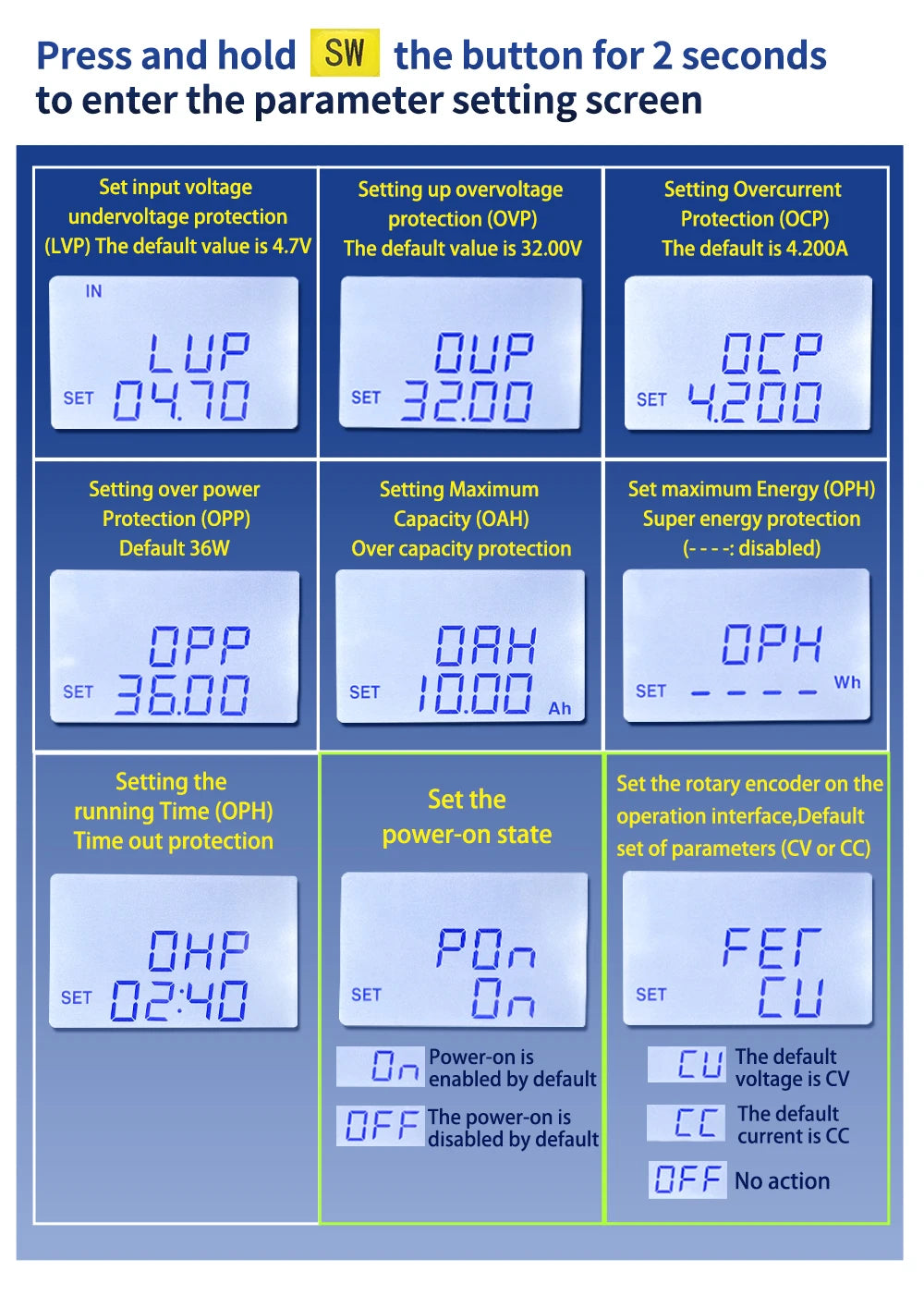

Protection mechanism:

● Anti-reverse: YES
● Anti-backflow YES
● Under-voltage: (Adjustable 4.7-30V, default 4.7V)
● Over-voltage (Adjustable from 0 to 32V, default is 32V)
● Over-current: (Adjustable from 0 to 4.2A, default 4.2A)
● Over-power: (Adjustable from 0 to 51W, default is 36W)
● Over-temp: Yes, the default is 95°c
● Over-time out: (Adjustable from 0 to 100h, off by default)
● Over-capacity: (Adjustable from 0 to 9999Ah, disabled by default)
● Over-energy: (Adjustable from 0 to 9999Wh, off by default)

List:

1 * DC DC Adjustable Buck Boost Converter

Note:

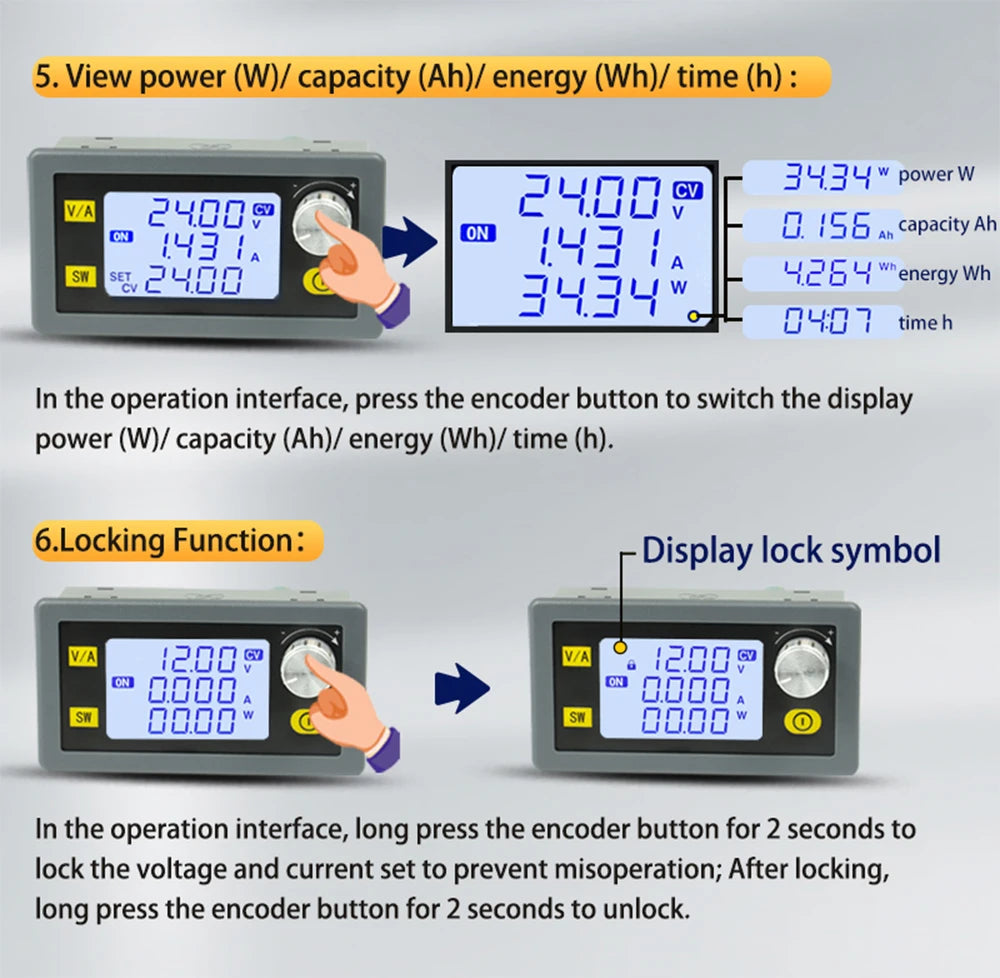

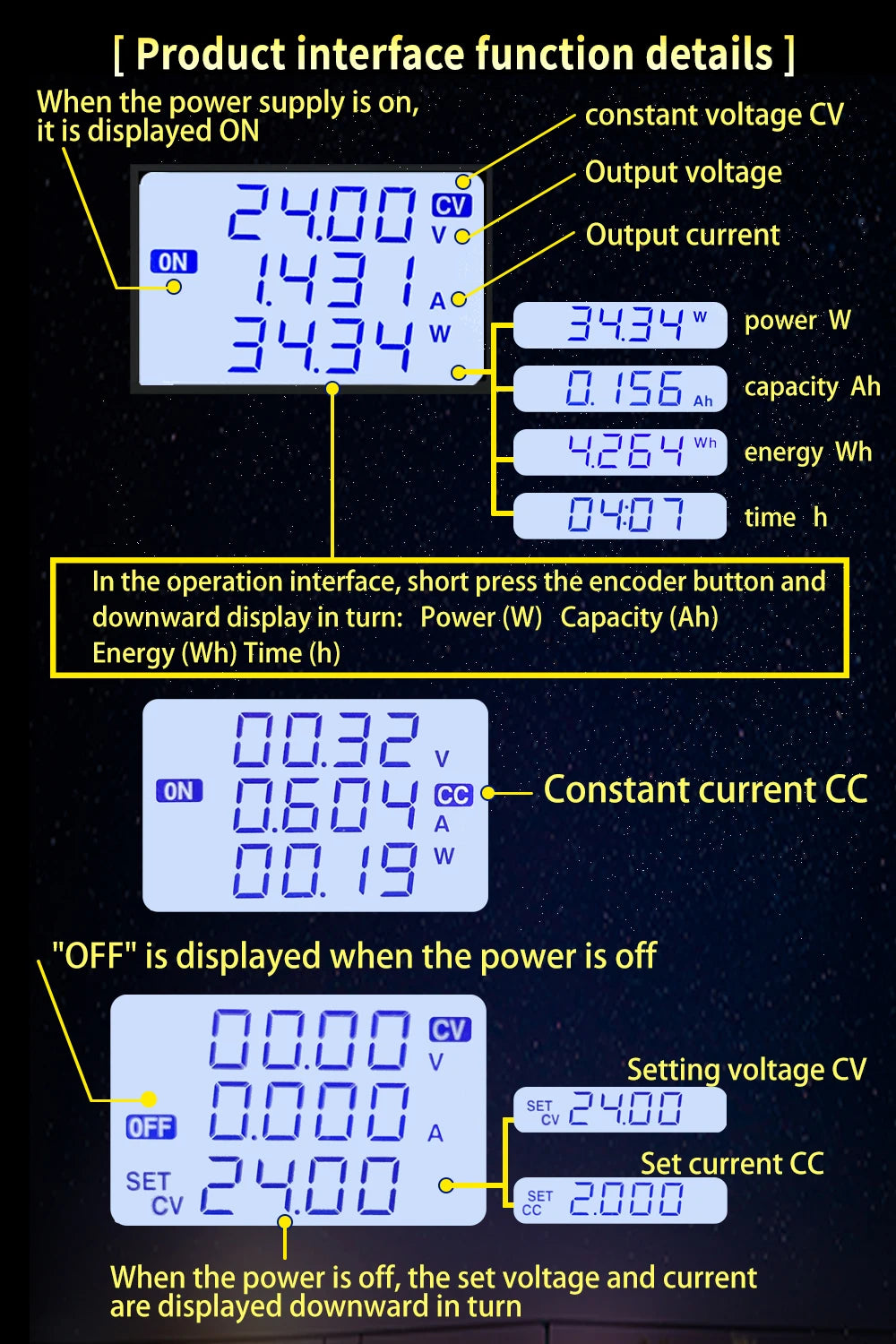

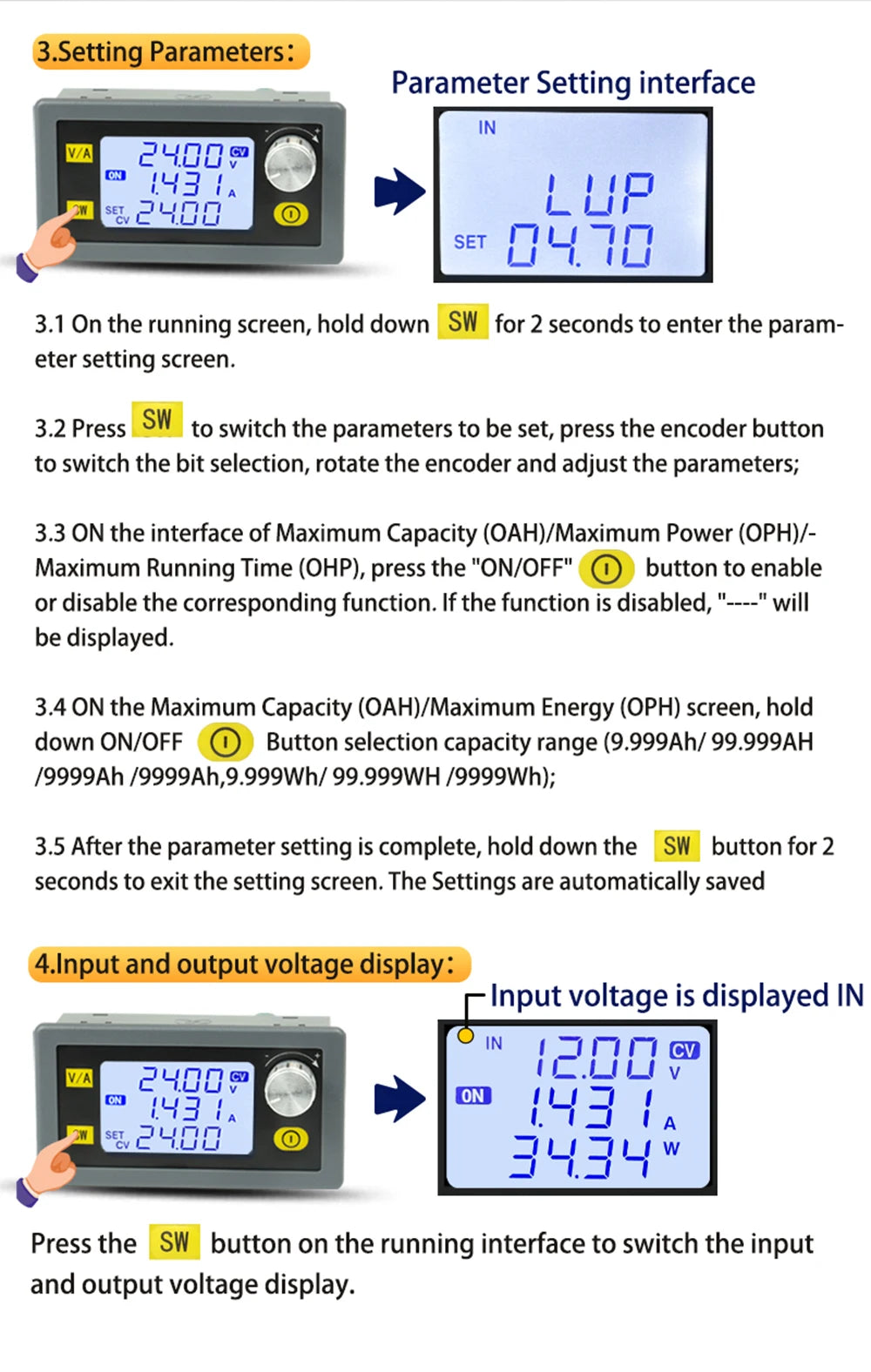

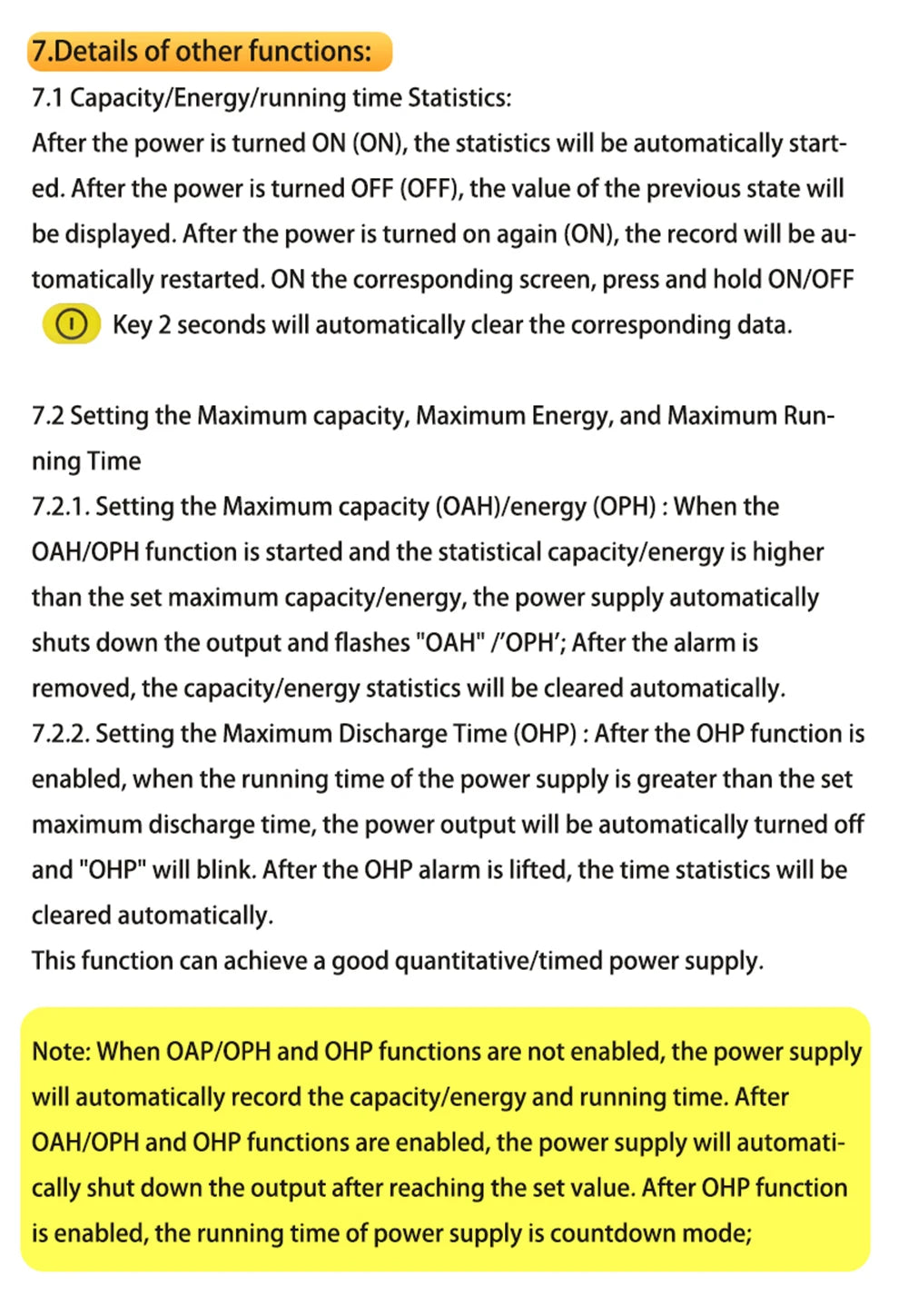

When OAP/OPH and OHP functions are not enabled, the power supply will automatically record the capacity/energy and running time. After 0AH/0PH and OHP functions are enabled, the power supply will automati- cally shut down the output after reaching the set value. After OHP function is enabled, the running time of power supply is countdown mode;
