SPECIFICATIONS

Brand Name: smallrig

Certification: CE

Hign-concerned Chemical: None

Model Number: 4598

Origin: Mainland China

Package: Yes

USB Type: USB2.0 Type-C

Use: Camera

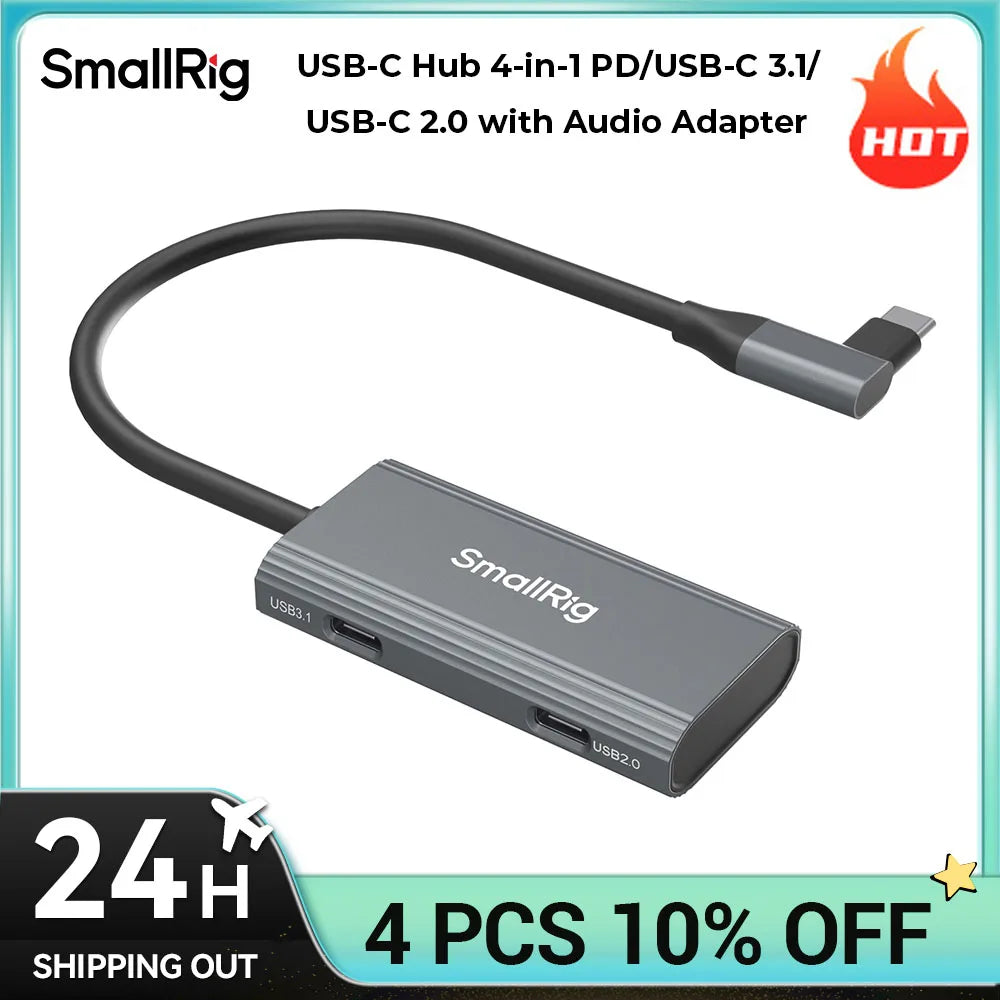

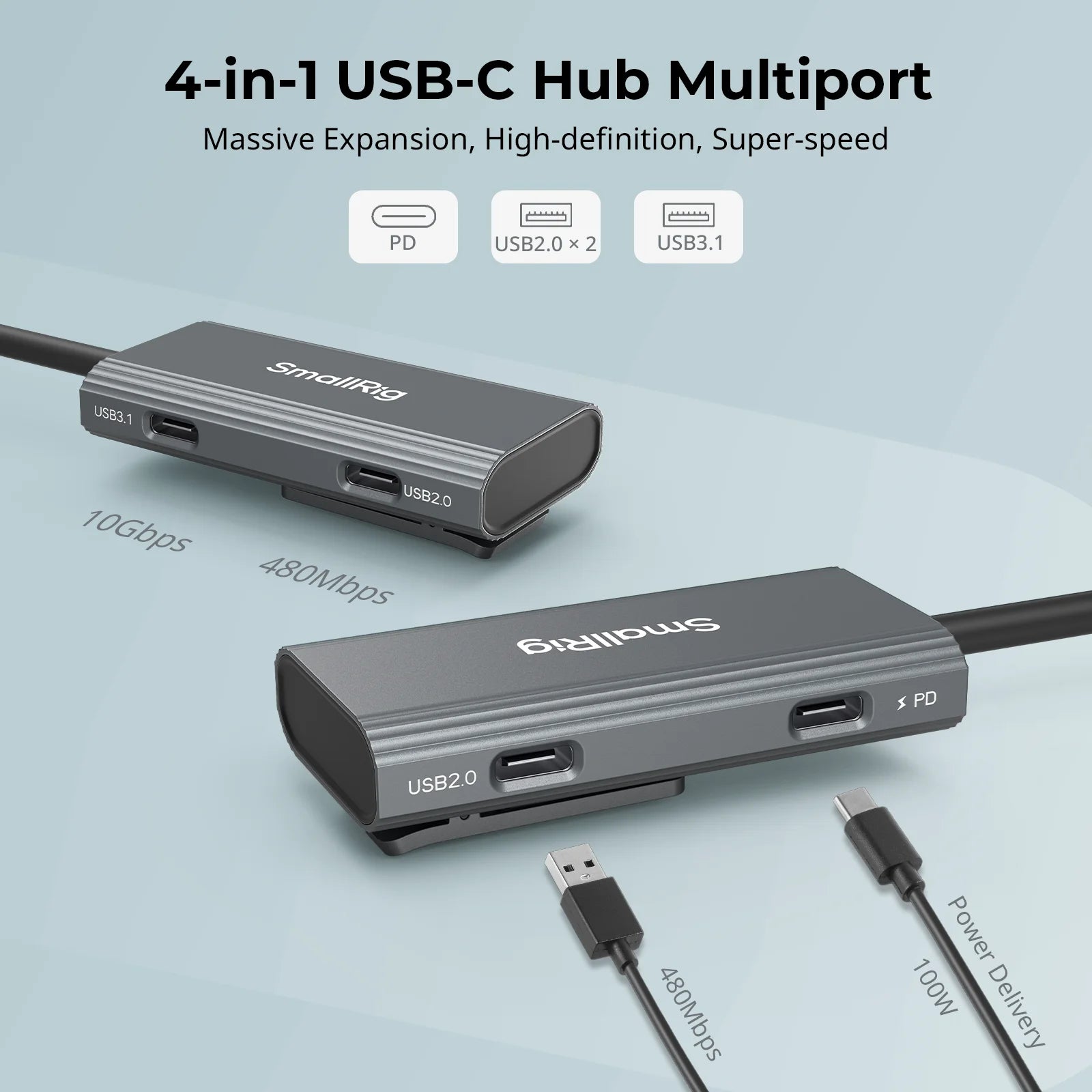

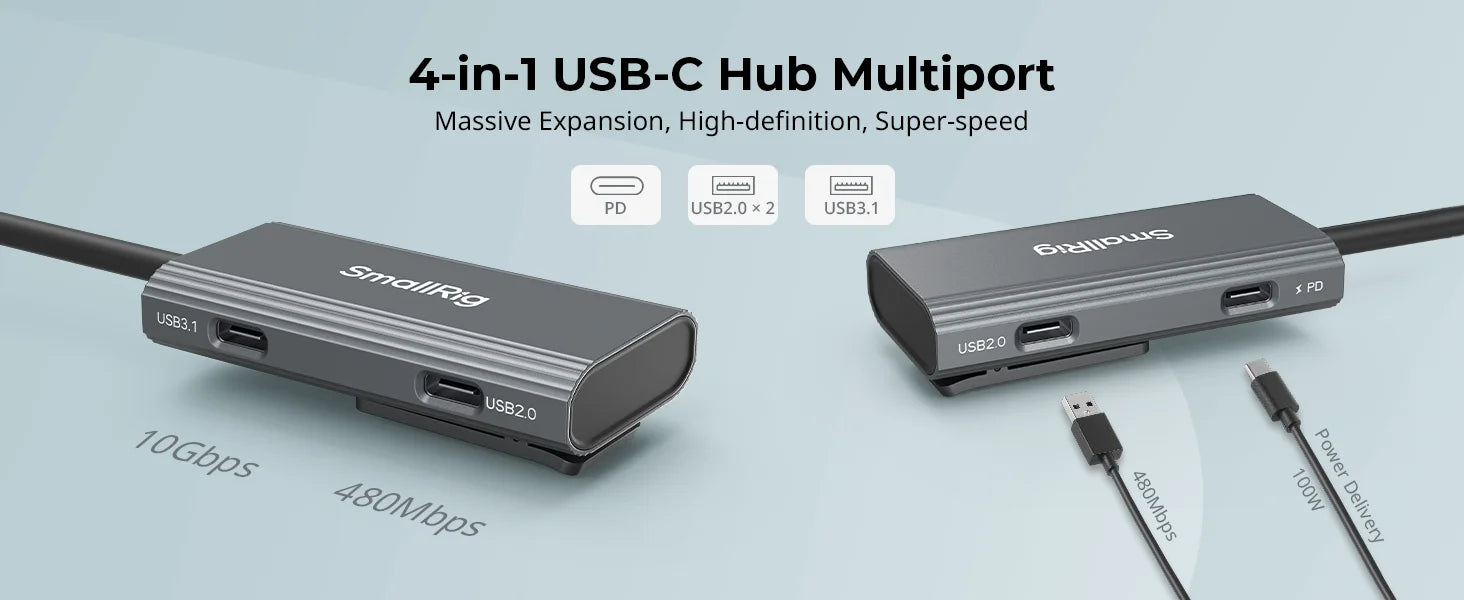

SmallRig 4-in-1 USB-C Hub PD 100W / USB-C 3.1 / USB-C 2.0 with Audio Adapter 4598

Key Features

1.Compact adapter solution that transforms a single USB-C port on the phone into a charging port, high-speed data transfer port, and audio/video transmission port, expanding the port's simultaneous functionality

2.PD charging up to 100W

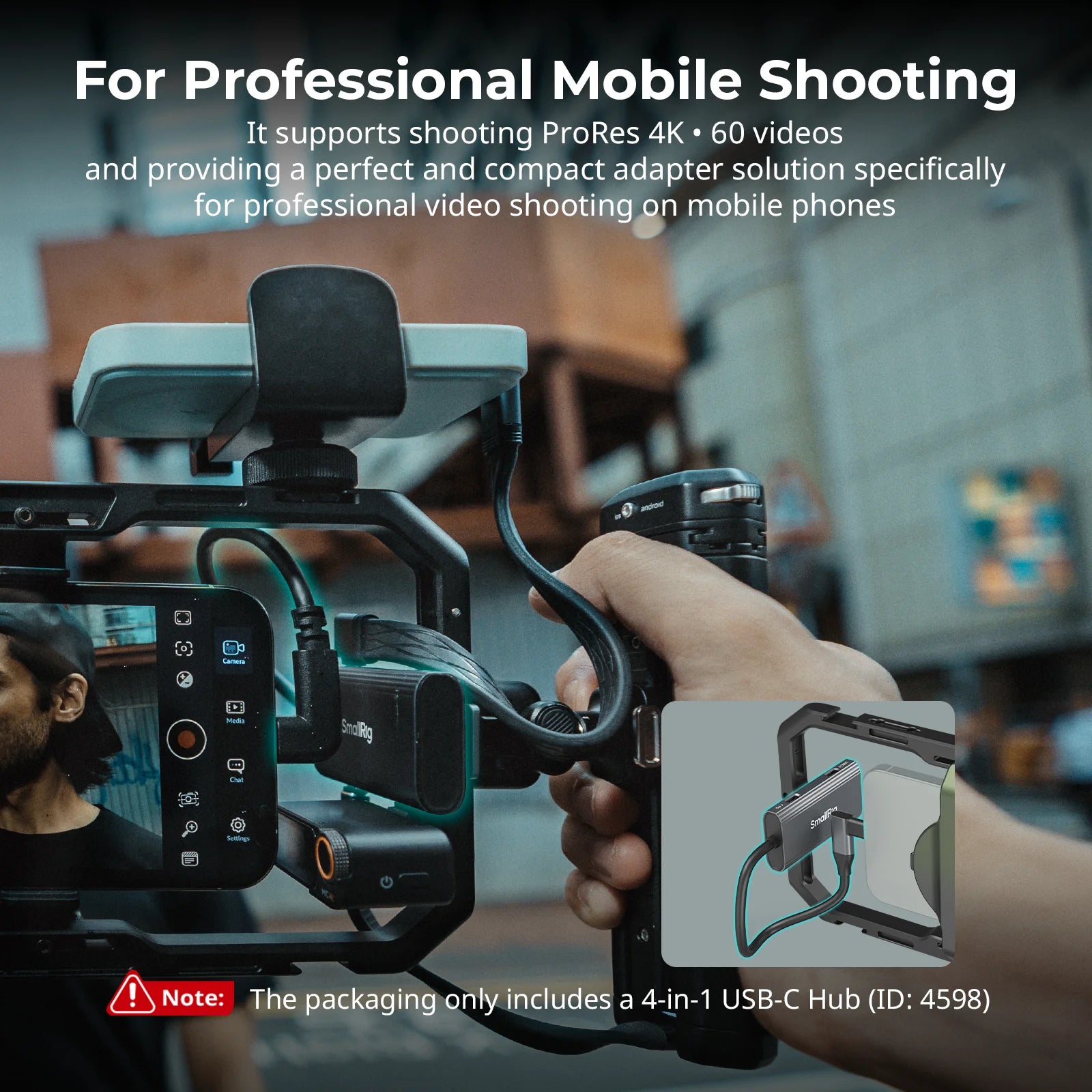

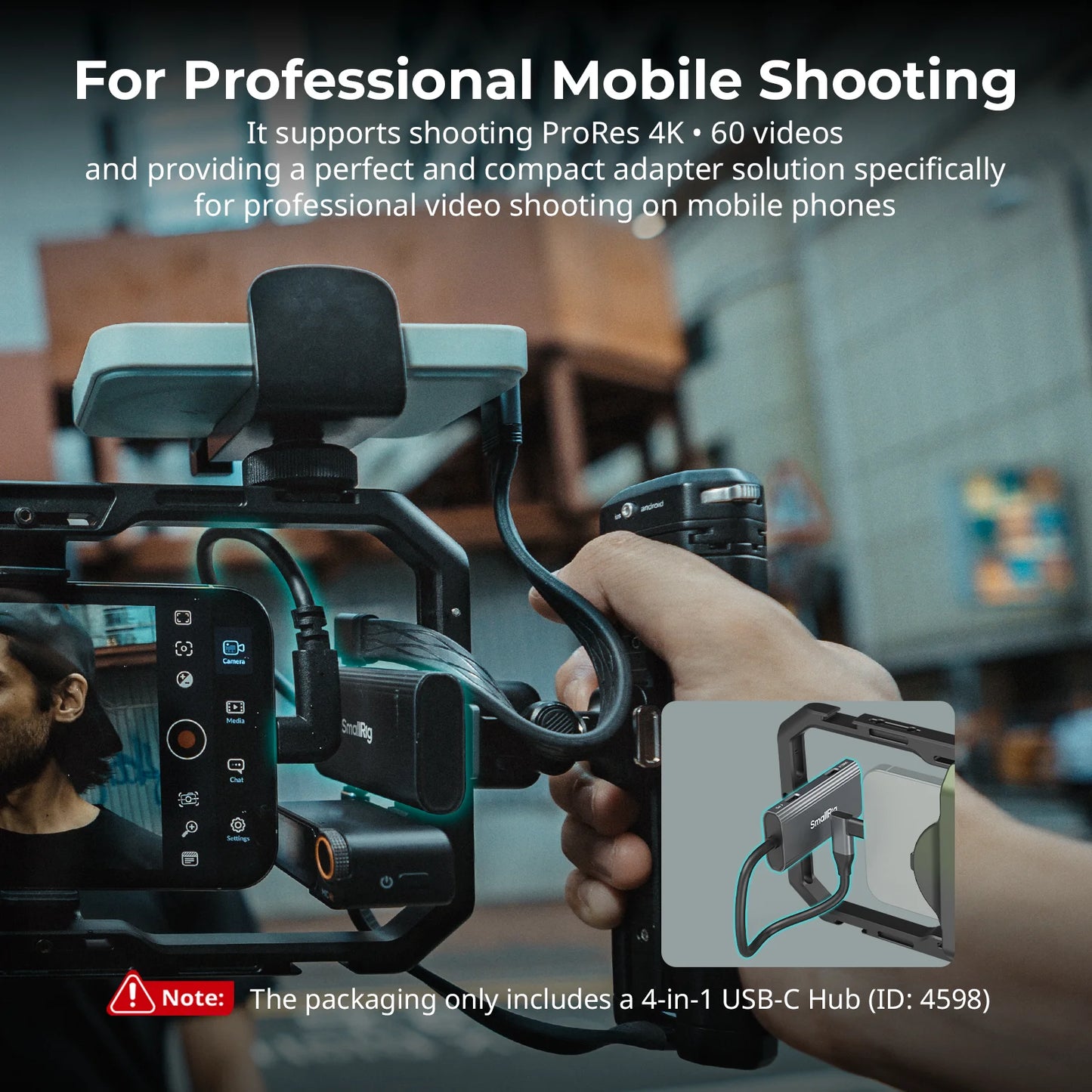

3.USB-C 3.1 supports high-speed data transfer up to 10Gbps/s, enabling mobile shooting of ProRes videos at 4K 60fps

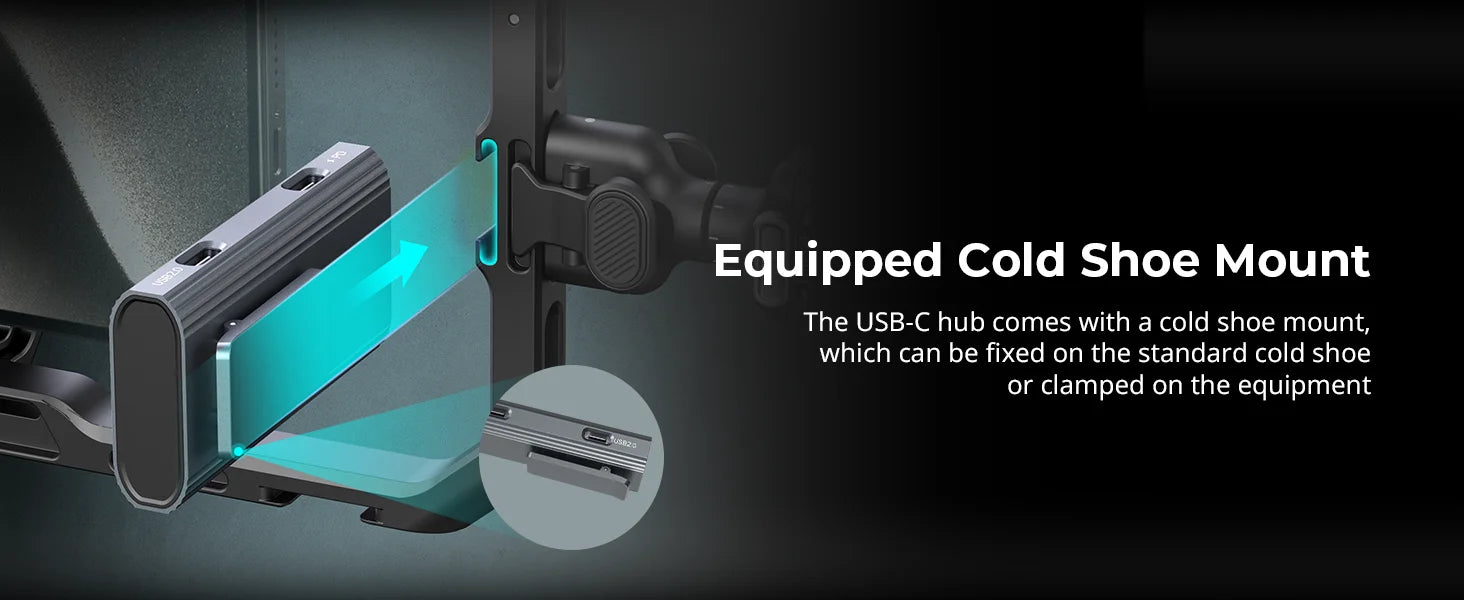

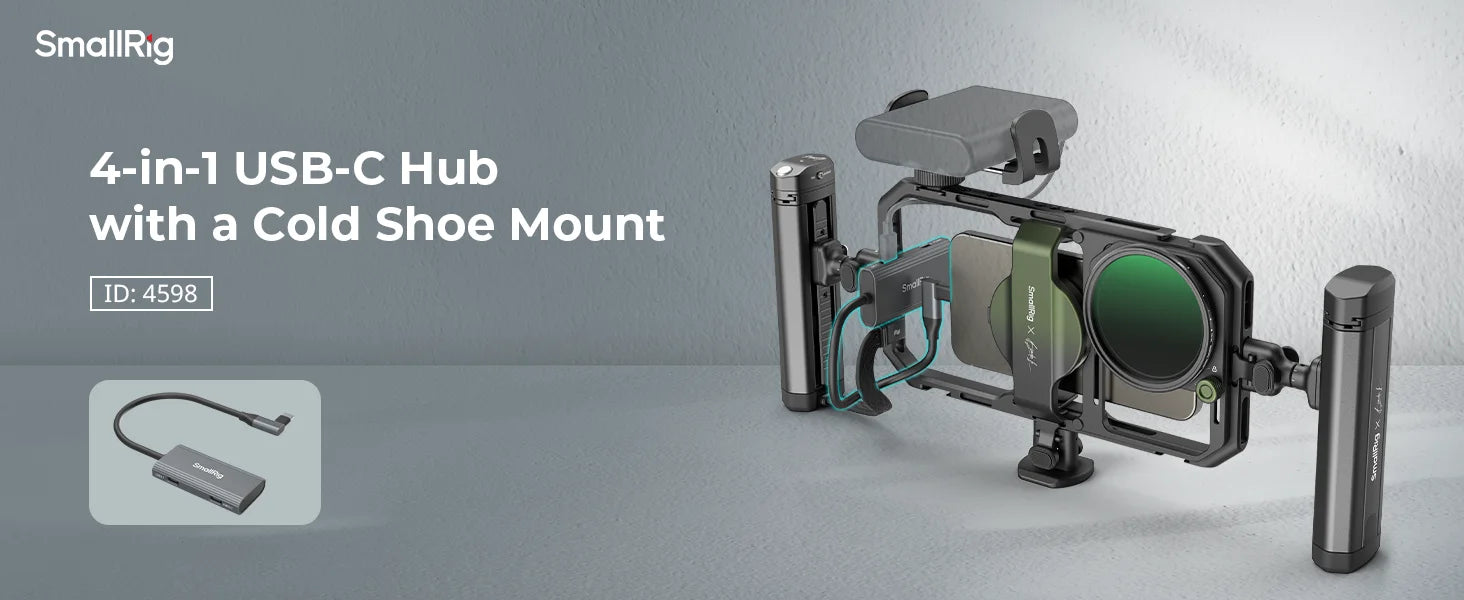

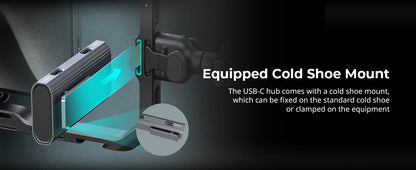

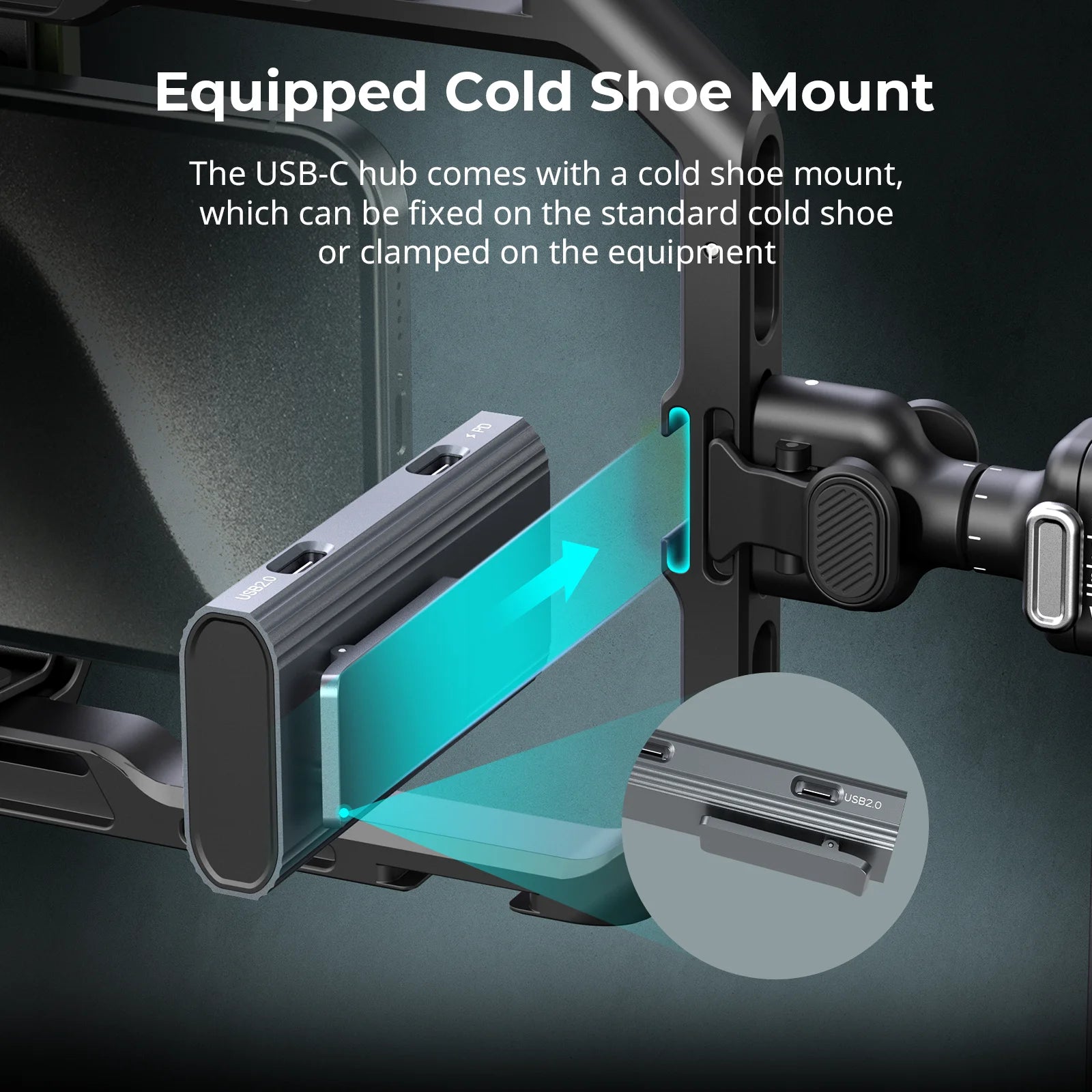

4.Equipped with a cold shoe mount for quick attachment to a device's cold shoe

Product Description

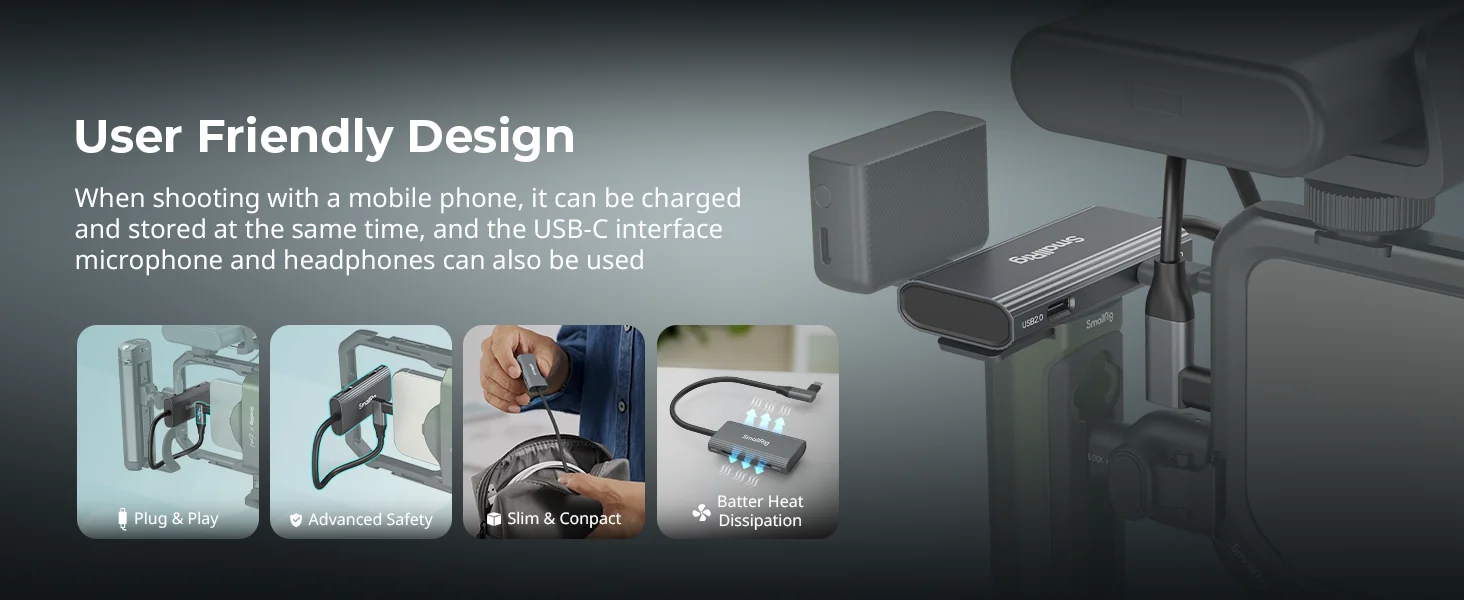

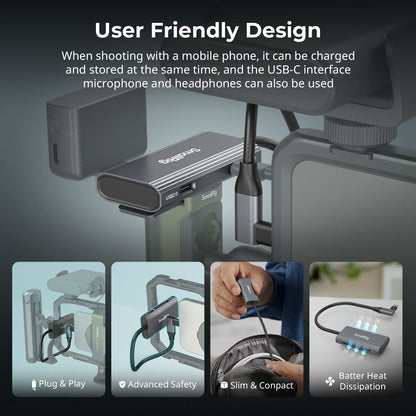

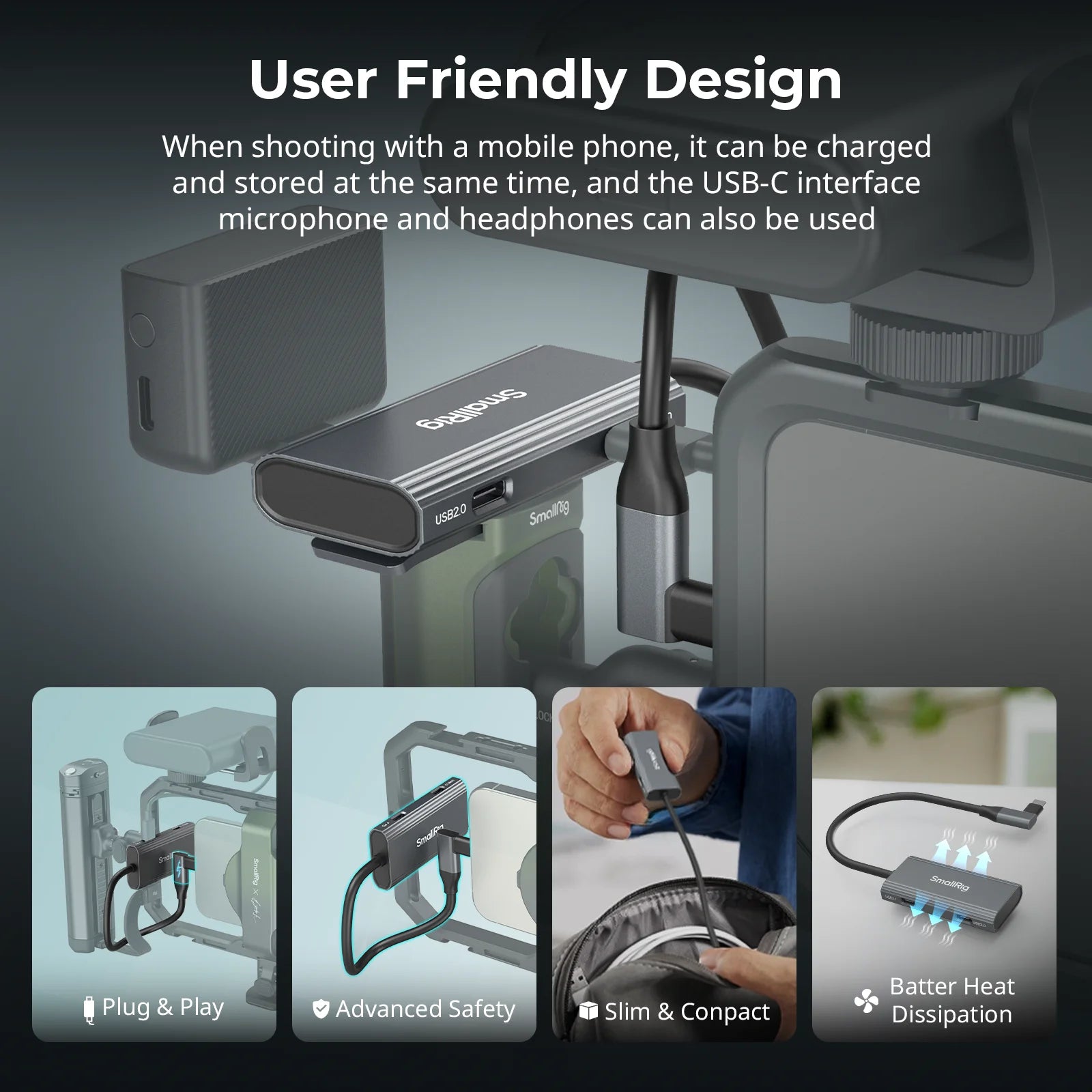

SmallRig USB-C Hub 4-in-1 PD/USB-C 3.1/USB-C 2.0 with Audio Adapter 4598 provides a perfect and compact solution for professional video shooting with your phone. The hub offers a high-power PD charging port, a USB-C 3.1 interface, and two USB-C 2.0 interfaces, allowing you to charge, store data, and use USB-C accessories like microphones and headphones while shooting with your phone. The hub comes with a cold shoe mount for easy attachment to a standard cold shoe or clamping onto a device.

Designer: Jamey Bi, Tao Jiang

Compatibility

USB-C Interface

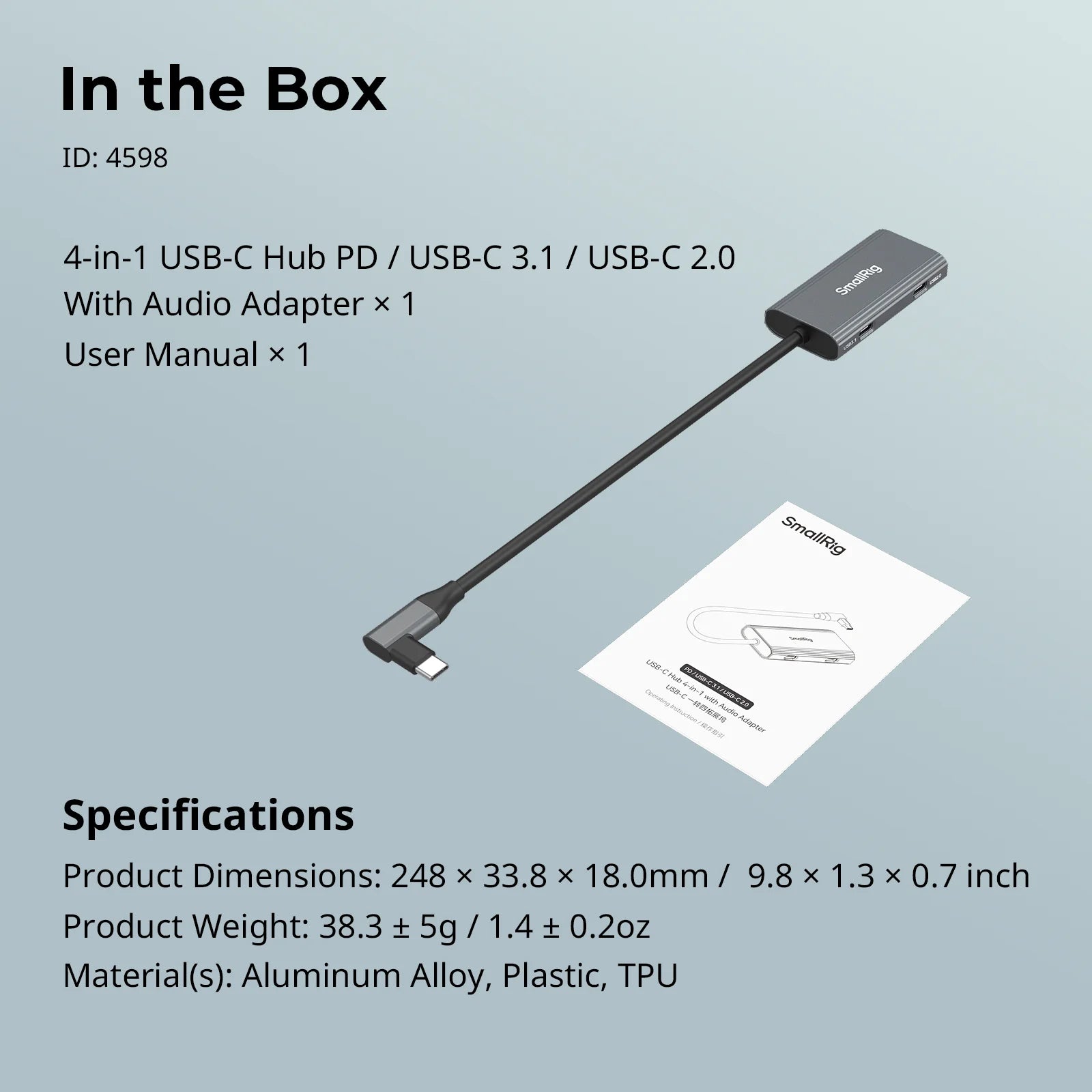

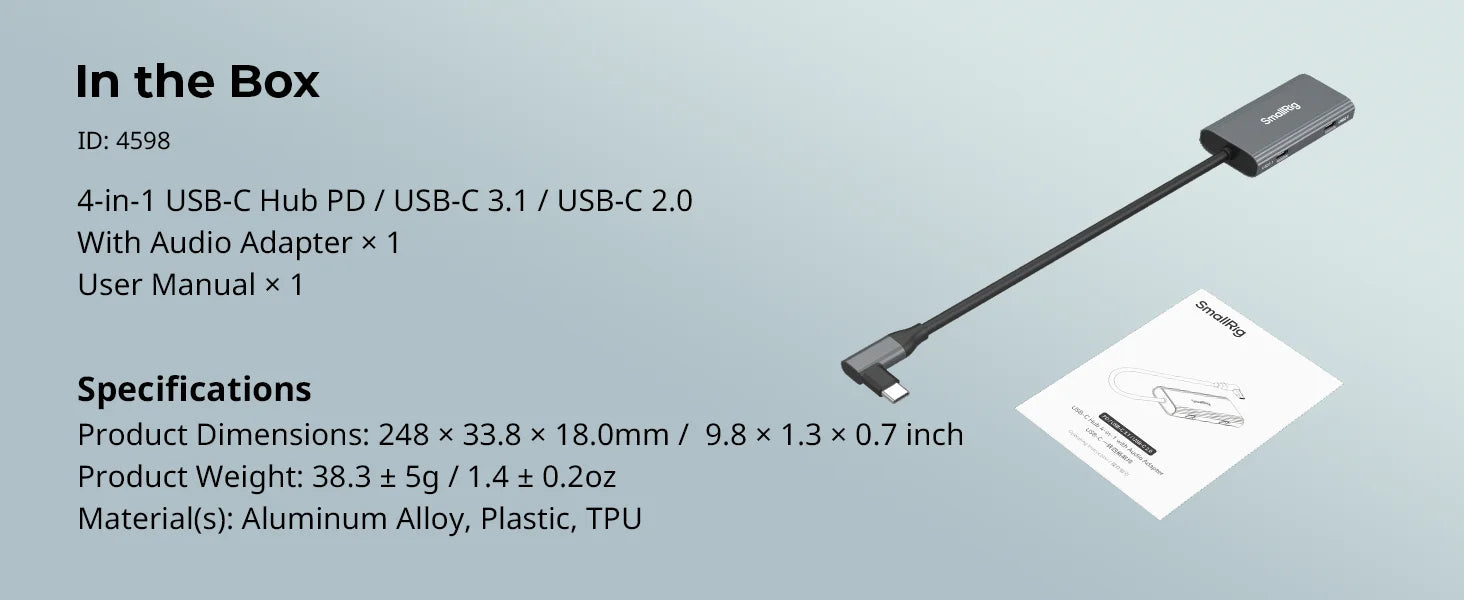

Package

4-in-1 USB-C Hub PD / USB-C 3.1 / USB-C 2.0 with Audio Adapter x 1

User Manual x 1

Specifications

Product Dimensions: 248 x 33.8 x 18.0mm/ 9.8 x 1.3 x 0.7 inch

Package Dimensions: 155 x 81.5 x 42mm/ 6.1 x 3.2 x 1.7 inch

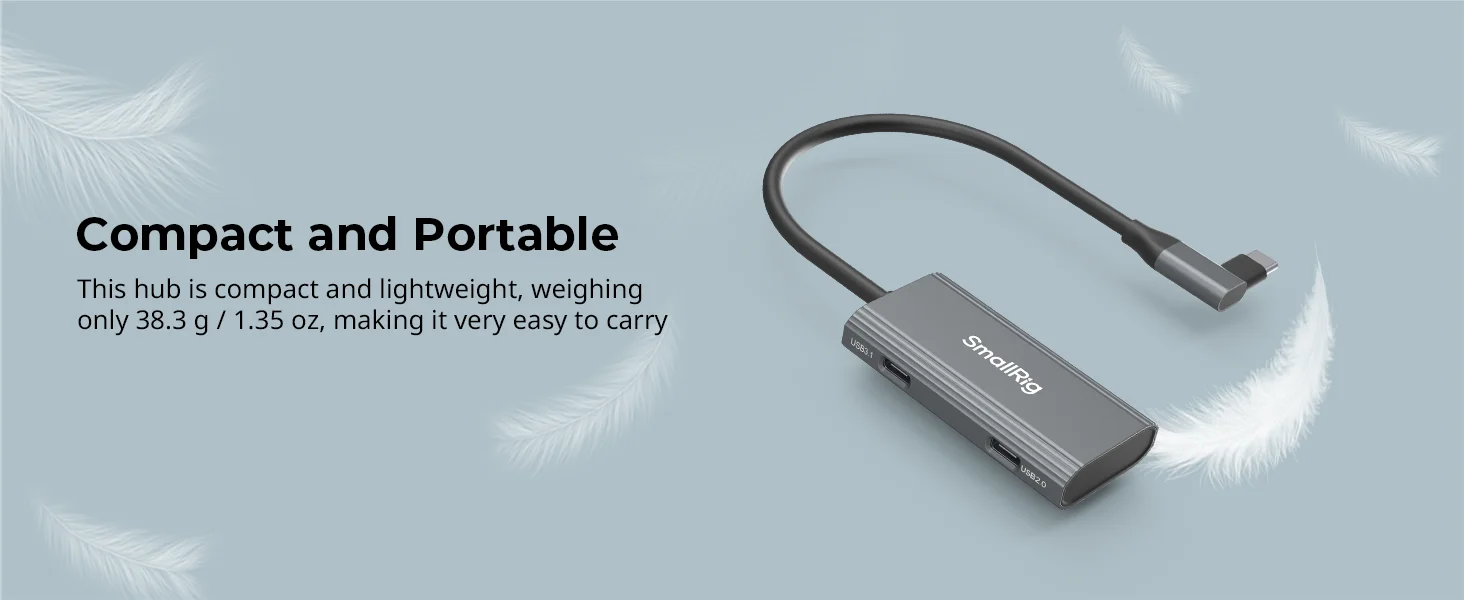

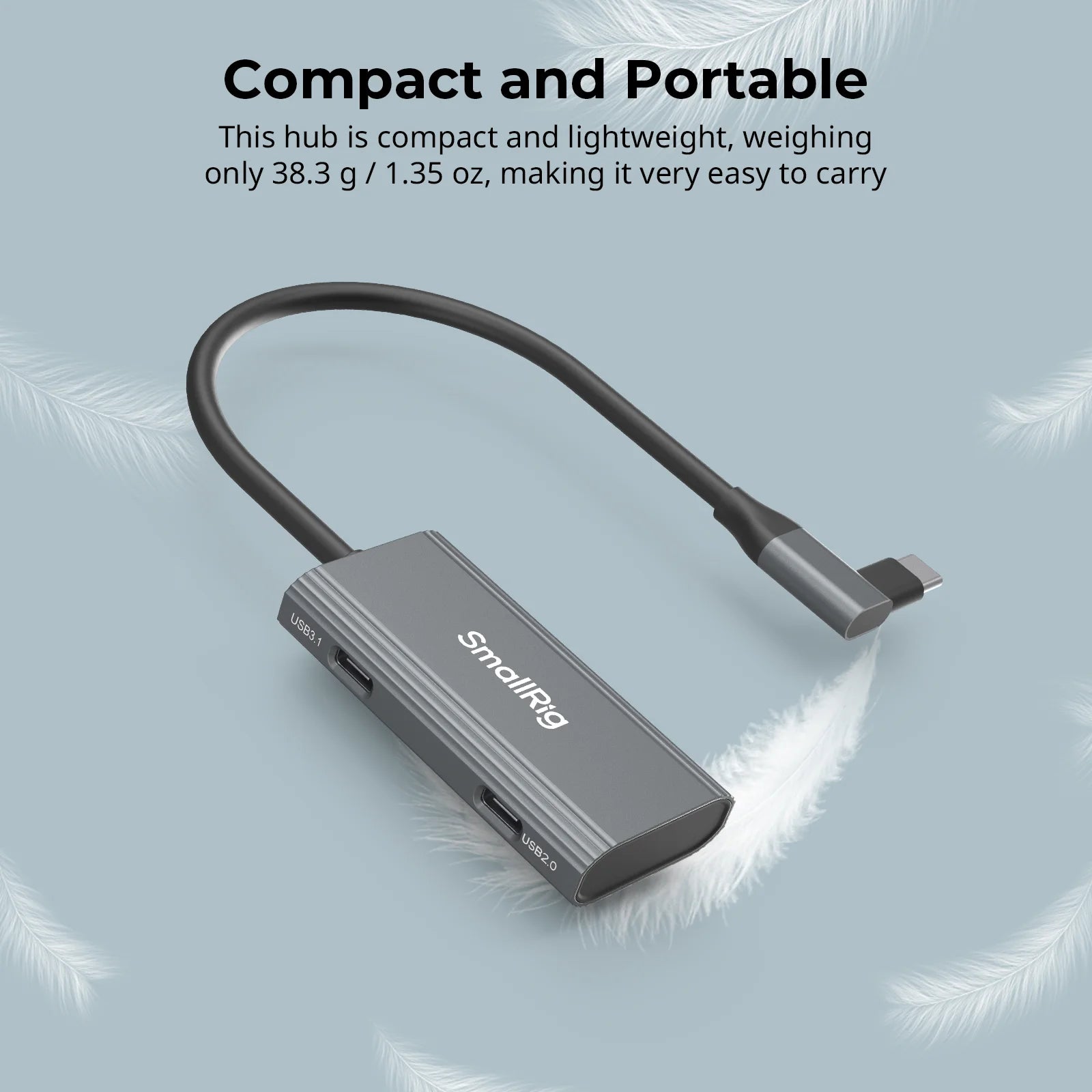

Product Weight: 38.3 ± 5g/ 1.4 ± 0.2oz

Package Weight: 81.3 ± 5g/ 2.9 ± 0.2oz

Material(s): Aluminum Alloy, Plastic, TPU

Standby Power Consumption <0.2W

Types of USB-C Interfaces PD Charging Port, USB-C 3.0, USB-C 2.0 x 2

PD Input 20V, 5A

USB-C 3.1 Input 5V, 3A; USB-C 3.1 10Gbps, ≥750MB/s; USB-C 3.0 5Gbps, ≥350MB/s

USB-C 2.0 Input 5V, 2A；480Mbps, ≥35MB/s

Working Temperature -20℃ to 50℃ / -4°F to 122°F
