Features:
*Use microprocessors and high-end MCU chips to achieve intelligent control.
*PIC single-chip microcomputer, the strongest anti-interference.
*With overcharge protection, over-discharge protection, electronic short circuit protection, overload protection, battery reverse connection protection, solar panel reverse connection protection, etc.
*With discharge rate correction control, different discharge rates have different termination voltages, which conforms to the inherent characteristics of the battery.
*Scientific battery management mode, when over-discharged, the battery is charged with boost voltage for compensation maintenance. In normal use, the charging way of balanced charging and floating charging is used, and boost charging is performed once a week to prevent battery sulfation, which greatly extends the service life of the battery.
*Parameter settings have a power-off saving function, that is, important data such as system mode and control parameters are stored in the chip, and will not be lost after power failure, making adjustment more convenient and the system more stable.
*The charging circuit adopts a dual MOSFET series control circuit, which reduces the circuit voltage loss by nearly half compared with the circuit using a diode. The charging adopts PWM mode control, which greatly improves the charging efficiency and greatly increases the power consumption time.

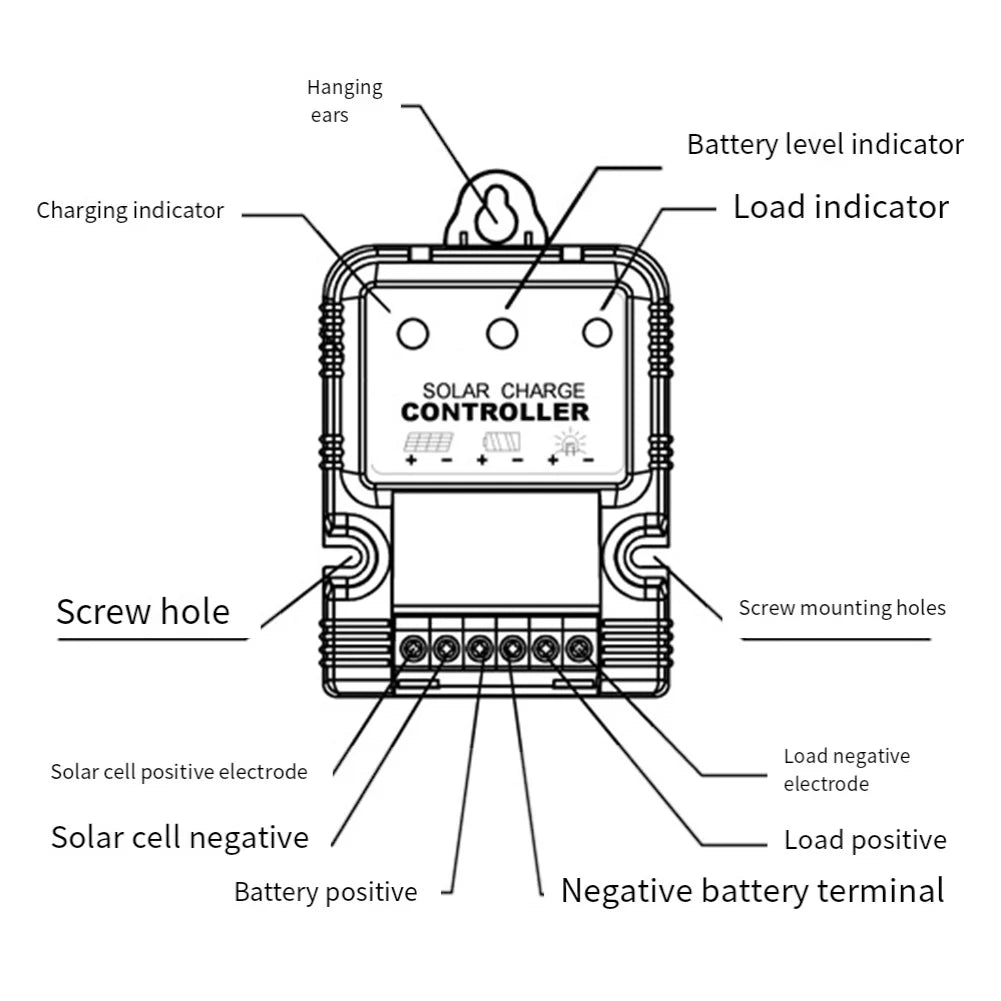

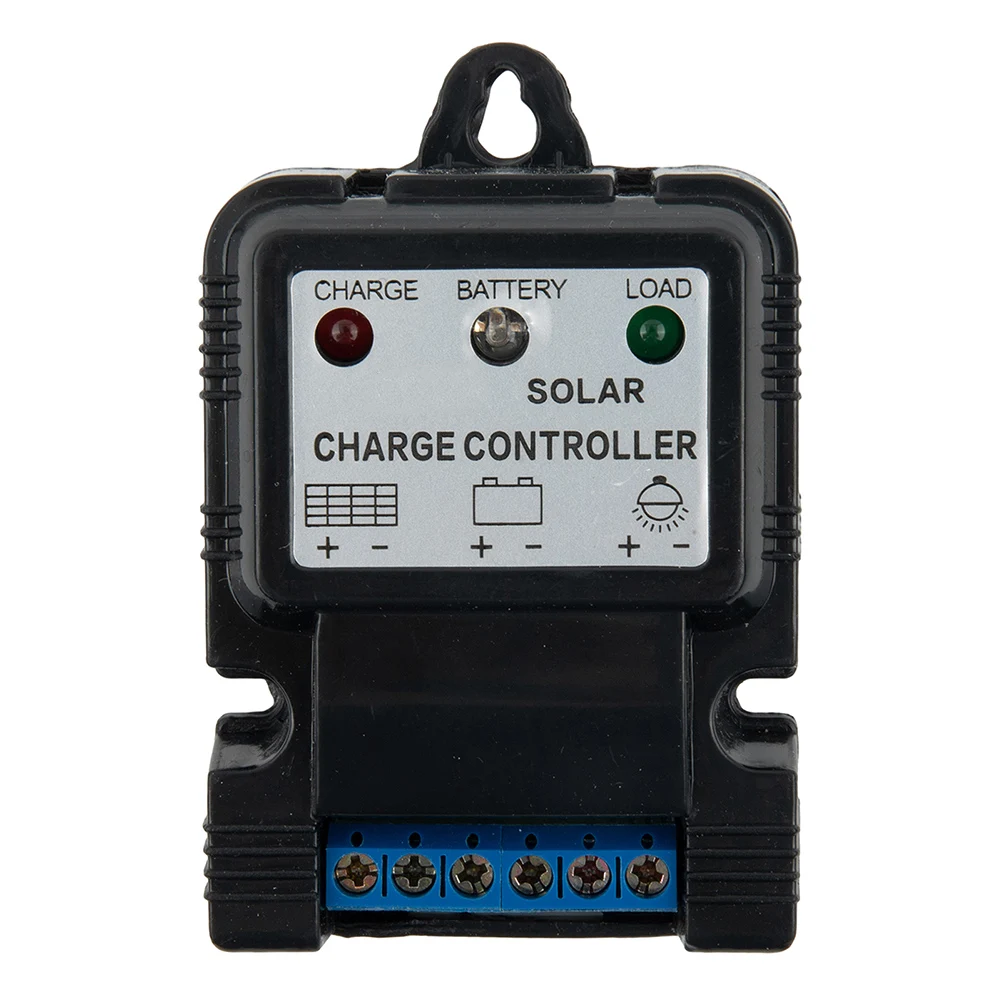

*The intuitive LED indicates the current battery status, allowing users to understand the usage.

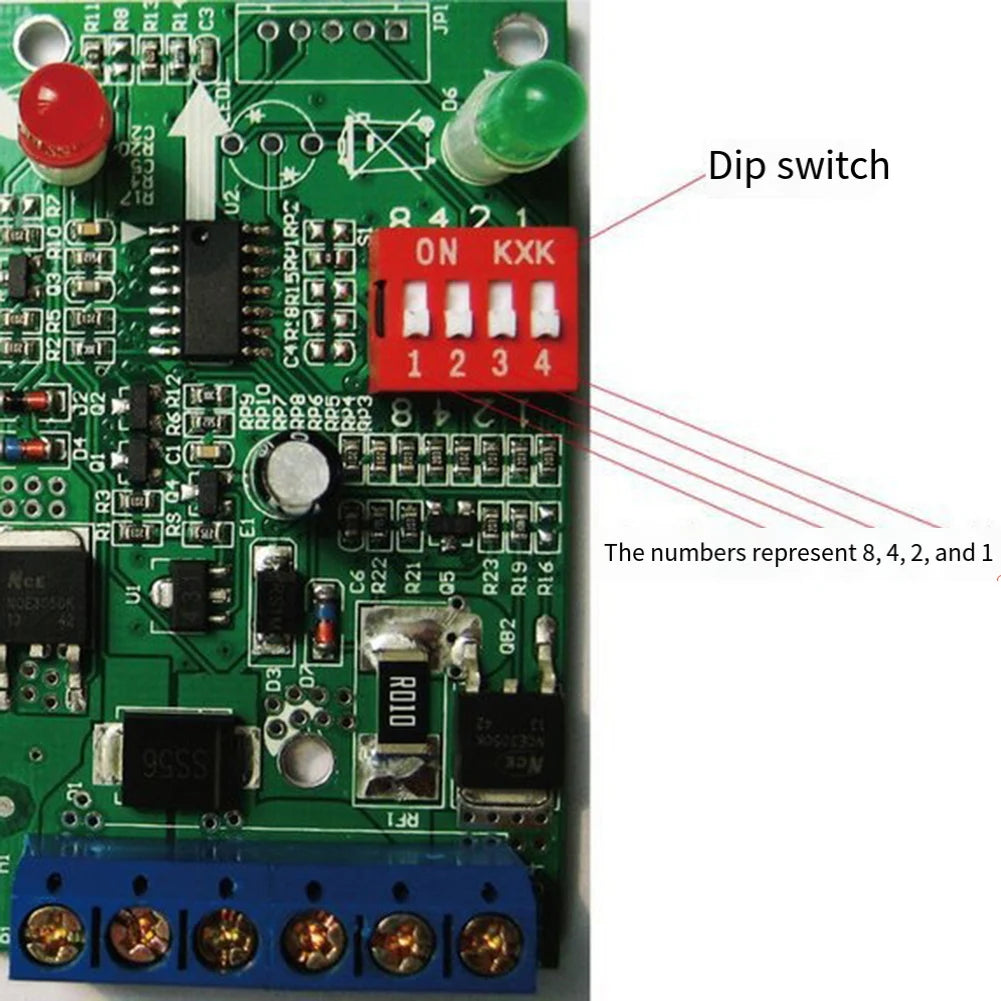

*Three working modes are available: normally open mode, pure light control mode and light control plus timing mode.

Specification:

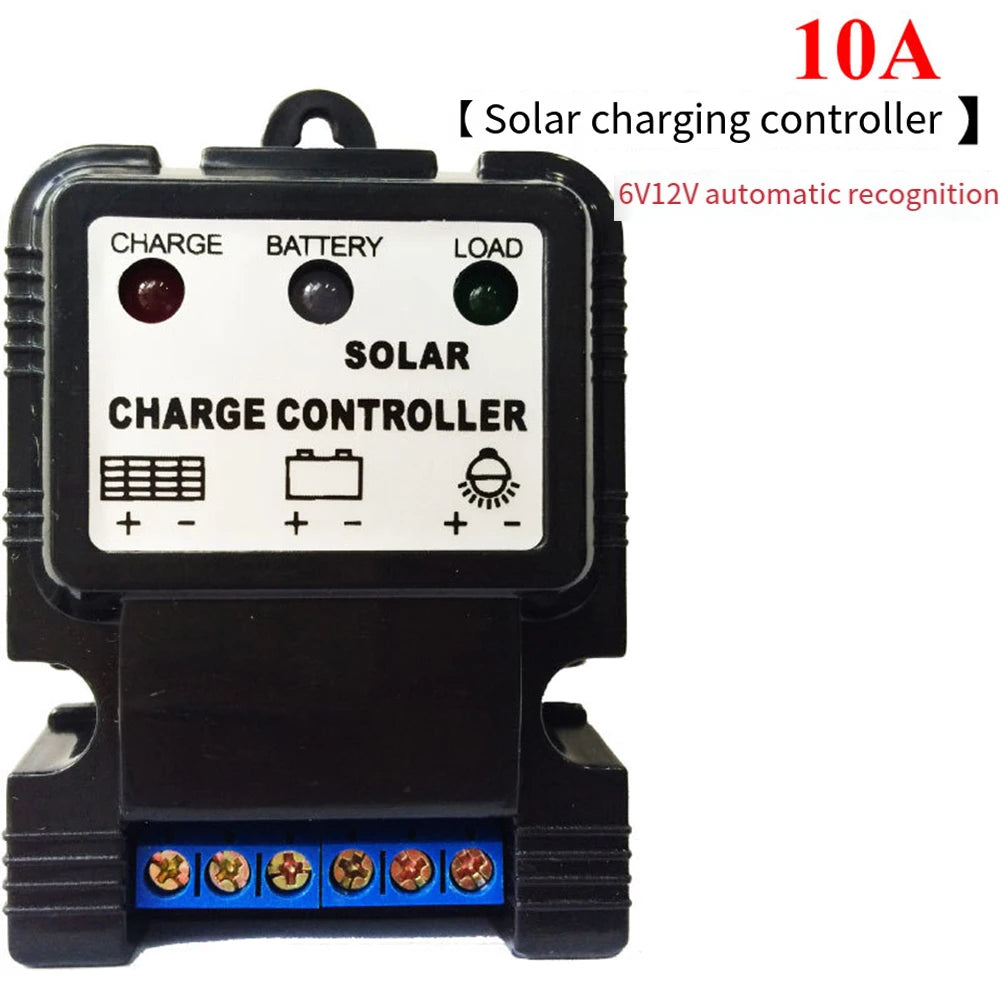

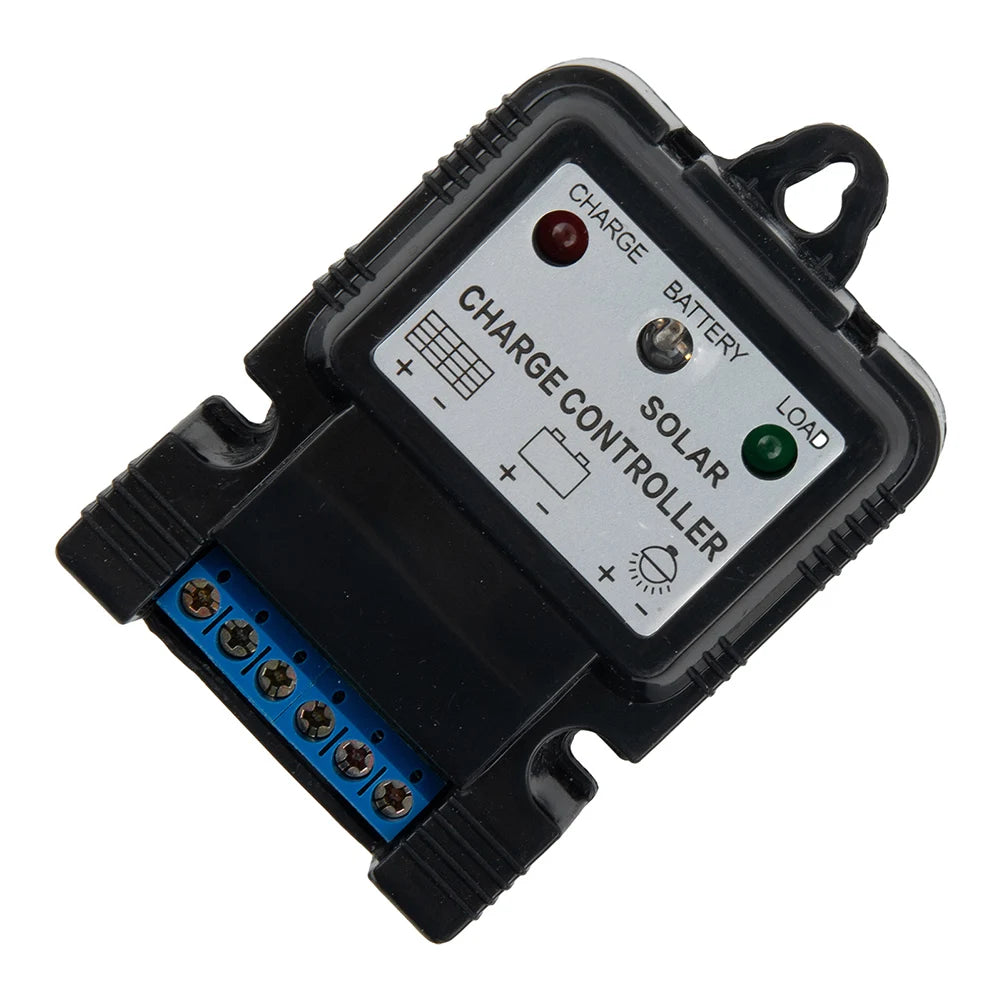

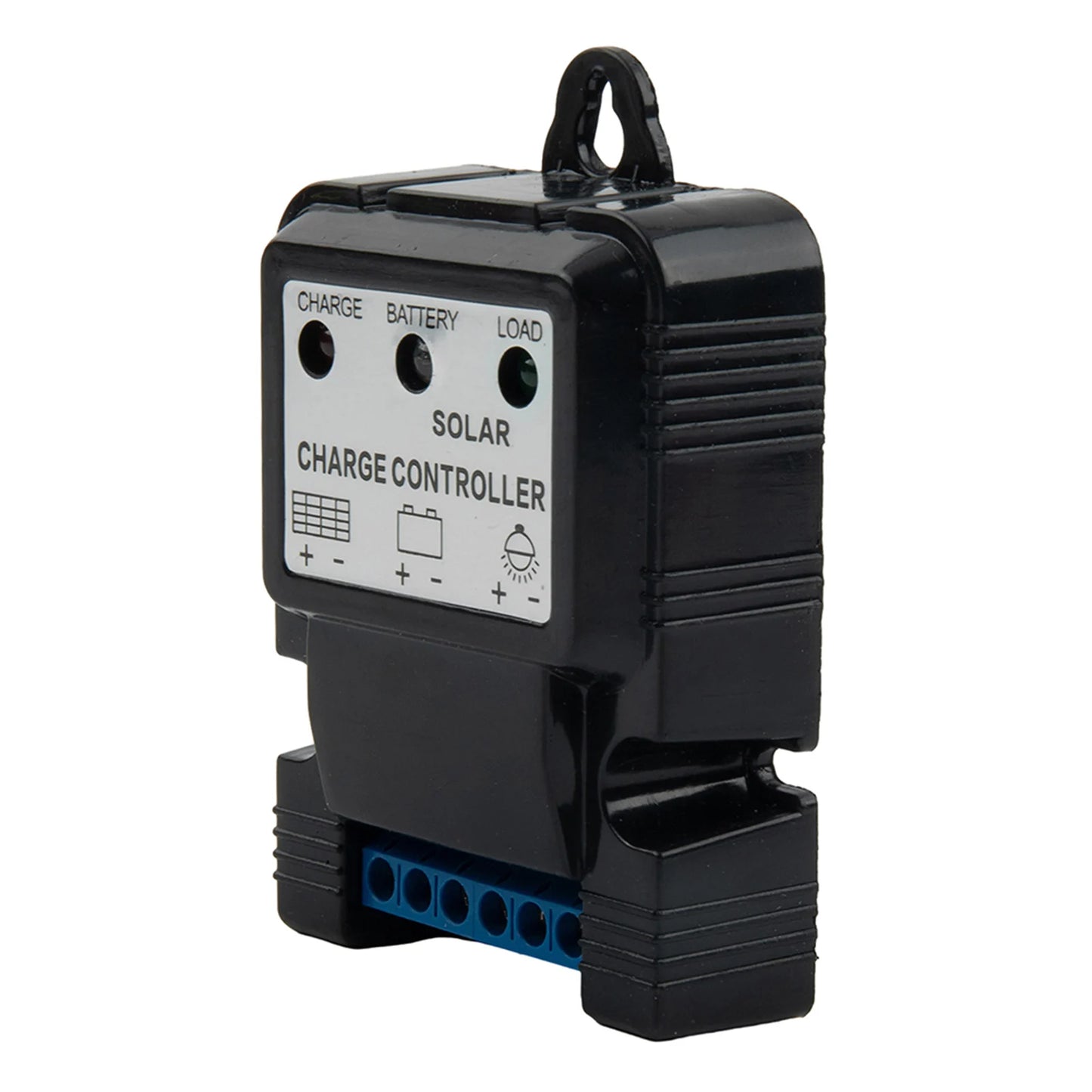

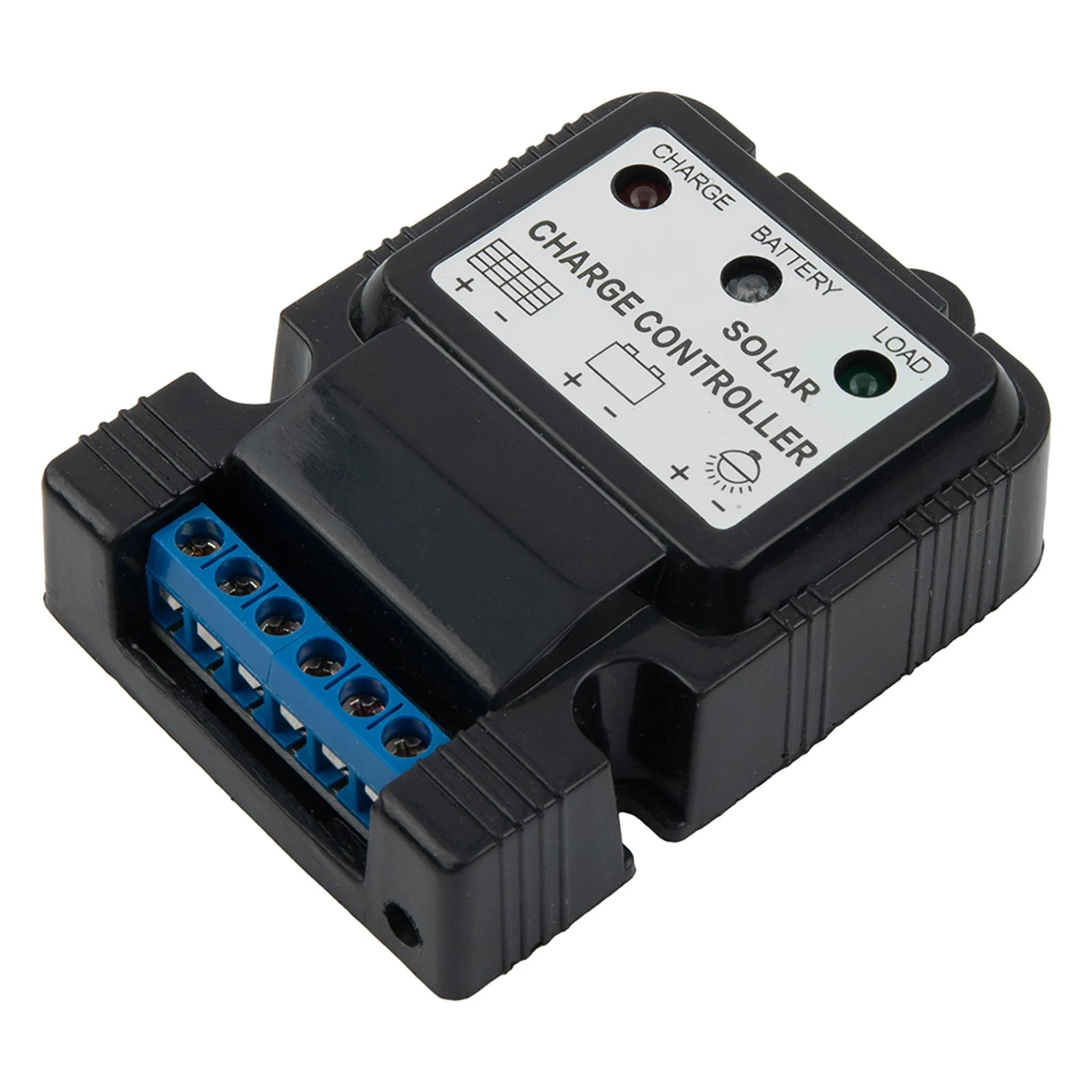

Part Name: Solar Controller
Color: Black
Material: Plastic
Charging way: Pulse Width Modulation Adjustment
Charging rated current: 10A
Discharging rated current: 10A
System voltage: 6V/12V automatic identification
Solar panel/load power: 60W/120W
Overload, short circuit protection:Short-circuit protection action at ≥3 times the rated current, 1.5 times the rated current with a 5-minute delay to shut down, and automatically recover after 5 minutes
Controller protection:Overload, reverse connection, over discharge, over charge, short circuit, backflow prevention, etc.
Using altitude:≤5500m (power reduction is required for distances above 2000m)
No-load current:≤6mA
Charging circuit voltage drop:≤0.2V
Discharging circuit voltage drop:≤0.1V
Overvoltage protection:8.3V/16.5V
Overvoltage recovery:7.5V/15V
Over-discharge protection:5.4V/10.8V
Over-discharge recovery:6.4V/12.8V
Boost charging:7.4V/14.8V
Balanced charging:7.2V/14.4V
Floating charging:6.9V/13.8V
Charging return:6.6V/13.2V
Daytime identification voltage:3.5V/7V
Nighttime identification voltage:1.5V/3V
Protection level:IP30
Operating temperature:-40℃~55℃

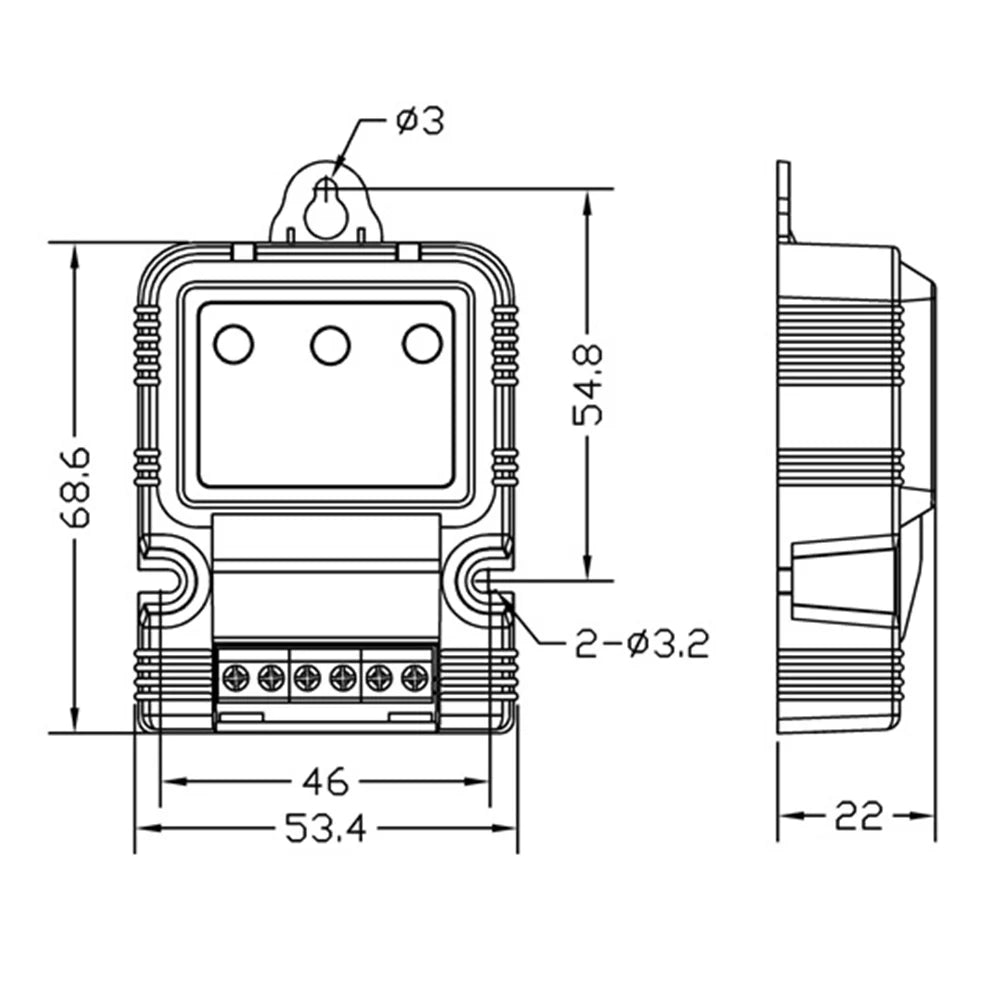

Size:53.4mm*68.6mm*22mm
Weight:0.04kg

Package Contents:
1*Solar Controller
1*Instruction Manual
