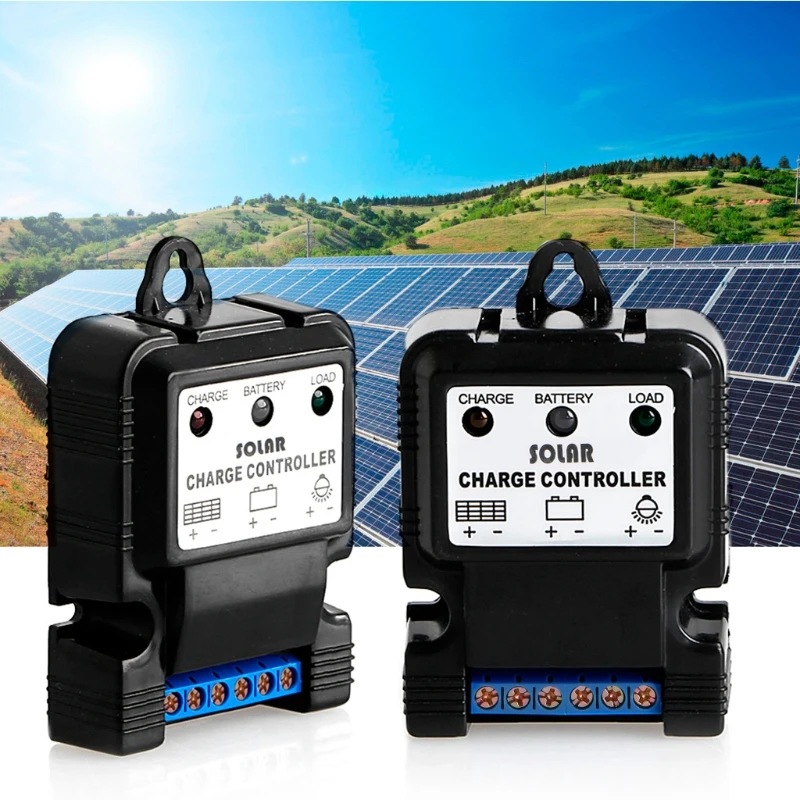

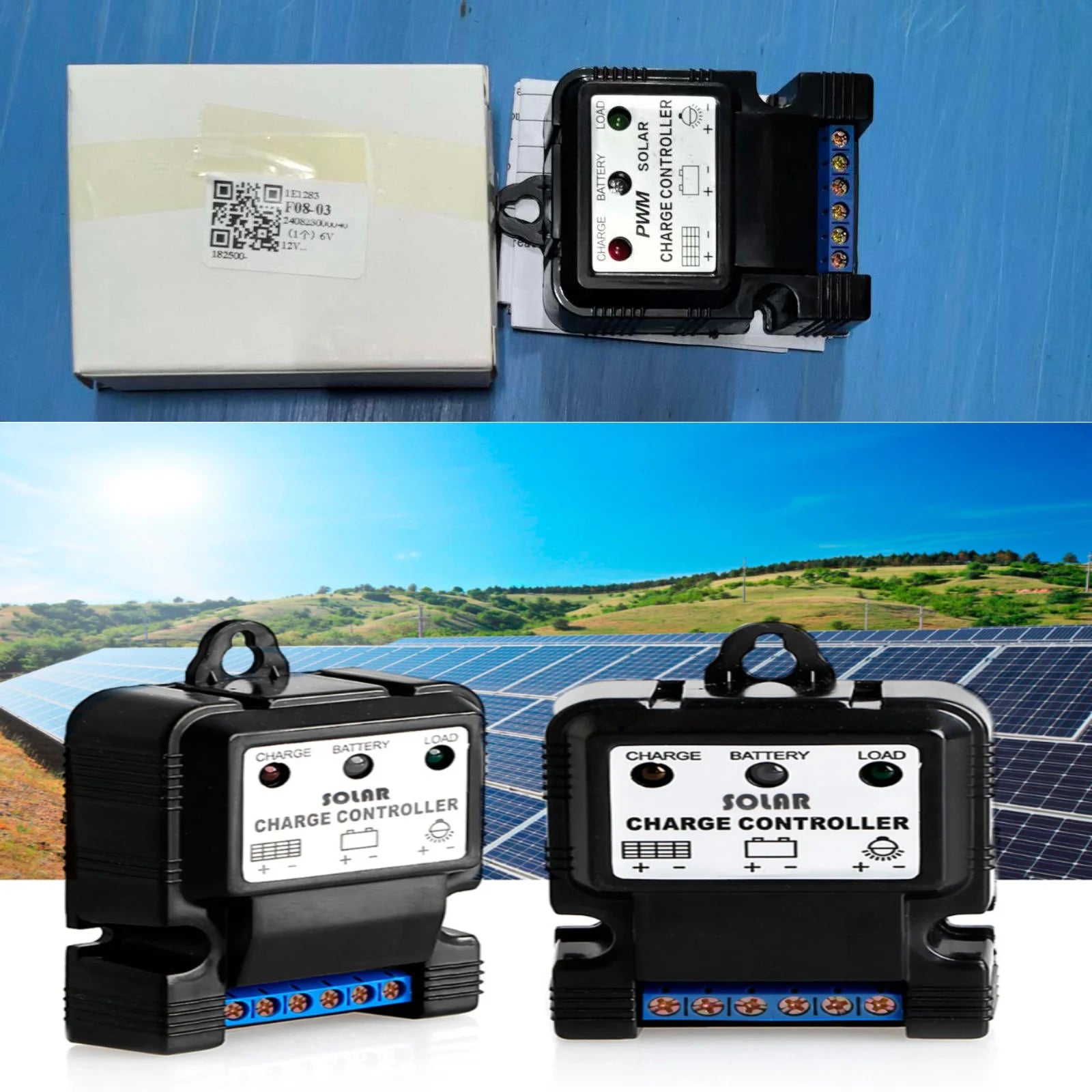

Material: Plastic
Color: See Pictures
System Voltage: 6V, 12V
Output Current: 10A
Power Range: ≤60W(6V), ≤120W(12V)
Overload, Short Circuit Protection: Yes
No-load loss: ≤5mA
Charge Loop Drop: ≤0.2V
Disharge Loop Drop: ≤0.1V
for Protection Degree: IP30
Working Temperature: -40℃~55℃

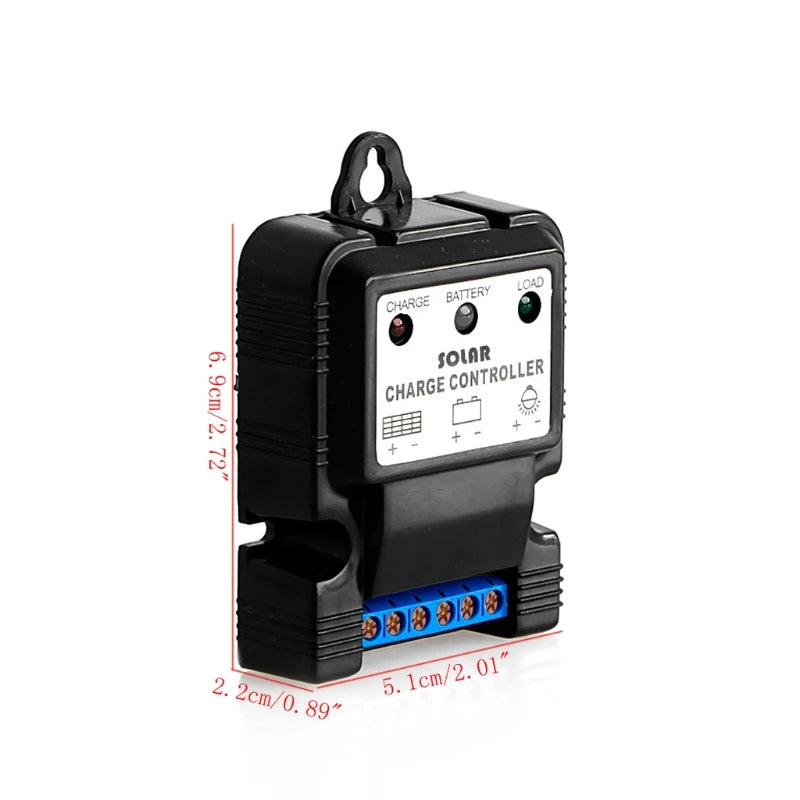

Size: See the picture

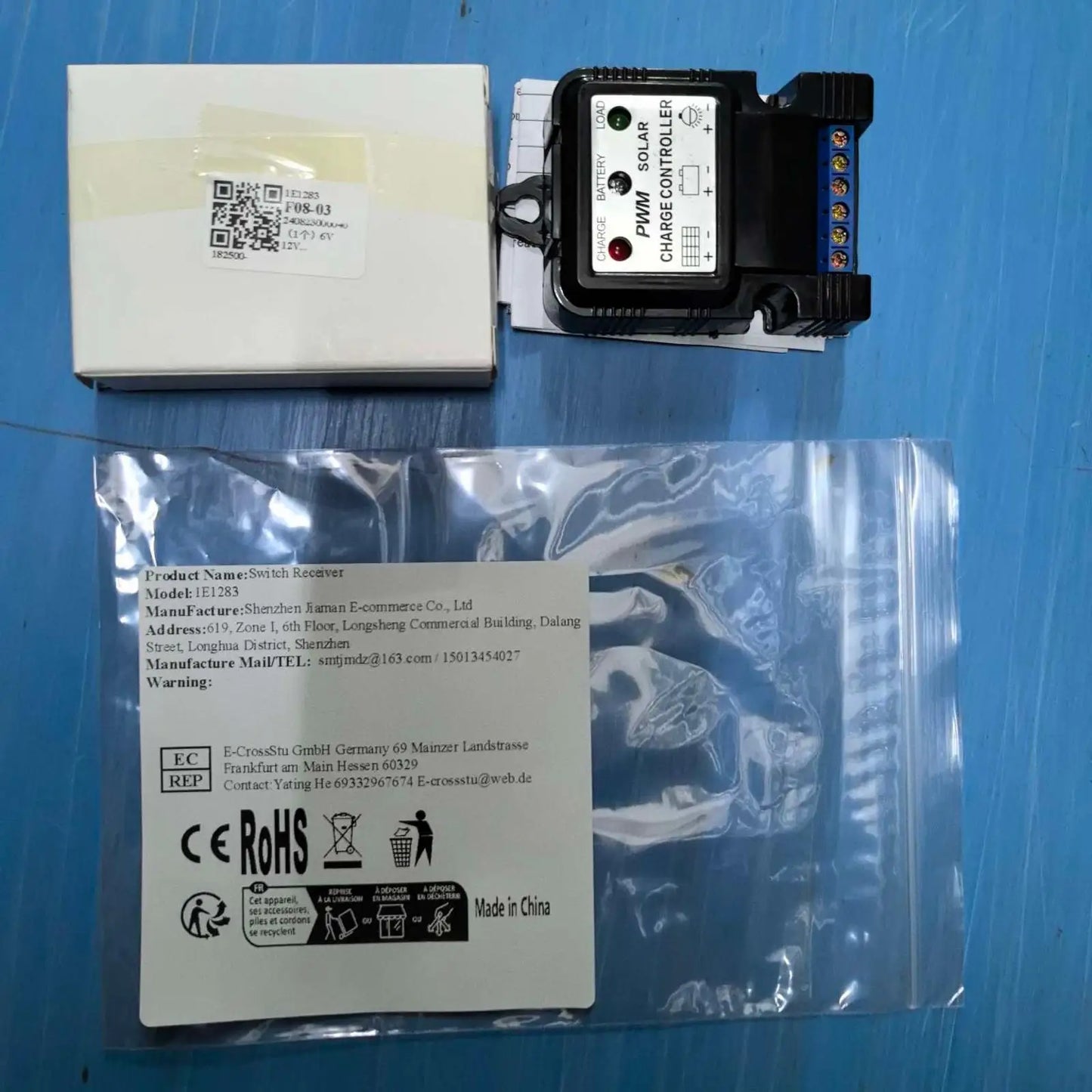

Quantity: 1 Pc(No Retail Package)

Install and Method of Using:
Making sure the solar energy panel is laid outdoors under the sunshine!!!

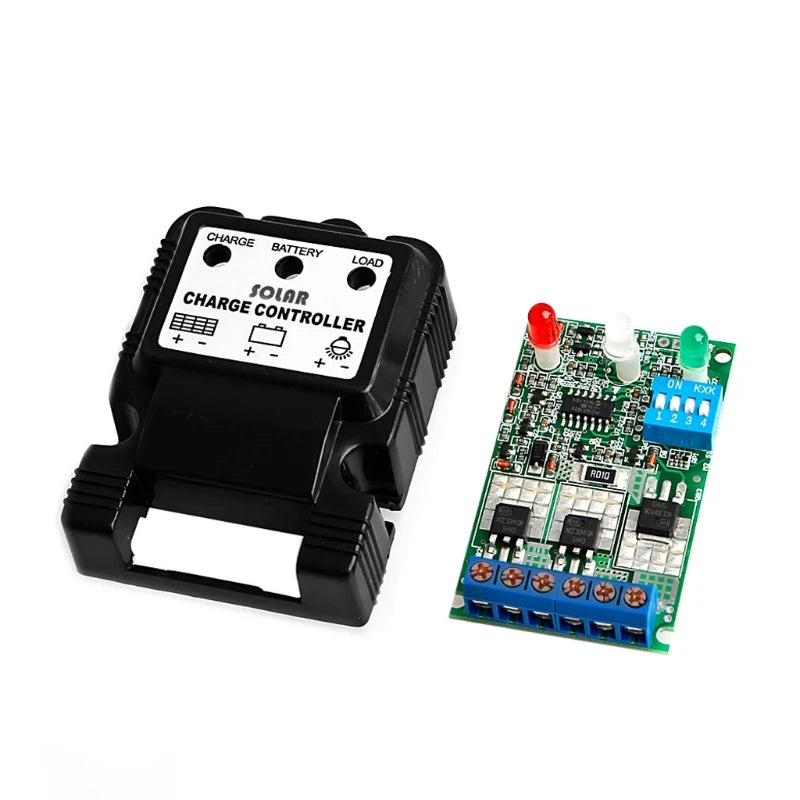

Firstly, determine the controller output mode , the device factory default setting is normally open mode .if you need to set for the pure light control mode or light control plus timing mode, you need to open the enclosure through set dip switch, changing the discharge mode
When the for key set "on" is 1, the for key set "off" is 0, normally open, pure light control

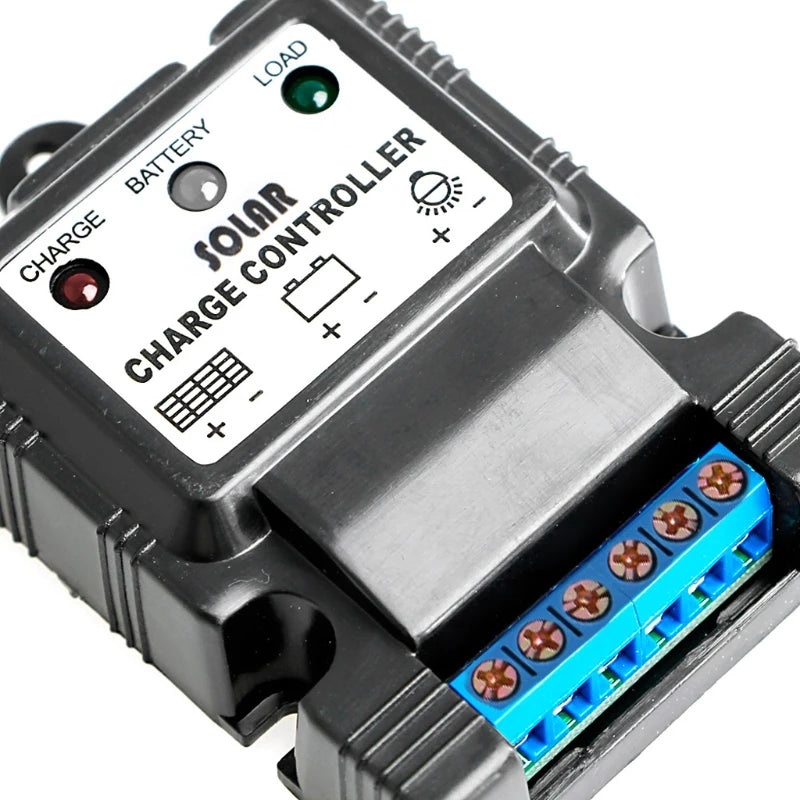

Connecting the battery first. if correctly connected, battery indicator will light
Connecting the wire of the solar panel second. if the connection is correct, the indicator light of “charge”will be on or flash 10 seconds later after laying outside under the for sun. otherwise, please check the connection
Connecting the load at the end. if inversely connected, the led lamp may be damaged
Please pay attention to the anode and the cathode to avoid the inverse connection

Note:
Due to the difference between different monitors, the picture may not reflect  the actual color of the item. Thank you!
