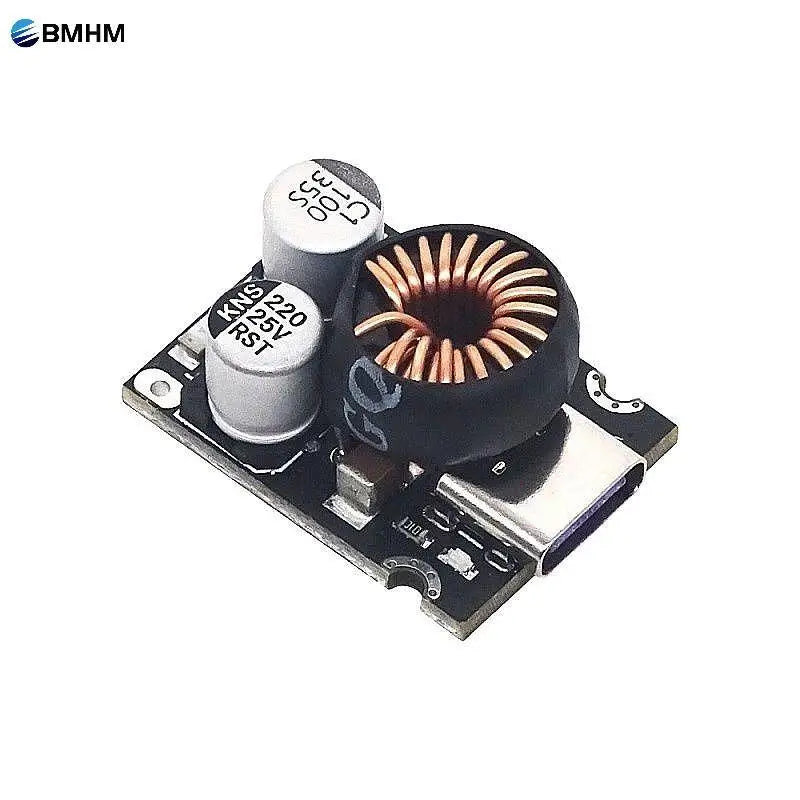

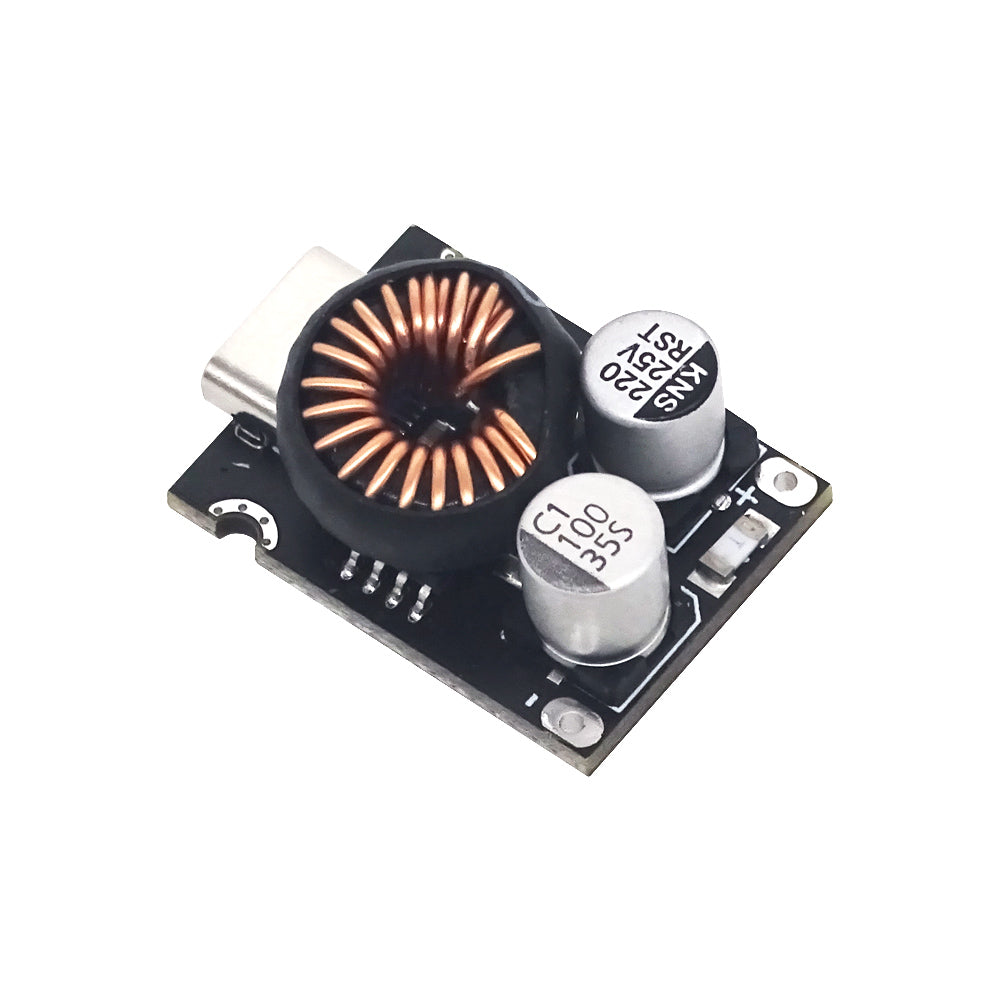

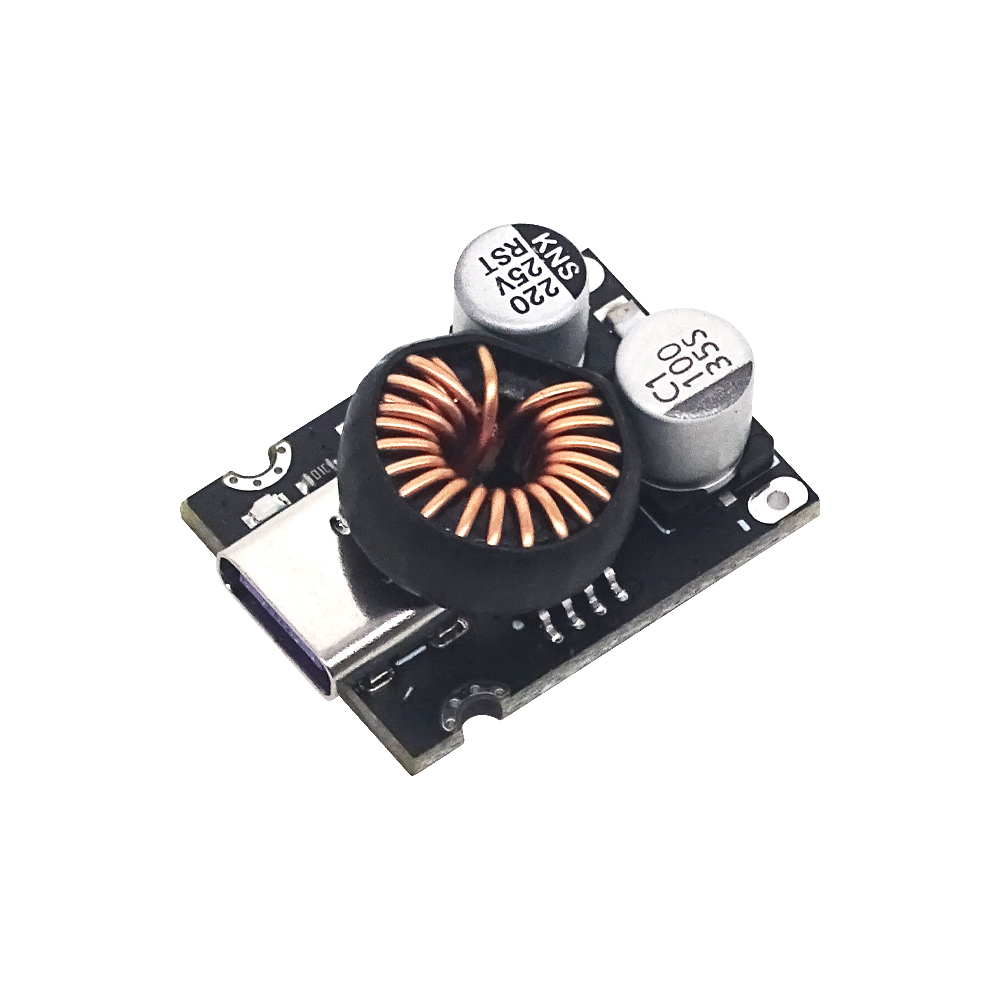

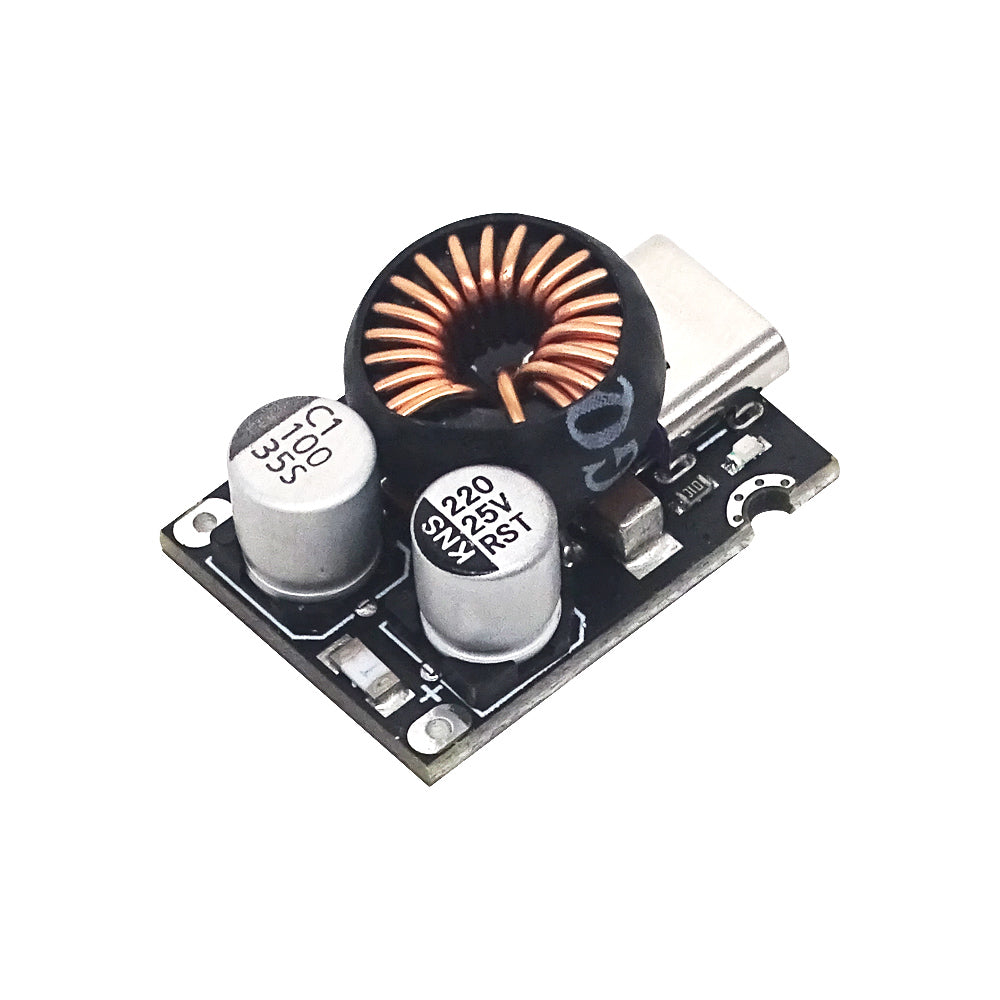

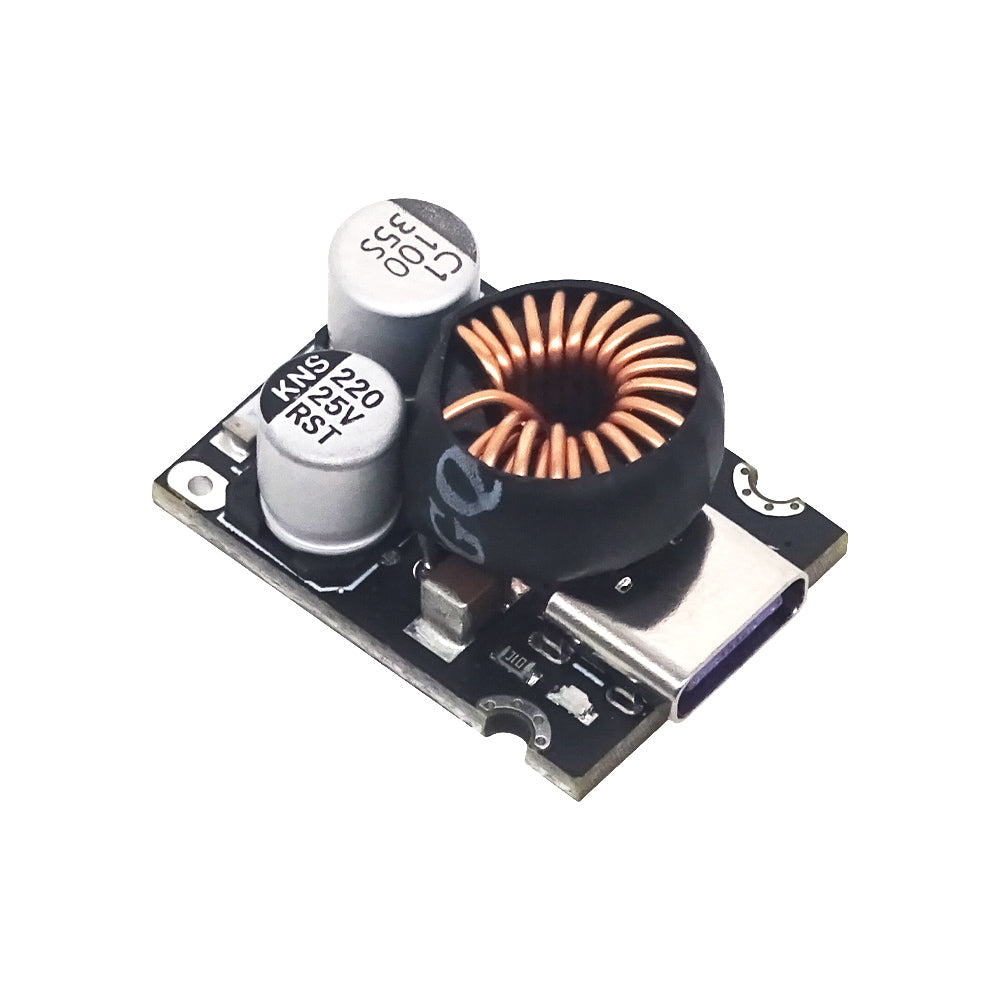

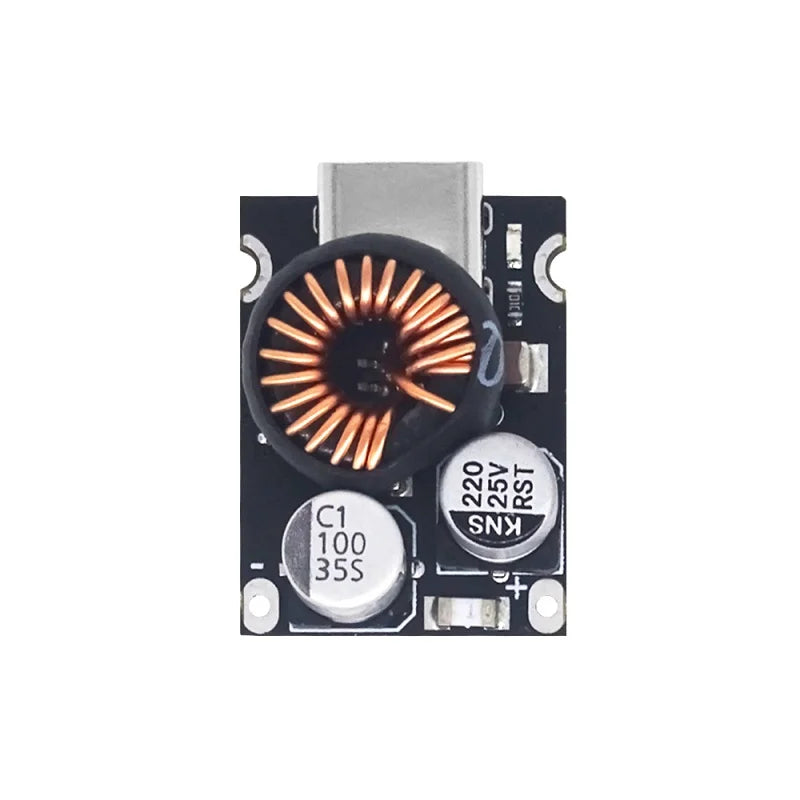

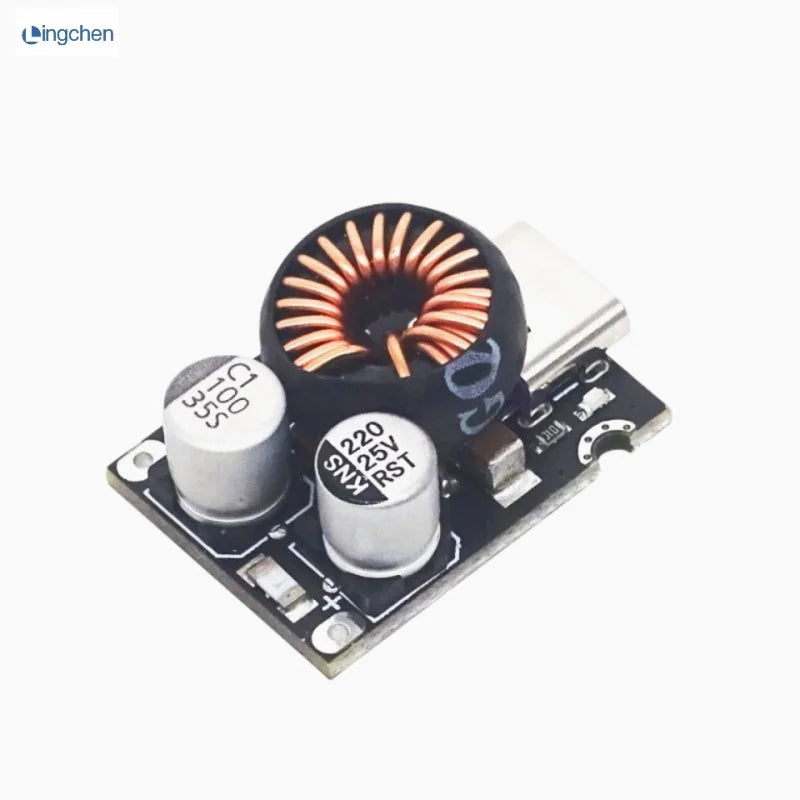

Supports PD3.1 (PPS) 65W fast charge module

Product characteristics

 the input voltage: DC 12 ~ 30 v
 output voltage: when access is compatible with the TYPE - C by electrical equipment after automatic adjustment between 3.3 V ~ 21 V (the input voltage is higher than the output voltage, if you want to trigger the 20 V quick charge is the input voltage is higher than 20 V)
 output power: 65 w (5 v3a, 9 v3a, 12 v3a, 20 v3. 25 a, etc.)
 conversion efficiency: 92% ~ 97%

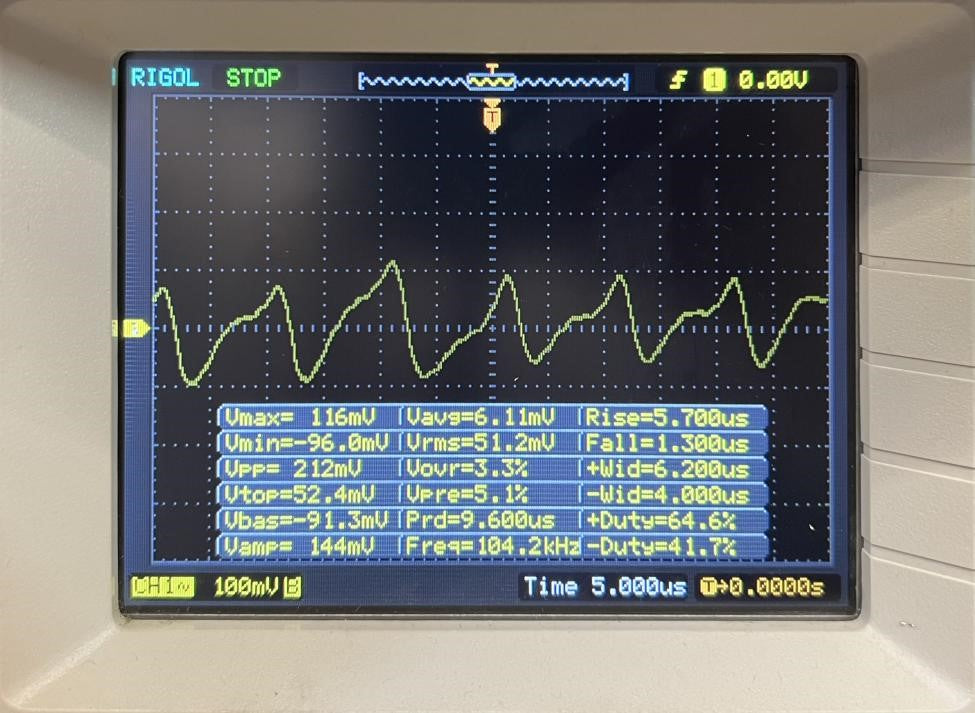

 output voltage ripple: < 300 mv
 no-load current: < 2 ma
 input overvoltage, undervoltage protection
 input over-current protection
 output over-current, short circuit protection

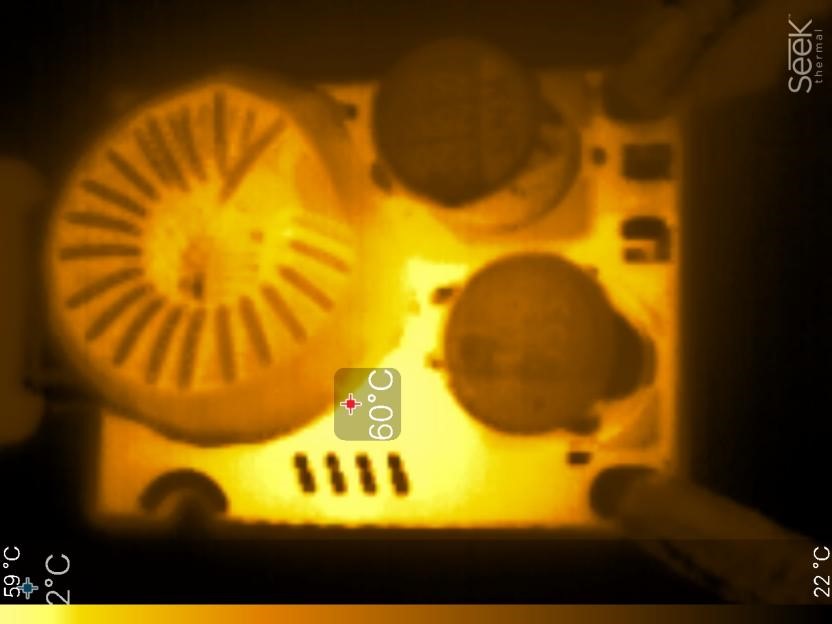

 the over temperature protection

Supported charging protocols

    1. BC1.2, Apple agreements
 2. Qualcomm qc2.0 and qc3.0
3.huawei quick charge protocol FCP and SCP
Zzzz4. AFC samsung quick charge agreement
 5. MTK PE and MTK PE 2.0 1.1)
    6.PD2.0 / PD3.1 output protocol (PPS)

Product application

1 All kinds of power supply transformation fast charge output

Product size
1. 20×30×10mm (excluding the protruding 1mm of the C socket)
