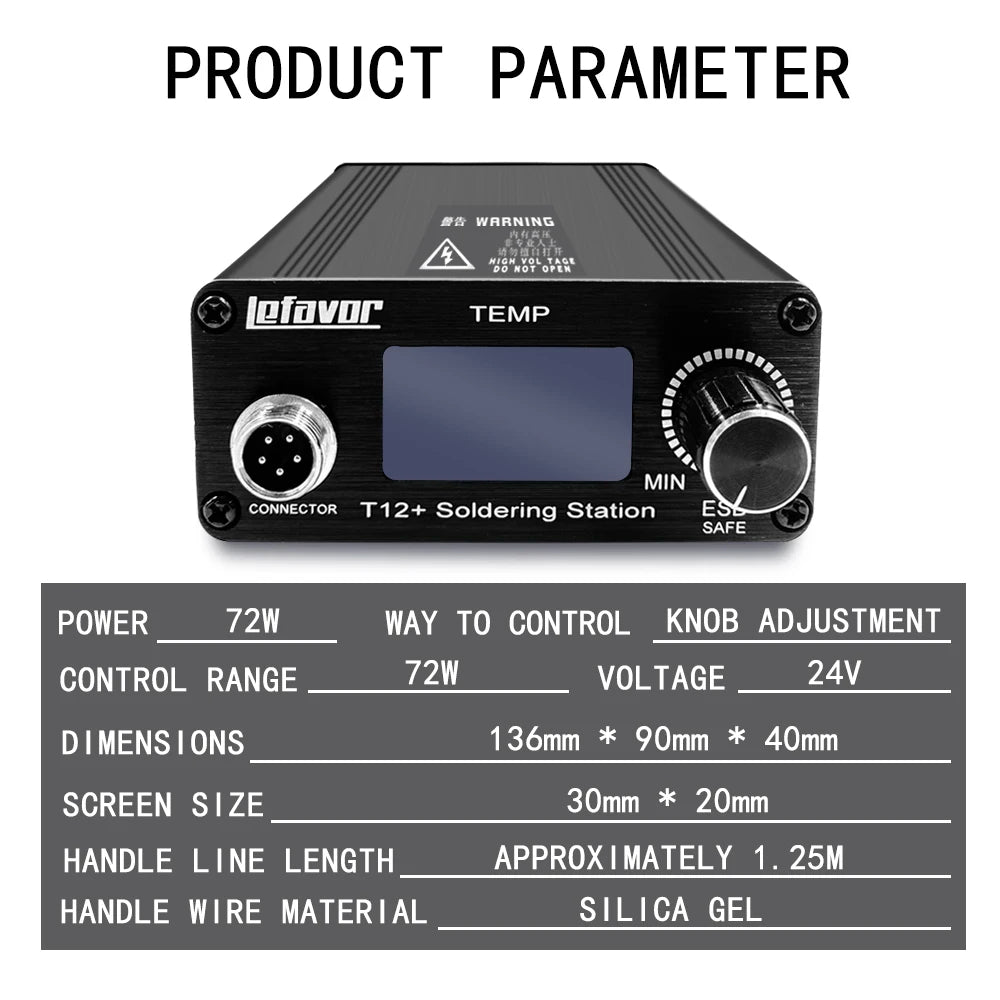

SPECIFICATIONS

Brand Name: lefavor

Certification: CE

Choice: yes

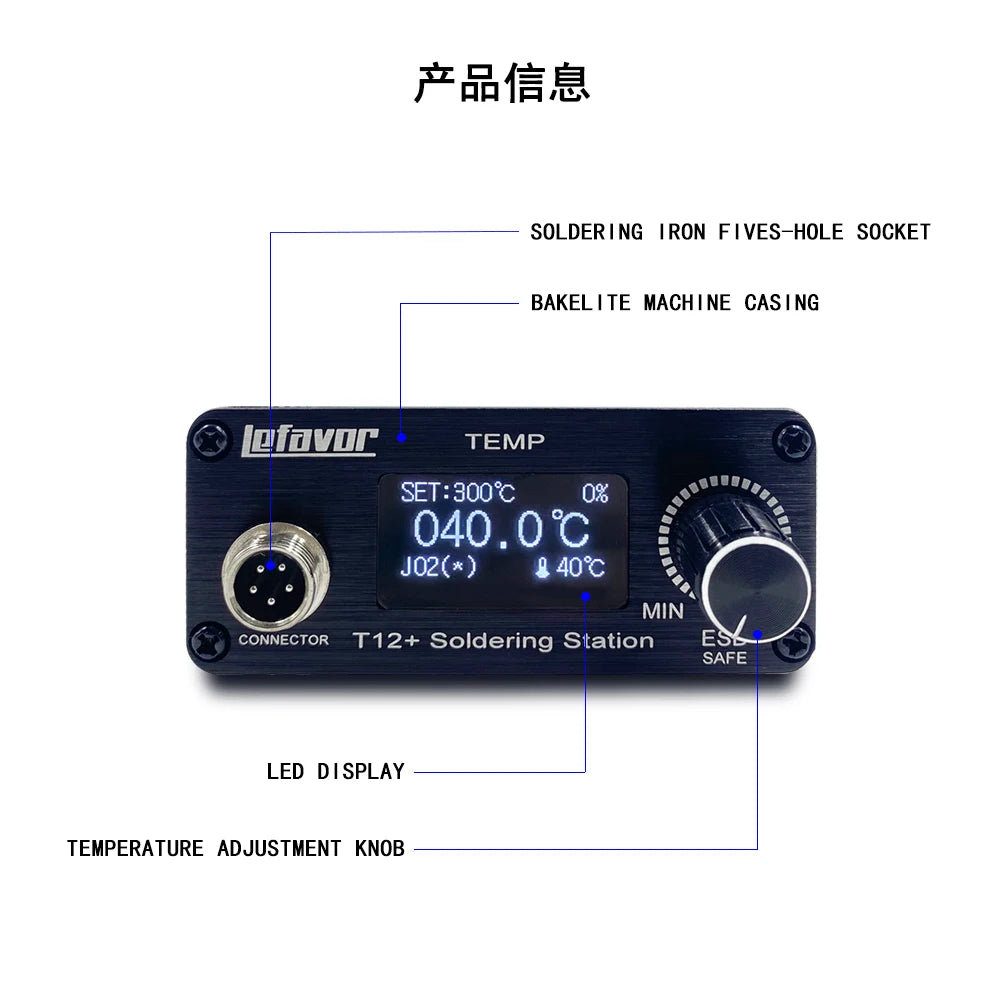

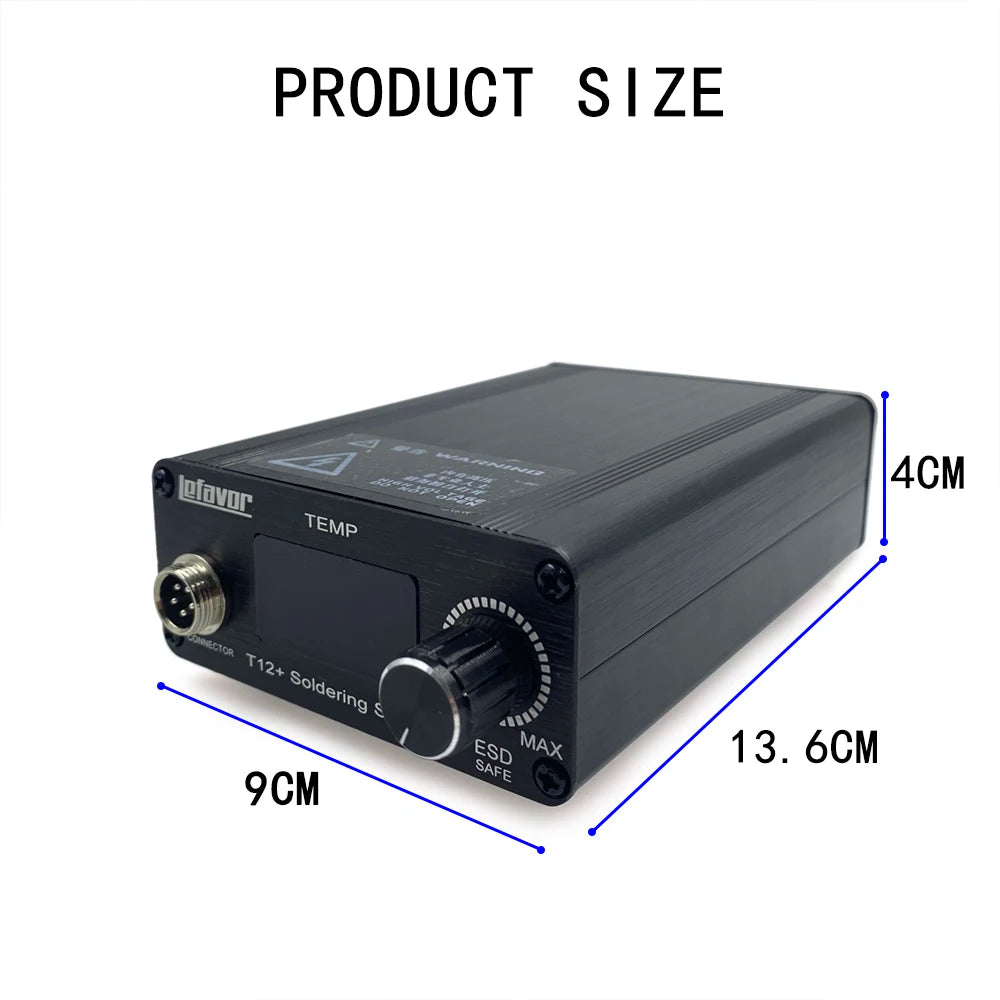

DISPLAY: 1.3INCH

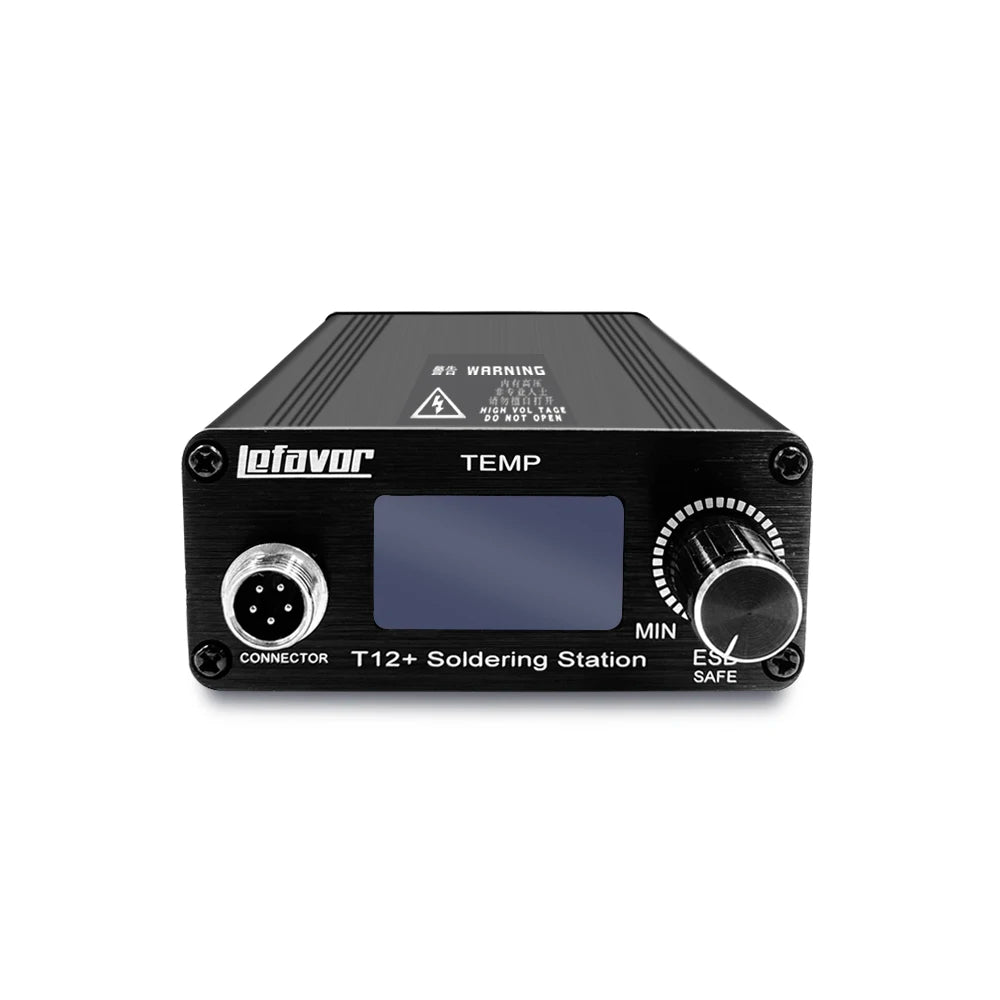

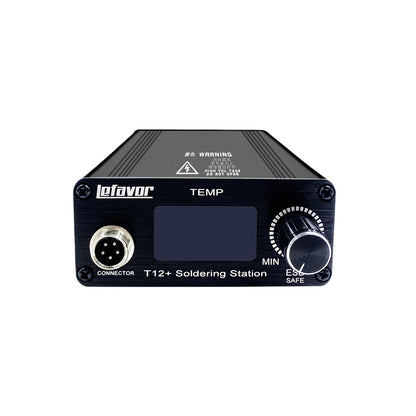

Model Number: T12+

Origin: Mainland China

T12: t12 220v portable bga rework solder station

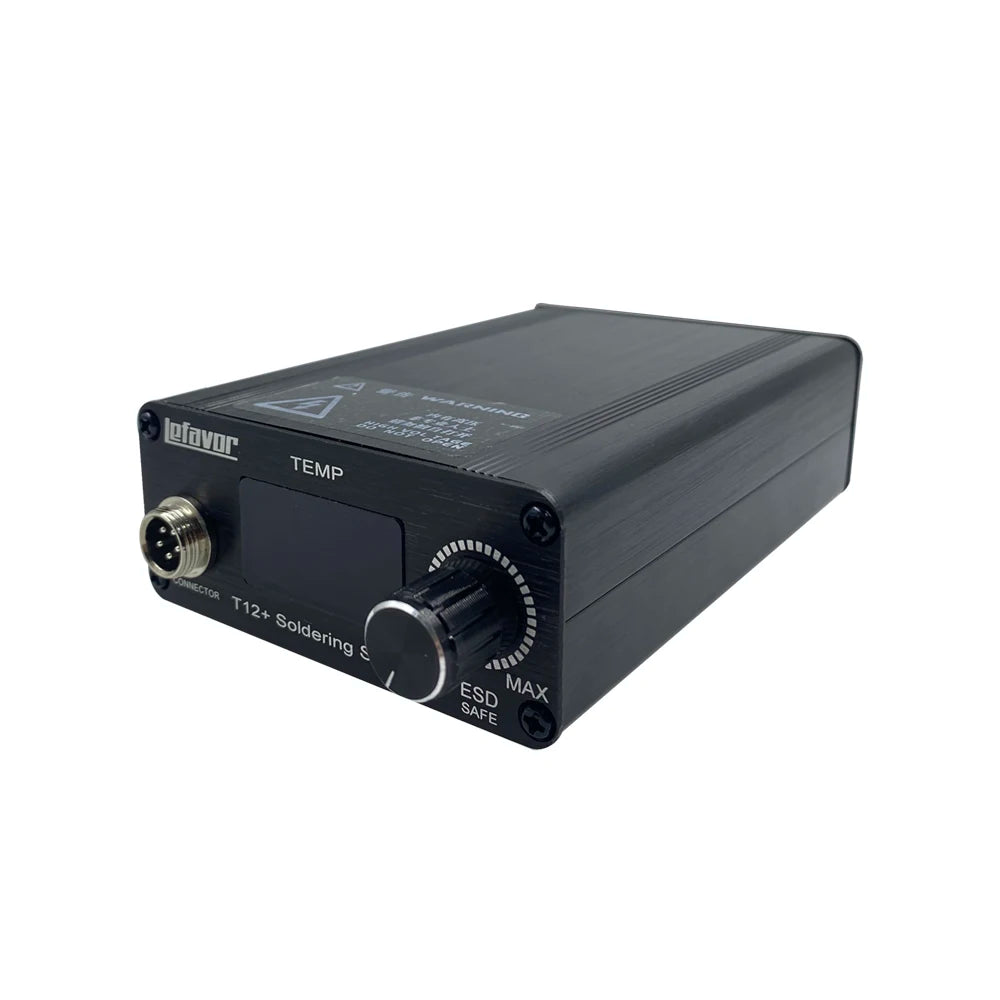

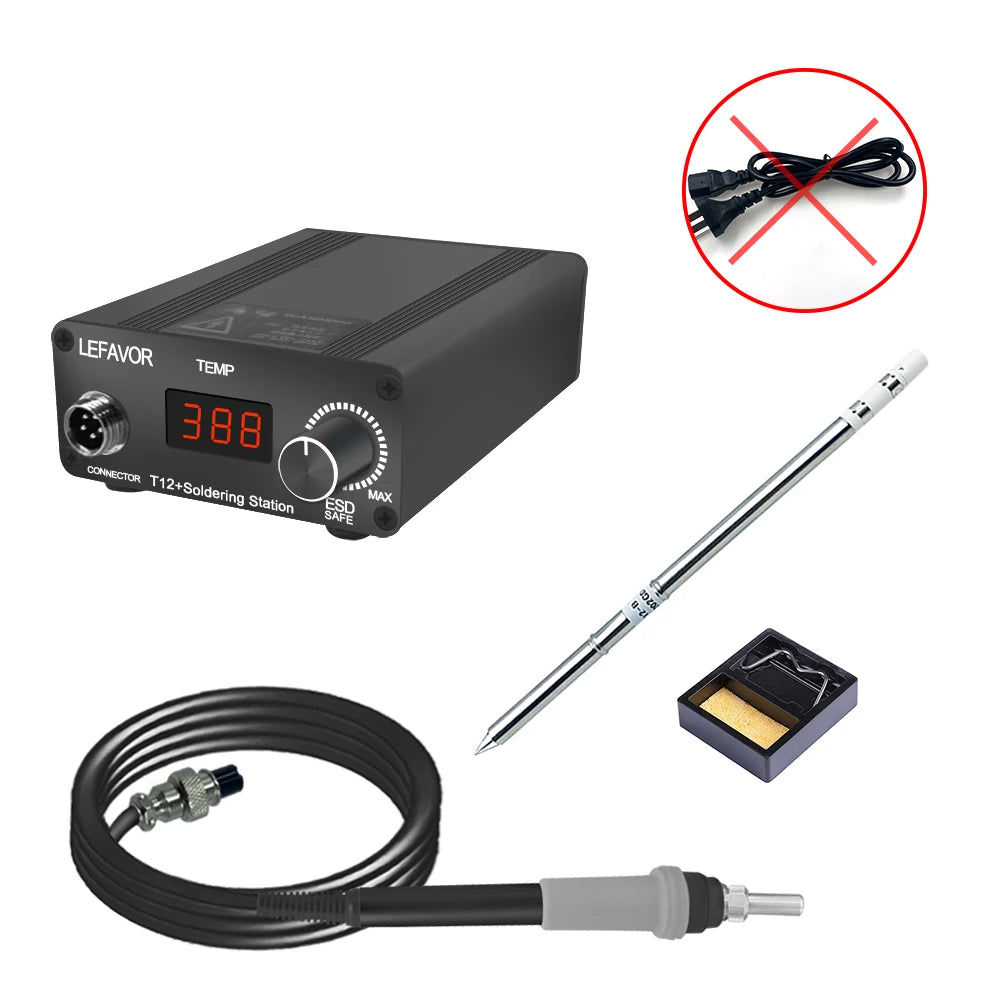

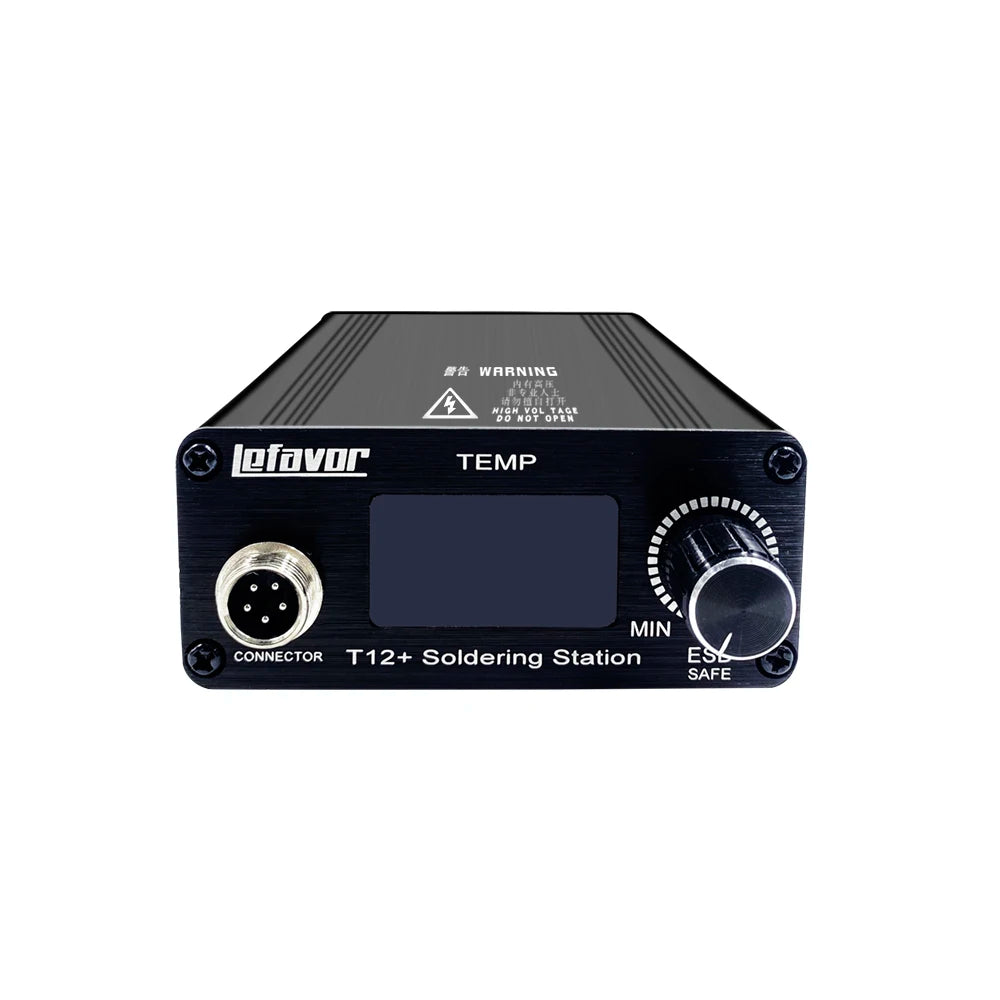

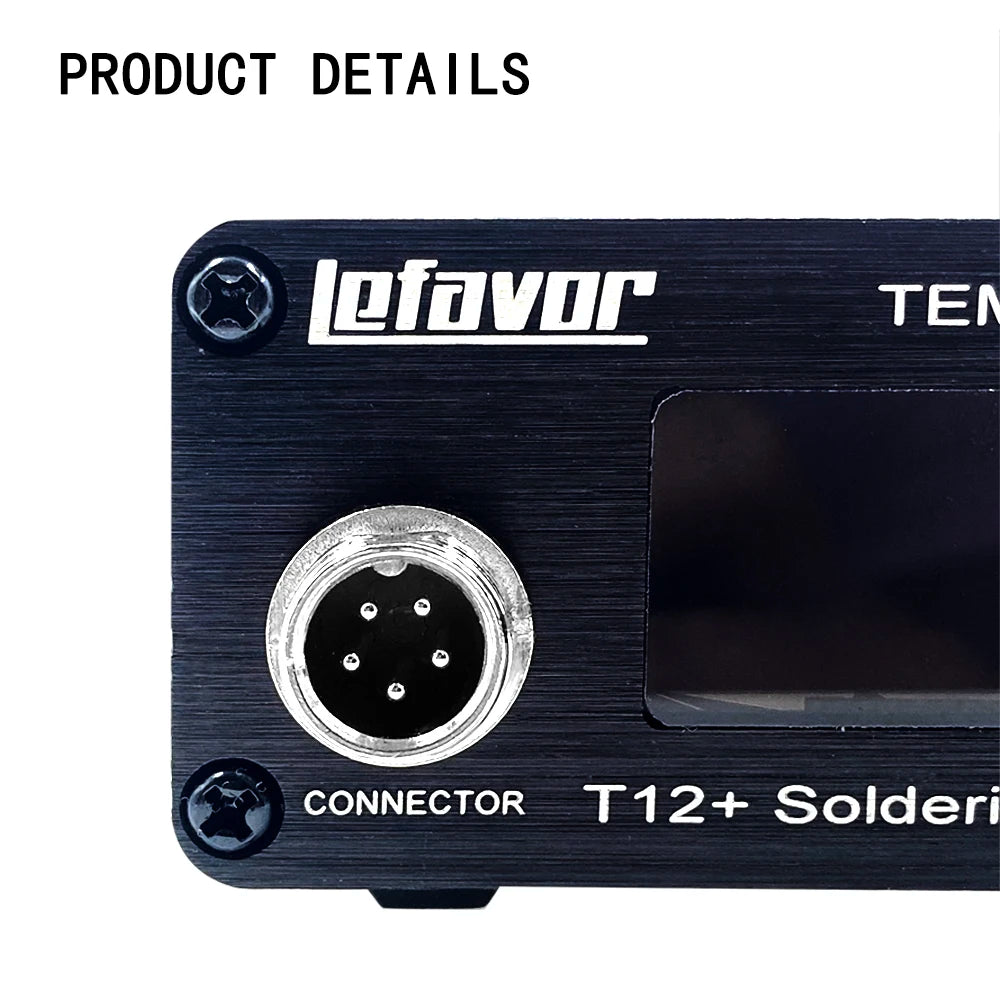

T12+: t12 rework station soldering station

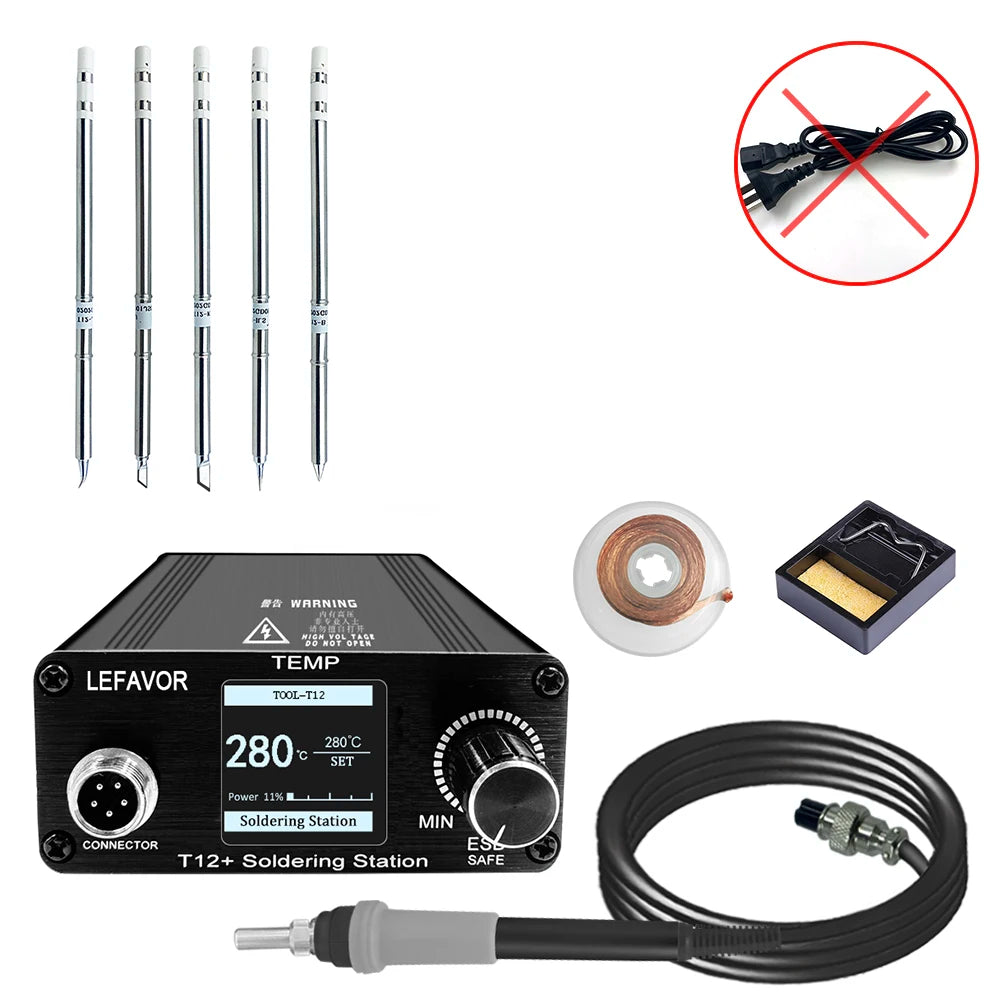

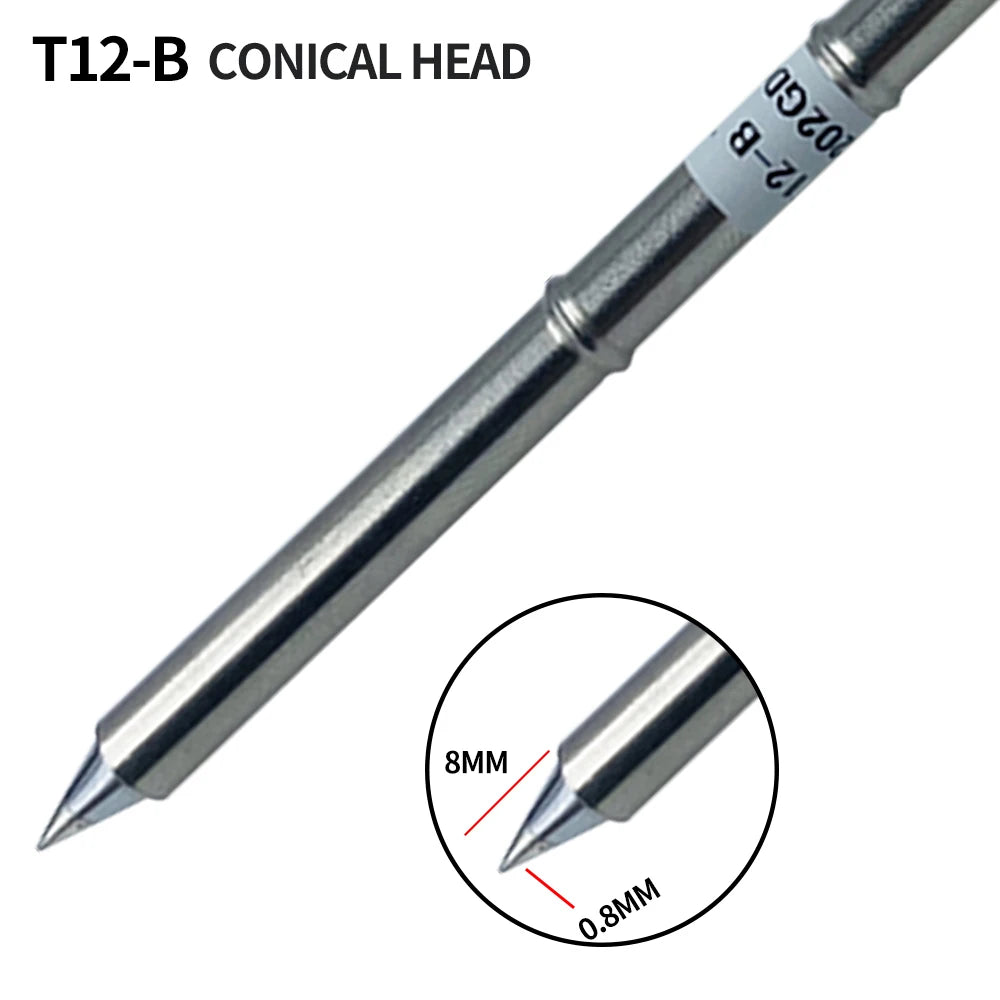

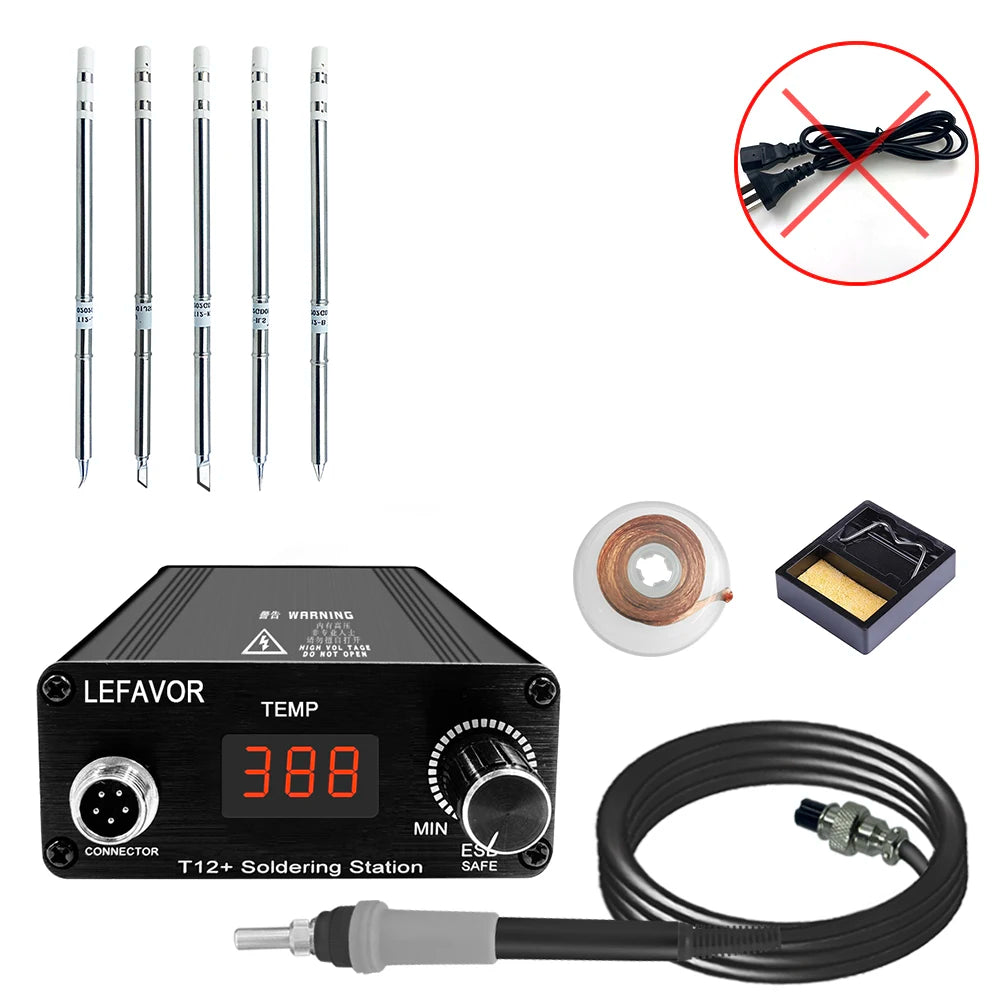

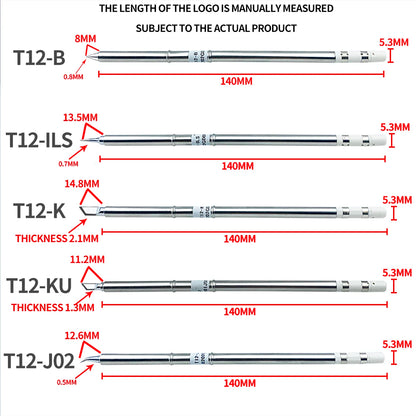

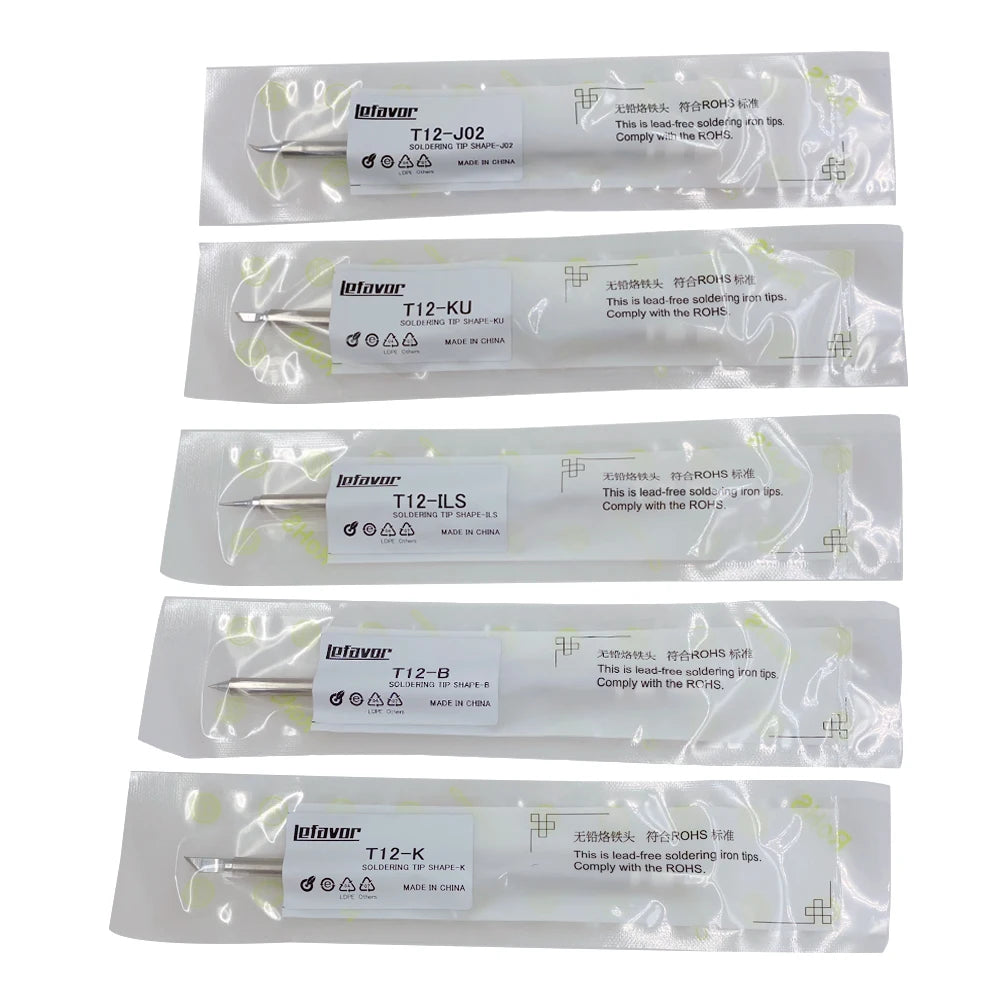

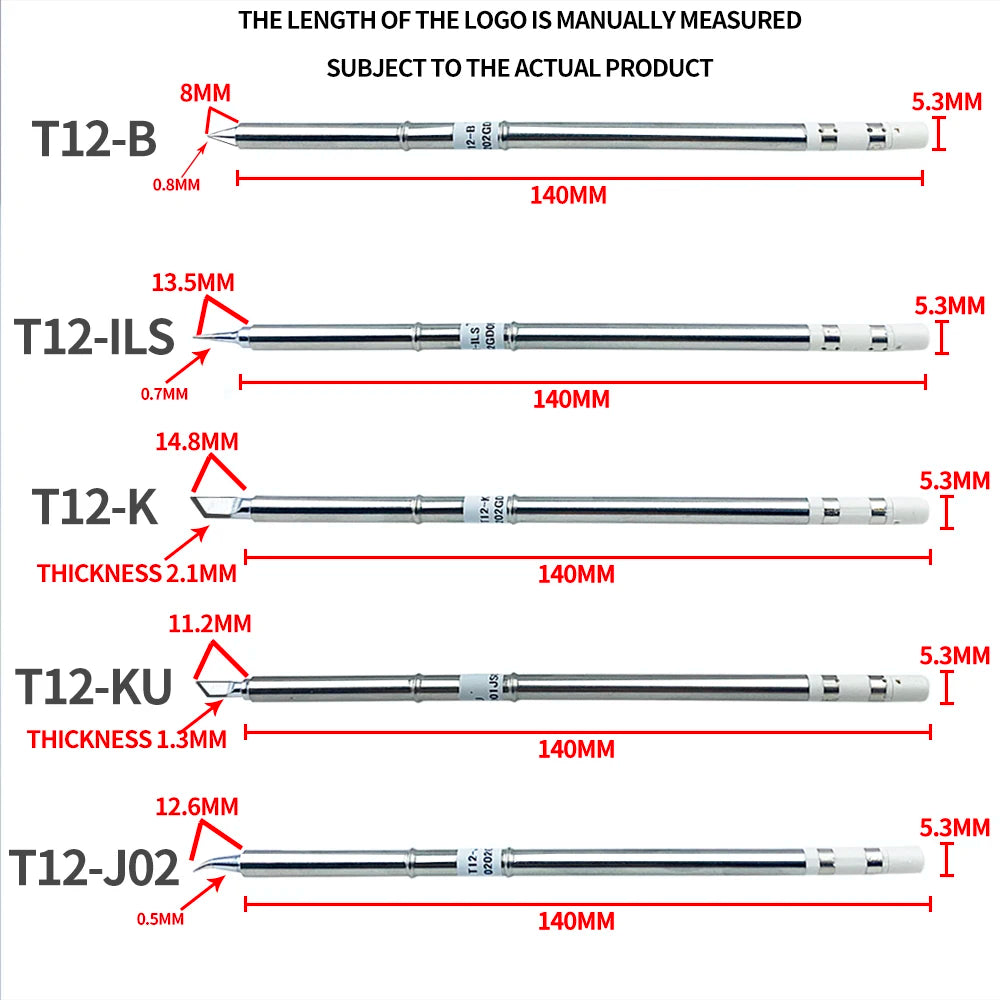

feature: T12 Soldering Station with 1 soldering iron tips

feature 2: welding station

feature 3: mini t12 oled soldering station

feature 4: t12 digital soldering iron station

is_customized: Yes

semi_Choice: yes

shipping time: within 1 days

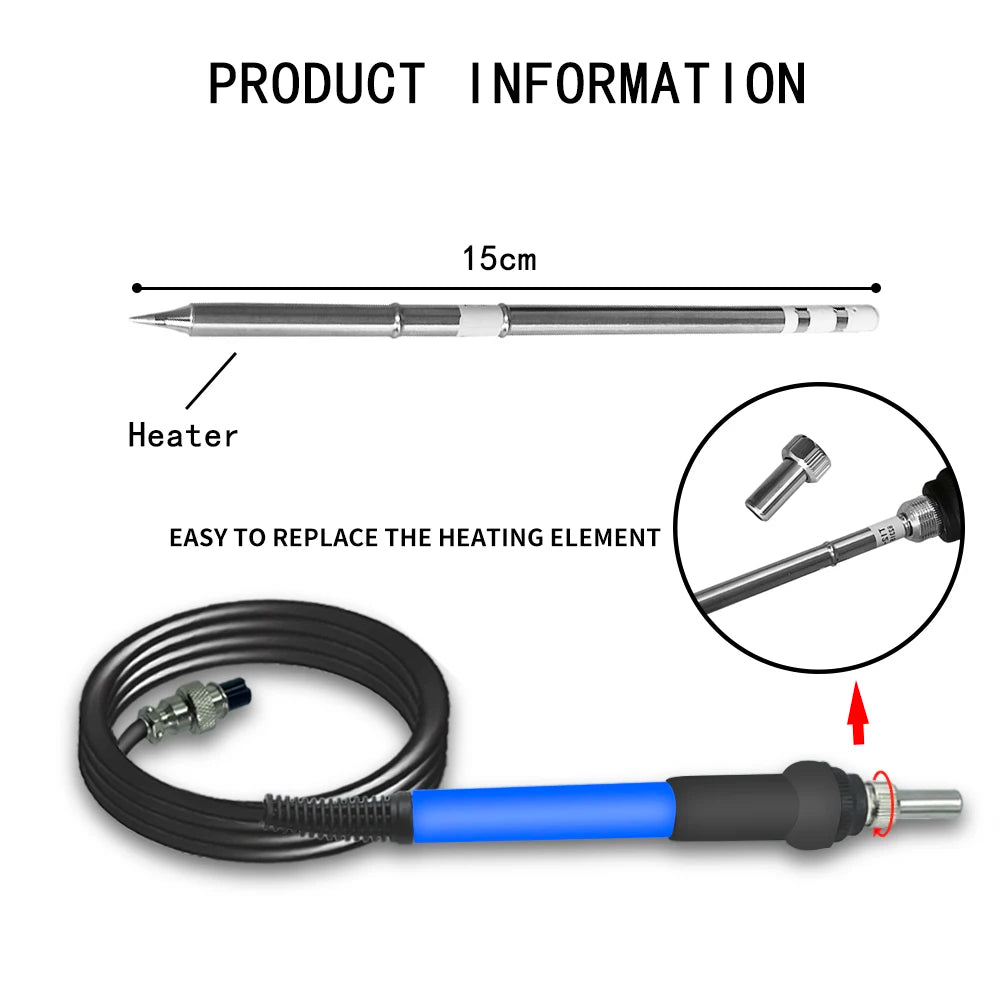

T12+ NOTE:This soldering station has not Hot air gun ! If U want change the default Tip , please tell us or leave a message. NOTE:Iron tip do not work continuously high temperature, high temperature work is easy to damage the tip! Ordinary solder melting point is 183°C, lead-free solder melting point is 227°C, usually the welding temperature is 300-380°C, 380°C is the temperature of the dividing line, higher than 380°C, iron head oxidation and loss is extremely fast, seriously affect the heating core life The Higher than 380°C temperature display will be beating, the higher the temperature, the greater the beating!Recommended in the 300-380°C for welding work, most of the work can be carried out, the temperature beating is normal, does not affect the use! The soldering iron used in this soldering station is a brand new soldering iron tip. Due to the unstable resistance of the new soldering iron tip, the temperature will jump or ERROR, which is normal. After several times of use, the stability will gradually stabilize. If you mind, please do not buy.

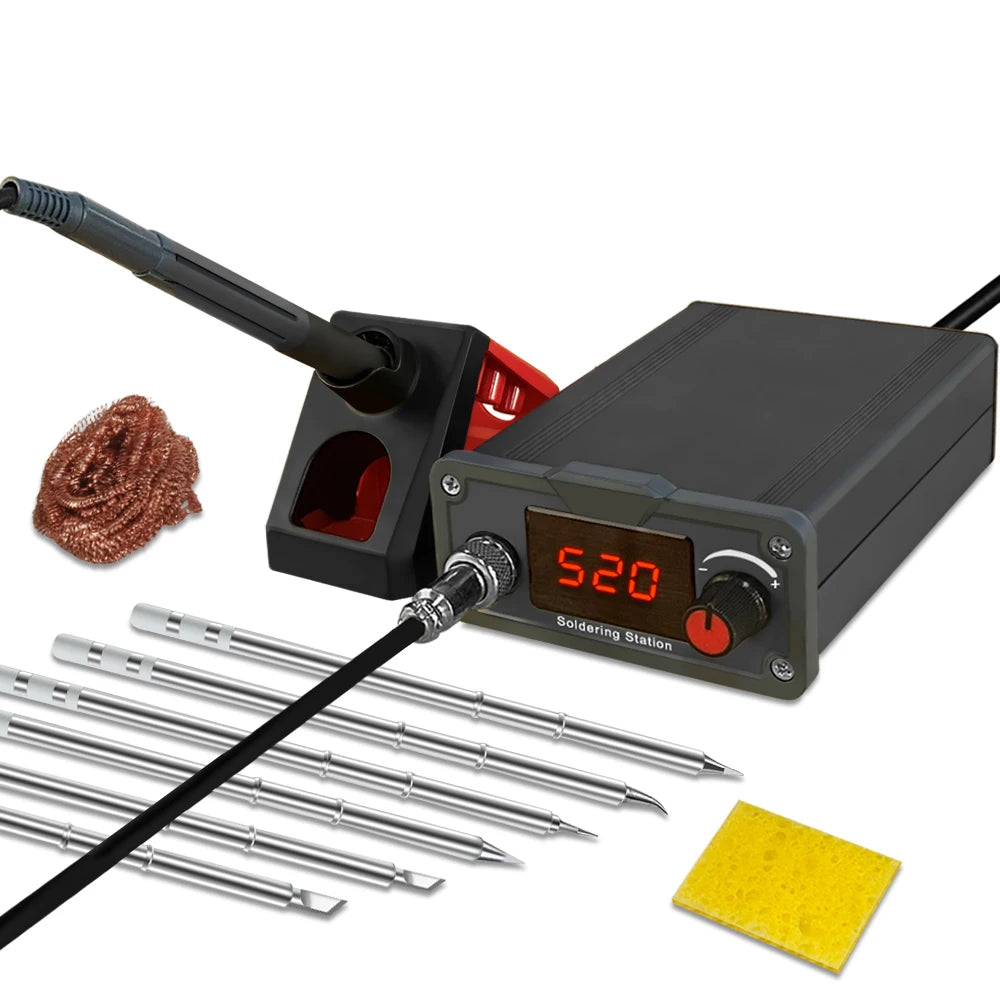

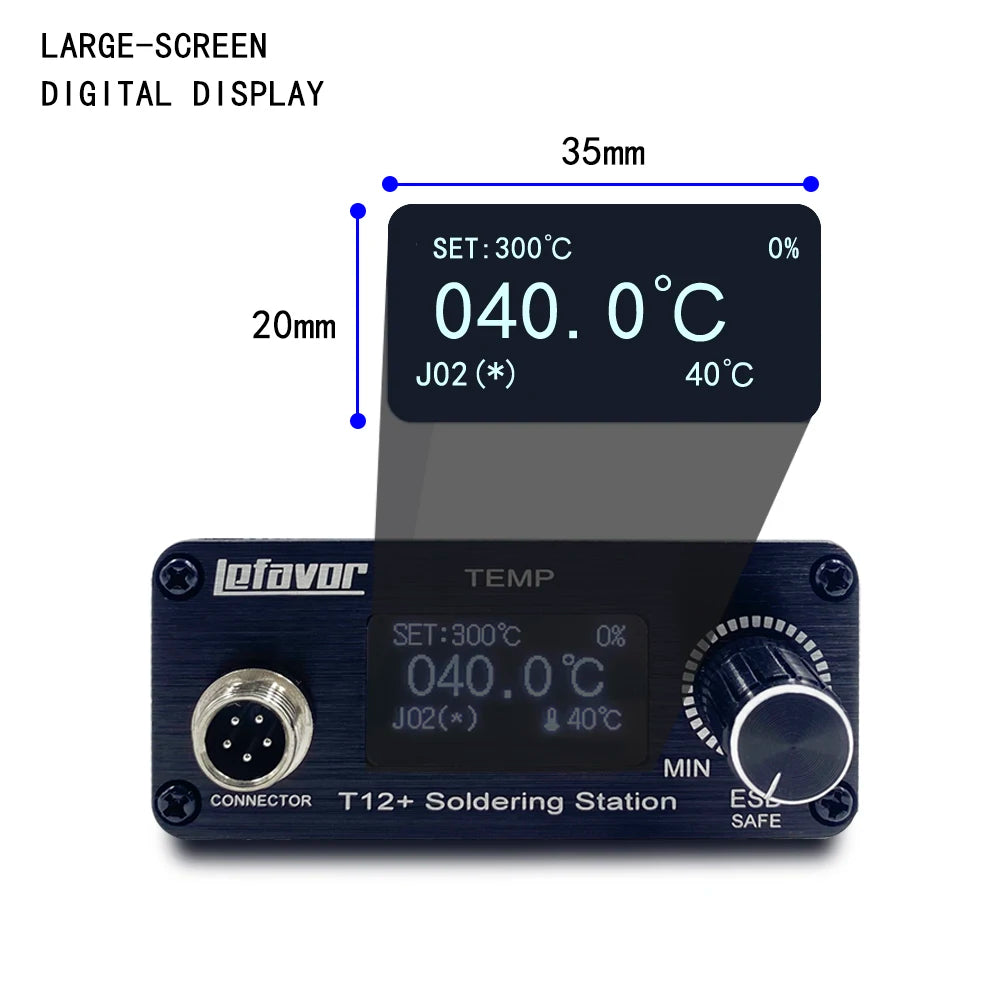

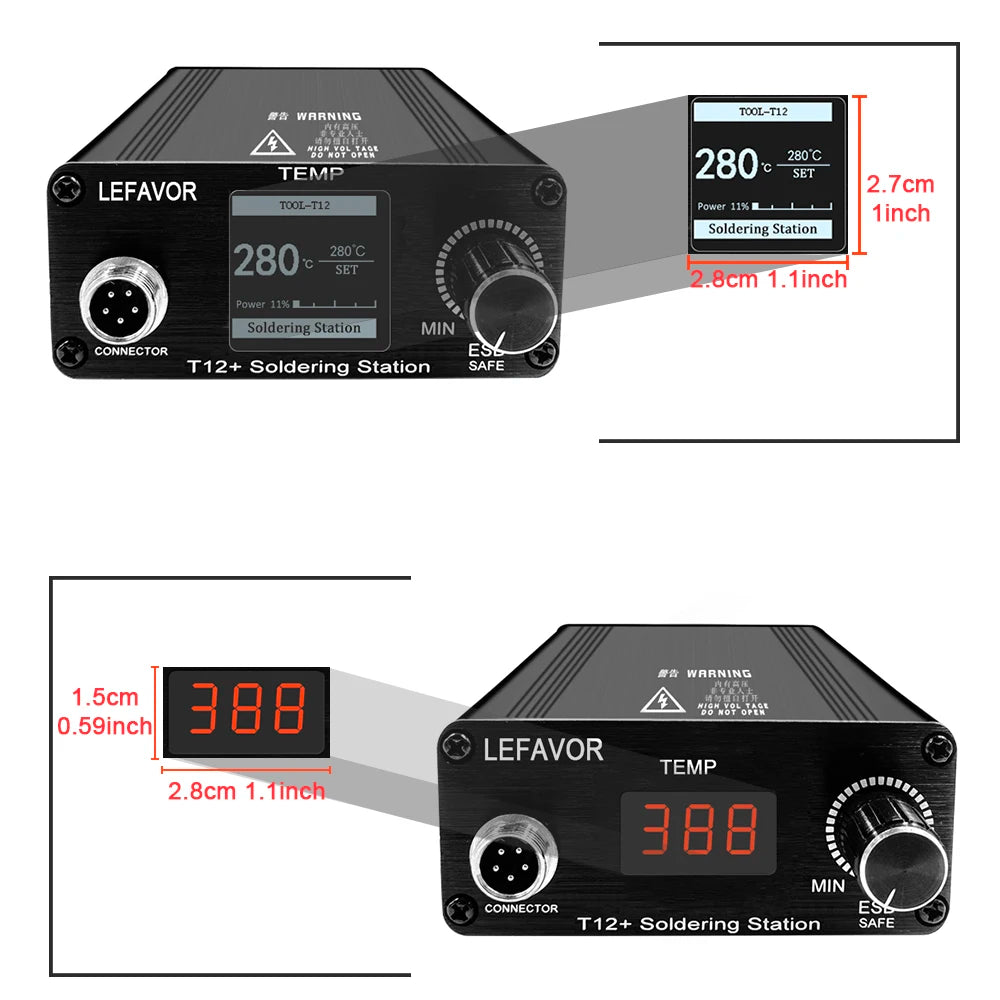

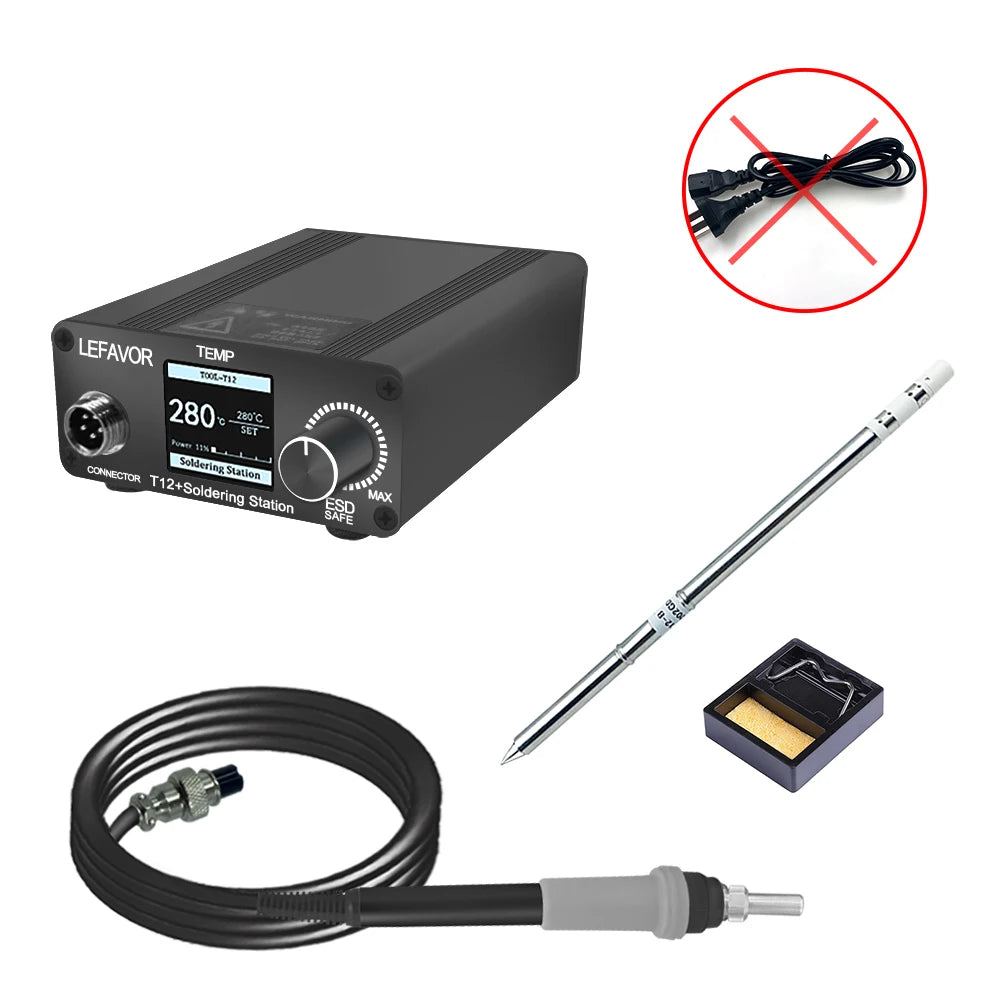

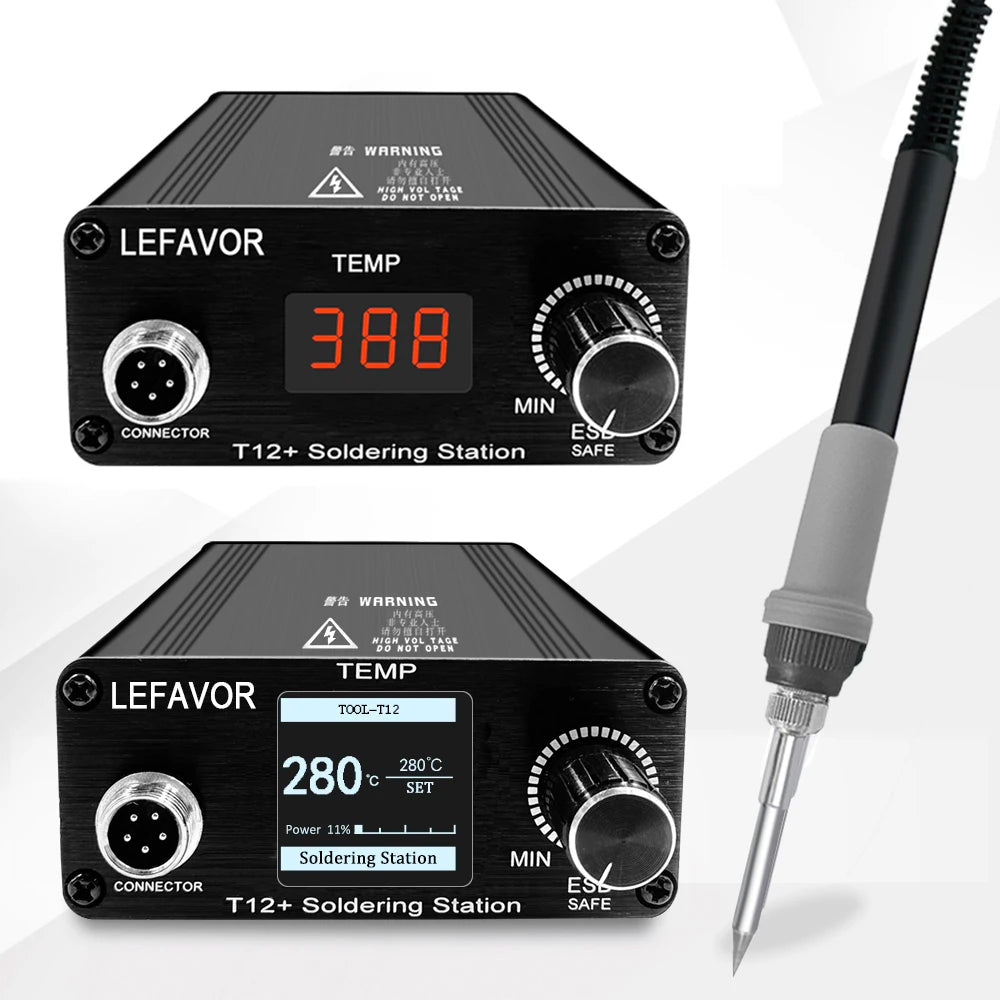

Note“”This link sells 2 models of T12, the display screen sizes are different, please check carefully

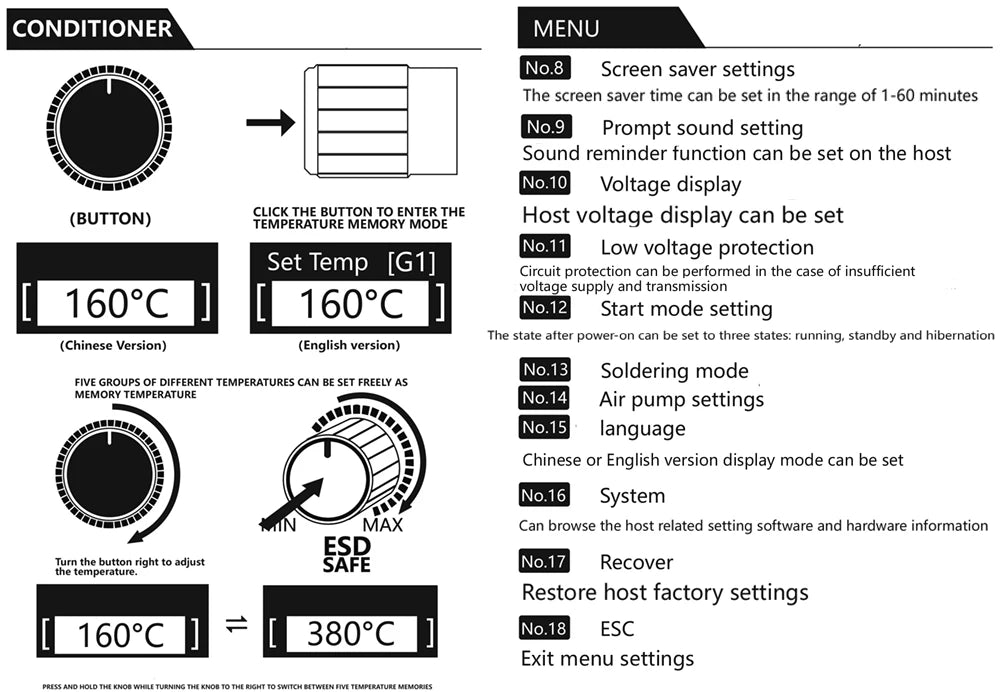

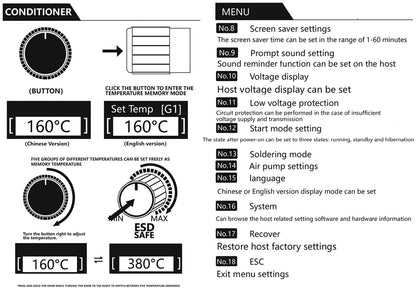

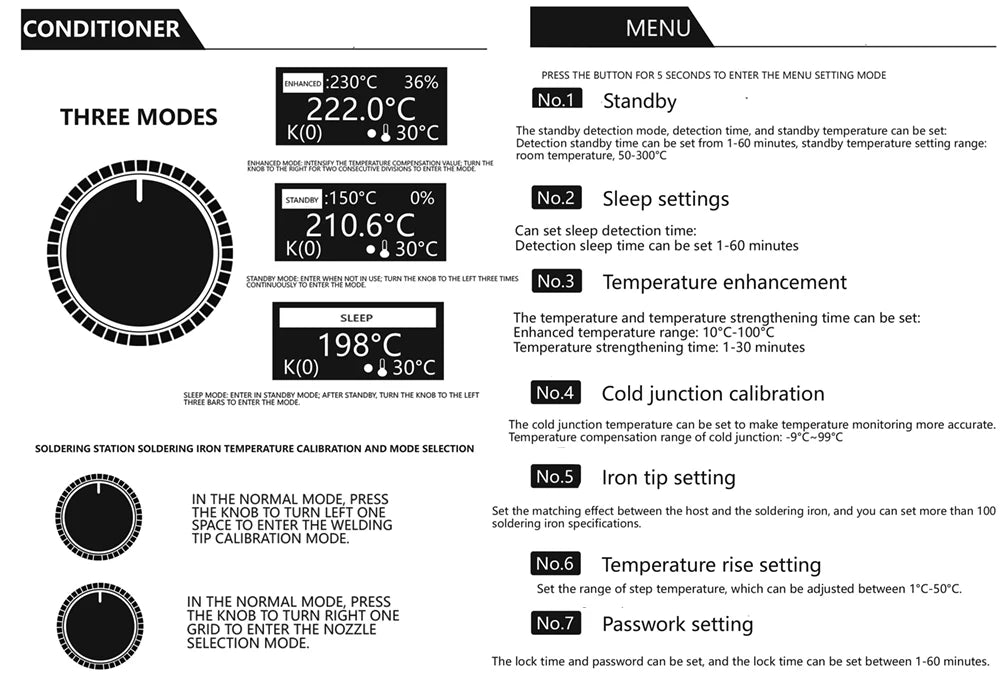

Only when the soldering station is at "standby"mode,you can shake handle to wake up.

When the soldering station is at "sleep"mode,you need to press the encoder to wake up.

welding station main functions and features:

1.temperature range of 150 ~ 500C.

2.automatic thermocouple cold junction temperature compensation range -9-99cC(required calibrated).

3.PID temperature control, temperature stability ± 2C(no load).

4.save 5 sets of temperature.

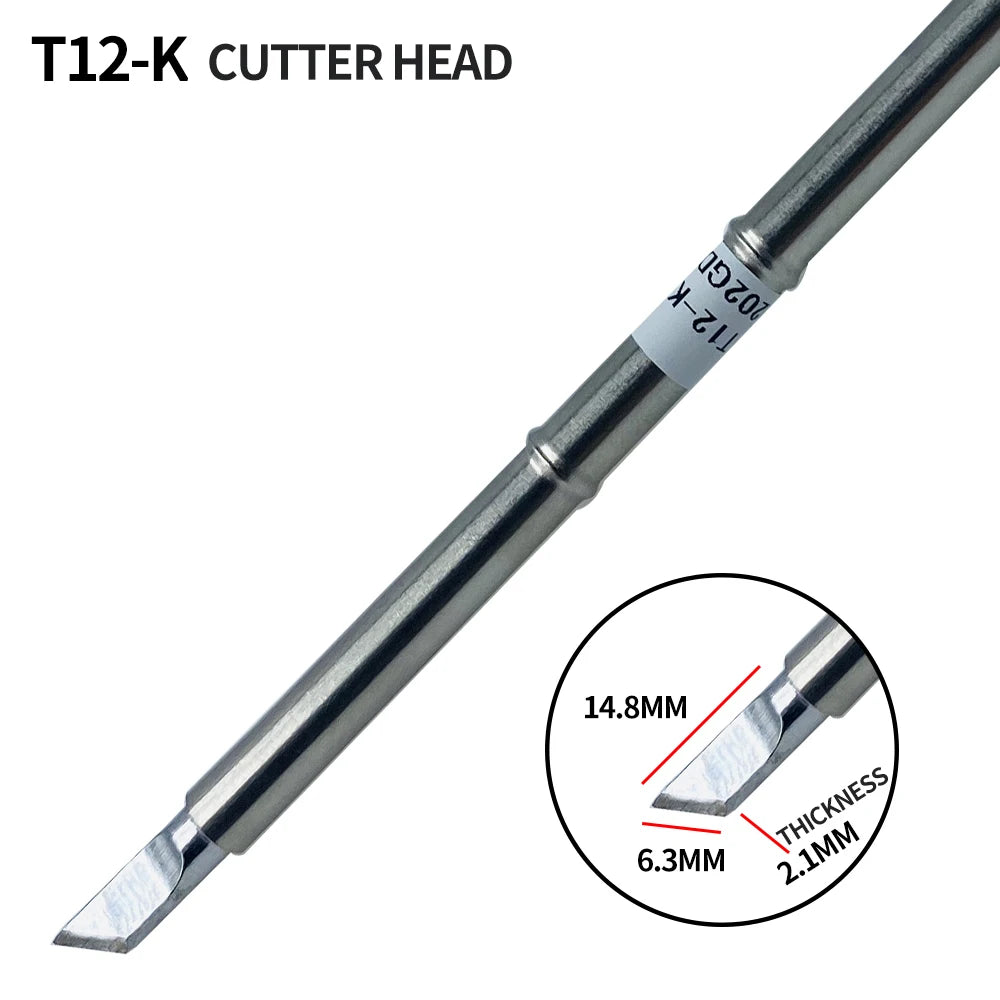

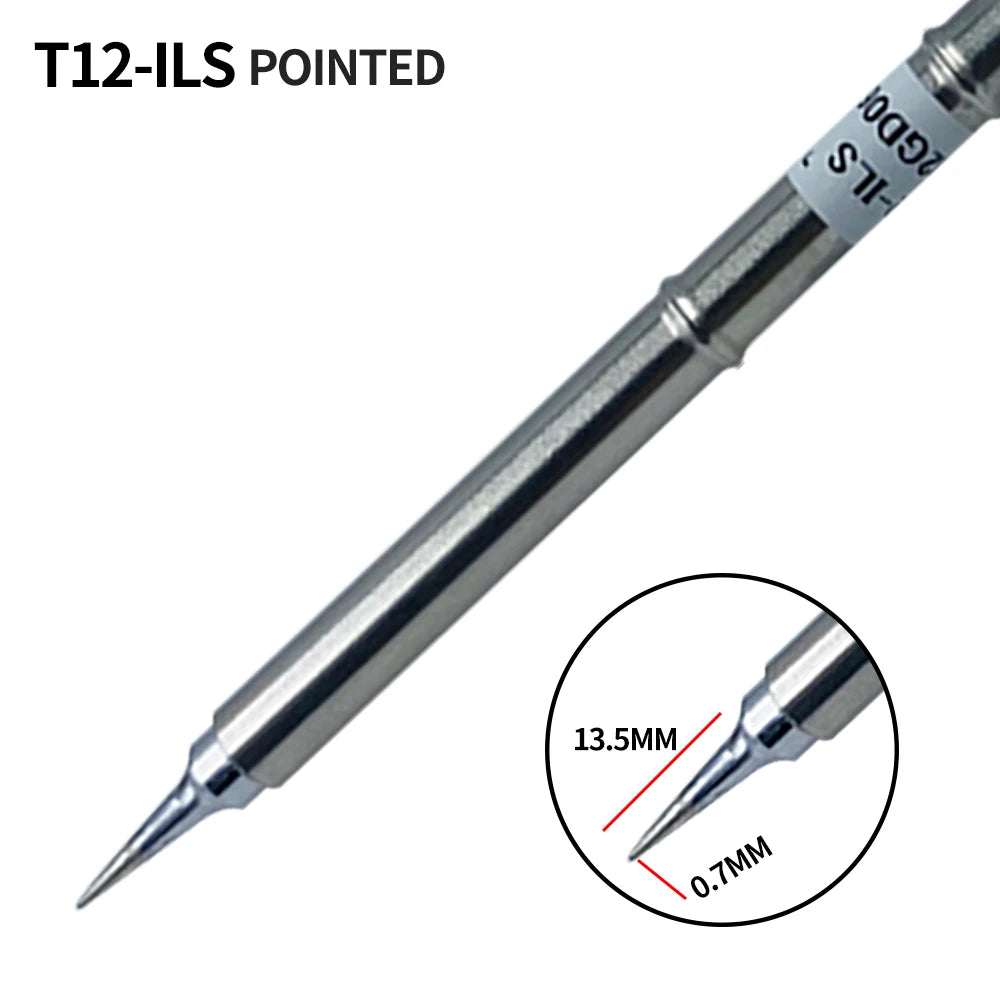

5.can be saved separately for each head temperature calibrated parameters, T12 supports all types of leader, and 6 custom head, head shield is not used (in the menu tip management enabled in your favorite leader).

6.Auto Standby (Time 1-60 minutes can be set).

7.Auto Sleep (soft-off) (Time 1-60 minutes can be set).
