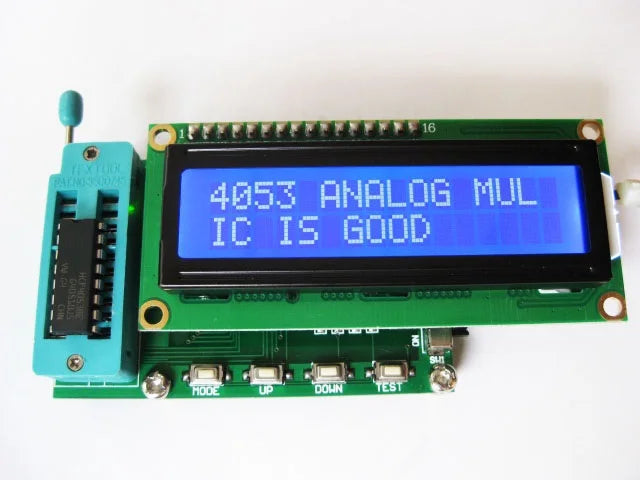

TES200 is a digital integration testing , mainly to test 74 series and 40 series IC , you can test more than 200 kinds IC.

  Simple to use, test logic can also determine which integrates logic gate is bad.

Specifications:

1, operating voltage of 7 ~ 12 VDC

2, Working current <30 mA

3, Operating temperature -40 ℃ ~ 65 ℃ Celsius

4, Storage temperature -40 ℃ ~ 65 ℃ Celsius

5, Size 70 * 45 * 40 mm Length X Width X Height

Interface description and related operations:

JK1 Power Interface (DC head D13): the center is positive . Supply voltage (7 ~ 12V) DC .

SW1 Power Switch

ON: power-on state .

OFF: Power off.

Key Description

MODE: Select the type of integration . ( 74 Series or 40 Series )

UP: choice of an integrated model .

DOWN: Select the next integrated model .

TEST: Test selection integrated model .

Note : When installing the integration test is aligned downwards .

Package List:

1 x New IC Tester 74 40 45 Series lC Logic Gate Tester Digital Meter

74
 7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409
7410 ,7411 ,7412 ,7413 ,7414 ,7415 ,7416 ,7417 ,7418 ,7419
7420 ,7421 ,7422 ,7424 ,7425 ,7426 ,7427 ,7428 ,7430 ,7432
7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443
7444 ,7445 ,7446 ,7447 ,7448 ,7454 ,7464 ,7470 ,7472 ,7473
7474 ,7475 ,7476 ,7477 ,7478 ,7480 ,7482 ,7483 ,7485 ,7486
7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108
74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134
74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151
74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164
74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182
74190 ,74191 ,74192 ,74193 ,74194 ,74195 ,74197 ,74242 ,74243 ,74247
74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266
74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353
74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395
74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670

40 ,45
 CD4000, CD4001, CD4002, CD4006, CD4007, CD4008, CD4009, CD4010, CD4011, CD4012,
CD4013, CD4014, CD4015, CD4016, CD4017, CD4018, CD4019, CD4020, CD4021, CD4022,
CD4023, CD4024, CD4025, CD4026, CD4027, CD4028, CD4029, CD4030, CD4033, CD4035,
CD4040, CD4042, CD4043, CD4044, CD4048, CD4049, CD4050, CD4051, CD4052, CD4053,
CD4060, CD4066, CD4068, CD4069, CD4070, CD4071, CD4072, CD4073, CD4075, CD4076,
CD4077, CD4078, CD4081, CD4082, CD4085, CD4093, CD4094, CD4099, CD4502, CD4503,
CD4504, CD4510, CD4511, CD4512, CD4516, CD4518, CD4520, CD4522, CD4526, CD4529,
CD4532, CD4539, CD4543, CD4555, CD4556, CD4584, CD40106, CD40110, CD40161, CD40162,CD40174, CD40175, CD40192, CD40193,
