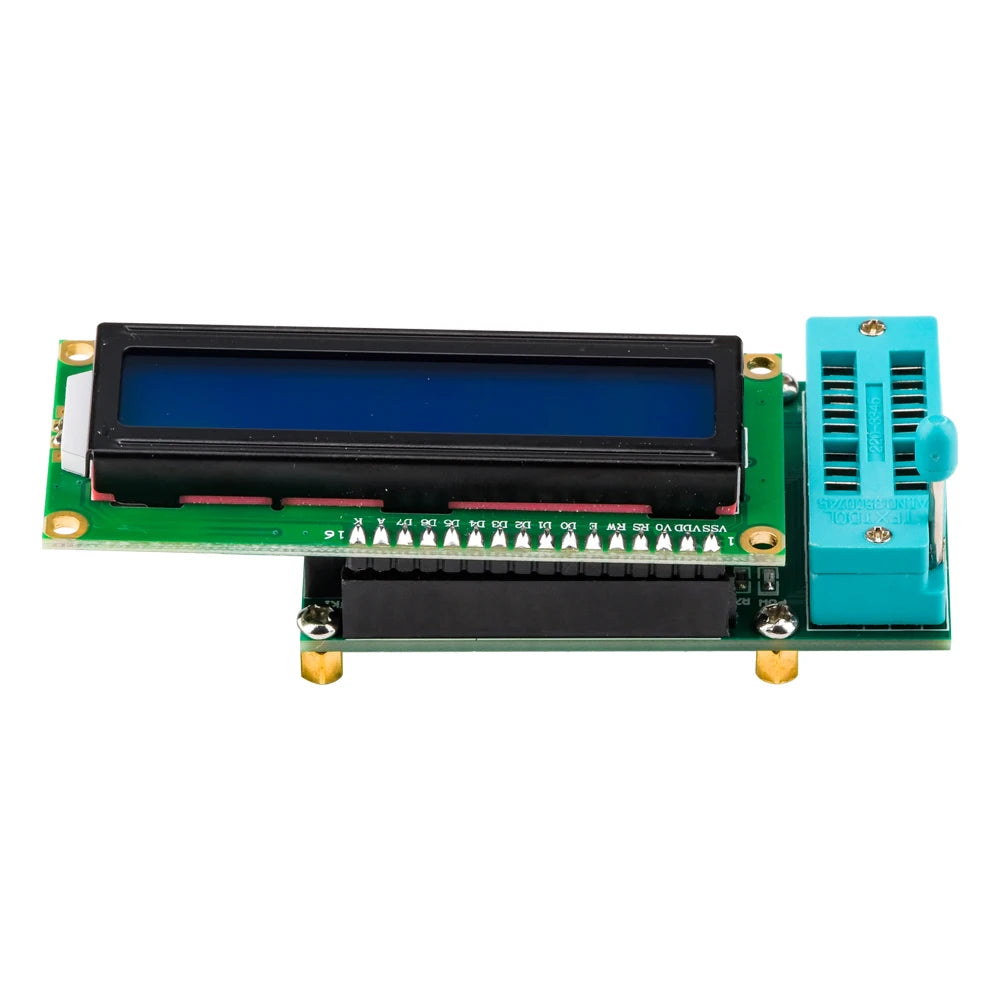

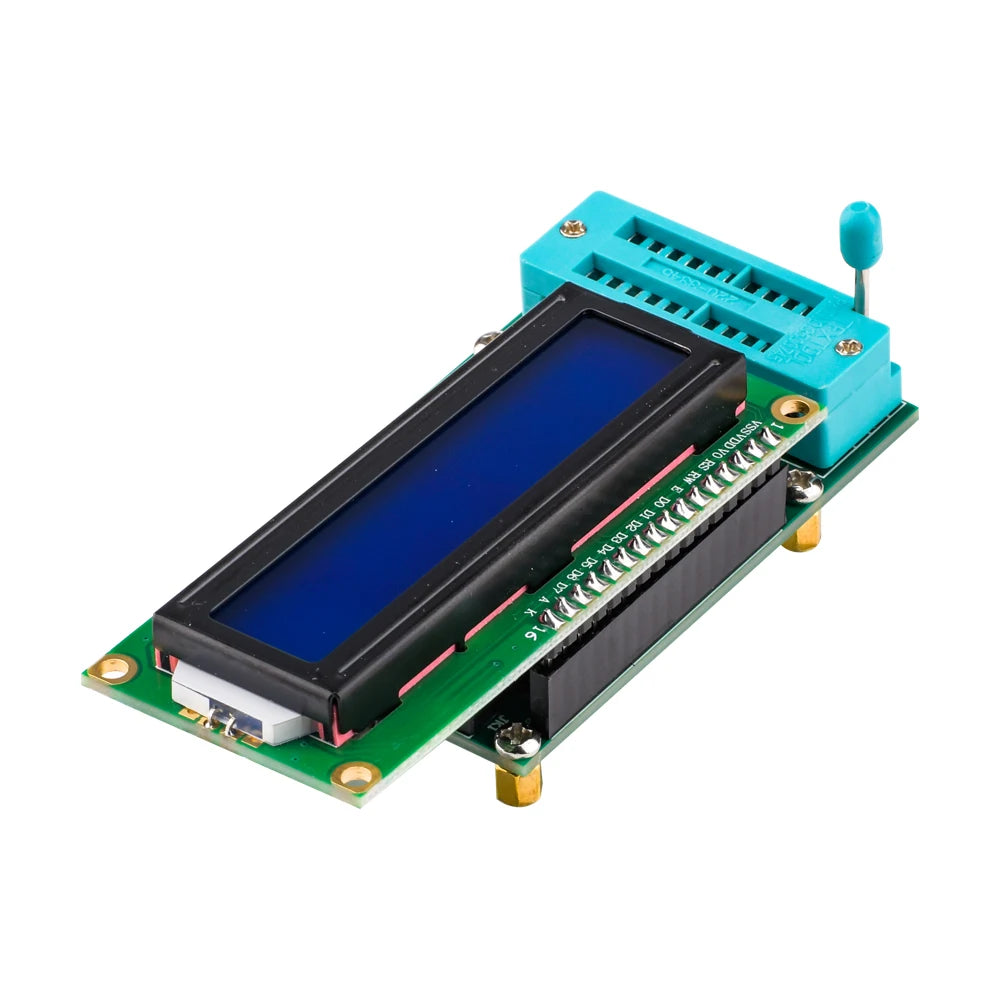

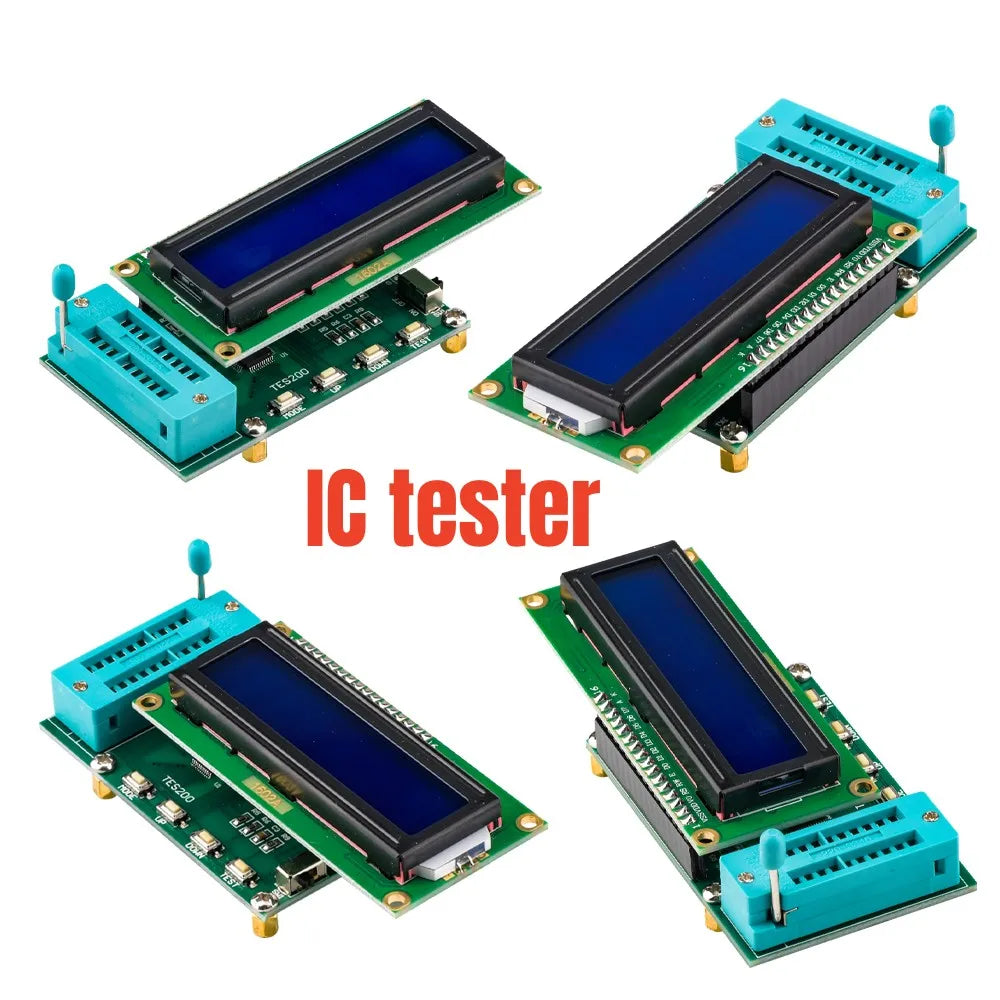

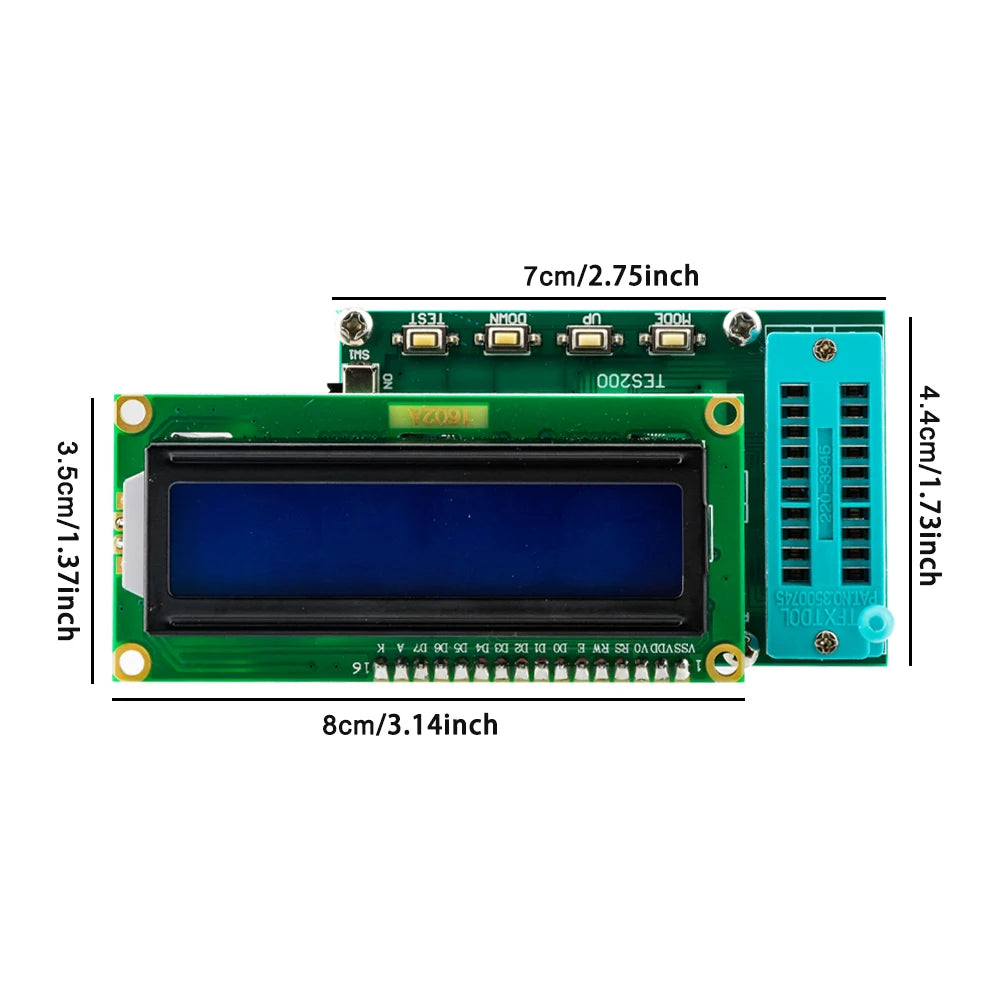

TES200 Digital integrated circuit tester IC tester 74 Series 40 series IC Logic Gate Testing Integrated Circuit Checker

Feature：

1. The product is widely applicable, mainly for testing 74 series and 40 series digital integration, and can test more than 200 kinds of integration

2. Simple to use, select test integration through key operation

3. The response is fast, and the result can be obtained in 3 seconds at the fastest

4. DC wide voltage power supply, suitable for most power supplies

5. Small and exquisite appearance

Function:

TES200 is a digital integration tester, mainly to test 74 series and 40 series digital integration, can test more than 200 kinds of integration. Simple to use, test logic integration can also determine which logic gate is bad. Select test integration by key operation

Product application: digital integration test

Specification：

Working voltage 7～12 VDC

Working current <30 mA

Working temperature -40℃～65℃

Storage temperature -40℃～65℃

Interface Description and Related Operations

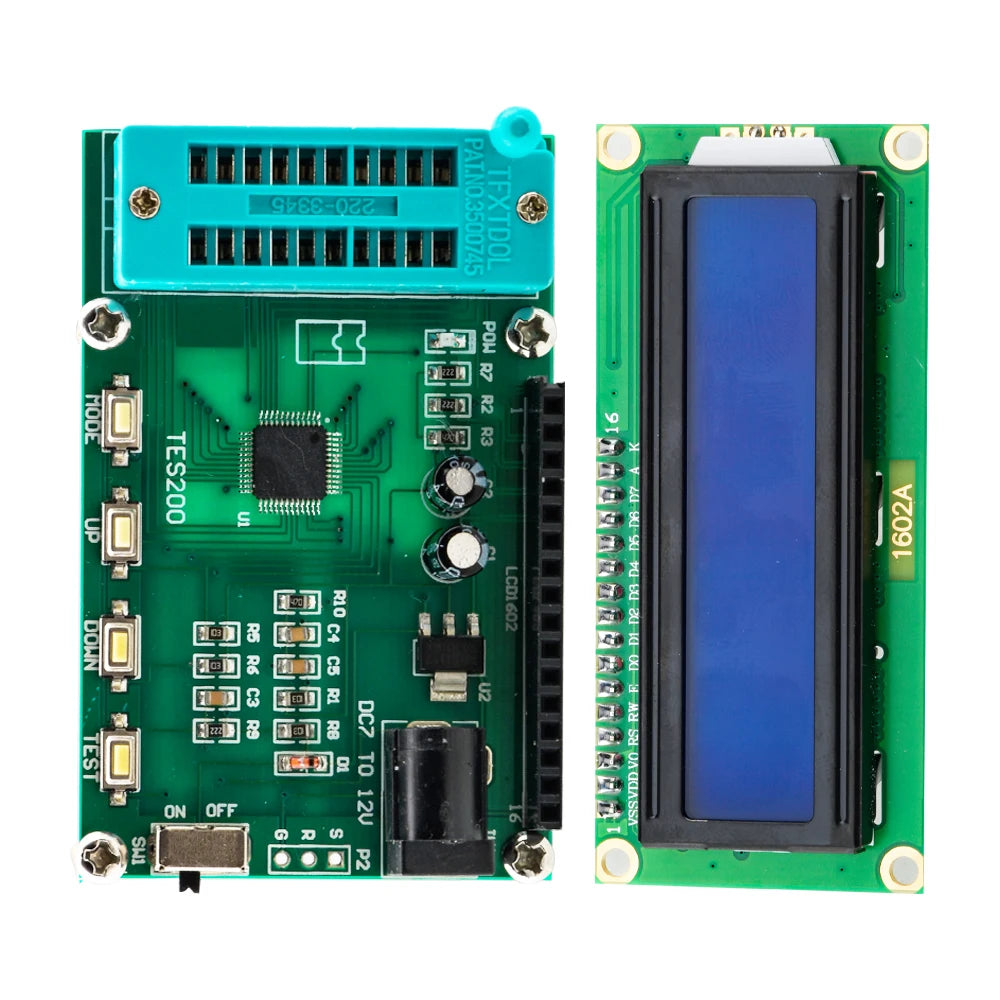

JK1 power interface (DC head D13): It is positive inside and negative outside. Supply voltage (7～12V) DC regulated power supply

SW1 power switch

ON: The power is on.

OFF: The power is off.

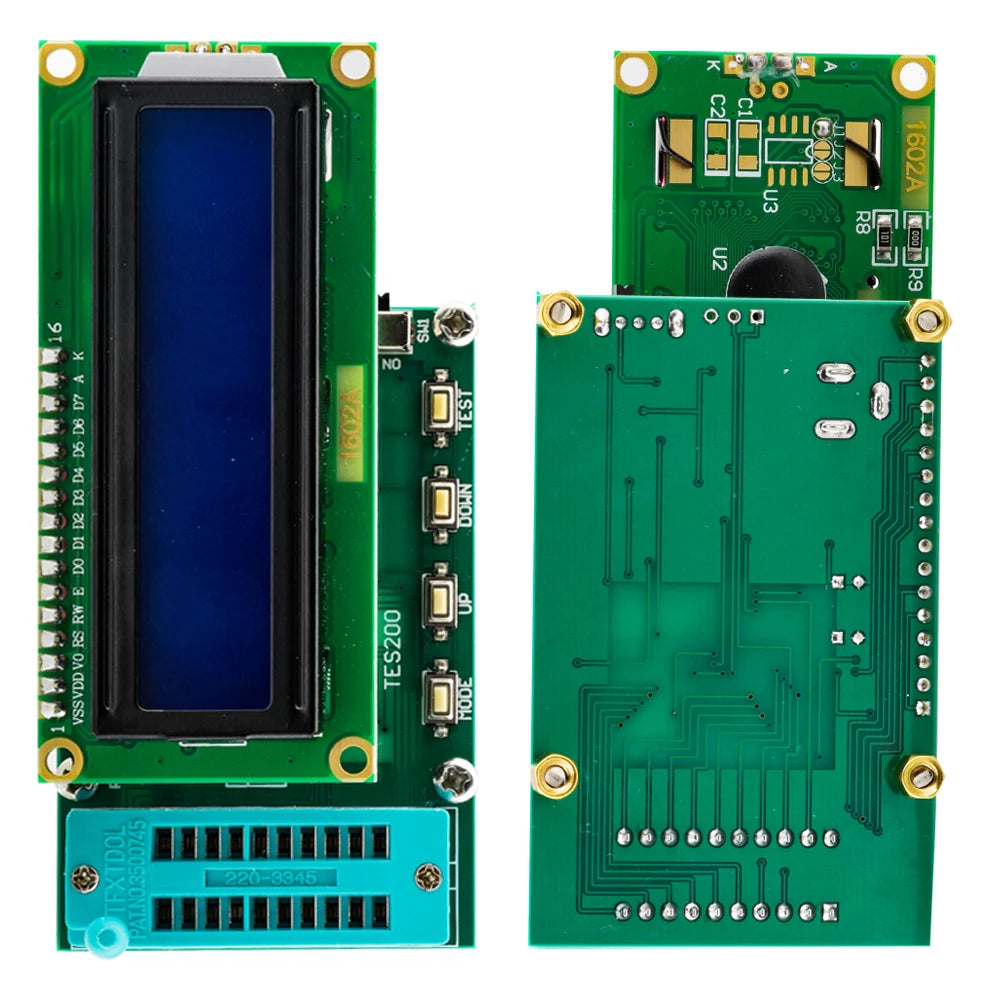

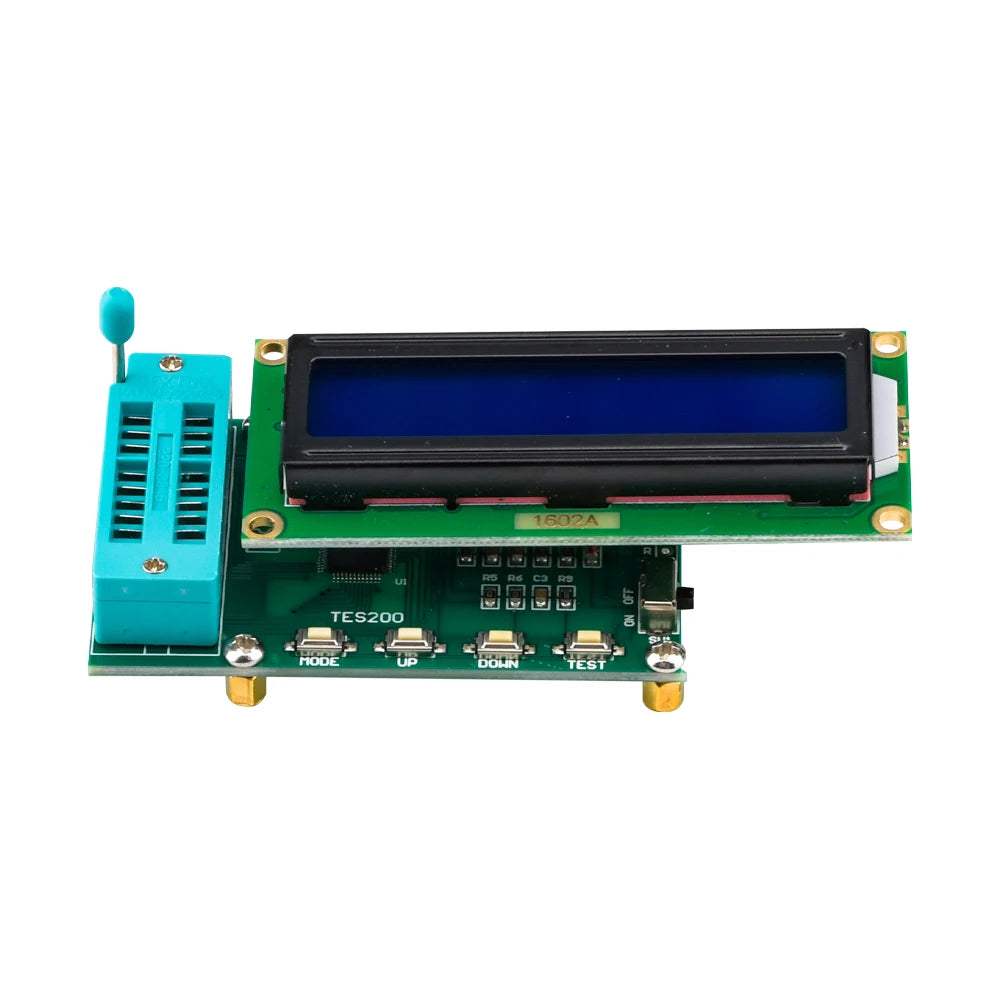

Button Description

MODE: Select the integration type. (74 series or 40 series)

UP: Select the previous integrated model.

DOWN: Select the next integrated model.

TEST: Test the selected integrated model.

Note:

When installing and testing the integration, it is aligned downwards.

74 series

7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409

7410 ,7411 ,7412 ,7413 ,7414 ,7415 ,7416 ,7417 ,7418 ,7419

7420,7421,7422,7424,7425,7426,7427,7428,7430,7432

7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443

7444,7445,7446,7447,7448,7454,7464,7470,7472,7473

7474,7475,7476,7477,7478,7480,7482,7483,7485,7486

7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108

74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134

74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151

74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164

74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182

74190, 74191, 74192, 74193, 74194, 74195, 74197, 74242, 74243, 74247

74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266

74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353

74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395

74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670

40, 45 series

CD4000, CD4001, CD4002, CD4006, CD4007, CD4008, CD4009, CD4010, CD4011, CD4012,

CD4013, CD4014, CD4015, CD4016, CD4017, CD4018, CD4019, CD4020, CD4021, CD4022,

CD4023, CD4024, CD4025, CD4026, CD4027, CD4028, CD4029, CD4030, CD4033, CD4035,

CD4040, CD4042, CD4043, CD4044, CD4048, CD4049, CD4050, CD4051, CD4052, CD4053,

CD4060, CD4066, CD4068, CD4069, CD4070, CD4071, CD4072, CD4073, CD4075, CD4076,

CD4077, CD4078, CD4081, CD4082, CD4085, CD4093, CD4094, CD4099, CD4502, CD4503,

CD4504, CD4510, CD4511, CD4512, CD4516, CD4518, CD4520, CD4522, CD4526, CD4529,

CD4532, CD4539, CD4543, CD4555, CD4556, CD4584, CD40106, CD40110, CD40161, CD40162, CD40174, CD40175, CD40192, CD40193

Package Included:

1 * Tester
