SPECIFICATIONS

Application: Computer

Brand Name: NoEnName_Null

Condition: New

Dissipation Power: TES200

Model Number: TES200

Operating Temperature: TES200

Origin: Mainland China

Package: SMD

Supply Voltage: TES200

Type: Voltage Regulator

is_customized: Yes

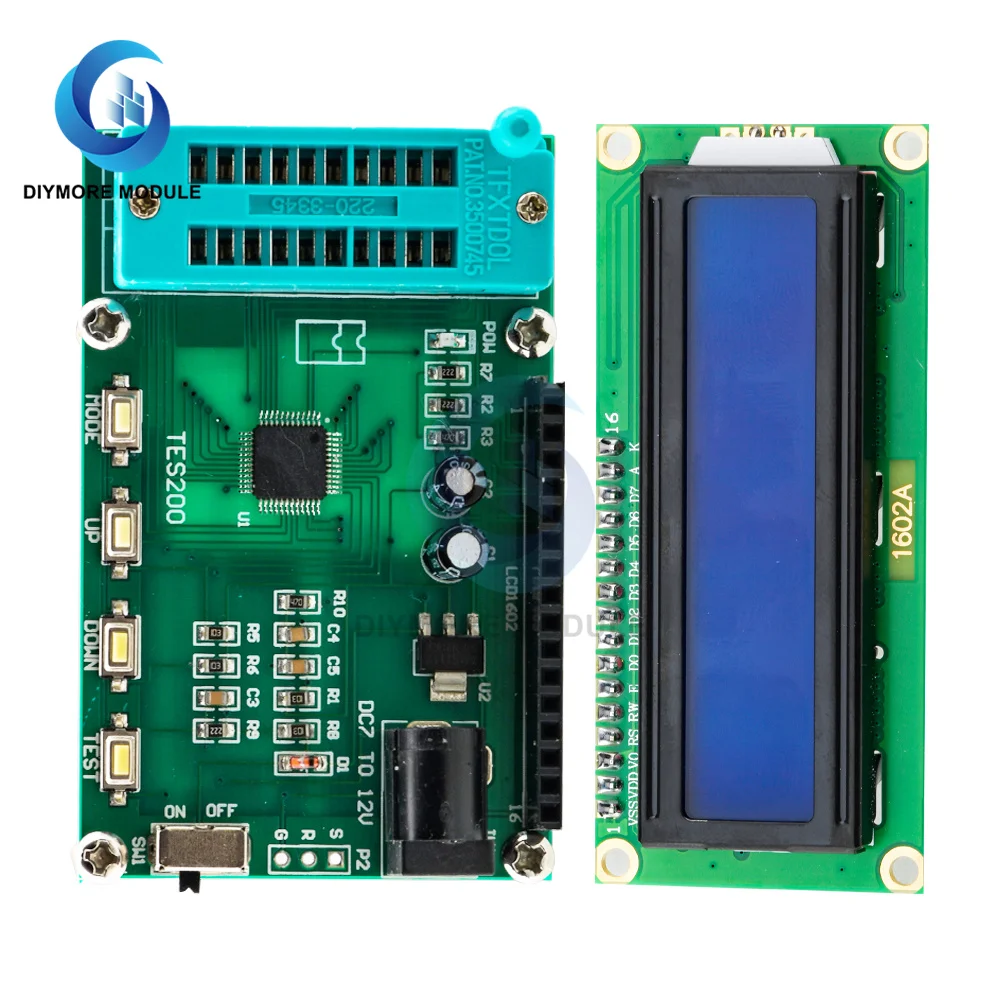

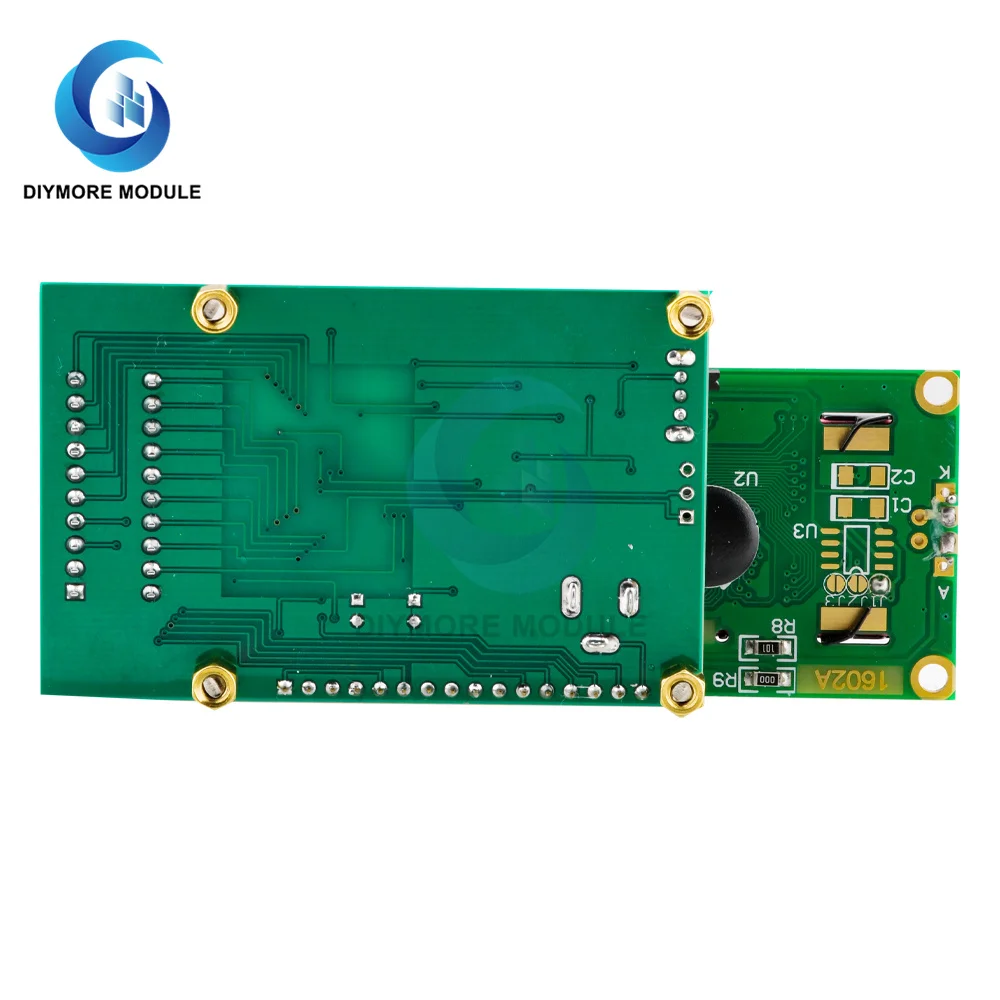

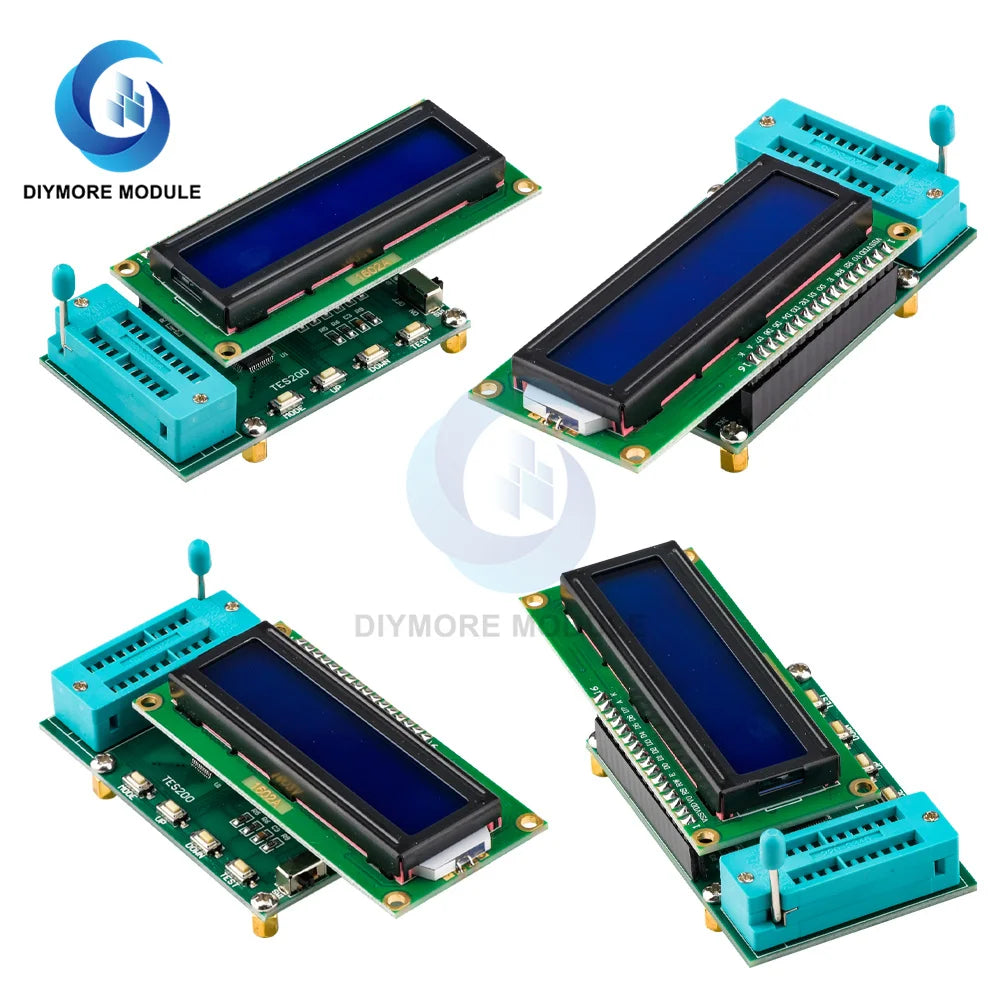

TES200 Digital integrated circuit tester IC tester 74 Series 40 series IC Logic Gate Testing Integrated Circuit Checker

Product Selling Point:

1. The product is widely applicable, mainly for testing 74 series and 40 series digital integration, and can test more than 200 kinds of integration
2. Simple to use, select test integration through key operation
3. The response is fast, and the result can be obtained in 3 seconds at the fastest
4. DC wide voltage power supply, suitable for most power supplies
5. Small and exquisite appearance

Product Features:

TES200 is a digital integration tester, mainly to test 74 series and 40 series digital integration, can test more than 200 kinds of integration. Simple to use, test logic integration can also determine which logic gate is bad. Select test integration by key operation

Product application: digital integration test


Technical Parameter:

Working voltage 7～12 VDC
Working current <30 mA
Working temperature -40℃～65℃
Storage temperature -40℃～65℃

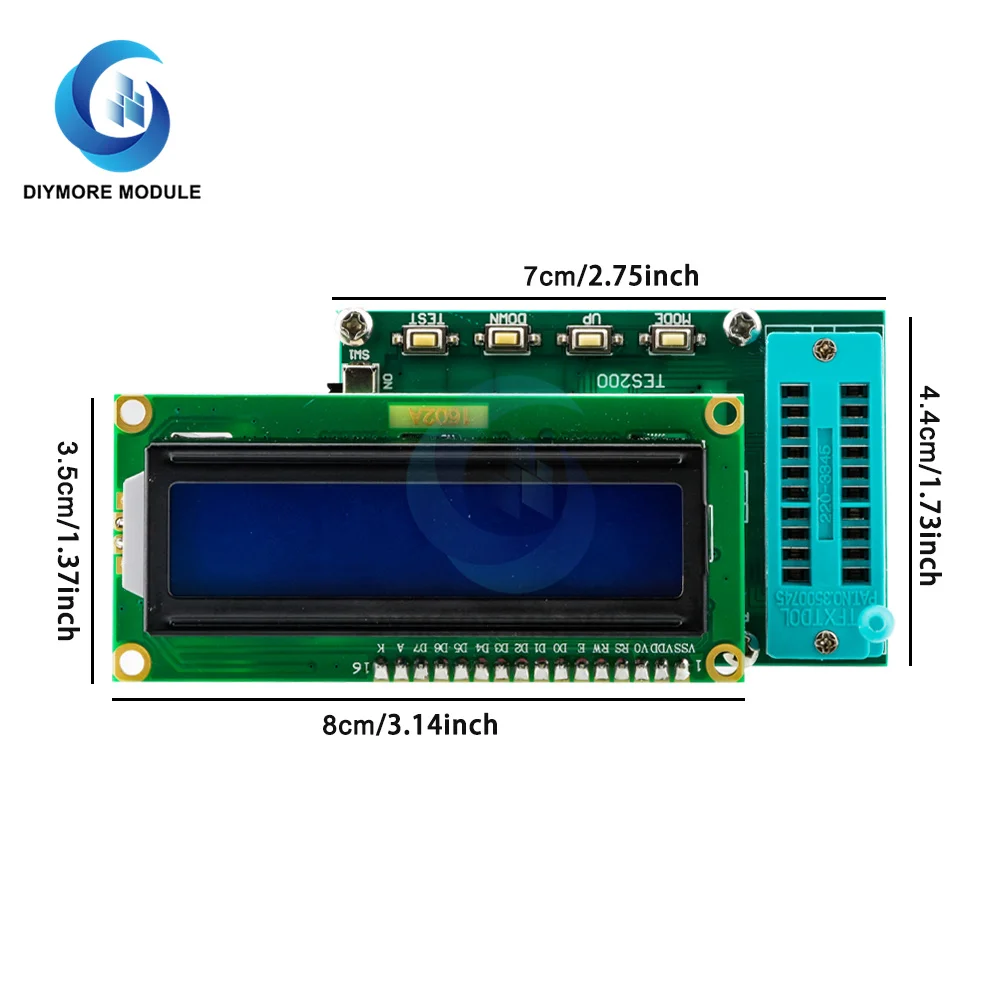

Interface Description and Related Operations:

JK1 power interface (DC head D13): It is positive inside and negative outside. Supply voltage (7～12V) DC regulated power supply
SW1 power switch
ON: The power is on.
OFF: The power is off.

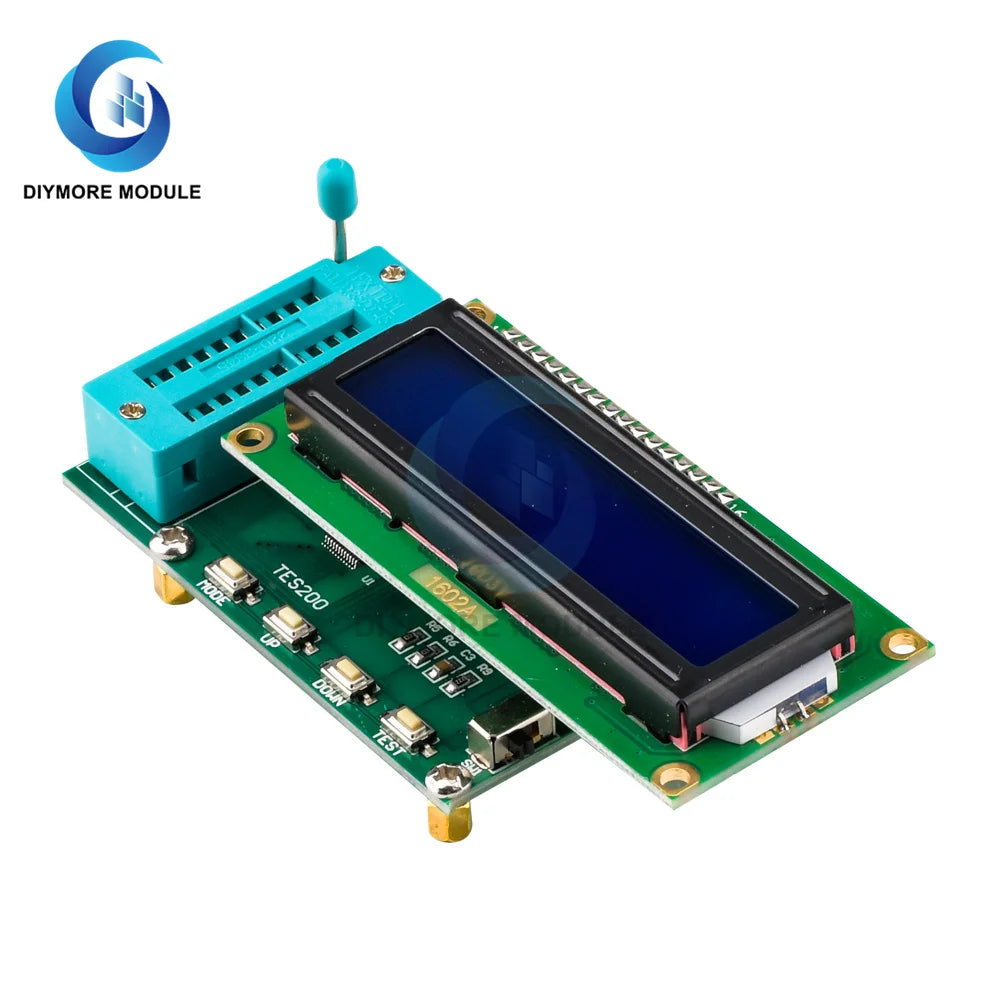

Key Description:

MODE: Select the integration type. (74 series or 40 series)
UP: Select the previous integrated model.
DOWN: Select the next integrated model.

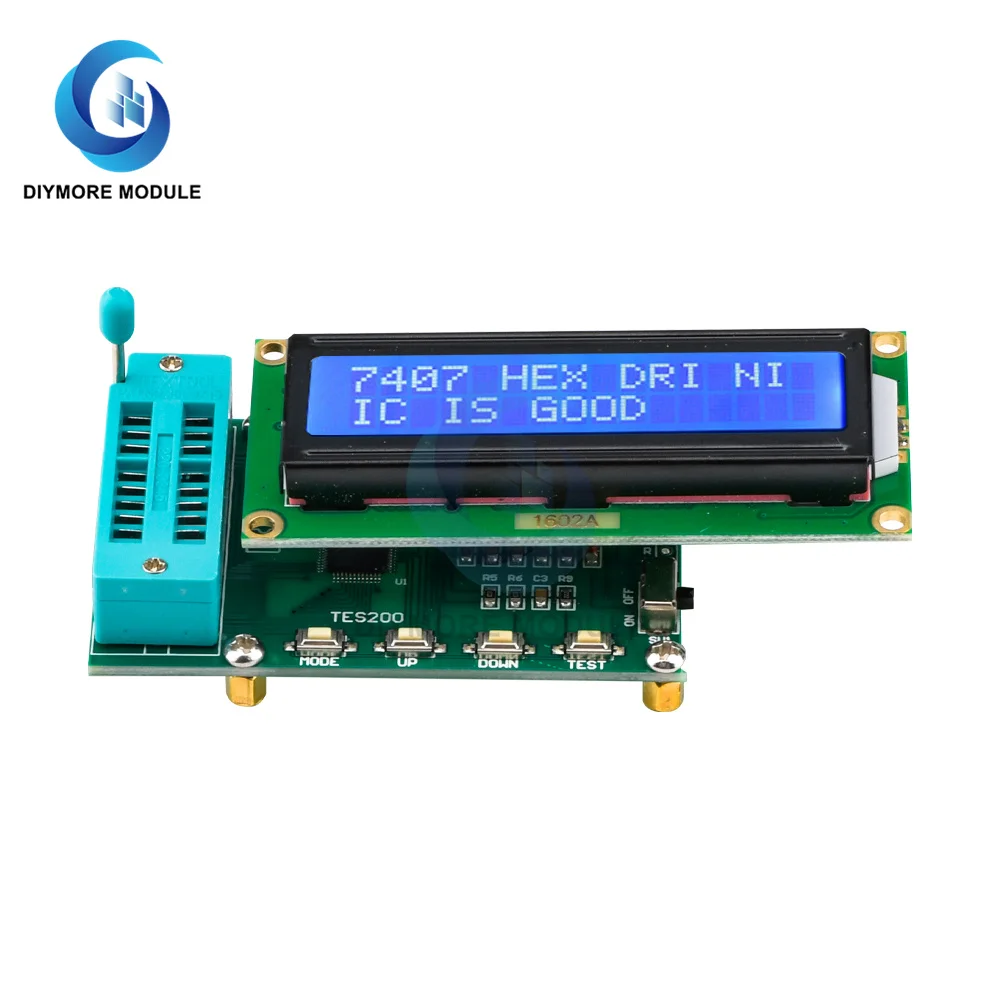

TEST: Test the selected integrated model.

Notice:
When installing and testing the integration, it is aligned downwards.

74 series

7400 ,7401 ,7402 ,7403 ,7404 ,7405 ,7406 ,7407 ,7408 ,7409
7410 ,7411 ,7412 ,7413 ,7414 ,7415 ,7416 ,7417 ,7418 ,7419
7420,7421,7422,7424,7425,7426,7427,7428,7430,7432
7433 ,7434 ,7435 ,7436 ,7437 ,7438 ,7439 ,7440 ,7442 ,7443
7444,7445,7446,7447,7448,7454,7464,7470,7472,7473
7474,7475,7476,7477,7478,7480,7482,7483,7485,7486
7487 ,7489 ,7494 ,7495 ,7496 ,74101 ,74102 ,74103 ,74107 ,74108
74109 ,74112 ,74113 ,74125 ,74126 ,74128 ,74130 ,74132 ,74133 ,74134
74135 ,74136 ,74137 ,74138 ,74139 ,74140 ,74145 ,74147 ,74148 ,74151
74152 ,74153 ,74155 ,74156 ,74157 ,74158 ,74160 ,74161 ,74163 ,74164
74165 ,74166 ,74171 ,74173 ,74174 ,74175 ,74176 ,74177 ,74180 ,74182
74190, 74191, 74192, 74193, 74194, 74195, 74197, 74242, 74243, 74247
74248 ,74249 ,74251 ,74253 ,74256 ,74257 ,74258 ,74259 ,74260 ,74266
74279 ,74280 ,74283 ,74290 ,74293 ,74295 ,74298 ,74350 ,74352 ,74353
74365 ,74366 ,74367 ,74368 ,74375 ,74378 ,74379 ,74390 ,74393 ,74395
74425 ,74426 ,74445 ,74447 ,74490 ,74595 ,74670


40, 45 series

CD4000, CD4001, CD4002, CD4006, CD4007, CD4008, CD4009, CD4010, CD4011, CD4012,
CD4013, CD4014, CD4015, CD4016, CD4017, CD4018, CD4019, CD4020, CD4021, CD4022,
CD4023, CD4024, CD4025, CD4026, CD4027, CD4028, CD4029, CD4030, CD4033, CD4035,
CD4040, CD4042, CD4043, CD4044, CD4048, CD4049, CD4050, CD4051, CD4052, CD4053,
CD4060, CD4066, CD4068, CD4069, CD4070, CD4071, CD4072, CD4073, CD4075, CD4076,
CD4077, CD4078, CD4081, CD4082, CD4085, CD4093, CD4094, CD4099, CD4502, CD4503,
CD4504, CD4510, CD4511, CD4512, CD4516, CD4518, CD4520, CD4522, CD4526, CD4529,
CD4532, CD4539, CD4543, CD4555, CD4556, CD4584, CD40106, CD40110, CD40161, CD40162, CD40174, CD40175, CD40192, CD40193

List:

Tester*1
