SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

Hign-concerned Chemical: None

Model Number: TJ-56-222

Origin: Mainland China

Type: Voltage Regulator

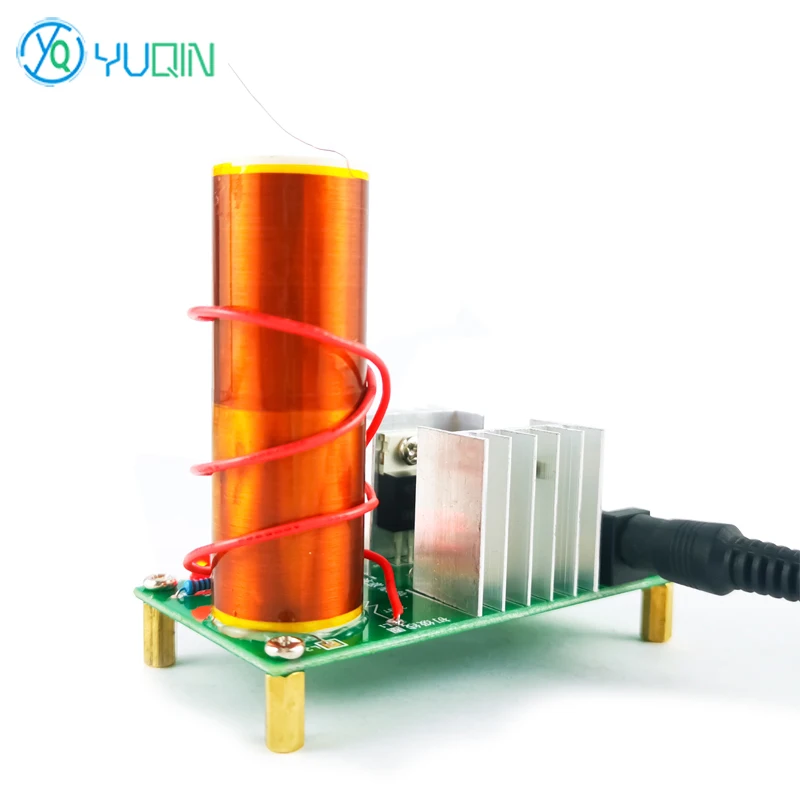

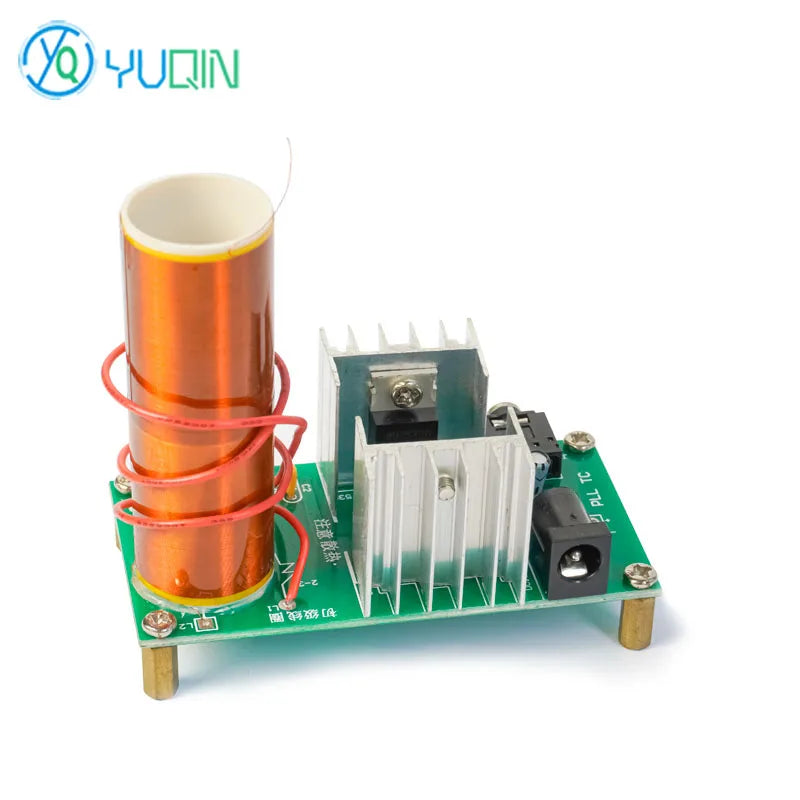

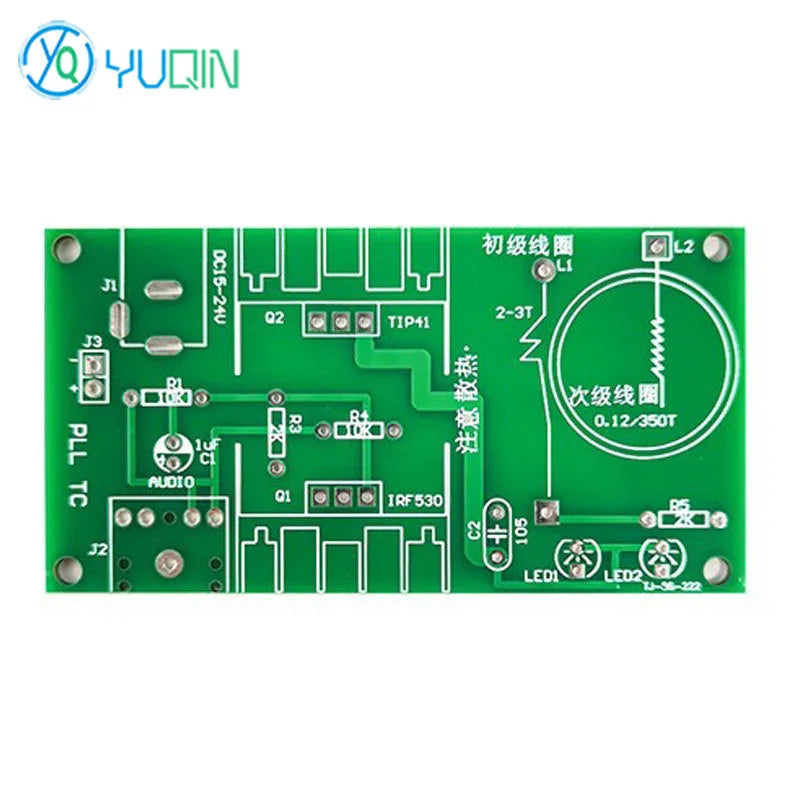

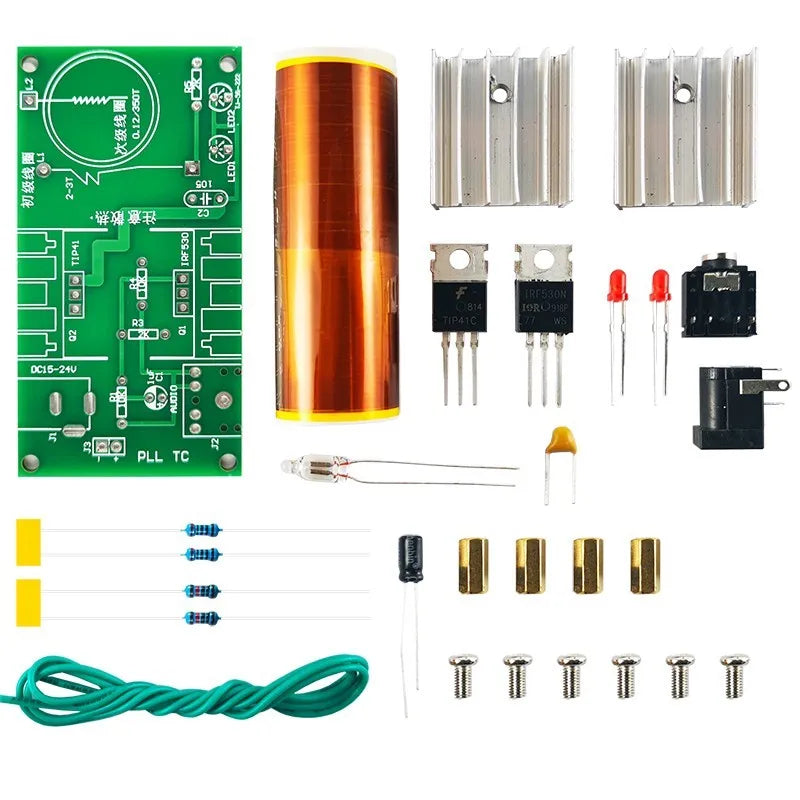

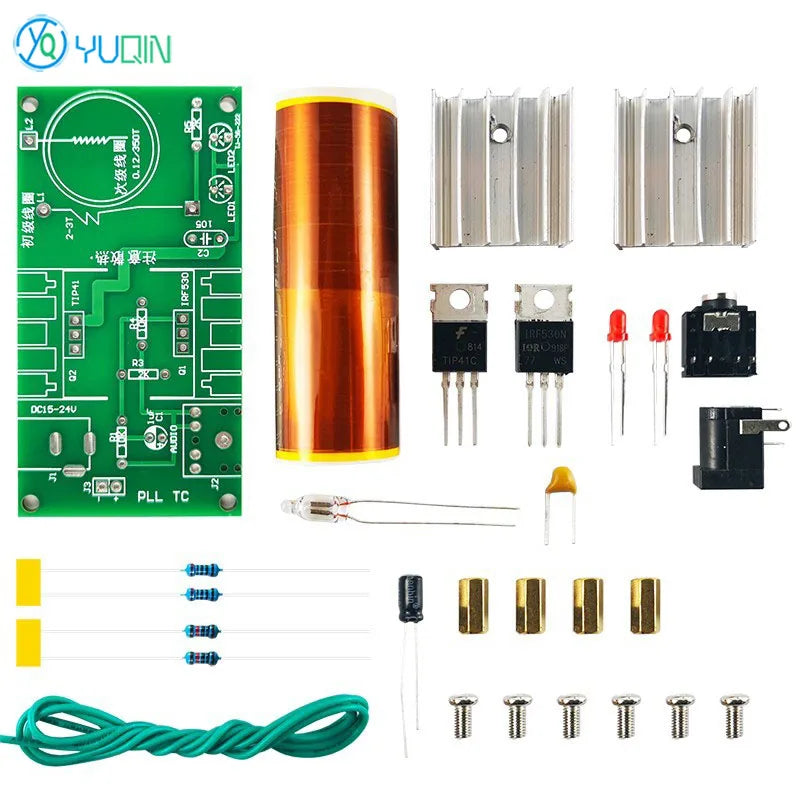

Product name: Tesla coil DIY welding kit

Product model: TJ-56-222

Board size: 4.0 * 8.0 mm

Power: 15w

Power input: DC 15-24v, current 2A, DC5.5 interface/row pin

Audio input: 3.5 connector, which can connect to mobile phone, mp3 and computer audio

Description:

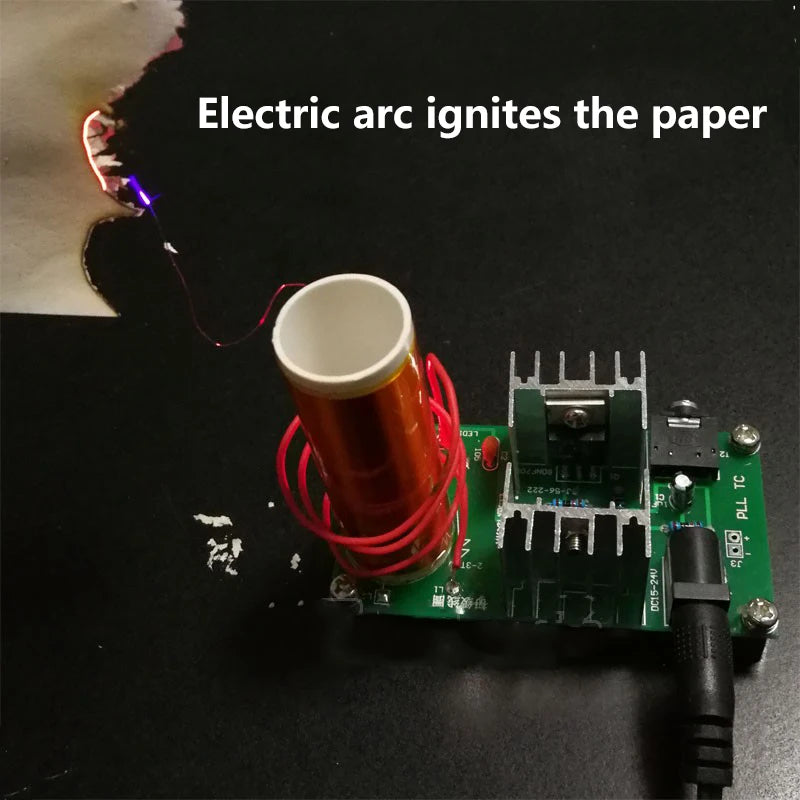

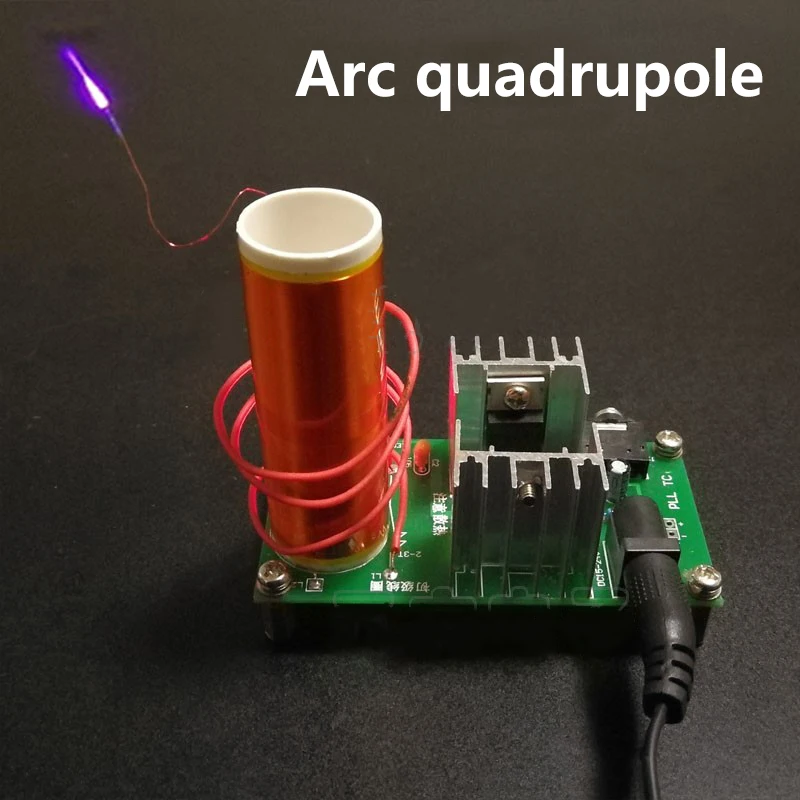

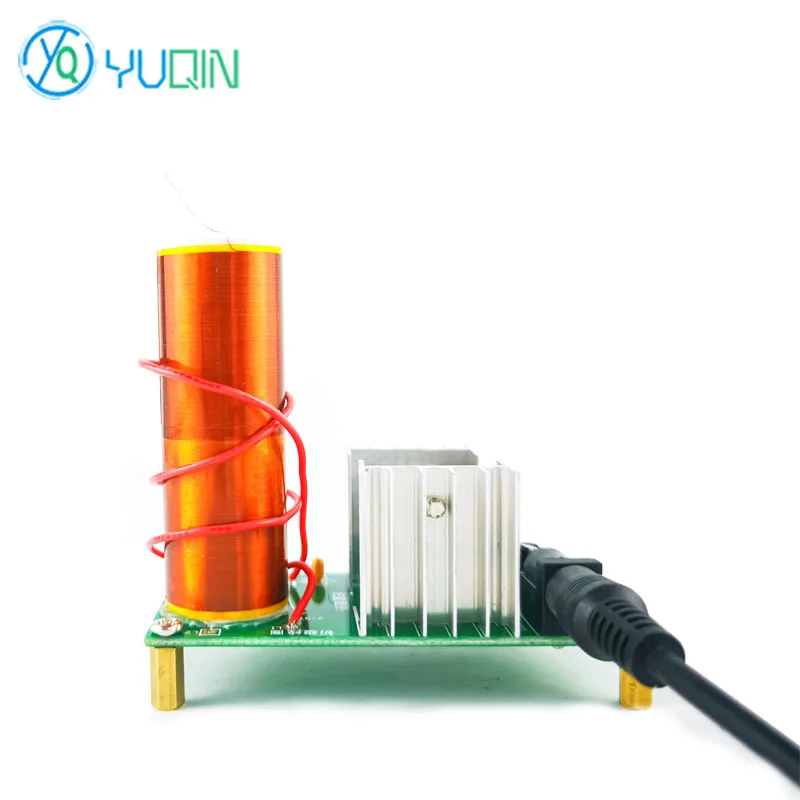

1. Tesla's arc generation function: after power on, the wire at the tail will generate an arc, which is beautiful. The arc can ignite!

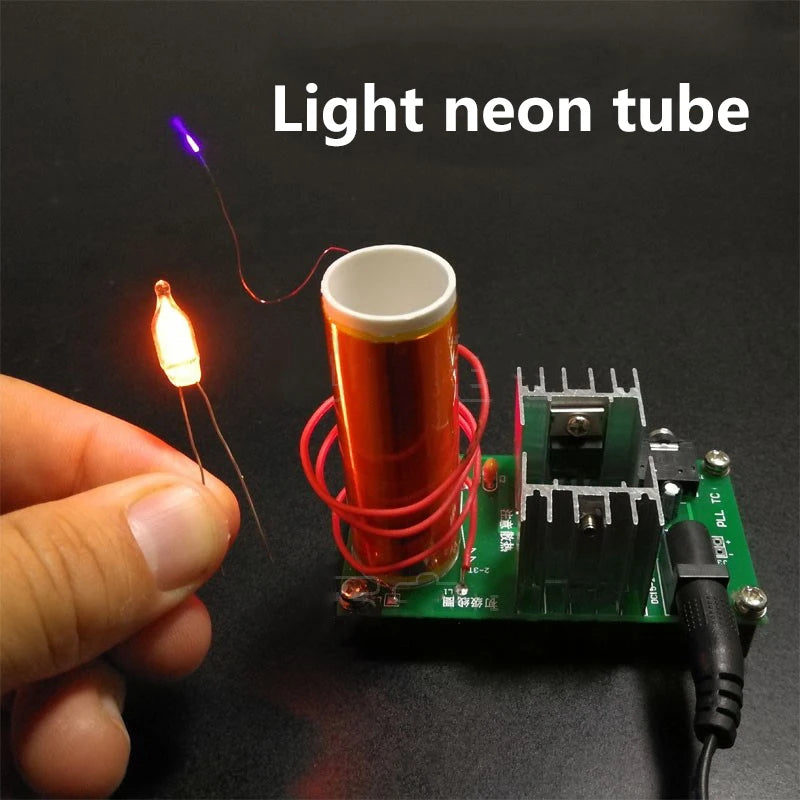

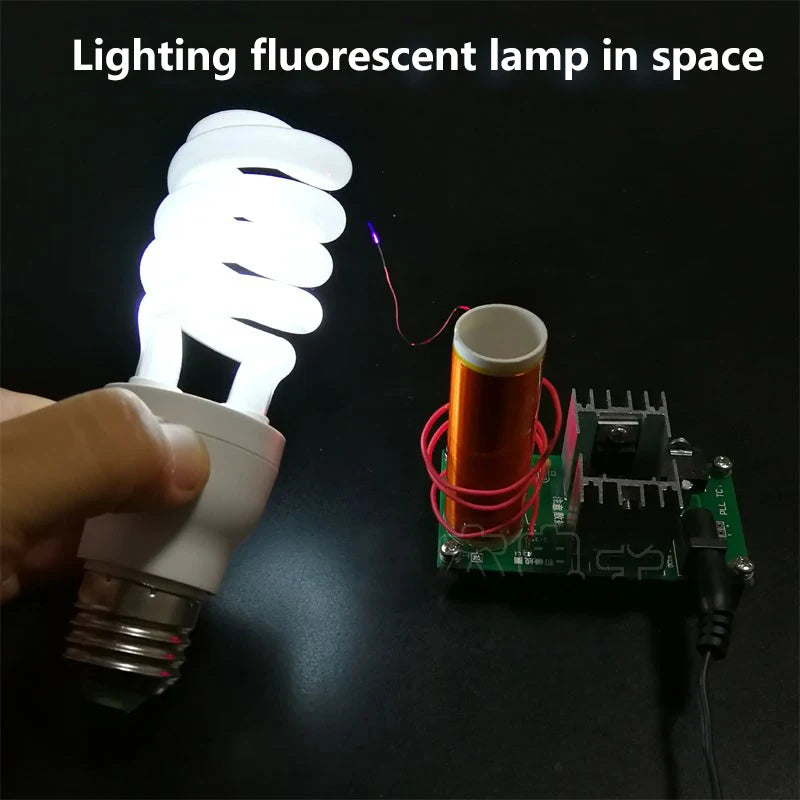

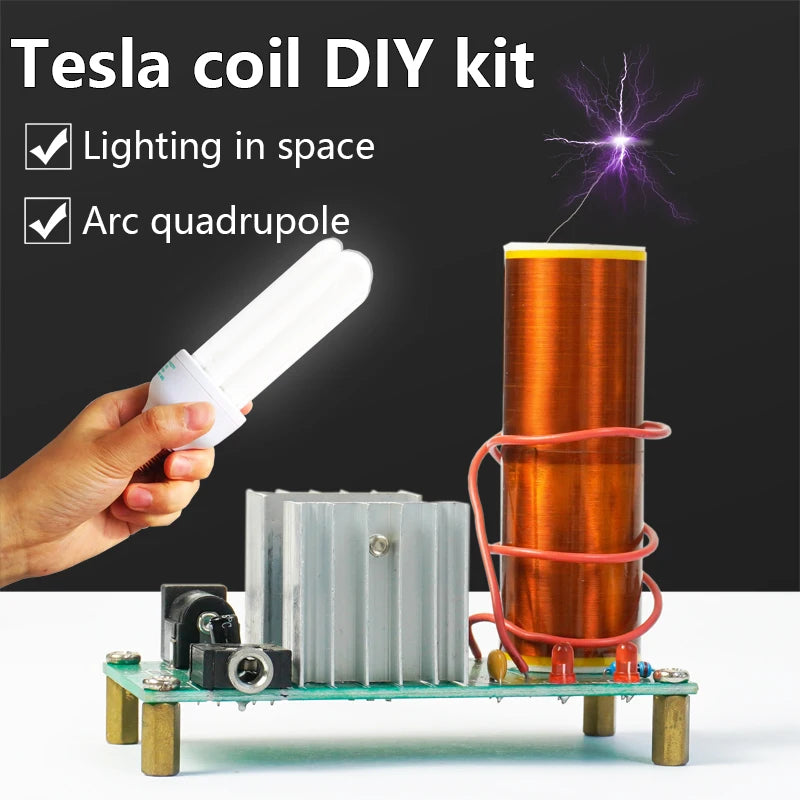

2. Tesla lighting function: after Tesla coil is powered on, the fluorescent lamp can be lit in space!

3. Tesla includes music playing function: a new concept speaker that generates sound from the air vibration generated by the arc exciting air into plasma! Can play mobile phone/computer music, but the sound is relatively small, suitable for watching the magic arc and listening to music in the dead of night.

Tesla function parameters: voltage input is 15-24V DC, current is 2A, heat dissipation is relatively large during operation, so the heat sink is relatively hot! When using, be careful not to touch the heat sink with your hands.

Principle description:

Tesla coil is a kind of transformer (resonance transformer) that uses the resonance principle. It was invented by Nikola Tesla, an American Serbian scientist, in 1891. It is mainly used to produce ultra-high voltage, low current and high frequency AC power. Tesla coil consists of two (sometimes three) groups of coupled resonant circuits. Tesla coil is difficult to define. Nikola Tesla has tried out a large number of various coil configurations. Tesla uses these coils to carry out innovative experiments, such as electrical lighting, fluorescence spectrum, X-ray, high-frequency AC current phenomenon, electrotherapy and radio energy transmission, transmitting and receiving radio signals.

Matters needing attention:

1. This product is safe, low power, and will not be injured by electric shock, but it is not recommended to touch the arc on the top of the coil, which will cause burning sensation.

2. Do not touch the heat sink after powering on for a long time. The temperature is very high, especially when using 24V high voltage, the heat is huge. If necessary, please add a cooling fan to dissipate heat, or if the working time is too long, it is too hot. Please turn off for a period of time before powering on.

3. It is recommended that no body or other objects should be close to the coil when the Tesla coil is working, that is, no other objects should be left blank within half a meter beside the coil, because other objects as a good conductor make the coil form a good circuit, absorb the coil energy, and make the performance effect of Tesla coil at this time worse or impossible to demonstrate! Please note that;

4. Don't put mobile phones, mp3s and other electronic devices close to the coil, or the coil will produce high-frequency magnetic field that will interfere, making mobile phones, mp3s and other devices malfunction or even damage!

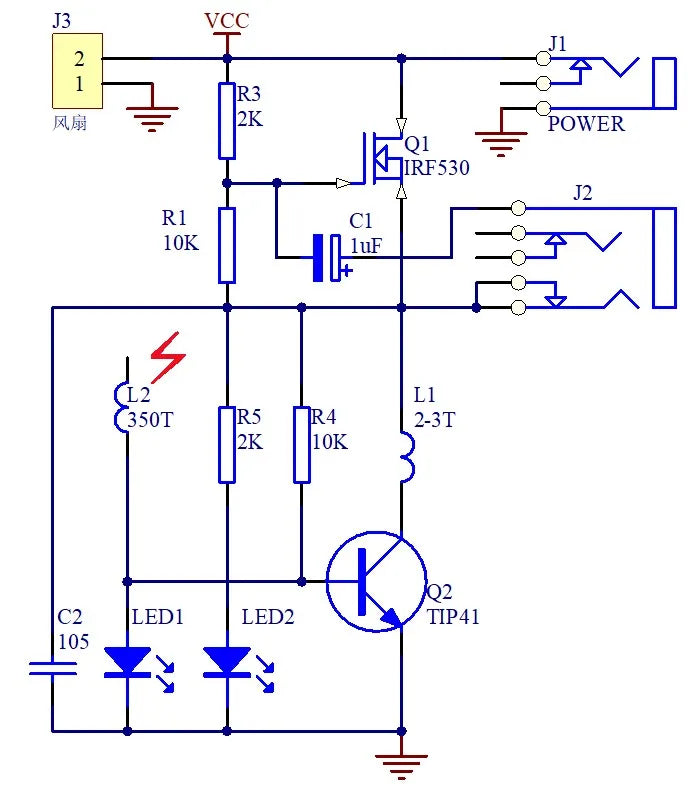

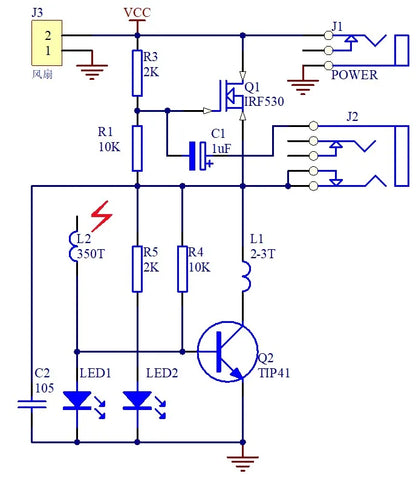

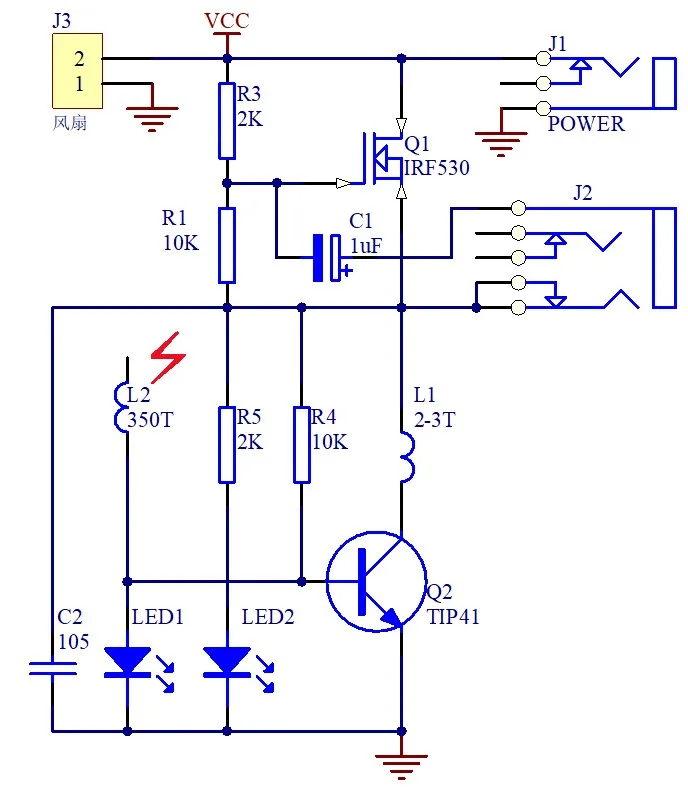

Circuit diagram:
