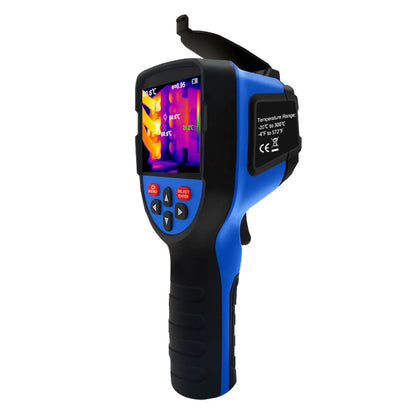

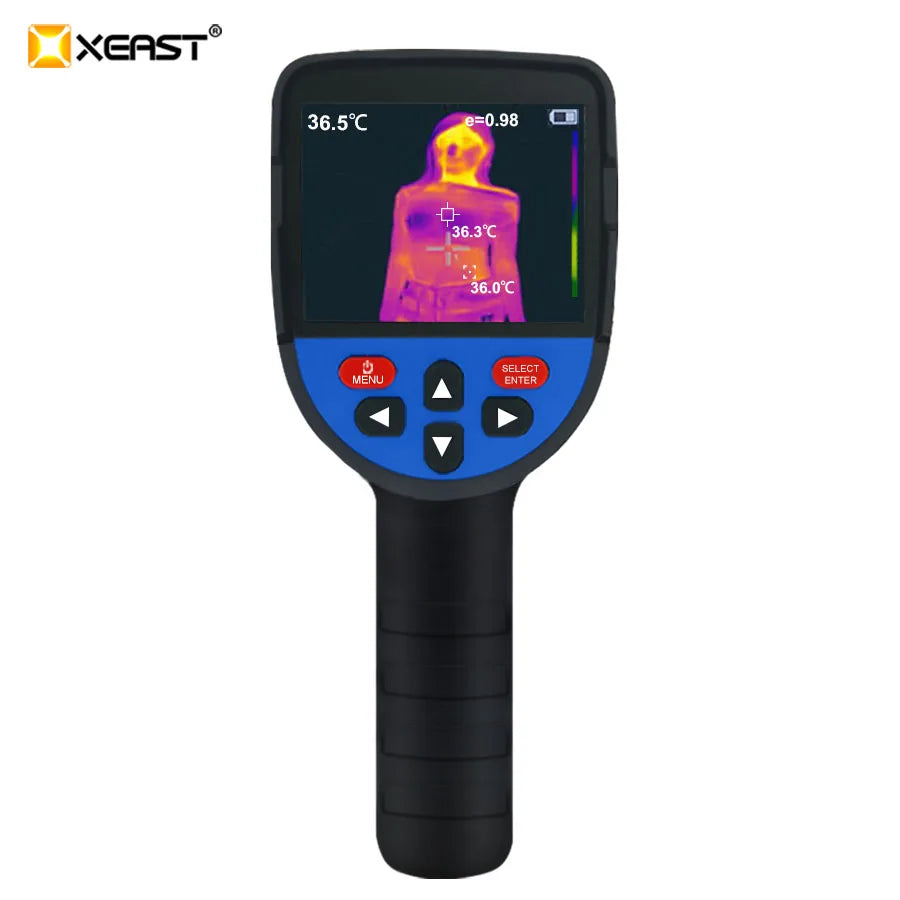

Cámara Termográfica XE-33/XE-32 para Reparación PCB (3.2") - Similar Seek/FLIR
Cámara Termográfica XE-33/XE-32 para Reparación PCB (3.2") - Similar Seek/FLIR
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: XEAST
Certification: CE,FCC
Display Size: 2.0 - 3.9 Inches
Emissivity: 0.1-10.0 Adjustable
Focus Mode: Fixed
Image Format: JPG
Image Storage: SD Card 4G
Infrared Resolution XE-32: 220*160
Infrared Resolution XE-33: 320*240
Is Smart Device: No
Origin: Mainland China
Palette: Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)
Power Supply: USB built-in chargeable 18650 batteries
Power Type: AAA Battery
Style: Handheld
Temperature Range: -20℃ to 300℃(-4℉ to 572℉)

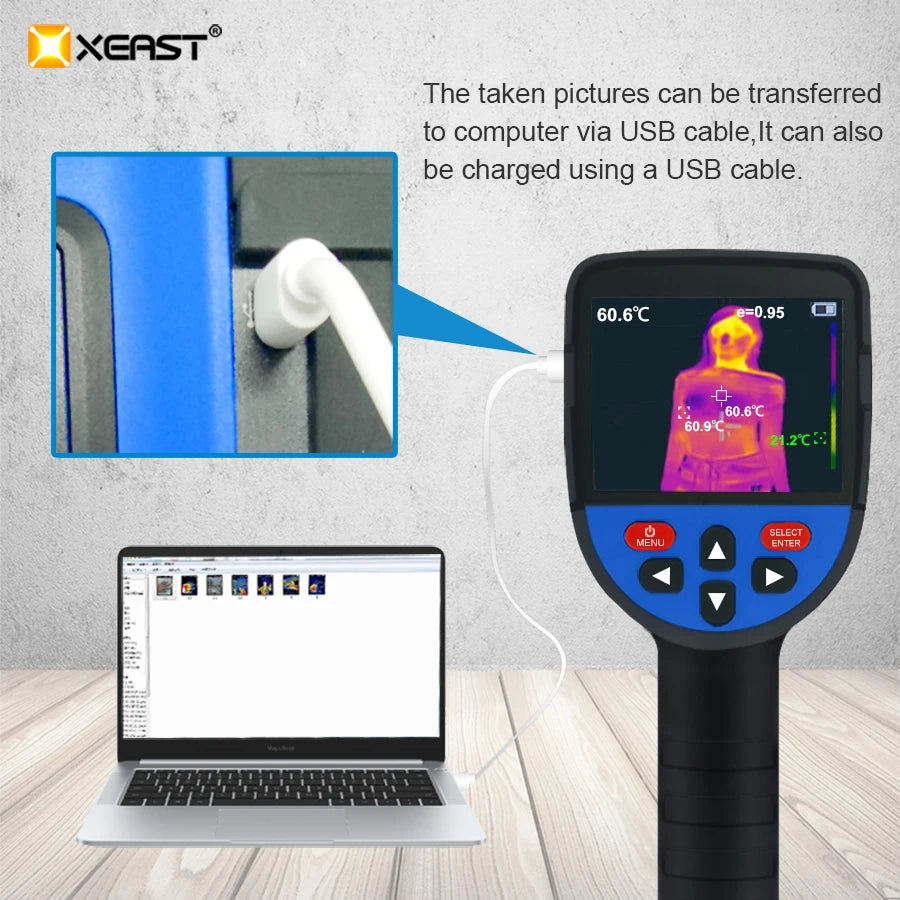

USB: Micro USB2.0
2024 XEAST High-Quality Super-explosive thermal imaging camera, fast, high-definition operation, easy to carry, easy to carry, thermal camera for a wide range of applications

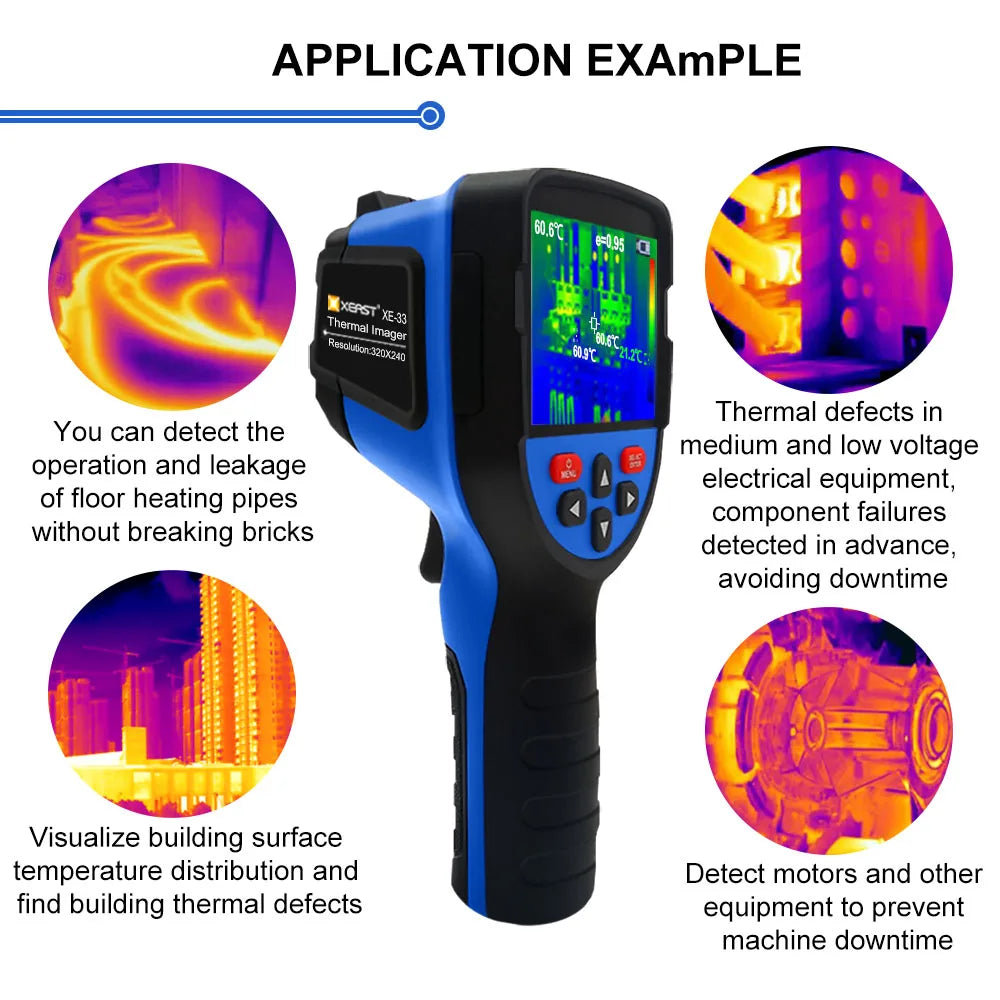

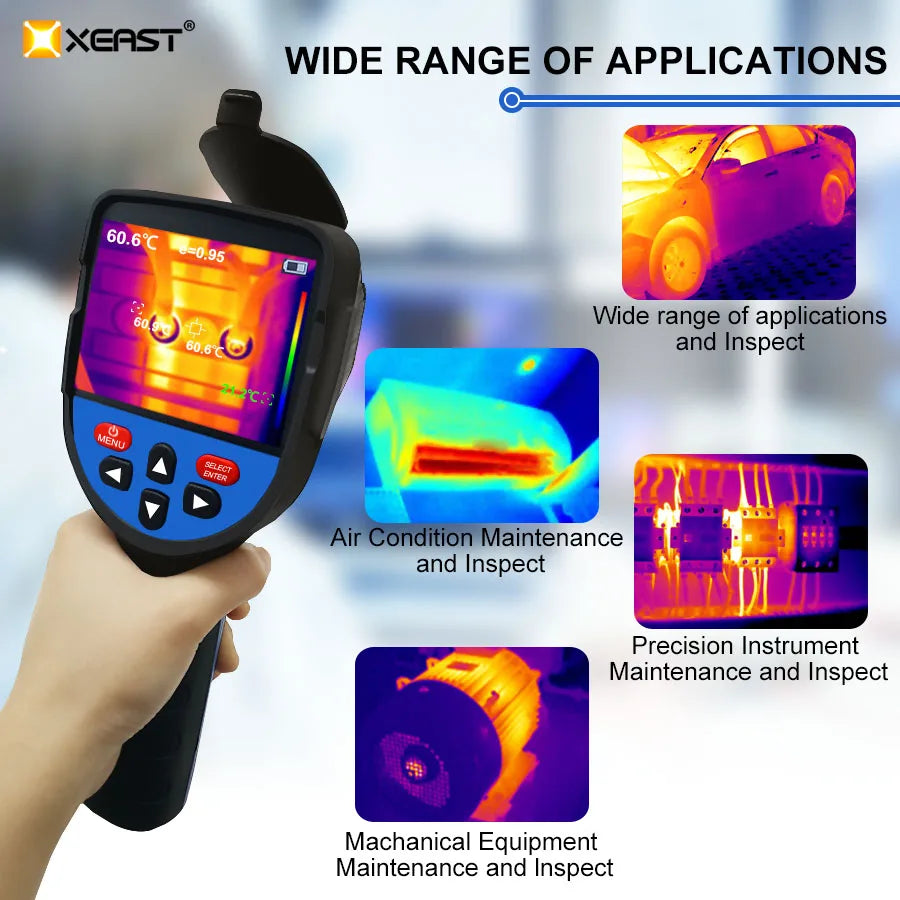

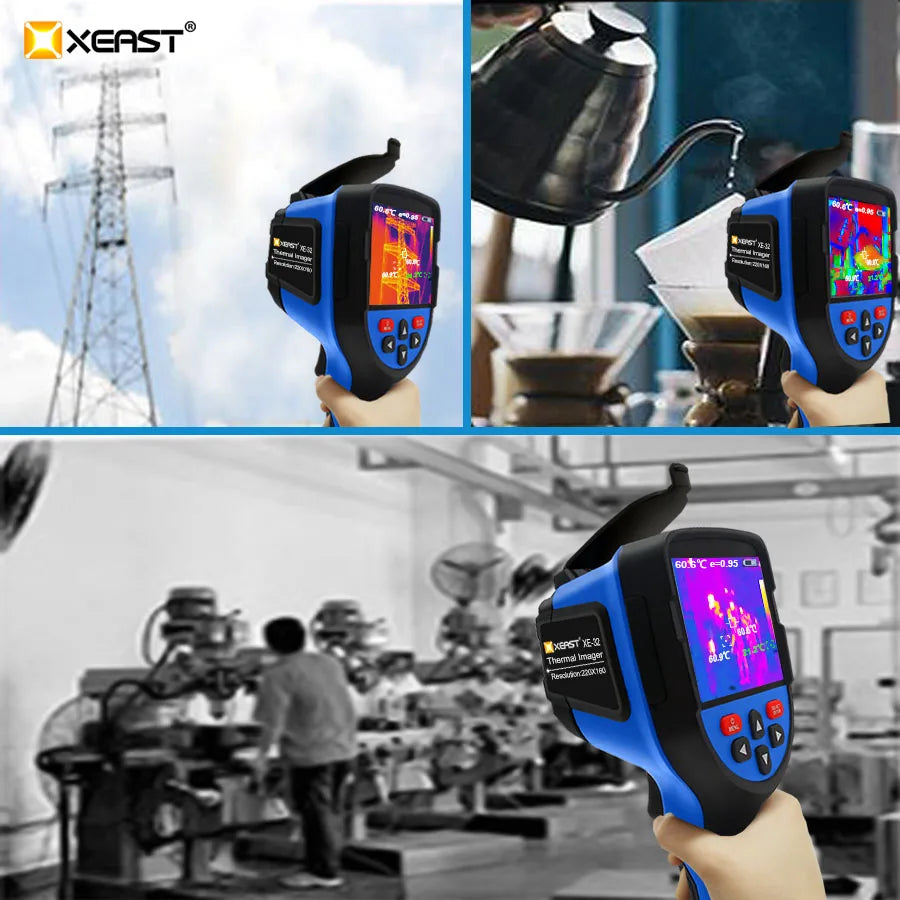

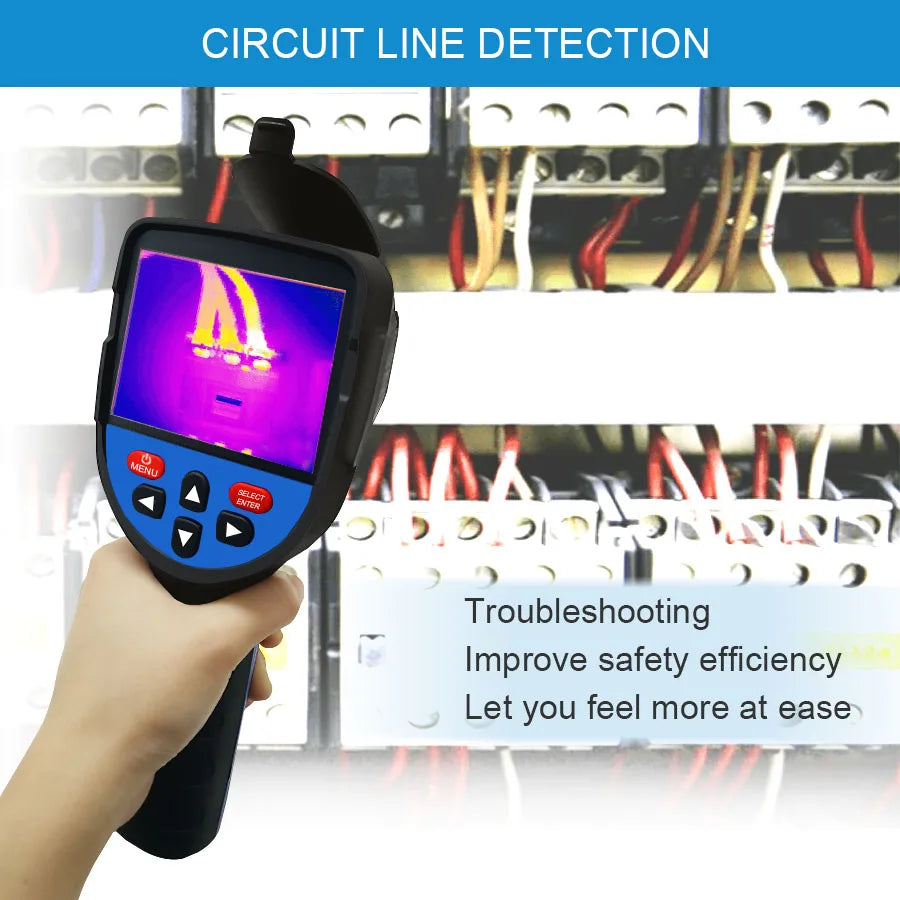

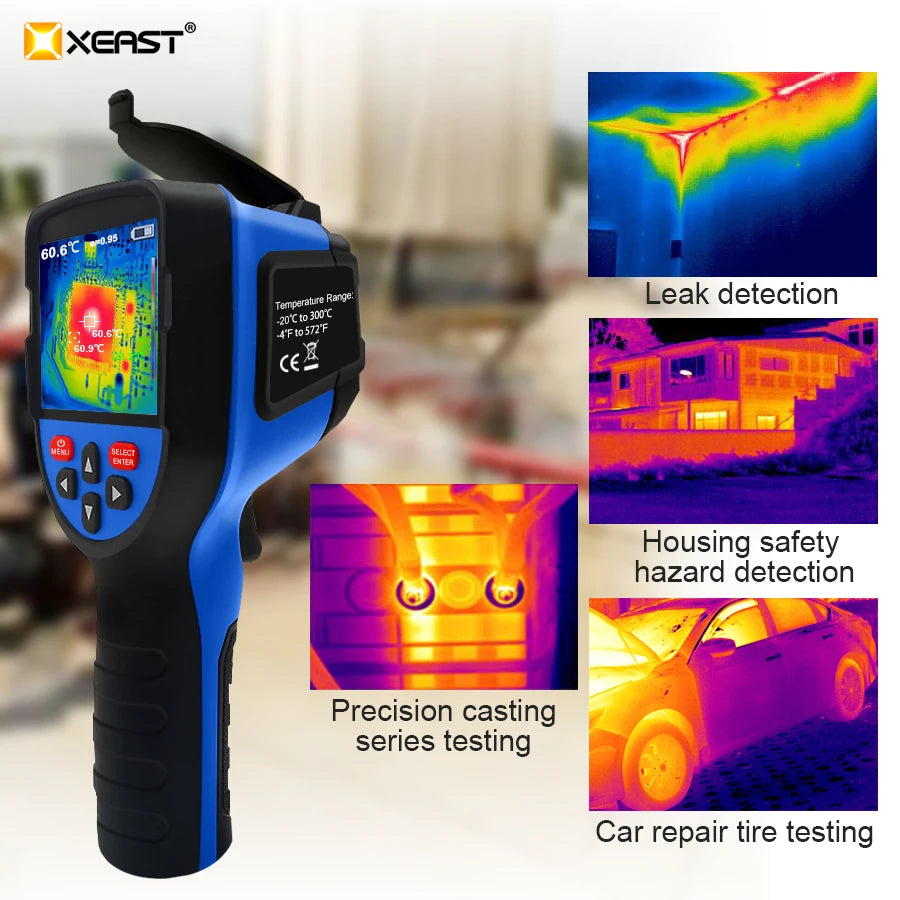

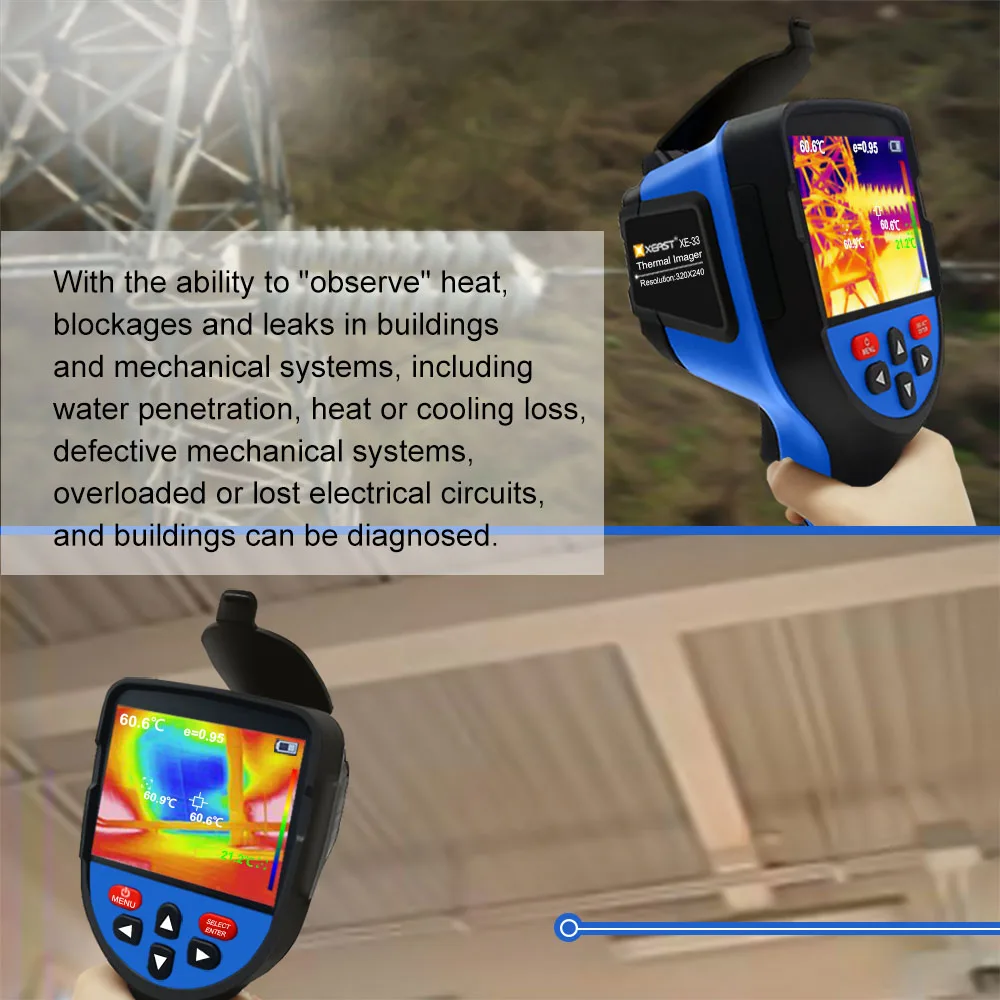

It is widely used in floor heating pipelines, wall leakage, industrial maintenance, construction, electricity, automobile maintenance, circuit board failure points, equipment detection, and utility pole detection.
Specification

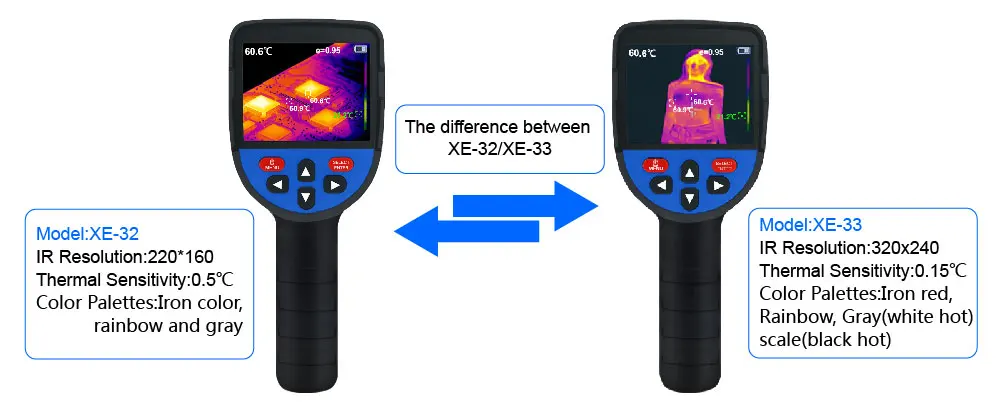

Model |
XE-32 |
XE-33 |
IR Resolution |
220x160 |
320x240 |
Temperature Range |
-20℃~300℃/-4℉~572℉ |
|
Accuracy |
±2℃ (±3.6℉) or ±2% of reading |
|

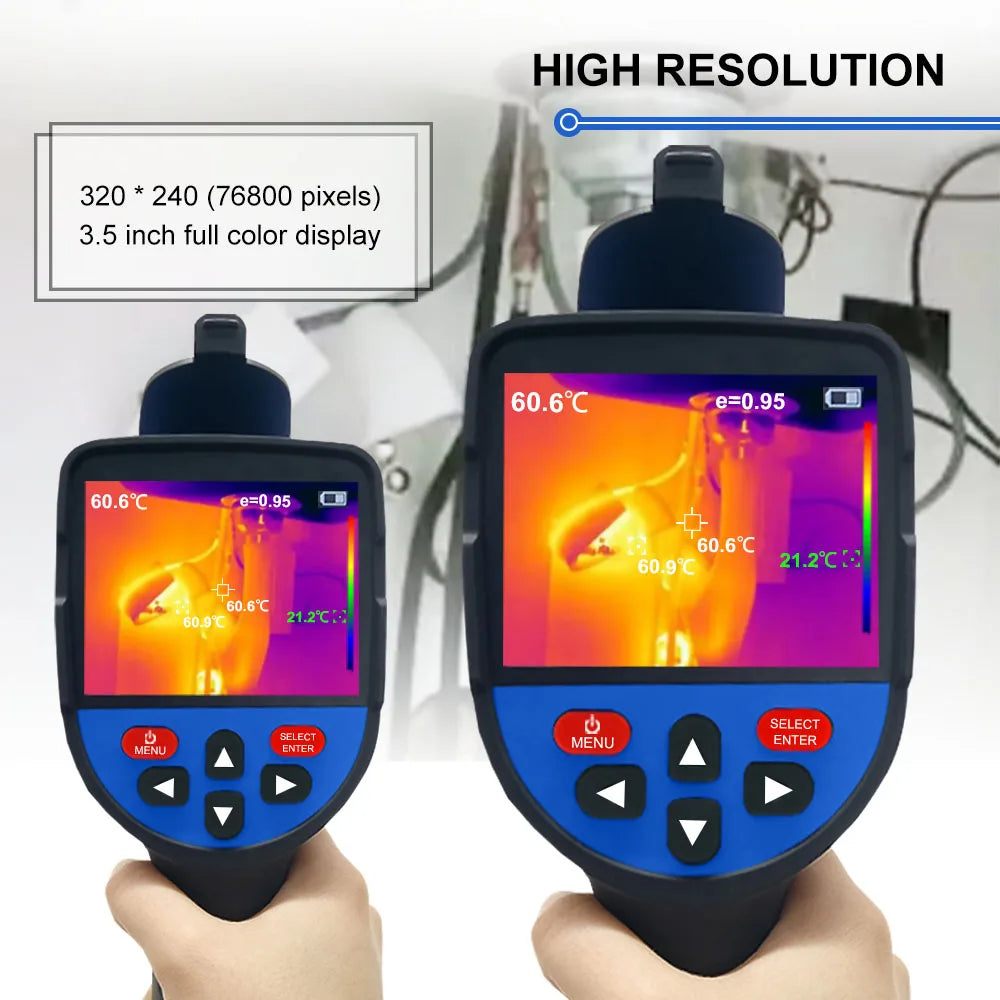

Display |
3.5" TFT 320x240 Pixels color |
|

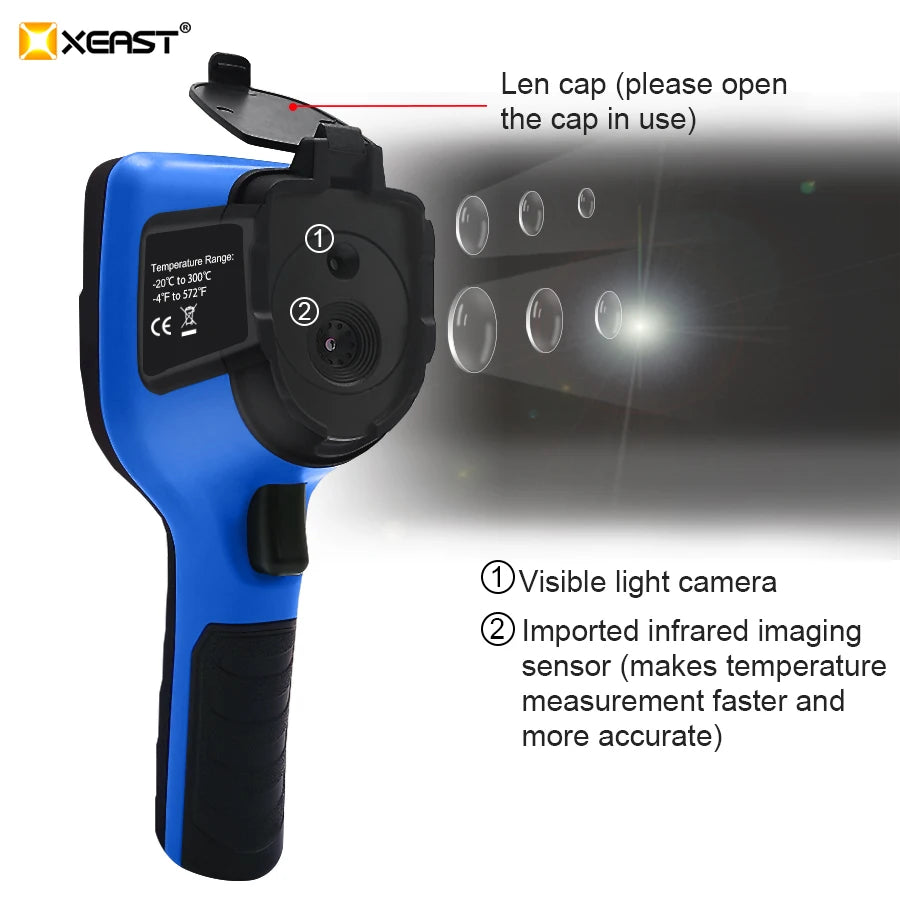

Visible Camera |
Visible Camera 300,000 pixels |
|
Field of View(FOV) |
35°x26° |
|
Best Focus Distance |
0.5m |
|
Thermal Sensitivity |
0.5℃ |
0.15℃ |
Emissivity |
0.10~1.0 adjustable |
|
Wavelength Range |
8-14um |
|
Image Capture Frequency |
Image Capture Frequency:9Hz |
|
Focus Mode |
Fixed |
|
Image Storage |
SD Card(TF Micor) 3GB |
|
File Format: |
JPG |
|
Power Type |

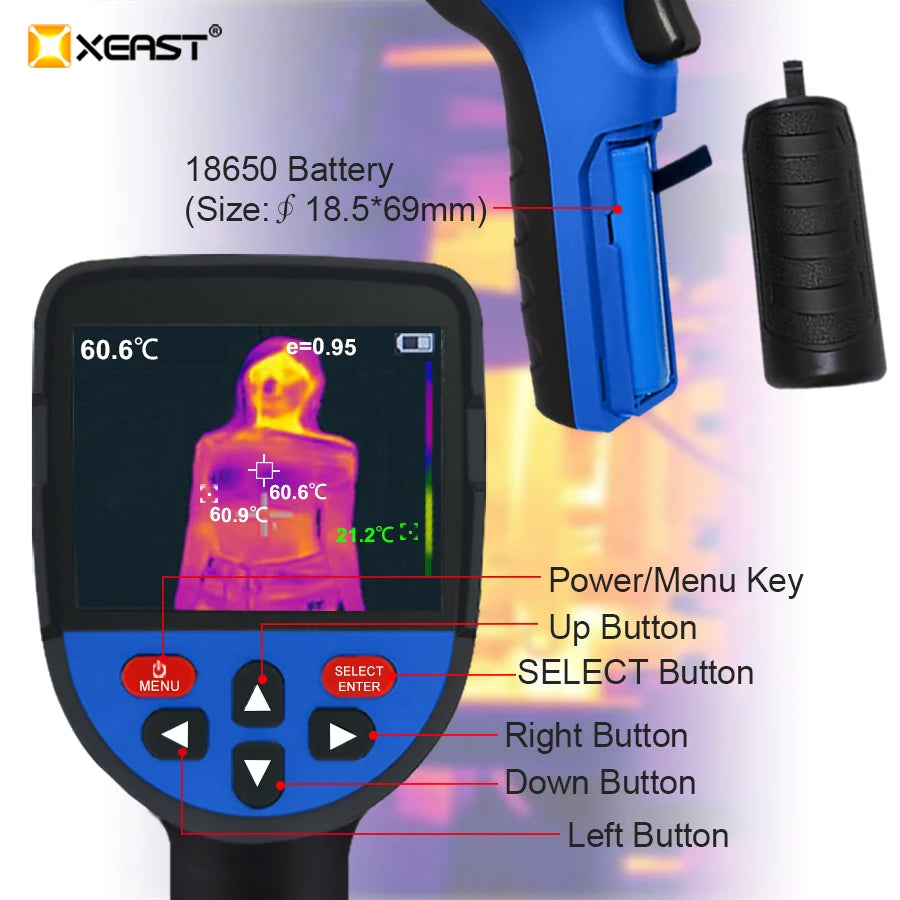

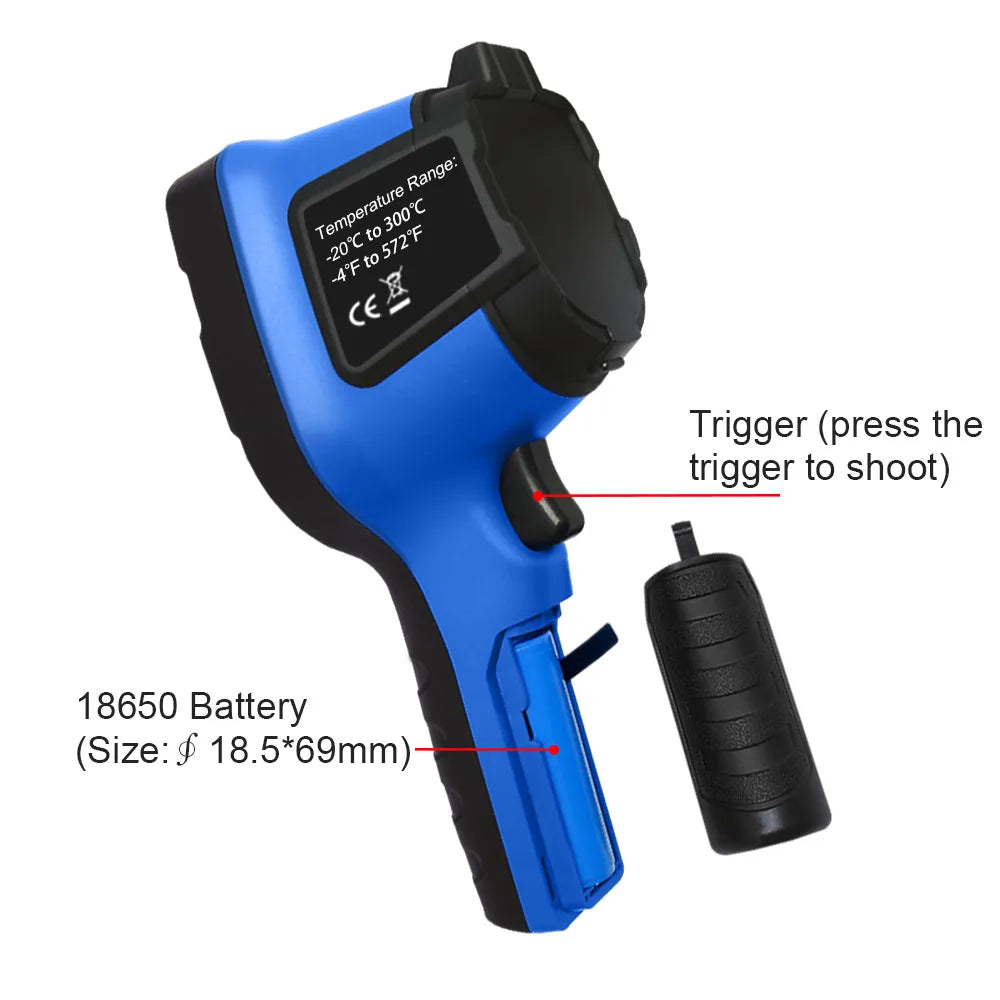

18650 rechargeable lithium battery and USB |
|
Battery Life |
6 hours |
|
Working Conditions |
-5℃ to 40℃/23℉ to 104℉;10%RH to 80%RH |
|
Storage Conditions |
-20℃ to 50℃/-4℉ to 122℉;10%RH to 80RH |
|
Item Size |
260*200*112mm |
|
Item Weight |
0.4kg |
|

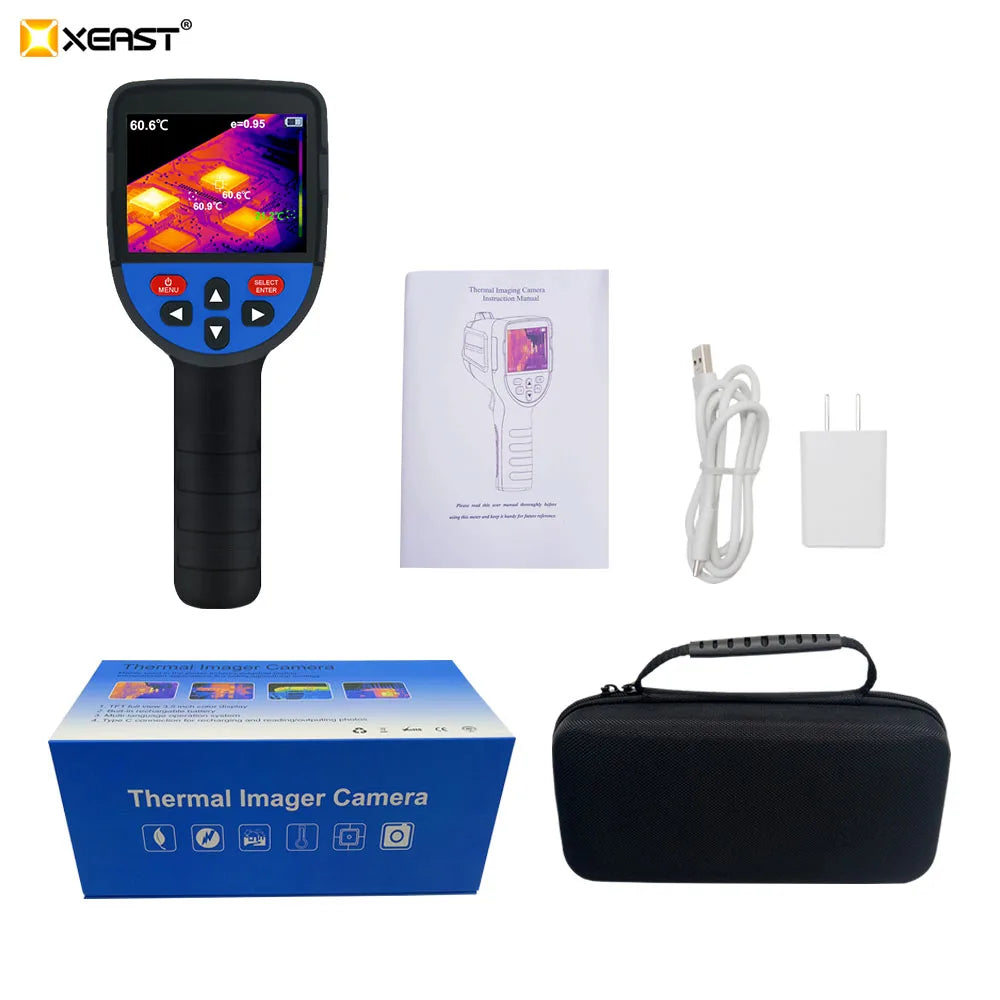

Package Includes |
1 * Infrared Thermal Imager 1 * Mini USB Data Cable 1 * Build-in Storage 3GB 1 * User Manual 1 * Gift Box |
