SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

For Vehicle Type: Helicopters

Four-wheel Drive Attributes: Battery

Hign-concerned Chemical: None

Is Electric: No battery

Material: Composite Material

Model Number: ToolkitRC WM150

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Batteries - LiPo

Recommend Age: 14+y

Remote Control Peripherals/Devices: Battery

Size: As description

Technical parameters: KV1100

Tool Supplies: Battery

Upgrade Parts/Accessories: Lithium Battery

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

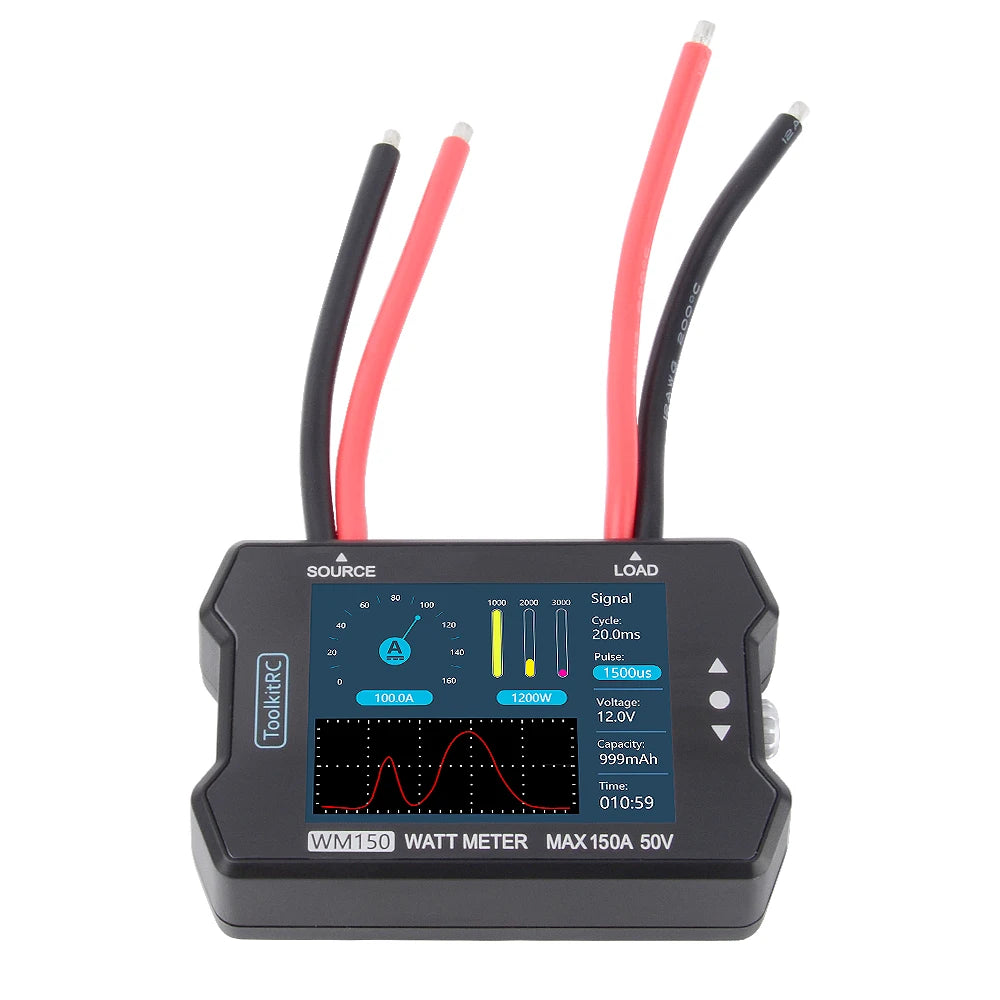

ToolkitRC WM150 150A 50V Watt Meter Power Analyzer LCD Display Power Voltage Current Tester PWM Output for RC FPV Drone

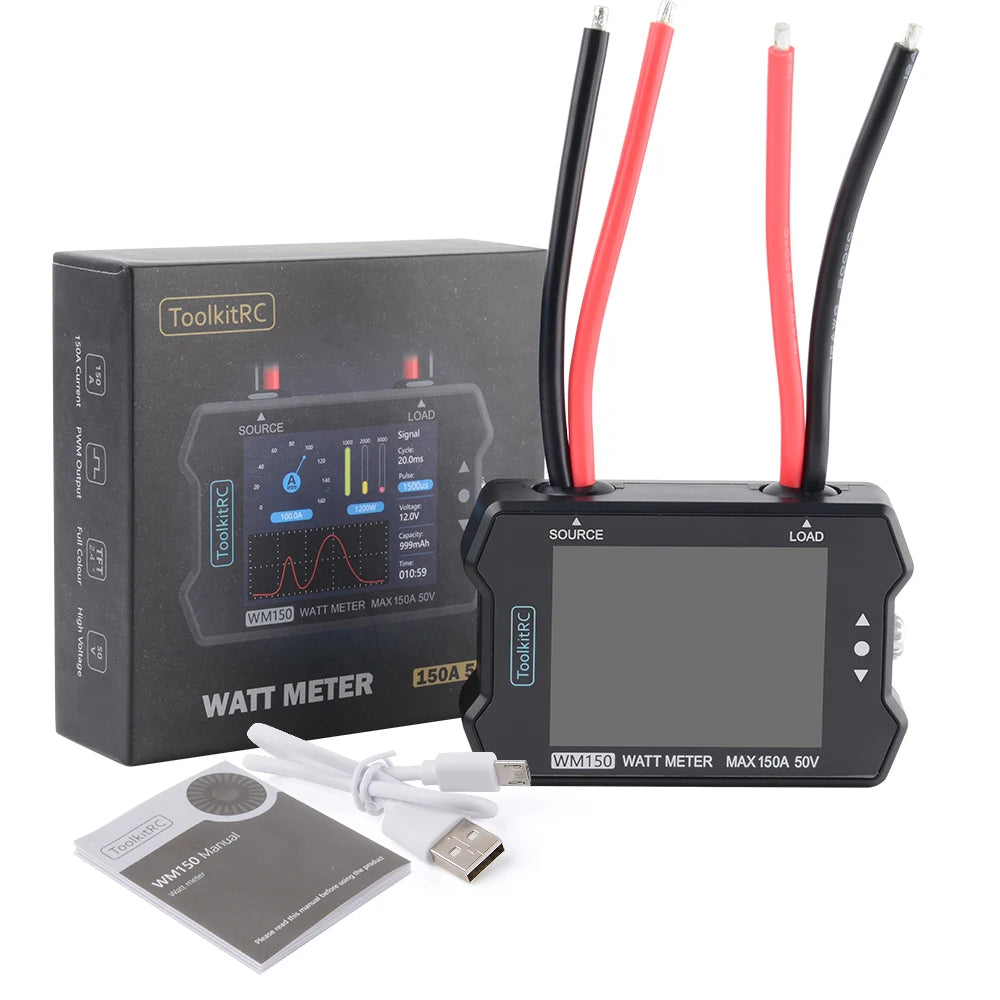

Package:

1* ToolkitRC WM150 Watt Meter

1* USB Wire
1* Manual

Description:

Brand: ToolkitRC

Item: WM150 Watt Meter

Input Voltage: 1-50V

Current(Max): 150A (precision:10mA)

USB: 5.0V@1A ( USB3.0 firmware update)

Output: PWM 1000-2000us@50Hz

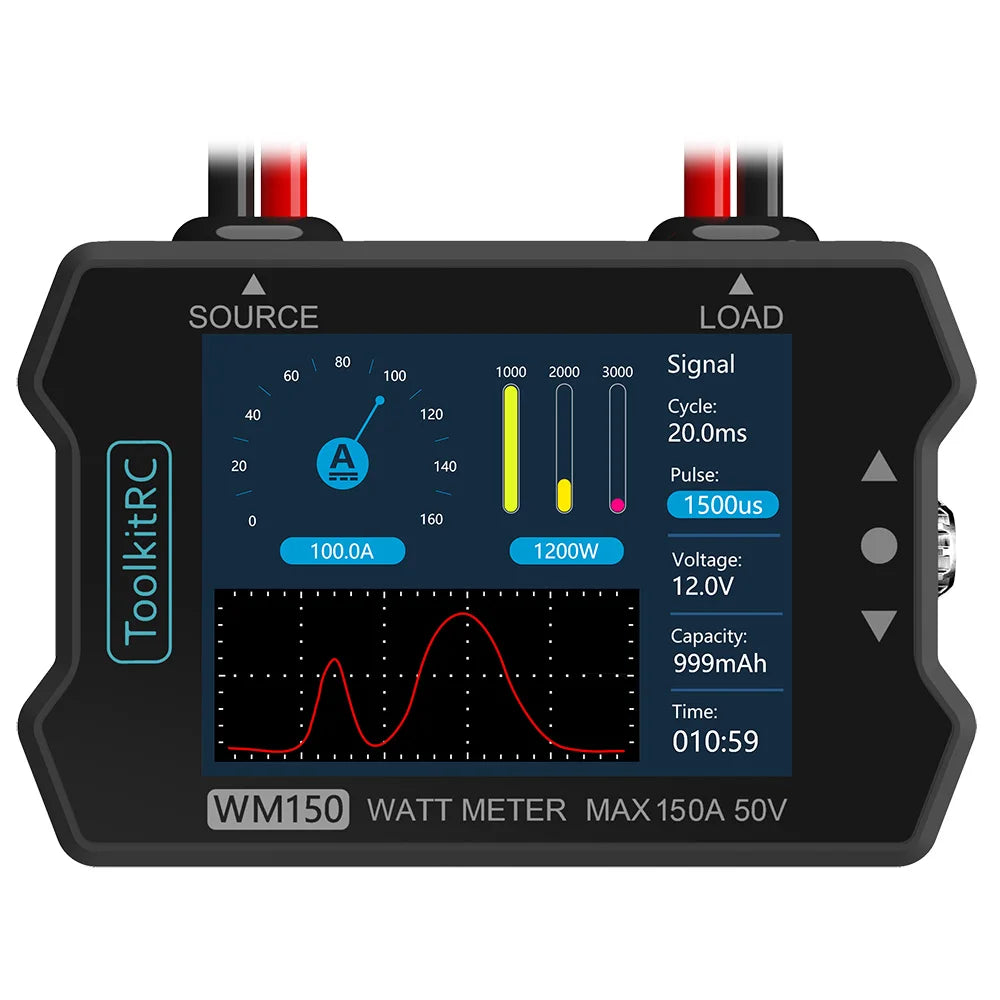

Display: TFT 2.4" LCD Screen(320*240 resolution)

Product Size: 80*54*23mm Approx.

Packing Size: 87*87*28mm Approx.

Net Weight(Approx): 120g

Gross Weight(Approx): 140g



Using Steps:

① Connect 1-50V power supply, when the voltage is lower than 6V, need to use USB 5V to provide power;

② After power-on, the LCD screen displays the logo and continues 2 seconds, with the starting music;

③ Adjust the button if the data in the displaying screen are not in minimum data position.



Features:

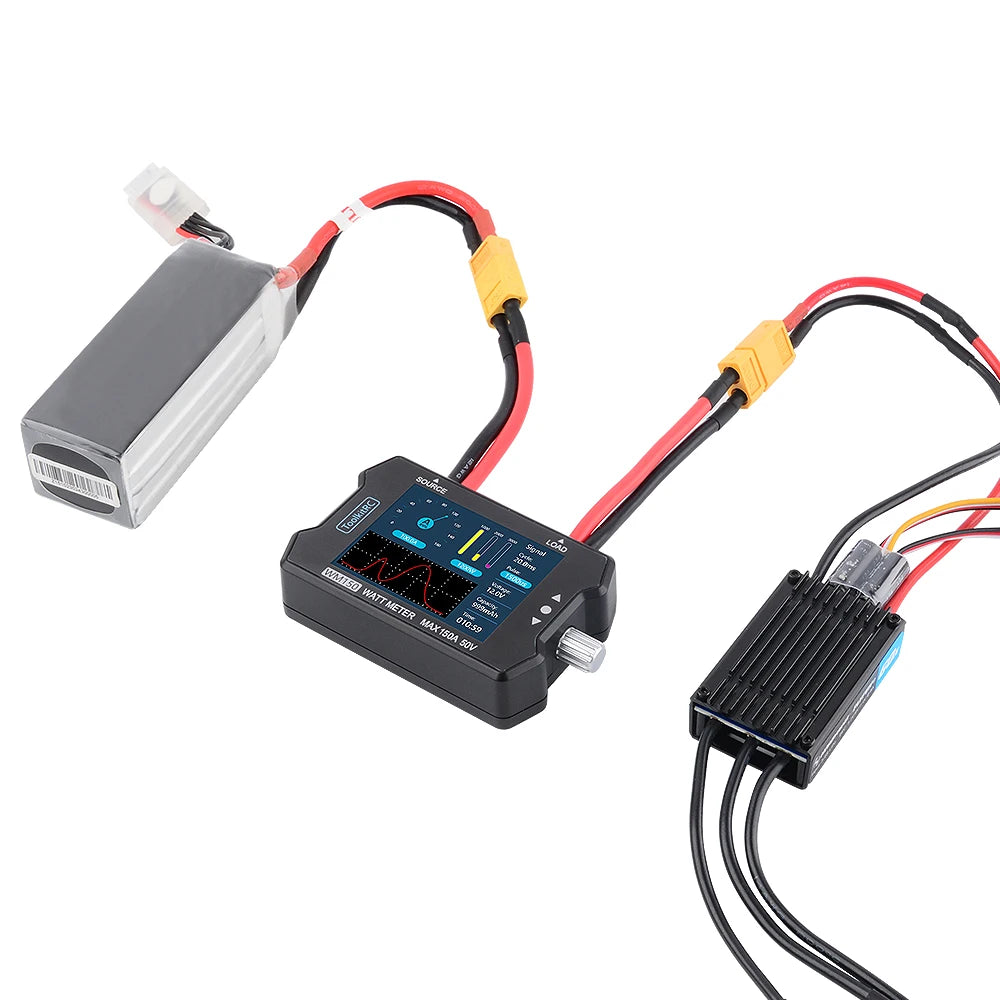

- ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like servo, ESC, battery, etc.

- 1-50V power supply, the max current is up to 150A, the precision is accurate  to 10mA.

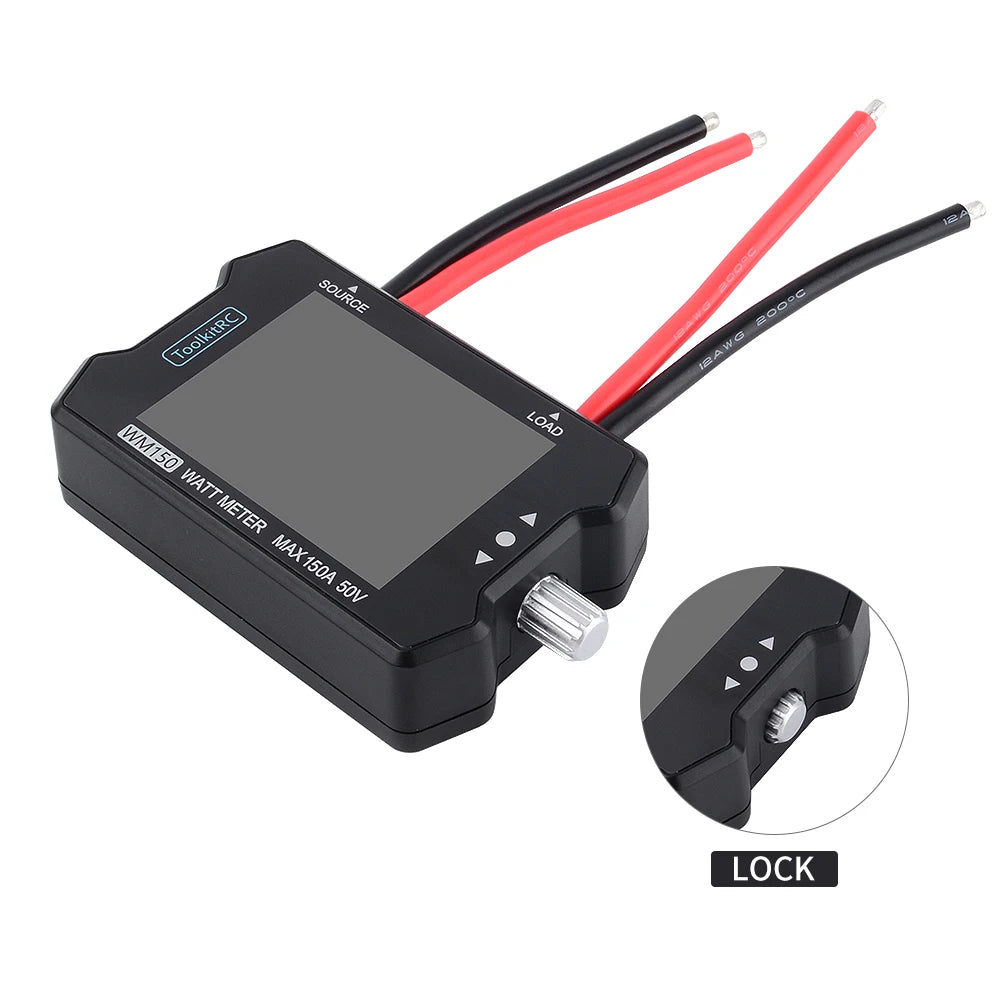

- Support PWM signal, 1us precision, the pulse width is changable by adjusting the button.

- Automaticly to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-dispaly is changed to A.

- The watt meter is also supporting to display working hours.

- USB firmware update, easy to operate.
