SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

Detailed Description: IC PWR DRIVER N-CHAN 1:1

Factory Pack Quantity (Pcs): 2500

Hign-concerned Chemical: None

Manufacturer Product Number: TPL7407LADR

Mfr: Texas Instruments

Mounting Style: Surface Mount

Operating Temperature: -40°C ~ 125°C (TA)

Origin: Mainland China

Packaging: Reel

Product Type: Gate Drivers

Quantity: 1

Subcategory: PMIC - Power Management ICs

Supplier Device Package: 16-SOIC (0.295", 7.50mm Width)

Type: SWITCH

Unit Weight / single: 0.6 g

Voltage - Supply (Vcc/Vdd): 6.5V ~ 30V

is_customized: Yes

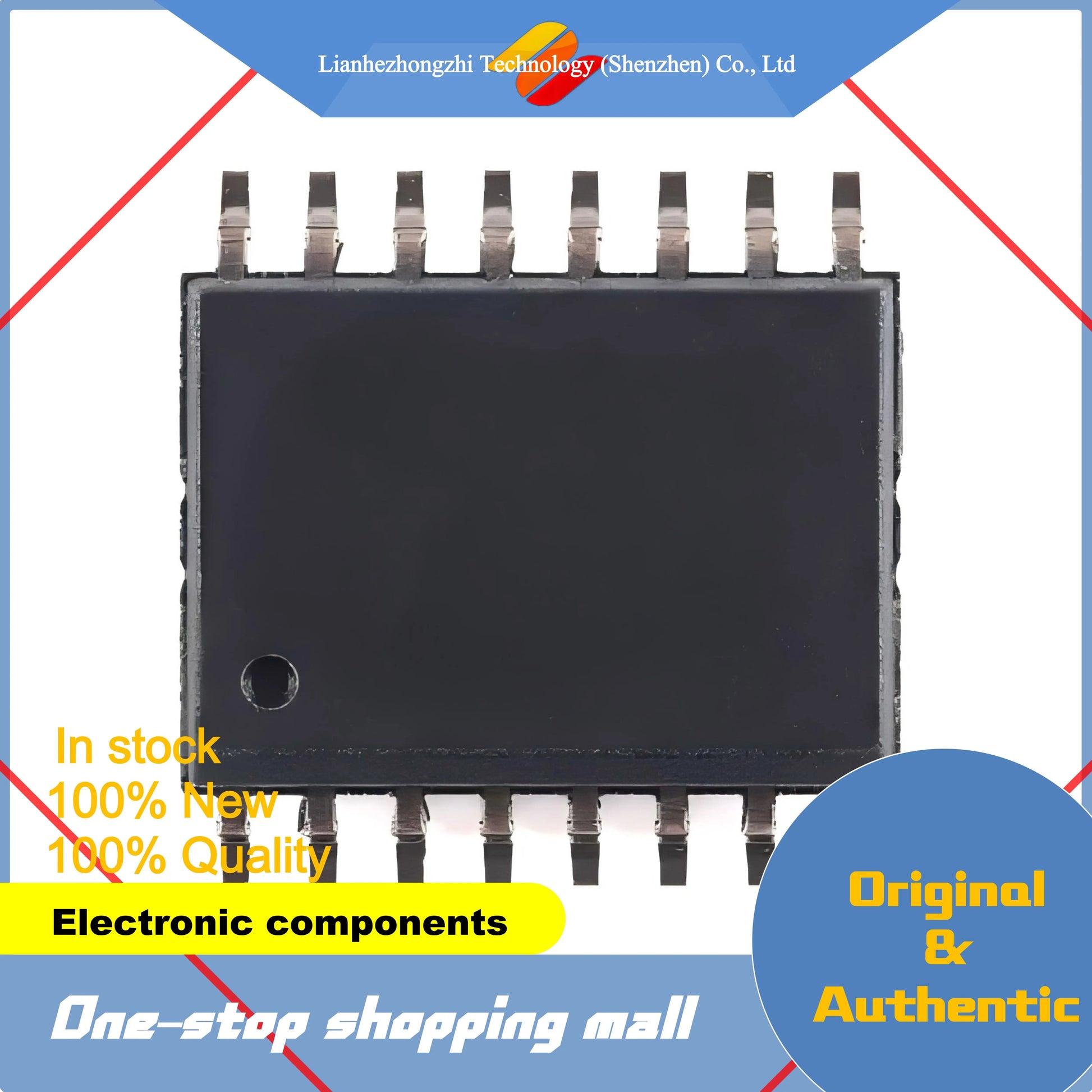

TPL7407LADR

Description The TPL7407LA is a high-voltage, high-current NMOS transistor array. This device consists of seven NMOS transistors that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The maximum drain-current rating of a single NMOS channel is 600 mA. New regulation and drive circuitry added to give maximum drive strength across all GPIO ranges (1.8 V–5 V).The transistors can be paralleled for higher current capability. The TPL7407LA key benefit is its improved power efficiency and lower leakage than a Bipolar Darlington Implementation. With the lower VOL the user is dissipating less than half the power than traditional relay drivers with currents less than 250 mA per channel.
