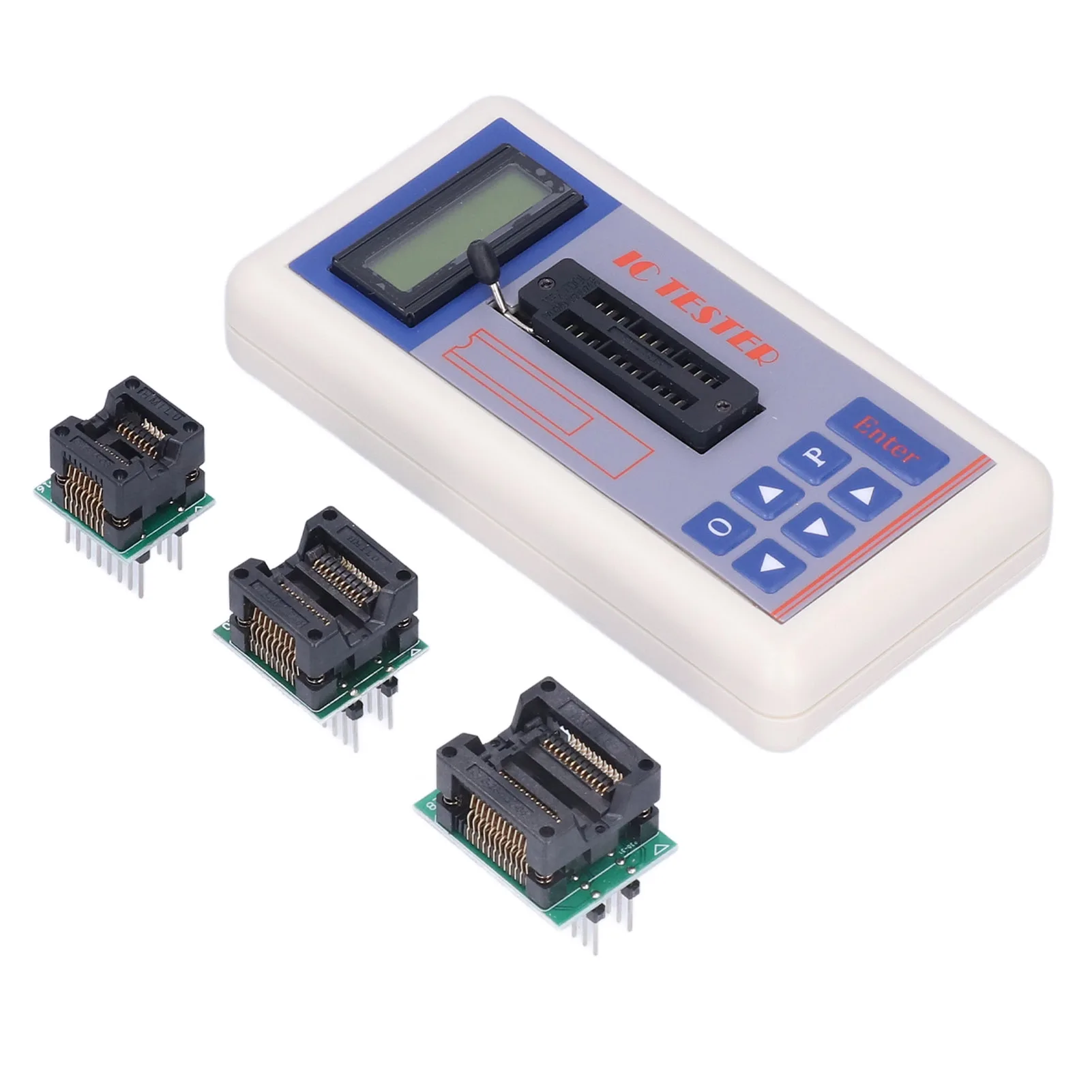

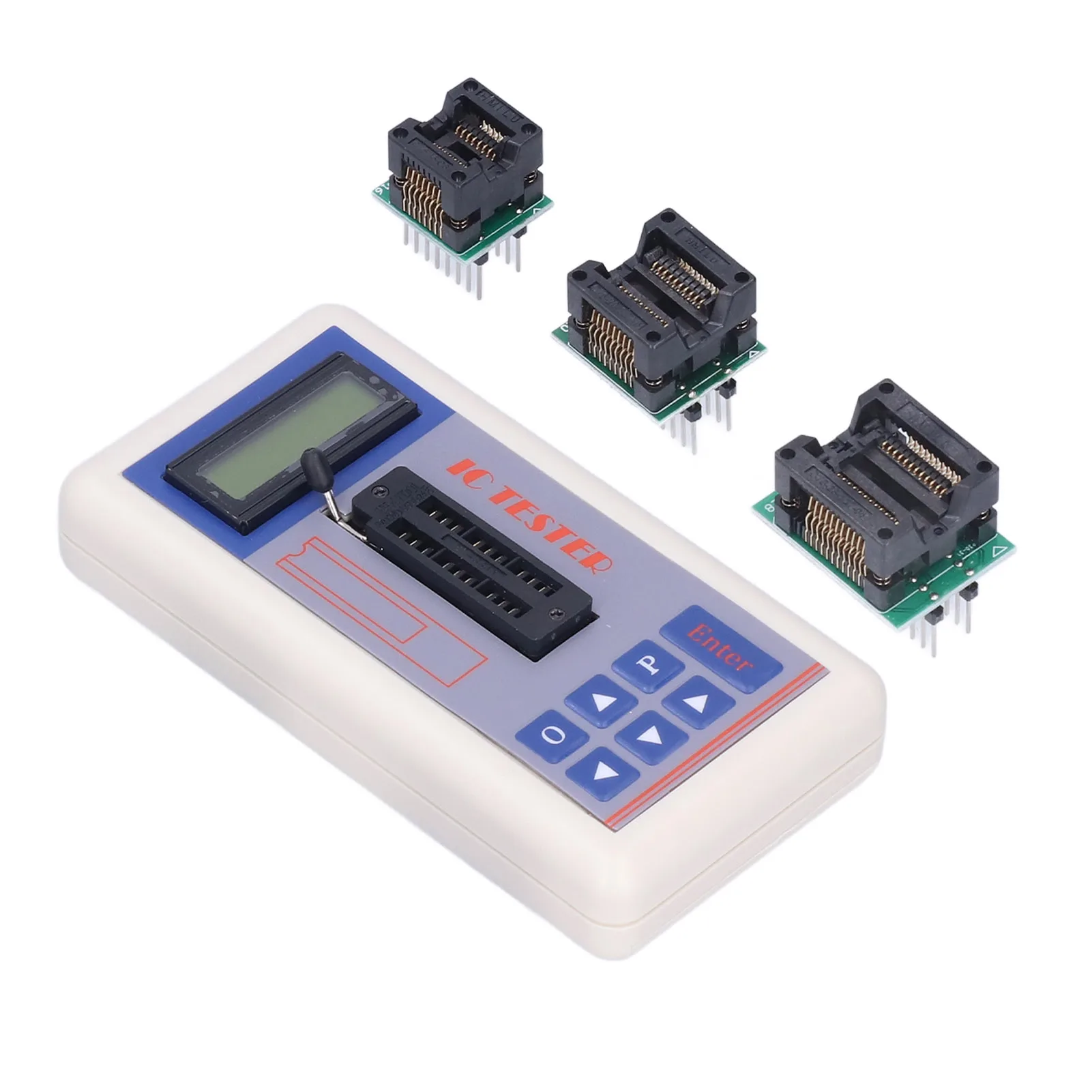

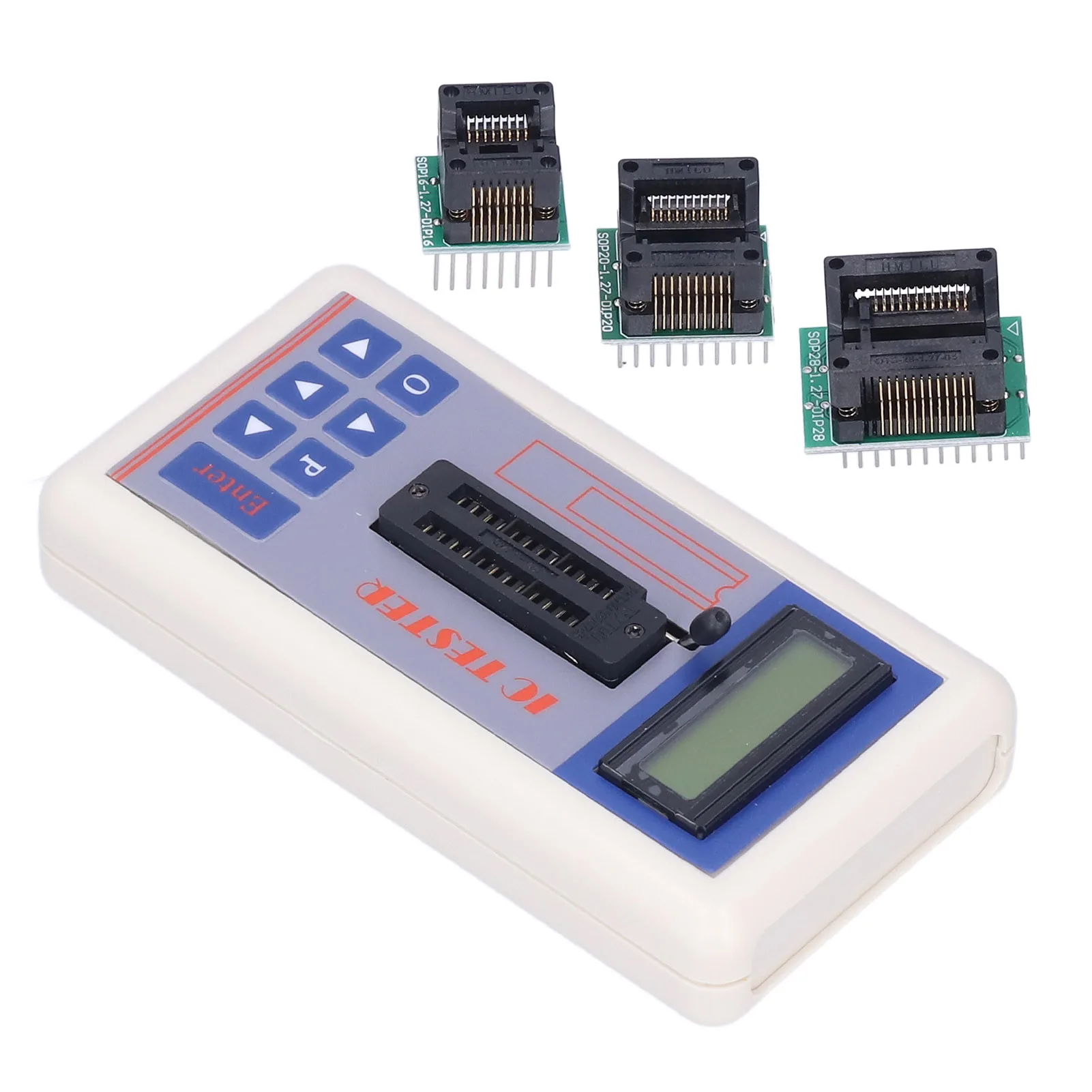

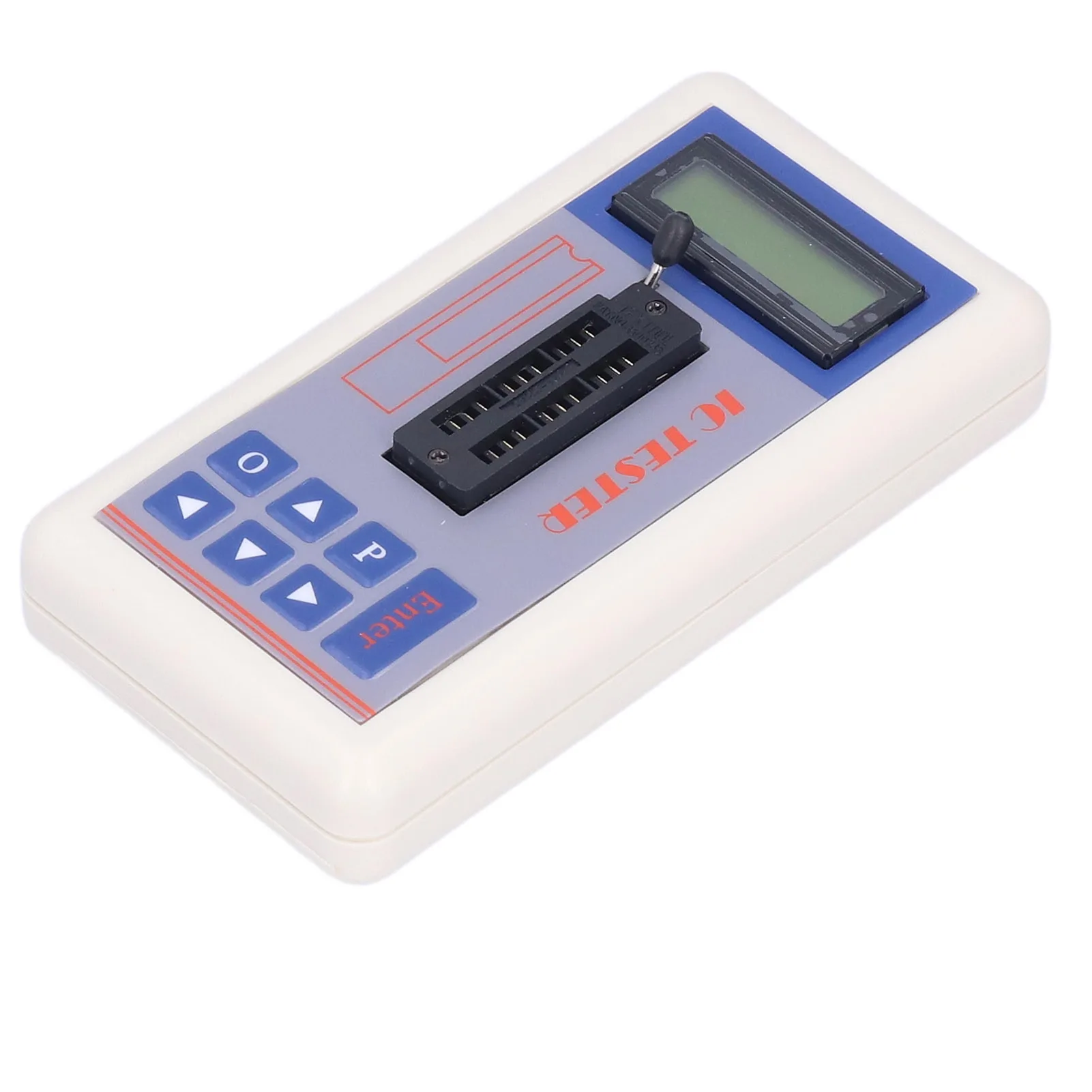

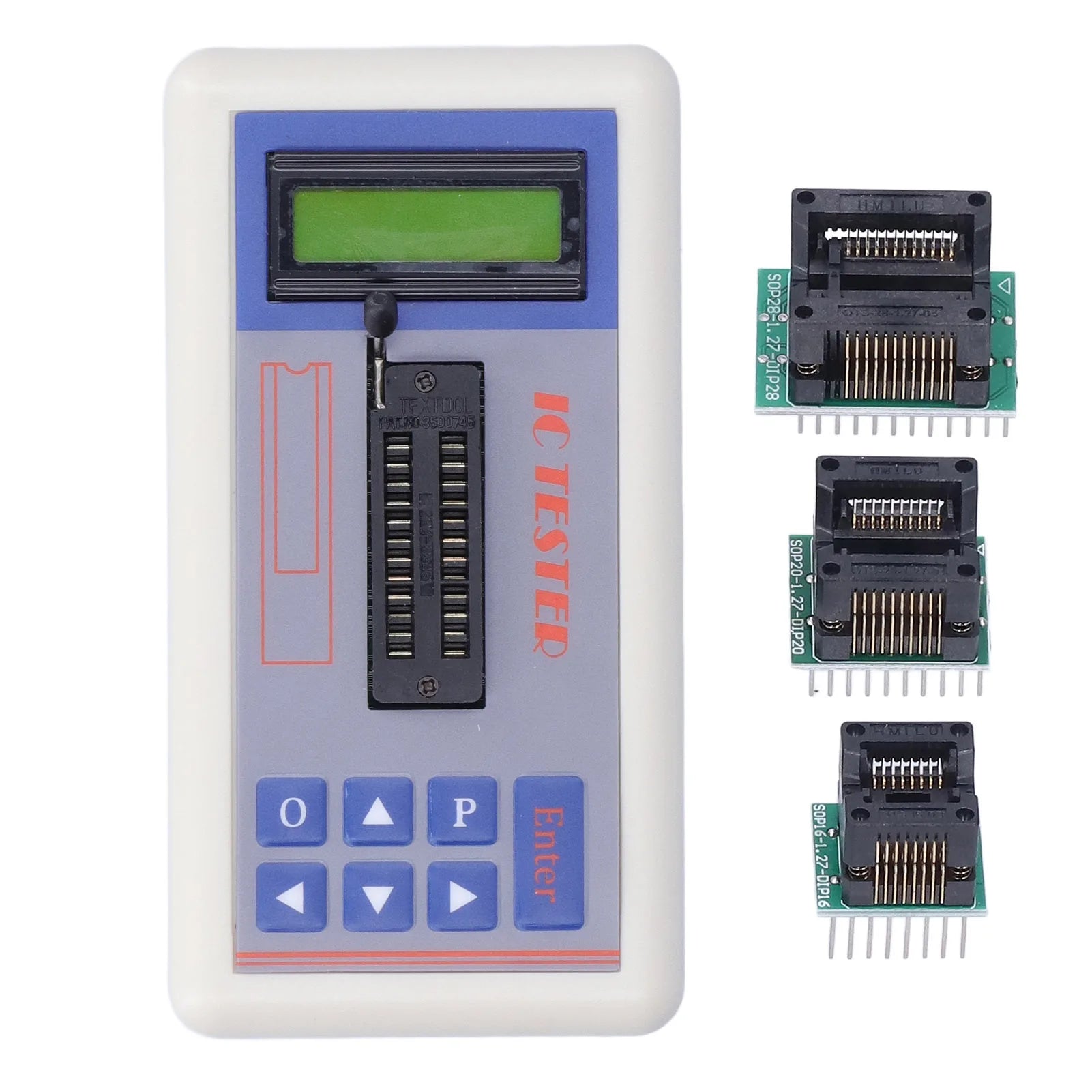

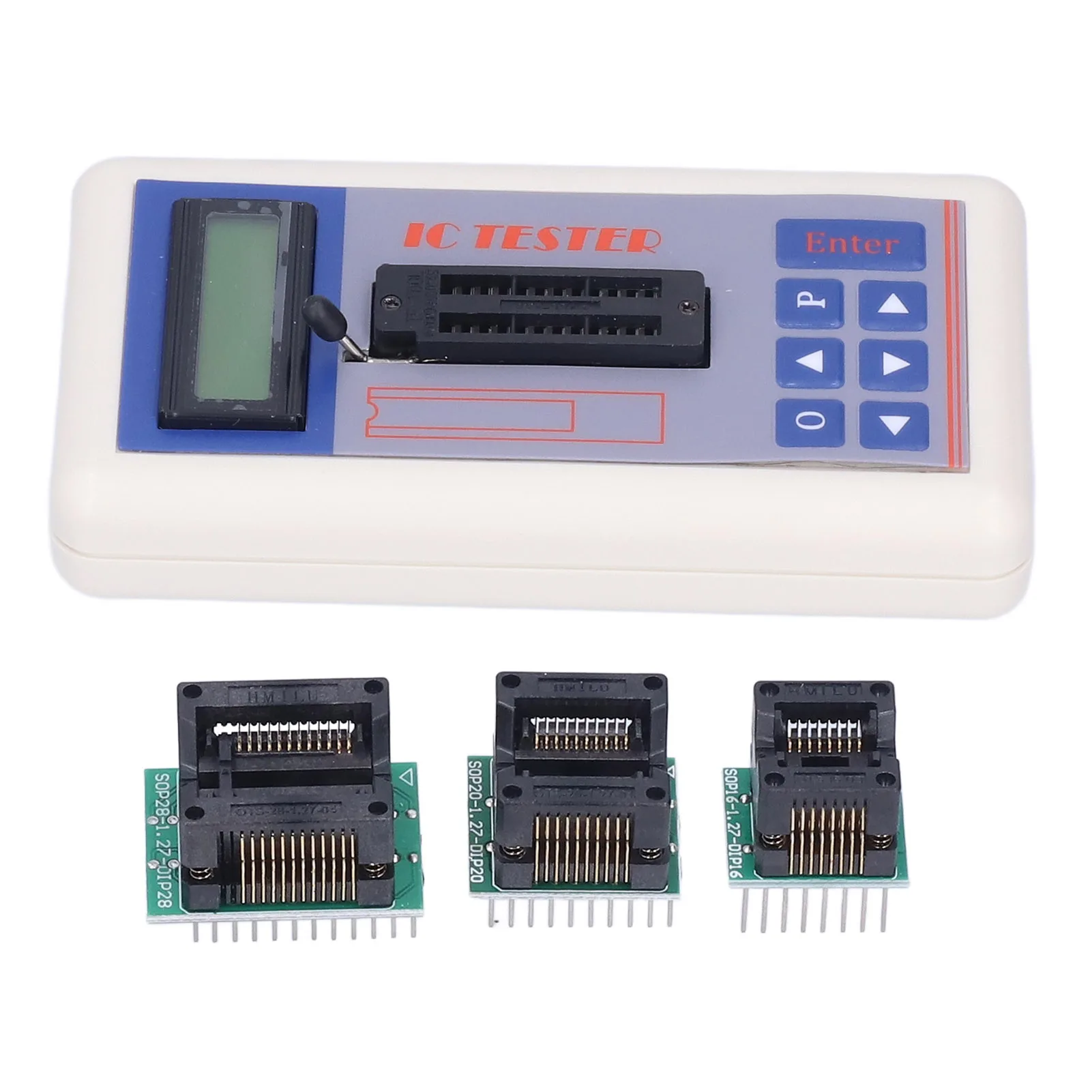

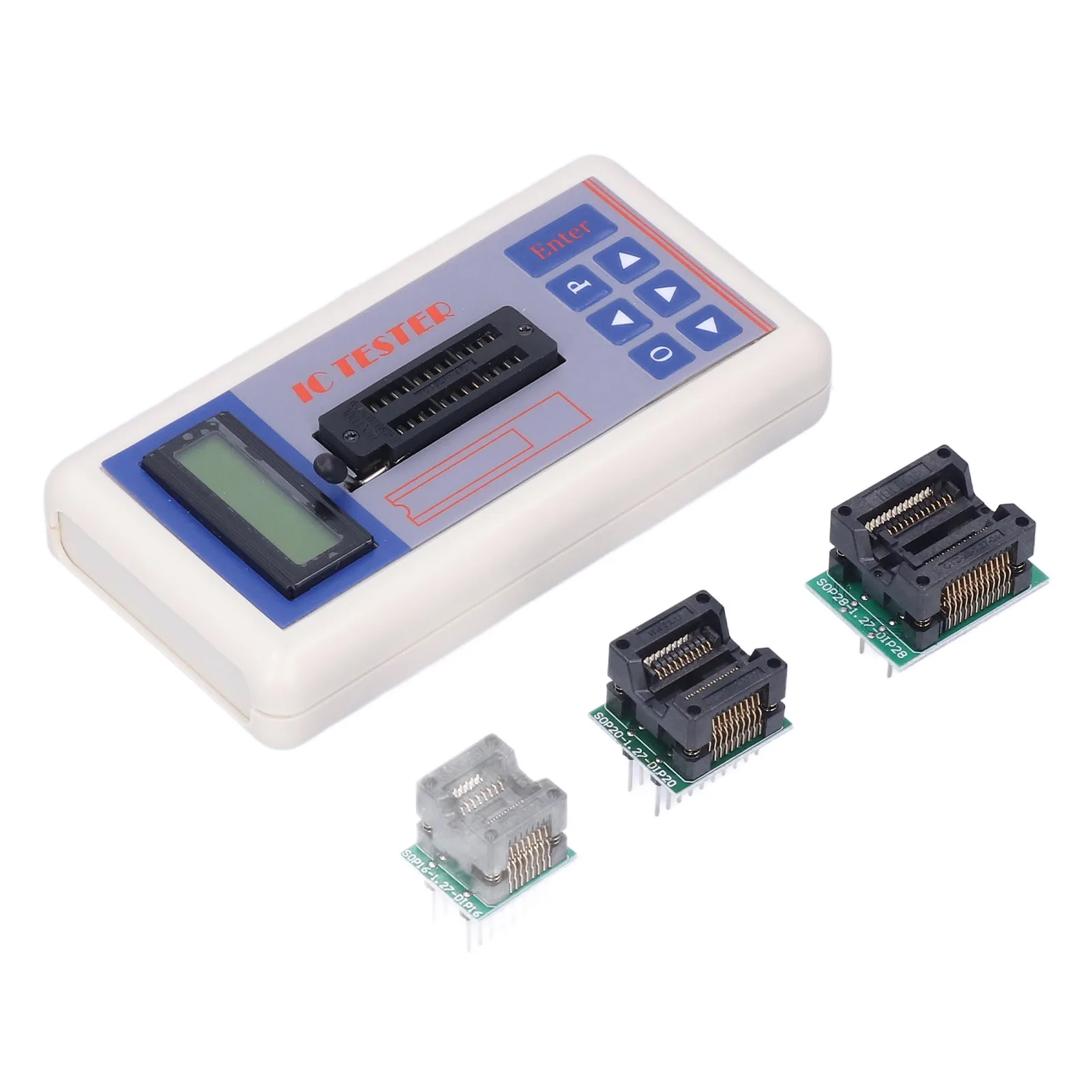

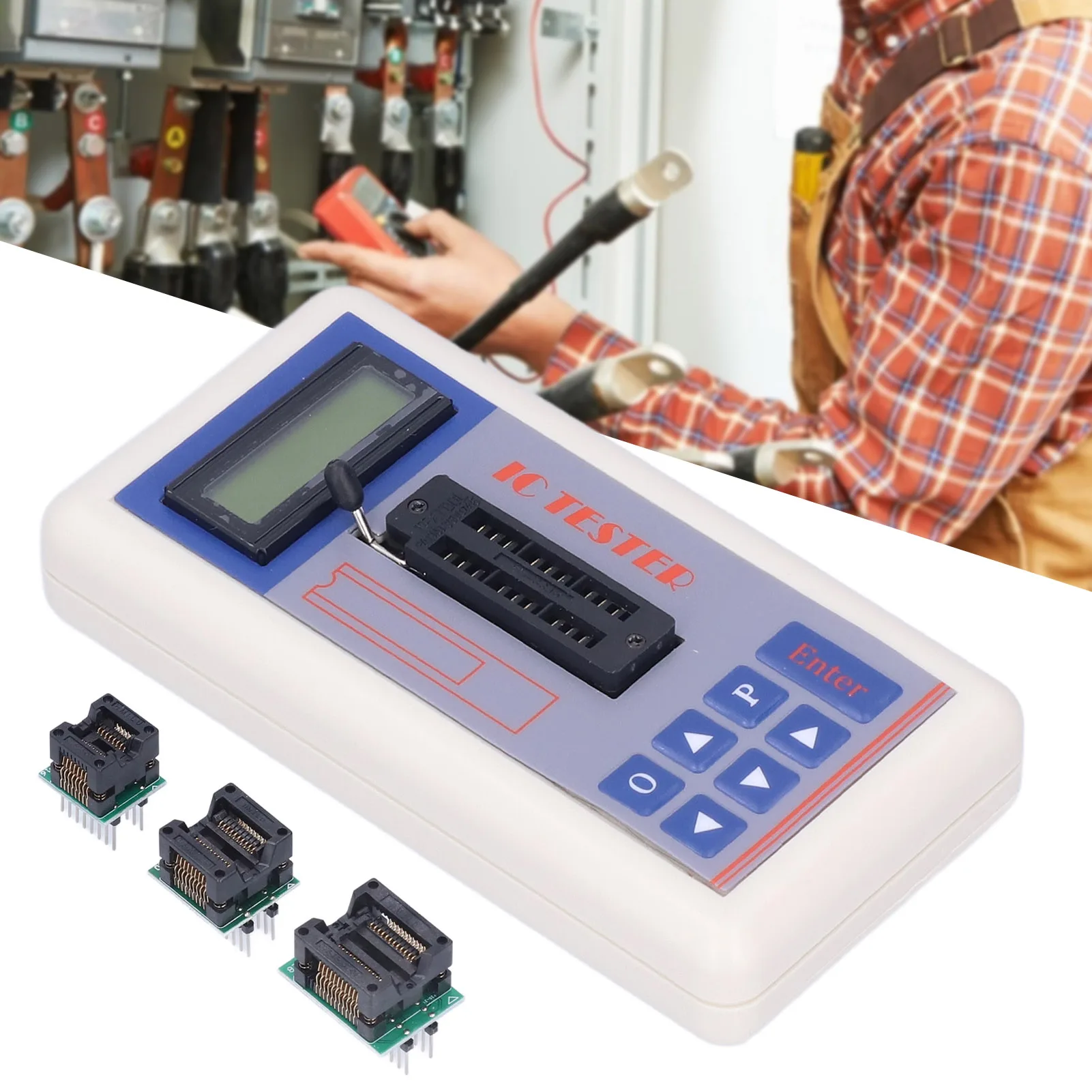

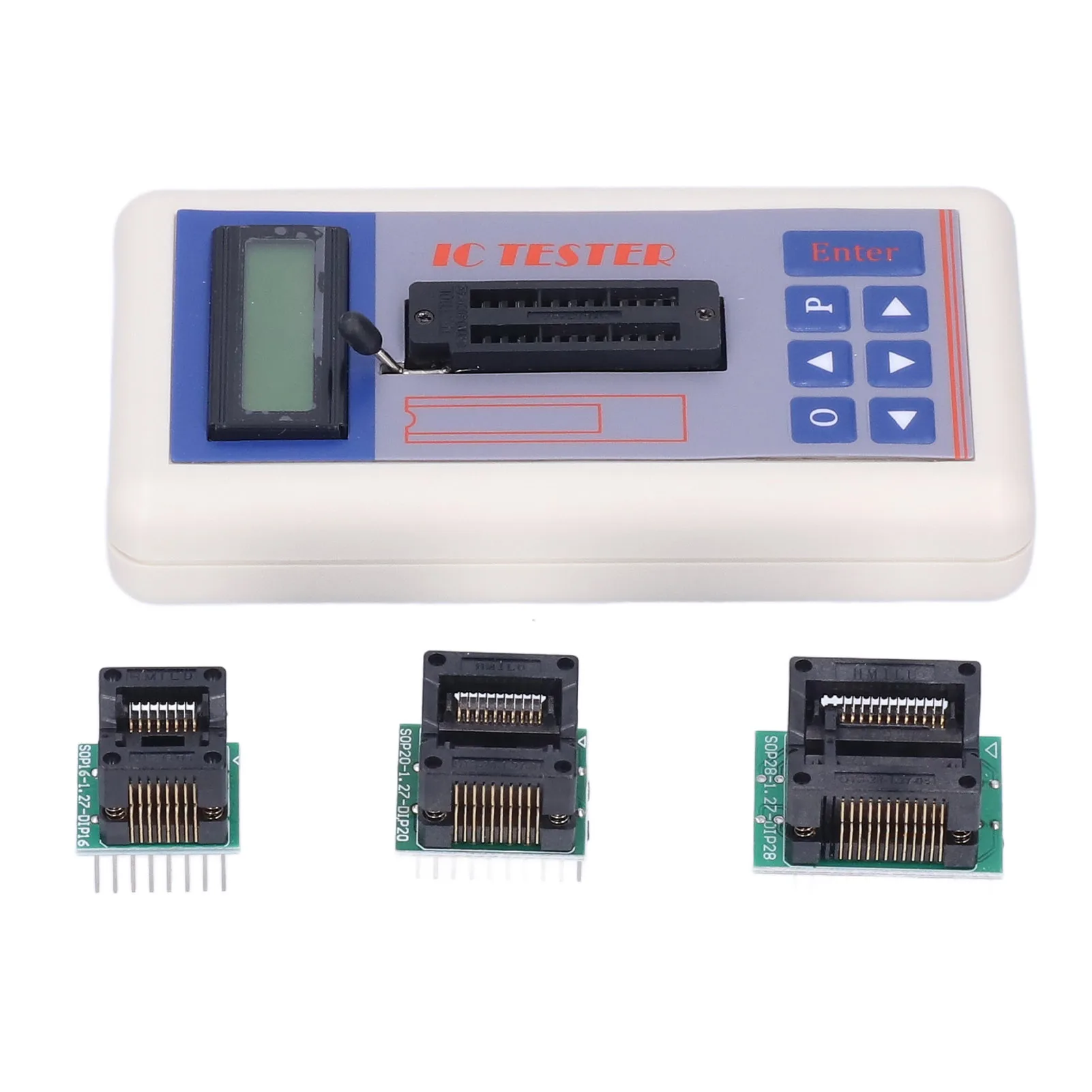

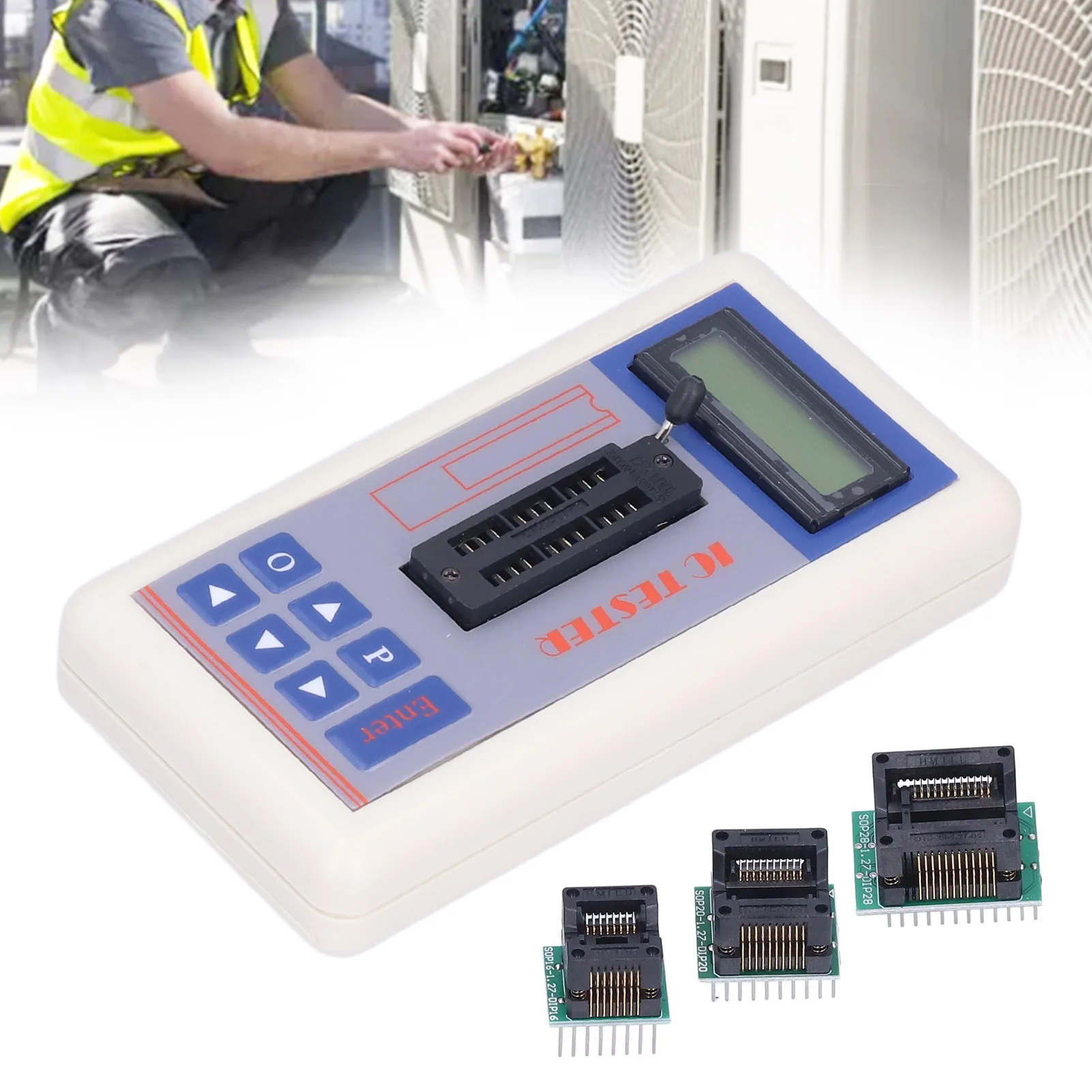

TSH‑06F Integrated Circuit Tester IC Transistor Meter with 5V 3.3V AUTO Modes for Microelectronics Engineers

Feature:

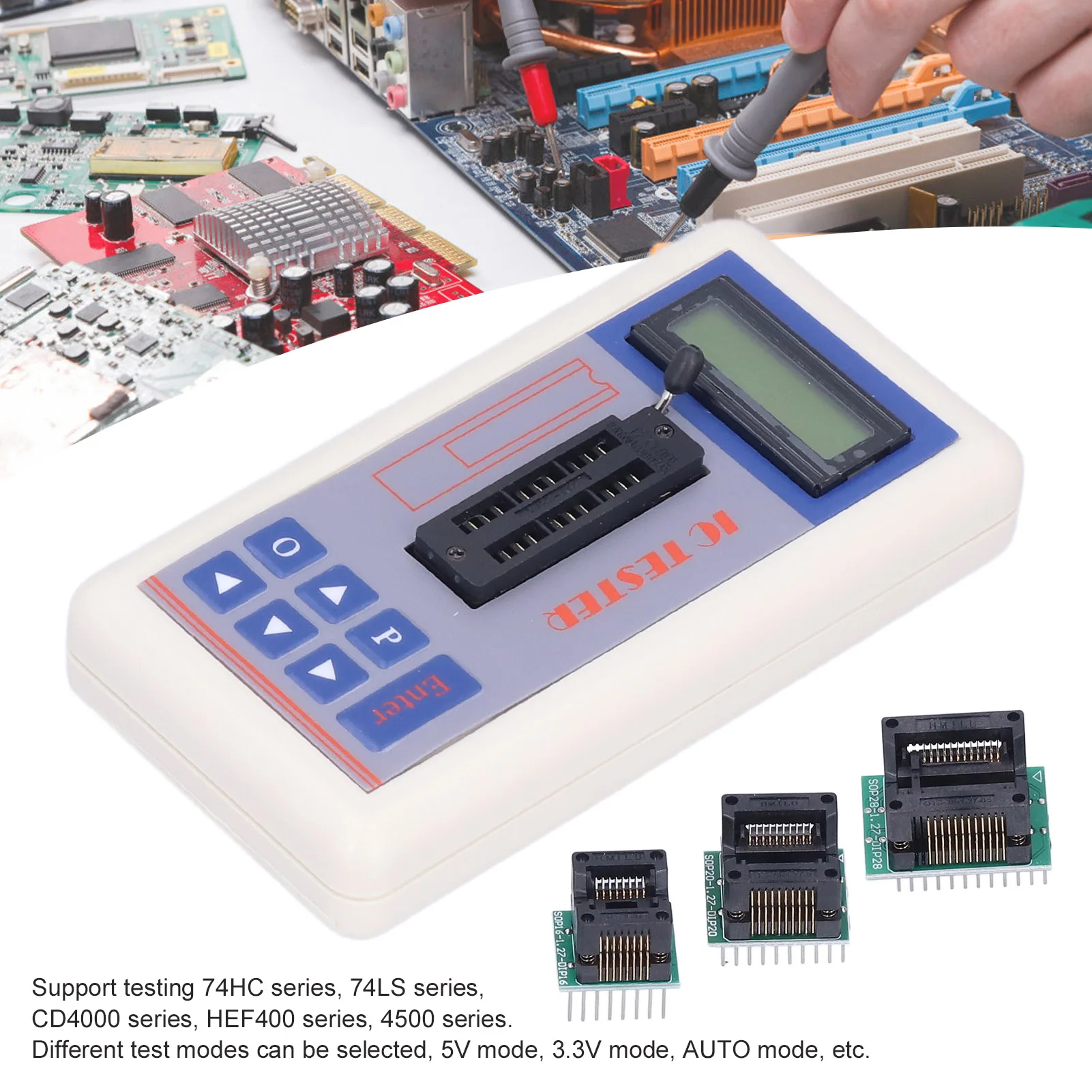

1. MULTIPLE TEST MODES Multifunction integrated circuit tester is a professional instrument designed for microelectronics engineers and maintenance personnel. Different test modes can be selected, such as 5V mode, 3.3V mode, AUTO mode, etc.
2. MAIN USES Test 74HC series, 74LS series, CD4000 series, HEF400 series, 4500 series, operational amplifiers, interface chips, optocouplers, automatic transistor identification, voltage regulator voltage identification, etc.

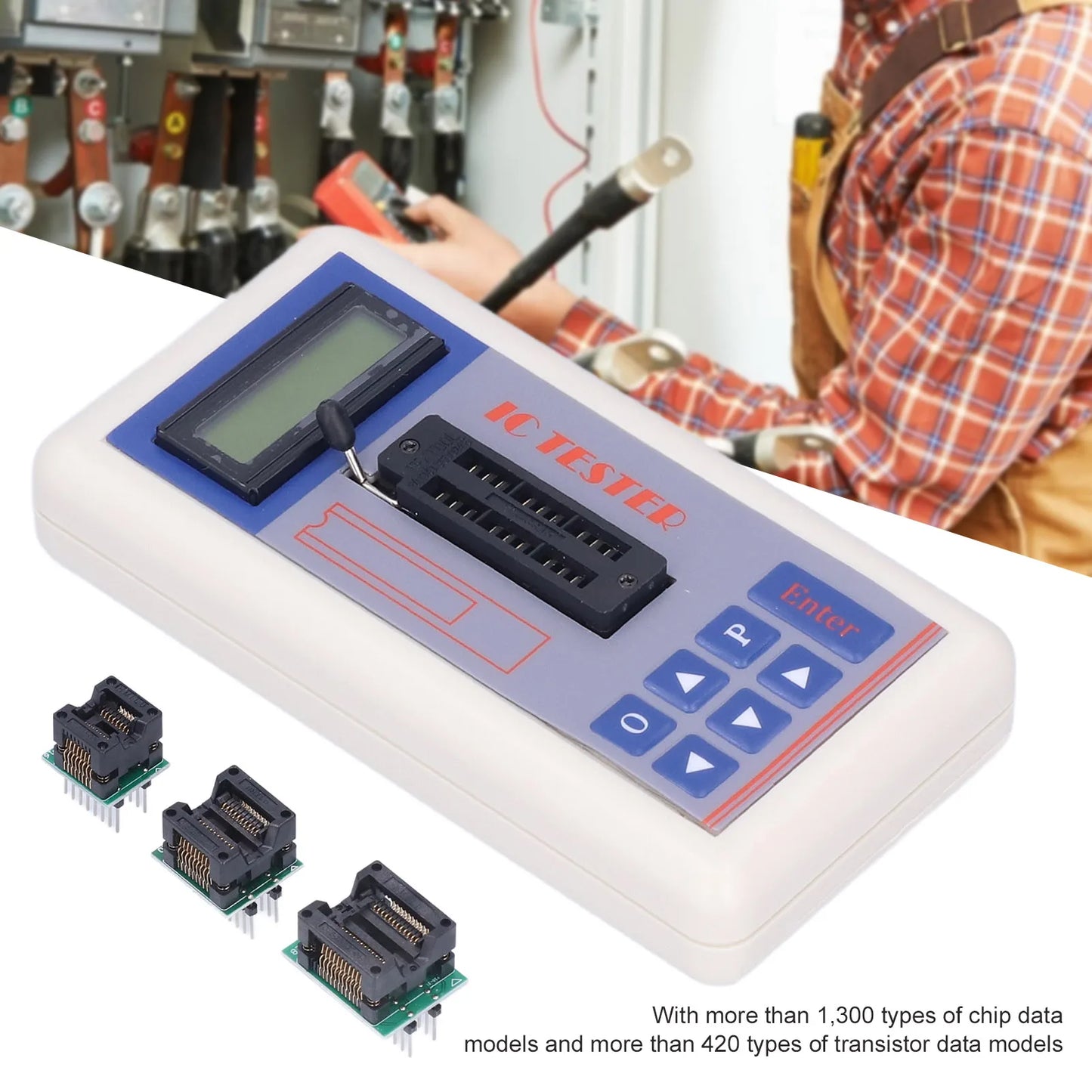

3. EFFICIENT MEASUREMENT With more than 1,300 types of built in chip data models and more than 420 types of transistor data models, covering most common devices within 24 pins, greatly reduce workload and improve work efficiency.
4. TESTING TYPES Include logic device test, interface driver device test, op amp, comparison test, transistor identification, voltage regulator voltage value test, optocoupler.
5. AUTOMATIC SHUTDOWN FUNCTION The integrated circuit tester will automatically shut down after 60 seconds without any operation. Small and portable design, suitable for circuit testing.

Specification:

Item Type: Integrated Circuit Meter
Material: ABS
Model: TSH-06F
Battery: 2 x 1.5V AA Battery (Battery Not Included)
Uses: Test 74HC series, 74LS series, CD4000 series, HEF400 series, 4500 series, operational amplifiers, interface chips, optocouplers, automatic identification of the most body tube, identification of the voltage value of the voltage regulator tube, etc.
Test Type: Logic device test, interface driver device test, op amp, comparison test, transistor identification, voltage regulator voltage test, optocoupler.

How to Use:

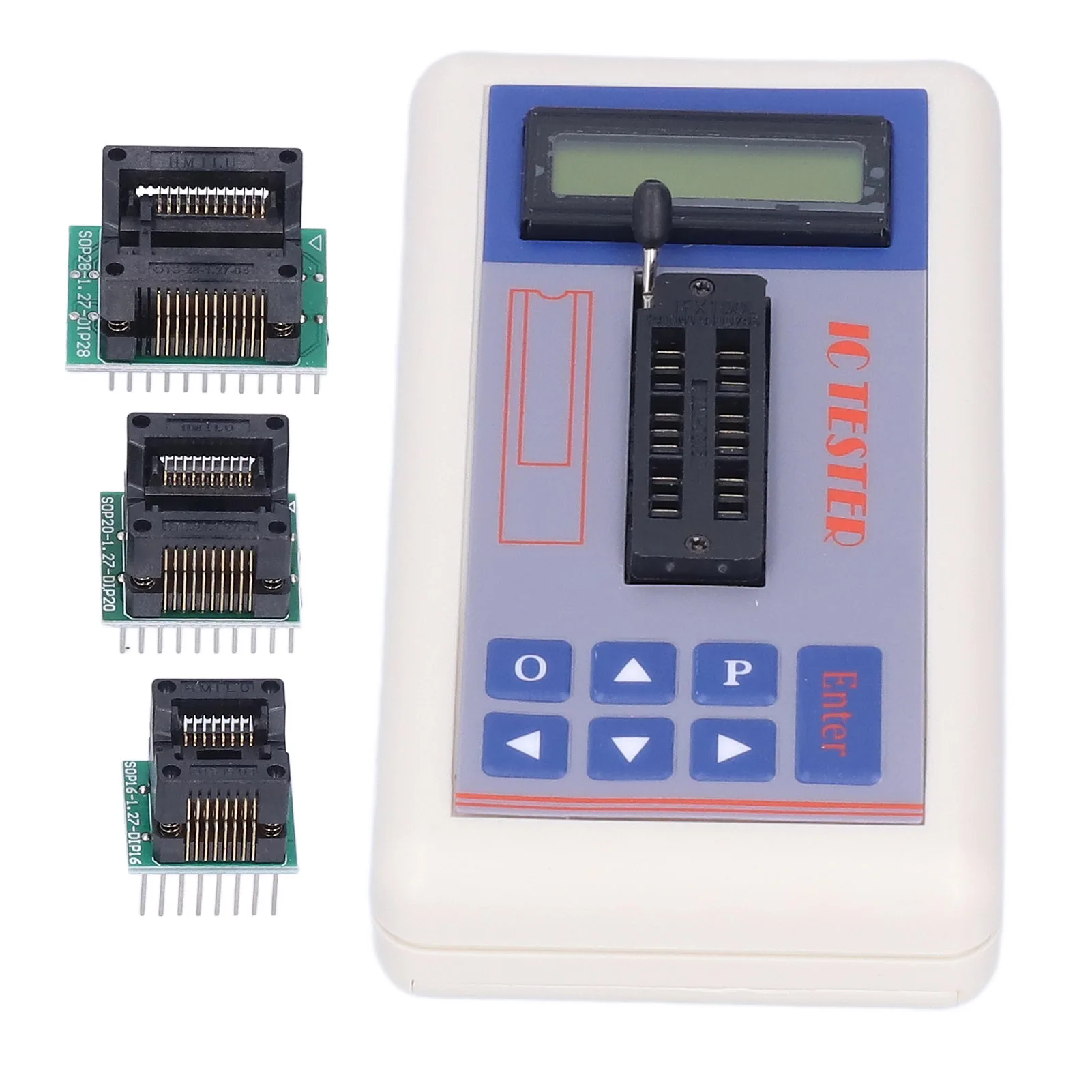

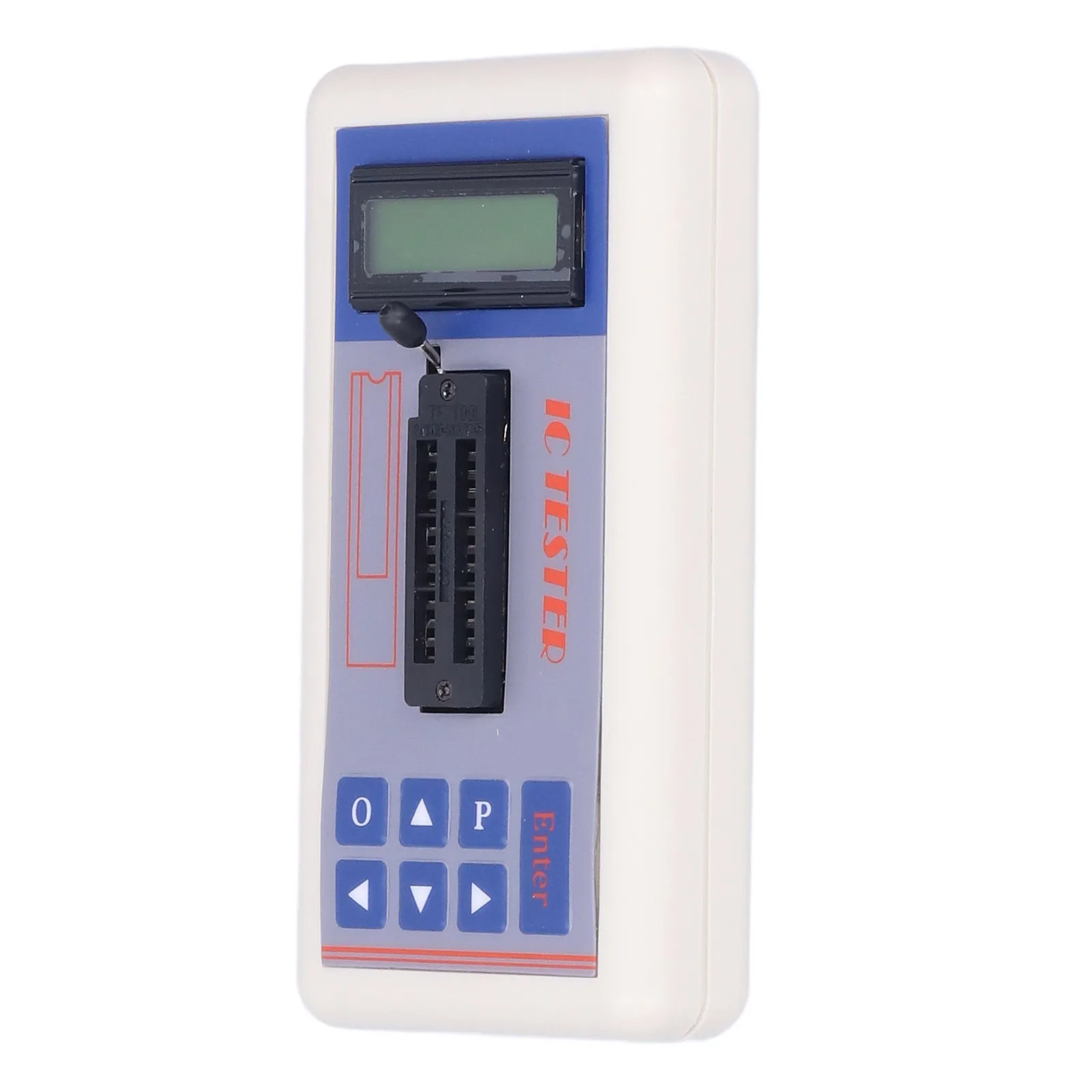

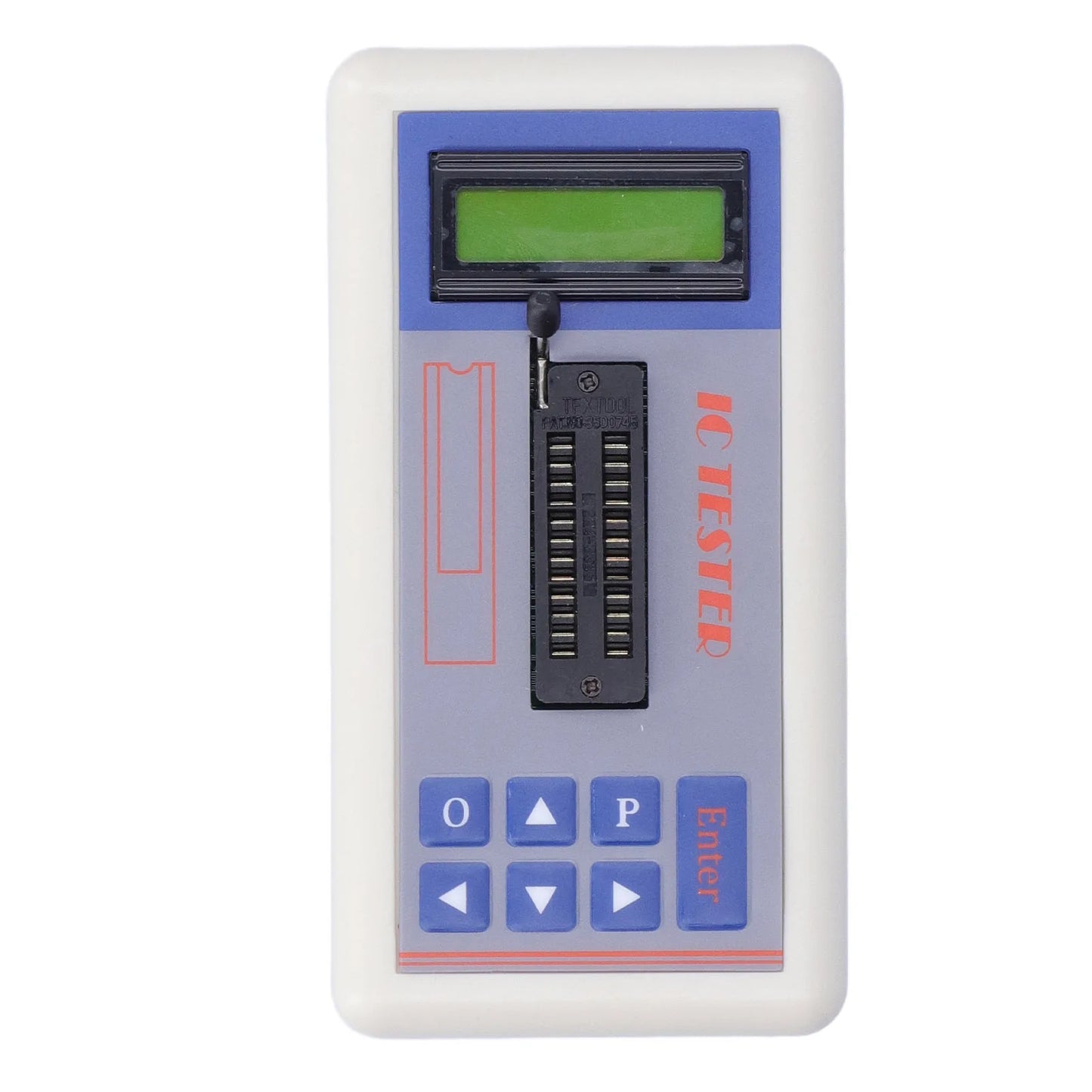

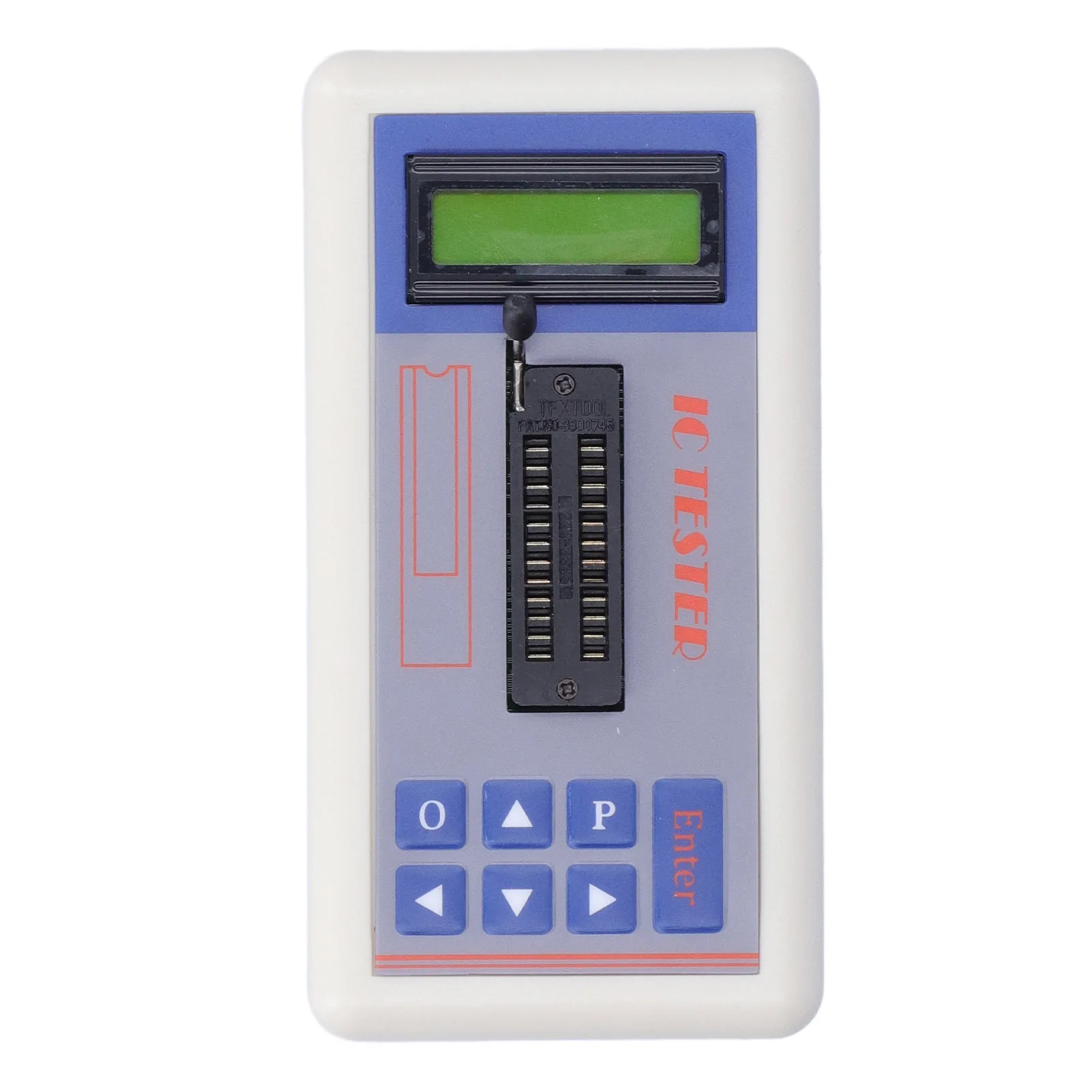

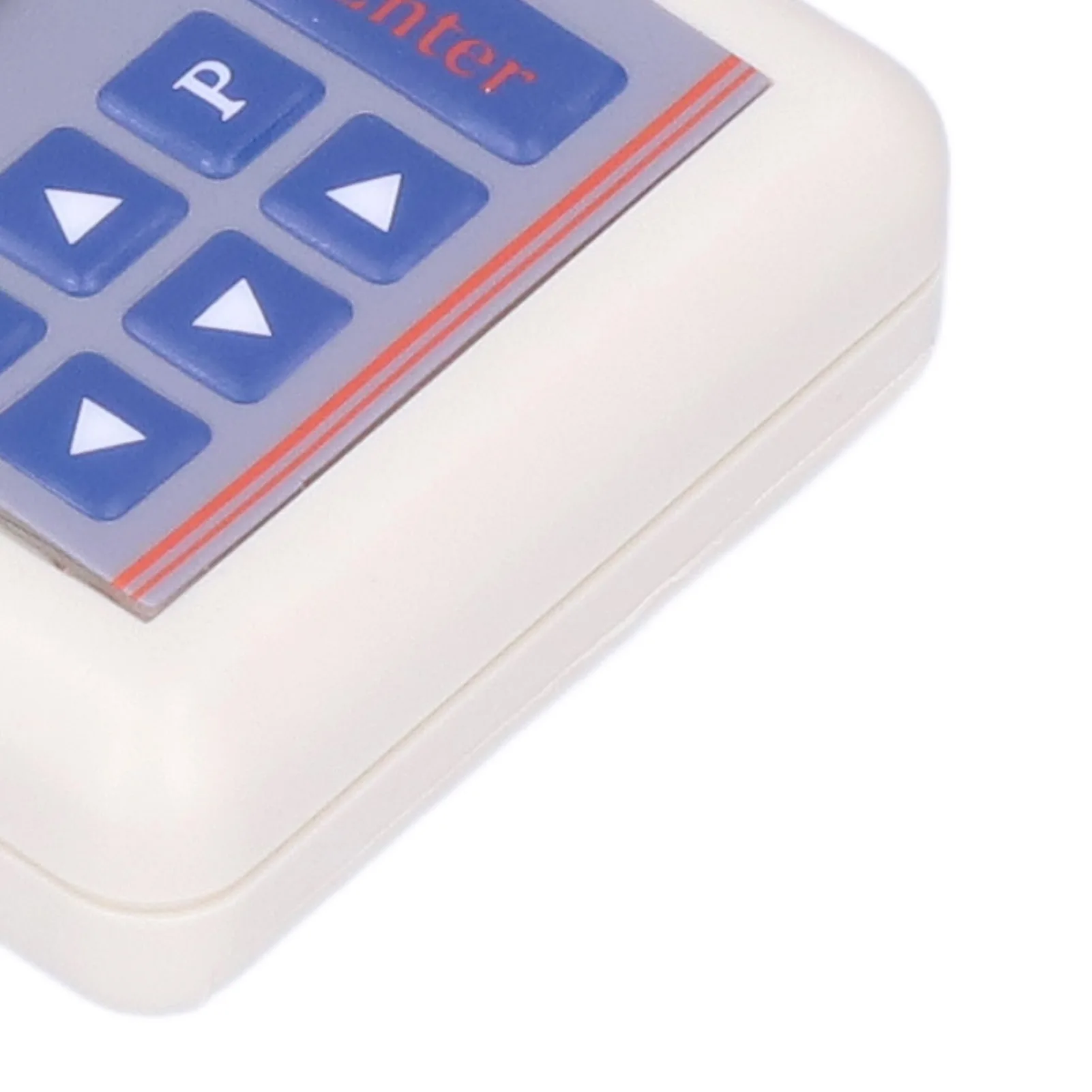

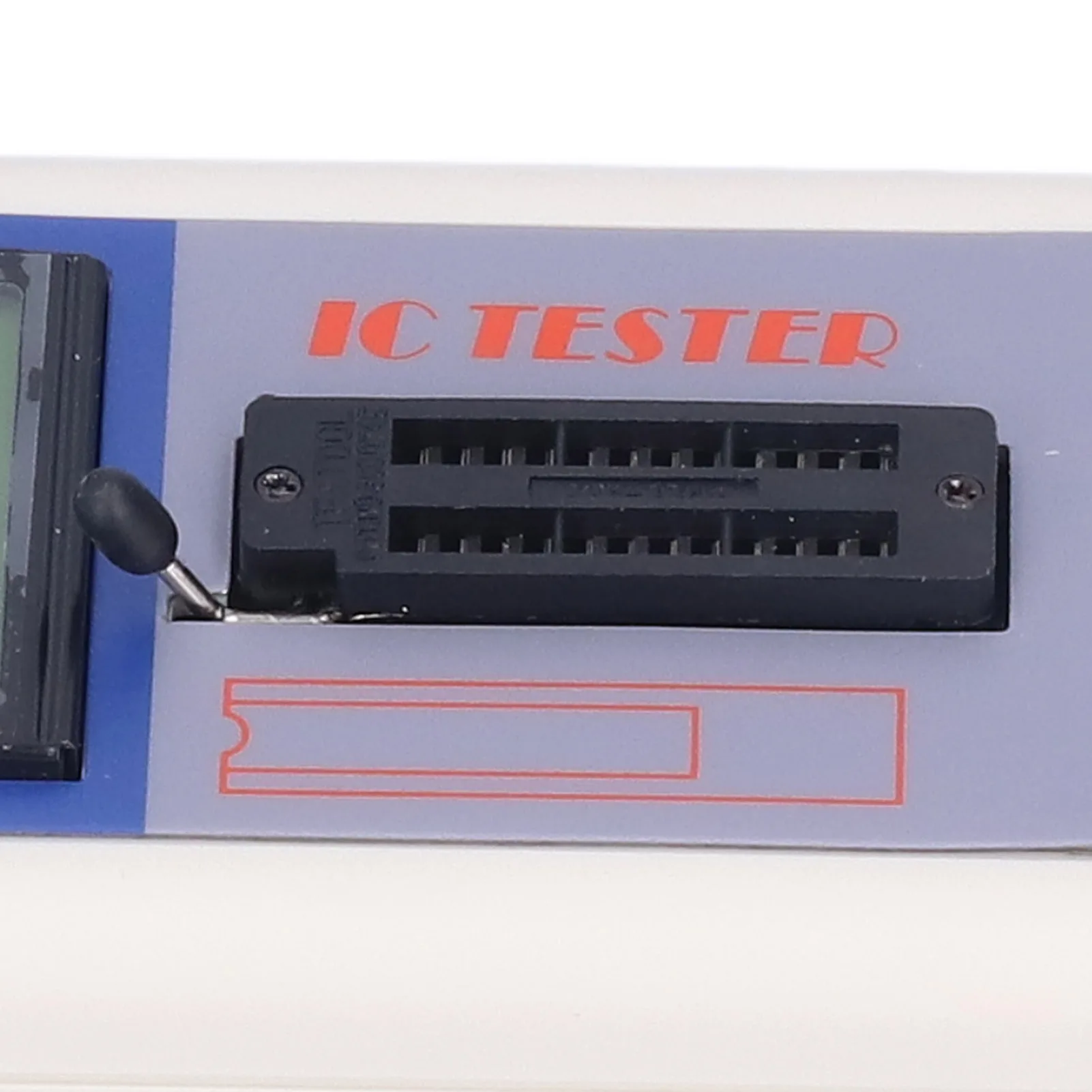

With 7 buttons on the panel which are up, down, left, right and Enter, and shortcut keys O and P.

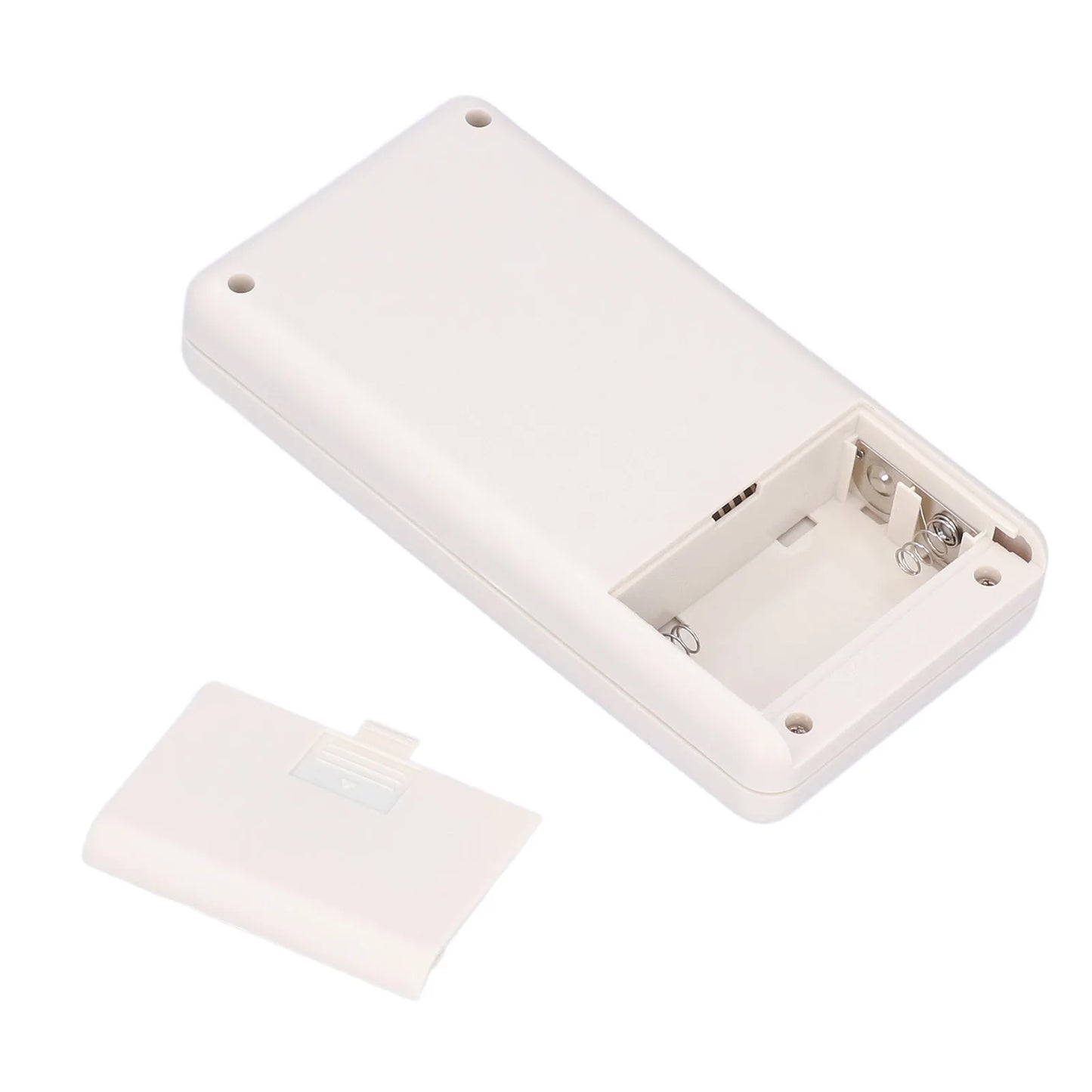

Up and down keys are used to adjust the catalog and change the model number, left and right keys are used to move the cursor left and right to select the item to be changed. Enter key is used to switch the machine and execute test commands. Open the battery back cover, put in 2pcs AA 1.5V batteries (battery not included), and then close the battery cover. Press the Enter key for more than 2 seconds to boot, and the current battery voltage will automatically be displayed when the battery is turned on. Please replace the battery when the battery power is too low. The low voltage will affect the reliability and protection of the test results and automatically shut down.

Power On: Press the Enter key for more than 2 seconds to power on.

Shut Down:

1. Press Enter in the OFF directory to shut down immediately.

2. Press the Enter key in any directory for more than 10 seconds to shut down.

3. After 60 seconds without any operation, it will automatically shut down.

Shortcut Key:

1. The O key is the quick shutdown key (06 type).

2. The P key is a backlight key (06 type).

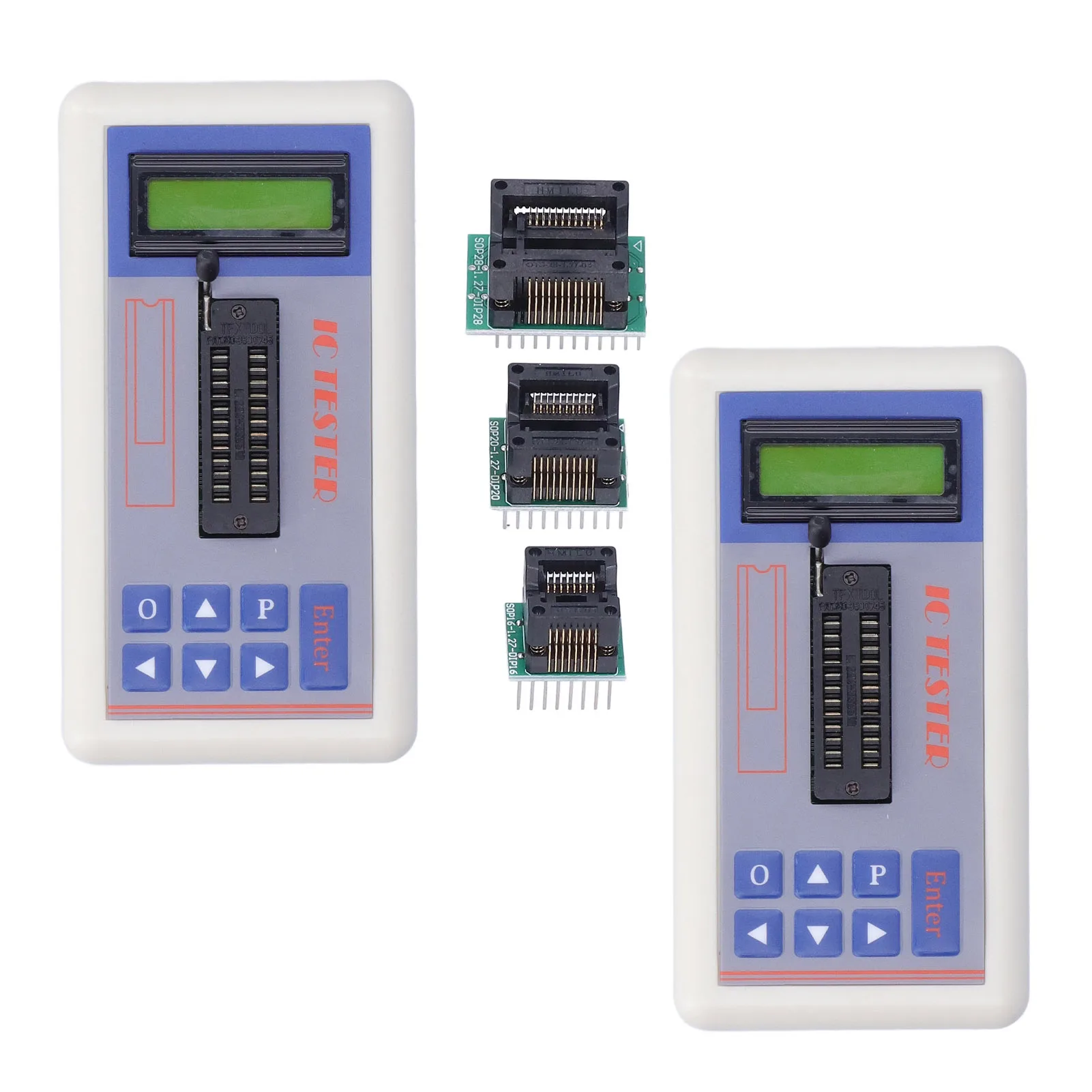

Package List:

1 x Tester (Battery Not Included)

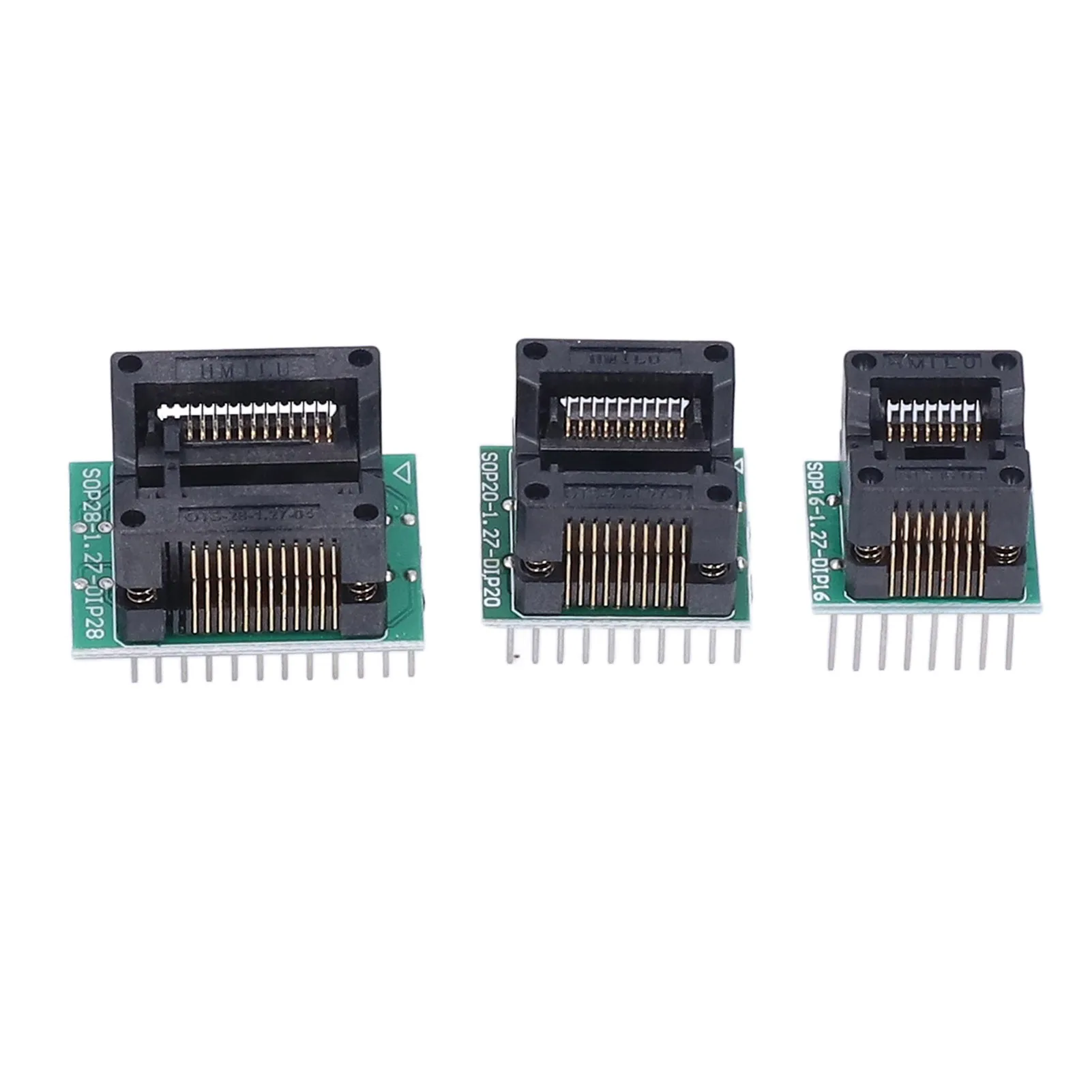

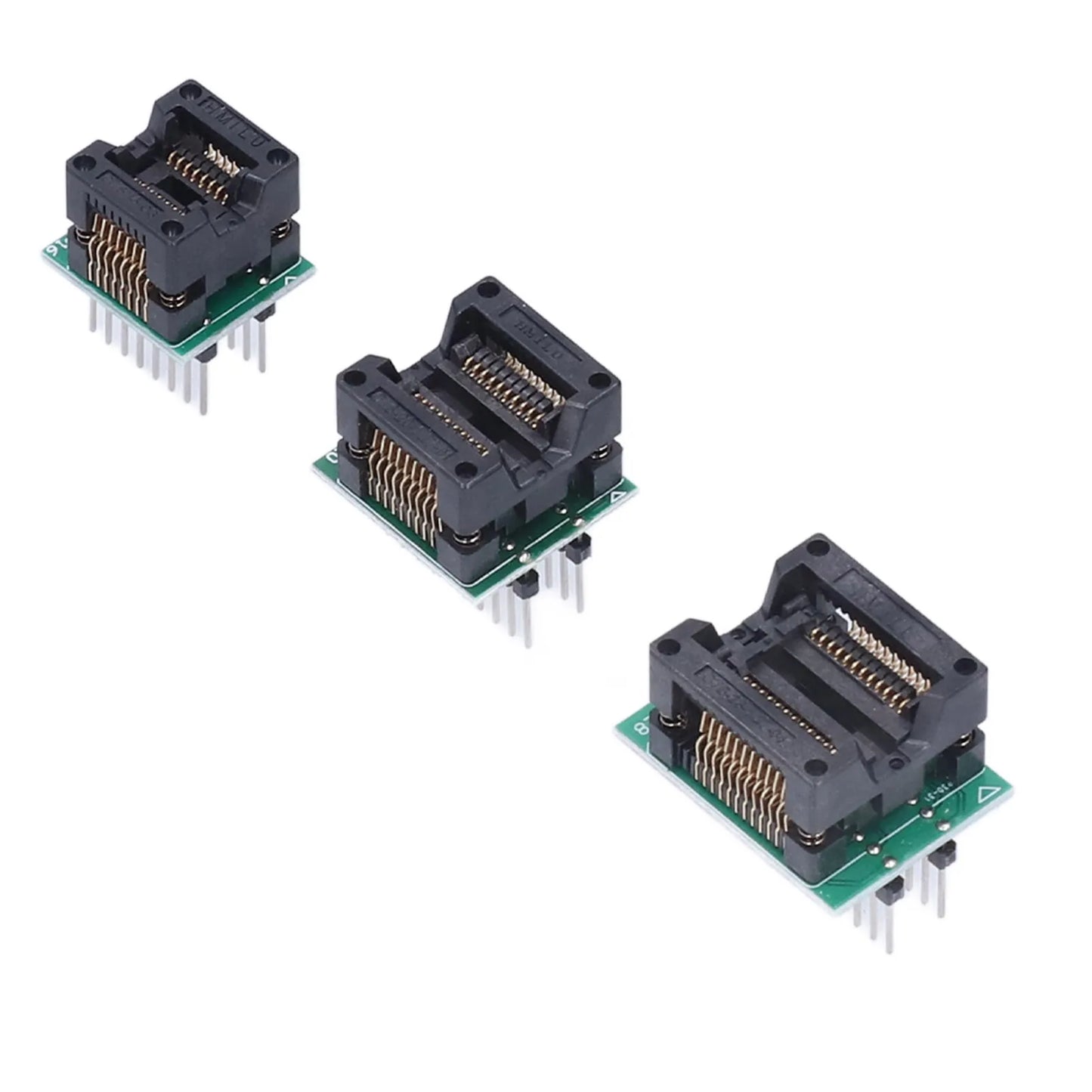

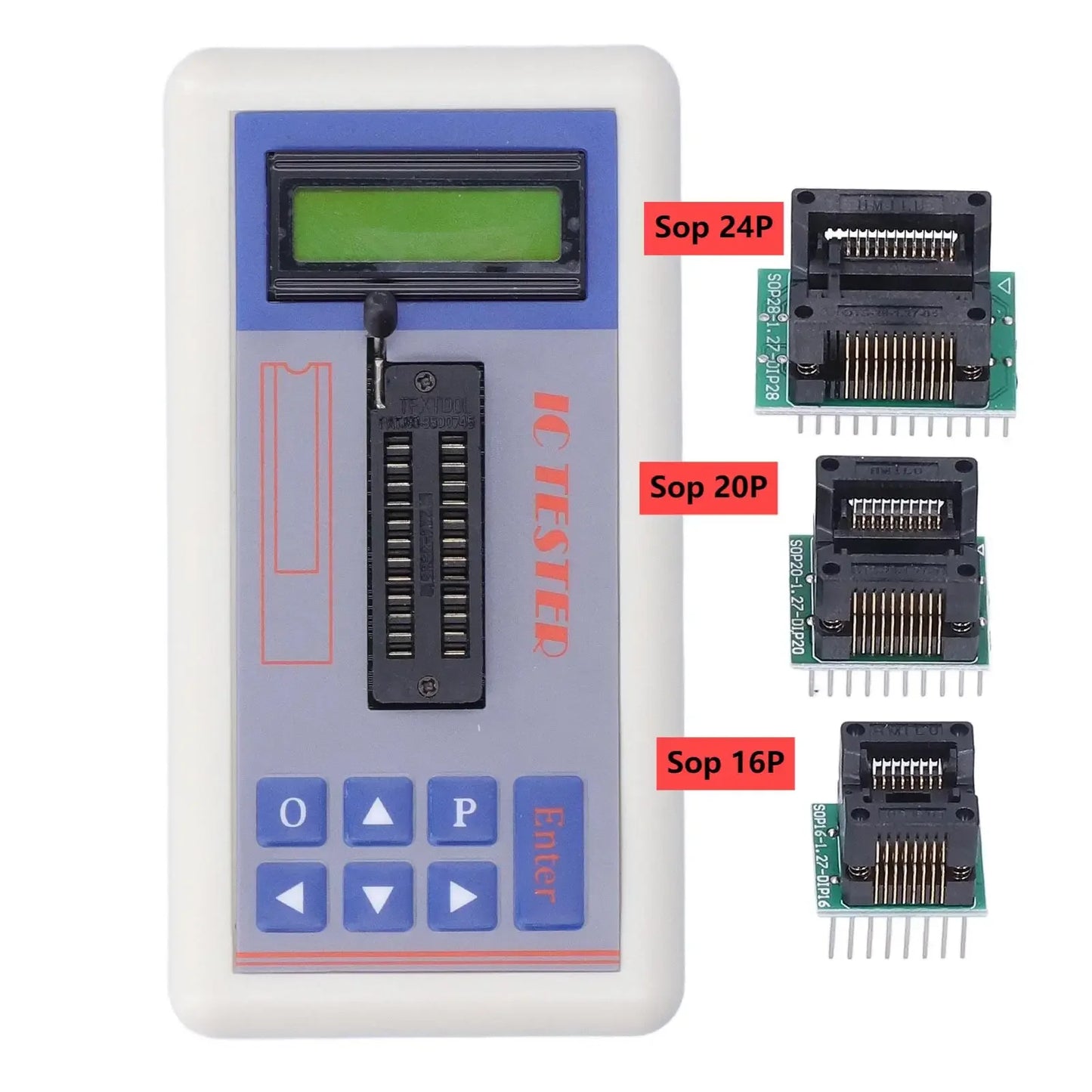

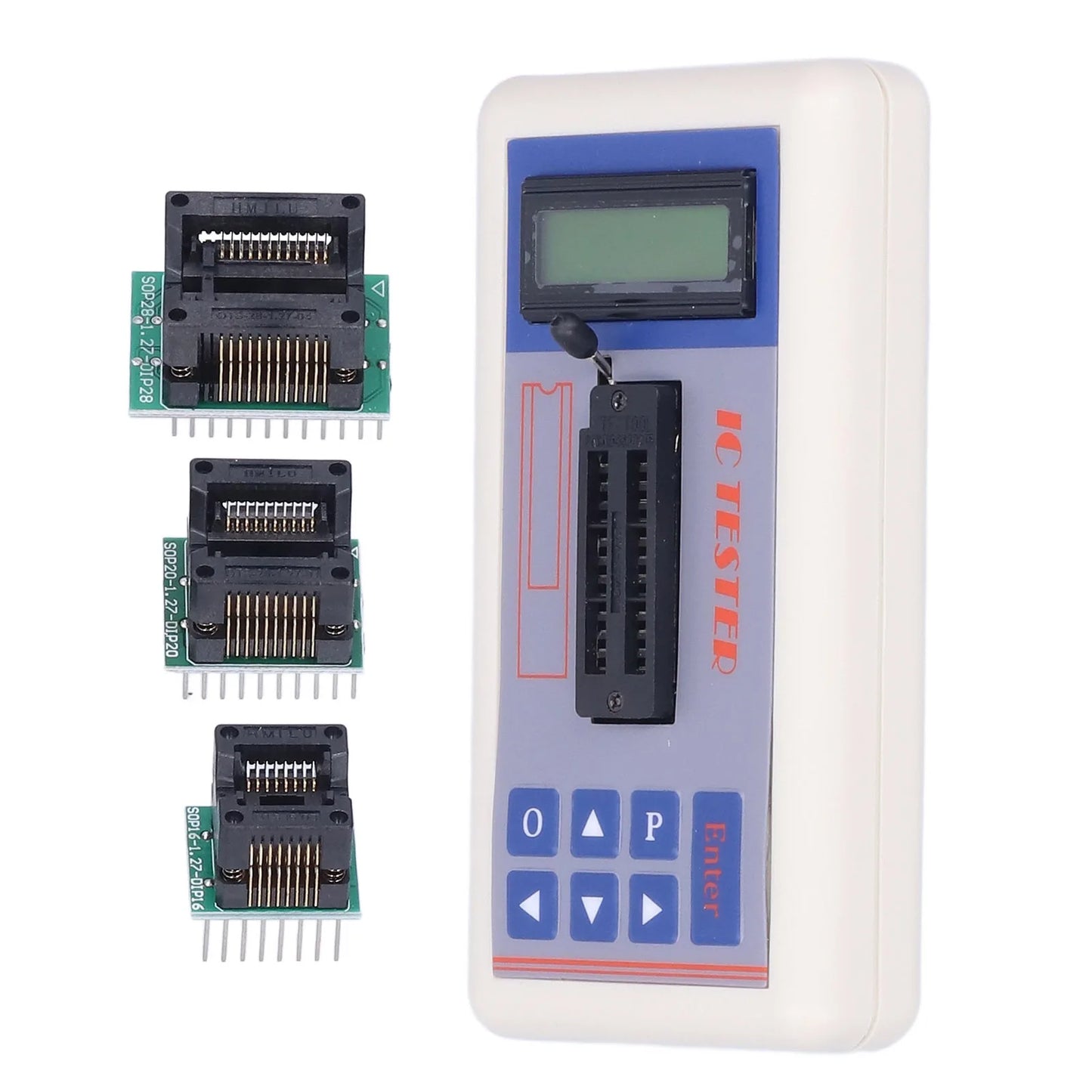

3 x Terminal

1 x Manual

or

1 x Tester (Battery Not Included)

1 x Manual
