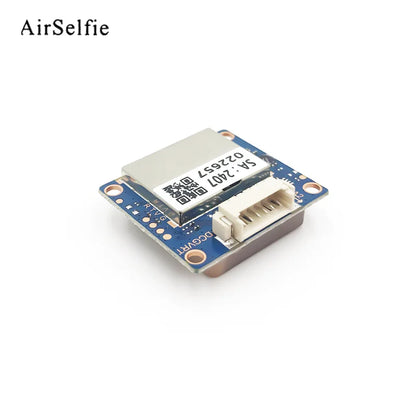

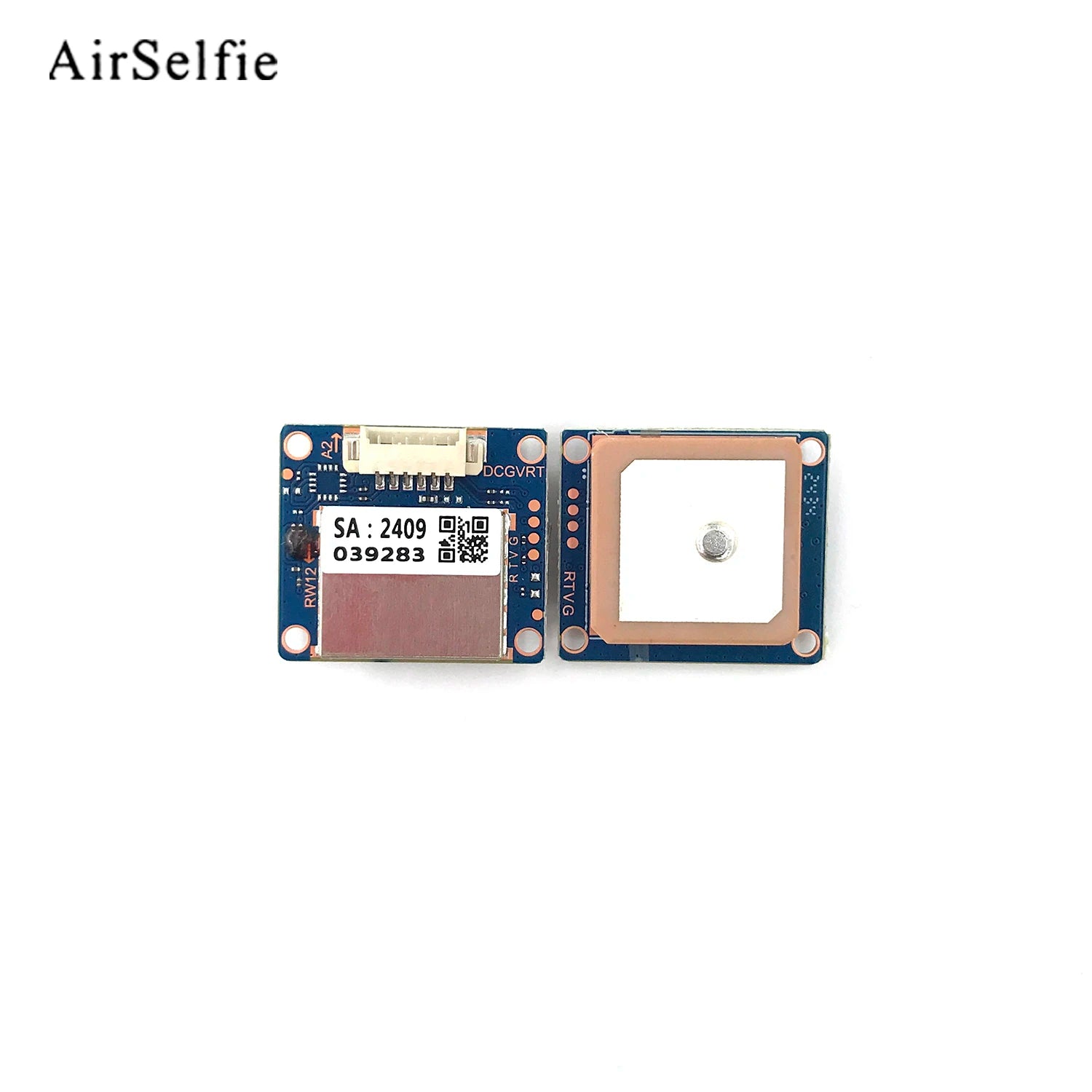

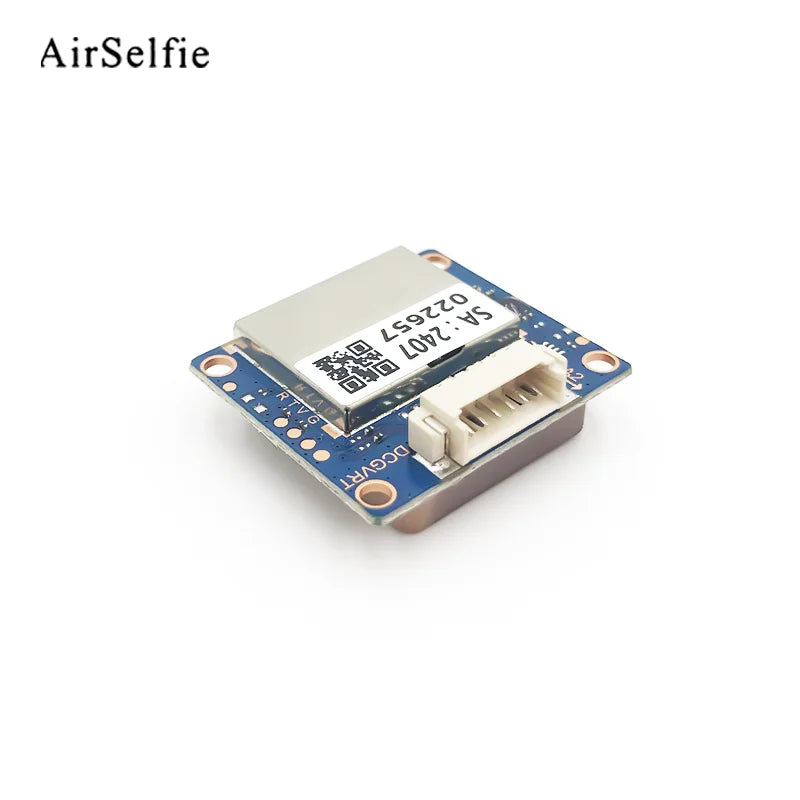

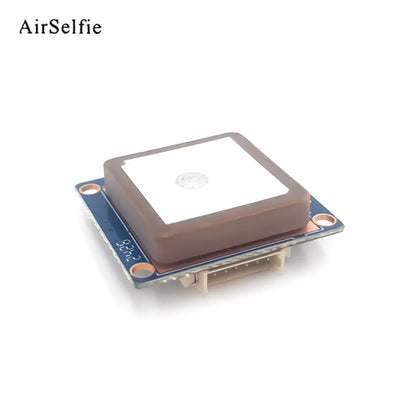

Módulo GNSS UAV (BDS/GPS/GLONASS/GALILEO, con Compás) Repuesto para Drones
Módulo GNSS UAV (BDS/GPS/GLONASS/GALILEO, con Compás) Repuesto para Drones
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: AirSelfie
Hign-concerned Chemical: None

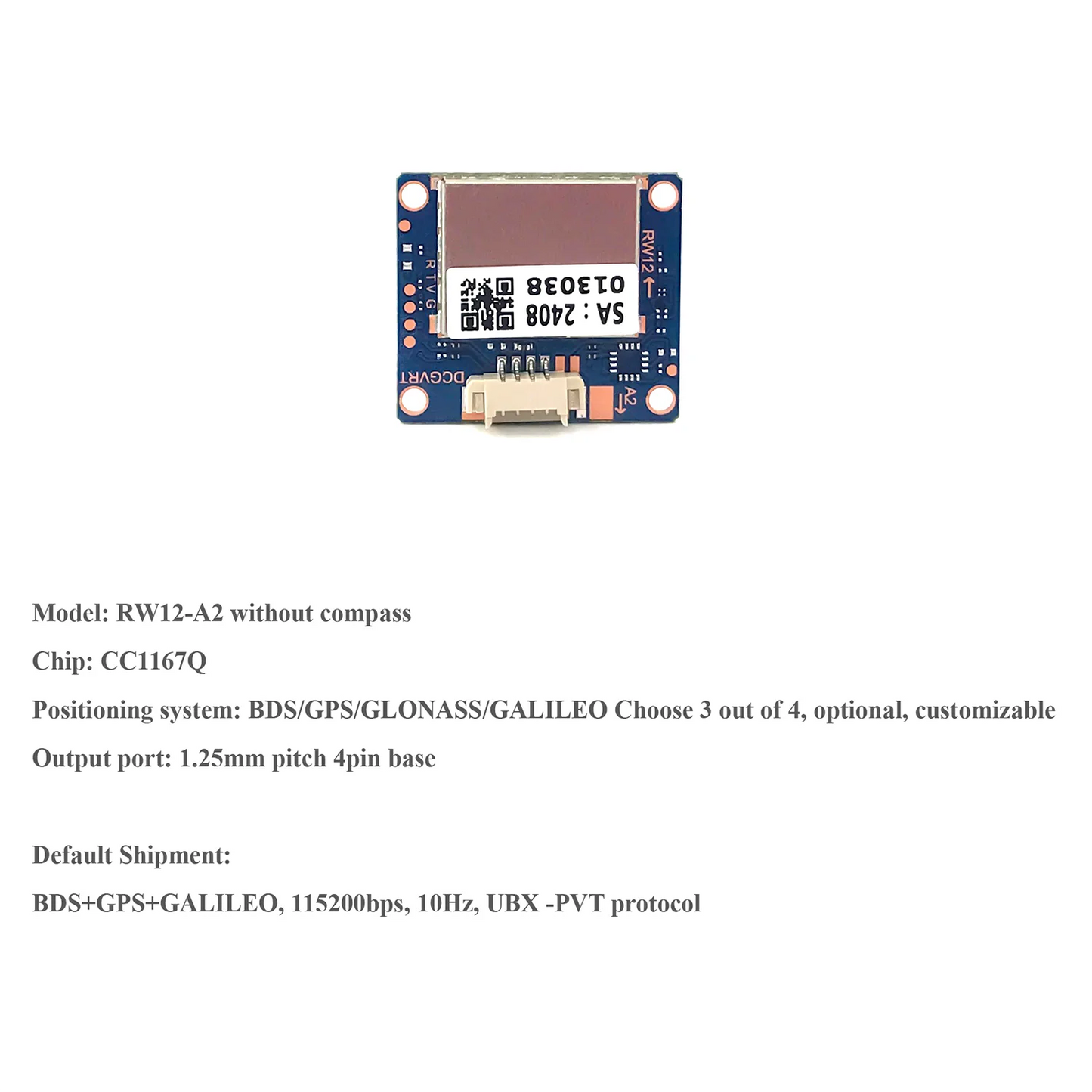

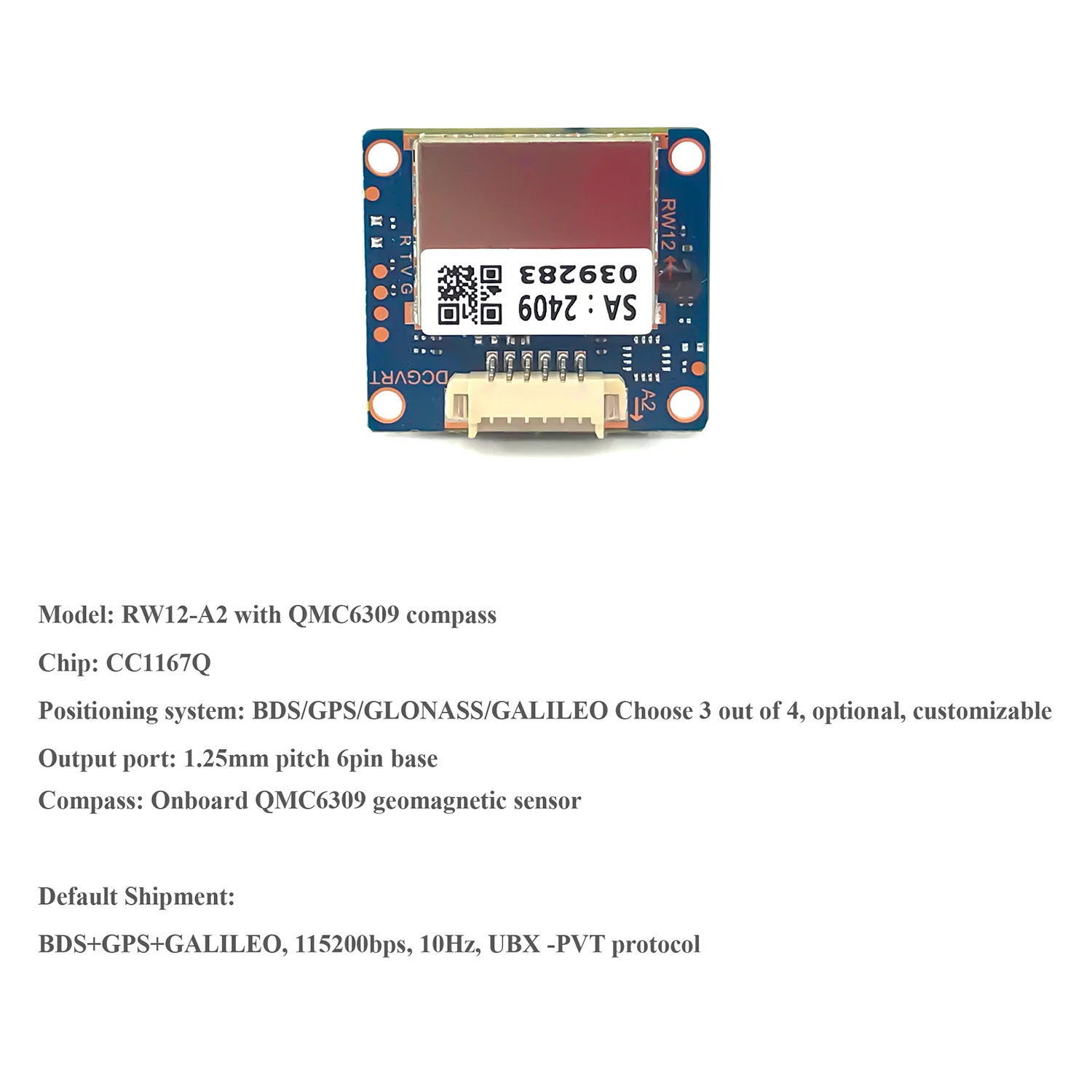

Model Number: RW12-A2
Origin: Mainland China
Quantity: 1 pcs
Product Characteristics
1.Ultra high sensitivity -165dBm
2.Ultra-low power consumption
3.Small size for easy integration
4.Built-in high-gain low-noise amplifier
5.Up to 10Hz update frequency
6.Support NMEA-0183 and UBX protocol
7.RF Metal shield for optimal performance in noisy environment

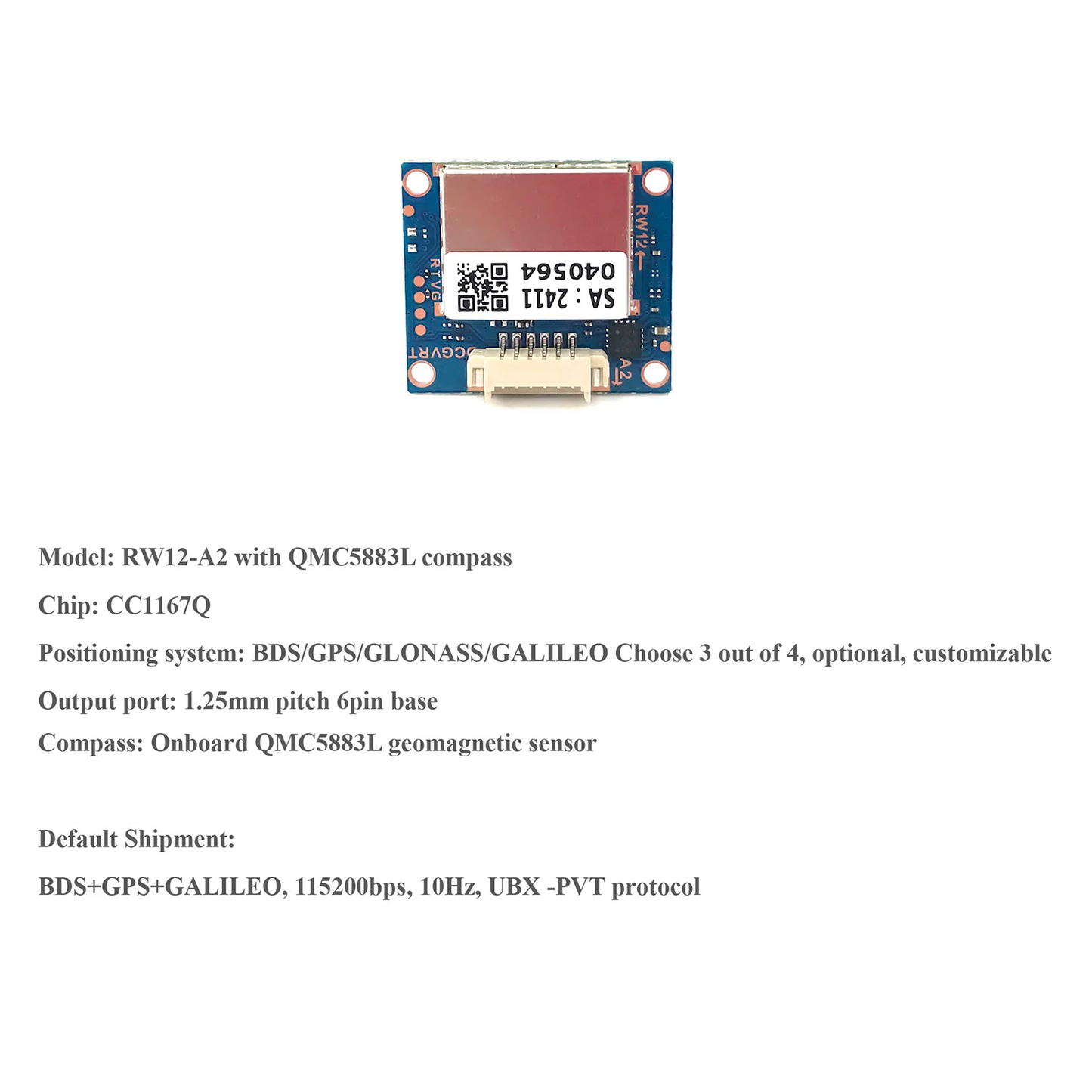

8.Onboard QMC6309 or QMC5883L geomagnetic sensor (optional)
Application field
1.UAV and vehicle model
2.Vehicle positioning monitoring

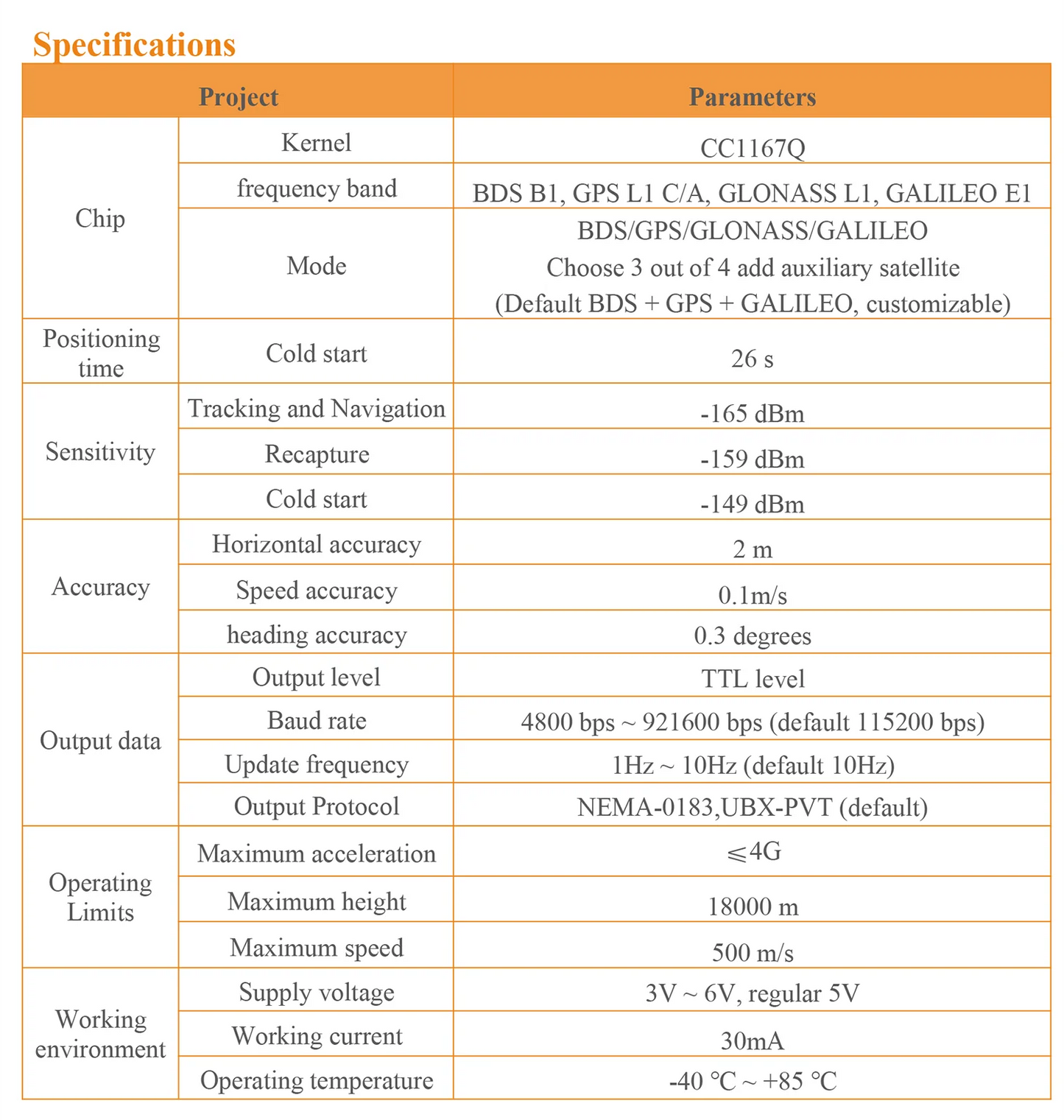

Specifications
Project |
Parameters |
|
Chip |
Kernel |
CC1167Q |
frequency band |
BDS B1, GPS L1 C/A, GLONASS L1, GALILEO E1 |
|
Mode |
BDS/GPS/GLONASS/GALILEO Choose 3 out of 4 add auxiliary satellite (Default BDS + GPS + GALILEO, customizable) |
|
Positioning time |
Cold start |
26 s |
Sensitivity |
Tracking and Navigation |
-165 dBm |
Recapture |
-159dBm |
|
Cold start |
-149 dBm |
|
Accuracy |
Horizontal accuracy |
2 m |
Speed accuracy |
0.1m/s |
|
heading accuracy |
0.3 degrees |
|
Output data |
Output level |
TTL level |
Baud rate |
4800 bps ~ 921600 bps (default 115200 bps) |
|
Update frequency |
1Hz ~ 10Hz (default 10Hz) |
|
Output Protocol |
NEMA-0183,UBX-PVT (default) |
|
Operating Limits |
Maximum acceleration |
≤4G |
Maximum height |
18000 m |
|
Maximum speed |
500 m/s |
|
Working environment |
Supply voltage |
3V ~ 6V, regular 5V |
Working current |
30mA |
|
Operating temperature |
-40 ℃ ~ +85 ℃ |
|
