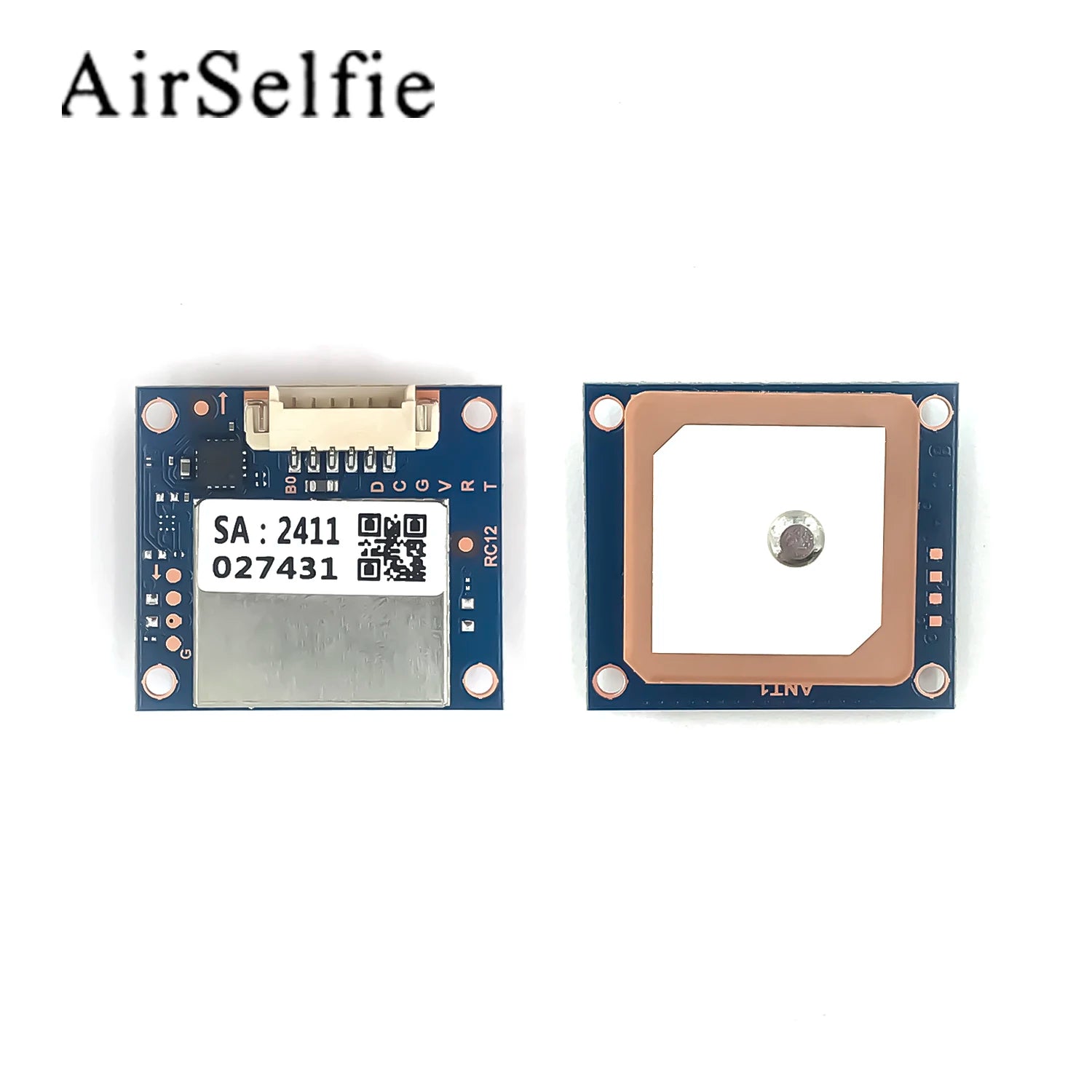

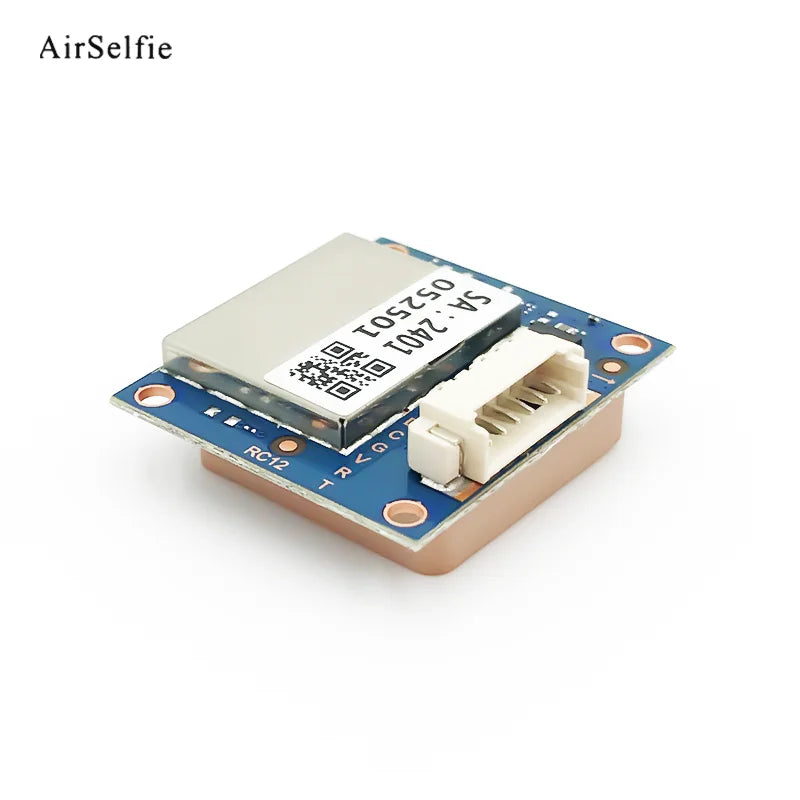

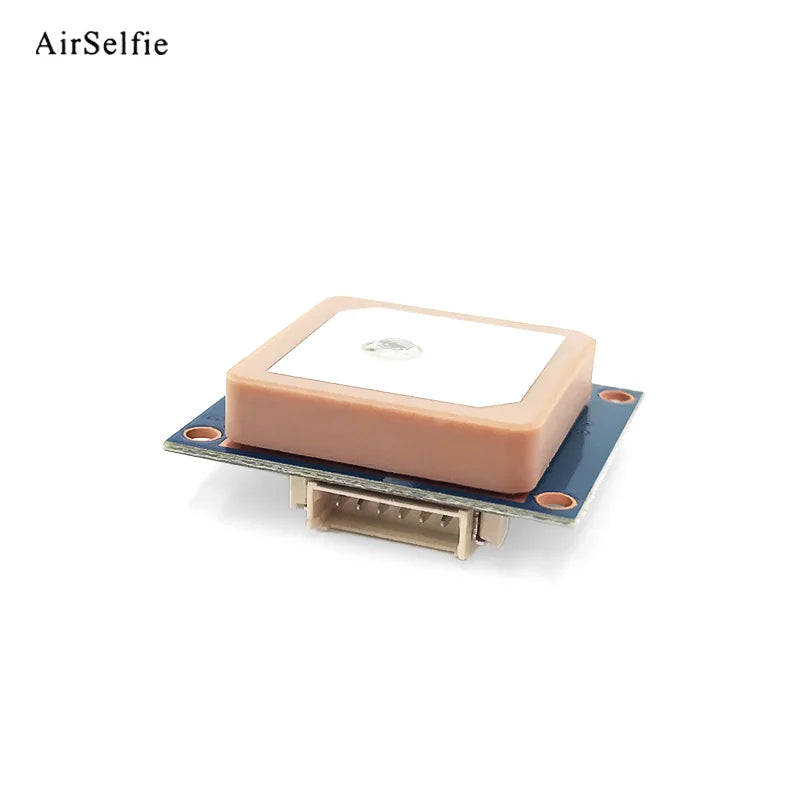

Módulo GNSS UAV UBLOX M10 (GPS/BDS/GLONASS/GALILEO, 18Hz) con Compás Multi-Sistema para Drones
Módulo GNSS UAV UBLOX M10 (GPS/BDS/GLONASS/GALILEO, 18Hz) con Compás Multi-Sistema para Drones
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: AirSelfie
Hign-concerned Chemical: None

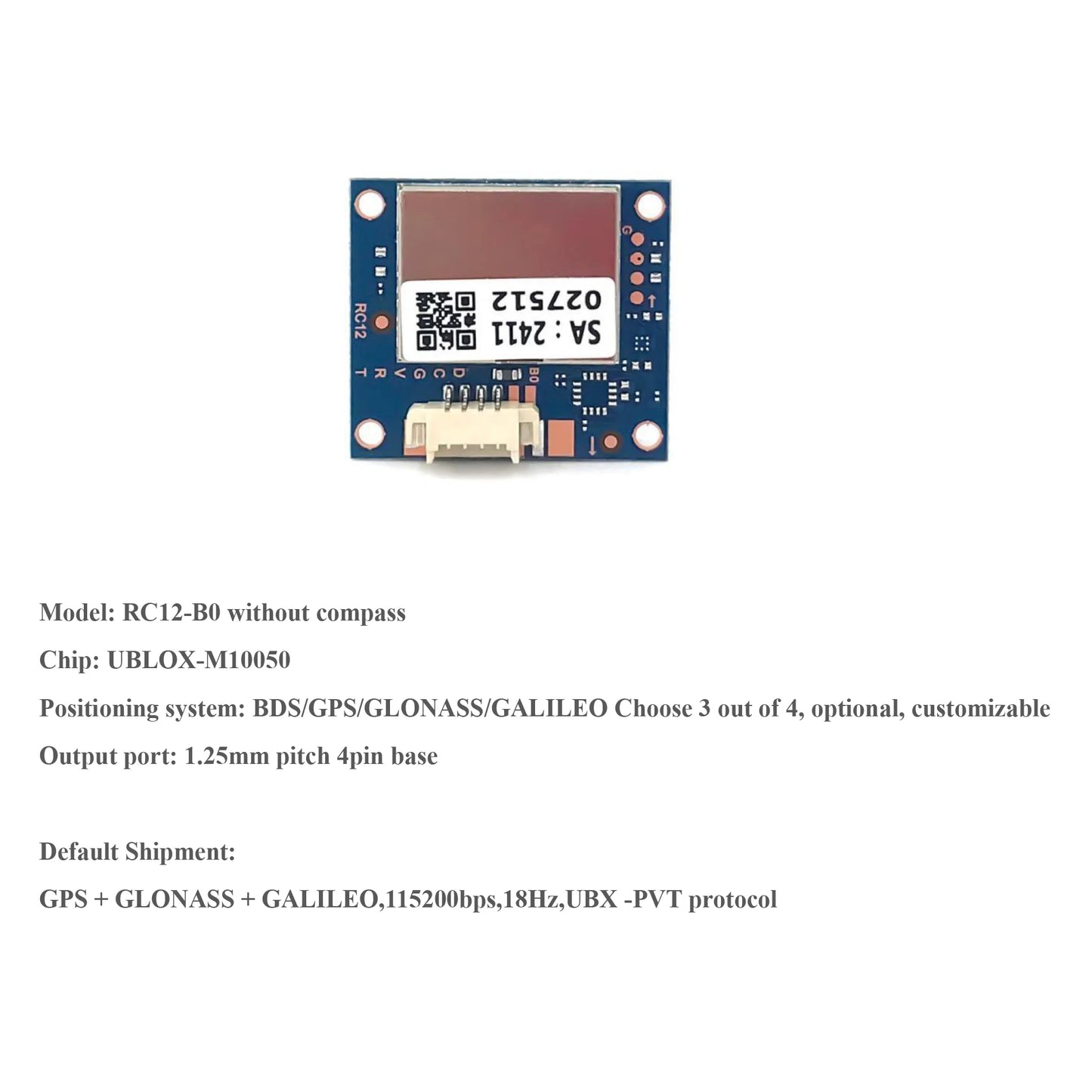

Model Number: RC12-B0
Origin: Mainland China
Quantity: 1 pcs

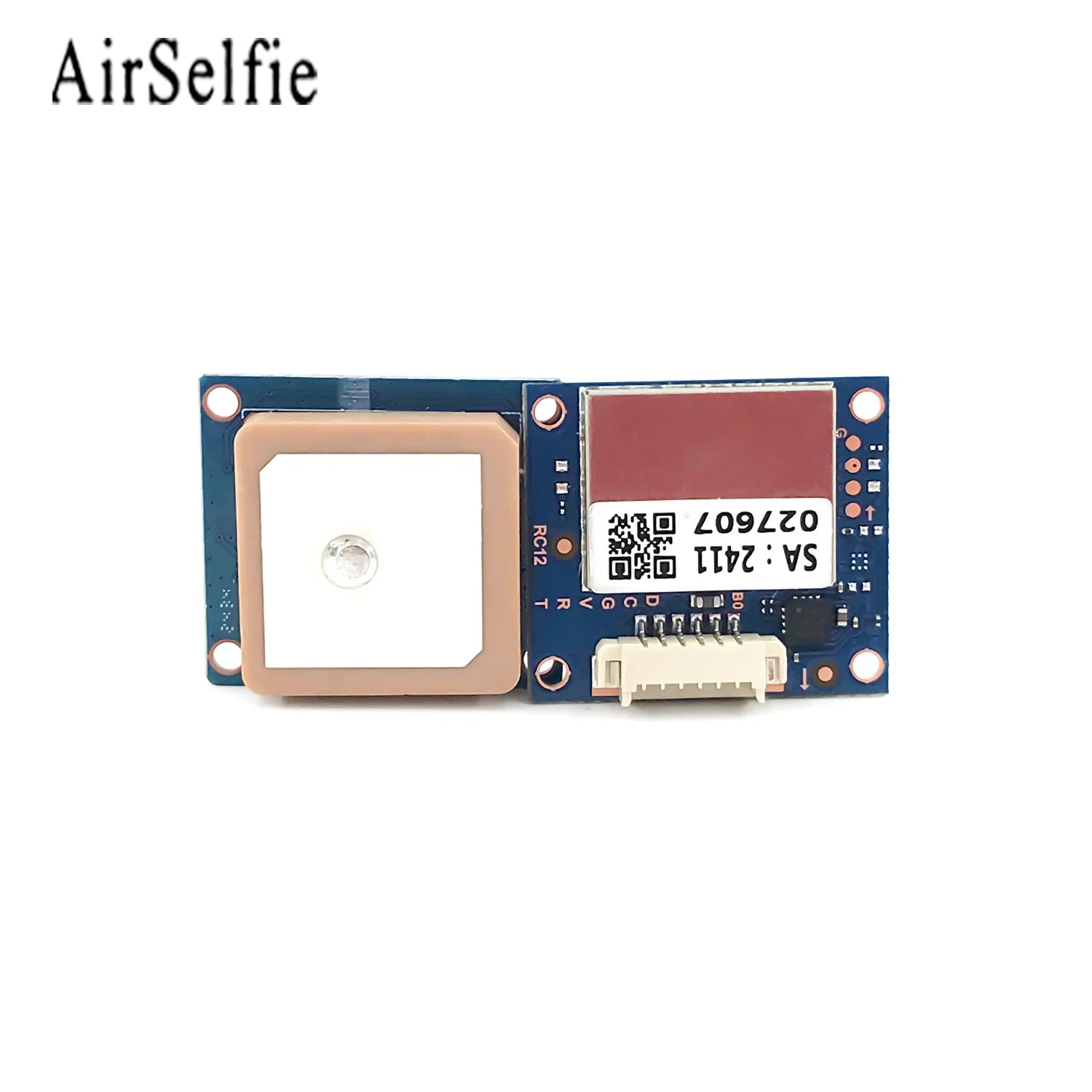

RC12-B0 GNSS(Global Navigation Satellite System) module is a positioning product for UAV(unmanned aerial vehicle) and model airplane,which supports multi-system three-mode positioning, and supports global navigation satellite systemsuch as BDS, GPS, GLONASS, Galileo, QZSS and SBAS.
Product characteristics
1.Ultra high sensitivity-167dBm
2.Small size for easy integration
3.Built-in high-gain low-noise amplifier
4.Up to 18Hz update frequency
5.Orbit prediction and AGPS support
6.Support NMEA-0183 and UBX protocol
7.Embedded MCU,flexible custom configuration, improve performance
8.RF metal shield for optimal performance in electromagnetic interference environment
9.Onboard QMC5883L geomagnetic sensor
Application area
UAV
Vehicle location monitoring

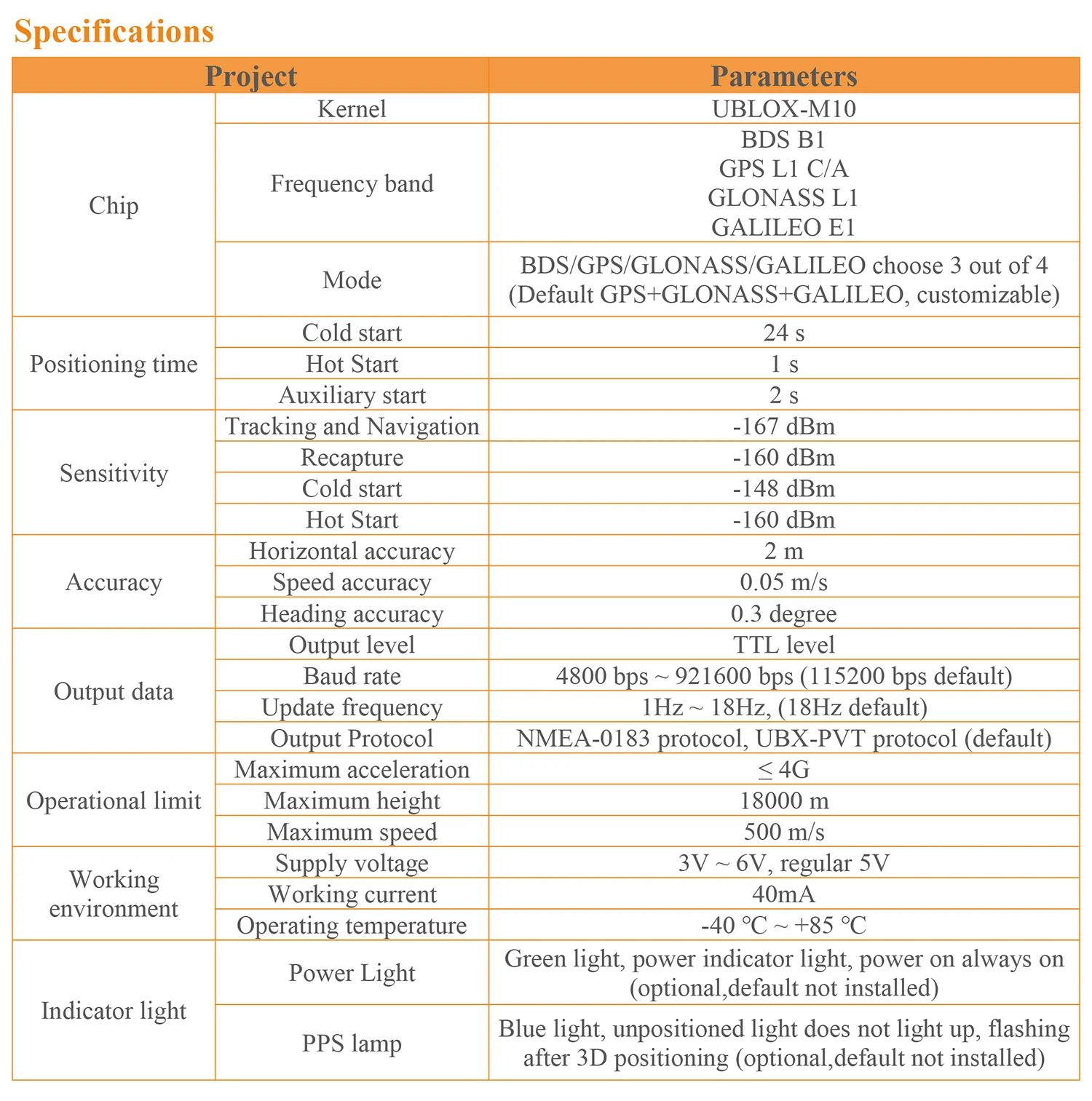

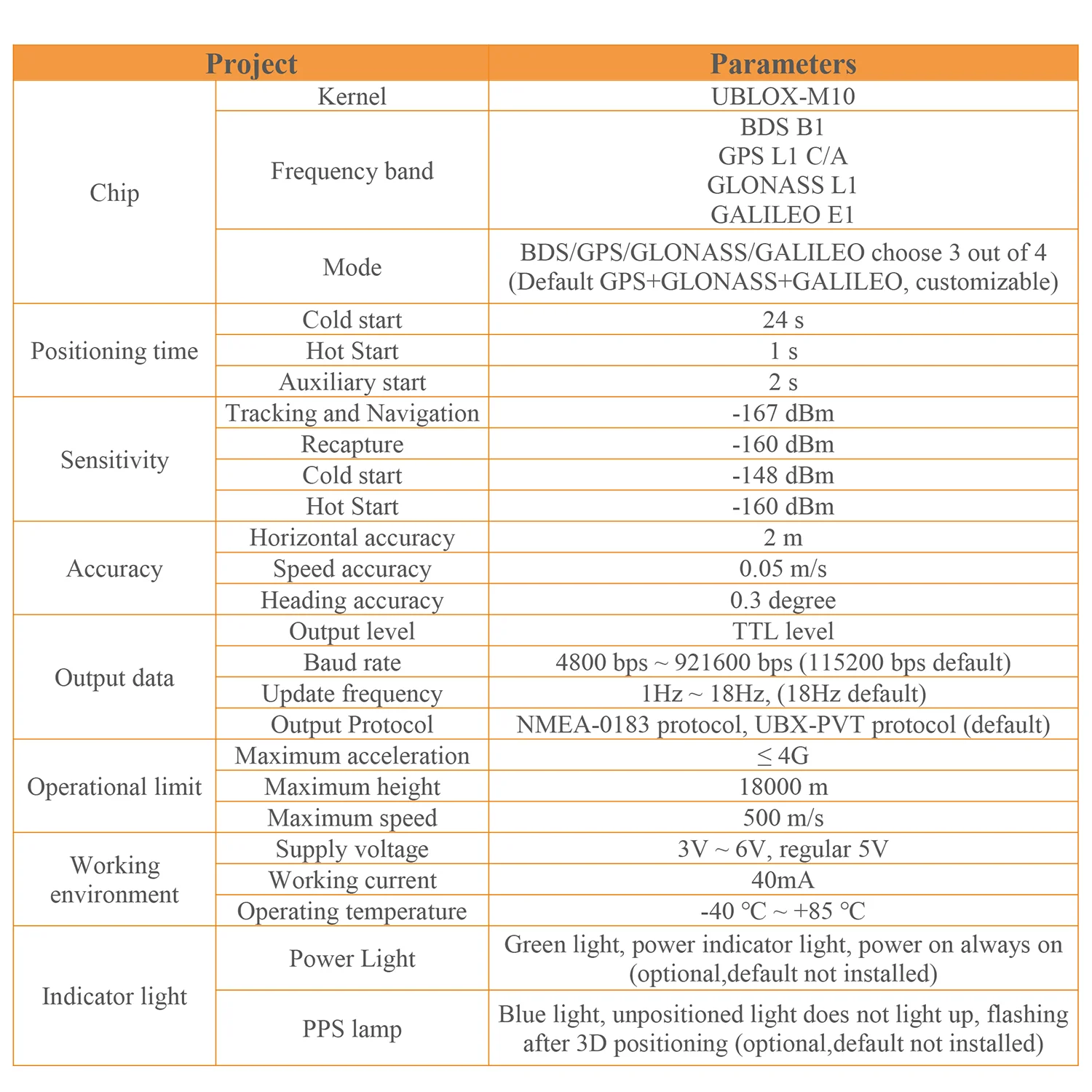

Specifications
Project |
Parameters |
|
Chip |
Kernel |
UBLOX-M10 |
Frequency band |
BDSB1 GPSL1C/A GLONASSL1 GALILEO E1 |
|
Mode |
BDS/GPS/GLONASS/GALILEOchoose 3 out of 4 (Default GPS+GLONASS+GALILEO, customizable) |
|
Positioning time |
Cold start |
24 s |
Hot Start |
1 s |
|
Auxiliary start |
2 s |
|
Sensitivity |
Tracking and Navigation |
-167 dBm |
Recapture |
-160 dBm |
|
Cold start |
-148 dBm |
|
Hot Start |
-160 dBm |
|
Accuracy |
Horizontal accuracy |
2 m |
Speed accuracy |
0.05 m/s |
|
Heading accuracy |
0.3 degree |
|
Output data |
Output level |
TTL level |
Baud rate |
4800 bps ~ 921600 bps (115200bpsdefault) |
|
Update frequency |
1Hz ~ 18Hz, (18Hzdefault) |
|
Output Protocol |
NMEA-0183 protocol, UBX-PVT protocol (default) |
|
Operational limit |
Maximum acceleration |
≤ 4G |
Maximum height |
18000 m |
|
Maximum speed |
500 m/s |
|
Working environment |
Supply voltage |
3V ~ 6V, regular 5V |
Working current |
40mA |
|
Operating temperature |
-40 ℃ ~ +85 ℃ |
|
Indicator light |
Power Light |
Green light, power indicator light,power onalways on (optional,default not installed) |
PPS lamp |
Blue light, unpositioned light does not light up, flashing after 3D positioning (optional,default not installed) |
|
