SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

Detailed Description: DGTL ISO 3KV 2CH GATE DVR

Factory Pack Quantity (Pcs): 40/2500

Hign-concerned Chemical: None

Manufacturer Product Number: UCC21220AD / UCC21220ADR

Mfr: Texas Instruments

Mounting Style: Surface Mount

Operating Temperature: -40°C ~ 125°C

Origin: Mainland China

Packaging: Tube/Reel

Product Type: Galvanically Isolated Gate Drivers

Quantity: 1

Subcategory: PMIC - Power Management ICs

Supplier Device Package: 16-SOIC (0.295", 7.50mm Width)

Type: SWITCH

Unit Weight / single: 0.6 g

Voltage - Supply (Vcc/Vdd): 6V ~ 18V

is_customized: Yes

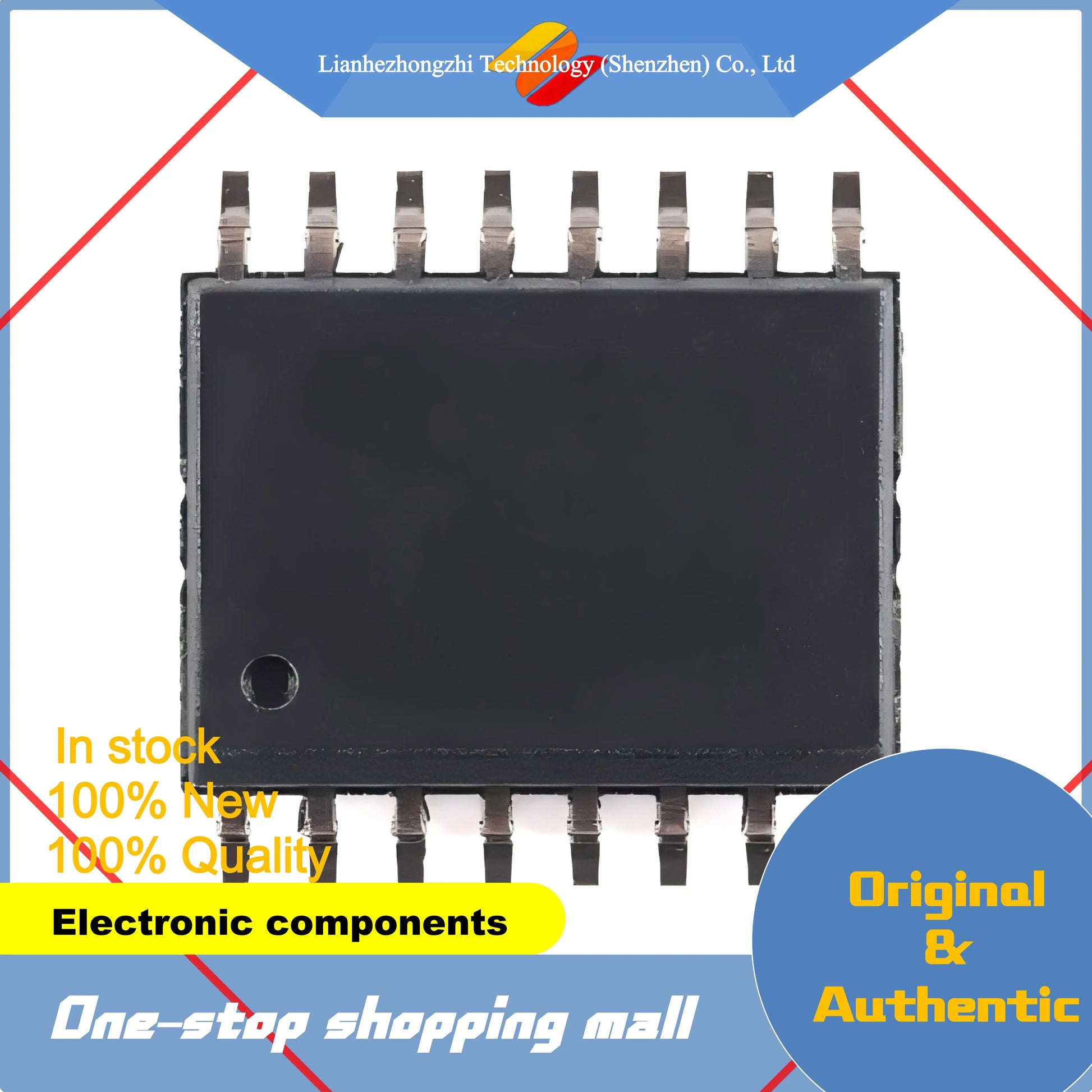

UCC21220AD / UCC21220ADR

Description The UCC21220 and UCC21220A devices are basic and functional isolated dual-channel gate drivers with 4A peak-source and 6A peak-sink current. They are designed to drive power MOSFETs and GaNFETs in PFC, Isolated DC/DC, and synchronous rectification applications, with fast switching performance and robust ground bounce protection through greater than 125V/ns common-mode transient immunity (CMTI). These devices can be configured as two low-side drivers, two high-side drivers, or half-bridge drivers. Two outputs can be paralleled to form a single driver which doubles the drive strength for heavy load conditions due to the best-in-class delay matching performance. Protection features include the following: DIS pin shuts down both outputs simultaneously when it is set high, all supplies have undervoltage lockout (UVLO), and active pulldown protection clamps the output below 2V when unpowered or floated. With these features, these devices enable high efficiency, high power density, and robustness in a wide variety of power applications.
