SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

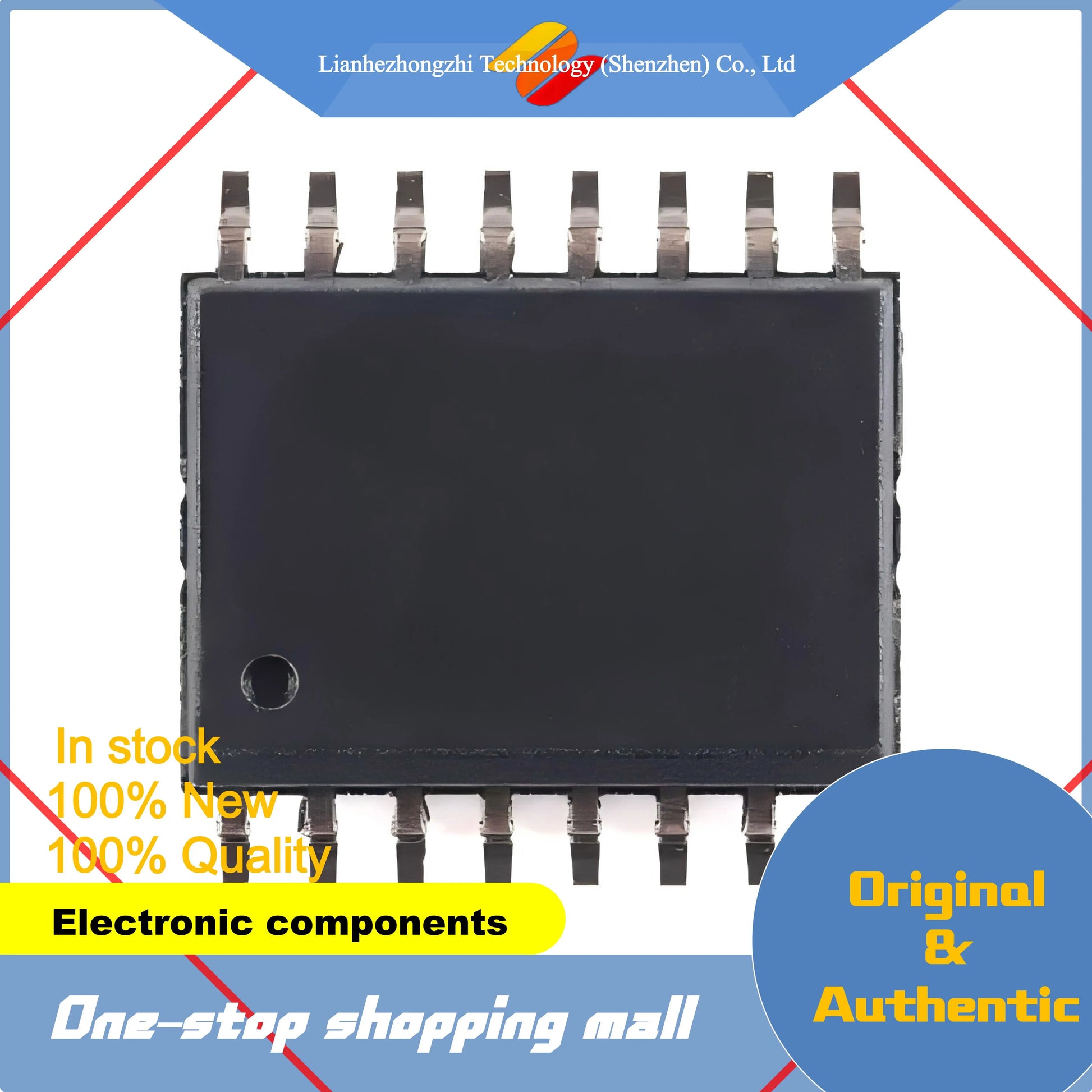

Detailed Description: IC PFC CTR AVERAGE 220KHZ

Factory Pack Quantity (Pcs): 40/2000

Hign-concerned Chemical: None

Manufacturer Product Number: UCC2818DW / UCC2818DWTR / UCC2818DWTRG4

Mfr: Texas Instruments

Mounting Style: Surface Mount

Operating Temperature: -40°C ~ 85°C

Origin: Mainland China

Packaging: Tube/Reel

Product Type: PFC - Power Factor Correction

Quantity: 1

Subcategory: PMIC - Power Management ICs

Supplier Device Package: 16-SOIC (0.295", 7.50mm Width)

Type: SWITCH

Unit Weight / single: 0.6 g

Voltage - Supply (Vcc/Vdd): 12V ~ 17V

is_customized: Yes

TMCS1101A1BQDR

Description The TMCS1101 is a galvanically isolated Hall-effect current sensor capable of DC or AC current measurement with high accuracy, excellent linearity, and temperature stability. A low-drift, temperature-compensated signal chain provides < 1.5% full-scale error across the device temperature range. The input current flows through an internal 1.8-mΩ conductor that generates a magnetic field measured by an integrated Hall-effect sensor. This structure eliminates external concentrators and simplifies design. Low conductor resistance minimizes power loss and thermal dissipation. Inherent galvanic insulation provides a 600-V lifetime working voltage and 3-kVRMS basic isolation between the current path and circuitry. Integrated electrical shielding enables excellent common-mode rejection and transient immunity. The output voltage is proportional to the input current with four sensitivity options. Fixed sensitivity allows the TMCS1101 to operate from a single 3-V to 5.5-V power supply, eliminates ratiometry errors, and improves supply noise rejection. The current polarity is considered positive when flowing into the positive input pin. Both unidirectional and bidirectional sensing variants are available. The TMCS1101 draws a maximum supply current of 6 mA, and all sensitivity options are specified over the operating temperature range of –40°C to +125°C.
