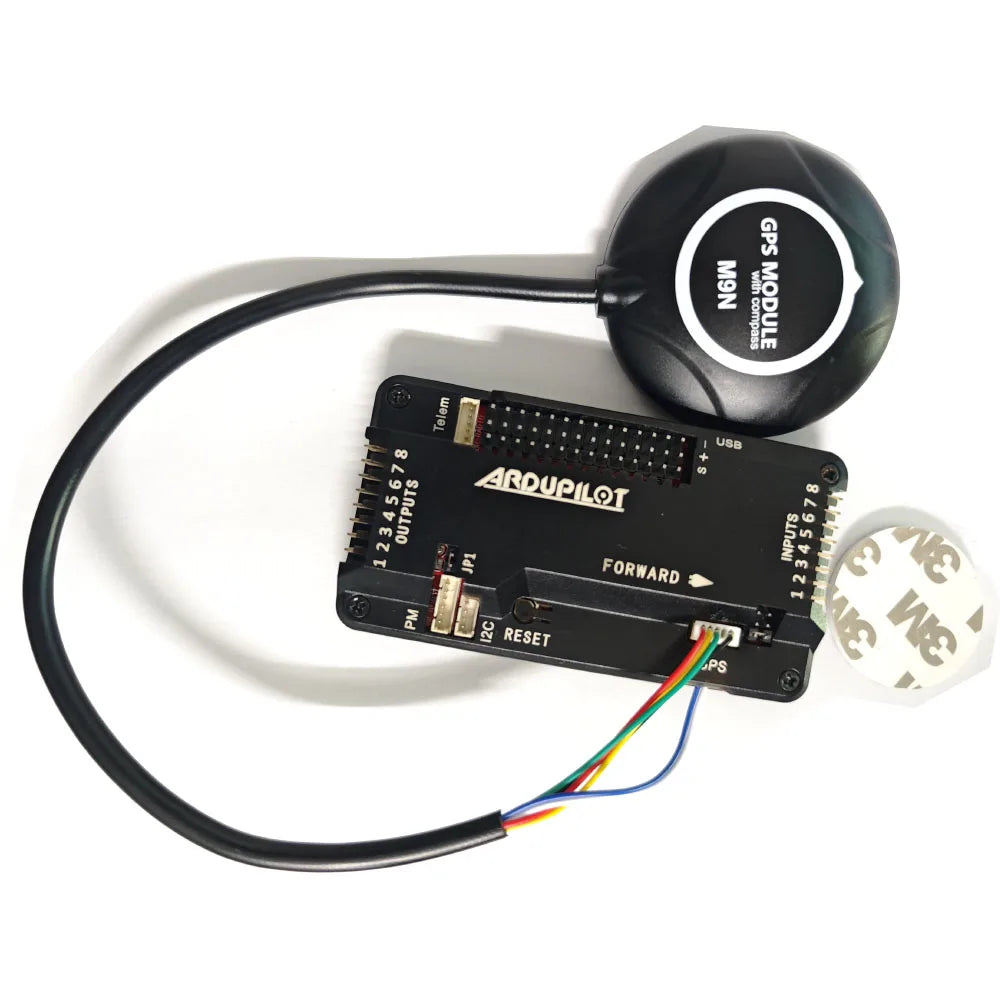

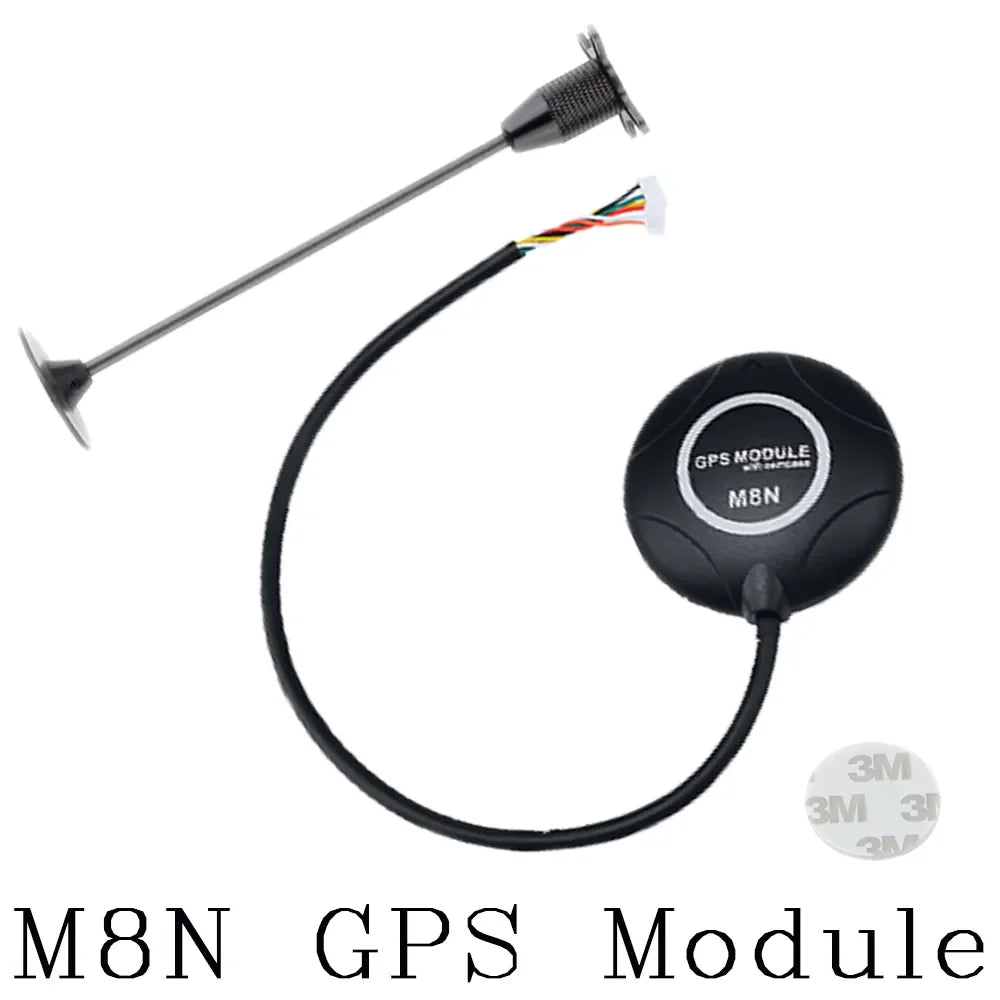

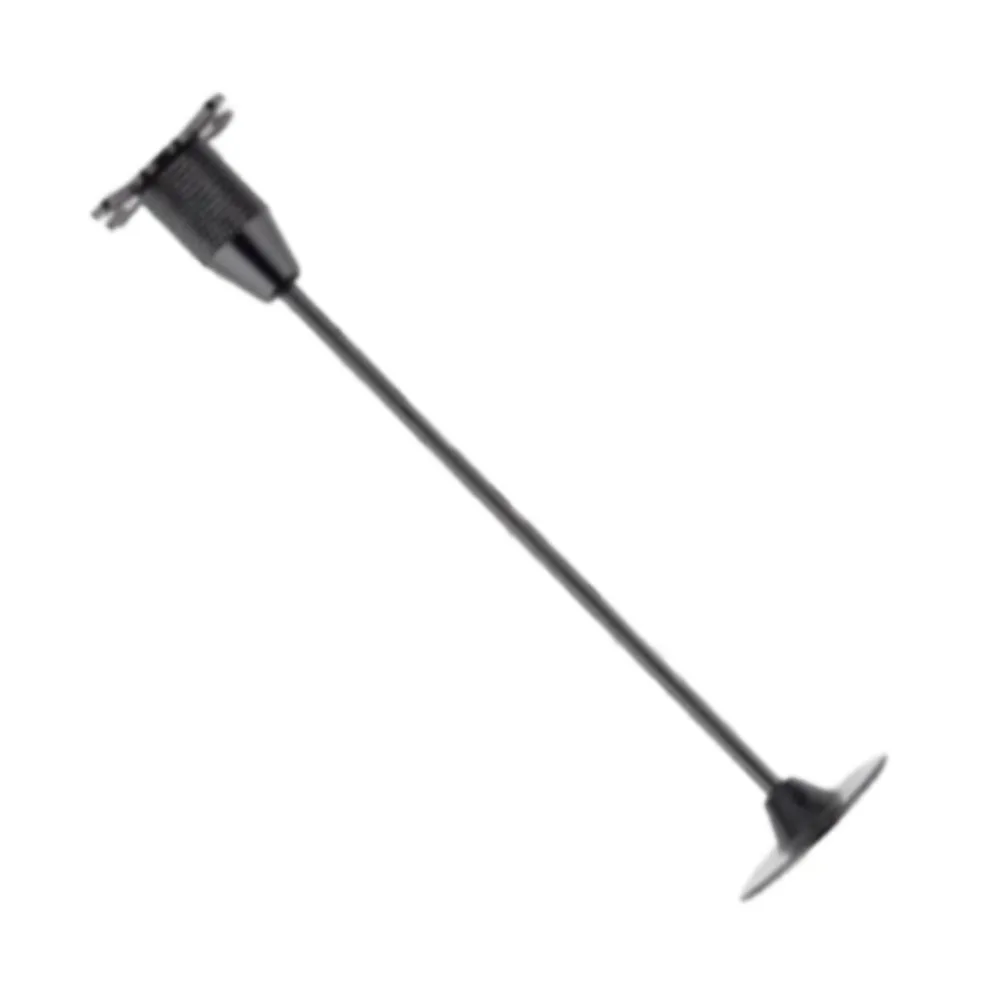

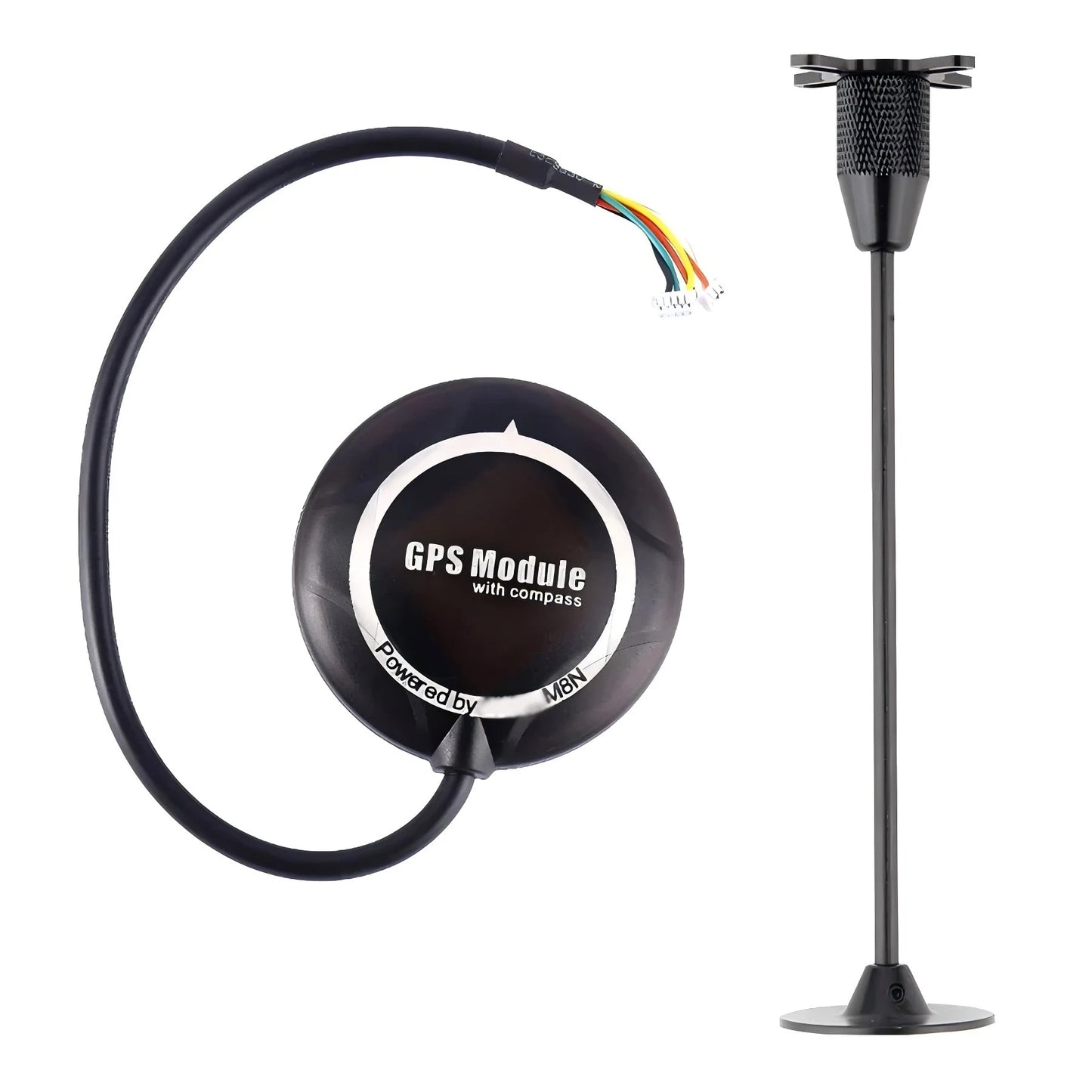

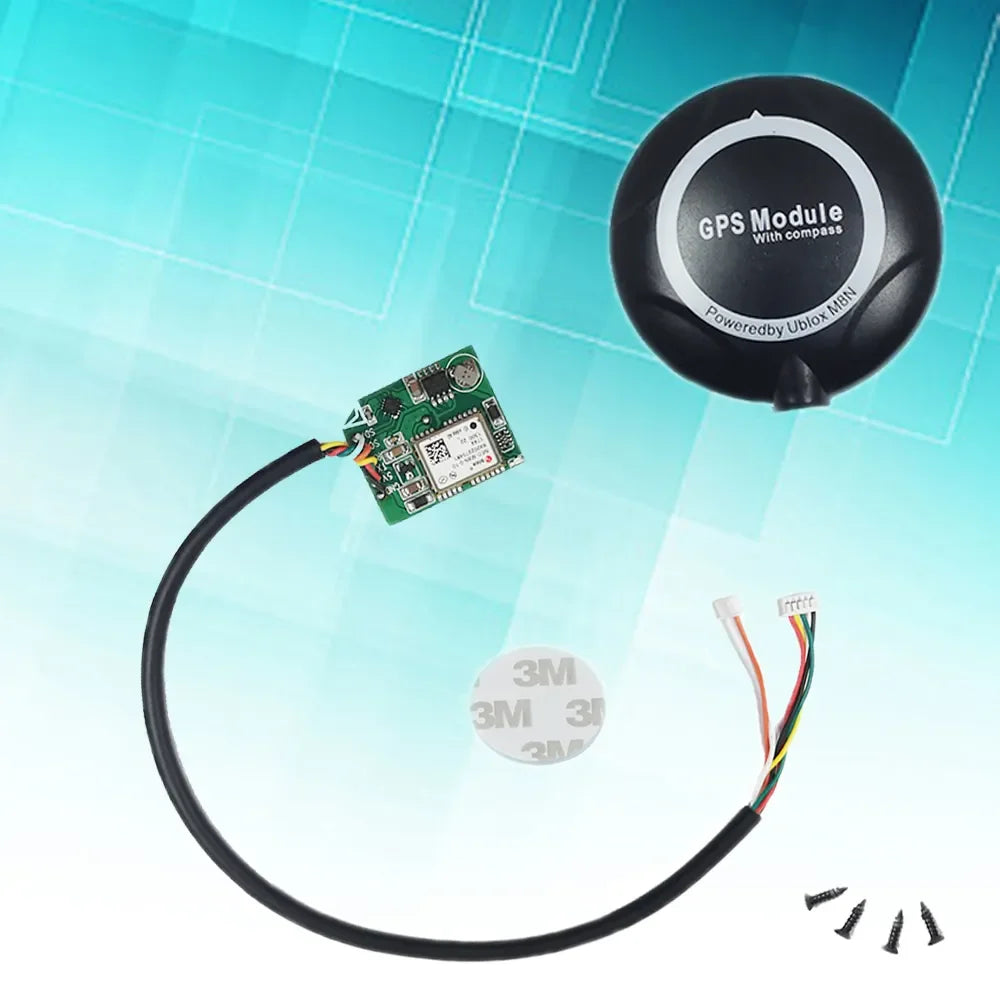

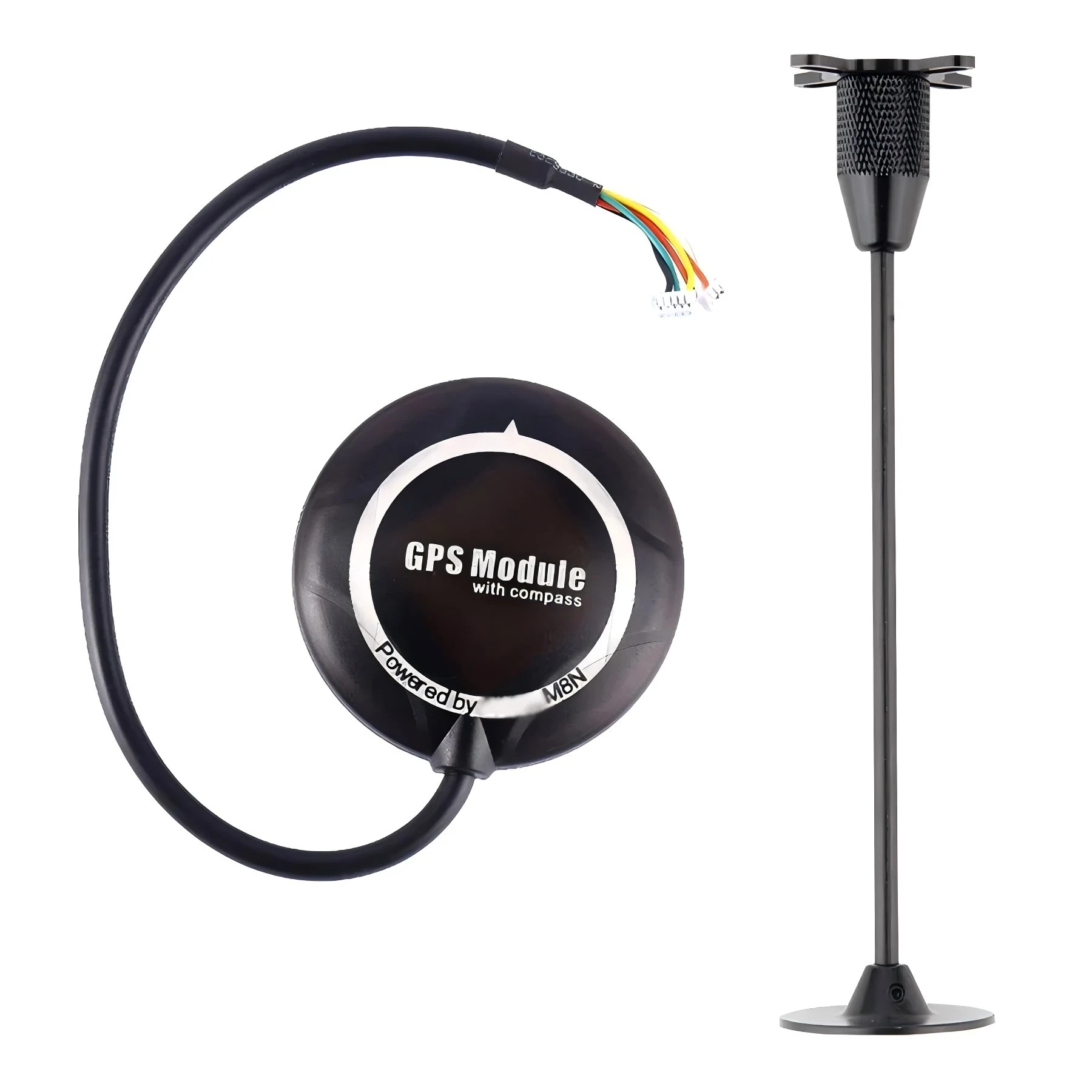

Ultra high precision M8N M9N M8 8N/6M GPS built-in compass bracket, suitable for APM AMP2.6 APM 2.8 Pixhawk 2.4.6 2.4.8

Product description:

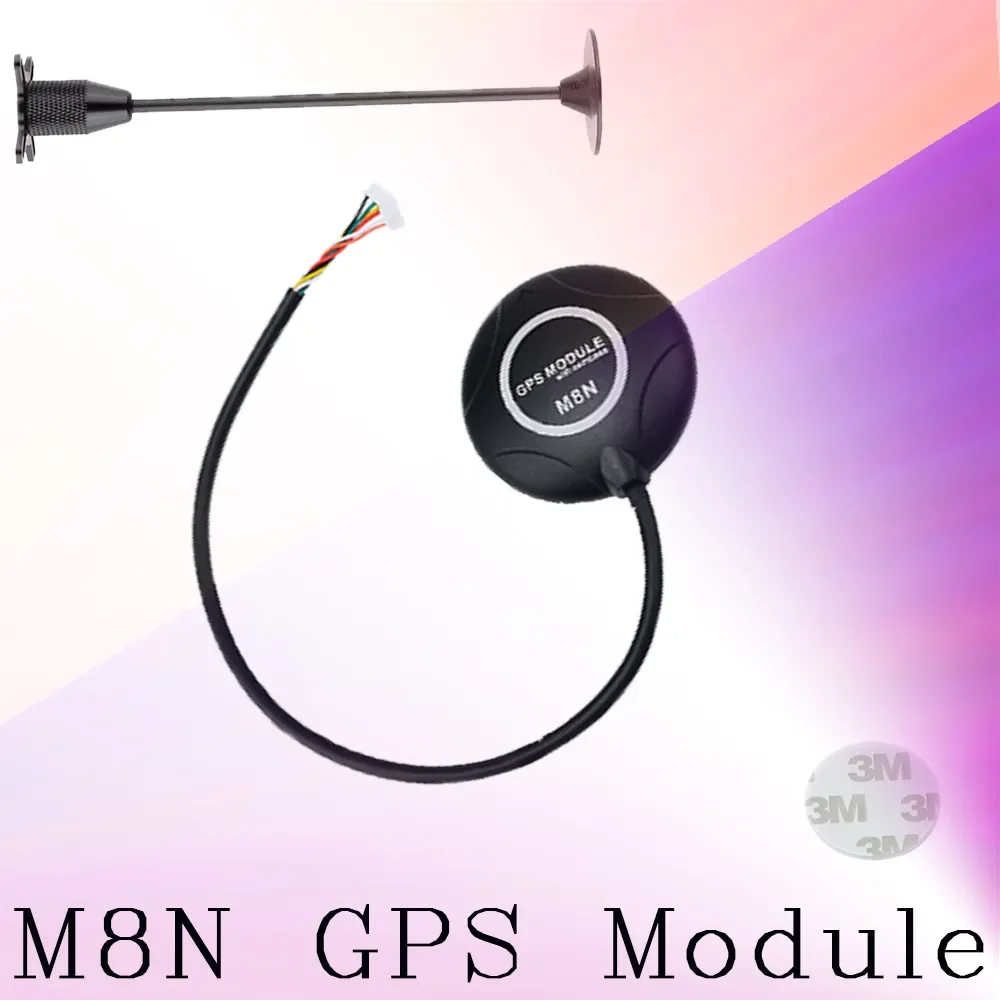

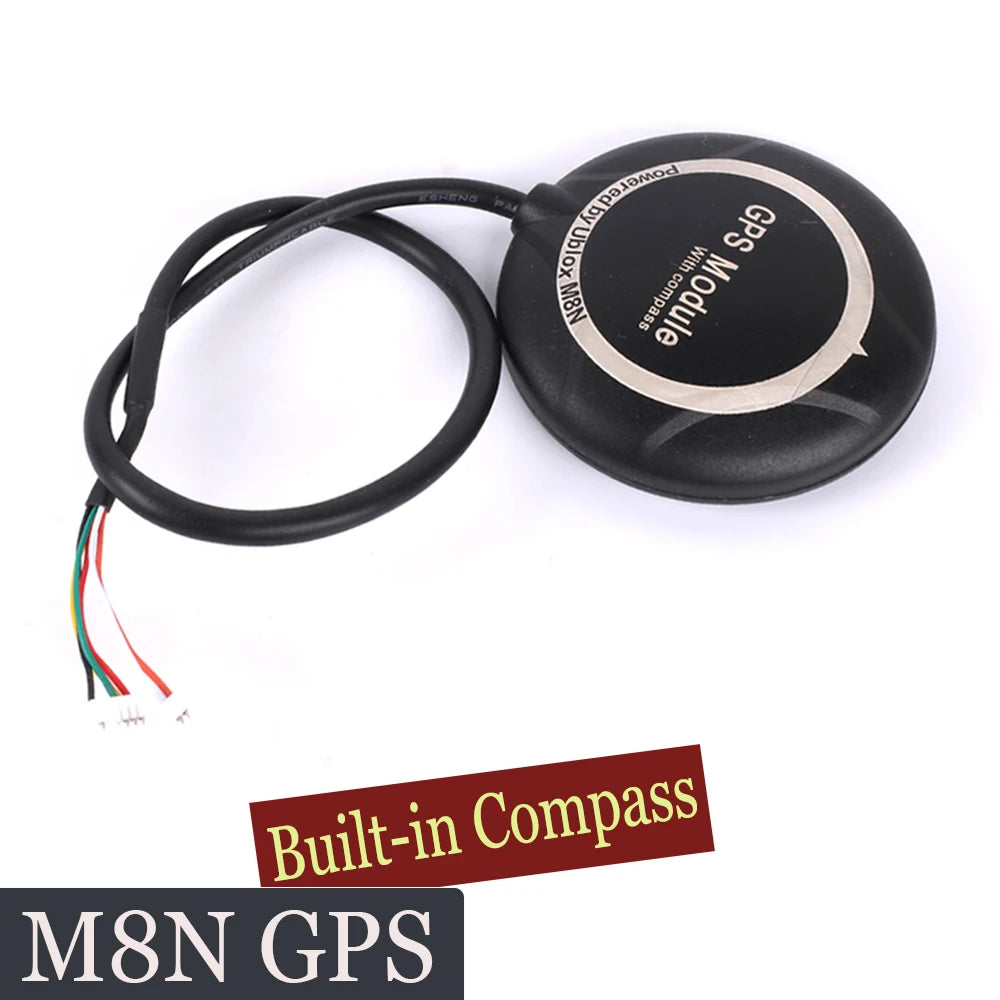

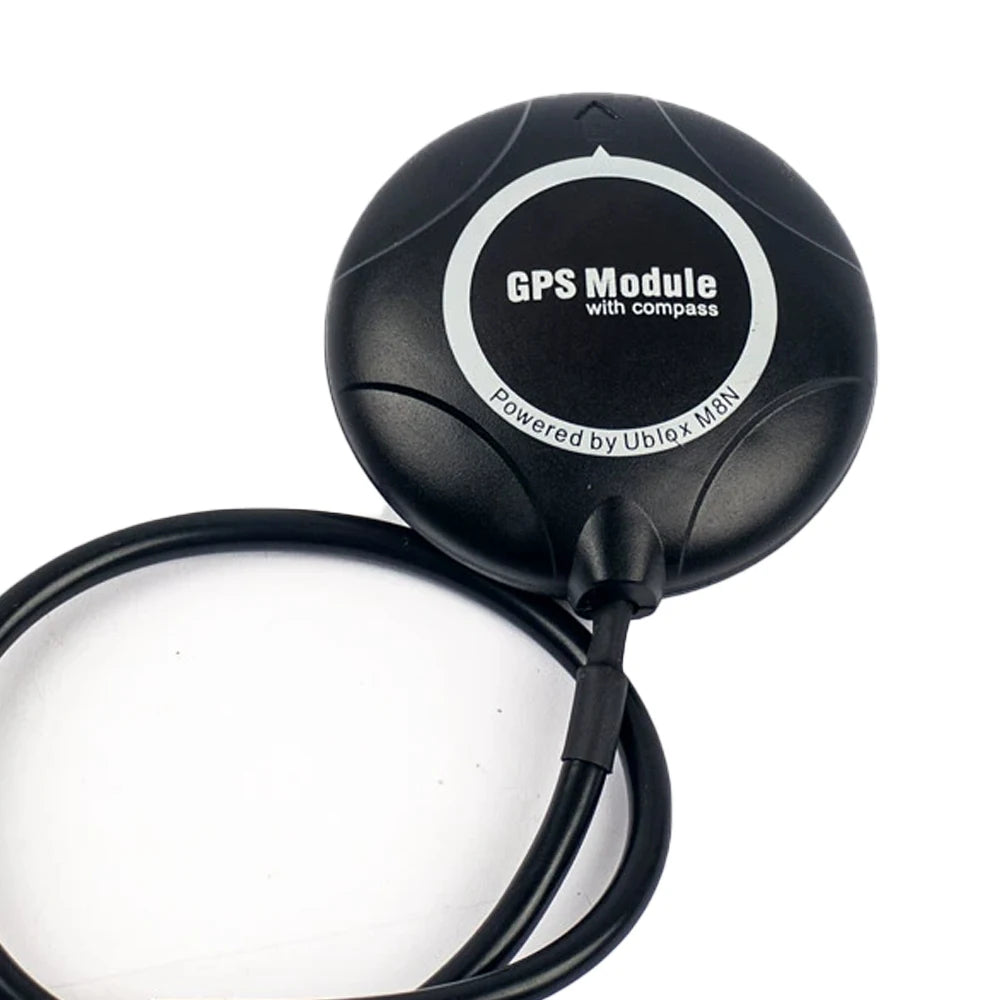

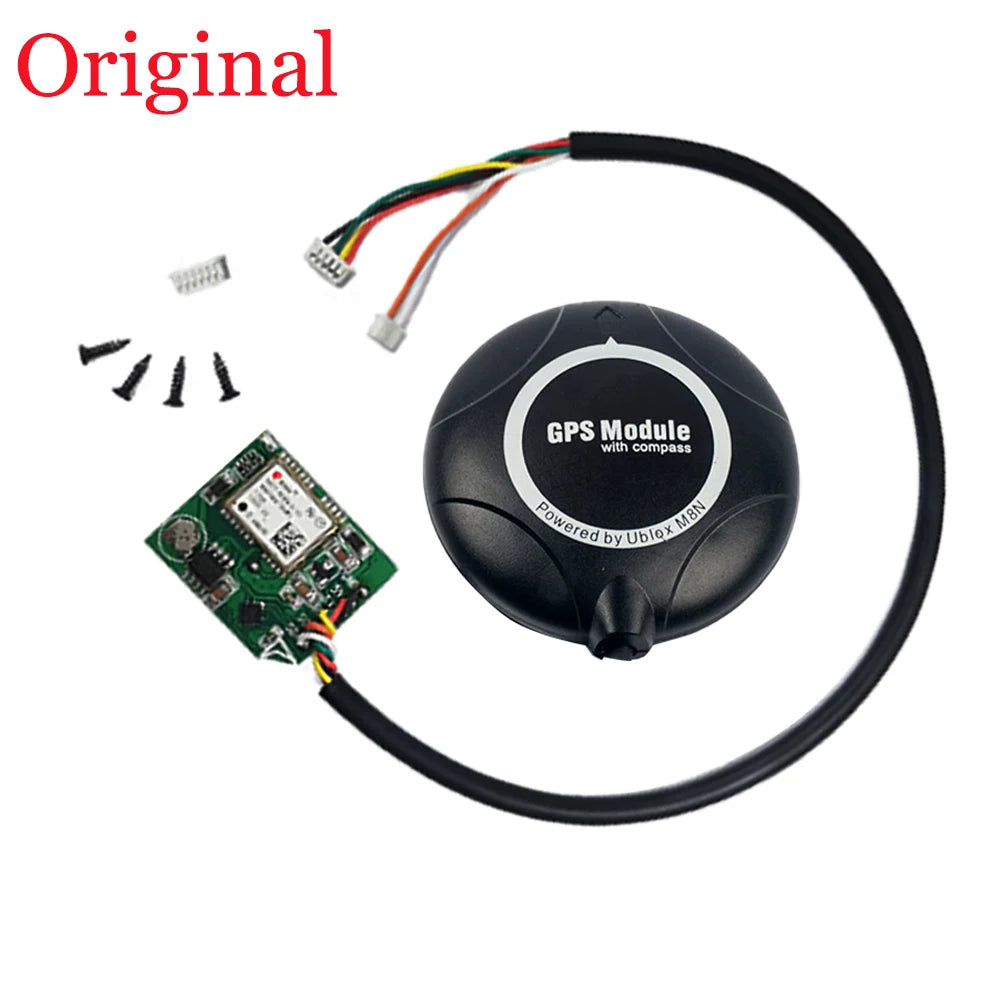

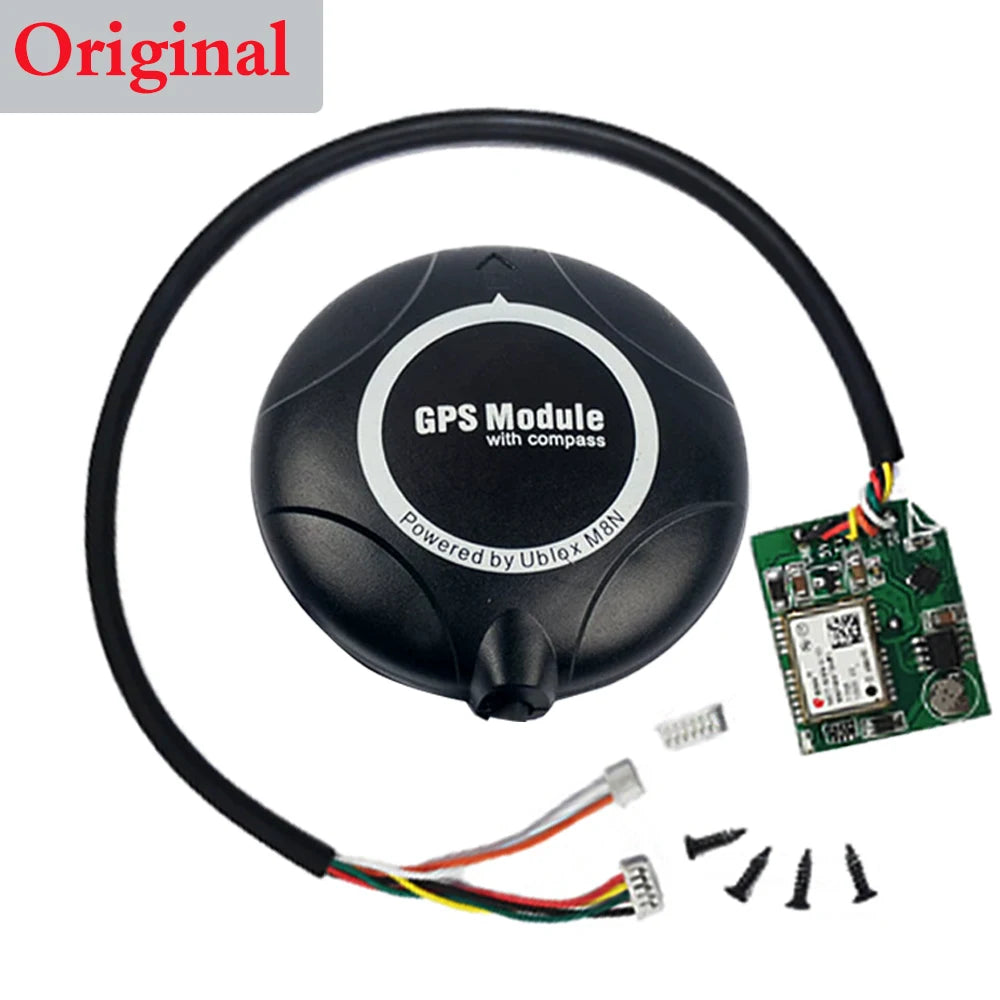

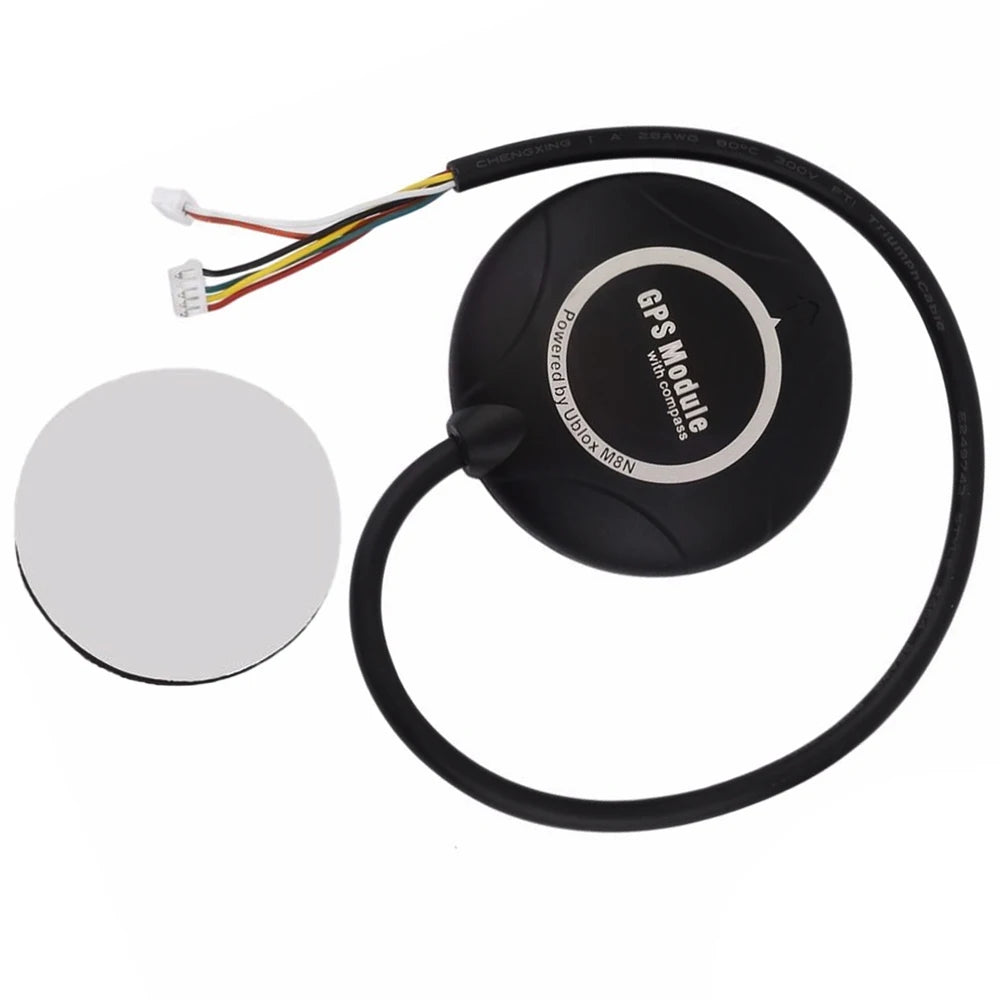

GPS M8N chip parameters:

Receiver type:72-channel u-blox M8

Engine: GPS/QZSS L1C/A, GLONASS L1OF, BeiDou B1SBAS L1C/A: WAAS, EGNOS, MSASGGalileo-ready E1B/C (M8N) Nav.

Number of navigation satellites: 22

Update rate for individual GNSS: up to 18 Hz

Concurrent global navigation satellite systems: up to 10 Hz

Position accuracy 2 2.0 m CES

Tracking and navigation: -167 dBm

Cold start: -148 dBm

Hot start: -156 dBm

Operating temperature: -40 ℃ to 85 ℃

Storage temperature: -40° C to 85° C (M8N/Q)

PP indicator light: The red light is always on when power is on, and the green light flashes after 3D positioning

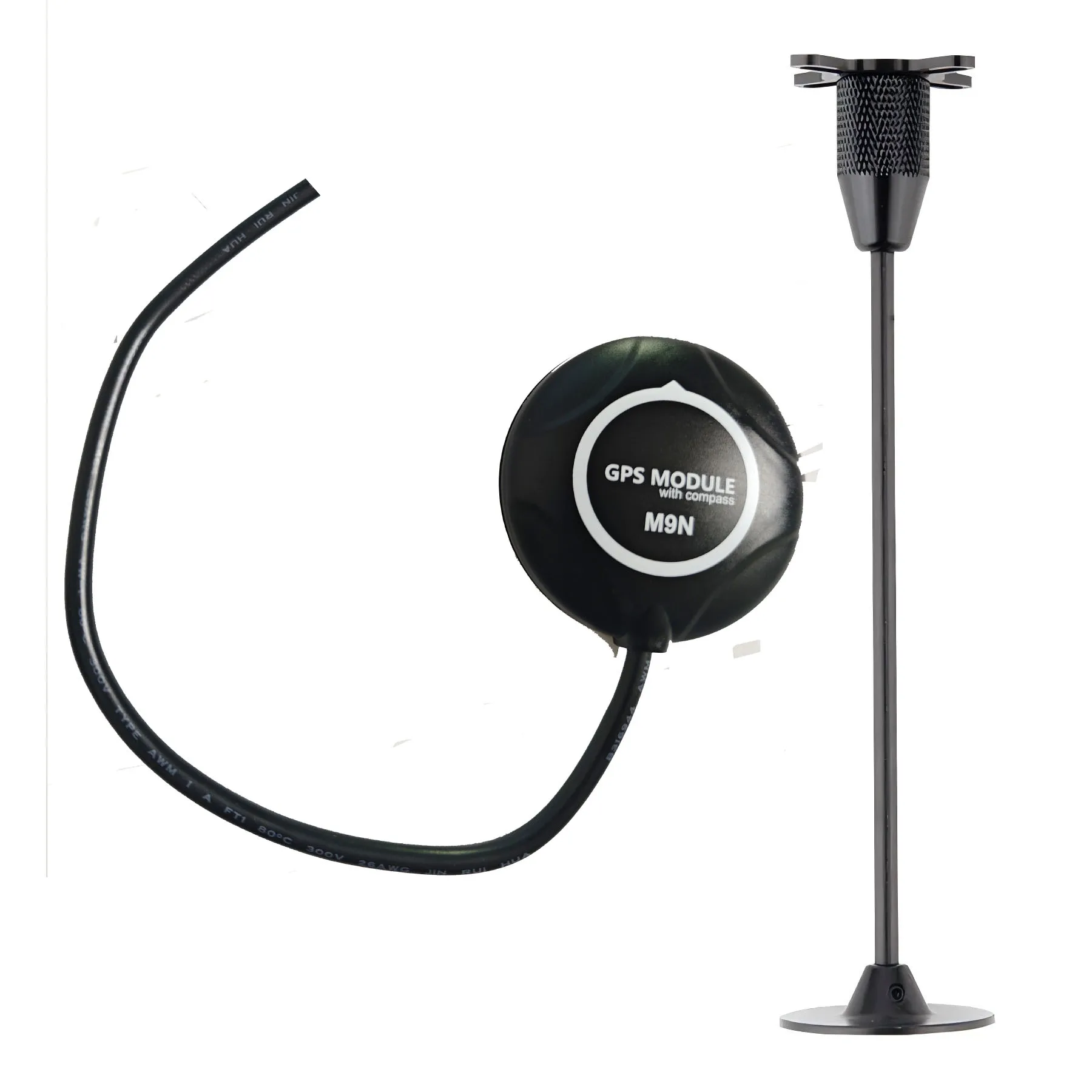

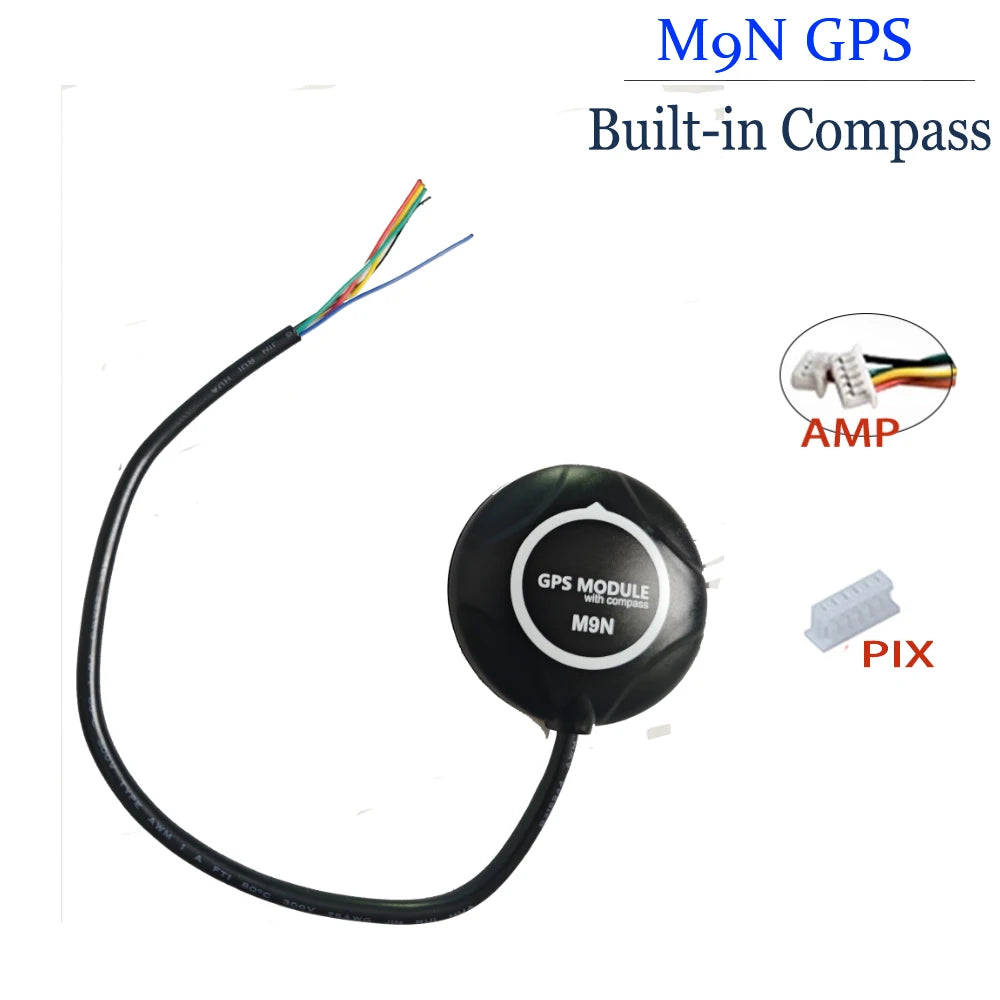

GPS M9N chip parameters:

Receiver type: 92-channel u-blox M9

Engine: GPS/L1C/A, GLONASS L1OF, BeiDou B1, SBAS L1C/A, WAAS, EGNOS, MSAS Galleo E1B/C,(M9N) Nav.

Number of navigation satellites: 32

Serial port baud rate: 4800-921600bps Default 115200bps

Update rate for individual GNSS: up to 10 Hz

Concurrent global navigation satellite systems: up to 25Hz

Position accuracy: 1.5m CEP

Tracking and navigation: -167 dBm

Cold start: -148 dBm

Hot start: -159 dBm

Operating temperature: -40 ℃ to 85 ℃

Storage temperature: -40° C to 85° C (M9N/Q)

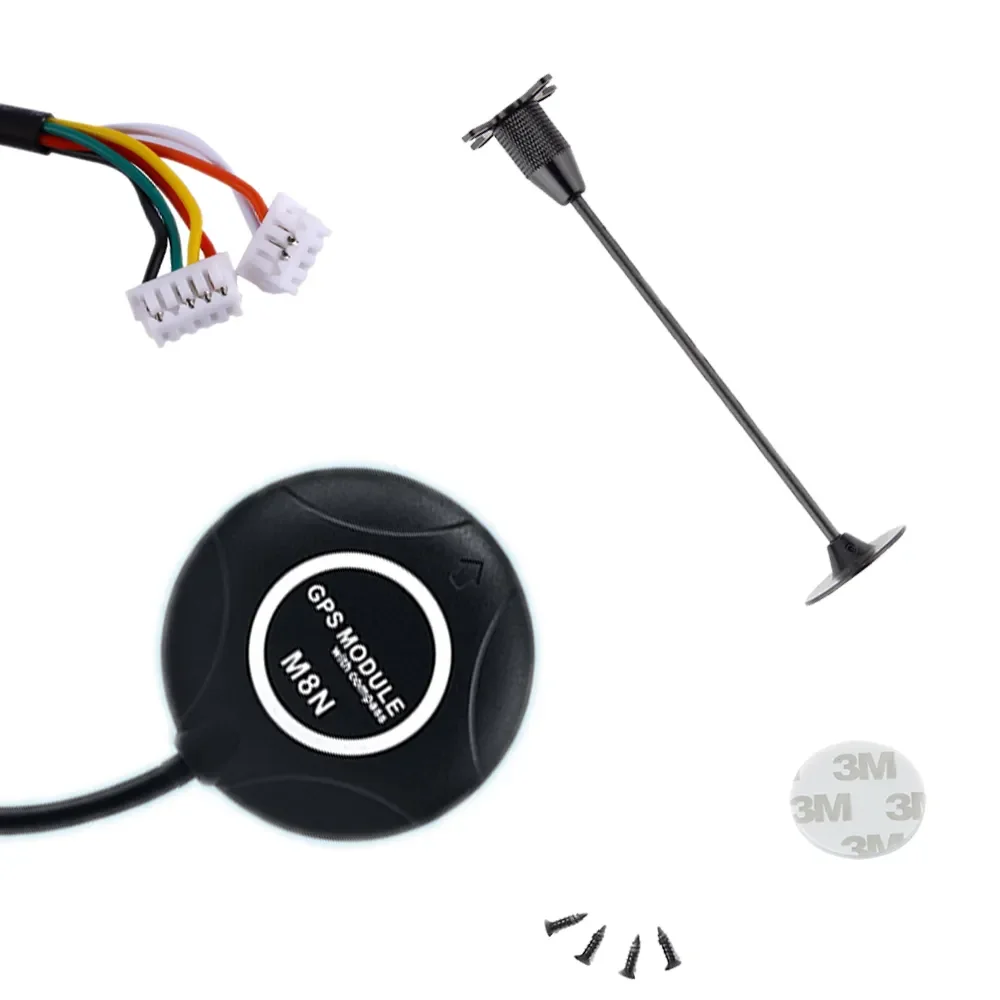

Connecting wire length: wire length 27CMAPM(5P +4P) or PIX(6P+4p)1.25 spacing

PP indicator light: The red light is always on when power is on, and the green light flashes after 3D positioning

Height limit: ≤50000m

Speed limit: ≤500m/s

Working voltage: DC 3.6-5.5V, typical value of 5.0V

Working current: 80mA@5v

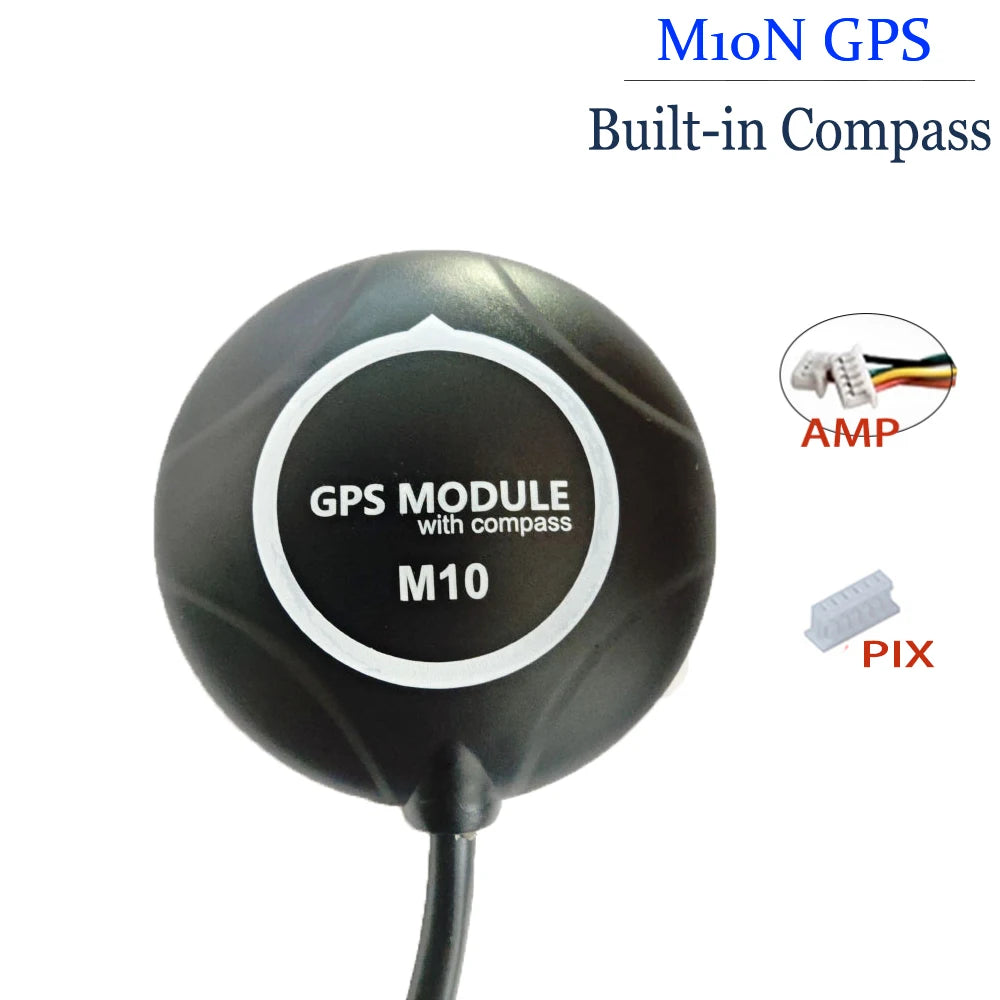

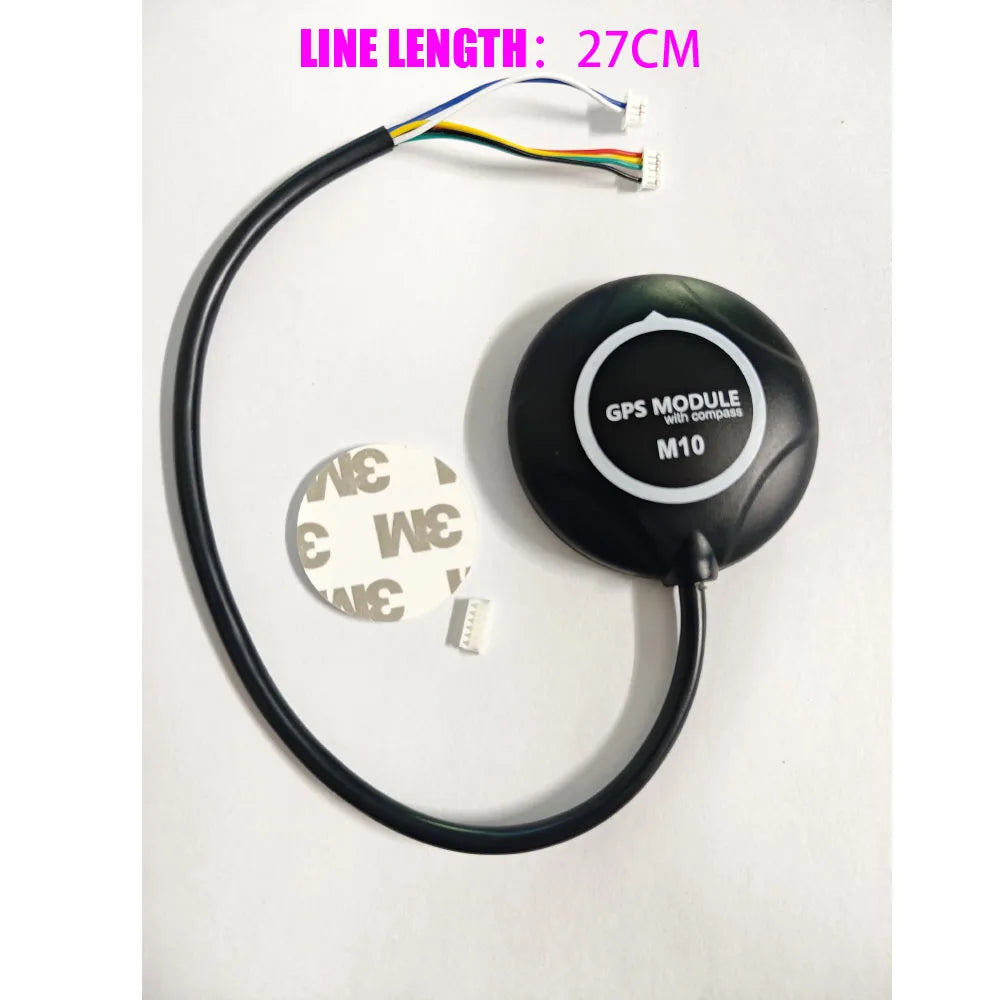

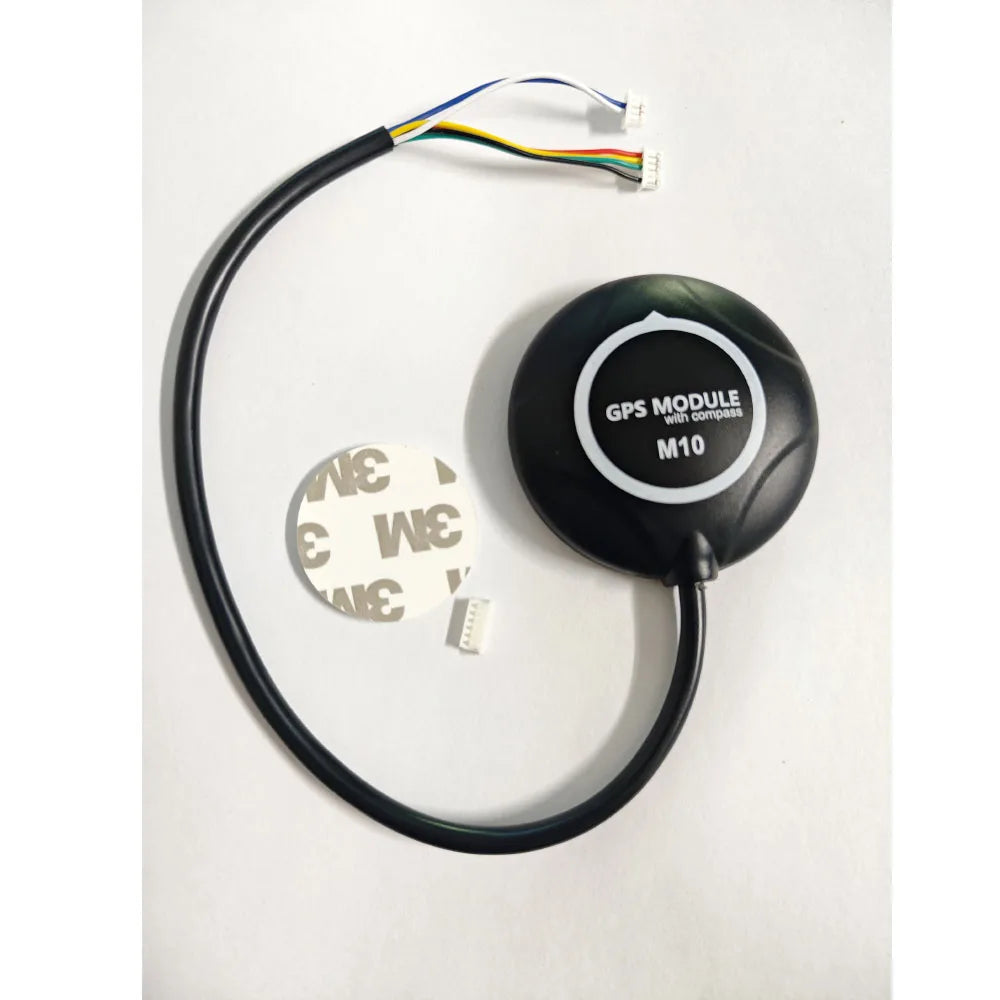

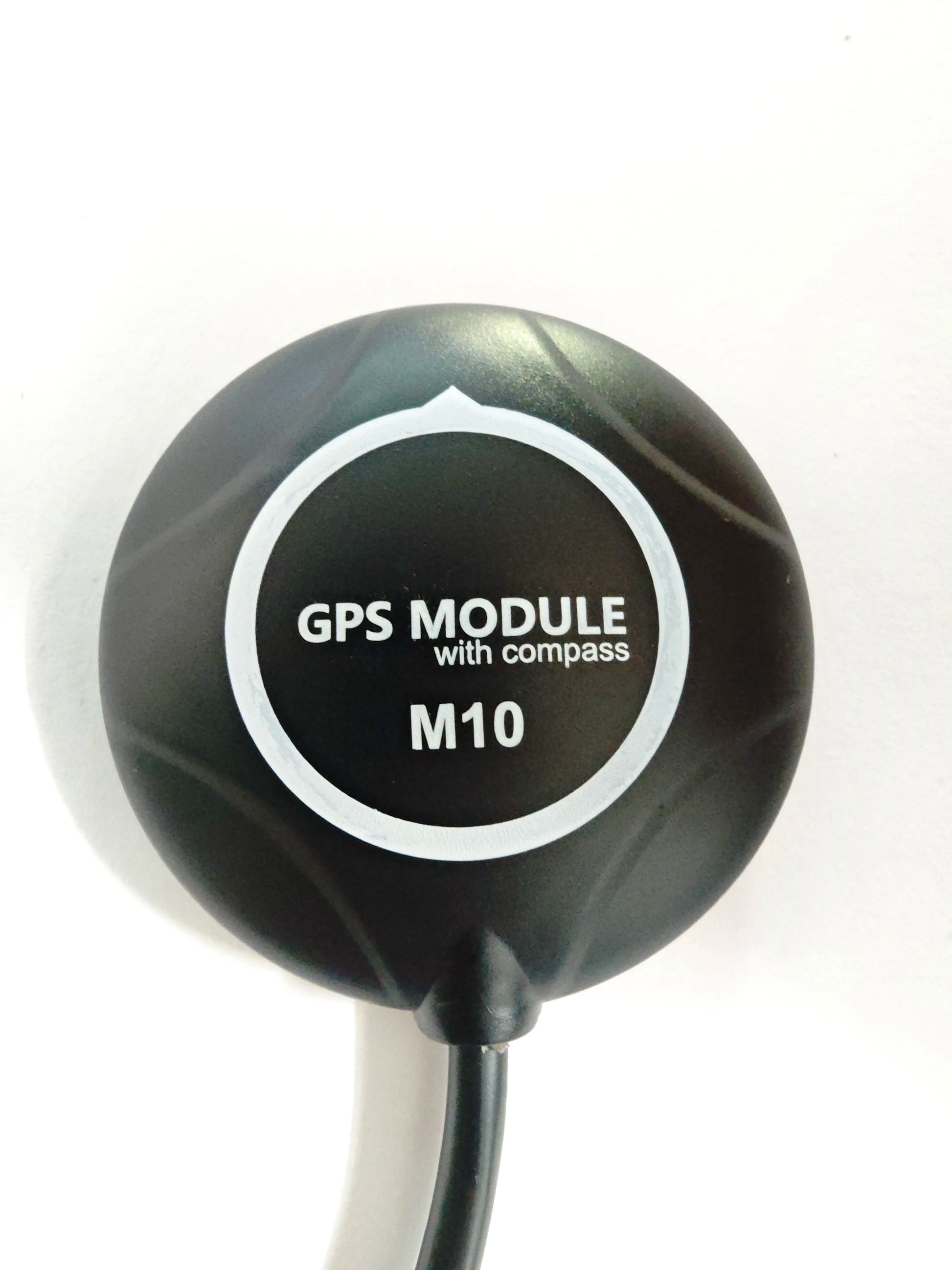

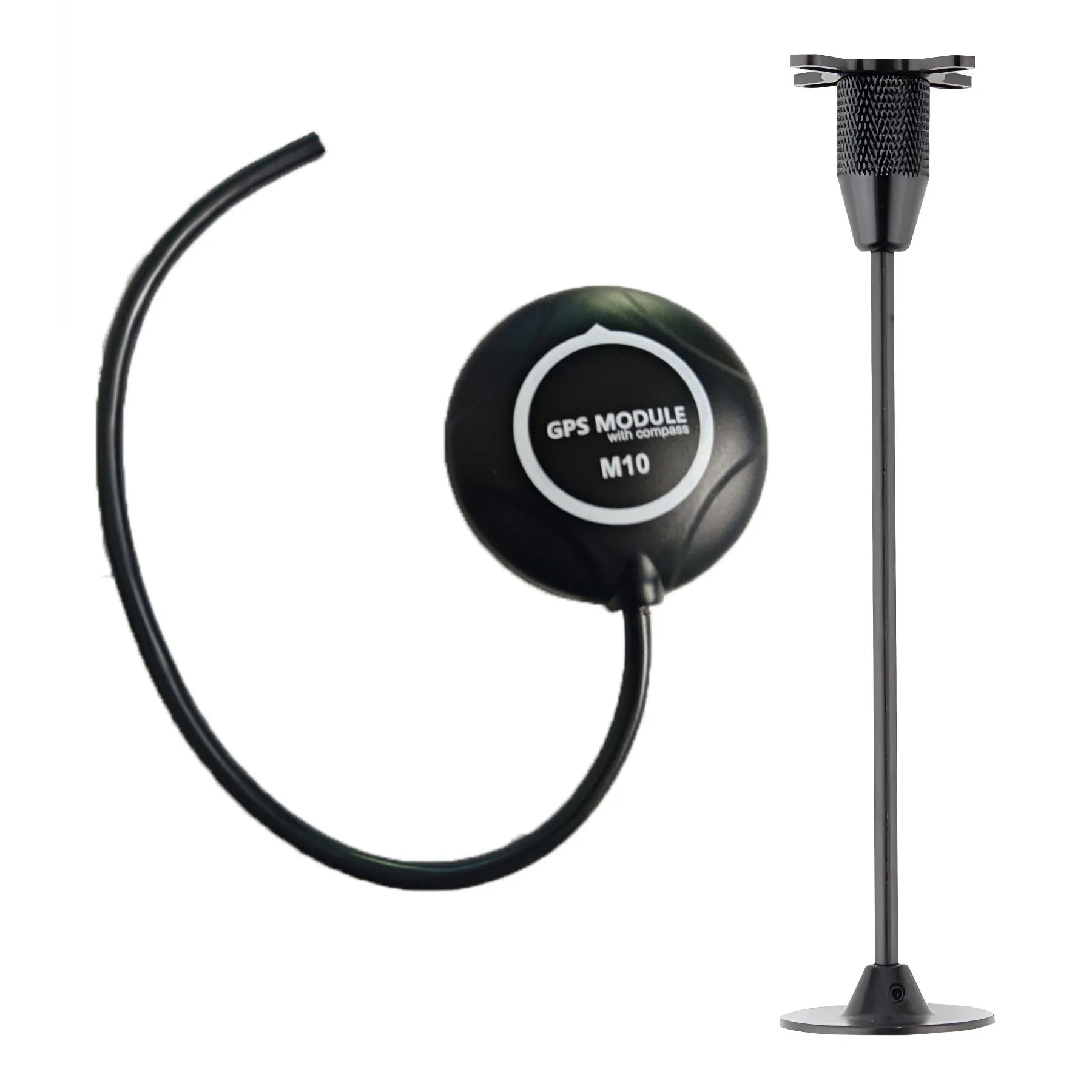

GPS M10 chip parameters:

Receiver type: N/A

Engine: GPS/L1C/A, GLONASS L1OF, BeiDou B1C, SBAS L1C/A, WAAS, EGNOS, MSAS Galleo E1B/C,(M10) Nav.

Number of navigation satellites: 32

Serial port baud rate: 4800-921600bps Default 115200bps

Update rate for individual GNSS: up to 10 Hz

Concurrent global navigation satellite systems: up to 25Hz

Position accuracy: 1.5m CEP

Tracking and navigation: -167 dBm

Cold start: -148 dBm

Hot start: -159 dBm

Operating temperature: -40 ℃ to 85 ℃

Storage temperature: -40° C to 85° C (M9N/Q)

Connecting wire length: wire length 27CMAPM(5P +4P) or PIX(6P+4p)1.25 spacing

PP indicator light: The red light is always on when power is on, and the green light flashes after 3D positioning

Height limit: ≤50000m

Speed limit: ≤500m/s

Working voltage: DC 3.6-5.5V, typical value 5.0V

Working current: 80mA@5v

FLASH: On-board FLASH can be saved after configuration modification, and will not be lost when power is turned off

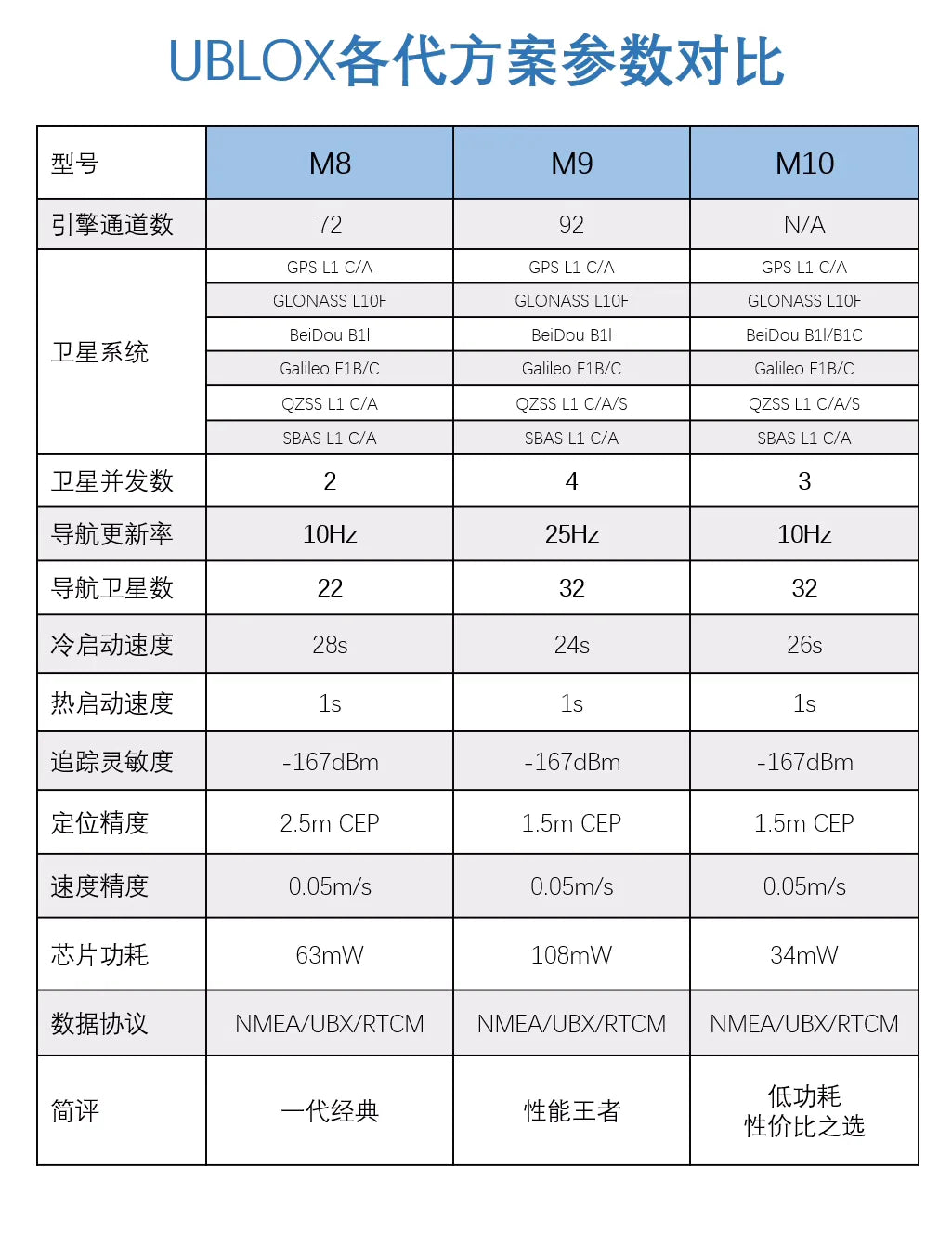

        The new generation GPS has low power consumption and high accuracy. The final accuracy is 0.6 meters, which is actually close to 0.9 meters. The measurement accuracy is M7N<M8N<M9N<M10. Higher accuracy, supporting GPS/QZSS L1C/A GLONASS L10F、 Beidou B1 protocol and mode or higher.

        Immediate assistance with GNSS online assistance for GNSS offline (up to 35 days), immediate assistance with autonomous (up to 6 days) GMA SUPL and 3GPP compatible oscillator TCXO, Crystal TTC Crystal built-in noise graphics chip NA. The additional LNA can achieve minimum noise figure anti-interference active CW detection and removal. The antenna is supported by an external surface acoustic bandpass filter, and active and passive odometer distance data recorders are used for position, velocity, and time.
