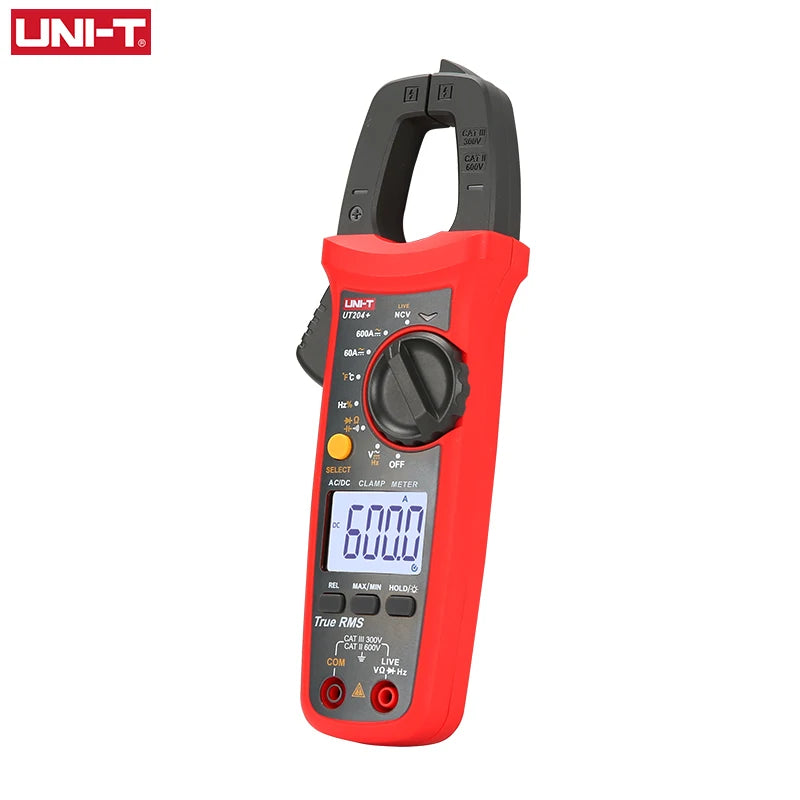

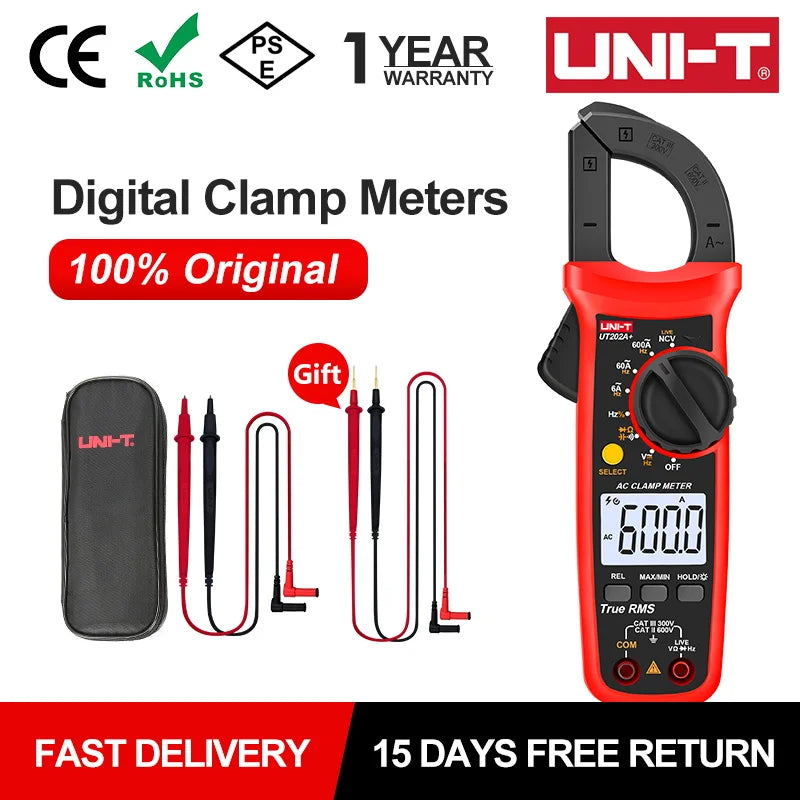

Pinza Amperimétrica Digital UNI-T UT204+ / UT202A+ (600A AC) - Tester Eléctrico Profesional True RMS, NCV, Auto Rango
Pinza Amperimétrica Digital UNI-T UT204+ / UT202A+ (600A AC) - Tester Eléctrico Profesional True RMS, NCV, Auto Rango
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: UNI-T
Certification: RoHS
DIY Supplies: ELECTRICAL
Dimensions: 215mm x 63mm x 36mm
Display Type: Other
Hign-concerned Chemical: None
Measuring Capacitance Range: 60mF
Measuring Current Range: 400A
Measuring Inductance Range: N/A
Measuring Resistance Range: 60Mohm
Measuring Voltage Range: 600v
Model Number: UT202A+ UT204+
Operating Temperature: 0~40
Origin: Mainland China
UNI-T Model: UT204 PLUS
UT204+ ac dc clamp meter: uni t clamp meter
Weight: 170g
amperimetro clamp: UT204+ dc clamp meter
Notice Please: Battery is not included

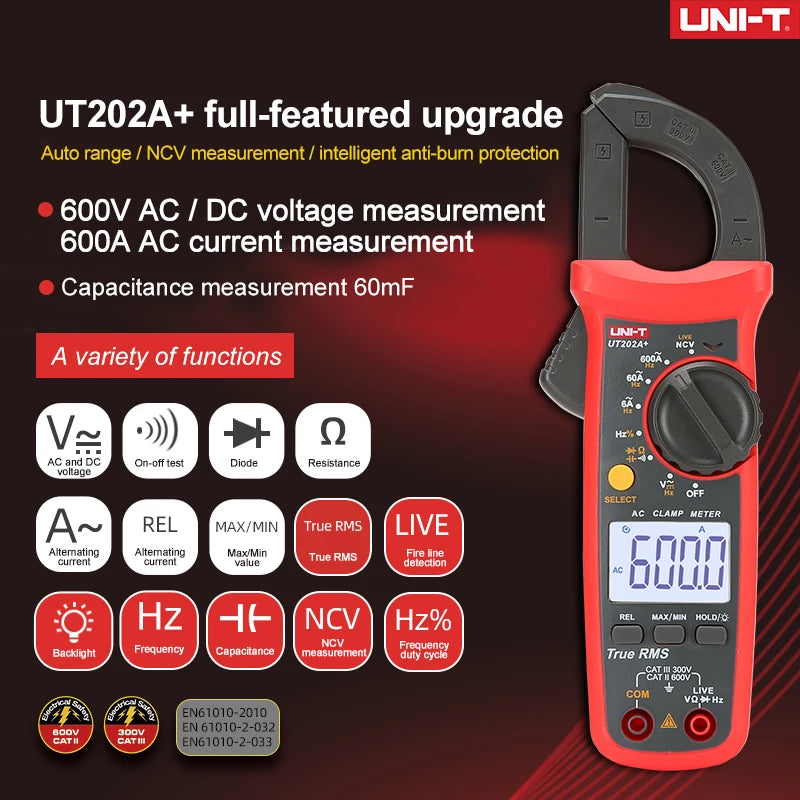

Features:
True RMS
0.04A small current measurement
60mF large capacitance measurement(UT202A+/204+)
Larger screen and display digits
LCD backlight
Neutral/live wire test(UT202A+/UT204+)

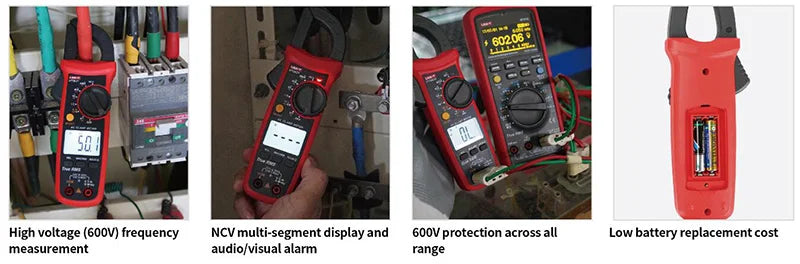

High Voltage 600V frequency measurement
NCV multi-segment display and audio/visual alarm
600V protection across all range
In current and voltage range measurement.Accuracy gurantee range1%-100%
Notice:Because shipping by air, battery is not included
Specifications |
Range |
UT201+ |
UT202+ |
UT202A+ |
UT203+ |
UT204+ |
AC current (A) |
400A |
±(2%+10) |
±(2%+10) |
±(2.5%+5) |
||
600A |
±(2%+10) |
±(2.5%+5) |
||||
AC current frequency (Hz) |
50Hz~100Hz |
±(1%+5) |
±(1%+5) |
±(1%+5) |
||
DC current (A) |
400A |
±(2.5%+5) |
||||
600A |
±(2.5%+5) |
|||||
AC voltage (V) |
600V |
±(0.8%+5) |
±(0.8%+5) |
±(0.8%+5) |
±(0.8%+5) |
±(0.8%+5) |
AC voltage frequency(Hz) |
10Hz~10kHz |
±(1%+5) |
±(1%+5) |
±(1%+5) |
||
10Hz~60kHz |
±(0.5%+2) |
±(0.5%+2) |
||||
DC voltage (A) |
600V |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
Resistance (Ω) |
40MΩ |
±(0.8%+2) |
±(0.8%+2) |
±(0.8%+2) |
||
60MΩ |
±(0.8%+2) |
±(0.8%+2) |
||||
Capacitance (F) |
4mF |
±(4%+5) |
||||
40mF |
±(4%+5) |
|||||
60mF |
±(4%+5) |
±(4%+5) |
||||
Temperature (℃) |
-40℃~1000℃ |
±(1.5%+5) |
±(1.5%+5) |
|||
Frequency (Hz) |
10Hz~10MHz |
±(0.1%+4) |
±(0.1%+4) |
±(0.1%+4) |
||
Features | ||||||
Display count |
4000 |
4000 |
6000 |
4000 |
6000 |
|

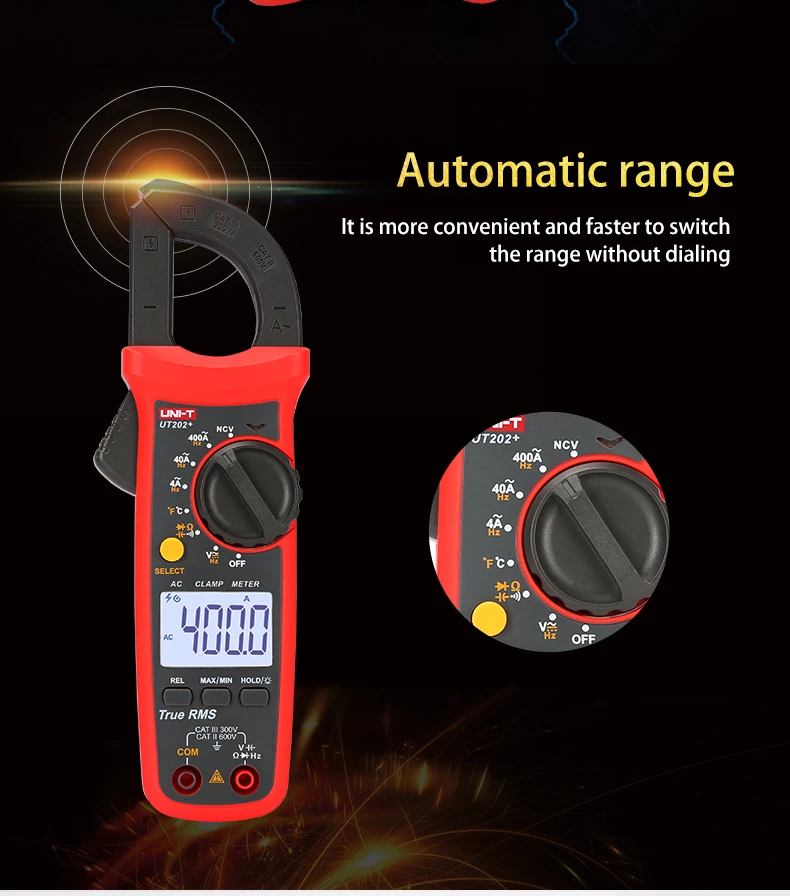

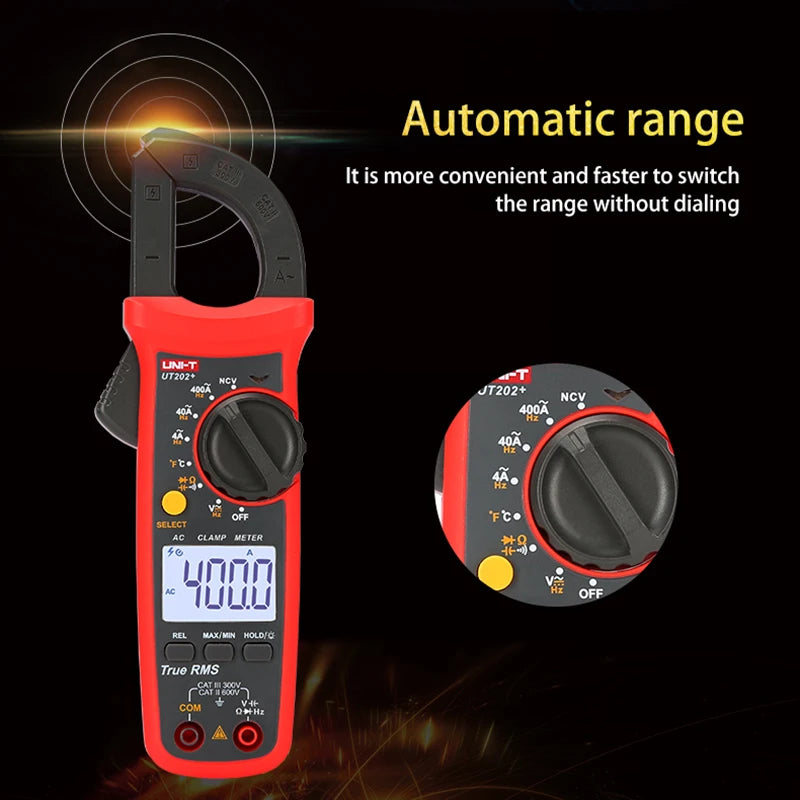

Auto range |
√ |
√ |
√ |
√ |
√ |
|

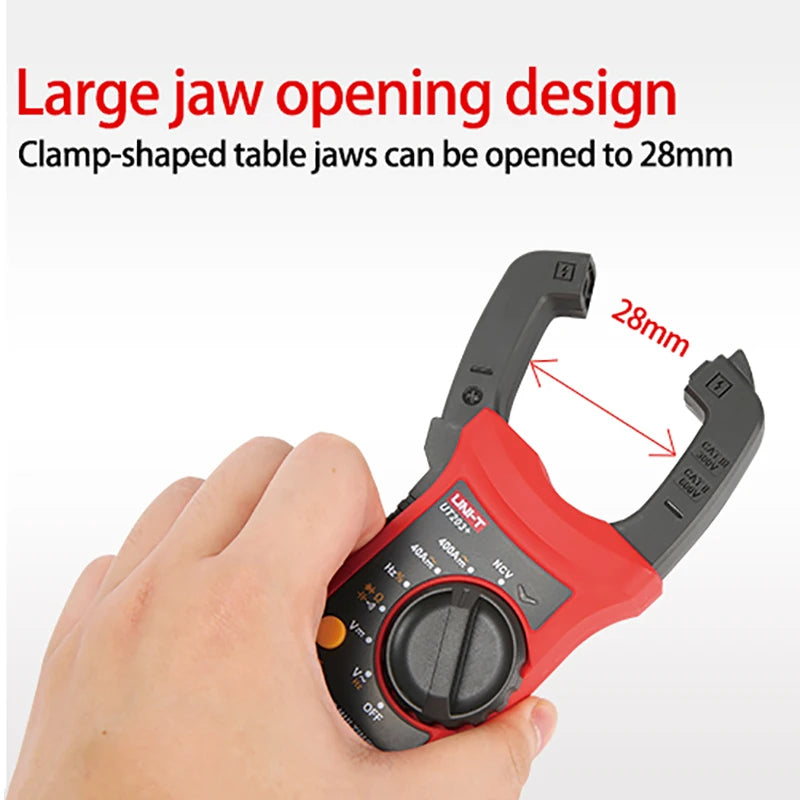

Jaw opening |
28mm |
28mm |
28mm |
28mm |
28mm |
|
True RMS |
√ |
√ |
√ |
√ |
√ |
|
NCV |
√ |
√ |
√ |
√ |
√ |
|
Live wire test |
√ |
√ |
||||
Continuity test |
√ |
√ |
√ |
√ |
√ |
|
Diode |
√ |
√ |
√ |
√ |
√ |
|
MAX/MIN |
√ |
√ |
√ |
√ |
√ |
|
Relative mode |
√ |
√ |
√ |
√ |
||
Zero mode |
√ |
√ |
||||
Data hold |
√ |
√ |
√ |
√ |
√ |
|
Low battery indication |
√ |
√ |
√ |
√ |
√ |
|
Auto power off |
√ |
√ |
√ |
√ |
√ |
|

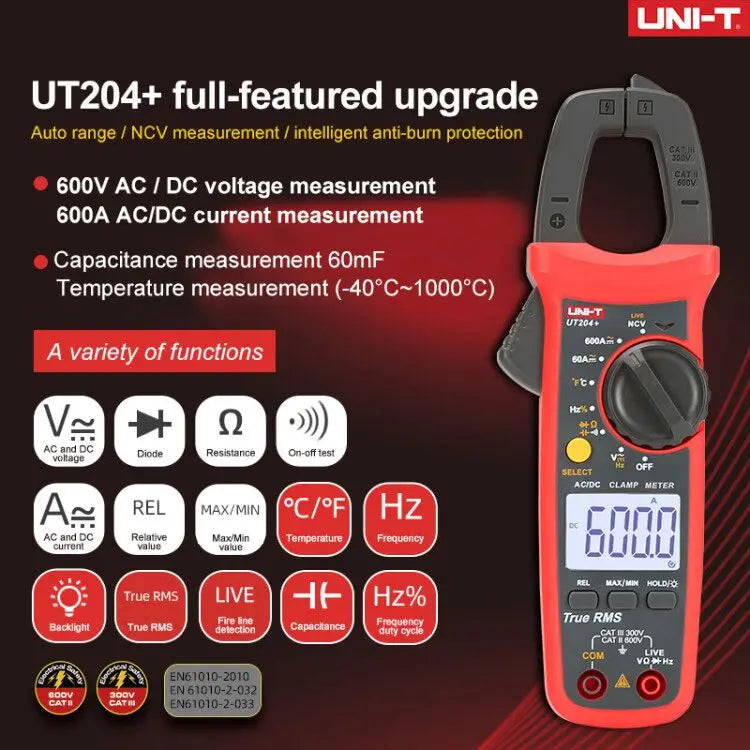

UT204+ 600V AC/DC Voltage Measure,600A AC/DC Current Measurement, Frequnecy(10Hz-10MHz),Capacitance maurement 60mF Function: AC/DC Current,voltage,Diode,Resistance Measurement,Continuty buzzer,MAX/MIN,REL,Hz%,True RMS,Backlight, Capacitance Measurement
