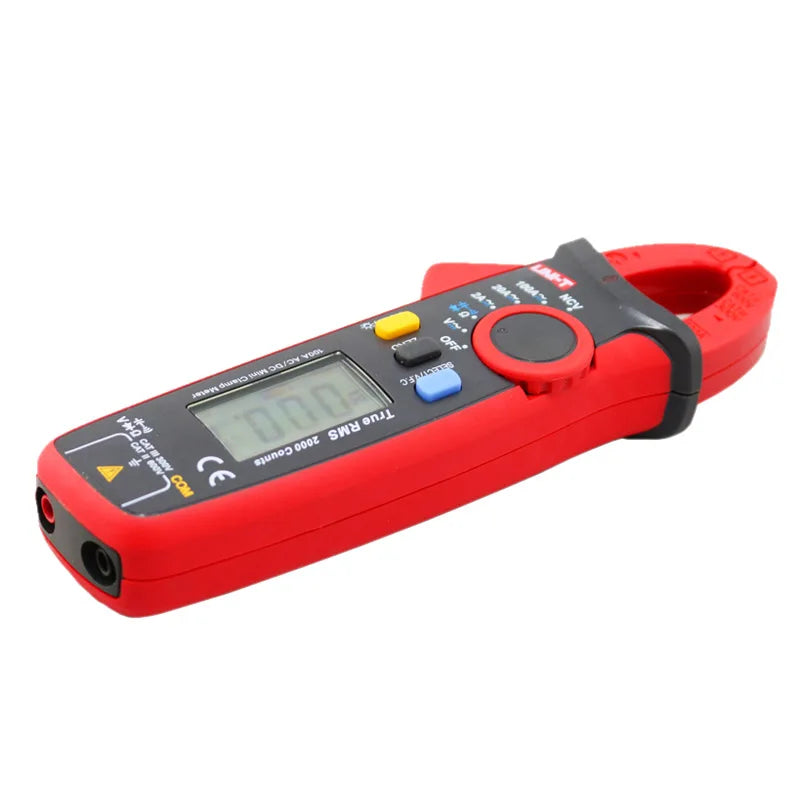

Pinza Amperimétrica Digital UNI-T UT210E/UT210D/UT210C - Mini Clamp Multímetro True RMS AC, Auto Rango
Pinza Amperimétrica Digital UNI-T UT210E/UT210D/UT210C - Mini Clamp Multímetro True RMS AC, Auto Rango
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: UNI-T
Certification: CE
DIY Supplies: ELECTRICAL
Dimensions: 175mm*60mm*33.5mm
Display Type: Digital Only
Display count: 2000
Hign-concerned Chemical: None
Jaw capacity: 17mm
Measuring Capacitance Range: 20mF
Measuring Current Range: 2A/20A/100A
Measuring Resistance Range: 20moh
Measuring Voltage Range: 600V
Model: UT210D,UT210E,UT210C
Model Number: UNI-T UT210E
Origin: Mainland China
UNI-T Model: UT210D
Uni-t clamp meter: current clamps
Weight: 170g
digital amperimetric clamp: multimeter clamp
mini clamp multimeter: digit clamp
Please note: There are 3 items in this link. Please confirm the model you want when placing your order.

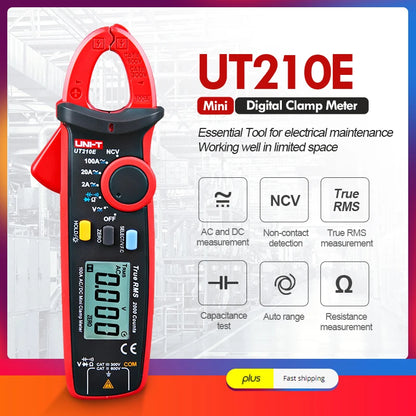

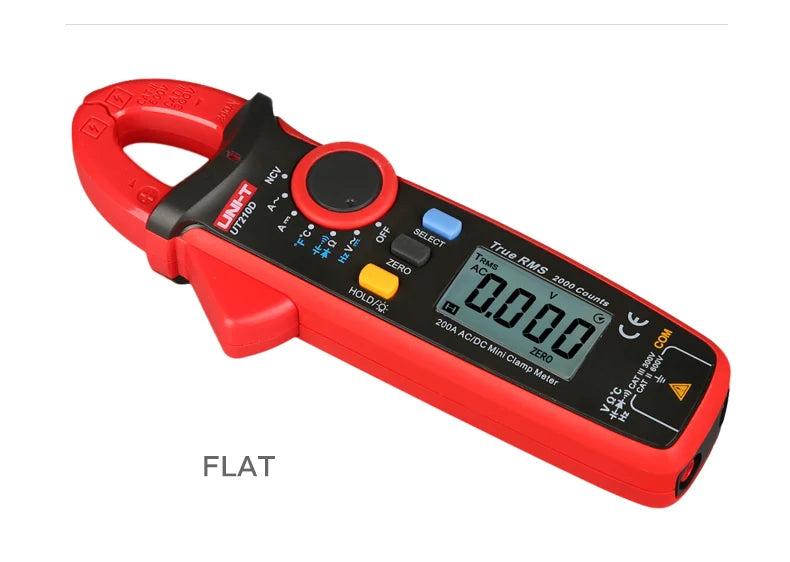

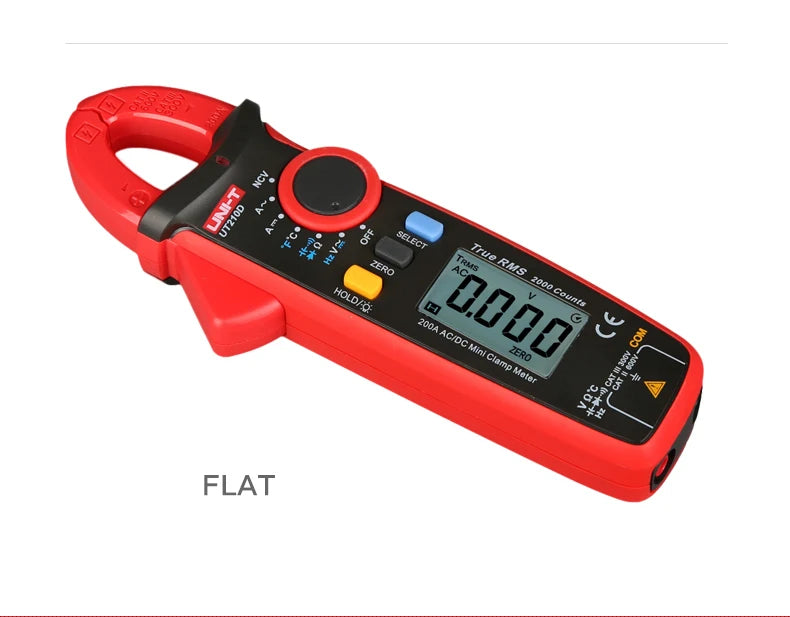

UNI-T UT210C UT210E UT210D True RMS Digital Clamp Meter Mini AC/DC Current Voltage Auto Range

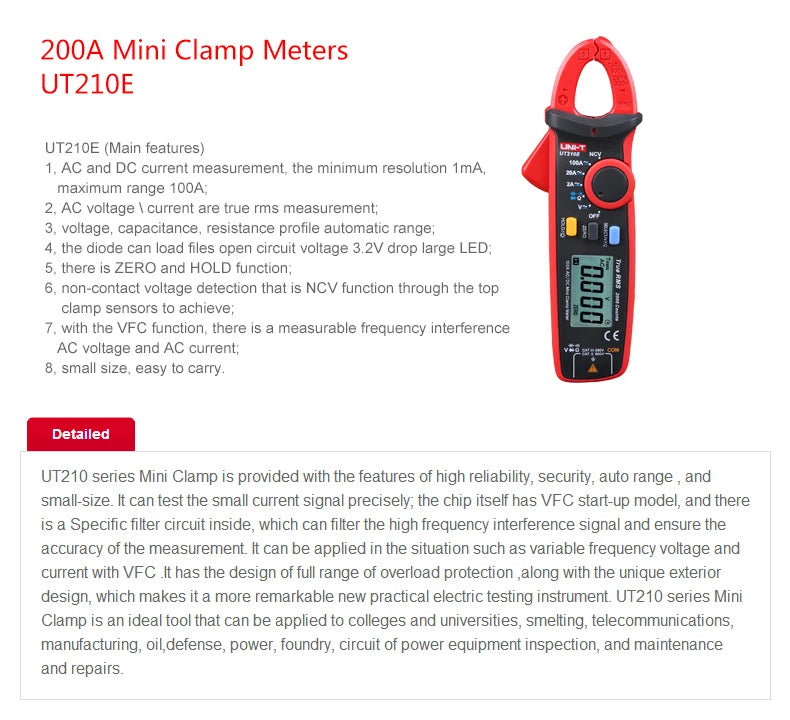

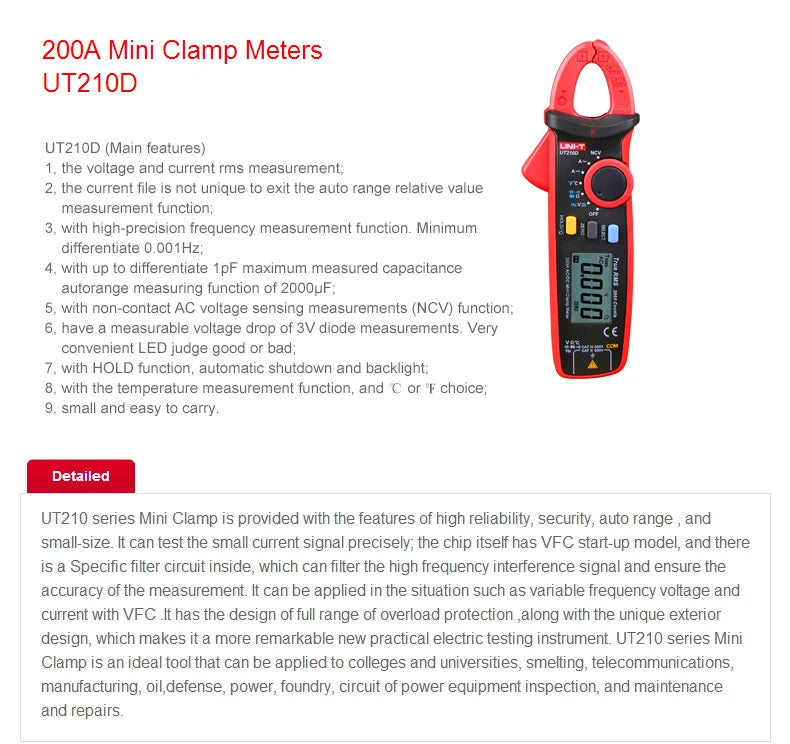

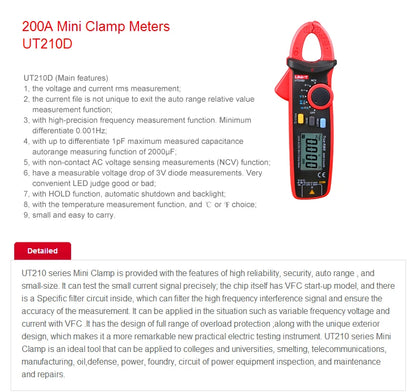

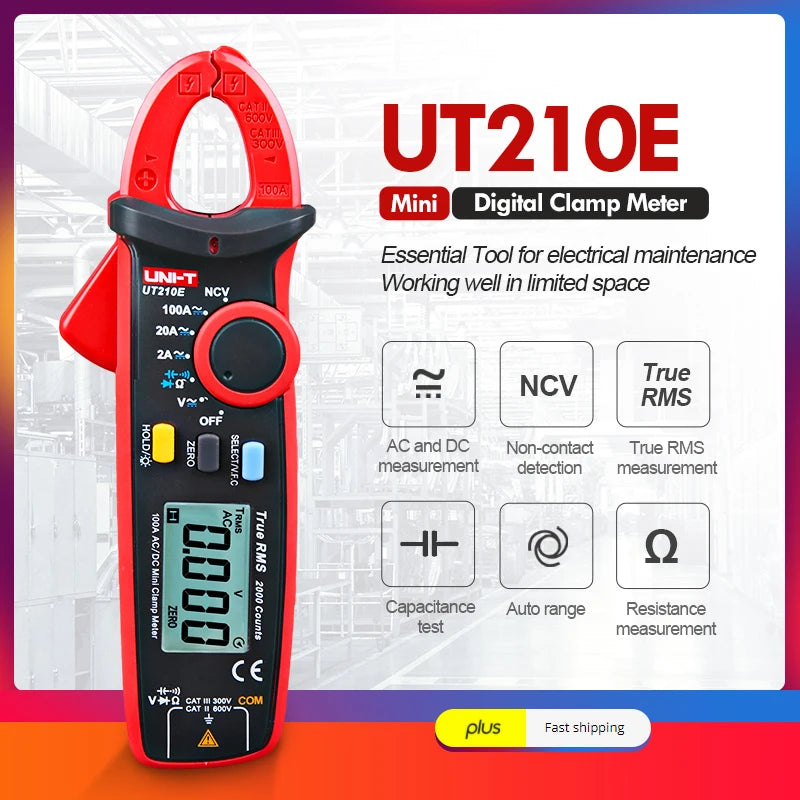

Features of UT210 Series Mini Clamp Meters:
1.VFC, low pass filter (UT210E)
2.NCV (UT210C/D)

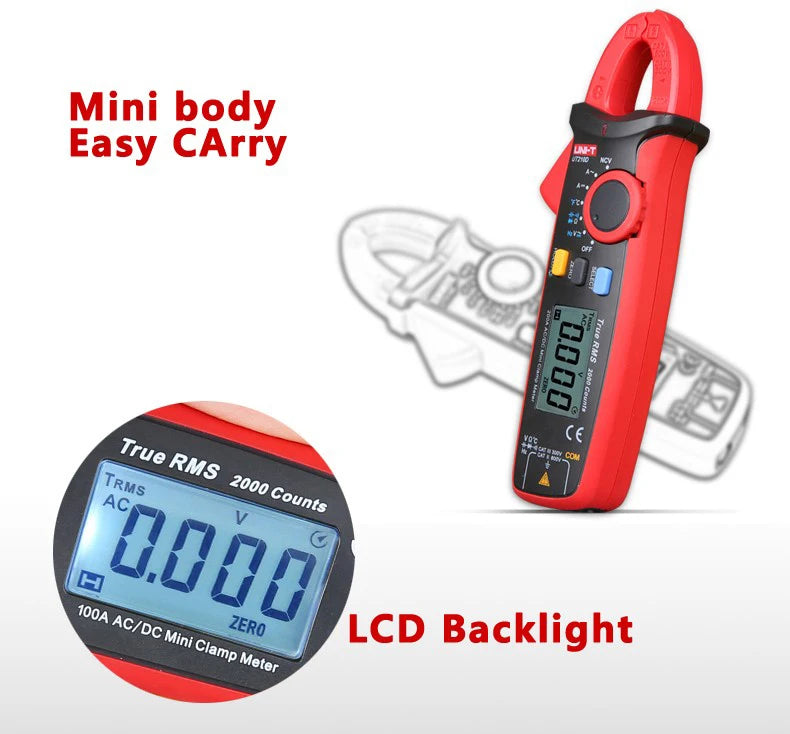

3.Erhonomic and light weight
4.Auto range, 2-3/S sampling rate
5.True RMS(UT210C/D)
6.ZERO mode(UT210D/E)
7.LCD backlight, data hold
8.Auto power off, low battery indication
Please note:All of the series ,Battery not included

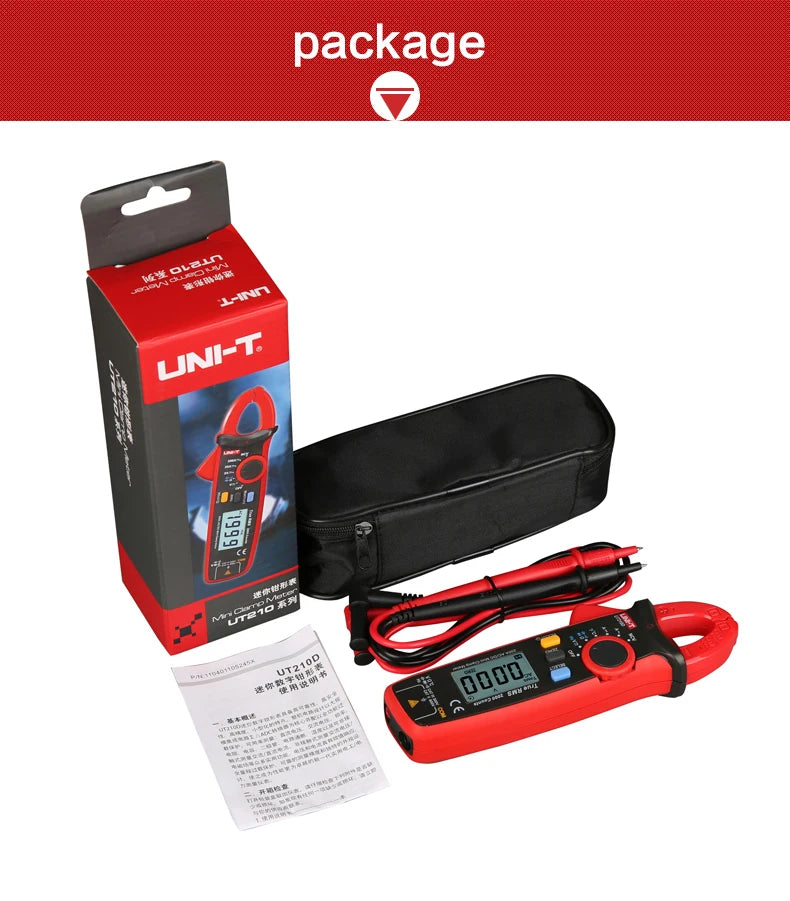

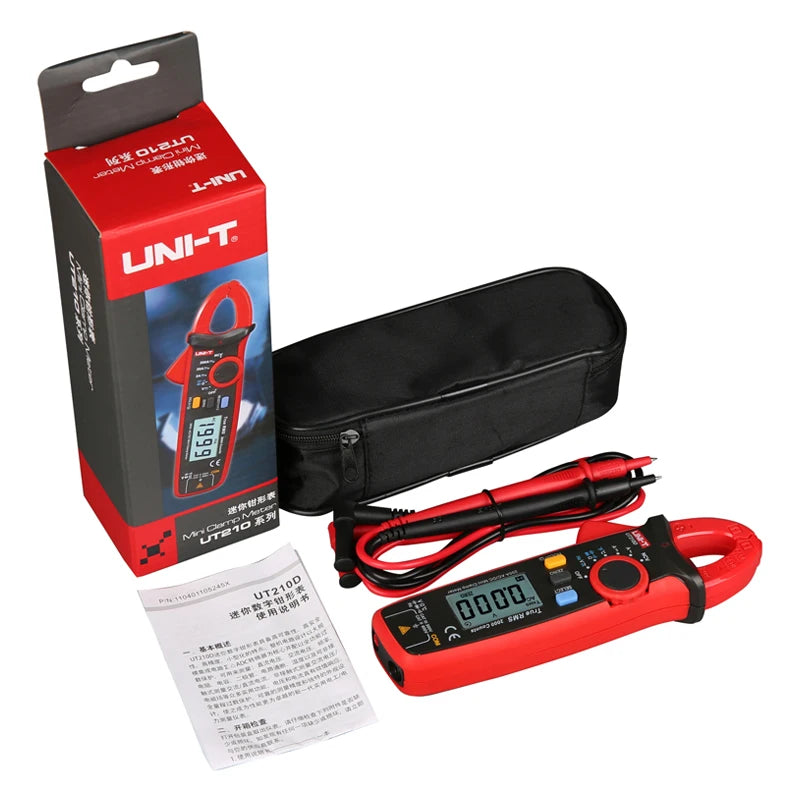

Package contents for UT210D/E:
1*Digital clamp meter
1*Test leads
1*Carry bag
1*English user manual
1*Color box

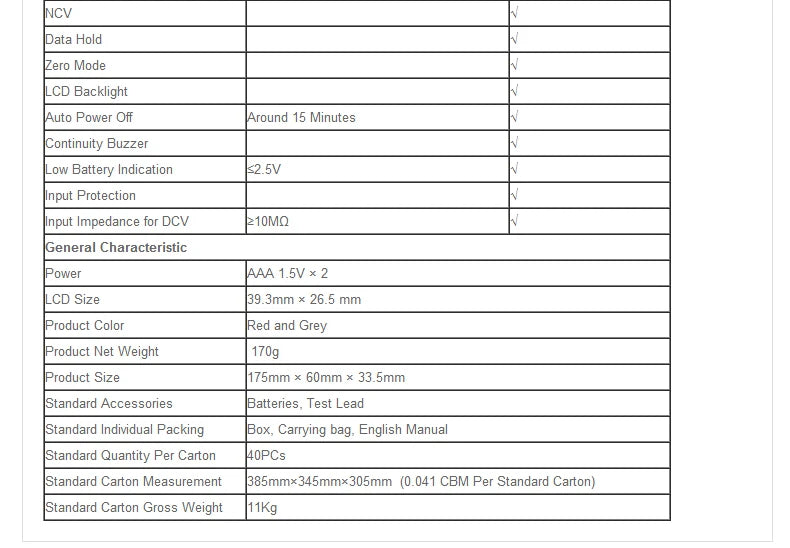

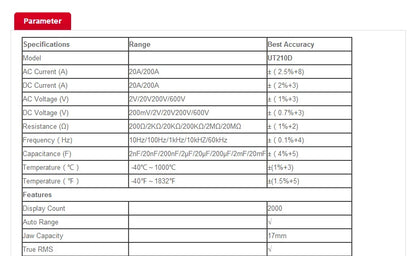

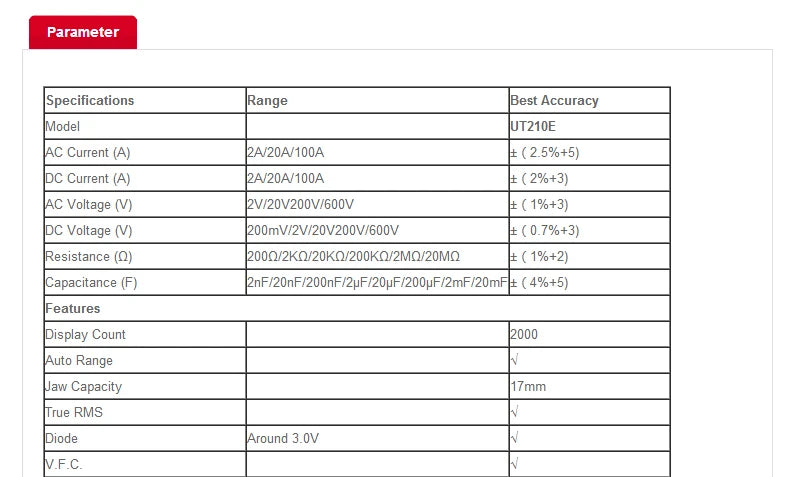

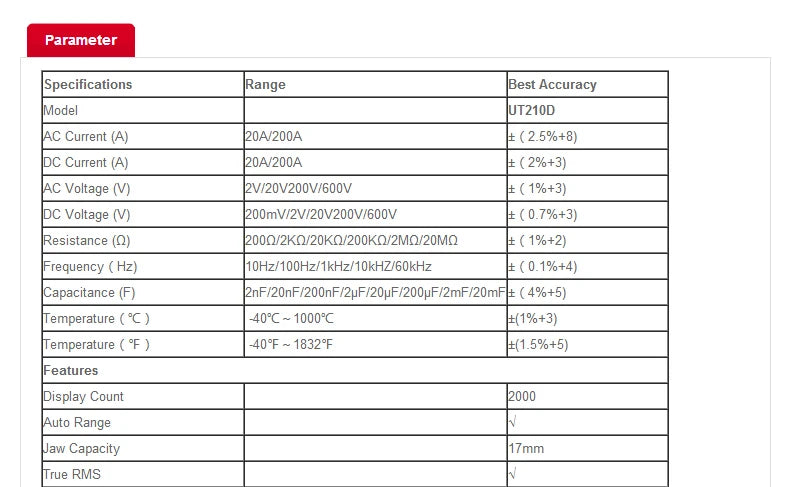

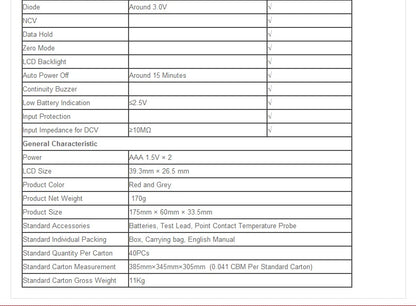

Parameter
Range |
Best Accuracy |
|||
Model No. |
UT210C |
UT210D |
UT210E |
|
AC current(A) |
20A/200A |
±(1.8%+9) |
±(2.5%+8) |
|
2A/20A/200A |
±(2.5%+5) |
|||
DC current(A) |
20A/200A |
±(2%+3) |
||
2A/20A/200A |
±(2%+3) |
|||
AC Voltage(V) |
2V/20V/200V/600V |
±(7%+3) |
±(7%+3) |
±(7%+3) |
Resistance(Ω) |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(1%+2) |
±(1%+2) |
±(1%+2) |
Frequency |
10Hz/100Hz/1kHz/ 10kHz/60kHz |
±(0.1%+4) |
||
Capacitance(F) |
20nF/200nF/2µF/20µF/200µF/2mF/20mF |
±(4%+5) |
±(4%+5) |
±(4%+5) |
Temperature(°) |
-40-1000° |
±(1%+3) |
±(1%+3) |
|
Temperature(°) |
-40~1832° |
±(1.5%+5) |
±(1.5%+5) |
|
UT210C
