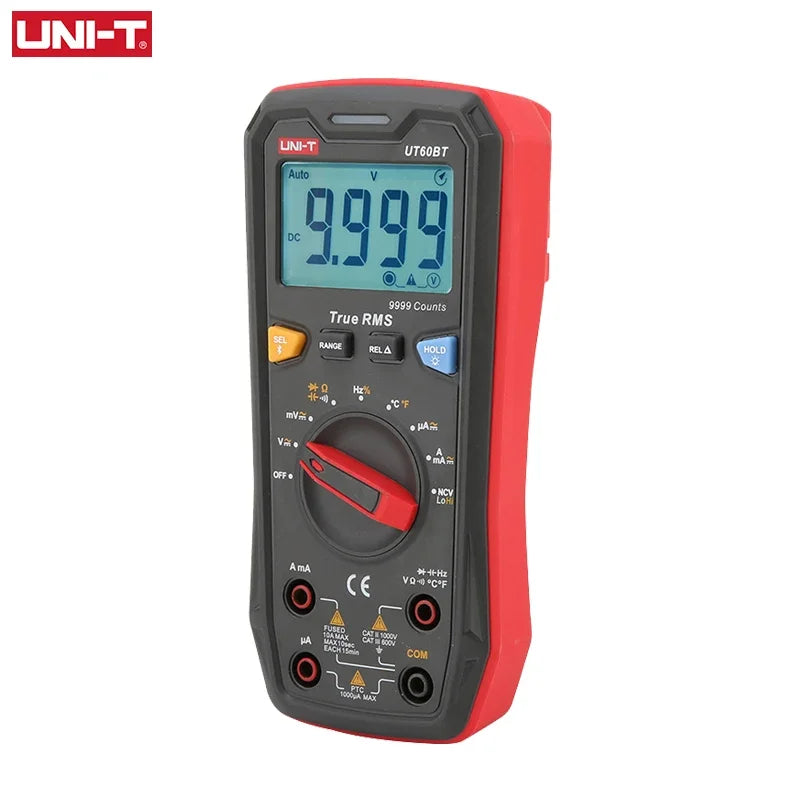

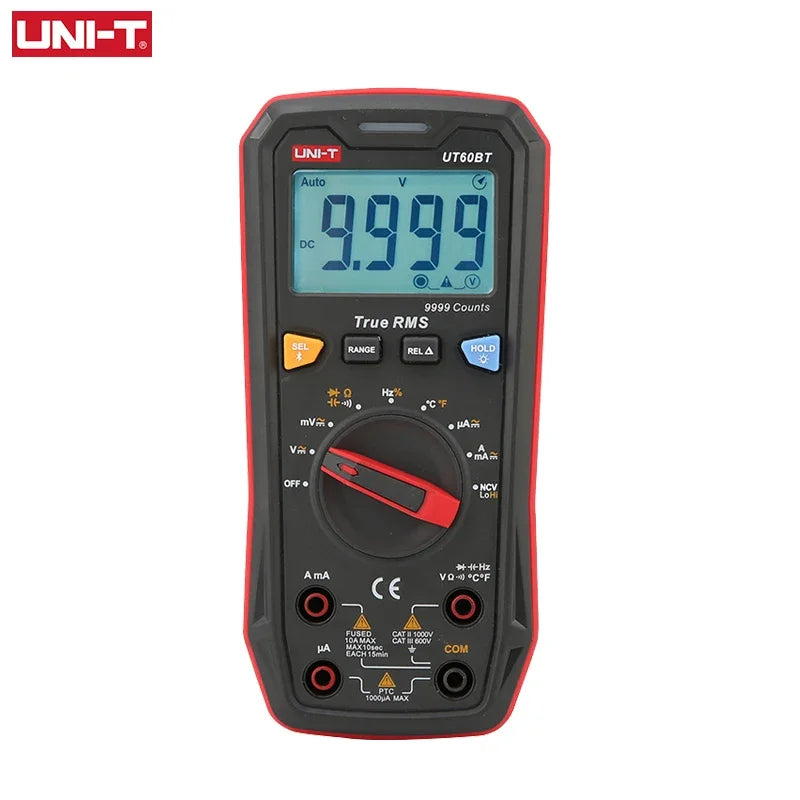

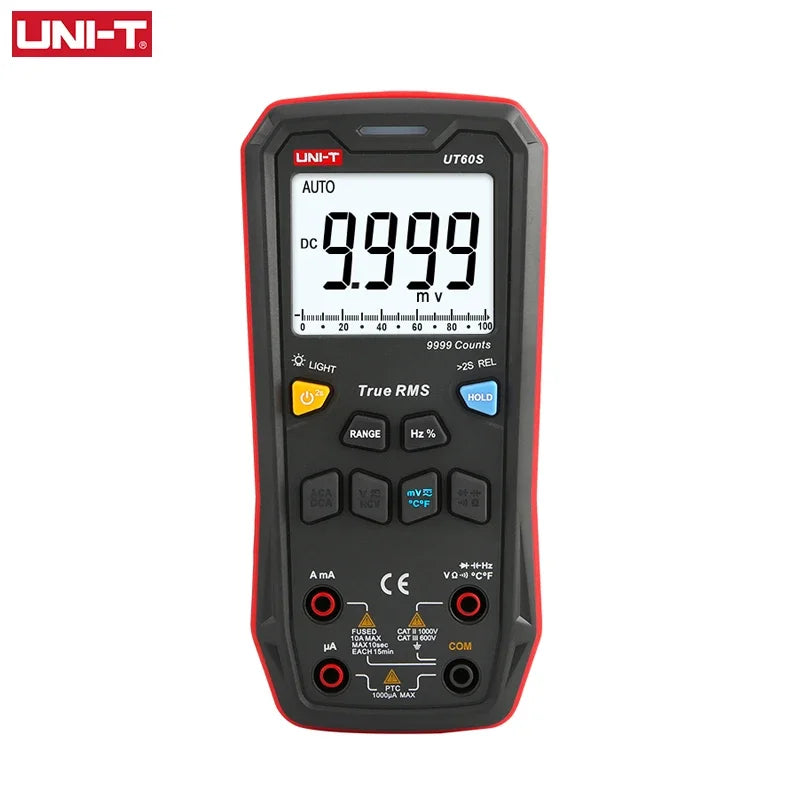

Multímetro Digital Inteligente UNI-T UT60S / UT60BT (Bluetooth) - True RMS, Tester Voltaje 1000V AC/DC, Amperímetro, Frecuencímetro
Multímetro Digital Inteligente UNI-T UT60S / UT60BT (Bluetooth) - True RMS, Tester Voltaje 1000V AC/DC, Amperímetro, Frecuencímetro
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: UNI-T
Choice: yes
DIY Supplies: ELECTRICAL
Hign-concerned Chemical: None
Origin: Mainland China
semi_Choice: yes

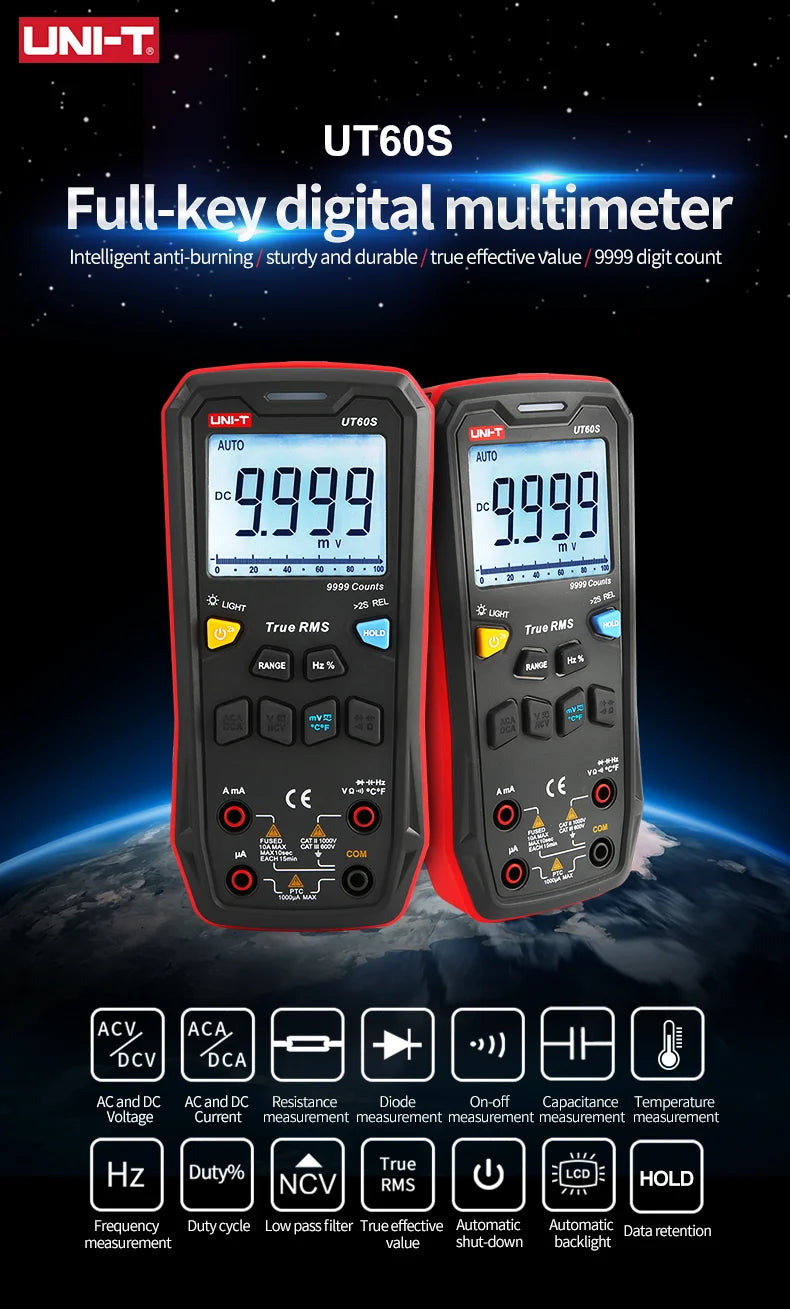

UNI-T Digital Smart Multimeter UT60S UT60BT Bluetooth Multimeter True RMS 1000V AC DC Voltage Tester Ammeter Frequency Meter

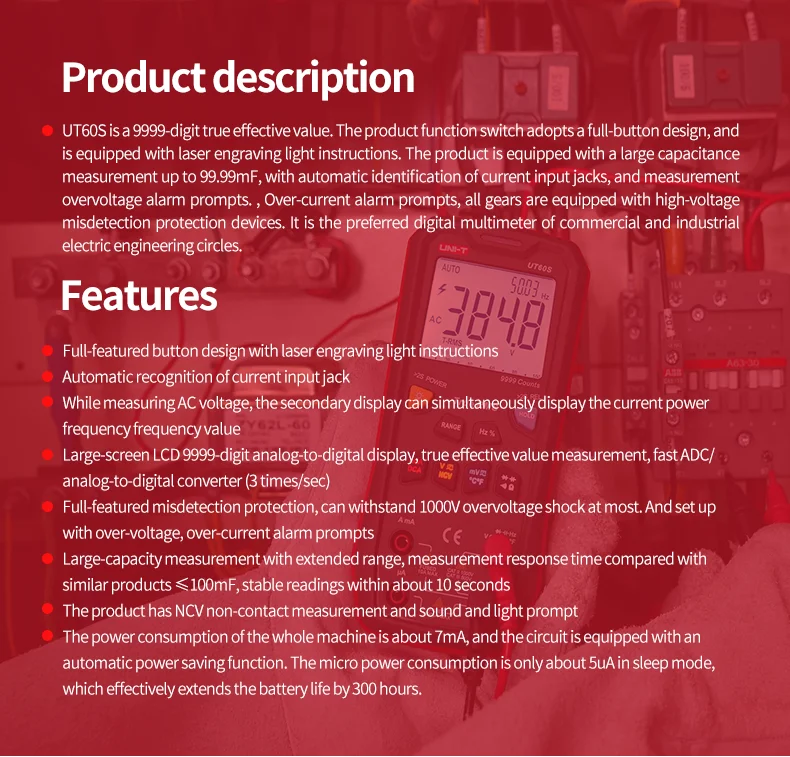

UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places.

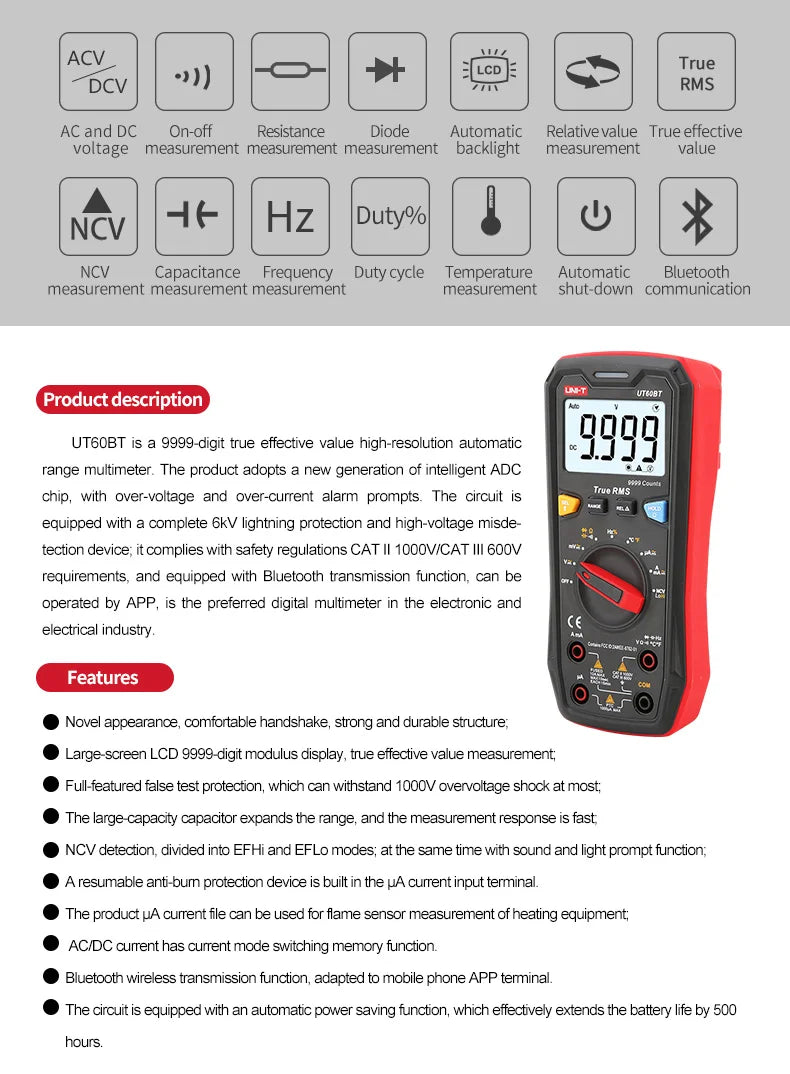

Features
1. 9999 counts
2. True RMS
3. Bluetooth(Only UT60BT have)
4. Duty cycle
5. Diode/Continuity test
6. Temperature
7. Non-contact voltage
8. Analog bar/Data hold
9. Backlight/Relative mode
10. Auto/Manual range
11. Low battery indication
12. Three-color LED light indicator

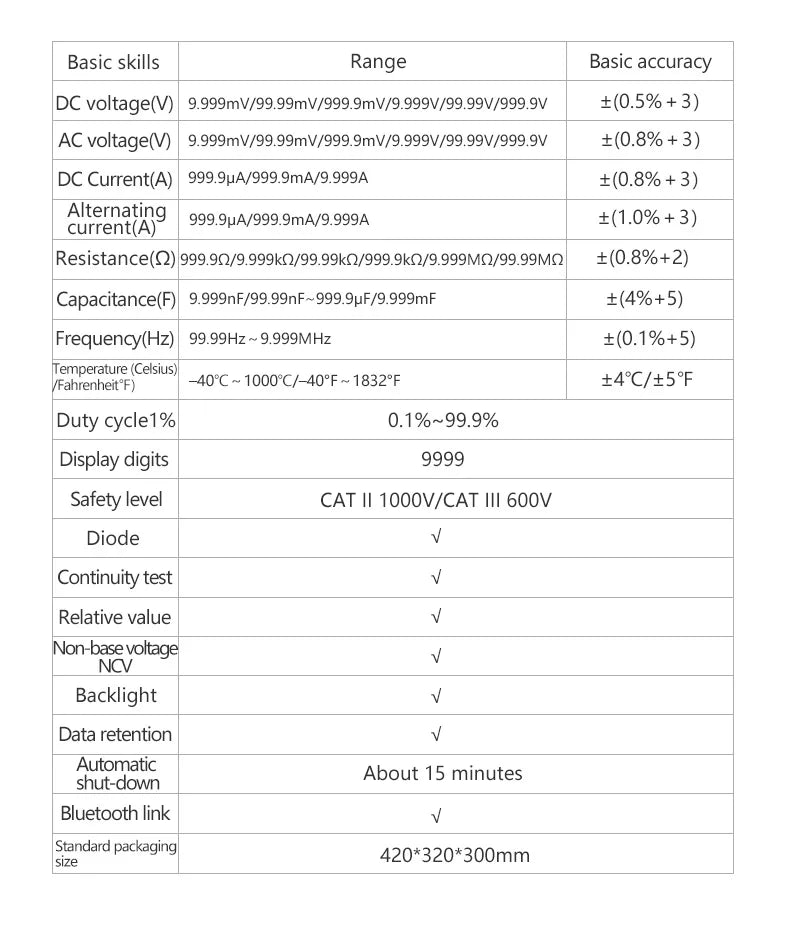

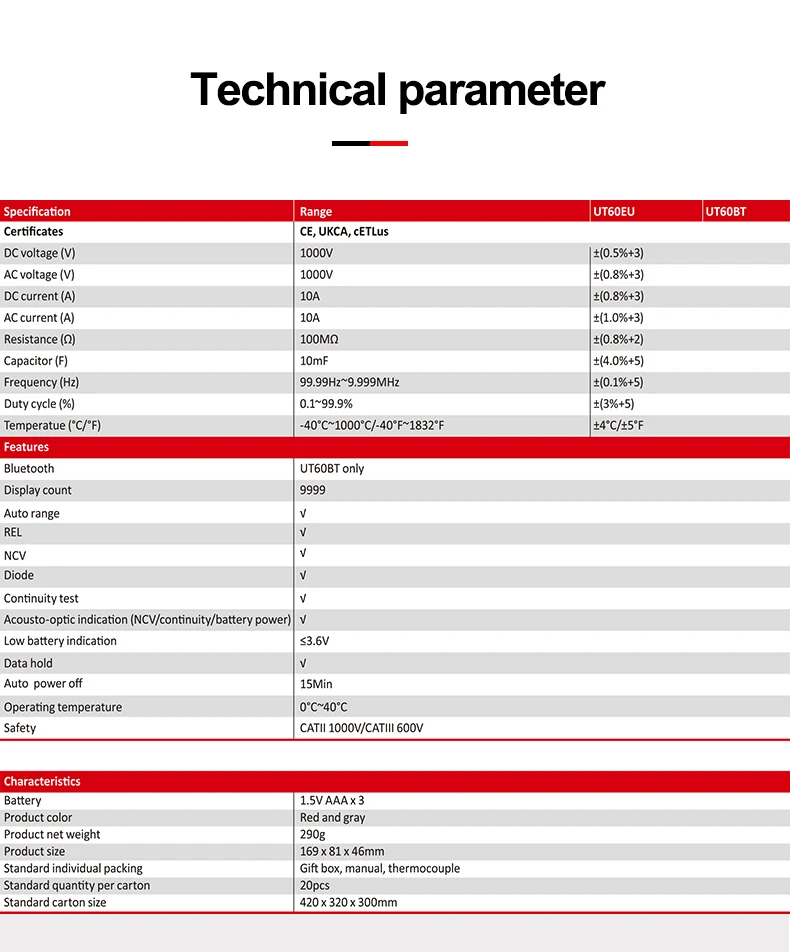

Parameter
Specifications |
Range |
UT60BT |
UT60S |
DC Voltage |
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V |
±(0.5%+3) |
±(0.5%+3) |
AC Voltage |
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V |
±(0.8%+3) |
±(0.8%+3) |
DC Current |
999.9uA/999.9mA/9.999A/10A |
±(0.8%+3) |
±(0.8%+3) |
AC Current |
999.9uA/999.9mA/9.999A/10A |
±(1.0%+3) |
±(1.0%+3) |
Resistance |
999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ |
±(0.8%+2) |
±(0.8%+2) |
Capacitor |
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF |
±(4.0%+5) |
±(4.0%+5) |
Frequency |
99.99Hz～9.999MHz |
±(0.1%+5) |
±(0.1%+5) |
Duty Cycle |
0.1～99.9% |
±(3%+5) |
±(3%+5) |
Temperatue |
–40℃～1000℃/–40°F～1832°F |
±4℃/±5℉ |
±4℃/±5℉ |
Features | |||
Bluetooth |
√ |
||
Display Count |
9999 |
9999 |
|
Auto Range |
√ |
√ |
|
REL |
√ |
√ |
|
NCV |
√ |
√ |
|
Diode |
√ |
√ |
|
Continuity Test |
√ |
√ |
|
Acousto-optic Indication (NCV/continuity/battery power) |
√ |
√ |
|
Low Battery Indication |
≤3.6V |
√ |
√ |
Data Hold |
√ |
√ |
|
Auto Power Off |
15Min |
√ |
√ |
Operation Temperature |
0℃～40℃ |
||
Safety |
CATII 1000V/CATⅢ 600V |
||
General Characteristics | |||
Battery |
1.5V AAA x 3 |
||
Product Color |
Red and Gray |
||
Product Net Weight |
290g |
||
Product Size |
169mm x 81mm x 46mm |
||
Standard Individual Packing |

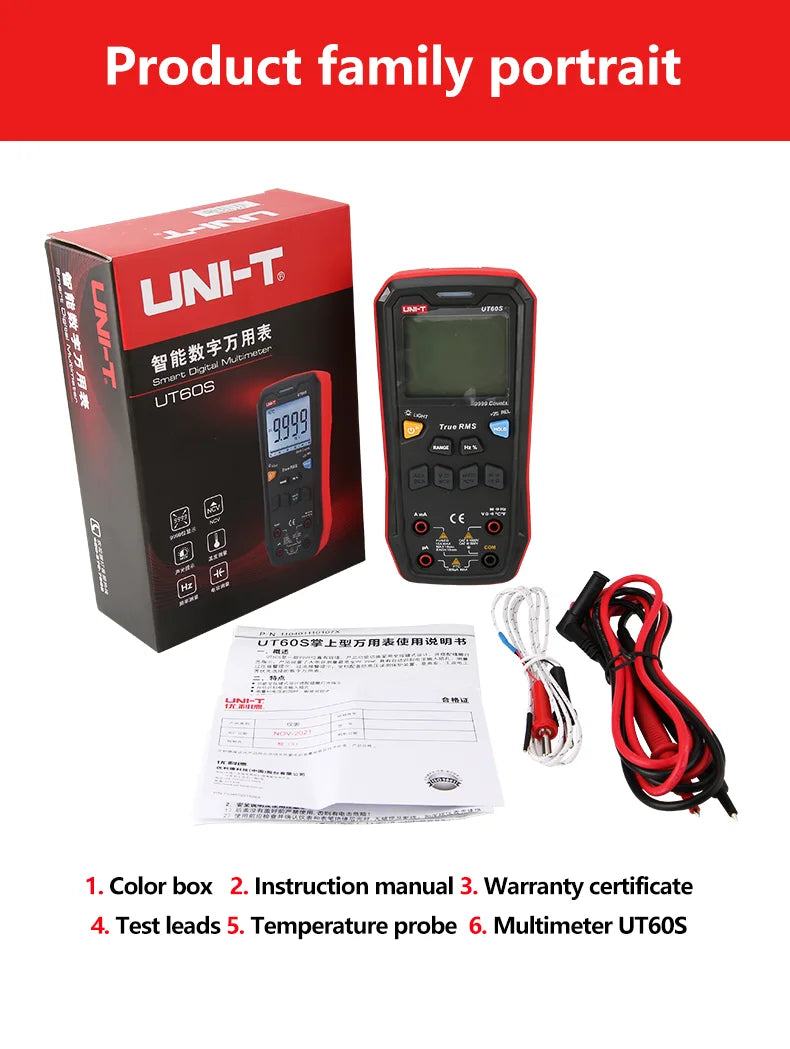

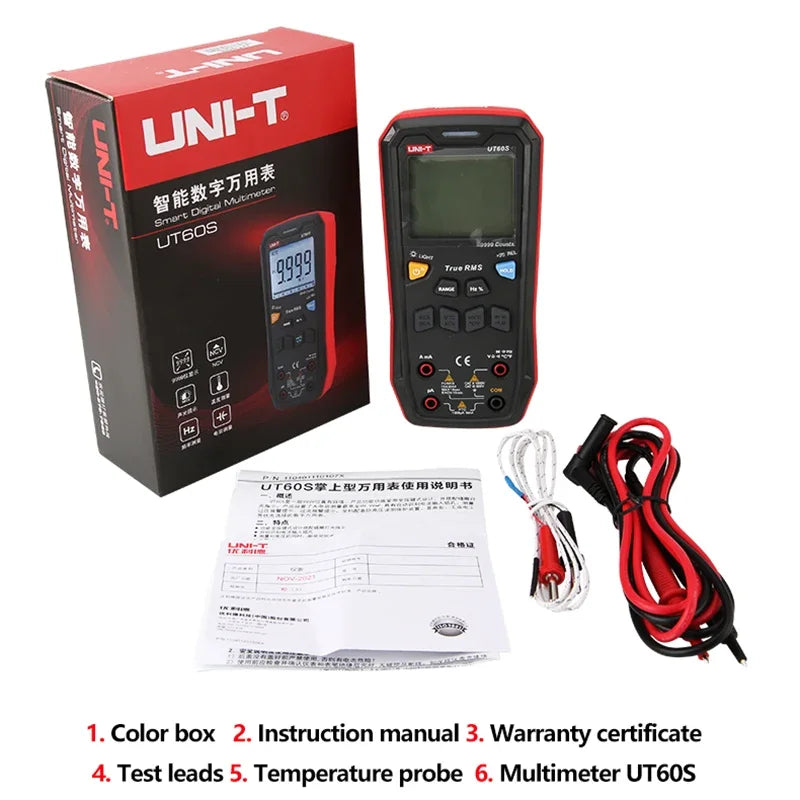

Gift Box, Manual, Thermocouple |
||

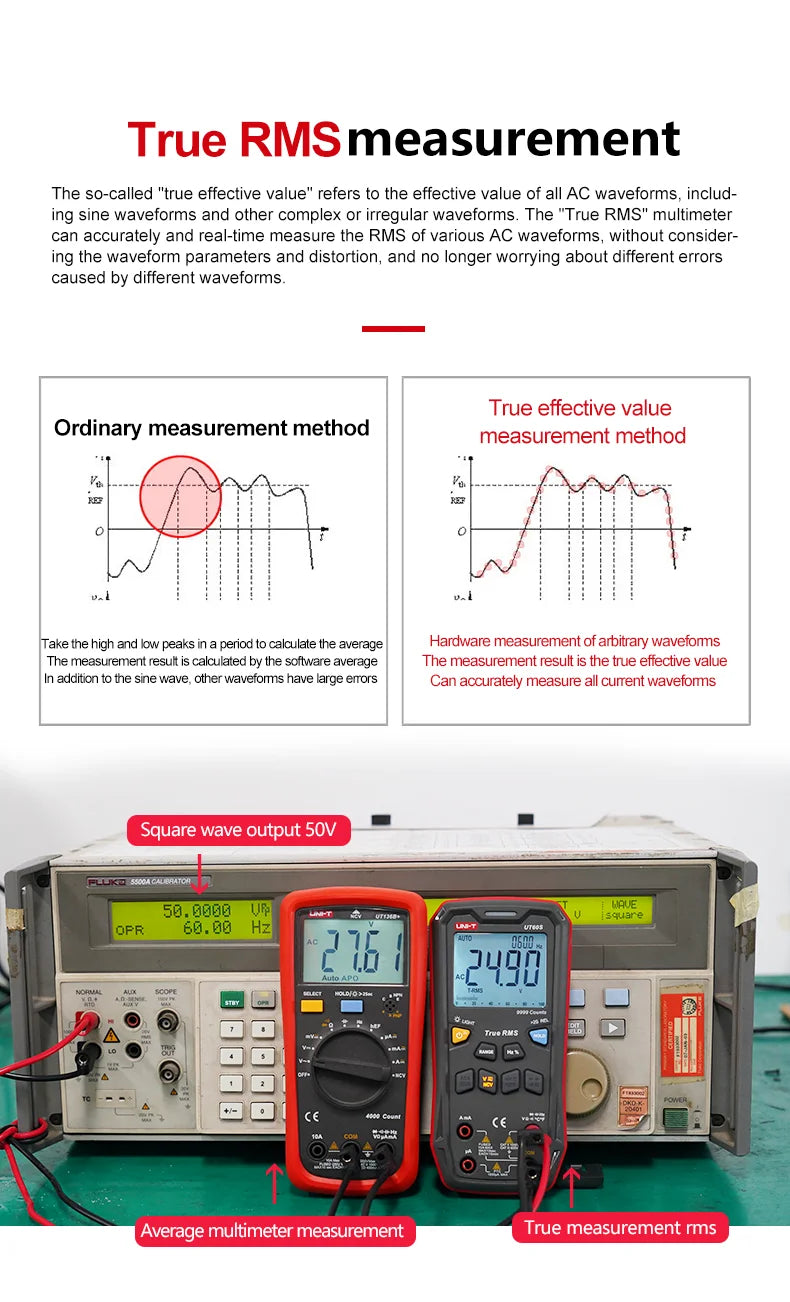

True RMS

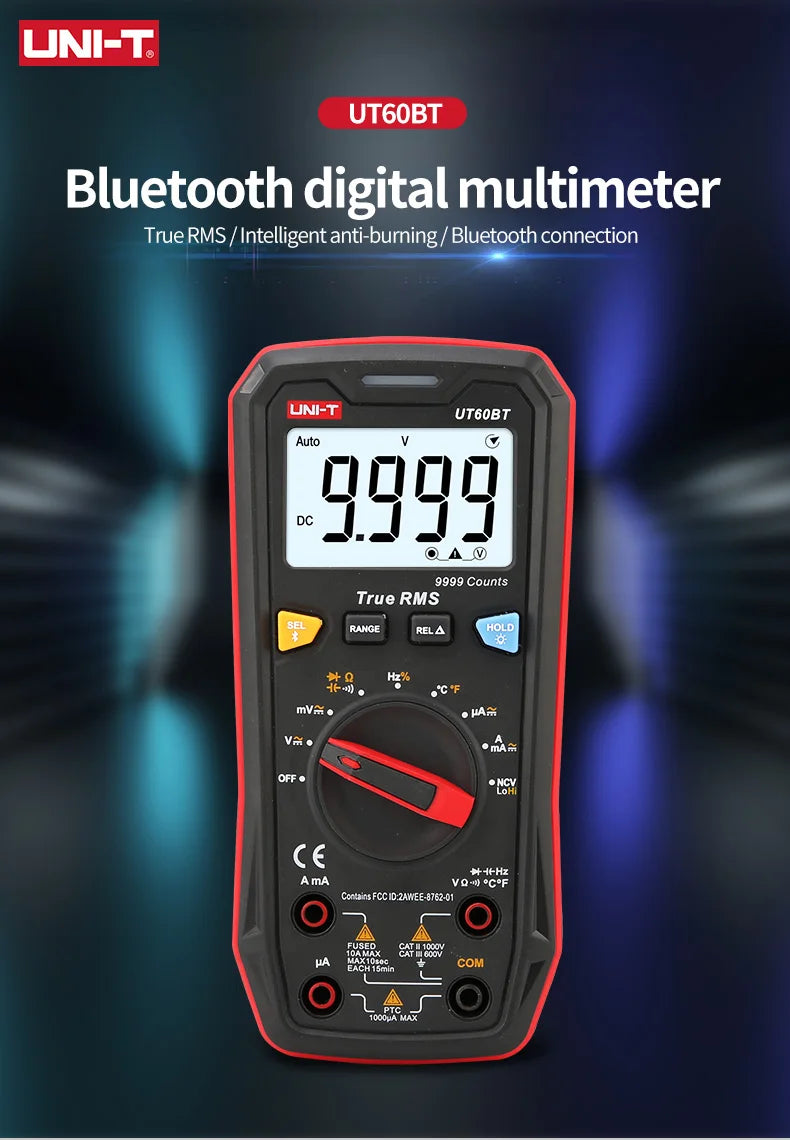

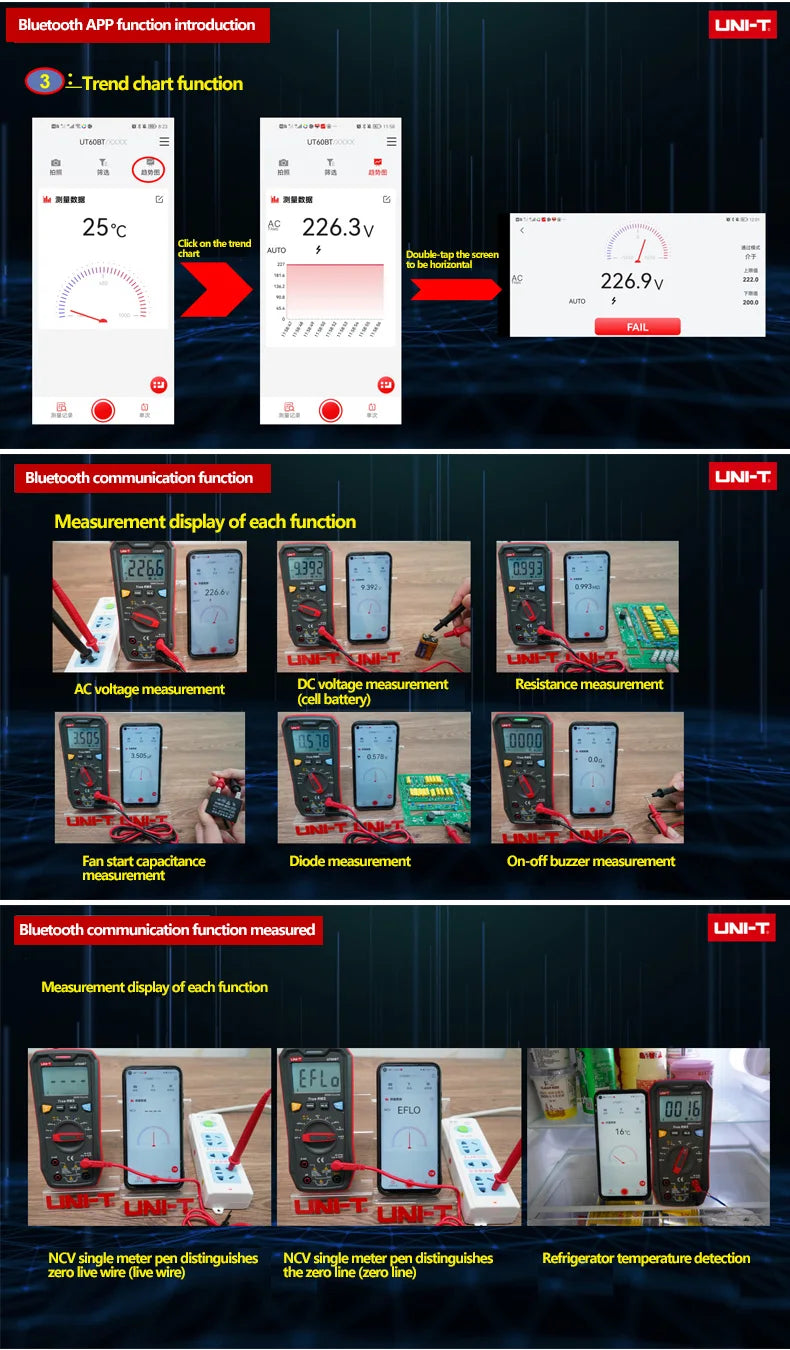

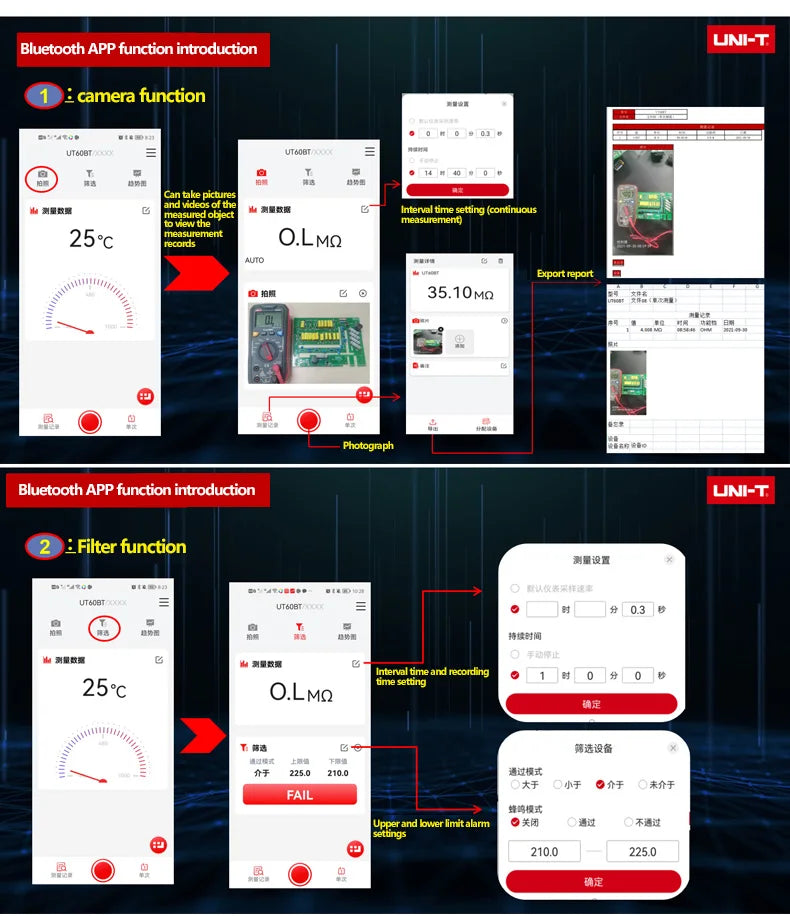

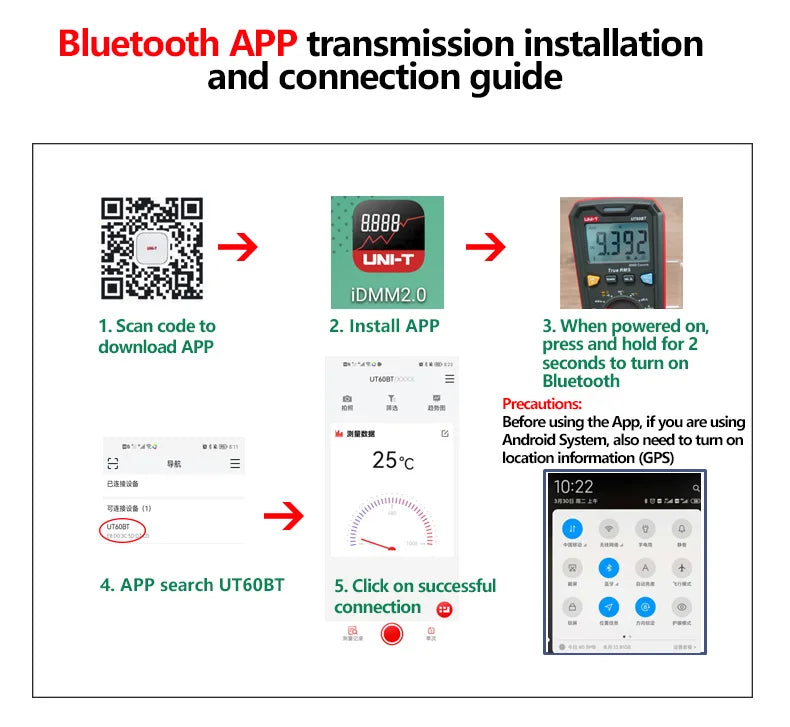

Bluetooth Function(Only UT60BT have)

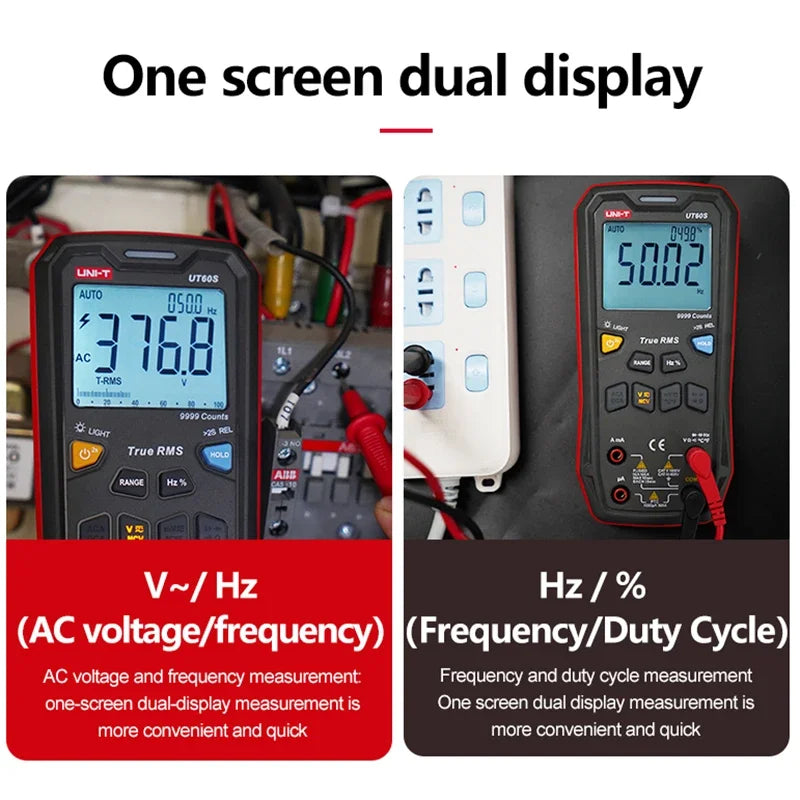

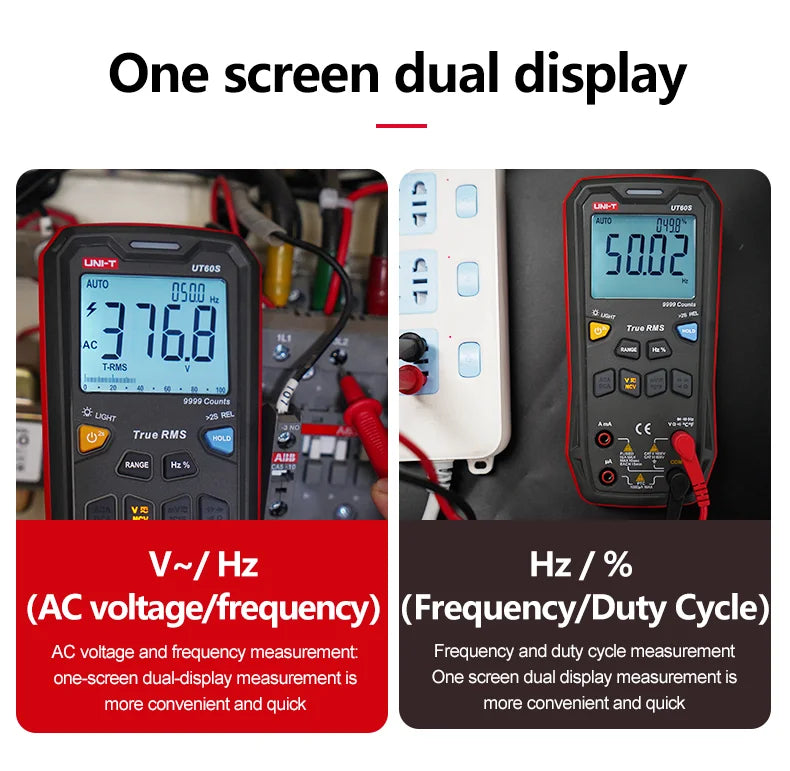

Double data displayed on one screen

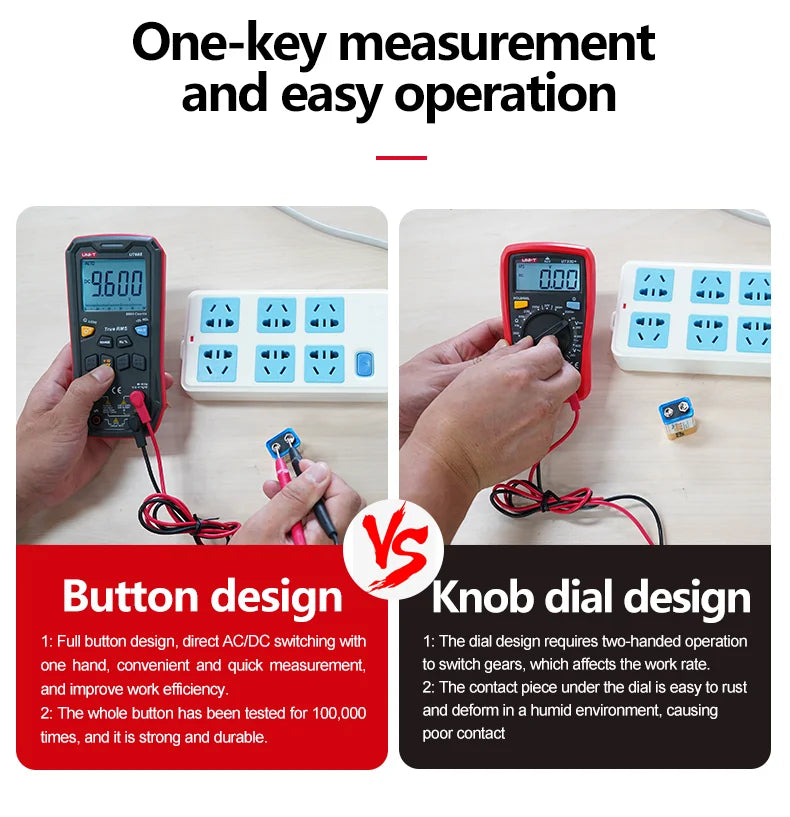

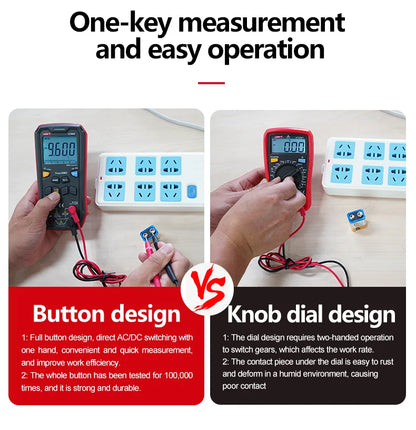

Button measurement, easy to operate

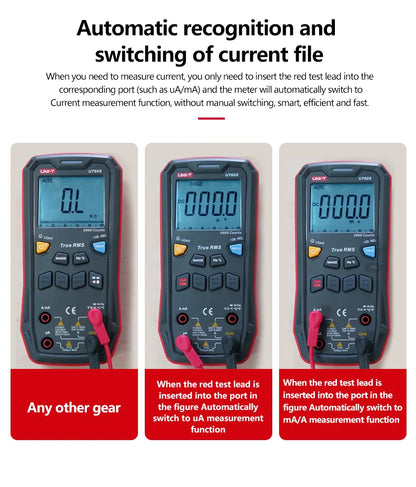

Auto Range

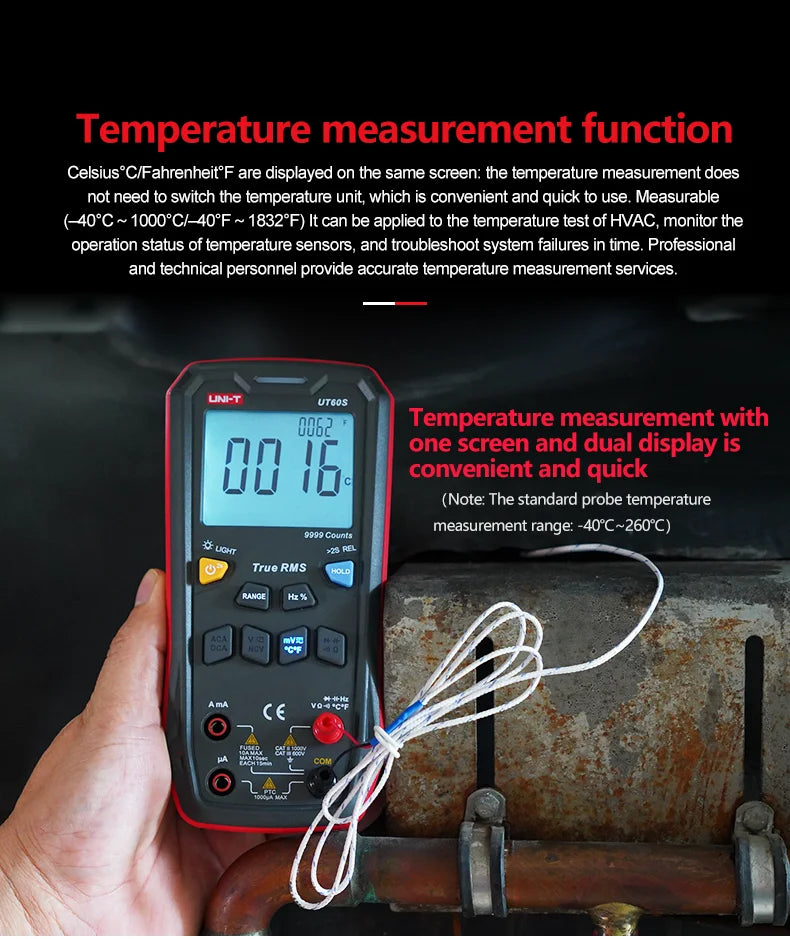

Temperature measurement

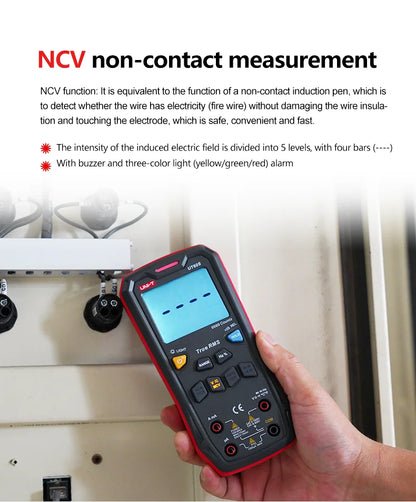

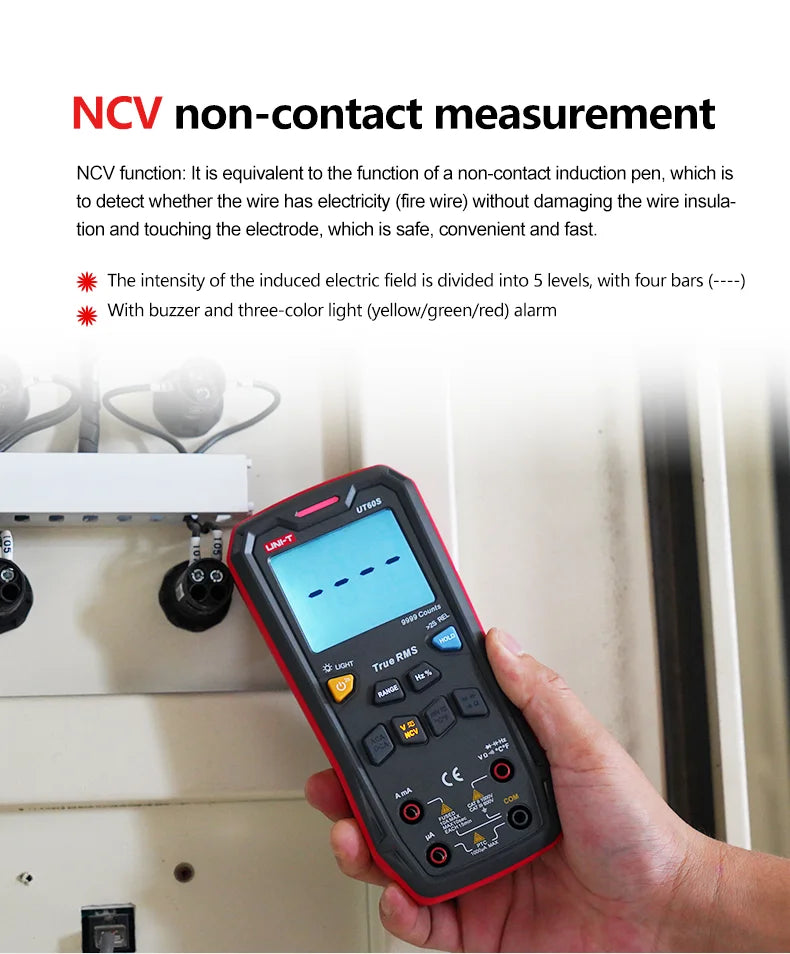

NCV measurement

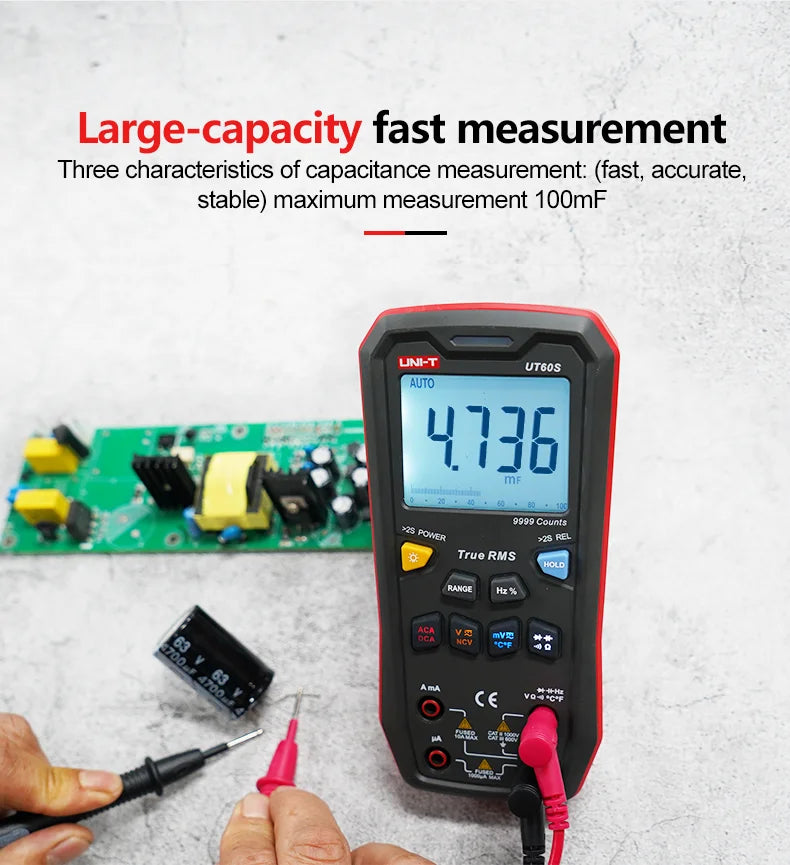

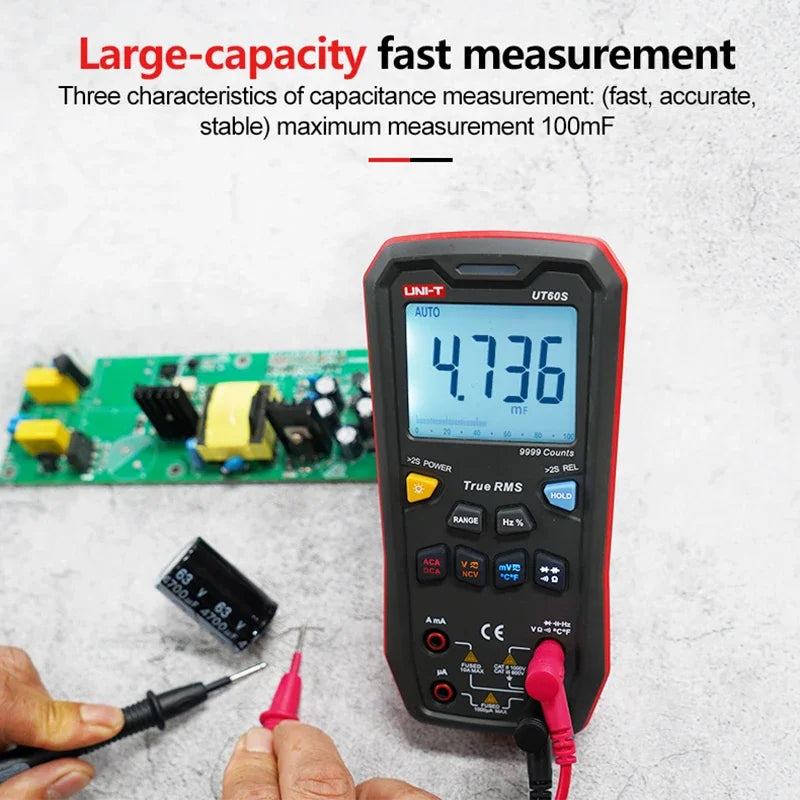

Capacitance measurement
Notice please: battery no include!
