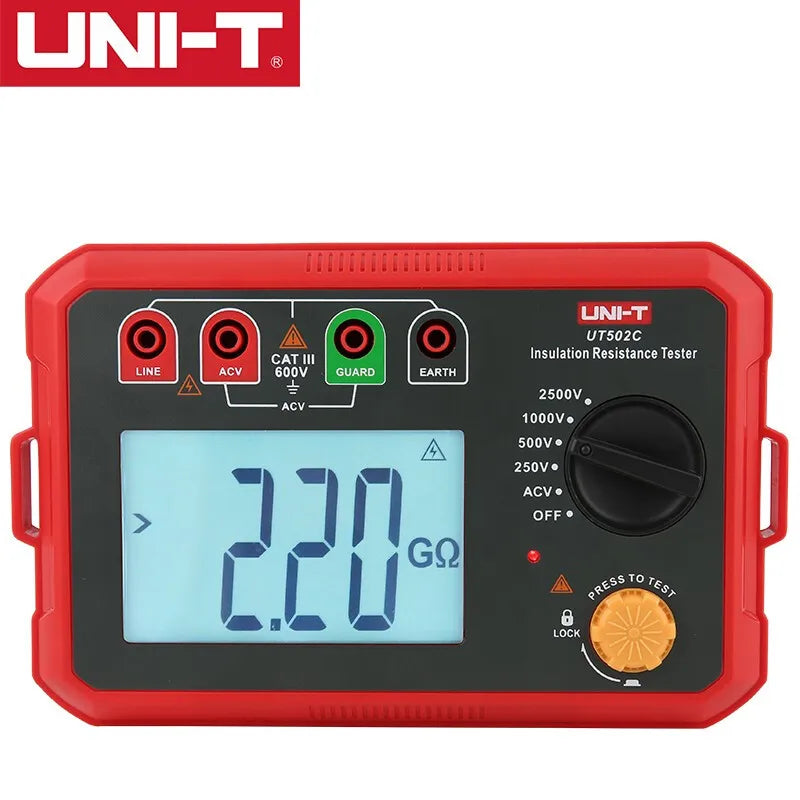

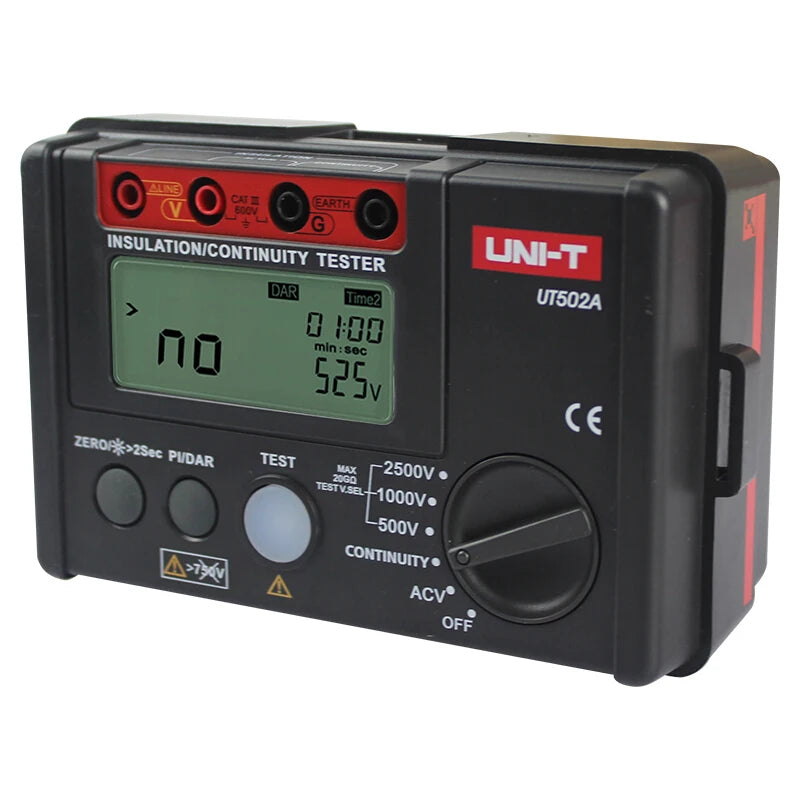

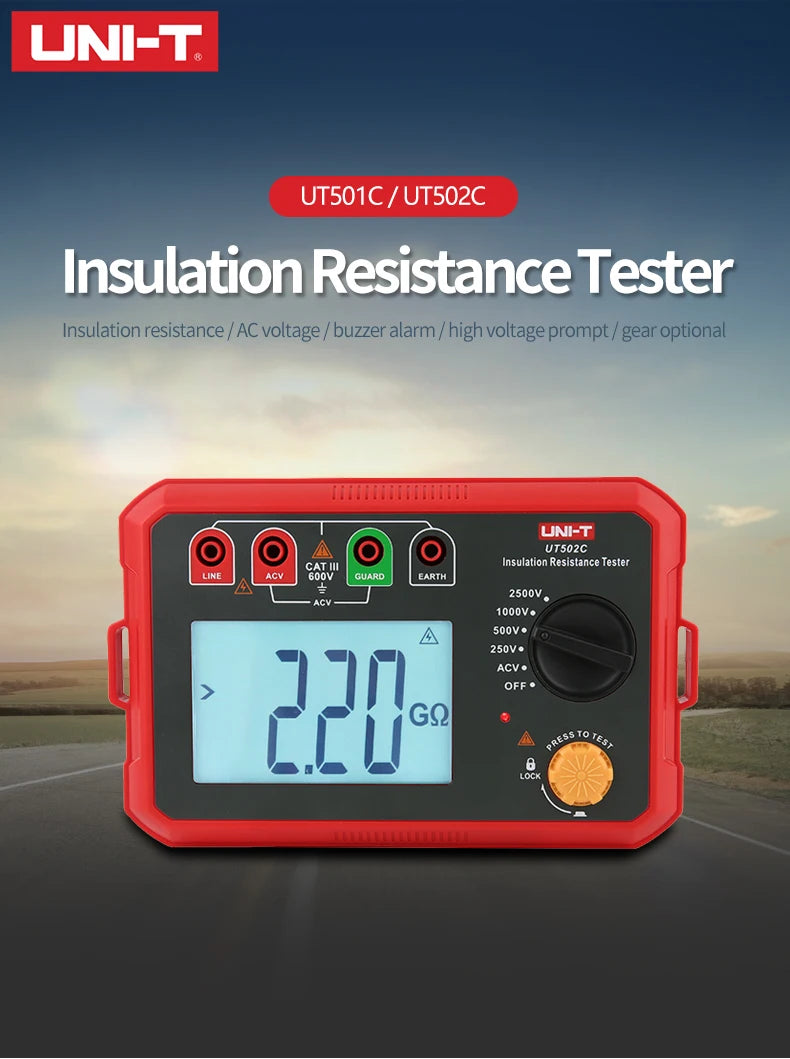

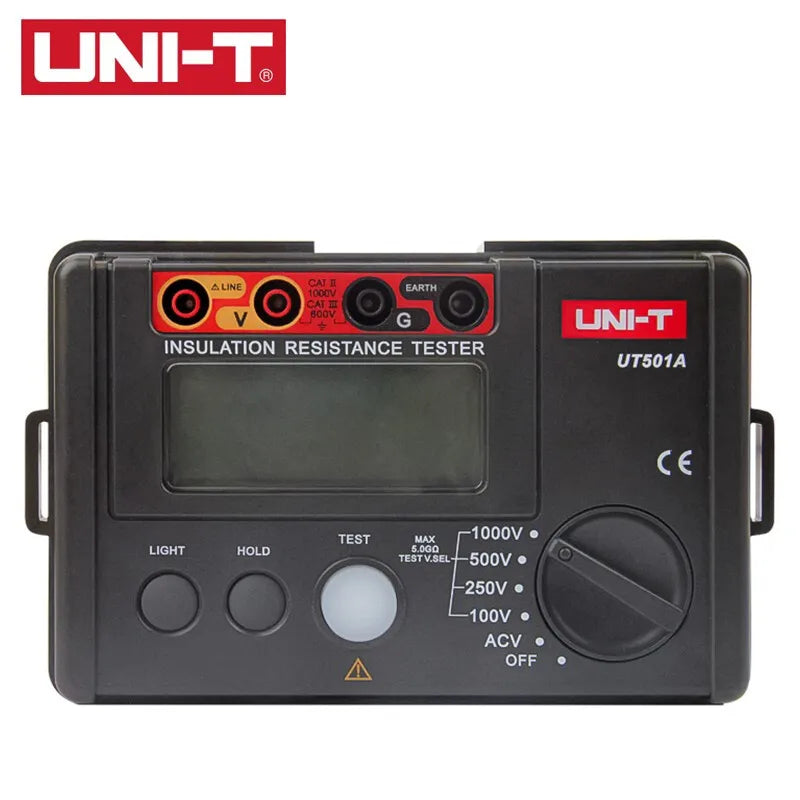

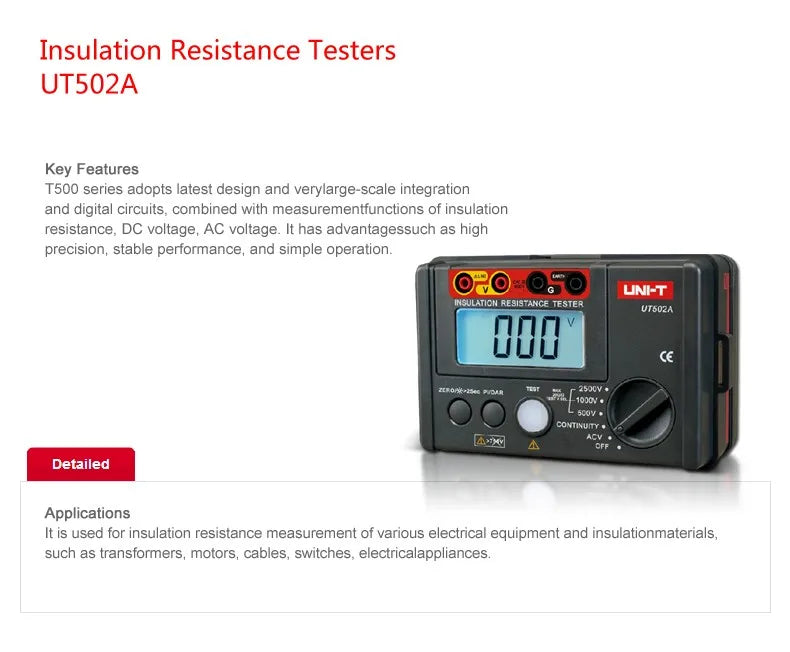

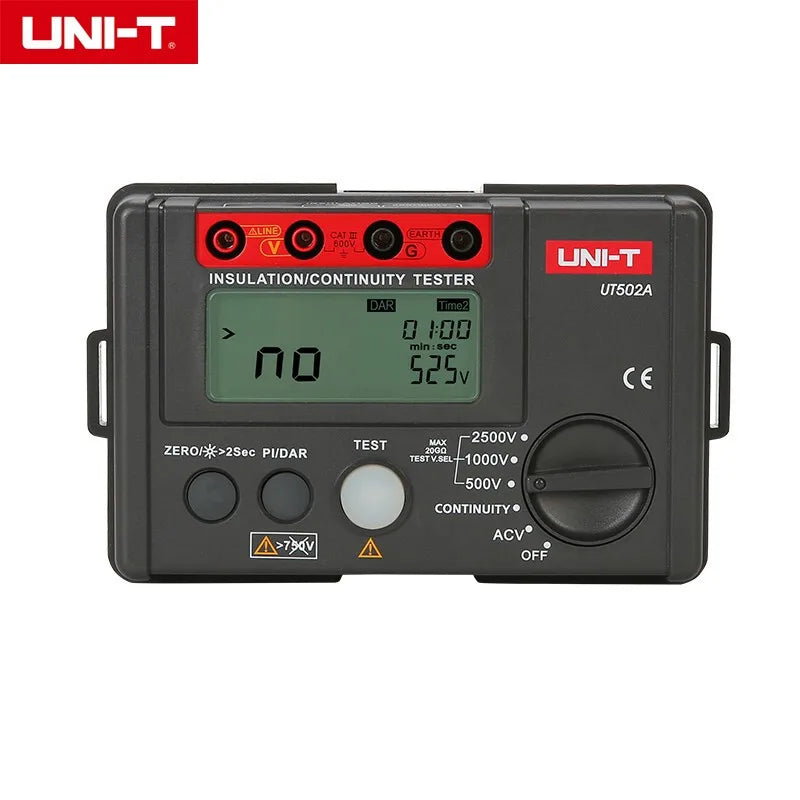

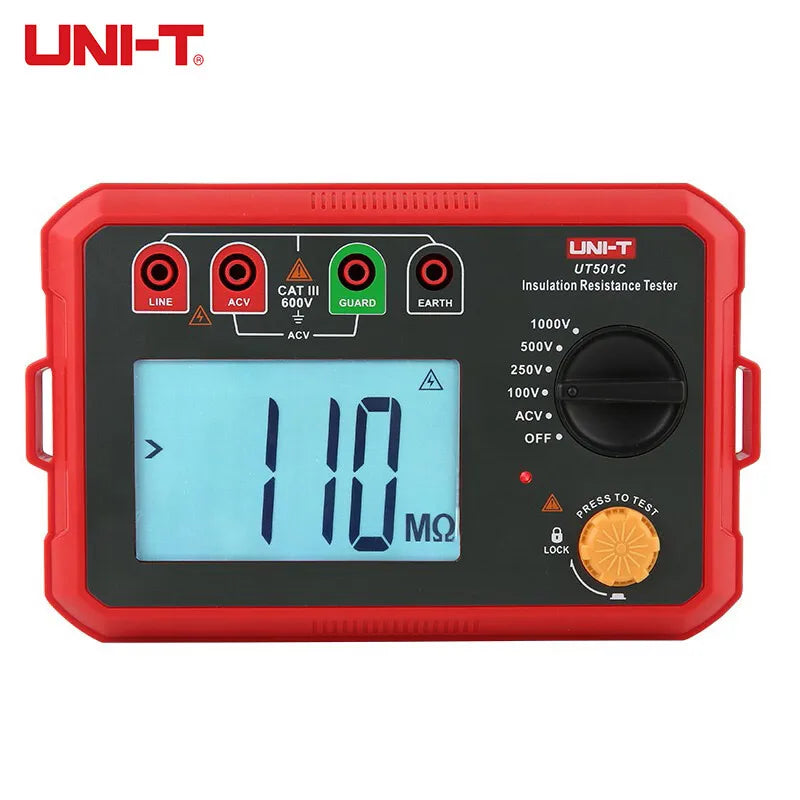

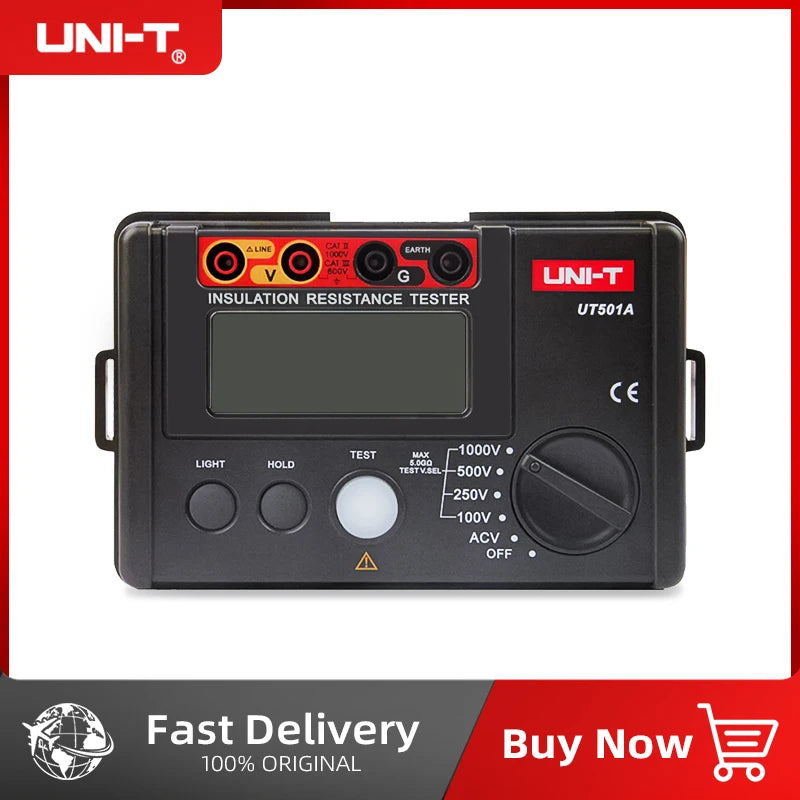

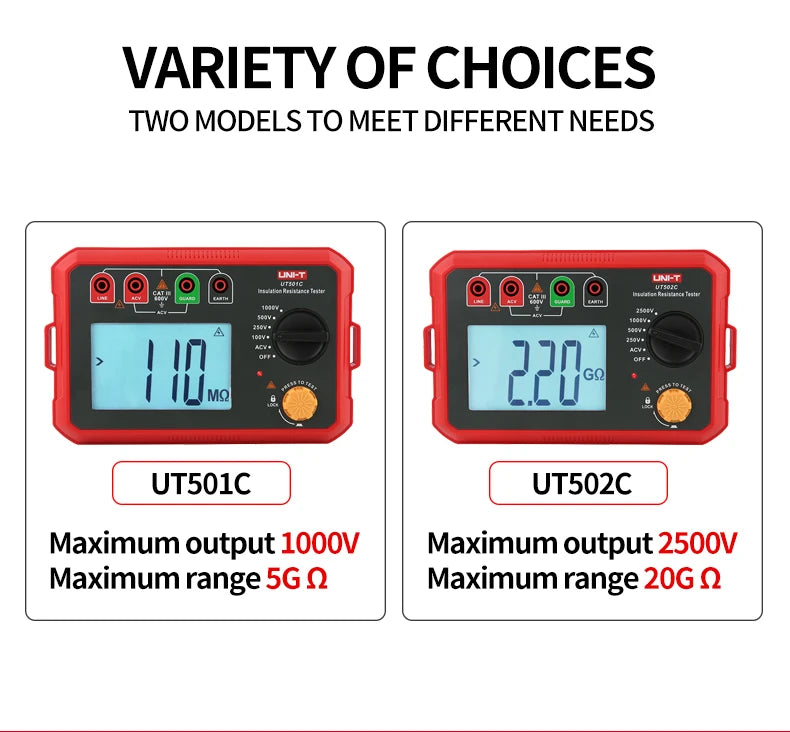

Probador Resistencia Aislamiento UNI-T UT501A/UT501C/UT502A/UT502C - Megóhmetro Digital Ohm Tester, Auto Rango, Backlight

$78.149 CLP

~~$86.149 CLP~~ $78.149 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Color UT501C UT501A UT502C UT502A

Cantidad

SPECIFICATIONS

Brand Name: UNI-T

Certification: CE

DIY Supplies: ELECTRICAL

Origin: Mainland China

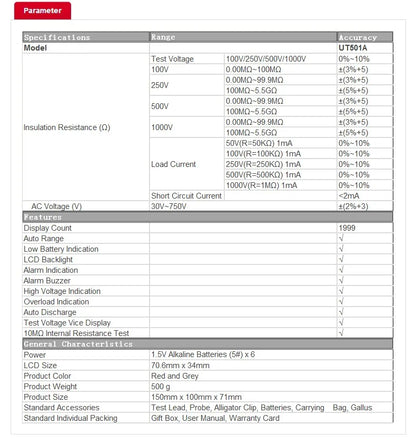

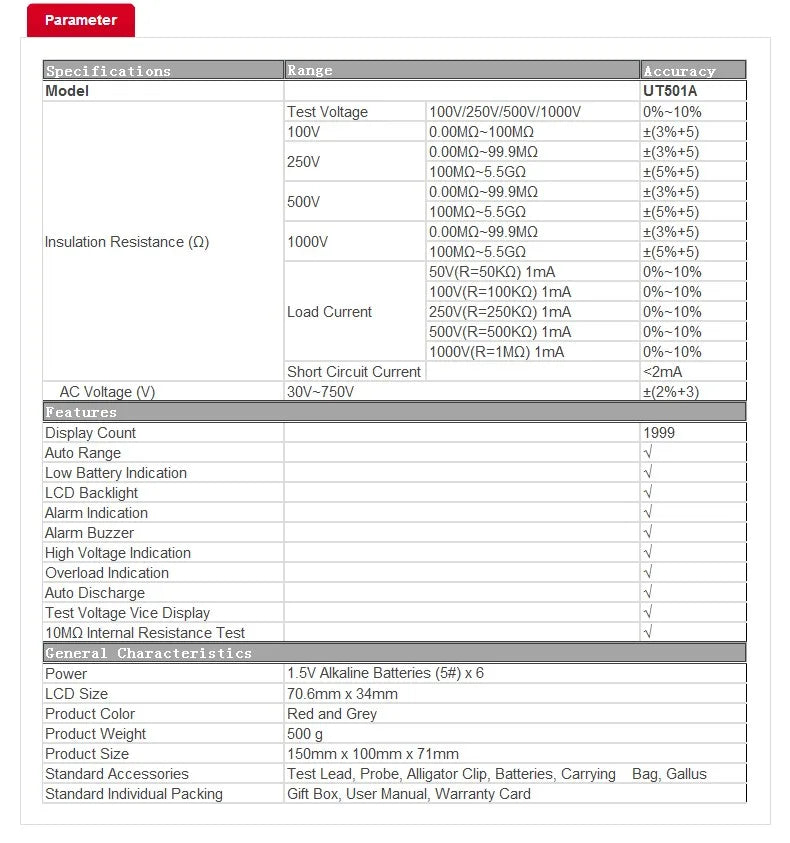

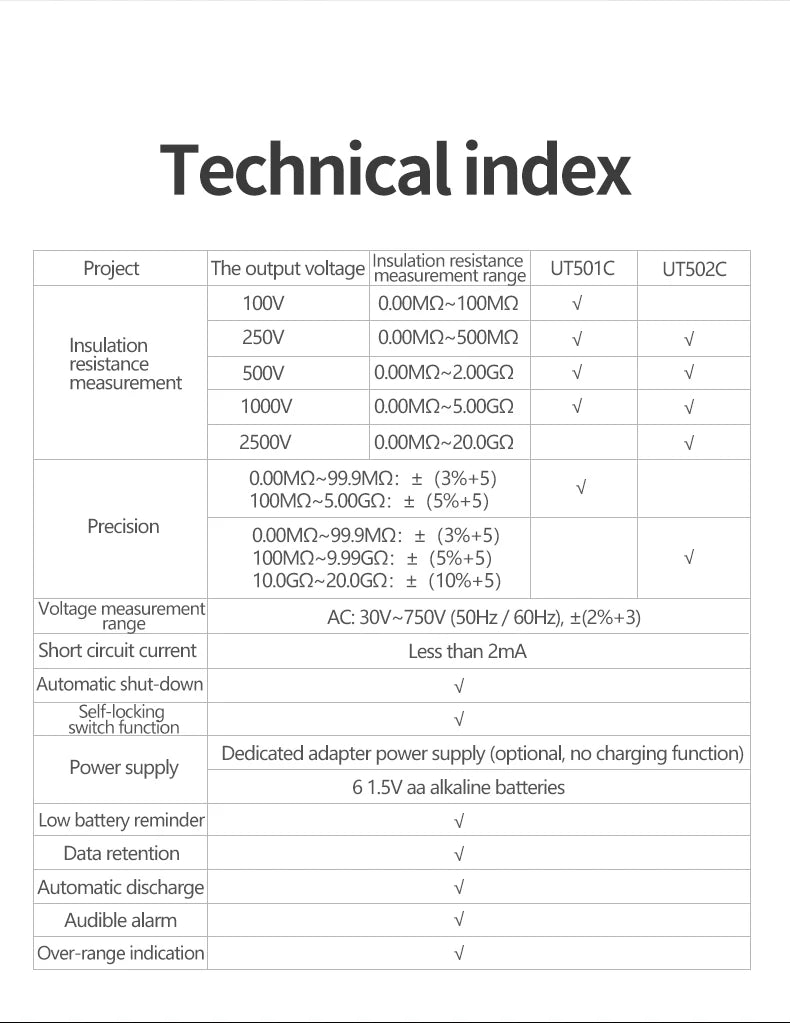

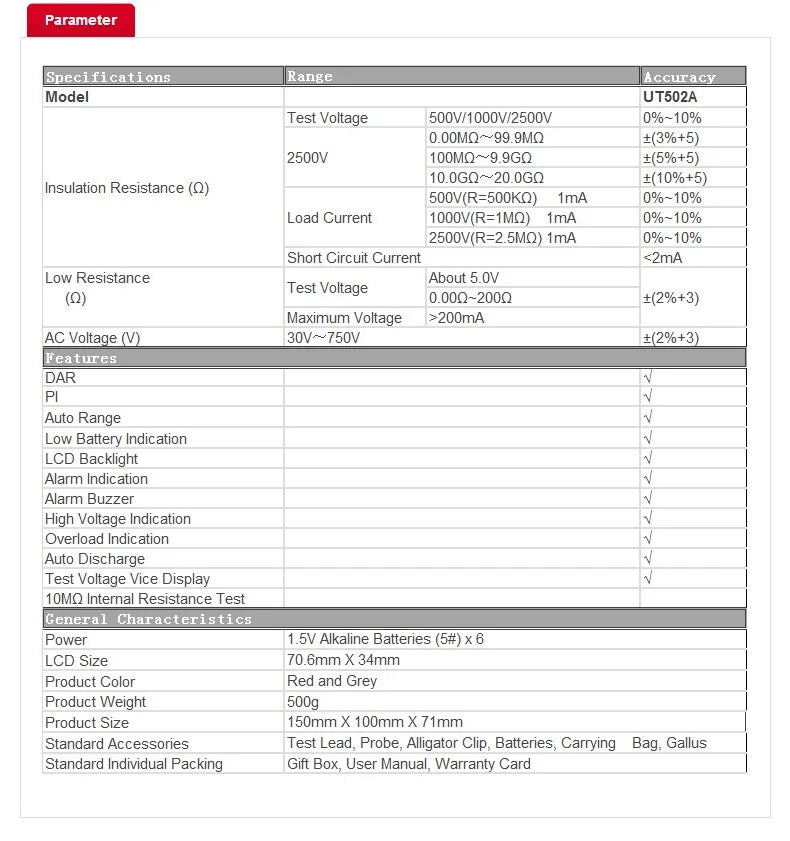

Parameter

Specifications	Output Voltage	Measurement Range	UT501C	UT502C
Insulation Resistance Measurement	100V	0.00MΩ～100MΩ	√
	250V	0.00MΩ～500MΩ	√	√
	500V	0.00MΩ～2.00GΩ	√	√
	1000V	0.00MΩ～5.00GΩ	√	√
	2500V	0.00MΩ～20.0GΩ		√
Accuracy	0.00MΩ～99.9MΩ: ±(3%+5)		√
	100MΩ～5.00GΩ: ±(5%+5)
	0.00MΩ～99.9MΩ: ±(3%+5)			√
	100MΩ～9.99GΩ: ±(5%+5)
	10.0GΩ～20.0GΩ: ±(10%+5)
Voltage Measurement Range	AC: 30V～750V (50Hz/60Hz)， ±(2%+3)
Short-Circuit Current	<2mA
Powered by	Adaptor (optional,without charging function)
	6×1.5V AA alkaline batteries
Auto Power Off	√
Self-Lock Function	√
Low Battery Indication	√
Data Hold	√
Auto Discharge	√
Audible and Visual Alarm	√
Overrange Indication	√
Backlight function	√
Altitude	≤2000 m
Operating temperature and Humidity	0℃~35℃,<75% RH
Storage temperature and Humidity	-20℃~60℃,<80% RH
Rating	CAT III 600V
General Features
Product Color	Red + grey
Product Weight	0.6kg
Product Size	183.5mmx115mmx74mm
