Multímetro Digital Profesional UNI-T UT61E/UT61D/UT61B - Test Capacitancia DC/AC 1000V (60mF/220mF), True RMS, Auto Rango
Multímetro Digital Profesional UNI-T UT61E/UT61D/UT61B - Test Capacitancia DC/AC 1000V (60mF/220mF), True RMS, Auto Rango
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
AC Current: 10A/20A
AC Voltage: 1000V
Brand Name: UNI-T
Capacitance: 60mF/220mF
Certification: None
Choice: yes
DC Current: 10A/20A
DC Voltage: 1000V
DIY Supplies: ELECTRICAL
Display Type: Digital display
Duty cycle: 0.1%-99.9%
Frequency: 10MHz/220MHz
Hign-concerned Chemical: None
Is Smart Device: YES
Measuring Resistance Range: 60MΩ/220MΩ
Model Number: UT61E+
Multimeter Display count: 6000
Operating Mode: Auto
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
True RMS Digital Multimeters: Multimeters Digital
semi_Choice: yes

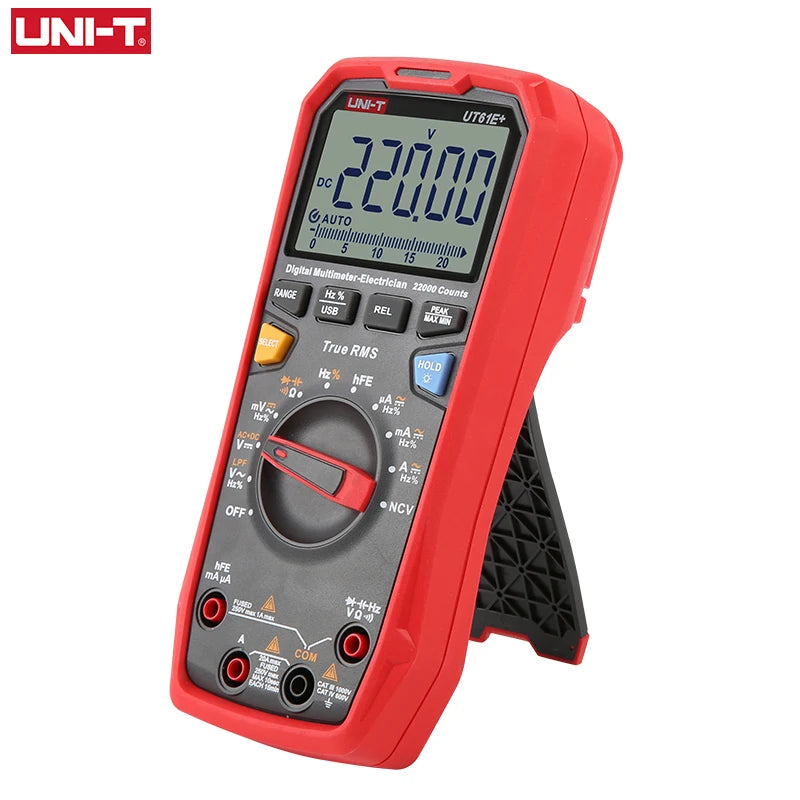

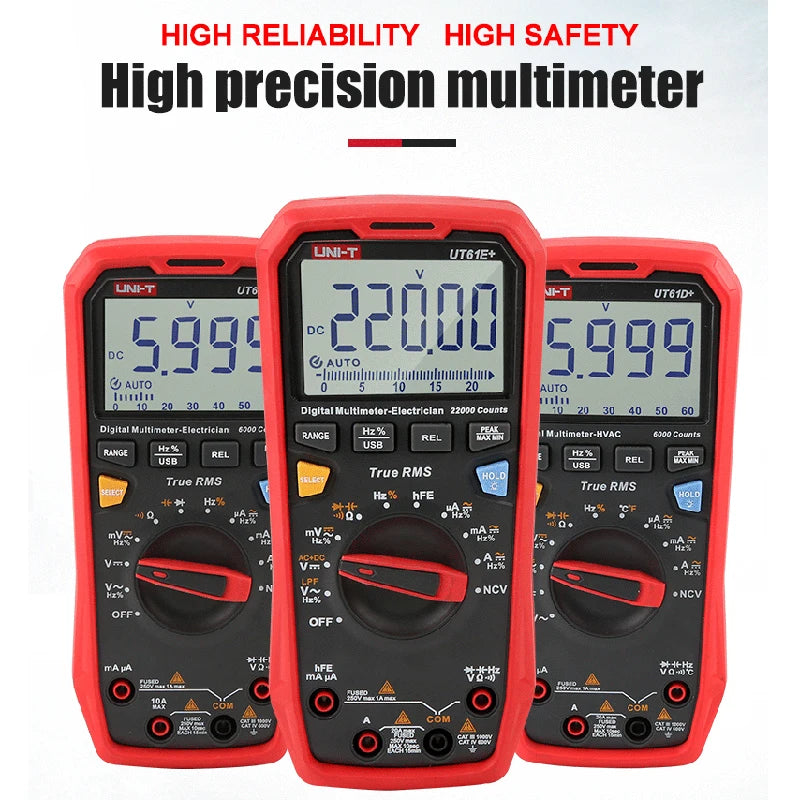

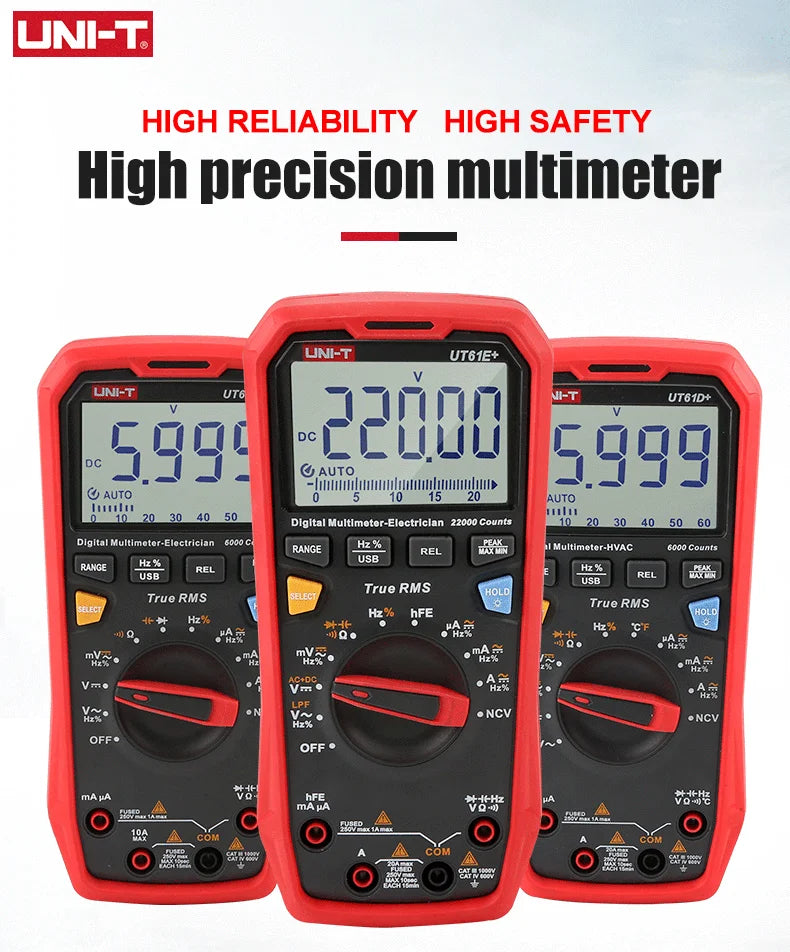

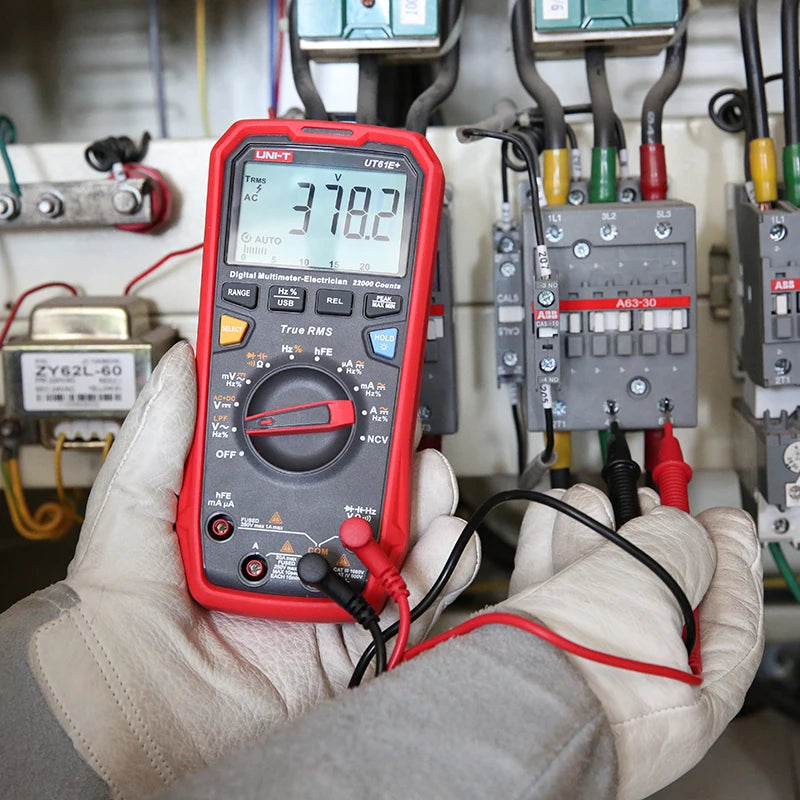

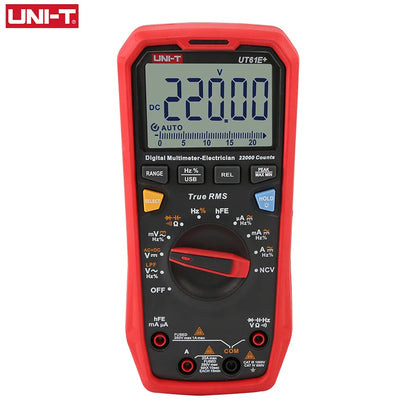

UT61+ Series 1000V True RMS Digital Multimeters
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.

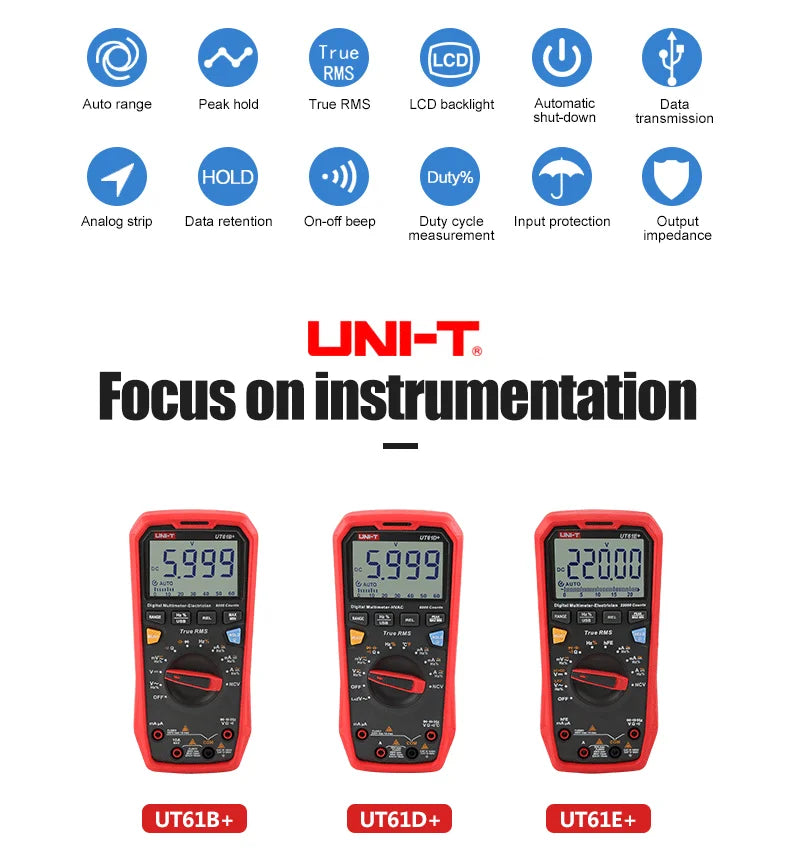

Features:
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LPF ACV (UT61E+)
● ACV+DCV (UT61E+)
● Transistor hFE (UT61E+)
● LoZ ACV (UT61D+)
● Peak Hold (UT61D+/UT61E+)
Notice Please: Shipping by air, battery is not included

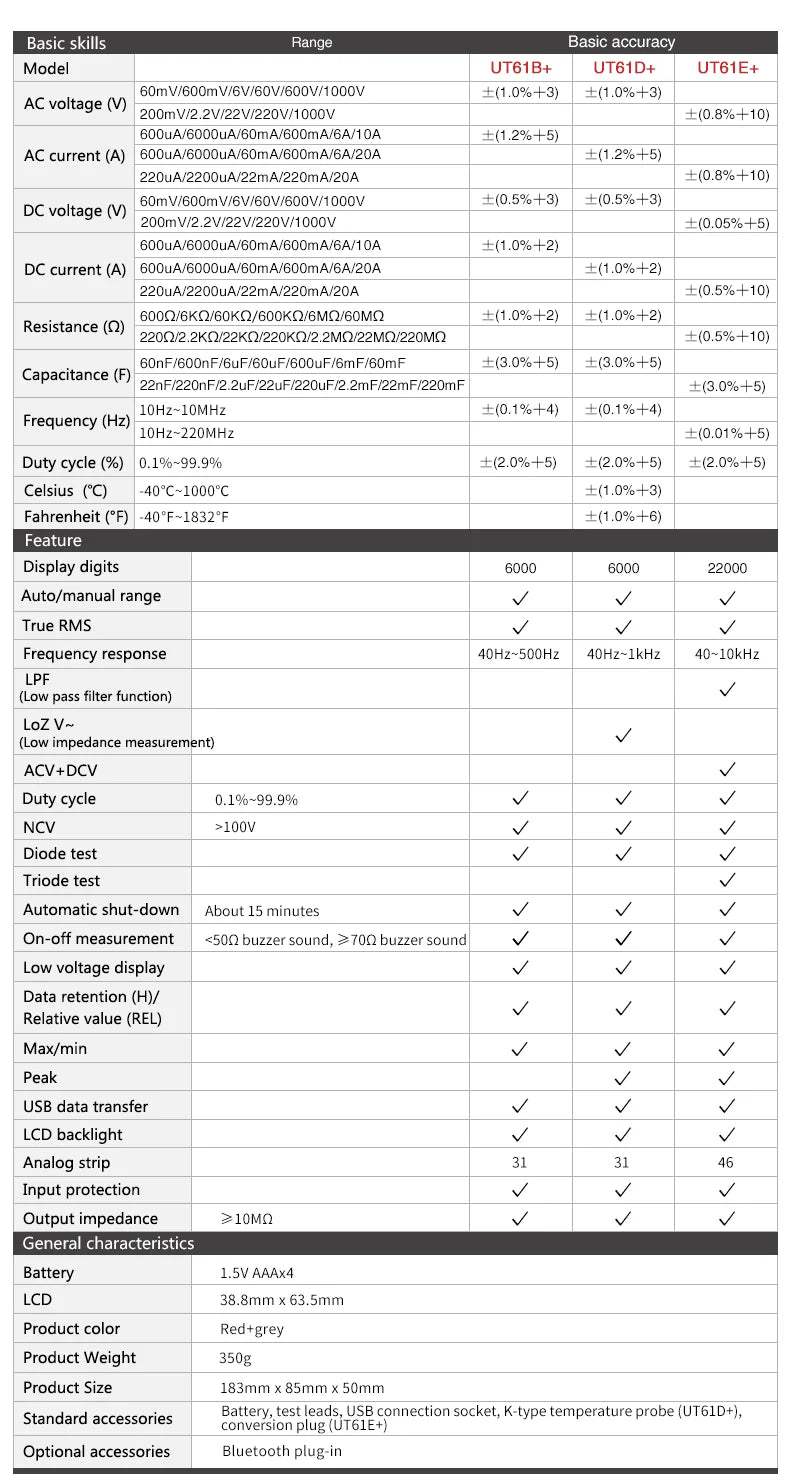

Specifications |
Range |

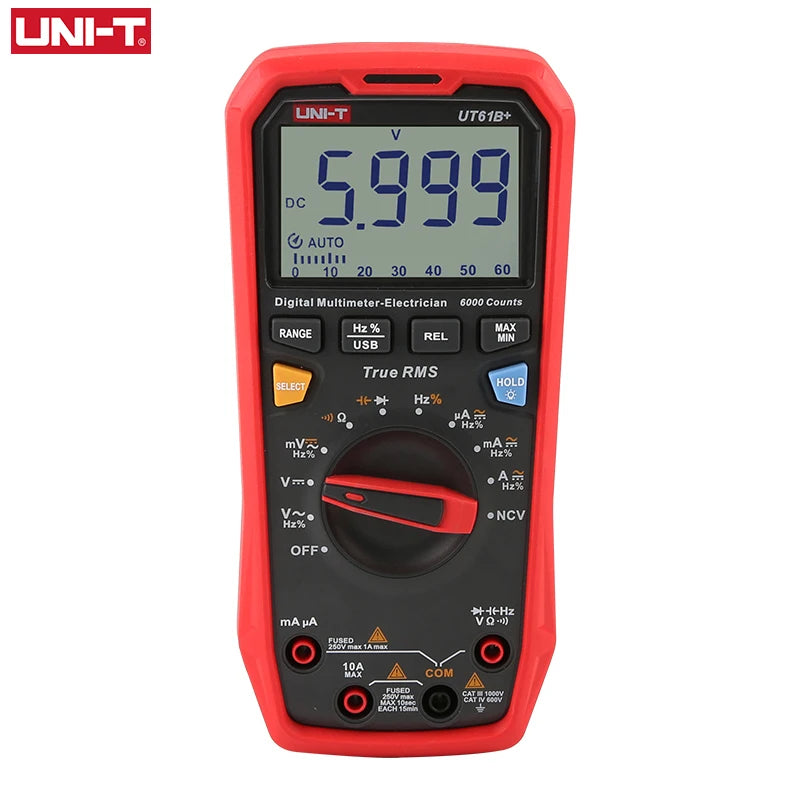

UT61B+ |

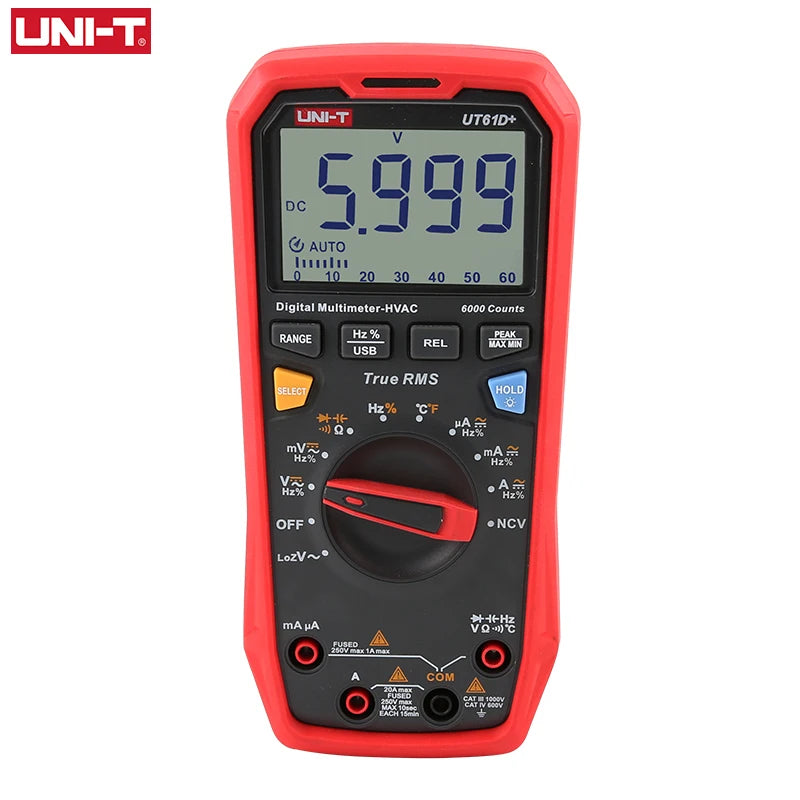

UT61D+ |
UT61E+ |
Safety ratings |
CAT III 1000V/CAT IV 600V |
|||
AC voltage (V) |
1000V |
±(1%＋3) |
±(1%＋3) |
±(0.8%＋10) |
DC voltage (V) |
1000V |
±(0.5%＋3) |
±(0.5%＋3) |
±(0.05%＋5) |
AC current (A) |
10A |
±(1.2%＋5) |
||
20A |
±(1.2%＋5) |
±(0.8%＋10) |
||
DC current (A) |
10A |
±(1%＋2) |
||
20A |
±(1%＋2) |
±(0.5%＋10) |
||
Resistance (Ω) |
60MΩ |
±(1%＋2) |
±(1%＋2) |
|
220MΩ |
±(0.5%＋10) |
|||
Capacitance (F) |
60mF |
±(3%＋5) |
±(3%＋5) |
|
220mF |
±(3%＋5) |
|||
Frequency (Hz) |
10MHz |
±(0.1%＋4) |
±(0.1%＋4) |
|
220MHz |
±(0.01%＋5) |
|||
Duty cycle (%) |
0.1%~99.9% |
±(2%＋5) |
±(2%＋5) |
±(2%＋5) |
Temperature (℃/℉) |
-40℃~1000℃ |
±(1%＋3) |
||
-40℉~1832℉ |
±(1%＋6) |
|||
Display count |
6000 |
6000 |
22000 |
|
Bandwidth (Hz) |
40Hz~500Hz |
40Hz~1kHz |
40~10kHz |
|
LPF ACV |
√ |
|||
LoZ ACV |
√ |
|||
ACV+DCV |
√ |
|||
Transistor hFE |
√ |
|||
Peak Hold |
√ |
√ |
||
Analog bar |
31 |
31 |
46 |
|
General Characteristics | ||||
Power |
1.5V battery (R03) x 4 （Not included） |
|||
Product net weight |
350g |
|||

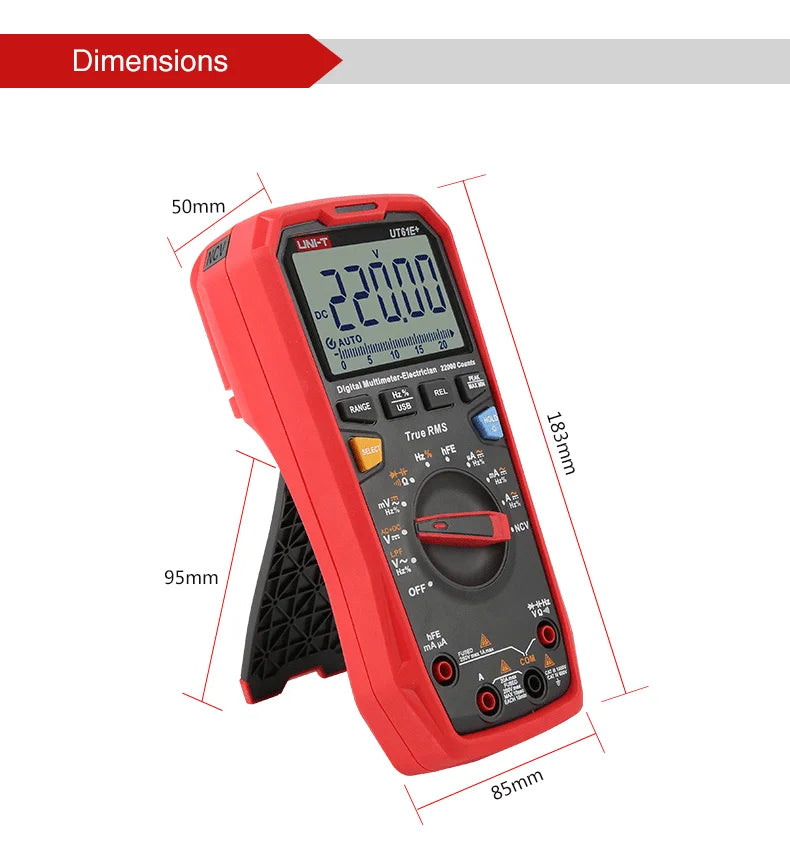

Product size |
190mm x 90mm x 50mm |
|||

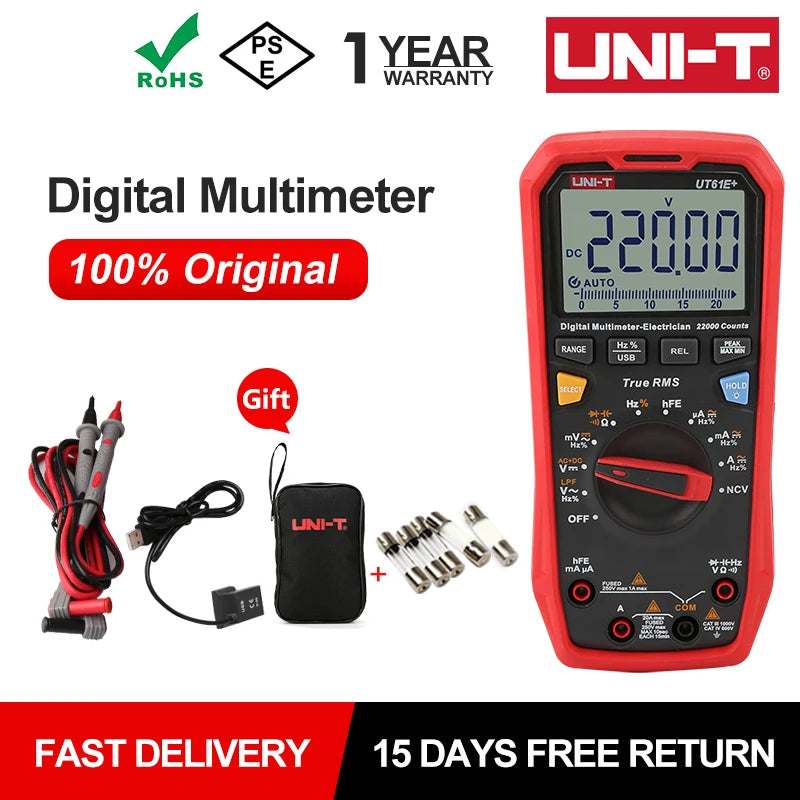

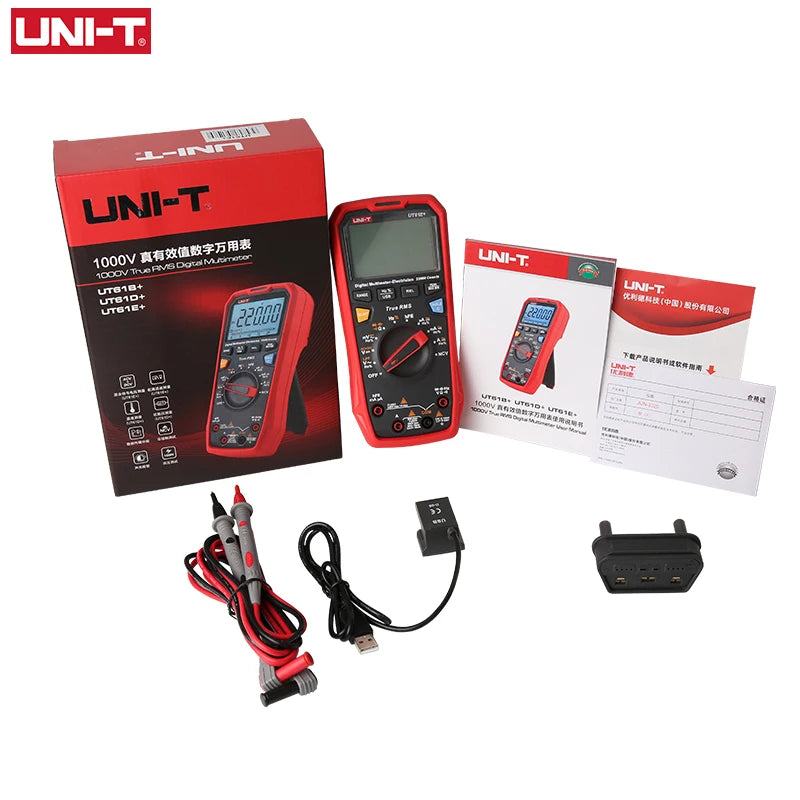

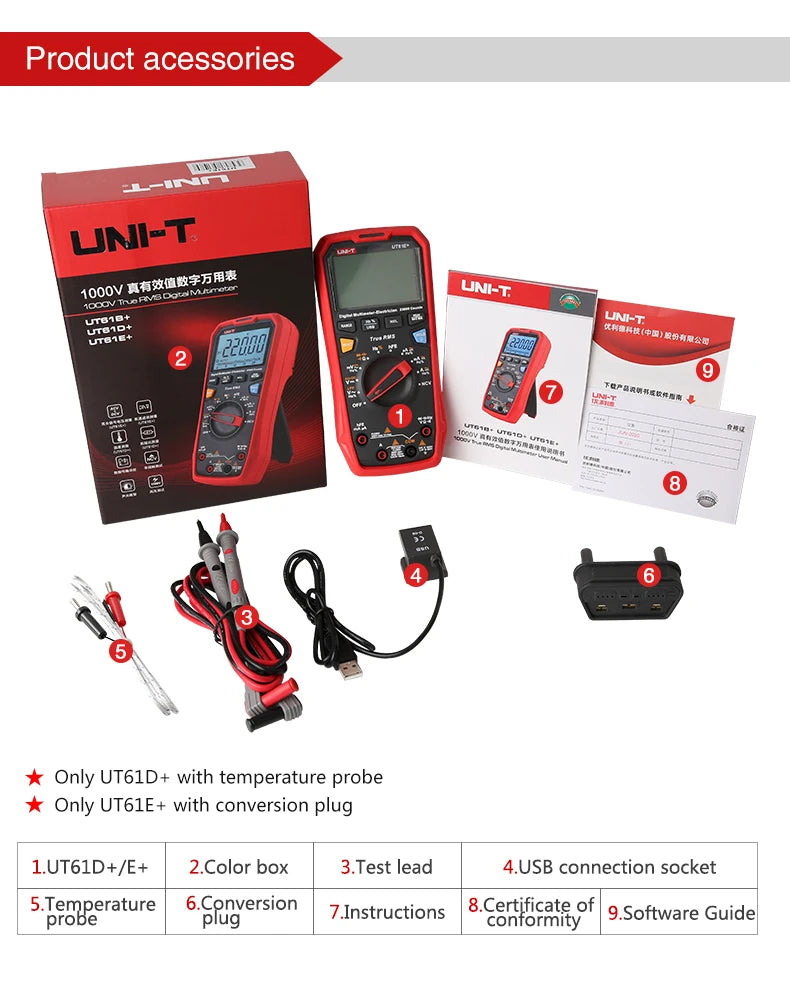

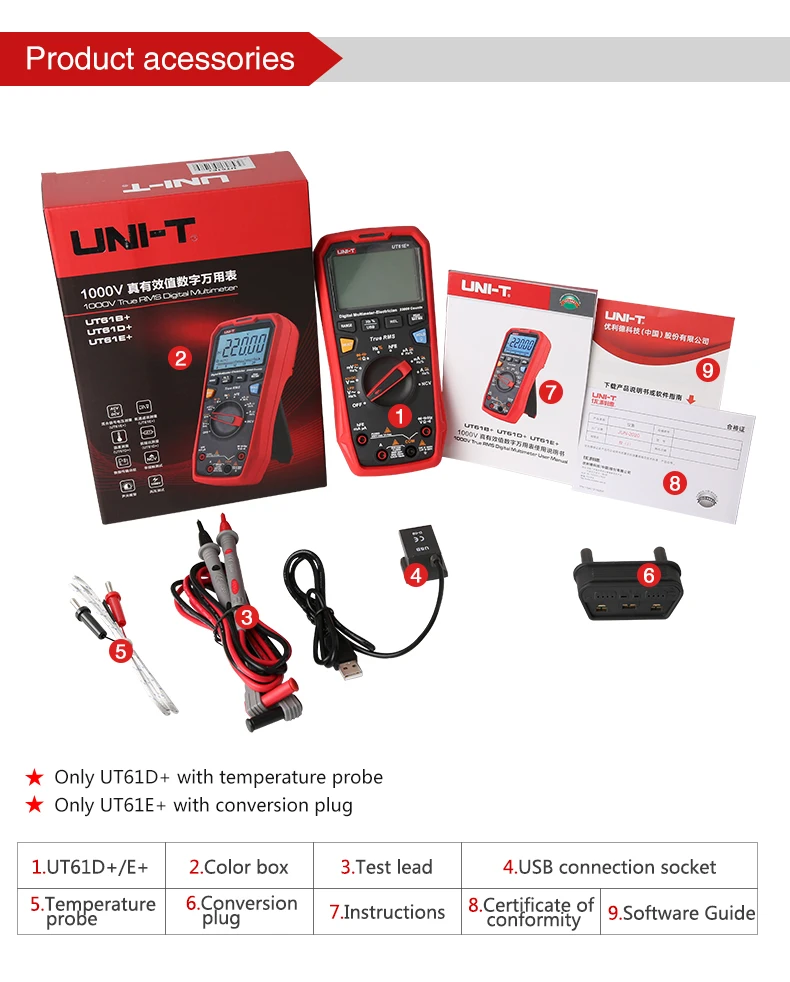

Standard accessories |
gold plated test leads, USB cable, temperature probe (UT61D+/161D), |
|||
multi-purpose socket (only UT61E+), English manual | ||||
Standard individual packing |
Gift box, cloth bag |
|||
