Tester SMD UNI-T UT116C / UT116A - Medidor Rotable Resistencia, LED, Diodo, Batería, Capacitor
Tester SMD UNI-T UT116C / UT116A - Medidor Rotable Resistencia, LED, Diodo, Batería, Capacitor
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Battery test: Only UT116C have
Brand Name: UNI-T
Certification: CE
DIY Supplies: ELECTRICAL
Diode test: 3V/3.2V
Display Type: Digital display
Hign-concerned Chemical: None
Measuring Capacitance Range: 30mF/100mF
Measuring Resistance Range: 30MΩ/60MΩ
Model Number: UT116C
Operating Mode: Auto range
Origin: Mainland China
UNI-T Model: UT116C

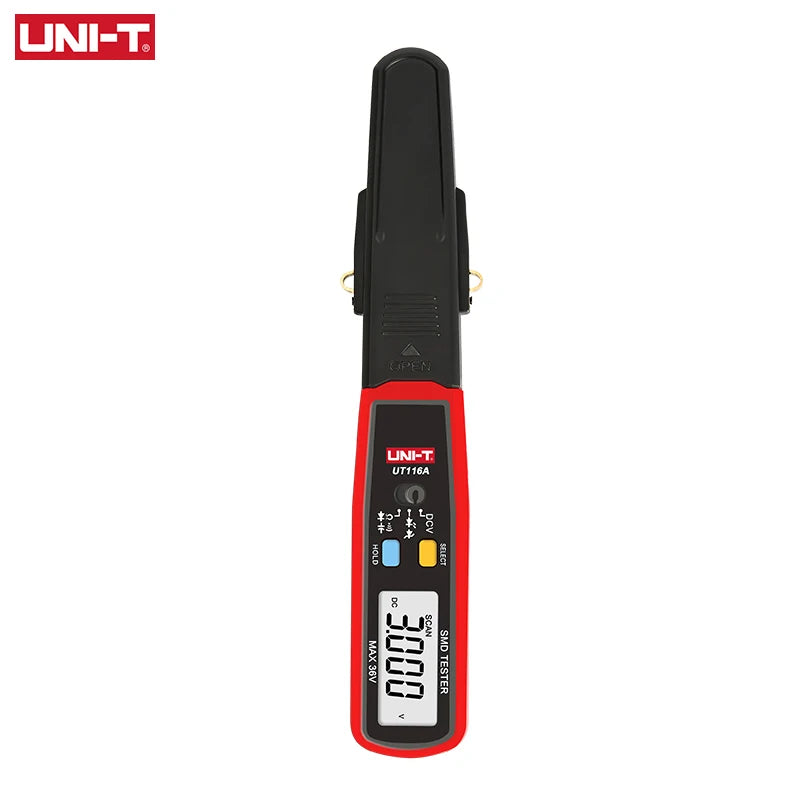

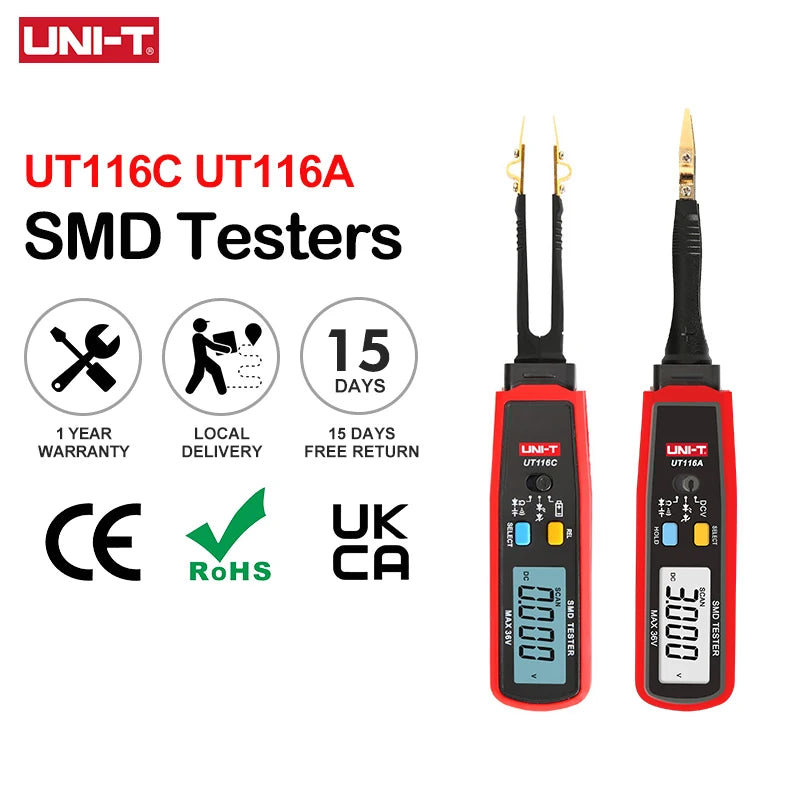

UT116 Series SMD Testers

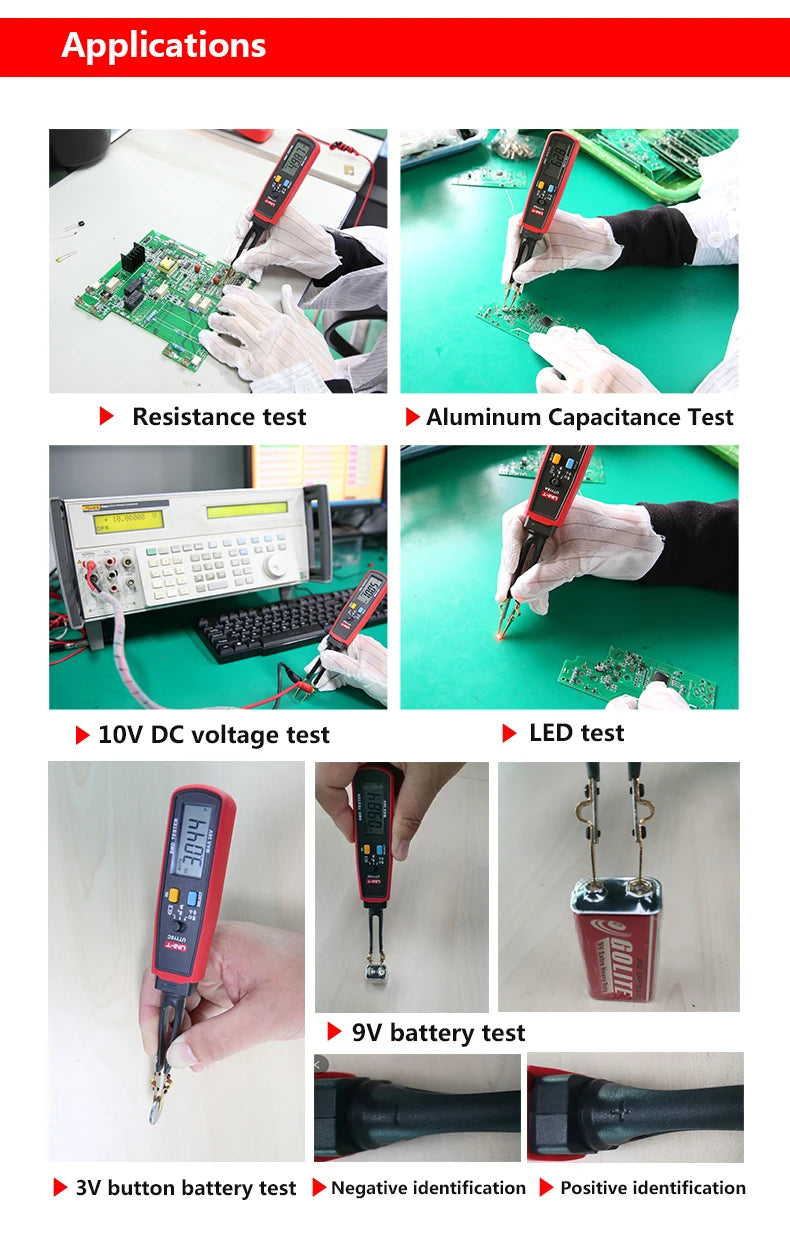

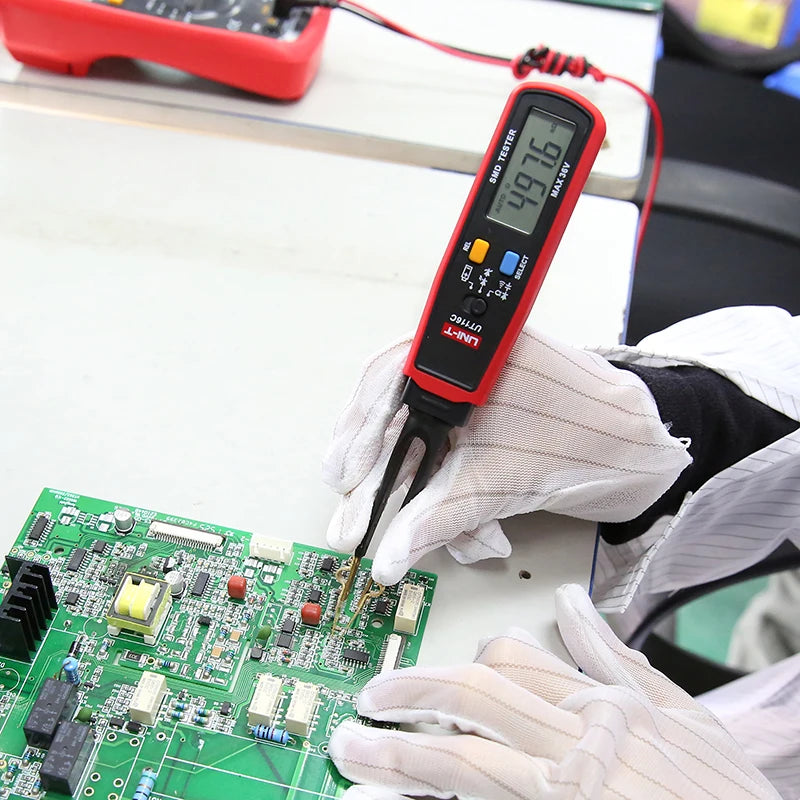

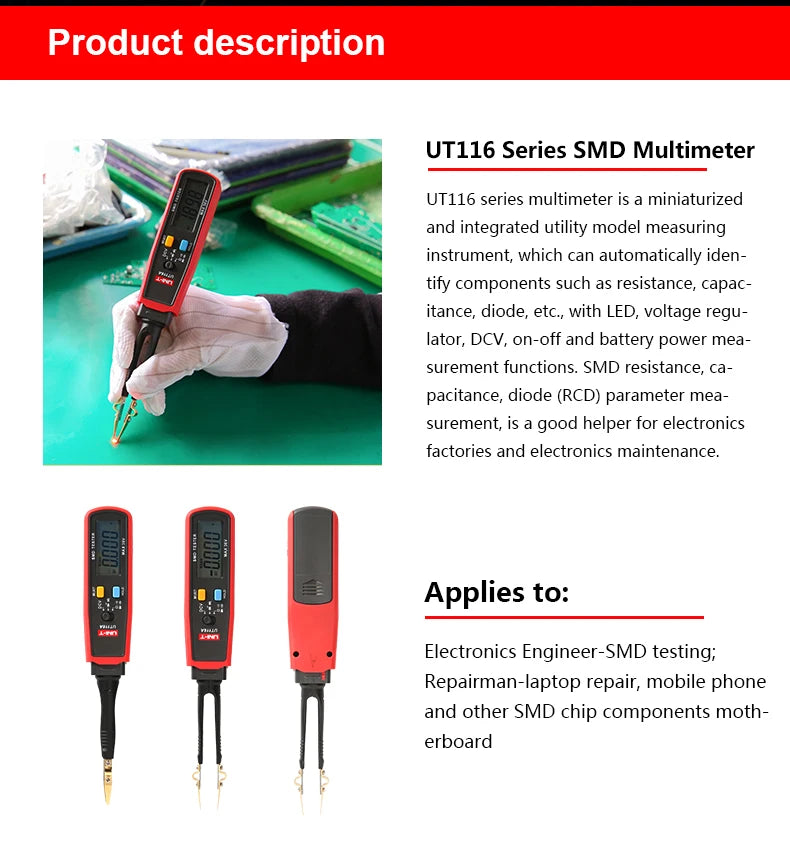

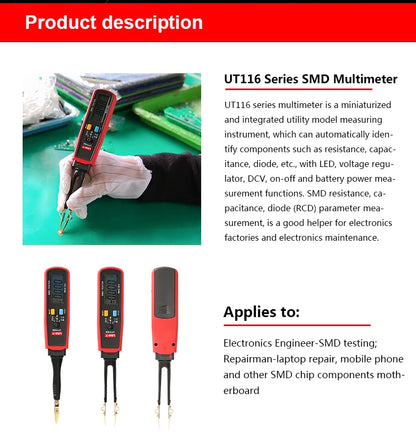

UT116 series SMD tester is a miniaturized and integrated utility model measuring instrument, which can automatically identify components such as resistance, capacitance, diode, etc., with LED, voltage regulator, DCV, on-off and battery power measurement functions. SMD resistance, capacitance, diode (RCD) parameter measurement, is a good helper for electronics factories and electronics maintenance.

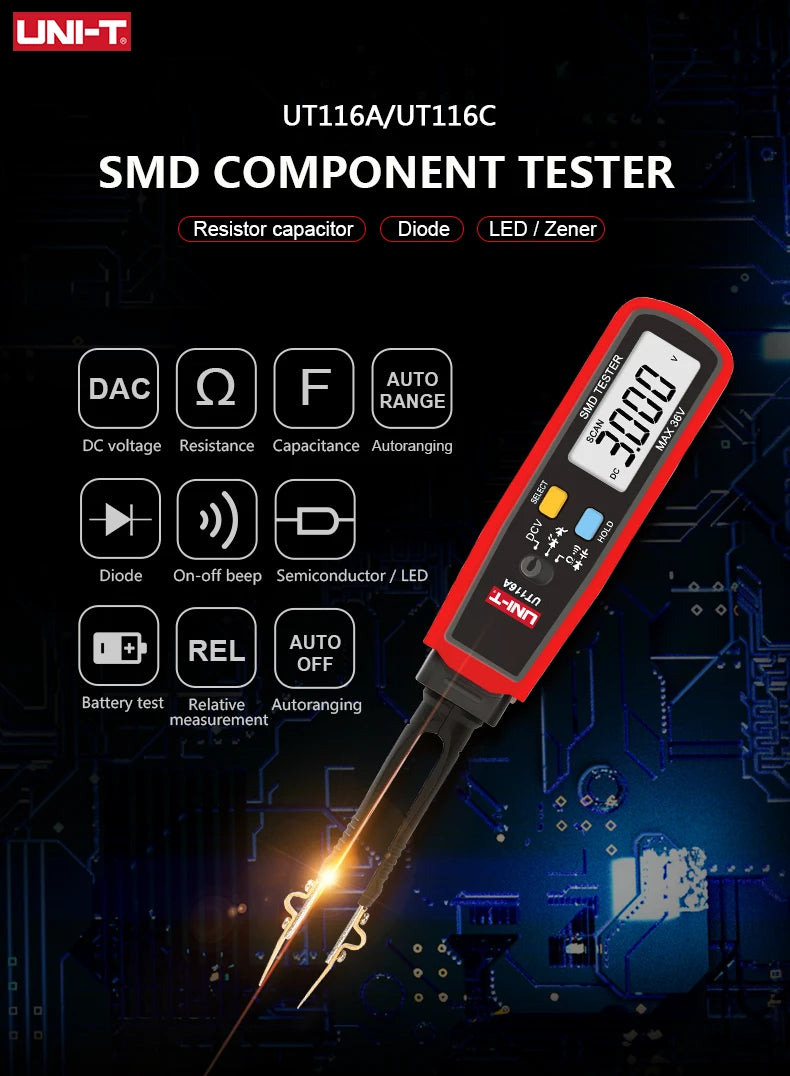

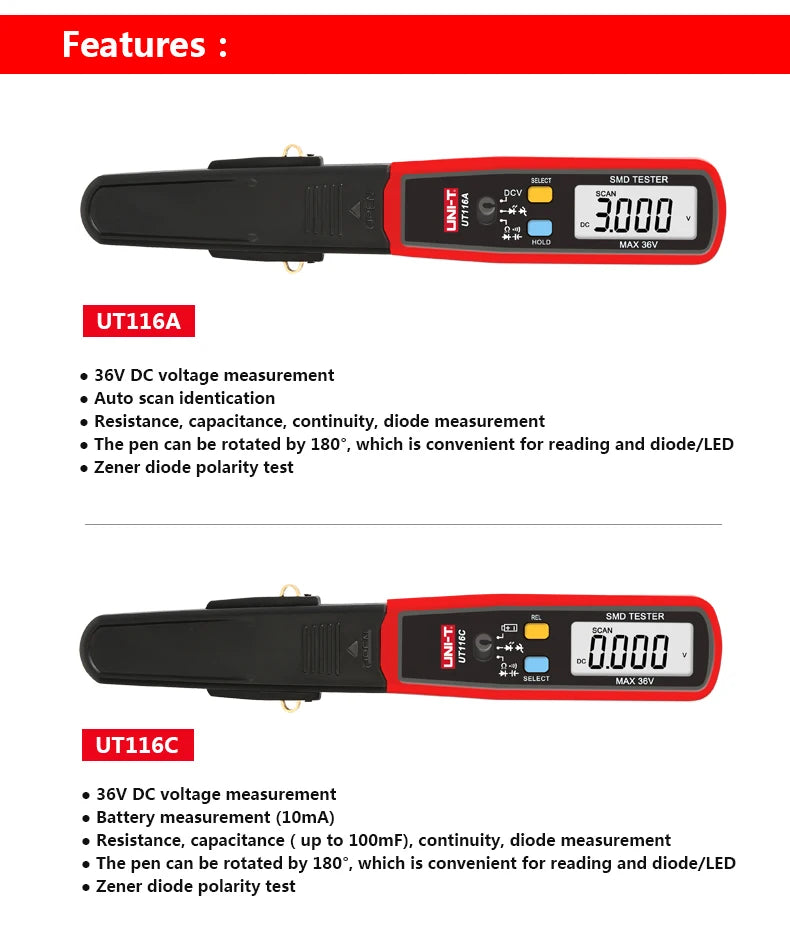

Features
36V DC voltage measurement
Battery measurement(10mA) Only UT116C
Resistance ,Capacitance(UT116C: up to 100mF), continuity,diode measurement

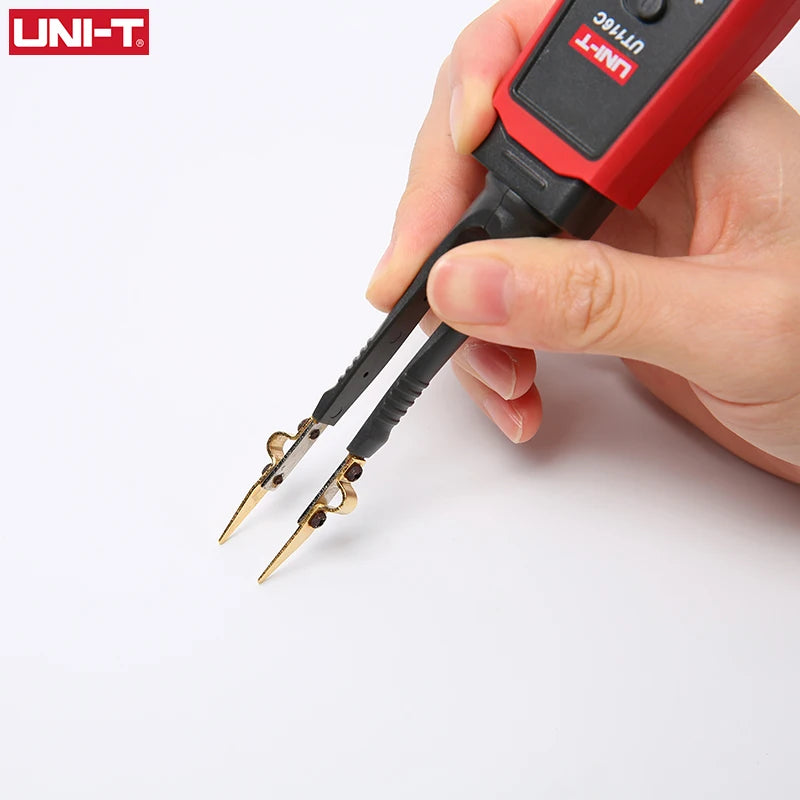

The pen can be rotated by 180 degree, which is convenient for reading and diode/LED
20V/1mA LED Zener diode polority test
6000 count display

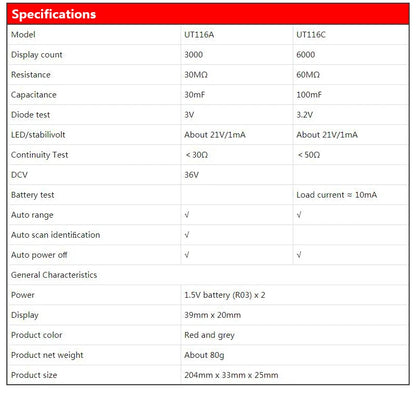

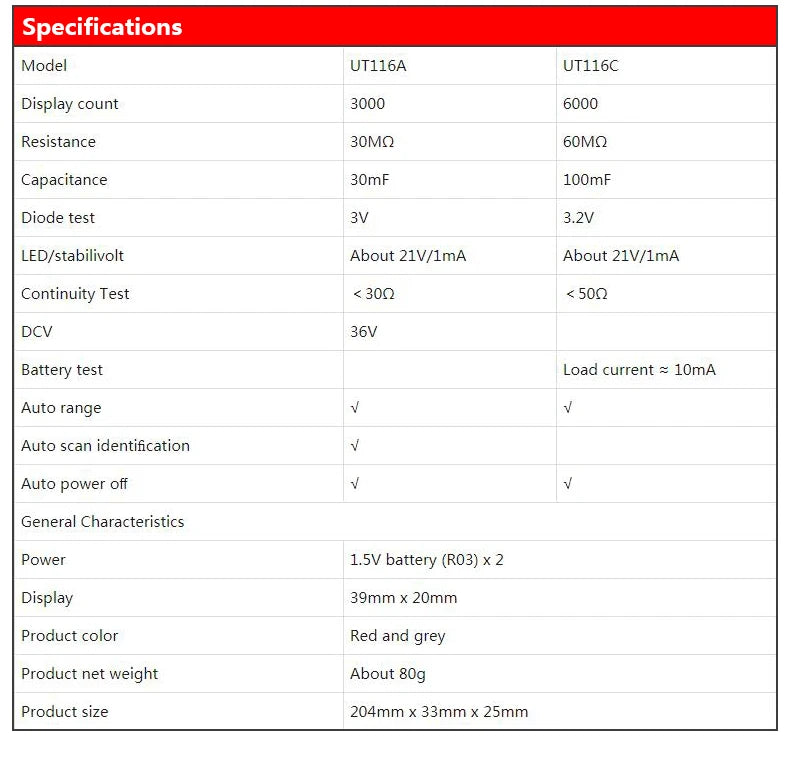

Specifications | ||
Model |
UT116A |
UT116C |
Display count |
3000 |
6000 |
Resistance |
30MΩ |
60MΩ |
Capacitance |
30mF |
100mF |
Diode test |
3V |
3.2V |
LED/stabilivolt |
About 21V/1mA |
About 21V/1mA |
Continuity Test |
＜30Ω |
＜50Ω |
DCV |
36V |
|
Battery test |
Load current ≈ 10mA |
|
Auto range |
√ |
√ |
Auto scan identification |
√ |
|
Auto power off |
√ |
√ |
Notice please: battery no include!
