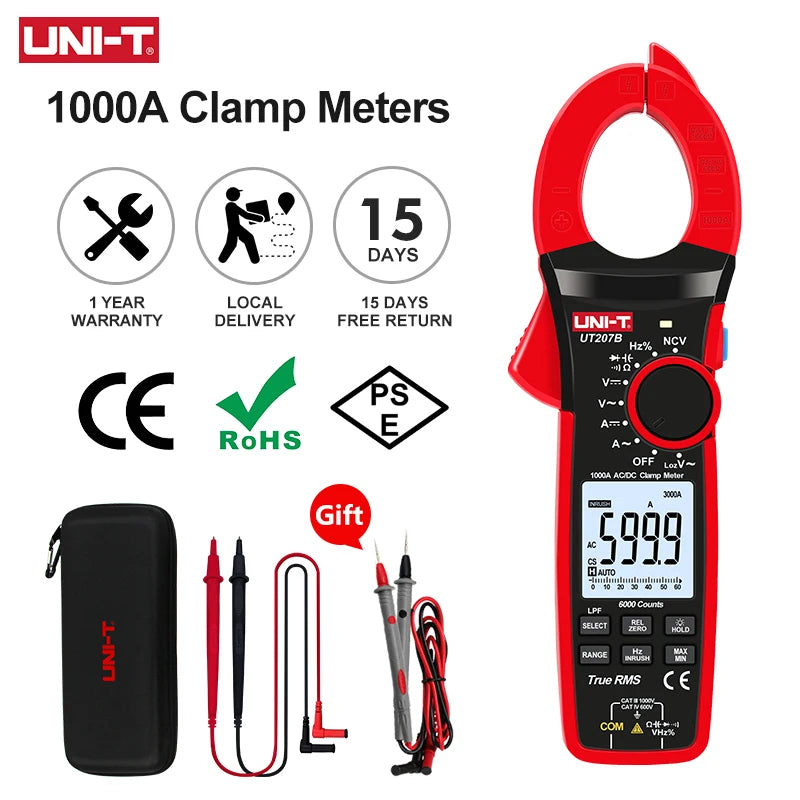

Pinza Amperimétrica Digital UNI-T UT207B/UT208B True RMS AC/DC 1000A 1000V LPF 6000 Cuentas

$116.721 CLP

~~$124.720 CLP~~ $116.721 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Color UT207B UT206B UT205E UT208B

Ships From CHINA Russian Federation

Cantidad

SPECIFICATIONS

AC Current: 1000A

AC Voltage: 1000V

Analog bar: 31(Only UT206B UT207B UT208B)

Brand Name: UNI-T

Certification: CE,RoHS

Connect to Flexible current probe: Extends up to 3000A(UT206B UT208B)

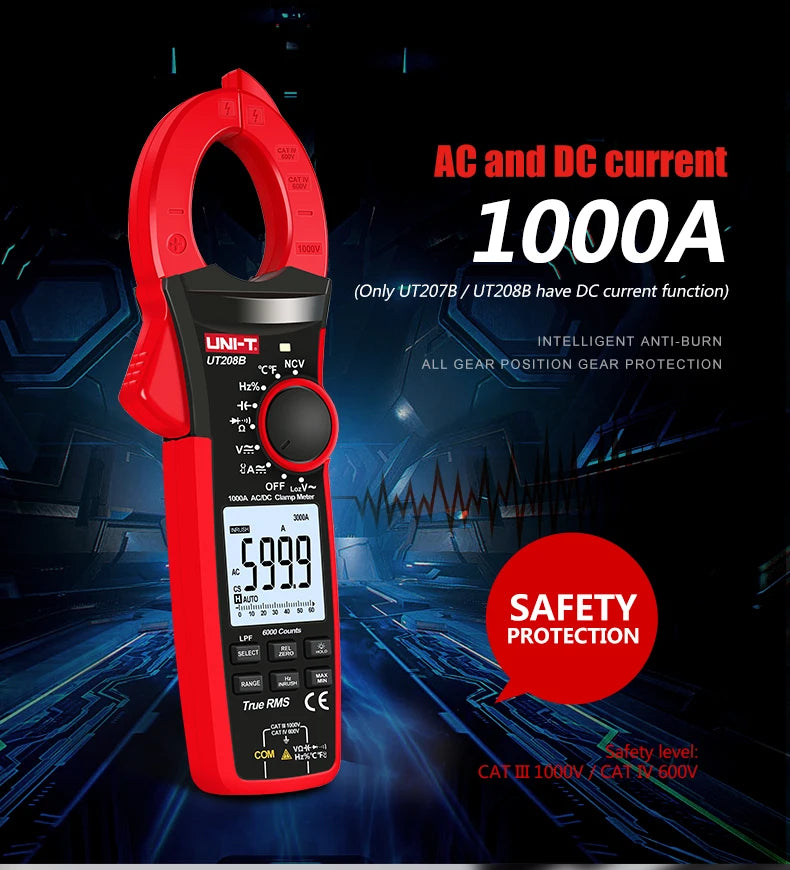

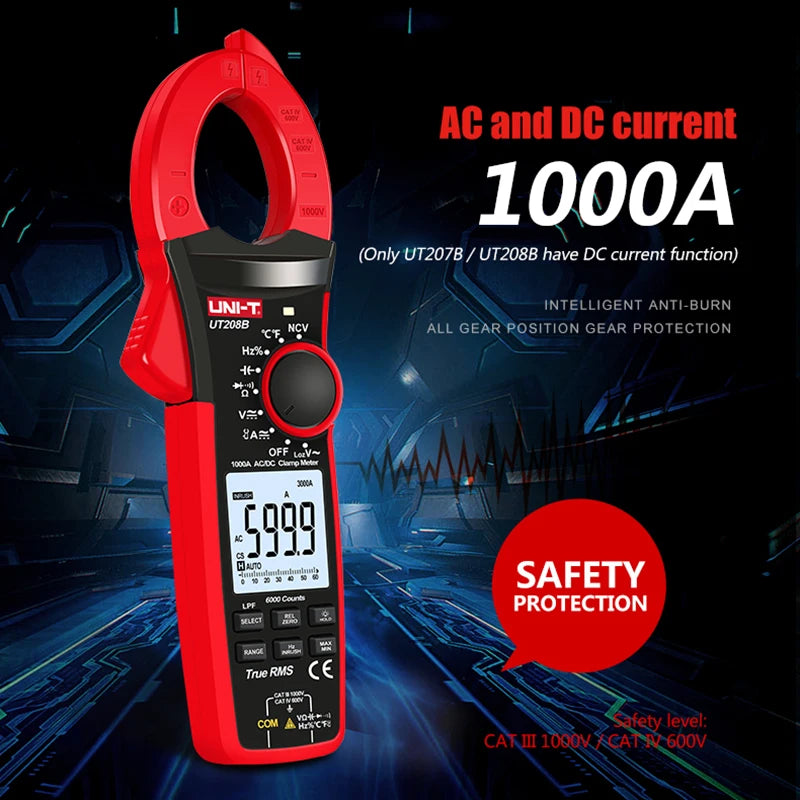

DC Current: 1000A (only UT207B UT208B)

DC Voltage: 1000V

DIY Supplies: ELECTRICAL

Dimensions: 272*81*43.5mm

Display Type: Digital Only

Hign-concerned Chemical: None

Inrush Current: 1000A(only UT206B UT207B UT208B)

Low Pass Filter: 1000V(only UT206B UT207B UT208B)

Measuring Capacitance Range: 60mF

Measuring Current Range: 600A

Measuring Inductance Range: 60mF

Measuring Resistance Range: 60Mohm

Measuring Voltage Range: 1000V

Model Number: UT205E UT206B UT207B UT208B

Operating Temperature: -40-1000 centigrade

Origin: Mainland China

Safety Grade: CAT III1000V CAT IV 600V

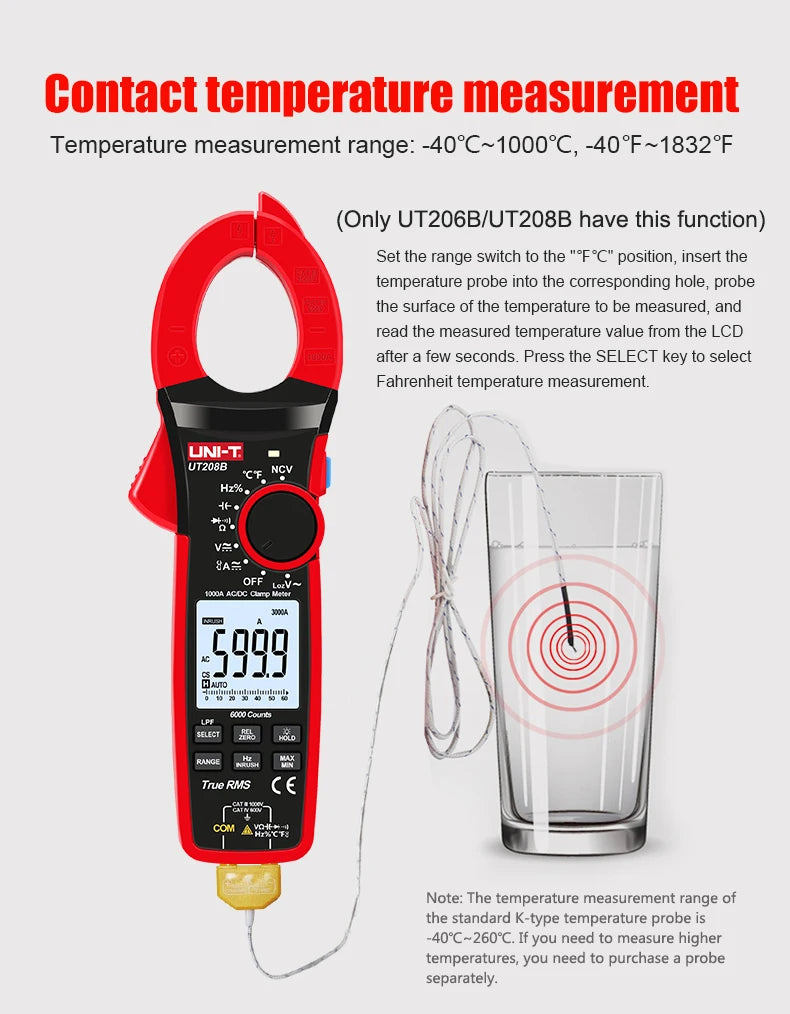

Temperature measurment: -40-1000centigrade(Only UT206B UT208B)

Weight: 710g

electrician tools: amperemeter

multimetro digital profesional: unit clamp meter

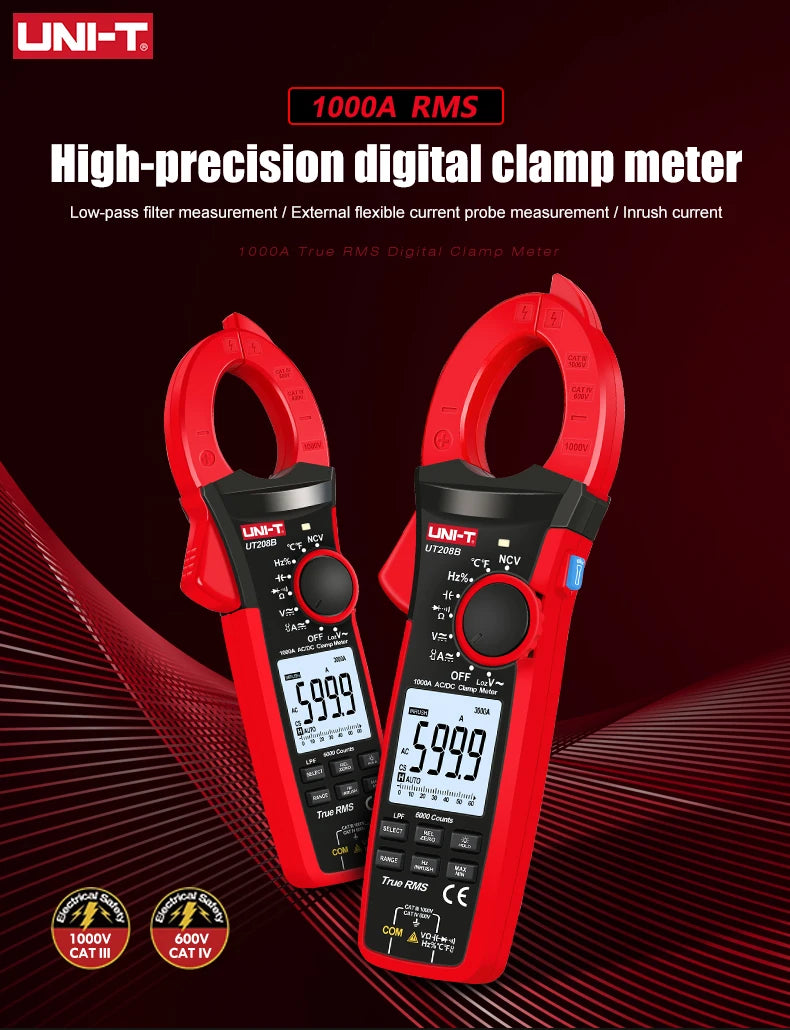

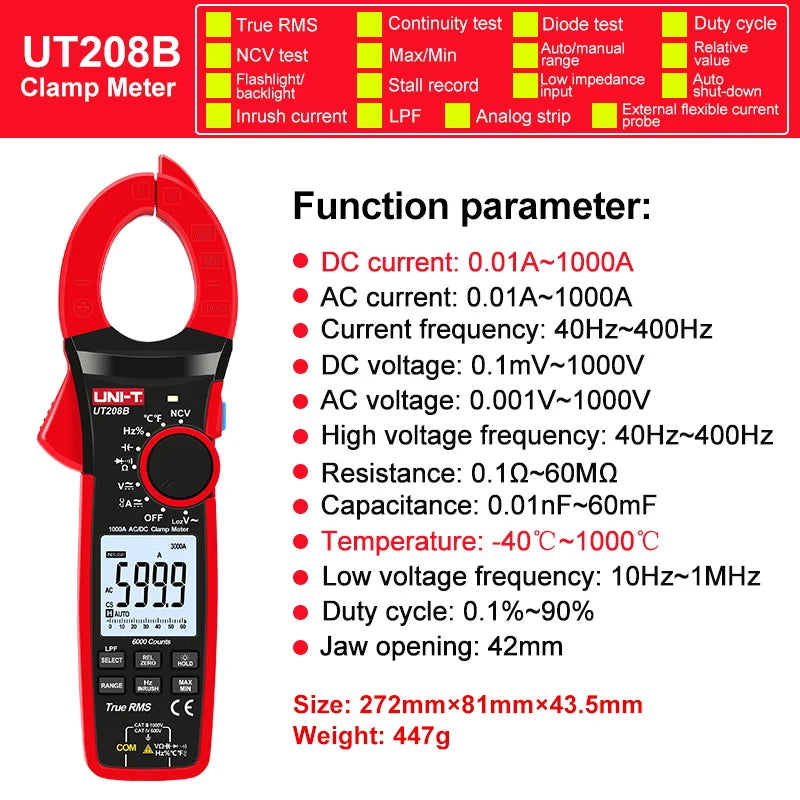

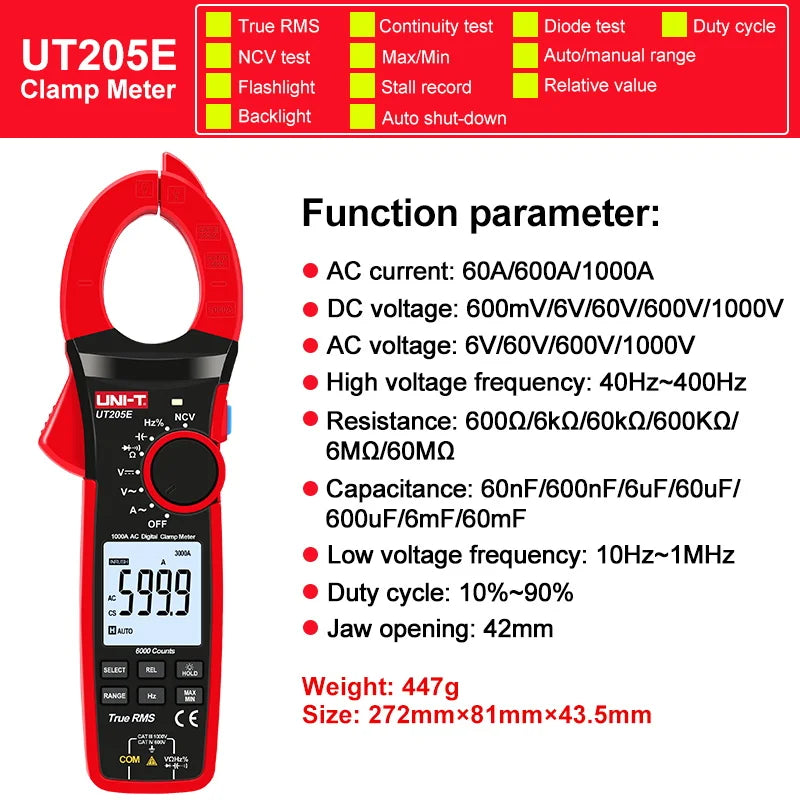

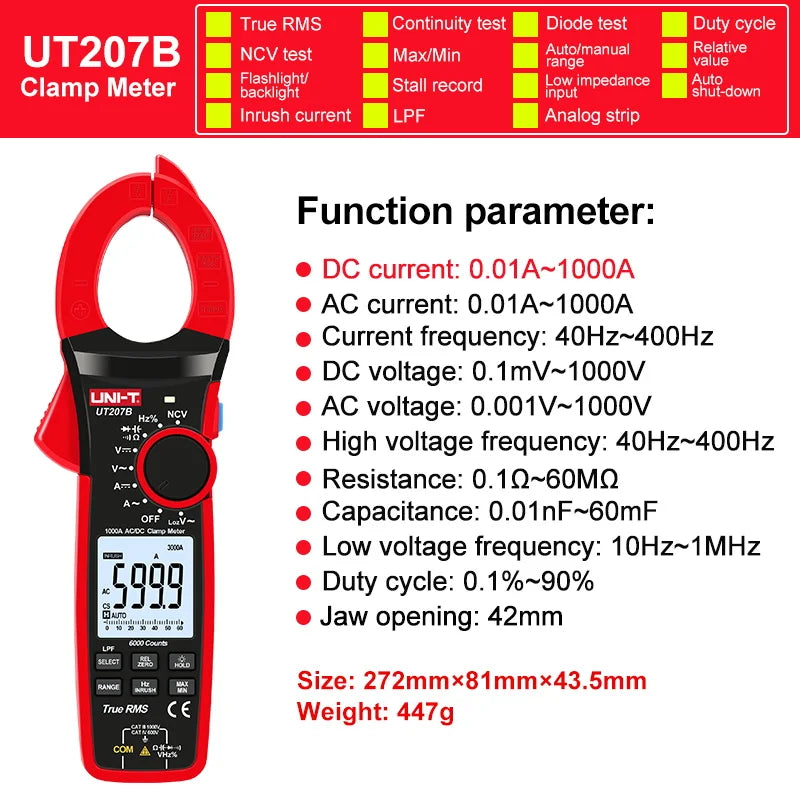

UT200 series 1000A True RMS Digital Clamp Meter

UT200 series are 6000 count digital clamp meter

With Auto Range ,large LCD,true RMS, auto scale memory, and NCV functions They conform to CAT III 1000V /CAT IV600 V safety ratings and cerified by CE/ETL.

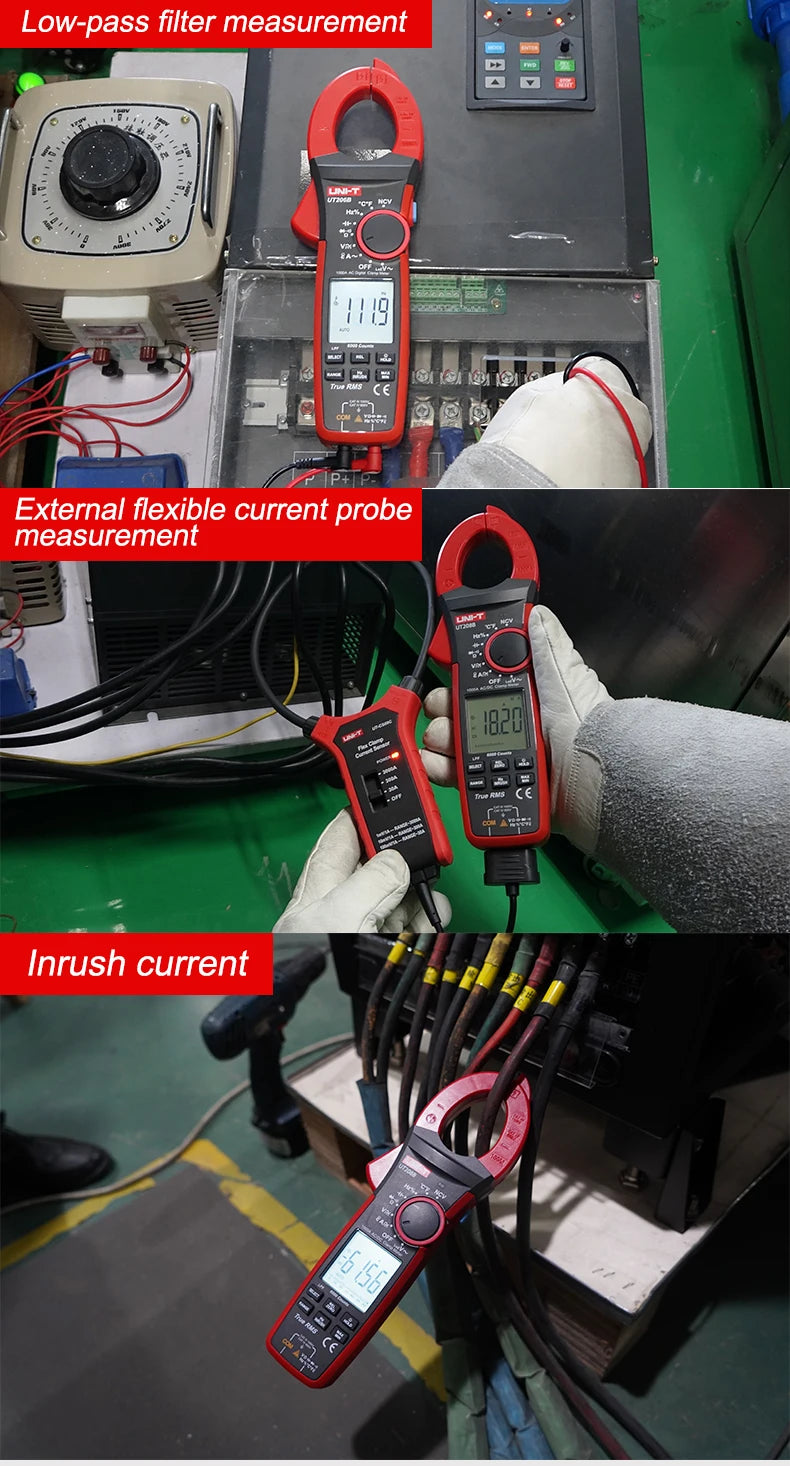

UT206B UT207B UT208B come with LOZ mode for eliminating ghost voltage, LPF ACV function for measuring INV and VFD voltage, inrush current and mode for capturing transient current.

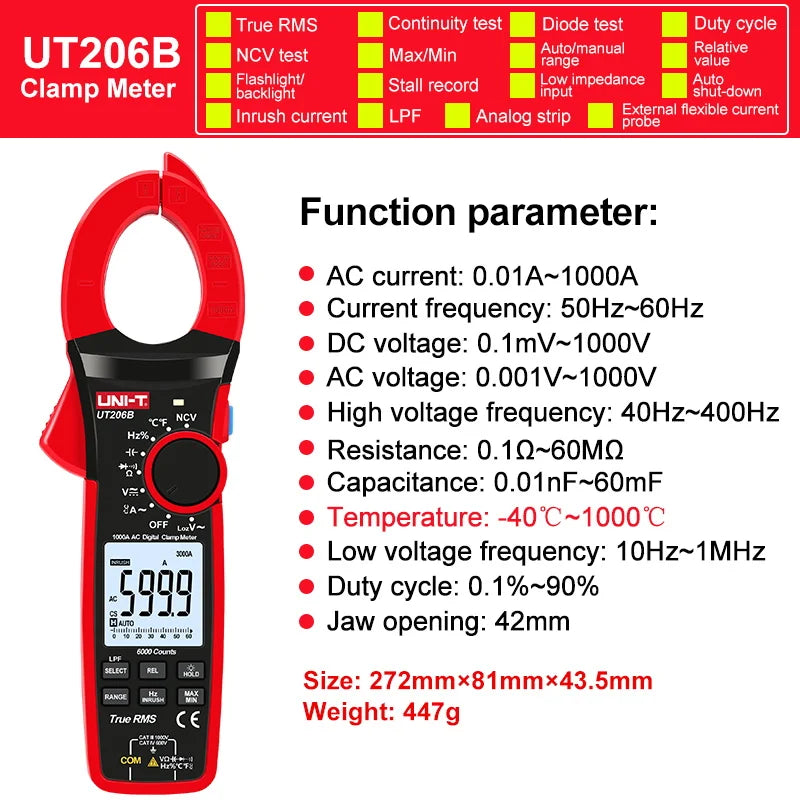

UT206B, UT208B also feature high-precision temperature measurement with 0.1 centigrade resolution, and can be equipped with a flexible current probe to extend the AC current measurement range up to 3000A

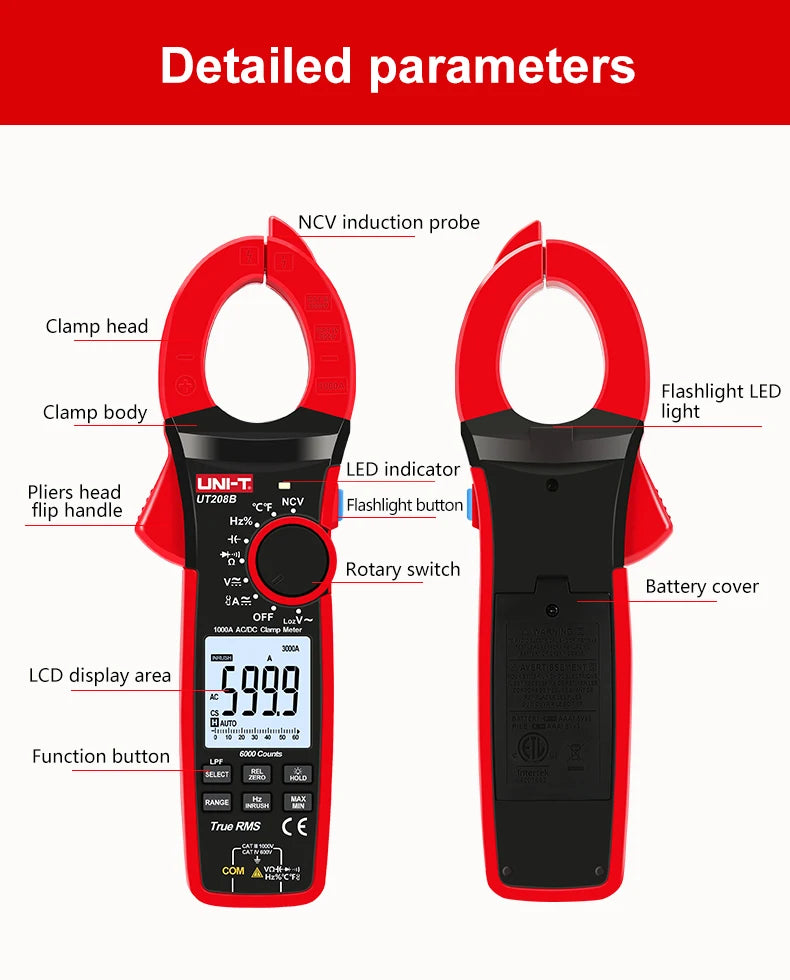

Features:

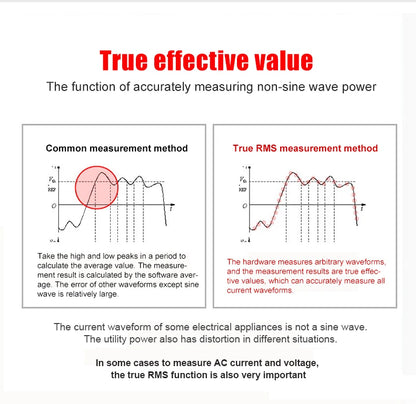

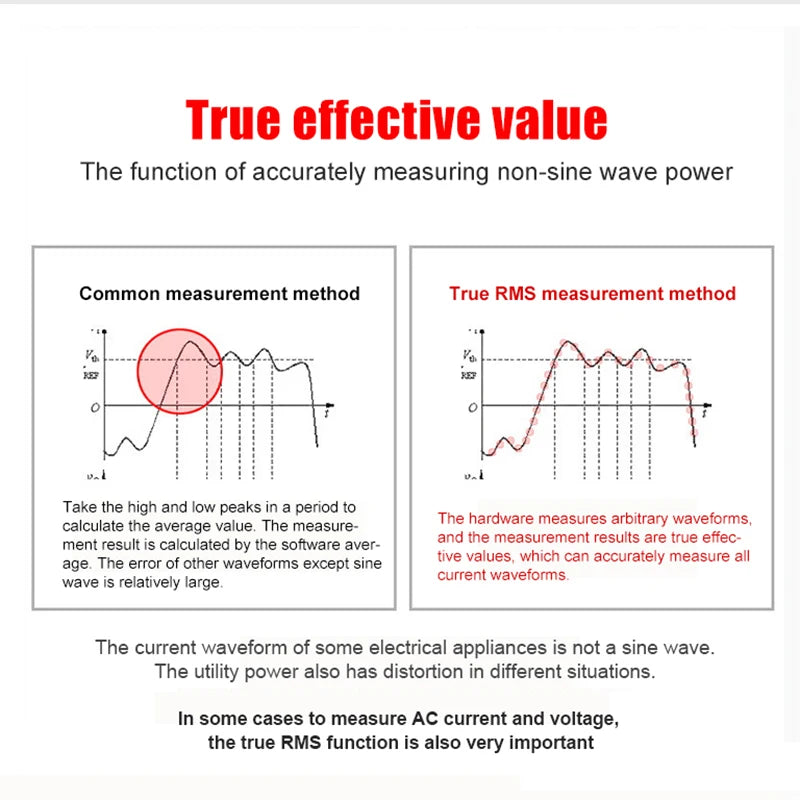

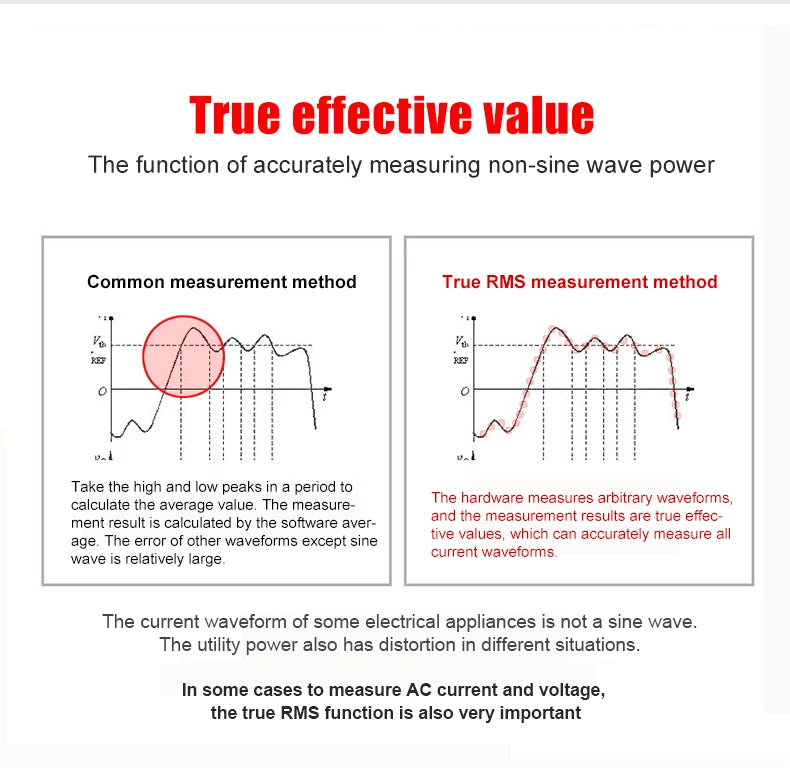

True RMS
Flashlight

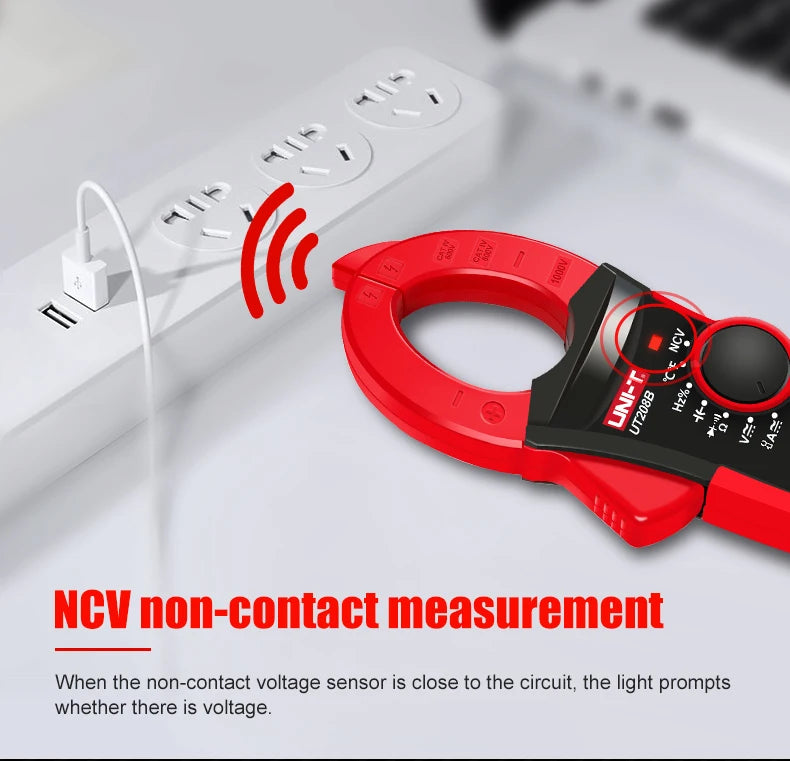

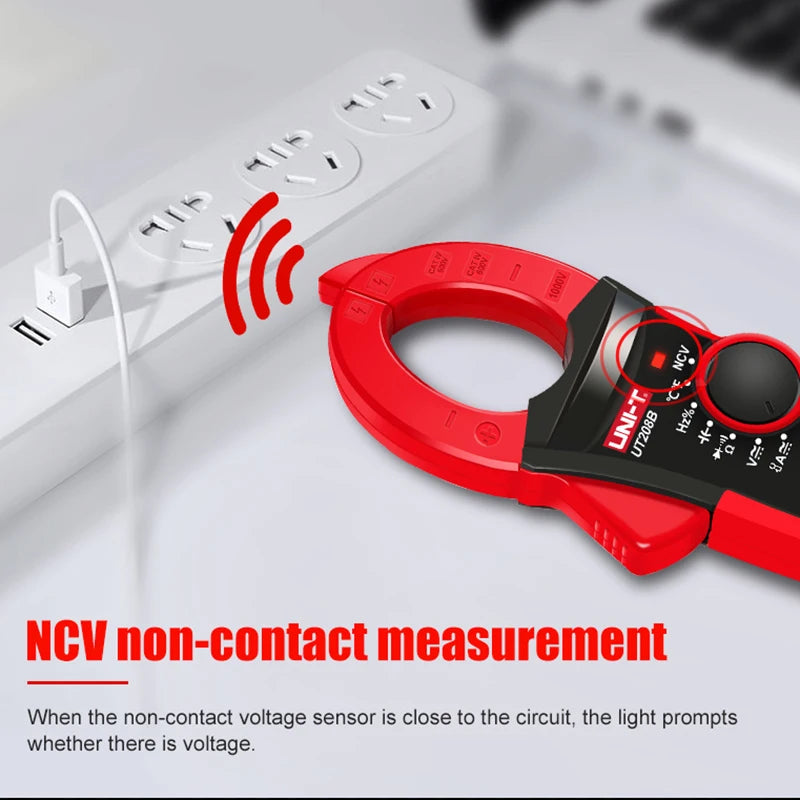

NCV(audible/visual alarm)
Data hold

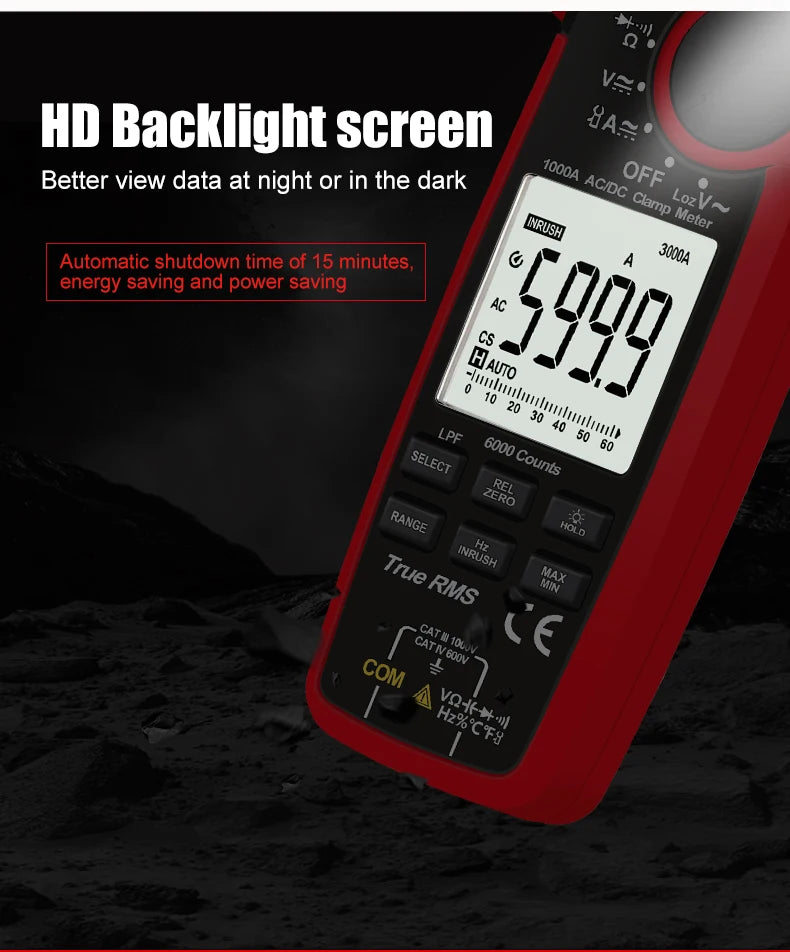

Backlight
MAX/MIN/relative mode
Diode/Continuity test
Inrush current(UT206B/UT207B/UT208B)
LPF ACV(UT206B/UT207B/UT208B)
LOZ ACV(UT206B/UT207B/UT208B)

Optional flex clamp (UT-CS09D) up to 3000A (UT206B/UT208B)

Note please ：the flex clamp need to be ordered , not included in standard accessories

Battery is not included

Parameter

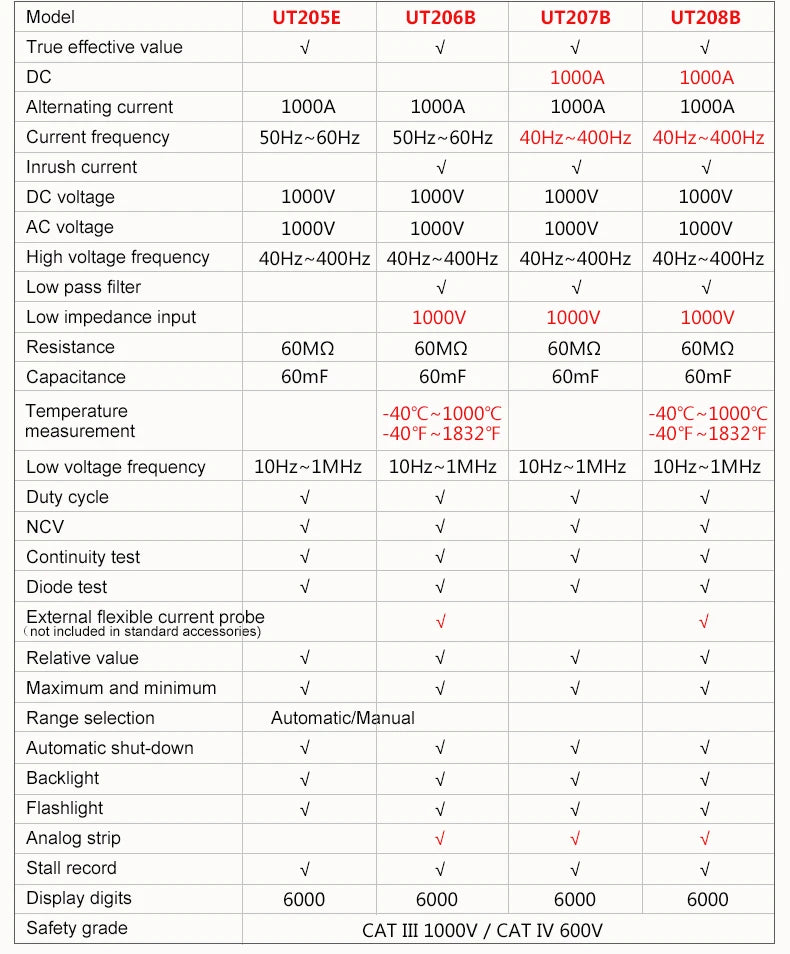

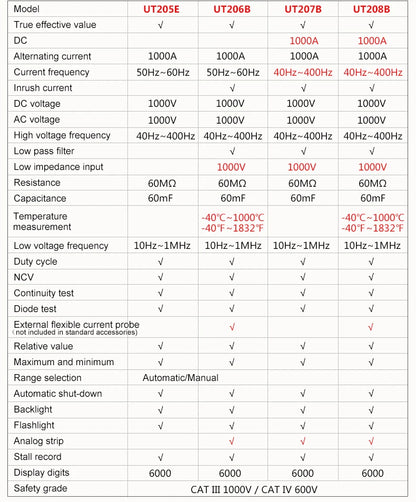

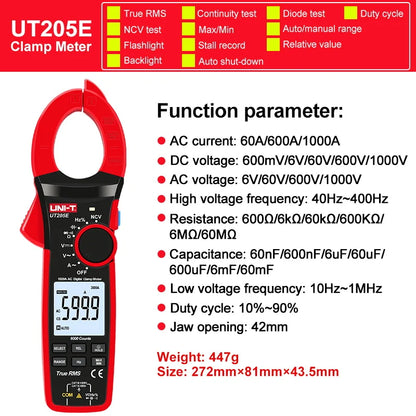

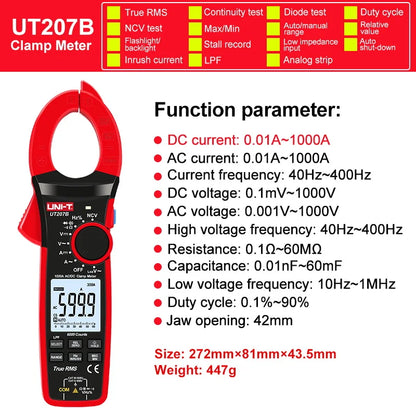

Specifications	Range	UT205E	UT206B	UT207B	UT208B
AC current (A)	1000A	±(2%+5)	±(2%+5)	±(2%+5)	±(2%+5)
DC current (A)	1000A			±(2%+5)	±(2%+5)
AC current frequency response		50Hz~60Hz	50Hz~60Hz	40Hz~400Hz	40Hz~400Hz
Inrush current (A)	1000A		±(10%+10)	±(10%+10)	±(10%+10)
AC voltage (V)	6V	±(1.2%+3)	±(1.2%+3)	±(1.2%+3)	±(1.2%+3)
AC voltage (V)	60V/600V/1000V	±(1%+8)	±(1%+8)	±(1%+8)	±(1%+8)
DC voltage (V)	600mV	±(0.8%+3)	±(0.8%+3)	±(0.8%+3)	±(0.8%+3)
	6V/60V	±(0.5%+5)	±(0.5%+5)	±(0.5%+5)	±(0.5%+5)
	600V	±(0.5%+5)	±(0.5%+5)	±(0.5%+5)	±(0.5%+5)
	1000V	±(0.5%+5)	±(0.5%+5)	±(0.5%+5)	±(0.5%+5)
Low pas ﬁlter (LPF ACV)	600V/1000V		±(2%+5)	±(2%+5)	±(2%+5)
AC voltage frequency response		40Hz~400Hz	40Hz~400Hz	40Hz~400Hz	40Hz~400Hz
LoZ ACV	600V/1000V		±(2%+5)	±(2%+5)	±(2%+5)
Resistance (Ω)	600Ω	±(1%+3)	±(1%+3)	±(1%+3)	±(1%+3)
	6KΩ/60KΩ/600KΩ	±(1%+2)	±(1%+2)	±(1%+2)	±(1%+2)
	6MΩ/60MΩ	±(2%+8)	±(2%+8)	±(2%+8)	±(2%+8)
Capacitance (F)	60nF	±(4%+25)	±(4%+25)	±(4%+25)	±(4%+25)
	600nF/6μF/60μF/600μF	±(4%+5)	±(4%+5)	±(4%+5)	±(4%+5)
	6mF/60mF	±(10%+9)	±(10%+9)	±(10%+9)	±(10%+9)
Temperature (℃)	-40℃~300℃		±(1%+20)		±(1%+20)
Temperature (℃)	300℃~1000℃		±(1%+2)		±(1%+2)
Low voltage frequency (Hz)	10Hz~1MHz	±(0.1%+3)	±(0.1%+3)	±(0.1%+3)	±(0.1%+3)
Duty cycle (%)	10%~90%	±(2.6%+7)	±(2.6%+7)	±(2.6%+7)	±(2.6%+7)
Features
Display count		6000	6000	6000	6000
Jaw opening		42mm	42mm	42mm	42mm
Current frequency		50Hz~60Hz	50Hz~60Hz	50Hz~60Hz	50Hz~60Hz
High voltage frequency		40Hz~400Hz	40Hz~400Hz	40Hz~400Hz	40Hz~400Hz
Analog bar			31	31	31
Auto power oﬀ		√	√	√	√
Continuity test		√	√	√	√
Auto/Manual range		√	√	√	√
Low battery indication		√	√	√	√
Diode test		√	√	√	√
Relative mode/Data hold		√	√	√	√
MAX/MIN		√	√	√	√
Function selection		√	√	√	√
Flashlight		√	√	√	√
Wake-up function		√	√	√	√
Auto power oﬀ current: ＜50μA		√	√	√	√
Flexible current probe (optional)	Extends to 3000A		√		√
Zero mode				√	√
Input impedance (ACV/DCV)	≥10MΩ	√	√	√	√
General Characteristics
Power	1.5V battery (R03) x 3 (NOT INCLUDED)
Display	43mm x 45mm
Product color	Red and grey
Product net weight	UT205E/UT206B: 465g; UT207B/UT208B: 420g
Product size	272mm x 81mm x 43.5mm

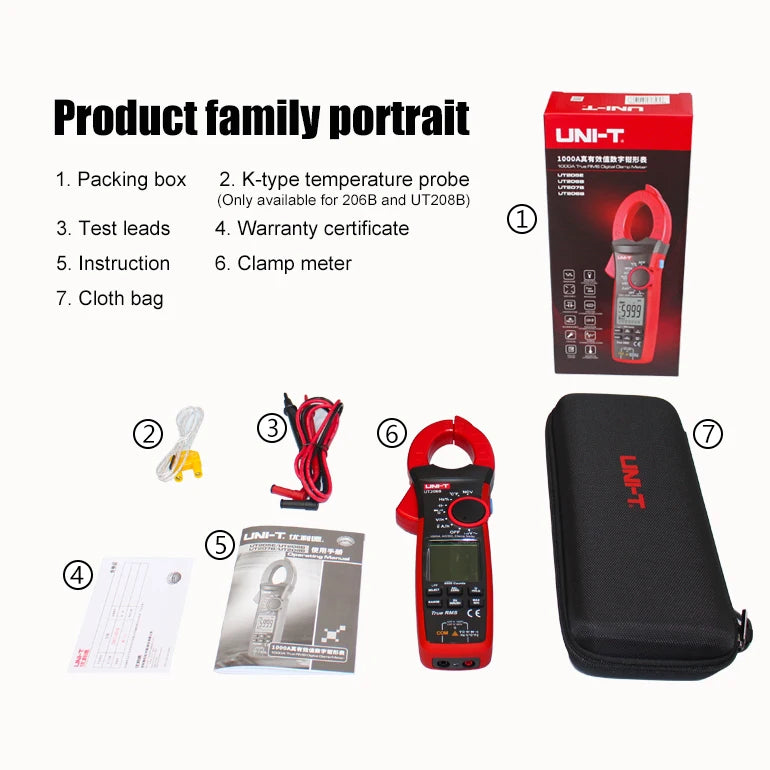

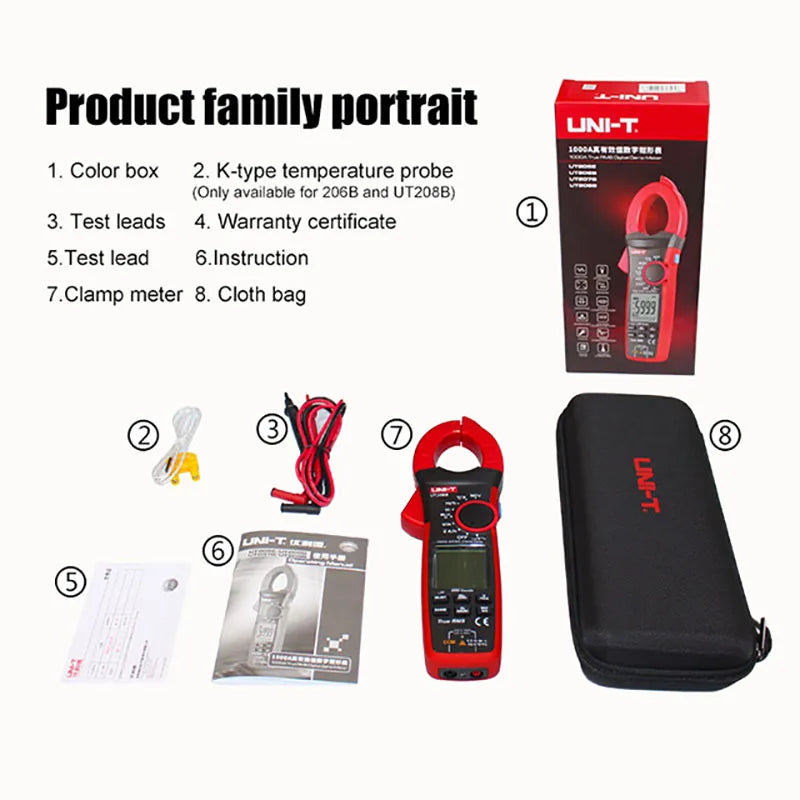

Standard accessories	Test leads, batteries, point contact temperature probe (UT206B/UT208B)
Standard individual packing	Gift box, carrying bag, English manual
