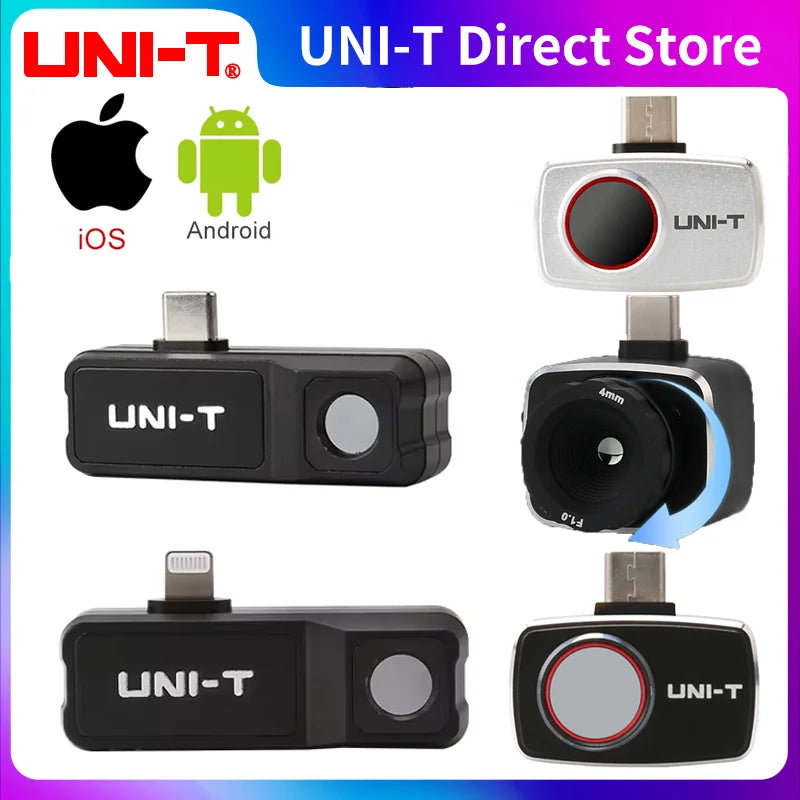

Termógrafo Infrarrojo Móvil UNI-T UTi120 / UTi261M USB para Celular - Cámara Térmica Reparación (Versión Rusa Handle)
Termógrafo Infrarrojo Móvil UNI-T UTi120 / UTi261M USB para Celular - Cámara Térmica Reparación (Versión Rusa Handle)
No se pudo cargar la disponibilidad de retiro

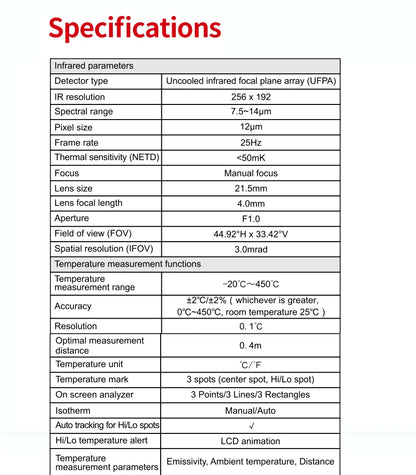

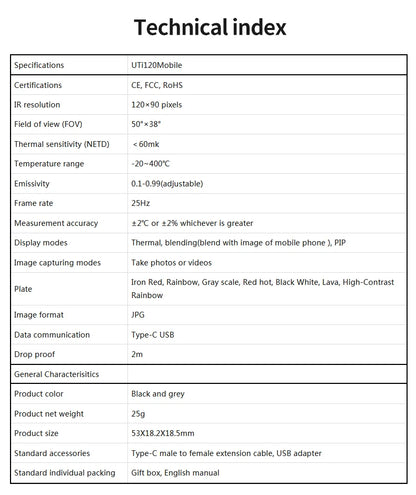

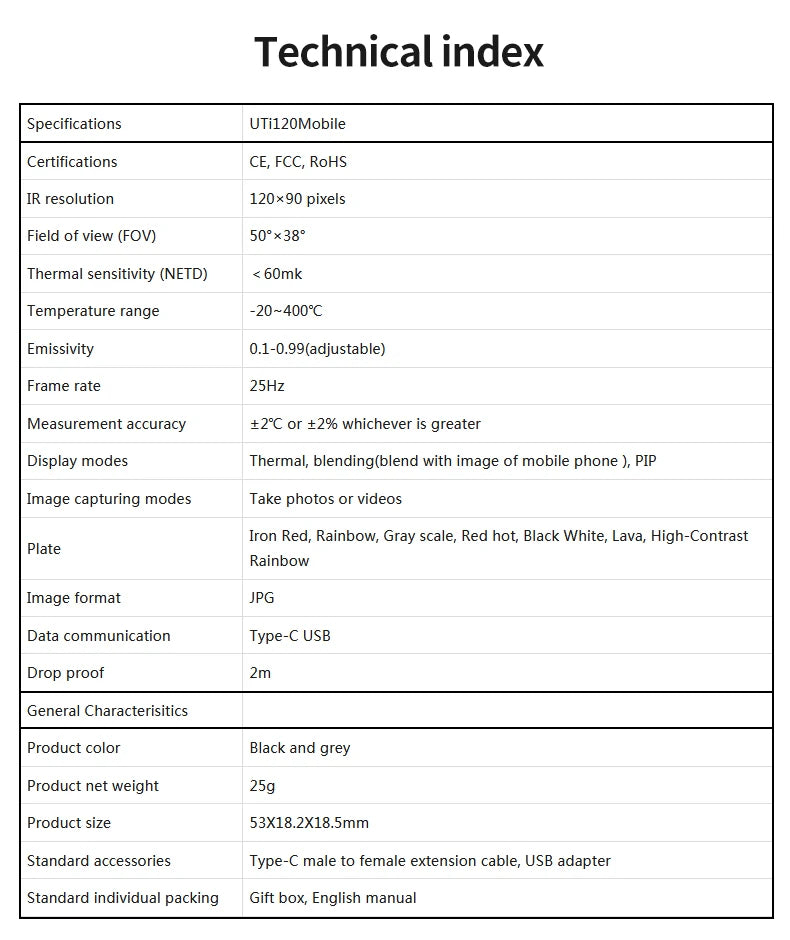

SPECIFICATIONS
Brand Name: UNI-T
Certification: CE,FCC,RoHS
Data communication: Type-C USB,Type-C USB
Display Size: 1.9 Inches & Under

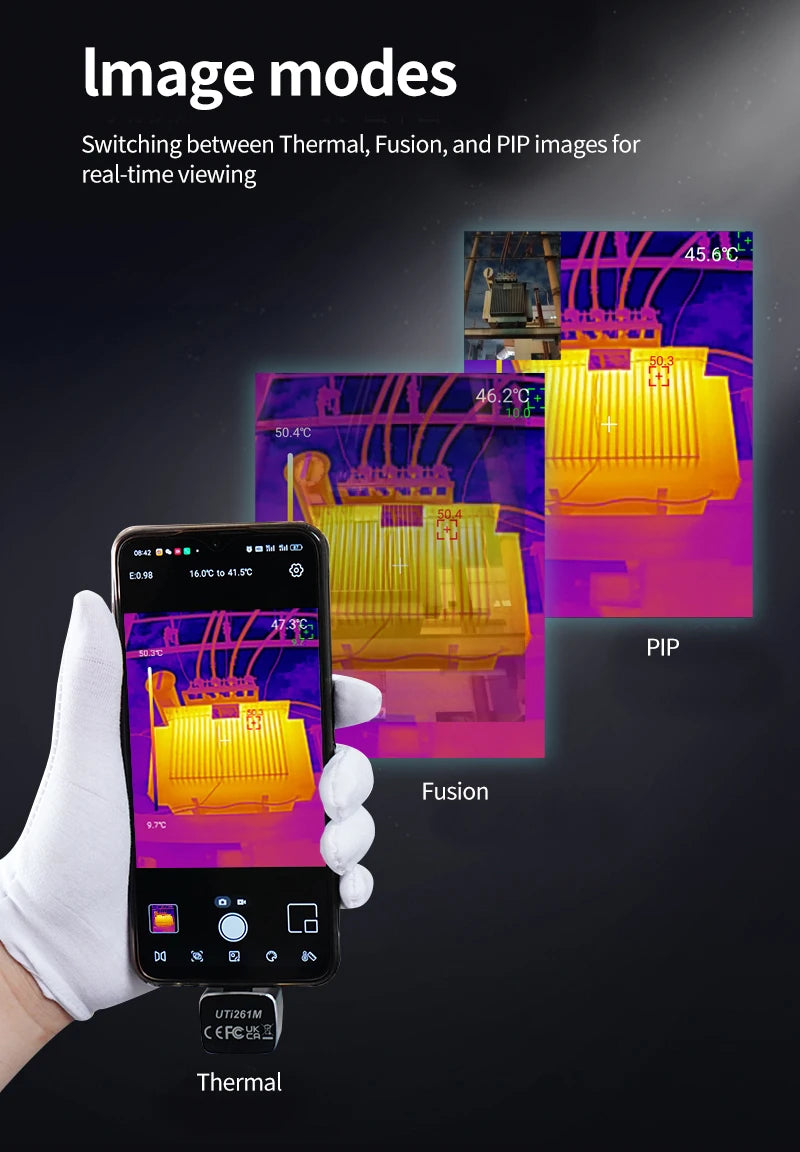

Display modes: Thermal, blending(blend with image of mobile phone ), PIP
Drop proof: 2m

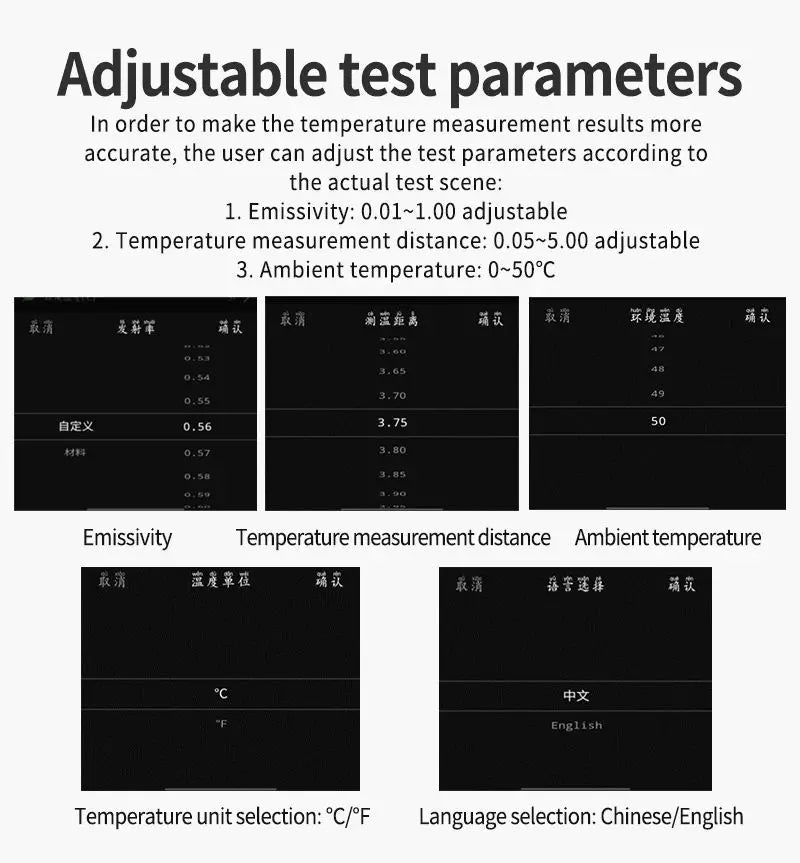

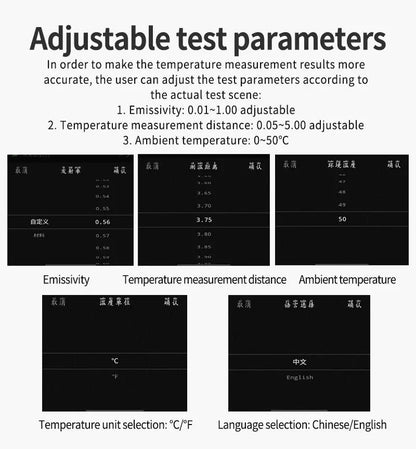

Emissivity: 0.1-0.99(adjustable)
Field of view (FOV): 50 x 38
Frame rate: 25Hz
Hign-concerned Chemical: None
Image capturing modes: Take photos or videos
Image format: JPG
Is Smart Device: YES

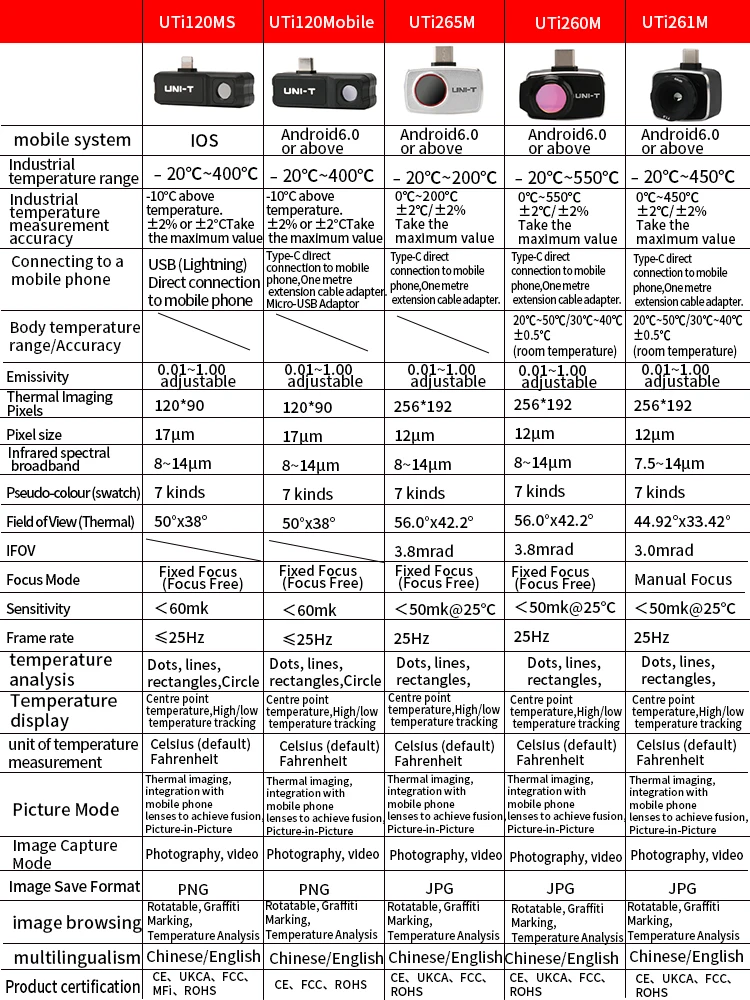

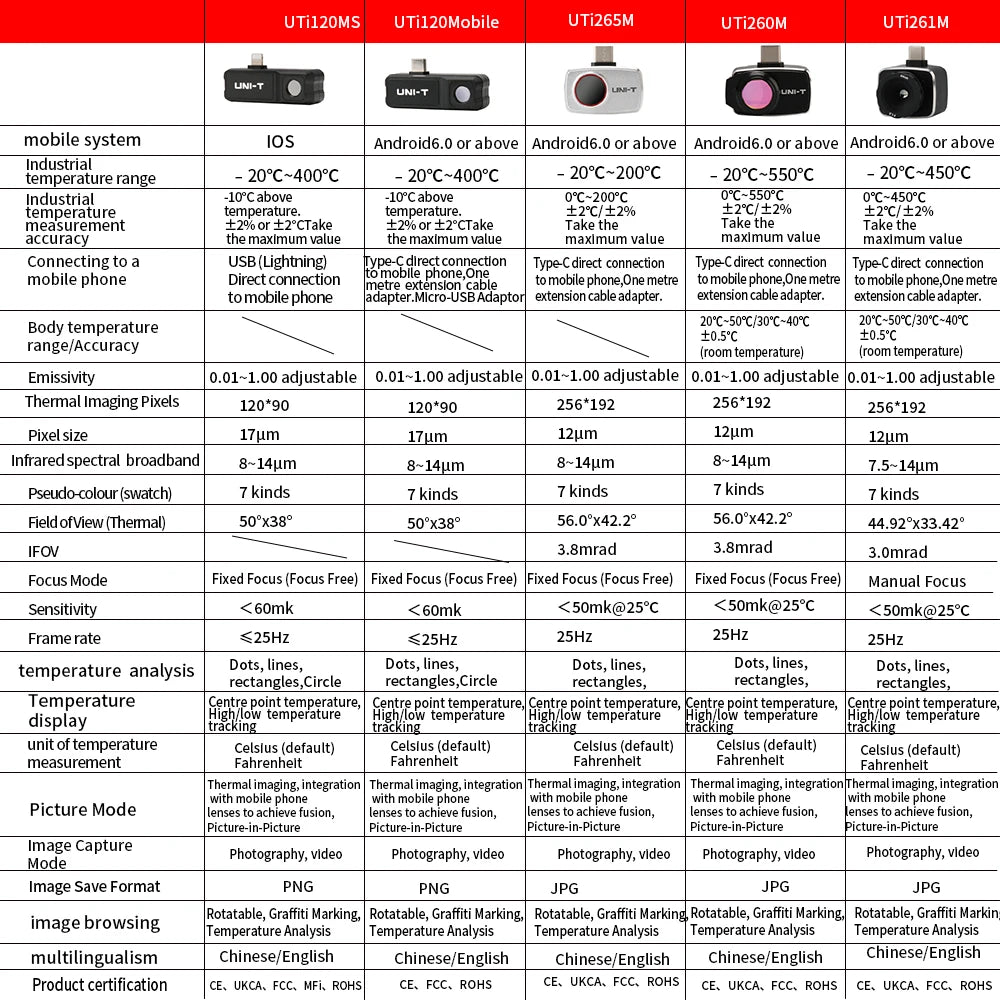

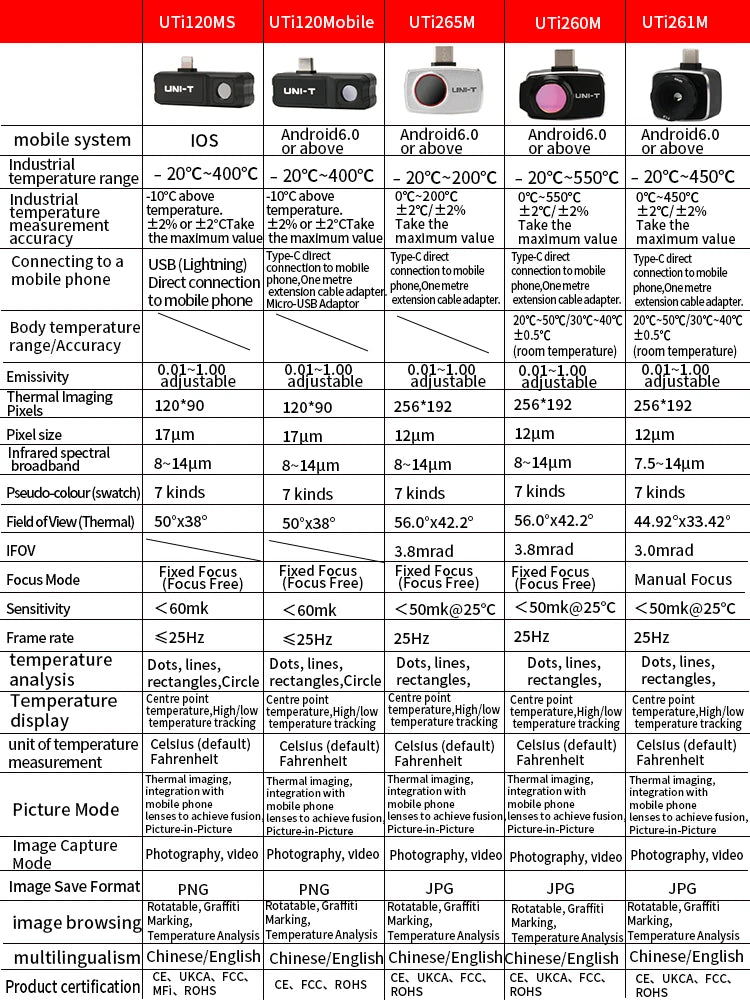

MODEL 1: UTI120MS IOS
MODEL 2: UTI120Mobile Android
MODEL 3: UTI1256M Android
MODEL 4: UTI260M Android
MODEL 5: UTI261M Android
Measurement accuracy: ±2℃ or ±2% whichever is greater
Origin: Mainland China
Plate: Iron Red, Rainbow, Gray scale, Red hot, Black White, Lava, High-Contrast Rainbow
Power Type: button battery
Product color: Black and grey
Product net weight: 25g
Product size: 53X18.2X18.5mm

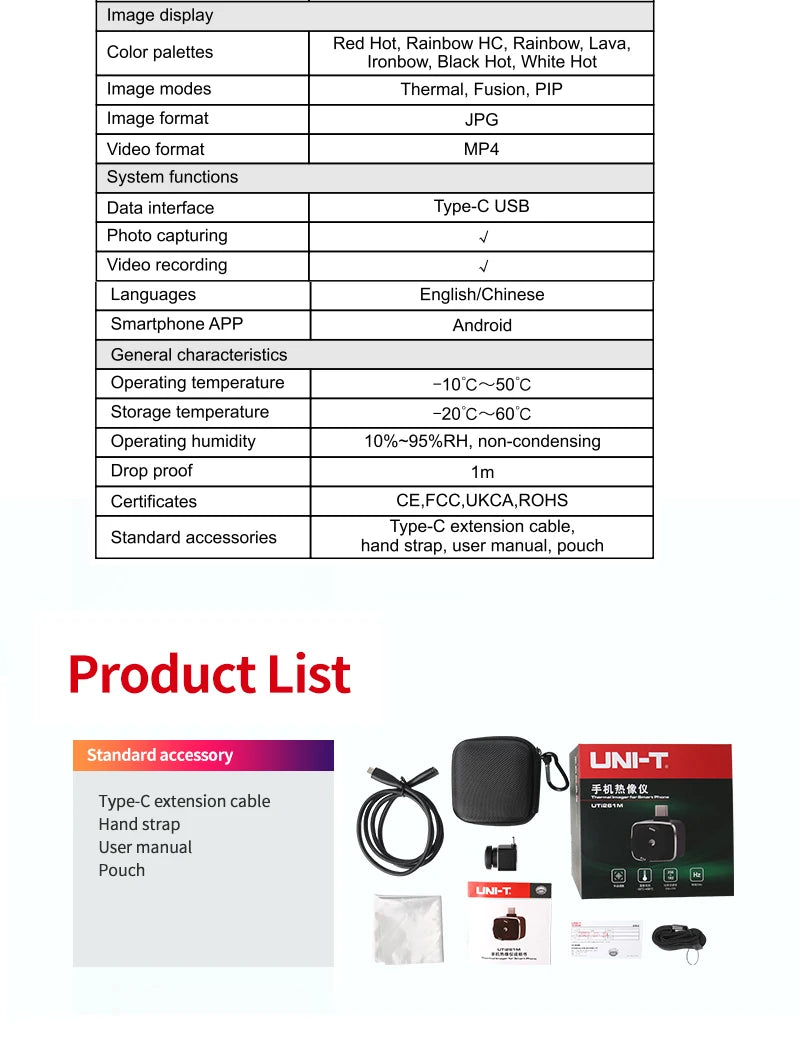

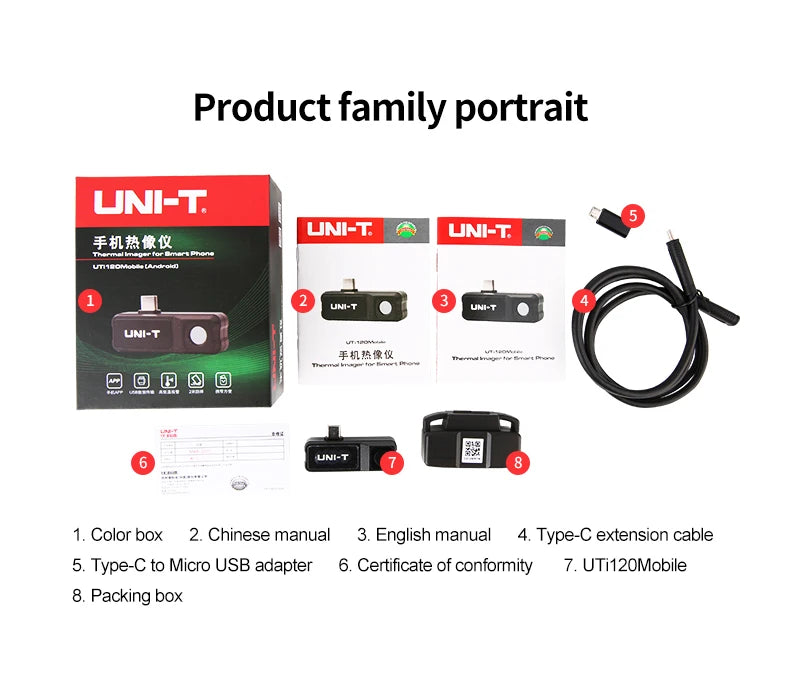

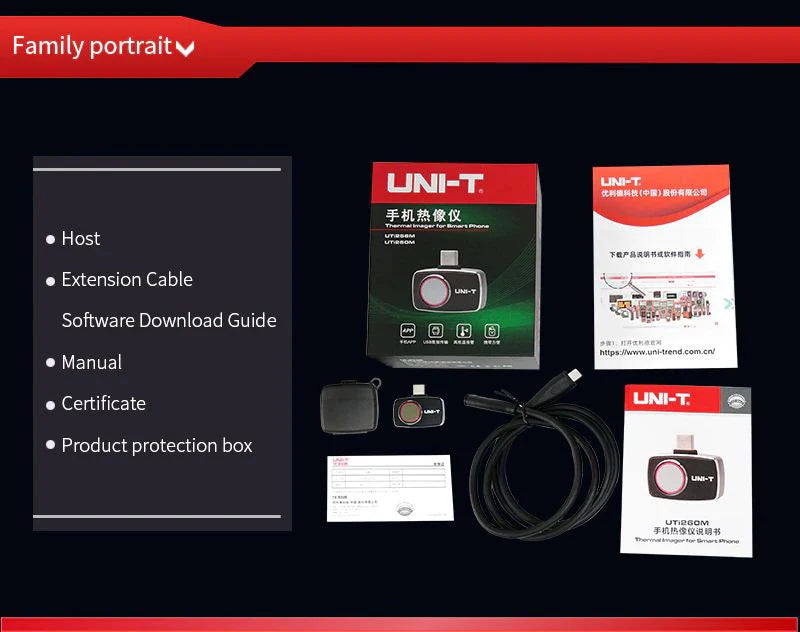

Standard accessories: Type-C male to female extension cable, USB adapter
Style: Handheld
Temperature range: -20~400℃
Thermal sensitivity (NETD): <60mk
thermal camera: YES
thermal camera for phone: thermographic camera
thermal imaging camera module: Industrial thermal imager

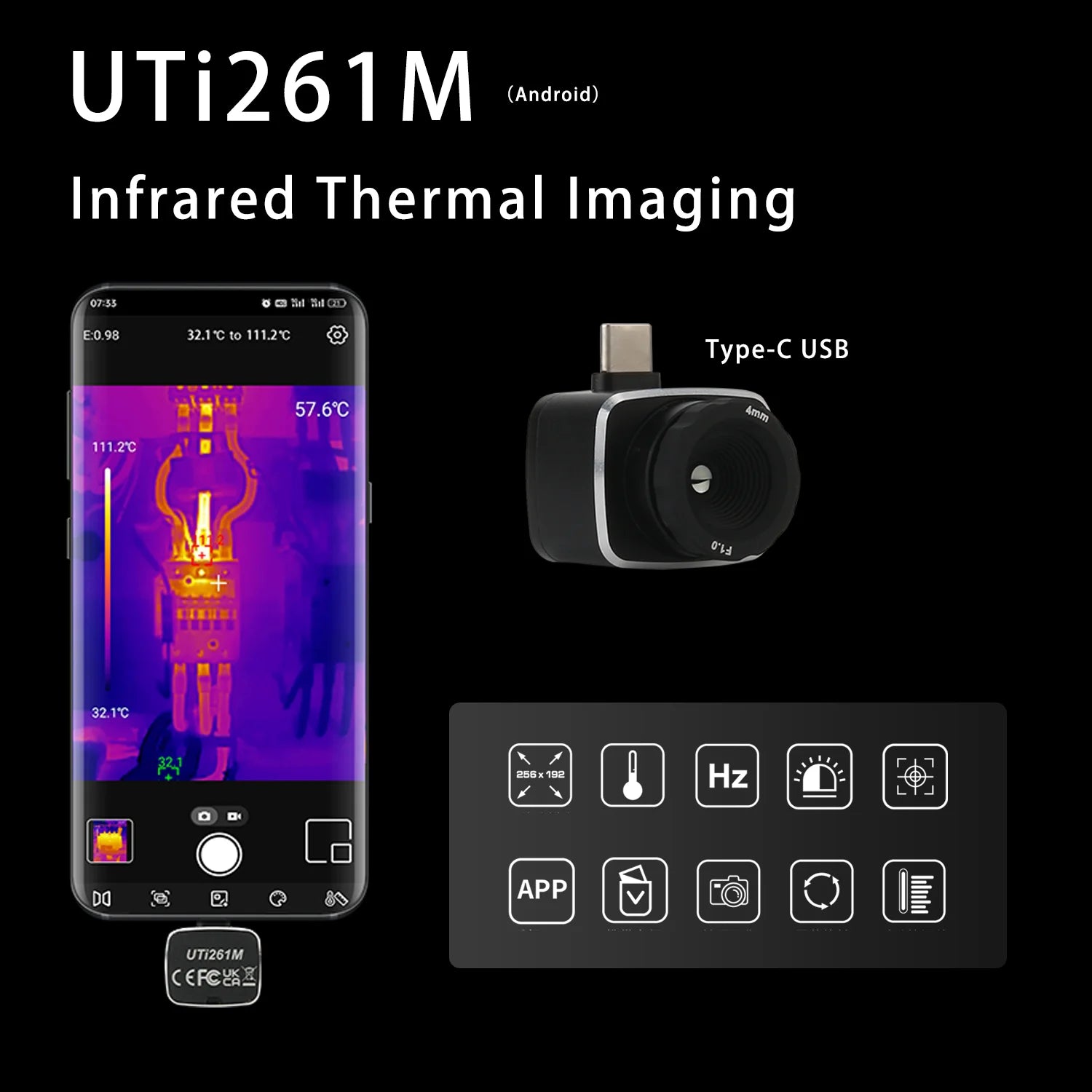

UNI-T UTi261M Thermal Imager Infrared Module Thermographic Camera Android Mobile Phone Type C Thermal Imaging Camera

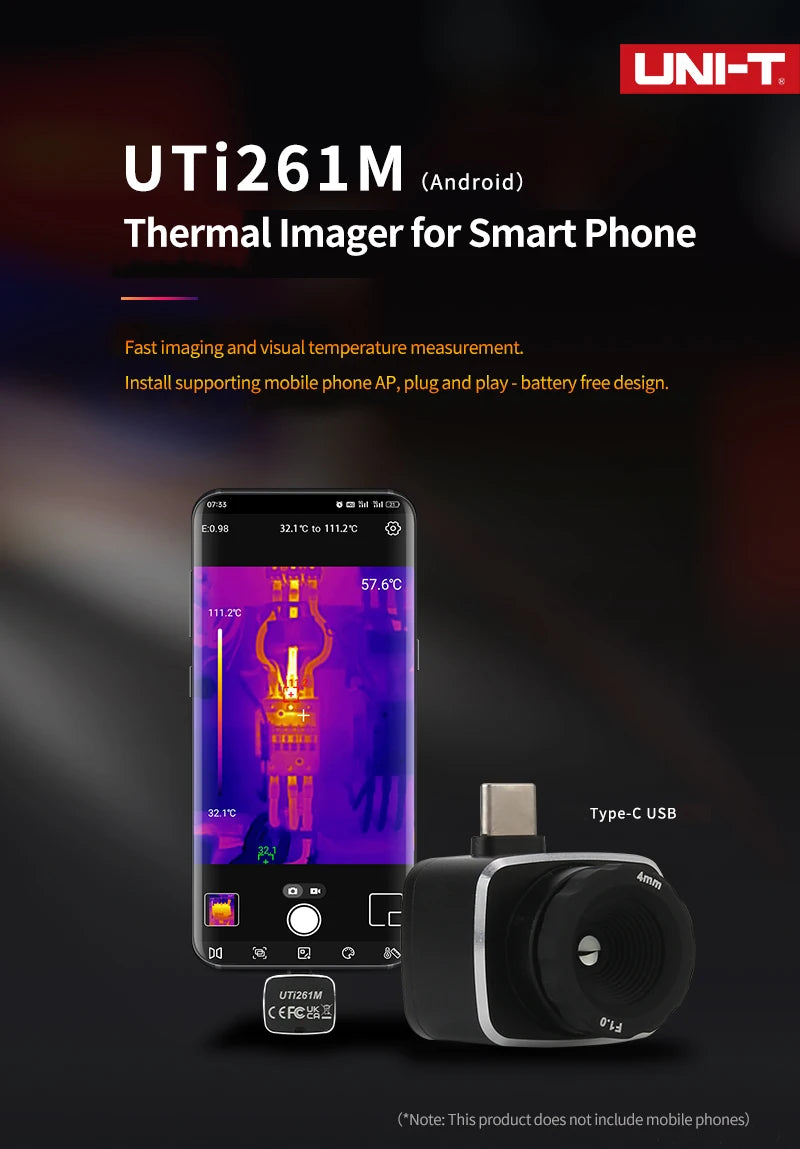

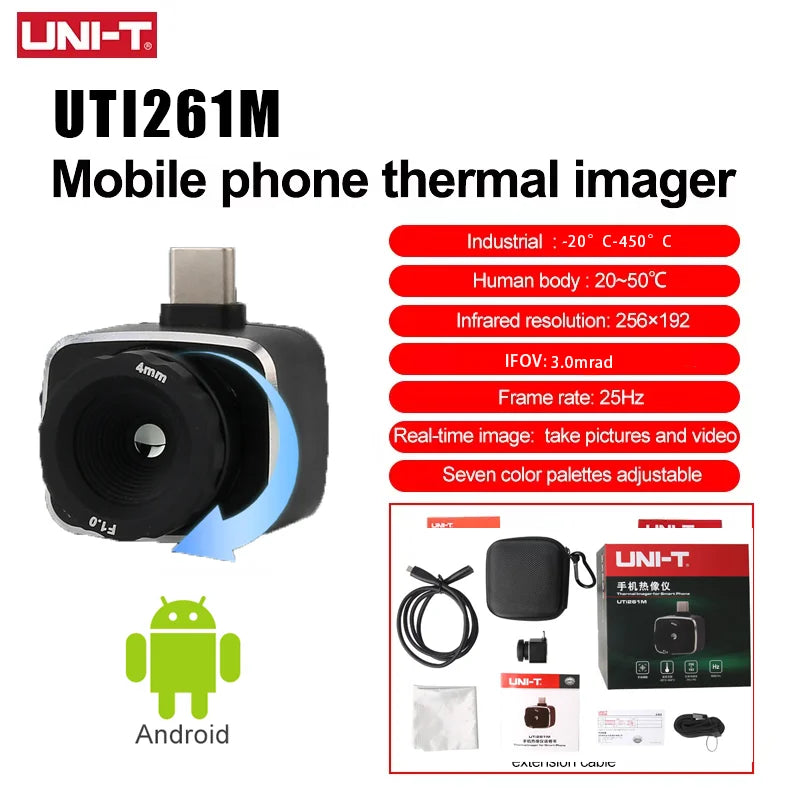

UTi261M Mobile Thermal Imager (New Arrivals)
The UTi261M infrared thermal imager can be used in conjunction with mobile phones for infrared thermal imaging temperature measurement. It is compact, portable, and easy to operate. two hundred and fifty-six × 192 pixels, delicate image quality for physical examination. The manual focusing function allows for clearer details on top of excellent imaging. 25Hz frame rate, smooth video without lag, allowing you to quickly and conveniently discover hidden problems- A wide range of 20-450 ℃, covering a wide range of applications, and can also achieve real-time temperature measurement, night vision, photography, video recording and other functions through mobile apps. It is a versatile assistant for your daily work, home life, and adventure travel.

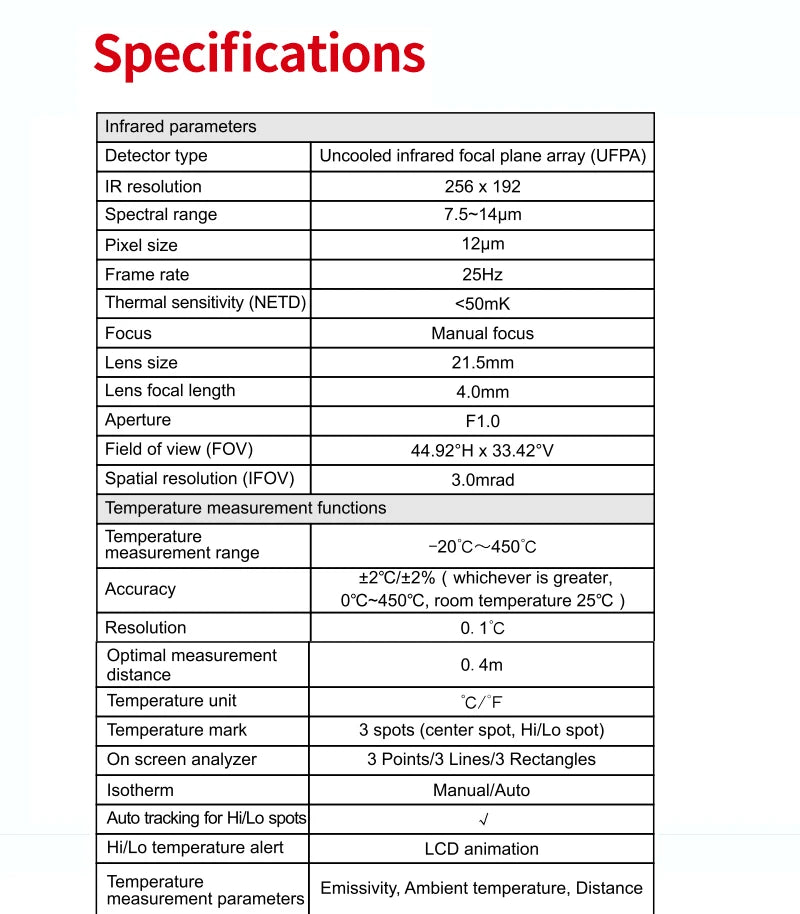

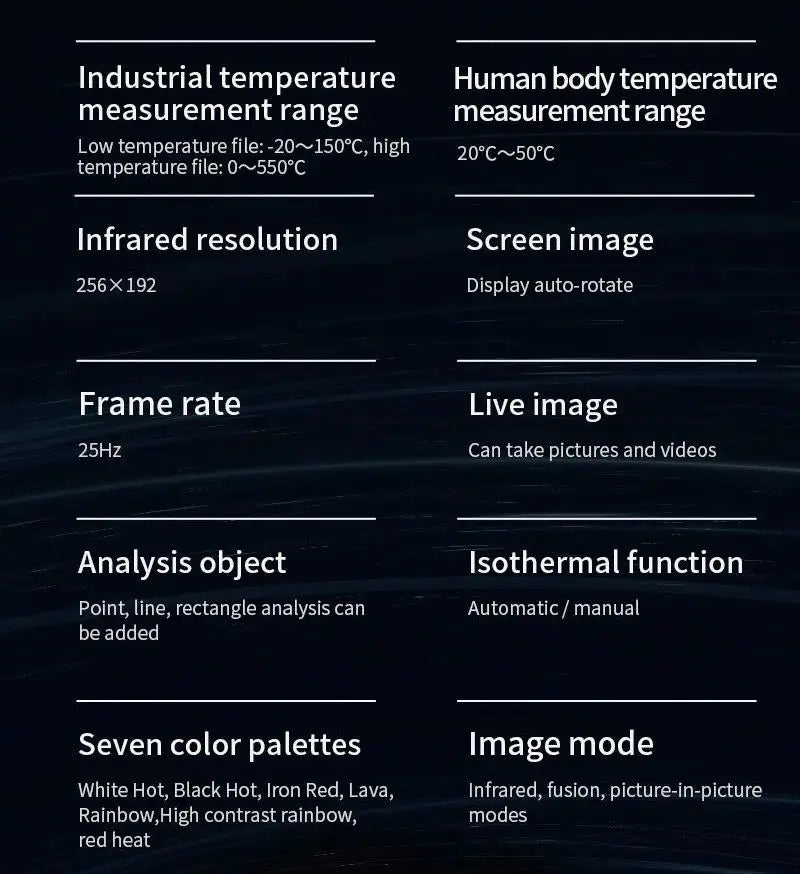

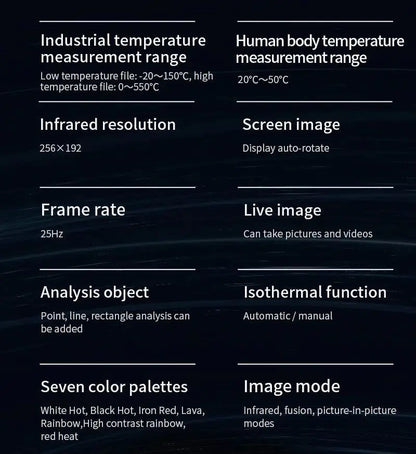

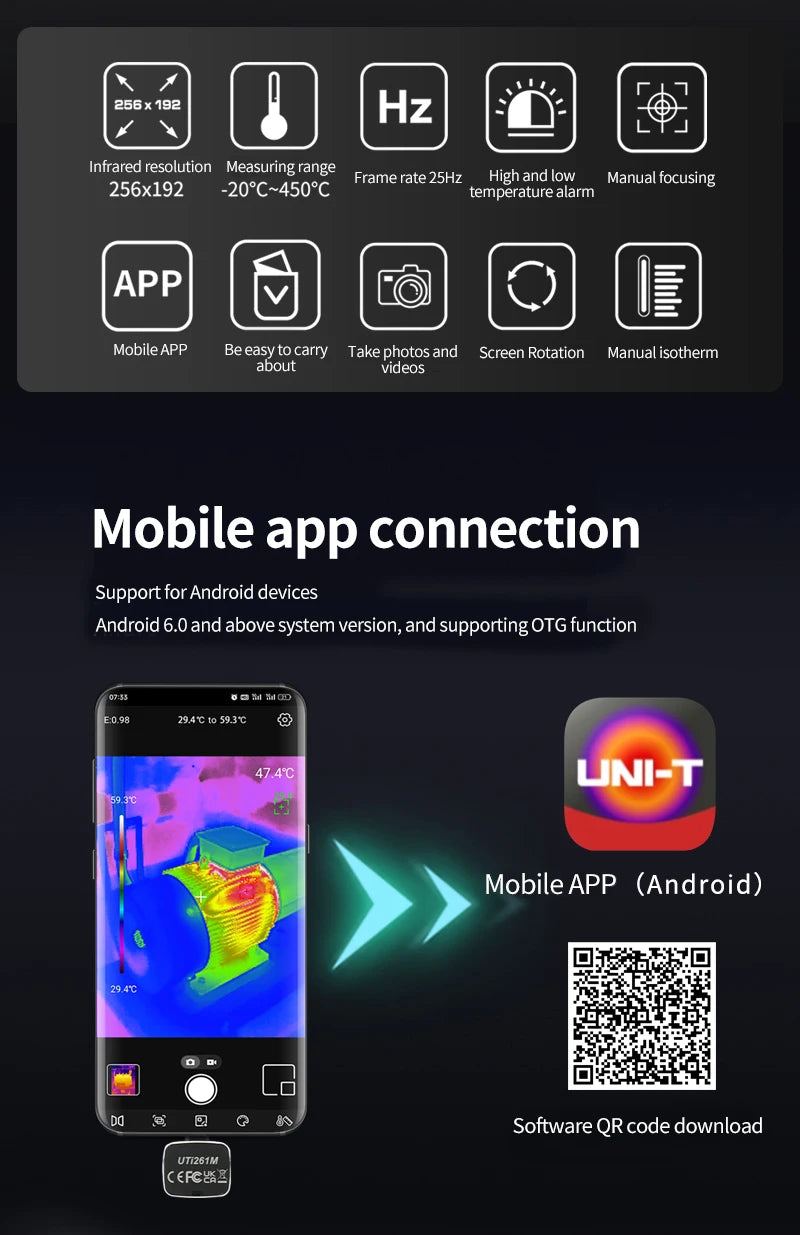

Main Features of UTi261M Product
* Industrial temperature measurement range: -20 ℃~450 ℃
* Body temperature screening mode: 20 ℃~50 ℃
* Infrared resolution: 256x192

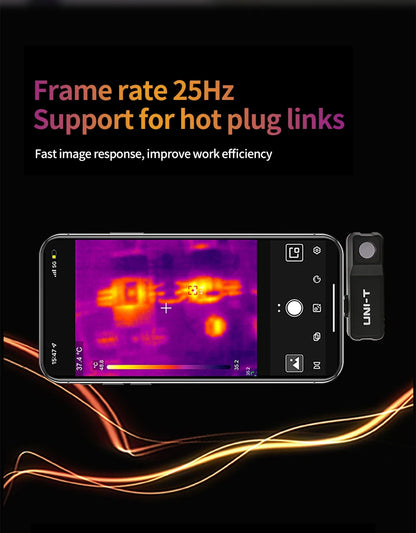

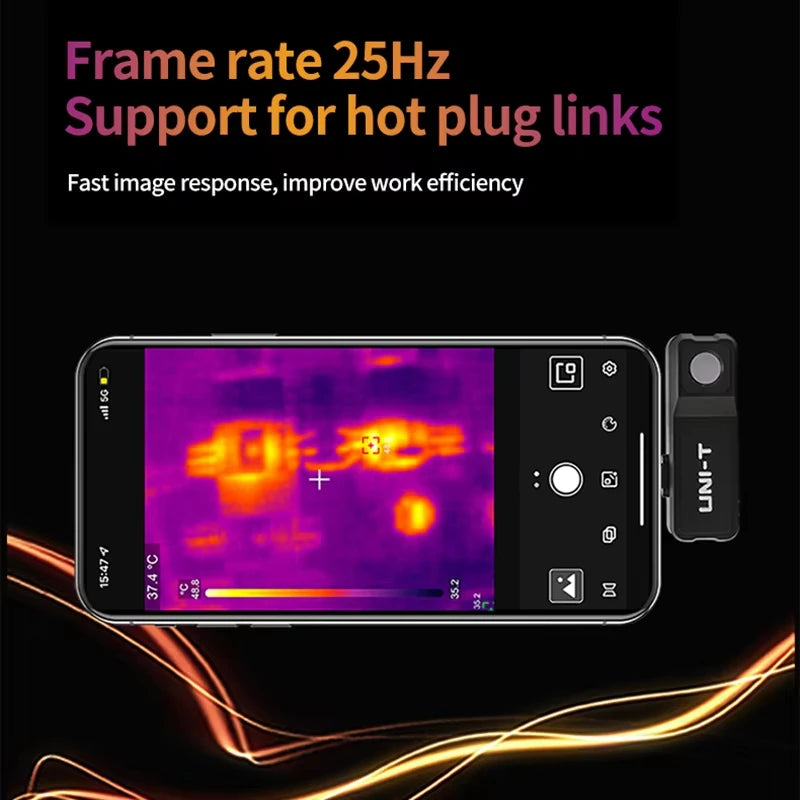

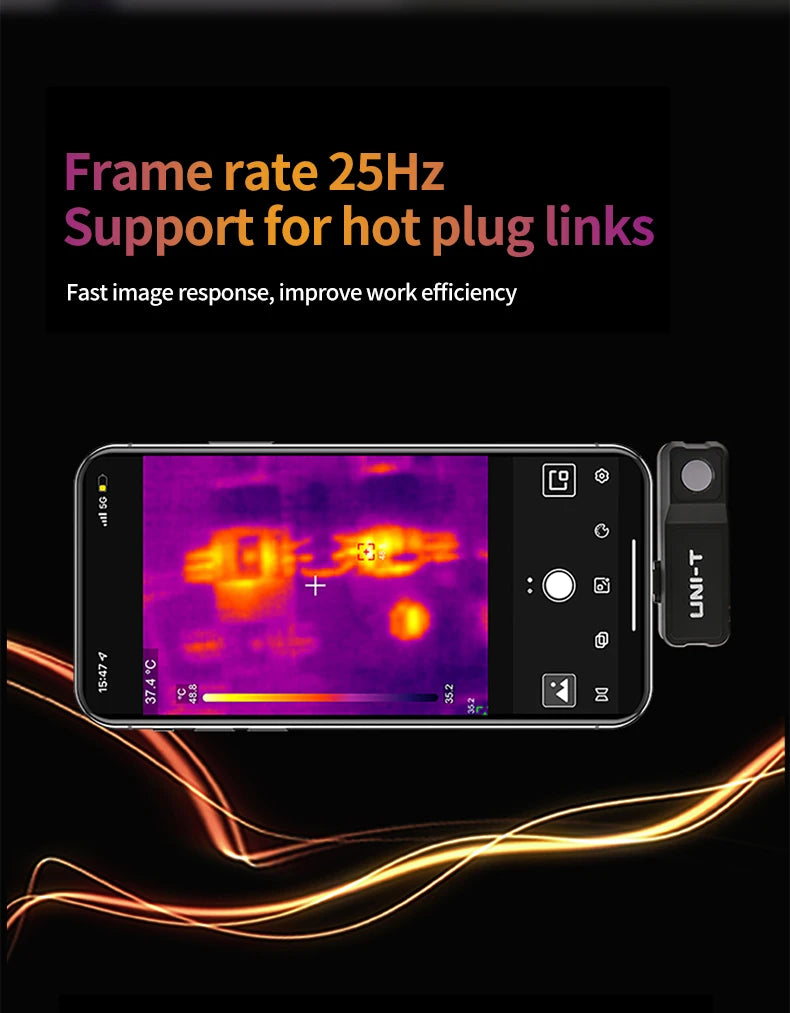

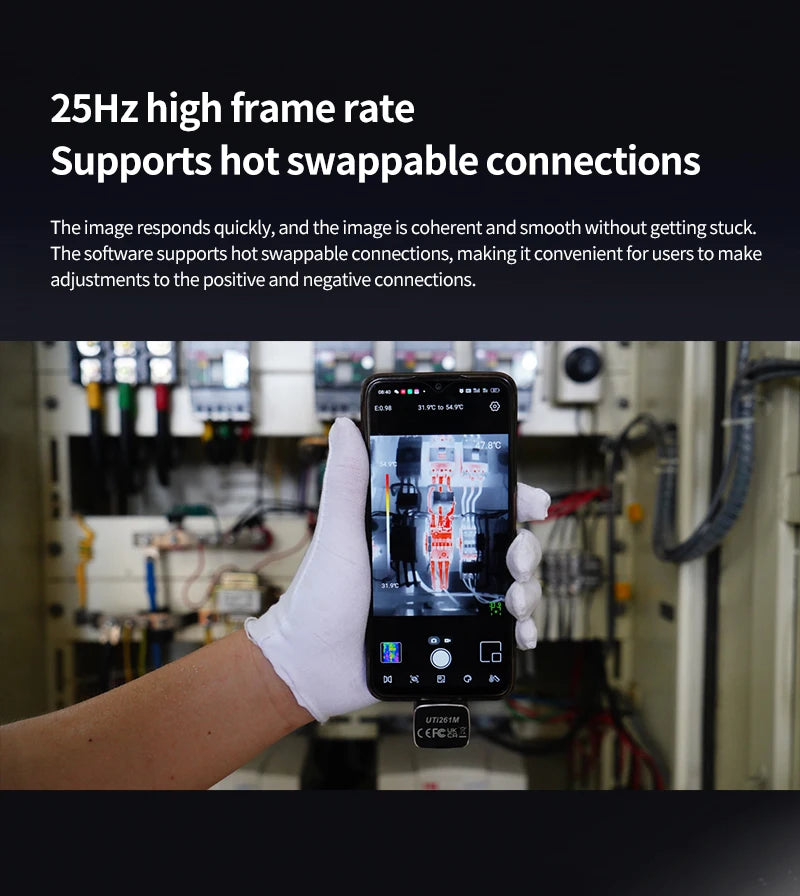

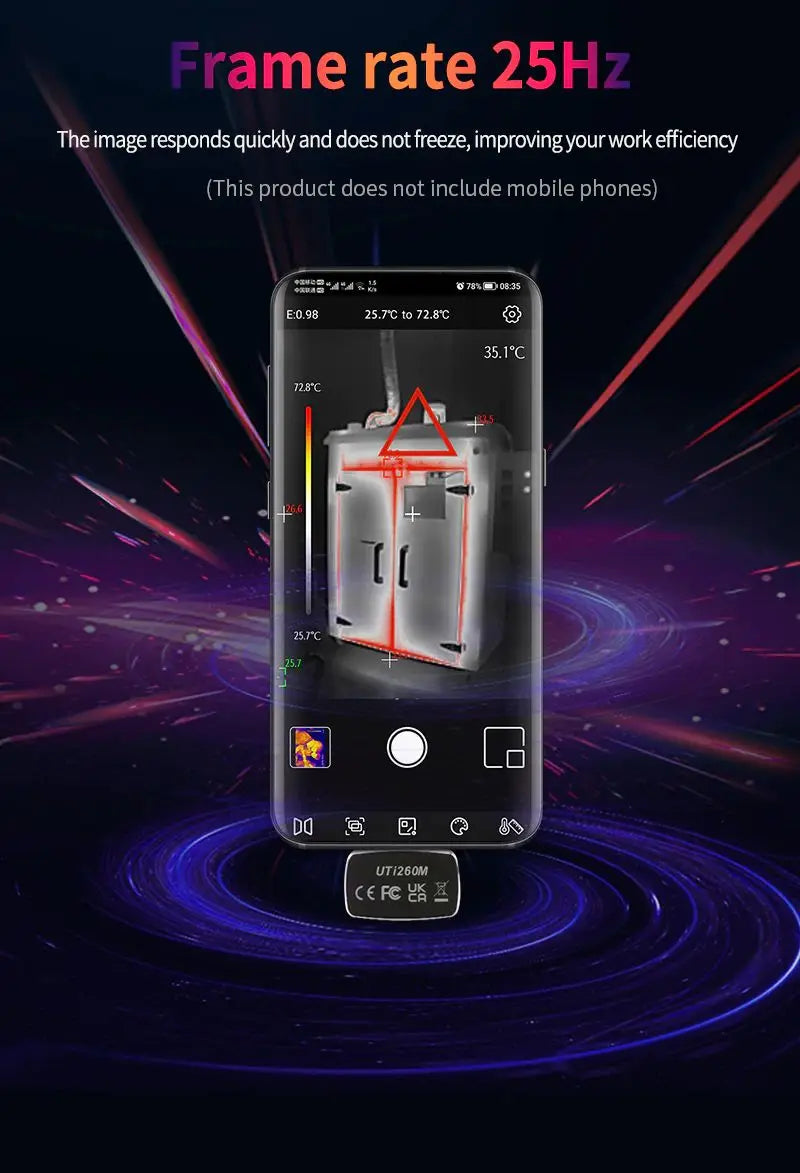

* Frame rate: 25Hz

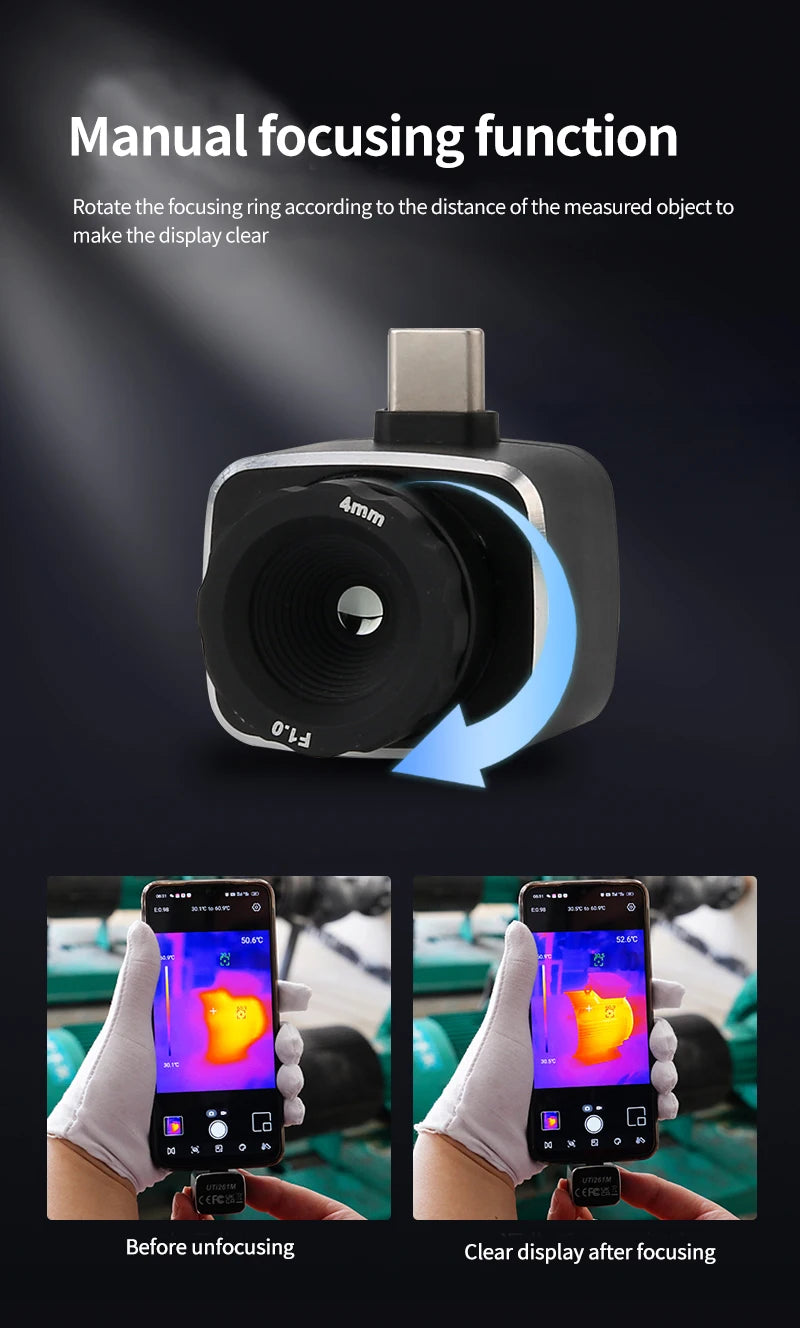

* Manual focusing

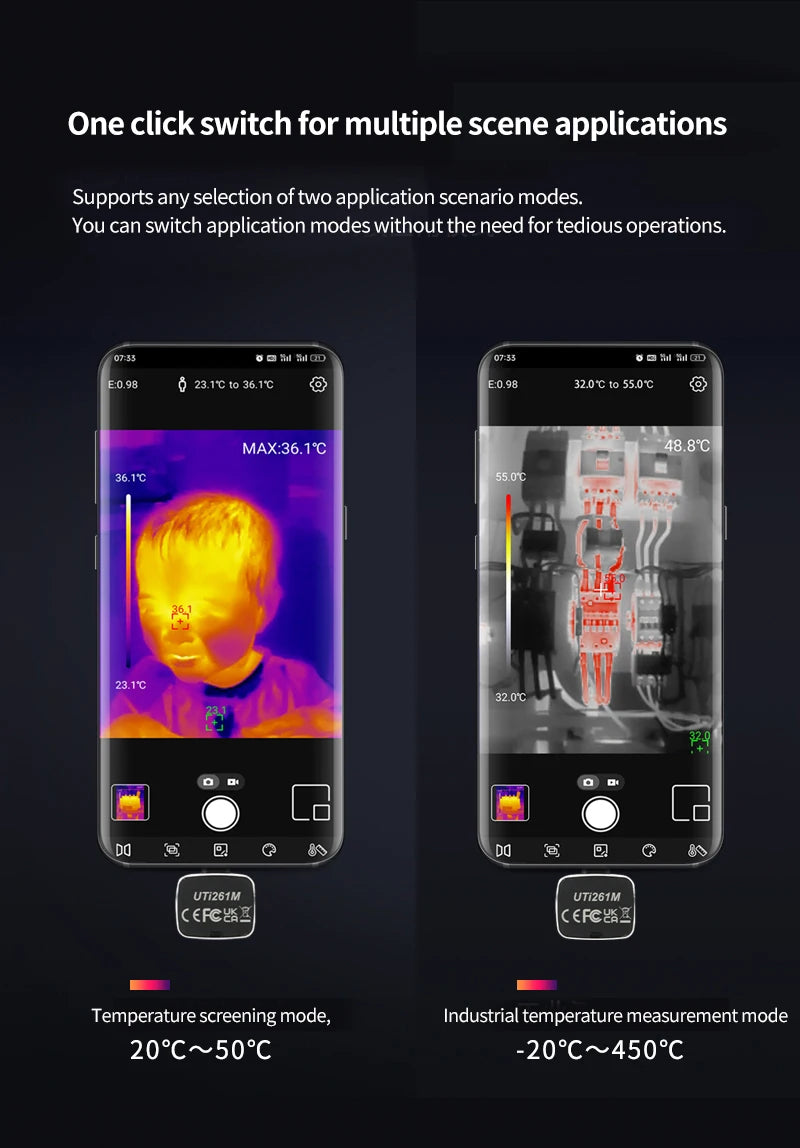

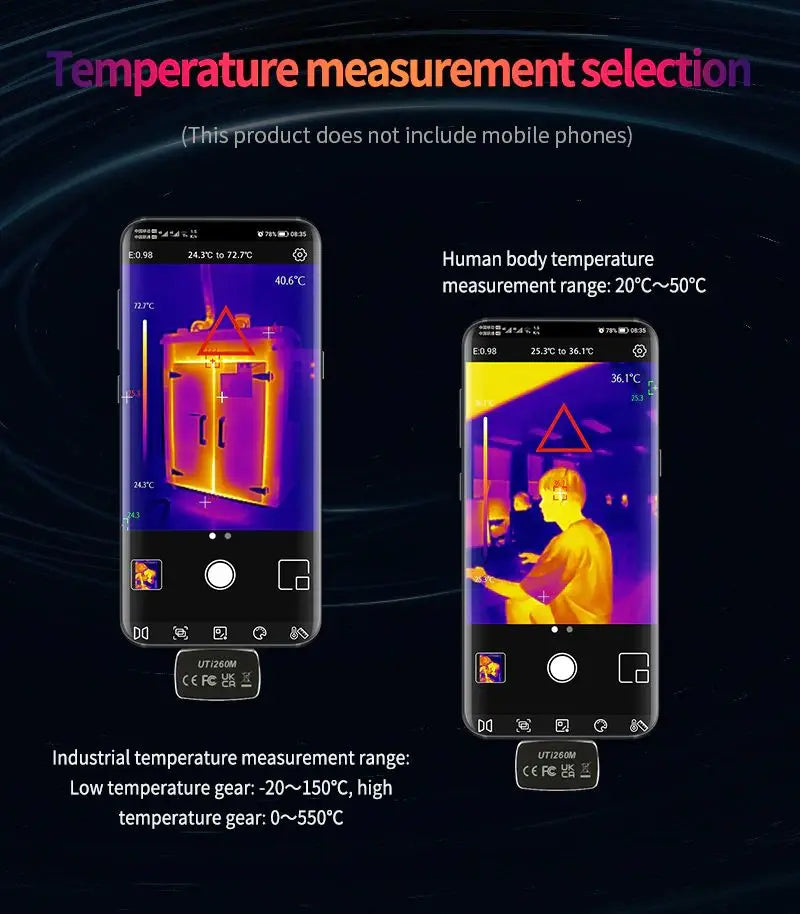

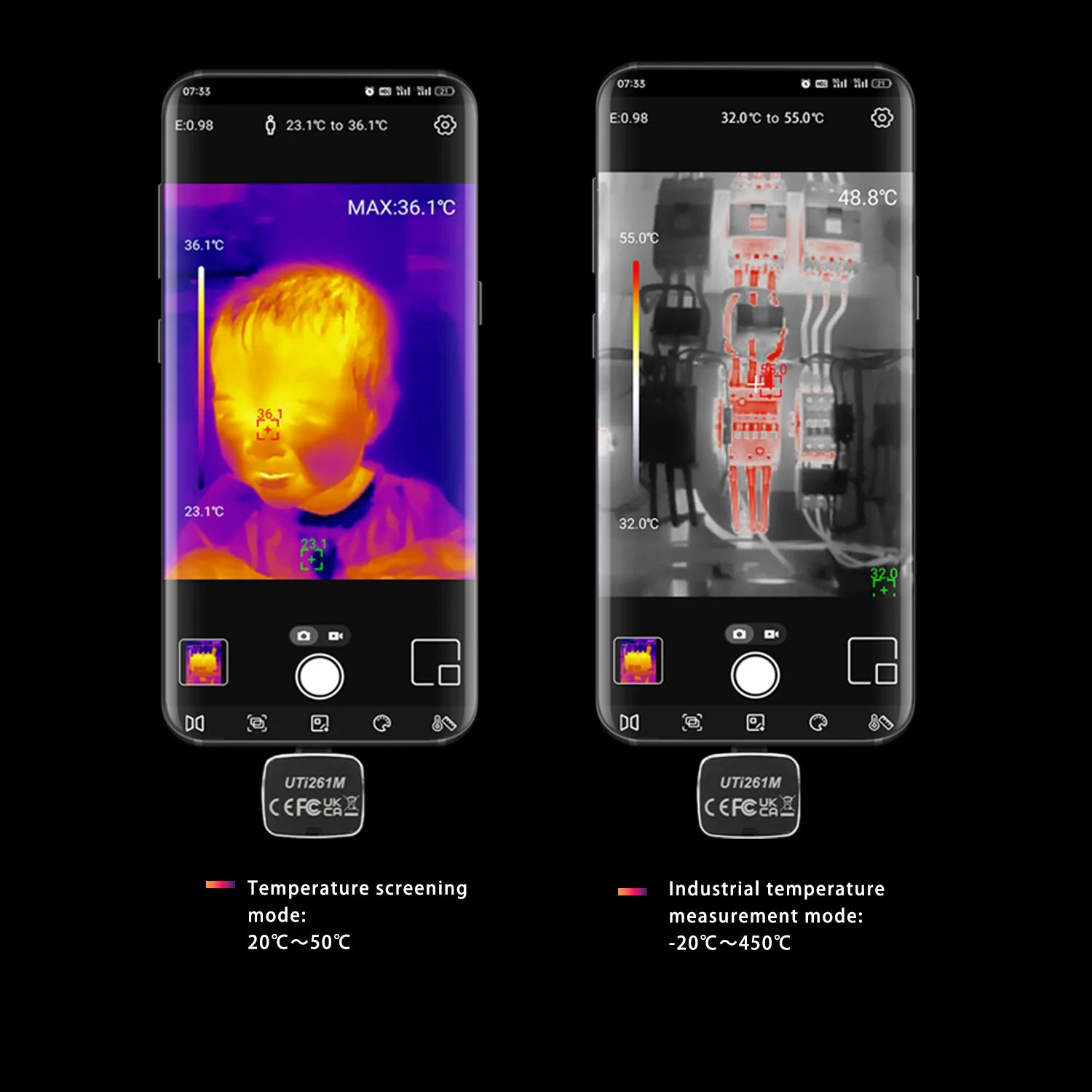

* Temperature measurement mode selection: industrial temperature measurement and body temperature screening mode

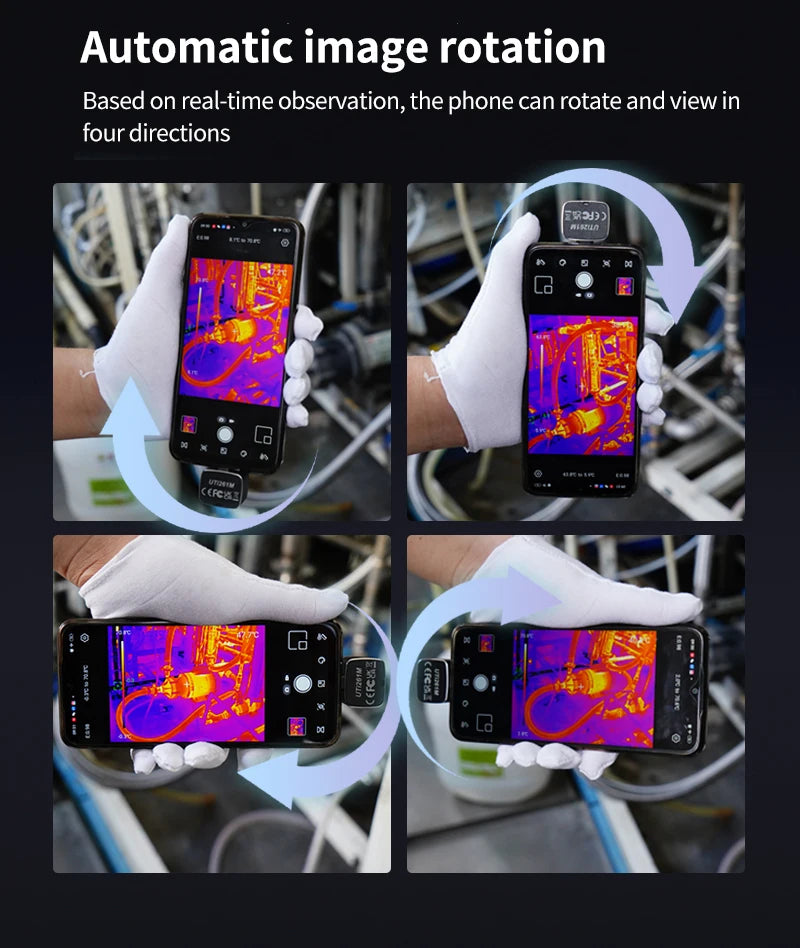

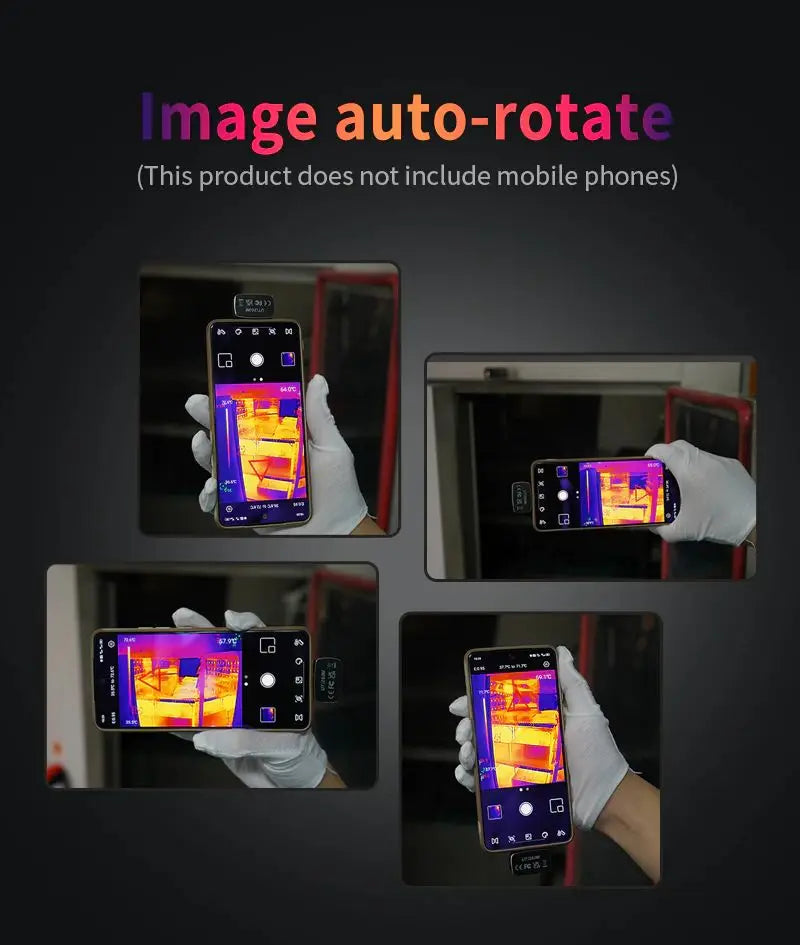

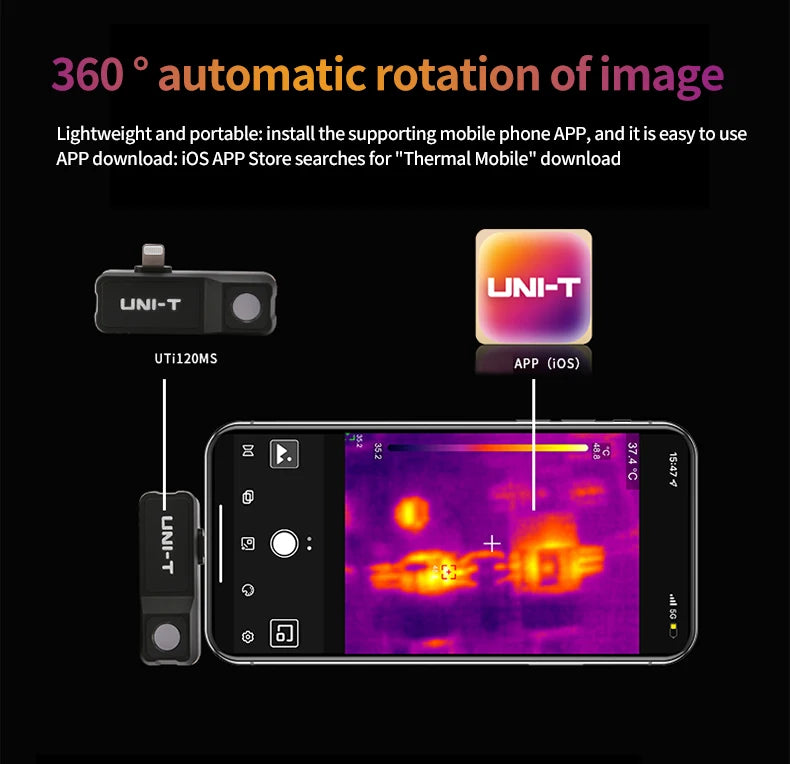

* Automatic rotation of screen image display

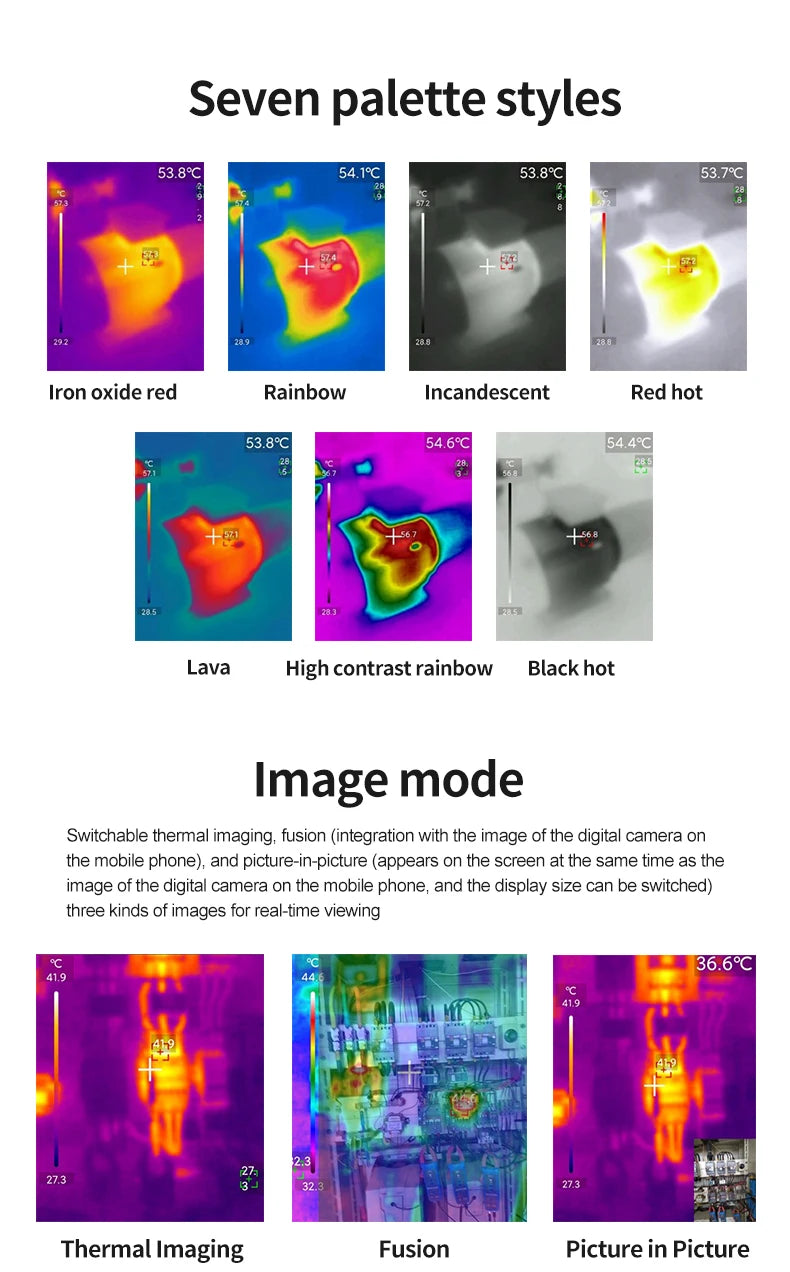

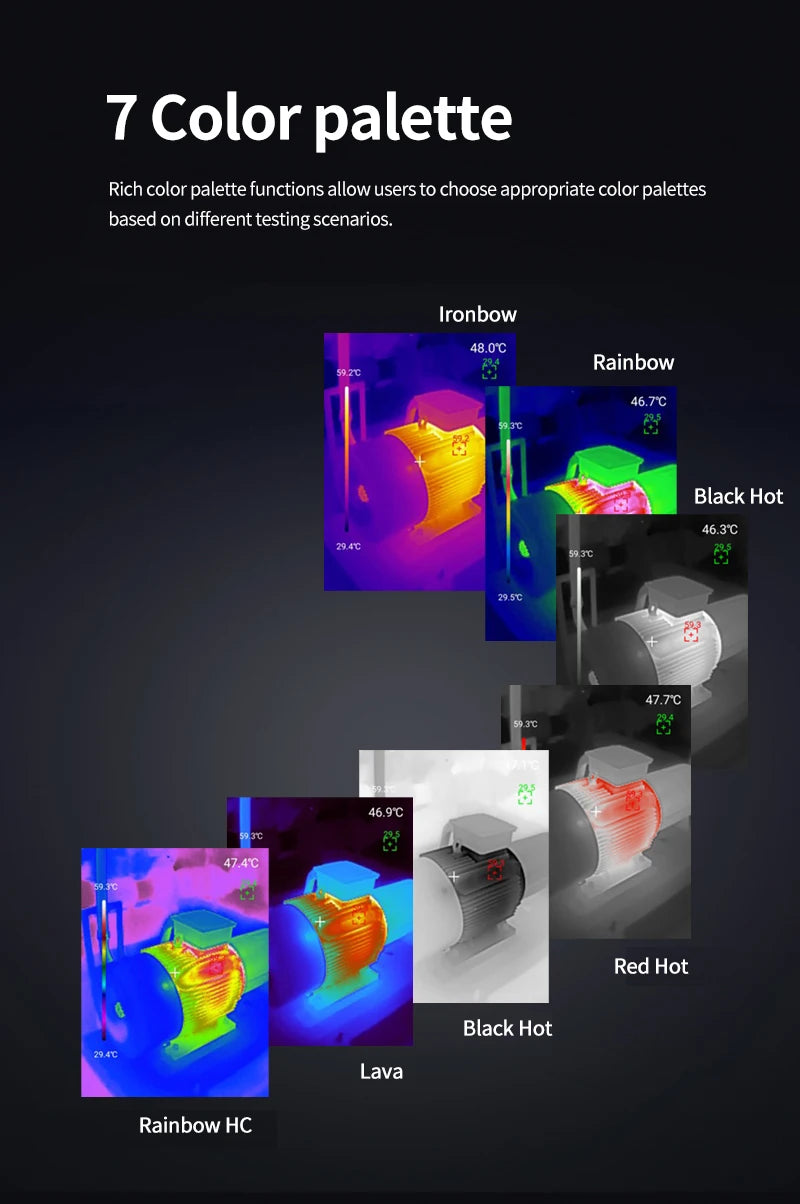

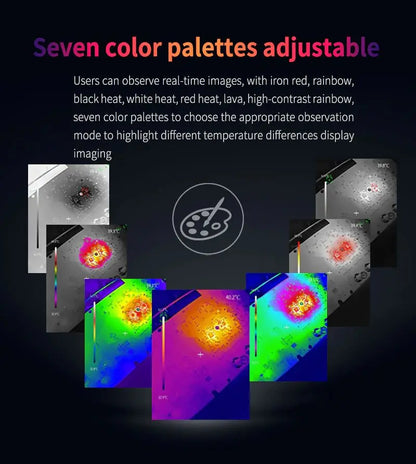

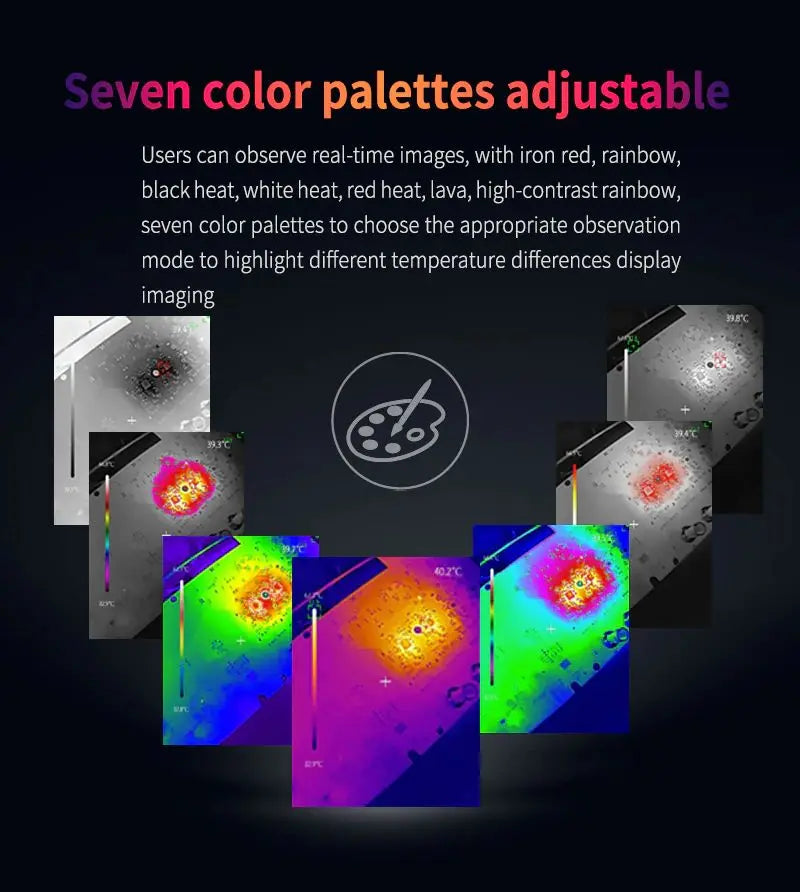

* Seven adjustable color palettes

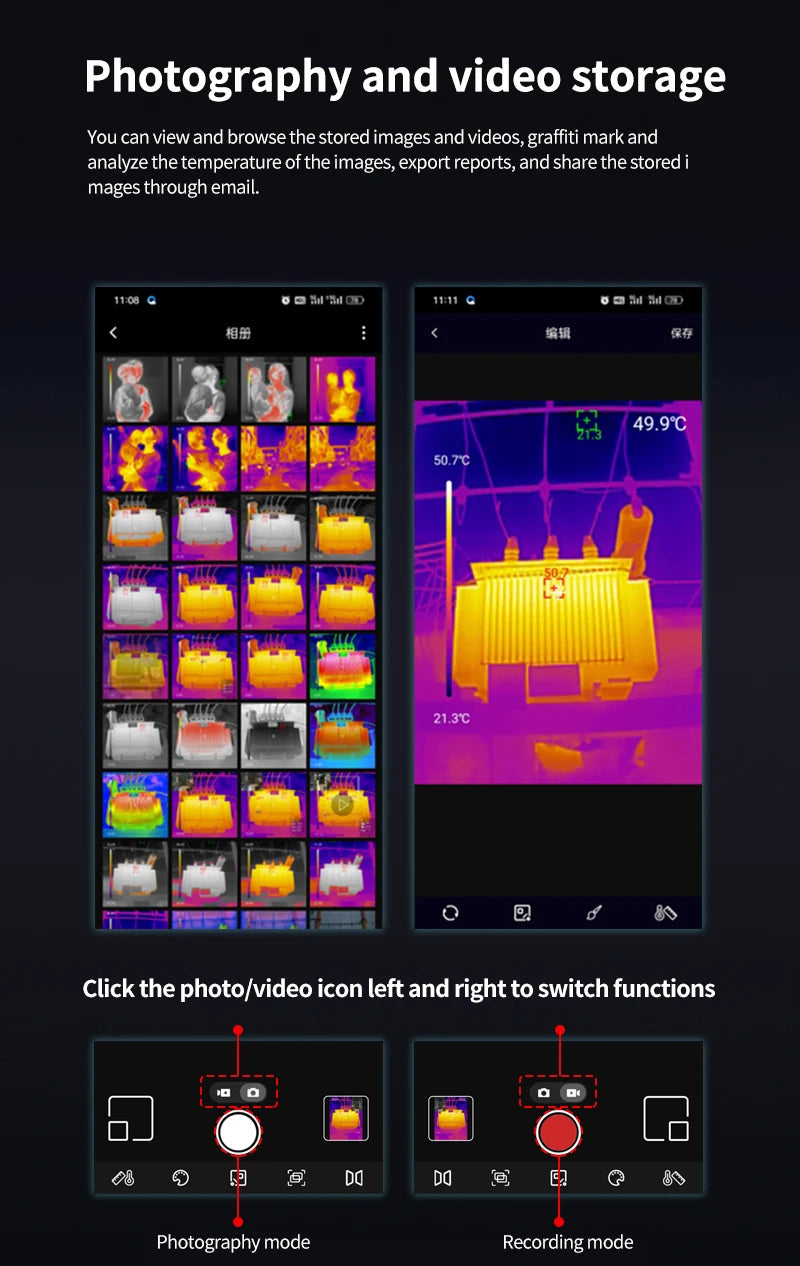

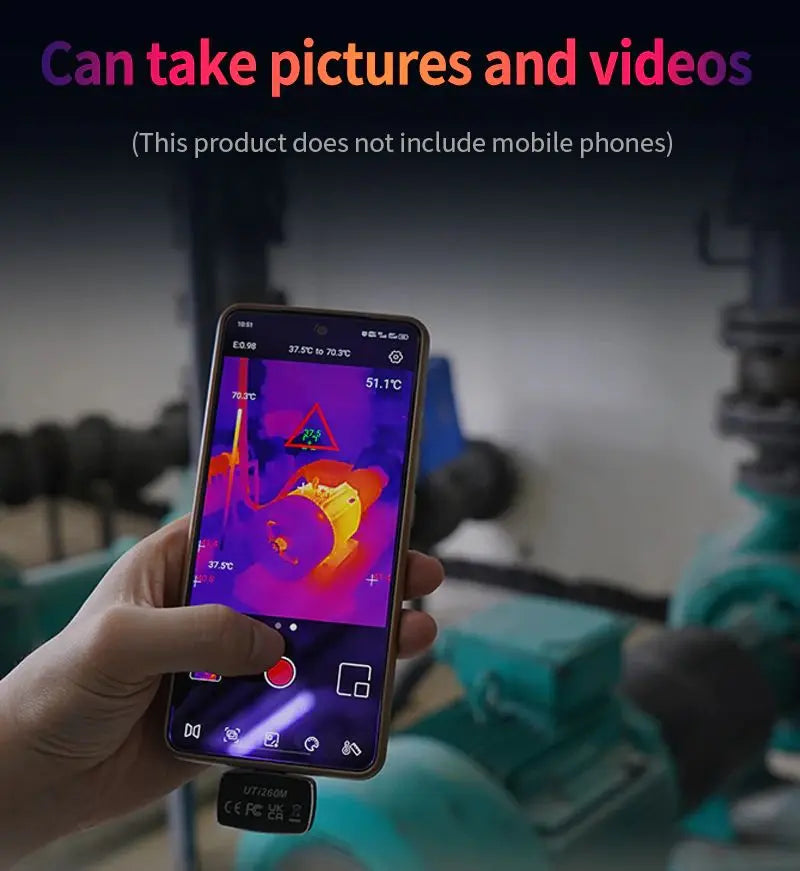

* Real time images can be taken and recorded

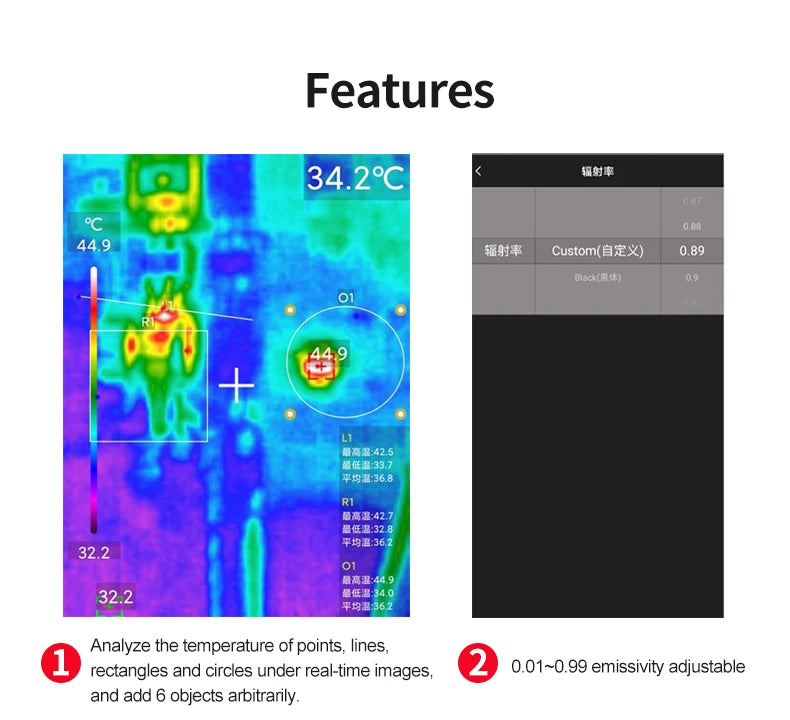

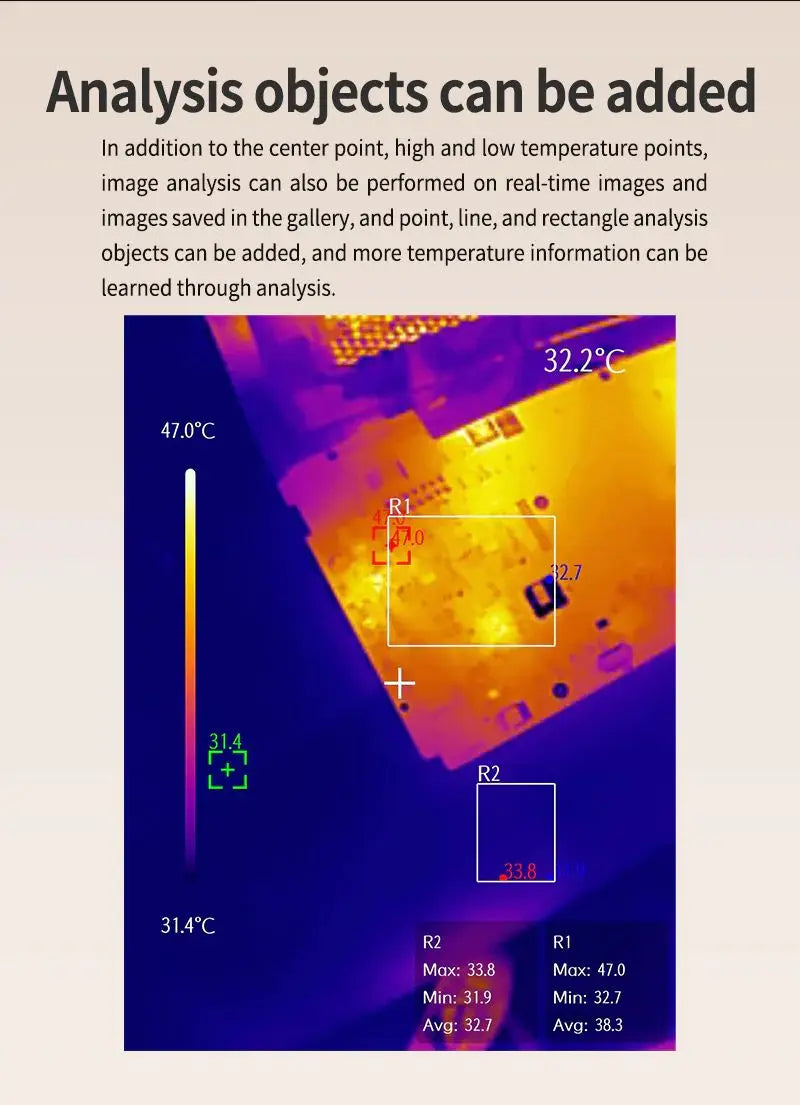

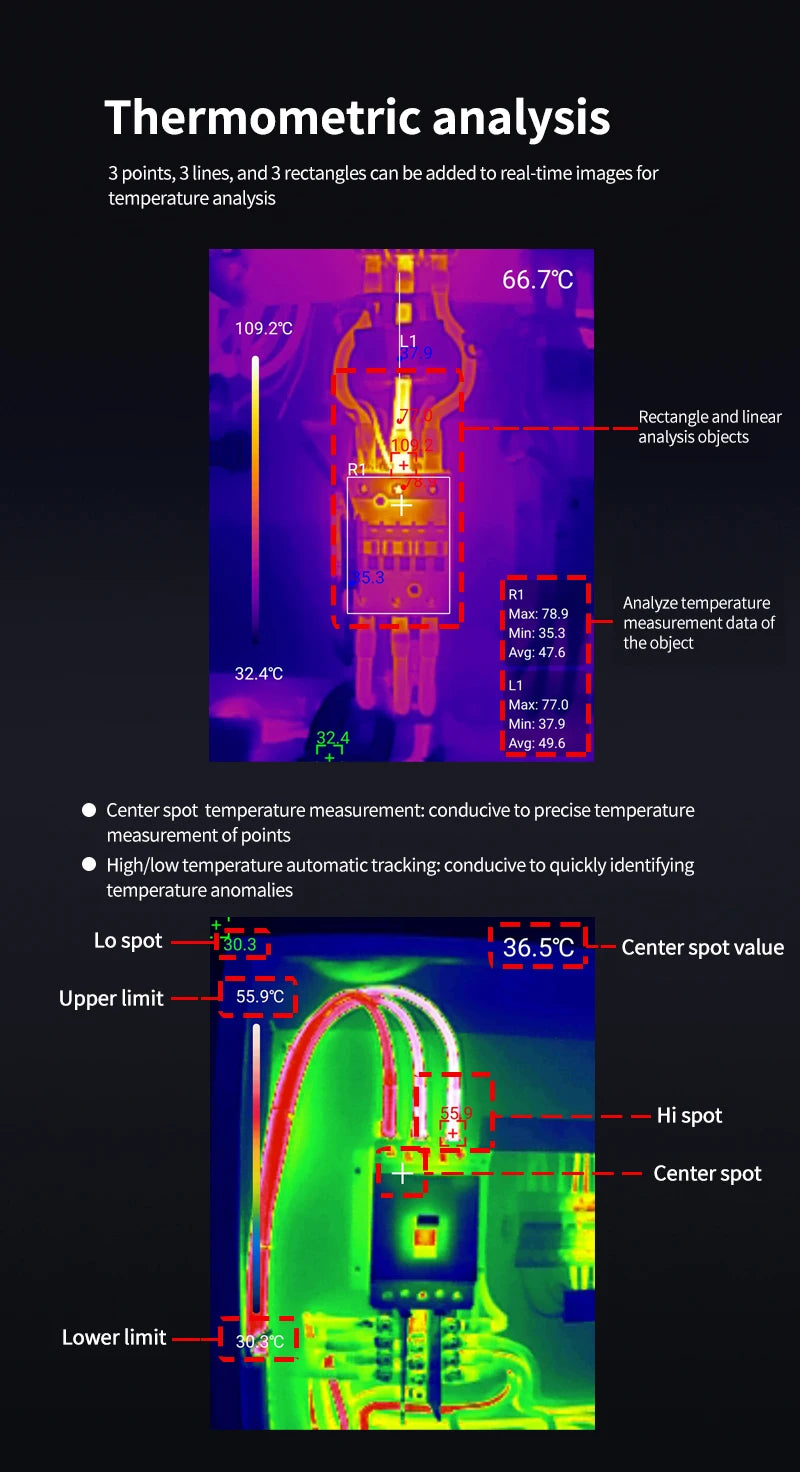

* Can add points, lines, and rectangles to analyze objects

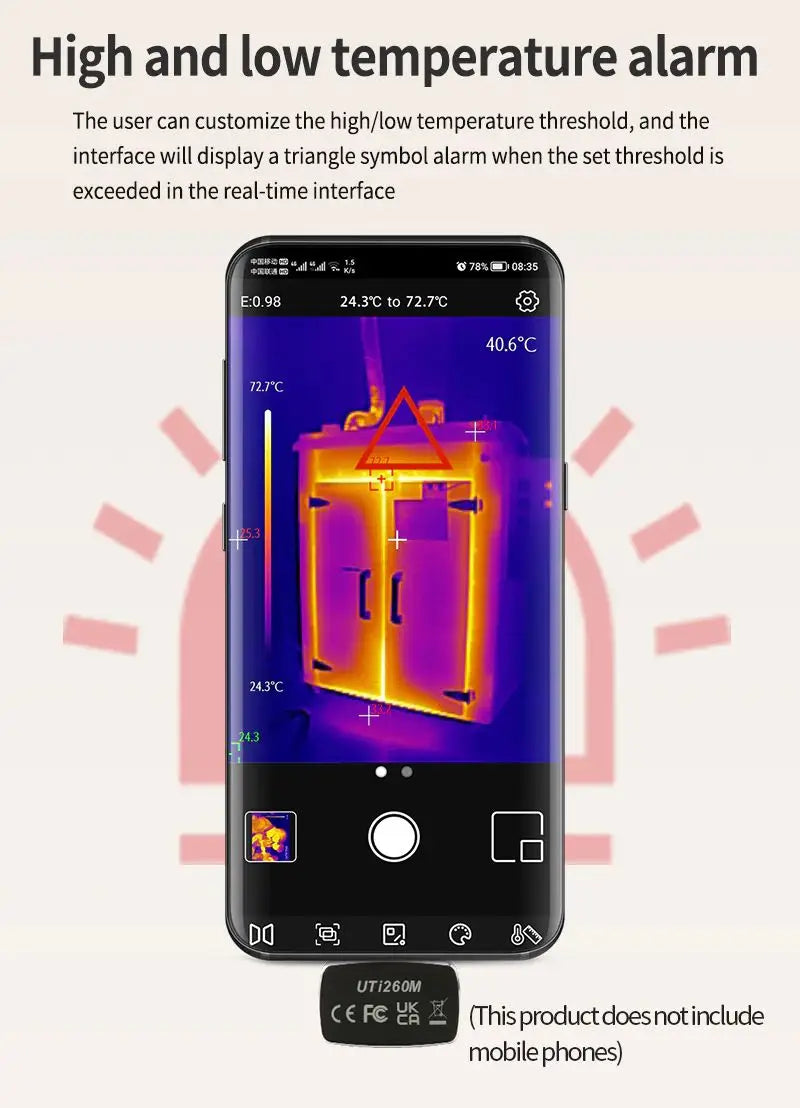

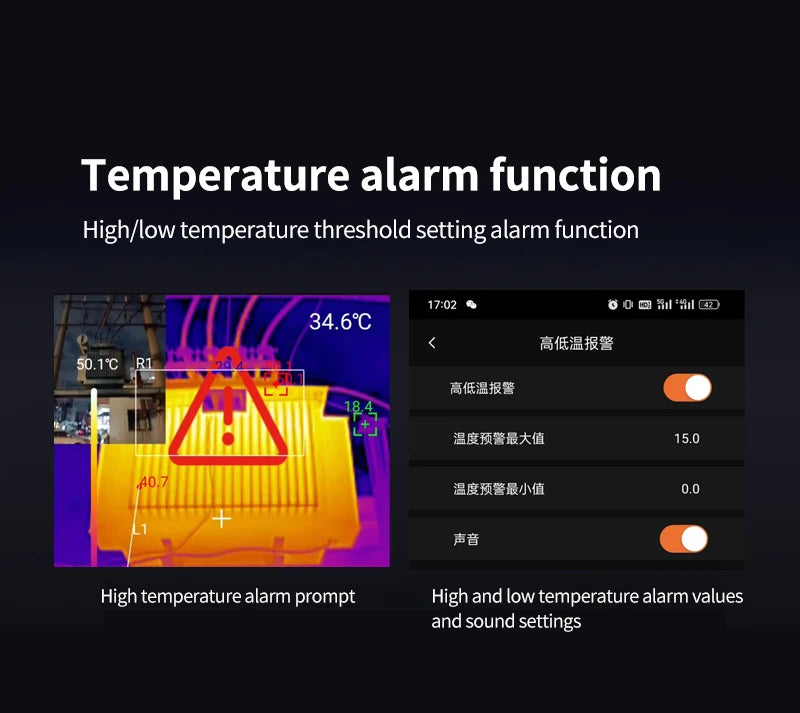

* Center point temperature measurement, high/low temperature tracking, high/low temperature sound alarm

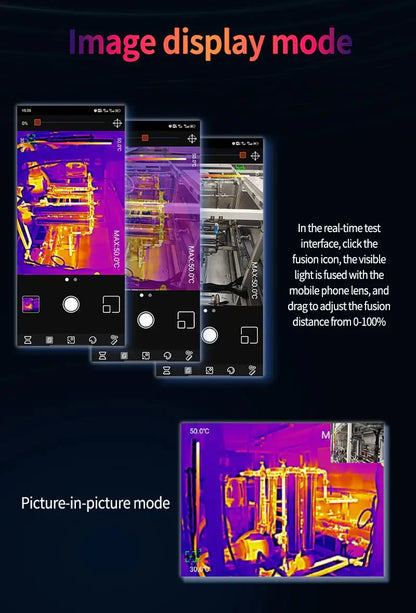

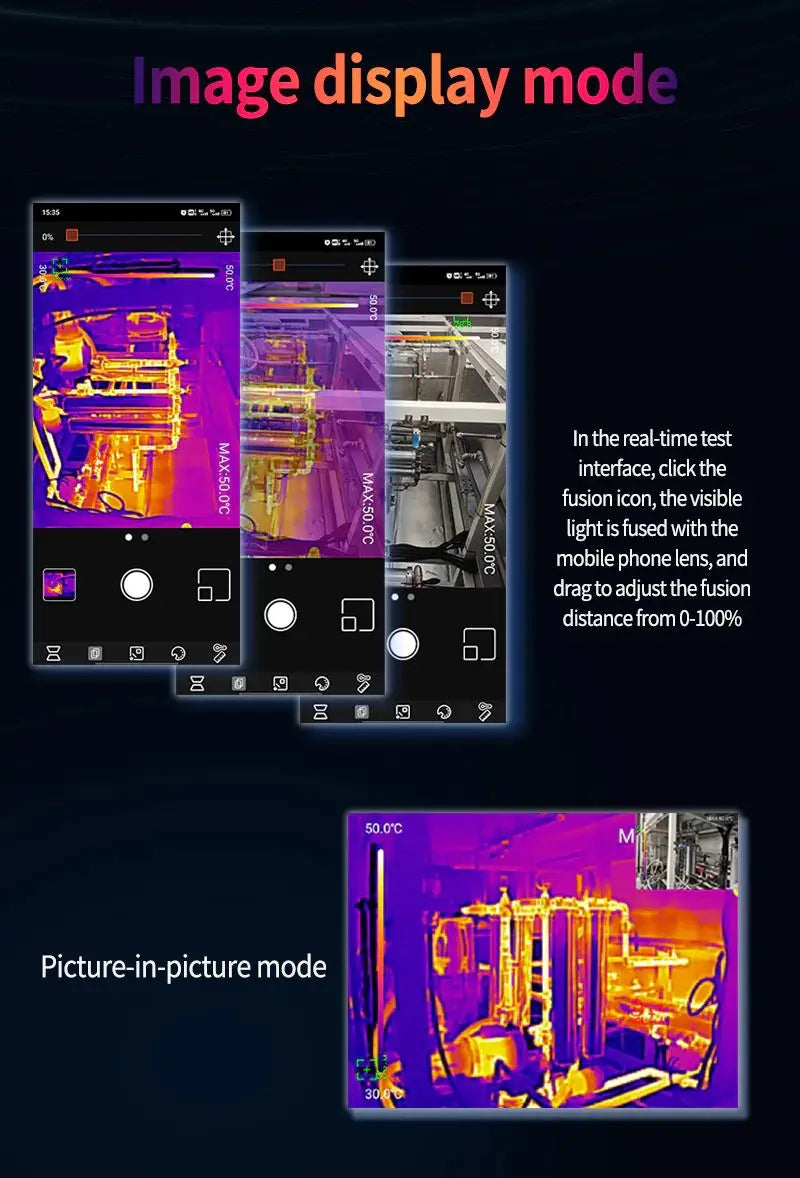

* Can be integrated with mobile digital cameras and in picture in picture mode

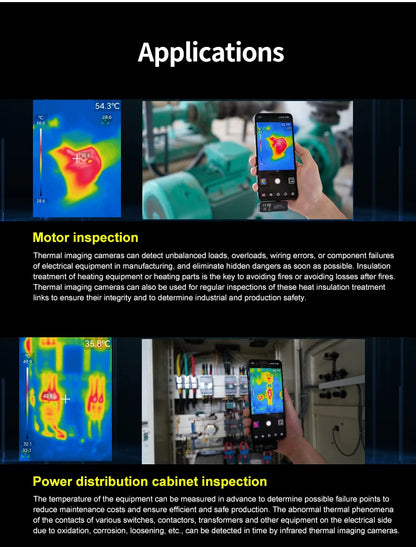

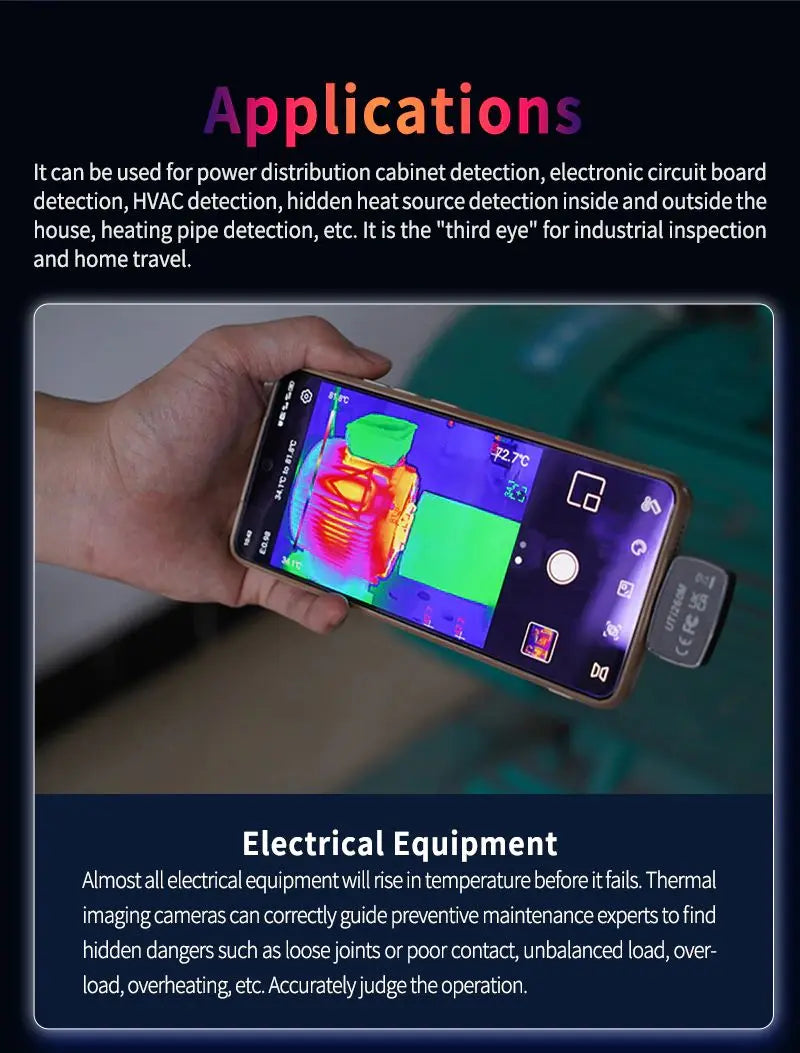

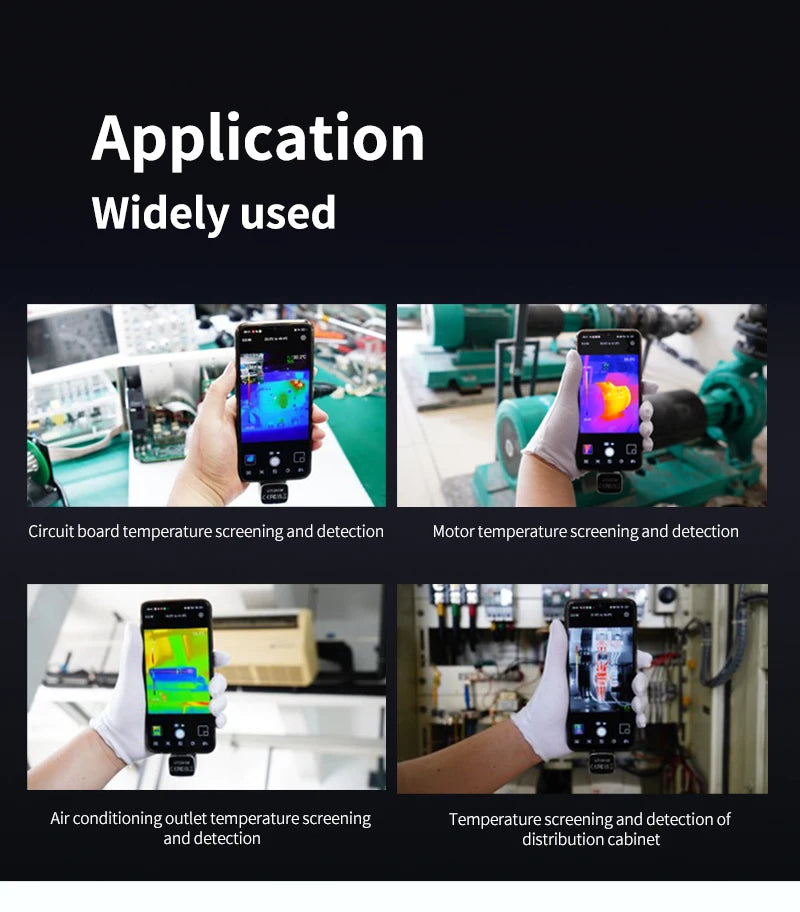

Applications:

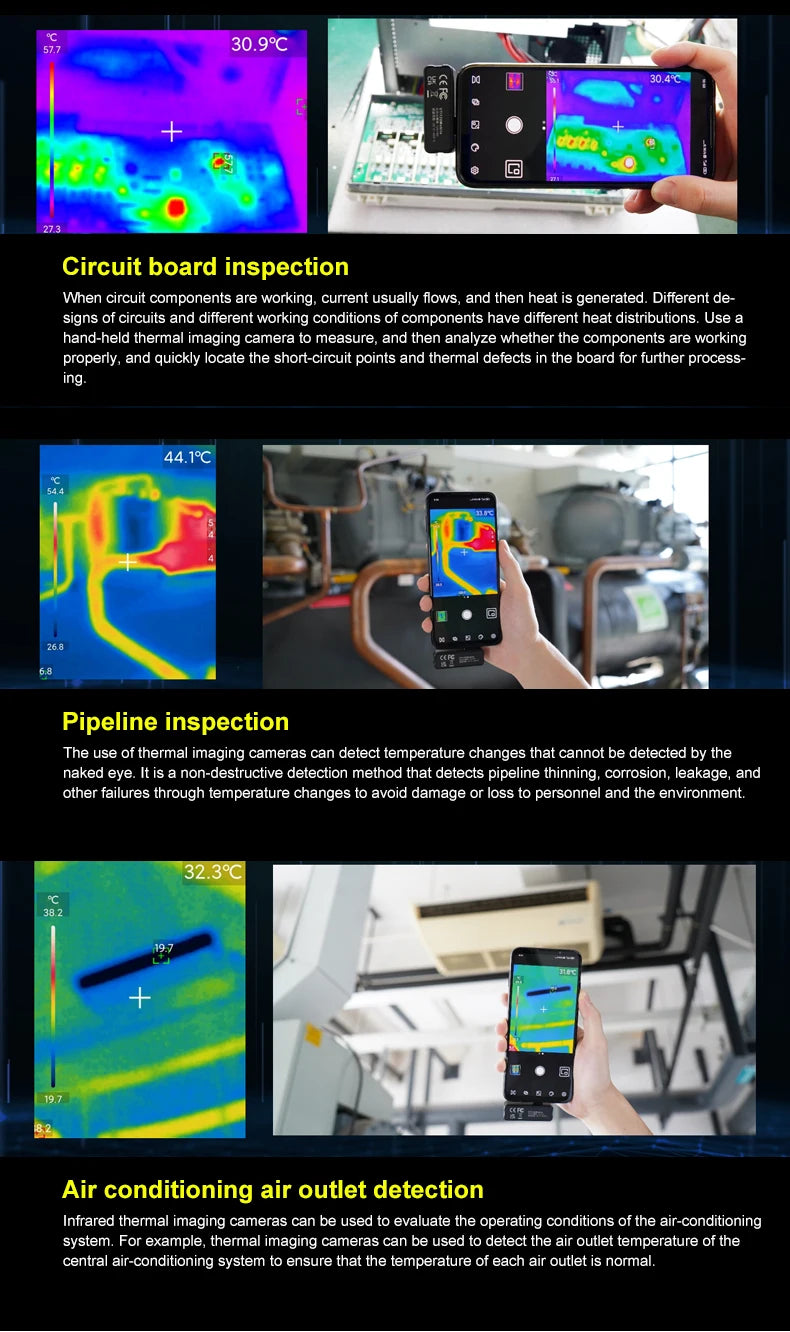

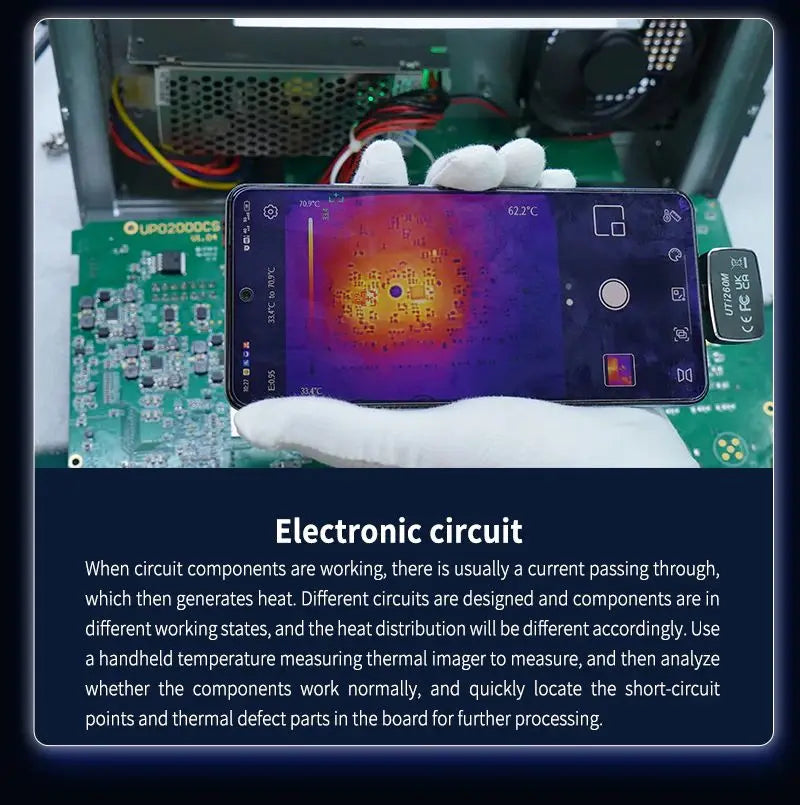

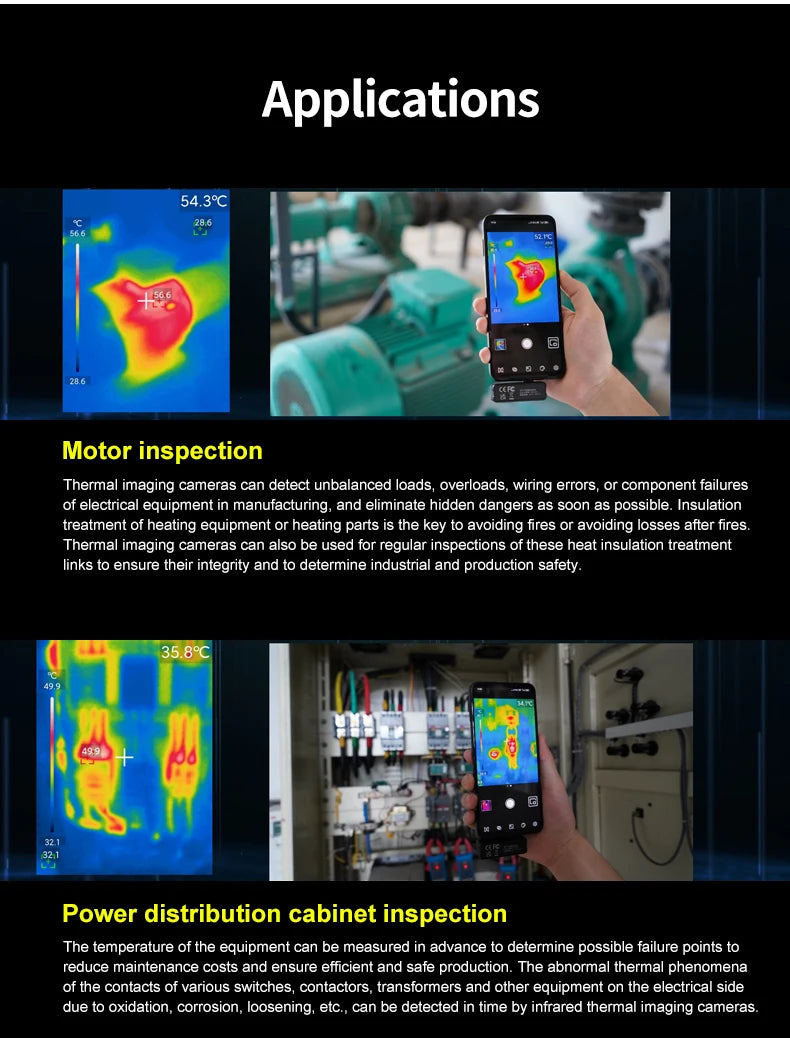

The UTi120Mobile is an indispensable tool for inspecting switchboards, troubleshooting HVAC problems, or investigating heat source hidden dangers inside and outside the house.
Features
1. Image capture
2. Video recording
3. Visible and thermal image fusion
4. App analysis on smart phone
5. 2m drop proof
6. Extension cable support multiple scenarios
7.UTI120Mobile Phone: Android (USB Type-C interface)
UTI120MS Phone:IOS

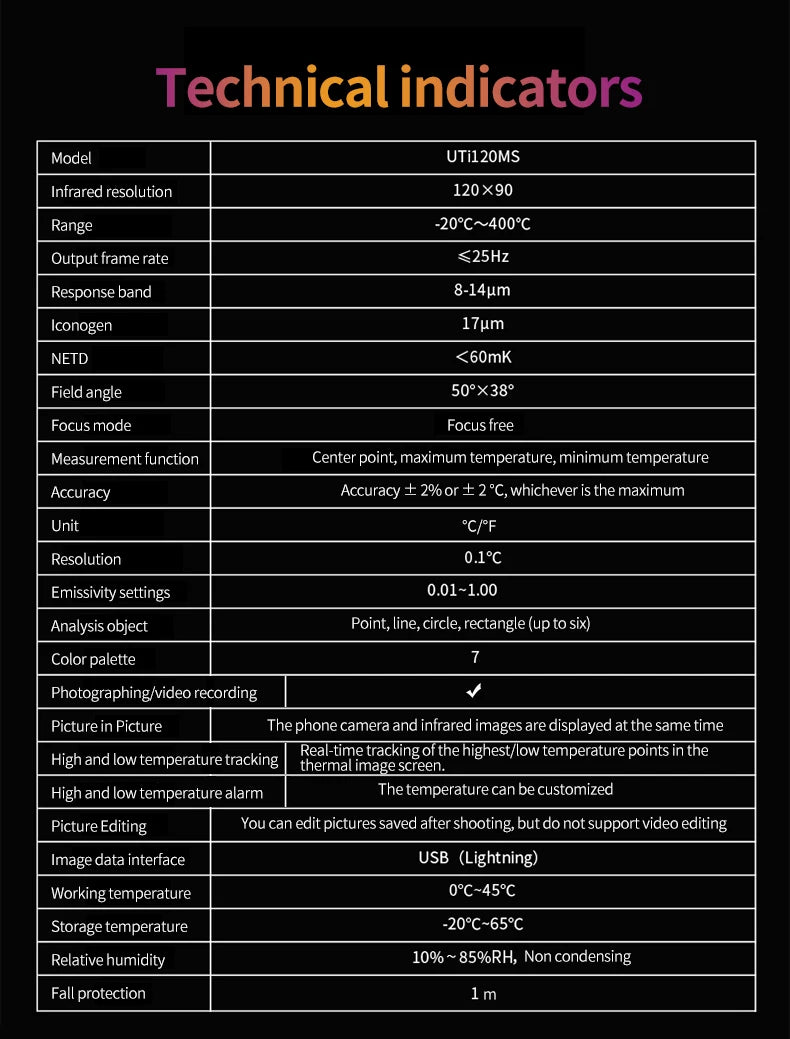

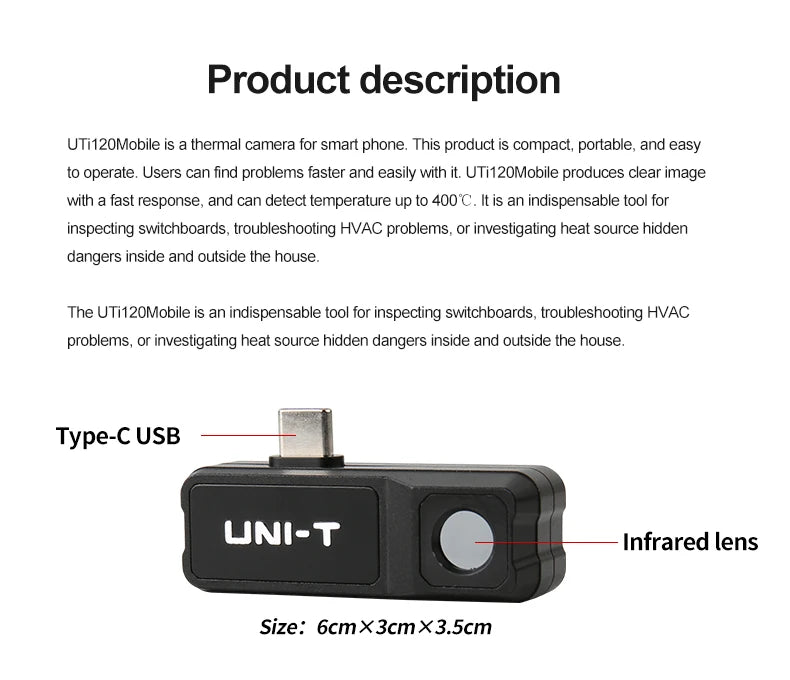

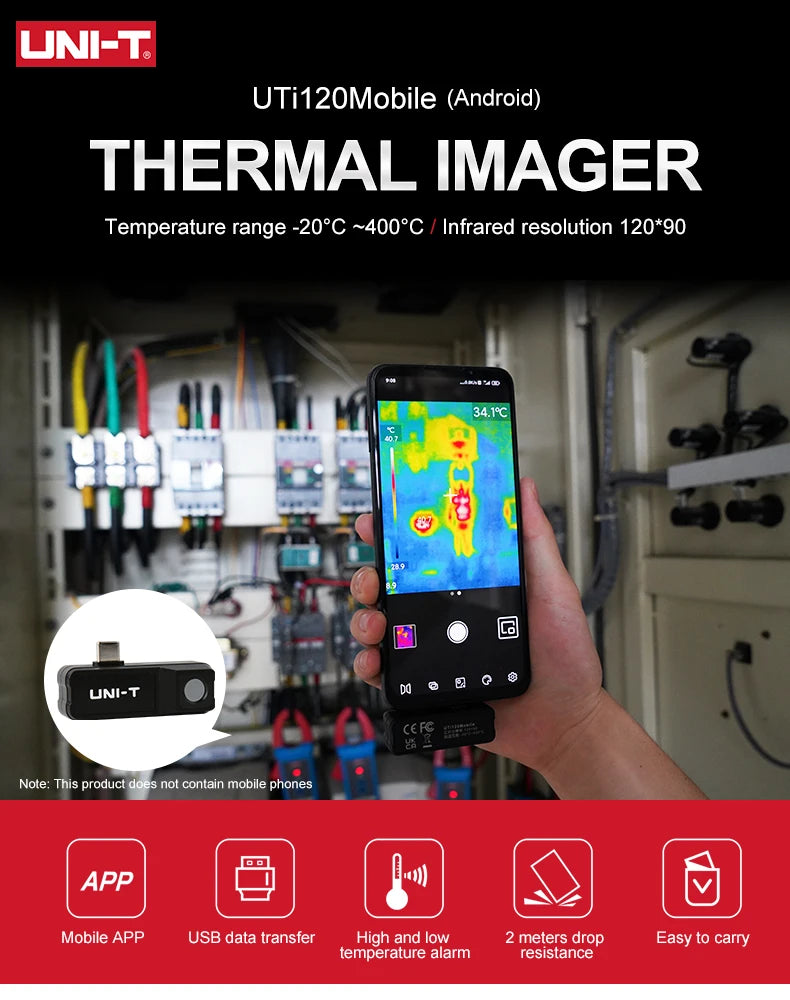

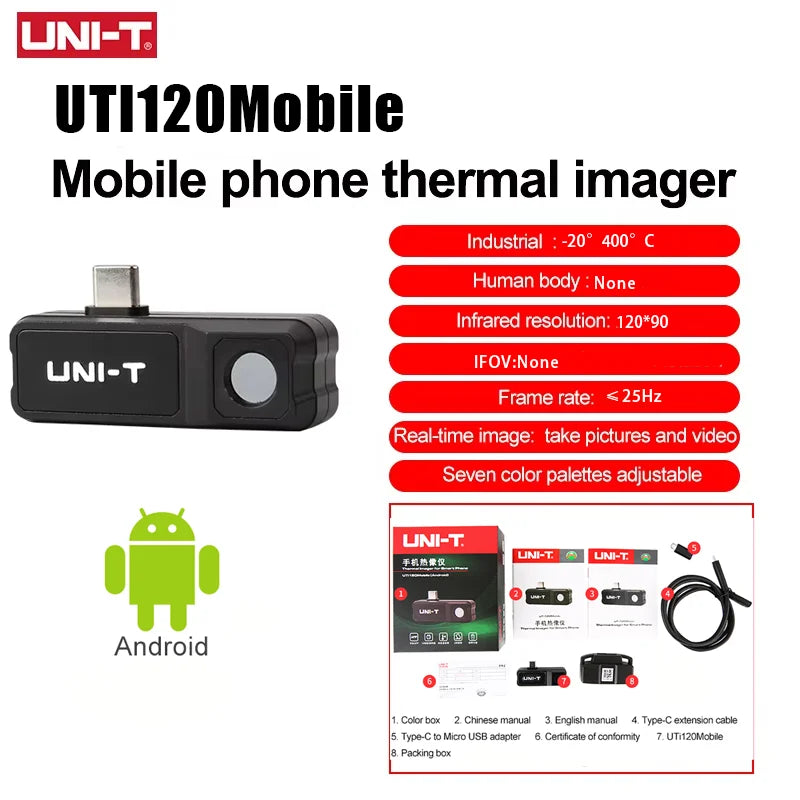

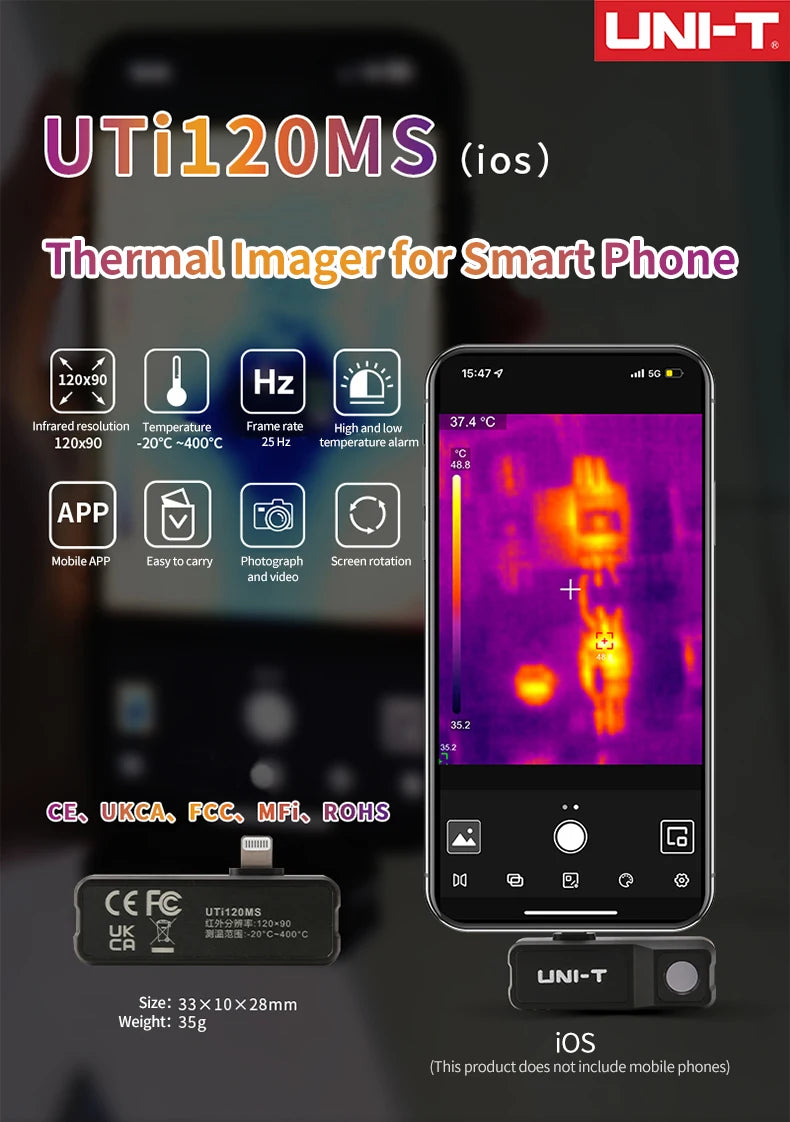

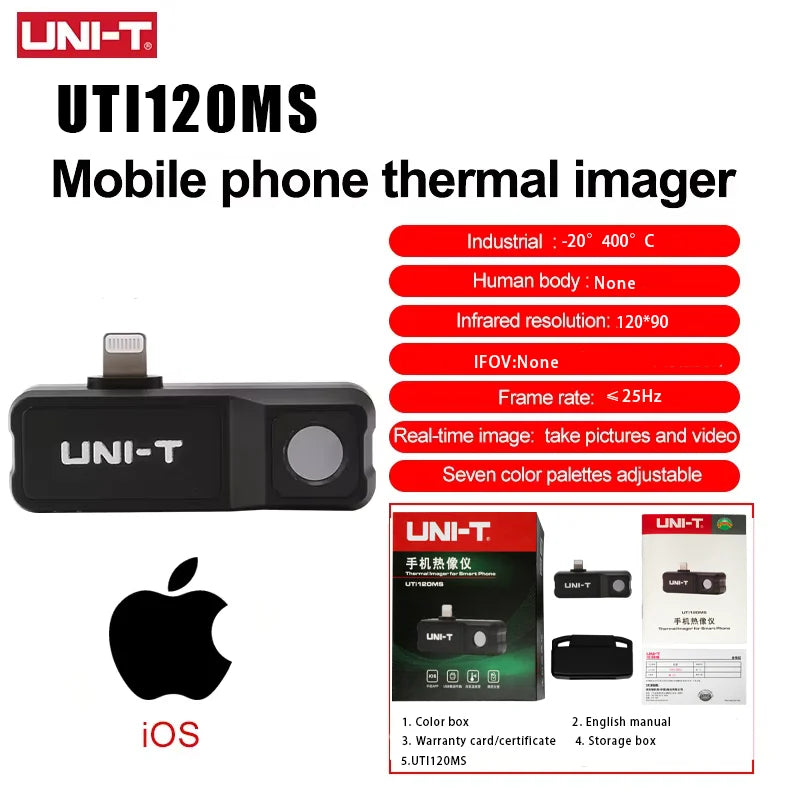

UTi120Mobile/UTi120MS Thermal Imager
UTi120Mobile/UTi120MS is a thermal camera for smart phone. This product is compact, portable, and easy to operate. Users can find problems faster and easily with it. UTi120Mobile/UTi120MS produces clear image with a fast response, and can detect temperature up to 400℃. It is an indispensable tool for inspecting switchboards, troubleshooting HVAC problems, or investigating heat source hidden dangers inside and outside the house.

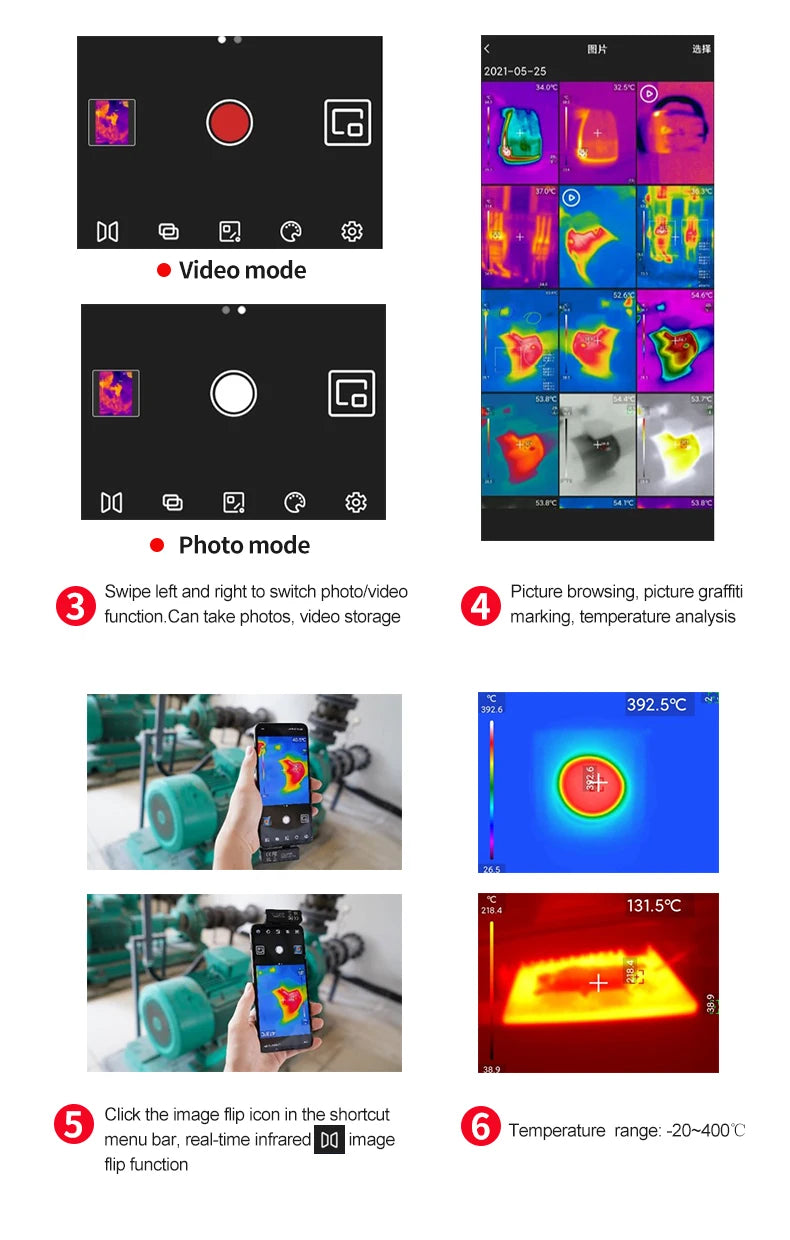

Features
Real-time image analysis
0.01~0.99 reflectivity

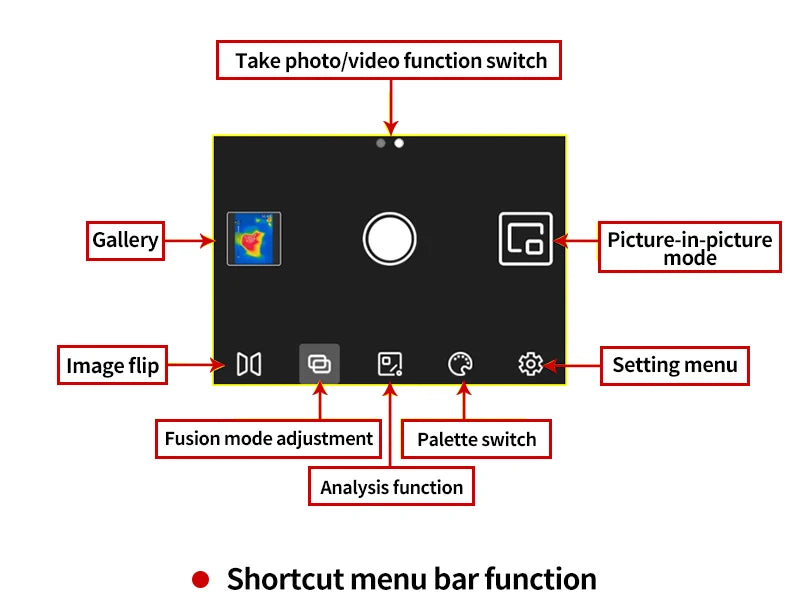

Swipe left and right to switch the photo/video function
Editable pictures
Image flip function
Temperature measurement range: -20~400℃
Seven palette styles and image modes

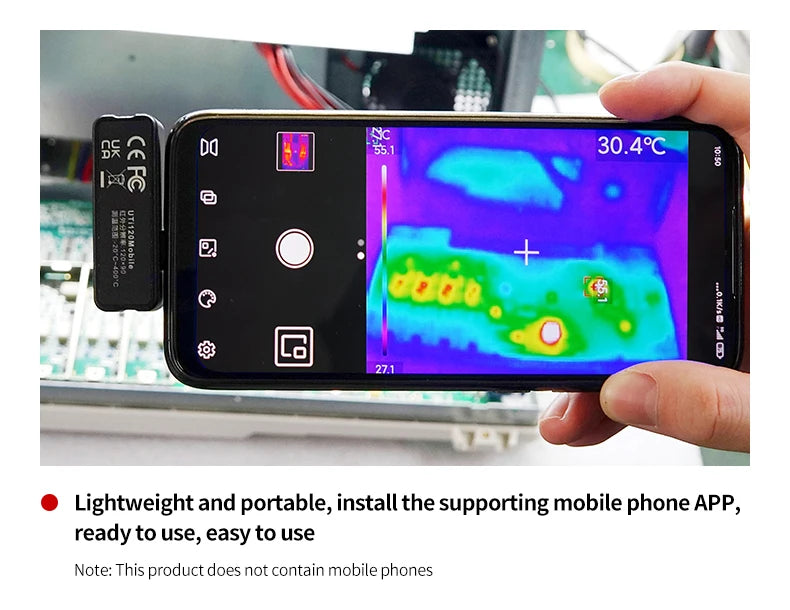

Lightweight and portable, simple operation

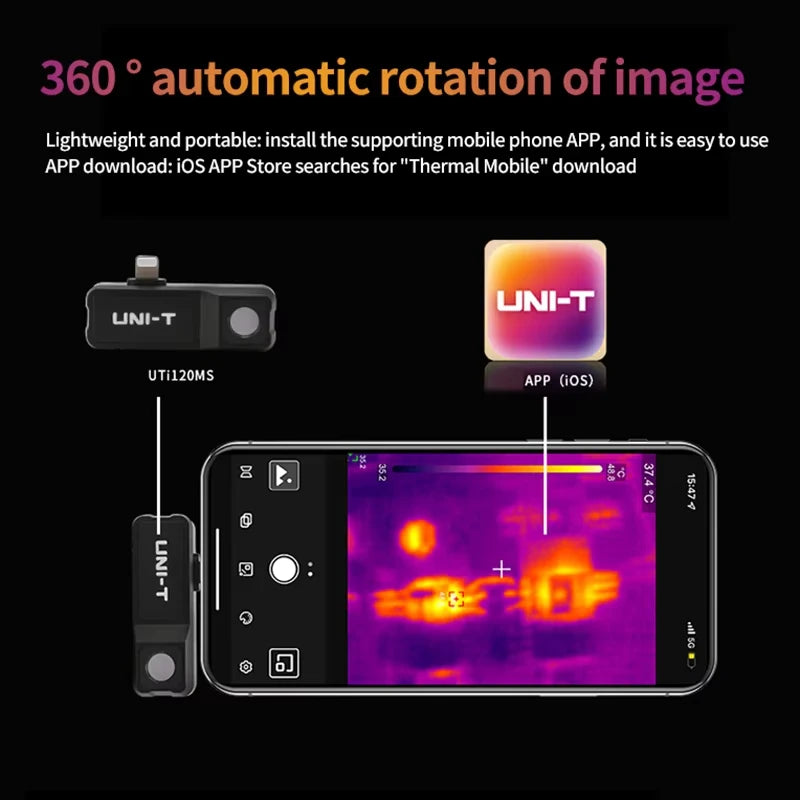

The product is equipped with mobile app software.

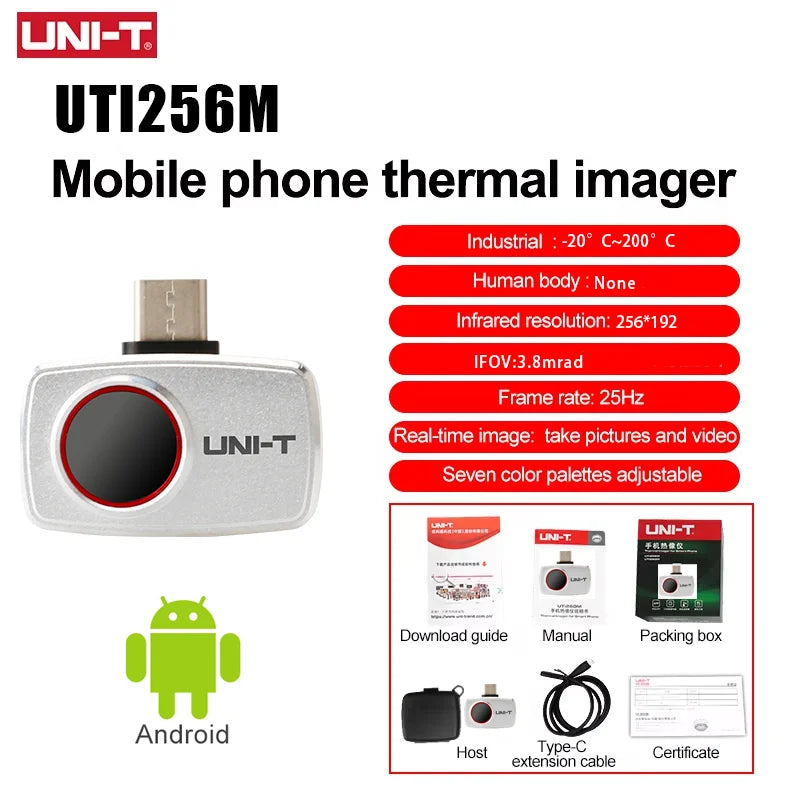

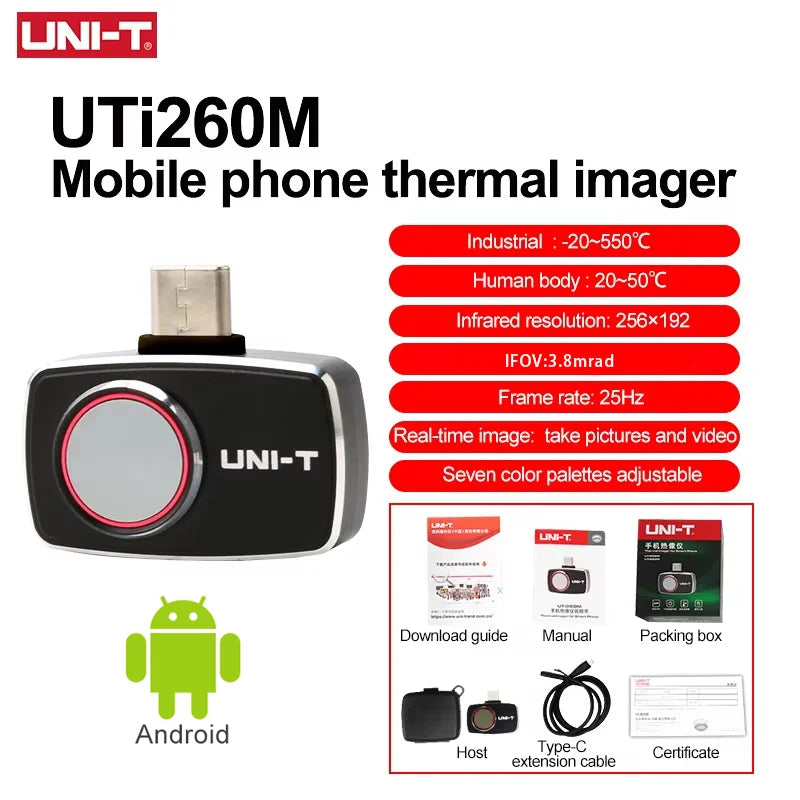

UNI-T UTi256M UTi260M Thermal Imager Infrared Module Thermal Imaging Camera for Smartphone Android Type-C Thermographic Camera

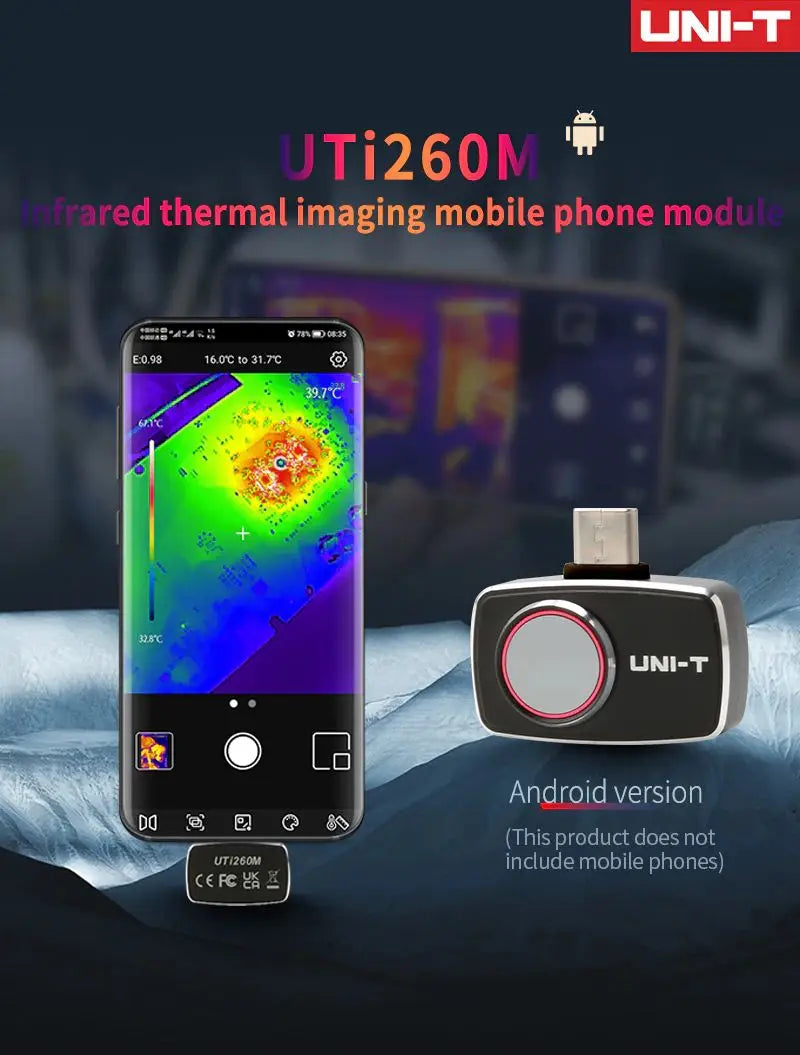

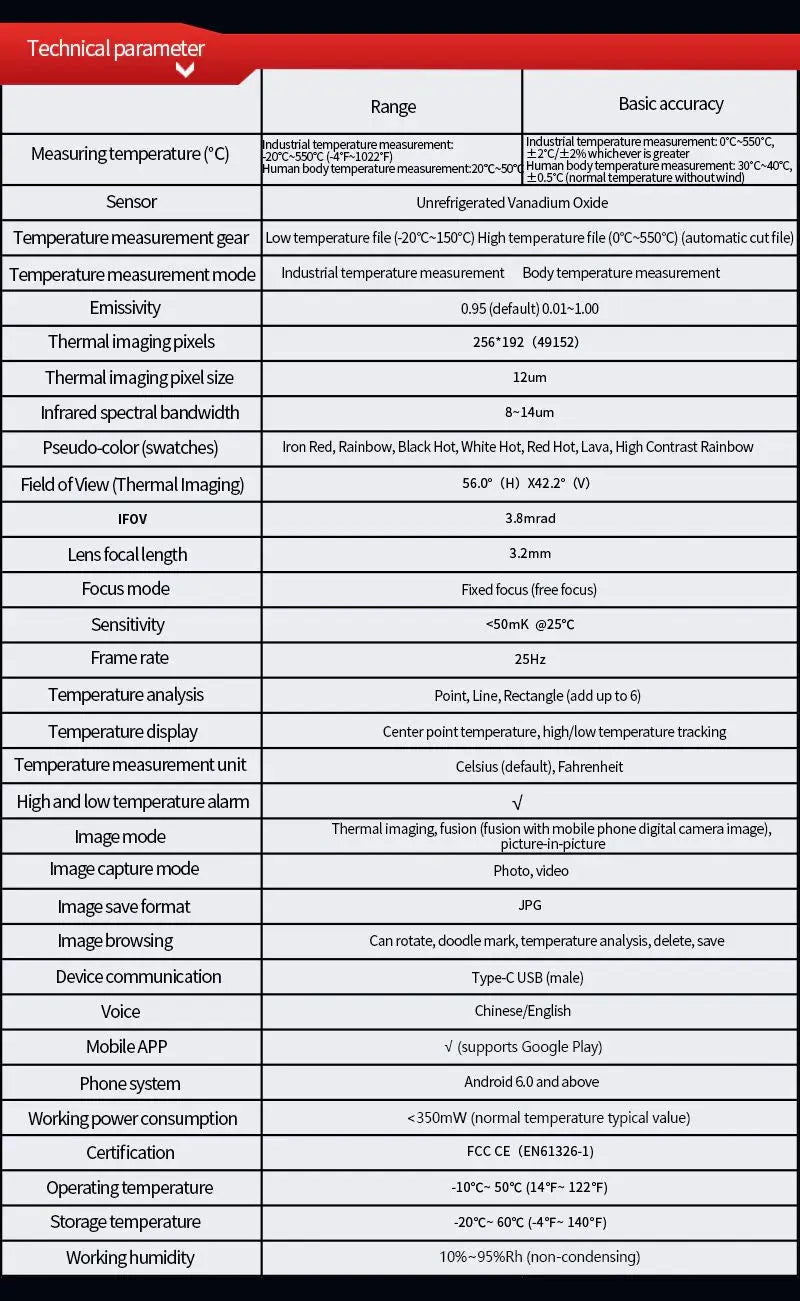

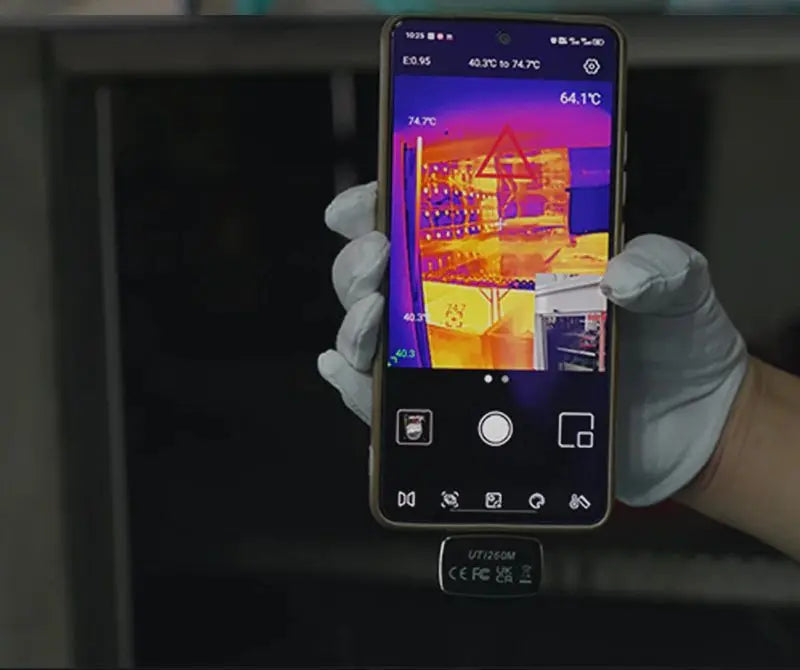

UTi260M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It's 256×192 IR resolution provides clear image with a fast response.UTi260M is with wide temperature measurement range -20℃ ~ 550℃.It includes two measurements modes for elevated skin temperature inspection and industry applications. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors and builders etc.
