SPECIFICATIONS

Brand Name: UNI-T

Certification: CE,FCC,RoHS

Color palettes: 7

Digital camera resolution: 320 x 240px

Display Size: 2.0 - 3.9 Inches

Focus: Focus Free

Hign-concerned Chemical: None

Image modes: Switch Thermal/Digital/PIP/Fusion mode

Is Smart Device: YES

Origin: Mainland China

Style: Handheld

Temperature measurement range: -20℃ - 550℃

USB: Type-C

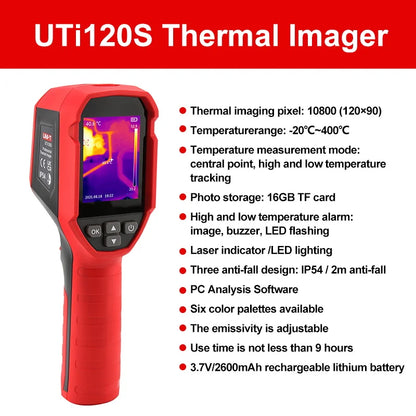

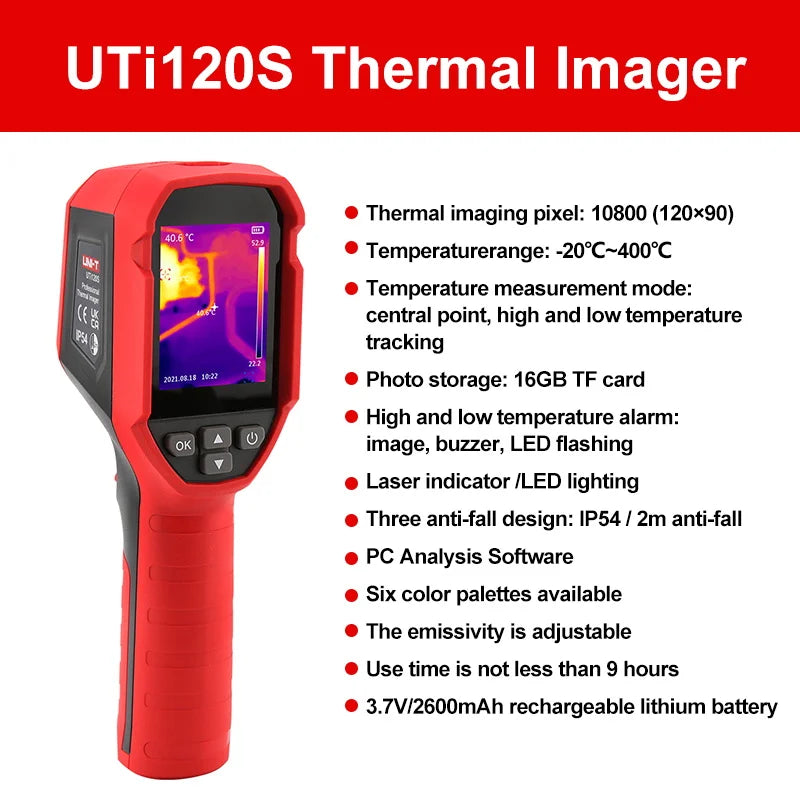

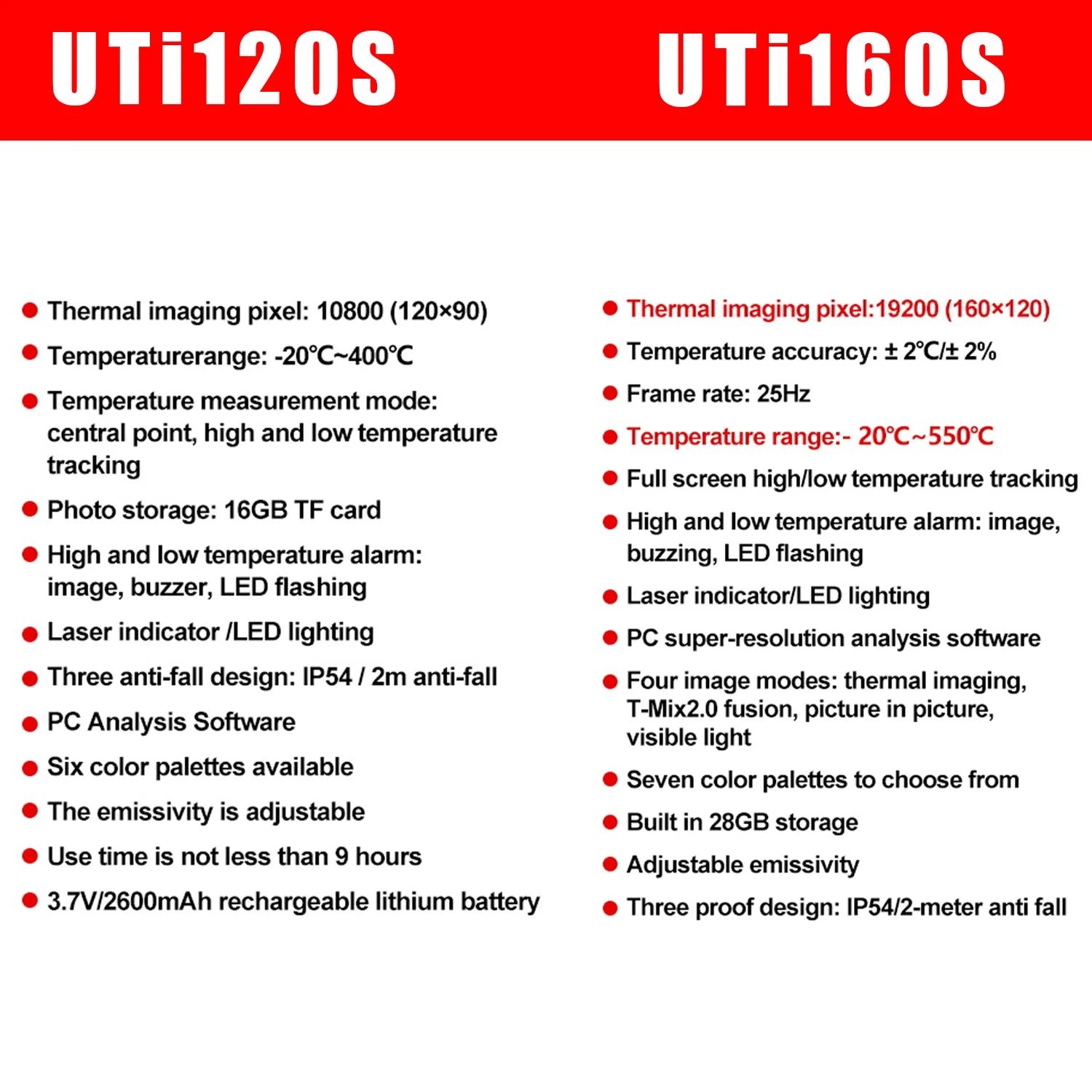

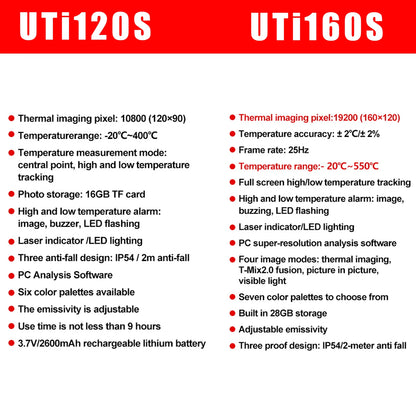

UTI120S IR resolution: 120 X 90

UTI160S IR resolution: 160 X 120

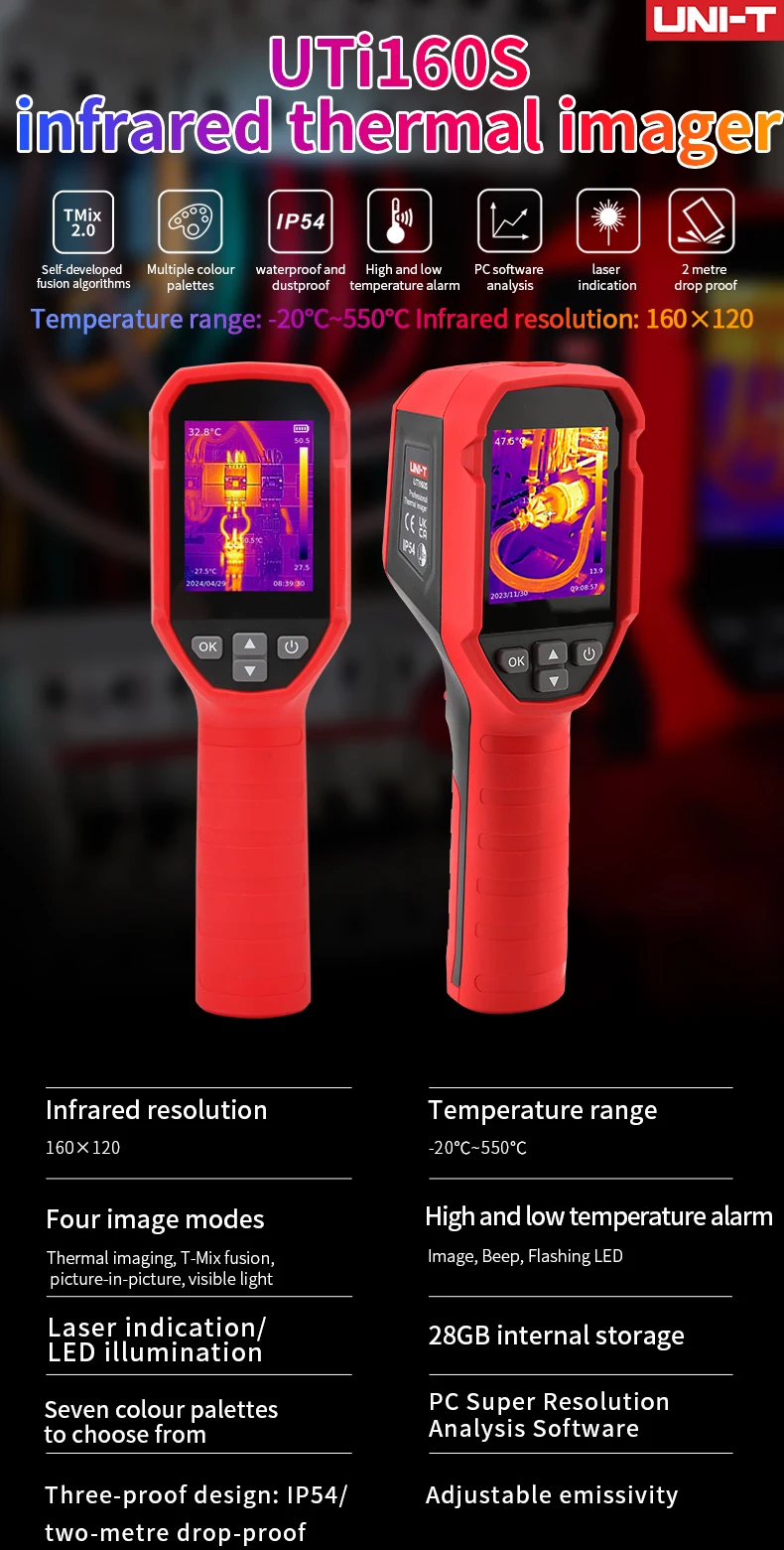

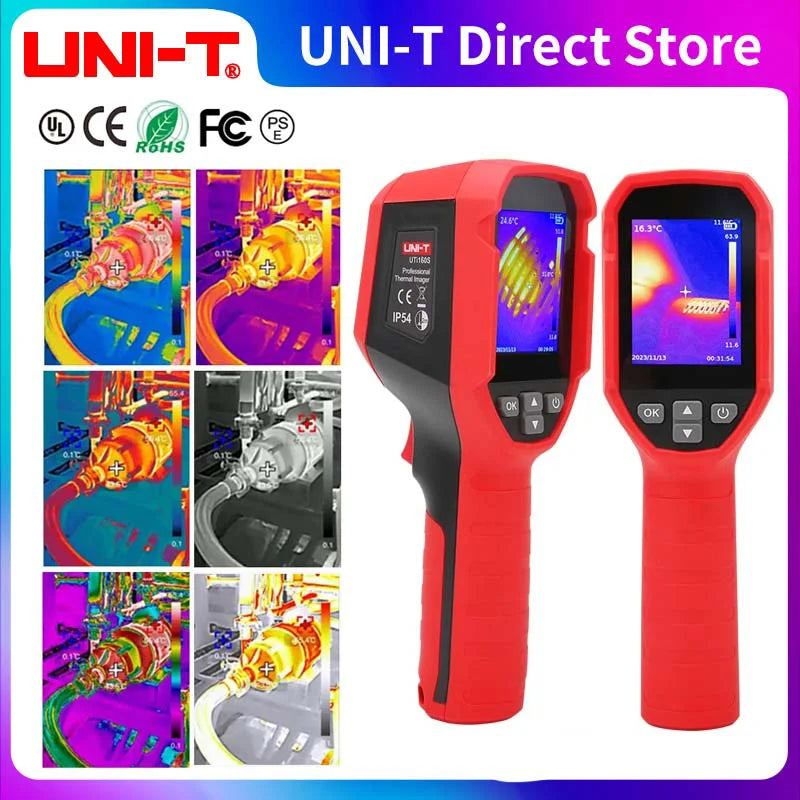

UTi160S infrared thermal imager

New Arrival

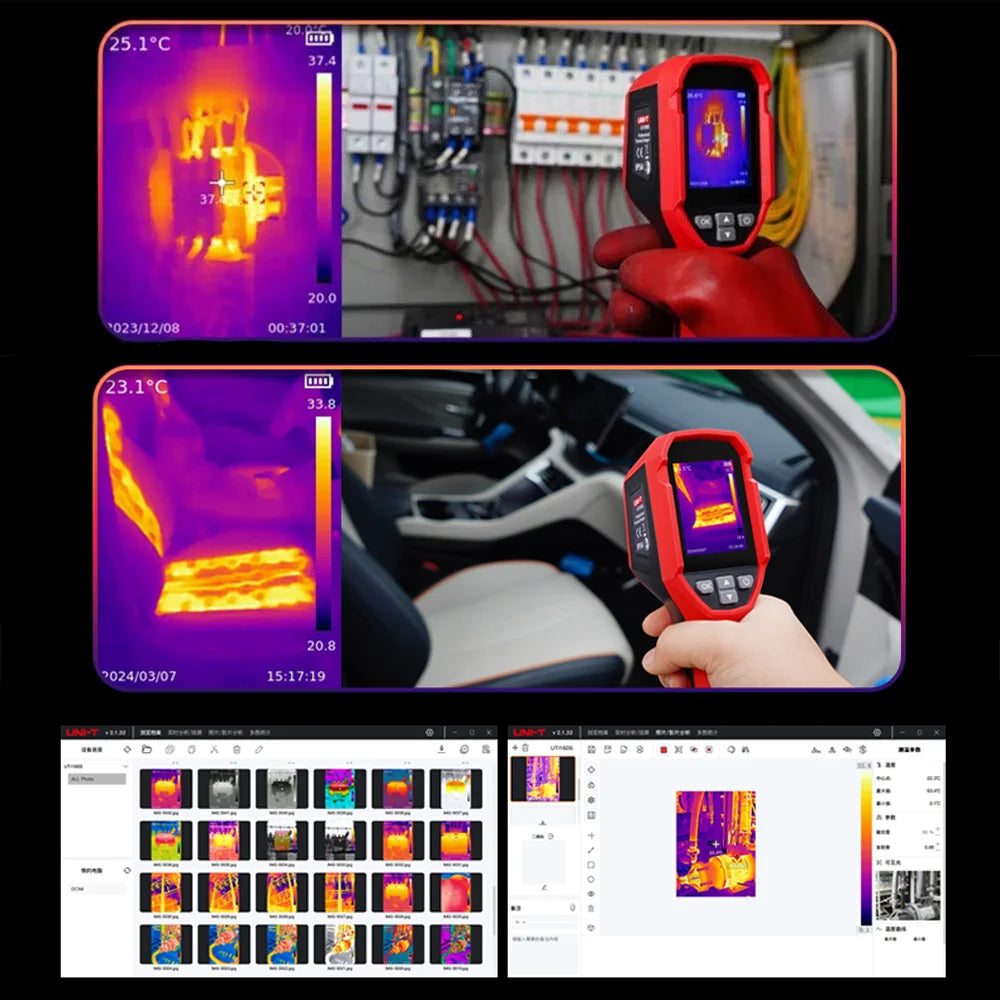

This is an economical handheld infrared thermal imager that integrates imaging and temperature measurement. It is lightweight and portable with complete functions, with a temperature measurement range of -20 ℃ to 550 ℃ and an infrared resolution of 160 × 120. It has center point temperature measurement and automatic tracking of high and low temperatures. It is also equipped with LED lighting, laser indication, high and low temperature alarm, and an IP54/two meter anti drop three proof design, making it easier for you to cope with different working environments. In addition to reading the temperature measurement method of the device itself, it can also take photos and store according to your needs. Through the equipped infrared image analysis software, you can understand every detail in the later stage.

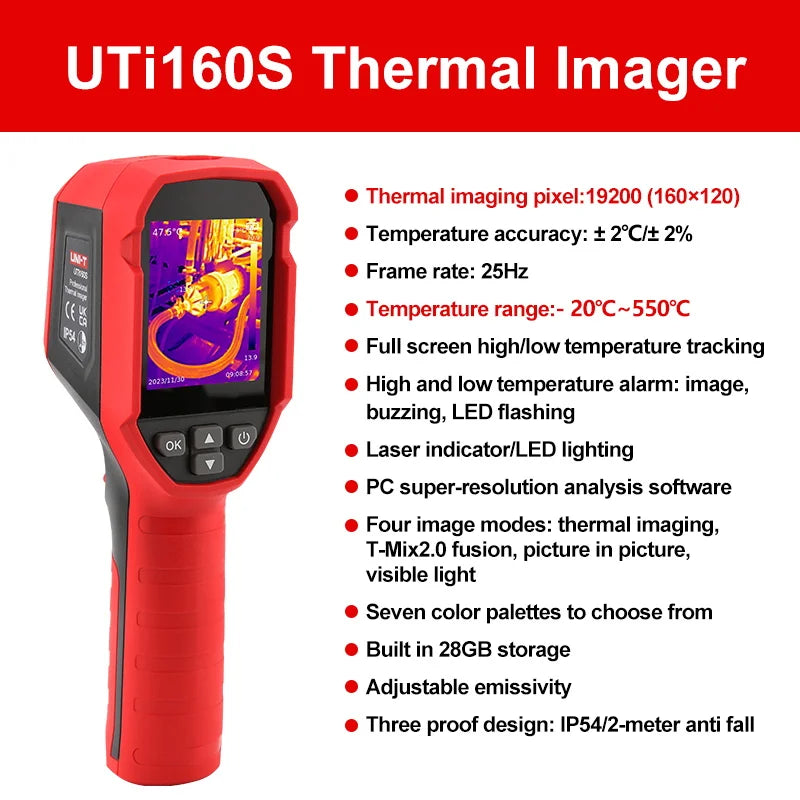

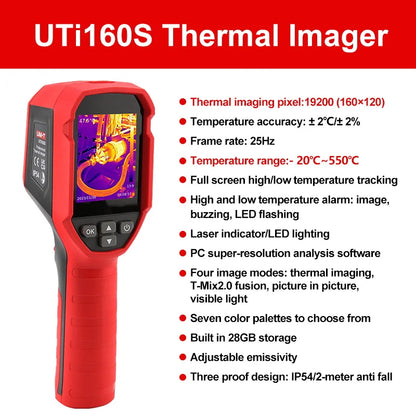

Main features of UTi160S

Infrared resolution: 160 × 120

Frame rate: 25Hz

Temperature measurement range: -20 ℃~550 ℃

Full screen maximum/low temperature tracking

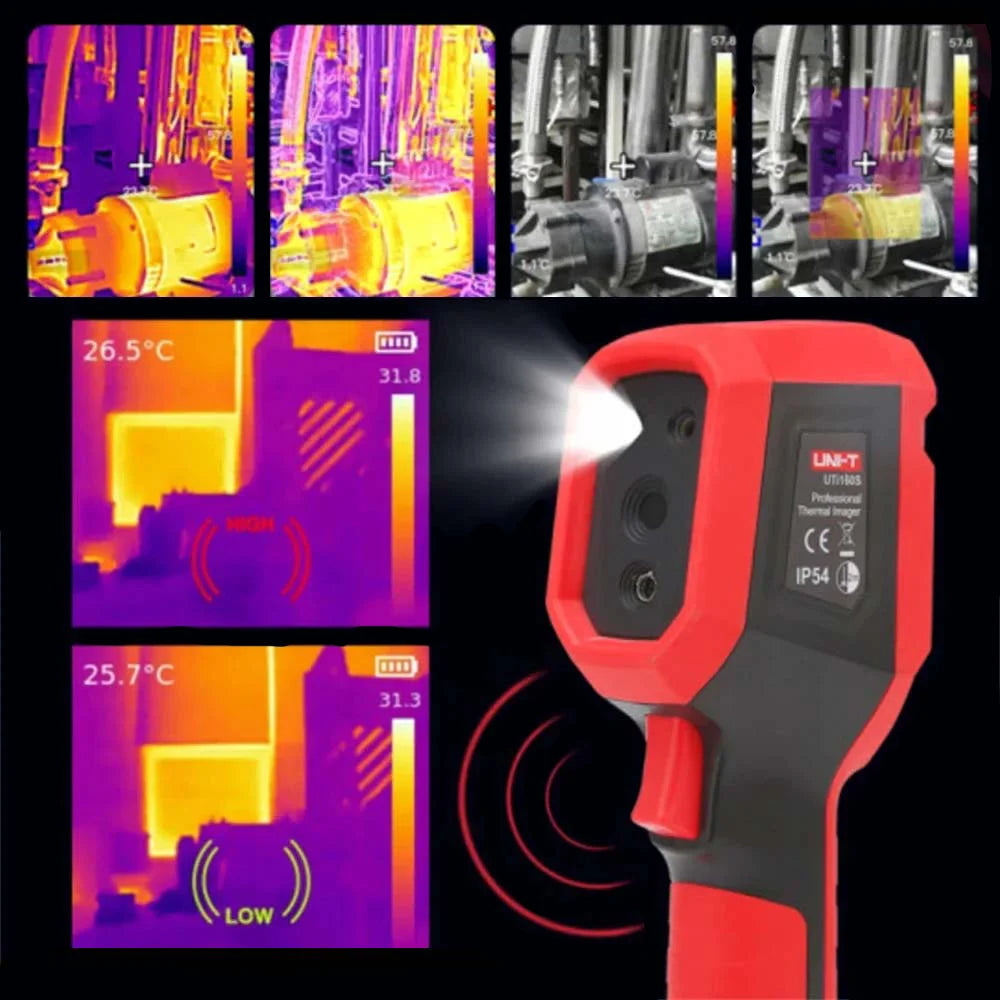

High and low temperature alarm: image, buzzing, LED flashing

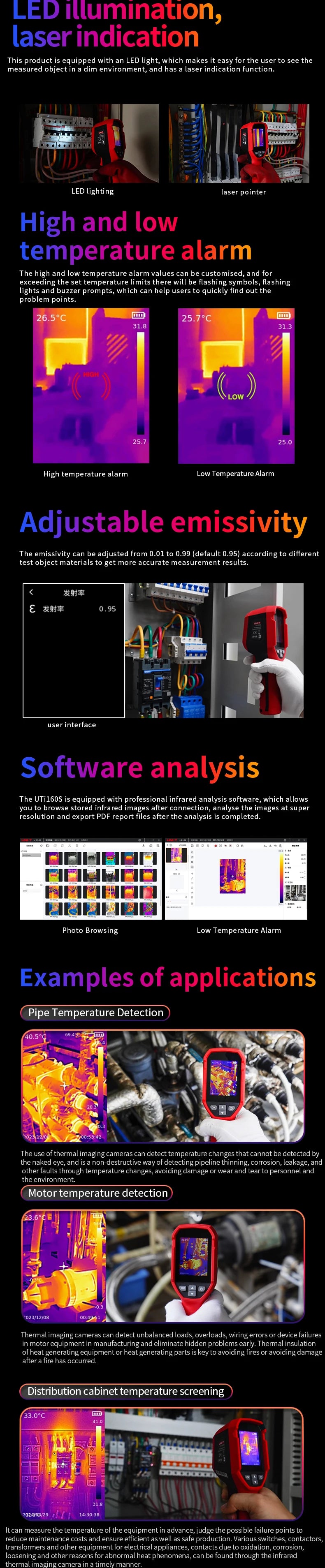

Laser indicator/LED lighting

PC super-resolution analysis software

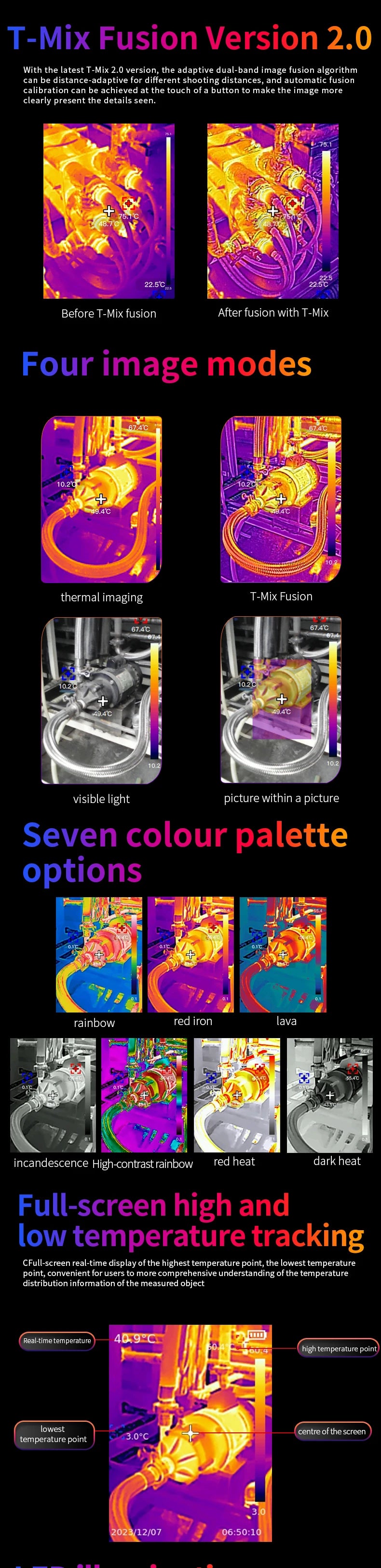

Four image modes: thermal imaging, T-Mix fusion, picture in picture, visible light

Seven color palettes to choose from

Built in 28GB storage

Adjustable emissivity

Three proof design: IP54/2 meter anti drop

Bottom design ¼ Screw holes can be used with tripods

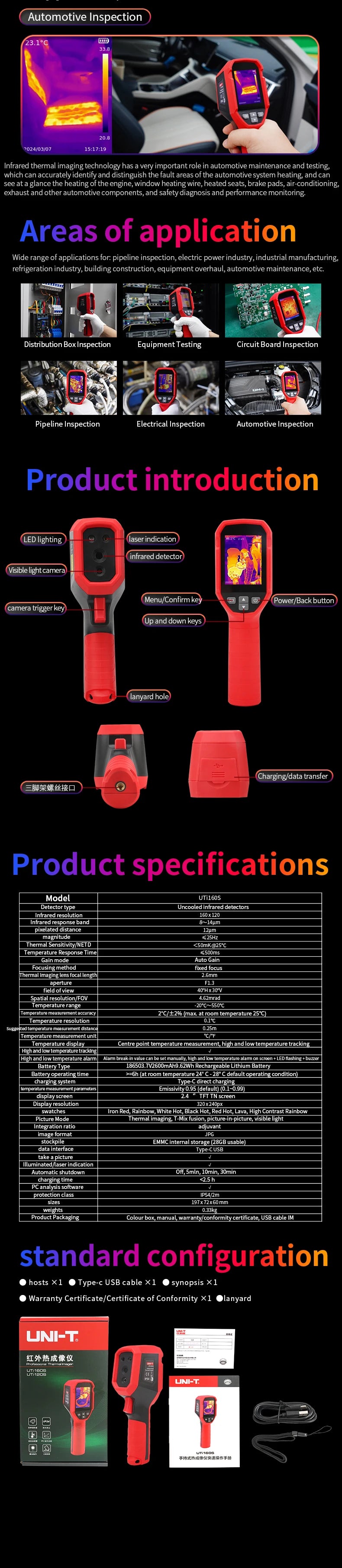

Product model: UTi160S

Detector type: Non cooled infrared detector

Infrared resolution: 160 x 120

Response band: 8-14 μ M

Pixel spacing: 12 μ M

Frame rate: ≤ 25Hz

Thermal sensitivity/NETD: ＜ 50mK @ 25 ℃

Response time: ≤ 500ms

Gain mode: automatic gain

Focusing method: fixed focus

Thermal imaging lens focal length: 2.6mm

Aperture: F1.3

Field of view angle: 40 ° H x 30 ° V

Spatial resolution/IFOV: 4.62mrad

Temperature measurement range: -20 ℃ to 550 ℃

Temperature measurement accuracy: ± 2 ℃/± 2% (maximum value taken, room temperature 25 ℃)

Temperature measurement resolution: 0.1 ℃

Suggested temperature measurement distance: 0.25m

Temperature measurement unit: ℃/℉

Temperature measurement display: center point temperature measurement, high and low temperature tracking

High and low temperature tracking: √

High and low temperature alarm: The alarm threshold can be manually set, and the high and low temperature alarm screen on the screen+LED flashing+buzzer alarm

Battery type: 18650 3.7V 2600mAh 9.62Wh rechargeable lithium battery

Charging system: Type-C direct charging

Temperature measurement parameters: emissivity 0.95 (default) (0.1-0.99)

Display screen: 2.4 '' TFT TN screen

Display resolution: 320 x 240px

Color palette: Iron Red, Rainbow, White Heat, Black Heat, Red Heat, Lava, High Contrast Rainbow

Image modes: thermal imaging, T-Mix fusion, picture in picture, visible light

Fusion ratio: supported

Image format: JPG

Storage: EMMC built-in storage (can use 28GB)

Data interface: Type-C USB

Photography: √

Lighting/laser indication: √

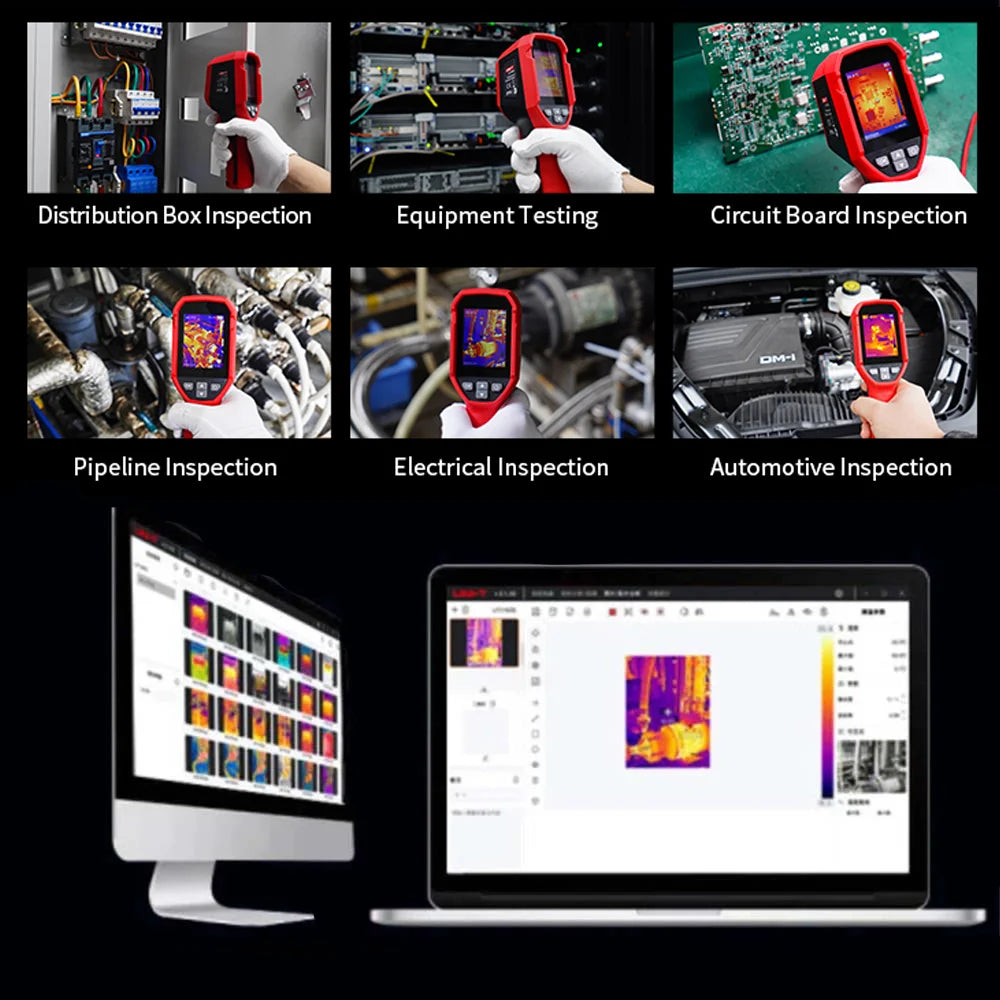

PC analysis software: √

Protection level/fall protection: IP54/2m

Dimensions (length x width x height): 197 x 72 x 60 mm
