SPECIFICATIONS

Brand Name: UNI-T

Certification: CE,RoHS

Display Size: 2.0 - 3.9 Inches

Hign-concerned Chemical: None

Is Smart Device: YES

Origin: Mainland China

Power Type: AAA Battery

Style: Handheld

UNI-T Model: UTI260B

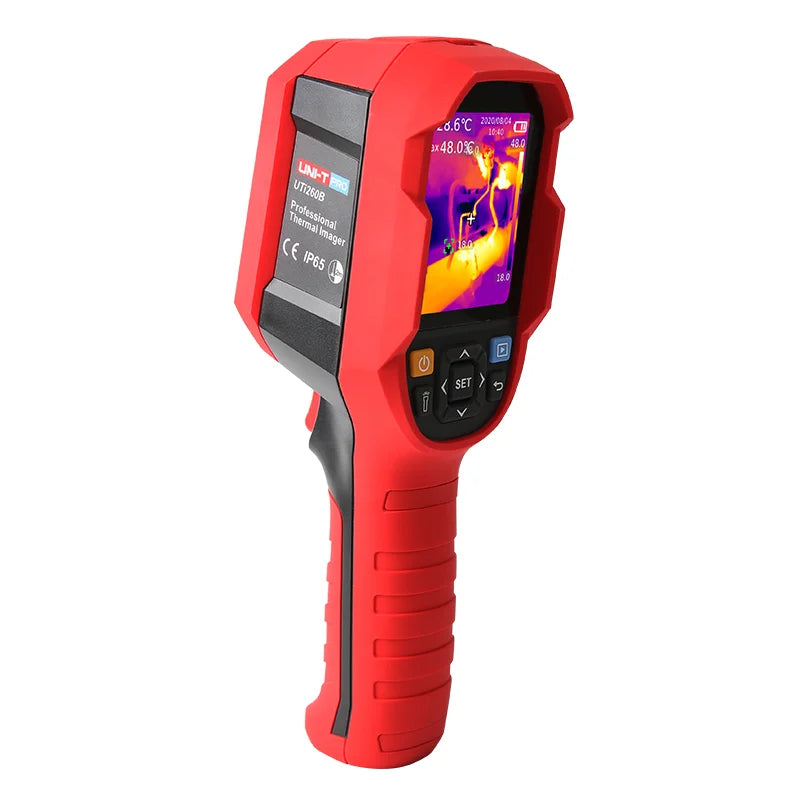

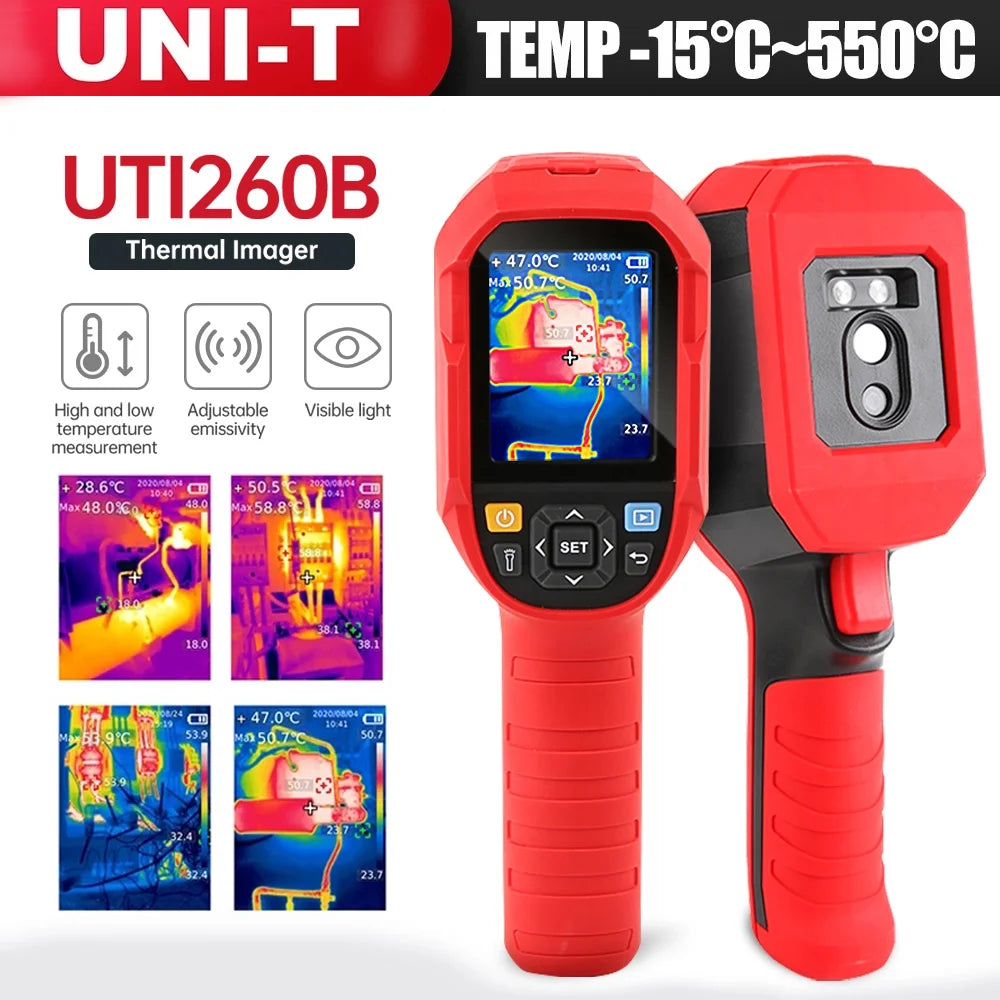

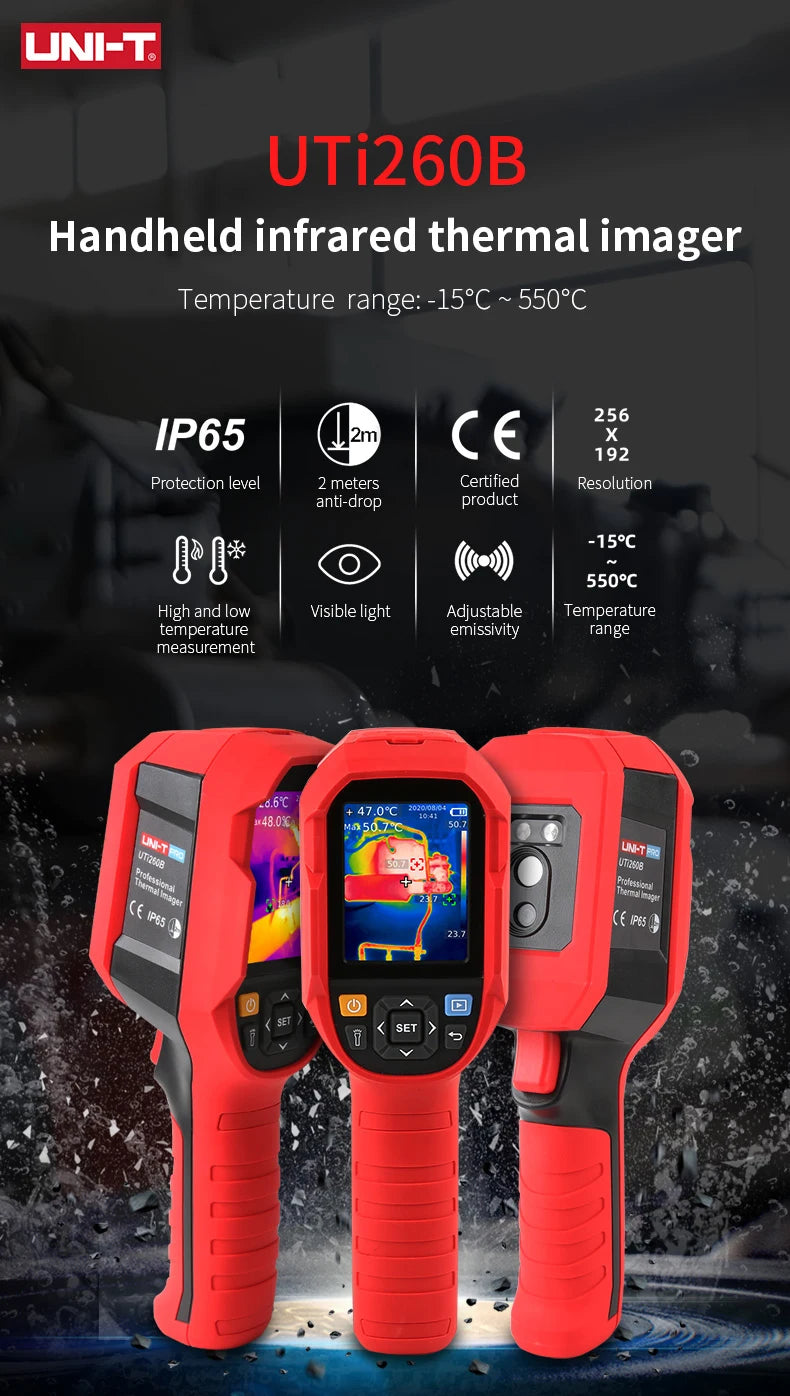

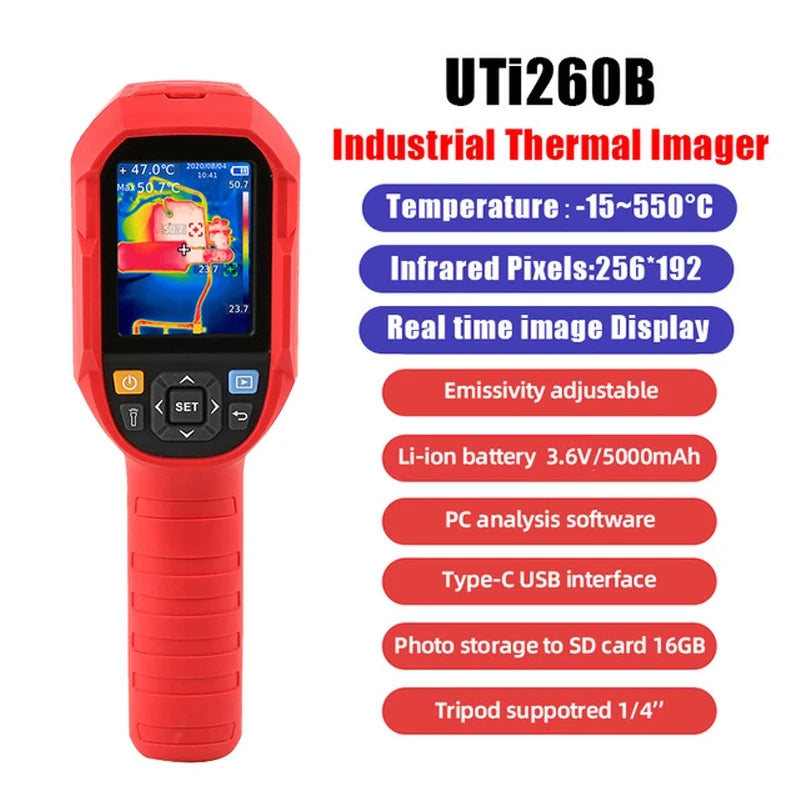

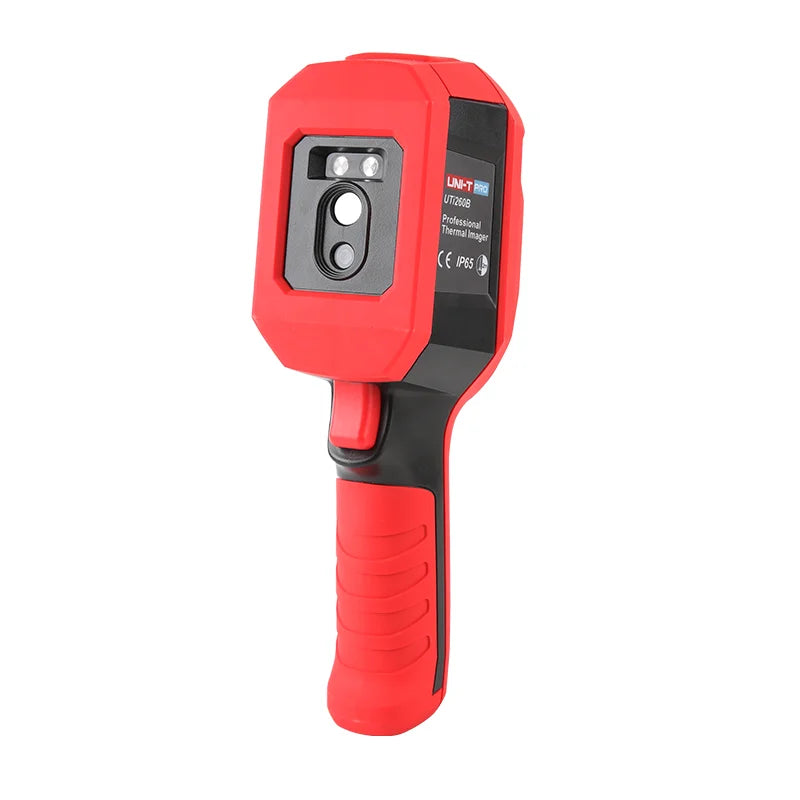

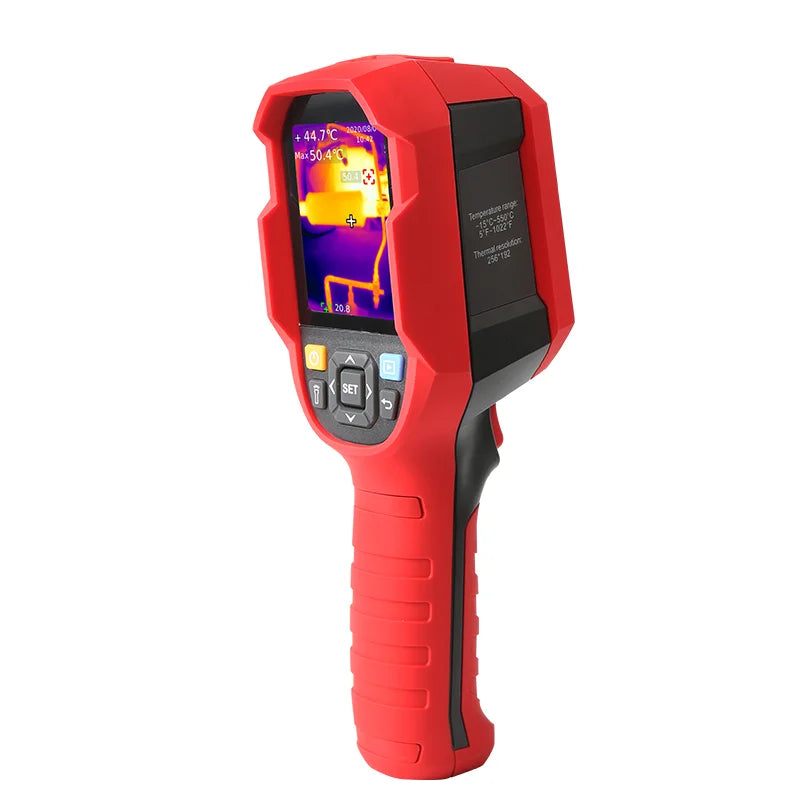

UNI-T UTi260B Infrared Thermal Imager 256 x 192 Thermographic PCB Circuit Electrical Maintenance Heat Image Thermal Camera

Note: very important! The link has a variety of models to choose from, you need to choose the model you need to buy when you place an order, if you do not confirm whether you have chosen the correct model you need, please find customer service message to confirm the first time after placing an order, to avoid that you receive a model that is not the one you need, thank you very much for your understanding.

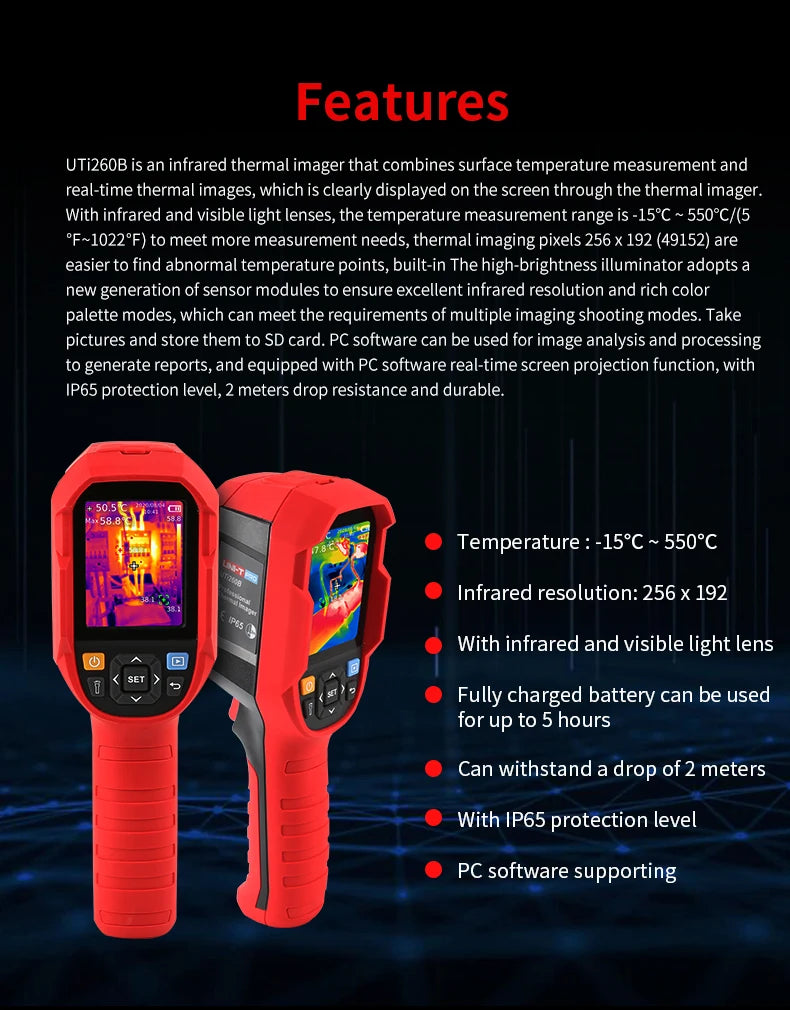

The thermal imager is rugged, and ergonomically designed thermal imager with great performance. It adopts a UFPA detector to ensure excellent infrared resolution and a rich variety of palette modes. Some models have the functions of visual light, buzzer alarm, and real-time image transmission, which is convenient for various applications.

Advantages of thermal imager detection:

1. Intuitive, efficient and convenient, making users directly "see" the temperature variation.

2. Thermal condition of different locations for comprehensive analysis, providing more information for judgment

3. Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points

4. PC software for data analysis and report output

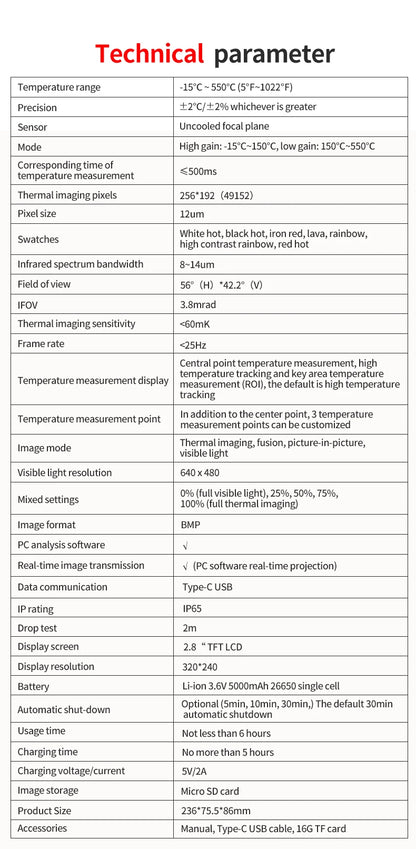

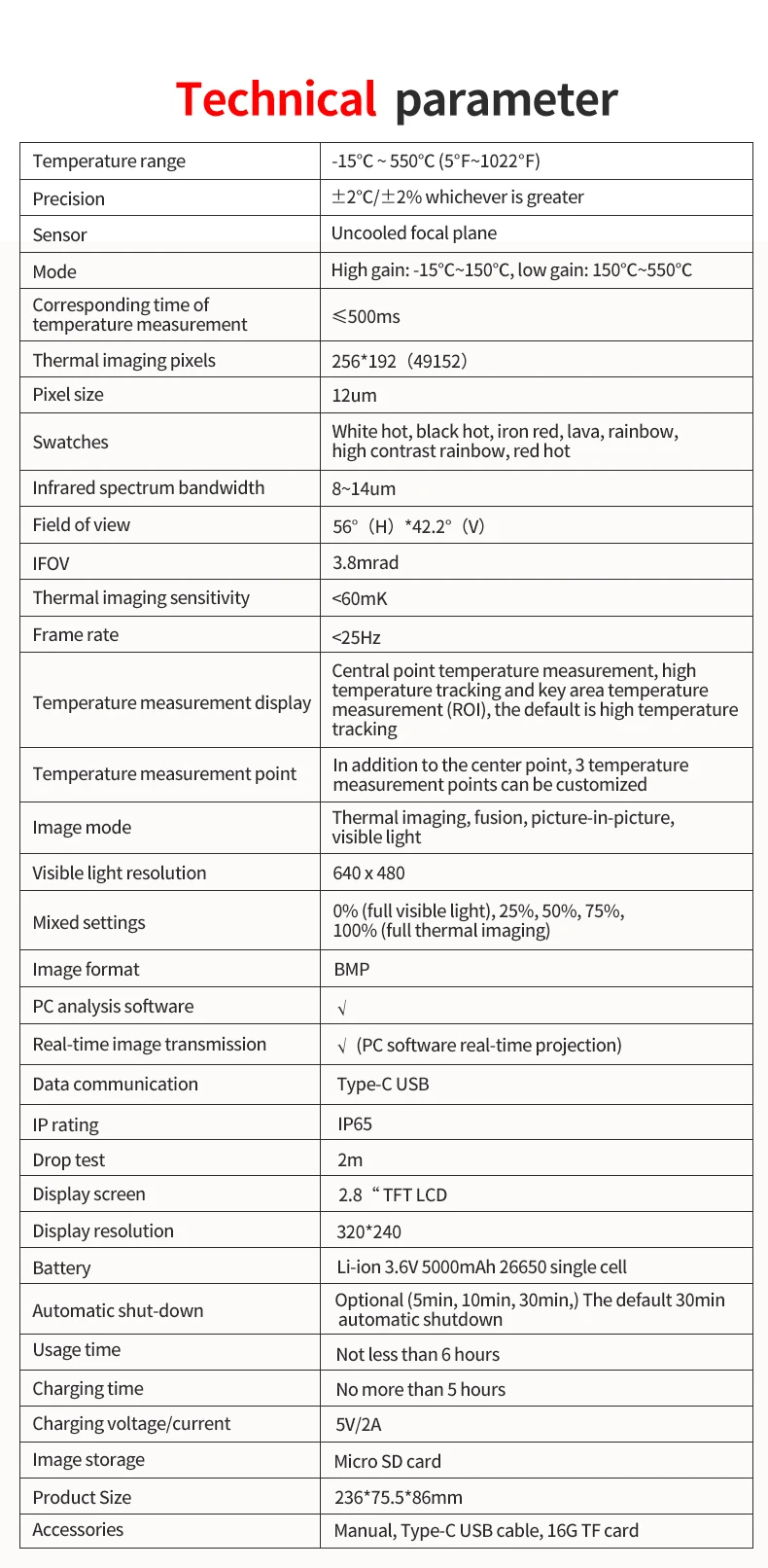

Technical Parameter

1.Temperature measurement range: -15℃ ~ 550℃/(5℉~1022℉)

2.Temperature measurement accuracy; ±2℃/±2% whichever is greater

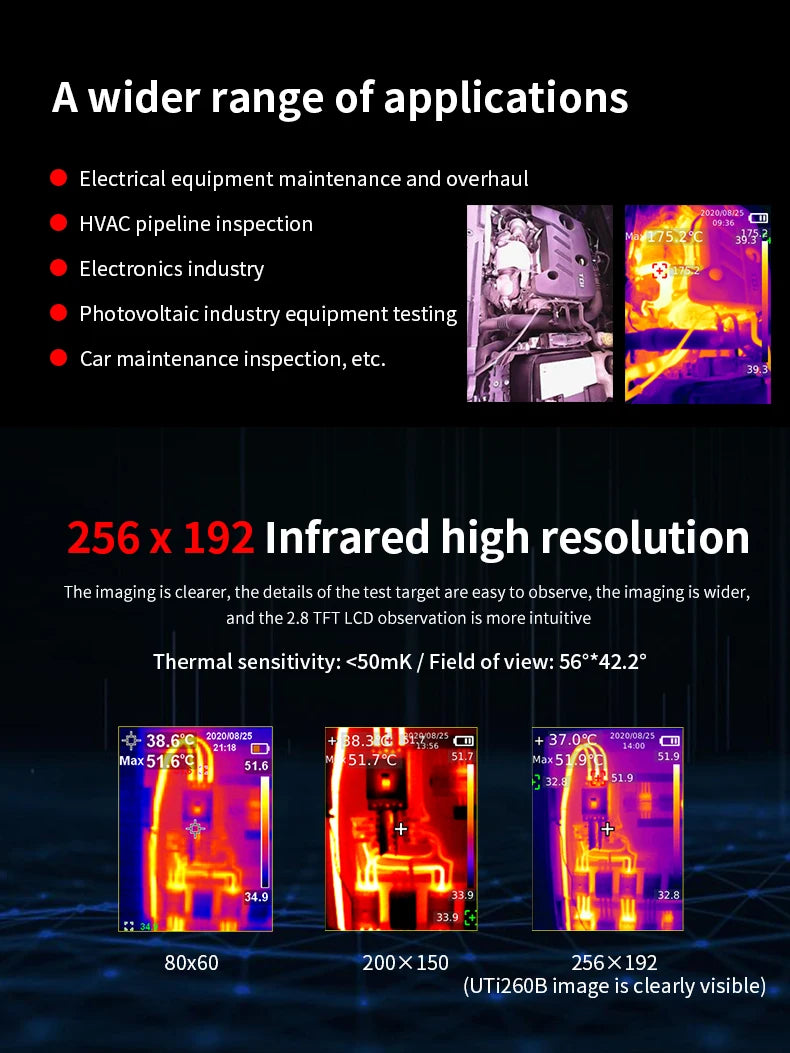

3.Thermal imaging pixels: 256 x 192 (49152)

4.Visible light lens: 640 x 480

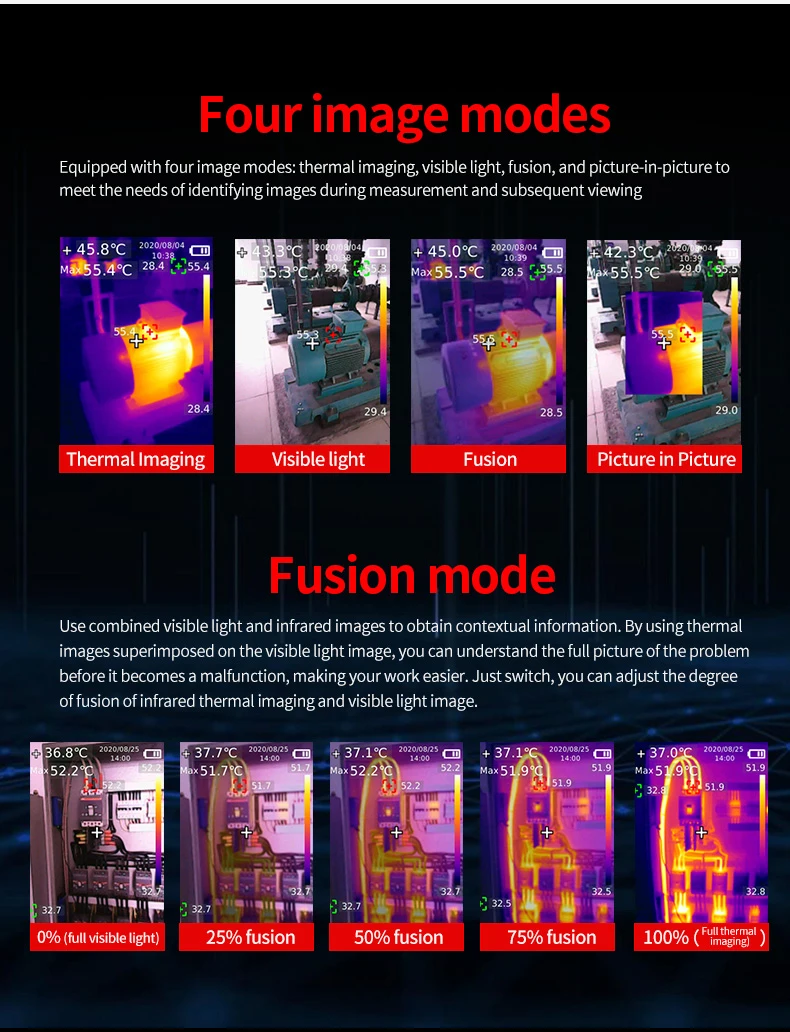

5.Image mode: thermal imaging, thermal fusion, picture-in-picture, visible light

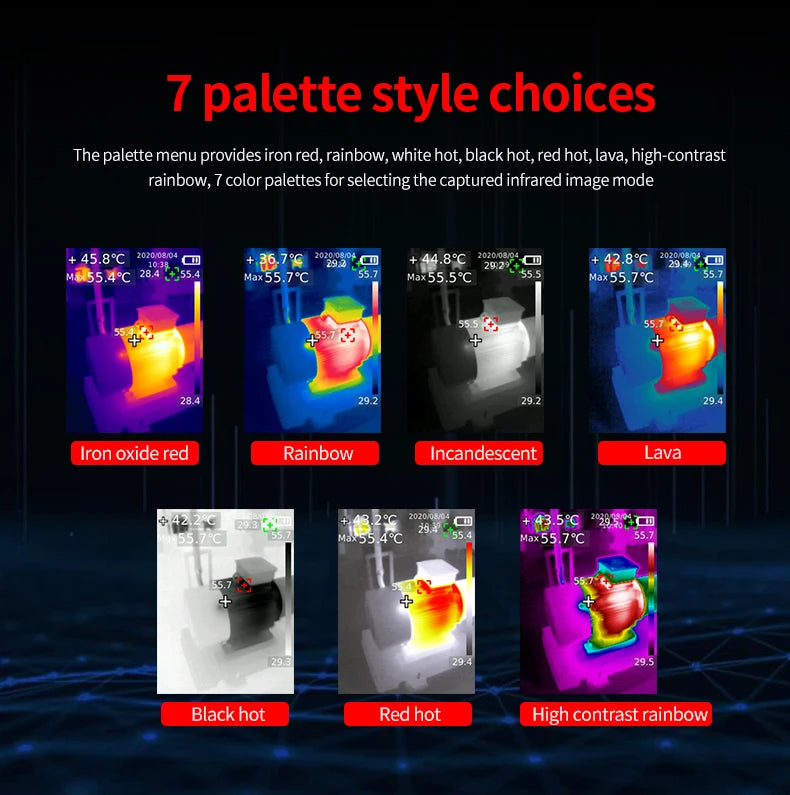

6.Seven color palettes: white hot, black hot, iron red, lava, rainbow, high contrast rainbow, red hot

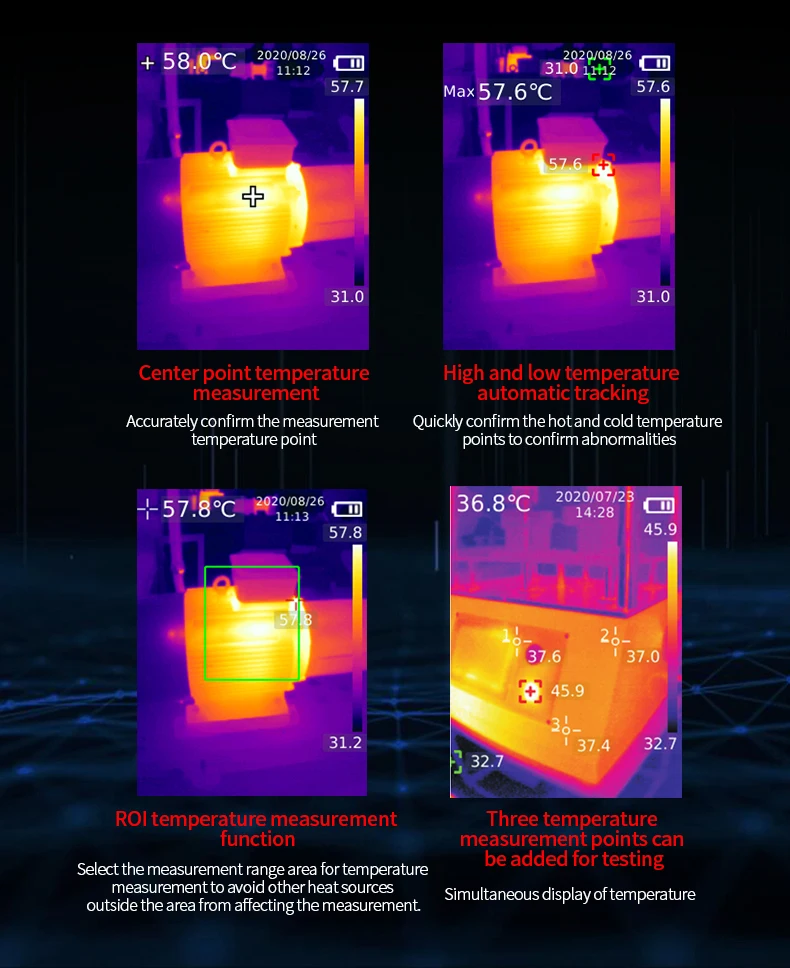

7.In addition to the center point, 3 temperature measurement points can be customized, including center point temperature measurement, high and low temperature tracking and key area temperature measurement (ROI)

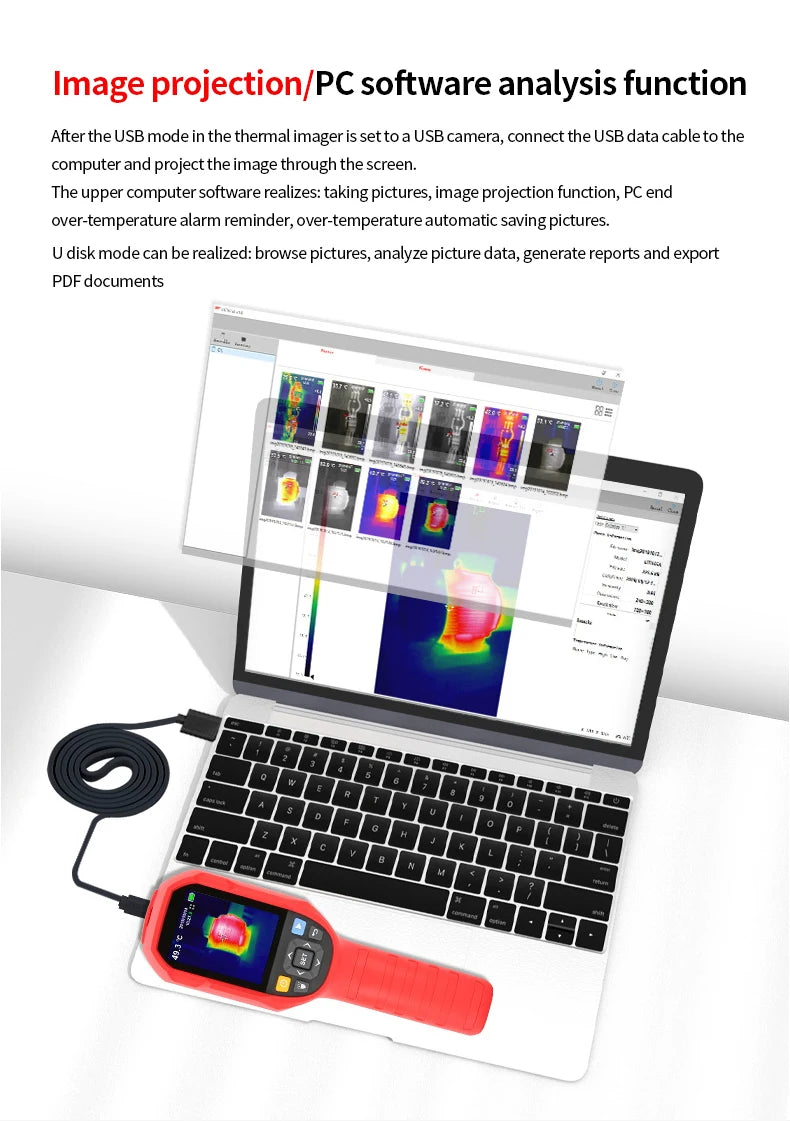

8.PC analysis software, real-time image transmission

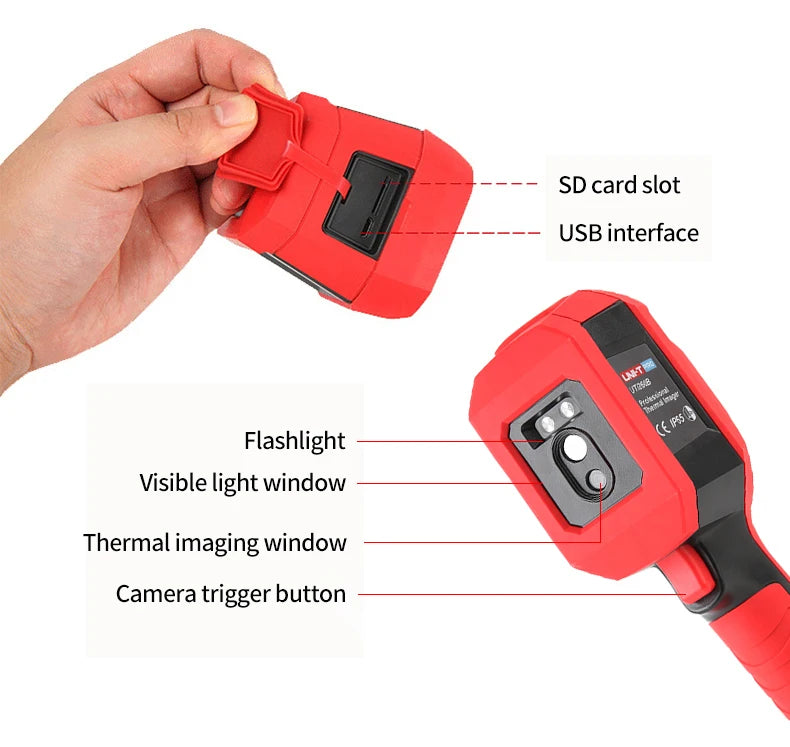

9.LED fill light, LED alarm

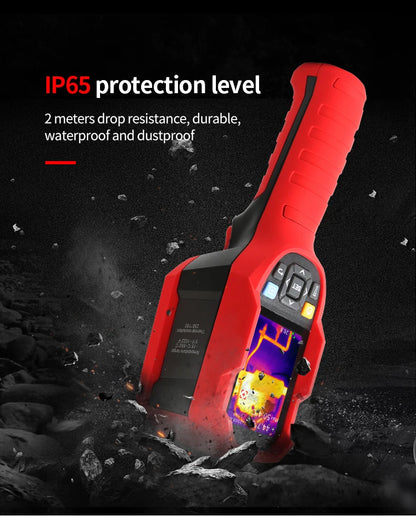

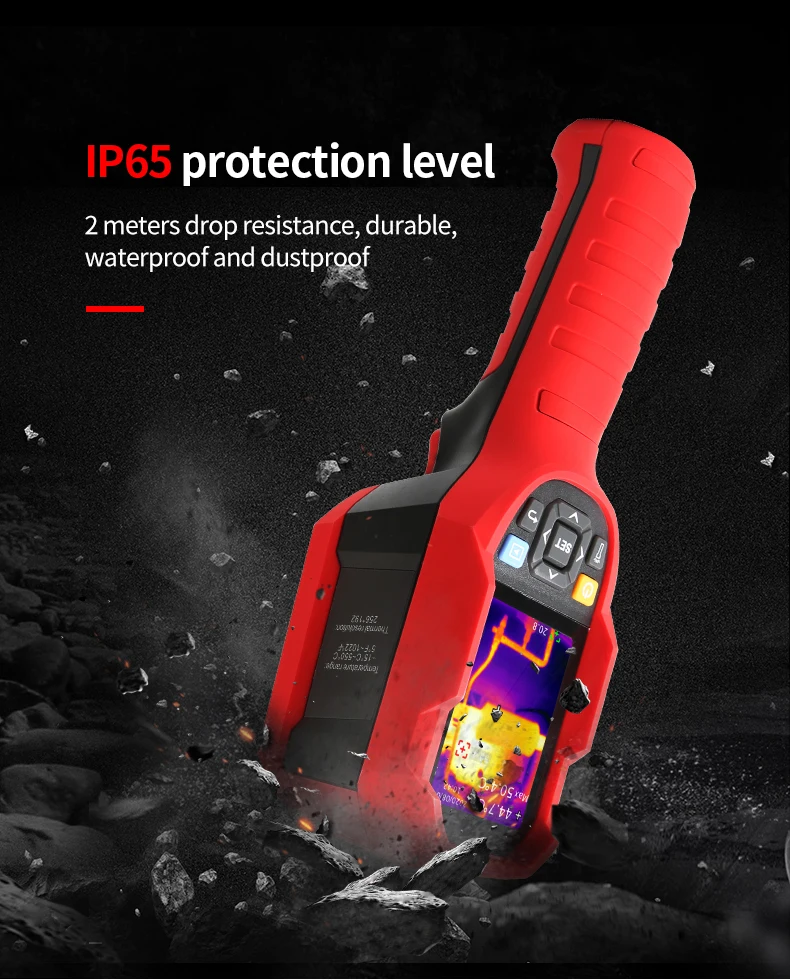

10.IP65 protection level, 2-meter drop test
