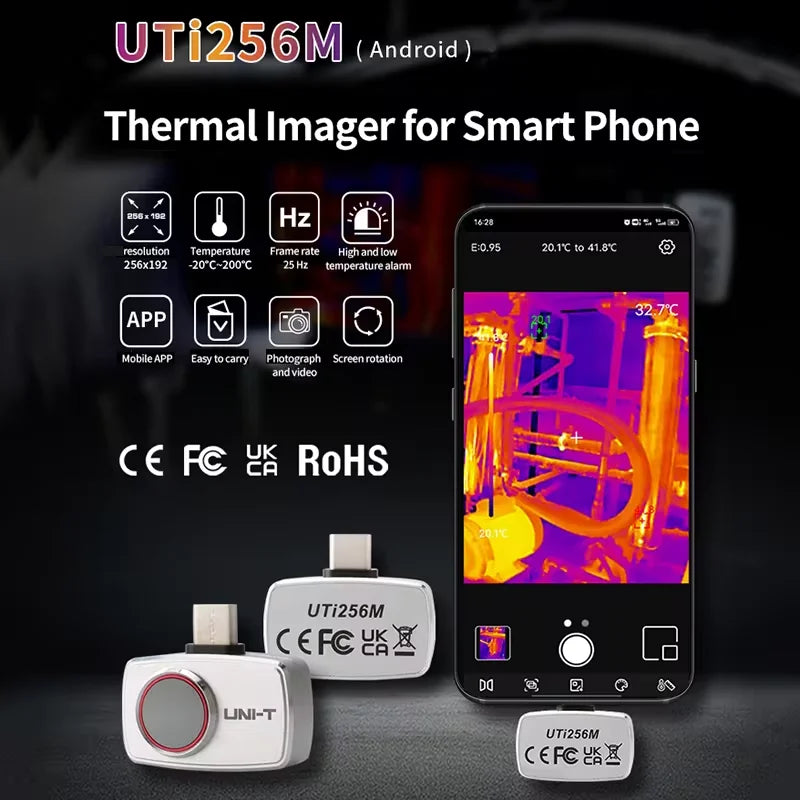

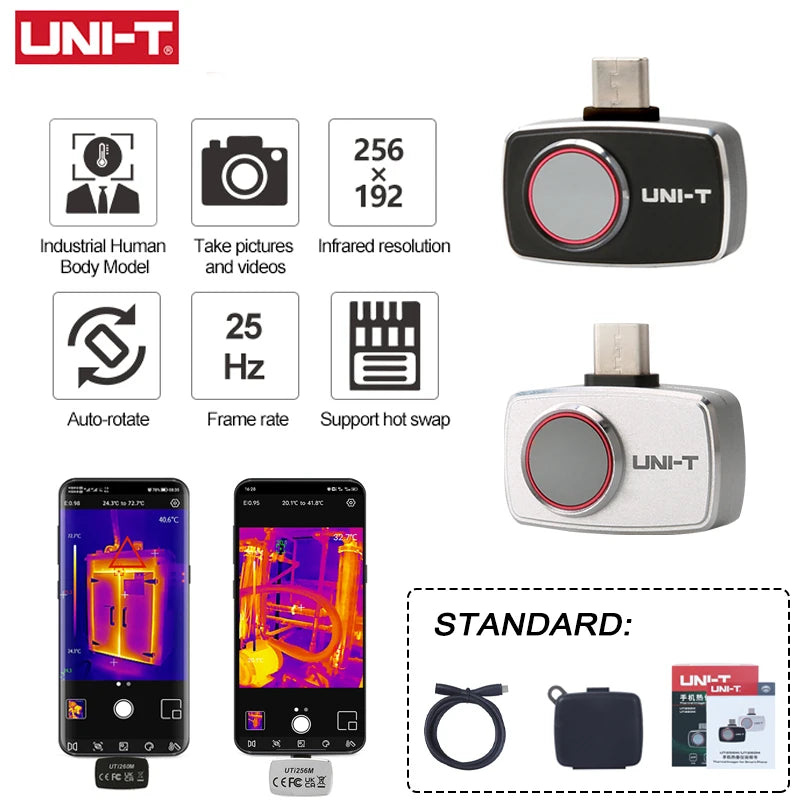

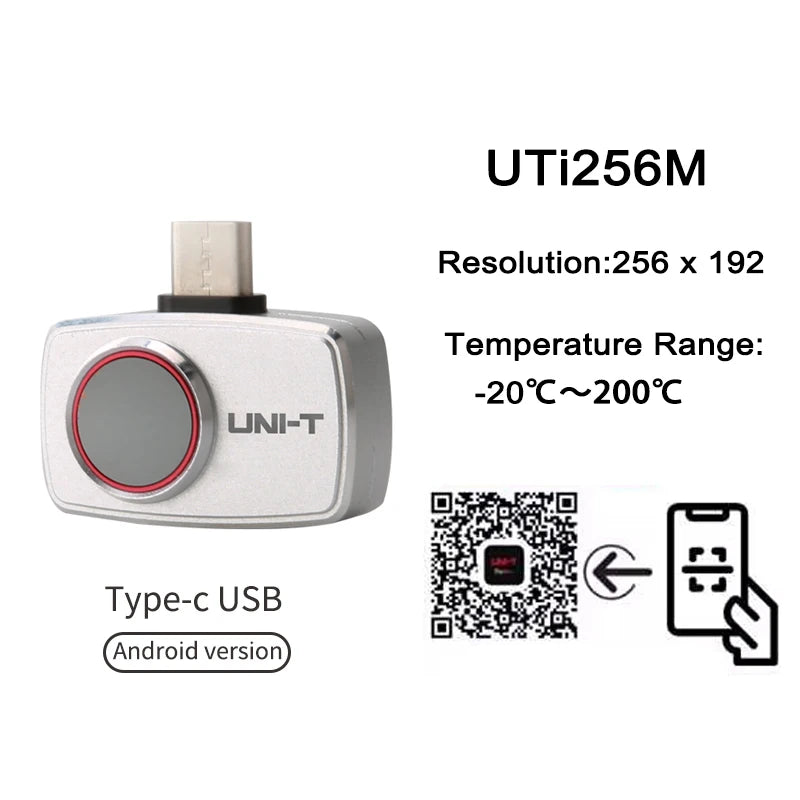

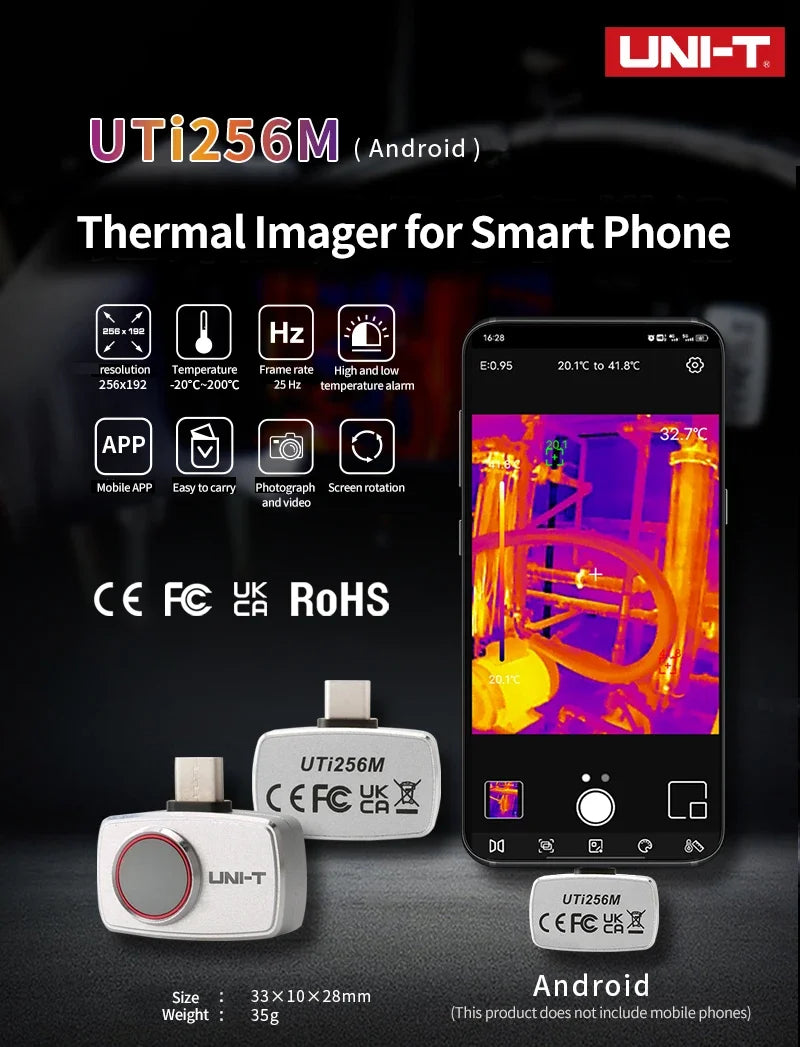

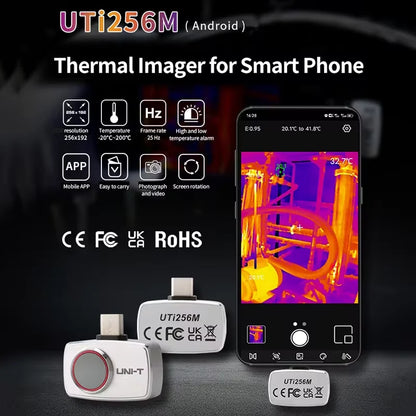

UTi256M Smartphone Thermal Camera

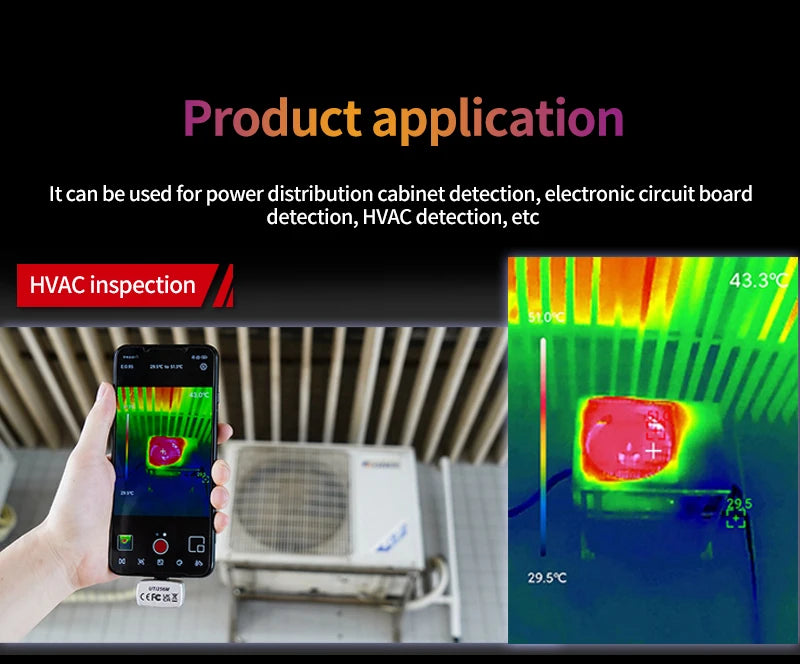

UTI256M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response.UTi256M is with wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

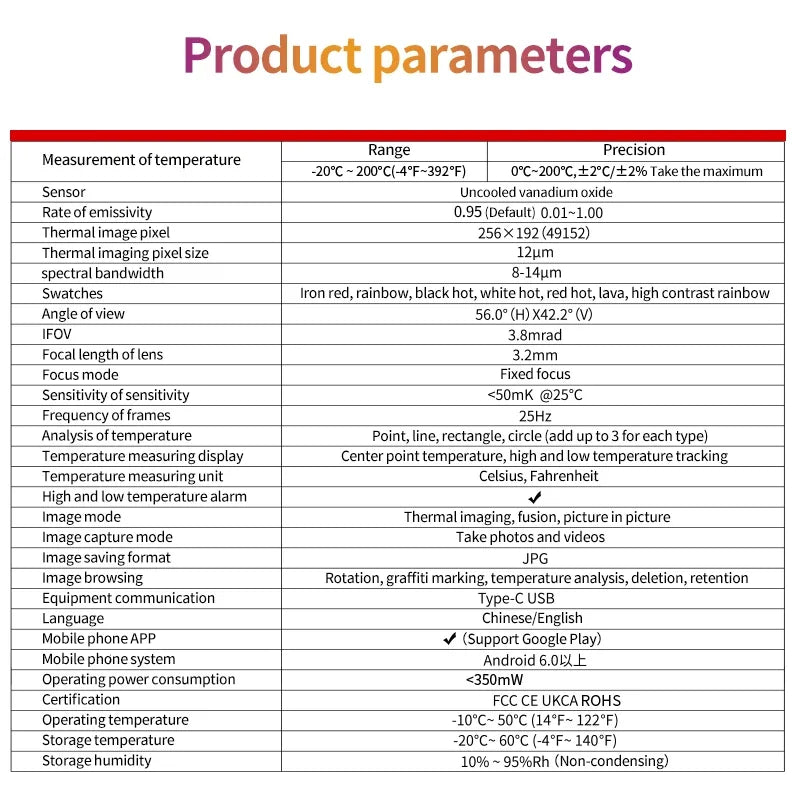

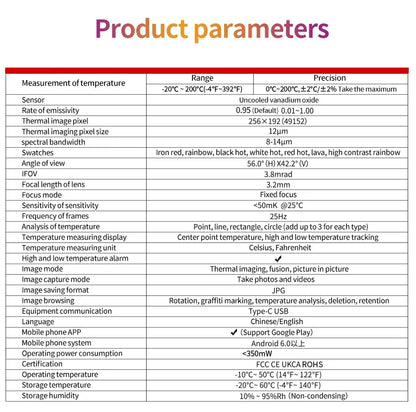

●IR resolution: 256×192
●UTI256M Temperature measurement range: -20℃ to 200℃ / -4℉ to 392 ℉

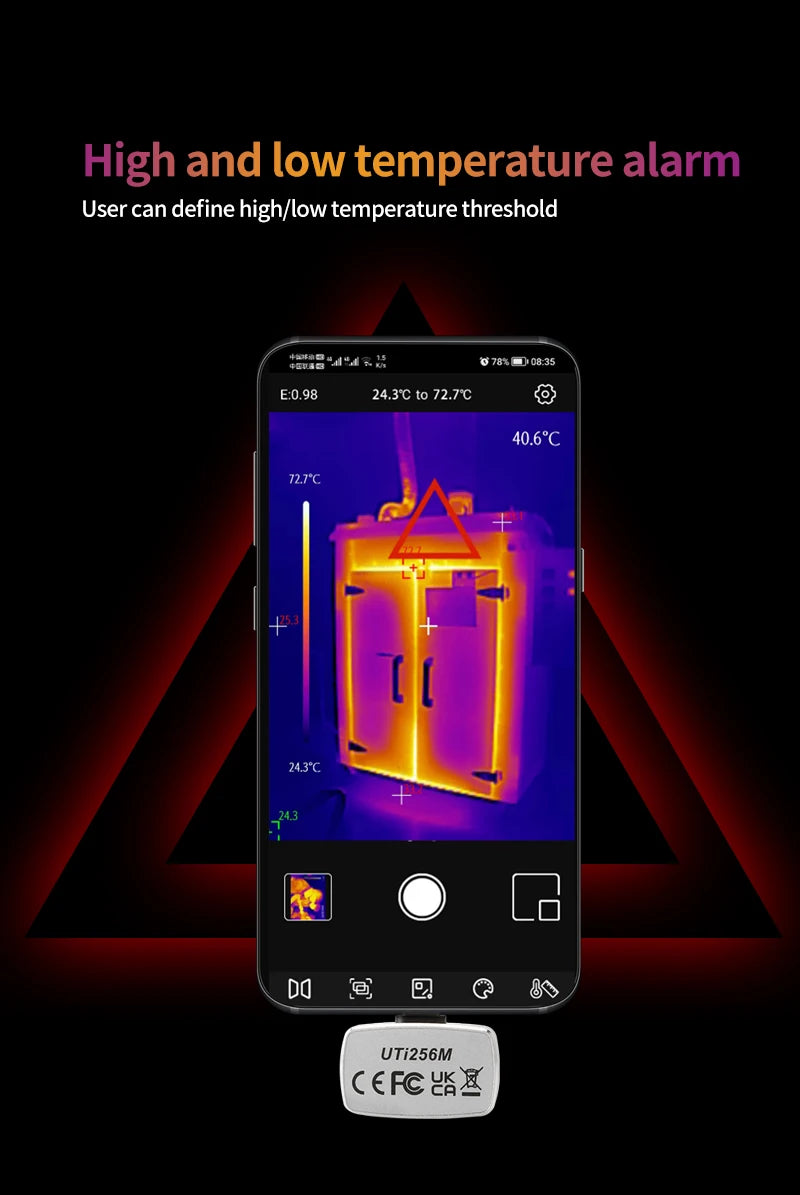

●Auto alarm for high/low temperature
●Auto tracking for hot spot/cold spot

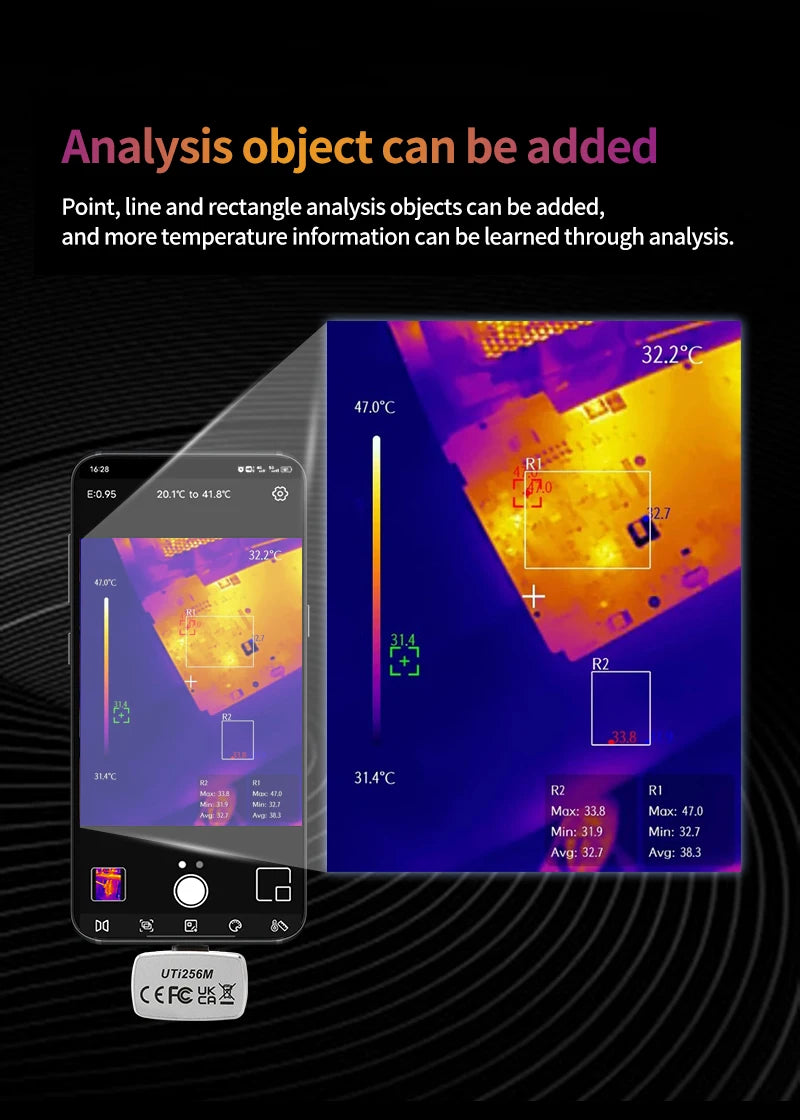

●On screen analyzer: 3 Points/3 Lines /3 Rectangles
●Image capture

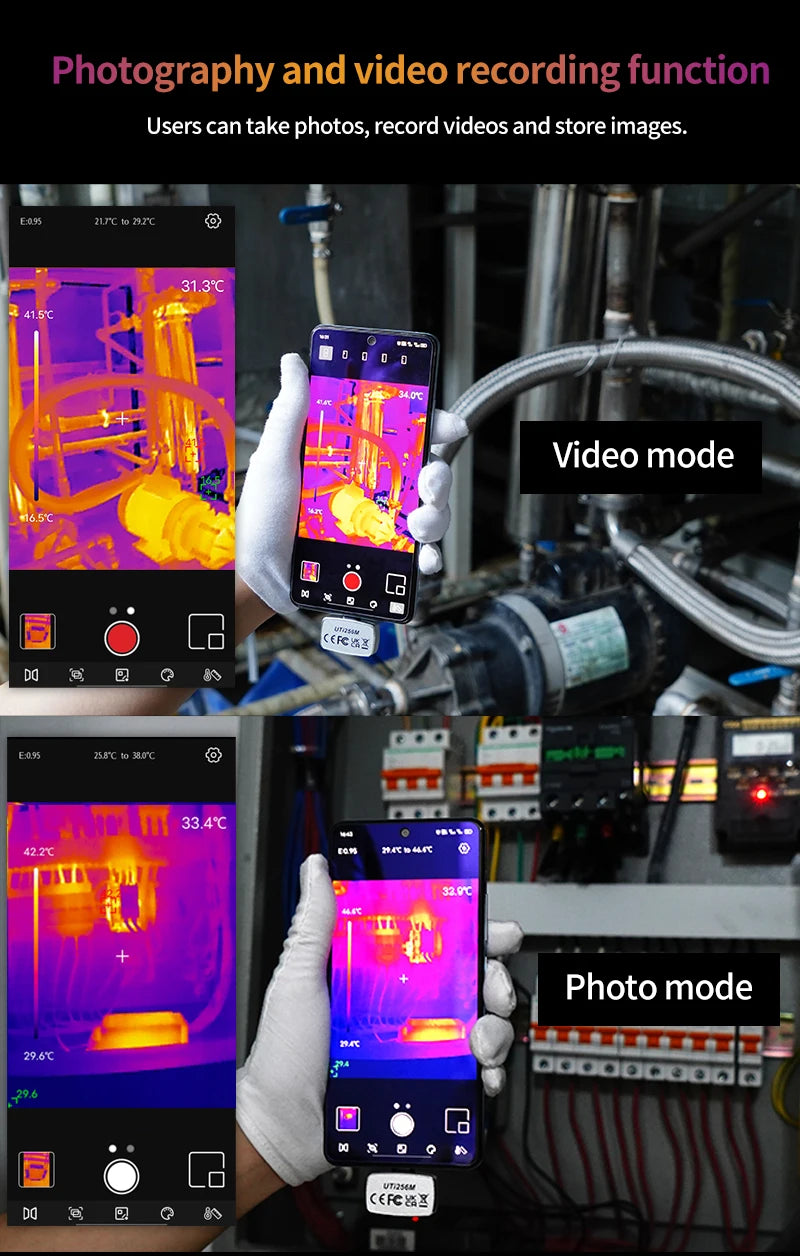

●Video recording
●Image modes: Thermal, Fusion, PIP

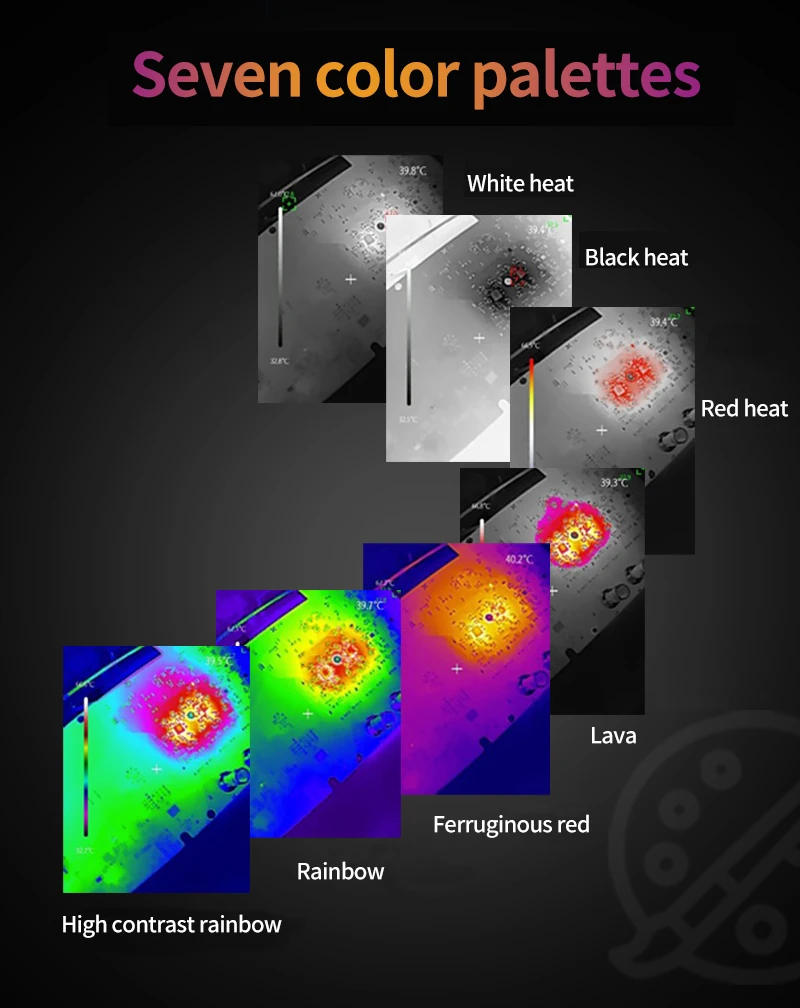

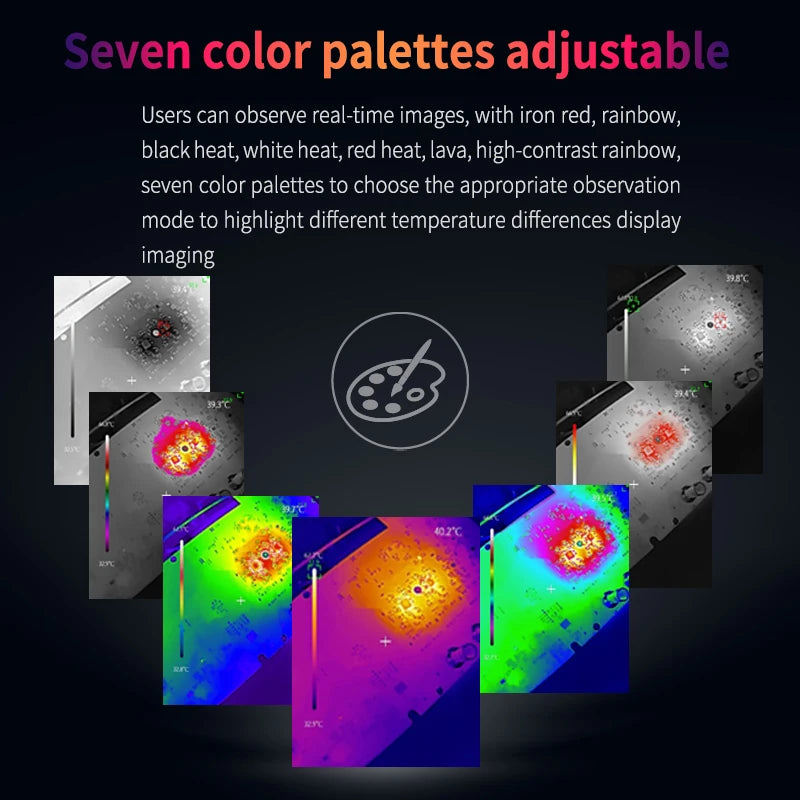

●Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
●Phone: Android (USB Type-C interface)

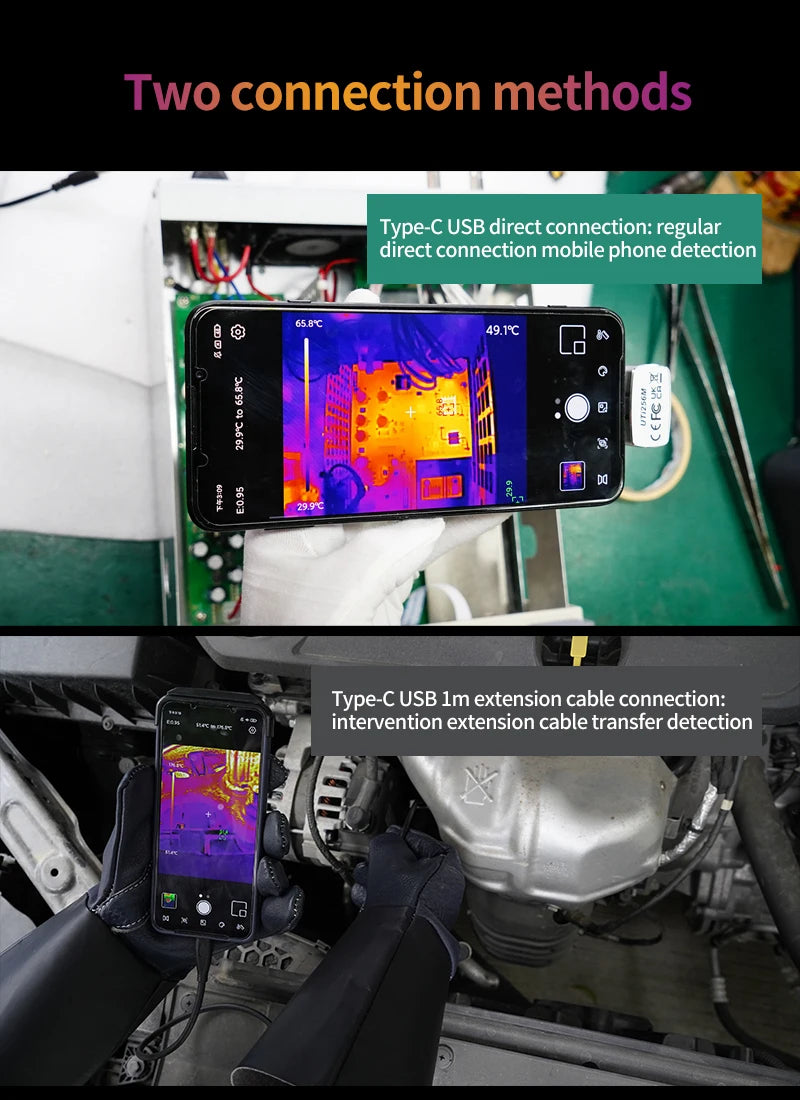

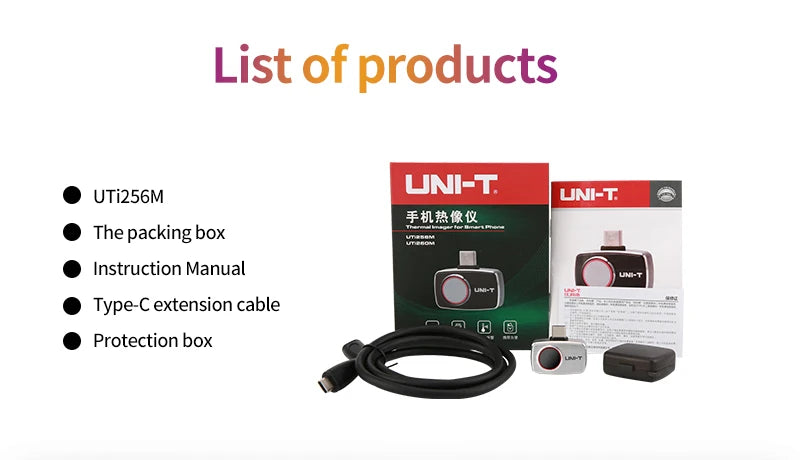

●1m extension cable
●2m drop proof

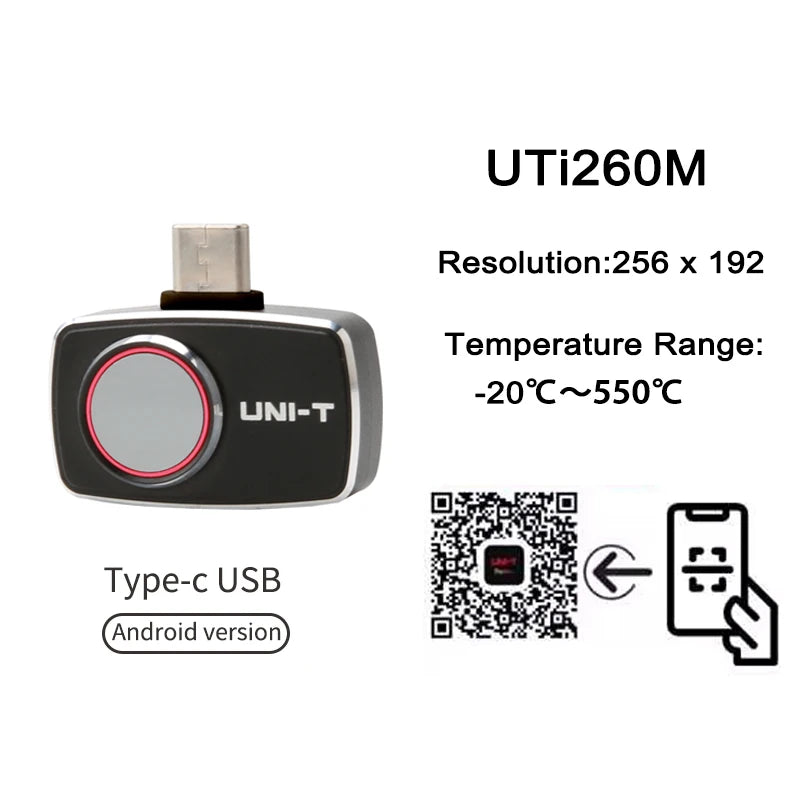

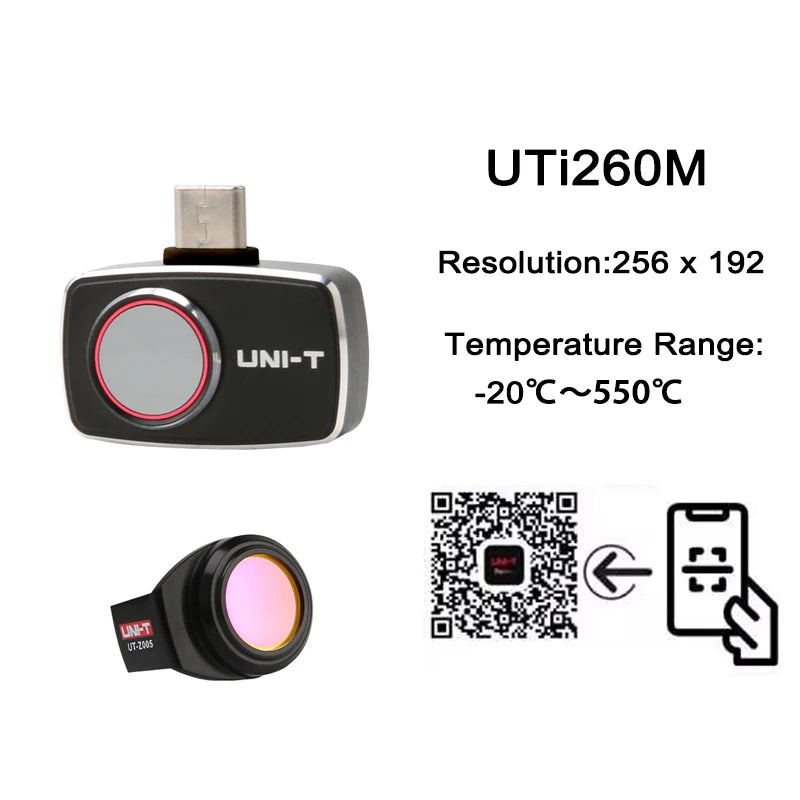

1.IR resolution: 256×192（49152）
2.Temperature measurement range: -20℃to 550℃ / -4℉ to 1022 ℉

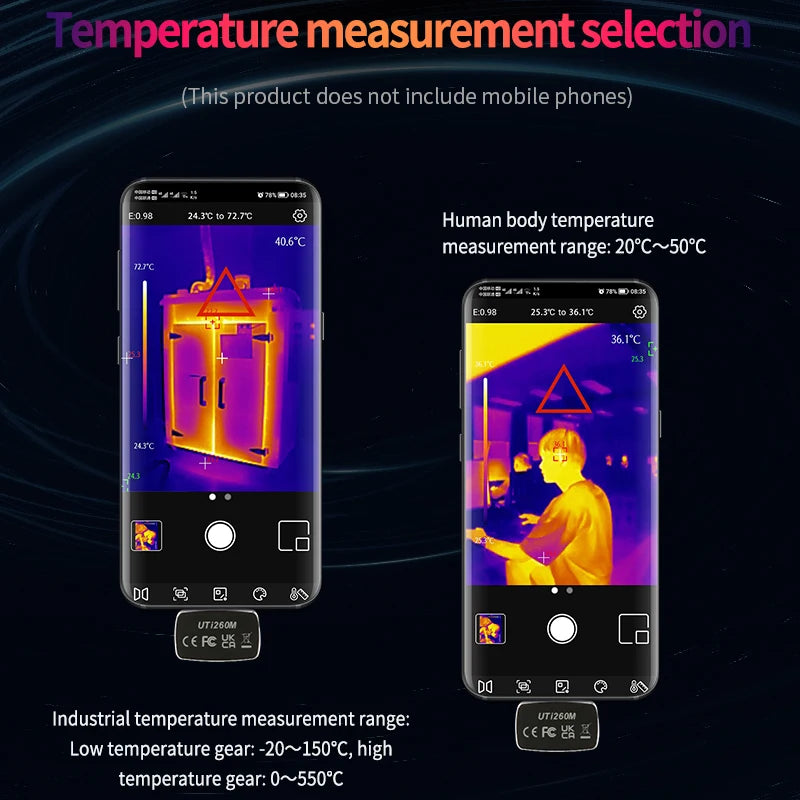

3.Measurement modes: Industry, EST(Elevated Skin Temperature)
4.Temperature scale: Low gain: -20℃~150℃, High gain: 0℃~550℃
5.Auto alarm for high/low temperature
6.Auto tracking for hot spot/cold spot
7.On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
8.Image capture
9.Video recording
10.Image modes: Thermal, Fusion, PIP
11.Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
12.Phone: Android (USB Type-C interface)
13.1m extension cable
14.2m drop proof

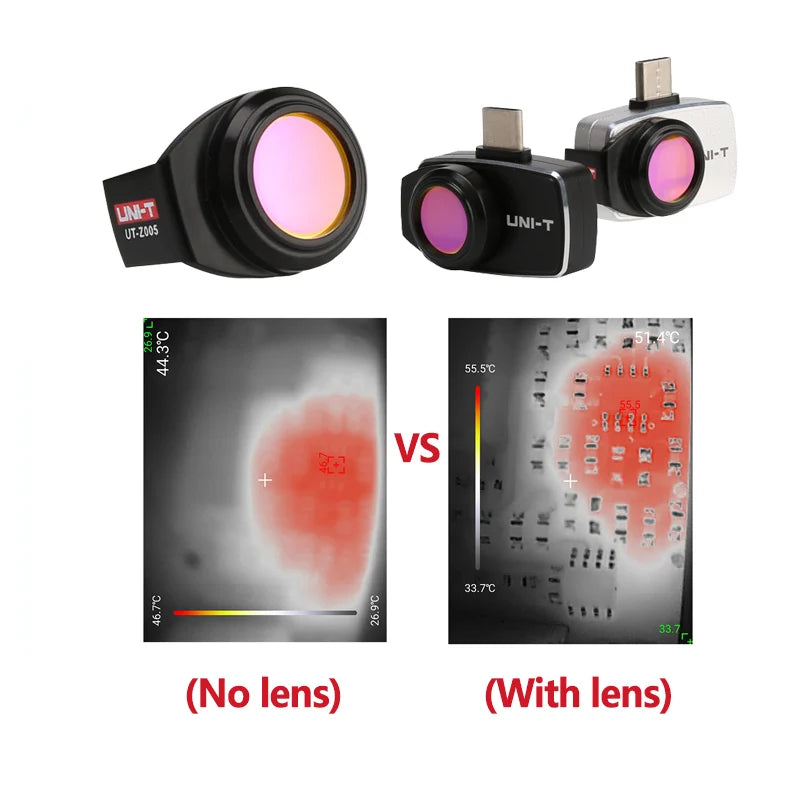

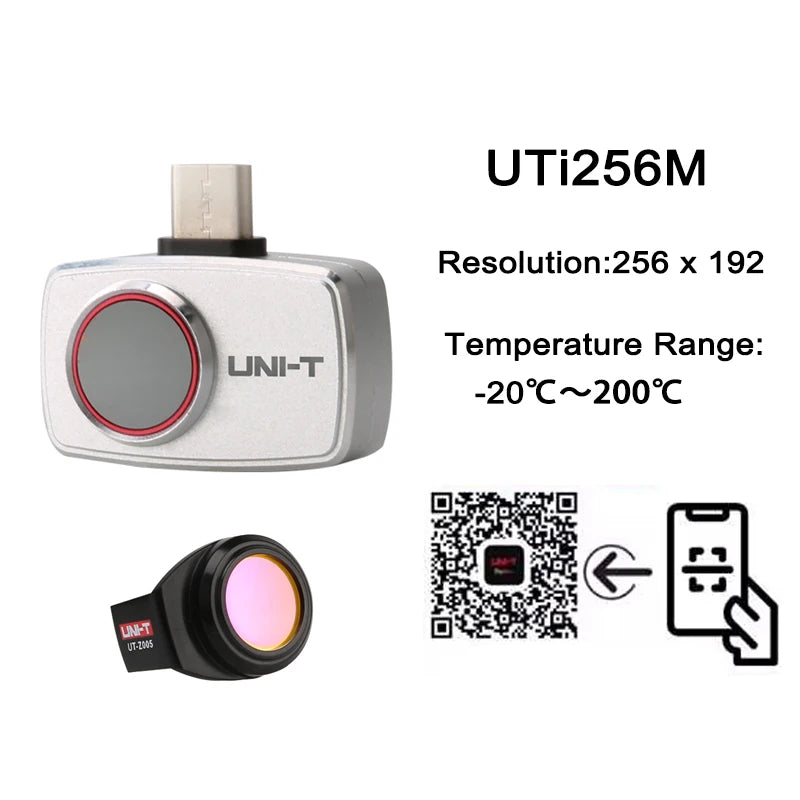

This is a video of UTi256M and UTi260M with macro lenses.
