SPECIFICATIONS

3 Temperature Measurement Points: Center Point, Highest Temperature, Lowest Temperature

Brand Name: UNI-T

Certification: CE,FCC,RoHS,UL,KC,pse,weee

Color Palette: 7

Contour line#Temperature and related subjects: Manual/Automatic

Data Interface: Type-C USB

Detector Type: Uncooled infrared detector

Field of View Angle: 44.92°H x 33.42°V

Focus Mode: Manual focusing

Frame Rate: 25Hz

High and Low Temperature Alarm: Yes

High and Low Temperature Tracking: Yes

Hign-concerned Chemical: None

Human Body Temperature Measurement: ±0.5℃ Accuracy

Image Mode: Thermal imaging, fusion, picture in picture

Image/Video Format: JPG/MP4

Industrial Temperature Measurement: ±2℃/±2% Accuracy

Infrared Resolution: 256x192

Infrared Response Band: 7.5-14um

Is Smart Device: YES

Lens Focal Length: 4.0mm

Lens Size: 21.5mm

Mobile APP: Android

Model: UTi261M

Origin: Mainland China

Photography/Video Recording: Yes

Pixel Size: 12um

Spatial Resolution/IFOV: 3.0mrad

Temperature Analysis: 3 Points, 3 Rectangles, 3 Lines

Temperature Measurement Unit: ℃/℉

Temperature Range: -20℃ to 450℃

Thermal Sensitivity/NETD: <50mK

UNI-T Model: UTi261M

languages: English, Chinese

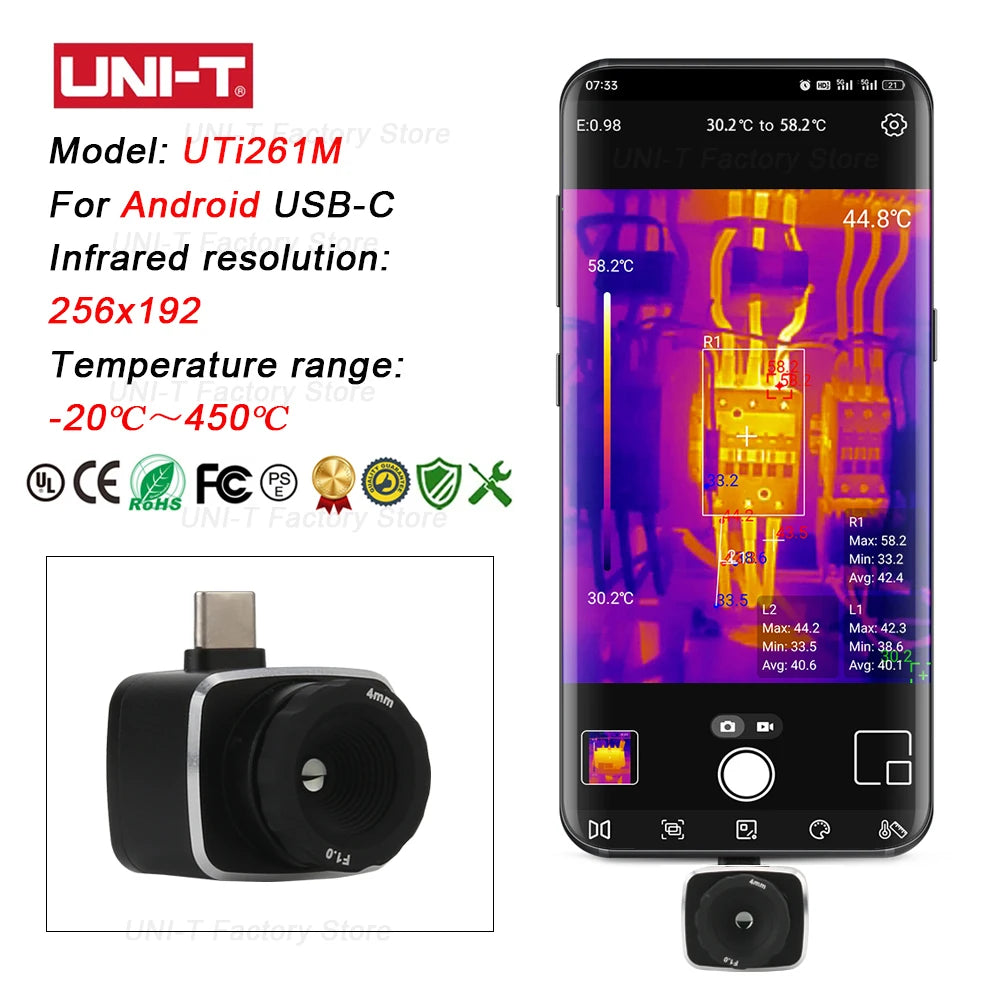

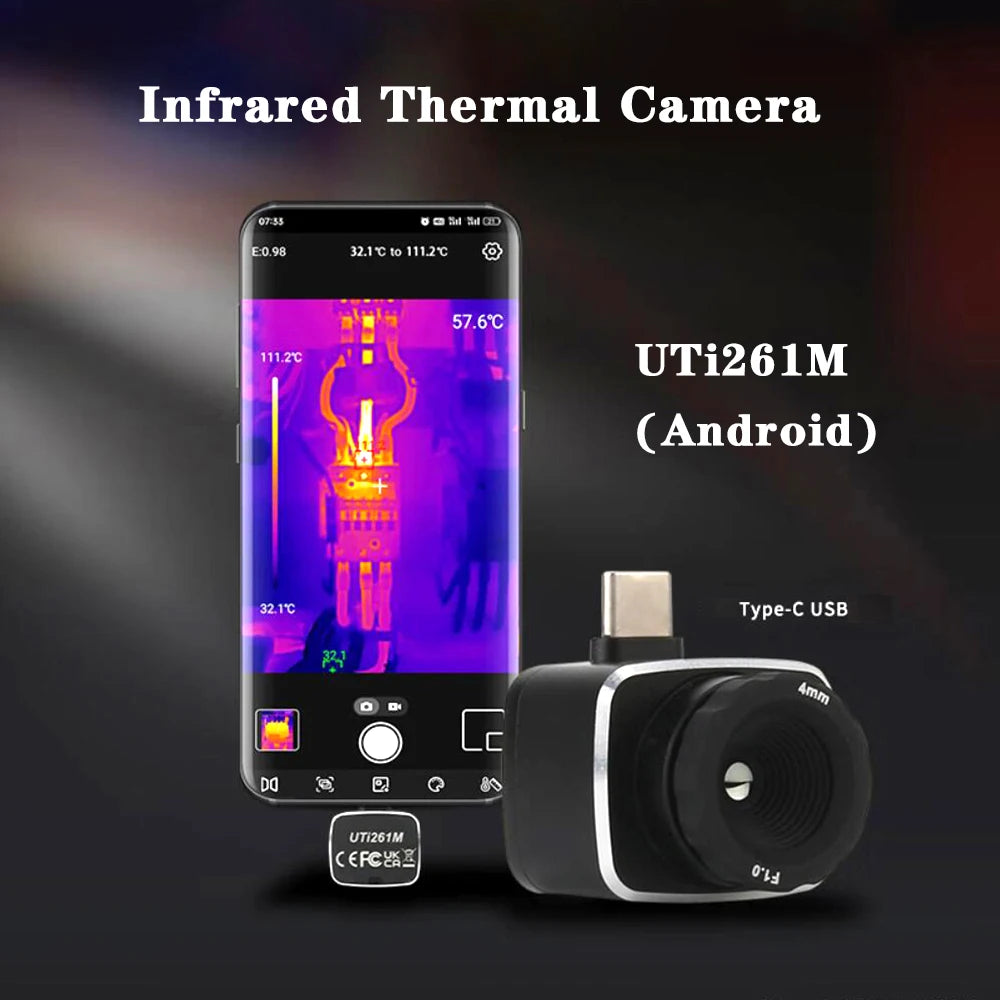

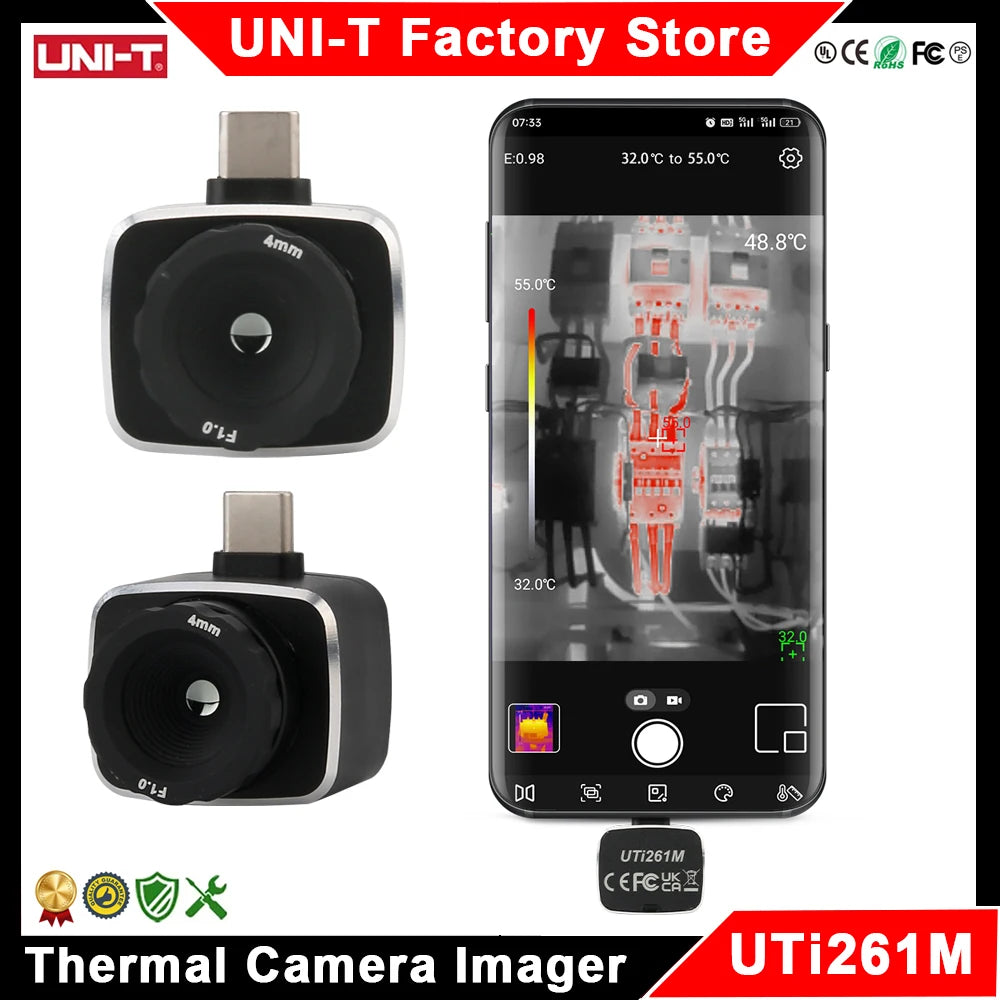

UNI-T UTi261M Thermal Imager Infrared Module Thermographic Camera Android Mobile Phone Type C Thermal Imaging Camera

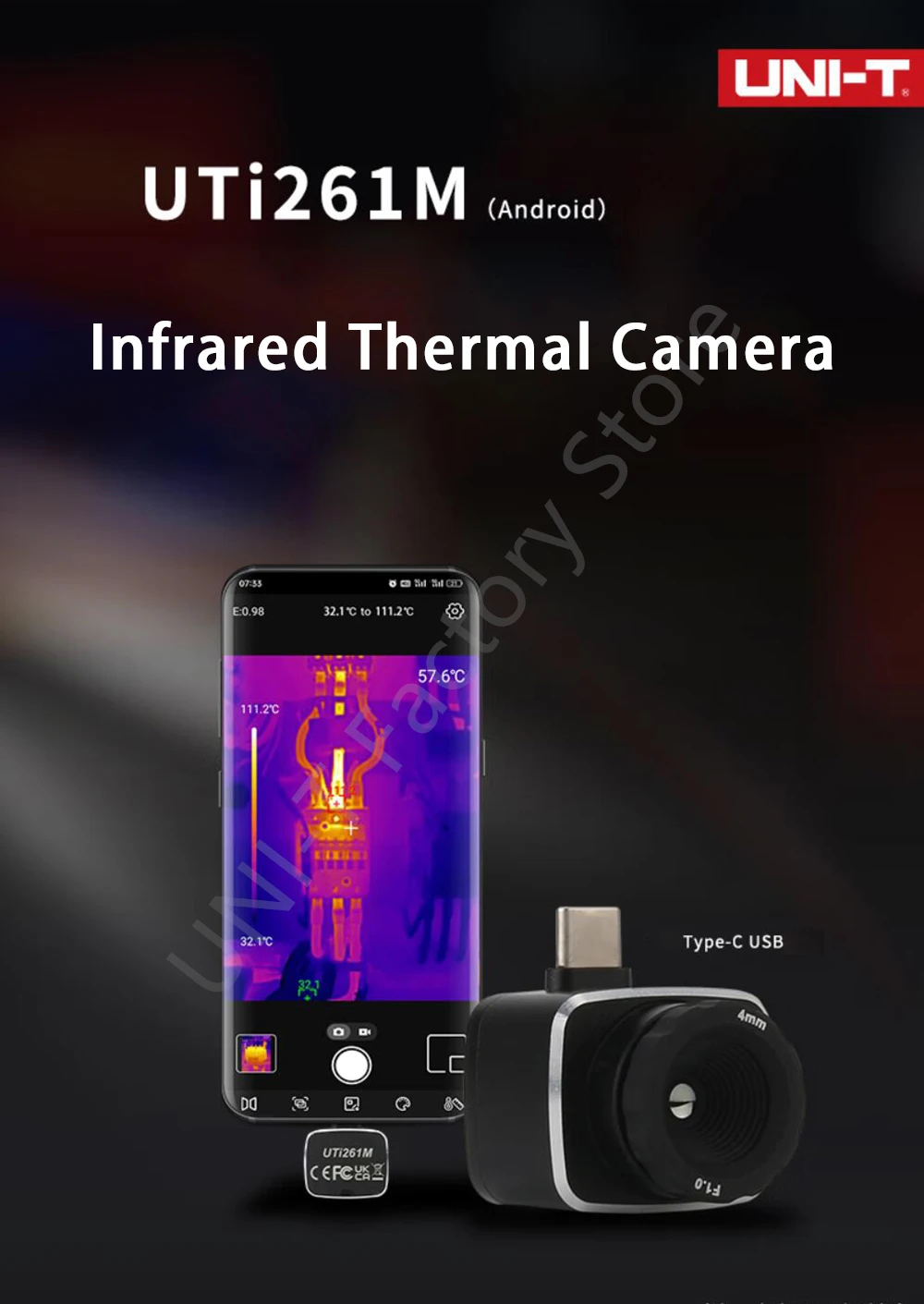

UTi261M Mobile Thermal Imager (New Arrivals)

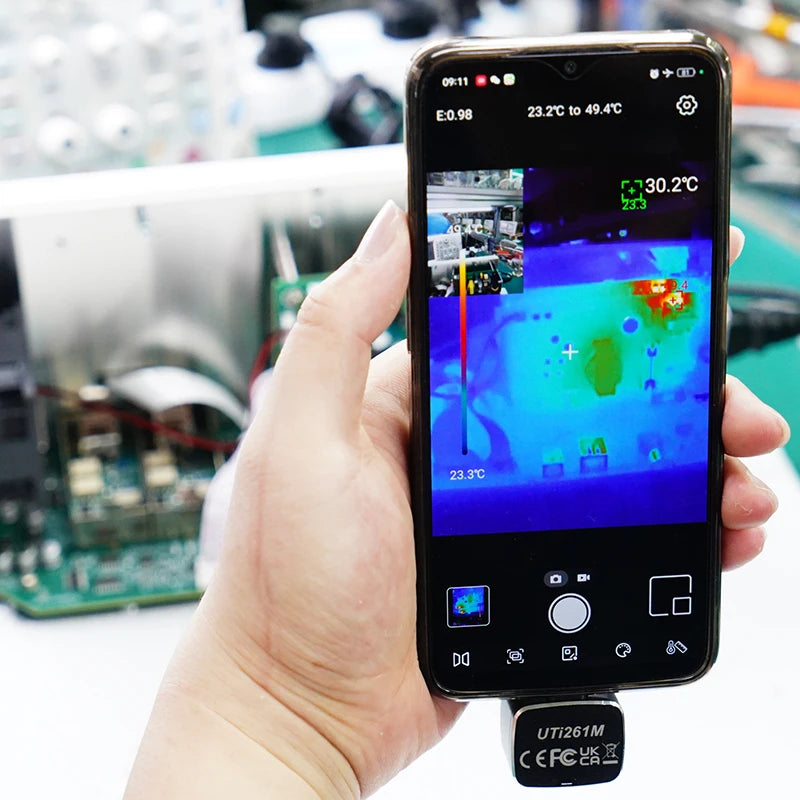

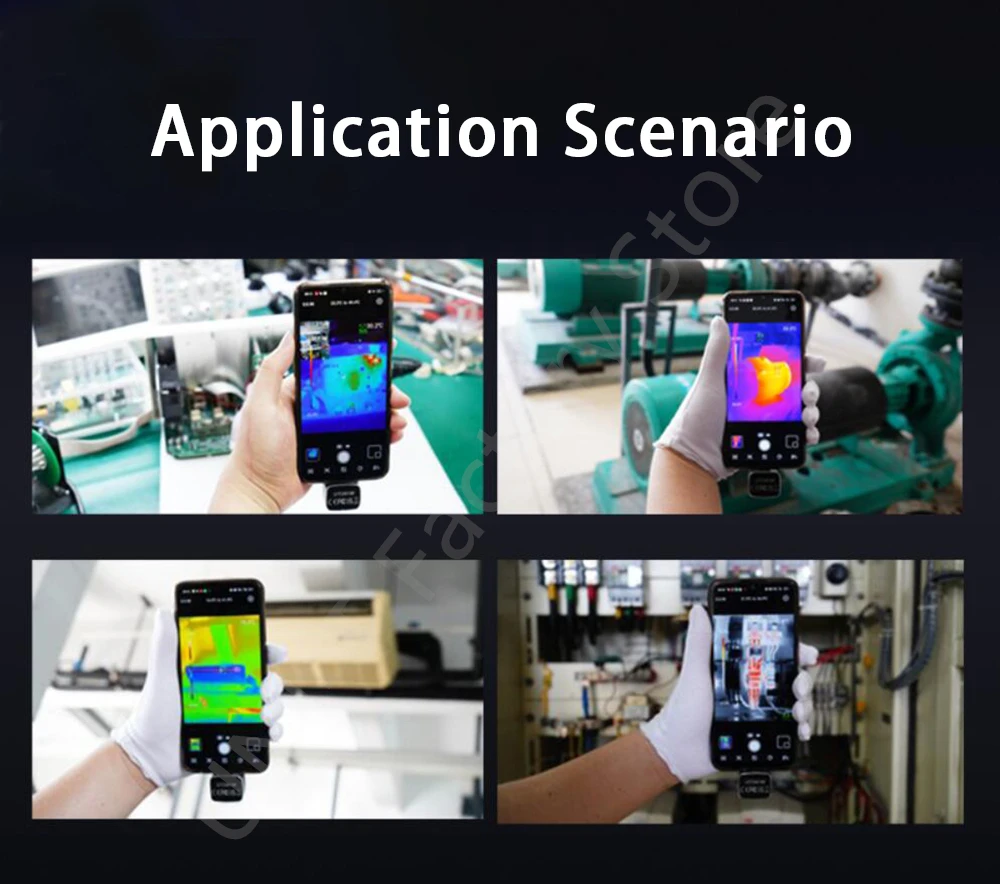

The UTi261M infrared thermal imager can be used in conjunction with mobile phones for infrared thermal imaging temperature measurement. It is compact, portable, and easy to operate. two hundred and fifty-six × 192 pixels, delicate image quality for physical examination. The manual focusing function allows for clearer details on top of excellent imaging. 25Hz frame rate, smooth video without lag, allowing you to quickly and conveniently discover hidden problems- A wide range of 20-450 ℃, covering a wide range of applications, and can also achieve real-time temperature measurement, night vision, photography, video recording and other functions through mobile apps. It is a versatile assistant for your daily work, home life, and adventure travel.

Main Features of UTi261M Product

* Industrial temperature measurement range: -20 ℃~450 ℃

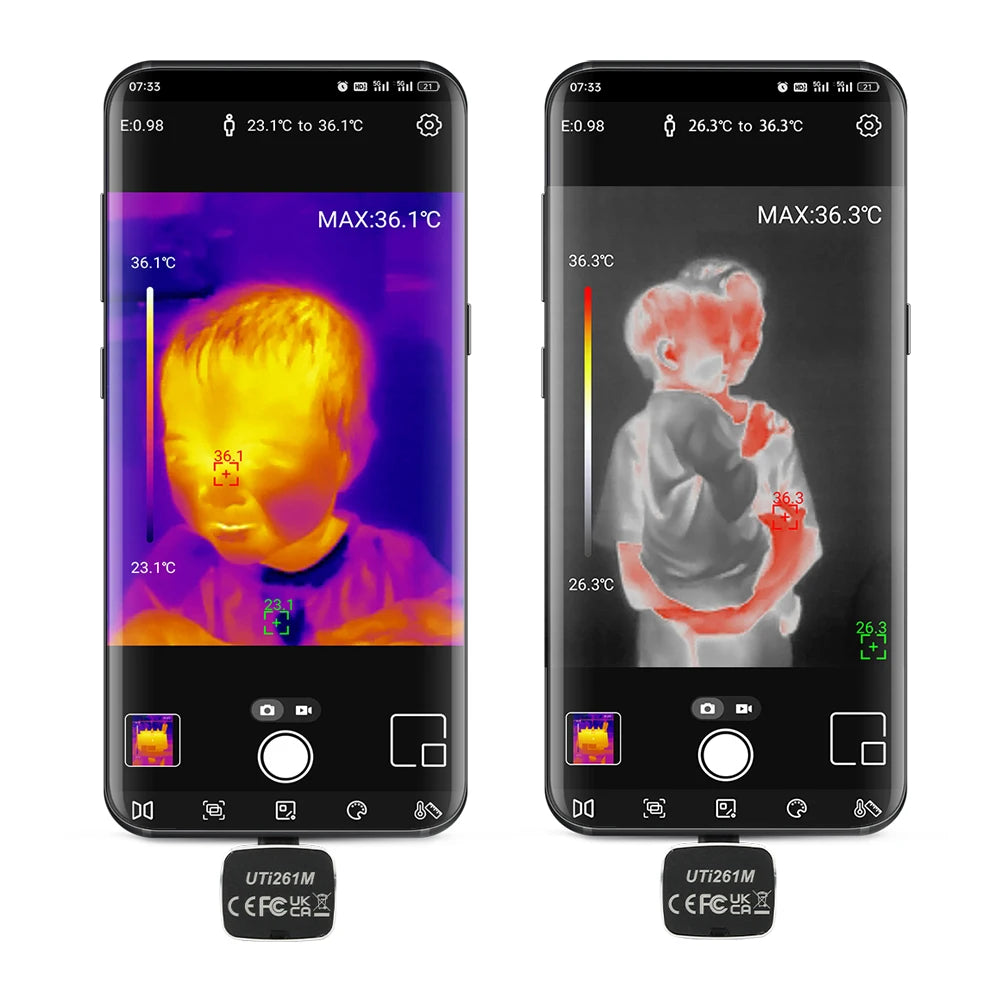

* Body temperature screening mode: 20 ℃~50 ℃

* Infrared resolution: 256x192

* Frame rate: 25Hz

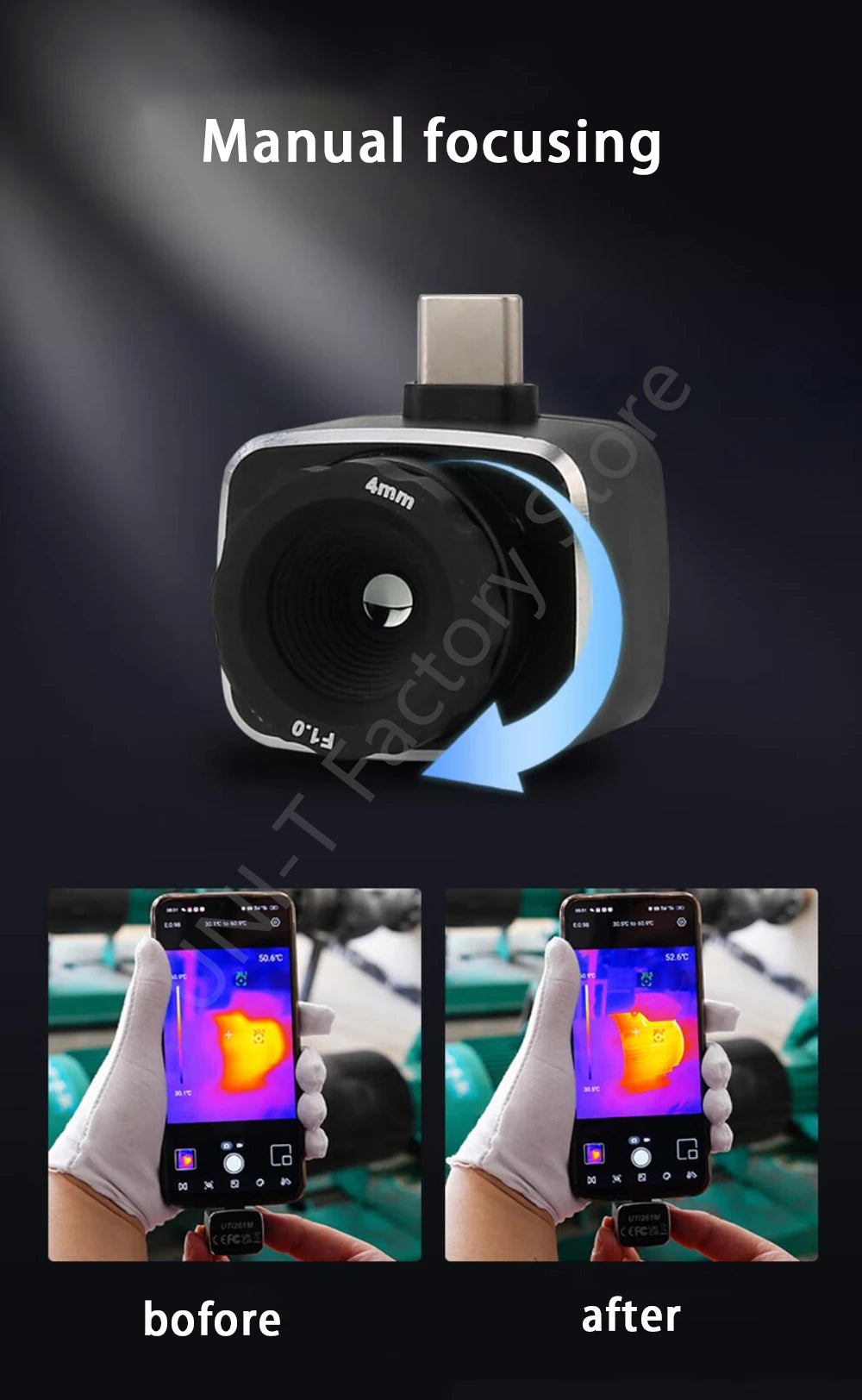

* Manual focusing

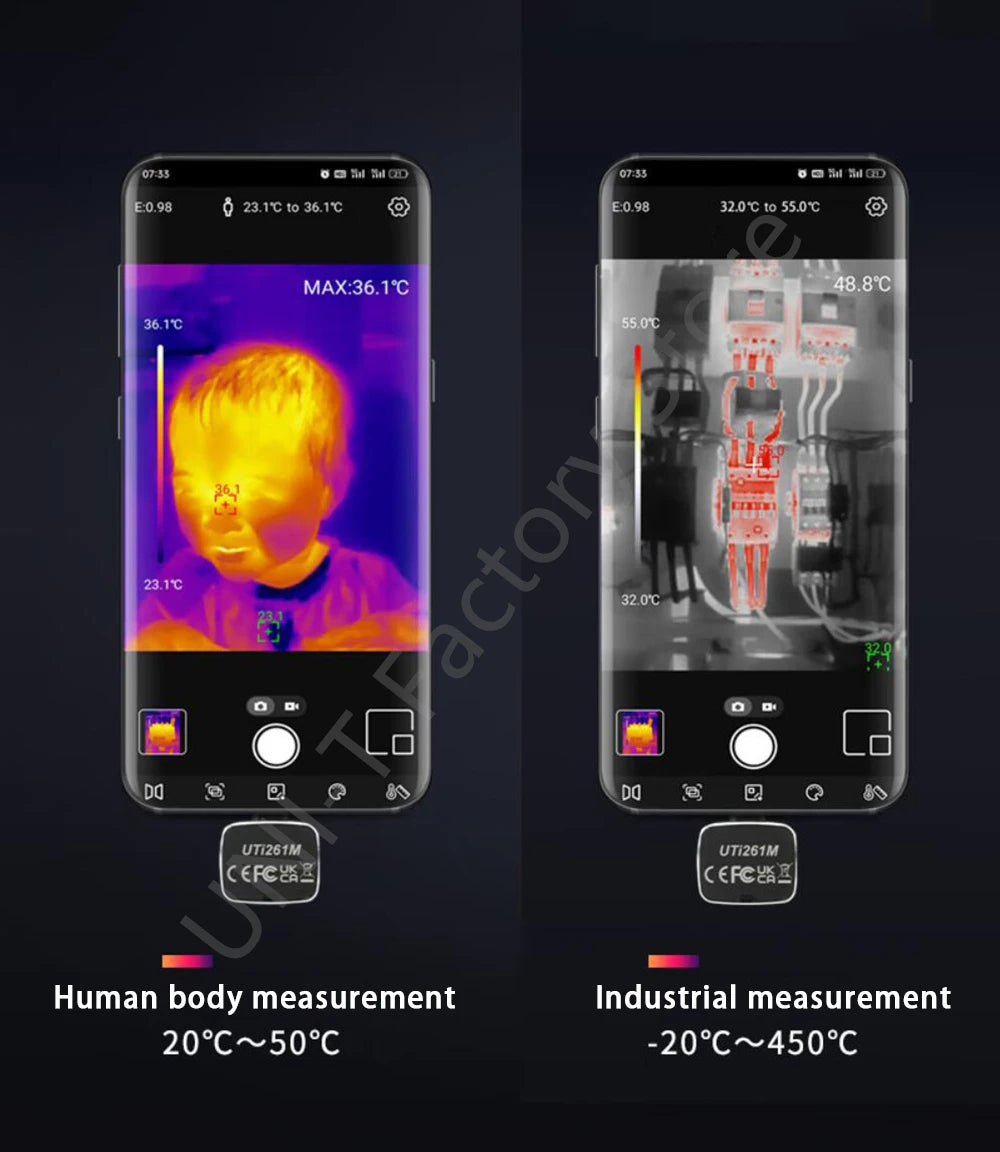

* Temperature measurement mode selection: industrial temperature measurement and body temperature screening mode

* Automatic rotation of screen image display

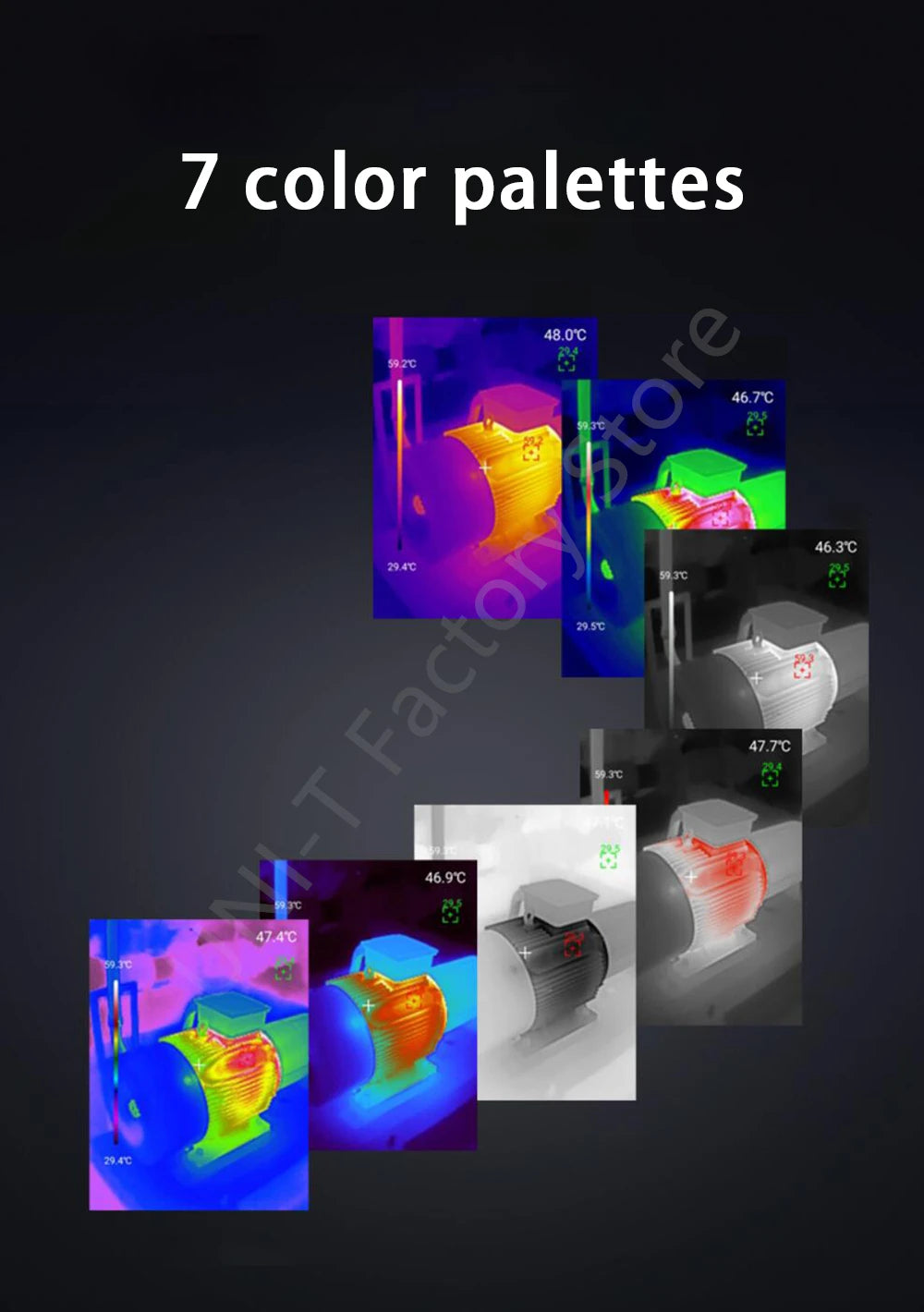

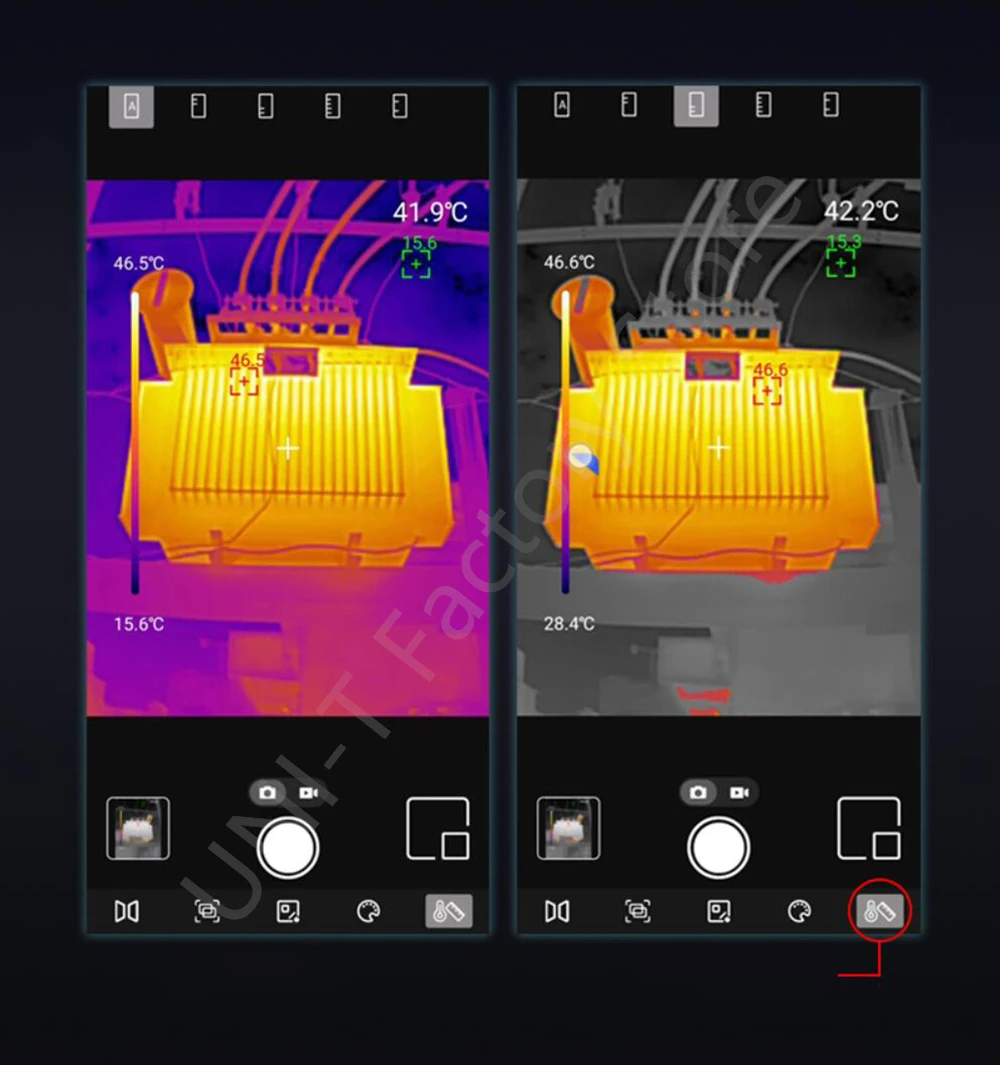

* Seven adjustable color palettes

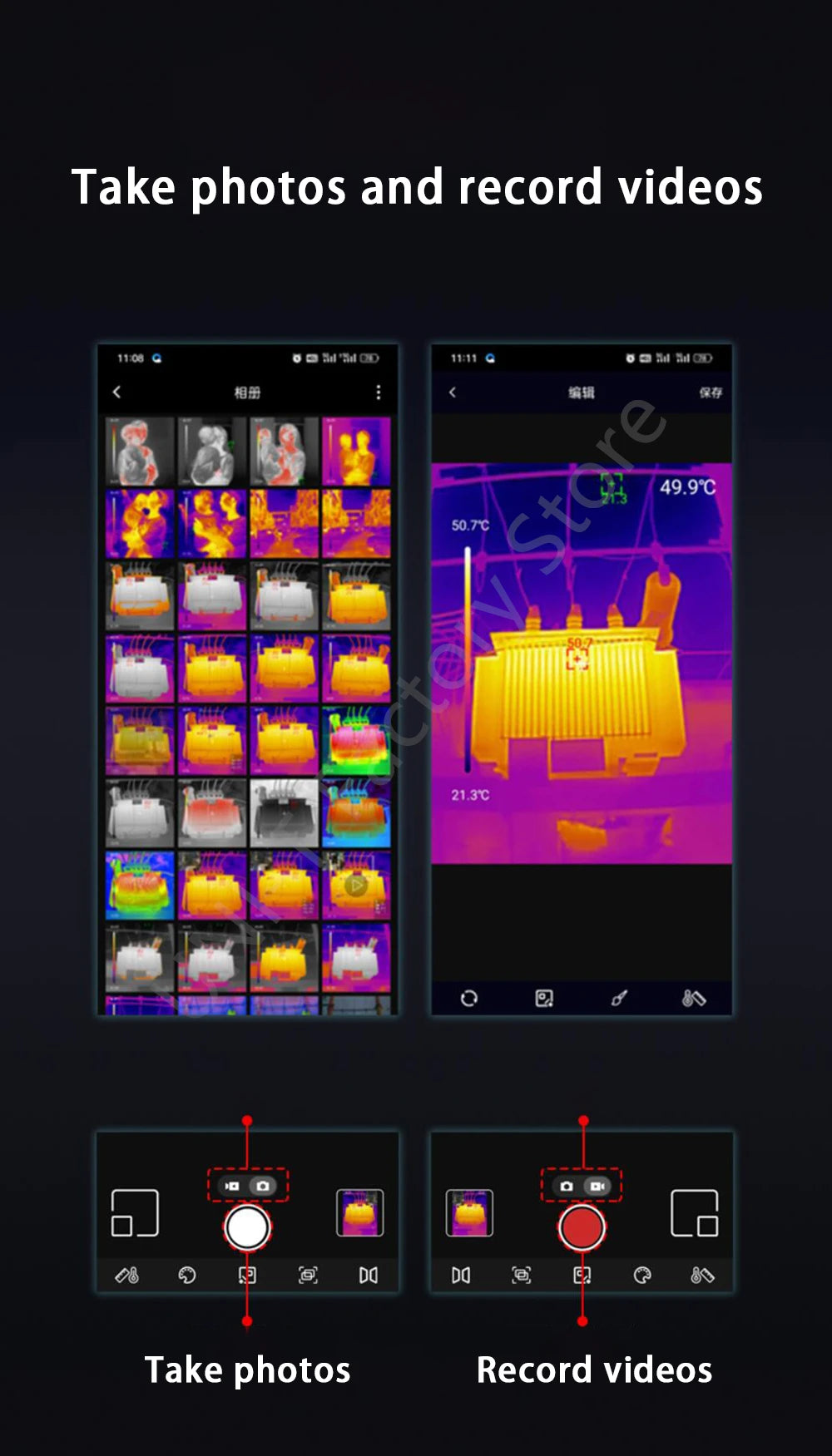

* Real time images can be taken and recorded

* Can add points, lines, and rectangles to analyze objects

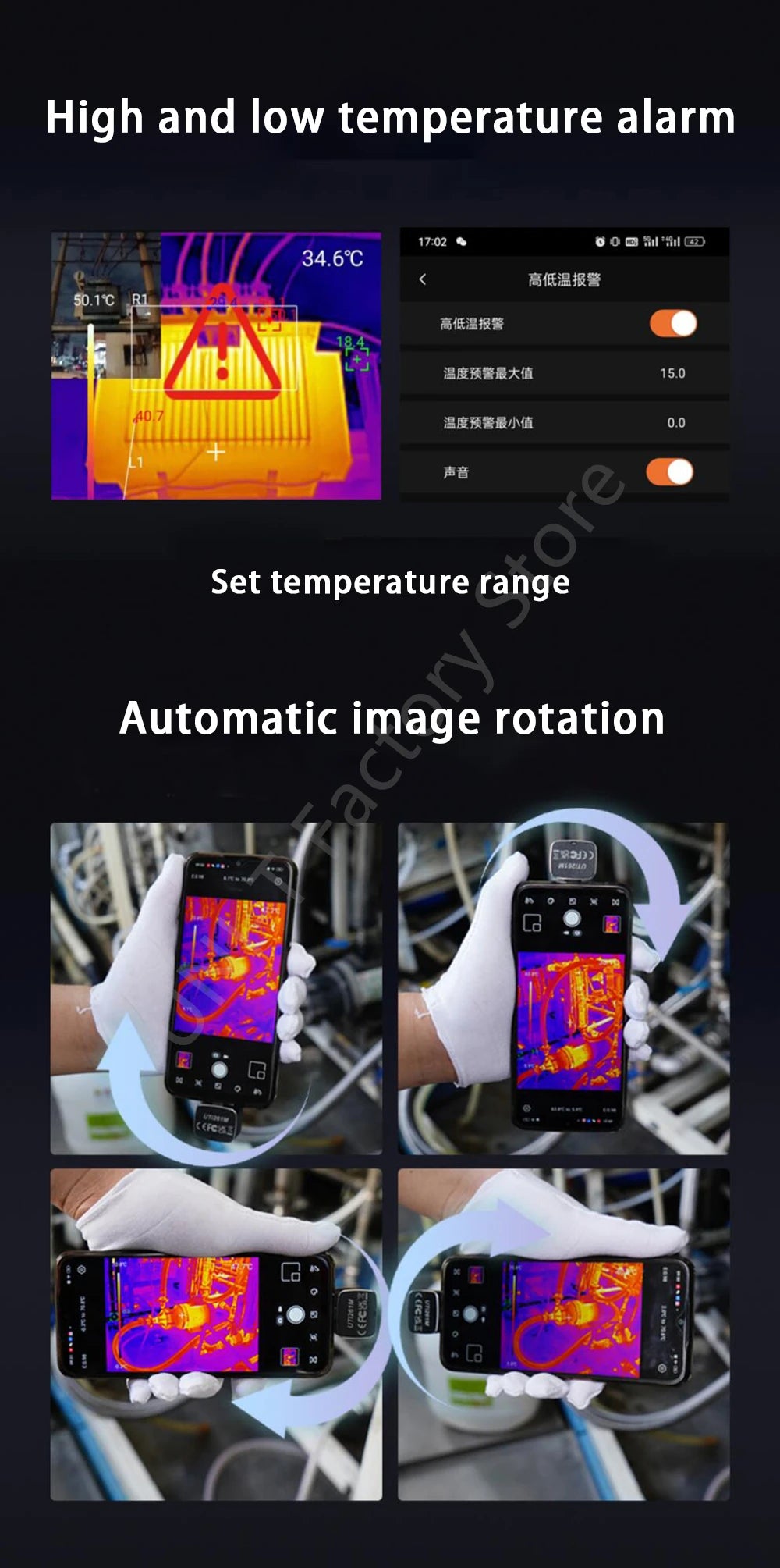

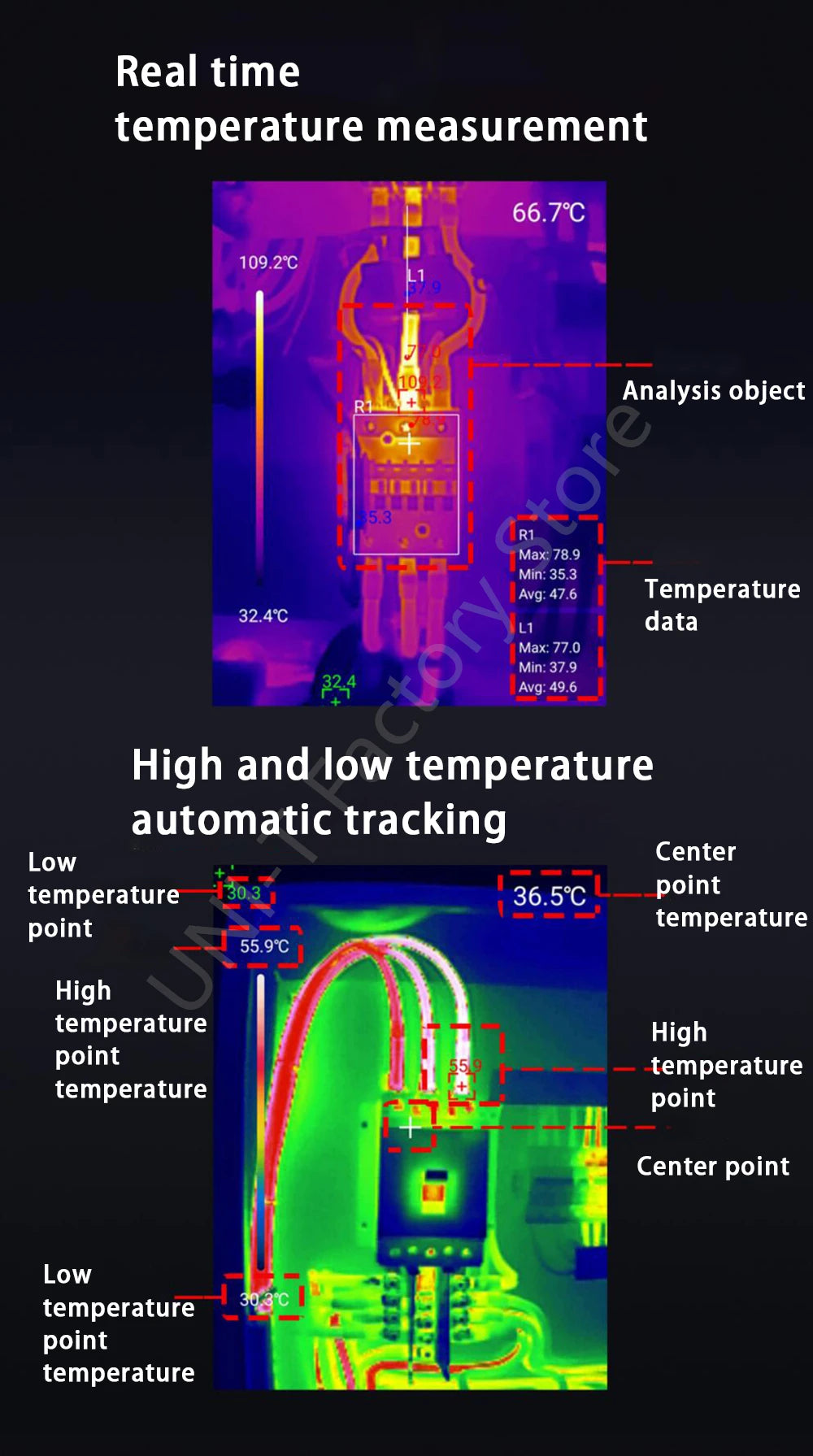

* Center point temperature measurement, high/low temperature tracking, high/low temperature sound alarm

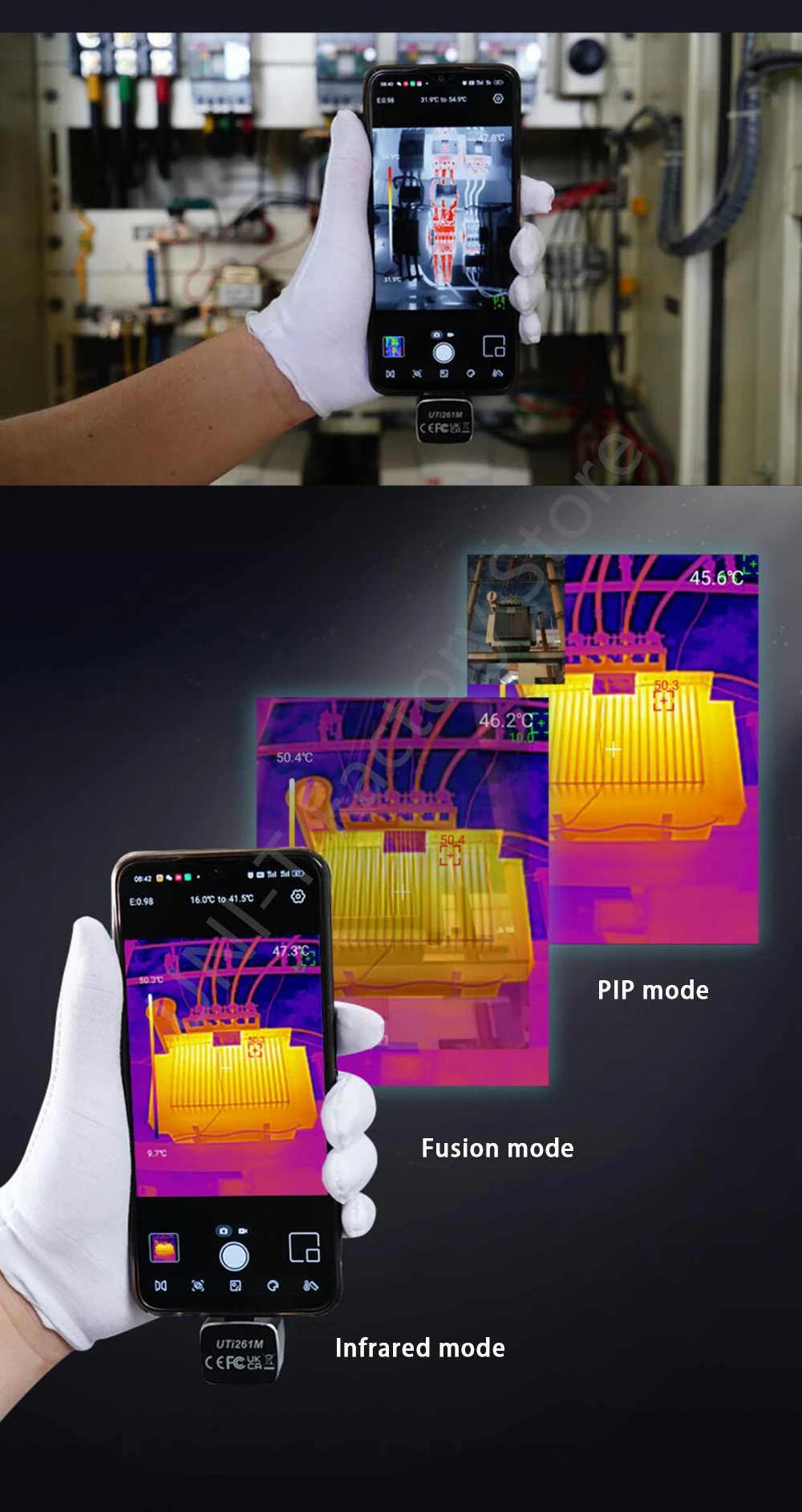

* Can be integrated with mobile digital cameras and in picture in picture mode
