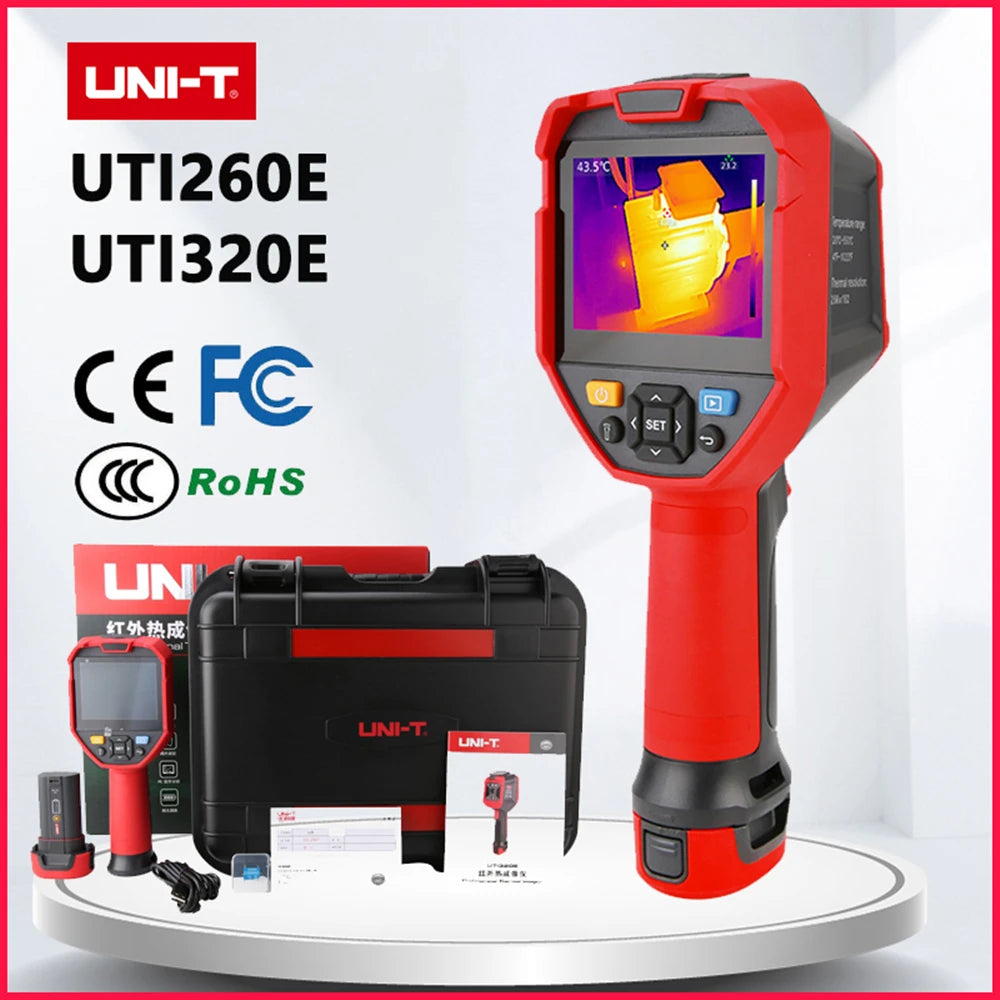

Termógrafo Infrarrojo UNI-T UTi320E / UTi260E Alta Resolución - Cámara Térmica Portátil Detección PCB/Calefacción Suelo
Termógrafo Infrarrojo UNI-T UTi320E / UTi260E Alta Resolución - Cámara Térmica Portátil Detección PCB/Calefacción Suelo
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: UNI-T
Certification: CE
Display Size: 2.0 - 3.9 Inches
Hign-concerned Chemical: None
Is Smart Device: YES
Origin: Mainland China
Power Type: AAA Battery
Style: Handheld

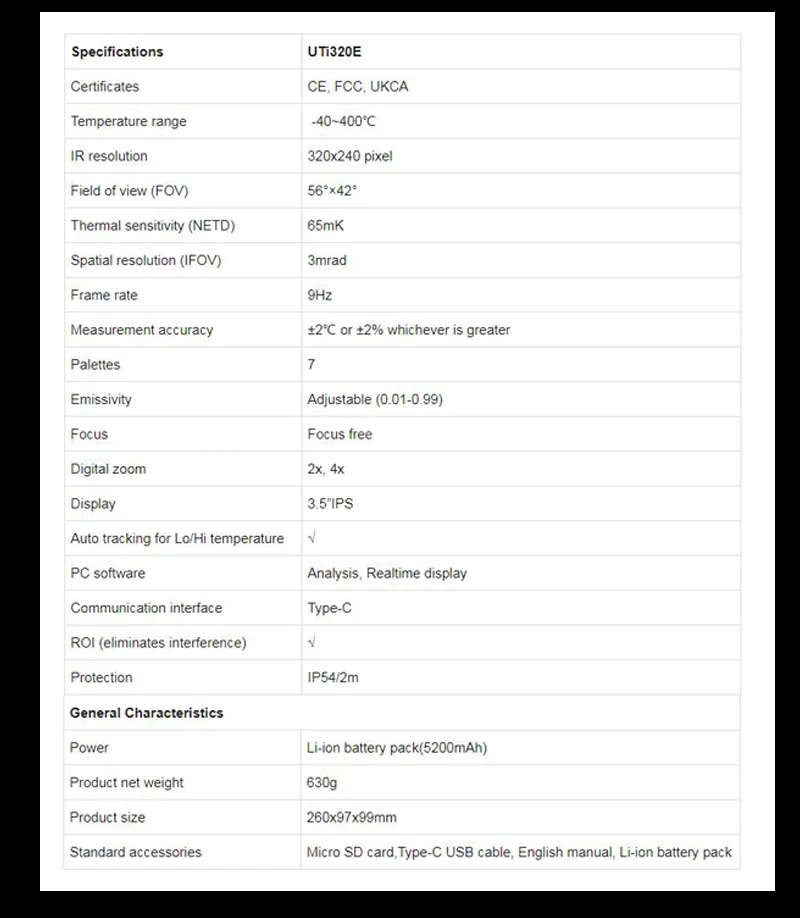

UNI-T Model: UTi320E

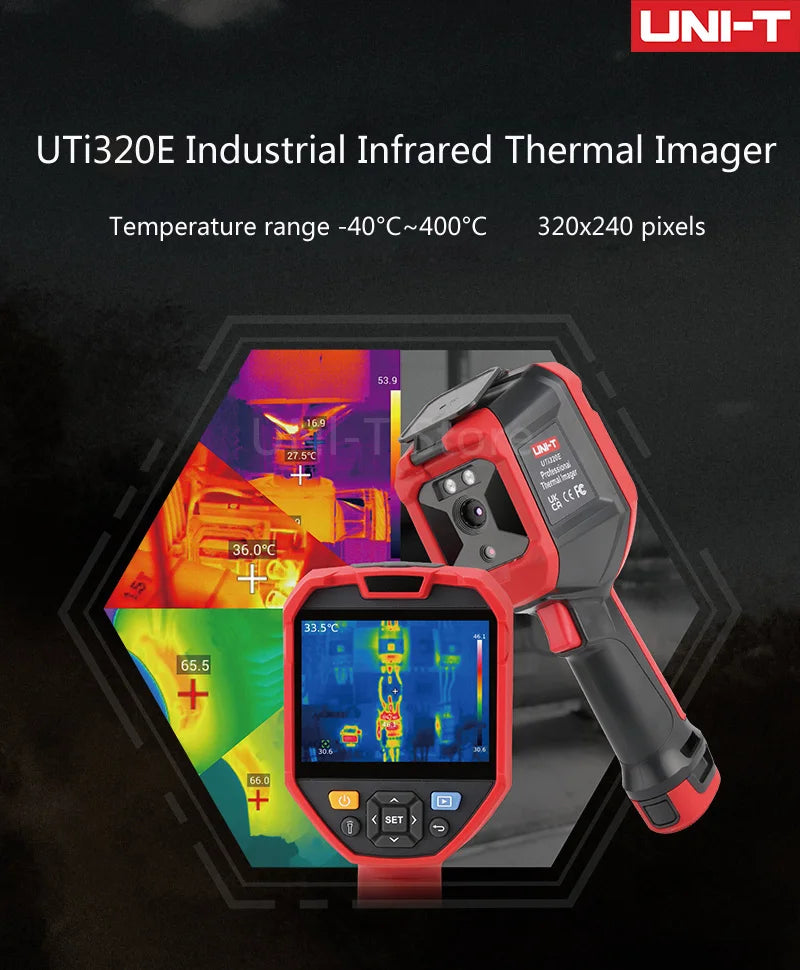

UNI-T Infrared Thermal Imager Camera UTi320E UTi260E Handheld 320 x 240 PCB Circuit Industria lInfrared Thermometer
UTi260E/UTi320E handheld thermal imager, in the imaging 3.5" display with clear infrared resolution and 200w visible pixels, center point temperature measurement/high and low temperature automatic tracking/custom analysis object/isotherm custom limit temperature function is more conducive to the rapid detection of abnormalities or want to observe the part.
Features of UTi260E handheld thermal imager： | |
1. |
IR resolution: 256x192 |
2. |
Frequency frame: 25Hz |
3. |
Temperature range: -20℃ to 550℃ |
4. |
Temperature measurement accuracy: ±2℃/±2% |
5. |

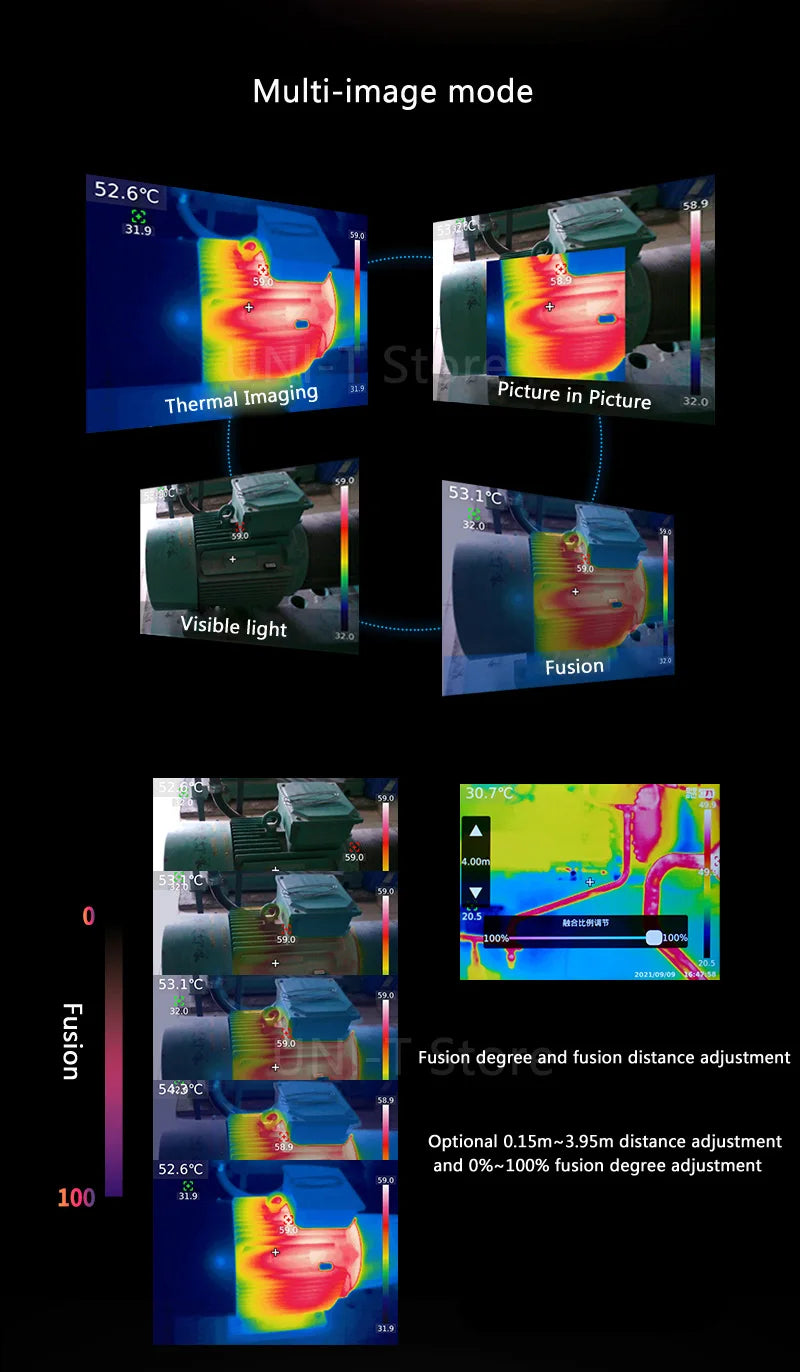

Support visible light fusion (200W visible light pixels) |
6. |
Digital zoom: 2x , 4x |
7. |
LED illumination |
8. |

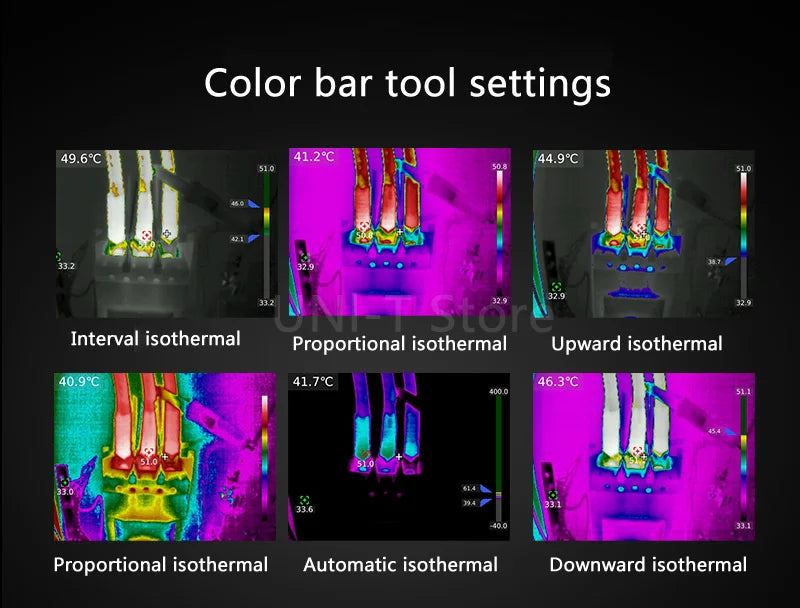

Isotherm function |
9. |

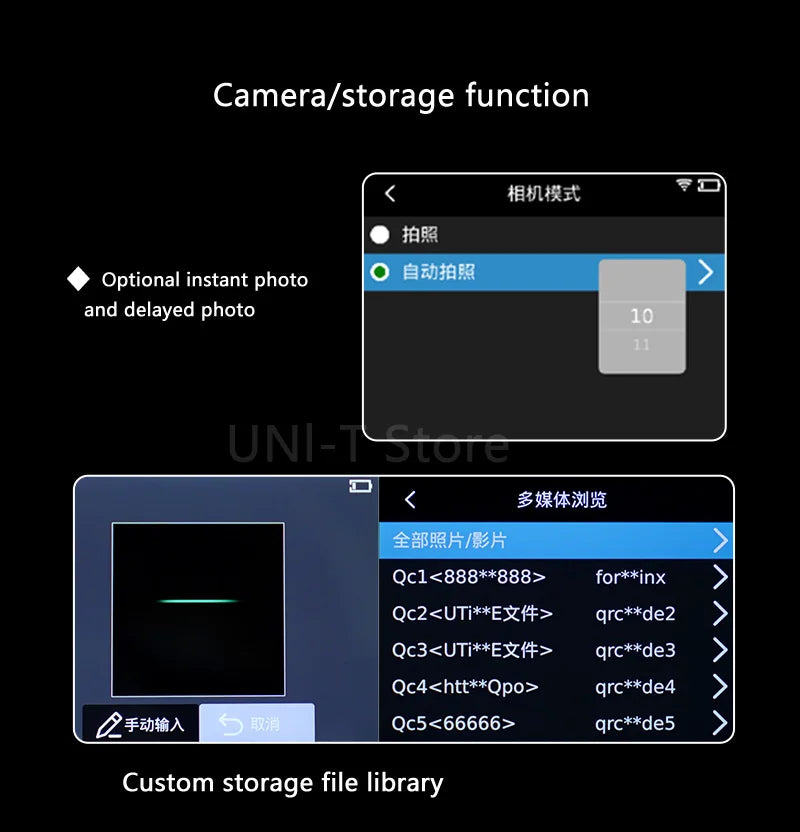

Customized image storage file library |
10. |
High and low temperature limit alarm |
11. |
Fast hot and cold spot tracking |
12. |
Customized temperature measurement ( point, rectangle, circle, line ) |
13. |

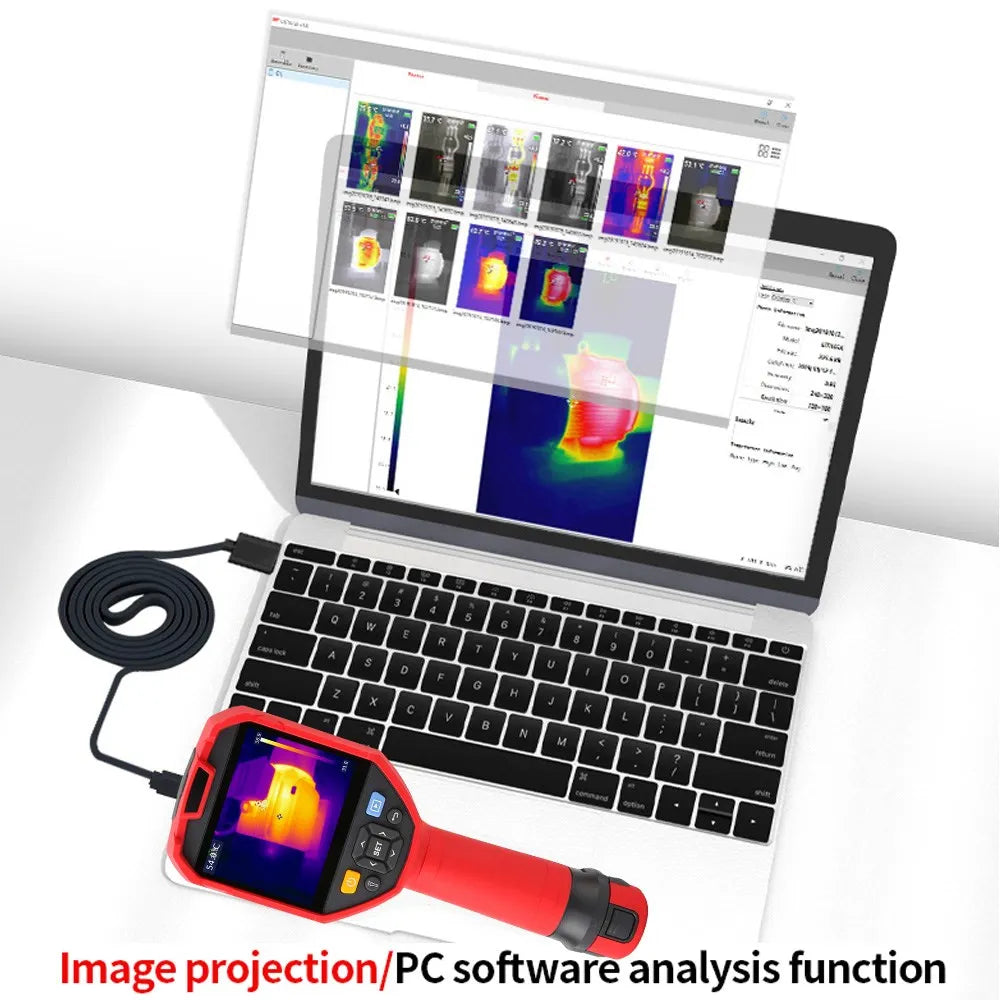

PC analysis software + PC screen projection software |
14. |
Mobile APP support Wi-Fi photo download |
15. |

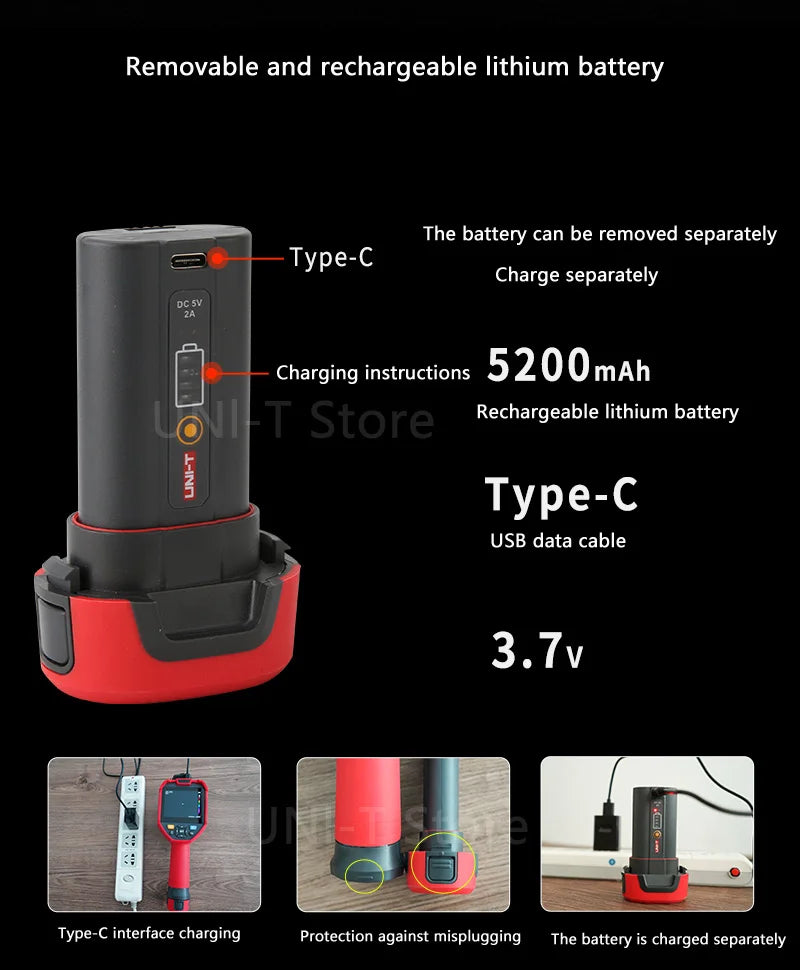

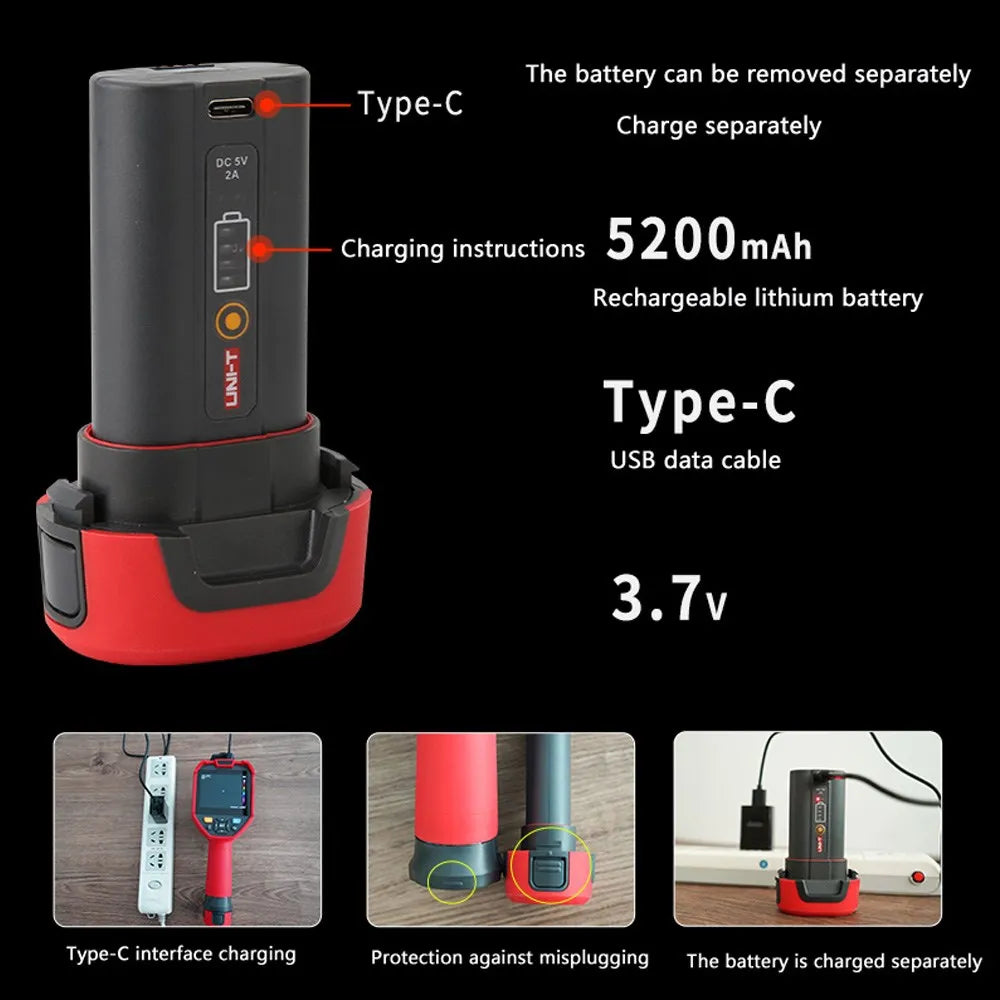

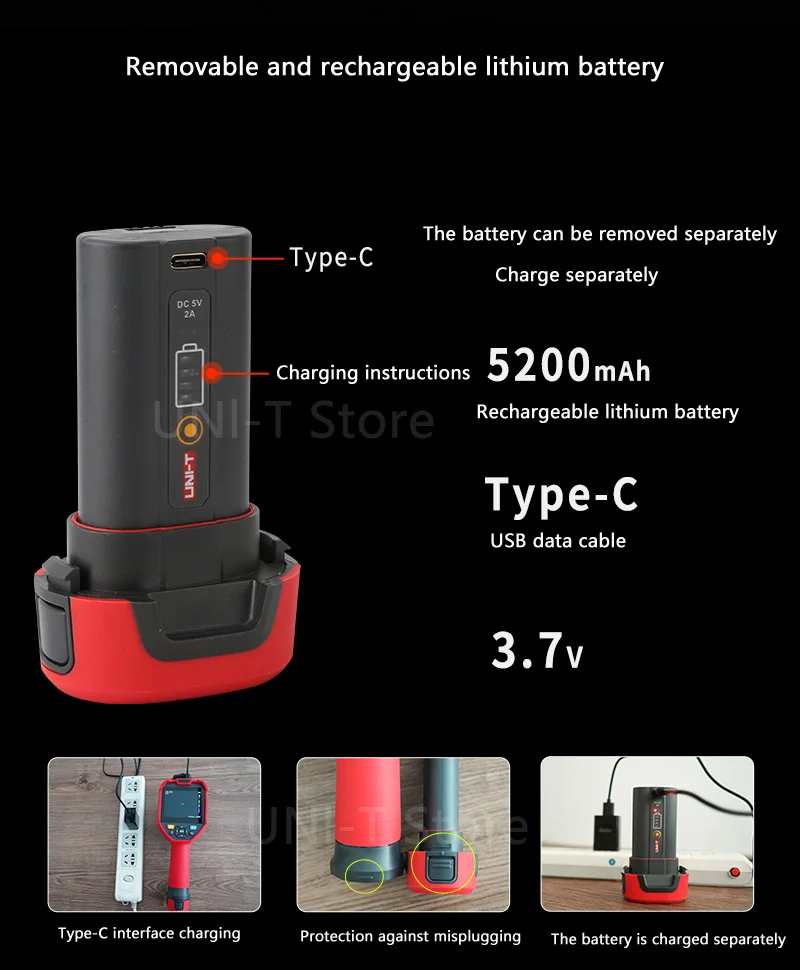

Type C direct charging / removable lithium battery, battery pack can be charged separately |
16. |
IP54 protection level, 2m drop |
Features of UTi320E handheld thermal imager： | |
1. |
3.5" IPS screen (640*480) |
2. |
IR resolution: 320x240 |
3. |
Frequency frame: 9Hz |
4. |
Temperature measurement range: -40℃ to 400℃ |
5. |
Temperature measurement accuracy: ±2℃ / ±2% |
6. |
Support visible light fusion (200W visible light pixels) |
7. |
Digital zoom: 2x , 4x |
8. |
LED illumination |
9. |
Isotherm function |
10. |
Customized image storage file library |
11. |
High and low temperature limit alarm |
12. |
Fast hot and cold spot tracking |
13. |
Customized temperature measurement ( point, rectangle, circle, line ) |
14. |
PC analysis software + PC screen projection software |
15. |
Mobile APP support Wi-Fi photo download |
16. |
Type C direct charging / removable lithium battery, battery pack can be charged separately |
17. |
IP54 protection level, 2m drop |

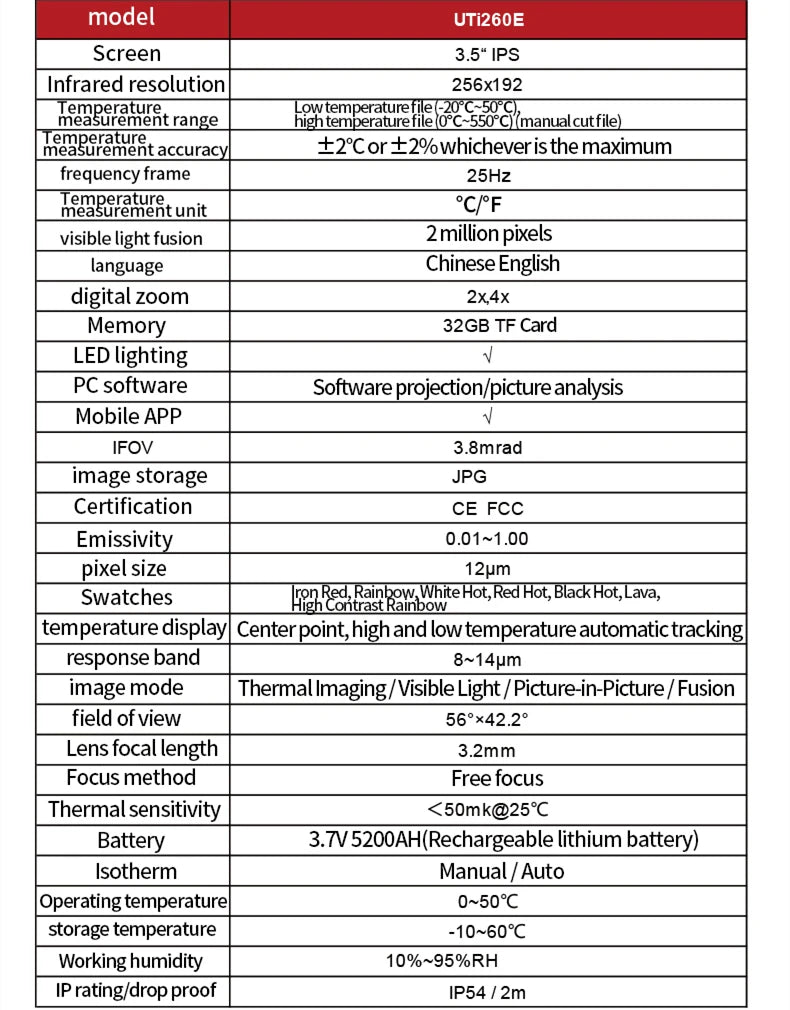

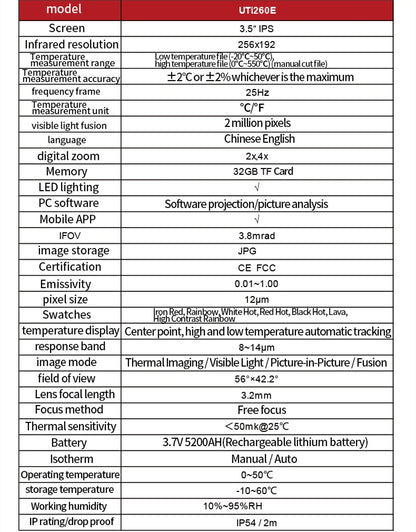

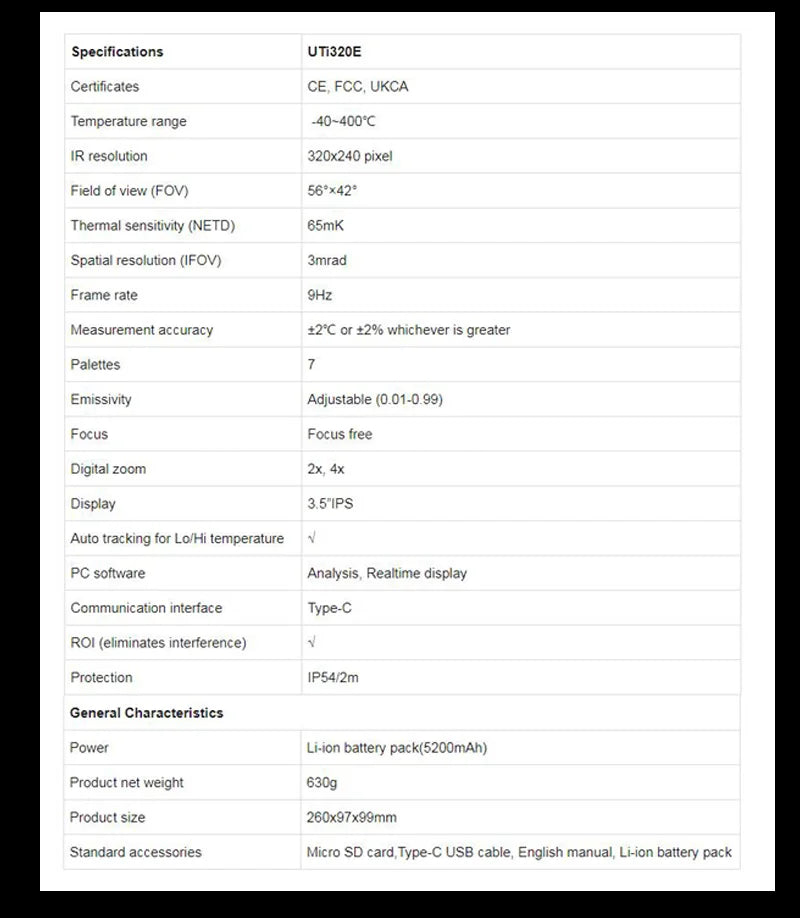

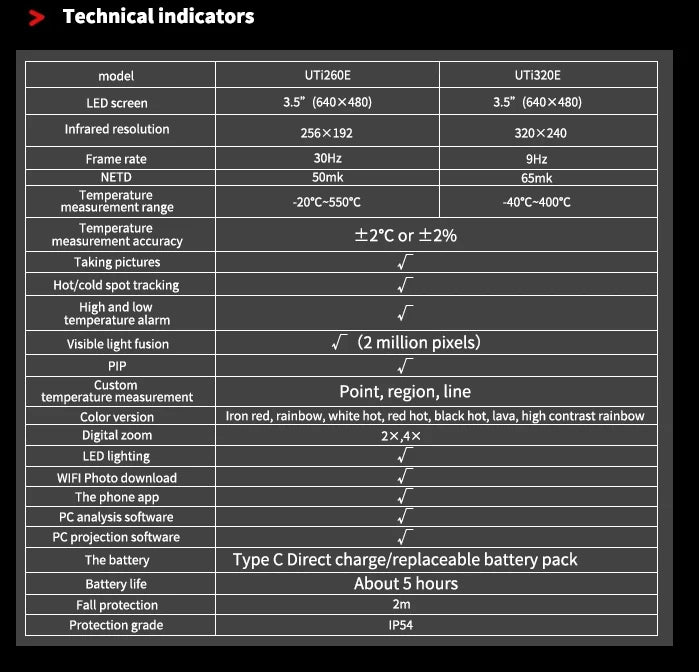

Model |
UTi260E |
UTi320E |
LED screen |
3.5’’(640*480) |
3.5’’(640*480) |
Infrared resolution |
256*192 |
320*240 |
Frame rate |
30Hz |
9Hz |
NETD |
50mk |
65mk |
Temperature measurement range |
-20℃-550℃ |
-40℃-400℃ |
Tempersture measurement accuracy |
±2℃or ±2% |
|
Taking pictures |
√ |
|
Hot/cold spot tracking |
√ |
|

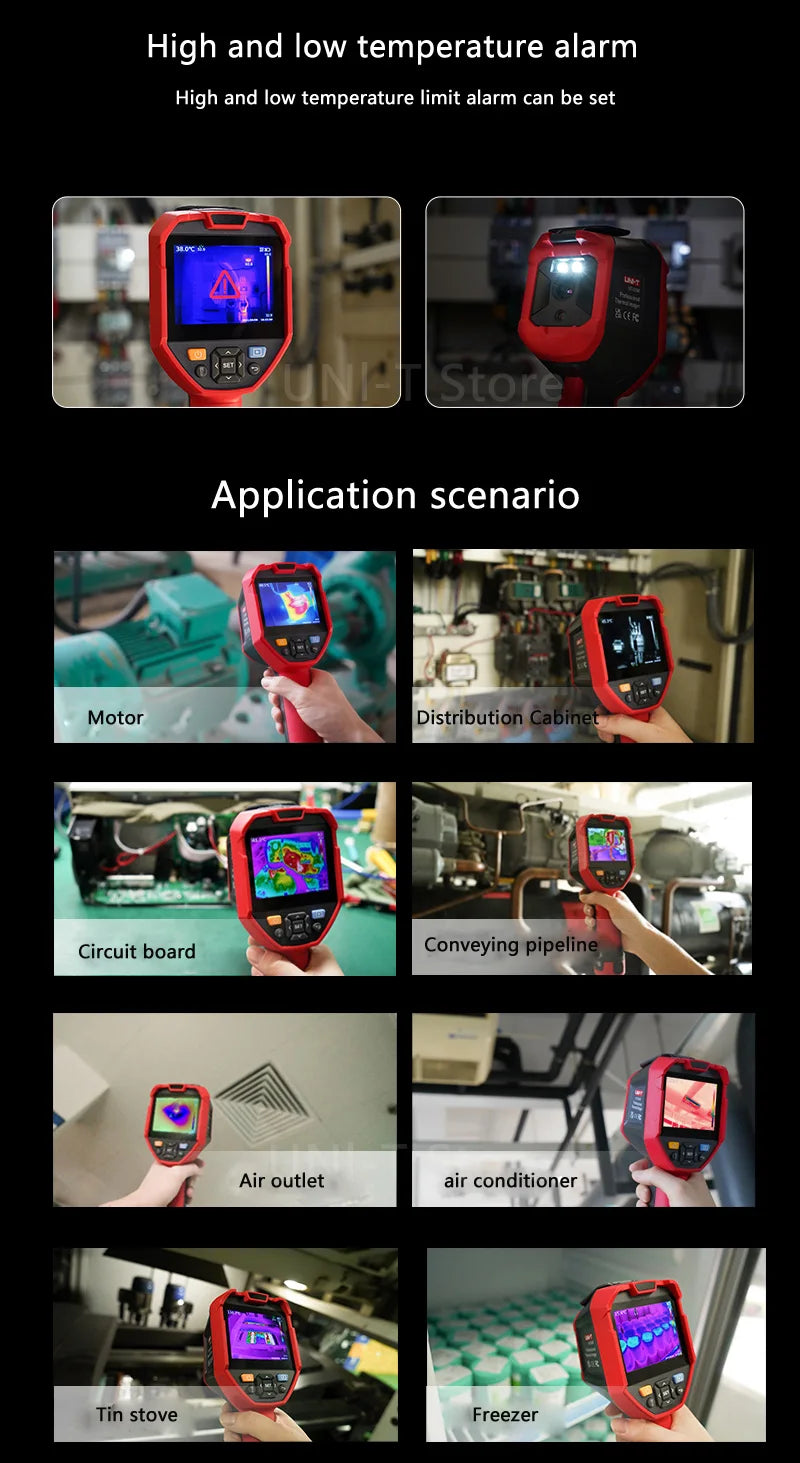

High and low temperature alarm |
√ |
|
Visible light fusion |
√(2 million pixels) |
|

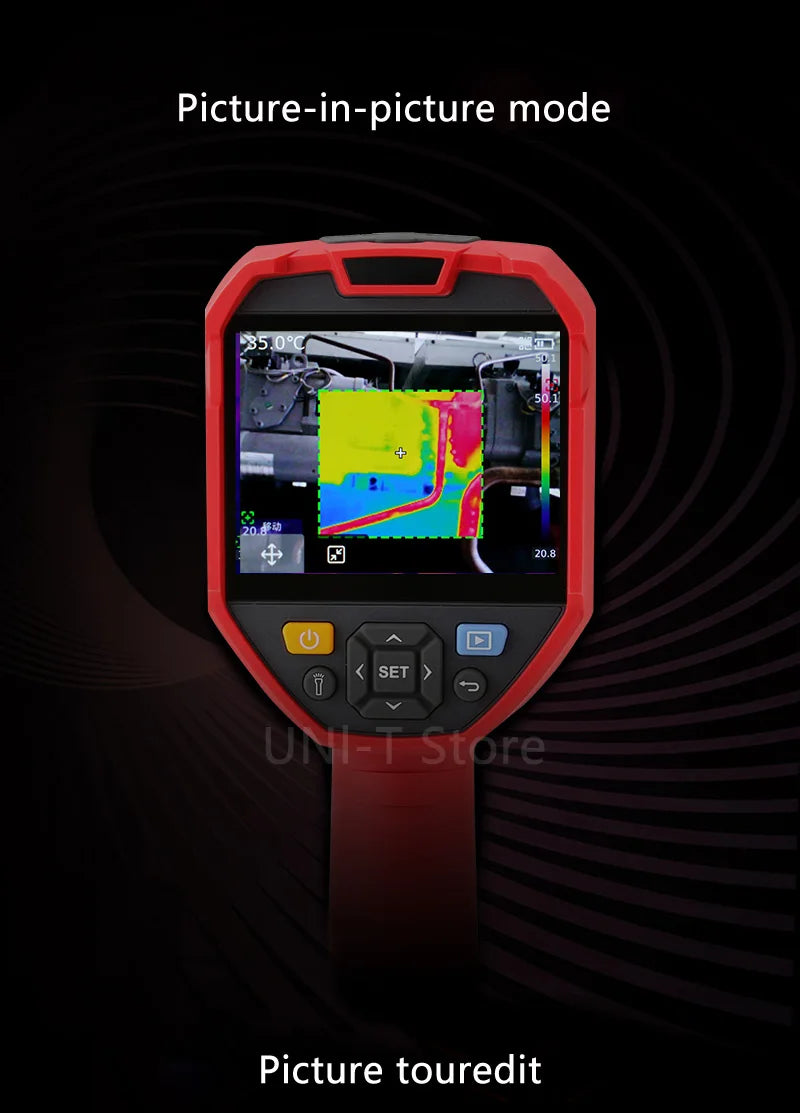

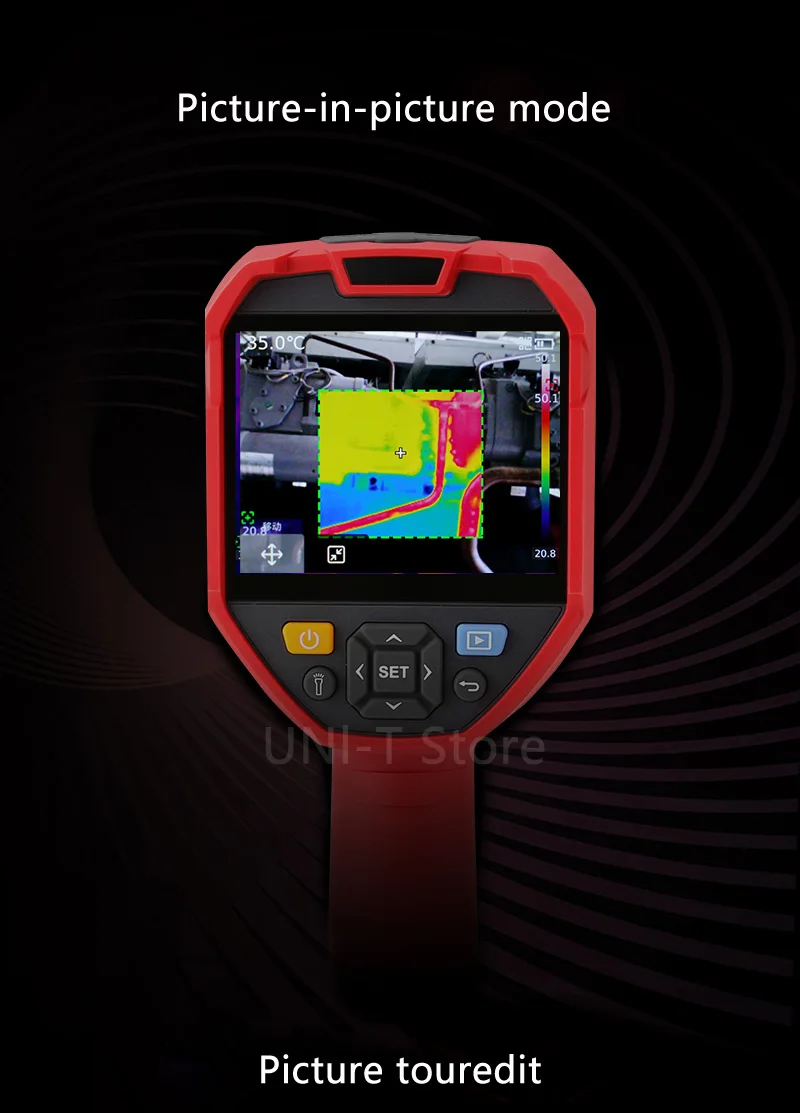

PIP |
√ |
|

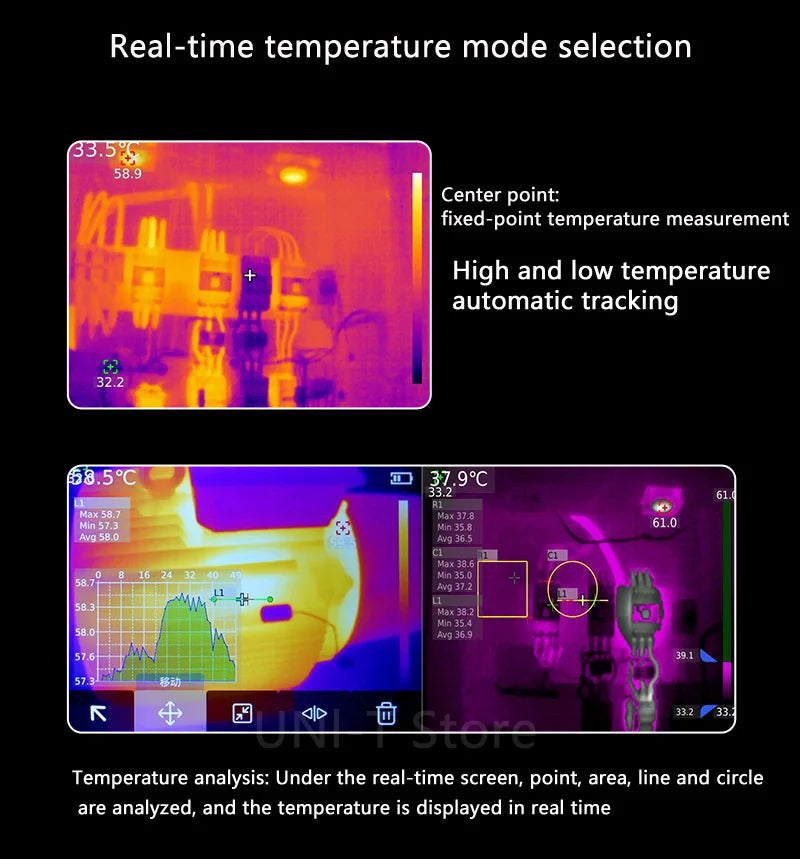

Custom temperature measurement |
Point,region,line |
|

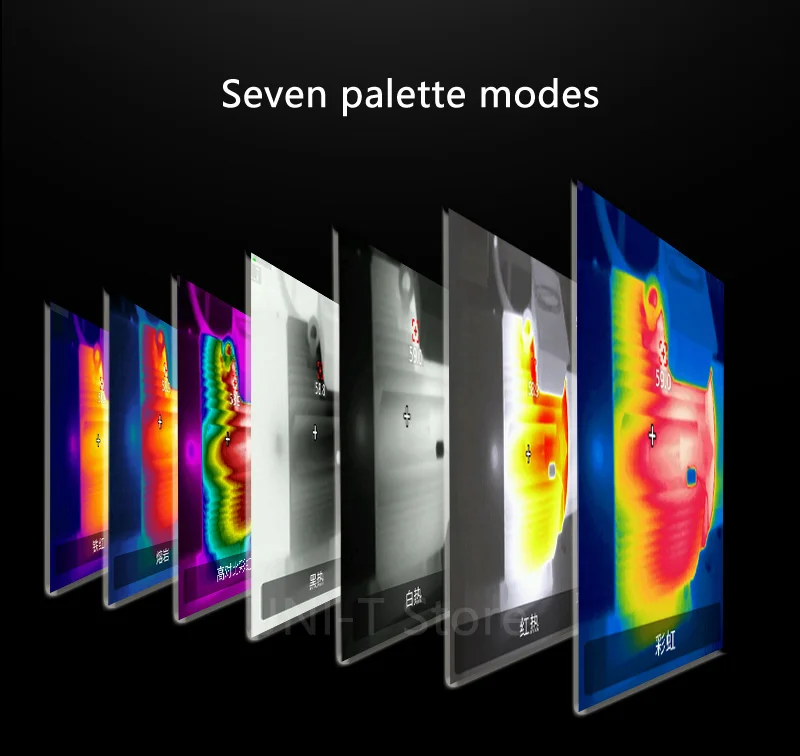

Color version |
Iron red,rainbow,white hot,red hot,lava,high contrast rainbow |
|
Digital zoom |
2x,4x |
|
LED lighting |
√ |
|
WIFI Photo download |
√ |
|
The phone app |
√ |
|
PC analysis software |
√ |
|
PC projection software |
√ |
|
The battery |
Type C Direct charge/replaceabel battery pack |
|
Battery life |
About 5 hours |
|
Fall protection |
2m |
|
Protection |
IP54 |
|
